Ford C-MAX Hybrid / Energi (2016 year). Manual - part 24

Settings

—

Choose
desired speed
or off

Max Speed

—

Choose
desired speed
or off

Speed
Warning

—

On or Off

Volume
Limiter

—

Hold OK to
Clear All
MyKeys

Clear MyKeys

—

Select the
desired
language

Language

Display

Select the desired units of measure

Distance

Units

Fahrenheit (°F) or Celsius (°C)

Temperature

—

On or Off

Brake Coach

—

On or Off

Regen Active

—

On or Off

Charge Assist

—

Hold OK to
Reset

Driving History

Right Information Display Controls

E179398

•

Press the up and down arrow buttons
to scroll through and highlight the
options within a menu.

•

Press the right arrow button to enter a
sub-menu.

•

Press the left arrow button to exit a
menu.

•

Press the OK button to choose and
confirm your selection.

Main menu

From the main menu bar on the right side
of the information display, you can choose
from the following categories:

Entertainment

See your SYNC information.

Navigation or Compass

See your SYNC information.

Phone

See your SYNC information.

Fuel Economy

Use the up or down arrow buttons to
choose between the following display
options.

Note: The information display will remember the menu level 2 state when you change the
individual key state from the RUN to the OFF position.

Fuel Economy

Menu level 5

Menu level 4

Menu level 3

Menu level 2

—

—

Help

Efficiency Leaves

—

5, 10 or 30 minutes

Duration

Fuel History
(Instantaneous Fuel
Economy + Fuel
Economy History + Avg
Fuel Economy)

—

—

Help

—

—

Help

Coach

Efficiency Leaves

Efficiency leaves indicate short term driving
efficiency measured over the last few
minutes. The more leaves and vines that
appear on the display, the better your fuel
economy. Leaves and vines will
occasionally appear and disappear to
indicate a change in your driving efficiency.

Fuel History

From left to right this view includes an
instantaneous fuel economy gauge,
historical fuel economy data and average
fuel economy. The historical data
represents an average over time intervals
of either 1, 2 or 6 minutes, with the leftmost
interval being the most recent. Shown at
the bottom of the view is the total time

duration for the 5 intervals. You can select
total duration in the options menu.
Intervals shown in grey color are from the
previous drive. The blue horizontal line
represents the average fuel economy value
shown to the right.

Note: Hold OK to reset average fuel
economy.

Coach

This view provides a comparison of your
recent acceleration, braking and cruising
behavior, then recommends the most
efficient use of energy under present
conditions. The horizontal bars fill from left
to right with best behavior and appear blue
when at least half full. When the bars are
less than half full, the color is amber,
suggesting that you need a change in your
driving behavior to achieve better energy
efficiency.

Note: Fuel Economy will be impacted by
your use of brakes, accelerator and
accessories, as well as environmental
conditions such as hills and weather.

Note: Fuel economy is not always a
measure of appropriate driving behavior. For
example, when driving uphill and
maintaining an appropriate speed, your
instant fuel economy may not be good
(losing leaves) but the Coach may show a
blue bar for Acceleration and Cruising.

Common Displays

Both Average fuel economy and an
instantaneous fuel economy gauge are
included in Engage, Empower, MyView (if
selected) and Fuel Economy (shown in
Hybrid Mode) on the left information
display. They are also included in Fuel
History on the right information display.

Average Fuel Economy

Average Fuel Economy is continuously
averaged since the last reset. You can reset
your average fuel economy by pressing and
holding the OK button on the
corresponding steering wheel controls. For
Energi vehicles both Hybrid and Plug-in
Power mode operation will be included in
the calculation.

Note: Average fuel economy cannot be
reset in MyView.

Instantaneous Fuel Economy

If your instantaneous fuel economy is
greater than the maximum value
displayed, a + sign will be shown next to
the maximum scale number. When your
vehicle is operating on battery power only,
EV will display and the gauge fill will show
in blue.

INFORMATION MESSAGES

Note: Depending on the vehicle options
equipped with your vehicle, not all of the
messages display or are available. Certain
messages may be abbreviated or shortened
depending upon which cluster type you
have.

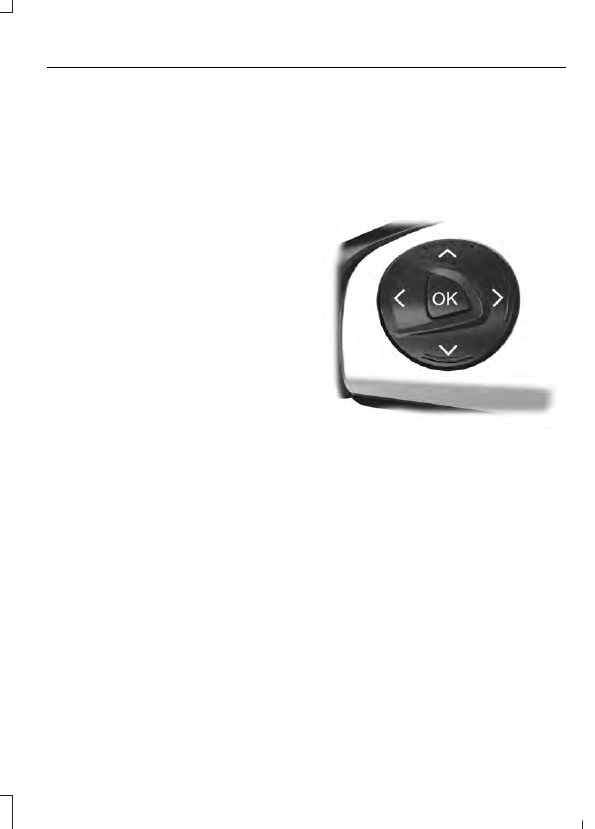

E130248

Press the OK button to acknowledge and
remove some messages from the
information display. Other messages are
be removed automatically after a short
time.

Certain messages need to be confirmed
before you can access the menus.

AdvanceTrac®

Action

Message

Displayed when the system has detected a condition that
requires service. Contact your authorized dealer as soon as
possible.

Service AdvanceTrac

Alarm

Action

Message

Displays when the alarm has been triggered due to unauthor-
ized entry.  See Anti-Theft Alarm (page 66).

Vehicle Alarm To Stop

Alarm, Start Vehicle.

Battery and Charging System (High Voltage)

Action

Message

Your vehicle needs confirmation it is unplugged before
allowing a start. You must make sure your vehicle is unplugged
and you respond to the message prompt before starting your
vehicle.

Vehicle Plugged In ? Yes

No

Your vehicle detects it is still plugged in and you attempt to
start it.

Unplug Prior to Starting

Vehicle

Your vehicle is ready to drive.

Ready to Drive

Your vehicle is ready to drive. You have XXX% plug-in energy
available.

Ready to Drive XXX%

Charged

You selected EV Now mode with the EV button.

EV Now Battery

Powered

You selected EV Later mode with the EV button.

EV Later XX% Plug-in

Energy Reserved

You selected Auto EV mode with the EV button.

Auto EV Normal Opera-

tion

EV Now is unavailable.

EV Now Not Available
