E138665

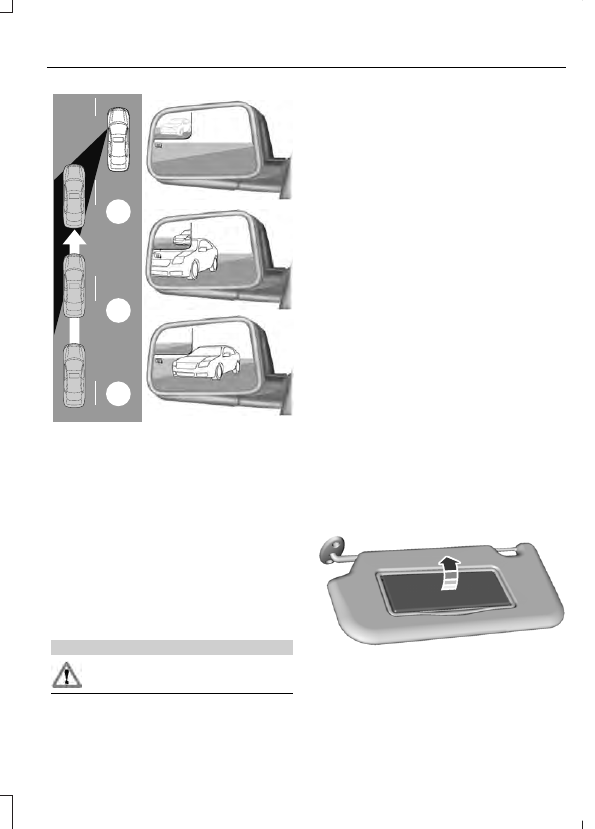

The image of the approaching vehicle is
small and near the inboard edge of the
main mirror when it is at a distance. The
image becomes larger and begins to move
outboard across the main mirror as the
vehicle approaches (A). The image will
transition from the main mirror and begin
to appear in the blind spot mirror as the
vehicle approaches (B). The vehicle will
transition to your peripheral field of view
as it leaves the blind spot mirror (C).

INTERIOR MIRROR

WARNING

Do not adjust the mirror when your
vehicle is moving.

Note: Do not clean the housing or glass of
any mirror with harsh abrasives, fuel or other
petroleum or ammonia-based cleaning
products.

You can adjust the interior mirror to your
preference. Some mirrors also have a
second pivot point. This lets you move the
mirror head up or down and from side to
side.

Pull the tab below the mirror toward you
to reduce glare at night.

Auto-Dimming Mirror

(If Equipped)

Note: Do not block the sensors on the front
and back of the mirror. Mirror performance
may be affected. A rear center passenger or
raised rear center head restraint may also
block light from reaching the sensor.

The mirror will dim automatically to reduce
glare when bright lights are detected from
behind your vehicle. It will automatically
return to normal reflection when you select
reverse gear to make sure you have a clear
view when backing up.

SUN VISORS

Illuminated Vanity Mirror

(If Equipped)

E162197

Lift the cover to switch the lamp on.

SUN SHADES

(If Equipped)

WARNINGS

Do not let children play with the sun
shade or leave them unattended in
the vehicle. They may seriously hurt

themselves.

When closing the sun shade, you
should verify that it is free of
obstructions and make sure that

children and pets are not in the proximity
of the sunshade.

The control is located in the overhead
console.

The sun shade has a one-touch open and
close feature. To stop motion during
one-touch operation, press the control a
second time.

Opening and Closing the Sun
Shade

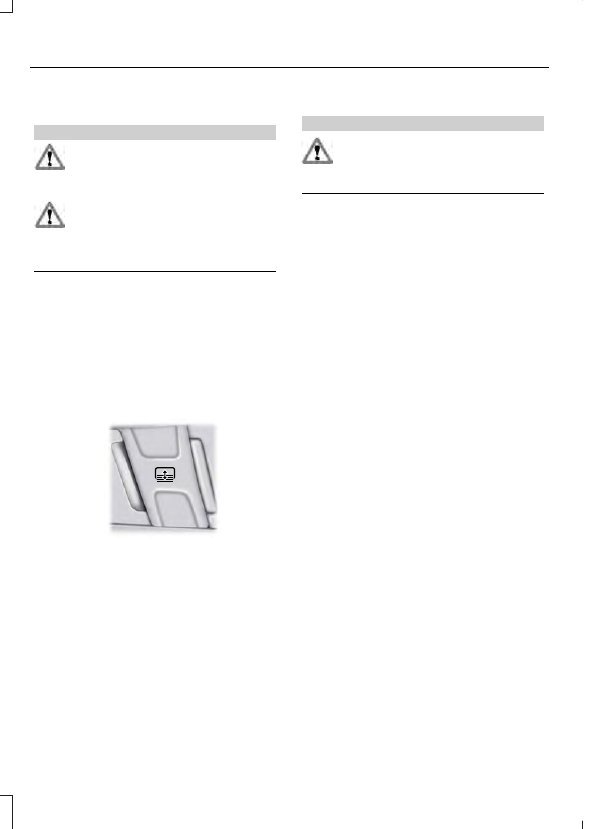

E138668

Fully press and release the front of the
control to open the sun shade.

Fully press and release the rear of the
control to close the sun shade.

Bounce-Back

The sun shade will stop automatically
while closing. It will reverse some distance
if there is an obstacle in the way.

Sun Shade Relearning

WARNING

The bounce-back function is not
active during this procedure. Make
sure that there are no obstacles in

the way of the moving sun shade.

Note: You must start the relearning process
within 30 seconds of switching the ignition
on.

In case the sun shade no longer opens or
closes properly, follow this relearning
procedure:

Press the front of the control to the first
action point twice and release it within
two seconds.

2. Press the rear of the control to the first

action point twice and release it within
two seconds.

3. Press and hold the front of the control

to the first action point, until the sun
shade fully opens.

4. Press and hold the rear of the control

to the first action point, until the sun
shade fully closes.

If you do not complete Step 2 within 15
seconds of Step 1, the relearning function
end. Switch the ignition off, wait for
another 30 seconds and then switch the
ignition back on again. Start the procedure
again from the beginning.

Confirm that relearning was successful by
opening and closing the sun shade.

GAUGES

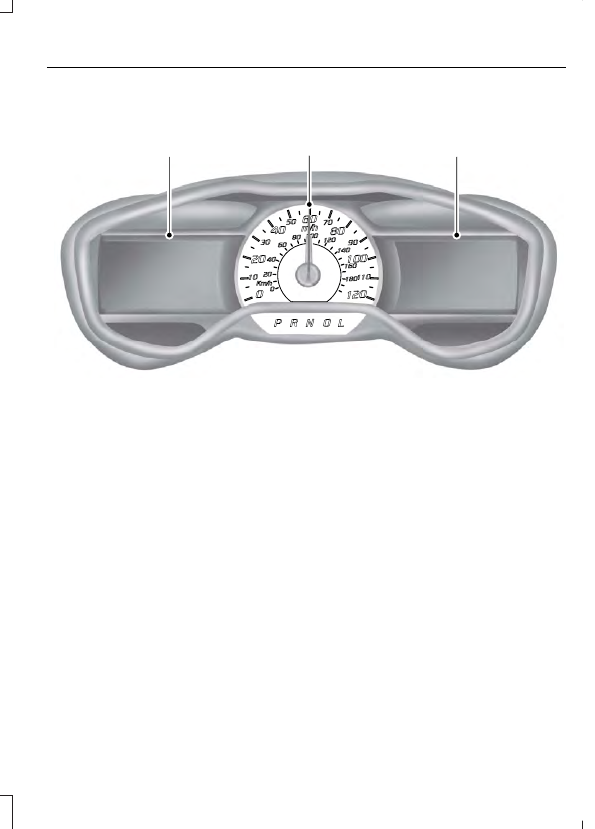

E162393

Left Information Display

Speedometer

Right Information Display

Left Information Display

Odometer

Located in the bottom of the information
display. Registers the accumulated
distance your vehicle has traveled.

Battery Gauge:

Note: For Energi vehicles there are two
versions of the battery gauge. When your
vehicle is in hybrid mode, a simple battery
graphic displays your battery information.
When your vehicle is in plug-in power mode,
an enhanced battery graphic displays your
battery information.

The high voltage battery gauge provides
Charge Fill (State of Charge), Charge
Assist and Regen Active information.

Charge Fill (Hybrid Mode)

The fill level, or State of Charge indicates
the amount of energy stored in the high
voltage battery as a percent of total energy
capacity. The level will increase or
decrease as the battery charges and
discharges during normal operation.

Charge Fill (Energi Plug-in Power Mode)

The fill level indicates the amount of
energy stored in the high voltage battery
which is available for Plug-in Power Mode.
A full fill represents the total amount of
energy you can get from an external charge
(plugging your vehicle in). When the fill
reaches empty your vehicle will
automatically enter Hybrid Mode.

Charge Assist

The up and down arrows provide
information about the energy going into
and out of the high voltage battery. The up
arrow above the battery indicates battery
charging such as from regenerative braking.
The down arrow below the battery
indicates battery discharging to provide
power for propulsion or vehicle
accessories.

Regen Active

A circular arrow symbol appears in the
center of the battery gauge when energy
is being recaptured through the
regenerative braking system.

This feature can be switched on or off in
the information displays settings menu.
See General Information (page 93).

Fuel Gauge:

Note: The fuel gauge may vary slightly
when your vehicle is moving or on a gradient.

Switch the ignition on. The fuel gauge will
indicate approximately how much fuel is
left in the fuel tank. The arrow adjacent to
the fuel pump symbol indicates on which
side of your vehicle the fuel filler door is
located.

The needle should move toward F when
you refuel your vehicle. If the needle points
to E after adding fuel, this indicates your
vehicle needs service soon.

After refueling some variability in needle
position is normal:

•

It may take a short time for the needle
to reach F after leaving the gas station.
This is normal and depends upon the
slope of pavement at the gas station.

•

The fuel amount dispensed into the
tank is a little less or more than the
gauge indicated. This is normal and
depends upon the slope of pavement
at the gas station.

•

If the gas station nozzle shuts off
before the tank is full, try a different
gas pump nozzle.

Low Fuel Reminder

A low fuel reminder triggers when the fuel
gauge needle is at 1/16th.

Variations:

Distance-to-empty

Fuel gauge position

Driving type (fuel economy

conditions)

35–80 mi (56–129 km)

1/16th

Highway driving
