STORAGE

COMPARTMENT

(for versions/markets, where provided)

50

F0Y0199

On some versions, the car may be

equipped with a front armrest as an

alternative to the storage compartment:

for more information, see the “Seats”

paragraph in this chapter.

POWER SOCKETS

The power socket only works with the

ignition key in the MAR position.

Passenger compartment power

socket

It is located on the central tunnel

fig. 51, near the parking brake lever.

51

F0Y0891

boot power socket

(for versions/markets, where provided)
This is located on the left side of the

boot fig. 52.

52

F0Y0059

CIGARETTE LIGHTER

(for versions/markets, where provided)

19)

WARNING Always check that the

cigarette lighter is switched off.

53

F0Y0645

SUN VISORS

To move the visor to the side, detach it

from the hook beside the interior rear-

view mirror and turn it towards the side

window.

54

F0Y0774

44

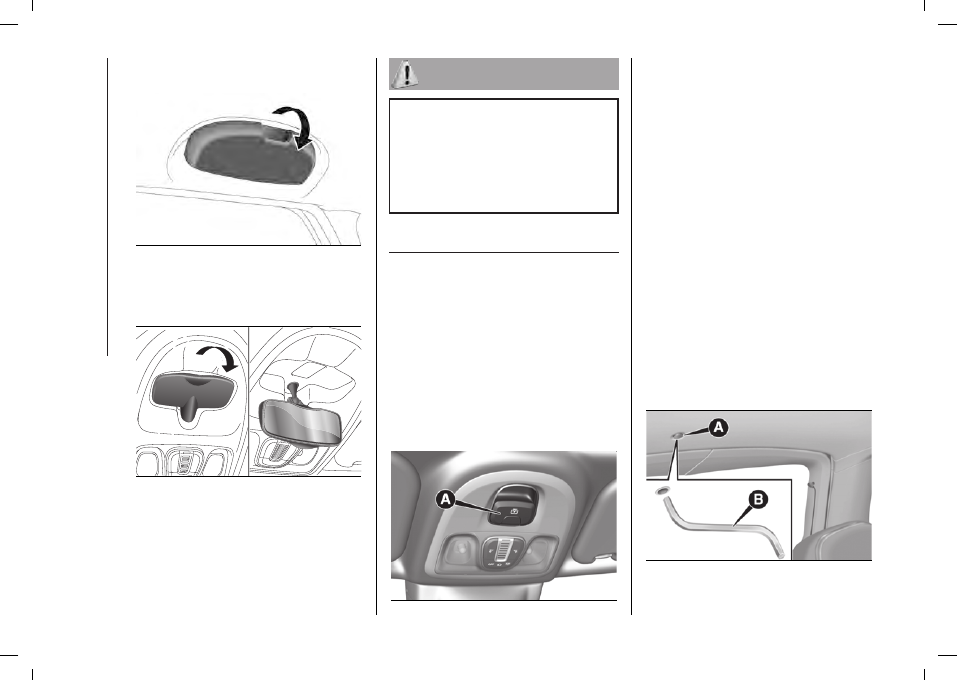

SUNGLASSES HOLDER

(for versions/markets, where provided)

55

F0Y0051

REAR SEAT

SURVEILLANCE MIRROR

(for versions/markets, where provided)

56

F0Y0775

FIRE EXTINGUISHER

(for versions/markets, where provided)
When required, the extinguisher is

located in the boot.

WARNING

18)

Do not travel with the storage

compartment open: it may injure the

front seat occupants in the event of an

accident.

19)

The cigar lighter gets extremely hot.

Handle it carefully and make sure that

children don’t use it: risk of fire and/or

burns.

FIXED GLASS ROOF

(for versions/markets, where provided)

It comprises an extensive fixed glass

panel and is fitted with an electrically

operated sunshade.

SUNSHADE MOVEMENT

The sunshade operates only with the

ignition key turned to MAR. From the

fully closed position, press button (A)

fig. 57 for more than half a second: the

sunshade will move to the fully open

position.

57

F0Y0121C

From the fully open position, press

button (A) for more than half a second:

the sunshade will move to the fully

closed position.
Button (A) can be pressed in jog

mode to open or close the sunshade

manually.
Press (A) again during automatic

opening and closing to stop the

sunshade movement.

EMERGENCY OPERATION

If the control button does not work, to

move the sunshade manually, remove

the protective cap (A) fig. 58 on the

internal trim, take the hex wrench

B provided (located in the tool box

or, depending on the version, in the

Fix&Go Automatic container in the

boot), insert it in housing A and turn

it clockwise to open the blind or

anticlockwise to close it.

58

F0Y0285C

45

SUNSHADE

INITIALISATION

PROCEDURE

Following an automatic movement

malfunction while opening/closing or

after an emergency manoeuvre (see

description in the previous paragraph),

the automatic operation of the

sunshade must be initialised again.
Proceed as follows:

turn the ignition key from the STOP

position to the MAR position;

hold down button (A) fig. 57: after

approximately 10 seconds the

sunshade moves jerkily to closing

position. When the movement stops

(sunshade closed), release button (A) (if

the sunshade is already closed, you will

hear the mechanical lock only);

press button (A) again within 3

seconds after the blind reached the

fully closed position;

hold down button (A): the sunshade

will perform an automatic opening

and closing cycle. Should this not

occur, repeat the operation from the

beginning;

hold down button (A) until the

sunshade is completely closed: the

initialisation procedure has ended.

ELECTRIC SUNROOF

(for versions/markets, where provided)

20)

9)

The sunroof and the sunshade can

be operated only with the ignition key

turned to MAR.

CONTROL BUTTONS

Opening/closing the front glass

panel

Opening
Press button (A) fig. 59 to open the

sunroof in the “spoiler” position. After

opening in spoiler position, press

button (A) once again for more than half

a second to bring the roof automatically

to fully open position. To deactivate the

automatic movement press the button

again. Use button (A) in jog mode to

open the sunroof manually.
Closing
From the fully open position press

button (A) for more than half a second:

the front glass panel will move into the

“spoiler” position.
Use button (A) in jog mode to close the

sunroof manually.

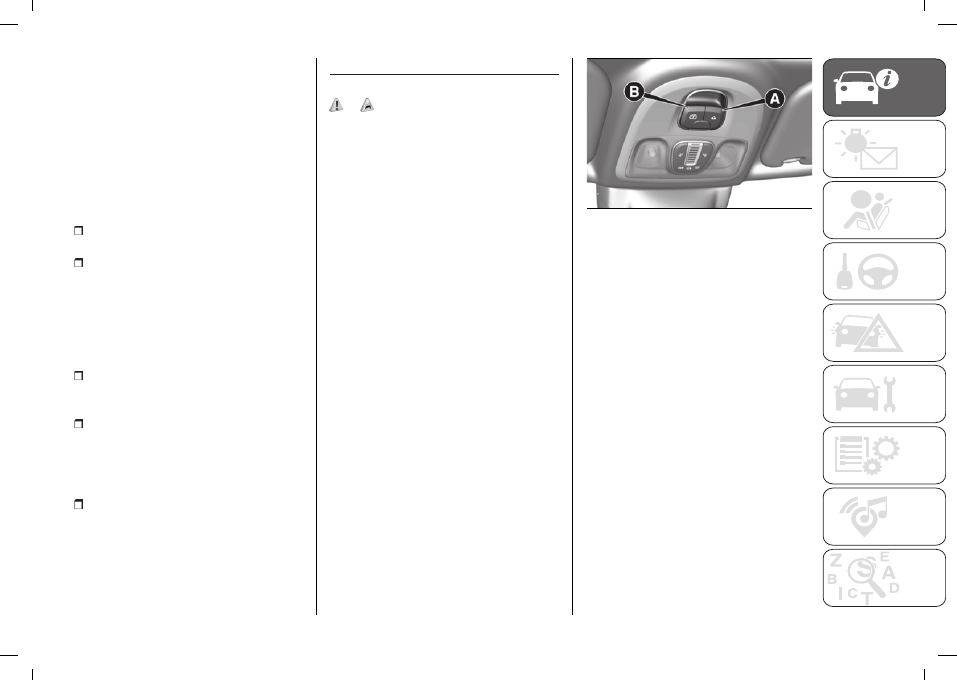

59

F0Y0120C

Sunshade movement

Pressing the (B) fig. 59 button will move

the sunshade towards the rear part

of the car, until it is fully open. With

sunshade fully open press button B:

the sunshade will move towards the

front part of the car, until it is fully

closed.
During the sunshade automatic

opening and closing stages, press

the button again to interrupt the blind

movement.
Button (B) can be pressed in jog

mode to open or close the sunshade

manually.

EMERGENCY OPERATION

If the control buttons fail to operate,

the sunshade and the sunroof can

be moved manually proceeding as

described below:

46

Sunshade movement:

remove

protective cap(A) fig. 60 on the internal

trim;

Sunroof movement:

remove

protective cap (B) on the internal trim;

60

F0Y0234C

take the hex wrench (C) fig. 60

provided (located in the tool box or,

depending on the version, in the

Fix&Go Automatic container), insert it in

socket (A) (to operate the sunshade) or

(B) (to operate the sunroof) and turn

it clockwise to open the sunroof (or

sunshade) or anticlockwise to close it.

SUNROOF

INITIALISATION

PROCEDURE

Following an automatic movement

malfunction while opening/closing or

after an emergency manoeuvre (see

description in the previous paragraph),

the automatic operation of the sunroof

must be initialised again.

Proceed as follows

turn the ignition key from the STOP

position to the MAR position;

hold down button (A) fig. 59: after

approximately 10 seconds the roof

moves jerkily to closing position. When

the movement stops (closed roof),

release button (A) (if the roof is already

closed, you will hear the mechanical

lock only);

press button (A) again within 5

seconds after the blind reached the

fully closed position;

hold down button (A): the roof

will perform an automatic opening

and closing cycle. Should this not

occur, repeat the operation from the

beginning;

hold down button (A) until the roof

is completely closed: the initialisation

procedure has ended.

WARNING

20)

When leaving the vehicle, always

remove the key from the ignition to avoid

the risk of injury to those still inside the

vehicle due to accidental operation of the

sun roof. Improper use of the roof can be

dangerous. Before and during operation,

always check that no-one is exposed to

the risk of being injured by the moving

sunroof or by objects getting caught or hit

by it.

IMPORTANT

9)

Do not open the sunroof if a transverse

roof rack is fitted. Do not open the sunroof

if there is snow or ice on it: you may

damage it.

DOORS

DOOR CENTRAL

LOCKING/UNLOCKING

Locking from the outside

With doors closed, press the

button

on the remote control or turn the metal

insert (located inside the key) in the

driver side door lock. Door locking

is carried out with all doors shut,

irrespective of the boot open/closed

status.

Door unlocking from the outside

Press button

on the remote control

or turn the metal insert (located inside

the key) in the driver side door lock.

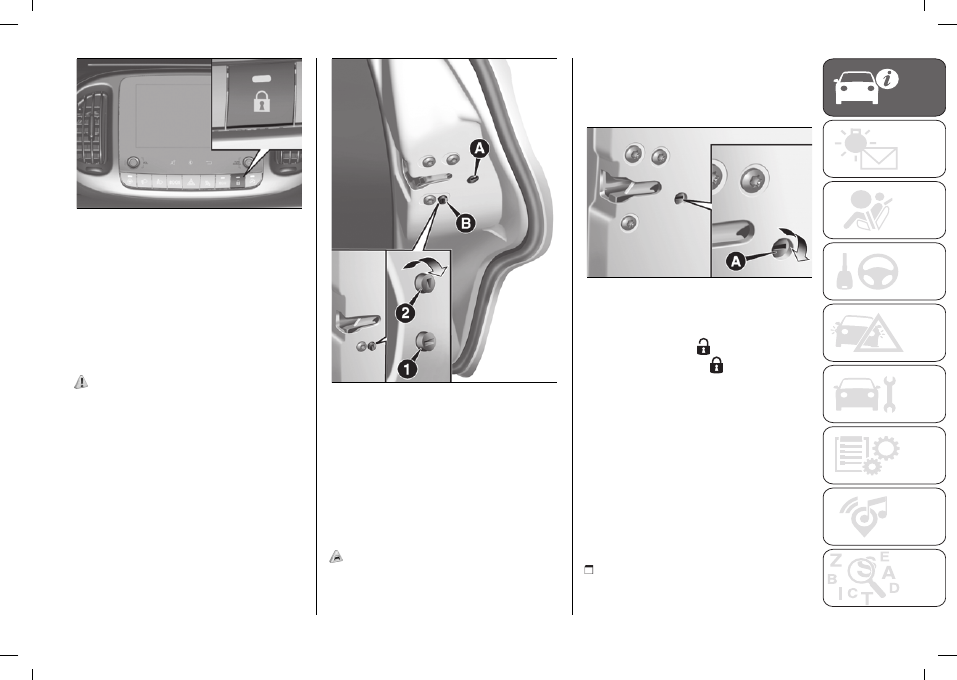

Door locking/unlocking from the

inside

Press button

on the dashboard

fig. 61.

LED on button on:

doors locked /

LED on button off

: doors unlocked.

47

61

F0Y0652C

WARNING With central locking active,

pulling the internal opening lever of the

passenger side door unlocks the door

(the LED stays on). Pulling the internal

opening lever of the driver side door

activates central unlocking.

CHILD LOCK

21)

This system prevents the rear doors

from being opened from the inside.

This device (B) fig. 62 can be engaged

only with the doors open.

Position 1

: device on (door locked)

/

Position 2

: device off (door can be

opened from the inside). The device

remains engaged even if the doors are

electrically unlocked.

62

F0Y0111C

WARNING The rear doors cannot be

opened from the inside when the child

lock is engaged.

PASSENGER SIDE

FRONT DOOR AND REAR

DOOR EMERGENCY

LOCKING DEVICE

10)

Used to lock the doors when there is

no electrical power supply. Insert the

metal insert of the ignition key into slot

(A) fig. 63 (front door on passenger

side) or slot (A) fig. 62 (rear doors)

and then turn the key clockwise and

remove it from slot (A).

63

F0Y0110C

To restore the starting condition of

the door locks (only if battery charge
restored) press the

button on the

remote control or the

button on the

dashboard or introduce the metal insert

of the ignition key in the driver's side

front door pawl and pull the door inner

handle.

INITIALISING THE DOOR

OPENING / CLOSING

MECHANISM

If the battery is disconnected or

the protection fuse blows, the door

opening/closing mechanism must be

initialised as follows:

close all the doors;

48

press the

button on the remote

control or the button on the dashboard;

press the

button on the remote

control or the button on the dashboard;

WARNING

21)

Always use this device when carrying

children. After engaging the device on

both rear doors, check that it is actually

engaged by trying to open a door with the

internal handle.

IMPORTANT

10)

If the child lock was engaged and the

previously described locking procedure

carried out, operating the internal opening

handle will not open the door: in this

case, to open the door, the outside

handle must be used. The door central

locking/unlocking button

is not disabled

by the engagement of the emergency lock.

ELECTRIC WINDOWS

22)

OPERATION

These operate when the ignition key

is turned to MAR-ON and for about 3

minutes after the ignition key is turned

to STOP or removed unless one of the

front doors is opened.

DRIVE SIDE FRONT

DOOR CONTROLS

Versions with 4 electric windows

The buttons are located on the door

panel trim fig. 64.

64

F0Y0240C

All windows can be controlled from the

driver side door panel.

A:

front left window opening/closing.

“Automatic continuous" operation

during window opening/closing stage

and anti-pinch system activated.

B:

right front window

opening/closing. "Automatic

continuous" operation during window

opening/closing and anti-pinch system

activated.

C:

enabling/disabling of rear door

electric window controls.

D:

rear left window opening/closing

(for versions/markets, where provided).

“Automatic continuous" operation

during window opening/closing stage

and anti-pinch system activated.

E:

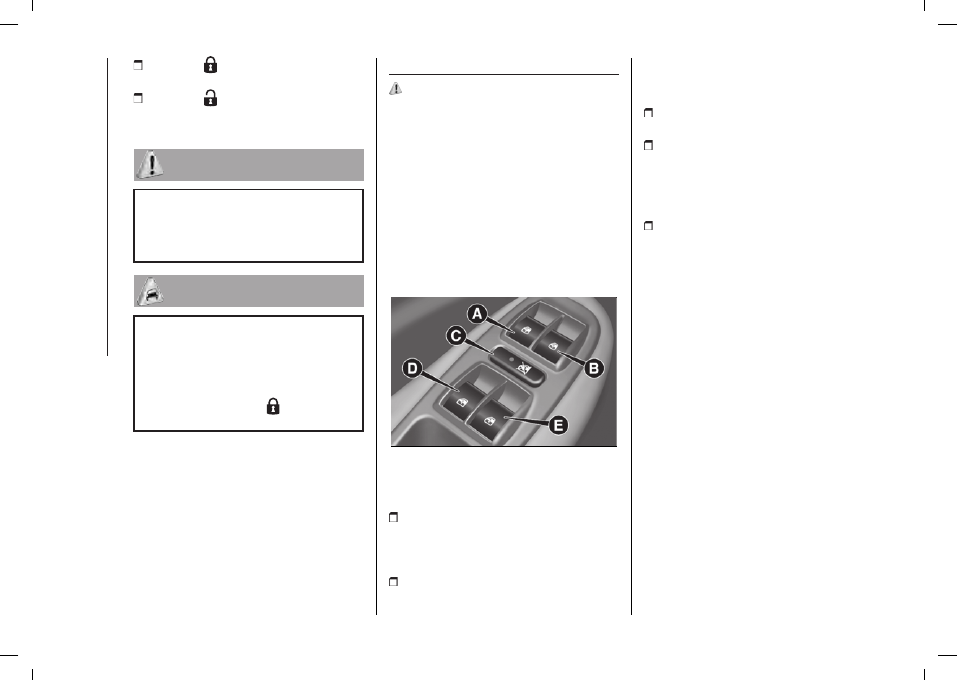

rear right window opening/closing

(for versions/markets, where provided).

"Automatic continuous" operation

during window opening/closing and

anti-pinch system activated.

Anti-crush safety device

(for versions/markets, where provided)
The anti-pinch function is active both

during manual and automatic operation

of the electric windows.
When the anti-crush system is

activated the window travel is

immediately interrupted and then

reversed. The window cannot be

operated in any way during this time.

WARNING If the anti-crush protection

intervenes 3 consecutive times within

1 minute or is faulty, the automatic

closing operation of the window is

inhibited, only allowing it in steps of half

a second; the button is released for

the subsequent manoeuvre. In order

49

to restore the correct operation of the

system, the relevant window must be

lowered.

Remote window opening/closing

using a key with remote control.

(for versions/markets, where provided)
The windows can be opened/closed
by holding the unlock ( ) / lock ( )

buttons on the key with remote control

pressed, respectively.
The windows move simultaneously as

long as the corresponding button is

held down; they will stop when they

reach the upper or lower end of travel

position, or the button is released.

ELECTRIC WINDOWS

INITIALIZATION

If power supply is interrupted when

the window is moving, the electric

window automatic operation must be

reinitialised. The initialisation procedure

must be carried out with the doors

closed (and for each door) as follows:

fully close the window to be

initialised, with manual operation;

after the window has reached the

upper end of travel, hold the up button

pressed for at least one second.

WARNING

22)

Improper use of the electric windows

can be dangerous. Before and during

operation, always check that passengers

are not exposed to the risk of being injured

either directly by the moving windows or

through objects getting caught or struck

by them. When leaving the vehicle, always

remove the ignition key to avoid the risk

of injury for people still on board due

to accidental operation of the electric

windows.

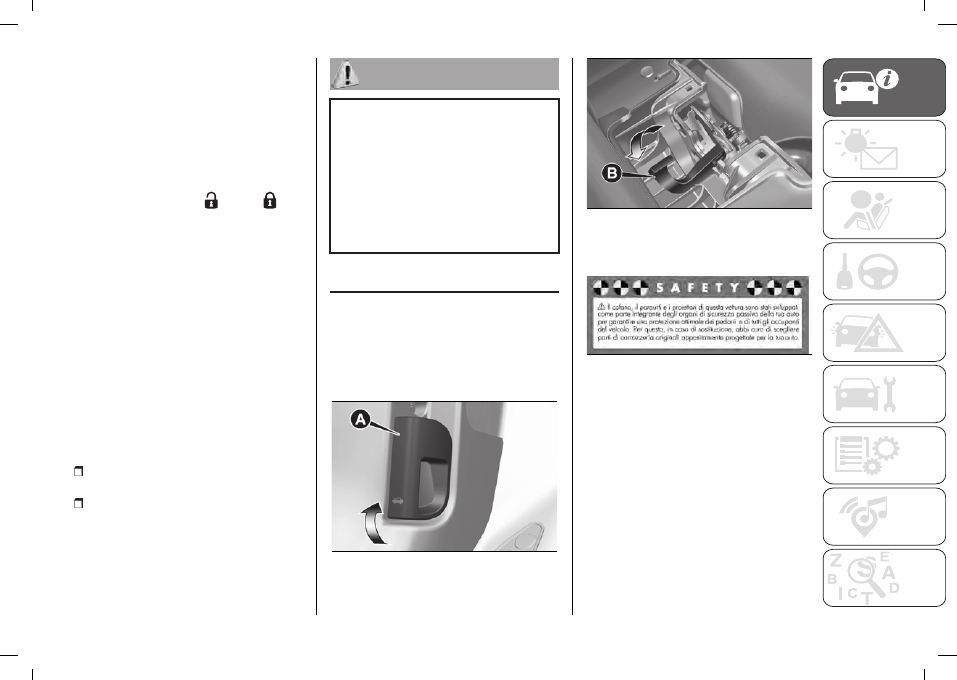

BONNET

OPENING

Pull the lever (A) fig. 65 in the direction

indicated by the arrow and then

operate the lever (B) fig. 66 operating in

the direction shown by the arrow. Then

lift the bonnet.

65

F0Y0611C

66

F0Y0115C

The following plate is applied inside the

engine compartment fig. 67.

67

F0Y1100C

WARNING Two side gas shock

absorbers are provided to assist in

opening the bonnet. Do not tamper

with these shock absorbers and

accompany the bonnet when raising.

WARNING Before raising the bonnet,

make sure that the arms of the wipers

are not raised from the windscreen and

that the wiper is not operational.

50

CLOSING

23)

Lower the bonnet to approximately

20 centimetres from the engine

compartment then let it drop. Make

sure that the bonnet is completely

closed and not only fastened by the

locking device by trying to open it.
If it is not perfectly closed, do not try to

press the bonnet lid down but open it

and repeat the procedure.

WARNING

23)

For safety reasons, the bonnet must

always be properly closed while driving.

Therefore, make sure that the bonnet

is properly closed and that the lock is

engaged. If you discover that the bonnet

is not perfectly closed while driving, stop

immediately and close the bonnet in the

correct manner.

BOOT

24) 25) 26)

11)

The boot unlocking is electrically

operated and is deactivated when the

car is in motion.

WARNING When travelling, do not

put any object on the rear parcel shelf

because they can injure passengers

in the event of an accident or sudden

braking.

OPENING

27)

When unlocked, the boot can be

opened from outside the car using

the electric opening handle (A) fig. 68

located under the handle until the

unlocking click is heard or by pressing
the

button on the key with

remote control.

68

F0Y0610C

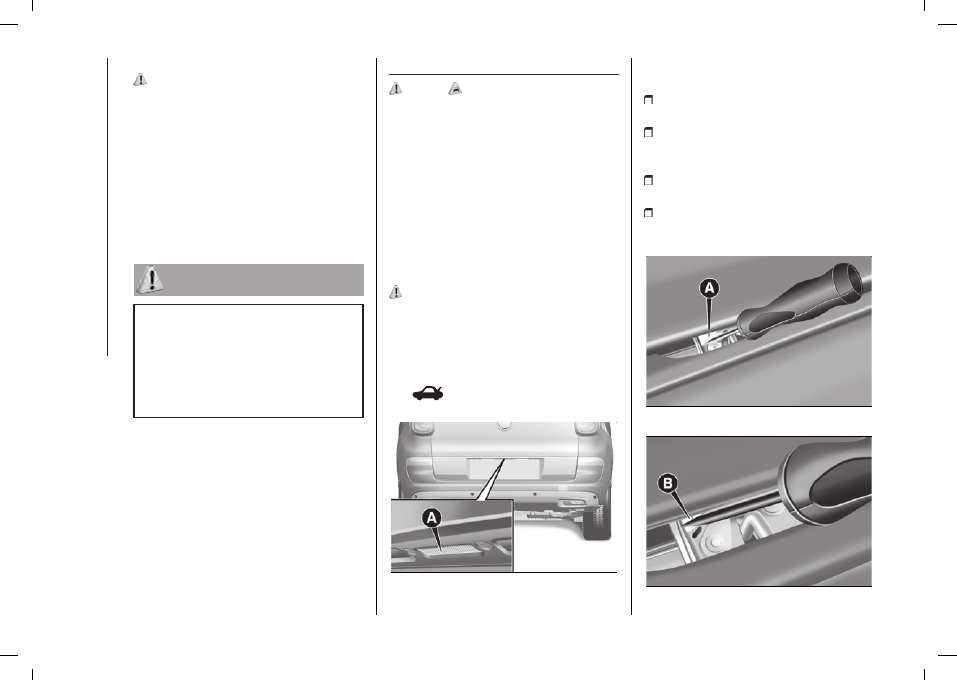

Emergency opening from the inside

Proceed as follows:

remove the rear head restraints and

fully fold the seats;

take the screwdriver provided from

the tool box or the Fix&Go Automatic

container, depending on the version;

use the screwdriver to remove the

yellow tab (A) fig. 69;

then insert the screwdriver in socket

(B) fig. 70 in order to activate the boot

release tab.

69

F0Y0172C

70

F0Y0173C

51

CLOSING

Take hold of the handle on the inside of

the tailgate and lower it, pressing next

to the lock until it clicks.

WARNING Before closing the boot

make sure that you have the keys,

since the boot is automatically locked.

BOOT INITIALISATION

WARNING If the battery is

disconnected or the protection fuse

blows, the boot opening/closing

mechanism must be reinitialised as

follows:

close all the doors and the boot;
press the

button on the remote

control;

press the

button on the remote

control;

EXTENDING THE boot

See the descriptions in “Removing the

parcel shelf” and “Folding back the

seats” paragraphs for how to expand

the boot.

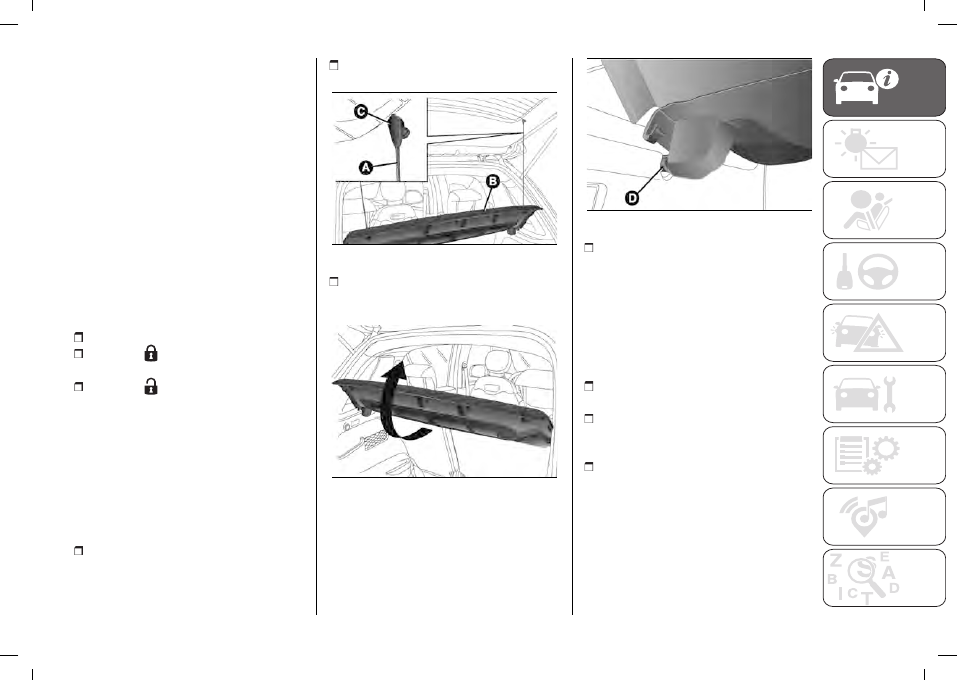

Removing the parcel shelf

Proceed as follows:

release the ends of the two mounting

links (A) fig. 71 of the parcel shelf (B)

by removing the eyelets (C) from the

mounting pins;

raise the rear part of the parcel rack,

operating as illustrated in fig. 72;

71

F0Y0065

free the pins (D) fig. 73 on the outside

of the shelf, then remove the parcel

shelf (B) by pulling it upwards;

72

F0Y0067

73

F0Y0068

after removal, the parcel shelf can

be loaded sideways into the boot

or placed between the front seat

backrests and the folded-back rear

seat cushions (with the boot completely

extended).

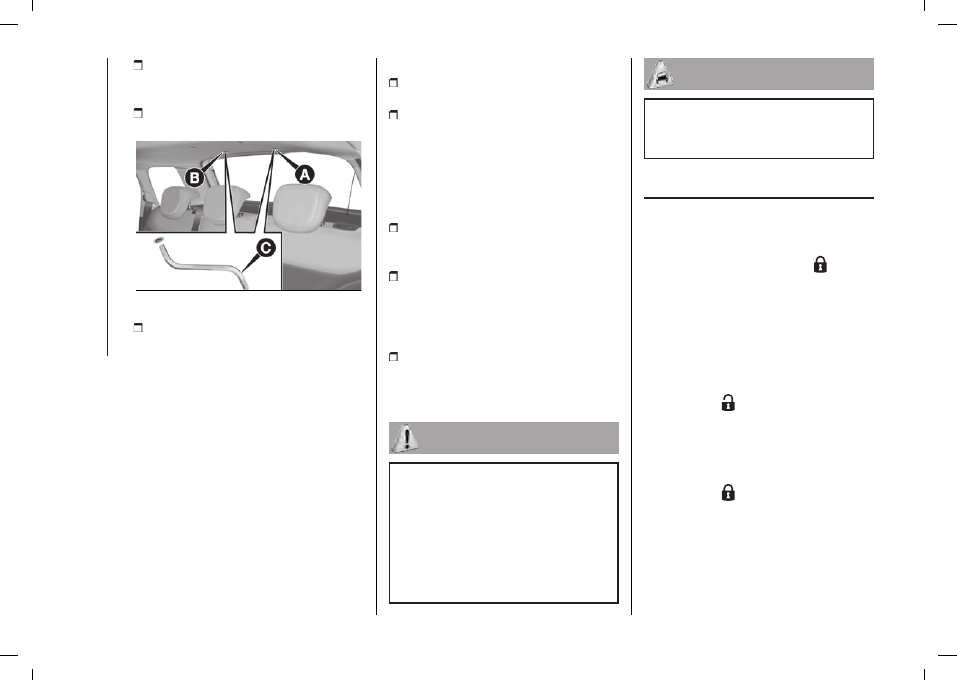

Backrest folding (partial extension)

Proceed as follows:

completely lower the rear seat head

restraints;

move the seat belts to the side,

making sure that they are correctly

extended and not twisted;

using lever (A) fig. 74, adjust the seat

into the desired position;

52

74

F0Y0074

raise lever (B) fig. 75 to fold the

backrest (see fig. 76).

75

F0Y0259

76

F0Y0075

Note

It is advisable to carry out this

procedure from the outside, with the

left hand.

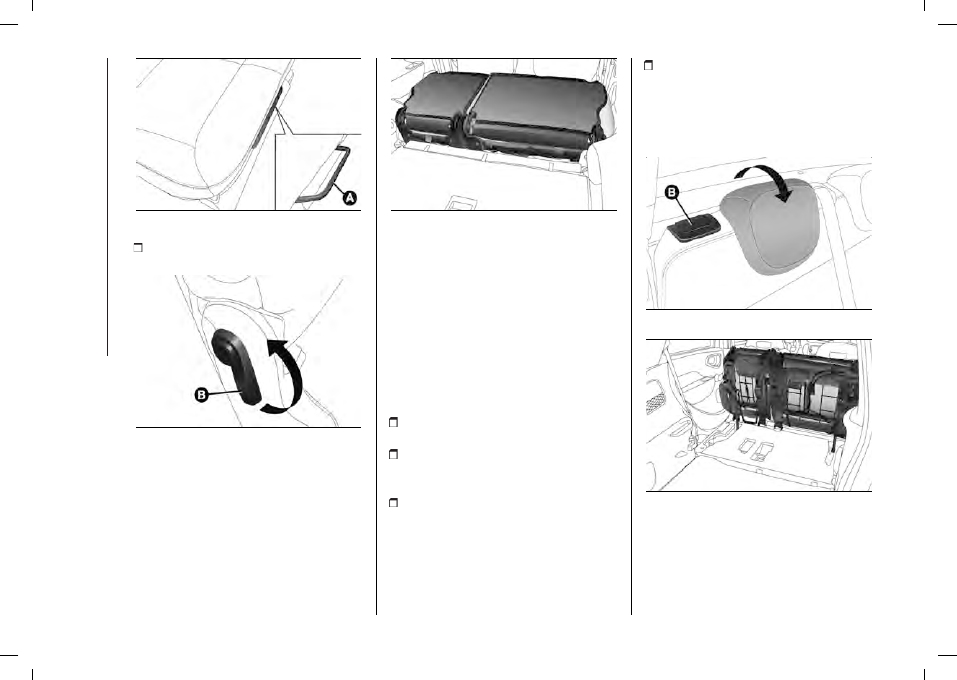

Repositioning the backrest
To bring the backrest back to normal

usage position, lift lever (B) fig. 75 then

raise the backrest.

Backrest and seat folding (total

extension)

Proceed as follows:

completely lower the rear seat head

restraints;

move the seat belts to the side,

making sure that they are correctly

extended and not twisted;

using lever (A) fig. 74 adjust the

seat to "completely forward" position

to achieve maximum boot extension

(depending on the desired position of

the fronts seats);

lift the release lever (B) fig. 77 fold

the left or right section of the backrest:

the backrest and cushion will be folded

forwards automatically (see fig. 78). If

necessary, accompany the backrest

during the initial stage of tilting.

77

F0Y0073

78

F0Y0076

NOTE It is advisable to carry out this

procedure from the outside, with the

left hand.

53

To reposition the rear seat, push the

backrest backwards as shown in

fig. 79 and secure it (when it clicks

into place, this indicates correct

positioning).

79

F0Y0077

Repositioning the backrest
To bring the backrest back to normal

usage position, lift lever (B) fig. 75

then raise the backrest until vertical

engagement position is reached.

"CARGO MAGIC SPACE"

(for versions/markets, where provided)

12)

The "Cargo Magic Space" adjustable

load platform can be adjusted to three

different heights:

Position 0 (platform completely

lowered)

Position 1 (platform at threshold

level)

Position 2 (platform completely

raised)
Load platform tilting

The load platform can be located in

oblique position (tilted towards the rear

seat backrests, see fig. 80), in order to

facilitate access to the area underneath

the boot (e.g. to pick up the space-

saver wheel or the "Fix&Go Automatic"

kit).
In addition, in this position, the platform

allows any object in the boot to be

correctly blocked, preventing them

from sliding in the case of sharp

braking.

80

F0Y0609C

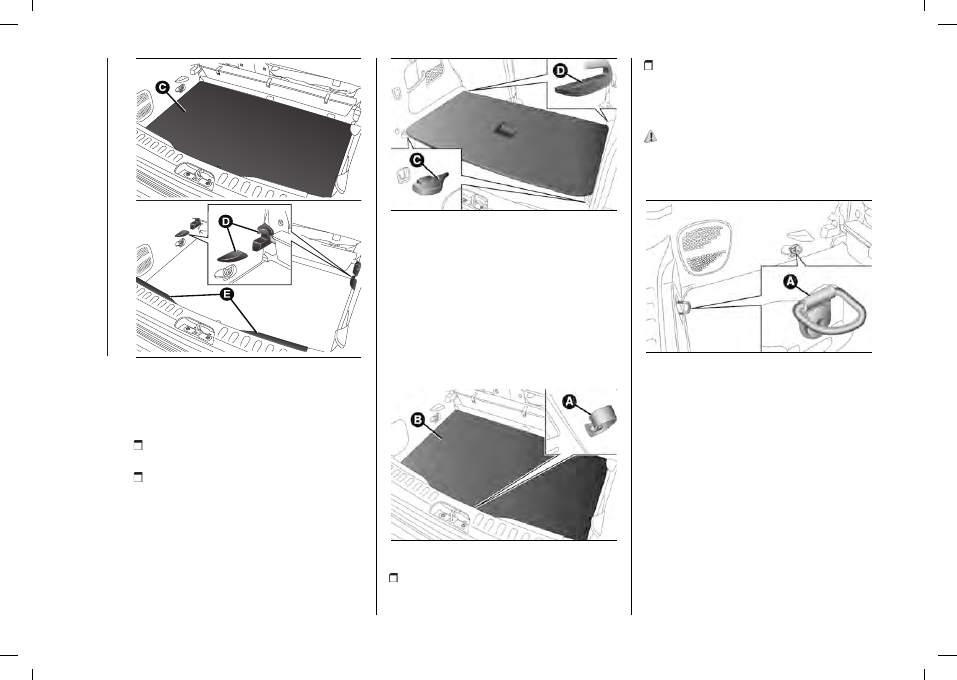

Access to double load

compartment

To access the double load

compartment, proceed as follows:

grip handle (A) fig. 81 and lift platform

B, holding it with one hand;

81

F0Y0079

place the desired objects in

compartment (C) fig. 82;

then reposition platform (B) correctly

in the housings (D) fig. 82 on the side

panels and rear crossmember E.

WARNING Movements of the load

platform must take place in a central

position relative to the boot.

Repositioning the rear seat

24)

54

82

F0Y0419

Moving the load platform

To move the load platform from lower

to upper position, proceed as follows:

grip handle (A) fig. 81 and lift the

platform (B) holding it with one hand;

correctly position the platform (B) on

the respective housings (C) e (D) fig. 83

provided on the side panels.

83

F0Y0082

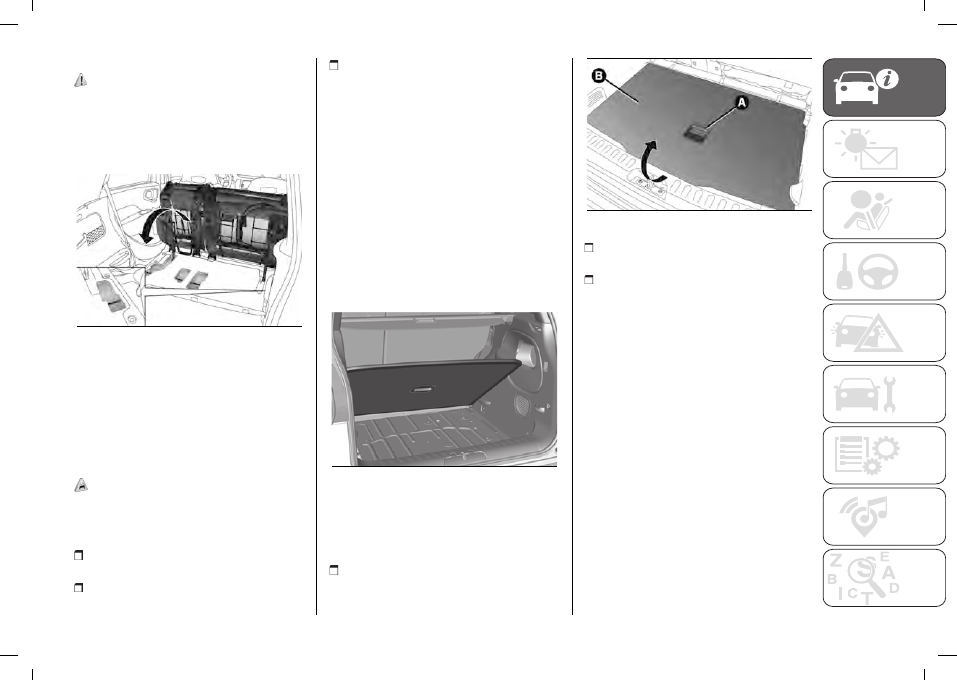

“Fix&Go Automatic” kit access (or

removing the space-saver wheel)

To access the "Fix&Go Automatic"

quick tyre inflation kit (for use, see

contents of the "In an emergency"

chapter) or to remove the space-saver

wheel (for versions/markets, where

provided) and its toolbox, proceed as

follows:

84

F0Y0083

grip the handle (A) fig. 81and remove

the platform (B);

pull the tab (A) fig. 84 and lift the mat

(B).

ANCHORING YOUR LOAD

(for versions/markets, where provided)

26)

There are two hooks (A) fig. 85 inside

the boot for attaching cables which can

secure the load carried.

85

F0Y0063

A further two hooks are located on the

rear crossmember.
Two hooks are also available on the

side panels to fix loads which are not

excessively heavy (e.g. bags).
To use the hooks, press button (A)

fig. 86.

WARNING Do not apply, on a single

hook, a load greater than 10 kg.

55

86

F0Y0062

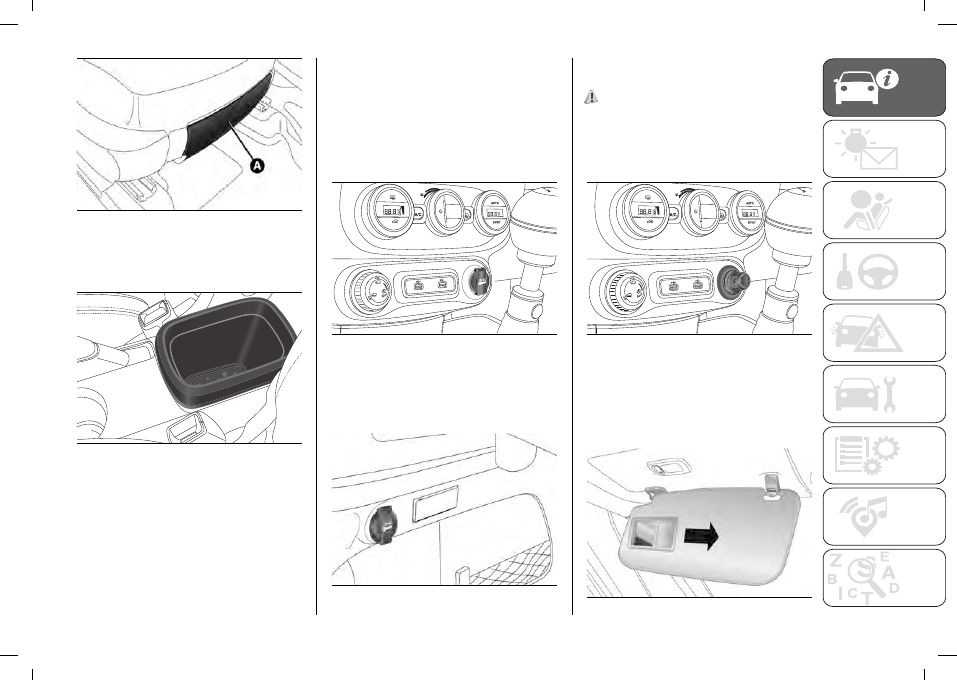

STORAGE

COMPARTMENTS

There are two storage compartments

fig. 87 on the side panels.

87

F0Y0078

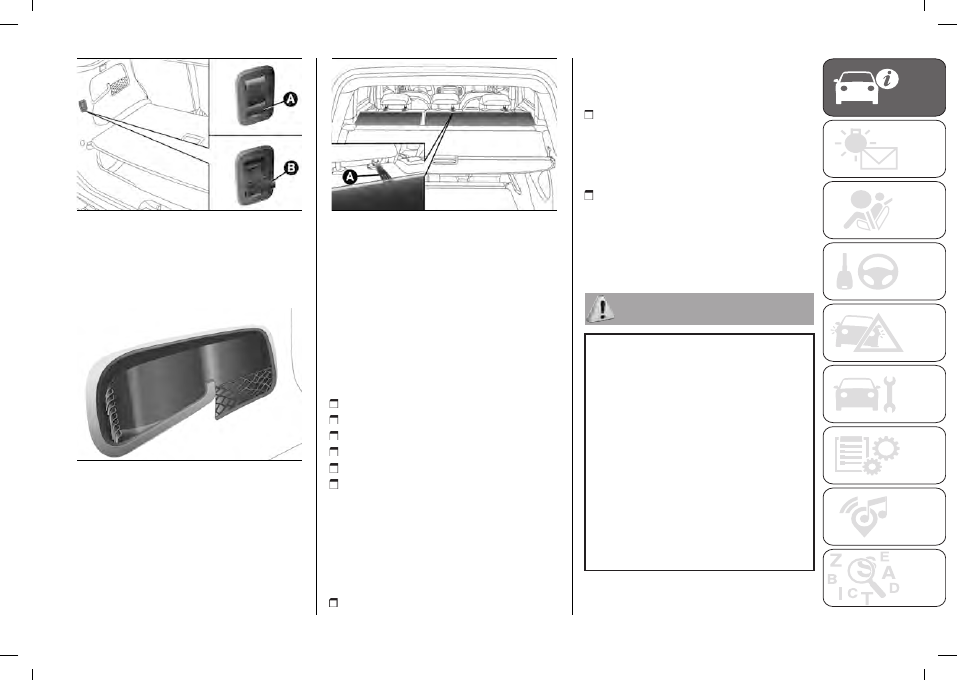

OBJECT-COVERING

CURTAINS

Two object-covering curtains are

present on the front part of the

luggage-covering curtain.

88

F0Y0376

To use the curtains pull tabs (A) fig. 88

and engage them with the rear seat

head restraint supports, as shown in

the figure.

LOADING ADVICE

(500L PRO versions)
The car has been designed and

certified according to certain maximum

weights:

kerb weight

payload

total weight

maximum weight on front axle

maximum weight on rear axle

Towable weight.

Each of these must be strictly observed

and must never be exceeded in any

case.
Other simple suggestions can improve

driving safety and comfort, and car

duration:

distribute the load evenly over

the platform. If it is necessary to

concentrate it in a single area, choose

an area mid-way between both axles;

remember that the lower the load,

the lower the centre of gravity of the

vehicle, making for a safer drive:

therefore always position the heaviest

goods lower down;

remember that the dynamic

behaviour of the car is affected by

the weight transported: in particular,

the stopping distances are longer,

especially at high speeds.

WARNING

24)

Make sure the backrest is properly

secured at both sides to prevent it moving

forward in the event of sharp braking, with

possible impact with the occupants.

25)

Do not move the seat if a child is

seated on the same or sitting in the

suitable child restraint system.

26)

Abrupt braking or occasional impacts

may cause sudden movements of the load

with consequent situations of hazard for

the driver and passengers: before setting

off, secure the load tightly using the hooks

provided. For securing use cables, ropes

or belts strong enough to hold the items to

be secured.

27)

Be careful not to hit objects on the roof

rack when you open the tailgate.

56

IMPORTANT

11)

Before tilting the seat backrest fully,

remove any objects laid on it.

12)

The dimensions of the platform permit

a maximum capacity of distributed weight

of 70 kg (in position 1) or 40 kg (in position

2): do not load objects with a higher

weight.

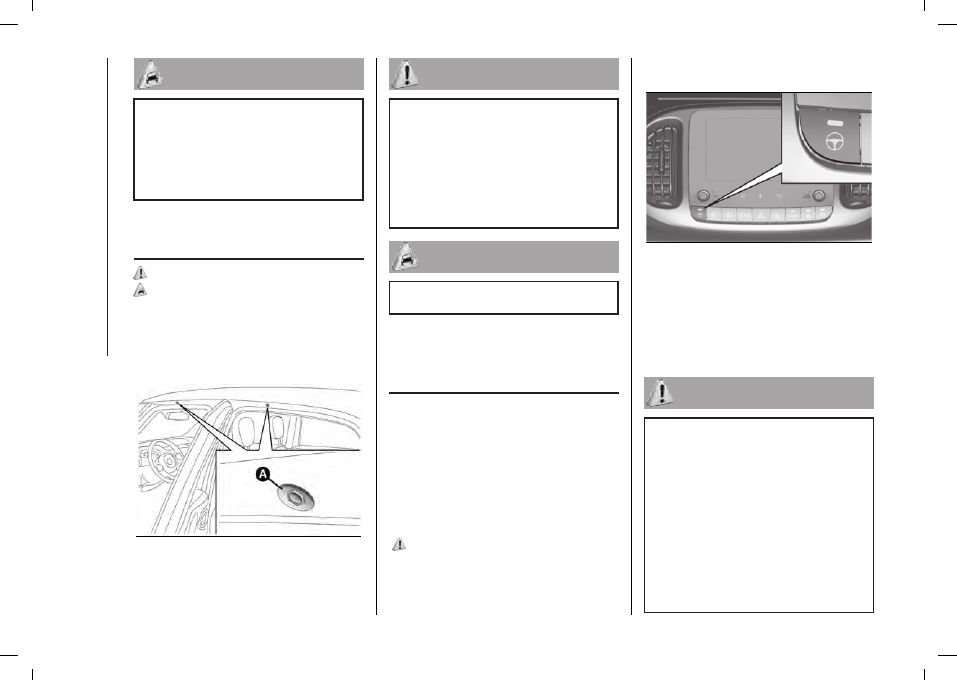

ROOF RACK/SKI

RACK

28) 29) 30)

13)

The attachments are located in the

areas illustrated in fig. 89 and can only

be accessed with the doors open.

Lineaccessori Fiat has a dedicated roof

rack/ski rack for this car.

89

F0Y0131

WARNING

28)

After travelling for a few kilometres,

check to ensure that the fixing screws for

the attachments are well tightened.

29)

Never exceed the maximum

permitted loads (see chapter "Technical

specifications").

30)

Evenly distribute the load and take

into account, when driving, the increased

responsiveness of the vehicle to side wind.

IMPORTANT

13)

Fully comply with the regulations in

force concerning maximum clearance.

DUALDRIVE

ELECTRIC POWER

STEERING

(for versions/markets, where provided)

This only operates with the ignition key

turned to MAR and engine running.

Electric power steering allows the force

required at the steering wheel to be

adapted to the driving conditions.

POWER STEERING

ON/OFF

31) 32)

To engage/disengage the electric

power steering press button fig. 90.

The LED above the button switches on

to indicate that the system is active.

90

F0Y0646C

When the power steering is on, the

steering wheel effort is lighter, making

parking easier: therefore, this function

is particularly useful for driving in city

centres.

WARNING

31)

It is absolutely forbidden to carry

out any after-market operation involving

steering system or steering column

modifications (e.g. installation of anti-theft

device) that could adversely affect

performance and safety, invalidate

the warranty and also result in non-

compliance of the car with type-approval

requirements.

32)

Before performing any maintenance

operations, always turn off the engine and

remove the key from the ignition to lock

the steering column (especially when the

car wheels are not touching the ground). If

57

this is not possible (for example if the key

needs to be turned to MAR or the engine

must be running), remove the main fuse

that protects the electric power steering.

PROTECTING THE

ENVIRONMENT

33)

Petrol versions

The following devices are used for

reducing petrol fuel engine emissions:

catalytic converter, oxygen sensors and

evaporation control system.

Do not let the engine run, even for a

test, with one or more spark plugs

disconnected.

Diesel versions

The following devices are used for

reducing diesel fuel engine emissions:

oxidising catalytic converter, exhaust

gas recirculation system (EGR) and

particulate filter (DPF).

DIESEL PARTICULATE

FILTER (DPF)

(for versions/markets, where provided)
The Diesel Particulate Filter is a

mechanical filter, integral to the exhaust

system, that physically traps carbon

particles present in the exhaust gases

of diesel engines.
Since this filter physically traps

particulate, it should be periodically

regenerated (cleaned) at regular

intervals by burning carbon particles.
The regeneration procedure is

controlled automatically by the engine

control unit according to the filter

conditions and car use conditions.
During the regeneration there may be

a limited increase in the engine idle

speed, fan activation, a limited increase

in fumes and high temperatures at the

exhaust.
These are not faults; they do not impair

normal car performance or damage the

environment.
If the dedicated message is displayed,

see contents of "Warning lights and

messages" chapter.

WARNING

33)

The catalytic converter and particulate

filter (DPF) reach very high temperatures

during normal operation. Therefore, do

not park the car on flammable materials

(e.g. grass, dry leaves, pine needles etc.)

to avoid the risk of fire.

RED SPECIAL

SERIES

(where provided)

Some components of the

car underwent antimicrobial

treatments, as detailed below. No

specific precautions are required

for the normal use of the car and

components treated with biocide

substances.

The reconfigurable load platform was

treated with a biocide substance

having antiviral properties based on the

the active ingredient Silver Chloride.

The seat fabric was treated with a

biocide substance with antiviral and

antibacterial properties based on the

active ingredient Alkyl (C12-C16)

Dimethylbenzyl Ammonium Chloride.

The steering wheel upholstery was

treated a with biocide substances with

antibacterial and antifungal properties

based on the active ingredients Zinc

Pyrithione and Thiabendazole.

The air cleaner of the climate control

system was treated with a biocide

substance having antibacterial and

antiviral properties based on the active

ingredient Dimethyltetradecyl[3-

(trimethoxysilyl)propyl]ammonium

chloride.

58

This section of the handbook provides

all information that is useful for getting

to know, interpreting, and using the

instrument panel correctly.

DASHBOARD AND INSTRUMENT

PANEL........................................ 59
DISPLAY..................................... 61
TRIP COMPUTER ........................ 63
EOBD SYSTEM ........................... 64
WARNING LIGHTS AND

MESSAGES ................................ 65

59

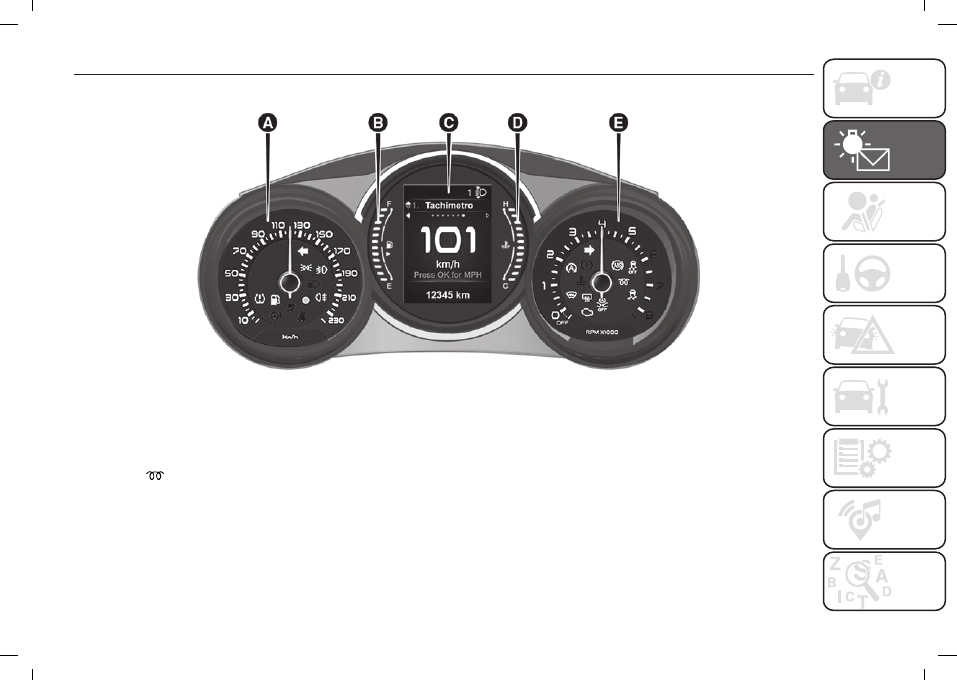

DASHBOARD AND INSTRUMENT PANEL

The instrument background colour and type may vary according to the versions.

91

F0Y0639C

A. Speedometer / B. Digital fuel level gauge / C. Display / D. Digital engine coolant thermometer / E. Tachometer

The warning lights on the instrument panel may change according to the version/trim level (e.g. Dualogic gearbox, etc.) of the
vehicle. The

warning light is present on Diesel versions only. On Diesel versions, the maximum engine speed (red range on

the rev counter) corresponds to 7000 rpm.

60

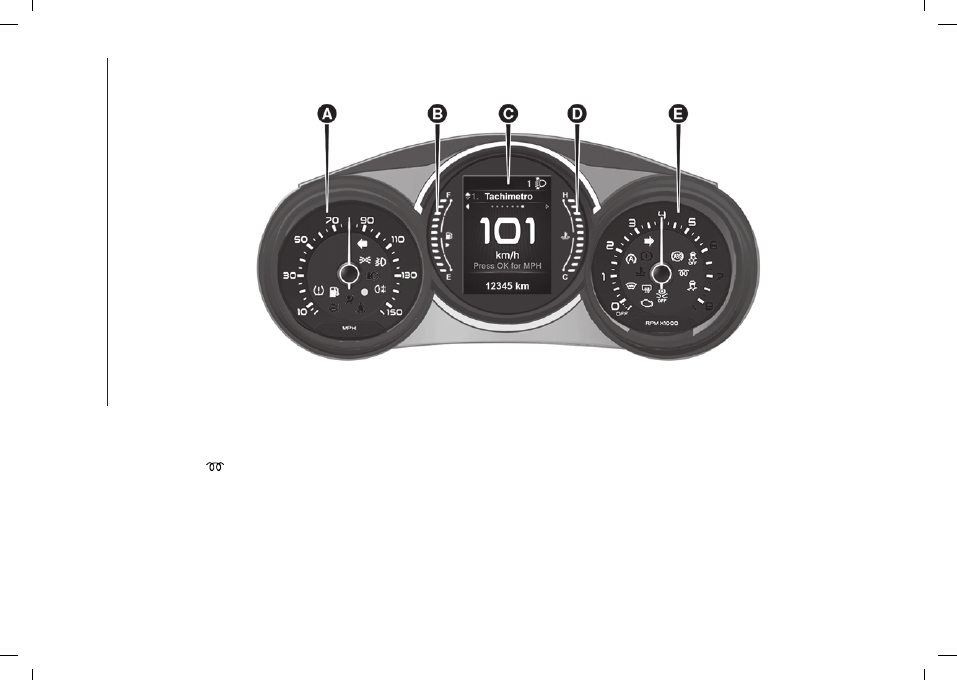

RIGHT-HAND DRIVE VERSIONS

The instrument background colour and type may vary according to the versions.

92

F0Y0640C

A. Speedometer / B. Digital fuel level gauge / C. Display / D. Digital engine coolant thermometer / E. Tachometer

The warning lights on the instrument panel may change according to the version/trim level (e.g. Dualogic gearbox, etc.) of the
vehicle. The

warning light is present on Diesel versions only. On Diesel versions, the maximum engine speed (red range on

the rev counter) corresponds to 7000 rpm.

61

DISPLAY

DESCRIPTION

The display shows useful information to

the driver while driving.

93

F0Y0658C

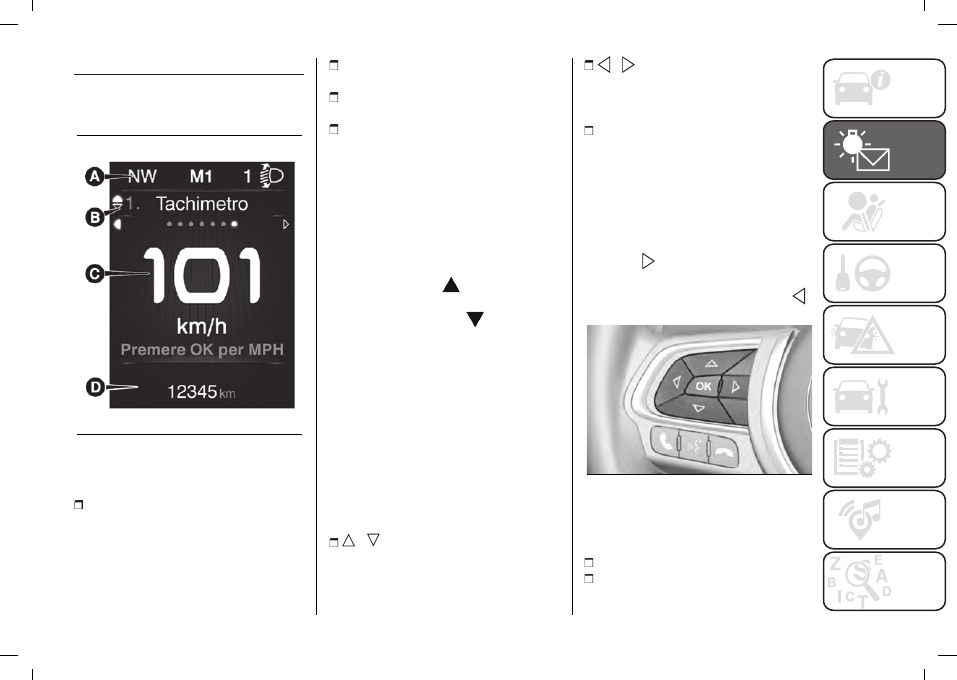

The display fig. 93 will show the

following information:

A

: headlight adjustment corrector,

Start&Stop, gear engaged and

driving mode (versions with Dualogic

transmission) or Gear Shift Indicator

(versions with manual transmission),

compass display (for versions/markets,

where provided)

B

: Setup Menu options (see details

on following pages)

C

: car speed, warning messages/any

failure indications

D

: total kilometres (or miles) run and

icons of any failure indications

GEAR SHIFT INDICATOR

The GSI (Gear Shift Indicator) system

advises the driver to change gear

through a specific indication on the

instrument panel. Through the GSI, the

driver is informed that shifting gear will

allow a reduction in fuel consumption.

"SHIFT UP" icon

(SHIFT): the GSI

suggests an upshift.

"SHIFT DOWN" icon

SHIFT: the

GSI suggests shifting down.
The icon remains displayed until a gear

is shifted or the driving conditions go

back to a situation where gearshifting is

not required, to improve consumption.

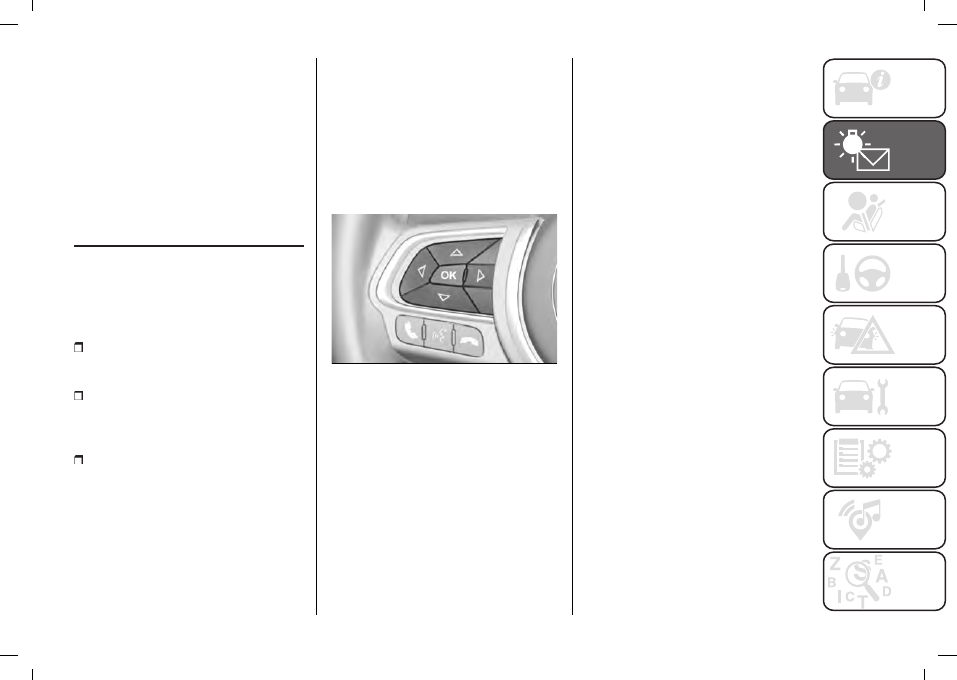

CONTROL BUTTONS

These are located on the left side of the

steering wheel fig. 94.
They allow the driver to select and

interact with the items in the Setup

Menu of the display (see paragraph

"Setup Menu").

/ : press and release the

buttons to access the Setup Menu and

to scroll the menu and the submenus

upwards or downwards.

/ : press and release the

buttons to access the information

screens or the submenus of an item of

the Setup Menu.

OK

: press this button to

access/select the info displays or the

submenus of an item of the Setup

Menu. Hold the button pressed for 1

second to reset the displayed/selected

functions.

Accessing the submenus

: after

having selected the wished menu item
press the

button to access the

various submenus.

Exiting the main menu

: press the

button.

94

F0Y0659C

SETUP MENU

The Setup Menu includes the following

items:

Speedometer

Trip

62

Vehicle info

Audio

Telephone (for versions/markets,

where provided)

Navigation (for versions/markets,

where provided)

Alerts

Vehicle Setup

When the ignition key is turned to the

MAR-ON position, the display shows

the last Menu option active before the

engine was switched off.
NOTE With the

Uconnect™

system,

some Menu items are shown and

managed on the display of the latter

and not on the instrument panel display

(refer to the Multimedia chapter or to

the supplement available online).

Vehicle info

This menu item displays the information

on the car conditions: Tyre pressures,

coolant temperature, Service

(Scheduled servicing), AdBlue (for

versions/markets, where provided).

AdBlue

(For versions/markets, where provided)

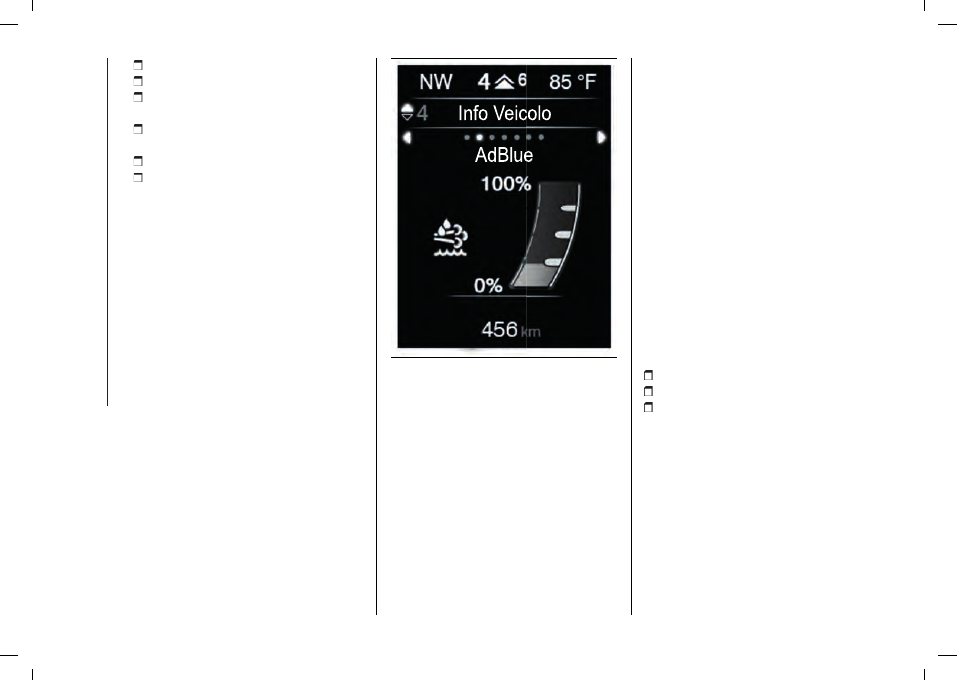

This screen fig. 95 shows the level of
AdBlue® in the tank expressed as a

percentage.

95

F0Y0719

Phone

(for versions/markets, where provided)
This Menu item allows some

information displayed on the

Uconnect™

system (the last 10 calls,

the last 10 text messages and the 10

favourite numbers) to be repeated

on the instrument panel display (for

further information see the “Multimedia”

chapter).
This information is only displayed if the

corresponding menu item has been

selected and activated.

NOTE The favourite numbers are those

previously set on the

Uconnect™

system. Phone events (incoming calls,

active call, outgoing call, double call,

etc.) are displayed in pop-up windows

even when you are not in “Phone”

mode.
NOTE The 10 favourite numbers are

only displayed on versions equipped

with the

Uconnect™

7 HD LIVE /

Uconnect™

7 HD Nav LIVE system.

Warnings (stored messages)

This menu item displays

information/failure messages stored by

the system.

Vehicle Setup

This menu item allows you to change

the settings for:

"Display"

"Safety / Assistance"

"Safety"

Display

By selecting item "Display" you

can access the settings/information

regarding: “Dimmer” (for

versions/markets, where provided),

“Screen Setup”, “See phone”, “See

navigation”, “Reset trip B automatic".

Safety / Assistance

By selecting “Safety /Assist." you

can access the settings/ information

regarding: “City Brake Control” (for

versions/markets, where provided),

63

“Parking sensor volume”, “Buzzer

volume”.

Safety

By selecting item "Safety" you can

access the settings/information

regarding: “Hill Holder” (for

versions/markets, where provided),

“Passenger AIRBAG” (for

versions/markets, where provided),

“Seat belt buzzer”, “Speed beep”.

TRIP COMPUTER

GENERAL INFORMATION

The Trip computer is used to display

information on car operation when the

ignition device is at MAR.
The Trip computer comprises:

Instantaneous info

: displays

the "Range" and "Instantaneous

consumption" parameters.

"

Trip A

" displays the following

values: “Distance travelled”, “Journey

time”, “Average fuel consumption” and

“Average speed”.

"

Trip B

" displays the following

values: “Distance travelled”, “Journey

time”, “Average fuel consumption” and

“Average speed”.
“Trip A” and “Trip B” monitor the car's

"complete missions" (trips) separately

from each other. The “Trip B” function

may be excluded.

The "Range" is also calculated and

displayed with the car at a standstill

and the engine running.

“Trip A” / “Trip B” Reset

Both functions can be reset (reset

means start of a new journey). To reset

the values, press and hold down the

OK button

on the steering wheel

fig. 96.

96

F0Y0659C

NOTE "Range" and "Current

Consumption" values cannot be reset.

VALUES DISPLAYED

External temperature
(for versions/markets, where provided)
Indicates the temperature outside the

car passenger compartment.
Range
This indicates the approximate distance

which can be travelled with the amount

of fuel present in the tank. The range

is also calculated and displayed when

the car is stationary with the engine

running.
The display will show “- - - -” if the

range value is less than 50 km (or 30

mi).

WARNING The range value variation

can be affected by several factors:

driving style, type of route (motorway,

urban, mountain roads, etc.),

conditions of use (load, tyre pressures,

etc.). Trip planning must therefore take

the above into account.

Travel Distance
This value shows the distance travelled

from the start of the new journey.
Average fuel consumption
This value shows the approximate

average fuel consumption from the

start of the new journey.
Current Consumption
This value shows the fuel consumption.

The value is constantly updated. The

display will show "- - - -" if the car is

parked with the engine running.
Average Speed
This value shows the car's average

speed based on the overall time

elapsed since the start of the new

journey.

64

Time elapsed since the start of the new

journey.

WARNING If there is no information,

the Trip computer displays "- - - -"

in place of the value. When normal

operating conditions are restored,

the counting of the various values is

resumed, without either zeroing the

values displayed prior to the problem,

or starting a new mission.

"OK" BUTTON

Brief button press

: display various

values.

Long button press

: reset parameters

and start a new mission. The reset is

only applied to the displayed values

(“Trip A” or “Trip B”).

New mission

This begins after resetting:

“manually” by pressing the

OK

button;

“automatic” resetting, when the “trip

distance” reaches 99999.9 km or when

the “travel time” reaches 999:59 (999

hours and 59 minutes);

after disconnecting/reconnecting the

battery;

“Trip B reset”, depending on the

stored settings (see the description of

the “Vehicle Settings” - “Display” menu

item in the “Display” paragraph).

EOBD SYSTEM

The EOBD system (European On Board

Diagnosis) carries out a continuous

diagnosis of the components of the car

related to emissions.

It also alerts the driver, by switching on

the

warning light on the instrument

panel, when these components are no

longer in peak condition (see “Warning

lights and messages” chapter).

The aim of the EOBD system

(European On Board Diagnosis) is to:

monitor system efficiency;

indicate an increase in emissions;

indicate the need to replace

damaged components.

The car also has a connector, which

can interface with appropriate tools,

that makes it possible to read the error

codes stored in the electronic control

units together with a series of specific

parameters for engine operation and

diagnosis.

This check can also be carried out by

the traffic police.

WARNING After eliminating the

anomaly, to check the system

completely, a Fiat Dealership is obliged

to run tests and, if necessary, road

tests which may also require a long

journey.

Travel Time

65

WARNING LIGHTS AND MESSAGES

WARNING The warning light switches on together with a dedicated message and/or acoustic signal when applicable. These

indications are indicative and precautionary and as such must not be considered as exhaustive and/or alternative to the

information contained in the Owner Handbook, which you are advised to read carefully in all cases. In the event of a failure

indication, always refer to the contents of this chapter.

WARNING The failure indicators which are shown on the display are divided into two categories: very serious and less serious

failures. Serious faults are indicated by a repeated and prolonged warning "cycle". Less serious faults are indicated by a warning

"cycle" with a shorter duration. The display cycle of both categories can be interrupted. The instrument panel warning light will

stay on until the cause of the failure is eliminated.

66

WARNING LIGHTS ON INSTRUMENT PANEL

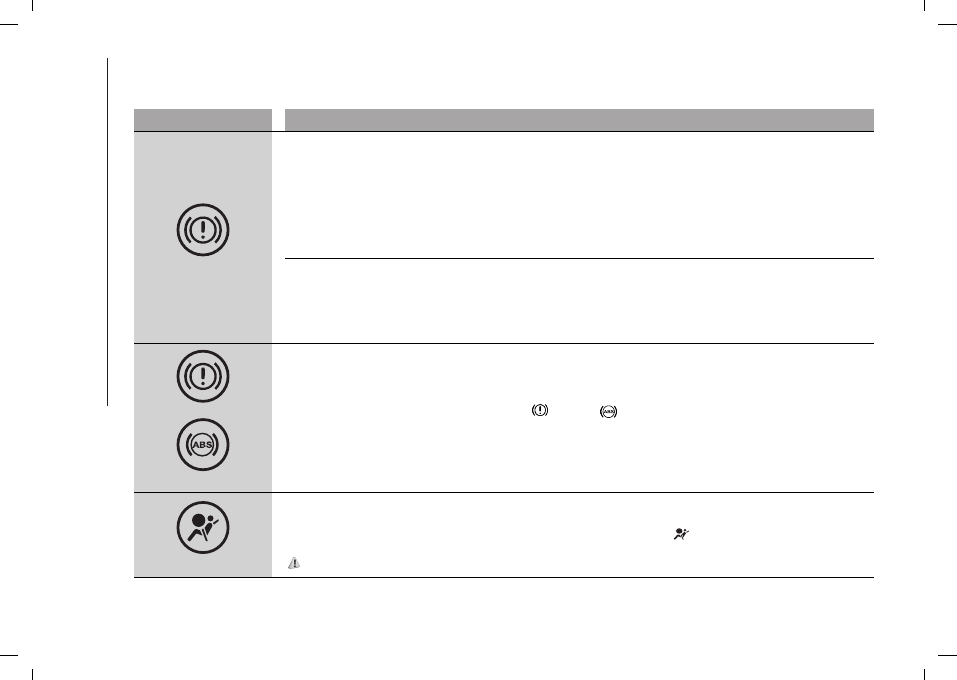

Red warning lights

Warning light

What it means

red

INSUFFICIENT BRAKE FLUID / PARKING BRAKE ON

The warning light switches on when the ignition key is turned to MAR, but it should switch off after a few

seconds.

Low brake fluid level

The warning light turns on when the level of the brake fluid in the reservoir falls below the minimum level, possibly

due to a leak in the circuit. On some versions a message and a symbol are shown on the display. Restore the

brake fluid level, then check that the warning light has switched off. If the warning light stays on, contact a Fiat

Dealership.

Parking brake on

The warning light (or symbol on the display) switches on when the parking brake is engaged. On certain versions,

if the car is moving the buzzer will also sound. Release the parking brake, then check that the warning light has

switched off. If the warning light stays on, contact a Fiat Dealership.

WARNING If the warning light turns on while driving, check that the parking brake is not engaged.

red

amber

EBD FAILURE

The warning light switches on when the ignition key is turned to MAR, but it should switch off after a few
seconds. The simultaneous switching on of the

(red) and

(amber) warning lights with the engine on

indicates either a failure of the EBD system or that the system is not available. In this case, the rear wheels may

suddenly lock and the vehicle may swerve when braking sharply. On certain versions a dedicated message is

displayed. Drive very carefully to the nearest Fiat Dealership to have the system inspected immediately.

red

AIRBAG FAILURE

The warning light switches on when the ignition key is turned to MAR, but it should switch off after a few

seconds. If the warning light switches on constantly (on some versions the

symbol is shown) this indicates a

failure in the airbag system.

34) 35)

67

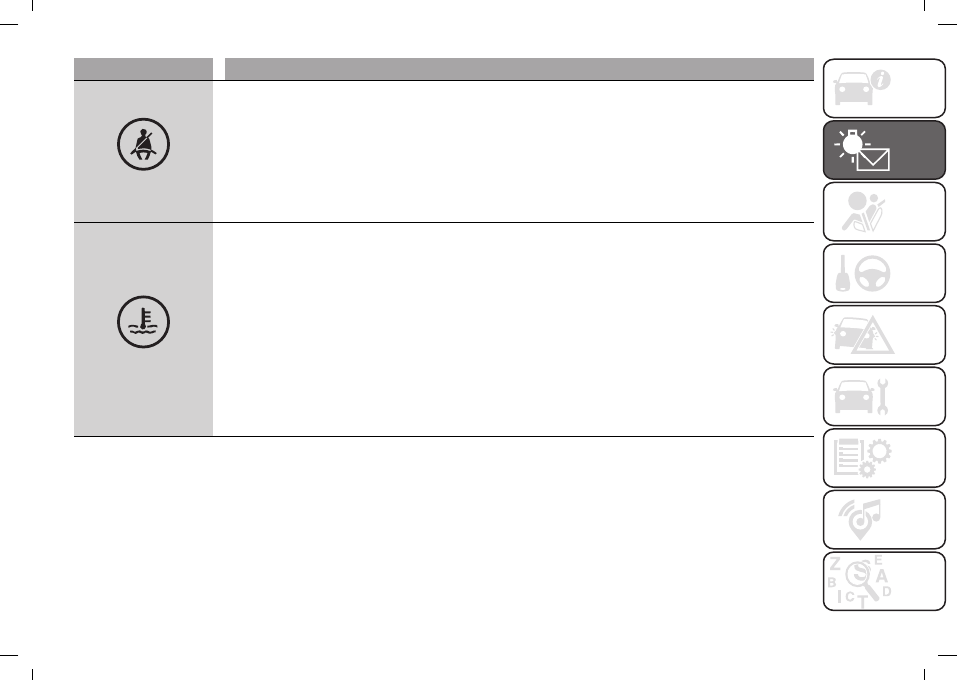

Warning light

What it means

red

SEAT BELTS REMINDER

(for versions/markets, where provided)

When the ignition key is turned to MAR, the warning light switches on for a few seconds (to show that the light is

working correctly), then if there are no malfunctions it should switch off. The warning light switches on constantly

with the car stationary and the driver's side or passenger side seat belt (when the passenger is present) not

fastened. The warning light will flash and a buzzer will sound if the car is in motion and the front seat belts are

not correctly fastened. In this case, fasten the seat belt. For permanent deactivation of the SBR (Seat Belt

Reminder) system buzzer, contact a Fiat Dealership. The system can be reactivated at any time using the Setup

Menu.

red

ENGINE COOLANT TEMPERATURE TOO HIGH

The warning light turns on when the engine is overheated. On some versions the display shows the dedicated

message.

In normal driving conditions

: stop the car, switch off the engine and check that the water level in the reservoir

is not below the MIN mark. In this case, wait for the engine to cool down, then slowly and carefully open the

cap, top up with coolant and check that the level is between the MIN and MAX marks on the reservoir itself.

Also check visually for any fluid leaks. If, when restarting, the warning light (or display symbol) switches on again,

contact a Fiat Dealership.

If the car is used under demanding conditions (e.g. in high-performance driving):

slow down and, if the

warning light stays on, stop the car. Wait for 2 or 3 minutes with the engine running and slightly accelerated to

further favour the coolant circulation. Then stop the engine. Check that the coolant level is correct as described

above.

WARNING Over demanding routes, it is advisable to keep the engine on and slightly accelerated for a few

minutes before switching it off.

68

Warning light

What it means

red

“DUALDRIVE” ELECTRIC POWER STEERING FAILURE

During engine start

: when the key is turned to MAR, the warning light switches on, but it should switch off

after a few seconds. If the warning light stays on, turn the ignition key to STOP and start the engine again. If the

warning light stays on, the effort to operate the steering wheel could be increased; steering is, however, possible.

In this case, contact a Fiat Dealership as soon as possible.

While driving

: if the warning light switches on while driving you may not have steering assistance. Although it will

still be possible to steer the vehicle, the effort needed to operate the steering wheel could be increased: contact

a Fiat Dealership as soon as possible.

WARNING In some circumstances, factors independent of the electric power steering could cause the warning

light on the instrument panel to switch on. In this case, stop the car immediately (should it be in motion), stop the

engine for about 20 seconds and then restart the engine. If the warning light (or, on some versions, a message

and a symbol on the display) remains on constantly, contact a Fiat Dealership.

WARNING

34)

If, when the ignition key is turned to MAR, the warning light

does not switch on or stays on while driving, a failure may have occurred in

the restraint systems. In this case the airbags or pretensioners may not be deployed in an impact or, in a lower number of cases, they may be

deployed accidentally. Before continuing, contact a Fiat Dealership immediately to have the system checked.

35)

A

warning light failure is signalled by continuous illumination of the

symbol on the instrument panel. In this case, any faults with the

airbag system may not be signalled. Before continuing, contact a Fiat Dealership immediately to have the system checked.

69

Amber warning lights

Warning light

What it means

amber

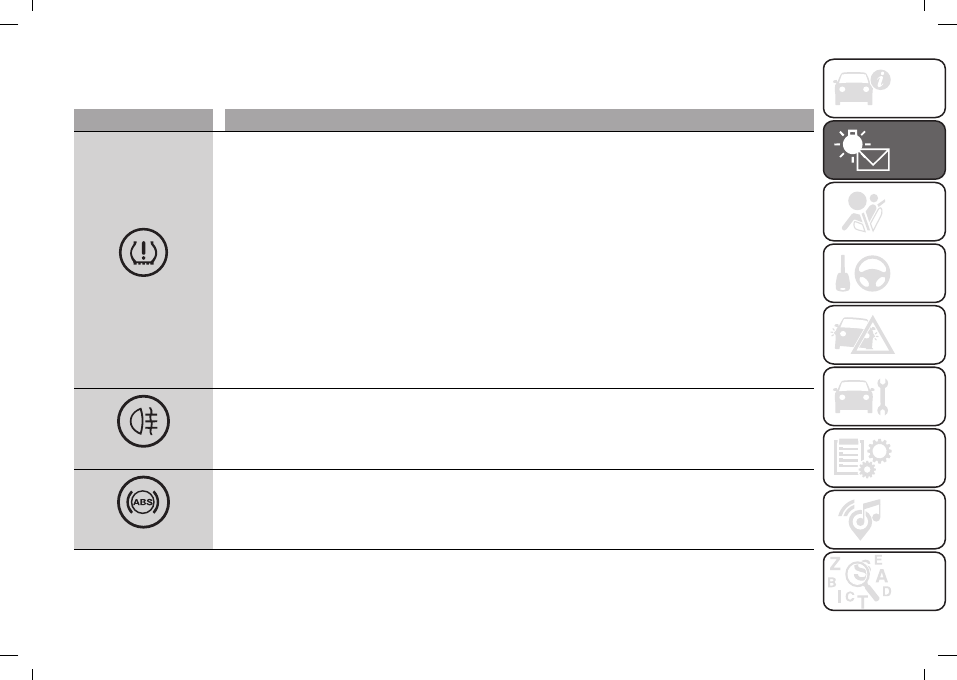

iTPMS

(for versions/markets, where provided)

The warning light switches on when the ignition key is turned to MAR, but it should switch off after a few

seconds.

iTPMS failure/iTPMS temporarily deactivated

The warning light flashes for about 75 seconds and then stays on constantly to indicate that the system is

temporarily deactivated or faulty. The system will go back to normal operation when the operating conditions will

allow it. If this is not the case, carry out the Reset procedure after restoring the normal operating conditions. If the

malfunction warning persists, contact a Fiat Dealership as soon as possible.

Tyre pressure low

The warning light switches on constantly to indicate that the tyre pressure is lower than the recommended value

and/or that slow pressure loss is occurring. In these cases, optimal tyre duration and fuel consumption may not

be guaranteed. It is advisable to restore the correct pressure value (see the "Wheels" paragraph in the "Technical

specifications" section). Once the normal operating conditions of the car are restored, carry out the "Reset"

procedure.

WARNING Do not continue driving with one or more flat tyres as the car handling may be compromised. Stop

the vehicle, avoiding sharp braking and steering.

amber

REAR FOG LIGHT

The warning light switches on when the rear fog light is activated.

amber

ABS FAILURE

The warning light switches on to indicate a system fault. In this case the braking system maintains its efficiency

unaltered but without the advantage of the ABS system.

Drive carefully and contact a Fiat Dealership as soon as possible.

70

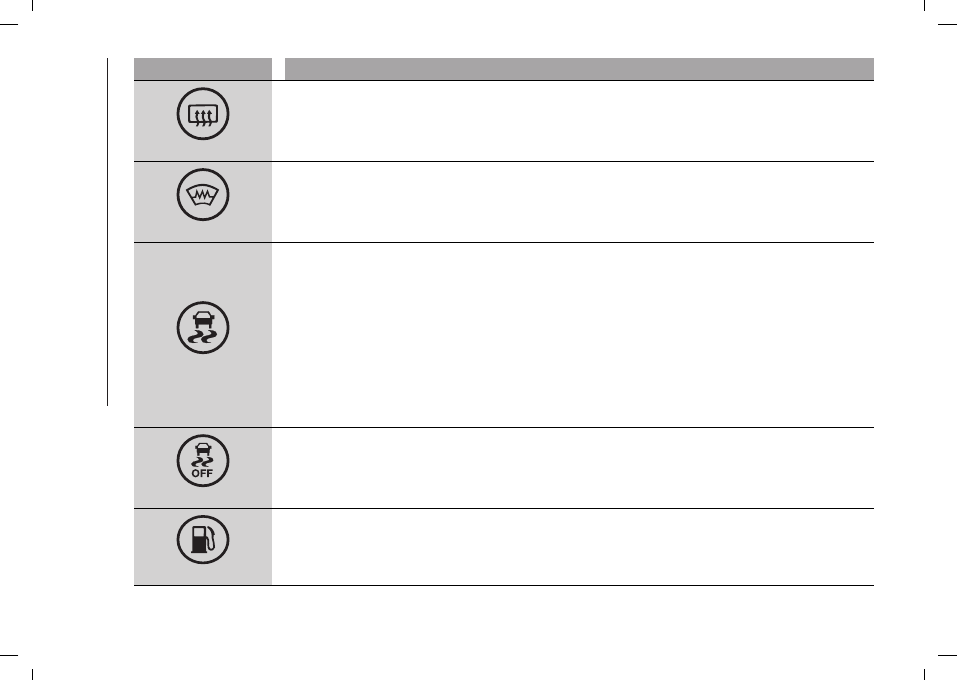

Warning light

What it means

amber

HEATED REAR WINDOW

The warning light turns on when switching the heated rear window on.

amber

HEATED WINDSCREEN

(for versions/markets, where provided)

The warning light turns on when the heated windscreen is turned on.

amber

ESC SYSTEM

(for versions/markets, where provided)

The warning light switches on when the ignition key is turned to MAR, but it should switch off after a few

seconds.

ESC system activation

Intervention by the system is indicated by the flashing of the warning light: it indicates that the car is in critical

stability and grip conditions.

ESC system failure

If the warning light does not switch off, or if it stays on with the engine running, a failure was found on the ESC

system. Contact a Fiat Dealership as soon as possible.

Hill Holder failure

The warning light turns on to indicate a Hill Holder system failure. Contact a Fiat Dealership as soon as possible.

amber

ASR SYSTEM DEACTIVATION

The warning light comes on if the ASR system is deactivated (see "Active safety systems" point of the "Safety"

system).

amber

FUEL RESERVE

The warning light comes on when the amount of fuel in the tank is 7.5 litres or less.

IMPORTANT The warning light will flash to indicate a system fault. If this is the case, go to a Fiat Dealership to

have the system checked.

71

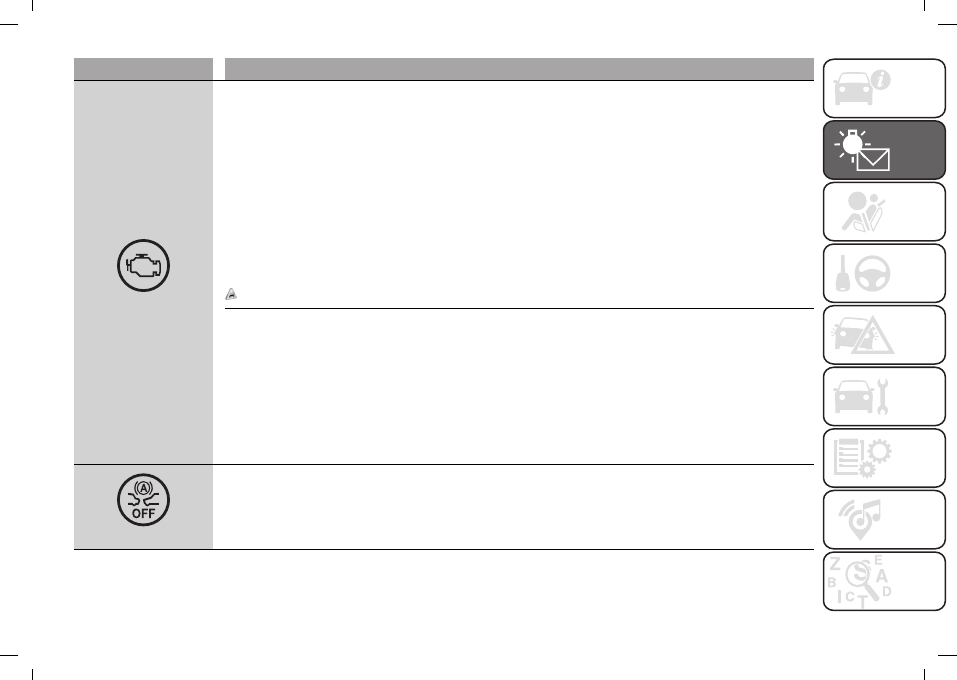

Warning light

What it means

amber

EOBD/INJECTION SYSTEM FAILURE

The warning light switches on when the ignition key is turned to MAR, but it should switch off after a few

seconds.

If the warning light remains on, or it switches on while driving, the injection system is not working properly.

Warning light constantly on

: signals a malfunction in the supply/ignition system which could cause high

exhaust emissions, a possible loss of performance, poor driveability and high consumption. Under these

conditions, the vehicle can continue travelling at moderate speed but without demanding excessive effort from

the engine or high speed. Prolonged use of the car with the warning light on fixed may cause damage: contact a

Fiat Dealership as soon as possible.

The warning light switches off if the malfunction disappears, but is still stored by the system.

Warning light flashing (petrol engines only)

: signals that the catalytic converter is probably damaged. Release

the accelerator pedal to lower the speed of the engine until the warning light stops flashing. Continue the

journey at moderate speed, trying to avoid driving conditions that may cause further flashing and contact a Fiat

Dealership as soon as possible.

14)

AdBlue® (UREA) INJECTION SYSTEM FAILURE (Diesel versions)

(for versions/markets, where provided)

In normal conditions, when the ignition device is brought to MAR, the warning light switches on, but it should

switch off as soon as the engine is started. The warning light appears, on some versions together with a

dedicated message on the display, if a fluid not conforming with nominal features is introduced or if an average

AdBlue® (UREA) consumption of over 50% is detected. Contact a Fiat Dealership as soon as possible.

If the problem is not solved, a specific message will appear on the instrument panel display whenever a certain

threshold is reached until it will no longer be possible to start the engine. When there are approximately 200 km

before you will no longer able to restart the engine, on some versions a dedicated message will appear fixed on

the instrument panel display accompanied by warning tone.

amber

DEACTIVATION OF CITY BRAKE CONTROL - "Collision Mitigation" SYSTEM

(for versions/markets, where provided)

The warning light comes on when the City Brake Control - "Collision Mitigation" system is deactivated by the

driver or in the event of automatic deactivation following a temporary system failure. Contact a Fiat Dealership as

soon as possible.

72

Warning light

What it means

amber

GLOW PLUG PREHEATING (Diesel versions)

This warning light switches on when the key is turned to MAR. It will switch off as soon as the heater plugs have

reached a preset temperature. The engine can be started as soon as the warning light switches off.

IMPORTANT In mild or high temperature conditions, the warning light comes on for a very short time only.

Glow plug preheating failure

The warning light will flash to indicate an anomaly in the glow plug preheating system. Contact a Fiat Dealership

as soon as possible.

INDICATION OF AdBlue® (UREA) DIESEL EMISSIONS ADDITIVE LOW LEVEL

(for versions/markets, where provided)

The AdBlue® (UREA) Diesel Emissions Additive low level warning light

lights up if the car has a low level of

AdBlue® (UREA).

Top up the AdBlue® (UREA) tank as soon as possible with at least 5 litres of AdBlue® (UREA). If topping up is

done with remaining range of AdBlue® (UREA) in the tank equal to zero, you may need to wait 2 minutes before

starting the engine.

IMPORTANT

14)

If, when the ignition key is turned to MAR, the warning light does not switch on, switches on constantly or flashes while driving, contact

a Fiat Dealership as soon as possible. The exhaust emission levels may be checked by the traffic control authorities using the appropriate

equipment. Comply with the laws and regulations of the country where you are driving.

73

Green warning lights

Warning light

What it means

green

SIDE LIGHTS AND DIPPED BEAM HEADLIGHTS/FOLLOW ME HOME

The warning light switches on when the side lights or dipped headlights are turned on.

Follow me home

: the light comes on when this device is active. The display shows the duration (in seconds) set

for the function.

green

FOG LIGHTS

The warning light comes on when the front fog lights are turned on.

green

LEFT DIRECTION INDICATOR

The warning light switches on when the direction indicator control stalk is moved downwards or, together with

the right direction indicator, when the hazard warning light button is pressed.

green

RIGHT DIRECTION INDICATOR

The warning light switches on when the direction indicator control stalk is moved upwards or, together with the

left direction indicator, when the hazard warning light button is pressed.

green

AUTOMATIC ENGINE STOP (versions with Start&Stop system)

The warning light switches on when the engine is automatically stopped by the Start&Stop system.

74

Blue warning lights

Warning light

What it means

blue

MAIN BEAM HEADLIGHTS

The warning light switches on when the main beam headlights are turned on.















Content      ..      1      2      3      ..
