Dear Customer,
We would like to congratulate and thank you for choosing the Fiat New 500.
We have written this handbook to help you get familiar with all the features of your car.
Here you will find information, advice and important warnings regarding use of your car and how to achieve the best
performance from the technical features of your Fiat New 500.
You are advised to read it right through before taking to the road for the first time, to become familiar with the controls; at the
same time, you can understand the car behaviour on different road surfaces.
This document contains specifications, special procedures and essential information for caring for and maintaining your Fiat
New 500 over time, driving it safely and running it correctly.
After reading it, you are advised to keep the handbook inside the car, for an easy reference and for making sure it remains on
board the car should it be sold.
In the attached Warranty Booklet you will also find a description of the Services that Fiat offers to its customers, the Warranty
Certificate and the detail of the terms and conditions for maintaining its validity.
We are sure that these will help you to get in touch with and appreciate your new car and the service provided by the people at
Fiat.
Enjoy reading. Happy driving!
WARNING
All the versions of the Fiat New 500 are described in this Owner Handbook. Options, equipment dedicated to
specific markets or versions are not explicitly indicated in the text: as a consequence, you should only consider the
information which is related to the trim level, motor and version that you have purchased. Any content introduced
throughout the production of the model, outside the specific request of options at the time of purchase, will be
identified with the wording (where provided). All data contained in this publication are purely indicative. FCA Italy
S.p.A. can modify the specifications of the vehicle model described in this publication at any time, for technical or
marketing purposes. For further information, contact a Fiat Dealership.
ESSENTIAL INFORMATION!
STARTING THE ENGINE
With the transmission in position P (Park), when the ignition device is brought to the ENGINE position, an acoustic warning
is emitted and the message "READY" appears on the instrument panel display to indicate that the electric traction system of
the the New 500 has started. The New 500 is now ready to go.
ELECTRICAL ACCESSORIES
If, after buying the car, you decide to add electrical accessories (with the risk of gradually draining the 12V battery), contact a
Fiat Dealership. They can calculate the overall electrical requirement and check that the car's electric system can support the
required load.
SCHEDULED SERVICING
Correct maintenance of the car is essential for ensuring that it maintains its performance and its safety features, its
environmental friendliness and low running costs for a long time to come.
USE OF THE OWNER HANDBOOK
OPERATING INSTRUCTIONS
Each time an instruction is given that concerns direction (left/right or forward/backward), it is written to be read from the
perspective of an occupant in the driver's seat. If a direction is written from a different perspective, it will be specified as such in
the text as appropriate.
The figures in the Owner Handbook are provided by way of example only: this might imply that some details of the image do
not correspond to the actual arrangement of your car. In addition, the Handbook has been conceived considering vehicles
with steering wheel on the left side; it is therefore possible that on vehicles with steering wheel on the right side, the position or
construction of some controls is not exactly mirror-like with respect to the figure.
To identify the chapter with the information needed you can consult the index at the end of this Owner Handbook.
The sections can be rapidly identified with dedicated graphic tabs, at the side of each odd page. A few pages further there is
a key for getting to know the section order and the relevant symbols in the tabs. There is in any case a textual indication of the
current section at the side of each even page.
WARNINGS AND CAUTIONS
While reading this Owner Handbook you will find a series of WARNINGS to prevent procedures that could damage your car.
There are also PRECAUTIONS that must be carefully followed to prevent incorrect use of the components of the car, which
could cause accidents or injuries.
Therefore, all WARNINGS and CAUTIONS must always be carefully followed.
WARNINGS and CAUTIONS are recalled in the text with the following symbols:
personal safety;
car safety;
environmental protection.
NOTE These symbols, when necessary, are indicated besides the title or at the end of the line and are followed by a number.
That number recalls the corresponding warning at the end of the relevant chapter.
SYMBOLS
Some car components have coloured labels with symbols indicating precautions to be observed when using this component.
CHANGES/ALTERATIONS TO THE CAR
WARNING Any change or alteration of the car might seriously affect its safety and road grip, thus causing accidents, in which
the occupants could even be fatally injured.
ACCESSORIES PURCHASED BY THE OWNER
If after buying the car, you decide to install electrical accessories that require a permanent electrical supply (e.g. radio, satellite
anti-theft system, etc.) or accessories that in any case burden the electrical supply, contact a Fiat Dealership, whose personnel
will check whether the car's electrical system is able to withstand the load required, or whether it needs to be integrated with a
more powerful 12V battery.
WARNING Take care when fitting additional spoilers, alloy wheel rims or non-standard wheel hubs: they could reduce the
ventilation of the brakes and affect efficiency under sharp, repeated braking or on long descents. Make sure that nothing
obstructs the pedal stroke (mats, etc.).
INSTALLING ELECTRICAL/ELECTRONIC DEVICES
Electrical and electronic devices installed after buying the car in the context of after-sales service must carry the following label
FCA Italy S.p.A. authorises the installation of transceivers provided that installation is carried out at a specialised centre, in a
workmanlike fashion and in compliance with manufacturer's specifications.
WARNING Traffic police may not allow the car on the road if devices have been installed which modify the features of the car.
This may also cause invalidation of warranty in relation to faults caused by the change either directly or indirectly related to it.
FCA Italy S.p.A. shall not be liable for damage caused by the installation of accessories either not supplied or recommended by
Fiat and/or not installed in compliance with the provided instructions.
RADIO TRANSMITTERS AND MOBILE PHONES
Radio transmitter equipment (car mobile phones, CB radios, amateur radio etc.) cannot be used inside the car unless a
separate aerial is mounted on the roof.
Transmission and reception of these devices may be affected by the shielding effect of the car body. As far as the use of EC-
approved mobile phones is concerned (GSM, GPRS, UMTS, LTE), follow the usage instructions provided by the mobile phone
Manufacturer.
WARNING The use of these devices inside the passenger compartment (without an external aerial) may cause the electrical
systems to malfunction. This could compromise the safety of the car in addition to constituting a potential hazard for
passengers' health.
GRAPHICAL INDEX
KNOWING YOUR CAR
KNOWING THE INSTRUMENT PANEL
SAFETY
STARTING AND DRIVING
IN AN EMERGENCY
MAINTENANCE AND CARE
TECHNICAL SPECIFICATIONS
MULTIMEDIA
CONTENTS
GRAPHICAL INDEX
FRONT VIEW
3
6
5
1
4
2
1
F0S1216
HEADLIGHTS
DOOR MIRRORS
WINDSCREEN WIPERS
Exterior lights
37
Adjustment
36
Replacing blades
241
Bulb replacement
212
Folding
36
Bulb types
212
DOORS
WHEELS
Central opening/closing
27
Rims and wheels
259
Tyre pressure
259
BONNET
Opening/closing
67
9
REAR VIEW
2
F0S0768
1 REAR LIGHTS
External lights
37
Bulb replacement
219
Bulb types
219
2 BOOT
Opening/closing
66
3 REAR WINDOW WIPER
Blade replacement
241
10
DASHBOARD
4
5
5
2
6
3
8
1
9
7
5
10
11
3
F0S1093
LEFT STALK
CLIMATE CONTROL SYSTEM
STEERING WHEEL
External lights
37
Manual/automatic climate control
Adjustment
35
system
46
INSTRUMENT PANEL
CONTROLS ON THE STEERING
Instrument panel features
77
TRANSMISSION
WHEEL
Warning lights
86
One-speed transmission
139
Phone controls
281
RIGHT STALK
Display controls
78
CONTROLS ON THE STEERING
Window washing
42
WHEEL
Left-side controls
Co-Driver System
147
Park
Assist
Cruise Control
145
Uconnect™
281
activation/deactivation
167
Speed Limiter
144
ESC system
AIR VENTS
activation/deactivation
102
Climatic comfort
46
Rear fog light
37
11
Headlight alignment
adjustment
37
12
INTERIOR
5
1
4
2
3
2
2
4
F0S1094
IGNITION DEVICE
POWER WINDOWS AND DOOR
Starting the car
24
MIRRORS
Electric windows
58
INTERIOR FITTINGS
Adjusting the mirrors
36
Storage compartments
68
Cup/bottle holders
68
DOORS
Power socket
68
Door opening
27
Smartphone compartment / Wireless
charger
68
USB ports
68
Uconnect™ system controls . .
68
Drive mode selector
15
SEATS
Adjustments
32
13
KNOWING YOUR CAR
In-depth knowledge of your new car
OPERATING PRINCIPLE
15
starts here.
DASHBOARD
21
The handbook you are reading will tell
THE KEYS
22
you how things are done, and how it
IGNITION DEVICE
24
works in a simple, direct way.
SENTRY KEY®
26
That’s why we advise you to read it
ALARM SYSTEM
26
seated comfortably on board, so that
you can see what is described here for
DOORS
27
yourself.
SEATS
32
HEAD RESTRAINTS
35
STEERING WHEEL
35
REAR-VIEW MIRRORS
36
EXTERNAL LIGHTS
37
INTERIOR LIGHTS
41
WINDOW WASHING
42
PROGRAMMING THE CLIMATE
CONTROL SYSTEM
44
CLIMATE CONTROL SYSTEM
46
ELECTRIC WINDOWS
58
ROOF
59
SOFT TOP
61
BOOT
66
BONNET
67
INTERIOR FITTINGS
68
ROOF RACK/SKI RACK
73
RED SPECIAL SERIES
74
SOUND SYSTEM
74
14
OPERATING
powered by the high-voltage battery
and also recharges the 12V battery.
PRINCIPLE
The battery is charged by connecting
The propulsion system of the New 500
the charging socket of the car to the
is completely powered by the energy
mains power supply using the charging
contained in the high-voltage lithium-
cable. The battery is charged by
ion rechargeable battery of the car.
connecting the charging socket of the
Unlike conventional or hybrid cars,
car to the mains power supply using
there is no internal combustion engine
the charging cable.
in this car.
The high-voltage battery is also
The New 500 uses the electrical energy
partially recharged while driving during
stored in the high-voltage battery
deceleration or braking. During this
and not fuel. This battery provides
steps, the battery is recharged by
the energy needed to start moving
regeneration via the electric motor. This
and therefore needs to be recharged
is an efficient way of recharging as the
before use. If the high-voltage battery is
kinetic energy of the car is used and
completely flat the car will not start.
converted into electric charging energy.
This car also has a 12V battery of the
Electric cars have specific
same type as those used by cars with
characteristics of use, which is useful
internal combustion engines. If the 12V
to know, in order to achieve optimal
battery is completely flat the car will not
performance.
start.
This car respects the environment
The 12V battery supplies power to the
because it does not emit exhaust
conventional electrical system: lights,
gases and therefore has zero CO
2
windscreen wipers, restraint systems
emissions.
(airbags and pretensioners), sound
system, etc.
The high-voltage battery supplies
power to the electric motor and
supplies the high-voltage auxiliary
devices (heaters, electric climate
compressor, etc.). The electronic
converter that powers the 12V system
for general car operation is also
15

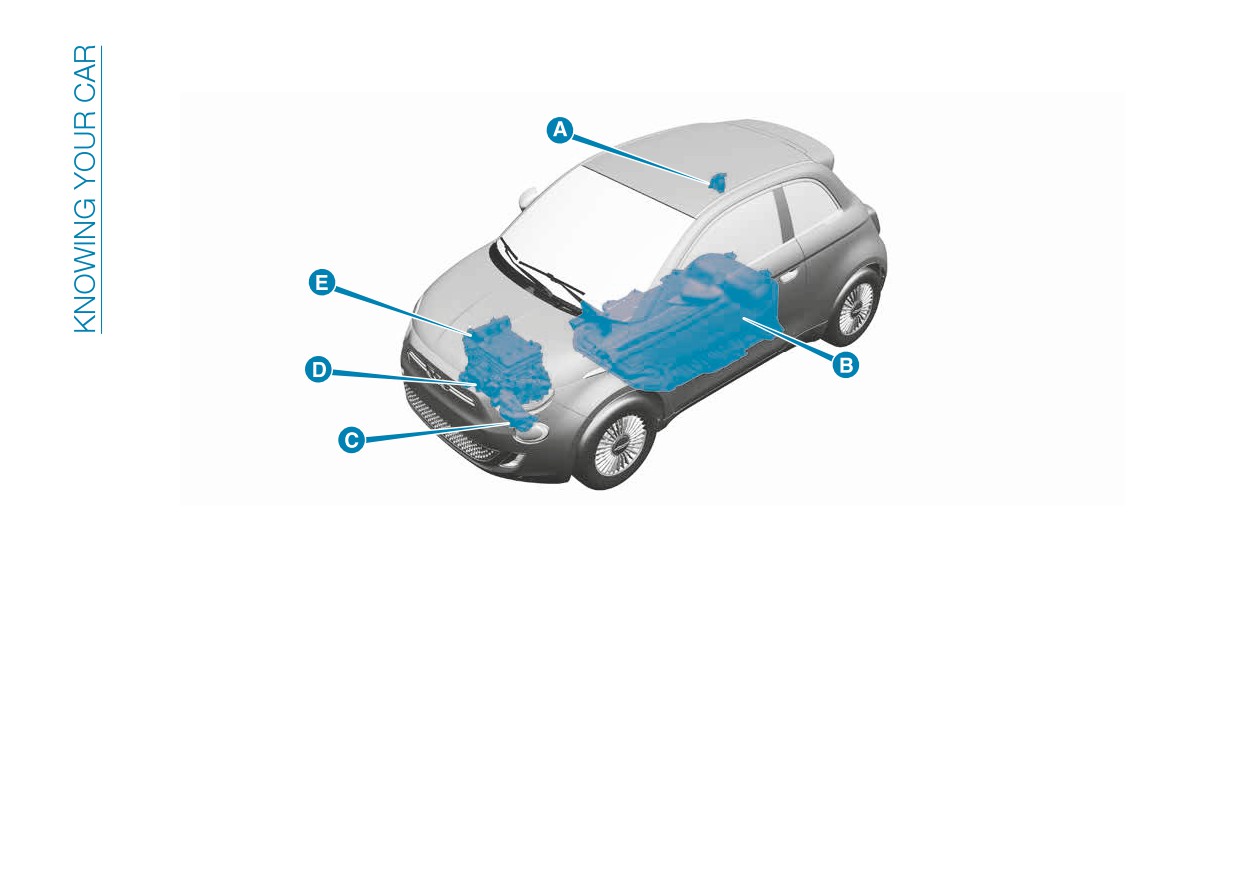

FUNCTIONAL DIAGRAM OF THE CAR
5
F0S0769
A. Charging port B. High-voltage battery C. High-voltage electrical compressor D. Traction electric motor E. Voltage converter
16
HIGH-VOLTAGE BATTERY
while in the smaller version the voltage
for the proper handling of the batteries
The high-voltage battery is located at
is 395V.
to be disposed of.
the bottom of the vehicle in a central
The high-voltage battery is equipped
GENERAL INFORMATION
area and is maintenance-free.
with conditioning systems that ensure
The car is also equipped with a battery
that it operates under the best
management system designed to:
temperature conditions appropriate to
ensure safe operation
its operation.
optimise driving range
1)
optimise the working life of the high-
The car is equipped with a safety
voltage battery
device that inhibits the activation of the
NOTE You can hear a click from inside
high-voltage system. This device is
the car when the car is starting and
normally used by Fiat Dealerships to
switching it off. When the ignition
repair and service the car.
device is in the ENGINE position, the
1)
high-voltage battery contactors are
2)
3)
4)
closed to allow the distribution of the
6
F0S0770
1)
2)
accumulated electricity to use the car.
A. High-voltage wires
This typical sound is the noise of these
HIGH-VOLTAGE BATTERY
The high-voltage battery is lithium-ion.
contactors opening and closing and is
DISPOSAL
Lithium-ion batteries provide the
normal for the car.
The high-voltage battery is designed
following benefits:
If the temperature of the high-voltage
to last for the lifetime of the car. If it
are much lighter than other types of
battery is below -10°C, or above 40°C,
is necessary to replace the battery,
chargeable batteries of the same size;
some car functions may change or turn
please contact a Fiat Dealership for
keep the charge longer;
off as battery performance decreases
information on disposal.
have no memory, i.e. it is not
outside this temperature range.
NOTE The car is provided with a
necessary to discharge them
high-voltage lithium-ion battery.
OPERATING MODE
completely before recharging, as is the
Inappropriate disposal of this type
As with a car with automatic
case with other types of batteries;
of battery carries a risk of serious
transmission, you must get used to
can be recharged and discharged,
burns, electric shock and damage
not using your left foot to activate the
charging times vary depending on
to the environment. In accordance
clutch pedal which is not present. While
home or public charging mode and
with national and international battery
driving, when you lift your foot off the
power.
regulations, FCA guarantees an
accelerator pedal or when you press
The high-voltage battery of the New
adequate collection of this component
the brake pedal during deceleration,
500 in the larger version (with more
in cooperation with qualified operators
the motor generates electric current
energy) has a nominal voltage of 350V,
17
which is used to brake the car and
When the motor is started, the system
this mode, the energy consumption of
recharge the high-voltage battery.
usually maintains the driving mode that
the car depends on the driving style.
Refer to the "eBraking mode" chapter
was active before the car was stopped.
In "NORMAL" mode, when the
in the "Starting and driving" section.
The standard operating mode is
accelerator pedal is released, the car
Special case: after the high-voltage
"NORMAL". Pull and release the
slows down with an motor braking
battery has been fully recharged
selector once to activate "RANGE"
effect similar to that of a conventional
and during the first kilometres of
mode. Pulling and releasing the
vehicle. During this phase, the high-
use of the car, the exhaust brake is
selector switch a second time activates
voltage battery is partially recharged
in a temporary condition of reduced
the "SHERPA" mode. To return to
(regeneration).
effectiveness. Adapt your driving
"RANGE" mode, push the switch
In "NORMAL", when the one-speed
accordingly.
towards the dashboard and release it
transmission is on D, to keep the car
5)
6)
7)
once, to return to "NORMAL" mode,
stationary press the brake pedal ("One
push and release it a second time.
Pedal Driving" not available).
While driving, you can activate the
Driving mode selection is not available
The "creeping" function is also
selector (A) fig. 7 located on the central
in "Performance limitation - Turtle
available. The car will start to move
tunnel. This device allows you to set
three different driving modes according
mode".
forward (with transmission in "D") or
to the driver's needs:
backward (with transmission in "R")
when the brake pedal is released. The
NORMAL
accelerator should not be pressed in
RANGE
SHERPA
this case.
Via the on board electronics, the
"RANGE" mode
device acts on the dynamic control
In "RANGE" mode, the car continues to
system of the car (motor, ESC system),
have no speed restrictions but offers
interfacing the instrument panel as well.
comfortable handling with a smoother
The selector is of "hold to operate"
response to accelerator pedal
type, returning to the central position
7
F0S1088
pressure. This mode helps to adopt a
when released. Engagement of the
driving style aimed at maximising the
required driving mode is indicated on
"NORMAL" mode
range.
the instrument panel display with a
In the "NORMAL" operating mode, the
dedicated message. The system does
car has no performance limitations and
WARNING The "One-Pedal Driving"
not allow you to change the driving
can be driven fast using all the power
function is enabled on the accelerator
mode when you drastically reduce the
and torque of the traction system. In
pedal in "RANGE" mode. In this
performance of the electric motor (see
case, the car can be accelerated,
paragraph on performance limitations).
18
decelerated and stopped by acting only
decelerated and stopped by acting only
Performance limitation -
on the accelerator pedal. See the "One
on the accelerator pedal.
Turtle mode
Pedal Driving" chapter in the "Starting
"Turtle" mode is activated automatically
the motor" section.
NOTE The "creeping" function is not
when the remaining range is less
available in "SHERPA" mode.
than 24 km, but can be temporarily
NOTE The "creeping" function is not
NOTE When "One Pedal Driving" with
deactivated in case of emergency (for
available in "RANGE" mode.
one-speed transmission in D is active
example to clear a junction) by quickly
depressing the accelerator pedal fully
NOTE When "One Pedal Driving" with
and the car is stationary, it is not
(kick-down function).
one-speed transmission in D is active
necessary to press the brake pedal to
and the car is stationary, it is not
hold it stationary.
Range: 24-16 km
necessary to press the brake pedal to
NOTE Even if "One Pedal Driving" is
Amber high-voltage battery charge
hold it stationary.
active, the brake system operated by
status indicator, symbol
on the
In "RANGE" mode, by fully depressing
the brake pedal works normally.
instrument panel display lit for 6
the accelerator pedal, you can override
In "SHERPA" mode, by fully depressing
seconds.
the mode limitations and temporarily
the accelerator pedal, the operating
Speed according to the selected
return to "NORMAL" mode.
mode is temporarily returned (e.g. to
mode (NORMAL, RANGE, SHERPA).
The heated rear window,
make an overtaking manoeuvre) to
"SHERPA" mode
windscreen, mirrors and seats are
"NORMAL".
In "SHERPA" mode, the car has no
deactivated automatically (but can be
When "SHERPA" mode is activated,
acceleration restriction but the top
reactivated manually if necessary).
the heated seats will be turned off if
speed is electronically limited to
turned on. To turn them on again, you
Range: 16-8 km
80km/h. "SHERPA' mode significantly
must act on the activation command.
Red high-voltage battery charge
helps to adopt a driving style aimed at
status indicator, symbol
on the
maximum efficiency and maximises the
NOTE If the climate control system
instrument panel display lit fixed.
range of the car.
or heated seats are activated in
Speed according to the selected
"SHERPA" mode, a dedicated
The climate control system and
message appears on the instrument
mode (NORMAL, RANGE, SHERPA).
seat heaters are also automatically
The heated rear window,
panel to alert the user that these
deactivated but can be manually
windscreen, mirrors and seats are
functions have an impact on battery
reactivated if necessary.
deactivated automatically (but can be
life.
reactivated manually if necessary).
WARNING The "One-Pedal Driving"
Range: 8-0 km
function is enabled on the accelerator
Red high-voltage battery charge
pedal in "SHERPA" mode. In this
status indicator, symbol
on the
case, the car can be accelerated,
instrument panel display lit fixed.
19
Top speed: 70 km/h.
or modification on the high-voltage
IMPORTANT
The climate control system is
electrical system of the car (components,
deactivated, and the fan and quick
cables, connectors, high-voltage battery) is
strictly forbidden due to the risks it may
1) The high-voltage battery may only be
defrosting may be activated. The
imply for your safety. In this case, contact
disconnected by qualified personnel at a
heated rear window, windscreen,
a Fiat Dealership. Tampering with the
Fiat Dealership.
mirrors and seats are deactivated
high-voltage system can lead to serious
automatically (but can be reactivated
burns or electrical discharges with even
manually if necessary).
fatal consequences.
IMPORTANT
2) Do not resell, give away or modify the
Range: ≈0 km (emergency
high-voltage battery. The high-voltage
conditions)
1) Do not dispose of the battery yourself.
battery must only be used on the car
If the car is scrapped, it must be taken to
Red high-voltage battery charge
on which it is supplied. If used outside
a Fiat Dealership to have the high-voltage
status indicator, symbol
on the
the car or modified, accidents such as
battery removed and disposed of properly
instrument panel display blinking.
electric shock, heat or smoke generation,
by the Fiat Dealership personnel who have
explosion or electrolyte leakage may
Top speed: 70 km/h.
the technical skills to operate in complete
occur.
safety.
The climate control system is
3) If the car is scrapped without removing
2) Live parts of the car are marked with
deactivated, and the fan and quick
the high-voltage battery, contact with
safety warning labels. The high-voltage
defrosting may be activated. The
high-voltage components, cables and
battery bears a label indicating this danger.
heated rear window, windscreen,
connectors could cause very dangerous
electric shock.
mirrors and seats are deactivated
4) If the high-voltage battery is not
automatically (but can be reactivated
disposed of properly, it may cause electric
manually if necessary).
shock, resulting in serious injury or death.
NOTE Turtle mode speed limits are
5) Under no circumstances may the motor
disabled when the Speed Limiter or
brake replace pressing the brake pedal.
6) In case of bad weather and flooded
Cruise Control is active.
roads: Do not drive on a flooded street if
the water level exceeds the lower part of
the wheel rims.
WARNING
7) Due to the quiet operation of your
electric car, always set the speed selector
switch to P and engage the electric
1) The propulsion system of the electric
parking brake and stop the motor before
car is connected by the high-voltage
leaving the car. DANGER OF SERIOUS
battery and when the system is active the
INJURY.
components are then powered at high-
voltage. Observe the warning messages
on the labels on the car when accessing
the motor compartment. Any intervention
20
DASHBOARD
The presence, graphics and position of panels, controls, instruments and indicators may vary according to the different
versions.
C
E
B
D
A
F
H
G
G
T
Q
L
R
P
U
M
S
N
I
8
F0S1096
A. side air vent B. left steering wheel stalk C. instrument panel D. right steering wheel stalk E. Uconnect™ system F. hazard
warning lights, door locking/unlocking button G. central air vents H. side air vent I. glove compartment L. climate control system
controls M. storage compartment and wireless charging device (where provided) N. One-speed transmission O. USB port P.
ignition device Q. controls on the steering wheel: Cruise Control, Adaptive Cruise Control, Speed Limiter, Co-Driver R. driver's
side front airbag and horn S. steering wheel adjustment lever T. Uconnect™ system and display steering wheel controls. U.
control panel: rear fog light, ESC deactivation, headlight alignment adjustment
21
THE KEYS
The current setting can be changed
Lights on
using the display Menu or the
Press the
button to remotely control
The car is equipped with two types of
Uconnect™ system (see "Settings" in
the switching on of the side/tail lights
key, an electronic key and a Wearable
the"Vehicle mode" paragraph in the
and main beam headlights, for up to 90
Key.
"Multimedia" section), for the system
seconds.
8)
to unlock the driver door only or all
This function is useful for example to
2) 3)
the doors the first time the button is
find the car easily in a crowded parking.
pressed on the remote control. For
ELECTRONIC KEY
Pressing
button again, or at the end
more information, see the "Display"
The electronic key of the car performs
of the 90 seconds, the lights switched
chapter in the "Knowing the instrument
the conventional functions for access
on previously will go off (if the parking
panel" section.
and starting, which are detailed below.
light function was already active, it
Door and boot locking
will remain so). If, when 90 seconds
Briefly press the button
: lock of
have passed, the button is pressed,
doors and boot with interior ceiling
the main beam headlights and the
light off and single flash of direction
side/tail lights will stay on for a further
indicators (where provided).
30 seconds.
If one or more doors are open, the
FLAT BATTERY
doors are locked and this is indicated
When the battery of the key is nearly
by a rapid flashing of the direction
flat, the car will detect it beforehand by
indicators (where provided). The doors
displaying a message on the instrument
9
F0S1229
prepare for locking, which is active
panel.
from the moment they are closed.
OPERATION
The doors will unlock again only if the
WARNING The battery life of the keys
Unlocking doors and boot
key presence is detected inside the
depends considerably on their use.
Briefly press the button
: unlocking
passenger compartment.
of doors and boot, timed switching-on
Opening the boot
BATTERY REPLACEMENT
of internal lights and double flashing of
Rapidly press the
button twice to
3)
direction indicators (where provided).
open the boot remotely.
When the function is available, press
To replace the battery, proceed as
The direction indicators will flash twice
and release the unlock button on the
follows:
to indicate that the boot has been
remote control once only to unlock the
take the key from the lower side (A)
opened.
driver's door or twice within 1 second
fig. 10 (the one without buttons) and,
to unlock all doors and the tailgate.
using the fingertips, move the cover in
22
the direction of the key chain hole until
extract the battery (D).
EMERGENCY KEY
the teeth are released (motion (1));
HOLDER
gently remove the lower cover by
(where provided)
pulling it upwards (motion (2) fig. 10);
The emergency key (B) fig. 11 can be
housed in the charging compartment.
Open the charging compartment flap
and remove the holder (A) fig. 13. Insert
the key into the holder from the grip
side and refit the holder on the flap.
12
F0S1233
To replace the battery, insert it in
10
F0S1231
the compartment occupied by the
previous one, taking care to respect
A
pull up the edge of the metal key (B)
the polarities indicated inside the
fig. 11 until the release and pull it out;
electronic key. Then proceed by sliding
remove the battery protection cap (C)
and then pushing the battery into the
fig. 11;
cavity intended to house it.
13
F0S1348
Reposition the battery protection
cap.
REQUEST FOR
Refit the metal insert in the electronic
ADDITIONAL KEYS
key.
To guarantee that the engine starts and
Reposition the cover taking care to
the car operates correctly, use only
anchor it correctly to the key.
electronic keys specifically coded for
the car’s electronics.
WARNING The battery replacement
If an electronic key is coded for a car, it
operation must be carried out with
cannot be used on any other car.
11
F0S1232
care, in order not to damage the
Duplicating keys
electronic key.
Should a new key with remote control
lift the fastener (C) fig. 12 by prying
or a new electronic key be necessary,
into the recess in the end of the key,
go to a Fiat Dealership, taking an ID
on the side of the key chain (movement
(3));
23
document and the car ownership
speed water (such as water skiing,
electronic devices inside the key, it should
documents.
diving, kite surfing, etc.).
never be exposed to direct sunlight.
3) Do not place the car key in the wireless
WEARABLE KEY
charging compartment: risk of access and
The car is optionally equipped with
WARNING The battery of the Wearable
starting system malfunction.
Key cannot be replaced. If the internal
an additional extremely small, light-
weight electronic device that works as
battery is not sufficiently charged,
contact a Fiat Dealership and follow
IMPORTANT
a passive key (without buttons).
the "Request for additional keys"
procedure. The need to replace the
3) Used batteries should be disposed
of, as specified by law, in the special
battery is notified to the owner as
containers, otherwise take them to a
described above for the electronic key
Fiat Dealership, which will deal with their
in the "Flat battery" paragraph.
disposal.
IGNITION DEVICE
WARNING
OPERATION
8) Do not swallow the battery. Danger of
9)
10) 11)
14
F0S1230
chemical burns. The keys contain a small
battery. If the battery is swallowed, it can
To activate the ignition device (A) fig. 15
The Wearable Key is resistant to
cause severe internal burns in just 2 hours
the electronic key must be inside the
immersion in water (15 meters/1
and cause death. Keep new and used
passenger compartment.
hour) and can therefore be used for
batteries out of the reach of children. If
The ignition device activates also if the
the battery compartment does not close
outdoor activities or sports activities in
securely, discontinue use of the product
electronic key is inside the boot or on
general. Every indication in this manual
and keep it out of reach of children. If you
the rear shelf.
related to the electronic key apply
believe that batteries may have been
to the Wearable Key, except for the
swallowed or inserted inside the body,
functions related to the presence of the
seek medical attention immediately.
buttons and the battery replacement
procedure.
IMPORTANT
WARNING The Wearable Key must
2) The electronic components inside
not be used for deep diving or other
the key may be damaged if the key is
subjected to strong shocks. In order
activities involving contact with high-
to ensure complete efficiency of the
24
NOTE With the ignition device in the
To reactivate the previously disabled
ENGINE position, if 15 minutes pass
electronic key you must either start
with transmission in position N, motor
the car with an enabled electronic key
off and car stopped, the ignition device
or unlock the car using an enabled
will automatically switch to the STOP
electronic key.
position.
NOTE With motor started, it is possible
to go away from the car taking the
WARNING
electronic key with you. The motor will
still be running. The car will indicate the
9) It is absolutely forbidden to carry out
15
F0S1366
absence of the key on board when the
any after-market operation involving
steering system or steering column
The ignition device has the following
door is closed.
modifications (e.g. installation of anti-theft
possible states:
NOTE If the device does switch off the
device) that could adversely affect
STOP: the motor is off. Some
car, refer to the “Display” chapter in the
performance and safety, invalidate
electrical devices (e.g. central door
“Knowing the instrument panel” section
the warranty and also result in non-
locking system, alarm, etc.) are still
, where available, and contact the Fiat
compliance of the car with type-approval
requirements.
available;
Dealership as soon as possible. For
10) If the ignition device has been
ENGINE: driving position. All
more information on the engine start-
tampered with (e.g. an attempted theft),
electrical devices are available. This
up, see the description in the "Starting
have it checked by a Fiat Dealership before
state can be selected by pressing the
the engine" chapter in the "Starting and
driving again.
ignition device button once, without
driving" section.
11) Always take the key with you when
you leave your car to prevent someone
pressing the brake pedal;
NOTE The electronic key can be
from accidentally operating the controls.
START: motor starting.
disabled for starting if it is left in the car.
Remember to engage the electric parking
12) 13)
To do this:
brake. Never leave children unattended in
close all the doors, including the
the vehicle.
NOTE The ignition device does NOT
12) Before leaving the car, ALWAYS
activate if the electronic key is inside
tailgate;
engage the electric parking brake. Put the
the boot and this is open.
press the lock button
on another
transmission in the P (Park) position and
NOTE With the ignition device in the
key twice or the button located under
press the ignition device to set it to STOP.
ENGINE position, if 30 minutes pass
the handle with another electronic key,
Always lock the doors when you leave the
waiting at least 3 seconds between
car.
with P (Park) transmission and the
each press;
13) Do not leave the electronic key inside
motor stopped, the ignition device
or near the car or in a place accessible
will automatically move to the STOP
wait 30 seconds without unlocking
to children. Do not leave the car with the
position.
the car or opening the doors.
ignition device in the ENGINE position. A
child could activate the electric window
25
winders, other controls or even start the
section). This condition leads to the
WARNING The alarm is adapted to
vehicle.
motor switching off after 2 seconds. In
meet requirements in various countries.
this case, bring the ignition device to
STOP and ENGINE; if it is still blocked,
SWITCHING ON THE
SENTRY KEY®
try with the other keys provided. If it
ALARM
The Sentry Key® system prevents
is still not possible to start the motor,
With the doors, bonnet and tailgate
unauthorised use of the car preventing
contact a Fiat Dealership.
closed and the ignition device turned to
to start the motor.
If the
icon is displayed while driving,
STOP, point the electronic key towards
The system does not need to be
this means that the system is running
the car and press and release button
enabled/activated: operation is
a self-diagnosis (e.g. due to a voltage
automatic, regardless of the fact that
drop). If the display persists, contact a
The alarm can also be engaged by
the car's doors are locked or unlocked.
Fiat Dealership.
pressing the "door lock" button,
When the ignition device is set to
located on the door external handle.
ALARM SYSTEM
ENGINE, the Sentry Key® system
For further information, see the
identifies the code transmitted by the
ALARM ACTIVATION
"Passive Entry" paragraph in the
key. If the code is recognised as valid,
The alarm goes off in the following
"Doors" chapter.
the Sentry Key® system enables
cases:
The system emits a visual and acoustic
motor starting.
wrongful opening of
warning (where provided) and enables
When the ignition device is brought
doors/bonnet/boot (perimeter
door locking.
back to STOP, the Sentry Key®
protection);
The activation of the alarm is preceded
system deactivates the control unit
operation of starting device with a
by a self-diagnosis stage: if a fault is
controlling the motor, thus preventing
key which is not validated.
detected, the system emits a further
its starting.
Activation of the alarm triggers the
acoustic warning.
For the correct motor starting
acoustic warning and the direction
If, after the alarm is switched on, a
procedures, see the instructions in the
indicators.
second acoustic warning is emitted,
"Starting the motor" chapter in the
wait about 4 seconds and switch off
"Starting and driving" section.
WARNING The immobilizer function is
the alarm by pressing the button
,
IRREGULAR OPERATION
provided by the Sentry Key®system,
check that the doors, bonnet and boot
If, during starting, the key code is not
which is automatically activated when
are closed correctly and then reactivate
correctly recognised, the
icon is
you get out of the car taking the
the system by pressing the button
displayed on the instrument panel
electronic key with you and locking the
If the alarm emits an acoustic warning
(see the instructions in the "Warning
doors.
even when the doors, bonnet and boot
lights and messages" chapter in the
are correctly closed, an anomaly has
"Knowing the instrument panel"
26
occurred in system operation: in this
the "Passive Entry" paragraph in the
In any case, the doors can be locked
case, contact a Fiat Dealership.
"Doors" chapter.
by pressing the button
(A) on the
Locking doors without alarm insertion
centre dashboard. The LED on the
DISARMING THE ALARM
is also always possible by locking the
button will light up to notify the locking.
To completely deactivate the alarm
doors through the emergency locking
With doors locked, press the button
(e.g. during a long period of car
procedure. For more information see
again to unlock them. The LED on
inactivity), close the doors using the
"Emergency opening and closing" in
the button will go out to notify the
emergency locking manoeuvres
the "Doors" chapter.
unlocking.
described in the "Doors" chapter.
WARNING If the doors are unlocked by
WARNING If the batteries of the key
putting the metal insert into the driver
with the remote control run out or the
side door lock, the alarm, if previously
system fails, the alarm can be switched
enabled, is not disabled. It will be
off by placing the ignition device switch
possible to disable the alarm by turning
in the ENGINE position.
the ignition device switch to ENGINE,
or by pressing button on the remote
DOORS
control.
LOCKING / UNLOCKING
16
F0S1098
TURNING THE ALARM
DOORS FROM THE
OFF
INSIDE
Opening the door
Press the button. The following
Central locking / unlocking
The door can be opened by pressing
operations are performed:
Where provided, the "Autoclose"
the button (B) fig. 17 located above
two brief flashes of the direction
function automatically activates the
each door. If the function is present,
indicators (where provided);
automatic locking of the doors on
pressing the button on either door
two brief acoustic signals (where
exceeding the speed of 20 km/h. If it is
opens the door and unlocks the other
provided);
not present, use the respective control
doors and the boot. The function must
doors are unlocked.
(A) fig. 16 located on the centre
have been activated via the instrument
For versions with Passive Entry
dashboard to lock/unlock the doors.
panel display menu or the Uconnect™
function, the alarm can be switched
Where provided, the "Autoclose"
system (see "Settings" in the "Vehicle
off by the key holder by pressing the
function can be activated/deactivated
mode" paragraph in the "Multimedia"
door opening button on the external
via the Uconnect™ system (see
section).
handle. For further information, see
"Doors & Locks" in the "Vehicle Mode"
paragraph in the "Multimedia" section).
27
be locked and cannot be opened from
to facilitate access to the rear seats
outside any more.
and getting out of the car. See the
"Seats" chapter in this section for more
Door unlocking from the outside
information.
Press the opening button on the
IMPORTANT The front passenger seat
key. Then pull the handle (E) fig. 19 on
belt is fitted on the rear door. If the
one of the two doors to enter the car.
seat belt of the front seat passenger
VERSION "3+1" -
is fastened, it must be unfastened and
OPENING/CLOSING
fully retracted it before opening the rear
THE REAR DOOR ON
door.
17
F0S1099
PASSENGER SIDE
IMPORTANT The front seat passenger
Press button (B) fig. 17 three times
(where provided)
must always make sure the door is
in two seconds to open the door in
closed before fastening the seat belt.
Opening
motion at speeds above 5 km/h (to
To open the rear door on passenger
Closing
prevent spontaneous opening of the
side, firstly open the respective front
Close the rear door first and then the
door while in motion). At speeds below
door using handle (E) fig. 19 (opening
front door.
5 km/h, the door will open when the
from the outside) or button (B) fig. 17
button is pressed for the first time. The
PASSIVE ENTRY
(opening from the inside).
red LED around the button will light up
4)
Then open the rear door using the
when the door is locked and it will turn
The Passive Entry system can identify
internal handle (A) fig. 18.
off when the door is unlocked.
the presence of an electronic key near
LOCKING / UNLOCKING
the doors.
DOORS FROM THE
The system lets you lock/unlock the
A
OUTSIDE
doors (and the tailgate) without having
Locking from the outside
to press any button on the electronic
key.
With the doors closed, press the
button on the key.
If the system identifies the electronic
key detected outside the car as a valid
The door lock can be activated also
one, the key holder can simply pull the
with all doors open and the boot open.
handle (E) fig. 19 on one of the two
When the button on the key is
18
F0S1339
doors to deactivate the alarm and open
pressed, all the locks are closed,
the door. The other doors and the boot
including that of the open boot. When
NOTE It is recommended to fold
will be unlocked.
the open door or boot is closed, it will
the front passenger seat forward
28
WARNING After pressing the "door
Once all the doors are closed, the
locking" button (B) , you need to wait
FOBIK-Safe system performs a check
two seconds before the doors can
inside and outside the car to verify the
be unlocked again using the door
presence of enabled electronic keys.
handle (E). It is therefore possible
If one of the electronic keys is detected
to check whether the car is locked
inside the car and no other active
correctly by pulling the door handle
electronic key is detected outside
within 2 seconds. The doors will not be
the car, the FOBIK-Safe function
unlocked again. The doors and tailgate
automatically unlocks all the car doors.
of the car can still be locked from the
19
F0S1100
The FOBIK-Safe function will also
outside by pressing the button
on
intervene if the electronic key is left
If the function is present, by pressing
the electronic key or from the inside by
inside the boot. When the boot is
the button on the driver's door it is
pressing the (A) fig. 16 placed on the
closed, if the electronic key is detected,
possible to open the driver's side door
centre dashboard.
the system will unlock the boot.
only, leaving the other doors and the
If, on the other hand, one or more
boot locked, or to open the driver's
PREVENTION AGAINST
electronic keys are found inside the
side door by unlocking the other doors
INADVERTENT LOCKING OF
passenger compartment, locking the
and the boot according to the mode
THE KEY INSIDE THE CAR
doors with another key will disable the
set using the display menu on the
(FOBIK-SAFE)
operation of the keys from the inside.
Uconnect™ system (see "Settings" in
The key is provided with an automatic
In this case, the FOBIK-Safe function
the "Vehicle mode" paragraph in the
door unlocking function to avoid leaving
will not detect the disabled keys if
"Multimedia" section).
the electronic key inside the car
left inside the car. To re-activate their
accidentally.
Door locking
correct operation, press the button
To lock the doors, proceed as follows:
There are three situations that activate
on the remote control.
the FOBIK-Safe system:
make sure that you have the
NOTES
A lock request made with a valid
electronic key and are close to the
The car will not unlock the doors
electronic key while the door is open.
driver's or the passenger's door;
if one of the following situations is
press the button (B) fig. 19 on the
A lock request made by pressing the
present:
door lock button on the outside handle
handle: this will lock all doors and the
the doors have been locked by
(B) fig. 19 while a door is open.
tailgate. Locking the doors will also
means of the emergency lock using the
A lock request made by pressing
activate the alarm (where provided).
door opening button (B) fig. 17 on the
the door lock button (A) fig. 16 on the
door panel;
centre dashboard while a door is open.
29
an electronic key close to the car has
detected inside when it is locked, the
It thereby prevents the opening of
been detected outside.
tailgate will unlock again and the lights
the doors from inside the passenger
flash twice.
compartment, serving as an obstacle
Access to the boot
to break-in attempts.
If the car is provided with Passive
WARNING Before driving make sure
We recommend that you activate the
Entry function, while approaching the
the tailgate is closed correctly.
device each time you park your car.
tailgate with an enabled electronic key,
press the electric door opening button
Activating the device
located under the handle (F) fig. 20,
Locking the doors using button on
The device is activated on all doors by
grasp this last and lift the boot tailgate.
boot
pressing button
on the key twice
(where provided)
in rapid succession or, for cars with
If the system identifies a valid electronic
Passive Entry, by pressing the lock
key on the outside of the car, by
button on the exterior handle of the car.
pressing the button (G) fig. 20 the
The direction indicators flash 3 times to
tailgate can be locked with all doors
let you know that the device is active.
and the boot itself.
If one or more of the doors are not
closed correctly, the device will not
WARNING Boot opening is disabled
activate, thus preventing a person from
while the car is moving.
getting stuck inside the passenger
compartment by entering the car
20
F0S1102
through, and then closing, the open
System activation/deactivation
door.
The Passive Entry system can be
WARNING Where provided, the alarm
system will be temporarily disabled
activated/deactivated using the display
Deactivating the device
only for the boot area. After closing
menu or on the Uconnect™ system
The device disengages automatically:
(see "Settings" in the "Vehicle mode"
the boot, the alarm system will be
when the doors are unlocked
paragraph in the "Multimedia" section).
reactivated again.
(pressing button on the key with
remote control);
DEAD LOCK DEVICE
when the ignition device is set to
For vehicles not equipped with a
(where provided)
ENGINE;
Passive Entry system, use the remote
14)
control to open the boot.
by pressing the door opening button
This safety device inhibits the operation
on the outside handle in the case of a
of the interior buttons of the car and
car equipped with the Passive Entry
WARNING With the car locked, if the
the door lock/unlock door button.
system.
tailgate only is unlocked, if a key is
30
The horn is still active even when the
Opening and locking
pawl (A) fig. 21 using the key inside the
ignition device is in the OFF position.
doors in the event of
remote control.
power failure
EMERGENCY CLOSING
If the 12V battery of the car is flat, the
A
AND OPENING
doors can still be opened or locked as
If the electronic key does not work, e.g.
they are equipped with an additional
if the battery of the key is low, you can:
power supply.
unlock the car using the mechanical
key inside the electronic key by acting
Opening the doors
on the pawl located on the driver's
You can open the door in the following
door. See the "Emergency opening
ways:
of the doors from outside" paragraph
with the doors locked, press the
below.
door opening button (E) fig. 19 on the
21
F0S1195
Lock the car by pressing the door
external handle three times within 2
Emergency opening of the doors
open button (B) fig. 17 placed on the
seconds.
inner door panel for about 5 seconds
Turn the pawl (C) placed on
from the inside
keeping the ignition device in STOP
the driver's door fig. 24 using the
If the electronic key does not work,
position and the door open.
mechanical key located inside the
for example if the electronic key or the
The car will lock all the doors and the
electronic key.
12V battery of the car is low, the doors
Press the internal door opening
can still be opened from the inside by
tailgate after about 5 seconds.
button three times (B) fig. 17 in two
pulling the emergency lever (D) fig. 22
The LED on the door button (B) fig. 17
seconds.
located on each door.
and on the centre dashboard (A) fig. 16
will light up to notify the locking.
Locking the doors
When the last door is closed the car will
The doors can be locked following the
be locked.
emergency locking manoeuvre. See
The car can be locked from any door,
the "Emergency closing and opening"
respecting the manoeuvre described
paragraph described above.
above.
NOTE See the "Emergency closing and
5)
opening" paragraph described above.
RESET
Resetting the door is automatic for a
22
F0S1101
certain number of times after which
it must be done manually using the
31
Emergency opening of the doors
the keys inside the car. The emergency
from the outside
locking manoeuvre disables the FOBIK-
Safe function.
If the electronic key does not work
(e.g. if the battery of the electronic
key is low) or if the power supply fails
SEATS
completely, you can still open the
C
doors from the outside by proceeding
FRONT SEATS
as follows:
A
15) 16)
remove the cap (B) fig. 23 present on
6)
the external handle on the driver's side
24
F0S1282
Forward/rearward adjustment
inserting the mechanical key inside the
Lift lever (A) fig. 25 and push the seat
electronic key in the slot (A);
forwards or backwards: in the driving
WARNING
position, you should be able to rest
your arms on the rim of the steering
14) By engaging the Dead Lock device it is
wheel.
possible to open the doors from inside
the car only by acting on the emergency
handle (D) fig. 22. Therefore, make sure
that there is no-one on board before
getting out.
IMPORTANT
23
F0S1281
4) The operation of the recognition system
open the door using the mechanical
depends on various factors, such as,
key (A) inside the electronic key by
for example, any electromagnetic wave
turning the pawl anticlockwise (C)
25
F0S1103
interference from external sources (e.g.
fig. 24 on the outside handle on the
mobile phones), the charge of the battery
17)
driver's side.
in the electronic key and the presence of
metal objects near the key or the car. In
Height adjustment
these cases it is still possible to unlock
the doors by using the metal insert in the
(for versions/markets, where provided)
electronic key (see description on the
Operate lever (B) fig. 26 to lift or lower
following pages).
the rear part of seat to achieve the
5) After locking the car by emergency
most comfortable driving position.
manoeuvre, make sure you do not leave
32
Driver side and passenger side,
than or equal to 4.5°C. This function
C
with position memory
is activated/deactivated on the
To bring back the seat in its initial
Uconnect™ system (see "Settings" in
B
position proceed as follows:
the"Vehicle mode" paragraph in the
slide the seat back by pushing in the
"Multimedia" section).
lower part of the backrest as indicated
REAR SEATS
in fig. 27, taking care not to lift the
EXTENDING THE BOOT
backrest into the vertical starting
18)
position. In this way, slide the seat to
7)
26
F0S1295
the locked position (movement 4);
now lift the backrest (movement 5)
The separate rear seats allow partial
Backrest angle adjustment
into the vertical starting position until
fig. 28
or total fig. 29
boot extension.
Rotate the lever (C) fig. 26.
you feel the click;
Reclining the backrest
WARNING Using lever (D) fig. 27 before
7)
locking the seat in its initial position will
To fold the backrest over, adjust lever
cause the initial seat position to be lost.
(D) fig. 27 (movement 1) and push
In this case the position of the seat
the backrest forwards until it locks
must be restored through lengthwise
(movement 2).
adjustment lever (A) fig. 25.
Then release lever (D) and, pushing on
the backrest, slide the seat forward
28
F0S1345
Heated seats
(movement 3).
(where provided)
Heated seats can only be activated by
soft touch controls on the Uconnect™
system with the ignition device in the
START position.
Auto On comfort
(where provided)
The electric heated steering wheel
is switched on automatically
27
F0S1365
whenever the motor is started and
29
F0S1346
the external temperature is lower
33
Partial extension (50/50)
Total extension
the lock click. Also check that the seat
(for versions/markets, where provided)
Tilting the rear seat completely
belts do not get stuck between the
Proceed as follows:
forwards allows maximum loading
backrest and the interior moulding.
volume.
remove the parcel shelf, by releasing
it from its two side pins and pulling it
Proceed as follows:
out;
remove the parcel shelf, by releasing
WARNING
remove the rear seat head restraints
it from its two side pins and pulling it
(where provided); see the "Head
out;
15) All adjustments must be made with the
car stationary and engine stopped.
restraints" chapter in this section;
remove the rear seat head restraints
16) If a side bag is fitted, it is dangerous
check that the seat belt is fully
(where provided); see the "Head
to use seat covers not available from
extended and not twisted;
restraints" chapter in this section;
Lineaccessori MOPAR
®.
act on the buttons (A) fig. 30 (one
check that the belt straps are
17) After releasing the adjustment lever,
on each side) to unlock the left or right
correctly extended and not twisted;
always check that the seat is locked on the
portion of the backrest and accompany
operate the levers (A) fig. 30 and
guides by trying to move it back and forth.
If the seat is not locked into place, it may
the backrest on the cushion.
(B) to release the backrests and guide
unexpectedly slide and cause the driver to
them onto the cushion.
lose control of the car.
18) Make sure the backrests are properly
WARNING To return the backrest to
secured at both sides to prevent them
from moving forward, in the event of sharp
its correct position, we recommend
braking, with possible impact with of the
operating from the outside through the
passengers.
doors.
IMPORTANT
Repositioning seat backrests
Raise the backrests and push them
6) The fabric upholstery of the seats has
30
F0S1200
back until the locking click of both
been designed to withstand long-term
retainers is heard.
wear deriving from normal use of the car.
WARNING To return the backrest to
Position the seat belt buckles upwards
Some precautions are however required.
its correct position, we recommend
and set the cushion to the normal use
Avoid prolonged and/or excessive rubbing
against clothing accessories such as
operating from the outside through the
position.
metal buckles and Velcro strips which, by
doors.
applying a high pressure on the fabric in a
WARNING When returning the backrest
small area, could cause it to break, thereby
damaging the upholstery.
to its normal position, make sure that it
is correctly fastened and that you hear
34
side of the two supports and lower the
7) Before tilting the backrest, remove any
WARNING
objects on the seat cushion.
head restraint.
19) All adjustments must be carried out
HEAD RESTRAINTS
only with the car stationary and motor
stopped. Head restraints must be adjusted
19)
so that the head, rather than the neck,
rests on them. Only in this case they can
FRONT
protect your head correctly.
Adjustment
20) To make the best use of the head
Headrests can be adjusted in height.
restraint's protective action, adjust the
backrest so that you are sitting upright and
Upward adjustment: raise the head
keep your head as close as possible to the
restraint until it clicks into place.
head restraint.
32
F0S1110
Downward adjustment: press button
(A) fig. 31 and lower the head restraint.
The particular shape of the head
STEERING WHEEL
restraint deliberately interferes with the
correct support of the rear passenger’s
21) 22)
back on the backrest in order to force
ADJUSTMENTS
them to lift the head restraint for correct
The steering wheel can be adjusted
use.
both in height and in depth.
WARNING If the rear seats are used,
always set the head restraints in the
"completely raised" position.
31
F0S1105
Removal
20)
To remove the rear head restraints
REAR
press buttons (A) fig. 32 at the side of
Upward adjustment (usage
the two supports simultaneously and
condition): raise the head restraint
lift them out upwards. The rear head
33
F0S1106
until it clicks into place.
restraints must be lifted out with the
Downward adjustment: press at the
backrest released and tilted toward the
To carry out the adjustment move the
same time buttons (A) fig. 32 at the
passenger compartment or with the
lever (A) fig. 33 downwards in position
tailgate open.
(1), then adjust the steering wheel to
35
the most suitable position and then
REAR-VIEW
mirror is automatically set for daytime
lock it in this position moving the lever
use.
MIRRORS
(A) again in position (2).
DOOR MIRRORS
INTERIOR MIRROR
23)
The mirror is fitted with a safety device
WARNING
that causes its release in the event of a
Proceed as follows:
violent impact with the passenger.
select the mirror using selector (B)
21) All adjustments must be carried out
Lever (A) fig. 34 can be used to move
fig. 35;
only with the car stationary and motor
the mirror to two different positions:
adjust the mirror using the joystick (A)
stopped.
normal or antiglare.
fig. 35 in the four directions.
22) It is absolutely forbidden to carry
out any after-market operation involving
steering system or steering column
modifications (e.g.: installation of
anti-theft device) that could badly affect
performance and safety, invalidate
the warranty and also result in non-
compliance of the car with type-approval
requirements.
34
F0S1107
35
F0S1108
ELECTROCHROMIC
Folding the mirrors
REAR-VIEW MIRROR
When required (for example when
(where provided)
the mirror causes difficulty in narrow
Some versions have an electrochromic
spaces ) it is possible to fold the mirrors
mirror with automatic anti-glare
manually moving them from the open
function.
position (1) fig. 36 to the closed
There is an ON/OFF button
position (2).
on the lower part of the mirror
for activating/deactivating the
electrochromic function. When the
function is active, a LED on the mirror is
active. When reverse is engaged, the
36
EXTERNAL LIGHTS
switched on, they remain off as long
as the electric parking brake (EPB) is
The left stalk (A) fig. 37 operates most
engaged or the gearbox is in the P
of the exterior lights.
(Parking) position.
With the ignition device in ENGINE
position and the propulsion system not
active, the daytime running lights are
switched off.
The daytime running lights are also
36
F0S1109
temporarily deactivated when the
direction indicators are activated.
When the direction indicators are
deactivated, the daylight running lights
WARNING
37
F0S1111
are reactivated.
23) As door mirrors are curved, they may
With the bonnet open, the daytime
The exterior lights can only be switched
slightly alter the perception of distance.
running lights on the bonnet are
While driving the mirrors must remain in
on when the ignition device is in the
switched off.
position (1).
ENGINE position.
In some versions, if one of the daytime
Turning on the light may vary the
running lights fails, all the daytime
brightness of the instrument panel: its
running lights on the side where the
brightness is regulated by an external
failure is present are switched off.
light sensor
(e.g. when entering a tunnel during the
AUTOMATIC LIGHTING
day, it lights up as if it were night, etc.).
CONTROL (AUTOLIGHT)
In daylight, the brightness of the
- DUSK SENSOR
instrument panel remains at maximum,
This is an infrared LED sensor that
while at night, it can be adjusted.
works in conjunction with - the
rain sensor and is located on the
DAYTIME RUNNING
windscreen. It is able to detect
LIGHTS (DRL)
variations in outside lighting based
24) 25)
on the light sensitivity set in the
The daytime running lights (DRL) are
menu of the Uconnect™ system
activated with the ring (B) fig. 37 in
(see "Settings" in the "Vehicle mode"
the AUTO position and in daylight
paragraph in the "Multimedia" section).
conditions. The first time the ignition is
The higher the sensitivity, the lower the
37
amount of external light needed to
PARKING LIGHTS
switch the lights on.
With the ignition device turned to
STOP, turning the ring (B) from the
Activation
AUTO position to position
will light
With the ignition device in the ENGINE
up the side/tail lights and number plate
position, turn the ring (B) fig. 37 to
lights. Warning light
lights up on
the AUTO position to activate the
the instrument panel.
"Automatic lighting control" function.
If the side lights are left on and the
This automatically switches on the
driver side door is opened, a buzzer
side/tail lights and dipped beam
sounds and the display shows a
38
F0S1112
headlights in case of low external light
dedicated message warning the driver
or DRL in daytime driving conditions.
that the car is being left with the lights
With rear fog lights on, the warning
Turn the ring to position
to switch to
on. The buzzer stops when the driver
light on the instrument panel will come
manual dipped beam mode.
side door is closed.
on at the same time.
In the event of a sensor malfunction,
the side/tail lights, dipped beam
REAR FOG LIGHT
MAIN BEAM HEADLIGHTS
headlights and licence plate lights are
With ignition device in the ENGINE
To activate the fixed main beam
automatically activated.
position, press button (C) fig. 38 to
headlights, with the ignition device in
switch the light on/off. The rear fog
the ENGINE position, push left lever
light switches on only when the dipped
(A) fig. 37 towards the dashboard. The
WARNING The sensor cannot detect
the presence of fog. These lights must
headlights are on. To switch off the
ring (B) must be turned to AUTO with
therefore be switched on manually in
rear fog lights, press the button (C),
the dipped beam headlights on, or it
these circumstances.
switch off the dipped beam headlights
should be turned to position
. The
or turn the ignition device to the STOP
warning light
on the instrument
position.
panel switches on. The main beam
DIPPED BEAM
headlights are deactivated bringing
HEADLIGHTS
the lever back to the central stable
With the ignition device turned to
position. Warning light
switches off
ENGINE, turn the ring (B) fig. 37 to
in the instrument panel.
If dipped headlights are activated, the
daytime running lights switch off and
AUTOMATIC MAIN BEAM
the side lights and dipped headlights
HEADLIGHTS
switch on. The
warning light
In order not to dazzle other road users,
switches on in the instrument panel.
the lights are automatically deactivated
when approaching cars travelling in the
38
opposite direction or when following a
When the speed of 40 km/h is
"Lane Change" function
car travelling in the same direction.
exceeded again, the function is
If you wish to signal a lane change,
This function is enabled via the
activated automatically again.
place the left stalk in the unstable
Uconnect™ system (see "Settings" in
If the lever is pulled again in this
position for less than half a second.
the"Vehicle mode" paragraph in the
condition, to request main beam
The direction indicator on the side
"Multimedia" section).
headlight deactivation, the function
selected will be activated for 5 flashes
Turn the light switch to the AUTO
remains off and the main beam
and then go out automatically.
position (B) fig. 37. The first time the
headlights switch off.
COURTESY LIGHTS
main beam headlights are activated
To deactivate the automatic function
The function can be enabled and
(pushing the left stalk towards the
rotate the light switch ring to position
timed using the "Settings" menu of the
dashboard), the function is activated
Uconnect™ system (see "Settings" in
(warning light
comes on in the
FLASHING THE
the"Vehicle mode" paragraph in the
instrument panel).
HEADLIGHTS
"Multimedia" section).
If the main beam headlights are actually
Pull the left lever towards the steering
When the doors are unlocked, the
on, the warning light
will also come
wheel, to the unstable position; when
side/tail lights and puddle lights come
on in the instrument panel).
released it returns automatically to
on for the time set in the menu.
When the speed is higher than 40 km/h
the stable, central position. With main
Once any door is opened, the lights
and the function is active, the lights
beam headlights on, the warning light
remain on for a further 180 seconds, or
switch off if the lever is taken again to
on the instrument panel will come
for a further 10 seconds after the door
the stable central position.
on at the same time.
is closed.
When the speed is lower than 15 km/h
DIRECTION INDICATORS
"FOLLOW ME HOME"
and the function is active, the function
Take the left stalk to the (stable)
DEVICE
switches the main beam headlights off.
position:
This allows the space in front of the car
If the fixed main beam headlights are
upwards: activates the right
to be lit for a set time.
operated quickly again (taking the lever
direction indicator;
again to the stable central position and
Activation
downwards: activates the left
taking it back in a few seconds on the
With the ignition device turned to STOP
direction indicator.
fixed main beam headlight position),
or removed, pull the stalk towards the
Warning light or will blink
the warning light
will switch on
steering wheel within 2 minutes from
on the instrument panel. The
in the instrument panel and the main
when the motor is turned off.
direction indicators are switched off
beam headlights will be switched on
Each time the stalk is moved, the lights
automatically when the steering wheel
constantly until the speed exceeds
stay on for an extra 30 seconds up to
is straightened.
40 km/h.
39
a maximum of 210 seconds; then the
LIGHT BEAM DIRECTION
lights are switched off automatically.
The correct aiming of the headlights is
Also, each time the stalk is operated,
important for the comfort and safety
the
warning light on the
of not only the driver but all other road
instrument panel switches on.
users. This is also covered by a specific
The
warning light comes on
rule of the highway code.
when the stalk is first moved and stays
The headlights must be correctly
on until the function is automatically
aligned to guarantee the best visibility
deactivated. Each movement of the
conditions for all drivers while travelling
stalk only increases the amount of time
with headlights on.
39
F0S1113
the lights stay on.
Contact a Fiat Dealership to have the
headlights checked and adjusted.
Position 0: one or two people in the
Deactivation
Check the light beam alignment
front seats
Hold the stalk pulled towards the
every time the load or its distribution
Position 1: 4 people
steering wheel for more than 2 seconds
changes.
Position 2: 4 people + load in
or turn the ignition device to the
luggage compartment
ENGINE position.
HEADLIGHT ALIGNMENT
Position 3: Driver + maximum
CORRECTOR
WELCOME LIGHT
permitted load stowed in the boot
This device works with the ignition
(where provided)
device in the ENGINE position and the
Depending on the version, with the
WARNING Check the headlight
dipped headlights on.
ignition device in the STOP position,
alignment each time the weight of the
an animated sequence of front lights
Headlight alignment adjustment
load transported changes.
may can be shown when the doors
To adjust, press the buttons
or
of the car are unlocked. Then they
fig. 39 on the control display located on
ADJUSTING THE
light up fixed. To enable the function
the left side of the dashboard (left-hand
HEADLIGHTS ABROAD
set the courtesy lights in a state other
drive versions).
Cars with LED headlight do not need
than OFF on the Uconnect™ system
The adjustment position is shown on
headlight adjustment when driving in
(see "Settings" in the "Vehicle mode"
the display:
countries with opposite traffic.
paragraph in the "Multimedia" section).
Halogen headlights, if fitted on the car,
Only the direction indicators will light up
are adjusted for driving in the country
when only the tailgate is unlocked.
where the car was originally purchased.
Activating the alarm or hazard lights will
In this case, when travelling in countries
disable the welcome light feature.
with opposite driving direction, to avoid
dazzling the drivers on the other side
40
of the road, you need to cover areas of
during the day; where it is not compulsory,
to avoid draining the 12V battery. On
the headlight according to the Highway
the use of daytime running lights is
some versions, the lights switch on and
code of the country you are travelling
permitted.
off only when the front driver side door
25) Daytime running lights cannot replace
in: fig. 40 (front right headlight), fig. 41
is opened or closed.
dipped beam headlights while driving
(front left headlight).
at night or through tunnels. The use
of daytime running lights is governed
CEILING LIGHT TIMING
by the highway code of the country in
Ignition
which you are driving. Comply with legal
Two different switching-on modes are
requirements.
provided:
when the doors are unlocked, a timer
INTERIOR LIGHTS
will be activated for about 27 seconds;
move the ignition device to STOP
FRONT CEILING LIGHT
to activated a timed sequence of
Switch fig. 42 can assume three
approximately 27 seconds.
different positions:
40
F0S1223
(A) light always off;
Switching off
(B) the light turns on and off when
Three modes are provided for
the doors are opened or closed;
switching off:
(C) light permanently on.
when all the doors are locked, a 10-
second timer is activated. This timing
will stop when the ignition device is
turned to the ENGINE position;
locking of the doors:
the interior lights are turned off after
15 minutes to preserve the 12V battery,
even if the switch fig. 42 is in position
41
F0S1224
(C).
BOOT COURTESY LIGHT
42
F0S1114
WARNING
(where provided)
The lamp comes on automatically when
24) The daytime running lights are an
WARNING Before getting out of the
the boot is opened and goes out when
alternative to the dipped headlights while
car, make sure that the switch is in
it is closed.
driving during the daytime in countries
the central position: ensure that lights
where it is compulsory to have lights on
are off with the doors closed in order
41

















Content      ..      1       2         ..



//////////////////////////////////////////
