Fiat 500X (2019 year). Instruction - part 14

COLD TYRE INFLATION PRESSURE (bar)
When the tyres are warm, the inflation pressure should be +0.3 bar compared with the prescribed value. However, recheck that
the value is correct with the tyre cold.

With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.

If it is necessary to raise the vehicle, refer to the "Raising the vehicle" paragraph in the "In an emergency" chapter.

WARNING

190) If winter tyres with a lower speed rating than that indicated in the Registration Document are used, do not exceed the maximum speed
corresponding to the speed rating of the tyres used.
191) DO NOT fit wheel hub caps when using integral hub caps fixed (with springs) to the steel rim and after sale tyres provided with Rim
Protector. Use of unsuitable tyres and wheel caps may cause sudden decrease of tyre pressure.

218

TECHNICAL

SPECIFICA

TIONS

Tyres

Unladen/medium load

Full load

Space saver

spare wheel

Front

Rear

Front

Rear

215 / 60 R16 95H

2.4

2.4

2.6

2.6

4.2

215 / 55 R17 94V

2.4

2.4

2.6

2.6

225 / 45 R18 91V

2.4

2.4

2.6

2.6

225 / 45 R18 91Y

2.4

2.4

2.6

2.6

215 / 55 R17 98V (M+S)

2.4

2.4

2.6

2.6

225 / 45 R18 45V (M+S)

2.4

2.4

2.6

2.6

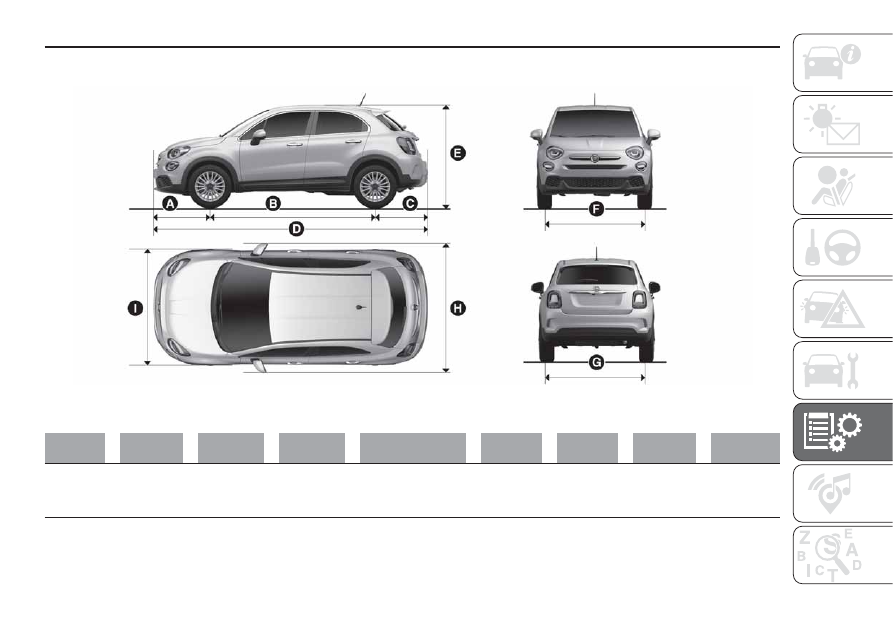

DIMENSIONS

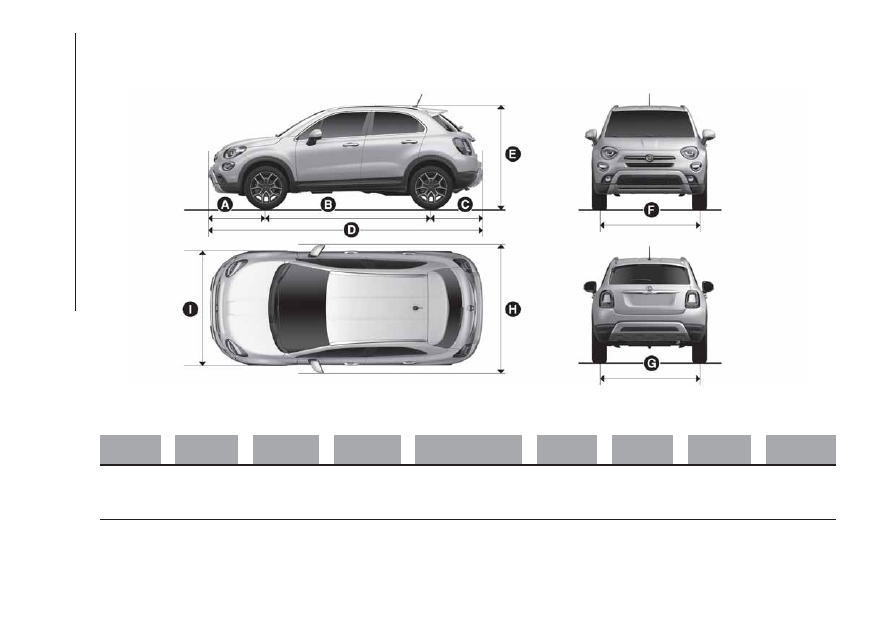

Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with
car unladen. Small variations with respect to the reported values are possible depending on the dimensions of the rims.

A

B

C

D

E

F

G

H

I

877

2570

817

4264

1595

(°)

/ 1603

(°) (*)

/ 1607

(°°)

/ 1615

(°°) (*)

1545

1545

2025

1796

(°) 4x2 version
(*) With carrier rack
(°°) 4x4 version
Boot volume: 350 litres. With rear seats folded: 1000 litres.

183

F1B0671

219

Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with
car unladen. Small variations with respect to the reported values are possible depending on the dimensions of the rims.

A

B

C

D

E

F

G

H

I

898

2570

801

4269

1595

(°)

/ 1603

(°) (*)

/ 1607

(°°)

/ 1615

(°°) (*)

1545

1545

2025

1796

(°) 4x2 version
(*) With carrier rack
(°°) 4x4 version
Boot volume: 350 litres. With rear seats folded: 1000 litres.

184

F1B0672

220

TECHNICAL

SPECIFICA

TIONS

WEIGHTS

Weights (kg)

1.0

1.3

Unladen weight (with all fluids, fuel tank filled
to 90% and without optional equipment)

1320

1320

Payload including the driver

(***)

520

560

Maximum permitted loads

(****)

– front axle

1050

1050

– rear axle

900

900

– total

1840

1880

Towable loads

– braked trailer

1000

1200

– trailer without brakes

600

600

Maximum load on tow hitch (trailer with
brakes)

60

60

Maximum load on roof

(*****)

50

50

(***)

If
special
equipment
is
fitted
(sunroof,
tow
hitch,
etc.)
the
unladen
car
weight
increases,
thus
reducing
the
specified
payload
in
relation
to
the
maximum

permissible

loads.

(****)

Loads
not
to
be
exceeded.
The
user
is
responsible
for
arranging
goods
in
the
luggage
compartment
and/or
on
the
load
platform
within
the
maximum

permitted
loads.
(*****)

With
carrier
rack

¡¡¡¡
/FWFS
FYDFFE
UIF
NBYJNVN
DPNCJOFE
WFIJDMF
MPBE
WBMVF
UIF
NBYJNVN
UPXBCMF
MPBE
JT
POMZ
BMMPXFE
JG
JU
EPFT
OPU
FYDFFE
UIF
NBYJNVN
DPNCJOFE













WFIJDMF
MPBE

221

.BYJNVN
DPNCJOFE
WFIJDMF
MPBE

WFIJDMF

USBJMFS ¡¡¡¡





Weights (kg)

1.4 Turbo MultiAir

(**) (°)

1.4 Turbo MultiAir

(**) (°°)

1.4 Turbo MultiAir

(**) (°°°)

Unladen weight (with all fluids,
fuel tank filled to 90% and
without optional equipment)

1320

1320

1430

Payload including the driver

(*)

555 / 540

(**)

555 / 540

(**)

670

Maximum permitted loads

(***)

– front axle

1050

1050

1150

– rear axle

900

900

1000

– total

1875

1875

2100

Towable loads

– braked trailer

1200

1200

1200

– trailer without brakes

600

600

600

Maximum load on tow hitch
(trailer with brakes)

60

60

60

Maximum load on roof

(****)

50

50

50

(°)

Versions
with
instruction
transmission

(°°)

Instruction
transmission
versions
with
dual
clutch

(°°°)

Versions
with
AT9
automatic
transmission

(*)

If
special
equipment
is
fitted
(sunroof,
tow
hitch,
etc.)
the
unladen
car
weight
increases,
thus
reducing
the
specified
payload
in
relation
to
the
maximum

permissible

loads.

(**)

Version
for
specific
markets

(***)

Loads
not
to
be
exceeded.
The
user
is
responsible
for
arranging
goods
in
the
luggage
compartment
and/or
on
the
load
platform
within
the
maximum
permitted

loads.
(****)

With
carrier
rack

¡¡¡¡
/FWFS
FYDFFE
UIF
NBYJNVN
DPNCJOFE
WFIJDMF
MPBE
WBMVF
UIF
NBYJNVN
UPXBCMF
MPBE
JT
POMZ
BMMPXFE
JG
JU
EPFT
OPU
FYDFFE
UIF
NBYJNVN
DPNCJOFE
WFIJDMF

MPBE

222

TECHNICAL

SPECIFICA

TIONS

.BYJNVN
DPNCJOFE
WFIJDMF
MPBE

WFIJDMF

USBJMFS ¡¡¡¡







Weights (kg)

1.6 E.Torq

1.3 Multijet

Versions without AdBlue®

(UREA)

Versions with AdBlue®

(UREA)

Unladen weight (with all fluids,
fuel tank filled to 90% and
without optional equipment)

1320 / 1275

(****)

1320

1320

Payload including the driver

(**)

520

/
600

(*)

/

555

(*)

555

560

Maximum permitted loads

(***)

– front axle

1050

1050

1050

– rear axle

900

900

900

– total

1840 / 1875

(****)

1875

1880

Towable loads

– braked trailer

800

1000

1000

– trailer without brakes

600

600

600

Maximum load on tow hitch
(trailer with brakes)

60

60

60

Maximum load on roof

(****)

50

50

50


7FSTJPO
GPS
TQFDJGJD
NBSLFUT
(**)

If
special
equipment
is
fitted
(sunroof,
tow
hitch,
etc.)
the
unladen
car
weight
increases,
thus
reducing
the
specified
payload
in
relation
to
the
maximum

permissible

loads.

(***)

Loads
not
to
be
exceeded.
The
user
is
responsible
for
arranging
goods
in
the
luggage
compartment
and/or
on
the
load
platform
within
the
maximum
permitted

loads.
(****)

With
carrier
rack

¡¡¡¡
/FWFS
FYDFFE
UIF
NBYJNVN
DPNCJOFE
WFIJDMF
MPBE
WBMVF
UIF
NBYJNVN
UPXBCMF
MPBE
JT
POMZ
BMMPXFE
JG
JU
EPFT
OPU
FYDFFE
UIF
NBYJNVN
DPNCJOFE
WFIJDMF

MPBE

223

.BYJNVN
DPNCJOFE
WFIJDMF

MPBE
WFIJDMF

USBJMFS ¡¡¡¡







Weights (kg)

1.6 MultiJet

2.0 Multijet

Versions without

AdBlue® (UREA)

Versions with

AdBlue® (UREA)

Versions without

AdBlue® (UREA)

Versions with

AdBlue® (UREA)

Unladen weight (with all
fluids, fuel tank filled to
90% and without
optional equipment)

1320

1410 / 1430

(°°)

1495

1540

Payload including the
driver

(*)

555 / 580

(°°)

510

605

510

Maximum permitted
loads

(***)

– front axle

1050

1050

1150

1150

– rear axle

900

900 / 950

(°°)

1000

1000

– total

1875 / 1900

(°°)

1920 / 1940

(°°)

2100

2050

Towable loads

– braked trailer

1200 / 900

(°°)




1200

1200

– braked trailer

600

600

600

600

Maximum load on tow
hitch (trailer with brakes)

60

60

60

60

Maximum load on
roof

(****)

50

50

50

50

(°°)

Automatic
transmission
versions
with
dual
clutch

(*)

If
special
equipment
is
fitted
(sunroof,
tow
hitch,
etc.)
the
unladen
car
weight
increases,
thus
reducing
the
specified
payload
in
relation
to
the
maximum

permissible

loads.

(***)

Loads
not
to
be
exceeded.
The
user
should
carry
goods
in
the
luggage
compartment
and/on
load
carrying
platform
within
the
maximum
permitted
loads.

(****)

With
carrier
rack

¡¡¡¡
/FWFS
FYDFFE
UIF
NBYJNVN
DPNCJOFE
WFIJDMF
MPBE
WBMVF
UIF
NBYJNVN
UPXBCMF
MPBE
JT
POMZ
BMMPXFE
JG
JU
EPFT
OPU
FYDFFE
UIF
NBYJNVN
DPNCJOFE

WFIJDMF
MPBE

224

TECHNICAL

SPECIFICA

TIONS

.BYJNVN
DPNCJOFE

WFIJDMF
MPBE
WFIJDMF


USBJMFS ¡¡¡¡





¡¡





SUPPLIES

1.0

1.3

Prescribed fuels and original lubricants

Fuel tank (litres)

48

48

Unleaded petrol with RON no lower than 95
(EN228 specifications)

including a reserve of (litres)

5 - 7

5 - 7

Engine cooling system (litres)

6.94

8.3

Mixture of distilled water and PARAFLU

UP

50%

(*)

Engine

sump
(OLWUHV)





SELENIA DIGITEK P.E.

Engine

sump
and
filter
(OLWUHV)



4.



SELENIA DIGITEK P.E.

Gearbox casing/differential (litres)

1.5

1.8

TUTELA TRANSMISSION GEARFORCE

Hydraulic brake circuit (kg)

0.83

0.83

TUTELA TOP 4/S

Windscreen and rear window
washer fluid reservoir (litres)

2.5

2.5

Mixture of water and PETRONAS DURANCE
SC35

(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLU

UP

and 40% demineralised water.

225

1.4 Turbo

MultiAir

(**)

(°)

1.4 Turbo

MultiAir

(**)

(°°)

1.4 Turbo

MultiAir

(**)

(°°°)

Prescribed fuels and original lubricants

Fuel tank (litres)

48

48

48

Unleaded petrol with RON no lower than 95
(EN228 specifications)

including a reserve of (litres)

5 - 7

5 - 7

5 - 7

Engine cooling system (litres)

5.2

5.2

5.2

Mixture of distilled water and PARAFLU

UP

50%

(*)

Engine sump (litres)

3.2

3.2

3.2

SELENIA DIGITEK P.E.

Engine sump and filter (litres)

3.6

3.6

3.6

SELENIA DIGITEK P.E.

Gearbox casing/differential (litres)

1.8

2.1

6.0

TUTELA TRANSMISSION GEARFORCE (versions
with instruction transmission/dual clutch automatic
transmission) / TUTELA TRANSMISSION AS8
(versions with AT9 automatic transmission)

Idler unit (PTU) (litres)

–

–

0.4

TUTELA TRANSMISSION B-5X

Rear differential (litres)

–

–

0.6

TUTELA TRANSMISSION COMPAQ DRIVE

Hydraulic brake circuit (kg)

0.83

0.83

0.83

TUTELA TOP 4/S

Windscreen and rear window
washer fluid reservoir (litres)

2.5

2.5

2.5

Mixture of water and PETRONAS DURANCE
SC35

(**) Version for specific markets

(°) Versions with instruction transmission
(°°) Versions with dual clutch automatic transmission
(°°°) Versions with AT9 automatic transmission
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLU

UP

and 40% demineralised water.

226

TECHNICAL

SPECIFICA

TIONS

1.6 E.Torq

1.3 Multijet

Prescribed fuels and original lubricants

Fuel tank (litres)

48

55

Unleaded petrol with RON no lower than 95 (EN
228 specifications) (1.6 E.Torq versions) / Diesel
for motor vehicles (EN 590 Specification)
(1.3 Multijet versions)

including a reserve of (litres)

5 - 7

5 - 7

Engine cooling system (litres)

5.6

6.1

Mixture of distilled water and PARAFLU

UP

50%

(*)

Engine sump (litres)

4.4

3.7

SELENIA DIGITEK P.E. (1.6 E.Torq versions) /
SELENIA WR FORWARD 0W-30 (1.3 Multijet
versions without AdBlue®) / SELENIA ECO2
(1.3 Multijet versions with AdBlue®)

Engine sump and filter (litres)

4.7

3.9

Gearbox casing/differential (litres)

2.0

2.0

TUTELA TRANSMISSION GEARFORCE

Hydraulic brake circuit (kg)

0.83

0.83

TUTELA TOP 4/S

Windscreen and rear window
washer fluid reservoir (litres)

2.5

2.5

Mixture of water and PETRONAS DURANCE
SC35

AdBlue® tank (where provided)
capacity approximately (litres)

–

13

AdBlue® DIN 70 070 and ISO 22241-1

99) 100)

(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU

UP

and demineralised water.

227

1.6 MultiJet

2.0 Multijet

Prescribed fuels and original lubricants

Fuel tank (litres)

55

55

Diesel for motor vehicles (EN590 Specification)

including a reserve of (litres)

5 - 7

5 - 7

Engine cooling system (litres)

6.1

6.5

Mixture of distilled water and PARAFLU

UP

50%

(*)

Engine sump and filter (litres)

4.8

4.8

SELENIA WR FORWARD 0W-30 (versions
without AdBlue®) / SELENIA WR FORWARD
0W-20 (versions with AdBlue®)

Gearbox casing/differential (litres)

1.8

(°) / 2.1 (°°)

6.0

(°°°)

TUTELA TRANSMISSION GEARFORCE (versions
with manual transmission/dual clutch automatic
transmission) / TUTELA TRANSMISSION AS8
(versions with AT9 automatic transmission)

Idler unit (PTU) (litres)

–

0.4

TUTELA TRANSMISSION B-5X

Rear differential (litres)

–

0.6

TUTELA TRANSMISSION COMPAQ DRIVE

Hydraulic brake circuit (kg)

0.83

0.83

TUTELA TOP 4/S

Windscreen and rear window
washer fluid reservoir (litres)

2.5

2.5

Mixture of water and PETRONAS DURANCE
SC35

AdBlue® tank (where provided)
capacity approximately (litres)

13

13

AdBlue® DIN 70 070 and ISO 22241-1

99) 100)

(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU

UP

and demineralised water.

(°) Versions with manual transmission
(°°) Automatic transmission versions with dual clutch
(°°°) Versions with AT9 automatic transmission

IMPORTANT

99)

228

TECHNICAL

SPECIFICA

TIONS

The distribution companies are responsible for the compliance of their product. Observe the precautions of storage and maintenance, in

order to preserve the initial qualities. The manufacturer will not recognise any guarantee in case of malfunctions and damage caused to the
car due to the use of

not in accordance with regulations.

AdBlue

®

100) Use AdBlue

®

only according to DIN 70 070 and ISO 22241-1. Other fluids may cause damage to the system: also exhaust emissions

would no longer comply with the law.

229

FLUIDS AND LUBRICANTS

Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.

101)

PRODUCT SPECIFICATIONS

Use

Features

Specification

Original fluids and

lubricants

Replacement interval

Lubricant for petrol
engines

SAE 0W-30

ACEA C2 / API SN

9.55535-GS1

SELENIA DIGITEK P.E.
Contractual Technical
Reference N° F020.B12

According to Scheduled
Servicing Plan

Lubricant for diesel
engines without
AdBlue®

SAE 0W-30

ACEA C2

9.55535-DS1

SELENIA WR Forward
0W-30
Contractual Technical
Reference N° F842.F13

According to Scheduled
Servicing Plan

Lubricant for diesel
engines
1.6 Multijet with
AdBlue® and
2.0 Multijet with
AdBlue®

SAE 0W-20

ACEA C2

9.55535-DSX

SELENIA WR Forward
0W-20
Contractual Technical
Reference N° F013.K15

According to Scheduled
Servicing Plan

Lubricant for diesel
engines
1.3 Multijet 95 HP
with AdBlue®

SAE 0W-20

ACEA

C

9.55535-DM1

SELENIA ECO2
Contractual Technical
Reference N° F049.C18

According to Scheduled
Servicing Plan

If lubricants conforming to the specific request are not available, products that meet the indicated specifications can be used to
top up; in this case optimal performance of the engine is not guaranteed.

230

TECHNICAL

SPECIFICA

TIONS

Use

Features

Specification

Original fluids and

lubricants

Applications

Lubricants and
greases for drive
transmission

Synthetic lubricant.

9.55550-AV5

TUTELA TRANSMISSION
AS8
Contractual Technical
Reference N° F139.I11

Lubricant for versions with
AT9 automatic gearbox

Fully synthetic oil with
dedicated additive.

9.55550-SA1

TUTELA CS SPEED

Contractual Technical
Reference N° F005.F98

Lubricant for
electro-hydraulic actuator
(dual clutch automatic
transmission versions)

SAE 75W API GL4 grade
synthetic lubricant.

9.55550-MZ6

TUTELA
TRANSMISSION
GEARFORCE

Contractual Technical
Reference N° F002.F10

Manual gearbox and
differential

Molybdenum disulphide
grease, for use at high
temperatures. N.L.G.I.
consistency 1-2.

9.55580-GRAS II

TUTELA ALL STAR

Contractual Technical
Reference N° F702.G07

Wheel side constant
velocity joints

Grease for constant
velocity joints with low
friction coefficient.
N.L.G.I. consistency 0-1.

9.55580-GRAS II

TUTELA STAR 700

Contractual Technical
Reference N° F701.C07

Differential side constant
velocity joints

Diesel fuel additive

Antifreeze additive for
diesel, with protective
action for diesel engines.

PETRONAS DURANCE
DIESEL ART
Contractual Technical
Reference N° F601.L06

To be mixed with diesel
(25 cc per 10 litres)

231

Use

Features

Specification

Original fluids and

lubricants

Applications

Lubricants and
greases for drive
transmission

SAE 75W-90 API
GL5 grade synthetic
lubricant.

9.55550-DA6

TUTELA
TRANSMISSION B-5X

Contractual Technical
Reference N° F006.A14

Transfer unit (PTU -
4x4 versions)

SAE 75W-90 API
GL5 grade synthetic
lubricant.

9.55550-DA7

TUTELA
TRANSMISSION
COMPAQ DRIVE
Contractual Technical
Reference N° F007.A14

Rear differential
(4x4 versions)

Brake fluid

Synthetic fluid for brake
and clutch systems.
Exceeds specifications:
FMVSS no. 116 DOT 4,
ISO 4925 SAE J1704.

9.55597 or MS.90039

TUTELA TOP 4/S
Contractual Technical
Reference N° F005.F15

Hydraulic brakes and
hydraulic clutch controls

Protective agent for
radiators

Red protective with
antifreeze action, based
on inhibited monoethyl
glycol with organic
formula. Exceeds CUNA
NC 956-16, ASTM D
3306 specifications.

9.55523 or MS.90032

PARAFLU

UP

Contractual Technical
Reference N° F101.M01

Cooling circuits
proportions of use: 50%
water 50% PARAFLU

UP

(**)

Windscreen/rear
window washer fluid

Mixture of spirits and
surfactants. Exceeds
CUNA NC
956-11 specifications.

9.55522 or MS.90043

PETRONAS DURANCE
SC 35
Contractual Technical
Reference N° F001.D16

To be used diluted or
undiluted in screen
washer/wiper systems

AdBlue® additive for
diesel emissions

Water-UREA solution

DIN 70 070 and ISO
22241-1

AdBlue®

To be used for filling the
tank AdBlue® on vehicles
equipped with system of
Selective Catalytic
Reduction (SCR)

(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLU

UP

and 40% demineralised water.

232

TECHNICAL

SPECIFICA

TIONS

AdBlue

®

is a registered trademark of Verband der Automobilindustrie e.V. (VDA)

IMPORTANT

101) The use of products with different specifications than those indicated above could cause damage to the engine that is not covered by
the warranty.

233
