Citroen C5 (2017 year). Manual - part 19

Audio and Telematics

287

C5_en_Chap10b_SMEGplus_ed01-2016

Level 1

Level 2

Comments

Settings

Secondary page

System Settings

Delete data

Select the desired data in the list then press
Delete.

Factory settings

Return to factory settings.

Confirm

Save the settings.

Settings

Secondary page

Time/Date

Confirm

Set the date and time then confirm.

Settings

Secondary page

Screen settings

Activate automatic text scrolling

Activate or deactivate the setting then confirm.

Activate animations

Confirm

Audio and Telematics

288

C5_en_Chap10b_SMEGplus_ed01-2016

Calculator

Configuration

Calendar

Level 1

Level 2

Audio and Telematics

289

C5_en_Chap10b_SMEGplus_ed01-2016

Level 1

Level 2

Comments

Settings

Secondary page

Calculator

Select the calculator.

Settings

Secondary page

Calendar

Select the calendar.

Audio and Telematics

290

C5_en_Chap10b_SMEGplus_ed01-2016

Audio settings

Press on Settings to display the
primary page.

Select "Audio settings

Select "Ambience"

"Balance"

"Sound effects"

"Ringtones"

"Voice

On-board audio: Arkamys

Sound

Staging optimises sound distribution in
the passenger compartment.

The distribution (or spatialisation using
the Arkamys

system) of sound is an

audio process that allows the audio
quality to be adapted to the number of
passengers in the vehicle.
Available only with the 6-speaker
configuration.

The audio settings (Ambience, Bass:,
Treble: and Loudness

) are different

and independent for each sound
source.
The settings for Distribution and
Balance

are common to all sources.

- "Ambience

" (choice of 6 musical

ambiences)

- "Bass:"
- "Treble:"
- "Loudness

" (Activate/Deactivate)

- "Distribution

" ("Driver", "All

passengers", "Front only")

- "Audible response from touch

screen"

- "Volume linked to speed"

(Activate/Deactivate)

Audio and Telematics

291

C5_en_Chap10b_SMEGplus_ed01-2016

Press on Settings to display the
primary page.

Press on "Settings" to display the
primary page.

Press on Settings to display the
primary page.

Press on the secondary page.

Press on the secondary page

Press on the secondary page.

Select "System Settings

Select "Time/Date

" to change the

time zone, the synchronisation with
GPS, the time and its format, then
the date.

Select "Screen settings

Activate or deactivate "Activate
automatic text scrolling" and
"Activate animations"

Select "Delete data" to delete the
list of recent destinations, personal
points of interest, contacts in the list.

Select "Calculator" to display a
calculator.

Choose the item then select "Delete".

Select "Calendar" to display a
calendar.

Select "Factory settings" to return
to the original settings.

Modifying system settings

Audio and Telematics

292

C5_en_Chap10b_SMEGplus_ed01-2016

MirrorLink

Connected services

Optional depending on the
smartphone and operating system.

Audio and Telematics

293

C5_en_Chap10b_SMEGplus_ed01-2016

As a safety measure and because it
requires sustained attention by the
driver, using a smartphone when
driving is prohibited.
All operations must be done with the
vehicle stationary

The synchronisation of a
smartphone allows applications on a
smartphone that are adapted to the
MirrorLink

technology to be displayed

in the vehicle's screen.
The principles and standards
are constantly evolving. For the
communication process between the
smartphone and the system to work
correctly, the smartphone must be
unlocked; update the operating system
of your smartphone as well as the date
and time in the smartphone and the
system.
For the list of eligible smartphones,
connect to the brand's internet website
in your country.

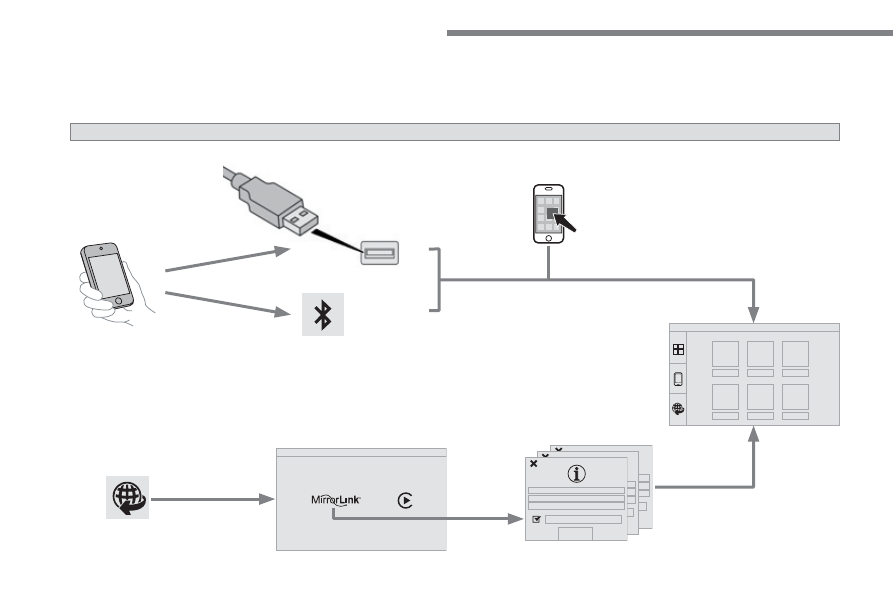

MirrorLink

smartphone

connection

As a safety measure, applications
can only be viewed with the vehicle
stationary; display is interrupted once
the vehicle is moving.

When connecting a smartphone to
the system, it is recommended that
Bluetooth

be started on the smartphone

Start the application on the
smartphone (optional, depending
on the smartphone and operating
system).

Access to the different audio sources remains
accessible in the margin of the MirrorLink

display, using touch buttons in the upper bar.
Access to the menus for the system is possible
at any time using the dedicated buttons

During the procedure, several screen
pages relating to certain functions
are displayed.
Accept to start and end the
connection.

Connect a USB cable. The
smartphone charges when
connected by a USB cable.

Press on "MirrorLink

" to

start the application in the
system.

Once connection is established, an page
is displayed with the applications already
downloaded to your smartphone and adapted
to MirrorLink

technology.

If only one application has been downloaded to
the smartphone, it starts automatically.

Press the end of the lighting control stalk to
start voice recognition of your smartphone via
the system.
Voice recognition requires a compatible
smartphone connected to the vehicle by
Bluetooth

Voice recognition

Please note:
- if your smartphone is supported, to

make it "MirrorLink

" compatible,

some phone manufacturers
nevertheless invite you to first
download a dedicated application.

From the system, press on
"Connected services" to display the
primary page.

Audio and Telematics

294

C5_en_Chap10b_SMEGplus_ed01-2016

Level 1

Level 2

Level 3

Audio and Telematics

295

C5_en_Chap10b_SMEGplus_ed01-2016

Level 1

Level 2

Level 3

Comments

Connected

services

MirrorLink

Access or return to the applications already
downloaded to your smartphone and adapted to
MirrorLink

technology.

Access to a menu list depending on the
application chosen.
"Back": abandon the current operation, go up one
level.
"Home": access or return to the "Car mode" page.

Access to the "Connected services" primary
page.

Audio and Telematics

296

C5_en_Chap10b_SMEGplus_ed01-2016

CarPlay

Audio and Telematics

297

C5_en_Chap10b_SMEGplus_ed01-2016

Press on "CarPlay" to display the
CarPlay

interface.

Connect a USB cable. The
smartphone charges when
connected by a USB cable.

Press the end of the lighting control stalk to
start voice recognition of your smartphone via
the system.

When the telephone menu is displayed,
connection of the USB cable causes the
display to automatically change to CarPlay
mode.
When another menu is displayed, on
connection of a USB cable a message is
displayed in the upper bar, indicating that
CarPlay mode has been activated.
Press Open to display CarPlay mode.

CarPlay

smartphone

connection

From the system, press on
"Connected services" to display the
primary page.

Connect the USB cable. The
smartphone is charged while
connected by the USB cable.

Voice recognition

As a safety measure, applications
can only be viewed with the vehicle
stationary; display is interrupted once
the vehicle is moving.

The synchronisation of a smartphone
allows applications on a smartphone
that are adapted to the CarPlay

technology to be displayed on the
vehicle's screen.
As the principles and standards are
constantly evolving, it is recommended
that you update the operating system of
your smartphone.
For the list of eligible smartphones,
connect to the brand's internet website
in your country.

As a safety measure and because it
requires sustained attention by the
driver, using a smartphone when
driving is prohibited.
All operations must be done with the
vehicle stationary

During the procedure, one or more
screen pages relating to certain
functions are displayed on connection.

On connecting the USB cable, the
"Telephone

" function changes to

"CarPlay

" in the menu carousel.

Press on "CarPlay" to display the
CarPlay

interface.

Audio and Telematics

298

C5_en_Chap10b_SMEGplus_ed01-2016

Level 1

Telephone

Level 2

Level 3

Contacts

Call log

Audio and Telematics

299

C5_en_Chap10b_SMEGplus_ed01-2016

Level 1

Level 2

Level 3

Comments

Telephone

Call log

All calls

After making choices, start the call.

Incoming calls

Outgoing calls

Contacts

Magnifying glass

View

Create

Call

Telephone

Contacts

Addresses

After making choices, start the call.

View

Create

Modify

Delete

Delete all

By name

Confirm

Navigate to

Search for contact

Call

Audio and Telematics

300

C5_en_Chap10b_SMEGplus_ed01-2016

Bluetooth (devices)

Telephone Options

Devices detected

Telephone connection

Level 1

Level 2

Level 3

Audio and Telematics

301

C5_en_Chap10b_SMEGplus_ed01-2016

Level 1

Level 2

Level 3

Comments

Telephone

connection

Secondary page

Bluetooth

connection

Search

Start the search for another peripheral device to
connect.

Connect / Disconnect

Start or stop the Bluetooth

connection to the

selected peripheral device.

Update

Import the contacts from the selected telephone
to store them in the audio system.

Delete

Delete the selected telephone.

Confirm

Save the settings.

Telephone

connection

Secondary page

Search

for devices

Devices detected

Telephone

Start the search for peripheral devices.

Audio streaming

Internet

Telephone

connection

Secondary page

Telephone Options

Put on hold

Cut the microphone temporarily so that the
contact cannot hear your conversation with a
passenger.

Update

Import the contacts from the selected telephone
to save then in the audio system.

Ringtones

Choose the telephone ringtone and volume.

Memory info.

Contact records used and free, percentage of
storage space used by internal contacts and
Bluetooth

contacts.

Confirm

Save the settings.

Audio and Telematics

302

C5_en_Chap10b_SMEGplus_ed01-2016

Pairing a Bluetooth

telephone

For reasons of safety and because they
require prolonged attention on the part
of the driver, the operations for pairing
the Bluetooth

mobile telephone to the

hands-free system of the audio system
must be carried out with the vehicle
stationary

Procedure (short) from the
telephone

In the Bluetooth

menu of your device, select

the system name in the list of devices detected.

Enter a code of at least 4 figures in the device
and confirm.

Enter this same code in the system,
select "OK

" and confirm.

Procedure from the system

Activate the telephone's Bluetooth

function

and ensure that it is "visible to all" (telephone
configuration).

Press on Telephone to display the
primary page.

Press on the secondary page.

Select "Bluetooth connection

Select "Search for devices

The list of telephones detected is
displayed.

If the telephone is not detected, it is
recommended that you switch the Bluetooth

function on your telephone off and then on again.

Select the name of the
desired peripheral from the
list and "Confirm

Enter a code of at least 4 figures for
the connection then "Confirm

Enter this same code in the telephone then
accept the connection.

The system offers to connect the telephone:
-

in "Telephone

" (hands-free kit, telephone

only),

in "Audio streaming

" (streaming: wireless

playing of audio files from the telephone),

in "Internet

" (internet browsing, only if your

telephone is compatible with the "DUN"
Dial-Up Networking Bluetooth

standard).

Select one or more profiles and confirm.

Content .. 17 18 19 20 ..
