BYD G3. Service Instruction - part 5





BYD G3 AUTO Owner’s Instruction





62

Preview (INT)
When  you  enable  this  function,  the
system will sample all  the programs
on  the  selected  disc  in  the  order  of
recording.  To  enable  this  function,
just  press  3  in  CD  mode.

―INT‖  will

appear  on  the  screen.  The  system
will  play  the  first  program  for  about
10  seconds.  Without  any  operation
at  the  moment,  the  system  will
continue  to  play  each  remaining
program  for  about  ten  seconds.
When  you  search  your  desired
program, just press 3 again.

Random Play (RDM)

After  you  enable  this  function,  the
system will play the programs on the
disc in a random order instead of in
the  order  of  recording.  To  enable
random  play,  just  press  4  in  CD
mode.

―RDM‖  will  appear  on  the

screen. Then, the system  will select
and  play  the  program  in  a  random
order.  It  will  continue  to  do  so  until
you press 4 to exit from random play.

Operations of USB/AUX Interface
This  system  can  play  MP3/WMA  music
on the external USB drive through USB
interface,  can  also  input  audio  signal
through  AUX  interface  and  play  music
through  vehicle  speaker.  When  you
insert  the  USB  device,  the  system  will
switch  to  USB  mode  automatically  and
also play the music saved in it. You can
also perform the same operations as CD
music,

such

as

play/pause,

pre

track/next  track  and  fast  forward/fast
rewind.
Through  car  data  cable,  you  can
connect  the  headphone  jack  of  MP3
player  and  AUX  interface;  when  it
switches to AUX mode, the music in the
MP3  player  will  be  played  through
Vehicle speaker.
When  playing  the  MP3/WMA  music  on
the  external  USB  drive  through  USB
interface,  you  can  also  perform  the
following operations:

Pause
In  USB  mode,  press  1  to  pause.
Play-time of the current file will flicker on
the screen for reminding. Press 1 again
and it can get back to normal playing.

Repeat (RPT)
Two repeating functions are available

–

you  can  repeat  one  file  and  also  one
whole folder as well.


Short press 2 and ―RPT‖ will appear on
the  screen.  The  system  will  replay  the
current  file  continuously.  Press  2  again
and you can disable this function.

You can also long press 2 until you hear
a ―beep‖; "

  " will appear on the

screen  and  then  the  system  will  repeat
all the files in the folder you are listening.
When  the  last  file  in  the  folder  is  over,
the  system  will  get  back  to  the  first  file
automatically  and  replay  it.  Press  2
again and you can disable this function.

Preview (INT)

Press  3  and  ―INT‖  will  appear  on  the
screen. The system will play the first file
in  the  current  folder  for  about  ten
seconds.  Without  any  operation  at  the
moment, the system will continue to play
each remaining file in the current folder
for about ten seconds. When you search
your  desired  program,  just  press  3
again.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





63

Random Play (RDM)
Press  4  and  ―RDM‖  will  appear  on
the  screen.  Then,  the  system  will
play the files in the current folder in a
random  order.  Press  4  again,  you
can exit from random play.

Folder Selection
You can select a folder by pressing 5
and 6.Press 5 or 6 to skip upward or
downward to another folder until the
required  folder  number  appears  on
the screen.

Notes:

1. Users are advised to connect USB
drive  with  car  data  cable,  as  direct
connection  may  cause  destruction
and danger.
2.  USB  interface  does  not  support
mobile  HDD  and  MP3  player  with
poor  compatibility  as  well  as  the
USB drive over 1GB.

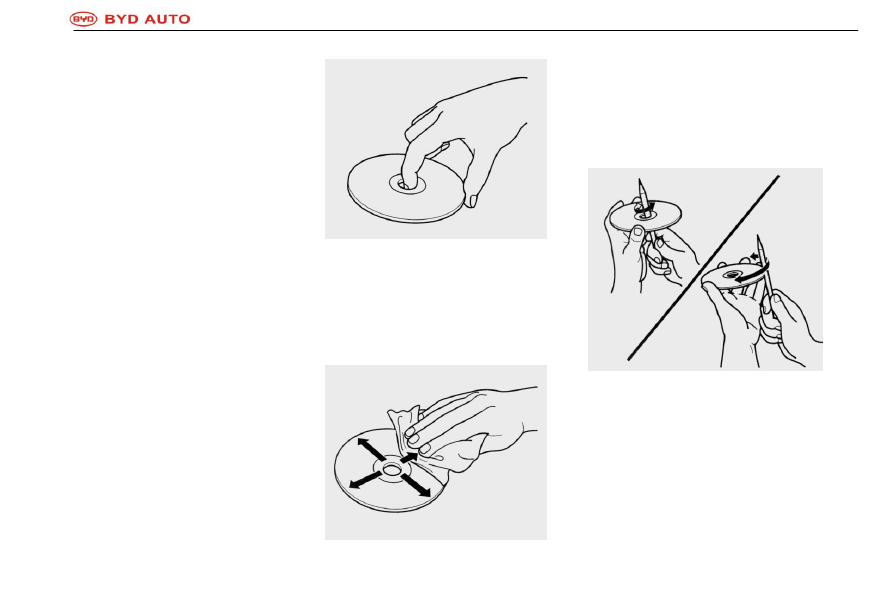

CD Maintenance:




Please hold the edge of CD and do not
touch  its front  and  rear surface. Do  not
add  any  stabilizing  ring  or  attach  any
label  on  the  disc.  Keep  it  from  being
contaminated  by  fingerprint  and  ink  of
felt-tip  pen,  or  it  will  not  be  played
normally or may be locked in the driver.



When not in use, put it into a box so as
to  avoid  being  contaminated  by  dust  or
other  things.  To  avoid  deformation,  you
shall keep it from direct sunlight or over
heat.
You shall wipe the disc with a clean soft
cloth.  Wipe  the  disc  from  the  center  to
the edge.




The  inner  and  outer  edge  of  new  CD
may  be  a  little  bit  rough.  Plastic  scraps
on  the  rough  edge  may  peel  off.  If  it
drops  on  the  recording  side,  it  may
cause  skipping  or  other  faults.  Rub  the
inner and outer edge of CD with the side
of  pencil  or  pen  and  you  can  eliminate
these scraps.
Do  not  insert any  foreign  materials  into
the CD player.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





64

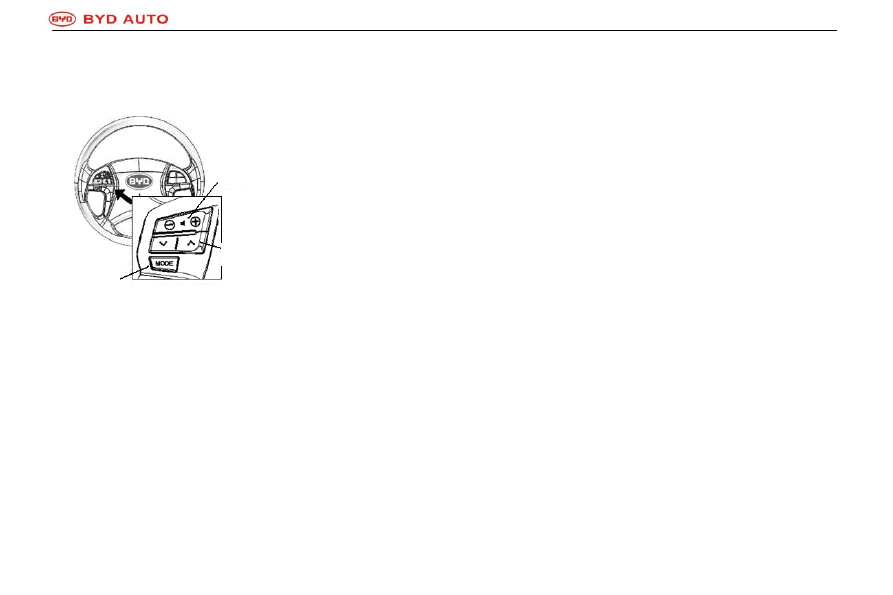

Steeling  Wheel  Control  Device  of
Audio  System  (only  for  some
models)







There are 3 buttons for setting audio
system on the left of hub of steeling
wheel.  These  buttons  make  it  easy
for you to operate the basic functions
of audio system without getting your
hands away from the steeling wheel.
Volume  buttons  ―+‖  and  ―-‖  are
designed to adjust the volume. Press
and  hold  ―+‖  or  ―-‖  until  it  reaches  a
desired level, and then release it.

Mode  (MODE)  button  is  designed  to
change  the  mode.  When  using,  press
the button over and over, the mode  will
switch to FM, AM or playing CD (if disc
is loaded) or playing MP3 music (if USB
drive is connected to the USB interface)
or audio play (if a player is connected to
AUX  interface.)Long  press  MODE  and
you can turn off the audio system.

The functions of channel button are the
same as ―SEEK‖. If you are listening to

radio,  you  can  press ―∧‖  to search  the
next

channel

with

strong

signal

automatically;  press  ―∨‖  to  search  the
previous  channel  with  strong  signal
automatically.

If  you  are  playing  CD  or  things  on  the
USB  device,  short  press  ―∧‖  and  the
audio  system  will  skip  to  the  beginning
of  next  program.

Short  press  ―∨‖  and

the  audio  system  will  skip  to  the
beginning  of  current  program.  Short
press it again and the system will skip to
the beginning of last program. Then disc
number  and  program  number  will
appear on the screen.
If AUX audio play now, there  will  be no
response after you press it.




Channel

Volume

Mode

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





65

Chapter  1

Section 8



Operations of Instrument and Controller


Air Conditioning System



Instruction Air Conditioning System - ..................................................................... 66
Wind Mode Knob Settings ................................................................................. 68
Side Ventilation Opening ................................................................................... 70

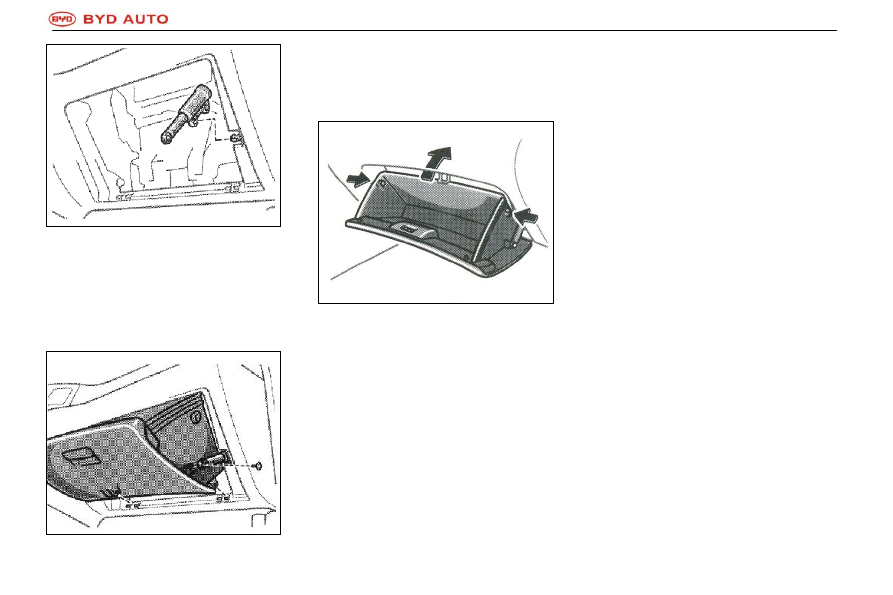

Checking and Replacing the Filter of Air Conditioner ...................................... 70




-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





66

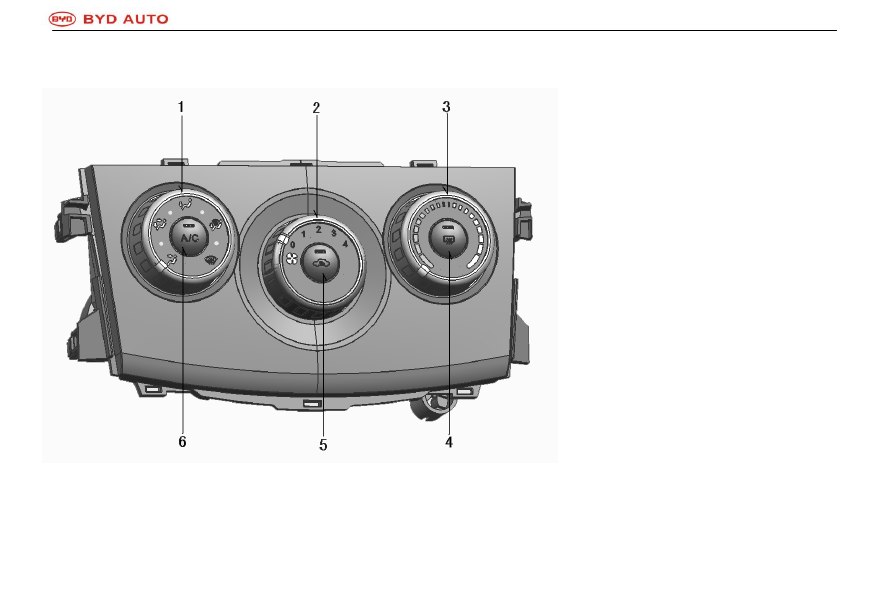

Instruction Air Conditioning System -
- Control Panel



1. Wind mode knob

2. Speed regulating knob for blower

3. Temperature regulating knob

4. Rear defrost button

5. Internal & external recycle button

6. ―A/C‖ button









-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





67

Speed Regulating Knob for Blower

Turn  this  knob  to  regulate  the  rotating
speed  of  blower

–  five  gears  are

available  ―0,  1,  2,  3  and  4‖.Turn  this
knob  clockwise  to  increase  the  wind
speed,  counter-clockwise  to  reduce  the
wind  speed;  the  blower  is  shut  down
until gear 0.

Temperature Regulating Knob
Turn

this

knob

to

regulate

the

temperature  of  air  out

–  clockwise  to

increase the temperature; when you turn
it to  the  maximum  position and can not
turn it again clockwise, the temperature
reaches to the top; counter-clockwise to
reduce the temperature; when you turn it
to  the  maximum  position  and  can  not
turn  it  again  counter-clockwise,  the
temperature reaches to the lowest.

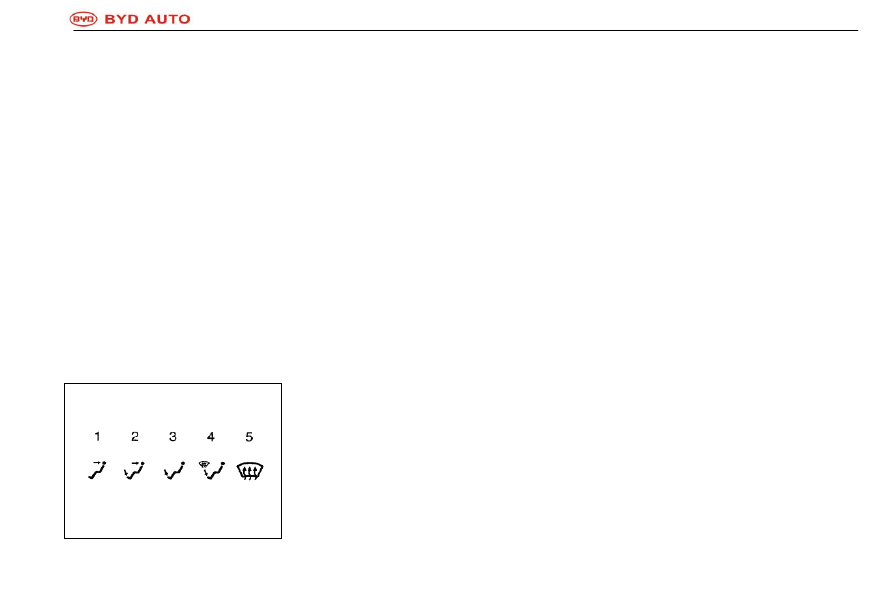

Wind mode knob

Turn  this  knob  to  select  the  air-flow
ventilation opening.
1. Instrument panel

– air flow is mainly

from  the  ventilation  opening  of
instrument mounting plate.

2.  Dual  Source

–  air  flow  is  from

ventilation  openings  of  floor  and
instrument mounting plate.

3.  Floor

–  air  flow  is  mainly  form  the

ventilation opening of floor.

4. Floor/Windscreen

– air flow is mainly

from the ventilation openings of floor
and windscreen.

It  is  used  together  with  internal  and

external  recycle  button  in  external
recycle.

5. Windscreen

– air flow is mainly from

the

ventilation

opening

of

windscreen.


It  is  used  together  with  internal  and
external  recycle  button  in  external
recycle.
For settings about wind mode knob, you
could  refer  to  ―-  wind  mode  knob
settings‖ below

Internal & External Recycle Button

Button operations to select the source of
air flow.

1. Internal recycle
- to recycle the air in
the car.

2. External recycle


– to absorb the air

outside into the system.
When  you  press  the  internal  and
external  recycle  button,  the  indicator
(green)  is  on  and  the  air-inlet  mode  is
internal recycle; press the button again,
the indicator is off and the air-inlet mode
is external recycle.

“A/C” Button
To start the air-conditioning system, first
turn the speed-regulating knob of blower
(not gear 0), and then p

ress ―A/C‖ button.

Then,  the  indicator  (green)  of  button  is
on.  To  turn  off  the  air-conditioning
system,  press  the  button  again  (then
blowing  natural  wind)  or  turn  the
speed-regulating knob of blower to gear
0.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





68

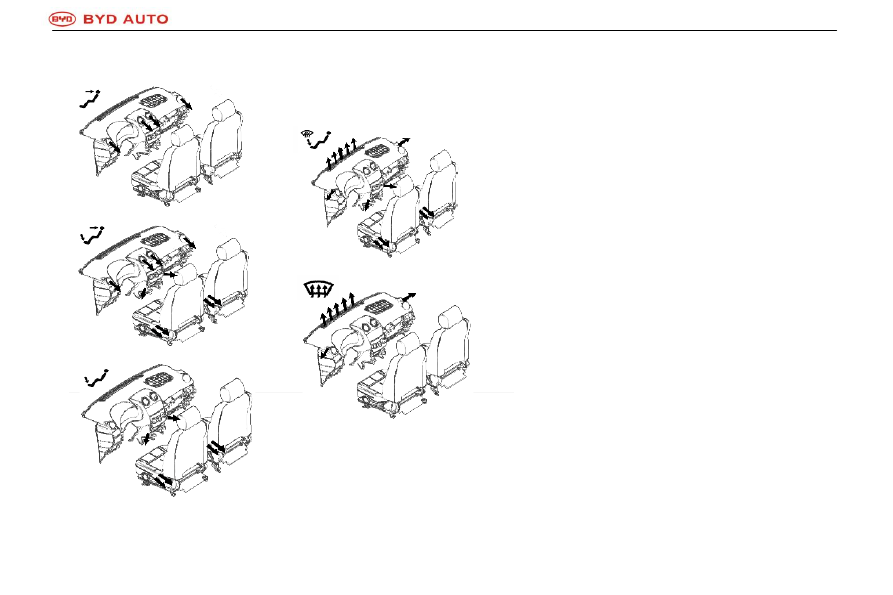

Wind Mode Knob Settings





























































- Operation Gist

●To quickly cool the car exposed in

the hot sun, just drive for minutes
with windows opened.

●Confirm  that  the  air  suction  grid  in

the  front  of  windscreen  is  not
blocked (such as leaves or snow).

● In wet weather, do not let cooling air

blow  to  the  windscreen.  Due  to
temperature  difference  between
the

outside

and

inside

of

windscreen, the windscreen will fog
over.

●  You  must  keep  it  clean  and  open

under the front seat so as to make
the air fully recycled in the car.

●  In  cold  weather,  you  must  set  the

rotating  speed  of  blower  to  a  high
speed for one minute so as to clear
the snow or moisture in the air inlet
channel.  By  doing  so,  you  can
reduce fogging on the windows.

● When driving on the dirty road, you

shall  close  all  the  windows.  After
closing  all  the  windows,  if  dusts
raised  by  car  still  enter,  you  are
suggested to press the internal and
external  recycle  button,  set  it  to
internal  recycle  and  turn  the
speed-regulating knob of blower to
non-0 gear.



-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





69

Heating


To  get  best  effect,  set  the  panel  of  air
conditioner to the following:



Rotating  speed  of  blower

–  non  0

gear
Temperature

–  point  at  warm  (red

area)
Air  suction

–  external  recycle

(outside air)
Air flow - floor
Air conditioner - OFF




●  To  fast  warm  up,  enable  internal

recycle for several minutes. To not fog
on  the  windows,  enable  external
recycle after the car gets warmed.

●  Press  ―A/C‖  button  to  eliminate

moisture and warm up.

● When defrosting and defogging for the

windscreen,  select  floor/windscreen
air flow to get the car warmed up.



Cooling


To  get  best  effect,  set  the  panel  of  air
conditioner to the following:



Rotating speed of blower

– non 0

gear
Temperature

– point at cold (blue

area)
Air suction

– external recycle

(outside air)
Air flow

– instrument panel

Air conditioner - ON


To  fast  cool  the  car,  turn  the  external
and  internal  recycle  mode  selecting
knob  to  internal  recycle  for  several
minutes.


Ventilation

To  get  best  effect,  set  the  panel  of  air
conditioner to the following:


Rotating speed of blower

– non 0

gear
Temperature

– point at cold (blue

area)
Air suction

– external recycle

(outside air)
Air flow

– instrument panel

Air conditioner - OFF

Defogging


Inside of windscreen
To  get  best  effect,  set  the  panel  of  air
conditioner to the following:



Rotating speed of blower

– non 0

gear
Temperature

– point at warm (red

area) to warm up;
Point at cold (blue area) to cool
down.
Air  suction

–  external  recycle

(outside air)
Air flow - windscreen
Air conditioner - ON



●  In  wet  weather,  do  not  blow  the

cooling air to the windscreen

– indoor

and  outdoor  temperature  difference
may cause serious fogging.



-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





70

Defrosting

Outside of windscreen
To  get  best  effect,  set  the  panel  of  air
conditioner to the following:



Rotating speed of blower

– non 0

gear
Temperature

– point at warm (red

area)
Air suction

– external recycle

(outside air)
Air flow - windscreen
Air conditioner - OFF



● When defrosting for the windscreen, to

get the car warmed up, you can select
floor/windscreen air flow.



Side Ventilation Opening





If you are not satisfied with  the air flow,
check the side ventilation opening which
may  be  opened  or  closed  as  shown  in
the figure.


Checking and Replacing the Filter of
Air Conditioner




Instruction label of filter of air conditioner
is sticked on the inner side of glove box
as shown in the figure, indicating that a
filter is equipped

Filter of air conditioner can prevent dust
from entering the car through air inlet of
air conditioner.






-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





71

Filter  of  air  conditioner  lies  behind
the glove box.

In  the  long  term,  filter  of  air conditioner
will  be  blocked.  If  you  feel  the  air  flow
efficiency of air conditioning or heating is
extremely  weakened or it is easy to fog
on  the  windows,  you  must  replace  the
filter.
To  maintain  the  efficiency  of  air
conditioner, you must check and replace
its  filter  according  to  the  maintenance

program.(you  can  refer  to  ―BYD
Maintenance Program‖ in chapter 6)





1.  Open  the  right  glove  box  and  take
down  the  screws  on  the  damper  with  a
cross screwdriver.





2. Press both sides of the right glove box,
unfasten the pothook and take down the
right glove box.





3. Take out the filter box from the outlet
of filter as shown in the figure.





4. Take out the filter from the filter box.
5. Check the surface of filter.
If dirty, replace it.

When installing filter and filter box, keep
the arrow upward.


Tips:

Air  filter  must  be  installed  into
place

properly.

Using

air

conditioner  with  the  air  filter
taken  away  will  reduce  the
dust-proof  effect  and  also  affect
the

performance

of

air

conditioner.



-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





72




Reinstall the right glove box

1.  Insert  a  bolt  into  the  hole  of  damper
as shown in the figure.








2. Hook up the right glove box, draw the
damper  and  insert  a  screw  into  the
damper.  Fasten  the  screw  with  a  cross
screwdriver.




3. Press the both sides of right glove box
and close it.


-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





73

Chapter 1

Section 9

Operations of Instrument and Controller


Other Equipment



Cigar Lighter ....................................................................................................... 74
Right Glove Box ................................................................................................. 74
Central Glove Box .............................................................................................. 74
Reversing Radar System (Optional in G3) ....................................................... 75





-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





74

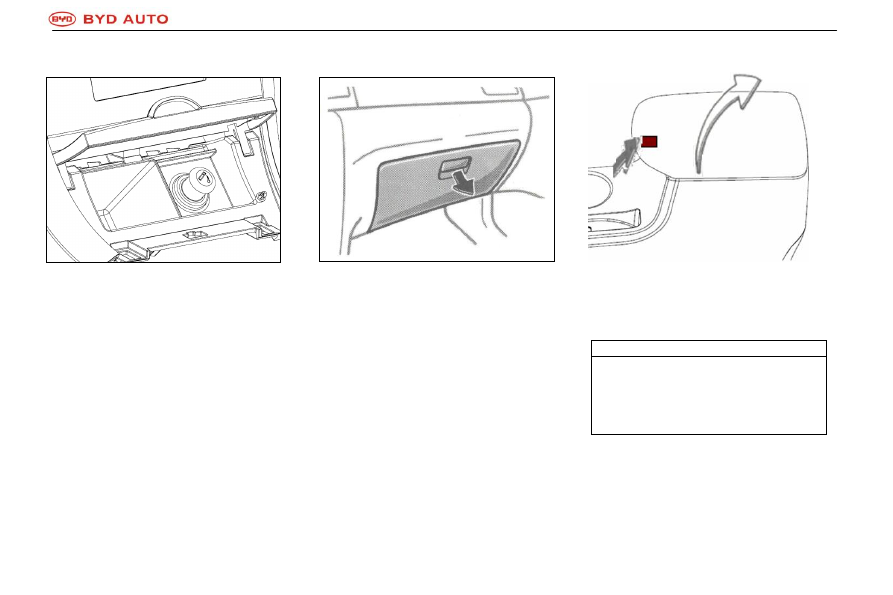

Cigar Lighter







To  use  cigar  lighter,  just  press  it.  After
cigar lighter lights it on, it will pop up for
use.
If  the  engine  is  not  running,  ignition

switch must be in the position of ―ACC‖.
Do not press the cigar lighter and hold.


Right Glove Box





To  open  the  right  glove  box,  pull  the
handle.



Central Glove Box






To open the central  glove box,  uplift its
cover  and  pull  upward  the  locking
buckle.


Tips

To  reduce  the  possibility  of
unexpected  accident  or  human
injury  in emergency  braking,  you
must  keep  the  central  glove  box
closed during driving.




-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





75

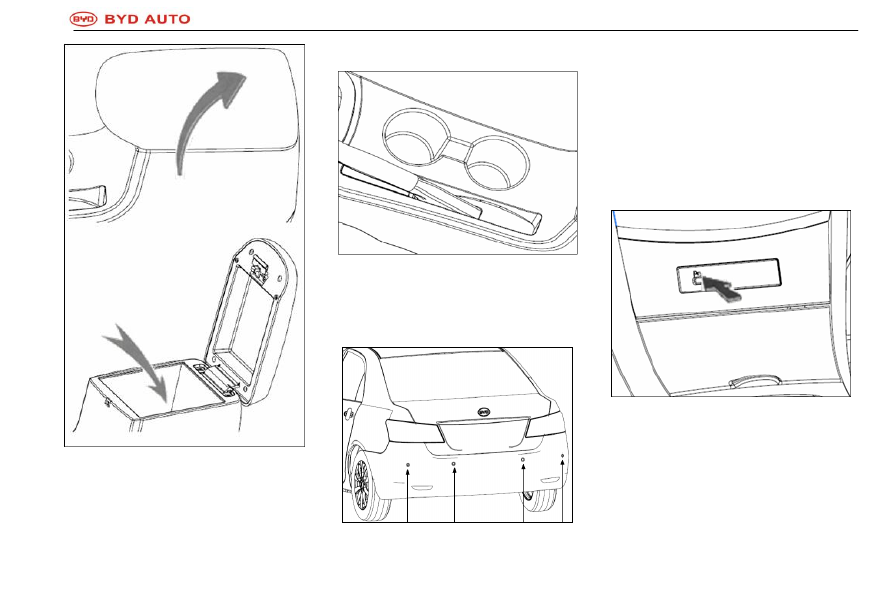

Cup Holder






It is designed  to place cup or drink can
safely.

Reversing Radar System (Optional)





Reversing Radar System


During reversing, it will remind the driver
of  the  approximate  distance  between
the car and barrier through indicator and
buzzer. A sensor is used in this system
to detect the barrier.
When  ignition  switch  is  at  ―ON‖  and
selection  lever  stays  at  reversing  gear,
the system is in working conditions.






ON: press the switch.

Indicator is on and buzzer sounds.

OFF: press the switch again.




-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





76



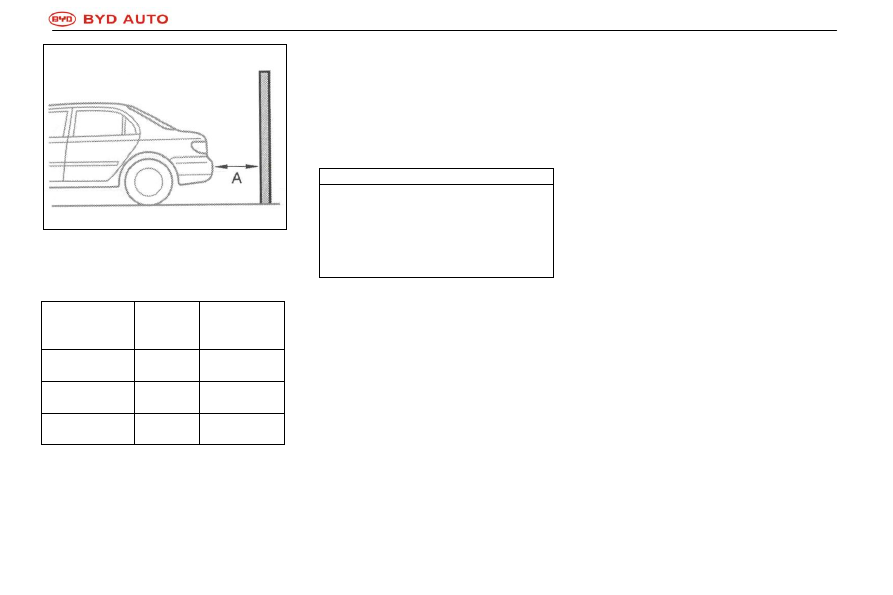

This  system  reminds  the  driver  of  the
distance  between  car  and  barrier
through indicator and buzzer.


Distance
illustrated  by
A mm

Indicator

Buzzer

About 1,000 -
750

Flicker

Sound

intermittently

About  750  -
500

Flicker

Fast sound

intermittently

About  500  or
less than 500

ON

Sound

continuously



Sensing Range

Sensing range means the maximum
value is about 1,000 mm to probe A.
Due to limited sensing range, you  must
check around the car before driving and
start driving quite slowly.


Tips

Do not stick accessories or other
things  on  the  sensor  used  for
probing barriers. Otherwise, it will
interfere

with

the

accurate

working  of  system,  which  may
cause unexpected accidents.



The  system  can  not  work  normally
under the following conditions.


● Things such as ice, snow and mud are

sticked on the sensor.

● Stop the car in the environment of high

or low temperature for a long time.

● Drive on the rough  path, muddy road

or road with deep grass

● Be close to the horn of other vehicles,

engine  of  motorcycle  or  any  object
which may generate supersonic wave.

●  Drive  in  the  heavy  rain  or  with  water

splashed on the car.

●  Be  equipped  with  two-channel  radio

antenna or buffer rod.

● Car weight is tilt.
● Cover the sensor with hands.

● Be too close to the object.
● Beat the sensor heavily.

When the following objects approach
the sensor, the system may not work.

● Metal line, rope or thinner objects
● Cotton, snowflake or absorptive things

● Smaller objects
● Objects with sharp edges
● High and protruding objects

In the following conditions you must
entrust BYD Service Station to check
the system.


● Bumper dent.
●  Indicator  continues  to  be  on  but  the

buzzer does not sound.



Reversing Radar System

Parking sensor system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





77

Chapter 2

Tips on Driving BYD G3



Run-in Period...................................................................................................... 78
Fuel ..................................................................................................................... 78
Fuel Cut-off System ........................................................................................... 79
Three-Way Catalytic Converter ......................................................................... 79
Engine Exhaust Warning ................................................................................... 80
Consumption of Engine Oil ................................................................................ 81
Gear Shift ............................................................................................................ 82
Brake System ..................................................................................................... 86
Brake Wearing Piece Warning Plate ................................................................. 89
Precautions on Luggage Loading...................................................................... 89
Suspension and Chassis ................................................................................... 89







-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     3      4      5      6     ..
