Switching the Power Liftgate On or Off

You can switch the power liftgate on or off
through the vehicle settings on your
touchscreen.

When switched off, the liftgate only unlatches
and will not power open or close.

Hands-Free Feature

 (If Equipped)

Make sure you have the intelligent access
remote within 3 ft (1 m) of the liftgate.

1. Stand behind your vehicle, and face the

liftgate.

2. Move your foot, in a single-kick motion,

without pausing, under and away from
the rear bumper detection area.

E300799

3. The liftgate opens or closes.

Avoid the following actions when using the
hands-free opening feature:

•

Making physical contact with the bumper.

•

Holding your foot under the bumper.

•

Sweeping your foot from side to side, or
kicking at an odd angle.

Detection zones

Vehicles Without a Trailer Hitch

E253664

The detection area is in the center of the rear
bumper.

89

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Liftgate

Vehicles With a Trailer Hitch

E253799

The detection area is on the left-hand side
and right-hand side of the hitch, between the
exhaust and the hitch.

Note: Allow the power system to open the
liftgate. Instructionly pushing or pulling the
liftgate may activate the system’s obstacle
detection feature and stop the power
operation or reverse its direction, replicate
a strut failure, or damage mechanical
components.

Note:  Splashing water may cause the
hands-free liftgate to open.  Keep the
intelligent access remote away from the rear
bumper detection area when you wash your
vehicle.

90

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Liftgate

PASSIVE ANTI-THEFT SYSTEM

Note:  The system is not compatible with
non-Ford aftermarket remote start systems.
Use of these systems may result in vehicle
starting problems and a loss of security
protection.

Note: Metallic objects, electronic devices or
a second coded key on the same key chain
may cause vehicle starting problems if they
are too close to the key when starting the
engine. Prevent these objects from touching
the coded key while starting the engine.
Switch the ignition off, move all objects on
the key chain away from the coded key and
restart the engine if a problem occurs.

Note: Do not leave a duplicate coded key
in the vehicle. Always take your keys and
lock all doors when leaving the vehicle.

SecuriLock®

The system is an engine immobilization
system.  It is designed to help prevent the
engine from being started unless a coded
key programmed to your vehicle is used.
Using the wrong key may prevent the engine
from starting.  A message may appear in the
information display.

If you are unable to start the engine with a
correctly coded key, a malfunction has
happened and a message may appear in the
information display.

Automatic Arming

The vehicle arms immediately after you
switch the ignition off.

Automatic Disarming

Switching the ignition on with a coded key
disarms the vehicle.

Replacement Keys

Note: Your vehicle comes equipped with two
intelligent access keys.

The intelligent access key functions as a
programmed key that operates the driver
door lock and activates the intelligent access
with push button start system, as well as a
remote control.

If your programmed transmitters are lost or
stolen and you do not have an extra coded
key, you will need to have your vehicle
towed to an authorized dealer.  You need to
erase the key codes from your vehicle and
program new coded keys.

Store an extra programmed key away from
the vehicle in a safe place to help prevent
any inconveniences. See your authorized
dealer to purchase additional spare or
replacement keys.

Programming a Spare Intelligent Access
Key

See your authorized dealer to have
additional keys programmed to your vehicle.

91

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Security

ANTI-THEFT ALARM

The active anti-theft system is designed to
warn you in the event of unauthorized
vehicle entry and is also designed to help
prevent unwanted towing of your vehicle.
You can choose what is monitored by arming
the system in different ways.  See
Information Displays (page 127).

The direction indicators flash and the horn
sounds if the system triggers while the alarm
is armed.

Take all remote controls to an authorized
dealer if there is any potential alarm problem
with your vehicle.

Using the System

You can select two levels of alarm security.
You can change the level of security when
the ignition is switched off through the
information display with the two options
below:

Perimeter Sensing (If Equipped)

Perimeter sensing monitors the following:
•

Doors.

•

Hood.

•

Liftgate.

All Sensors (If Equipped)

All sensors monitors the following:
•

Doors.

•

Hood.

•

Liftgate.

•

Movement inside your vehicle.

•

Change in vehicle inclination, for
example, unwanted towing.

Note: Do not choose all sensors monitor
mode when the vehicle is in transport or if
movement within the vehicle is likely to
occur.

Note: For correct operation of the interior
motion detection system, make sure you
close all the windows prior to arming the
system. This helps prevent accidental alarm
activation due to external influences.
Additionally, the interior motion sensing
system does not arm if any door is ajar.

Arming the Alarm

The alarm is ready to arm when there is not
a key in the ignition. Lock your vehicle using
the remote control or keyless entry keypad.
You can also lock your vehicle using the lock
sensor on the exterior door handle if your
vehicle is equipped with intelligent access.
See Locking and Unlocking (page 75).

The direction indicators flash once after you
lock your vehicle. This indicates the alarm is
in the pre-armed mode. It fully arms after 20
seconds.

92

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Security

Disarming the Alarm

Disarm the alarm by any of the following
actions:
•

Press the power door unlock button
within the 20-second pre-armed mode.

•

Unlock the doors with the remote control
or keyless entry keypad. If equipped with
intelligent access, you can use the unlock
sensor on the exterior door handle.  See
Locking and Unlocking (page 75).

•

Switch the ignition on or start your
vehicle.

•

Use a key in the driver door lock cylinder
to unlock your vehicle, then switch the
ignition on within 12 seconds.

Note: Pressing the panic button on the
remote control stops the horn and direction
indicators, but does not disarm the system.

93

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Security

ADJUSTING THE STEERING WHEEL
- VEHICLES WITH: MANUAL
ADJUSTABLE STEERING COLUMN

WARNING: Do not adjust the

steering wheel when your vehicle is
moving.

Note: Make sure that you are sitting in the
correct position.  See Sitting in the Correct
Position (page 167).

E279960

1. Unlock the steering column.

2. Adjust the steering wheel to the desired

position.

E279962

3. Lock the steering column.

ADJUSTING THE STEERING WHEEL
- VEHICLES WITH: POWER
ADJUSTABLE STEERING COLUMN

WARNING: Do not adjust the

steering wheel when your vehicle is
moving.

Note:  Make sure that you are sitting in the
correct position.   See Sitting in the Correct
Position (page 167).

94

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Steering Wheel

E261582

Use the control on the side of the steering
column to adjust the position.

To adjust:
•

Tilt: Press the top or bottom of the
control.

•

Telescope: Press the front or rear of the
control.

End of Travel Position

The steering column sets a stopping position
just short of the end of the column position
to prevent damage to the steering column.
A new stopping position sets if the steering
column encounters an object when tilting or
telescoping.

To reset the steering column to its normal
stopping position:

1. Confirm there is nothing obstructing the

motion of the steering column.

2. Press and hold the steering column

control until the steering column stops
moving.

3. Press the steering column control again.

Note: The steering column may begin to
move again.

4. When the steering column stops,

continue holding the control for a few
seconds.

5. Repeat for each direction as necessary.

A new stopping position sets.  The next time
you tilt or telescope the steering column, it
stops just short of the end of the column
position.

Memory Feature

You can save and recall the steering column
position with the memory function.   See
Memory Function (page 175).

Pressing the adjustment control during a
memory recall cancels the operation.

Easy Entry and Exit Feature

The column moves up when you switch the
ignition off. Switch the ignition on to return
the system to its previous settings. You can
switch this feature on or off through the
touchscreen.  See Settings (page 488).

Note:  If you press any adjustment or
memory button when in easy exit mode, the
system cancels the operation.

Note: Depending on your vehicle, the column
may move up and in.

95

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Steering Wheel

AUDIO CONTROL

You can operate the following
functions with the control:

E281219

E280803

Move the selector switch up to
increase volume level.

E280802

Move the selector switch down to
decrease volume level.

E265045

Move the selector switch to the left
to access the previous media
selection.

E265044

Move the selector switch to the
right to access the next media
selection.

E281220

Note: The controls change when you enter
a submenu.

The following controls are not available when
you enter a submenu:

Move the selector switch to the
right to enter the mode phone
submenu.

E100027

Move the selector switch to the left
to enter the media submenu.

VOICE CONTROL

The controls are on the steering wheel.

E142599

Press and release to activate voice
recognition.

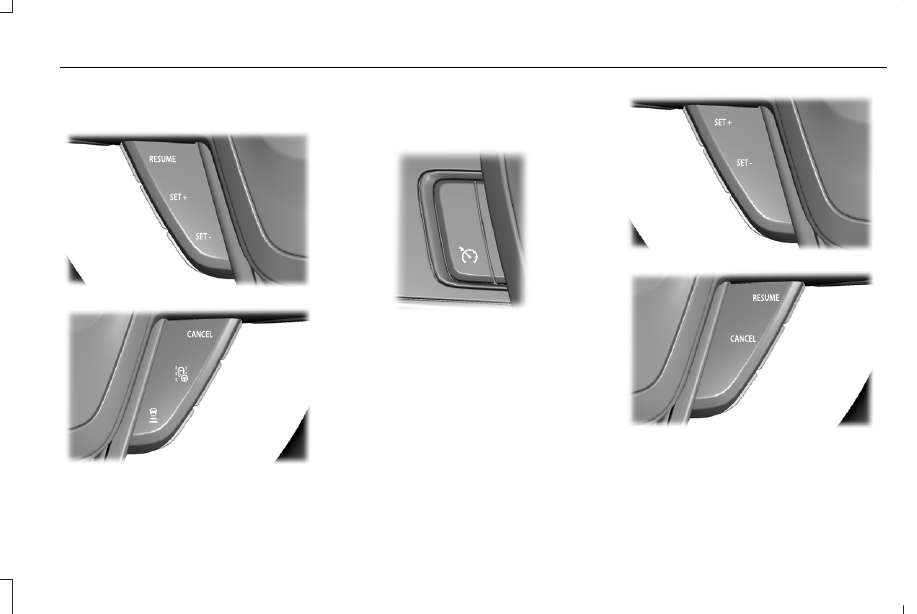

CRUISE CONTROL - VEHICLES
WITH: ADAPTIVE CRUISE
CONTROL WITH LANE CENTERING

E281217

The following controls are only available
when you switch cruise control on.

96

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Steering Wheel

Note: You must press the controls from
behind the wheel.

E281221

E281225

See About Adaptive Cruise Control With
Lane Centering (page 264).

CRUISE CONTROL - VEHICLES
WITH: CRUISE CONTROL

E281218

The following controls are only available
when you switch cruise control on.

Note: You must press the controls from
behind the wheel.

E281222

E281224

See About Cruise Control (page 262).

97

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Steering Wheel

INFORMATION DISPLAY CONTROL

E281220

Note: The controls change when you enter
a submenu.

The following controls are only available
once you enter a submenu:

E299701

See General Information (page 127).

HEATED STEERING WHEEL

 (IF

EQUIPPED)

The heated steering wheel button is on the
climate controls.

Press the button to switch the
heated steering wheel on and off.

Note: You can use the heated steering
wheel only when the engine is running.

Note: The system uses a sensor and is
designed to control the temperature of the
steering wheel and to prevent it from
overheating.

Note: In warm temperatures, the steering
wheel quickly reaches its maximum
temperature and the system reduces the
current to the heating element. This could
cause you to think that the system has
stopped working but it has not. This is
normal.

HORN

E270945

98

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Steering Wheel

WINDSHIELD WIPERS - VEHICLES
WITHOUT: HEATED WIPER
BLADES

E270969

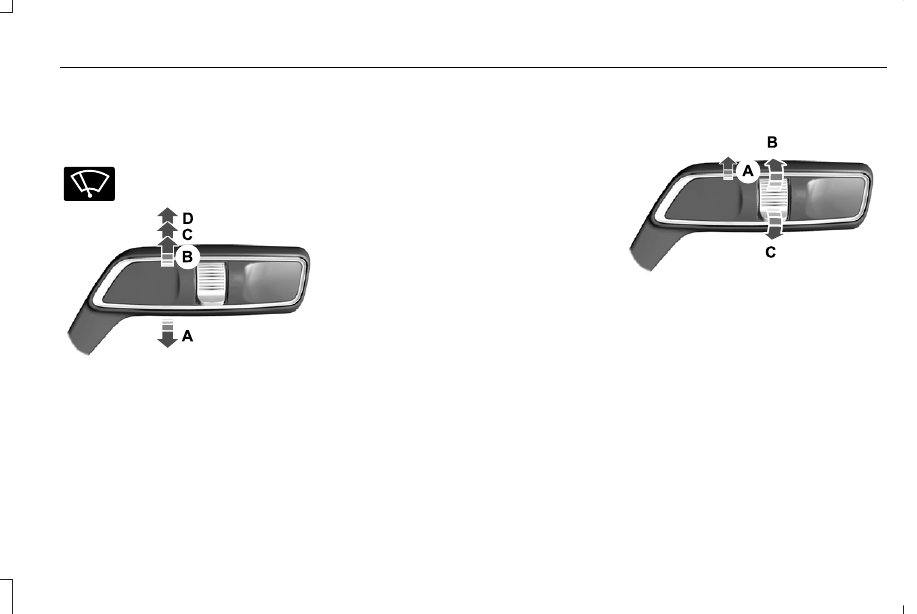

Push the lever up or down to
operate the windshield wiper.

E269410

Single wipe.

A

Intermittent wipe.

B

Normal wipe.

C

High-speed wipe.

D

Note: Fully defrost the windshield before you
switch the windshield wipers on.

Note: Make sure that you switch the
windshield wipers off before entering a car
wash.

Note:  If streaks or smears appear on the
windshield, clean the windshield and the
wiper blades.  If that does not resolve the
issue, install new wiper blades.

Note:  Do not operate the wipers on a dry
windshield.  This may scratch the glass,
damage the wiper blades or cause the wiper
motor to burn out.  Always use the
windshield washers before wiping a dry
windshield.

Intermittent Wipe

E269411

Intermittent wipe

A

Shortest wipe interval.

B

Longest wipe interval.

C

Use the rotary control to adjust the
intermittent wipe interval.

Speed Dependent Wipers

When your vehicle speed increases, the
interval between wipes decreases.

99

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Wipers and Washers

WINDSHIELD WIPERS - VEHICLES
WITH: HEATED WIPER BLADES

Heated Wiper Blade

The heated wiper blades turn on in low
temperature when the windshield wipers are
active or defrost is on.  See Automatic
Climate Control (page 157).

Note: In below freezing temperatures, the
heated wiper blades turn on when the wipers
are inactive.

AUTOWIPERS

Wet or winter driving conditions with ice,
snow or salty road mist can cause
inconsistent and unexpected wiping or
smearing.

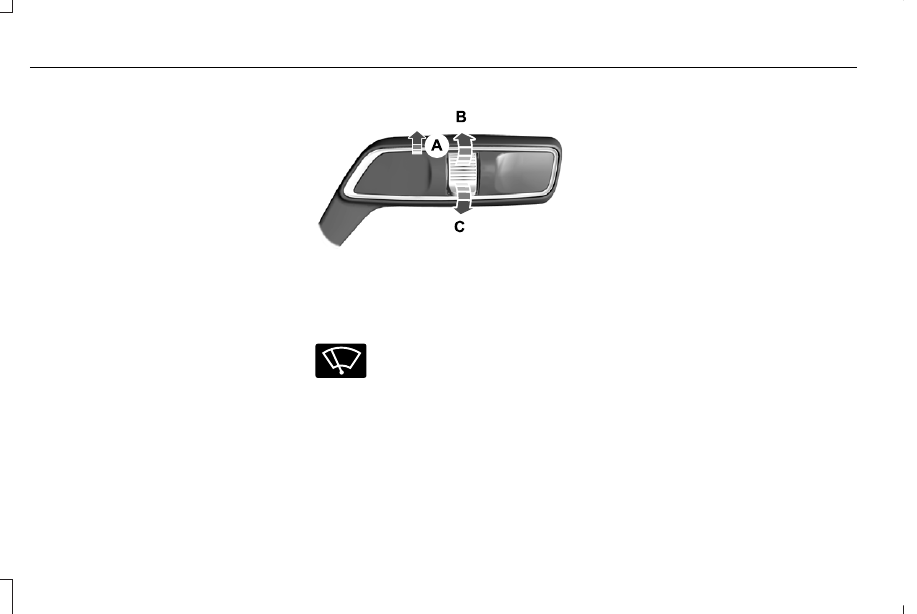

E269411

Autowipers On.

A

High sensitivity.

B

Low sensitivity.

C

E270969

Use the rotary control to adjust the
sensitivity of the autowipers.

When you select low sensitivity, the wipers
operate when the sensor detects a large
amount of water on the windshield. When
you select high sensitivity, the wipers
operate when the sensor detects a small
amount of water on the windshield.

Keep the outside of the windshield clean.
The rain sensor is very sensitive and the
wipers may operate if dirt, mist or insects hit
the windshield.

In these conditions, you can do the following:
•

Lower the sensitivity of the autowipers
to reduce the amount of smearing on the
windshield.

•

Switch to normal or high-speed wipe.

•

Switch autowipers off.

Note: Fully defrost the windshield before you
switch the windshield wipers on.

Note: Make sure that you switch the
windshield wipers off before entering a car
wash.

Note:  If streaks or smears appear on the
windshield, clean the windshield and the
wiper blades.  If that does not resolve the
issue, install new wiper blades.

Note: If you switch autolamps and
autowipers on, the headlamps turn on when
the windshield wipers continuously operate.

100

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Wipers and Washers

Autowipers Settings

This setting defaults to on and remains on
until you switch it off in the information
display.

When you switch off autowipers, the wipers
operate in intermittent mode.

Low Temperature Wipe Inhibit

The rain sensing feature will not operate
immediately after starting your vehicle when
it is in park (P) and the outside temperature
is below 32°F (0°C). You can switch on the
wipers by adjusting the rain sensor sensitivity
or adjusting the wiper speed.

This prevents damage to the wiper blades
from ice and snow on the windshield.

WINDSHIELD WASHERS

E269412

E270967

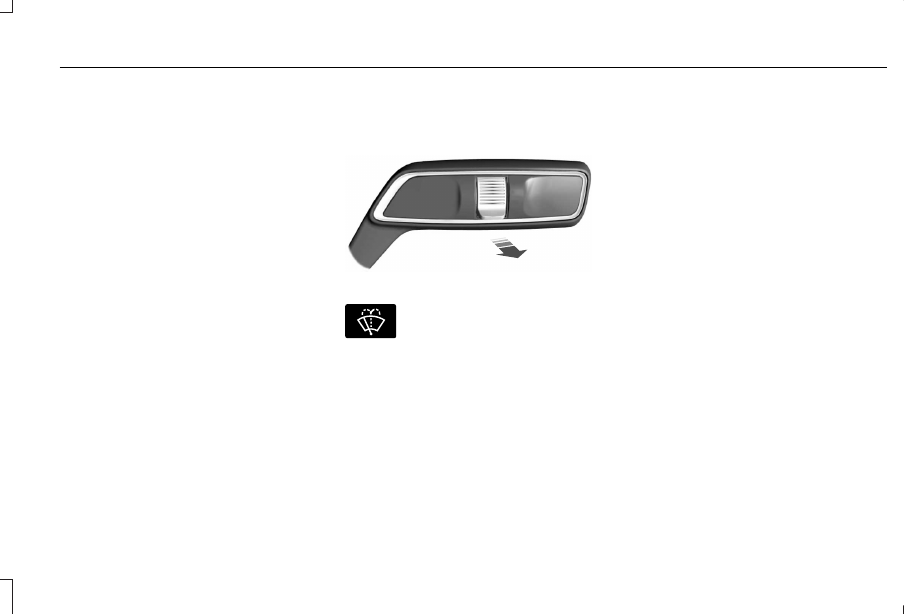

Pull the lever toward you to
operate the windshield washers.

When you release the lever, the wipers
operate for a short time. When activated, a
courtesy wipe occurs a short time after the
wipers stop to clear any remaining washer
fluid.

Note: You can switch courtesy wipe on or
off in the information display.  See
Information Messages (page 131).

Note:  Do not operate the washers when the
washer reservoir is empty. This could cause
the washer pump to overheat.

Front Camera Washer

 (If Equipped)

Operating the windshield washer also turns
on the front camera washer.

101

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Wipers and Washers

REAR WINDOW WIPER AND
WASHERS

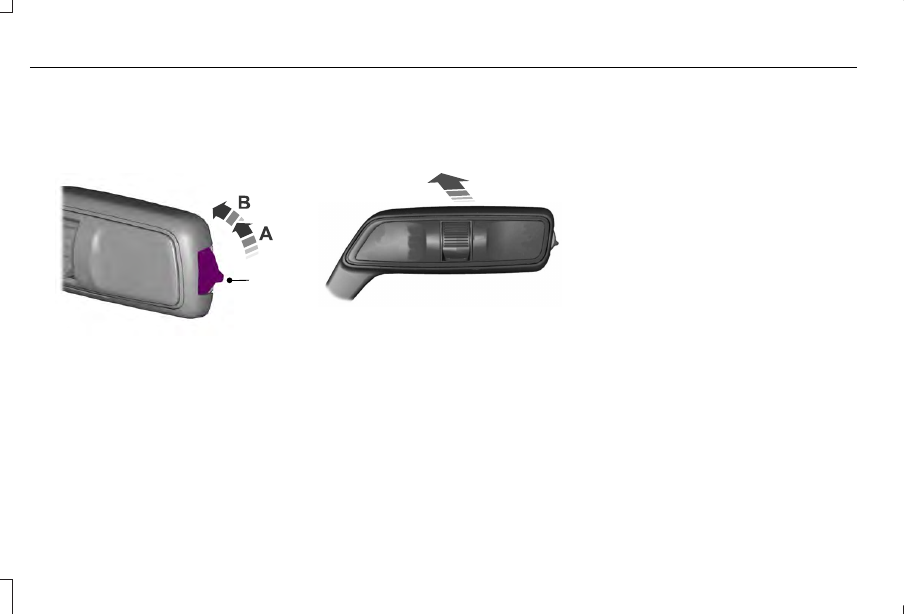

Rear Window Wiper

E242324

C

Intermittent wipe.

A

Continuous wipe.

B

Rear window wiper off.

C

Depending on your vehicle, when you switch
on the front wipers and move the gearshift
lever to reverse (R), the rear intermittent wipe
may turn on.

Note: Make sure you switch the rear window
wiper off before entering a car wash.

Rear Window Washer

E269727

Push the lever away from you to operate the
rear window washer.  When you release the
lever, the wipers operate for a short time.

Do not operate the washers when the
washer reservoir is empty. This could cause
the washer pump to overheat.

Rear Camera Washer

Switching on the rear washer also turns on
the rear camera washer.

102

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Wipers and Washers

GENERAL INFORMATION

Condensation in the Exterior Front
Lamps and Rear Lamps

Exterior front lamps and rear lamps have
vents to accommodate normal changes in
air pressure.

Condensation can be a natural by-product
of this design. When moist air enters the
lamp assembly through the vents, there is a
possibility that condensation can occur when
the temperature is cold. When normal
condensation occurs, a fine mist can form on
the interior of the lens. The fine mist
eventually clears and exits through the vents
during normal operation.

Clearing time may take as long as 48 hours
under dry weather conditions.

Examples of acceptable condensation are:
•

The presence of a fine mist (no streaks,
drip marks or large droplets).

•

A fine mist covers less than 50% of the
lens.

Examples of unacceptable condensation are:
•

A water puddle inside the lamp.

•

Streaks, drip marks or large droplets
present on the interior of the lens.

If you see any unacceptable condensation,
have your vehicle checked by an authorized
dealer.

LIGHTING CONTROL

Lighting Control Selections

E281338

Press the toggle switch upward or downward
to make a selection.

Note: An indicator illuminates next to the
active selection.

E265031

Lamps off.

Parking lamps, instrument panel
lamps, license plate lamps and rear
lamps.

E281240

Autolamps.

E270968

Headlamps on.

Note: The lighting control defaults to
autolamps each time you switch your vehicle
on.

Switching High Beam Headlamps On
and Off

E273182

103

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Lighting

Push the lever away from you to
switch the high beam on.

Push the lever forward again or pull the lever
toward you to switch the high beams off.

Flashing High Beam Headlamps

E273181

Pull the lever toward you and release it to
flash the high beam headlamps.

AUTOLAMPS

WARNING: The system does not

relieve you of your responsibility to drive
with due care and attention. You may need
to override the system if it does not turn
the headlamps on in low visibility
conditions, for example daytime fog.

Autolamps turn the headlamps on in low light
situations or when the wipers operate.

E281240

Switch the lighting control to the
autolamps position.

Note: The lighting control defaults to
autolamps each time you switch your vehicle
on.

The headlamps remain on for a period of
time after you switch the ignition off. Use the
touchscreen to adjust the period of time that
the headlamps remain on.

Note:  If you switch the autolamps on, you
cannot switch the high beams on until the
system turns the low beams on.

Windshield Wiper Activated Headlamps

When you switch the autolamps on, the
headlamps turn on within 10 seconds of
switching the wipers on. They turn off
approximately 60 seconds after you switch
the windshield wipers off.

The headlamps do not turn on with the
wipers:
•

During a single wipe.

•

When using the windshield washers.

•

If the wipers are in intermittent mode.

Note: If you switch the autolamps and the
autowipers on, the headlamps turn on when
the windshield wipers continuously operate.

INSTRUMENT LIGHTING DIMMER

The instrument lighting dimmer buttons are
on the lighting control.

E291299

E296433

Repeatedly press one of the
buttons to adjust the brightness.

104

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Lighting
