After all occupants have adjusted their seats
and put on seatbelts, it is very important that
they continue to sit properly. A properly
seated occupant sits upright, leaning against
the seat backrest, and centered on the seat
cushion, with their feet comfortably extended
on the floor. Sitting improperly can increase
the chance of injury in a crash event. For
example, if an occupant slouches, lies down,
turns sideways, sits forward, leans forward
or sideways, or puts one or both feet up, the
chance of injury during a crash greatly
increases.

E67017

Make sure the front passenger
sensing system is operating
properly.  See Crash Sensors and

Airbag Indicator (page 60).

Do not attempt to repair or service the
system. Take your vehicle immediately to an
authorized dealer.

If it is necessary to modify an advanced front
airbag system to accommodate a person
with disabilities, contact the Ford Customer
Relationship Center.  See Getting the
Services You Need (page 326).

SIDE AIRBAGS

WARNING: Do not place objects or

mount equipment on or near the airbag
cover, on the side of the front or rear
seatbacks, or in areas that may come into
contact with a deploying airbag. Failure to
follow these instructions may increase the
risk of personal injury in the event of a
crash.

WARNING: Do not use accessory

seat covers. The use of accessory seat
covers may prevent the deployment of the
side airbags and increase the risk of injury
in an accident.

WARNING: Do not lean your head

on the door. The side airbag could injure
you as it deploys from the side of the
seatback.

WARNING: Do not attempt to service,

repair, or modify the supplementary
restraint system or associated components.
Failure to follow this instruction could result
in personal injury or death.

WARNING: If a supplementary

restraint system component has deployed,
it will not function again. Have the system
and associated components inspected as
soon as possible. Failure to follow this
instruction could result in personal injury
or death.

The side airbags are on the outboard side
of the seat backrests of the front seats. In
certain sideways crashes, the side airbags
will be inflated. The airbag was designed to
inflate between the door panel and occupant
to further enhance the protection provided
occupants in side impact crashes.

57

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Supplementary Restraints System

E152533

The system consists of the following:
•

A label or embossed side panel
indicating that side airbags are fitted to
your vehicle.

•

Side airbags inside the driver and front
passenger seat backrests.

•

Front passenger sensing system.

E67017

•

Crash sensors and monitoring system
with readiness indicator.  See Crash
Sensors and Airbag Indicator (page 60).

The design and development of the side
airbag system included recommended
testing procedures that were developed by
a group of automotive safety experts known
as the Side Airbag Technical Working Group.
These recommended testing procedures
help reduce the risk of injuries related to the
deployment of side airbags.

DRIVER AND PASSENGER KNEE
AIRBAGS

Driver and passenger knee airbags are
located under or within the instrument panel.
During a crash, the restraints control module
may activate the driver and passenger knee
airbags (individually or both) based on crash
severity and respective occupant conditions.
Under certain crash and occupant conditions,
the driver and passenger knee airbags may
deploy (individually or both) but the
corresponding front airbag may not activate.
As with front and side airbags, it is important
to be properly seated and restrained to
reduce the risk of death or serious injury.

E67017

Make sure the knee airbags are
operating properly.  See Crash
Sensors and Airbag Indicator

(page 60).

SAFETY CANOPY™

WARNING: Do not place objects or

mount equipment on or near the headliner
at the siderail that may come into contact
with a deploying curtain airbag. Failure to
follow these instructions may increase the
risk of personal injury in the event of a
crash.

WARNING: Do not lean your head

on the door. The curtain airbag could injure
you as it deploys from the headliner.

WARNING: Do not attempt to service,

repair, or modify the supplementary
restraint system or associated components.
Failure to follow this instruction could result
in personal injury or death.

58

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Supplementary Restraints System

WARNING: All occupants of your

vehicle, including the driver, should always
properly wear their seatbelts, even when
an airbag supplemental restraint system is
provided. Failure to properly wear your
seatbelt could seriously increase the risk
of injury or death.

WARNING: To reduce risk of injury,

do not obstruct or place objects in the
deployment path of the airbag.

WARNING: If a supplementary

restraint system component has deployed,
it will not function again. Have the system
and associated components inspected as
soon as possible. Failure to follow this
instruction could result in personal injury
or death.

The Safety Canopy will deploy during
significant side crashes or when a certain
likelihood of a rollover event is detected by
the rollover sensor. The Safety Canopy is
mounted to the roof side-rail sheet metal,
behind the headliner, above each row of

seats. In certain sideways crashes or rollover
events, the Safety Canopy will be activated,
regardless of which seats are occupied. The
Safety Canopy is designed to inflate between
the side window area and occupants to
further enhance protection provided in side
impact crashes and rollover events.

E75004

The system consists of the following:
•

Safety canopy curtain airbags above the
trim panels over the front and rear side
windows identified by a label or wording
on the headliner or roof-pillar trim.

•

A flexible headliner which opens above
the side doors to allow air curtain
deployment

E67017

· Crash sensors and monitoring
system with readiness indicator.
See Crash Sensors and Airbag

Indicator (page 60).

Always properly restrain children 12 years
old and under in the rear seats. The Safety
Canopy will not interfere with children
restrained using a properly installed child or
booster seat because it is designed to inflate
downward from the headliner above the
doors along the side window opening.

59

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Supplementary Restraints System

The design and development of the Safety
Canopy included recommended testing
procedures that were developed by a group
of automotive safety experts known as the
Side Airbag Technical Working Group. These
recommended testing procedures help
reduce the risk of injuries related to the
deployment of side airbags (including the
Safety Canopy).

CRASH SENSORS AND AIRBAG
INDICATOR

WARNING: Modifying or adding

equipment to the front end of your vehicle
(including hood, bumper system, frame,
front end body structure, tow hooks and
hood pins) may affect the performance of
the airbag system, increasing the risk of
injury. Do not modify or add equipment to
the front end of your vehicle.

Your vehicle has a collection of crash and
occupant sensors which provide information
to the restraints control module. The
restraints control module deploys (activates)
the seatbelt pretensioners, driver airbag,
passenger airbag, knee airbag(s), seat
mounted side airbags and the Safety
Canopy. Based on the type of crash, the
restraints control module deploys the
appropriate safety devices.

The restraints control module also monitors
the readiness of the above safety devices
plus the crash and occupant sensors. The
readiness of the safety system is indicated
by a warning indicator light in the instrument
cluster or by a backup tone if the warning
light is not working. Routine maintenance of
the airbag is not required.

A difficulty with the system is indicated by
one or more of the following:

E67017

•

The readiness light will not illuminate
immediately after you switch the ignition
on.

•

The readiness light either flashes or stays
lit.

•

A series of five beeps is heard. The tone
pattern repeats periodically until the
problem, the light or both are repaired.

If any of these things happen, even
intermittently, have the supplemental
restraint system serviced at an authorized
dealer immediately. Unless serviced, the
system may not function properly in the
event of a crash.

The restraint system is designed to activate
when the vehicle sustains conditions
sufficient to cause the restraint control
module to deploy a safety device.

60

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Supplementary Restraints System

The fact that not all the safety devices
activate for all occupants in a crash does not
mean something is wrong with the system.
Rather, it means the restraints control module
determined the accident conditions (crash
severity, type of crash, belt usage) were not
appropriate to activate these safety devices.
•

The front airbags are designed to
activate only in frontal and near-frontal
crashes (not rollovers, side impacts or
rear impacts) unless the crash causes
sufficient frontal deceleration.

•

The seatbelt pretensioners are designed
to activate in frontal, near-frontal and side
crashes, and in rollovers.

•

The knee airbag(s) may deploy based on
crash severity and occupant conditions.

•

The side airbags are designed to inflate
in certain side impact crashes or rollover
events. Side airbags may activate in other
types of crashes if your vehicle
experiences sufficient sideways motion
or deformation, or a certain likelihood of
rollover.

•

The Safety Canopy is designed to inflate
in certain side impact crashes or rollover
events. The Safety Canopy may activate
in other types of crashes if your vehicle
experiences sufficient sideways motion
or deformation, or a certain likelihood of
rollover.

AIRBAG DISPOSAL

Contact your authorized dealer as soon as
possible. Airbags must be disposed of by
qualified personnel.

61

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Supplementary Restraints System

ABOUT 911 ASSIST

911 Assist is a SYNC system feature that can
call for help if you are in an accident. If a
crash deploys an airbag, excluding knee
airbags and rear inflatable seatbelts [if
equipped], or activates the fuel pump
shut-off, your SYNC-equipped vehicle may
be able to contact emergency services by
dialing 911 through a paired and connected
Bluetooth enabled phone. You can learn
more about the 911 Assist feature, by visiting:

Website

www.owner.lincoln.com
www.syncmyride.ca
www.syncmaroute.ca

Not all crashes will deploy an airbag or
activate the fuel pump shut-off, the triggers
for 911 Assist. If a connected cell phone
sustains damage or loses its connection to
SYNC during a crash, SYNC will search for
and try to connect to a previously paired cell
phone. SYNC will then attempt to call the
emergency services.

Before making the call:
•

SYNC provides a short window of time,
about 10 seconds, to cancel the call. If
you fail to cancel the call, SYNC attempts
to dial 911.

•

SYNC says the following, or a similar
message: SYNC will attempt to call 911,
to cancel the call, press Cancel on your
screen or press and hold the phone
button on your steering wheel.

If you do not cancel the call, and SYNC
makes a successful call, a pre-recorded
message plays for the 911 operator, and then
the occupant(s) in your vehicle is able to talk
with the operator. Be prepared to
immediately provide your name, phone
number and location, because not all 911
systems are capable of receiving this
information electronically.

During an emergency call, the system
transmits vehicle data to the emergency
service.  See Data Recording (page 12).

EMERGENCY CALL
REQUIREMENTS

WARNING: Do not wait for 911 Assist

to make an emergency call if you can do
it yourself. Dial emergency services
immediately to avoid delayed response
time which could increase the risk of
serious injury or death after a crash. If you
do not hear 911 Assist within five seconds
of the crash, the system or phone may be
damaged or non-functional.

WARNING: Always place your phone

in a secure location in your vehicle so it
does not become a projectile or get
damaged in a crash. Failure to do so may
cause serious injury to someone or
damage the phone which could prevent
911 Assist from working properly.

62

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

911 Assist

WARNING: Unless the 911 Assist

setting is set on before a crash, the system
will not dial for help which could delay
response time, potentially increasing the
risk of serious injury or death after a crash.

•

SYNC must be powered and working
properly at the time of the incident and
throughout feature activation and use.

•

The 911 Assist feature must be set on
before the incident.

•

You must pair and connect a Bluetooth
enabled and compatible cell phone to
SYNC.

•

A connected Bluetooth enabled phone
must have the ability to make and
maintain an outgoing call at the time of
the incident.

•

A connected Bluetooth enabled phone
must have adequate network coverage,
battery power and signal strength.

•

The vehicle must have battery power and
be located in the U.S., Canada or in a
territory in which 911 is the emergency
number.

Note: If any user sets 911 Assist to on or off,
that setting applies for all paired phones. If
911 Assist is switched off and the phone is
connected to SYNC, an icon displays on the
status bar.

Note: Every phone operates differently.
While SYNC 911 Assist works with most
cellular phones, some may have trouble
using this feature.

EMERGENCY CALL LIMITATIONS

The SYNC 911 Assist feature only operates
in the U.S., Canada or in a territory in which
911 is the emergency number.

•

Your cellular phone or 911 Assist
hardware sustains damage in a crash.

•

The vehicle's battery or the SYNC system
has no power.

•

The phone(s) thrown from your vehicle
are the ones paired and connected to
the system.

63

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

911 Assist

GENERAL INFORMATION ON
RADIO FREQUENCIES

This device complies with Part 15 of the FCC
Rules and with Industry Canada
license-exempt RSS standard(s). Operation
is subject to the following two conditions: (1)
This device may not cause harmful
interference, and (2) This device must accept
any interference received, including
interference that may cause undesired
operation.

Note: Changes or modifications not
expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term IC before the radio certification
number only signifies that Industry Canada
technical specifications were met.

The typical operating range for your
transmitter is approximately 33 ft (10 m).
Vehicles with the remote start feature will
have a greater range.

One of the following could cause a decrease
in operating range:
•

Weather conditions.

•

Nearby radio towers.

•

Structures around the vehicle.

•

Other vehicles parked next to your
vehicle.

The radio frequency used by your remote
control can also be used by other radio
transmitters, for example amateur radios,
medical equipment, wireless headphones,
wireless remote controls, cell phones, battery
chargers and alarm systems. If the
frequencies are jammed, you will not be able
to use your remote control. You can lock and
unlock the doors with the key.

Note: Make sure to lock your vehicle before
leaving it unattended.

Note: If you are in range, the remote control
will operate if you press any button
unintentionally.

Note: The remote control contains sensitive
electrical components. Exposure to moisture
or impact may cause permanent damage.

Intelligent Access

 (If Equipped)

The system uses a radio frequency signal to
communicate with your vehicle and authorize
your vehicle to unlock when one of the
following conditions are met:
•

You activate the front exterior door
handle switch.

•

You press the luggage compartment
button.

•

You press a button on the transmitter.

If excessive radio frequency interference is
present in the area or if the transmitter
battery is low, you may need to mechanically
unlock your door. You can use the
mechanical key blade in your intelligent
access key to open the driver door in this
situation.  See Remote Control (page 64).

REMOTE CONTROL

 (IF EQUIPPED)

Intelligent Access Key

Note: You may not be able to shift out of
park (P) unless the intelligent access key is
inside your vehicle.

64

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Keys and Remote Controls

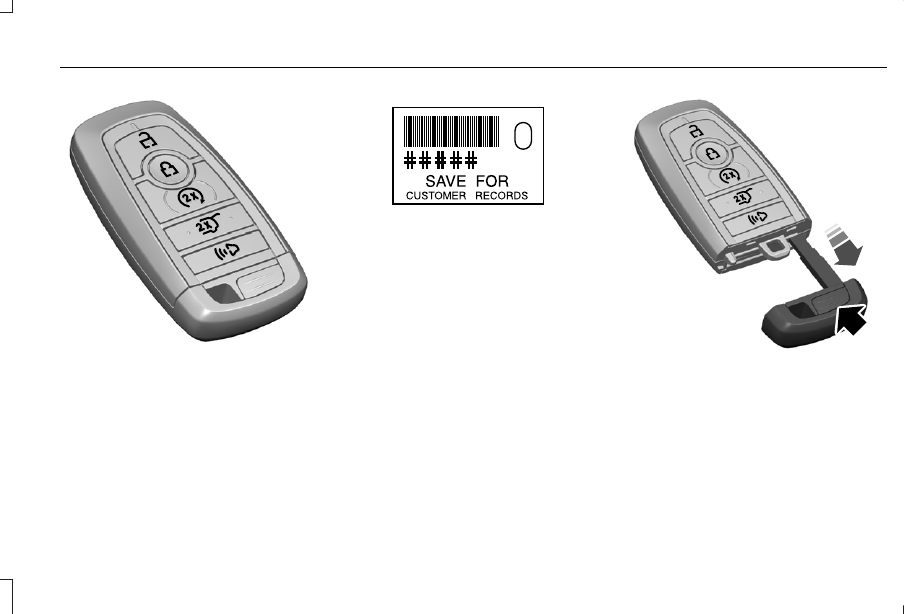

E305198

The intelligent access keys operate the
power locks and the remote start system.
The key must be in your vehicle to use the
push button start.

E151795

Note:  Your vehicle keys came with a
security label that provides important key
cut information.  Keep the label in a safe
place for future reference.

Removable Key Blade

The intelligent access key also contains a
removable key blade that you can use to
unlock your vehicle.

E305199

Push the release button and pull the key
blade out.

Replacing the Battery

Note: Refer to local regulations when
disposing of transmitter batteries.

Note: Do not wipe off any grease on the
battery terminals or on the back surface of
the circuit board.

65

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Keys and Remote Controls

Note:  Replacing the battery does not erase
the programmed key from your vehicle.  The
transmitter should operate normally.

A message appears in the information
display when the remote control battery is
low. See Information Messages (page 131).

The remote control uses one coin-type
three-volt lithium battery.

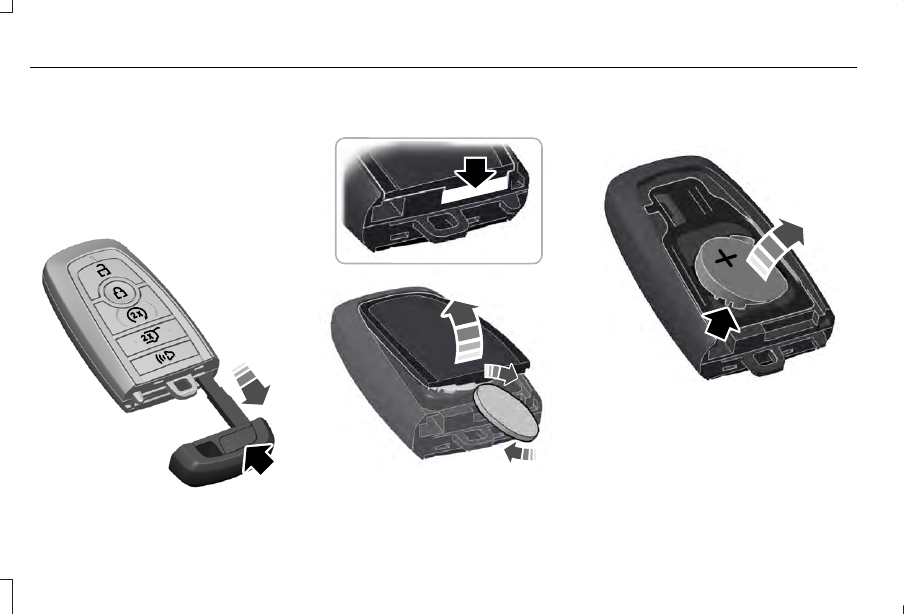

E305199

1. Push the release button and pull the key

blade out.

E303824

2. Twist a thin coin under the tab hidden

behind the key blade head to remove
the battery cover.

E218402

3. Insert a suitable tool, for example a

screwdriver, in the position shown and
carefully remove the battery.

4. Install a new battery with the + facing

upward.

66

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Keys and Remote Controls

5. Reinstall the battery housing cover onto

the transmitter and install the key blade.

Car Finder

E138623

Press the button twice within three
seconds.  A tone sounds and the
direction indicators flash.  We

recommend you use this method to locate
your vehicle, rather than using the panic
alarm.

Sounding the Panic Alarm

Note: The panic alarm only operates when
the ignition is off.

E138624

Press the button to sound the
panic alarm.  Press the button
again or switch the ignition on to

turn it off.

Remote Start

WARNING: To avoid exhaust fumes,

do not use remote start if your vehicle is
parked indoors or in areas that are not well
ventilated.

Note: Do not use remote start if your fuel
level is low.

E138625

The remote start button is on the
transmitter.

This feature allows you to start your vehicle
from the outside.  The transmitter has an
extended operating range.

You can configure your automatic climate
control to operate when you remote start
your vehicle.  See Climate Control (page
157).

Many states and provinces have restrictions
for the use of remote start.  Check your local
and state or provincial laws for specific
requirements regarding remote start
systems.

The remote start system does not work if any
of the following occur:
•

The ignition is on.

•

The anti-theft alarm triggers.

•

You switch the feature off through the
touchscreen.

•

The hood is open.

•

The transmission is not in park (P).

•

The battery voltage is below the
minimum operating voltage.

Remote Control Feedback

An LED on the remote control provides status
feedback of remote start or stop commands.

Status

LED

Remote start

successful

Solid green

Remote stop

successful

Solid red

Request failed or

status not received

Blinking red

Status incomplete

Blinking green

67

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Keys and Remote Controls

Remote Starting Your Vehicle

Note:  You must press each button within
three seconds of each other.  If you do not
follow this sequence, your vehicle does not
start remotely, the direction indicators do
not flash twice and the horn does not sound.

E138626

1. Press the lock button to lock all the

doors.

2. Press the remote start button twice.  The

exterior lamps flash twice.

A tone sounds if the system fails to start.

Note: You must press the push button
ignition switch on the instrument panel once
while applying the brake pedal before
driving your vehicle.

The power windows do not work during
remote start and the radio does not turn on
automatically.

The parking lamps remain on and your
vehicle will run for 5, 10 or 15 minutes,
depending on the setting.

Extending the Engine Running Time

To extend the engine running time duration
of your vehicle during remote start, repeat
steps 1 and 2 while the engine is running.  If
the duration is set to 15 minutes, the duration
extends by another 15 minutes.  For example,
if your vehicle had been running from the
first remote start for 5 minutes, your vehicle
continues to run now for a total of 30
minutes.  You can extend the engine running
time duration to a maximum of 30 minutes.

Wait at least five seconds before remote
starting after the engine stops running.

Turning Your Vehicle Off After Remote
Starting

E138625

Press the button once.  Your
vehicle and the parking lamps turn
off.

You may have to be closer to your vehicle
than when starting due to ground reflection
and the added noise of your running vehicle.
You can switch this feature on or off through
the touchscreen.  See Settings (page 488).

Memory Feature

You can program your intelligent access key
to recall memory positions. See Memory
Function (page 175).

REPLACING A LOST KEY OR
REMOTE CONTROL

Replacement keys or remote controls can
be purchased from an authorized dealer.
Authorized dealers can program remote
controls for your vehicle.  See Passive
Anti-Theft System (page 91).

68

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Keys and Remote Controls

PHONE AS A KEY

Programming Your Phone

Your vehicle allows you to set up your phone

as an intelligent access key allowing you to
lock, unlock, start and drive your vehicle
using the Lincoln Way app. Visit your device's
app store or our website for more
information.

PHONE AS A KEY – TROUBLESHOOTING

Phone as a Key – Frequently Asked Questions

See your authorized dealer for system configuration.

Why won't Phone as a Key activate?

Use the Backup Start Passcode to start the engine.  See Starting a

Gasoline Engine (page 197).

Why won't the engine start?

The Backup Start Passcode feature must be active and enabled on

at least one phone.

Why doesn't the Backup Start Passcode work?

69

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Keys and Remote Controls

PRINCIPLE OF OPERATION

MyKey allows you to program keys with
restricted driving modes to promote good
driving habits. You can program the
restrictions to all keys except one. Any keys
that you did not program are administrator
keys or admin keys.

You can use admin keys to:
•

Create a MyKey with certain vehicle
restrictions.

•

Program certain MyKey settings.

•

Clear all MyKey restrictions.

After you program a MyKey, you can view
the following information through the
information display:
•

The total number of admin keys and
MyKeys for your vehicle.

•

The total distance a MyKey driver
traveled with your vehicle.

Note:  Every MyKey receives the same
restrictions and settings.  You cannot
program them individually.

Note: For vehicles equipped with a
push-button start switch: When both a MyKey
and an admin key are present when you
start your vehicle, the system recognizes the
admin key only.

Standard Settings

Not every vehicle includes the features listed
below. If your vehicle has this equipment,
then you cannot change the following
settings when using a MyKey:
•

Seatbelt reminder or Belt-Minder™. MyKey
mutes the audio system until drivers, and
in some instances, passengers, fasten
their seatbelts. Note: If your vehicle
includes an AM/FM radio or a very basic
audio system, then the radio may not
mute.

•

Earlier low-fuel warning. The low-fuel
warning activates earlier for MyKey
drivers, giving them more time to refuel.

•

Certain driver alerts, stability systems or
parking aids turn on automatically when
you use the MyKey system. For example,
Blind Spot Information System (BLIS),
cross traffic alert, lane departure warning
or forward collision warning. Note: MyKey
drivers may be able to turn the lane
departure warning feature off, but this
feature turns back on automatically with
every new key cycle.

•

Restricted touchscreen operation in some
markets. For example, MyKey may
prevent instruction navigation destination
input while the vehicle is in any gear
other than park (P) or when the vehicle
reaches a certain rate of speed.

•

Satellite radio adult content restrictions,
if this feature is available in your market.

Optional Settings

You can configure certain vehicle feature
settings when you first create a MyKey. You
can also change the settings afterward with
an admin key.

70

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

MyKey™

Note: Not every feature applies to every
vehicle in every market. When they are
available for your vehicle, then they appear
in your information display, providing choices
to switch them on or off, or to select a more
specific setting.

•

Various vehicle speed limits so the
MyKey driver cannot exceed certain
speeds. The information display shows
warnings followed by an audible tone
when the MyKey driver reaches the set
speed. You cannot override the set
speed by fully depressing the accelerator
pedal.

WARNING: Do not set MyKey

maximum speed limit to a limit that will
prevent the driver from maintaining a safe
speed considering posted speed limits and
prevailing road conditions. The driver is
always responsible to drive in accordance
with local laws and prevailing conditions.
Failure to do so could result in accident or
injury.

•

Various vehicle speed reminders so
MyKey drivers know when their vehicle
speed approaches the limits. Warnings
appear in your information display and a
tone sounds when the MyKey drivers
exceed the set vehicle speed.

•

The audio system's maximum volume
limits to 45% so MyKey drivers can
concentrate on the road. A message
appears in the information display when
MyKey drivers attempt to exceed the
limited volume. MyKey also disables the
automatic volume control. Note: If your
vehicle includes an AM/FM radio or a
very basic audio system, then the radio
may not limit.

•

Always on setting. This setting forces
certain features to remain on and active
for MyKey drivers. For example, E911 or
emergency assistance and the do not
disturb features stay on even if a MyKey
driver uses the feature's control to switch
it off. When selected, you will not be able
to turn off Advance Trac or traction
control (if your vehicle has this feature).

CREATING A MYKEY

Use the touchscreen to create a MyKey:

1. Insert the key you want to program into

the ignition. If your vehicle has a
push-button start, place the remote
control into the backup slot.  See Passive
Anti-Theft System (page 91).

2. Switch the ignition on.

3. Access the main menu in the

touchscreen and then scroll through the
menus to change the settings of your
MyKey. From the MyKey menu select the
option Create MyKey.  See Settings
(page 488).

4. When prompted, hold the OK button until

you see a message informing you to label
this key as a MyKey. The programmed
restrictions apply when you key off, open
and close the driver door and restart your
vehicle with the programmed key or
remote control.

You have successfully created a MyKey.
Make sure you label it so you can distinguish
it from the admin keys.

71

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

MyKey™

You can also program configurable settings
for the key(s). See Programming and
Changing Configurable Settings.

Programming and Changing
Configurable Settings

Use the touchscreen to access your
configurable MyKey settings.

1. Switch the ignition on using an admin key

or remote control you want to program.

2. Access the main menu in the information

display and then scroll through the
menus to change the settings of your
MyKey.  See Settings (page 488).

3. Follow the instructions in the

touchscreen. The programmed
restrictions apply when you switch the
vehicle off, open and close the driver
door and restart your vehicle with the
programmed key or remote control.

Note:  You can clear or change your MyKey
settings at any time during the same key
cycle as you created the MyKey. Once you
have switched the vehicle off, however, you
will need an admin key to change or clear
your MyKey settings. When you make any
changes to your MyKey settings, you change
the settings for every MyKey. You cannot
make individual changes to apply to certain
MyKeys.

CLEARING ALL MYKEYS

When you clear your MyKeys, you remove
all restrictions and return all MyKeys to their
original admin key status at once. To clear
all MyKeys of all MyKey settings, use the
touchscreen.

1. Switch the ignition on using an admin

key.

2. Access the main menu in the

touchscreen and then scroll through the
menus to begin clearing your MyKey
programming.  See Settings (page 488).

3. Follow the instructions in the display.

4. A confirmation message appears in the

display after you finish clearing your
MyKeys.

Note: When you clear your MyKeys, you
remove all restrictions and return all MyKeys
to their original admin key status. You cannot
remove the MyKey restrictions individually.

CHECKING MYKEY SYSTEM
STATUS

You can find information about your
programmed MyKeys by using the
touchscreen.  See Settings (page 488).

MyKey Distance

Tracks the distance when drivers use a
MyKey. The only way to delete the
accumulated distance is by using an admin
key to clear all MyKeys. If the distance does
not accumulate as expected, then the
intended user is not using the MyKey, or an
admin key user recently cleared and then
recreated a MyKey.

72

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

MyKey™
