Recommendations for Attaching Child Safety Restraints for Children

Use Any Attachment Method as Indicated Below by X

Combined Weight
of Child and Child

Restraint

Restraint Type

Seatbelt Only

Seatbelt and LATCH
(Lower Anchors and

Top Tether Anchor)

Seatbelt and Top

Tether Anchor

LATCH (Lower

Anchors Only)

LATCH (Lower

Anchors and Top

Tether Anchor)

X

X

Up to 65 lb

(29.5 kg)

Rear facing child

restraint

X

Over 65 lb

(29.5 kg)

Rear facing child

restraint

X

X

X

Up to 65 lb

(29.5 kg)

Forward facing

child restraint

X

X

Over 65 lb

(29.5 kg)

Forward facing

child restraint

Note: The child restraint must rest tightly
against the vehicle seat upon which it is
installed. It may be necessary to lift or
remove the head restraint.  See Seats (page
167).

CHILD SAFETY LOCKS

When the child safety locks are set, you
cannot open the rear doors from the inside.

41

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Child Safety

E295318

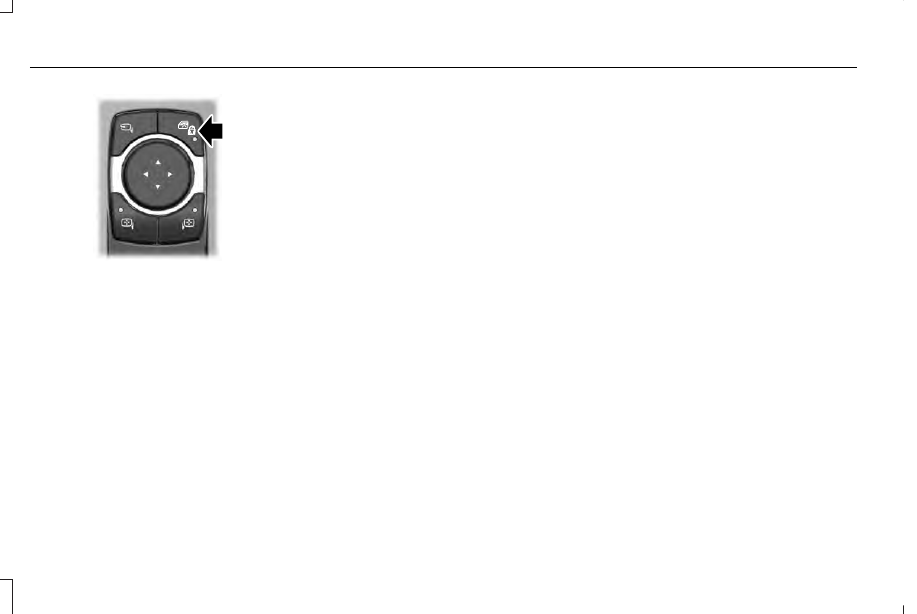

The child safety lock control is on the driver
door.

Press the control to switch the child safety
locks on. Press the control again to switch
them off. A light on the child safety control
illuminates when you switch them on.

The child lock setting remains on when you
switch off the ignition.

42

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Child Safety

PRINCIPLE OF OPERATION

WARNING: Always drive and ride

with your seatback upright and the lap belt
snug and low across the hips.

WARNING: Children must always be

properly restrained.

WARNING: Do not allow a passenger

to hold a child on their lap when your
vehicle is moving. Failure to follow this
instruction could result in personal injury
or death in the event of a sudden stop or
crash.

WARNING: All occupants of your

vehicle, including the driver, should always
properly wear their seatbelts, even when
an airbag supplemental restraint system is
provided. Failure to properly wear your
seatbelt could seriously increase the risk
of injury or death.

WARNING: It is extremely dangerous

to ride in a cargo area, inside or outside of
a vehicle. In a crash, people riding in these
areas are more likely to be seriously
injured or killed. Do not allow people to
ride in any area of your vehicle that is not
equipped with seats and seatbelts. Make
sure everyone in your vehicle is in a seat
and properly using a seatbelt. Failure to
follow this warning could result in serious
personal injury or death.

WARNING: In a rollover crash, an

unbelted person is significantly more likely
to die than a person wearing a seatbelt.

WARNING: Each seating position in

your vehicle has a specific seatbelt
assembly made up of one buckle and one
tongue designed to be used as a pair. Use
the shoulder belt on the outside shoulder
only. Never wear the shoulder belt under
the arm. Never use a single seatbelt for
more than one person.

WARNING: Even with advanced

restraints systems, properly restrain
children 12 and under in a rear seating
position. Failure to follow this could
seriously increase the risk of injury or
death.

WARNING: Seatbelts and seats may

be hot in a vehicle that is in the sunshine.
The hot seatbelts or seats may burn a small
child. Check seat covers and buckles
before you place a child anywhere near
them.

All seating positions in your vehicle have lap
and shoulder seatbelts. All occupants of the
vehicle should always properly wear their
seatbelts, even when an airbag supplemental
restraint system is provided.

The seatbelt system consists of:
•

Lap and shoulder seatbelts.

•

Shoulder seatbelt with automatic locking
mode, (except driver seatbelt).

•

Height adjuster at the front outermost
seating positions.

43

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Seatbelts

•

Seatbelt pretensioners at the front
outermost and second row outermost
seating positions.

•

Belt tension sensor at the front outermost
passenger seating position.

E71880

•

Seatbelt warning light and chime.

E67017

•

Crash sensors and monitoring system
with readiness indicator.

The seatbelt pretensioners are designed to
tighten the seatbelts when activated. In
frontal and near-frontal crashes, the seatbelt
pretensioners may be activated alone or, if
the crash is of sufficient severity, together
with the front airbags. The pretensioners may
also activate when a Safety Canopy airbag
deploys.

FASTENING THE SEATBELTS

The front outboard and rear safety restraints
in the vehicle are combination lap and
shoulder belts.

E142587

1. Insert the belt tongue into the proper

buckle (the buckle closest to the direction
the tongue is coming from) until you hear
a snap and feel it latch. Make sure that
you securely fasten the tongue in the
buckle.

E142588

2. To unfasten, press the release button

and remove the tongue from the buckle.

Using Seatbelts During Pregnancy

WARNING: Always ride and drive

with your seatback upright and properly
fasten your seatbelt. Fit the lap portion of
the seatbelt snugly and low across the
hips. Position the shoulder portion of the
seatbelt across your chest. Pregnant
women must follow this practice. See the
following figure.

44

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Seatbelts

E142590

Pregnant women should always wear their
seatbelt.  Position the lap belt portion of a
combination lap and shoulder belt low across
the hips below the belly and worn as tight
as comfort allows.  Position the shoulder belt
to cross the middle of the shoulder and the
center of the chest.

Seatbelt Locking Modes

WARNING: If your vehicle is involved

in a crash, have the seatbelts and
associated components inspected as soon
as possible. Failure to follow this instruction
could result in personal injury or death.

All safety restraints in the vehicle are
combination lap and shoulder belts. The
driver seatbelt has the first type of locking
mode, and the front outboard passenger and
rear seat seatbelts have both types of locking
modes described as follows:

Vehicle Sensitive Mode

This is the normal retractor mode, which
allows free shoulder belt length adjustment
to your movements and locking in response
to vehicle movement. For example, if the
driver brakes suddenly or turns a corner
sharply, or the vehicle receives an impact of
about 5 mph (8 km/h) or more, the
combination seatbelts lock to help reduce
forward movement of the driver and
passengers.

In addition, the design of the retractor is to
lock if you pull the webbing out too quickly.
If the seatbelt retractor locks, slowly lower
the height adjuster to allow the seatbelt to
retract. If the retractor does not unlock, pull
the seatbelt out slowly then feed a small

length of webbing back toward the stowed
position. For rear seatbelts, recline the rear
seat backrest or push the seat backrest
cushion away from the seatbelt. Feed a small
length of webbing back toward the stowed
position.

Automatic Locking Mode

In this mode, the shoulder belt automatically
pre-locks. The belt retracts to remove any
slack in the shoulder belt. The automatic
locking mode is not available on the driver
seatbelt.

When to Use the Automatic Locking Mode

Use this mode any time you install a child
safety seat, except a booster, in passenger
front or rear seating positions. Properly
restrain children 12 years old and under in a
rear seating position whenever possible.
See Child Safety (page 24).

45

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Seatbelts

How to Use the Automatic Locking Mode

E142591

1. Buckle the combination lap and shoulder

belt.

2. Grasp the shoulder portion and pull

downward until you pull the entire belt
out. Allow the belt to retract. As the belt
retracts, you will hear a clicking sound.
This indicates the seatbelt is now in the
automatic locking mode.

How to Disengage the Automatic Locking
Mode

Unbuckle the combination lap and shoulder
belt and allow it to retract completely to
disengage the automatic locking mode and
turn on the vehicle sensitive (emergency)
locking mode.

SEATBELT HEIGHT ADJUSTMENT

WARNING: Position the seatbelt

height adjuster so that the seatbelt rests
across the middle of your shoulder. Failure
to adjust the seatbelt correctly could
reduce its effectiveness and increase the
risk of injury in a crash.

E201573

1. Adjust the height of the shoulder belt so

the belt rests across the middle of your
shoulder.

2. Slide the adjuster up to raise the belt.

Press the button and slide it down to
lower the belt.

SEATBELT WARNING LAMP AND
INDICATOR CHIME

E71880

This lamp illuminates and an
indicator chime will sound if the
driver seatbelt has not been

fastened when the vehicle's ignition is turned
on.

46

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Seatbelts

Conditions of operation

Then

If

The seatbelt warning lamp illuminates and the indicator chime sounds

for a few seconds.

The driver seatbelt is not buckled before the ignition switch is turned

to the on position...

The seatbelt warning lamp and indicator chime turn off.

The driver seatbelt is buckled while the warning lamp is illuminated

and the indicator chime is sounding...

The seatbelt warning lamp and indicator chime remain off.

The driver seatbelt is buckled before the ignition switch is turned to

the on position...

SEATBELT REMINDER

WARNING: The system will only

provide protection when you use the
seatbelt correctly.

This system monitors all seating positions
and provides audio and graphic feedback.

E71880

This lamp illuminates and a
warning tone sounds if you do not
fasten your seatbelt when you

switch the ignition on. The lamp and tone
switch off when you fasten your seatbelt or
about one minute has elapsed.

When the initial warning expires for the
driver, more warnings are provided for the
driver and front outermost passenger. This
lamp illuminates and a warning tone sounds
if you or your front passenger do not fasten
the seatbelt buckle and the vehicle speed
exceeds 6 mph (9.7 km/h). To deactivate the
warning, see Deactivating and Activating the
Belt-Minder Feature.

Note: To avoid inadvertent warnings, do not
place large objects on the front passenger
seat.

E206718

This lamp illuminates when you
switch the ignition on, identifying
the number of seating positions

with fastened buckles. It illuminates again
when a seating position changes from
unfastened to fastened.

47

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Seatbelts

E274569

This warning displays and a tone sounds if
an occupant unfastens the rear seatbelt
buckle or it becomes unfastened.

Note: If a rear seat is unoccupied, or an
occupant never fastens the seatbelt buckle
to begin with, the warning will not display.

Note: Front seating positions appear in this
warning display. Warnings for unfastened
front seatbelt buckles appear in the initial
warning lamp.

Seatbelt Status

To view the seatbelt status, use the
information display controls on the steering
wheel.  See General Information (page 127).

E274570

E274703

Seatbelt fastened.

A

Seatbelt not fastened.

B

Seatbelt recently unfastened.

C

Fault

D

Deactivating and Activating the Belt-Minder
Feature - Front outermost seats only

WARNING: While the system allows

you to deactivate it, this system is designed
to improve your chances of being safely
belted and surviving an accident. We
recommend you leave the system
activated for yourself and others who may
use the vehicle.

48

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Seatbelts

Note: The driver and front passenger
warnings switch on and off independently.
When you perform this procedure for one
seating position, do not buckle the other
position as this terminates the process.

Read Steps 1 - 4 before starting the
procedure.

Make sure that:
•

You set the parking brake.

•

The transmission is in park (P).

•

The ignition is off.

•

You close all vehicle doors.

•

You unbuckle the driver and front
passenger seatbelts.

1. Switch the ignition on.  Do not start the

engine.

2. Wait until the seatbelt warning lamp turns

off (about one minute). After Step 2, wait
an additional five seconds before
proceeding with Step 3. Once you start
Step 3, you must complete the procedure
within 60 seconds.

3. For the seating position you are switching

off, buckle then unbuckle the seatbelt
three times at a moderate speed, ending
in the unbuckled state. After Step 3, the
seatbelt warning lamp turns on.

4. When the seatbelt warning lamp is on,

buckle then unbuckle the seatbelt. After
Step 4, the seatbelt warning lamp flashes
for confirmation.

•

This switches the feature off if it is
currently on.

•

This switches the feature on if it is
currently off.

CHILD RESTRAINT AND SEATBELT
MAINTENANCE

Inspect the vehicle seatbelts and child safety
seat systems periodically to make sure they
work properly and are not damaged. Inspect
the vehicle and child restraint seatbelts to
make sure there are no nicks, tears or cuts.
Replace if necessary. All vehicle seatbelt
assemblies, including retractors, buckles,
front seatbelt buckle assemblies, buckle
support assemblies (slide bar-if equipped),

shoulder belt height adjusters (if equipped),
shoulder belt guide on seat backrest (if
equipped), child safety seat LATCH and
tether anchors, and attaching hardware,
should be inspected after a crash. Read the
child restraint manufacturer's instructions for
additional inspection and maintenance
information specific to the child restraint.

We recommend that all seatbelt assemblies
in use in vehicles involved in a crash be
replaced. However, if the crash was minor
and an authorized dealer finds that the belts
do not show damage and continue to
operate properly, they do not need to be
replaced. Seatbelt assemblies not in use
during a crash should also be inspected and
replaced if either damage or improper
operation is noted.

Properly care for seatbelts.  See Vehicle
Care (page 371).

49

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Seatbelts

SEATBELT EXTENSIONS

WARNING: Persons who fit into the

vehicle's seatbelt should not use an
extension. Unnecessary use could result
in serious personal injury in the event of a
crash.

WARNING: Only use extensions

provided free of charge by our dealers.
The dealer will provide an extension
designed specifically for this vehicle, model
year and seating position. The use of an
extension intended for another vehicle,
model year or seating position may not
offer you the full protection of your
vehicle's seatbelt restraint system.

WARNING: Never use seatbelt

extensions to install child restraints.

WARNING: Do not use a seatbelt

extension with an inflatable seatbelt.

WARNING: Do not use extensions

to change the way the seatbelt fits across
the torso, over the lap or to make the
seatbelt buckle easier to reach.

If, because of body size or driving position,
it is not possible to properly fasten the
seatbelt over your lap and shoulder, an
extension that is compatible with the
seatbelts is available free of charge from our
dealers. Only use our seatbelt extensions
made by the original equipment seatbelt
manufacturer with our seatbelts. Ask your
authorized dealer if your extension is
compatible with your vehicle restraint system.

50

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Seatbelts

This system provides an improved overall
level of frontal crash protection to front seat
occupants and is designed to help further
reduce the risk of airbag-related injuries. The
system analyzes different occupant
conditions and crash severity before
activating the appropriate safety devices to
help better protect occupants in a variety of
frontal crash situations.

Your vehicle's Personal Safety System
consists of:
•

Driver and passenger dual-stage airbag
supplemental restraints.

•

Front seat outermost seatbelts with
pretensioners, energy management
retractors and seatbelt usage sensors.

•

Front passenger sensing system.

•

Passenger airbag off and on indicators.

•

Front crash severity sensors.

•

Restraints control module with impact
and safing sensors.

•

Restraint system warning light and tone.

•

The electrical wiring for the airbags, crash
sensors, seatbelt pretensioners, front
seatbelt usage sensors, front passenger
sensing system and indicator lights.

How Does the Personal Safety System
Work?

The Personal Safety System can adapt the
deployment strategy of the safety devices
according to crash severity and occupant
conditions. A collection of crash and
occupant sensors provides information to
the restraints control module. During a crash,
the restraints control module may deploy the
seatbelt pretensioners, one or both stages
of the dual-stage airbags based on crash
severity and occupant conditions.

51

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Personal Safety System™

PRINCIPLE OF OPERATION

WARNING: Airbags do not inflate

slowly or gently, and the risk of injury from
a deploying airbag is the greatest close to
the trim covering the airbag module.

WARNING: All occupants of your

vehicle, including the driver, should always
properly wear their seatbelts, even when
an airbag supplemental restraint system is
provided. Failure to properly wear your
seatbelt could seriously increase the risk
of injury or death.

WARNING: Even with advanced

restraints systems, properly restrain
children 12 and under in a rear seating
position. Failure to follow this could
seriously increase the risk of injury or
death.

WARNING: Do not place your arms

on the airbag cover or through the steering
wheel. Failure to follow this instruction
could result in personal injury.

WARNING: Keep the areas in front

of the airbags free from obstruction. Do
not affix anything to or over the airbag
covers. Objects could become projectiles
during airbag deployment or in a sudden
stop. Failure to follow this instruction could
result in personal injury or death.

WARNING: Airbags can kill or injure

a child in a child restraint. Never place a
rear-facing child restraint in front of an
active airbag. If you must use a
forward-facing child restraint in the front
seat, move the seat upon which the child
restraint is installed all the way back.

WARNING: Do not attempt to service,

repair, or modify the supplementary
restraint system or associated components.
Failure to follow this instruction could result
in personal injury or death.

WARNING: Several airbag system

components get hot after inflation. To
reduce the risk of injury, do not touch them
after inflation.

WARNING: If a supplementary

restraint system component has deployed,
it will not function again. Have the system
and associated components inspected as
soon as possible. Failure to follow this
instruction could result in personal injury
or death.

The airbags are a supplemental restraint
system and are designed to work with the
seatbelts to help protect the driver and right
front passenger from certain upper body
injuries. Airbags do not inflate slowly; there
is a risk of injury from a deploying airbag.

Note: You will hear a loud bang and see a
cloud of harmless powdery residue if an
airbag deploys. This is normal.

52

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Supplementary Restraints System

The airbags inflate and deflate rapidly upon
activation.  After airbag deployment, it is
normal to notice a smoke-like, powdery
residue or smell the burnt propellant.  This
may consist of cornstarch, talcum powder (to
lubricate the bag) or sodium compounds (for
example, baking soda) that result from the
combustion process that inflates the airbag.
Small amounts of sodium hydroxide may be
present which may irritate the skin and eyes,
but none of the residue is toxic.

While the system is designed to help reduce
serious injuries, contact with a deploying
airbag may also cause abrasions or swelling.
Temporary hearing loss is also a possibility
as a result of the noise associated with a
deploying airbag. Because airbags must
inflate rapidly and with considerable force,
there is the risk of death or serious injuries
such as fractures, facial and eye injuries or
internal injuries, particularly to occupants
who are not properly restrained or are
otherwise out of position at the time of airbag
deployment. Thus, it is extremely important
that occupants be properly restrained as far
away from the airbag module as possible
while maintaining vehicle control.

Routine maintenance of the airbags is not
required.

DRIVER AND PASSENGER
AIRBAGS

WARNING: Do not place your arms

on the airbag cover or through the steering
wheel. Failure to follow this instruction
could result in personal injury.

WARNING: Keep the areas in front

of the airbags free from obstruction. Do
not affix anything to or over the airbag
covers. Objects could become projectiles
during airbag deployment or in a sudden
stop. Failure to follow this instruction could
result in personal injury or death.

WARNING: Airbags can kill or injure

a child in a child restraint. Never place a
rear-facing child restraint in front of an
active airbag. If you must use a
forward-facing child restraint in the front
seat, move the seat upon which the child
restraint is installed all the way back.

E151127

The driver and front passenger airbags will
deploy during significant frontal and near
frontal crashes.

53

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Supplementary Restraints System

The driver and passenger front airbag system
consists of:
•

Driver and passenger airbag modules.

•

Front passenger sensing system.

E67017

· Crash sensors and monitoring
system with readiness indicator.
See Crash Sensors and Airbag

Indicator (page 60).

Proper Driver and Front Passenger
Seating Adjustment

WARNING: National Highway Traffic

Safety Administration (NHTSA)
recommends a minimum distance of at
least 10 in (25 cm) between an occupant's
chest and the driver airbag module.

To properly position yourself away from the
airbag:
•

Move your seat to the rear as far as you
can while still reaching the pedals
comfortably.

•

Recline the seat slightly (one or two
degrees) from the upright position.

After all occupants have adjusted their seats
and put on seatbelts, it is very important that
they continue to sit properly. A properly
seated occupant sits upright, leaning against
the seatback, and centered on the seat
cushion, with their feet comfortably extended
on the floor. Sitting improperly can increase
the chance of injury in a crash event. For
example, if an occupant slouches, lies down,
turns sideways, sits forward, leans forward
or sideways, or puts one or both feet up, the
chance of injury during a crash is greatly
increased.

Children and Airbags

WARNING: Airbags can kill or injure

a child in a child restraint. Never place a
rear-facing child restraint in front of an
active airbag. If you must use a
forward-facing child restraint in the front
seat, move the seat upon which the child
restraint is installed all the way back.

E142846

Children must always be properly restrained.
Accident statistics suggest that children are
safer when properly restrained in the rear
seating positions than in the front seating
position. Failure to follow these instructions
may increase the risk of injury in a crash.

54

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Supplementary Restraints System

FRONT PASSENGER SENSING
SYSTEM

WARNING: Even with advanced

restraints systems, properly restrain
children 12 and under in a rear seating
position. Failure to follow this could
seriously increase the risk of injury or
death.

WARNING: Sitting improperly, out of

position or with the seatback reclined too
far can take weight off the seat cushion
and affect the decision of the passenger
sensing system, resulting in serious injury
or death in the event of a crash. Always sit
upright against your seat back, with your
feet on the floor.

WARNING: Any alteration or

modification to the front passenger seat
may affect the performance of the front
passenger sensing system. This could
seriously increase the risk of injury or
death.

This system works with sensors that are part
of the front passenger seat and seatbelt to
detect the presence of a properly-seated
occupant and determine if the front
passenger frontal airbag should be enabled
(may inflate) or not.

E181984

The front passenger sensing system uses a
passenger airbag status indicator that
illuminates indicating that the front
passenger frontal airbag is either on
(enabled) or off (disabled).

The indicators are on the overhead console.

Note: The indicators illuminate briefly when
you first switch the ignition on to confirm they
are functional.

The front passenger sensing system is
designed to disable (will not inflate) the front
passenger frontal airbag when the front
passenger seat is unoccupied, or a rear
facing infant seat, a forward-facing child
restraint, or a booster seat is detected. Even
with this technology, parents are strongly
encouraged to always properly restrain
children in the rear seat.

•

When the front passenger sensing
system disables (will not inflate) the front
passenger frontal airbag, the airbag off
indicator illuminates and stays lit to
remind you that the front passenger
frontal airbag is disabled.

•

If you have installed the child restraint
and the airbag on indicator illuminates,
switch the vehicle off, remove the child
restraint from the vehicle and reinstall
the restraint according to the child
restraint manufacturer's instructions.

The front passenger sensing system is
designed to enable (may inflate) the front
passenger frontal airbag anytime the system
senses that a person of adult size is sitting
properly in the front passenger seat.

55

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Supplementary Restraints System

•

When the front passenger sensing
system enables the front passenger
frontal airbag (may inflate), the airbag on
indicator illuminates and remains
illuminated.

If a person of adult size is sitting in the front
passenger seat, but the airbag off indicator
is lit, it is possible that the person is not
sitting properly in the seat. If this happens:
•

Switch the vehicle off and ask the person
to place the seat backrest in an upright
position.

•

Have the person sit upright in the seat,
centered on the seat cushion, with the
person’s legs comfortably extended.

•

Restart the vehicle and have the person
remain in this position for about two
minutes. This allows the system to detect
that person and enables the passenger
frontal airbag.

•

If the airbag off indicator remains lit even
after this, advise the person to ride in the
rear seat.

Passenger Airbag

Passenger Airbag Status Indicator

Occupant

Disabled

OFF: Lit

Empty

ON: Unlit

Disabled

OFF: Lit

Child

ON: Unlit

Enabled

OFF: Unlit

Adult

ON: Lit

56

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Supplementary Restraints System
