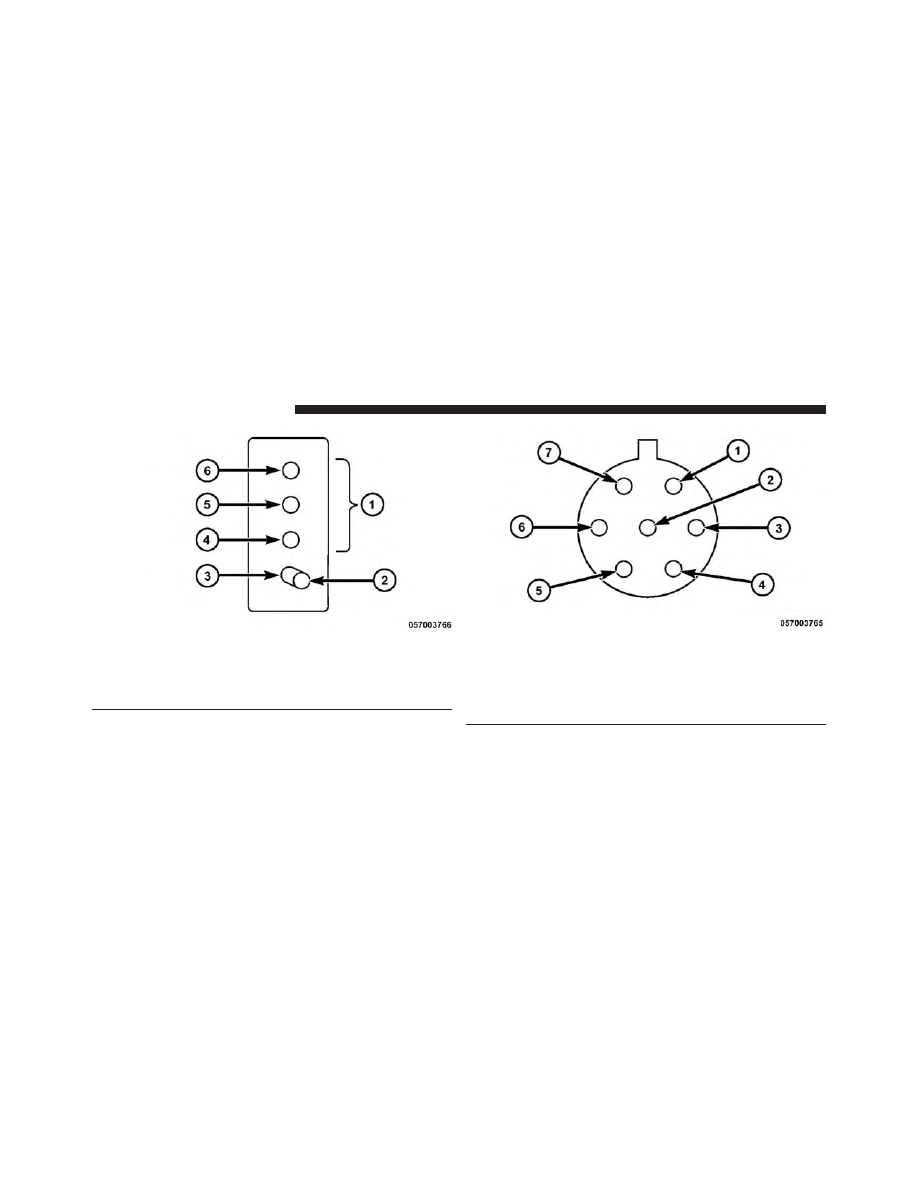

Four-Pin Connector

1 — Female Pins

4 — Park

2 — Male Pin

5 — Left Stop/Turn

3 — Ground

6 — Right Stop/Turn

Seven-Pin Connector

1 — Battery

5 — Ground

2 — Backup Lamps

6 — Left Stop/Turn

3 — Right Stop/Turn

7 — Running Lamps

4 — Electric Brakes

524

STARTING AND OPERATING

Towing Tips

Before setting out on a trip, practice turning, stopping
and backing the trailer in an area away from heavy
traffic.

Instruction Transmission — If Equipped

If using a instruction transmission vehicle for trailer towing,
all starts must be in first gear to avoid excessive clutch
slippage.

Automatic Transmission — If Equipped

The DRIVE range can be selected when towing. How-
ever, if frequent shifting occurs while in DRIVE, use the
AutoStick shift control to instructionly select a lower gear.

NOTE:

Using a lower gear while operating the vehicle

under heavy loading conditions, will improve perfor-
mance and extend transmission life by reducing exces-
sive shifting and heat buildup. This action will also
provide better engine braking.

If you REGULARLY tow a trailer for more than 45
minutes of continuous operation, then change the trans-
mission fluid and filter as specified for severe usage
(police, fleet, taxi, or frequent trailer towing). Refer to the

⬙Maintenance Schedule⬙ for the proper maintenance in-
tervals.

STARTING AND OPERATING

525

AutoStick

When using the AutoStick shift control, select the highest
gear that allows for adequate performance and avoids
frequent downshifts. For example, choose

⬙4⬙ if the

desired speed can be maintained. Choose

⬙3⬙ or ⬙2⬙ if

needed to maintain the desired speed.

To prevent excess heat generation, avoid continuous
driving at high RPM. Reduce vehicle speed as necessary
to avoid extended driving at high RPM. Return to a
higher gear or vehicle speed when grade and road
conditions allow.

Electronic Speed Control — If Equipped

• Do not use in hilly terrain or with heavy loads.
• When using the speed control, if you experience speed

drops greater than 10 mph (16 km/h), disengage until
you can get back to cruising speed.

• Use speed control in flat terrain and with light loads to

maximize fuel efficiency.

Cooling System

To reduce potential for engine and transmission over-
heating, take the following actions:

City Driving

When stopped for short periods, shift the transmission
into NEUTRAL and increase engine idle speed.

Highway Driving

Reduce speed.

Air Conditioning

Turn off temporarily.

526

STARTING AND OPERATING

RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.)

Towing This Vehicle Behind Another Vehicle

Towing Condition

Wheels OFF the

Ground

Instruction Transmis-

sion

1.4L Turbo Engine

With Automatic

Transmission

(DDCT)

2.0L/2.4L Engine

With Automatic

Transmission

Flat Tow

None

Transmission in

NEUTRAL

Transmission in

NEUTRAL

NOT AL-

LOWED

Dolly Tow

Front

NOT ALLOWED

NOT AL-

LOWED

Rear

NOT ALLOWED

NOT AL-

LOWED

On Trailer

All

NOTE:

When recreationally towing your vehicle, always follow applicable state and provincial laws. Contact

state and provincial Highway Safety offices for additional details.

STARTING AND OPERATING

527

CAUTION!

• DO NOT flat tow any 2.0L or 2.4L engine vehicle

equipped with an automatic transmission. Damage
to the drivetrain will result. If these vehicles re-
quire towing, make sure all the wheels are OFF the
ground.

• Do not dolly tow this vehicle. Use of a towing dolly

can cause significant damage to your vehicle. Dam-
age from improper towing is not covered under the
New Vehicle Limited Warranty.

• Towing this vehicle in violation of the above re-

quirements can cause severe transmission damage.
Damage from improper towing is not covered un-
der the New Vehicle Limited Warranty.

528

STARTING AND OPERATING

HAZARD WARNING FLASHERS

The Hazard Warning flasher switch is located in the
center of the instrument panel.

Push the switch to turn on the Hazard Warning
flashers. When the switch is activated, all direc-

tional turn signals will flash on and off to warn oncoming
traffic of an emergency. Push the switch a second time to
turn off the Hazard Warning flashers.

This is an emergency warning system and it should not
be used when the vehicle is in motion. Use it when your
vehicle is disabled and it is creating a safety hazard for
other motorists.

When you must leave the vehicle to seek assistance, the
Hazard Warning flashers will continue to operate even
though the ignition is placed in the OFF position.

NOTE:

With extended use the Hazard Warning flashers

may wear down your battery.

IF YOUR ENGINE OVERHEATS

In any of the following situations, you can reduce the
potential for overheating by taking the appropriate action.
• On the highways — slow down.
• In city traffic — while stopped, place the transmission

in NEUTRAL, but do not increase the engine idle
speed.

NOTE:

There are steps that you can take to slow down

an impending overheat condition:

• If your air conditioner (A/C) is on, turn it off. The A/C

system adds heat to the engine cooling system and
turning the A/C off can help remove this heat.

• You can also turn the temperature control to maximum

heat, the mode control to floor and the blower control to
high. This allows the heater core to act as a supplement
to the radiator and aids in removing heat from the
engine cooling system.

WHAT TO DO IN EMERGENCIES

531

CAUTION!

Driving with a hot cooling system could damage
your vehicle. If the temperature gauge reads “H,”
pull over and stop the vehicle. Idle the vehicle with
the air conditioner turned off until the pointer drops
back into the normal range. If the pointer remains on
the “H,” turn the engine off immediately and call for
service.

WARNING!

You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the hood,
do not open the hood until the radiator has had time
to cool. Never try to open a cooling system pressure
cap when the radiator or coolant bottle is hot.

WHEEL AND TIRE TORQUE SPECIFICATIONS

Proper lug nut/bolt torque is very important to ensure
that the wheel is properly mounted to the vehicle. Any
time a wheel has been removed and reinstalled on the
vehicle the lug nuts/bolts should be torqued using a
properly calibrated torque wrench.

Torque Specifications

Lug Nut/Bolt Torque

**Lug Nut/

Bolt Size

Lug Nut/

Bolt

Socket

Size

100 Ft-Lbs (135 N·m)

M12 x 1.25

19 mm

**Use only your Authorized Dealer recommended lug
nuts/bolts and clean or remove any dirt or oil before
tightening.

532

WHAT TO DO IN EMERGENCIES

Inspect the wheel mounting surface prior to mounting
the tire and remove any corrosion or loose particles.

Tighten the lug nuts/bolts in a star pattern until each
nut/bolt has been tightened twice.

After 25 miles (40 km) check the lug nut/bolt torque to be
sure that all the lug nuts/bolts are properly seated
against the wheel.

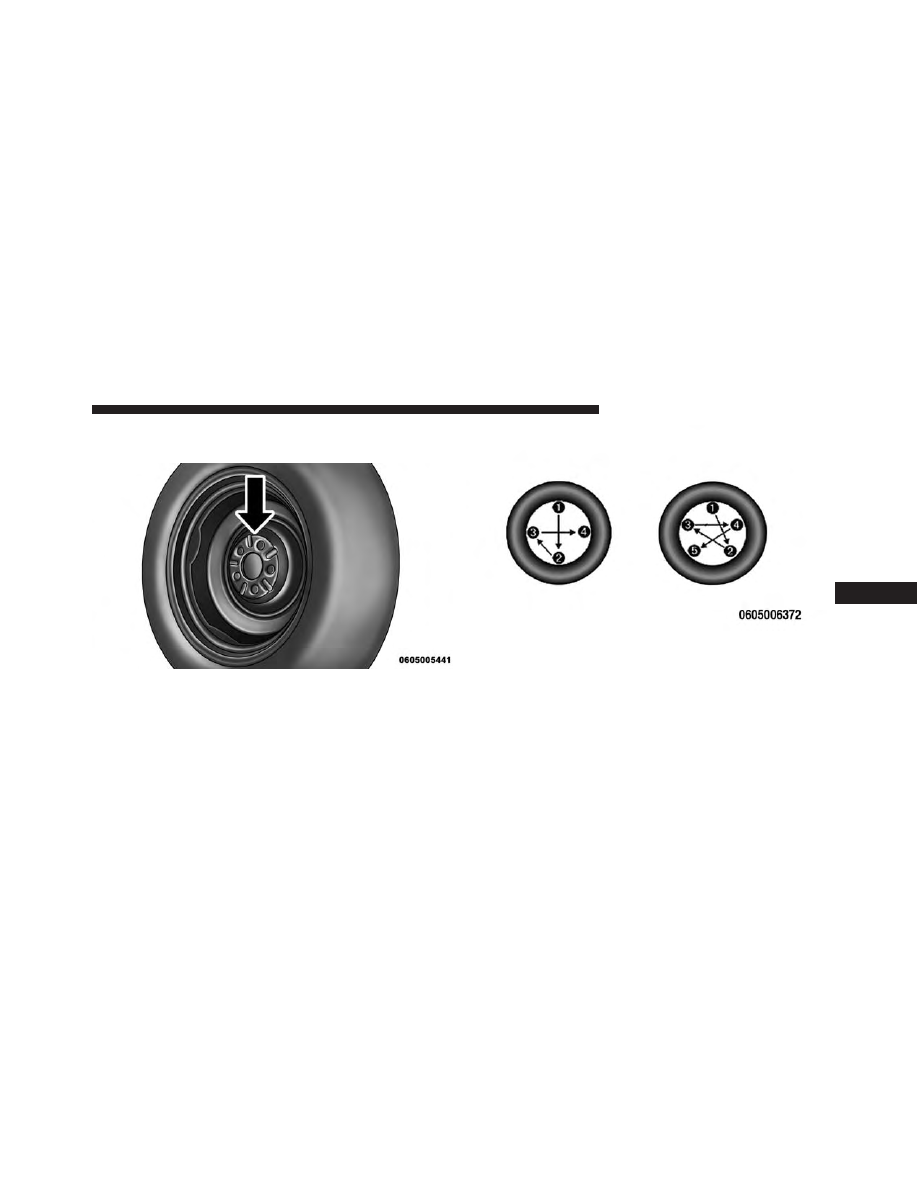

Wheel Mounting Surface

Torque Patterns

WHAT TO DO IN EMERGENCIES

533

WARNING!

To avoid the risk of forcing the vehicle off the jack,
do not tighten the lug nuts fully until the vehicle has
been lowered. Failure to follow this warning may
result in personal injury.

TIRE SERVICE KIT — IF EQUIPPED

Small punctures up to 1/4 inch (6 mm) in the tire tread
can be sealed with Tire Service Kit. Foreign objects (e.g.,
screws or nails) should not be removed from the tire. Tire
Service Kit can be used in outside temperatures down to
approximately -4°F (-20°C).

This kit will provide a temporary tire seal, allowing you
to drive your vehicle up to 100 miles (160 km) with a
maximum speed of 55 mph (90 km/h).

Tire Service Kit Storage

The Tire Service Kit is located in the trunk.

Tire Service Kit Components And Operation

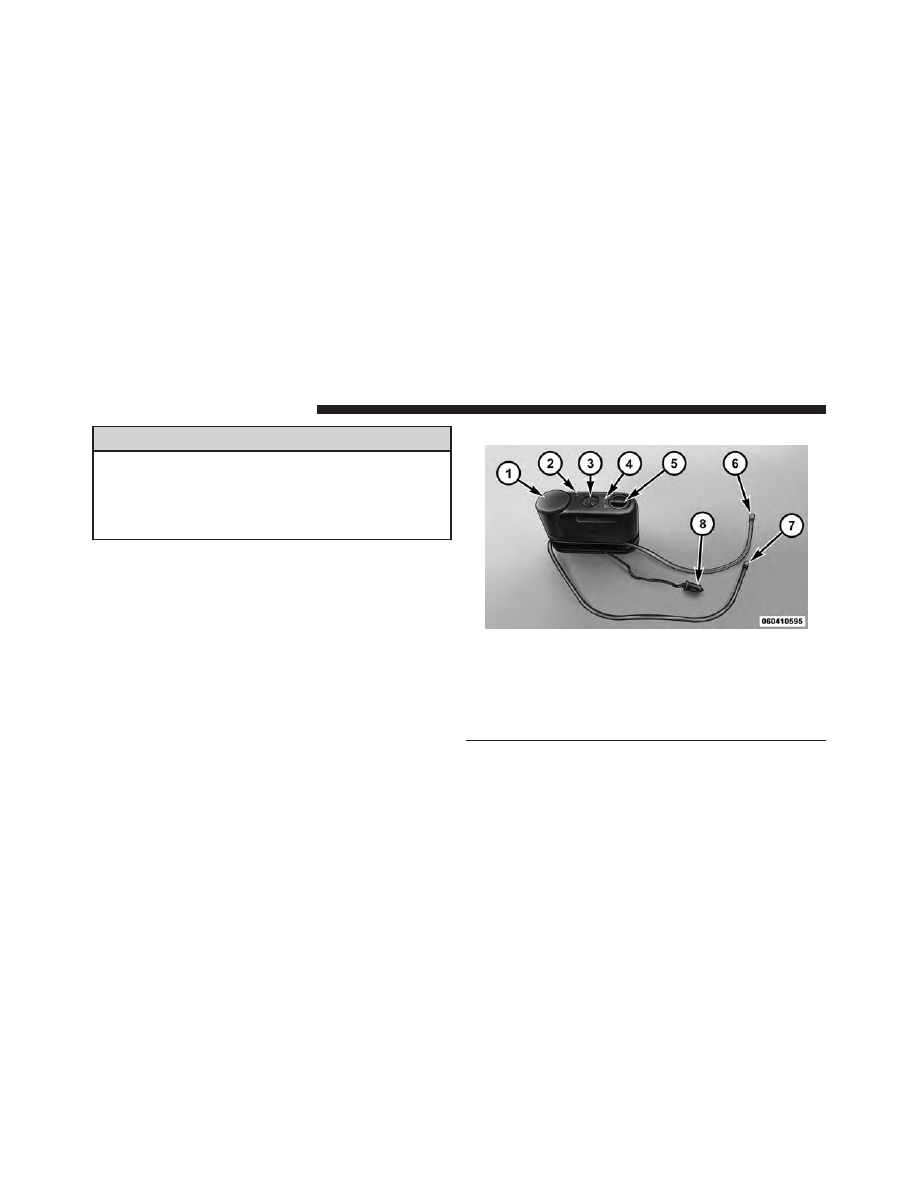

Tire Service Kit Components

1 — Sealant Bottle

5 — Mode Select Knob

2 — Deflation Button

6 — Sealant Hose (Clear)

3 — Pressure Gauge

7 — Air Pump Hose (Black)

4 — Power Button

8 — Power Plug (located on the bot-
tom side of the Tire Service Kit)

534

WHAT TO DO IN EMERGENCIES

Using The Mode Select Knob And Hoses

Your Tire Service Kit is equipped with the following
symbols to indicate the air or sealant mode.

Selecting Air Mode

Push in the Mode Select Knob (5) and turn to this
position for air pump operation only. Use the

Black Air Pump Hose (7) when selecting this mode.

Selecting Sealant Mode

Push in the Mode Select Knob (5) and turn to this
position to inject the Tire Service Kit Sealant and

to inflate the tire. Use the Sealant Hose (clear hose) (6)
when selecting this mode.

Using The Power Button

Push and release the Power Button (4) once to

turn On the Tire Service Kit. Push and release the Power
Button (4) again to turn Off the Tire Service Kit.

Using The Deflation Button

Push the Deflation Button (2) to reduce the air
pressure in the tire if it becomes over-inflated.

Tire Service Kit Usage Precautions

• Replace the Tire Service Kit Sealant Bottle (1) and

Sealant Hose (6) prior to the expiration date (printed at
the lower right hand corner on the bottle label) to
assure optimum operation of the system. Refer to
“Sealing a Tire with Tire Service Kit” section (F)
“Sealant Bottle and Hose Replacement”.

WHAT TO DO IN EMERGENCIES

535

• The Sealant Bottle (1) and Sealant Hose (6) are a one

tire application use and need to be replaced after each
use. Always replace these components immediately at
your original equipment vehicle dealer.

• When the Tire Service Kit sealant is in a liquid form,

clean water, and a damp cloth will remove the material

from the vehicle or tire and wheel components. Once
the sealant dries, it can easily be peeled off and
properly discarded.

• For optimum performance, make sure the valve stem

on the wheel is free of debris before connecting the Tire
Service Kit.

• You can use the Tire Service Kit air pump to inflate

bicycle tires. The kit also comes with two needles,
located in the Accessory Storage Compartment (on the
bottom of the air pump) for inflating sport balls, rafts,
or similar inflatable items. However, use only the Air
Pump Hose (7) and make sure the Mode Select Knob
(5) is in the Air Mode when inflating such items to
avoid injecting sealant into them. The Tire Service Kit
Sealant is only intended to seal punctures less than 1/4
inch (6 mm) diameter in the tread of your vehicle.

• Do not lift or carry the Tire Service Kit by the hoses.

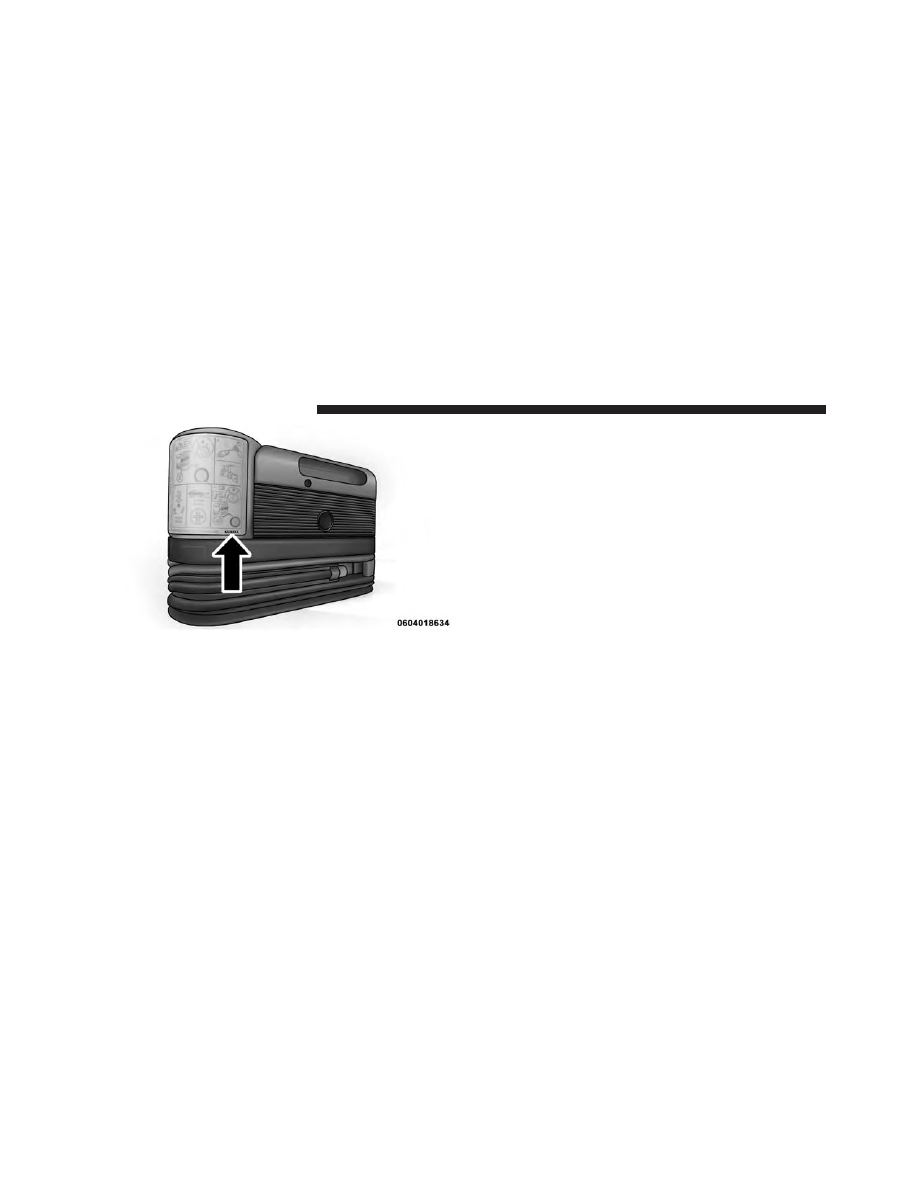

Tire Service Kit Expiration Date Location

536

WHAT TO DO IN EMERGENCIES

WARNING!

• Do not attempt to seal a tire on the side of the

vehicle closest to traffic. Pull far enough off the
road to avoid the danger of being hit when using
the Tire Service Kit.

• Do not use Tire Service Kit or drive the vehicle

under the following circumstances:

– If the puncture in the tire tread is approximately

1/4 inch (6 mm) or larger.

– If the tire has any sidewall damage.
– If the tire has any damage from driving with

extremely low tire pressure.

– If the tire has any damage from driving on a flat

tire.

– If the wheel has any damage.
– If you are unsure of the condition of the tire or

the wheel.

(Continued)

WARNING! (Continued)

• Keep Tire Service Kit away from open flames or

heat source.

• A loose Tire Service Kit thrown forward in a

collision or hard stop could endanger the occupants
of the vehicle. Always stow the Tire Service Kit in
the place provided. Failure to follow these warn-
ings can result in injuries that are serious or fatal to
you, your passengers, and others around you.

• Take care not to allow the contents of Tire Service

Kit to come in contact with hair, eyes, or clothing.
Tire Service Kit sealant is harmful if inhaled,
swallowed, or absorbed through the skin. It causes
skin, eye, and respiratory irritation. Flush immedi-
ately with plenty of water if there is any contact
with eyes or skin. Change clothing as soon as
possible, if there is any contact with clothing.

(Continued)

WHAT TO DO IN EMERGENCIES

537

WARNING! (Continued)

• Tire Service Kit Sealant solution contains latex. In

case of an allergic reaction or rash, consult a phy-
sician immediately. Keep Tire Service Kit out of
reach of children. If swallowed, rinse mouth imme-
diately with plenty of water and drink plenty of
water. Do not induce vomiting! Consult a physician
immediately.

Sealing A Tire With Tire Service Kit

(A) Whenever You Stop To Use Tire Service Kit:

1. Pull over to a safe location and turn on the vehicle’s

Hazard Warning flashers.

2. Verify that the valve stem (on the wheel with the

deflated tire) is in a position that is near to the ground.
This will allow the Tire Service Kit Hoses (6) and (7) to
reach the valve stem and keep the Tire Service Kit flat

on the ground. This will provide the best positioning
of the kit when injecting the sealant into the deflated
tire and running the air pump. Move the vehicle as
necessary to place the valve stem in this position
before proceeding.

3. Place the transmission in PARK (auto transmission) or

in Gear (instruction transmission) and place the ignition
in the OFF position.

4. Set the parking brake.

(B) Setting Up To Use Tire Service Kit:

1. Push in the Mode Select Knob (5) and turn to the

Sealant Mode position.

2. Uncoil the Sealant Hose (6) and then remove the cap

from the fitting at the end of the hose.

3. Place the Tire Service Kit flat on the ground next to the

deflated tire.

538

WHAT TO DO IN EMERGENCIES

4. Remove the cap from the valve stem and then screw

the fitting at the end of the Sealant Hose (6) onto the
valve stem.

5. Uncoil the Power Plug (8) and insert the plug into the

vehicle’s 12 Volt power outlet.

NOTE:

Do not remove foreign objects (e.g., screws or

nails) from the tire.

• Always start the engine before turning ON the Tire

Service Kit.

NOTE:

Instruction transmission vehicles must have the

parking brake engaged and the shift lever in NEUTRAL.

• After pushing the Power Button (4), the sealant (white

fluid) will flow from the Sealant Bottle (1) through the
Sealant Hose (6) and into the tire.

NOTE:

Sealant may leak out through the puncture in the

tire.

If the sealant (white fluid) does not flow within 0 – 10
seconds through the Sealant Hose (6):

1. Push the Power Button (4) to turn Off the Tire Service

Kit. Disconnect the Sealant Hose (6) from the valve
stem. Make sure the valve stem is free of debris.
Reconnect the Sealant Hose (6) to the valve stem.
Check that the Mode Select Knob (5) is in the Sealant
Mode position and not Air Mode. Push the Power
Button (4) to turn On the Tire Service Kit.

2. Connect the Power Plug (8) to a different 12 Volt

power outlet in your vehicle or another vehicle, if
available. Make sure the engine is running before
turning ON the Tire Service Kit.

3. The Sealant Bottle (1) may be empty due to previous

use. Call for assistance.

WHAT TO DO IN EMERGENCIES

539

Dodge Dart (2016 year). Instruction - part 33
