Unlock On Exit” button on the touchscreen, until a
check-mark appears next to setting, showing that setting
has been selected. Press the arrow back button on the
touchscreen to return to the previous menu.
• Auto Unlock On Exit

When this feature is selected, all doors will unlock when
the vehicle is stopped and the transmission is in the
PARK or NEUTRAL position and the driver’s door is
opened. To make your selection, press the Auto Unlock
On Exit button on the touchscreen, until a check-mark
appears next to setting, indicating that the setting has
been selected. Press the back arrow button on the touch-
screen to return to the previous menu.
• Flash Lights With Lock

When this feature is selected, the exterior lights will flash
when the doors are locked or unlocked with the Remote
Keyless Entry (RKE) transmitter. To make your selection,

press the Flash Lights With Lock button on the touch-
screen, until a check-mark appears next to setting, indicat-
ing that the setting has been selected. Press the back arrow
button on the touchscreen to return to the previous menu.
• Sound Horn With Lock

When this feature is selected, the horn will sound when
the remote start is activated. To make your selection,
press the Sound Horn With Lock button on the touch-
screen, until a check-mark appears next to setting, indi-
cating that the setting has been selected. Press the back
arrow button on the touchscreen to return to the previous
menu.
• Sound Horn With Remote Start

364

UNDERSTANDING YOUR INSTRUMENT PANEL

indicating that the setting has been selected. Press the
back arrow button on the touchscreen to return to the
previous menu.
• 1st Press Of Key Fob Unlocks

When 1st Press Of Key Fob Unlocks is selected, only the
driver’s door will unlock on the first press of the Remote
Keyless Entry (RKE) transmitter UNLOCK button. When
1st Press Of Key Fob Unlocks is selected, you must press
the RKE transmitter UNLOCK button twice to unlock the
passenger’s doors. When Unlock All Doors On 1st Press
is selected, all of the doors will unlock on the first press
of the RKE transmitter UNLOCK button.

NOTE:

If the vehicle is programmed 1st Press Of Key Fob

Unlocks, all doors will unlock no matter which Passive
Entry equipped door handle is grasped. If 1st Press Of
Key Fob Unlocks is programmed, only the driver’s door
will unlock when the driver’s door is grasped. With
Passive Entry, if 1st Press Of Key Fob Unlocks is pro-
grammed pressing the handle more than once will only
result in the driver’s door opening. If driver door first is
selected, once the driver door is opened, the interior door
lock/unlock switch can be used to unlock all doors (or
use RKE transmitter).
• Passive Entry — If Equipped

This feature allows you to lock and unlock the vehicle’s
door(s) without having to press the Remote Keyless
Entry (RKE) transmitter lock or unlock buttons. To make
your selection, press the Passive Entry button on the
touchscreen, until a check-mark appears next to setting,
indicating that the setting has been selected. Press the

UNDERSTANDING YOUR INSTRUMENT PANEL

365

back arrow button on the touchscreen to return to the
previous menu. Refer to “Keyless Enter-N-Go” in
“Things To Know Before Starting Your Vehicle”.
• Interior Motion Detection Alarm — If Equipped

This feature will sound the vehicles alarm when motion
is detected inside the vehicle while locked. To make your
selection, press the Interior Motion Detection Alarm
button on the touchscreen until a check-mark appears
next to setting, indicating that the setting has been
selected. Press the back arrow button on the touchscreen
to return to the previous menu.

Auto-On Comfort & Remote Start — If Equipped

After pressing the Auto-On Comfort & Remote Start
button on the touchscreen the following settings will be
available.

• Horn With Remote Start

When this feature is selected, the horn will sound when the
remote start is activated. To make your selection, press the
Sound Horn With Remote Start button on the touchscreen,
until a check-mark appears next to setting, showing that
setting has been selected. Press the back arrow button on
the touchscreen to return to the previous menu.
• Auto-On Driver Heated Seat & Steering Wheel With
Vehicle Start — If Equipped

When this feature is selected the driver’s heated seat and
heated steering wheel will automatically turn on when
temperatures are below 40° F (4.4° C). To make your
selection, press the Auto Heated Seats button on the
touchscreen, until a check-mark appears next to setting,
showing that setting has been selected. Press the back
arrow button on the touchscreen to return to the previous
menu.

366

UNDERSTANDING YOUR INSTRUMENT PANEL

Engine Off Options

After pressing the “Engine Off Options” button on the
touchscreen the following settings will be available.
• Engine Off Power Delay

When this feature is selected, the power window
switches, radio, Uconnect system (if equipped), DVD
video system (if equipped), power sunroof (if equipped),
and power outlets will remain active for up to 10 minutes
after the ignition is cycled to OFF. Opening either front
door will cancel this feature. To change the Engine Off
Power Delay status press the “0 seconds,” “45 seconds,

⬙

“5 minutes” or “10 minutes” button on the touchscreen.
Then press the back arrow button on the touchscreen.
• Headlight Off Delay

When this feature is selected, the driver can choose to have
the headlights remain on for 0, 30, 60, or 90 seconds when
exiting the vehicle. To change the Headlight Off Delay

status press the “+” or “–” button on the touchscreen to
select your desired time interval. Press the back arrow
button on the touchscreen to return to the previous menu.

Compass Settings — If Equipped

After pressing the Compass Settings button on the touch-
screen the following settings will be available.
• Variance

Compass Variance is the difference between Magnetic
North and Geographic North. To compensate for the
differences the variance should be set for the zone where
the vehicle is driven, per the zone map. Once properly set,
the compass will automatically compensate for the differ-
ences, and provide the most accurate compass heading.

UNDERSTANDING YOUR INSTRUMENT PANEL

367

NOTE:

Keep magnetic materials away from the top of

the instrument panel, such as iPod’s, Mobile Phones,
Laptops and Radar Detectors. This is where the compass
module is located, and it can cause interference with the
compass sensor, and it may give false readings.

• Perform Compass Calibration

Press the Calibration button on the touchscreen to change
this setting. This compass is self-calibrating, which elimi-
nates the need to instructionly reset the compass. When the
vehicle is new, the compass may appear erratic and the
EVIC will display CAL until the compass is calibrated.
You may also calibrate the compass by pressing the ON
button on the touchscreen and completing one or more
360-degree turns (in an area free from large metal or
metallic objects) until the CAL indicator displayed in the
EVIC turns off. The compass will now function normally.

Audio

After pressing the Audio button on the touchscreen the
following settings will be available.
• Balance/Fade

When in this display you may adjust the Balance and
Fade settings.

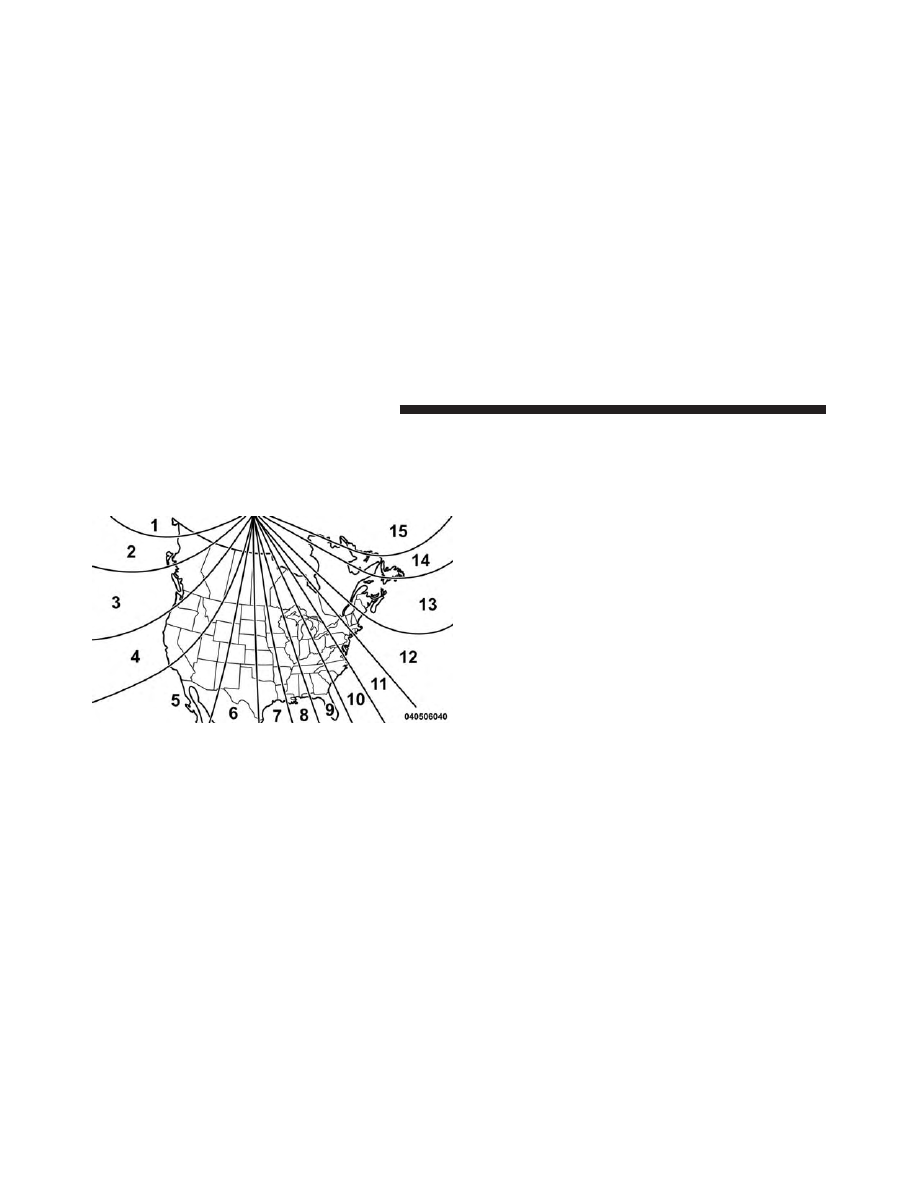

Compass Variance

368

UNDERSTANDING YOUR INSTRUMENT PANEL

• Equalizer

When in this display you may adjust the Bass, Mid and
Treble settings. Adjust the settings with the + and –
setting buttons on the touchscreens or by selecting any
point on the scale between the + and – buttons on the
touchscreens. Then press the back arrow button on the
touchscreen.

NOTE:

Bass/Mid/Treble allow you to simply slide your

finger up or down to change the setting as well as press
directly on the desired setting.
• Speed Adjusted Volume

This feature increases or decreases volume relative to
vehicle speed. To change the Speed Adjusted Volume
press the Off, 1, 2 or 3 button on the touchscreen. Then
press the back arrow button on the touchscreen.

• Music Info Cleanup

This feature helps organize music files for optimized
music navigation. To make your selection, press the
Music Info Cleanup button on the touchscreen, select On
or Off followed by pressing the back arrow button on the
touchscreen.
• Surround Sound — If Equipped

This feature provides simulated surround sound mode.
To make your selection, press the Surround Sound button
on the touchscreen, select On or Off followed by pressing
the back arrow button on the touchscreen.

UNDERSTANDING YOUR INSTRUMENT PANEL

369

Phone/Bluetooth

After pressing the “Phone/Bluetooth” button on the
touchscreen the following settings will be available:
• Paired Phones

This feature shows which phones are paired to the
Phone/Bluetooth system. For further information, refer
to the Uconnect Supplement Instruction.
• Paired Audio Sources

This feature shows which audio devices are paired to the
Phone/Bluetooth system. For further information, refer
to the Uconnect Supplement Instruction.

SiriusXM Setup

After pressing the “SIRIUS Setup” button on the touch-
screen the following settings will be available.

• Channel Skip

SiriusXM can be programmed to designate a group of
channels that are the most desirable to listen to or to
exclude undesirable channels while scanning. To make
your selection, press the “Channel Skip” button on the
touchscreen, select the channels you would like to skip
followed by pressing the back arrow button on the
touchscreen.
• Subscription Information

New vehicle purchasers or lessees will receive a free
limited time subscription to SiriusXM Satellite Radio
with your radio. Following the expiration of the free
services, it will be necessary to access the information on
the Subscription Information screen in order to re-
subscribe.

370

UNDERSTANDING YOUR INSTRUMENT PANEL

Press the Subscription Info button on the touchscreen to
access the Subscription Information screen.

Write down the SIRIUS ID numbers for your receiver. To
reactivate your service, either call the number listed on
the screen or visit the provider online.

NOTE:

SiriusXM Travel Link is a separate subscription.

Uconnect 200 — AM/FM STEREO RADIO WITH
CD PLAYER (MP3 AUX JACK) AND SiriusXM
RADIO

Operating Instructions — Radio Mode

NOTE:

The ignition switch must be in the ON/RUN or

ACC position to operate the radio.

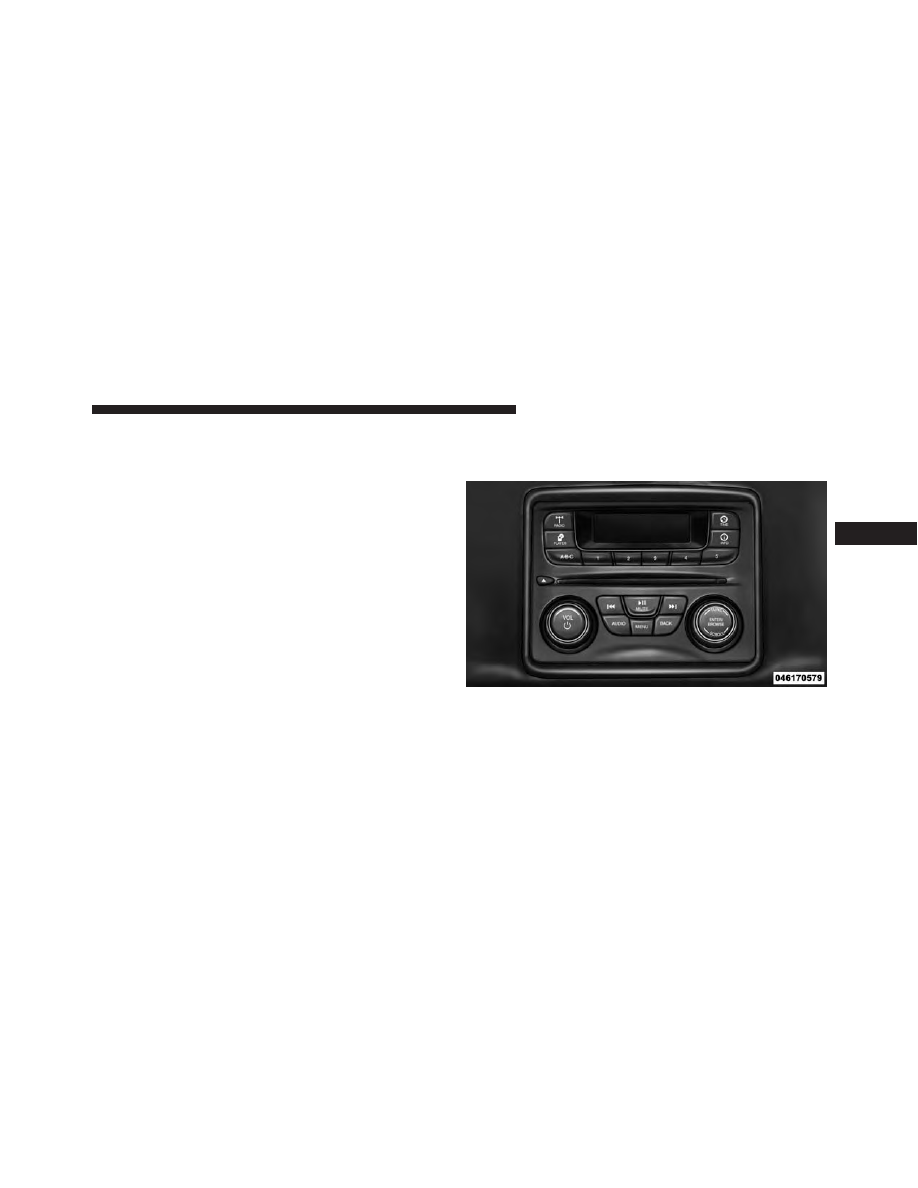

Uconnect 200

UNDERSTANDING YOUR INSTRUMENT PANEL

371

Power Switch/Volume Control (Rotary)

Push the ON/VOLUME

control knob to turn on the

radio. Push the ON/VOLUME

control knob a

second time to turn off the radio.

Electronic Volume Control

The electronic volume control turns continuously (360
degrees) in either direction, without stopping. Turning
the ON/VOLUME control knob to the right increases the
volume, and to the left decreases it.

When the audio system is turned on, the sound will be
set at the same volume level as last played.

SEEK Buttons

Push the SEEK buttons

to search for the next

listenable station in AM/FM mode. Push the right
switch to seek up and the left switch to seek down. The
radio will remain tuned to the new station until you

make another selection. Holding either button will
bypass stations without stopping until you release it.

TIME Button

Push the TIME button to alternate display of the time and
radio frequency.

Clock Setting Procedure

1. Push and hold the TIME button until the hours are

highlighted.

2. Adjust the hours by turning the right side TUNE/

SCROLL control knob.

3. After adjusting the hours, push the right side ENTER/

BROWSE control knob to set the minutes. The minutes
will highlight.

4. Adjust the minutes using the right side TUNE/

SCROLL control knob.

372

UNDERSTANDING YOUR INSTRUMENT PANEL

5. To exit, push the TIME button or push the BACK

button to return to the previous menu.

The clock can also be set by pushing the MENU button.
For vehicles equipped with satellite radio, push the
MENU button until CLOCK appears in the display.
Using the ENTER/BROWSE button select SET TIME,
and then follow the above procedure, starting at Step 2.

NOTE:

Time format has the options of 12HR or 24HR.

Selecting one of these options will change the way the
clock is displayed.

INFO Button

Push the INFO button for an RDS station (one with call
letters displayed). The radio will return a Radio Text
message broadcast from an FM station (FM mode only).

RW/FF

Pushing the RW (Rewind) or FF (Fast Forward) buttons
causes the tuner to search for the next frequency in the
direction of the arrows. This feature operates in either
AM or FM frequencies.

TUNE Control

Turn the rotary TUNE/SCROLL control knob clockwise
to increase or counterclockwise to decrease the frequency.

Setting The Bass, Mid Range, Treble, Balance Or
Fade

To set the Bass, Mid Range, Treble, Balance or Fade
settings push the AUDIO button to access the Audio
sub-menu.

UNDERSTANDING YOUR INSTRUMENT PANEL

373

The Audio sub-menu can also be reached by pressing the
MENU button until AUDIO appears in the display. Push
the ENTER/BROWSE button to select the AUDIO menu
and use the TUNE/SCROLL knob to highlight select
Bass, Mid Range, Treble, Balance or Fade. Once the
desired selection is highlighted, push the ENTER/
BROWSE button to select the item and use the TUNE/
SCROLL knob to adjust the setting.

Push the ENTER/BROWSE button and BASS will dis-
play. Turn the TUNE/SCROLL control knob clockwise to
increase or counterclockwise to decrease the bass tones.

Push the ENTER/BROWSE button a second time and
MID RANGE will display. Turn the TUNE/SCROLL
control knob clockwise to increase or counterclockwise to
decrease the mid-range tones.

Push the ENTER/BROWSE button a third time and
TREBLE will display. Turn the TUNE/SCROLL control
knob clockwise to increase or counterclockwise to de-
crease the treble tones.

Push the ENTER/BROWSE button a fourth time and
BALANCE will display. Turn the TUNE/SCROLL con-
trol knob clockwise or counterclockwise to adjust the
sound level from the Left or Right side speakers.

Push the ENTER/BROWSE button a fifth time and FADE
will display. Turn the TUNE/SCROLL control knob
clockwise or counterclockwise to adjust the sound level
between the front and rear speakers.

Push the BACK button to exit Bass, Mid Range, Treble,
Balance or Fade.

374

UNDERSTANDING YOUR INSTRUMENT PANEL

MENU Button

pushing the MENU button allows you to scroll between
the setting sub-menus. Once the desired sub-menu set-
ting is highlighted push the TUNE/SCROLL knob to
select the setting. The following items are selectable:

Radio Mode

• Audio — Selecting the Audio sub-menu will allow you

to adjust the Bass, Mid Range, Treble, Balance or Fade,
just like pushing the Audio hard control. If the BACK
button is pushed the radio will return to the Main
Menu.

• Clock — Selecting Clock will allow you to set the

clock. Adjust the hours by turning the TUNE/SCROLL
control knob. After adjusting the hours, push the
ENTER/BROWSE button to set the minutes. The min-
utes will highlight. Adjust the minutes using the right
side TUNE/SCROLL control knob. Push the ENTER/
BROWSE button to save time change.

Player Mode

• Player Browse — Selecting Player Browse will go to

the appropriate browse menu depending on the device
currently playing (will function the same as pushing
the browse button while in that mode). This will only
appear in the menu if the device currently playing can
support these features.

• Shuffle (SHFL) — This function shuffles (randomizes

the order of the files). This will only appear in the
menu if the device currently playing can support these
features.

• Repeat (RPT) — When Repeat is activated, the cur-

rently playing song will begin again when it ends. It
will continue to cycle through the same song until
repeat is turned Off. Repeat will be turned off once one
for the following conditions are met: 1) The source is
ejected 2) A different track list within that source is

UNDERSTANDING YOUR INSTRUMENT PANEL

375

initiated 3) The REPEAT button is toggled OFF. This
will only appear in the menu if the device currently
playing can support these features.

• Audio — Selecting the Audio sub-menu will allow you

to adjust the Bass, Mid Range, Treble, Balance or Fade,
just like pushing the Audio hard control. If the BACK
button is pushed the radio will return to the Main
Menu.

• Clock — Selecting Clock will allow you to set the

System Info

• Selecting System Info will display the software ver-

sion, serial number and SIRIUS ID.

RADIO Button

Push the button to select either AM, FM and Satellite
mode if equipped.

Buttons 1 - 5

These buttons tune the radio to the stations that you
commit to pushbutton memory AM (A, B, C), FM (A, B,
C) and Satellite — 15 AM, 15 FM and 15 SAT stations.

To Set The Pushbutton Memory

When you are receiving a station that you wish to
commit to pushbutton memory, push and hold the but-
ton (1–5) you wish to lock onto this station for three
seconds.

You may add a second or third station to each pushbut-
ton by repeating the above procedure with this exception:
Push the A–B–C button to select the A, B or C mode. Each

376

UNDERSTANDING YOUR INSTRUMENT PANEL

button can be set for up to 3 stations in AM, FM and Sat.
This allows a total of 15 AM, 15 FM and 15 SAT stations
to be stored into pushbutton memory.

Player Button

Pushing the Player button will allow you to switch from
AM/FM modes to Player mode (CD, USB, AUX,
Bluetooth).

Operation Instructions — CD MODE For CD And
MP3 Audio Play

NOTE:

• The ignition switch must be in the ON/RUN or ACC

position to operate the radio.

• This radio is capable of playing compact discs (CD),

recordable compact discs (CD-R), rewritable compact
discs (CD-RW), compact discs with MP3 tracks and
multisession compact discs with CD and MP3 tracks.

Inserting Compact Disc(s)

Gently insert one CD into the CD player with the CD
label facing up. The CD will automatically be pulled into
the CD player and the CD icon will illuminate on the
radio display. If a CD does not go into the slot more than
1.0 inch (2.5 cm), a disc may already be loaded and must
be ejected before a new disc can be loaded.

If you insert a disc with the ignition ON/RUN and the
radio ON, the unit will switch from radio to CD mode
and begin to play when you insert the disc. The display
will show the track number, and index time in minutes
and seconds. Play will begin at the start of track 1.

CAUTION!

This CD player will accept 4–3/4 inch (12 cm) discs
only. The use of other sized discs may damage the
CD player mechanism.

(Continued)

UNDERSTANDING YOUR INSTRUMENT PANEL

377

EJECT Button — Ejecting A CD

Push the EJECT button to eject the CD.

If you have ejected a disc and have not removed it within
10 seconds, it will be reloaded. If the CD is not removed,
the radio will reinsert the CD but will not play it.

A disc can be ejected with the radio and ignition OFF.

SEEK Button

Push the right SEEK button for the next selection on the
CD. Push the left SEEK button to return to the beginning
of the current selection, or return to the beginning of the
previous selection if the CD is within the first second of
the current selection. Pushing and holding the SEEK
button will allow faster scrolling through the tracks in
CD and MP3 modes.

TIME Button

Push this button to change the display from a large CD
playing time display to a small CD playing time display.

RW/FF

Push and hold FF (Fast Forward) and the CD player will
begin to fast forward until FF is released or RW or
another CD button is pushed. The RW (Reverse) button
works in a similar manner.

Shuffle (SHFL) And Repeat (RPT)

This feature plays the selections on the compact disc in
random order to provide an interesting change of pace.
Push the MENU button to display the Player menu. Use
the TUNE/SCROLL knob to scroll to the Shuffle or
Repeat sub-menu. Once the Shuffle or Repeat sub-menu
setting is highlighted push the ENTER/BROWSE button
to select the setting and turn it on or off.

378

UNDERSTANDING YOUR INSTRUMENT PANEL

Shuffle and Repeat cannot be active at the same time. If
one is selected while the other is currently active the
currently active one will be changed to OFF. These
settings will be dependent of the current source. If shuffle
is on in iPod, moving to CD will not have shuffle On
unless it was previously set to On.

Push the right SEEK button to move to the next randomly
selected track.

Notes On Playing MP3 Files

The radio can play MP3 files; however, acceptable MP3 file
recording media and formats are limited. When writing
MP3 files, pay attention to the following restrictions.

Supported Media (Disc Types)

The MP3 file recording media supported by the radio are
CDDA, CD-R, CD-RW, MP3, WMA and CDDA+MP3.

Supported Medium Formats (File Systems)

The medium formats supported by the radio are ISO 9660
Level 1 and Level 2 and includes the Joliet extension.
When reading discs recorded using formats other than
ISO 9660 Level 1 and Level 2, the radio may fail to read
files properly and may be unable to play the file nor-
mally. UDF and Apple HFS formats are not supported.

The radio uses the following limits for file systems:

• Maximum number of folder levels: 8
• Maximum number of files: 255
• Maximum number of folders. (The radio display of file

names and folder names is limited. For large numbers of
files and/or folders, the radio may be unable to display
the file name and folder name, and will assign a number
instead. With a maximum number of files, exceeding 20
folders will result in this display. With 200 files, exceed-
ing 50 folders will result in this display.)

UNDERSTANDING YOUR INSTRUMENT PANEL

379

Dodge Dart (2016 year). Instruction - part 23
