Windshield Washers

To use the windshield washer, push the washer knob,
located on the end of the multifunction lever, inward to
the second detent. Washer fluid will be sprayed and the
wiper will operate for two to three cycles after the washer
knob is released from this position. If the washer knob is
depressed while in the delay range, the wiper will
operate for several seconds after the washer knob is
released. It will then resume the intermittent interval
previously selected. If the washer knob is pushed while
in the off position, the wiper will turn on and cycle
approximately three times after the wash knob is re-
leased.

To prevent freeze-up of your windshield washer system
in cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This
rating information can be found on most washer fluid
containers.

WARNING!

Sudden loss of visibility through the windshield
could lead to a collision. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with the defroster before and during
windshield washer use.

Mist Feature

When a single wipe to clear off road mist or spray from
a passing vehicle is needed, push the washer knob,
located on the end of the multifunction lever, inward to
the first detent and release. The wipers will cycle one
time and automatically shut off.

NOTE:

The mist feature does not activate the washer

pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.

156

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

TILT STEERING COLUMN

This feature allows you to tilt the steering column
upward or downward. The tilt lever is located on the
steering column, below the multifunction lever.

Pull the lever toward the steering wheel to unlock the
steering column. With one hand firmly on the steering
wheel, move the steering column up or down, as desired.
Release the lever to lock the steering column firmly in
place.

Tilt Steering Lever

3

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

157

WARNING!

Do not adjust the steering column while driving.
Adjusting the steering column while driving or driv-
ing with the steering column unlocked, could cause
the driver to lose control of the vehicle. Be sure the
steering column is locked before driving your ve-
hicle. Failure to follow this warning may result in
serious injury or death.

DRIVER ADJUSTABLE PEDALS — IF EQUIPPED

The adjustable pedals system is designed to allow a
greater range of driver comfort for steering wheel tilt and
seat position. This feature allows the brake, accelerator,
and clutch pedals (if equipped) to move toward or away
from the driver to provide improved position with the
steering wheel.

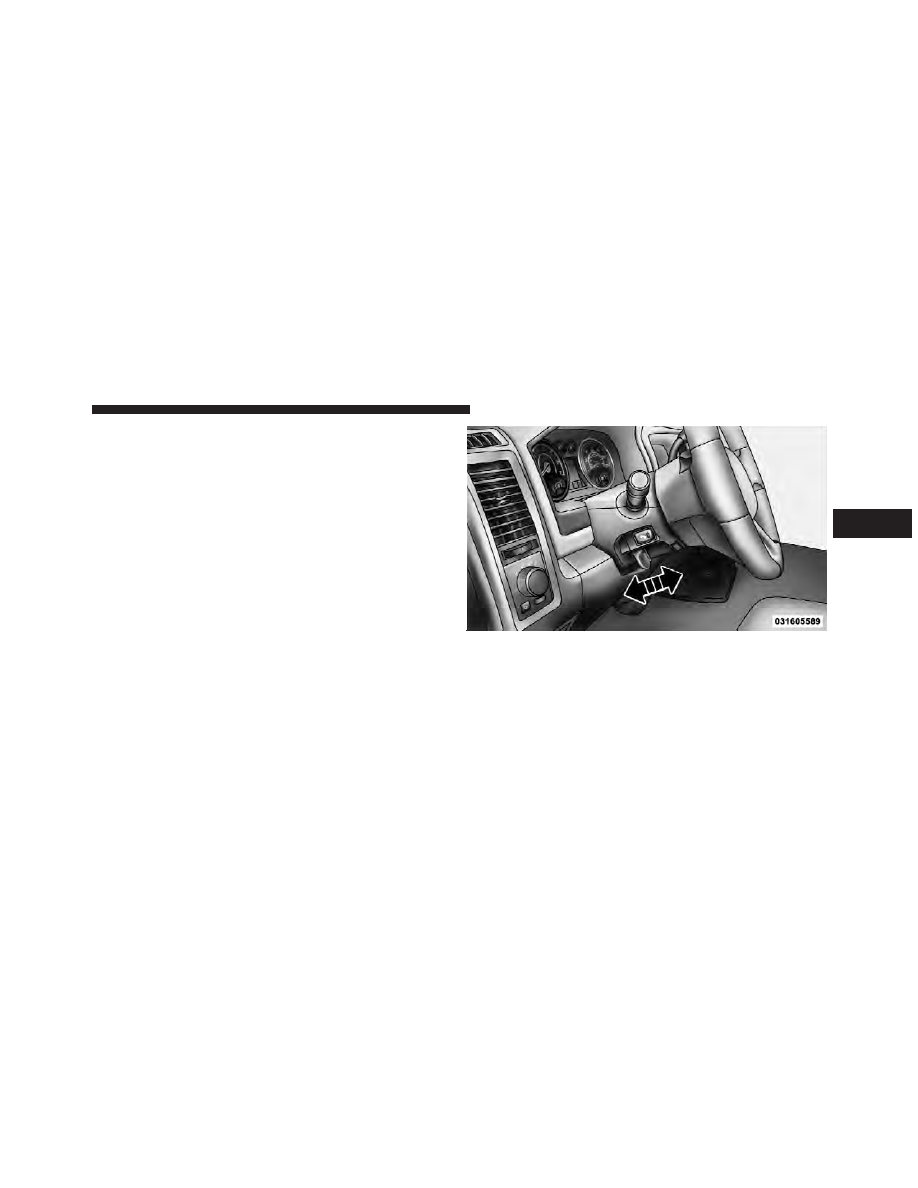

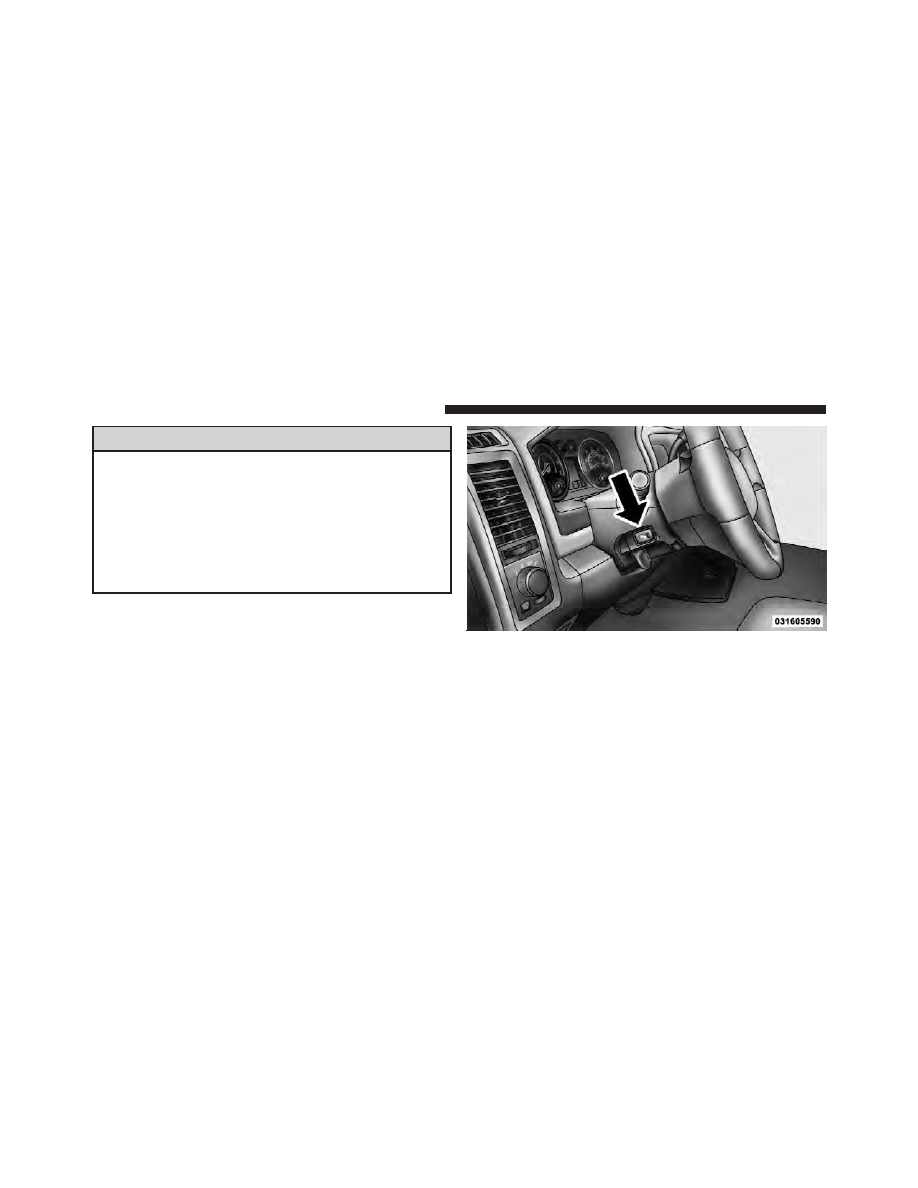

The adjustable pedal switch is located to the left side of
the steering column.

• The pedals can be adjusted with the ignition OFF.
• The pedals cannot be adjusted when the vehicle is in

REVERSE or when the Electronic Speed Control Sys-
tem is on. The following messages will be displayed
on vehicles equipped with the Electronic Vehicle In-
formation System (EVIC) if the pedals are attempted to

Adjustable Pedals Switch

158

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

be adjusted when the system is locked out (“Adjust-
able Pedal Disabled — Cruise Control Engaged” or
“Adjustable Pedal Disabled — Vehicle In Reverse”.

CAUTION!

Do not place any article under the adjustable pedals
or impede its ability to move as it may cause damage
to the pedal controls. Pedal travel may become lim-
ited if movement is stopped by an obstruction in the
adjustable pedal’s path.

WARNING!

Do not adjust the pedals while the vehicle is moving.
You could lose control and have an accident. Always
adjust the pedals while the vehicle is parked.

HEATED STEERING WHEEL — IF EQUIPPED

The steering wheel contains a heating element that helps
warm your hands in cold weather. The heated steering
wheel has only one temperature setting. Once the heated
steering wheel has been turned on it will operate for
approximately 58 to 70 minutes before automatically
shutting off. The heated steering wheel can shut off early
or may not turn on when the steering wheel is already
warm.

The heated steering wheel switch is located on the switch
bank below the climate controls.

Press the switch to turn on the heated
steering wheel. The light on the switch
will illuminate to indicate the steering
wheel heater is on. Pressing the switch
a second time will turn off the heated
steering wheel and light indicator.

3

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

159

NOTE:

The engine must be running for the heated

steering wheel to operate.

Vehicles Equipped With Remote Start
On models that are equipped with remote start, the
heated steering wheel can be programmed to come on
during a remote start. Refer to “Remote Starting System
— If Equipped” in “Things to Know Before Starting Your
Vehicle” for further information.

WARNING!

• Persons who are unable to feel pain to the skin

because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, ex-
haustion, or other physical conditions must exer-
cise care when using the steering wheel heater. It
may cause burns even at low temperatures, espe-
cially if used for long periods.

(Continued)

WARNING! (Continued)

• Do not place anything on the steering wheel that

insulates against heat, such as a blanket or steering
wheel covers of any type and material.. This may
cause the steering wheel heater to overheat.

ELECTRONIC SPEED CONTROL

When engaged, the Electronic Speed Control takes over
accelerator operations at speeds greater than 25 mph
(40 km/h).

The Electronic Speed Control buttons are located on the
right side of the steering wheel.

160

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:

In order to ensure proper operation, the Elec-

tronic Speed Control System has been designed to shut
down if multiple Speed Control functions are operated at
the same time. If this occurs, the Electronic Speed Control

System can be reactivated by pushing the Electronic
Speed Control ON/OFF button and resetting the desired
vehicle set speed.

To Activate

Push the ON/OFF button. The Cruise Indicator Light in
the instrument cluster will illuminate. To turn the system
off, push the ON/OFF button a second time. The Cruise
Indicator Light will turn off. The system should be
turned off when not in use.

WARNING!

Leaving the Electronic Speed Control system on
when not in use is dangerous. You could accidentally
set the system or cause it to go faster than you want.
You could lose control and have an accident. Always
leave the system OFF when you are not using it.

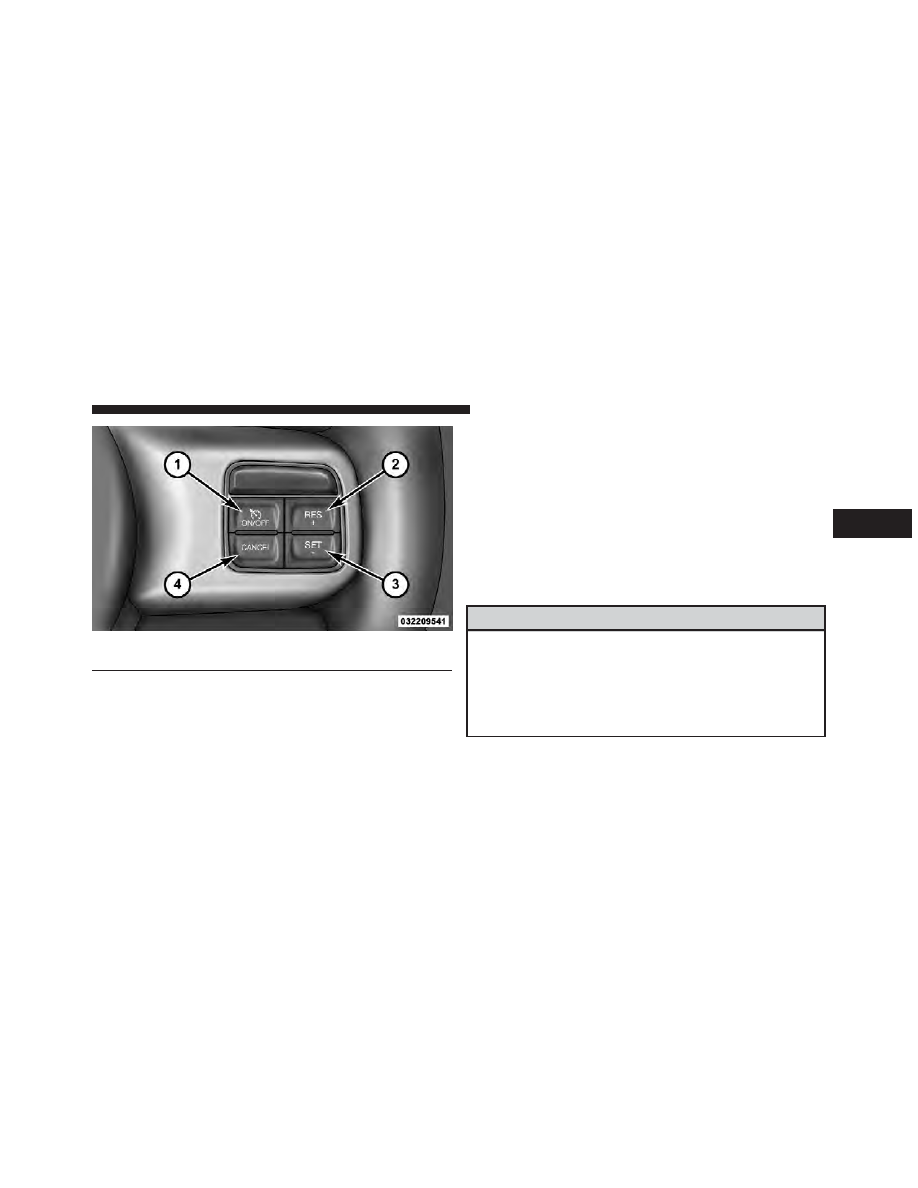

1 — ON/OFF

2 — RES +

4 — CANCEL

3 — SET -

3

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

161

To Set A Desired Speed

Turn the Electronic Speed Control ON. When the vehicle
has reached the desired speed, press the SET (-) button
and release. Release the accelerator and the vehicle will
operate at the selected speed.

NOTE:

The vehicle should be traveling at a steady

speed and on level ground before pressing the SET
button.

To Deactivate

A soft tap on the brake pedal, pushing the CANCEL
button, or normal brake pressure while slowing the
vehicle will deactivate Electronic Speed Control without
erasing the set speed memory. Pressing the ON/OFF
button or turning the ignition switch OFF erases the set
speed memory.

To Resume Speed

To resume a previously set speed, push the RES (+)
button and release. Resume can be used at any speed
above 20 mph (32 km/h).

To Vary The Speed Setting

When the Electronic Speed Control is set, you can in-
crease speed by pushing the RES (+) button. If the button
is continually pressed, the set speed will continue to
increase until the button is released, then the new set
speed will be established.

Pressing the RES (+) button once will result in a 1 mph
(1.6 km/h) increase in set speed. Each subsequent tap of
the button results in an increase of 1 mph (1.6 km/h).

162

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

To decrease speed while the Electronic Speed Control is
set, push the SET (-) button. If the button is continually
held in the SET (-) position, the set speed will continue to
decrease until the button is released. Release the button
when the desired speed is reached, and the new set speed
will be established.

Pressing the SET (-) button once will result in a 1 mph
(1.6 km/h) decrease in set speed. Each subsequent tap of
the button results in a decrease of 1 mph (1.6 km/h).

To Accelerate For Passing

Press the accelerator as you would normally. When the
pedal is released, the vehicle will return to the set speed.

Using Electronic Speed Control On Hills
The transmission may downshift on hills to maintain the
vehicle set speed.

NOTE:

The Electronic Speed Control system maintains

speed up and down hills. A slight speed change on
moderate hills is normal.

On steep hills, a greater speed loss or gain may occur so
it may be preferable to drive without Electronic Speed
Control.

WARNING!

Electronic Speed Control can be dangerous where the
system cannot maintain a constant speed. Your ve-
hicle could go too fast for the conditions, and you
could lose control and have an accident. Do not use
Electronic Speed Control in heavy traffic or on roads
that are winding, icy, snow-covered or slippery.

OVERHEAD CONSOLE — IF EQUIPPED

The overhead console is located on the headliner above
the review mirror. The overhead console contains the
following features:

• Courtesy/Reading Lights

3

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

163

• Power Sliding Rear Window Switch — If Equipped

Courtesy/Reading Lights

Both lights in the overhead console and rear passenger
compartment will illuminate as courtesy lights when a
door is opened, when the dimmer control is rotated to the
courtesy light position (full right position), or when the

UNLOCK button is pressed on the Remote Keyless Entry
(RKE) transmitter, if equipped. These lights are also
operated individually as reading lights by pressing on
the corresponding lens.

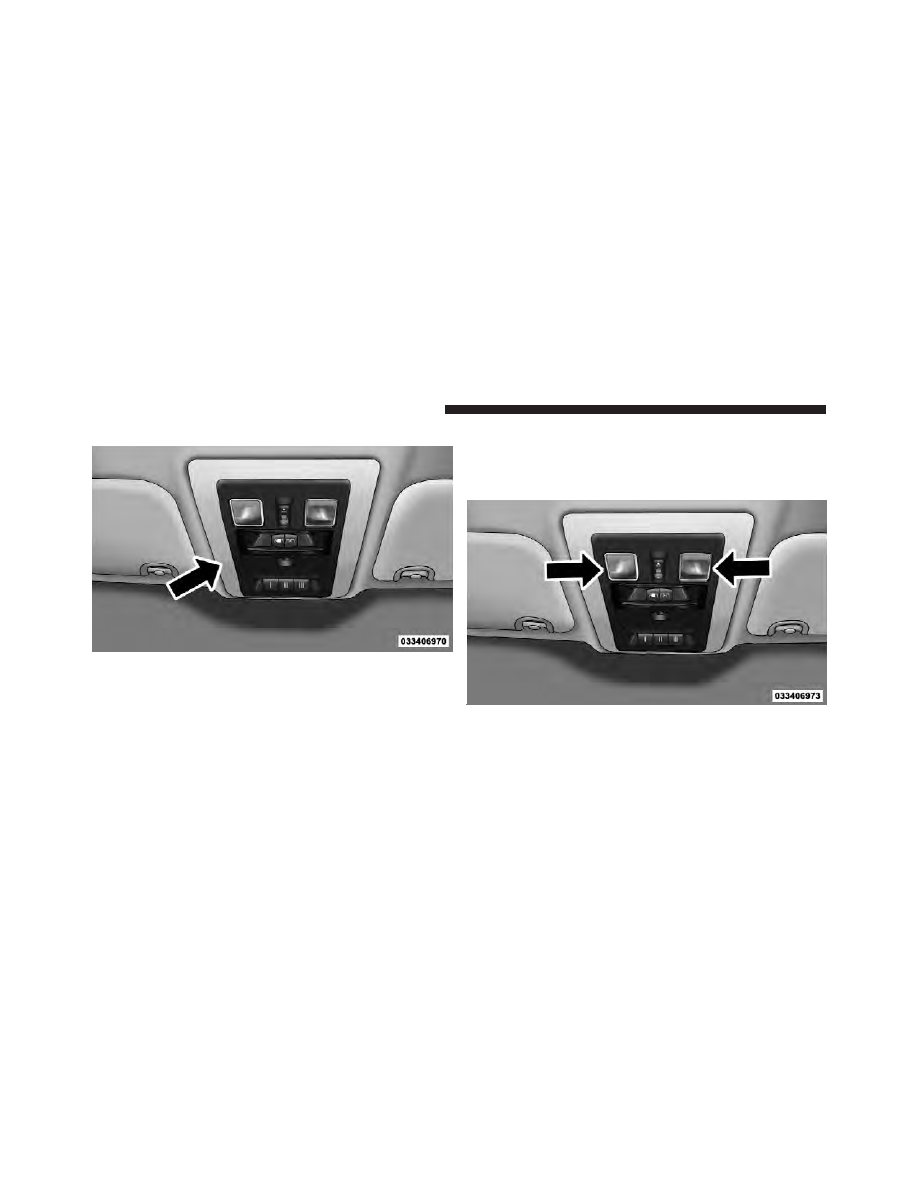

Overhead Console

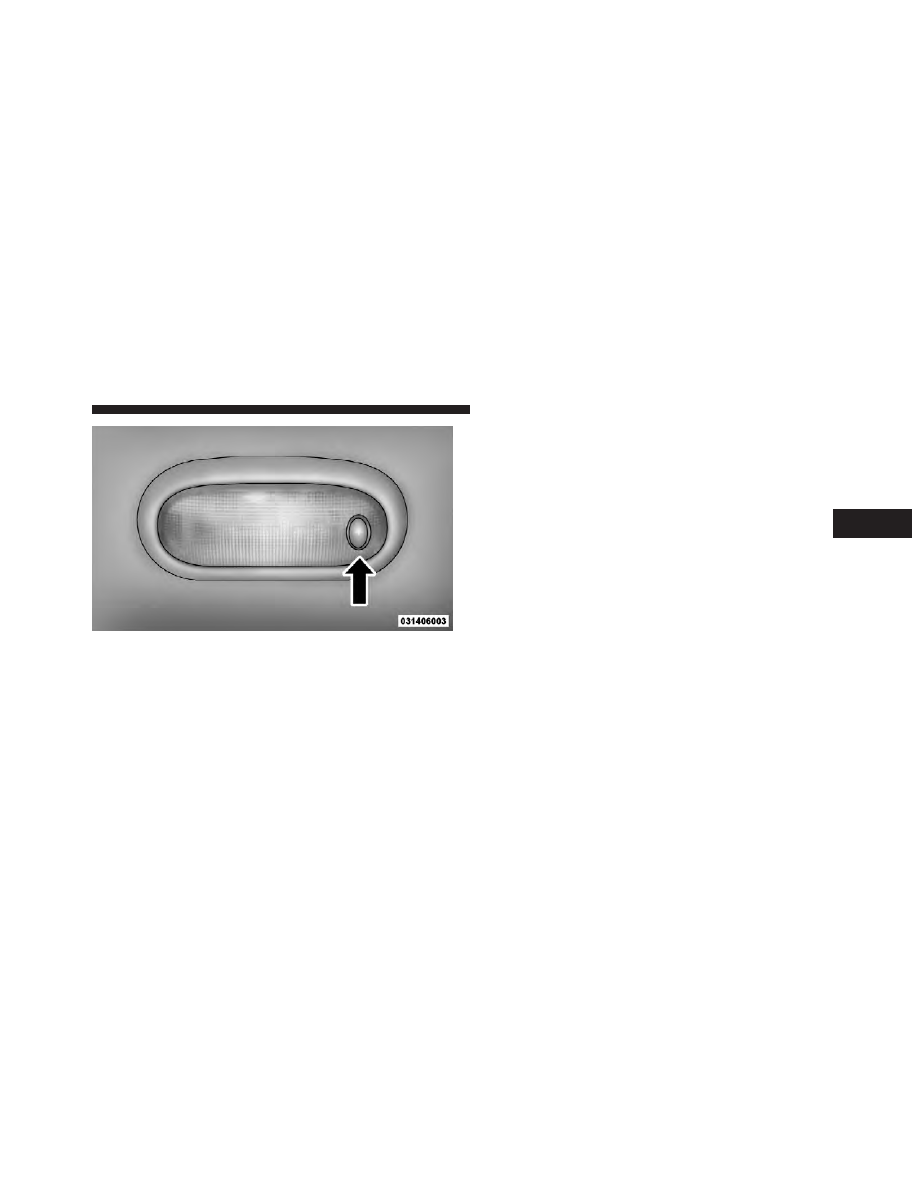

Front Courtesy/Reading Lights

164

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:

The courtesy/reading lights will remain on until

the switch is pressed a second time, so be sure they have
been turned off before leaving the vehicle. If the interior
lights are left on after the ignition is turned OFF, they will
extinguish after 15 minutes.

ELECTRICAL POWER OUTLETS

The auxiliary 12 Volt (13 Amp) power outlets can provide
power for in-cab accessories designed for use with the
standard “cigar lighter” plug. The 12 Volt power outlets
have a cap attached to the outlet indicating “12V DC”,
together with either a key symbol or a battery symbol.

A key symbol indicates that the key must be in the ON or
ACC positions for the outlet to provide power. The
battery symbol indicates that the outlet is connected to
the battery, and can provide power at all times.

NOTE:

To ensure proper operation a MOPAR

威 knob

and element must be used.

Rear Passenger Courtesy/Reading Light

3

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

165

CAUTION!

• Do not exceed the maximum power of 160 Watts

(13 Amps) at 12 Volts. If the 160 Watt (13 Amp)
power rating is exceeded the fuse protecting the
system will need to be replaced.

• Power outlets are designed for accessory plugs

only. Do not insert any other object in the power
outlets as this will damage the outlet and blow the
fuse. Improper use of the power outlet can cause
damage not covered by your New Vehicle Limited
Warranty.

The auxiliary power outlets can be found in the following
locations:

• Lower left and lower right of the center stack.
• Inside the top storage tray.

• Inside the upper lid of the center storage compartment

— if equipped.

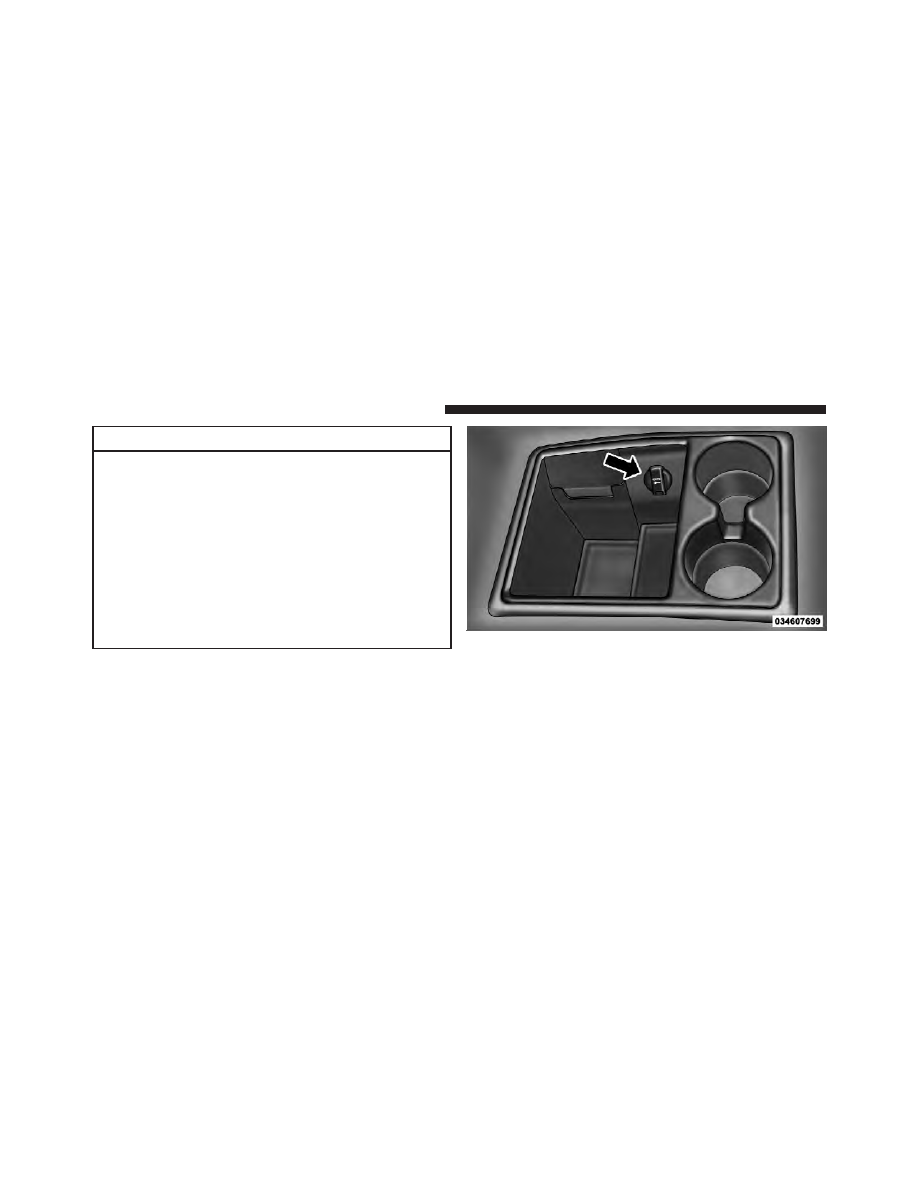

Power Outlet — Floor Storage Bin

166

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

• Rear of the center console storage compartment —

Crew Cab.

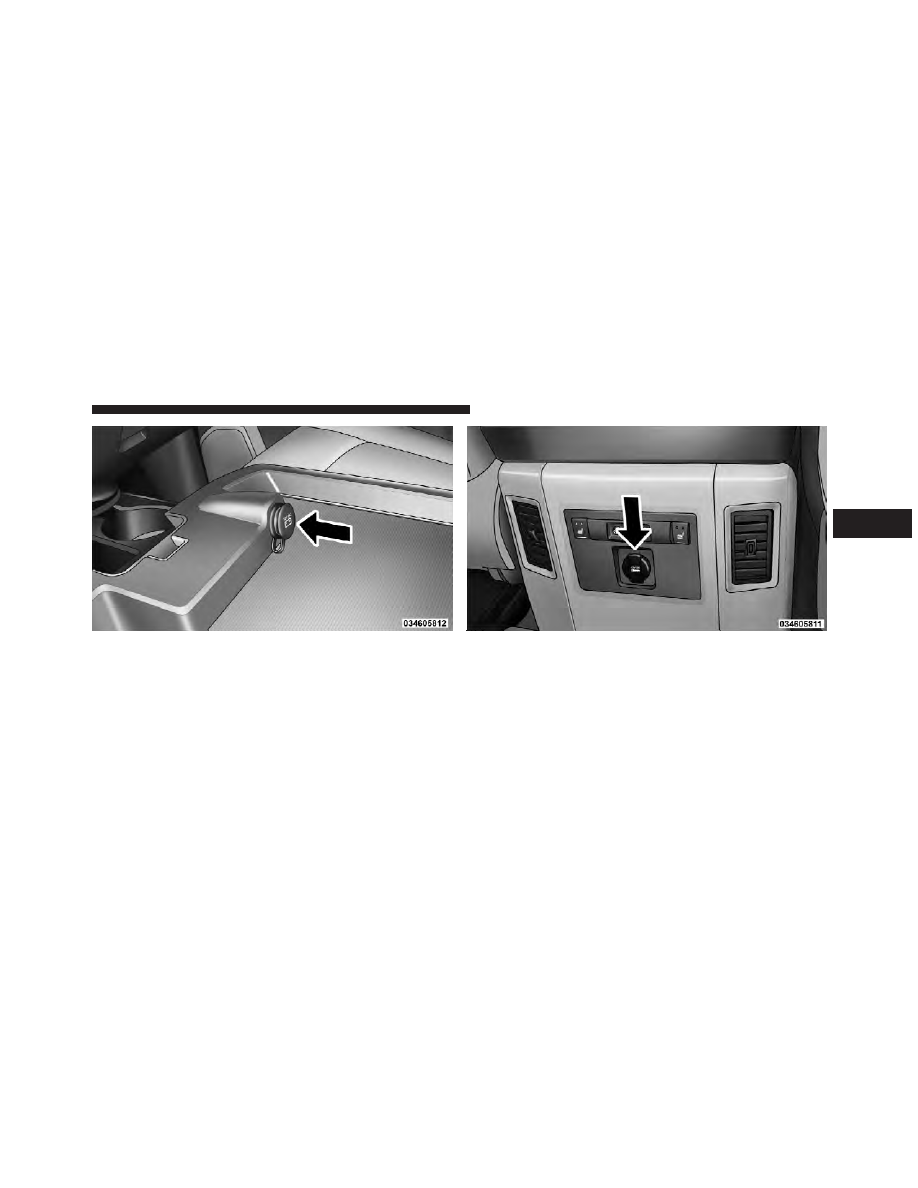

Power Outlet — Upper Lid

Power Outlet — Rear Center Console

3

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

167

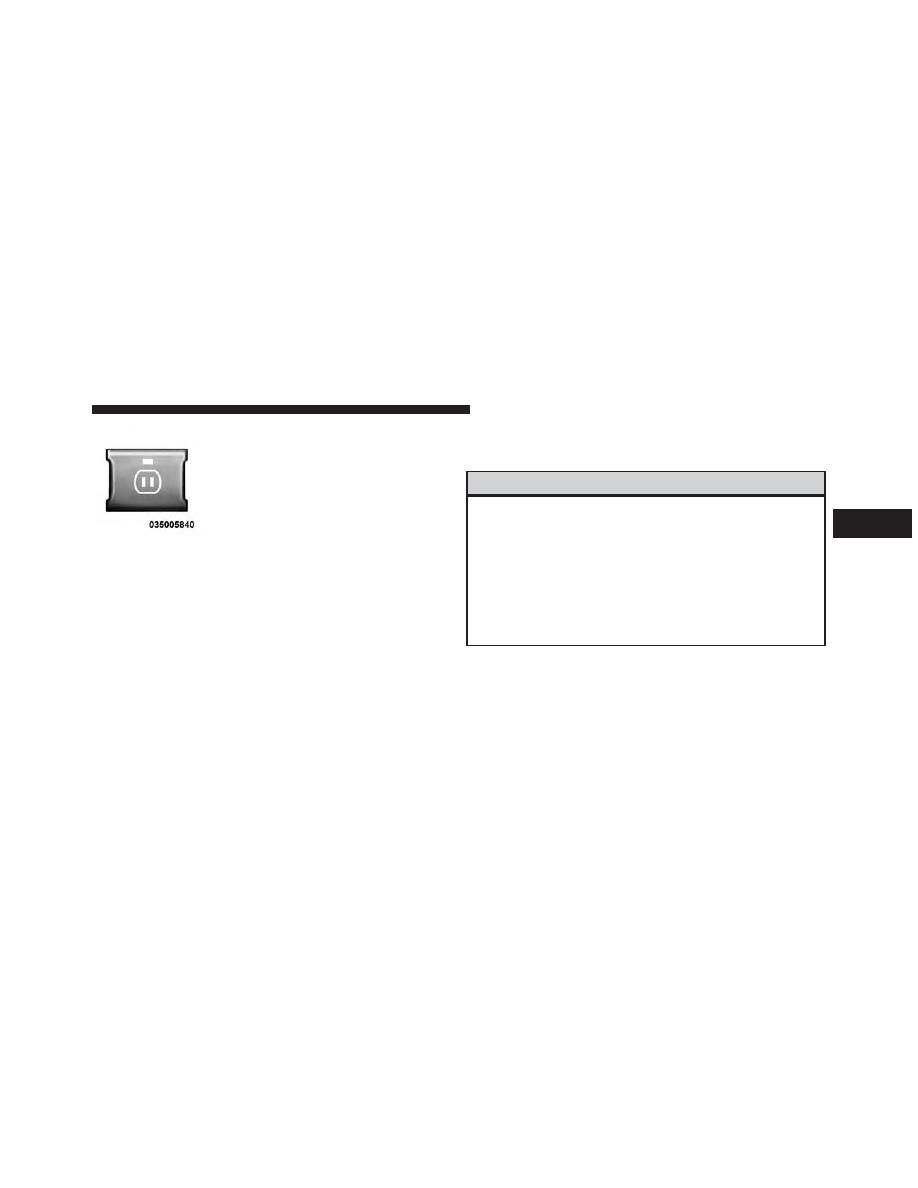

The key symbol indicates that this outlet can supply
power when the key is in the ON or ACC positions.

All accessories connected to the outlet(s) should be
removed or turned off when the vehicle is not in use to
protect the battery against discharge.

WARNING!

To avoid serious injury or death:
• Only devices designed for use in this type of

outlet should be inserted into any 12 Volt outlet.

• Do not touch with wet hands.
• Close the lid when not in use and while driving

the vehicle.

• If this outlet is mishandled, it may cause an

electric shock and failure.

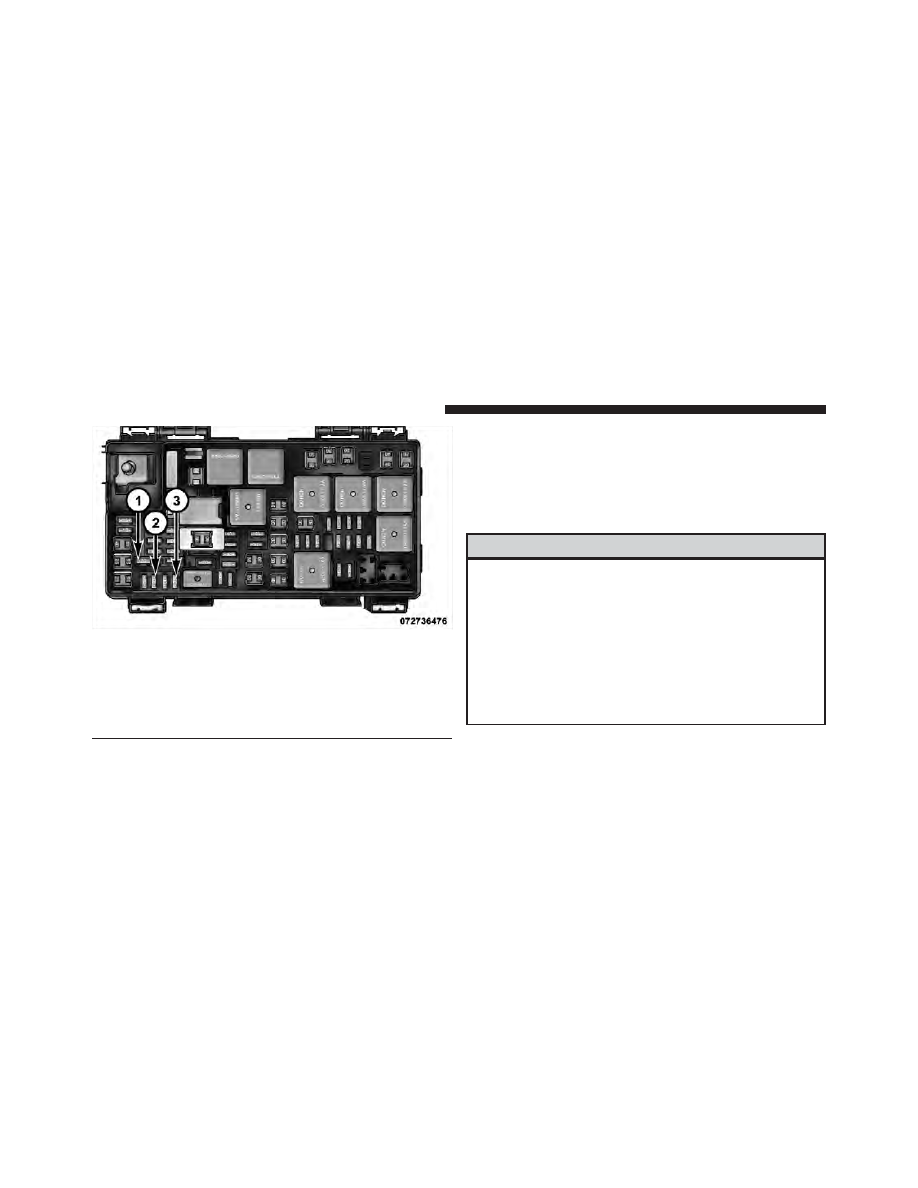

Power Outlet Fuse Locations

1 — M7 Fuse 20 A Yellow Power Outlet Center Seat (Opt) or

with Console Rear
2 — M6 Fuse 20 A Yellow Cigar Lighter Instrument Panel or

with Console Front
3 — M36 Fuse 20 A Yellow Power Outlet Instrument Panel or

with Console Center

168

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!

• Many accessories that can be plugged in draw

power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life
and/or prevent the engine from starting.

• Accessories that draw higher power (i.e., coolers,

vacuum cleaners, lights, etc.), will discharge the
battery even more quickly. Only use these inter-
mittently and with greater caution.

• After the use of high power draw accessories, or

long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.

CIGAR LIGHTER AND ASH RECEIVER — IF
EQUIPPED

A removable ash receiver and cigar lighter are available.
For vehicles with a bench seat the cupholder tray can be
used to hold the ash receiver.

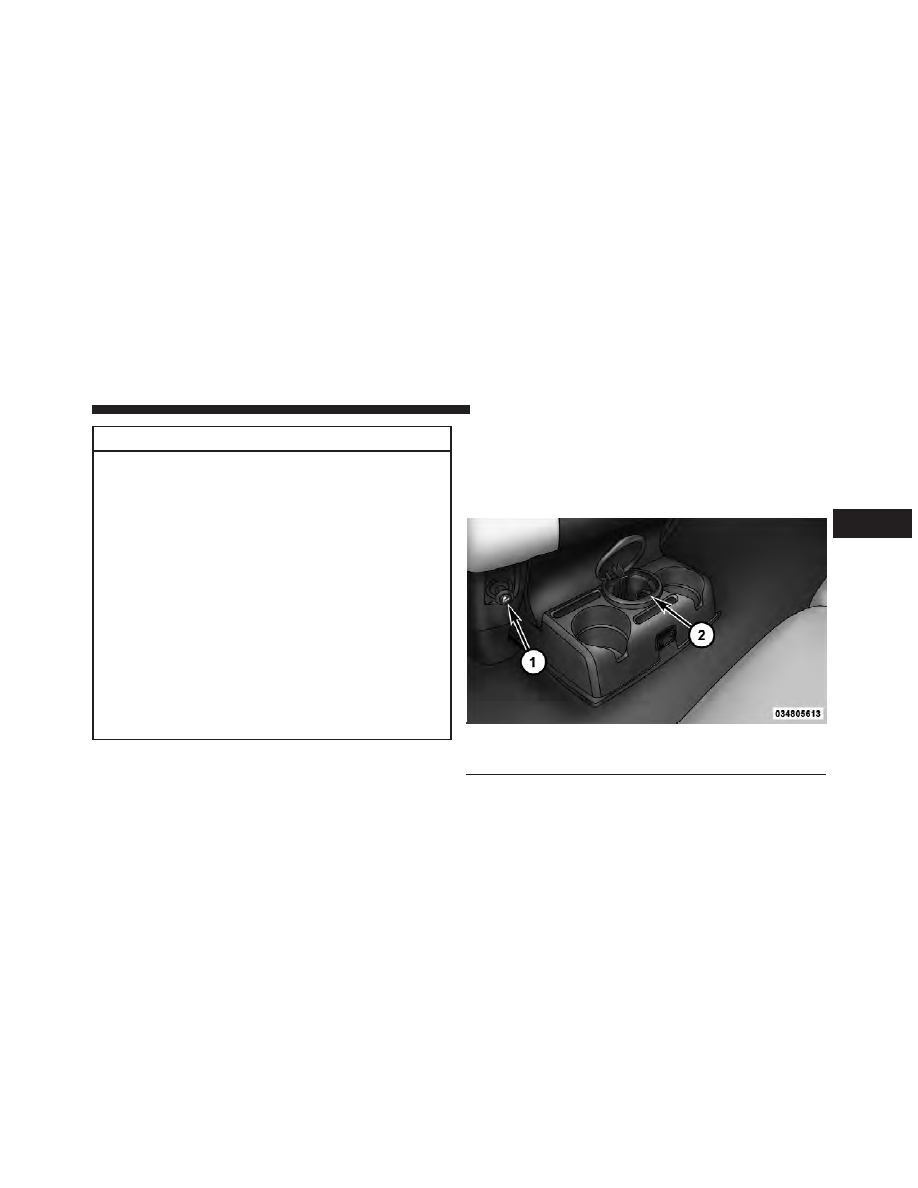

Ash Receiver and Cigar Lighter (Bench Seat)

1 — Cigar Lighter
2 — Ash Receiver

3

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

169

For vehicles equipped with a floor console the cuphold-
ers may be used.

POWER INVERTER — IF EQUIPPED

A 115 Volt (150 Watts Maximum) outlet is located on the
center stack of the instrument panel, to the right of the
radio. This outlet can power cellular phones, electronics
and other low power devices requiring power up to 150
Watts. Certain high-end video games, such as Playsta-
tion3 and XBox360 will exceed this power limit, as will
most power tools.

The power inverter is designed with built-in overload
protection. If the power rating of 150 Watts is exceeded,
the power inverter will automatically shut down. Once
the electrical device has been removed from the outlet the
inverter should automatically reset. If the power rating
exceeds approximately 170 Watts, the power inverter
may have to be reset instructionly. To reset the inverter
instructionly press the power inverter button OFF and ON.

To avoid overloading the circuit, check the power ratings
on electrical devices prior to using the inverter.

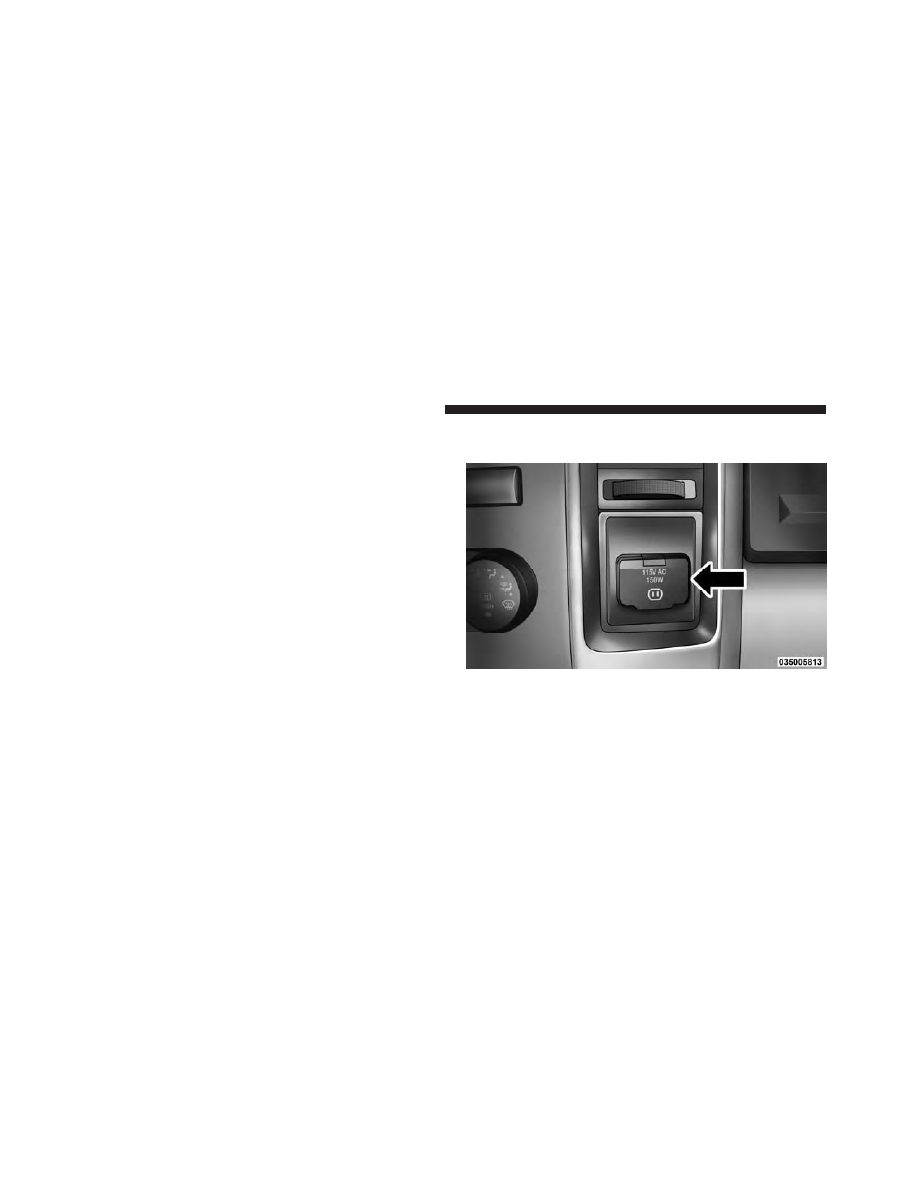

Power Inverter Outlet

170

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

The power inverter switch is located
on the switch bank below the Climate
Controls. To turn on the power outlet,
press the switch once. Press the switch
a second time to turn the power outlet
off.

NOTE:

• When the power inverter switch is pressed, there will

be a delay of approximately one second before the
power inverter status indicator turns on. The status
indicator of the AC power inverter indicates whether
the inverter is producing AC power.

• Due to built-in overload protection, the power inverter

will shut down if the power rating is exceeded.

WARNING!

To avoid serious injury or death:
• Do not use a three-prong adapter.
• Do not insert any objects into the receptacles.

• Do not touch with wet hands.
• Close the lid when not in use.

• If this outlet is mishandled it may cause an electric

shock and failure.

3

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

171















Content      ..     8      9      10      11     ..
