Windshield Wipers
The wipers and washers are operated by a switch in the
multifunction lever. Turn the end of the multifunction
lever to select the desired wiper speed.

Intermittent Wiper System
The intermittent feature of this system was designed for
use when weather conditions make a single wiping cycle,
with a variable pause between cycles, desirable. For
maximum delay between cycles, rotate the control knob
into the upper end of the delay range.

The delay interval decreases as you rotate the knob until
it enters the LO continual speed position. The delay can
be regulated from a maximum of about 18 seconds
between cycles, to a cycle every two seconds. The delay
intervals will double in duration when the vehicle speed
is 10 mph (16 km) or less.

NOTE:

If the front wiper is operating when the ignition

is turned OFF, the wiper will automatically return to the

⬙Park⬙ position. When the vehicle is restarted, the wipers
will resume operation.

Wiper/Washer Operation

140

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Windshield Washers
To use the washer, push in on the washer knob on the end
of the multifunction lever and hold while spray is
desired. If the washer knob is depressed while in the
delay range, the wiper will operate for several seconds
after the washer knob is released. It will then resume the
intermittent interval previously selected. If the washer
knob is pushed, for a period greater than one second
while in the off position, the wiper will wipe approxi-
mately three wipes after the wash knob is released.

To prevent freeze-up of your windshield washer system
in cold weather, select a solution or mixture that exceeds
the temperature range of your climate. This rating infor-
mation can be found on most washer fluid containers.

Washer Operation

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

141

WARNING!

Sudden loss of visibility through the windshield
could lead to a collision. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with the defroster before and during
windshield washer use.

TILT STEERING COLUMN
This feature allows you to tilt the steering column
upward or downward. The tilt lever is located on the
steering column, below the turn signal lever.

Pull the lever toward the steering wheel to unlock the
steering column. With one hand firmly on the steering
wheel, move the steering column up or down, as desired.
Push the lever away from the steering wheel to lock the
column firmly in place.

Tilt Steering Column Lever

142

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!

Do not adjust the steering column while driving.
Adjusting the steering column while driving or driv-
ing with the steering column unlocked, could cause
the driver to lose control of the vehicle. Be sure the
steering column is locked before driving your ve-
hicle. Failure to follow this warning may result in
serious injury or death.

ELECTRONIC SPEED CONTROL — IF EQUIPPED
The control buttons for the Electronic Speed Control are
located on the steering wheel. When engaged, the Elec-
tronic Speed Control takes over the accelerator operation
at speeds greater than 25 mph (40 km/h).

Electronic Speed Control Buttons

1 — Resume

4 — Set

2 — Cancel

5 — On/Off

3 — Decel

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

143

NOTE:

In order to ensure proper operation, the Elec-

tronic Speed Control System has been designed to shut
down if multiple Speed Control functions are operated at
the same time. If this occurs, the Electronic Speed Control
System can be reactivated by pushing the Electronic
Speed Control ON/OFF button and resetting the desired
vehicle set speed.

To Activate
Push the ON/OFF button to the ON position. In the
instrument cluster, the word “CRUISE” illuminates to
indicate that the system is on.

To Set A Desired Speed
Turn the Electronic Speed Control ON. When the vehicle
has reached the desired speed, press and release the SET
button. Release the accelerator and the vehicle will
operate at the selected speed.

To Deactivate
A soft tap on the brake pedal, normal braking, or pressing
the CANCEL button will deactivate the speed control
without erasing the memory. Pushing the ON/OFF but-
ton to the OFF position or turning off the ignition erases
the memory.

WARNING!

Leaving the Electronic Speed Control ON when not
in use is dangerous. You could accidentally set the
Electronic Speed Control to cause it to go faster than
you want. You could lose control and have an acci-
dent. Always leave the system OFF when you are not
using it.

To Resume Speed
To resume a previously set speed, push and release the
RESUME button. Resume can be used at any speed above
20 mph (32 km/h).

144

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

To Vary The Speed Setting
When the Electronic Speed Control System is ON, the
speed can be increased by pressing and holding the
RESUME/ACCEL button. When the button is released, a
new set speed will be established.

Tapping the ACCEL button once will result in a 1 mph
(2 km/h) increase in set speed. Each subsequent tap of
the button results in an increase of 1 mph (2 km/h).

Tapping the DECEL button once will result in a speed
decrease of 1 mph (2 km/h). Each time the button is
tapped, speed will decrease. For example, tapping the
button three times will decrease the speed by 3 mph
(4.8 km/h).

Tapping the DECEL button once will result in a 1 mph
(2 km/h) decrease in set speed. Each subsequent tap of
the button results in a decrease of 1 mph (2 km/h).

To Accelerate For Passing
Press the accelerator as you would normally. When the
pedal is released, the vehicle will return to the set speed.

NOTE:

When driving uphill, at elevations above 2,000 ft

(610 m), or when the vehicle is heavily loaded (especially
when towing) the vehicle may slow below the SET speed.
If the vehicle speed drops below 25 mph (40 km/h), the
Electronic Speed Control will automatically disengage. If
this happens, you can push down on the accelerator
pedal to maintain the desired speed.

Vehicles equipped with an automatic transmission may
exhibit several downshifts under the above conditions.
To reduce the frequency of the downshifts and to im-
prove vehicle performance, it is advisable to lock out
OVERDRIVE by pressing the TOW/HAUL button lo-
cated at the end of the shift lever.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

145

WARNING!

Electronic Speed Control can be dangerous where the
system cannot maintain a constant speed. Your ve-
hicle could go too fast for the conditions, and you
could lose control and have an accident. Do not use
Electronic Speed Control in heavy traffic or on roads
that are winding, icy, snow-covered or slippery.

OVERHEAD CONSOLE
The overhead console has the following features:

• Courtesy Lights
• Garage Door Opener — If Equipped

Overhead Console

146

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

• Compass/Temperature Mini-Trip Computer — If

Equipped

Courtesy/Reading Lights
Near the front of the console are two courtesy/reading
lights.

Both lights illuminate as courtesy lights when a door is
opened, when the dimmer control is rotated to the
courtesy light position (fully upward position), or when
the UNLOCK button is pressed on the Remote Keyless
Entry (RKE) transmitter, if equipped. These lights are also
operated individually as reading lights by pressing the
recessed area of the corresponding lens.

NOTE:

The courtesy/reading lights will remain on until

the switch is pressed a second time, so be sure they have
been turned off before leaving the vehicle. If the interior
lights are left on after the vehicle is turned OFF, they will
extinguish after approximately 10 minutes.

COMPASS/TEMPERATURE MINI-TRIP COMPUTER
This feature allows you to choose between a compass/
temperature display and one of four trip conditions being
monitored.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

147

US/M Button
Use the US/M button to change the display from U.S. to
metric measurement units.

RESET Button
Use the RESET button to reset the following displays:

• Average Fuel Economy
• Trip Odometer
• Elapsed time.

US/M Button

RESET Button

148

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

STEP Button
Use the STEP button to choose, or cycle through, the four
trip conditions.

Average Fuel Economy (AVG ECO)
Displays the average fuel economy since the last reset.
Average fuel economy is a running average of the
amount of fuel used and the distance the vehicle has
traveled. When the fuel economy is reset, the display will
momentarily blank, the history will be erased, and the
AVERAGE WILL CONTINUE FROM WHERE IT WAS
BEFORE THE RESET. The reset value is based on a
minimal amount of fuel used and the distance traveled
from the previous drive cycle. The display may take
several miles/kilometers for this value to change, de-
pending upon driving habits.

Distance To Empty (DTE)
Shows the estimated distance that can be traveled with
the fuel remaining in the tank. The estimated distance is
determined by a weighted average of the instantaneous
and average fuel economy, according to the current fuel
tank level.

STEP Button

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

149

NOTE:

The DTE is not resettable.

When Distance To Empty = LOW FUEL, the fuel gauge
pointer will initially be on the red “E” marker. At this
point (fuel gauge pointer on the red “E” marker), there is
reserve fuel capacity, which corresponds to approxi-
mately 8% of tank volume. This reserve capacity was put
in place to prevent the likelihood of customers running
out of fuel when operating at maximum load conditions
in areas where there aren’t many gas stations.

NOTE:

The Distance To Empty will remain equal to zero

until the vehicle runs out of fuel or is refueled.

Trip Odometer (ODO)
This display shows the distance traveled since the last
reset.

NOTE:

The

maximum

value

approximately

6000 miles (9656 km).

Resetting of this screen will cause the trip odometer to
change to zero. Then the trip odometer must be reset in
order to update the trip odometer miles.

Elapsed Time (ET)
This display shows the accumulated ignition ON time
since the last reset. Resetting the Elapsed Time will cause
the display to change to zero.

C/T Button
Use the C/T (Compass/Temperature) button to select a
readout of the outside temperature and one of eight
compass headings that indicate the direction in which the
vehicle is facing.

150

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

The system will display the last known outside tempera-
ture when starting the vehicle and may need to be driven
several minutes before the updated temperature is dis-
played. Engine temperature can also affect the displayed
temperature, therefore temperature readings are not up-
dated when the vehicle is not moving.

Global Reset
If the RESET button is pressed twice within two seconds
while in any of the three resettable displays (AVG ECO,
ODO, ET), the GLOBAL RESET will reset all three
displays.

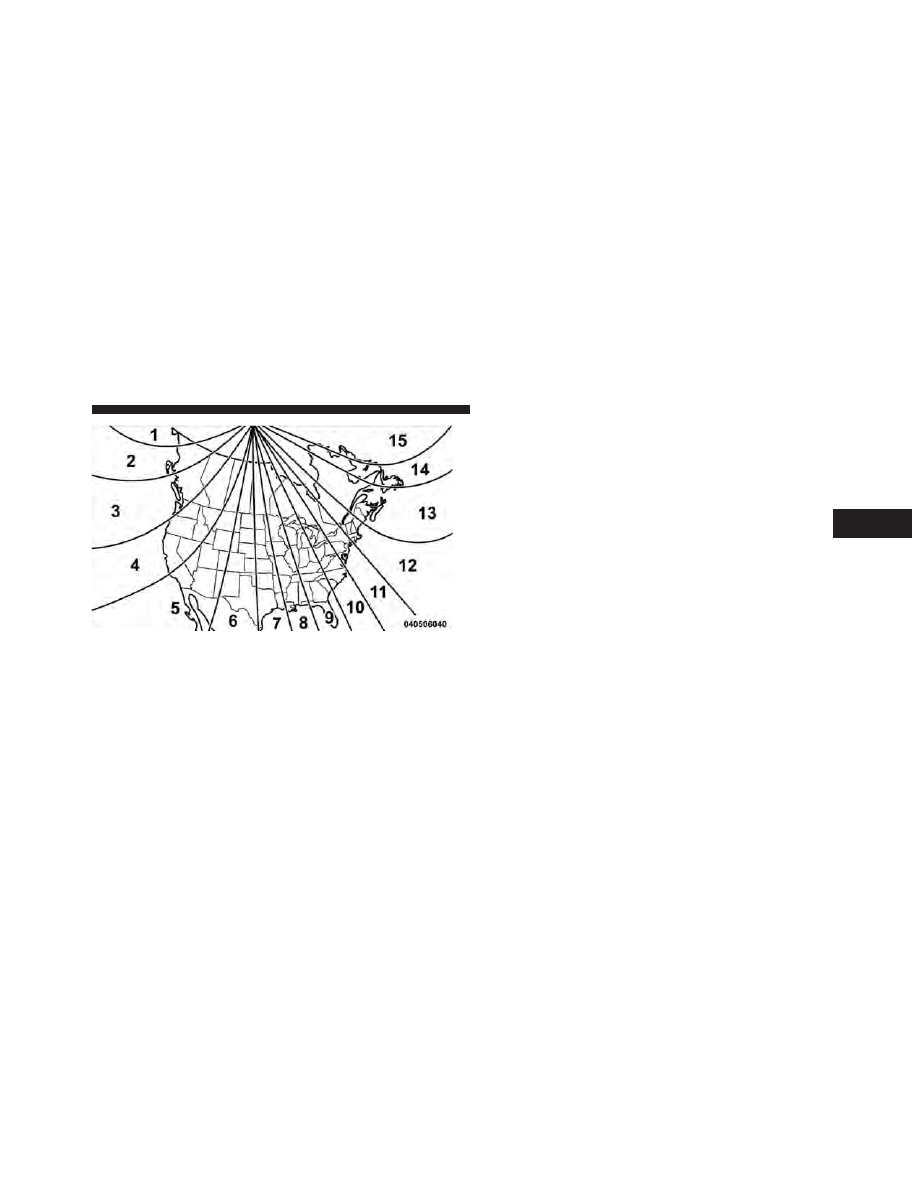

Compass/Temperature Display

WARNING!

Even if the display still reads a few degrees above 32°
F (0° C), the road surface may be icy, particularly in
woods or on bridges. Drive carefully under such
conditions to prevent an accident and possible per-
sonal injury or property damage.

C/T Button

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

151

Automatic Compass Calibration
This compass is self-calibrating which eliminates the
need to instructionly set the compass. When the vehicle is
new, the compass may appear erratic and the CAL
symbol will be displayed.

After completing one 360 degree turn with the vehicle
traveling less than 5 mph (8 km/h) in an area free from
large metal or metallic objects, the CAL symbol will turn
off and the compass will function normally.

NOTE:

Magnetic materials should be kept away from

the Overhead Console. This is where the compass sensor
is located.

Instruction Compass Calibration

NOTE:

To ensure proper compass calibration, make

sure the compass variance is properly set before manu-
ally calibrating the compass.

If the compass appears erratic and the CAL symbol does
not appear, you must instructionly put the compass into the
“Calibration” mode.

To Put Into A Calibration Mode
Turn the ignition ON and set the display to “Compass/
Temperature.” Press and hold the RESET button to
change the display between VAR (compass variance) and
CAL (compass calibration) modes. When the CAL sym-
bol is displayed, complete one 360 degree turn in an area
free from large metal objects or power lines. The CAL
symbol will turn off and the compass will function
normally.

Compass Variance

is the difference between magnetic

North and geographic North. In some areas of the
country, the difference between magnetic and geographic
North is great enough to cause the compass to give false
readings. If this occurs, the compass variance must be set
according to the Compass Variance Map.

152

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

To set the variance: Turn the ignition ON and set the
display to “Compass/Temperature.” Press and hold the
RESET button approximately five seconds. The last vari-
ance zone number will be displayed. Press the STEP

button to select the new variance zone and press the
RESET button to resume normal operation.

Outside Temperature
Because the ambient temperature sensor is located under
the hood, engine temperature can influence the displayed
temperature; therefore, temperature readings are slowly
updated when the vehicle speed is below 20 mph
(30 km/h) or during stop-and-go driving.

GARAGE DOOR OPENER — IF EQUIPPED
HomeLink

威 replaces up to three remote controls (hand-

held transmitters) that operate devices such as garage
door openers, motorized gates, lighting or home security
systems. The HomeLink

威 unit operates off of your vehi-

cle’s battery.

Compass Variance Map

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

153

The HomeLink

威 buttons are located in the overhead

console designating the different HomeLink

威 channels.

NOTE:

HomeLink

威 is disabled when the Vehicle Theft

Alarm (if equipped) is active.

WARNING!

• Your motorized door or gate will open and close

while you are training the Universal Transceiver.
Do not train the transceiver if people, pets or other
objects are in the path of the door or gate. Only use
this transceiver with a garage door opener that has
a “stop and reverse” feature as required by federal
safety standards. This includes most garage door
opener models manufactured after 1982. Do not
use a garage door opener without these safety
features. Call toll-free 1–800–355–3515 or, on the
Internet at www.HomeLink.com for safety infor-
mation or assistance.

• Vehicle exhaust contains carbon monoxide, a dan-

gerous gas. Do not run your vehicle in the garage
while training the transceiver. Exhaust gas can
cause serious injury or death.

HomeLink Buttons

154

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Programming HomeLink

姞

Before You Begin
The Compass Mini-Trip Computer (CMTC) illuminates
the HomeLink

威 symbol (a house with an arrow inside it)

along with 1, 2 or 3 indicators under it, when a
HomeLink

威 button is pressed.

Pay attention to the indicator(s), as they will flash at
different rates, or remain solid during training.

If you have not trained any of the HomeLink

威 buttons,

erase all channels before you begin training.

To do this, press and hold the two outside buttons for
20 seconds. Release the buttons when the indicators start
to flash.

It is recommended that a new battery be placed in the
handheld transmitter of the device being copied to
HomeLink

威 for more efficient training and accurate

transmission of the radio-frequency signal.

Your vehicle should be parked outside of the garage
while training.

1. Turn the ignition switch to the ON/RUN position.

2. Place the handheld transmitter 1 to 3 inches (3 to 8 cm)
from the HomeLink

威 buttons while keeping the

HomeLink

威 display in view.

For optimal training, point the battery end of the hand-
held transmitter away from the HomeLink

威.

3. Simultaneously, press and hold both the chosen
HomeLink

威button and the handheld transmitter button

until the indicator(s) change from a slow to a rapid flash
rate.

Then release both the HomeLink

威 and handheld trans-

mitter buttons.

It may take up to 30 seconds or longer in rare cases. The
garage door may open and close while you train.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

155

Dodge Dakota (2011 year). Instruction - part 9
