Dodge 2500 (2009 year). Instruction

A WORD ABOUT YOUR KEYS
The authorized dealer that sold you your vehicle has the
key code numbers for your vehicle locks. These numbers
can be used to order duplicate keys from your authorized
dealer. Ask your authorized dealer for these numbers
and keep them in a safe place.

Ignition Key Removal

Automatic Transmission
Place the shift lever in PARK. Turn the ignition switch to
the LOCK position, and remove the key.

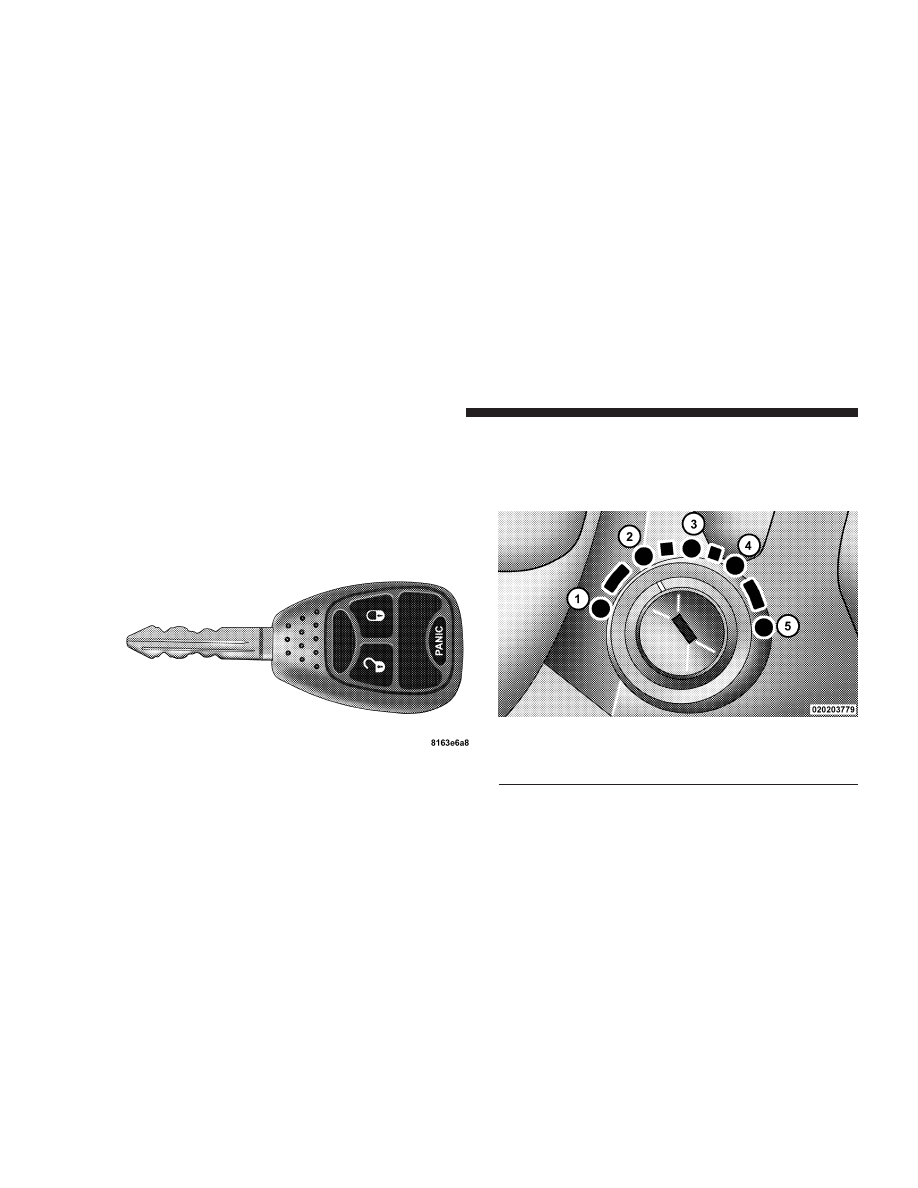

Ignition Key

Ignition Switch Positions

1 — ACC (ACCESSORY)

4 — ON/RUN

2 — LOCK

5 — START

3 — OFF

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:

• If you try to remove the key before you place the shift

lever in PARK, the key may become trapped tempo-
rarily in the ignition cylinder. If this occurs, rotate the
key to the right slightly, then remove the key as
described. If a malfunction occurs, the system will trap
the key in the ignition cylinder to warn you that this
safety feature is inoperable. The engine can be started
and stopped but the key cannot be removed until you
obtain service.

• The power window switches, radio, power sunroof (if

equipped), and power outlets will remain active for
10 minutes after the ignition switch is turned OFF.
Opening either front door will cancel this feature.

WARNING!

Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Don’t leave the key in the
ignition. A child could operate power windows,
other controls, or move the vehicle.

CAUTION!

An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

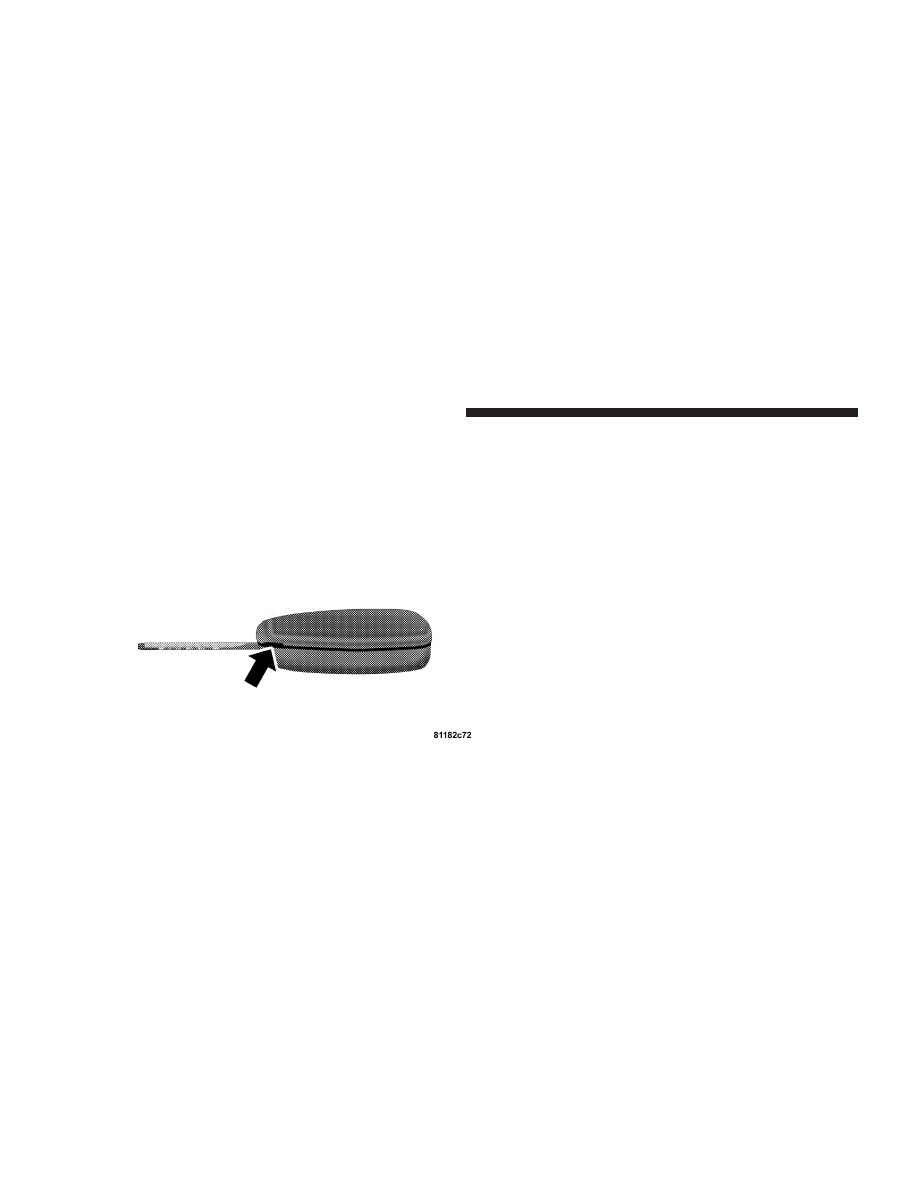

Locking Doors With A Key
You can insert the key with either side up. To lock the
door, turn the key rearward. To unlock the door, turn the
key forward. For door lock lubrication, see “Body Lubri-
cation” in Section 7 of this instruction.

STEERING WHEEL LOCK — IF EQUIPPED
Your vehicle may be equipped with a passive steering
wheel lock. This lock prevents steering the vehicle with-
out the ignition key. If the steering wheel is moved
approximately a half turn in either direction and the key
is not in the ignition switch, the steering wheel will lock.

To Instructionly Lock the Steering Wheel
With the engine running, turn the steering wheel upside
down, turn off the engine and remove the key. Turn the
steering wheel slightly in either direction until the lock
engages.

To Release the Steering Wheel Lock
Insert the key in the ignition switch and start the engine.
If the key is difficult to turn, move the wheel slightly to
the right or left to disengage the lock.

NOTE:

If you turned the wheel to the right to engage

the lock, you must turn the wheel slightly to the right to
disengage it. If you turned the wheel to the left to engage
the lock, turn the wheel slightly to the left to disengage it.

Automatic Transmission Ignition Interlock System
This system prevents the key from being removed unless
the shift lever is in PARK. It also prevents shifting out of
PARK unless the key is in the ON positions, and the
brake pedal is depressed.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

SENTRY KEY

姞

The Sentry Key

威 Immobilizer System prevents unautho-

rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.

The system uses ignition keys that have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two
seconds if someone uses an invalid key to try to start the
engine.

NOTE:

A key that has not been programmed is also

considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.

During normal operation, after turning on the ignition
switch, the Vehicle Security Light will turn on for three

seconds for a bulb check. If the light remains on after the
bulb check, it indicates that there is a problem with the
electronics. In addition, if the Vehicle Security Light
begins to flash after the bulb check, it indicates that
someone used an invalid key to try to start the engine.
Either of these conditions will result in the engine being
shut off after two seconds.

If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible.

NOTE:

• The Sentry Key威 Immobilizer System is not compat-

ible with some aftermarket remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

• Exxon/Mobil Speedpass™, additional Sentry Keys威,

or any other transponder-equipped components on
the same key chain will not cause a key-related
(transponder) fault unless the additional part is physi-
cally held against the ignition key

being used when

starting the vehicle. Cell phones, pagers, or other
Radio Frequency (RF) electronics will not cause inter-
ference with this system.

All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.

Replacement Keys

NOTE:

Only keys that are programmed to the vehicle

electronics can be used to start and operate the vehicle.
Once a Sentry Key

威 is programmed to a vehicle, it cannot

be programmed to any other vehicle.

CAUTION!

Always remove the Sentry Keys

威 from the vehicle

and lock all doors when leaving the vehicle unat-
tended.

At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of keys. Du-
plication of keys may be performed at an authorized
dealer or by following the customer key programming
procedure. This procedure consists of programming a
blank key to the vehicle electronics. A blank key is one
that has never been programmed.

NOTE:

When having the Sentry Key

威 Immobilizer

System serviced, bring all vehicle keys with you to an
authorized dealer.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

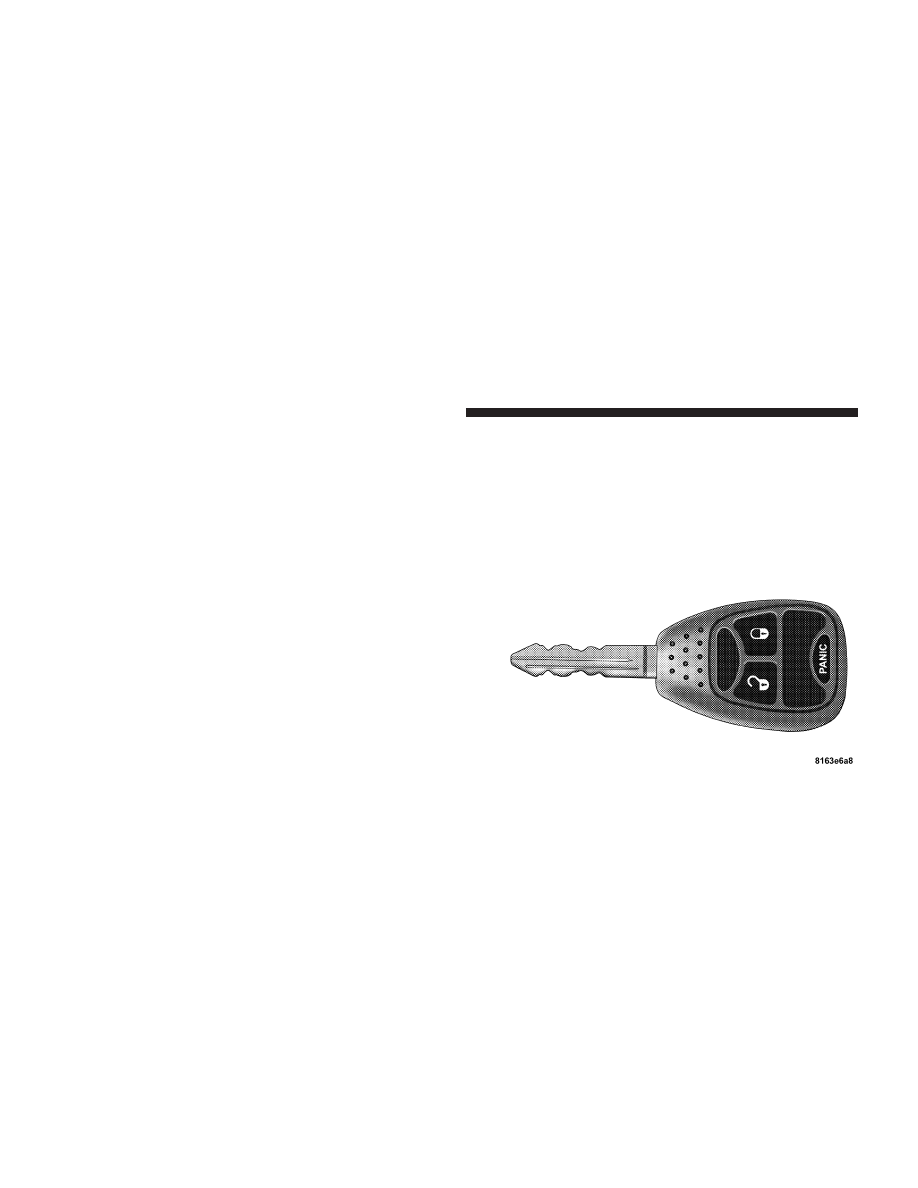

Customer Key Programming
If you have two valid Sentry Keys

威, you can program

new Sentry Keys

威 to the system by performing the

following procedure:

1. Cut the additional Sentry Key

威 Transponder blank(s)

to match the ignition switch lock cylinder key code.

2. Insert the first valid key into the ignition switch. Turn
the ignition switch to the ON position for at least three
seconds, but no longer than 15 seconds. Then, turn the
ignition switch to the LOCK position and remove the first
key.

3. Insert the second valid key into the ignition switch.
Turn the ignition switch to the ON position within
15 seconds. After 10 seconds, a chime will sound. In
addition, the Vehicle Security Light will begin to flash.
Turn the ignition switch to the LOCK position and
remove the second key.

4. Insert a blank Sentry Key

威 into the ignition switch.

Turn the ignition switch to the ON position within
60 seconds. After 10 seconds, a single chime will sound.
In addition, the Vehicle Security Light will stop flashing.
To indicate that programming is complete, the Vehicle
Security Light will turn on again for three seconds and
then turn off.

The new Sentry Key

威 is programmed. The Remote

Keyless Entry (RKE) transmitter will also be pro-
grammed during this procedure.

Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key

威, contact your

authorized dealer for details.

NOTE:

If a programmed key is lost, see your authorized

dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be
reprogrammed.

General Information
The Sentry Key

威 system complies with FCC rules Part 15

and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:

• This device may not cause harmful interference.
• This device must accept any interference that may be

received, including interference that may cause undes-
ired operation.

VEHICLE SECURITY ALARM — IF EQUIPPED
This Vehicle Security Alarm monitors the vehicle doors
and ignition for unauthorized operation. When the alarm
is activated, the Vehicle Security Alarm provides both
audible and visible signals. For the first three minutes the
horn will sound and the headlights and Vehicle Security

Light will flash repeatedly. For an additional 15 minutes
only, the headlights and Vehicle Security Light will flash.
The engine will run only if a valid Sentry Key

威 is used to

start the vehicle. Use of the Sentry Key

威 will disable the

alarm.

Rearming of the System
The Vehicle Security Alarm will rearm itself after the 15
additional minutes of headlights and Vehicle Security
Light flashing, if the Vehicle Security Alarm has not been
disabled. If the condition which initiated the alarm is still
present, the Vehicle Security Alarm will ignore that
condition and monitor the remaining doors and ignition.

To Set the Alarm
The Vehicle Security Alarm will set when you use the
power door locks, or use the Remote Keyless Entry (RKE)
transmitter to lock the doors. After all the doors are
locked and closed, the Vehicle Security Light in the
instrument cluster will flash rapidly to signal that the

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Vehicle Security Alarm is arming. The Vehicle Security
Light in the instrument panel cluster will flash rapidly for
about 16 seconds to indicate that the alarm is being set.
After the alarm is set, the Vehicle Security Light will flash
at a slower rate to indicate that the Vehicle Security
Alarm is armed.

NOTE:

If the Vehicle Security Light stays on continu-

ously during vehicle operation, have the Vehicle Security
Alarm checked by an authorized dealer.

To Disarm the System
Use the RKE transmitter to unlock the door. If something
has triggered the Vehicle Security Alarm in your absence,
the horn will sound three times when you unlock the
doors and the Vehicle Security Light will flash for 30 sec-
onds. Check the vehicle for tampering.

The Vehicle Security Alarm will also disarm if the vehicle
is started with a programmed Sentry Key

威. If an unpro-

grammed Sentry Key

威 is used to start a vehicle, the

engine will run for two seconds and then the Security
Alarm will be initiated. To exit the alarming mode, press
the RKE transmitter UNLOCK button, or start the vehicle
with a programmed Sentry Key

威.

The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
Vehicle Security Alarm will arm unexpectedly. If you
remain in the vehicle and lock the doors with the RKE
transmitter, the alarm will sound when you pull the door
handle to exit. The door will be locked, but the Vehicle
Security Alarm will not arm.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

ILLUMINATED ENTRY SYSTEM — IF EQUIPPED
The courtesy lights will turn on when you use the
Remote Keyless Entry (RKE) transmitter or open the
doors. This feature is only available if you have Remote
Keyless Entry.

The lights will fade to off after about 30 seconds, or they
will immediately fade to off once the ignition switch is
turned ON.

NOTE:

• The front courtesy overhead console and door cour-

tesy lights do not turn off if the dimmer control is in
the interior lights on position (extreme top position).

• The Illuminated Entry system will not operate if the

dimmer control is in the extreme downward position.

REMOTE KEYLESS ENTRY (RKE) — IF
EQUIPPED
The system allows you to lock or unlock the doors from
distances up to approximately 66 ft (20 m) using a
Remote Keyless Entry (RKE) transmitter. The RKE trans-
mitter does not need to be pointed at the vehicle to
activate the system.

Three Button RKE Transmitter

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To Unlock the Doors
Press and release the UNLOCK button on the RKE
transmitter once to unlock only the driver’s door or twice
to unlock all the doors. When the UNLOCK button is
pressed, the illuminated entry will initiate, the parking
lights will flash on twice and, if installed, the cargo lamp
will turn on for 30 seconds.

The system can be programmed to unlock all the doors or
the driver’s door only upon the first UNLOCK button
press by using the following procedure:

1. Perform this operation while standing outside the
vehicle.

2. Press and hold the LOCK button on your RKE trans-
mitter.

3. Continue to hold the LOCK button at least four
seconds, but no longer than 10 seconds, then press and
hold the UNLOCK button while still holding the LOCK
button.

4. Release both buttons at the same time.

5. This will allow you to unlock all doors on the first
press of the UNLOCK button.

6. To reactivate this feature, repeat the above steps.

To Lock the Doors
Press and release the LOCK button on the RKE transmit-
ter to lock all doors. If the ignition is OFF, when the doors
are locked, the parking lights will flash on once and the
horn will chirp once.

The Horn Chirp feature is activated when shipped from
the assembly plant. If desired, this feature can be disabled
by using the following procedure:

1. Perform this operation while standing outside the
vehicle.

2. Press and hold the LOCK button on a programmed
(i.e., functional) RKE transmitter.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. Continue to hold the LOCK button, wait at least four
seconds, but no longer than 10 seconds, then press and
hold the PANIC button. Release both buttons at the same
time.

4. To reactivate this feature, repeat the above steps.

This vehicle is shipped from the assembly plant with the
park lamp flash feature activated. If desired, this feature
can be disabled by using the following procedure:

1. Perform this operation while standing outside the
vehicle.

2. Press and hold the UNLOCK button on a programmed
(i.e., functional) RKE transmitter.

3. Continue to hold the UNLOCK button, wait at least
four seconds, but no longer than 10 seconds, then press
and hold the LOCK button. Release both buttons at the
same time.

4. To reactivate this feature, repeat the above steps.

Using the Panic Alarm
To activate the Panic Mode while the ignition is OFF,
press and release the PANIC button on the RKE trans-
mitter once. When the Panic Mode is activated, the
interior lights will illuminate, the headlights and parking
lights will flash, and the horn will sound.

To cancel the Panic Mode, press and release the PANIC
button on the transmitter a second time, after five sec-
onds. Panic Mode will automatically cancel after three
minutes, or if the vehicle is started and exceeds 15 mph
(24 km/h). During the Panic Mode, the door locks and
RKE systems will function normally. Panic Mode will not
disarm the Vehicle Security Alarm System on vehicles so
equipped.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Programming Additional RKE Transmitters
Refer to “Sentry Key

威 Programming” under “Sentry

Key

威” in this section.

If you do not have a programmed RKE transmitter,
contact your authorized dealer for details.

General Information
This device complies with part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference that may be
received including interference that may cause undesired
operation.

NOTE:

Changes or modifications not expressly ap-

proved by the party responsible for compliance could
void the user’s authority to operate the equipment.

If your RKE transmitter fails to operate from a normal
distance, check for these two conditions:

1. Weak battery in RKE transmitter. The expected life of
the battery is from one to two years.

2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, and some mobile or CB radios.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

RKE Transmitter Battery Service

1. With RKE transmitter buttons facing down, use a flat
blade or dime to pry the two halves of the RKE transmit-
ter apart. Make sure not to damage the rubber gasket
during removal.

2. Remove and replace the battery. When replacing the
battery, match the + sign on battery to the + sign on the
inside of the battery clip, located on back cover. Avoid
touching the new battery with your fingers. Skin oils may
cause battery deterioration. If you touch a battery, clean it
with rubbing alcohol.

3. To reassemble the RKE transmitter case, snap the two
halves of the case together. Make sure there is an even
“gap” between the two halves. If equipped, install and
tighten the screw until snug. Test the RKE transmitter
operation.

NOTE:

• Perchlorate Material – special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate

• The recommended replacement battery is CR2032.
• Do not touch the battery terminals that are on the back

housing or the printed circuit board.

RKE Transmitter Battery Replacement

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

REMOTE STARTING SYSTEM — IF EQUIPPED

This system uses the Remote Keyless Entry
(RKE) transmitter to start the engine conve-
niently from outside the vehicle while still
maintaining security. The system has a targeted

range of 328 ft (100 m).

NOTE:

The vehicle must be equipped with an auto-

matic transmission to be equipped with Remote Start.

How to Use Remote Start
All of the following conditions must be met before the
engine will remote start:

• Shift lever in PARK
• Doors closed
• Hood closed
• Hazard switch off
• Brake switch inactive (brake pedal not pressed)

• Ignition key removed from ignition switch
• Battery at an acceptable charge level
• RKE PANIC button not pressed

To Enter Remote Start

Press and release the REMOTE START button
on the RKE transmitter twice, within five sec-
onds. The parking lights will flash and the horn
will chirp twice (if programmed). Then, the

engine will start and the vehicle will remain in the
Remote Start mode for a 15-minute cycle.

NOTE:

• The park lamps will turn on and remain on during

Remote Start mode.

• For security, power window and power sunroof op-

eration (if equipped) are disabled when the vehicle is
in the Remote Start mode.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

• The engine can be started two consecutive times (two

15-minute cycles) with the RKE transmitter. However,
the ignition switch must be cycled to the ON position
before you can repeat the start sequence for a third
cycle.

Remote start will also cancel if any of the following occur:

• The engine stalls or RPM exceeds 2500
• Any engine warning lamps come on
• The hood is opened
• The hazard switch is pressed
• The transmission is moved out of PARK
• The brake pedal is pressed

To Exit Remote Start Mode without Driving the
Vehicle
Press and release the REMOTE START button one time,
or allow the engine to run for the entire 15-minute cycle.

NOTE:

To avoid unintentional shut downs, the system

will disable the one time press of the REMOTE START
button for two seconds after receiving a valid Remote
Start request.

To Exit Remote Start Mode and Drive the Vehicle
Before the end of the 15-minute cycle, press and release
the UNLOCK button on the RKE transmitter to unlock
the doors and disarm the Vehicle Security Alarm (if
equipped). Then, prior to the end of the 15-minute cycle,
insert the key into the ignition switch and turn the switch
to the ON position.

NOTE:

• The ignition switch must be in the ON position in

order to drive the vehicle.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

DOOR LOCKS

Instruction Door Locks
Front and rear doors may be locked by moving the lock
plunger up or down.

All doors may be opened with the inside door handle
without lifting the lock plunger. Doors locked before
closing will remain locked when closed.

The ignition key will unlock all the locks on your vehicle.

WARNING!

• For personal security and safety in the event of an

accident, lock the vehicle doors when you drive as
well as when you park and leave the vehicle.

• Never leave children alone in a vehicle. Leaving

unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Don’t leave the key in
the ignition. A child could operate power win-
dows, other controls, or move the vehicle.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Dodge 2500 (2009 year). Instruction - part 1
