The bi-level cargo floor includes a removable, tri-fold
load-bearing upper level. Two folds in the panel allow it
to be partially or fully folded for storage flexibility.
Shallow items can be stored underneath the upper load
floor.

The lower load floor is hinged to provide access to the
spare tire (if equipped), battery, and rear electrical power
distribution center.

The 60/40 split-folding rear seat provides cargo-carrying
versatility. The seatbacks fold down easily by pulling
nylon tabs between the seatbacks and the bolsters. When
the seats are folded down, they provide a continuous,
nearly flat extension of the removable tri-fold load floor.

Tri-Fold Upper Load Floor
The removable tri-fold upper load floor has two different
surfaces for increased utility. One side is carpeted for a
plush appearance and the other side is covered with
vinyl for easy cleaning. The panel, sandwiched between
the carpet and the washable-vinyl, is constructed from a
strong lightweight material that gives the floor its load-
bearing strength.

You can place the load floor in a partially folded position,
a fully folded position, or a flat position. You can also
remove it from the vehicle. Folding and/or removing the
load floor will add four inches to the height of the cargo
area for increased utility. Use the handle to adjust the
position of the load floor. The load floor positions are

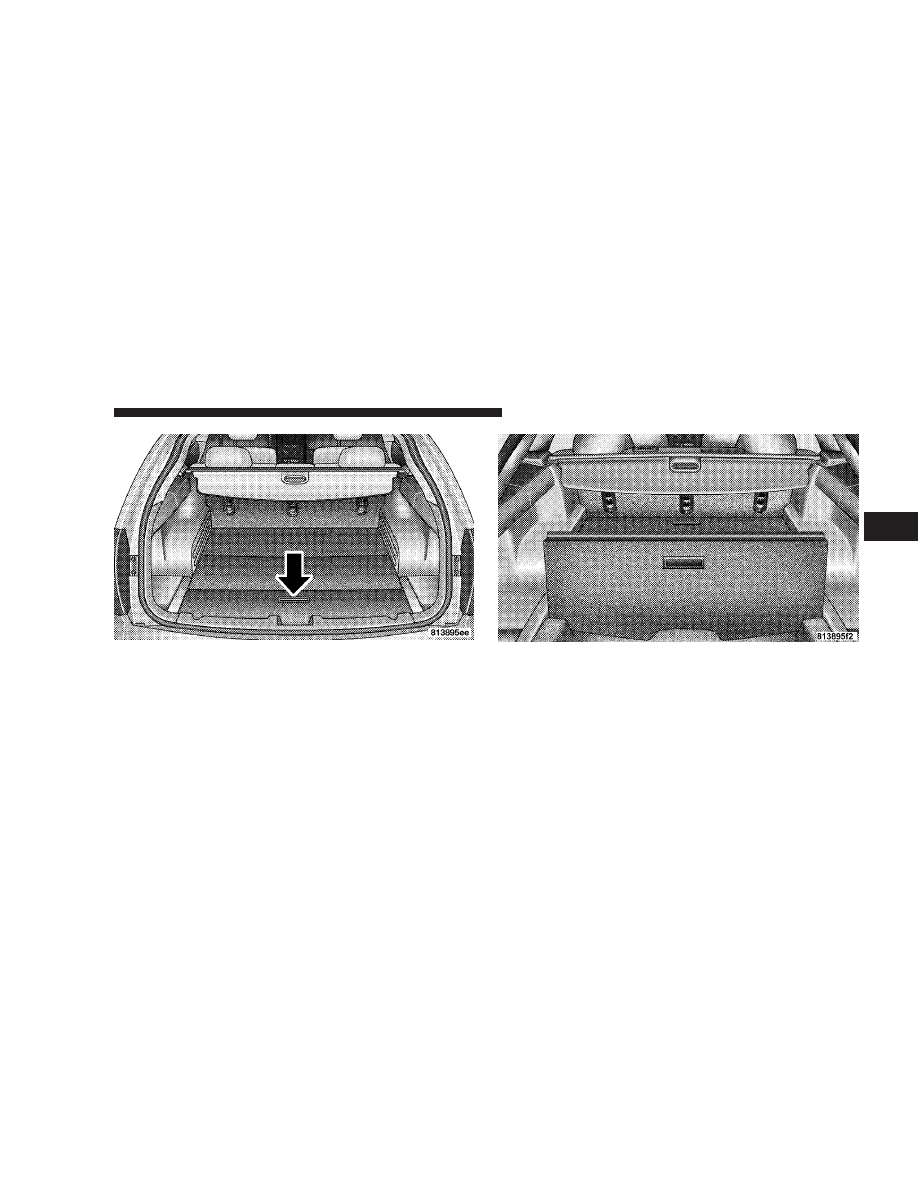

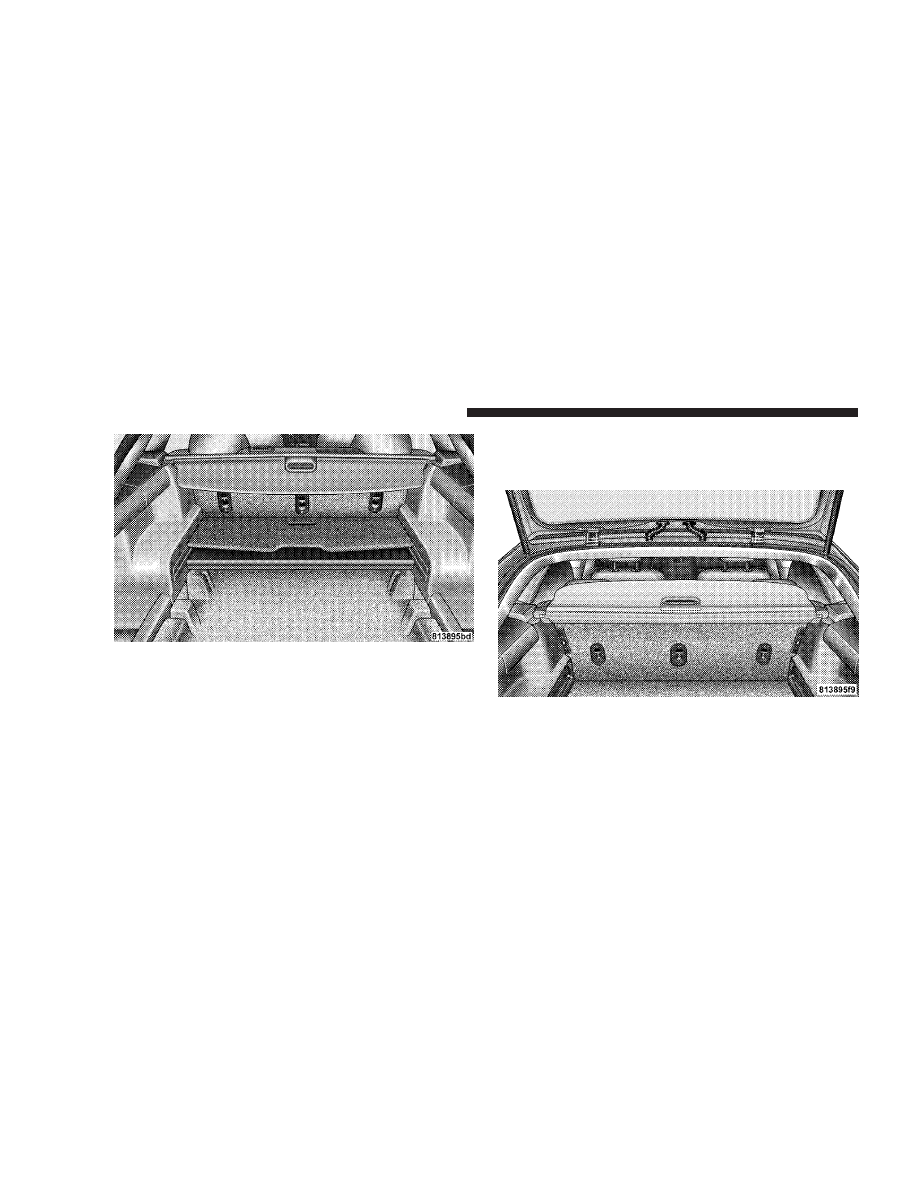

shown in the following illustrations.

156

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Load Floor Handle

Load Floor Partially Folded

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

157

3

Rollaway Tonneau Cover — If Equipped
The removable rollaway tonneau cover mounts in the
cargo area behind the top of the rear seats.

The tonneau cover, when extended, covers the cargo area
to keep items out of sight. Notches in the trim panels near
the liftgate opening secure the extended tonneau cover in
place.

Load Floor Fully Folded

158

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

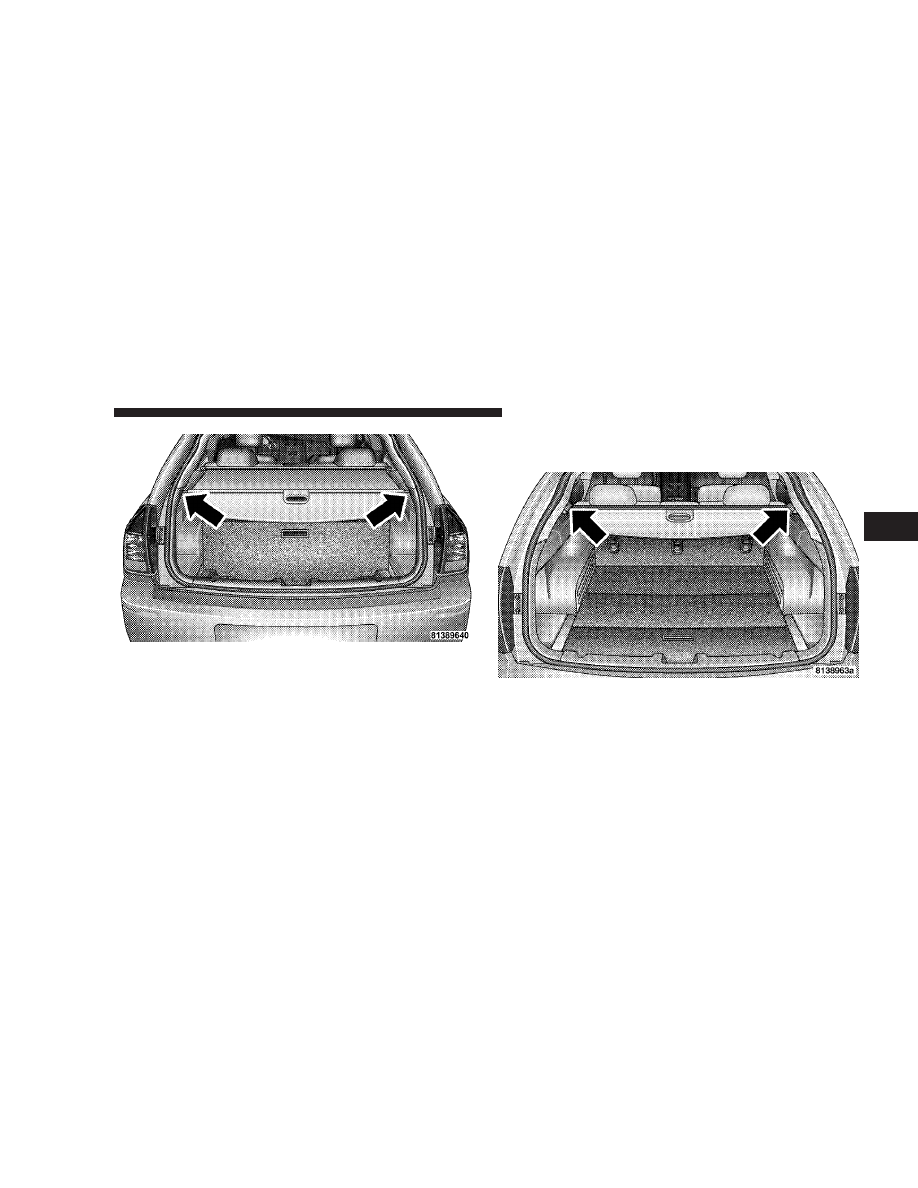

The tonneau cover rolls away neatly inside its housing
when not in use. You can also remove the tonneau cover
from the vehicle to make more room in the cargo area.

To install the tonneau cover, position it in the vehicle so
that the flat side of the housing faces upward. Then,
insert either the left or the right spring-loaded post

(located on the ends of the tonneau cover housing) into
the left or the right front attachment point shown.

Then, insert the spring-loaded post on the opposite end
of the tonneau cover housing into the remaining front
attachment point.

Front Attachment Points

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

159

3

Next, grab the tonneau cover handle and pull the cover
toward you. As the cover nears the liftgate opening,
guide the rear attachment posts (on both ends of the
cover) into the notches in the trim panels. Then, lower the
cover to position the posts into the bottom of the notches
and release the handle.

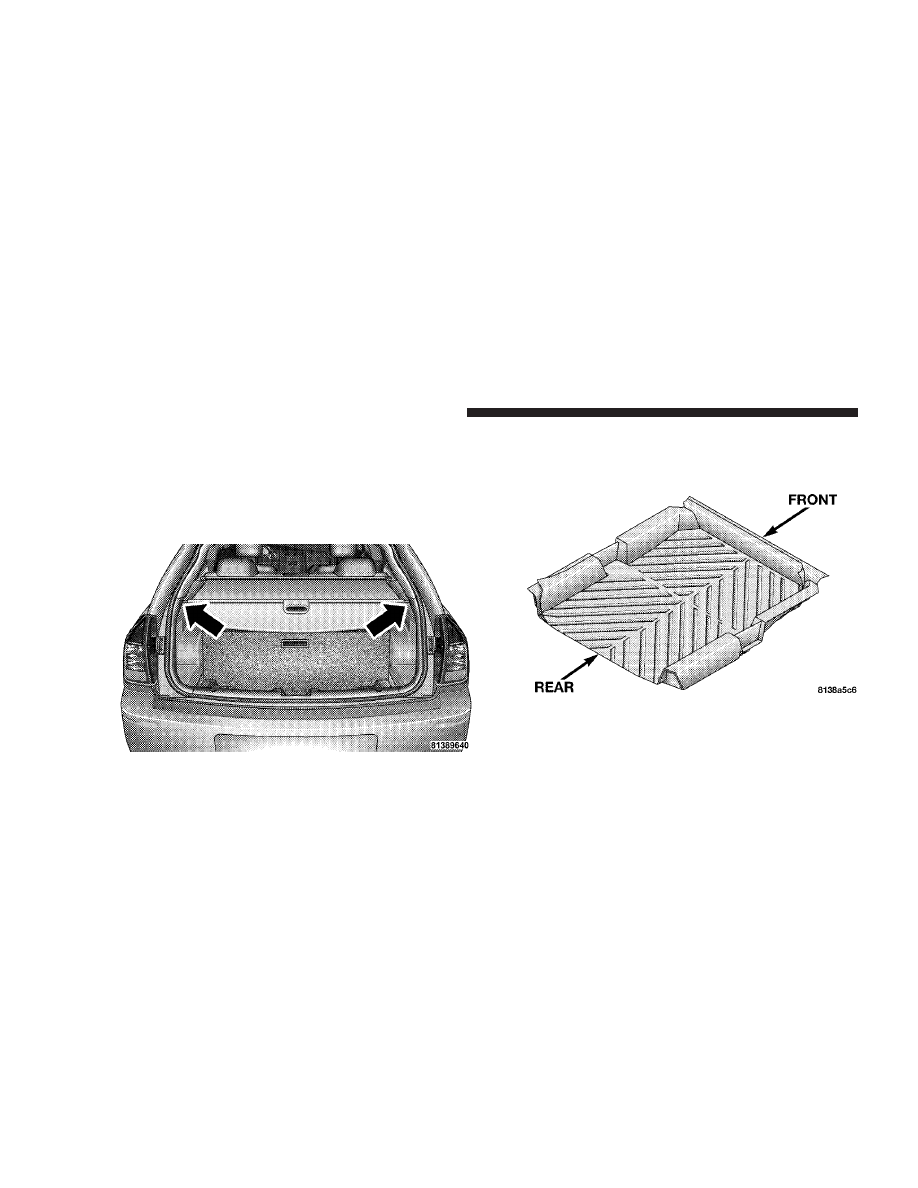

Waterproof Liner
The optional waterproof liner can be placed over the
lower load floor.

Rear Attachment Points

Waterproof Liner

160

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

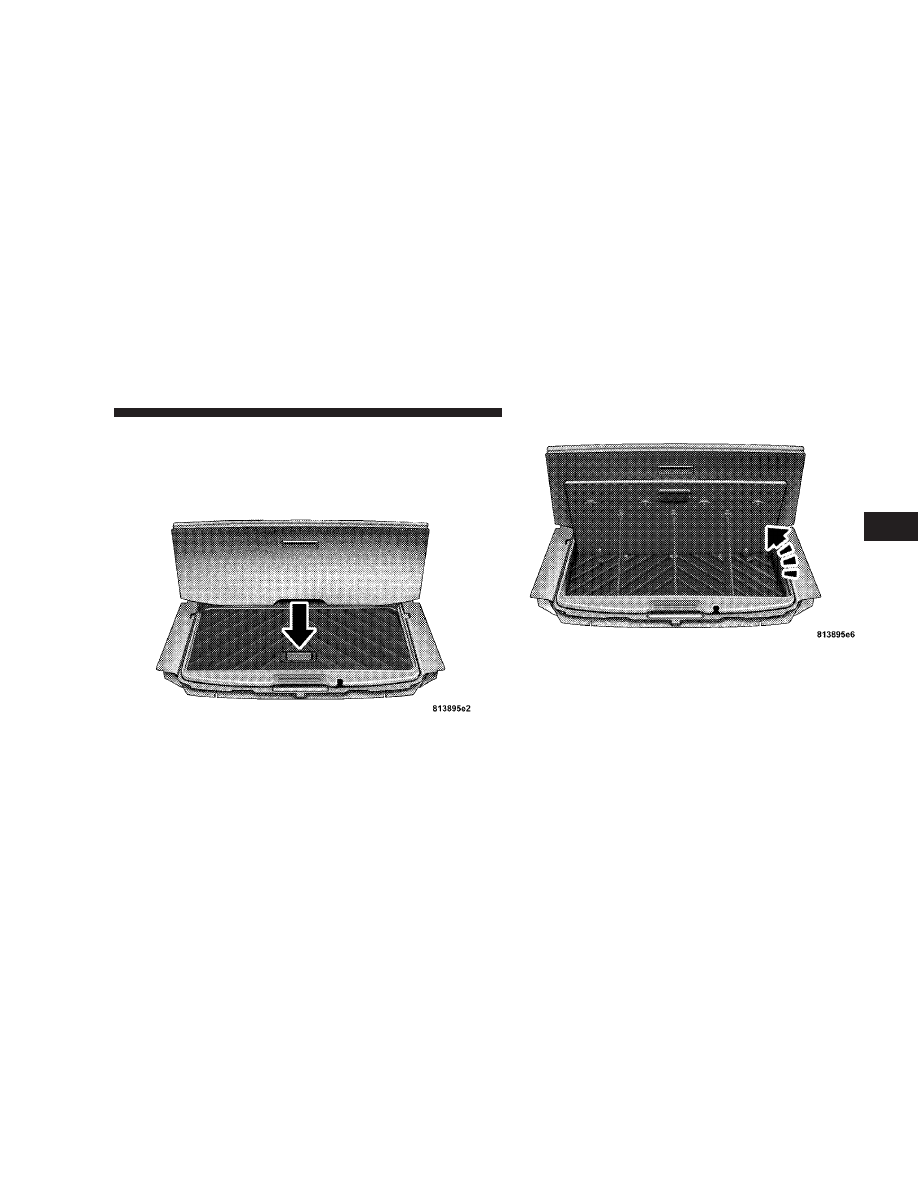

Cargo Organizer
The optional cargo organizer can also be placed into the
lower load floor. Lift the handle and pull to open the
cargo organizer.

Cargo Tie-Down Hooks
The tie-downs located on cargo area floor and on the rear
trim panels should be used to safely secure loads when
vehicle is moving.

Cargo Organizer Handle

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

161

3

WARNING!

• Cargo tie-down hooks are not safe anchors for a

child seat tether strap. In a sudden stop or colli-
sion, a hook could pull loose and allow the child
seat to come loose. A child could be badly injured.
Use only the anchors provided for child seat
tethers.

• The weight and position of cargo and passengers

can change the vehicle center of gravity and ve-
hicle handling. To avoid loss of control resulting
in personal injury, follow these guidelines for
loading your vehicle:

• Always place cargo evenly on the cargo floor. Put

heavier objects as low and as far forward as possible.

• Place as much cargo as possible in front of the rear

axle. Too much weight or improperly placed weight
over or behind the rear axle can cause the rear of the
vehicle to sway.

• Do not pile luggage or cargo higher than the top of the

seatback. This could impair visibility or become a
dangerous projectile in a sudden stop or collision.

WARNING!

To help protect against personal injury, passengers
should not be seated in the rear cargo area. The rear
cargo space is intended for load carrying purposes
only, not for passengers, who should sit in seats and
use seat belts.

162

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

ROOF LUGGAGE RACK — IF EQUIPPED

The roof luggage rack consists of side rails and adjustable
crossbars. The roof luggage rack is designed to carry up
to 150 lbs (68 kg) of cargo uniformly distributed over
both crossbars.

When loading cargo on the roof luggage rack, distribute
the cargo weight evenly on the crossbars. The roof
luggage rack does not increase the total load carrying
capacity of the vehicle. Be sure that the total load of
cargo inside the vehicle plus that on the external rack
does not exceed the maximum vehicle load capacity.
Refer to the “Tire and Loading Information” placard for
more information about cargo and load capacity. The
placard is located on either the driver’s side “B” pillar or
the driver door.

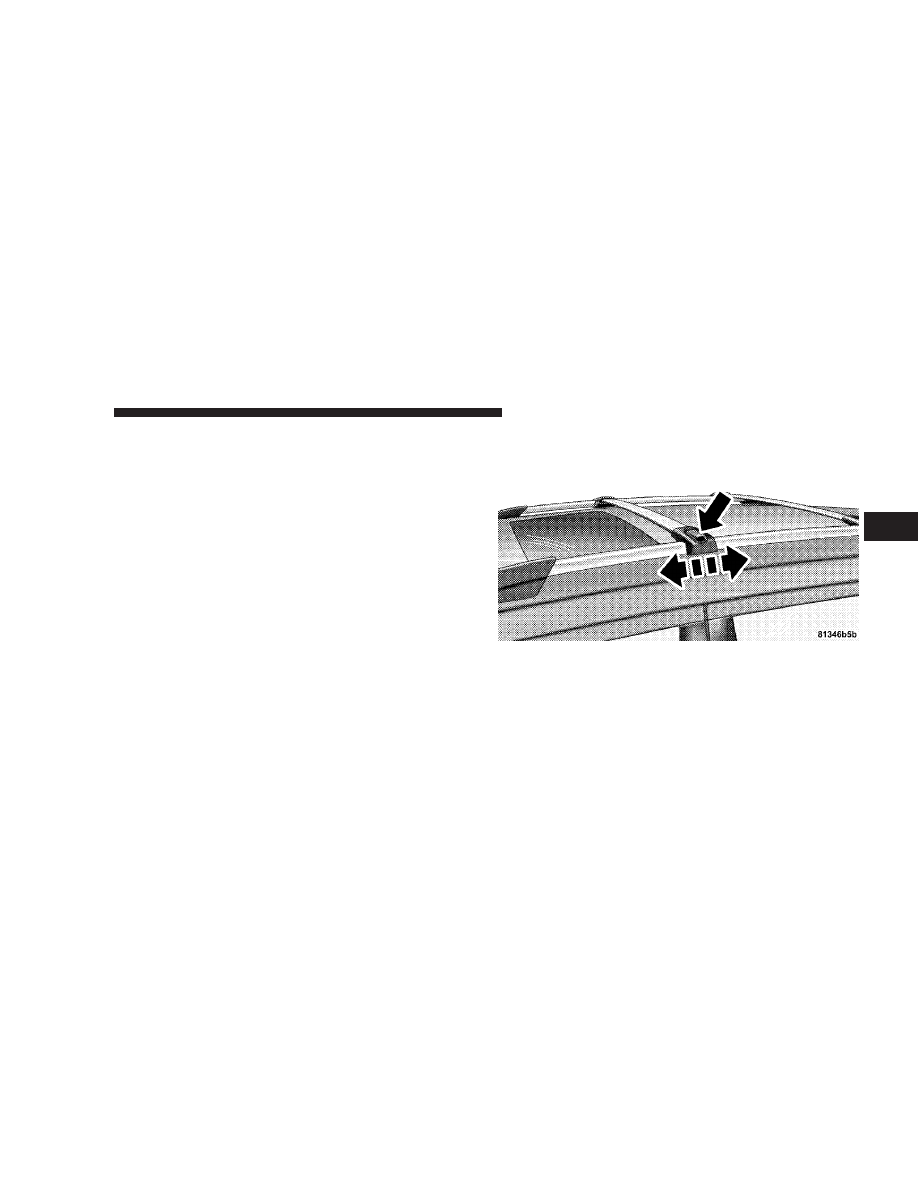

To adjust, remove, or install the crossbars, proceed as
follows:

1. Flip the lever on the end of the crossbar upward.

2. Turn the lever counter clockwise to loosen the lower
clamp. When the lower clamp is loose, turn it until the
round side of the clamp completely faces away from the
side rail.

Roof Luggage Rack

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

163

3

3. Repeat Steps 1 and 2 on the opposite clamp on the
other side of the crossbar.

4. Pick up the crossbar and move it to the desired
location. Do not place the crossbar directly over the
sunroof glass (if equipped).

5. Turn the lower clamp until the round side of the clamp
completely faces the side rail.

6. Turn the lever clockwise to tighten the lower clamp to
the side rail. When tight, flip the lever downward.

7. Repeat Steps 5 and 6 on the opposite clamp on the
other side of the crossbar.

8. Attempt to move the crossbar to ensure that it is
locked in position.

NOTE:

To reduce the amount of wind noise when the

crossbars are not in use, remove both crossbars from the
side rails and place them inside the vehicle.

CAUTION!

• To avoid damage to the roof rack and vehicle, do

not exceed the maximum roof rack load capacity of
150 lbs (68 kg). Always distribute heavy loads as
evenly as possible and secure the load appropri-
ately.

• Long loads, which extend over the windshield,

such as wood panels or surfboards, or loads with
large frontal area should be secured to both the
front and rear of the vehicle.

• Travel at reduced speeds and turn corners carefully

when carrying large or heavy loads on the roof
rack. Wind forces, due to natural causes or nearby
truck traffic, can add sudden upward loads. This is
especially true on large flat loads and may result in
damage to the cargo or your vehicle.

• Do not use the pop-up feature of the sliding /

pop-up roof when positioning or placing luggage
above it, to prevent damage to the sliding / pop-up
roof panel.

164

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!

Cargo must be securely tied before driving your
vehicle. Improperly secured loads can fly off the
vehicle, particularly at high speeds, resulting in per-
sonal injury or property damage. Follow the Roof
Rack Cautions when carrying cargo on your roof
rack.

LOAD LEVELING SYSTEM — IF EQUIPPED

The automatic load leveling system will provide a level-
riding vehicle under most passenger and cargo loading
conditions.

A hydraulic pump contained within the shock absorbers
raises the rear of the vehicle to the correct height. It takes
approximately 1 mile (1.6 km) of driving for the leveling
to complete depending on road surface conditions.

If the leveled vehicle is not moved for approximately 15
hours, the leveling system will bleed itself down. The
vehicle must be driven to reset the system.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

165

3

UNDERSTANDING YOUR INSTRUMENT PANEL

CONTENTS

Instrument Panel And Controls . . . . . . . . . . . . . 171
Base Instrument Cluster . . . . . . . . . . . . . . . . . . 172
Premium Instrument Cluster — If Equipped . . . . 173
Instrument Cluster Descriptions . . . . . . . . . . . . 174
Electronic Vehicle Information Center (EVIC) –

If Equipped . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

▫ Electronic Vehicle Information Center (EVIC)

Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187

▫ Oil Change Required . . . . . . . . . . . . . . . . . . . 188
▫ Trip Functions . . . . . . . . . . . . . . . . . . . . . . . 188

▫ Compass Display . . . . . . . . . . . . . . . . . . . . . 191
▫ Telephone — If Equipped . . . . . . . . . . . . . . . 193
▫ Navigation — If Equipped . . . . . . . . . . . . . . . 195
▫ Personal Settings (Customer Programmable

Features) . . . . . . . . . . . . . . . . . . . . . . . . . . . 196

Radio General Information . . . . . . . . . . . . . . . . 200

▫ Radio Broadcast Signals . . . . . . . . . . . . . . . . . 200
▫ Two Types Of Signals . . . . . . . . . . . . . . . . . . 200
▫ Electrical Disturbances . . . . . . . . . . . . . . . . . . 200

4

▫ AM Reception . . . . . . . . . . . . . . . . . . . . . . . 200
▫ FM Reception . . . . . . . . . . . . . . . . . . . . . . . . 200

Sales Code REN — Multimedia System —

If Equipped . . . . . . . . . . . . . . . . . . . . . . . . . . . 201

▫ Operating Instructions — Satellite Radio

(If Equipped) . . . . . . . . . . . . . . . . . . . . . . . . 202

▫ Operating Instructions — Hands-Free

Communication (UConnect™) (If Equipped) . . 202

▫ Clock Setting Procedure . . . . . . . . . . . . . . . . . 202

Sales Code REQ — AM/FM Stereo Radio And

6–Disc CD/DVD Changer (MP3/WMA AUX
Jack)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204

▫ Operating Instructions - Radio Mode . . . . . . . 205
▫ Operation Instructions - (Disc Mode For CD

And MP3/WMA Audio Play, DVD-Video) . . . . 213

▫ Notes On Playing MP3/WMA Files . . . . . . . . 215
▫ List Button (Disc Mode For MP3/WMA

Play) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217

▫ Info Button (Disc Mode For MP3/WMA

Play) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217

Sales Code RER — Multimedia System —

If Equipped . . . . . . . . . . . . . . . . . . . . . . . . . . . 219

▫ Operating Instructions — Satellite Radio . . . . . 221
▫ Operating Instructions — Hands-Free

Communication (UConnect™) (If Equipped) . . 221

▫ Clock Setting Procedure . . . . . . . . . . . . . . . . . 221

Sales Code RES — AM/FM Stereo Radio With

CD Player (MP3 AUX Jack) . . . . . . . . . . . . . . . . 223

▫ Operating Instructions - Radio Mode . . . . . . . 224

168

UNDERSTANDING YOUR INSTRUMENT PANEL

▫ Operation Instructions - CD Mode For CD

And MP3 Audio Play . . . . . . . . . . . . . . . . . . 229

▫ Notes On Playing MP3 Files . . . . . . . . . . . . . 232
▫ List Button (CD Mode For MP3 Play) . . . . . . . 234
▫ Info Button (CD Mode For MP3 Play) . . . . . . . 234

Satellite Radio (RSC) — If Equipped

(RER/REQ/REN Radios Only) . . . . . . . . . . . . . 236

▫ System Activation . . . . . . . . . . . . . . . . . . . . . 236
▫ Electronic Serial Number/Sirius Identification

Number (ENS/SID) . . . . . . . . . . . . . . . . . . . . 236

▫ Selecting Satellite Mode . . . . . . . . . . . . . . . . . 237
▫ Satellite Antenna . . . . . . . . . . . . . . . . . . . . . . 237
▫ Reception Quality . . . . . . . . . . . . . . . . . . . . . 237
▫ Operating Instructions - Satellite Mode . . . . . . 237

▫ Operating Instructions - Hands Free Phone

(If Equipped) . . . . . . . . . . . . . . . . . . . . . . . . 240

▫ Operating Instructions - Video Entertainment

System (VES™) (If Equipped) . . . . . . . . . . . . . 240

Video Entertainment System — If Equipped . . . . 240
Universal Consumer Interface (UCI) —

If Equipped . . . . . . . . . . . . . . . . . . . . . . . . . . . 242

▫ Connecting The iPodt Device . . . . . . . . . . . . 243
▫ Controlling The iPodt Using Radio Buttons . . . 243
▫ Play Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 243
▫ List Or Browse Mode . . . . . . . . . . . . . . . . . . 245

Remote Sound System Controls . . . . . . . . . . . . . 247
CD/DVD Disc Maintenance . . . . . . . . . . . . . . . 248
Radio Operation And Cellular Phones . . . . . . . . 249

UNDERSTANDING YOUR INSTRUMENT PANEL

169

4

Climate Controls . . . . . . . . . . . . . . . . . . . . . . . 249

▫ Instruction Air Conditioning And Heating

System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249

▫ Automatic Temperature Control —

If Equipped . . . . . . . . . . . . . . . . . . . . . . . . . 252

▫ Operating Tips . . . . . . . . . . . . . . . . . . . . . . . 257

Rear Window Features . . . . . . . . . . . . . . . . . . . 260

▫ Rear Wiper Operation . . . . . . . . . . . . . . . . . . 260
▫ Rear Washer Operation . . . . . . . . . . . . . . . . . 260
▫ Adding Washer Fluid . . . . . . . . . . . . . . . . . . 261
▫ Electric Rear Window Defroster . . . . . . . . . . . 262

170

UNDERSTANDING YOUR INSTRUMENT PANEL

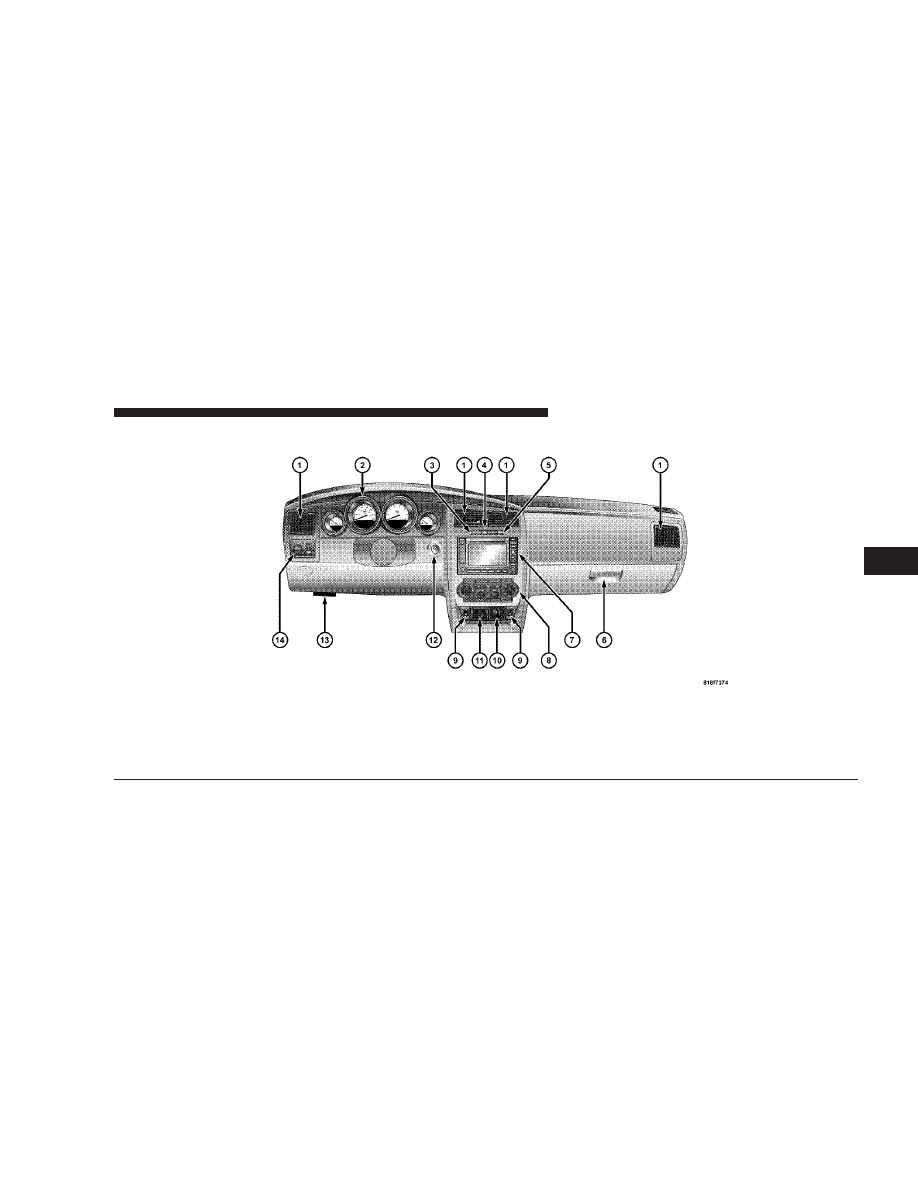

INSTRUMENT PANEL AND CONTROLS

1 — Air Outlet

6 — Glove Box

11 — Ash Tray*

2 — Instrument Cluster

7 — Radio

12 — Ignition Switch

3 — Rear Wiper/Washer Switch

8 — Climate Control

13 — Hood Release

4 — Hazard Switch

9 — Heated Seat Switch*

14 — Headlight Switch

5 — Electronic Stability Program Off But-

ton* / Traction Control System Off Button*

10 — Power Outlet

* If Equipped

UNDERSTANDING YOUR INSTRUMENT PANEL

171

4















Content      ..     8      9      10      11     ..
