 SAFETY

74

67

06056S0001EM

On removal of the belt, if it jams, let it

rewind for a short stretch, then pull it out

again without jerking.
To unfasten the seat belts, press button

(3) and guide the seat belt with your hand

while it is rewinding, to prevent it from

twisting.
WARNING

GTAm version

: take care to

ensure that the seat belt always passes

through the slot on the outside of the

carbon shell of the seat, towards the

outside of the car, and that it also passes

through the slot on the inside of the

carbon shell, towards the inside of the

car, when the belt is fastened.
The retractor may lock when the car is

parked on a steep slope: this is perfectly

normal. Furthermore, the reel mechanism

locks the belt if it is pulled sharply or in

the event of sudden braking, collisions

and high-speed bends.

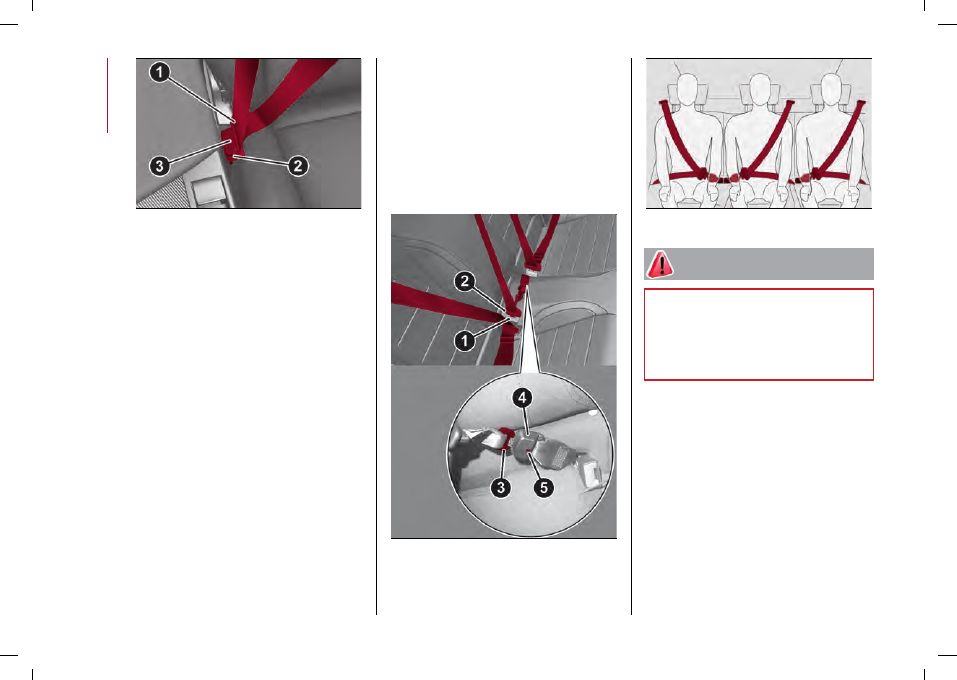

Wear the rear seat belts as shown in

fig. 68 and fig. 69.
Unlike the side seat belts, the central

rear one has a double buckle.
Unwind the seat belt from its retractor,

grip the fastening tongue (3)fig. 68 and

insert it into the housing (4), then tongue

(2) in the housing (1); check that both

fasteners are correctly secured.

68

06056S0002EM

69

06056S0003EM

WARNING

59)

Never press button (3) when travelling.

60)

Remember that in the event of an

accident, the rear seat passengers not

wearing seat belts are exposed to a very

serious risk and also represent a serious

danger for the front seat occupants.

CarManuals2.com

75

SBA (Seat Belt Alert) SYSTEM

The SBA system warns front seat and

rear seat (GTA versions only) passengers

that their seat belts are not properly

fastened via visual warnings (warning

lights on in the instrument panel and

icons on the display) and an acoustic

warning (see the following paragraphs).

FRONT SEAT BELT WARNING LIGHT

BEHAVIOUR

When the ignition device is turned to
the ON position, the

warning light

(see fig. 70) turns on for a few seconds,

regardless of the status of the front

seat belts (seat belts fastened or

unfastened).
With car moving slower than 12 mph (20

km/h), if the driver side seat belt or the

passenger side seat belt (with occupant

seated) is unfastened, the warning light

stays on constantly.

70

06066S0001EM

As soon as a speed threshold than 12 mph

(20 km/h) (variable speed according

to car conditions) is reached, with

driver side seat belt or the passenger

side seat belt (with occupant seated)

unfastened, an acoustic signal is

activated simultaneously with warning
light

flashing for about 105 seconds.

Once activated, this warning cycle

remains active for the entire time if the

car is moving faster than 5 mph (8 km/h),

if reverse gear is not engaged or until the

seat belts are fastened.
If reverse is engaged during the warning

cycle, the acoustic signal is deactivated
and the

warning light turns on fixed.

The warning cycle will be reactivated as

soon as the car exceeds 12 mph (20 km/h)

again.
If the car speed drops to less than 5 mph

(8 km/h) or if reverse gear is engaged

during the warning cycle, the tone will

be interrupted and the warning light will

turn on continuously.
If the entire time has not elapsed

and reverse gear is not engaged, the

indication cycle is reactivated as soon as

the car speed 12 mph (20 km/h) again.

REAR SEAT BELT ICON BEHAVIOUR

(GTA versions only)

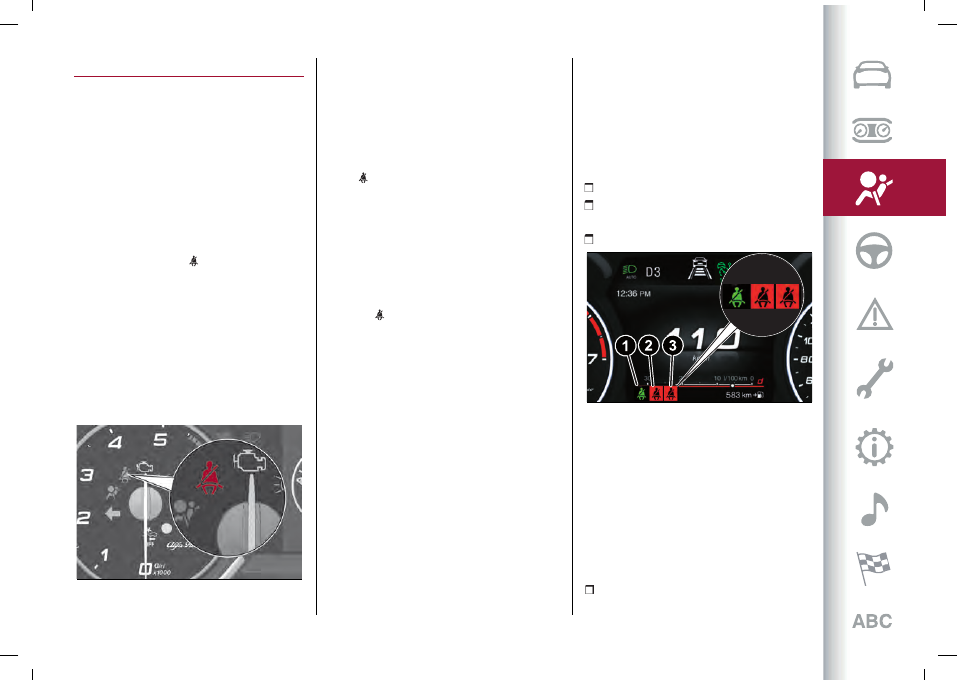

The icons are shown on the instrument

panel display (fig. 71) a few seconds after

the ignition device is turned to the ON

position. The icons will turn off after

about 65 seconds.
After a door closes, or following a change

in seat belt fastening status, the icons

are shown again for approximately 65

seconds before disappearing.
The icons shown on the display indicate:

1 - rear left

seat belt

;

2 - rear central

seat belt

(where

provided);

3 - rear right

seat belt

.

71

07076V0567EM

With the car travelling as speed lower

than 12 mph (20 km/h), if a rear seat belt

is unbuckled, the icon stays on with fixed

light for a total of approximately 65

seconds.
The icons are displayed according to the

corresponding rear seat belts and stay

on for about 65 seconds from the last

seat belt status change:

if the seat belt is fastened

the

CarManuals2.com

 SAFETY

76

PRE-TENSIONERS

(GTA and GTAm versions)
The car is equipped with front (GTA and

GTAm versions) and rear (GTA versions

only) lateral seat belt pretensioners,

which draw back the seat belts by

several centimetres in the event of a

strong frontal impact. This guarantees

the perfect adherence of the seat belts

to the occupant's bodies before the

retention action begins.
It is evident that the pretensioners have

been activated when the belt withdraws

toward the retractor.
This car is also equipped with a second

pretensioner on the front seat belts

(fitted in the kick plate area). Its

activation is signalled by the shortening

of the metal cable.
A slight discharge of smoke may be

produced during the activation of the

pretensioner which is not harmful and

does not involve any fire hazard.
The pretensioner does not require any

maintenance or lubrication: any changes

to its original conditions will invalidate

its efficiency.
If, due to unusual natural events (floods,

sea storms, etc.), the device has been

affected by water and/or mud, contact

a Dedicated Alfa Romeo Dealership to

have it replaced.

WARNING To obtain the highest degree

of protection from the action of the

pretensioner, wear the seat belt tight to

the torso and pelvis.
WARNING The pretensioners do not

act on the 6-point harnesses (these

harnesses are supplied as kits and are

only for use on race tracks).

LOAD LIMITERS

(GTA and GTAm versions)

61)

18)

To increase safety in the event of an

accident, the front (GTA and GTAm

versions) and rear (GTA versions only)

lateral seat belt retractors contain a load

limiter which controls the force acting

on the chest and shoulders during the

belt restraining action in the event of a

frontal collision.
WARNING The load limiters do not act

on the 6-point harnesses of the GTAm

version (these harnesses are supplied as

kits and are only for use on race tracks).

GENERAL INSTRUCTIONS FOR USING

THE SEAT BELTS

62) 63) 64)

Respect and ensure that all the other

occupants of the vehicle comply with the

local laws in force regarding the use of

seat belts.

corresponding icon will be green;

if the seat belt is unfastened

the

corresponding icon will be red.
Furthermore the icons will light up again

for 30 seconds each time one of the rear

doors is closed.
If the car is travelling at a speed faster

12 mph (20 km/h) and reverse is not

engaged, if a rear seat belt is unbuckled,

an acoustic warning is sounded when the

icon blinks for approximately 35 seconds.

Successively, the acoustic warning is

deactivated and the icon lights up with

fixed light until the end of the entire

cycle.

WARNINGS

As far as the rear seats are concerned,

the SBA system will only indicate

whether the seat belts are unfastened

(red icon) or fastened (green icon), not

the presence of any passengers.
The warning lights/icons all stay off if all

seat belts (front seats and rear seats)

are fastened when the ignition device is

set to ON.
For the rear seats, the icons will activate

a few seconds after the ignition device

has been turned to ON, regardless of the

status of the seat belts (even if the seat

belts are all fastened).
All the warning lights/icons will come on

when at least one seat belt changes from

fastened to unfastened status or vice

versa.

CarManuals2.com

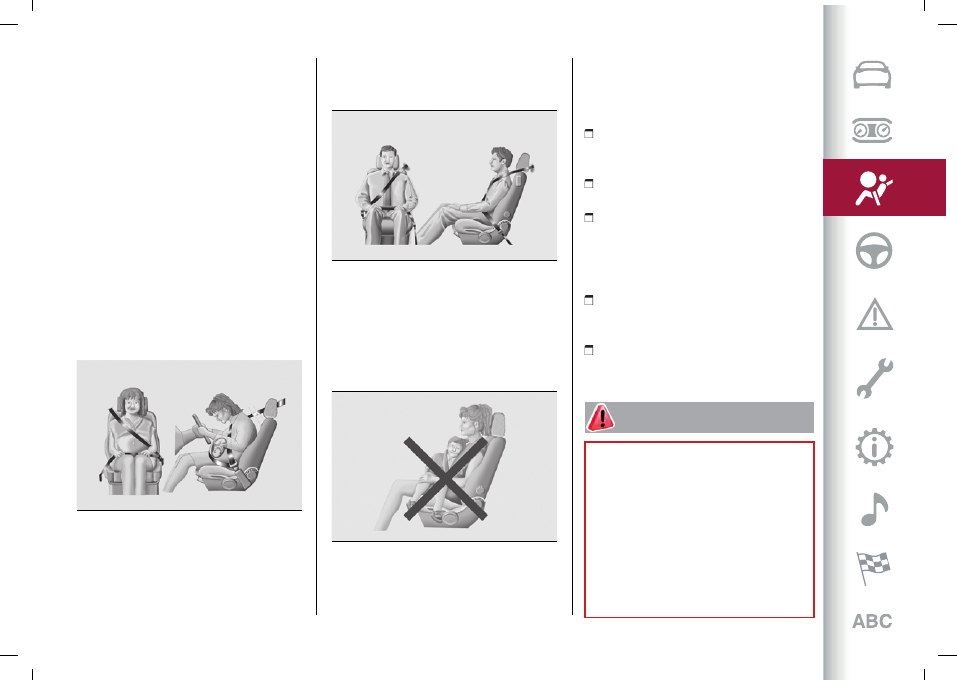

77

Always fasten the seat belts before

setting off.
Seat belts are also to be worn by

pregnant women: the risk of injury in

the case of impact is greatly reduced

for them and the unborn child if they are

wearing a seat belt.
Pregnant women must position the

lower part of the belt very low down so

that it passes over the pelvis and under
the abdomen fig. 72. While pregnancy

progresses, the driver must adjust both

seat and steering wheel to have full

control over the vehicle (pedals and

steering wheel must be easy to access).

The maximum clearance should be kept

between the abdomen and the steering

wheel.

72

06076S0001EM

The seat belt strap must not be twisted.

The upper part must pass over the

shoulder and cross the chest diagonally.

The lower part must adhere to the
pelvis fig. 73, not to the abdomen of

the occupant. Never use devices (clips,

clamps, etc.) that hold the seat belt away

from your body.

73

06076S0002EM

Each seat belt must be used by only one

person. Never travel with a child sitting

on the passenger's lap and a single belt
to protect them both fig. 74. In general,

do not place any objects between the

person and the belt.

74

06076S0003EM

SEAT BELTS MAINTENANCE

For keeping the seat belts in efficient

conditions, carefully observe the

following warnings:

always use the seat belt well stretched

and never twisted; make sure that it is

free to run without obstructions;

check seat belt operation as follows:

attach the seat belt and pull it hard;

replace the seat belt after an accident

of a certain severity even if it does not

appear to be damaged. Always replace

the seat belt if the pretensioners were

deployed;

prevent the retractors from getting

wet: their correct operation is only

guaranteed if water does not get inside;

replace the seat belt when it shows

wear or cuts.

WARNING

61)

The pretensioner may be used only once.

After its activation, contact a Dedicated

Alfa Romeo Dealership to have it replaced.

62)

Removing or otherwise tampering with

pretensioner and seat belt components is

strictly prohibited. Any intervention on

these components must be performed

by qualified and authorised technicians.

Always contact a Dedicated Alfa Romeo

Dealership.

63)

For maximum safety, keep the backrest

upright, lean back into it and make sure the

CarManuals2.com

 SAFETY

78

seat belt fits closely across your chest and

pelvis. Always fasten the seat belts for both

the front and rear seats! Travelling without

wearing seat belts will increase the risk of

serious injury and even death in the event of

an accident.

64)

If the belt has been subjected to high

levels of stress, for example after an

accident, it should be changed completely

together with the attachments, attachment

fixing screws and the pretensioner. In fact,

even if the belt has no visible defects, it may

have lost its resilience.

IMPORTANT

18)

Operations which lead to impacts,

vibrations or localised heating (over 100°C

for a maximum of six hours) in the area

around the pretensioner may cause damage

or make it deploy. Contact the Dedicated

Alfa Romeo Dealership if there is the need

to operate on those components.

CHILD RESTRAINT SYSTEMS

(GTA versions only)

CARRYING CHILDREN SAFELY

65) 66) 67) 68)

For optimal protection in the event of

an impact, all occupants must be seated

and wearing adequate restraint systems,

including newborn and other children!
This prescription is compulsory in all

EC countries according to EC Directive

2003/20/EC.
Children below the height of 1.50 metres

and up to 12 years must be protected

with suitable restraint systems and be

seated on the rear seats.
Statistics on accidents indicate that

the rear seats offer greater safety for

children.
Compared with an adult, a child's head

is larger and heavier in proportion to

their body and the child's muscular and

bone structures are not fully developed.

Therefore, correct restraint systems

other than adult seat belts are necessary,

to reduce as much as possible the risk

of injuries in the event of an accident,

braking or sudden manoeuvre.
Children must be seated safely

and comfortably. As far as the

characteristics of the child seats used

allow, you are advised to keep children

in rear facing child seats for as long as

possible (at least until 3–4 years old),

since this is the most protected position

in the event of a collision.
The choice of the most suitable child

restraint system depends on the weight

and size of the child. There are various

types of child restraint systems, which

can be secured to the car by means of

the seat belts or with the ISOFIX/i-Size

anchorages.
It is recommended to always choose

the restraint system most suitable for

the child; for this reason always refer to

the Owner Handbook provided with the

child restraint system, to be sure that it

is of the right type for the children it is

intended for.

WARNING

65)

SEVERE DANGER When a front

passenger airbag is fitted, do not install

rearward facing child restraint systems on

the front passenger seat. Deployment of the

airbag in a crash could cause fatal injuries

to the child regardless of the severity of

the collision. It is advisable to always carry

children in a child restraint system on the

rear seat, which is the most protected

position in the event of a collision.

66)

On the sun visor there is a label with

suitable symbols reminding the user that

it is compulsory to deactivate the airbag if

a rearward facing child restraint system is

fitted. Always comply with the instructions

CarManuals2.com

79

on the passenger side sun visor (see the

"Supplementary Restraint System (SRS) -

Airbag" paragraph).

67)

Should it be necessary to carry a

child on the passenger side front seat

in a rear facing child restraint system,

the passenger side front air bag and

side bag must be deactivated through

the Connect system main menu (see the

Supplementary Restraint System (SRS) -

Air bag" paragraph), verifying deactivation
by checking whether the

OFF

LED has

illuminated on the front courtesy light. Move

the passenger's seat as far back as possible

to avoid contact between the child seat and

the dashboard.

68)

Do not move the front or rear seat if a

child is seated on it or on the dedicated child

restraint system.

CarManuals2.com

 SAFETY

80

In Europe the characteristics of child restraint systems are governed by regulation ECE-R44, which divides them into five weight

groups.
Regulation ECE-R44 is supplemented by regulation ECE R-129, which defines the characteristics of the new i-Size child restraint

systems.

Group

Age

Weight groups

Size class / Fixing

Group 0

Indicatively up to 9 months

up to 22 lb (10 kg)

ISO/L1

ISO/L2

ISO/R1

Group 0+

Indicatively up to 2 years

up to 28.7 lb (13 kg)

ISO/R1

ISO/R2

ISO/R3

Group 1

Indicatively from 8 months to 4

years

20 - 40 lb (9 - 18 kg)

ISO/R2

ISO/R3

ISO/F2

ISO/F2X

ISO/F3

Group 2

Indicatively from 3 to 7 years

33 - 55 lb (15 - 25 kg)

Group 3

Indicatively from 6 to 12 years

48.5 - 79.4 lb (22 - 36 kg)

All restraint devices must bear the type-approval data, together with the control mark, on a label solidly fixed to the child restraint

system which must never be removed.

CarManuals2.com

81

Lineaccessori MOPAR® includes child restraint systems for each weight group. These devices are recommended having been

specifically tested for Alfa Romeo cars.
WARNING For correct installation on the car, some universal child restraint systems require an accessory (base) sold separately by

the restraint system's producer. Therefore, FCA recommends confirming the retailer if the desired child seat can be installed in the

car by having it done, before buying the seat.

CarManuals2.com

 SAFETY

82

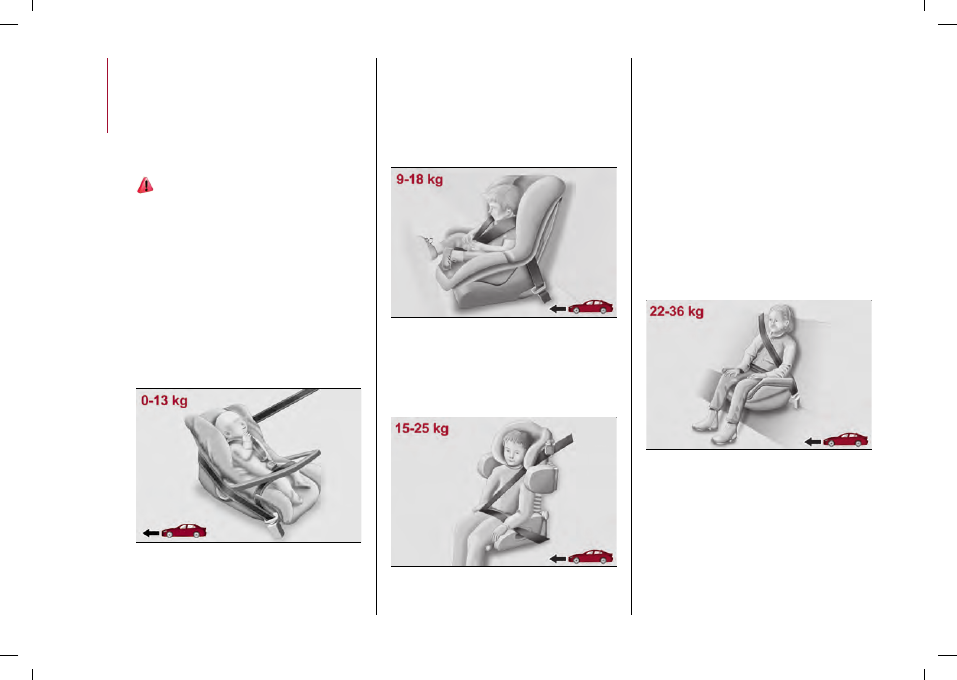

INSTALLING A CHILD RESTRAINT

SYSTEM WITH SEAT BELTS

The Universal child restraint systems

installed with the seat belts only are

type-approved on the basis of the ECE

R44 standard and are divided into

various weight groups.

69) 70) 71) 72)

WARNING The figures are indicative and

provided for assembly purposes only. Fit

the child restraint system according to

the instructions, which must be included.

Group 0 and 0+

Infants up to 28.7 lb (13 kg) must be

carried with a rearward facing child

restraint system of the type shown in
fig. 75 which, supporting the head, does

not induce stress on the neck in the event

of sudden decelerations.

75

06086S0001EM

The child restraint system is restrained
by the car seat belts, as shown in fig. 75

and it must restrain the child in turn with

its own belts.

Group 1

Children weighing from 9 to 40 lb (from 9

to 18 kg) may be transported in forward
facing child restraint systems fig. 76.

76

06086S0002EM

Group 2

Children from 33 up to 55 lb (from 15 to 25

kg) may be restrained directly by the car
seat belts fig. 77.

77

06086S0003EM

In this case, the child restraint system

is used to position the child correctly

with respect to the seat belts so that

the diagonal belt section crosses the

child’s chest and not the neck, and the

lower part is snug on the pelvis not the

abdomen.

Group 3

For children between 48.5 and 79.4 lb

(from 22 to 36 kg), there are dedicated

restraint systems that allow the seat belt

to be worn correctly.
The fig. 78 shows the correct child

positioning on the rear seat.

78

06086S0004EM

Children over 4.9 ft (1.50 m) tall wear

seatbelts like adults.

CarManuals2.com

83

WARNING

69)

Incorrect fitting of the child restraint

system may result in an inefficient

protection system. In the event of an

accident the child restraint system may

become loose and the child may be injured,

even fatally. When fitting a restraint system

for newborns or children, strictly comply

with the instructions provided by the

Manufacturer.

70)

When the child restraint system is not

used, secure it with the seat belt or with

the ISOFIX anchorages, or remove it from

the car. Do not leave it unsecured inside the

passenger compartment. In this way, in the

event of sudden braking or an accident, it

will not cause injuries to the occupants.

71)

After installing a child restraint system,

do not move the seat: always remove the

child restraint system before making any

adjustment.

72)

Always make sure that the chest section

of the seat belt does not pass under the

arms or behind the back of the child. In the

event of an accident the seat belt will not

be able to secure the child, with the risk

of injury, including fatal injury. Therefore

the child must always wear the seat belt

correctly.

INSTALLING AN ISOFIX CHILD

RESTRAINT SYSTEM

(GTA versions only)

73) 74) 75) 76) 77)

The rear side seats of the car are

equipped with ISOFIX attachments, for

fitting child restraint systems quickly,

simply and safely.
The ISOFIX system lets you install the

ISOFIX child restraint system without

using the car seat belts but connecting

them directly to the car seat with three

anchorages in the car.
Traditional child restraint systems can

be fitted alongside ISOFIX child restraint

systems on different seats in the same

car.

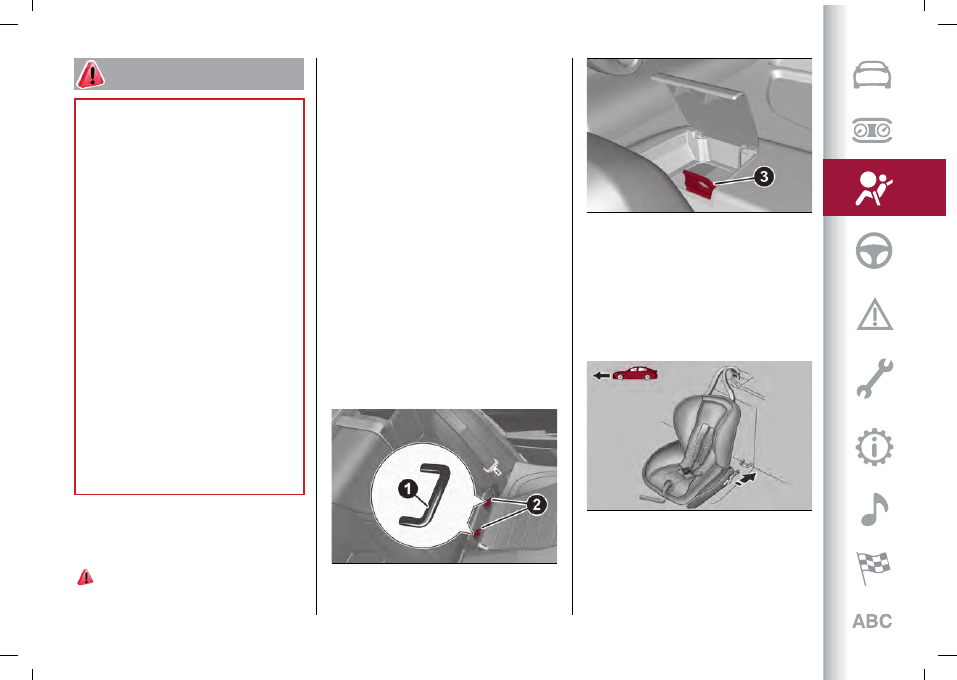

To install an ISOFIX child restraint

system, attach it to the two metal
anchorings (1) fig. 79 which can be

reached by lifting the flaps 2 located

where the rear seat cushion meets

the backrest, then fix the upper strap

(available together with the restraint

system) to the dedicated anchoring (3)
fig. 80 located at the bottom behind the

backrest.

79

06086S0009EM

80

06086S0005EM

fig. 81 shows an example of a Universal

ISOFIX child restraint system for weight

group 1.
WARNING The fig. 81 is indicative and

for assembly purposes only. Fit the

child restraint system according to the

instructions, which must be included.

81

06086S0006EM

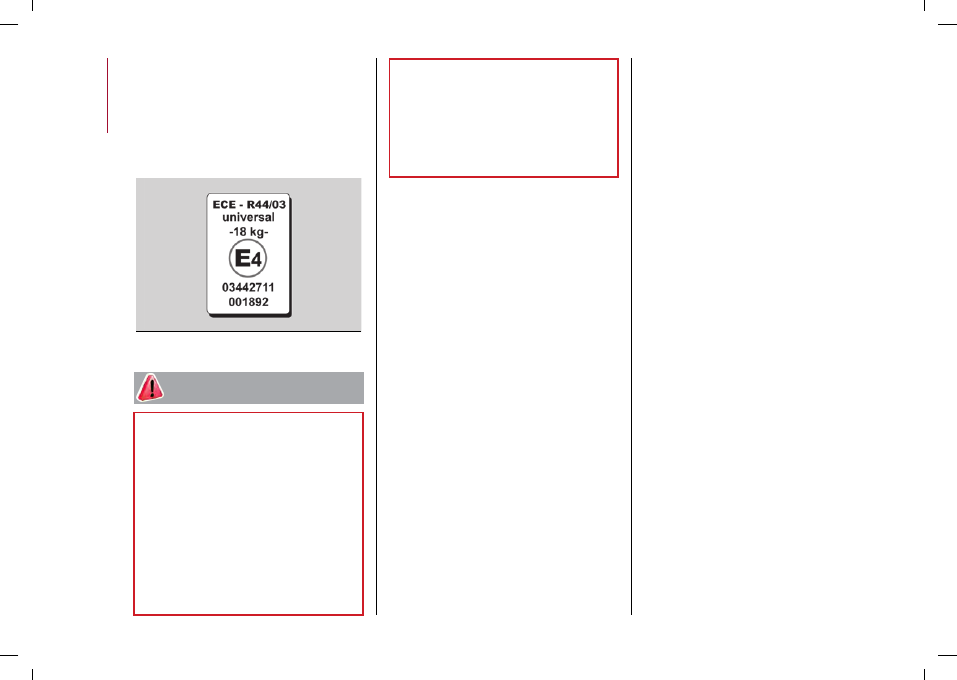

NOTE When a Universal ISOFIX child

restraint system is used, only ECE R44

"ISOFIX Universal" (R44/03 or further

CarManuals2.com

 SAFETY

84

upgrades) type-approved child restraint
systems can be used (see fig. 82).
The other weight groups are covered by

specific ISOFIX child restraint systems,

which can be used only if specifically

tested for this car (see list of cars

provided with the child restraint system).

82

06086S0007EM

WARNING

73)

Do not use the same lower anchoring to

install more than one child restraint system.

74)

If a Universal ISOFIX child restraint

system is not fixed to all three anchorages,

it will not be able to protect the child

correctly. In a crash, the child could be

seriously or fatally injured.

75)

Fit the child restraint system when the

car is stationary. The child restraint system

is correctly secured to the brackets when

you hear the click. Follow the instructions

for assembly, disassembly and positioning

that the Manufacturer must supply with the

child restraint system.

76)

If the car was involved in an accident

of a certain severity, have the ISOFIX

anchorages and the child restraint system

replaced.

77)

If the car was involved in an accident

of a certain severity, have both the child

restraint system and the seat belt it was

attached to replaced.

CarManuals2.com

85

SUITABILITY OF PASSENGER SEATS FOR ISOFIX CHILD RESTRAINT SYSTEM USE

ISOFIX POSITIONS ON THE CAR

Weight categories

Size category

Device

Front passenger

Rear side

passengers

Rear central

passenger

(where provided)

Group 0 (up to 22 lb) (10 kg)

E

ISO/R1

X

IL

X

Group 0+ (up to 28.7 lb) (13

kg)

E

ISO/R1

X

IL

X

D

ISO/R2

X

IL

X

C

ISO/R3

X

IL (*)

X

Group 1 (from 20 to 40 lb)

(from 9 to 18 kg)

D

ISO/R2

X

IL

X

C

ISO/R3

X

IL (*)

X

B

ISO/F2

X

IUF – IL

X

B1

ISO/F2X

X

IUF – IL

X

A

ISO/F3

X

IUF – IL

X

Group 2 (from 33 to 55 lb)

(from 15 to 25 kg)

X

IL

X

CarManuals2.com

 SAFETY

86

ISOFIX POSITIONS ON THE CAR

Weight categories

Size category

Device

Front passenger

Rear side

passengers

Rear central

passenger

(where provided)

Group 3 (from 48.5 to 79.4

lb) (from 22 to 36 kg)

X

IL

X

X ISOFIX position not suitable for ISOFIX child protection systems for this weight and/or size category.
IL Suitable for ISOFIX child restraint systems of the "Specific for the vehicle", "Restricted", or "Semiuniversal" categories, approved for this type of

vehicle.
IL (*) It is possible to install the ISOFIX child restraint system by adjusting the front seat (adjustment is not required if the Sparco Carbonshell Sport

seats are installed).
IUF Suitable for forward facing ISOFIX child restraint systems of the universal category, approved for use in the weight group.

CarManuals2.com

87

i-Size CHILD RESTRAINT SYSTEMS

(GTA versions only)
The rear side seats of the car are type-

approved to house the state-of-the-art

i-Size child restraint systems.
These child restraint systems, built and

type-approved according to the i-Size

(ECE R129) standard, ensure better

safety conditions to carry children on

board a vehicle:

the child must be transported

rearward facing until 15 months;

child restraint system protection is

increased in the event of a side collision;

the use of the ISOFIX system is

promoted to avoid faulty installation of

the child restraint system;

efficiency in the choice of the child

restraint system, which isn't made

according to weight any more but

according to the child's height, is

increased;

compatibility between the car seats

and the child restraint systems is better:

the i-Size child restraint systems can

be considered as "Super ISOFIX"; this

means that they can be perfectly fitted

in type-approved i-Size seats, but can

also be fitted in ISOFIX (ECE R44) type-

approved seats.

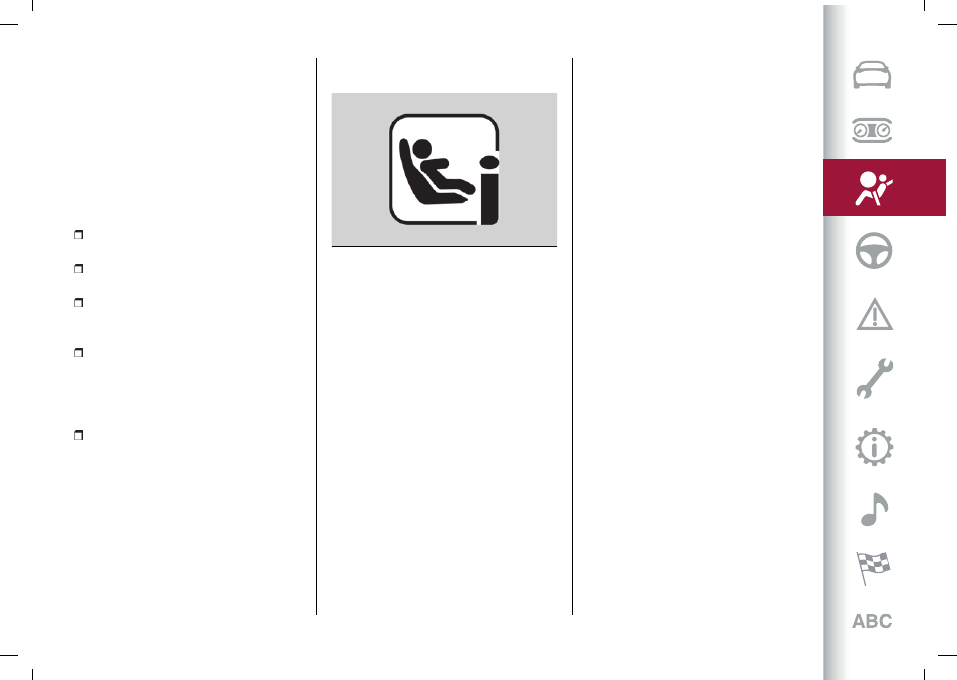

NOTE If your car seats are i-Size
approved, the symbol shown in fig. 83

will appear on the seats near the ISOFIX

attachments.

83

06086S0008EM

NOTE See the table shown on the

following page to check whether your

car is approved for installing i-Size child

restraint systems.

CarManuals2.com

 SAFETY

88

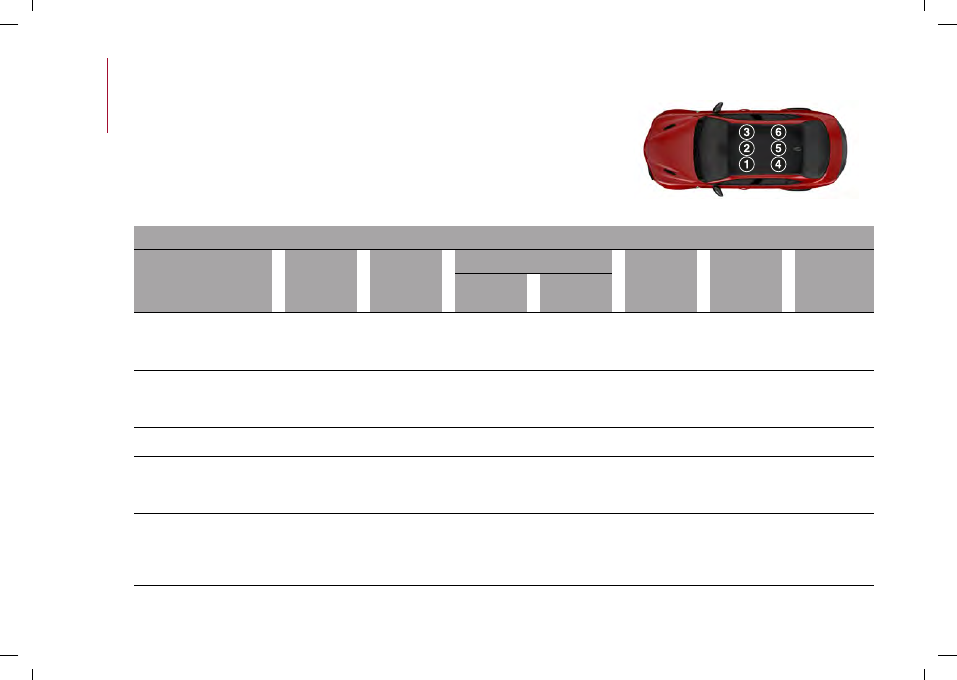

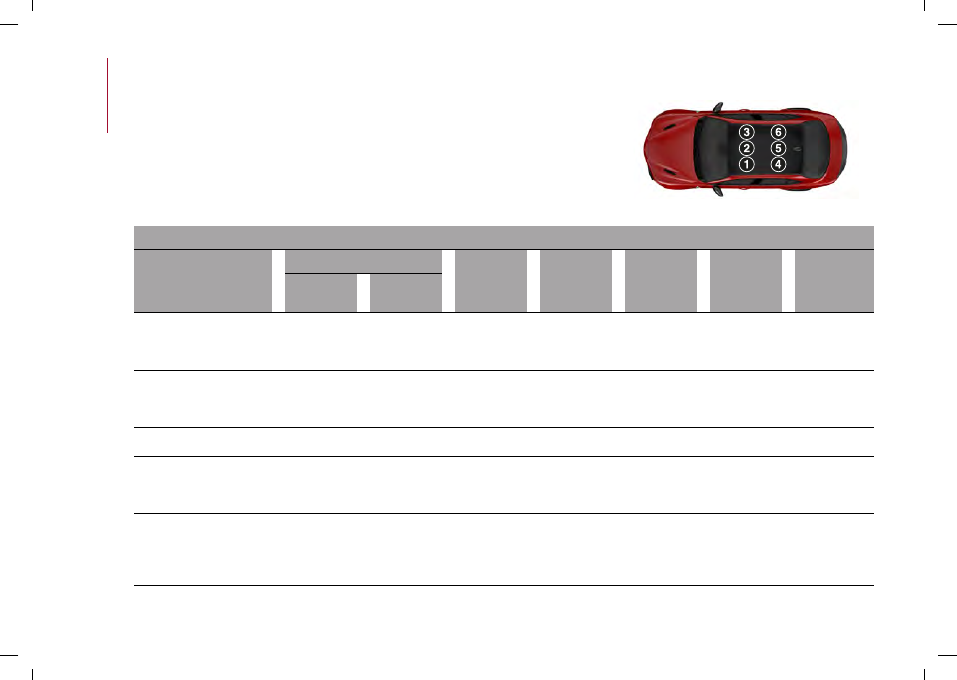

Child restraint system installation

The table provides guidelines on positioning child restraint systems on the vehicle seats. Each

child restraint system position complies with the UNECE standards.

Number of seats

Seat number

1

2

3

4

5*

6

Airbag

ENABLED

Airbag

DISABLED

Seat suitable for universal

rearward facing child

restraint systems

X

X

X

X

YES (U)1

X

YES (U)1

Seat suitable for universal

forward facing child

restraint systems

X

X

X

X

YES (UF)1

X

YES (UF)1

i-Size seat

X

X

X

X

YES (i-U)1

X

YES (i-U)1

Seat suitable for ISOFIX

side child restraint systems

(L1 / L2)

X

X

X

X

NO1

X

NO1

Seat suitable for ISOFIX

rearward facing child

restraint systems (R1 / R2 /

R3)

X

X

X

X

YES (IL)1 / 2

X

YES (IL)1 / 2

CarManuals2.com

89

Number of seats

Seat number

1

2

3

4

5*

6

Airbag

ENABLED

Airbag

DISABLED

Seat suitable for ISOFIX

forward facing child

restraint systems (F2 / F2X

/ F3)

X

X

X

X

YES (IUF)1

X

YES (IUF)1

Seat suitable for auxiliary

child restraint systems (B2

/ B3)

X

X

X

X

YES (Only B2)

(IUF)1

X

YES (Only B2)

(IUF)1

U = Position suitable for a "universal" child restraint system approved for this weight category.
UF = Position suitable for a "universal" forward facing child restraint system approved for this weight category.
IUF = Position suitable for an "ISOFIX" universal forward facing child restraint system approved for this weight category.
i-U = Position suitable for an i-Size "universal" forward facing or rearward facing child restraint system.
i-UF = Position suitable for an i-Size "universal" forward facing child restraint system.
IL = Position suitable for specific listed ISOFIX child restraint systems (CRS). These ISOFIX CRS are classified as "vehicle-specific", "restricted use"

and "semi-universal".
X = Not applicable. The seat is not approved for installation of child restraint systems.
* = Child restraint systems with support leg cannot be installed on this seat.
1 =

Children cannot be transported in GTAm version cars without rear seats

.

2 = The ISOFIX child restraint system can be installed by adjusting the front seat.
Remove/adjust the head restraint (if adjustable) if it interferes with installation of the child restraint system.

CarManuals2.com

 SAFETY

90

Child restraint system installation (right-hand drive version)

The table provides guidelines on positioning child restraint systems on the vehicle seats. Each

child restraint system position complies with the UNECE standards.

Number of seats

Seat number

1

2

3

4

5*

6

Airbag

ENABLED

Airbag

DISABLED

Seat suitable for universal

rearward facing child

restraint systems

X

X

X

X

YES (U)1

X

YES (U)1

Seat suitable for universal

forward facing child

restraint systems

X

X

X

X

YES (UF)1

X

YES (UF)1

i-Size seat

X

X

X

X

YES (i-U)1

X

YES (i-U)1

Seat suitable for ISOFIX

side child restraint systems

(L1 / L2)

X

X

X

X

NO1

X

NO1

Seat suitable for ISOFIX

rearward facing child

restraint systems (R1 / R2 /

R3)

X

X

X

X

YES (IL)1 / 2

X

YES (IL)1 / 2

CarManuals2.com

91

Number of seats

Seat number

1

2

3

4

5*

6

Airbag

ENABLED

Airbag

DISABLED

Seat suitable for ISOFIX

forward facing child

restraint systems (F2 / F2X

/ F3)

X

X

X

X

YES (IUF)1

X

YES (IUF)1

Seat suitable for auxiliary

child restraint systems (B2

/ B3)

X

X

X

X

YES (Only B2)

(IUF)1

X

YES (Only B2)

(IUF)1

U = Position suitable for a "universal" child restraint system approved for this weight category.
UF = Position suitable for a "universal" forward facing child restraint system approved for this weight category.
IUF = Position suitable for an "ISOFIX" universal forward facing child restraint system approved for this weight category.
i-U = Position suitable for an i-Size "universal" forward facing or rearward facing child restraint system.
i-UF = Position suitable for an i-Size "universal" forward facing child restraint system.
IL = Position suitable for specific listed ISOFIX child restraint systems (CRS). These ISOFIX CRS are classified as "vehicle-specific", "restricted use"

and "semi-universal".
X = Not applicable. The seat is not approved for installation of child restraint systems.
* = Child restraint systems with support leg cannot be installed on this seat.
1 =

Children cannot be transported in GTAm version cars without rear seats

.

2 = The ISOFIX child restraint system can be installed by adjusting the front seat.
Remove/adjust the head restraint (if adjustable) if it interferes with installation of the child restraint system.

CarManuals2.com

 SAFETY

92

 Main recommendations to carry

children safely

Install the child restraint systems

on the rear seat, which is the most

protected position in the event of a

collision.

Keep children in rearward facing child

restraint systems for as long as possible,

until 3–4 years old if possible.

The rear head restraint can be raised

if needed to install a child restraint

system. The head restraint must always

be present in the vehicle and fitted if

the seat is used by an adult passenger

or a child sitting in a restraint system

without backrest (refer to the procedure

described in ‘’Head restraint’’ paragraph,

‘’Knowing your vehicle’’ chapter).

If the front passenger airbag has

been deactivated, always check that the

warning light on the courtesy light is on

continuously to make sure that it is

effectively deactivated.

Carefully follow the instructions

supplied with the child restraint system.
Keep the instructions in the car along

with the other documents and this

handbook. Do not use second-hand child

seats without instructions.

Only one child is to be strapped into

each restraint system; never carry two

children using one child restraint system.

Always check that the seat belts do

not rest on the child’s neck.

Always check that the seat belt is well

fastened by pulling on it.

While travelling, do not let the child sit

incorrectly or unfasten the belts.

Never allow a child to put the belt's

diagonal section under an arm or behind

their back.

Never carry children on your lap, even

newborns. No-one can hold a child in the

case of a collision.

In the event of an accident, replace the

child restraint system with a new one.

SUPPLEMENTARY RESTRAINT

SYSTEM (SRS) - AIRBAG

The car is equipped with:

front driver airbag;
front passenger airbag;
front side bags for pelvis, chest

and shoulder protection of driver and

passenger (GTA versions only);

window bags to protect the heads of

the front seat occupants (GTA versions

only);

window bags to protect the heads

of the side rear seat occupants (GTA

versions only);
The location of the airbags on the vehicle

is marked by the word "AIRBAG" under

the Alfa Romeo emblem on the steering

wheel, on the dashboard, on the side trim

or on a label placed next to the airbag

deployment area.

FRONT AIRBAGS

The front (driver and passenger) airbags

protect the front seat occupants in the

event of head-on crashes of medium-

high severity, by placing the cushion

between the occupant and the steering

wheel or dashboard.
Therefore non-activation of airbags in

other types of collisions (side impacts,

rear shunts, roll-overs, etc.) does not

indicate a system malfunction.
Driver and passenger front airbags are

not a replacement of but complementary

to the seat belts, which should always be

worn, as specified by law in Europe and

most non-European countries.
In a crash, those not wearing a seat

belt are projected forwards and may

come into contact with the bag which

is still inflating. The protection offered

by the bag is compromised in these

circumstances.
Front airbags may not activate in the

following situations:

frontal impacts against highly

deformable objects not involving the

front surface of the car (e.g. wing

collision against safety barrier, etc.);

car wedging under other vehicles or

safety barriers (e.g. trucks or guard rails).

CarManuals2.com

93

Failure to activate in the conditions

described above is due to the fact that

they may not provide any additional

protection compared with seat belts, so

their activation would be inappropriate.
In these cases, non-deployment does not

indicate a system malfunction.

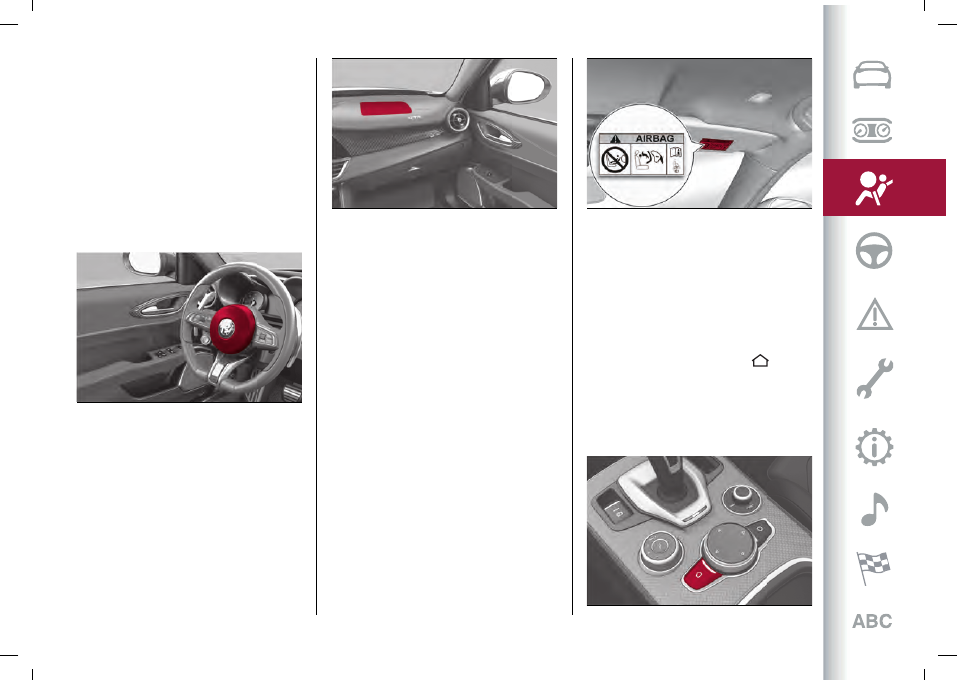

Driver's side front airbag

This consists of an instantly inflating

bag contained in a special recess in the
centre of the steering wheel fig. 84.

84

06106S0022EM

Passenger's front airbag

(GTA and GTAm versions)
This consists of an instantly inflating

bag contained in a special recess in the
dashboard fig. 85: this bag has a larger

volume than that on the driver side.

85

06106S0322EM

Passenger's front airbag and child

restraint systems

(GTAm versions excluded)
Rearward facing child restraint systems

must

NEVER

be fitted on the front seat

with an active passenger side airbag

since in the event of an impact the airbag

activation may cause fatal injuries to the

transported child.

ALWAYS

comply with the instructions

on the label stuck on the passenger side
sun visor fig. 86 and shown in table on the

following page.
WARNING Finally, ALWAYS refer to the

child restraint system installation table

provided in the “Child restraint systems”

paragraph for the list of seats on which a

child restraint system may be installed,

for the specific model of car.

86

06106S0003EM

Deactivating/activating the passenger

side air bags: front air bag and side bag

(where provided)
To deactivate the front and side

passenger side airbag, use the Connect

system. Select the following functions

in succession from the main Menu, and

activate them by pressing the

fig. 87

button: "Settings", "Safety", "Passenger

Airbag". The system will check airbag

activation/deactivation status and

request confirmation of change of

status.

87

05036S0099EM

CarManuals2.com

 SAFETY

94

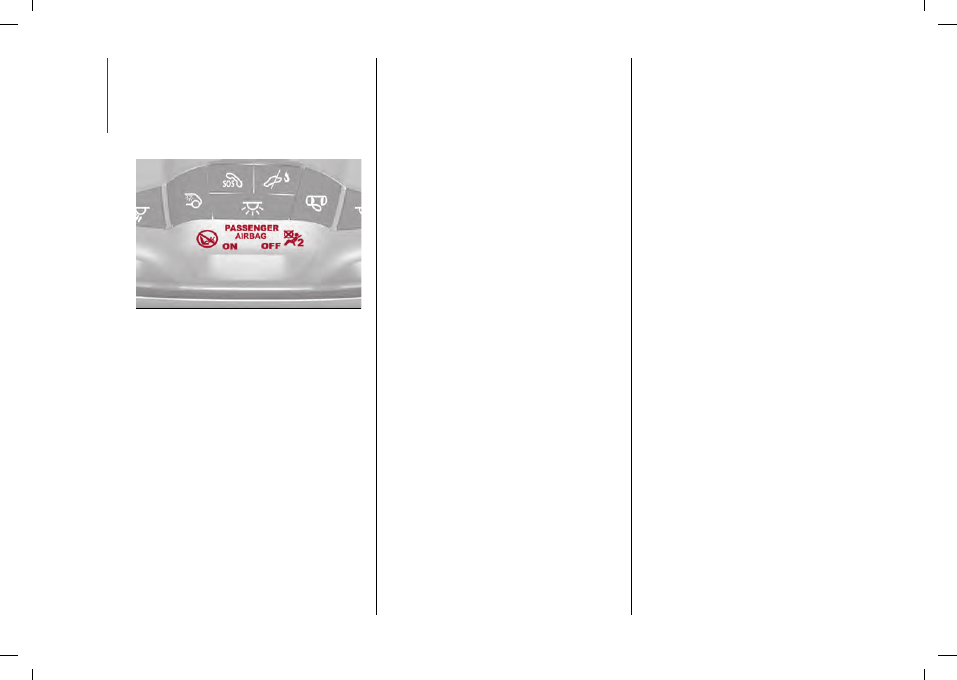

The ON and OFF status LEDs fig. 88

are on the front ceiling light. Moving

the ignition device to MAR, the two

LEDs switch on for a few seconds. If

not, contact a Dedicated Alfa Romeo

Dealership.

88

06106S0008EM

During the first seconds, the activation

of the LEDs does not actually show the

passenger protection status, but only

checks its correct operation.
After a test of a few seconds, the LEDs

will indicate the status of the passenger

airbag protection.

Passenger protection activated

: the ON

LED fig. 88 switches on fixed.

Passenger protection deactivated

: the

OFF LED turns on fixed.

CarManuals2.com

 SAFETY

96

 SIDE BAGS

(GTA versions only)
To help increase occupants protection

in the event of side impact collisions, the

vehicle is equipped with front side bags

and window bags.

Side bag

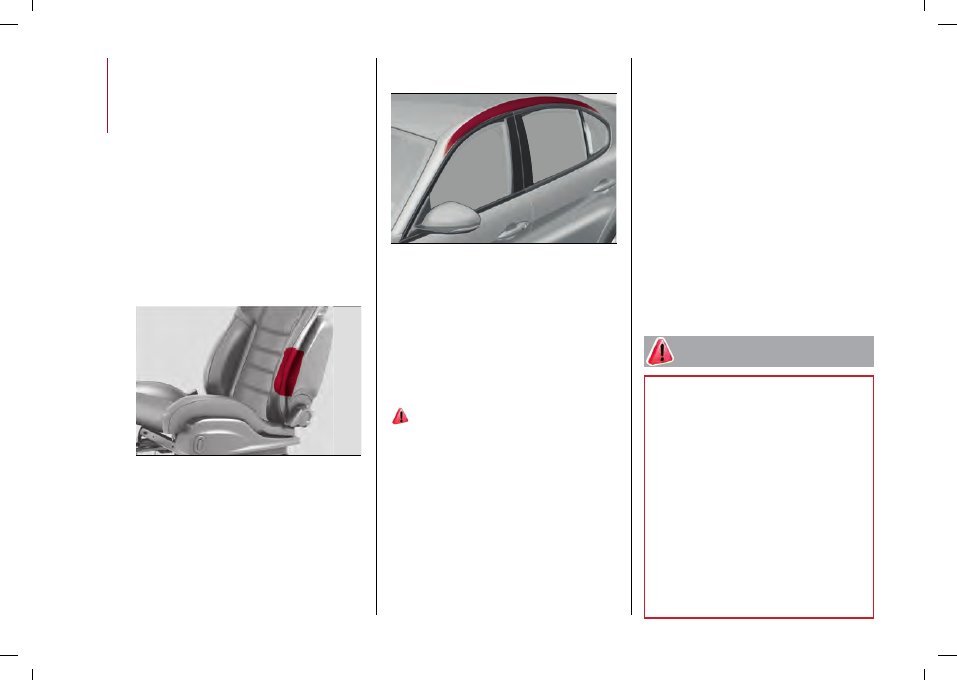

These comprise two bags located in
the front seat backrests fig. 90 which

protect the pelvis, chest and shoulder

area of the occupants in the event of a

side collision of medium-high severity.
They are marked by the "AIRBAG" label

sewn on the outer side of the front seats.

90

06106S0017EM

Window bag

This consists of a "curtain" bag housed

behind the roof side linings and covered
by special trims fig. 91.
They are designed to protect the head

of front and side rear occupants in the

event of a side collision, thanks to the

wide cushion inflation surface.

91

06106S0015EM

The deployment of side bags in the event

of side impacts of low severity is not

required.
In the event of a side impact, the

system provides best protection if the

passenger sits on the seat in a correct

position, allowing the window bag to

inflate correctly.

78) 79) 80) 81) 82) 83) 84) 85) 86) 87) 88) 89) 90) 91)

Warnings

Do not wash the seats with water or

pressurised steam (wash by hand or at

automatic seat washing stations).
The front airbags and/or side bags

may be deployed in the event of sharp

impacts to the underbody of the car (e.g.

impact with steps, pavements, potholes

or road bumps etc.).
When the airbag deploys it emits a small

amount of dust: the dust is harmless and

does not indicate the beginning of a fire.

The dust may irritate the skin and eyes

however: in this case, wash with neutral

soap and water.
Airbag checking, repair and replacement

must be carried out at a Dedicated Alfa

Romeo Dealership.
If the car is scrapped, have the airbag

system deactivated at a Dedicated Alfa

Romeo Dealership.
Pretensioners and airbags are deployed

in different ways on the basis of the type

of collision. Failure to activate one or

more of the devices does not indicate a

system malfunction.

WARNING

78)

Do not apply stickers or other objects

on the steering wheel, on the dashboard

in the passenger side airbag area, on side

upholstery on the roof or on the seats.

Never put objects (e.g. mobile phones) on

the passenger's side dashboard since they

could interfere with correct inflation of the

airbag and also cause serious injury to the

passengers.

79)

The airbag must be able to inflate

without obstruction in the event of

deployment. It is therefore recommended

not to drive with the body bent forward, but

to sit up resting your back and shoulders

on the backrest of the seat. Adjusting

the position of the seat so that you can

reach and manoeuvre the steering wheel

CarManuals2.com

97

comfortably with your arms slightly bent

being as far away as possible from the

steering wheel. Being too close to the

steering wheel when the airbag is deployed

may cause serious injury.

80)

The passenger side front and side

airbags can be deactivated on the

Connect system by selecting the following

functions in sequence on the main Menu:

“Settings”; “Safety”; “Passenger air bag” and

“Deactivation”.

81)

Do not affix rigid objects to the garment

hooks or support handles.

82)

Do not rest your head, arms or elbows

on the door, on the windows or in the

window bag area to prevent injury during

deployment.

83)

Never lean your head, arms or elbows

out of the window.

84)

If when setting the ignition device to

ON the warning light

does not turn on

or stays on whilst driving, a failure may

have occurred in the restraint systems. In

this case the air bags or pretensioners

may not be deployed in an impact or, in

a lower number of cases, they may be

deployed accidentally. Before continuing,

contact a Dedicated Alfa Romeo Dealership

immediately to have the system checked.

85)

In the event of a LED

OFF

failure

(located on the front courtesy light), the
warning light on the instrument panel turns

on.

86)

On cars with side bags, do not cover the

front seat backrests with extra covers.

87)

Do not travel with objects in your lap,

in front of your chest or held in your mouth

(e.g., pipe, pencil etc.). They could cause

severe injury if the airbag is deployed in a

crash.

88)

If the car has been subject to theft,

attempted theft, vandalism, or flooding,

have the air bag system inspected at a

Dedicated Alfa Romeo Dealership.

89)

Malfunction of the airbag failure

warning light is indicated by the activation

of an airbag failure icon and a dedicated

message on the instrument panel display.

The pyrotechnic charges are not disabled.

Before continuing, contact a Dedicated Alfa

Romeo Dealership immediately to have the

system checked.

90)

The front airbag deployment threshold

is higher than that of the pretensioners. For

impacts whose intensity falls between the

two levels, normally, only the pretensioners

will be activated.

91)

The airbag does not replace seat belts

but increases their efficiency. Because front

airbags are not deployed for low-speed

crashes, side collisions, rear-end shunts

or rollovers, occupants are protected, in

addition to any side bags, only by their seat

belts, which must therefore always be

fastened.

CarManuals2.com

We have now reached the "heart" of the vehicle: let's see how

to use the vehicle to its full potential. We’ll look at how to

drive safely in any situation, making it a welcome companion

with our comfort and wallets in mind.

STARTING AND DRIVING

STARTING THE ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
ENGINE RUN-IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
WHEN PARKED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
AUTOMATIC TRANSMISSION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
“Alfa DNA™ Pro” SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
START&STOP EVO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
SPEED LIMITER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
CRUISE CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
PARK SENSORS SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
REAR BACK-UP CAMERA / DYNAMIC GRIDLINES . . . . . . . . . . . . . . . . . . .112
REFUELLING THE VEHICLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113
DRIVING TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115
TOWING TRAILERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

CarManuals2.com

 STARTING AND DRIVING

100

STARTING THE ENGINE

STARTING THE ENGINE

Before starting the car, adjust the

seat, the interior rear view mirrors, the

door mirrors and fasten the seat belt

correctly.
Never press the accelerator pedal for

starting the engine.
If necessary, messages on the

instrument panel indicating the starting

procedure can be shown on the display.

STARTING PROCEDURE

92) 93) 94)

19) 20) 21)

Proceed as follows:

engage the electric parking brake

and set the gear lever to P (Park) or N

(Neutral);

fully depress the brake pedal without

touching the accelerator;

briefly press the ignition button;
if the engine doesn't start within a

few seconds, you need to repeat the

procedure.
If the problem persists, contact a

Dedicated Alfa Romeo Dealership.

ENGINE STARTING FAILURE

Starting the engine with electronic key

battery (Keyless Start) run down or flat

If the ignition device does not respond

when the relevant button is pressed the

electronic key battery might be run down

or flat. Therefore, the system does not

detect the presence of the electronic key

on board the car and displays a dedicated

message on the instrument panel.
In this case, follow the instructions

in paragraph "Starting with flat key

battery" in the "Knowing your car"

chapter and start the engine normally.

STOPPING THE ENGINE

21)

To stop the engine, proceed as follows:

park the car in a position that is not

dangerous for oncoming traffic;

engage P (Park) mode;
with engine idling, press the start

button.
WARNING Do not leave the ignition

device in the ON position when the

engine is off.

Cars with electronic key (Keyless Start)

If the vehicle speed is above 8km/h, it is

still possible to stop the engine, selecting

a gear operation mode other than P

(Park).
To switch off the engine in this situation,

hold down the ignition device button for

a while or press it 3 times in a row within

a few seconds.

WARNING

92)

It is dangerous to run the engine in

enclosed areas. The engine consumes

oxygen and engine exhaust contains carbon

dioxide, carbon monoxide and other toxic

gasses.

93)

The electro-hydraulic braking system

is not active until the engine starts running.

So, the brake pedal travel will be longer than

normal. This does not indicate a fault.

94)

Do not start the engine by pushing,

towing or driving downhill. These

manoeuvres may damage the catalytic

converter.

IMPORTANT

19)

We recommend that during the

initial period, or during the first 1600 km

(1000 miles), you do not drive to full car

performance (e.g. excessive acceleration,

long journeys at top speed, sharp braking,

etc.).

20)

With the engine stopped never leave

the ignition device in the ON position to

prevent useless current draw from draining

the battery.

21)

A quick burst on the accelerator before

turning off the engine serves absolutely

no practical purpose; it wastes fuel and is

damaging for the engine.

CarManuals2.com

101

ENGINE RUN-IN

RECOMMENDATIONS FOR RUNNING IN

THE ENGINE

Despite modern construction

technology, the mechanical parts of the

engine must be run in during the first 800

kilometres of travel up to the first engine

oil change.
NOTE The consumption of engine oil and

fuel in a new engine, during the first

thousand kilometres of operation,

before the first engine oil change, could

be higher than usual. This is normal

behaviour during the run-in period and

should not be understood as an anomaly.

Periodically check the engine oil level

during the run-in period and top up, if

necessary, as shown in the "Maintenance

and care" chapter.
Observe following driving behaviour

during the run-in period of the car.

From 0 to 100 miles (from 0 to

160 kilometres)

Do not leave the engine idling for a

long time.

Gradually press the throttle pedal

never more than halfway to avoid

excessive acceleration.

Avoid braking too hard.
Drive keeping the engine under

3500 rpm.

Keep your speed below 55 mph

(90 km/h) and respect the speed limits

in force in the country in which you are

driving.

From 100 to 300 miles (from 160 to

500 kilometres)

Gradually press the throttle pedal

never more than halfway to avoid rapid
acceleration in low gears (from 1st to
3rd).

Avoid braking too hard.
Drive keeping the engine under

5,000 rpm.

Keep your speed below 70 mph

(120 km/h) and respect the speed limits

in force in the country in which you are

driving.

From 300 to 500 miles (from 500 to

800 kilometres)

Make full use of the full rpm range by

manually shifting at higher revs where

possible, in sequential mode using the

gear lever or steering wheel paddles

(where fitted).

Do not hold the throttle pedal pressed,

requiring maximum engine performance,

for too long.

Keep your speed below 85 mph

(144 km/h) and respect the speed limits

in force in the country in which you are

driving.

During the first 2500 kilometres

:

Avoid taking part in races on the track.
Avoid sporty driving or similar

activities.

WHEN PARKED

95) 96) 97)

WARNING In addition to parking the

vehicle with the electric parking brake

always engaged, the wheels turned,

chocks or stones positioned in front of

the wheels (when on a steep slope), you

must always:

engage P (Park) mode;
always take the key with you when

leaving the vehicle.
WARNING Always engage the electric

parking brake before leaving the car.

ELECTRIC PARKING BRAKE

The car is equipped with electric parking

brake to guarantee better use and

optimal performance compared to a

manually operated parking brake.
The electric parking brake features a

switch, located on the central tunnel

fig. 92, a motor with calliper for each rear

wheel and an electronic control module.

CarManuals2.com

 STARTING AND DRIVING

102

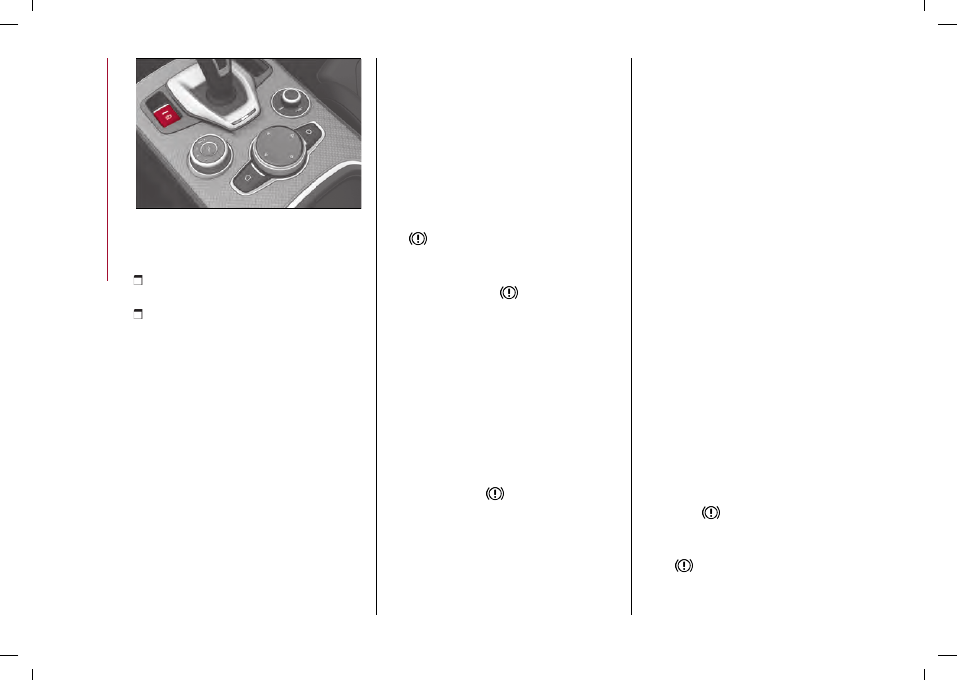

92

07076S0993EM

The electric parking brake can be

engaged in two ways:

manually

, by pulling the switch on the

central tunnel;

automatically

in "Safe Hold" or "Auto

Park Brake" conditions.
WARNING Normally, the electric parking

brake is engaged automatically when the

engine is stopped.This function can be

deactivated/activated on the Connect

system by selecting the following

items in sequence on the main menu:

"Settings", "Driver Assistance" and

"Automatic Parking Brake".
WARNING Should the car battery be

faulty, to unlock the electric parking

brake the battery must be replaced.

Electric parking brake manual

engagement

Briefly pull the switch located on the

central tunnel to manually engage the

electric parking brake when the car is

stationary.
Noise may be heard from the rear of the

car when engaging the electric parking

brake.
A slight movement of the brake pedal

may be detected when engaging the

electric parking brake with the brake

pedal pressed.
With the electric parking brake engaged,
the

warning light on the instrument

panel and the LED on the switch fig. 92

turn on.
WARNING With the

warning light on,

some functions of the electric parking

brake are deactivated. In this case the

driver is responsible for brake activation

and car parking in complete safety

conditions.
If, under exceptional circumstances,

the use of the electric parking brake is

required with the car in motion, keep the

switch on the central tunnel pulled as

long as the electric parking brake action

is necessary.
The warning light

may switch on

with the hydraulic system temporarily

unavailable; in this case braking is

controlled by the motors.
The brake lights (stop) will also

automatically switch on in the same way

as for normal braking with the use of the

brake pedal.

Release the switch on the central tunnel

to stop the braking action with the car in

motion.
If, through this procedure, the car is

braked until a speed below 2 mph

(3 km/h) is reached and the switch is kept

pulled, the electric parking brake will

definitively engage.
WARNING Driving the car with the

electric parking brake engaged, or using

it several times to slow down the car,

may cause severe damage to the braking

system.

Disengaging the electric parking brake

manually

In order to manually release the parking

brake, the ignition device should be in the

ON position.
Moreover, you need to press the brake

pedal, then press the switch on the

central tunnel briefly.
Noise may be heard from the rear of

the vehicle and a slight movement of

the brake pedal may be detected during

disengagement.
After disengaging the electric parking
brake, the

warning light on the

instrument panel and the LED on the
switch fig. 92 turn off.
If the

warning light on the instrument

panel remains on with the electric

parking brake disengaged, this indicates

CarManuals2.com

103

a fault: in this case contact a Dedicated

Alfa Romeo Dealership.
WARNING Never use gear position

P (Park) instead of the electric parking

brake. Always engage the electric

parking brake when parking the car to

prevent injury or damage caused by the

unexpected movement of the car.

ELECTRIC PARKING BRAKE

OPERATING MODES

The electric parking brake may operate

as follows:

"Dynamic operating mode"

: this

mode is activated by pulling the switch

repeatedly whilst driving;

"Static engagement and release

mode"

: with the car stationary, the

electric parking brake can be activated

by pulling the switch on the central

tunnel once. On the other hand, press the

switch and the brake pedal at the same

time to disengage the brake;

"Drive Away Release"

: (where

provided) the electric parking brake will

automatically disengage with the driver

side seat belt fastened and the detection

of an action performed by the driver to

move the car (forward gear or reverse

gear);
NOTE Before using "Drive Away

Release" mode and moving the vehicle,

it is necessary to buckle the seat

belts or manually release the electric

handbrake to prevent damage to the

carbon-ceramic discs.

"Safe Hold"

: if the vehicle speed is

lower than 2 mph (3 km/h), the gear

lever is not in P (Park) position and the

driver's intention of leaving the vehicle is

detected, the electric parking brake will

automatically engage to hold the vehicle

in safety conditions;

"Auto Park Brake"

: if the vehicle

speed is below 2 mph (3 km/h), the

electric parking break will automatically

engage when the gear lever is in P (Park)

position. The LED on the switch located
on the central tunnel fig. 92 switches

on together with the warning light

on the instrument panel when the

electric parking brake is engaged and

applied to the wheels. Each automatic

engagement of the electric parking

brake can be cancelled by pressing the

switch on the central tunnel and at the

same time moving the gear lever for the

transmission to position P (Park).

SAFE HOLD

It is a safety function that automatically

engages the electric parking brake in the

event of a dangerous condition for the

car.
If:

the car speed is below 2 mph (3 km/h);

a transmission operating mode

different from P (Park) is activated;

the driver's seat belt is not fastened;
the driver side door is open;
no attempts to apply pressure on the

brake pedal have been detected;

the car is parked on roads which

gradient higher than 4%;
the electric parking brake engages

automatically to prevent car movement.
The Safe Hold function can be

temporarily disabled by pressing the

switch located on the central tunnel and

the brake pedal at the same time, with

the car stationary and the driver side

door open.
Once disabled, the function will activate

again when the vehicle speed reaches

18 mph (20 km/h) or the ignition device is

moved to STOP and then to ON.

WARNING

95)

In the case of parking manoeuvres

on roads on a gradient, the front wheels

must be steered towards the pavement

(when parking downhill), or in the opposite

direction if the car is parked uphill. Block the

wheels with a wedge or a stone if the car is

parked on a steep slope.

96)

Never leave children alone in an

unattended car; make sure that when you

CarManuals2.com

 STARTING AND DRIVING

104

move away from the car, you have the key

with you.

97)

The electric parking brake must always

be engaged when leaving the car.

AUTOMATIC TRANSMISSION

The car is equipped with an electronically

controlled 8-speed automatic

transmission where gear shifting

automatically takes place, depending

on the vehicle usage instantaneous

parameters (vehicle speed, gradient, and

accelerator pedal position).
It is still possible to change gear

manually thanks to the "sequential

mode" position for the gear lever.

GEAR LEVER

The transmission is operated by means
of the control lever (1) fig. 93 which can

be used to select the following operating

modes:

P

= Park

R

= Reverse

N

= Neutral

D

= Drive, (automatic forward speed)

AutoStick

:

+

shifting to a higher gear

in sequential driving mode /shifting to a

lower gear in sequential driving mode.
The operating mode positions diagram is

illustrated on the top of the lever.

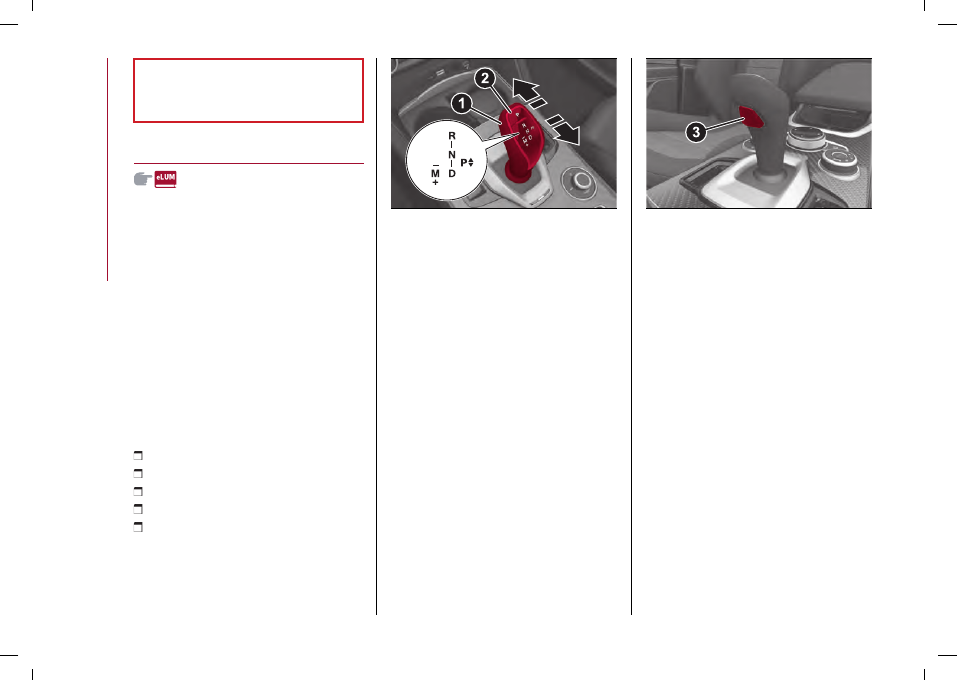

93

07076S0686EM

The letter corresponding to the selected

mode lights up on the gear lever and also

appears on the instrument panel display.
To select one of the operating modes,

move the lever forwards or backwards

and press the brake pedal at the same

time.
To engage R (Reverse) mode, press the
brake pedal and the button (3)fig. 94 in

combination.
To pass from P (Park) mode directly to D

(Drive) mode, in addition to pressing the

brake pedal, it is also necessary to press

button (3).
To pass from R (Reverse) mode directly

to D (Drive) mode and vice versa, in

addition to pressing the brake pedal, it is

necessary to press button (3).

94

07076V0020EM

The gear lever functions like a joystick,

so releasing it after giving the command,

it automatically returns to the centre

position.
The P (Park) mode can be enabled

pressing the P (Park) (2) fig. 93 button.
If using the gear shift in "sequential"

mode. you can activate it by moving the

lever from D (Drive) to the left and then

forward towards the - symbol or back

towards the + symbol and the gear is

shifted.
To exit position P (Park), or to pass

from position N (Neutral) to position D

(Drive) or R (Reverse) when the vehicle is

stopped or is moving at a low speed, the

brake pedal must also be pressed.
WARNING DO NOT accelerate while

shifting from position P (or N) to another

position.
WARNING After selecting a gear, wait

a few seconds before accelerating. This

CarManuals2.com

105

precaution is particularly important with

engine cold.

TRANSMISSION OPERATING MODES

AutoStick - Manual (sequential)

shifting mode

In the case of frequent shifting (e.g.

during sporty driving, when the car is

driven with a heavy load, on gradients, or

with strong headwind), it is advisable to

use the AutoStick (sequential shifting)

mode to select and keep in a lower gear.
In these conditions, the use of a lower

gear improves vehicle performance,

preventing overheating.
It is possible to shift from D mode (Drive)

to sequential mode regardless of vehicle

speed.

Activation

Starting from D (Drive) mode, to activate

the sequential drive mode, move the

lever to the left (– and + indication of the

trim). The gear engaged will be shown on

the instrument panel display.
Gearshifting is made by moving the gear

lever forwards, towards symbol – or

backwards, towards symbol +.

Steering wheel stalks

Manual shifting is possible using the

paddles positioned behind the steering

wheel.
Pull the right shift paddle (+) towards

the steering wheel and release it to shift

up. Do the same operation with the left
paddle (-) to shift down fig. 95.
To engage N (Neutral), pull both levers

simultaneously.
To activate D (Drive) mode, from N

(Neutral), P (Parking) and R (Reverse)

position: push the brake pedal and the

right lever (+).

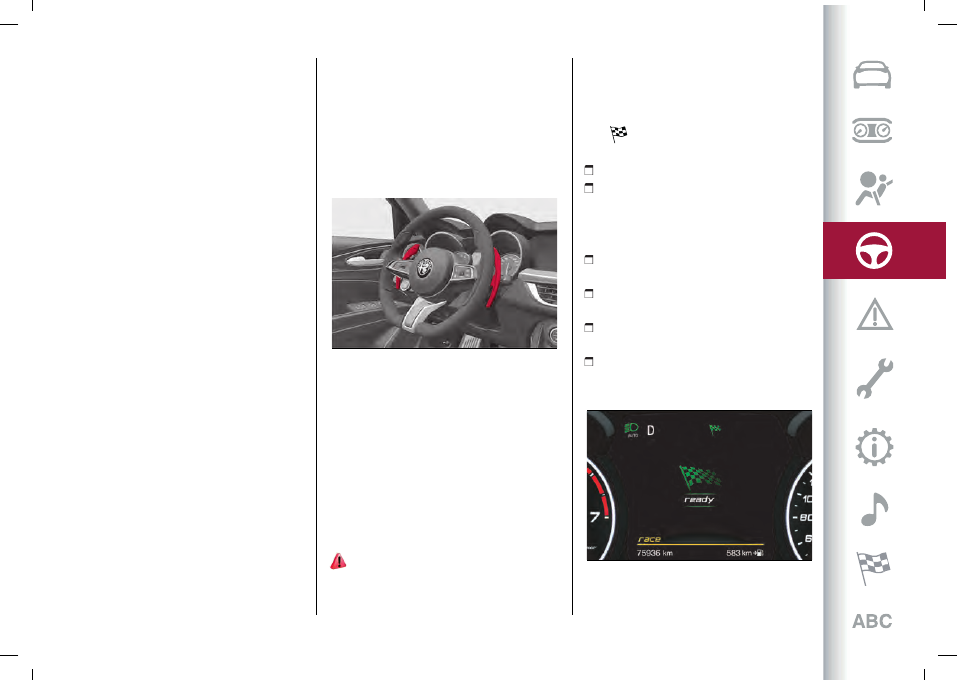

95

07076S0021EM

WARNING If only one manual shift is

necessary, the letter D will remain on the

display of the instrument panel with the

engaged gear shown next to it.

Deactivation

To deactivate the sequential driving

mode, bring the gear lever back in

position D (Drive) ("automatic" drive

mode).

“LAUNCH MODE” FUNCTION

98)

The “Launch Mode” function is used for

racing starts.

Activating this function optimises

gear shifts during acceleration from a

standstill.
The instrument panel display shows the
icon

illustrated in fig. 96, which may

be one of two colours:

icon green

: function active;

icon grey

: function not active/not

available.
The following conditions must be met in

order to perform a “Launch Mode” start:

engine oil temperature within correct

parameters;

no failures in engine or car’s electronic

systems;

car at a standstill on a flat road

surfaces with the wheels straight;

electric parking brake not engaged.

There is a pause time of 45 seconds

between activations.

96

07076S0080EM

CarManuals2.com

 STARTING AND DRIVING

106

With the car stationary, proceed as

follows to activate this function:

check that the gear lever is in the D

position;

in the Alfa DNA™ Pro” system, activate

the “Race" driving mode;

depress the brake pedal with your left

foot and, simultaneously, fully depress

the accelerator pedal with your right

foot;

release the brake pedal: in this way a

more "lively" start is achieved.
When the brake pedal is released the

car will start in its fastest mode (with

shorter shifting times): the car will

automatically shift gears to achieve the

greatest possible acceleration once the

correct engine speed for the gear shift is

reached.

Deactivation

To deactivate the function, simply

interrupt the above sequence of

operations or release the accelerator

pedal.

TRANSMISSION EMERGENCY

FUNCTION

(where provided)
Transmission function is monitored

electronically for abnormal conditions.

If a condition that might damage

the transmission is detected, the

"transmission emergency" function is

activated.
In this condition, the transmission stays
in 4th gear, regardless of the selected

gear. The P (Park), R (Reverse) and N

(Neutral) modes continue to work.
The symbol

might be shown on the

instrument panel display.
In the event of a "transmission

emergency" immediately contact

the nearest Dedicated Alfa Romeo

Dealership.

Temporary failure

If the warning light turns on, the failure

may be temporary, in which case,

proceed as follows to restore correct

transmission operation:

stop the car;
engage P (Park) mode;
turn the ignition device to the STOP

position;

please wait for about 10 seconds, then

restart the engine;

shift into the desired gear range.

If the problem is no longer detected,

the transmission will return to normal

operation.
WARNING In the event of a temporary

failure it is in any case recommended

to contact a Dedicated Alfa Romeo

Dealership as soon as possible.

GEAR ENGAGEMENT DISABLING

SYSTEM WITHOUT BRAKE PEDAL

PRESSED

This system prevents you from

deactivating P (Park) mode if the brake

pedal has not been previously depressed.
To bring the gear lever to a position other

than P (Park), the ignition device must be

in position AVV (engine on or off) and the

brake pedal must be pressed.
You also need to press the brake pedal

to shift from position N (Neutral) to

position D (Drive) or R (Reverse) if the

car is stationary.

WARNING

98)

While the Launch Mode function is

being used, the ESC and ASR systems are

deactivated. This means that car dynamic

control is the sole responsibility of the

driver. Therefore pay the utmost attention

when using the Launch Mode. Take into

account traffic and road surface conditions

and during manoeuvres make sure there is

enough room in the area concerned.

Activation

CarManuals2.com

107

“Alfa DNA™ Pro” SYSTEM

DESCRIPTION

This device allows different car response

modes to be selected according to

driving style and road conditions using
the selector fig. 97 (on the central

tunnel).

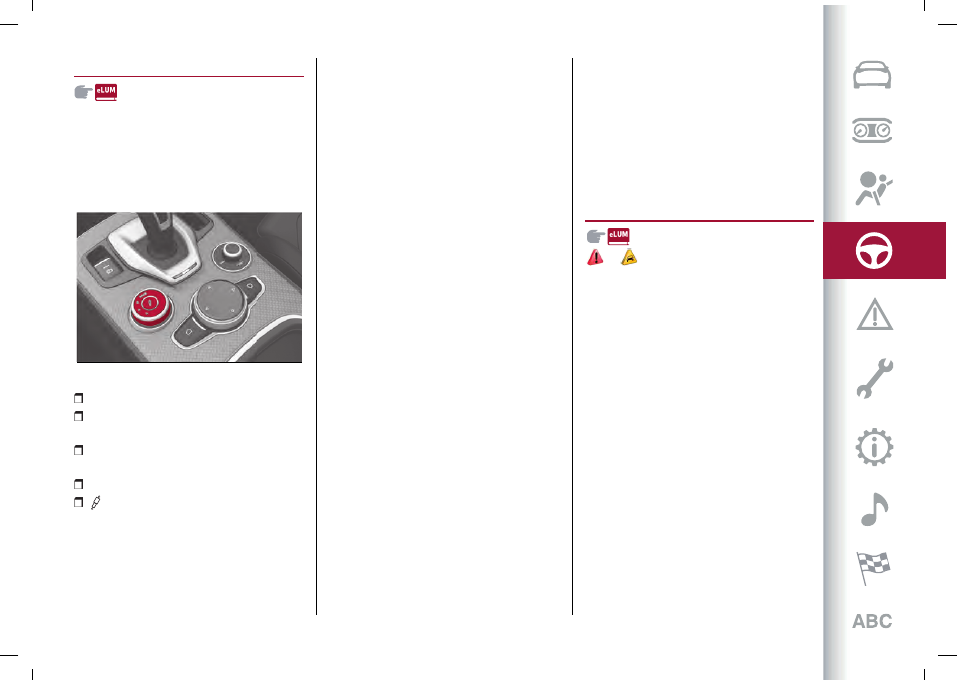

97

04306S0086EM

d

= Dynamic (sports driving mode)

n

= Normal (mode for driving in normal

conditions)

a

= Advanced Efficiency (ECO driving

mode for maximum fuel savings)

RACE

= track race driving mode

= adjusts the calibration of the

suspensions
On some versions when the engine is

stopped, the selector always returns to

n

(Normal) mode.
When RACE mode is active, the selector

is illuminated in red.

DRIVING MODES

"Dynamic" Mode
Engagement / disengagement

It is activated by rotating the selector to

the letter "d", the displays light up in red.
To deactivate the Dynamic mode, move

the selector to "n", Normal mode.

"Normal" Mode
Engagement / disengagement

It is activated by rotating the selector to

the letter "n", the displays light up in blue.
To deactivate the Normal mode, move

the selector to another mode ("d" or "a").

"Advanced Efficiency" Mode
Engagement / disengagement

It is activated by rotating the selector

to the letter “a”, the displays light up in

green.
ESC and ASR systems: intervention

thresholds aimed at ensuring maximum

safety in low-grip driving conditions.

It is advisable to select "Advanced

Efficiency" mode in the presence of

low-grip road surfaces.
To deactivate the Advanced Efficiency

mode, move the selector to "n", Normal

mode.
WARNING The selector will always be

positioned in Normal "n" mode when the

engine is started.

“Race” mode
Engagement / disengagement

It is activated by rotating the selector to

position "Race", the displays light up in

yellow.
To turn off the Race mode, move the

selector to the “Race” position again and

the system will be set to “d” mode.

START&STOP EVO

99)

22)

The Start&Stop Evo system

automatically stops the engine each time

the car is stationary and starts it again

when the driver wants to start off again.
In this way, the car efficiency is

increased, by reducing consumption,

emission of harmful gases and noise

pollution.

OPERATING MODE

Stopping the engine

With car at a standstill and brake pedal

pressed, the engine switches off if the

gear lever is in a position other than R.
The system does not operate when the

gear lever is in R, for making parking

manoeuvres easier.
In the event of stops uphill, engine

switching off is disabled to make the "Hill

Start Assist" function available (works

only with running engine).

CarManuals2.com

















Content      ..     1      2      3      4      ..
