In-depth knowledge of your new vehicle starts here.

The handbook you are reading will tell you how things are

done, and how it works in a simple, direct way.

That’s why we advise you to read it seated comfortably on

board, so that you can see immediately what is described here

for yourself.

KNOWING YOUR VEHICLE

DASHBOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
DASHBOARD (RIGHT-HAND DRIVE VERSION) . . . . . . . . . . . . . . . . . . . . . . . . 11
THE KEYS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
IGNITION DEVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
ENGINE IMMOBILIZER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
ALARM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
DOORS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
SEATS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
HEAD RESTRAINTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
STEERING WHEEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
REAR-VIEW MIRRORS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
EXTERNAL LIGHTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
INTERIOR LIGHTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
WINDSCREEN WIPER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
CLIMATE CONTROL SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
ELECTRIC WINDOWS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
BONNET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
TAILGATE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
AERODYNAMICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
WIRELESS CHARGING SYSTEM - WCPM (Wireless Charge Pad

Module) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

CarManuals2.com

 KNOWING YOUR VEHICLE

10

DASHBOARD

1

03046S0702EM

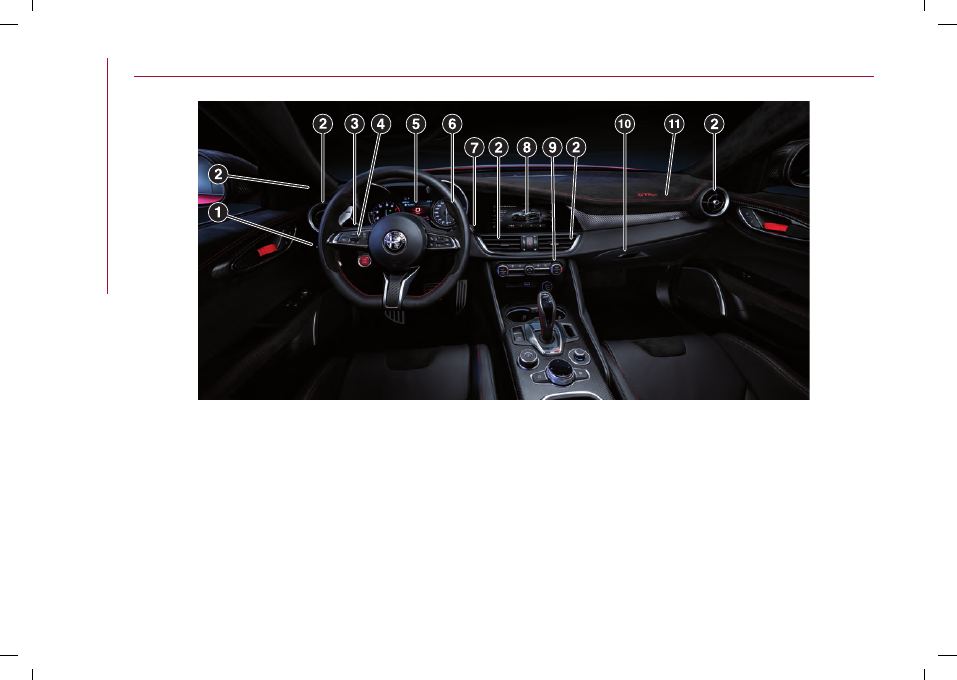

1. Light switch / 2. Air vents / 3. Left stalk / 4. Controls on the steering wheel / 5. Instrument panel / 6. Steering wheel / 7. Right stalk /

8. Connect / 9. Automatic dual-zone climate control system / 10. Glove compartment / 11. Passenger airbag /

CarManuals2.com

11

DASHBOARD (RIGHT-HAND DRIVE VERSION)

2

03036S0027EM

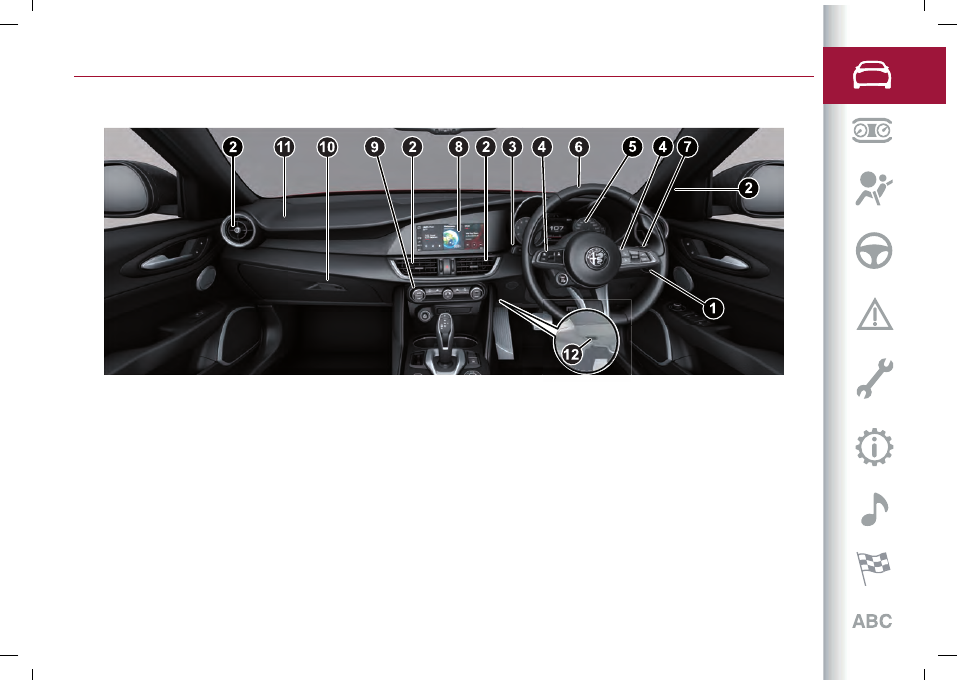

1. Light switch / 2. Air vents / 3. Left stalk / 4. Controls on the steering wheel / 5. Instrument panel / 6. Steering wheel / 7. Right stalk /

8. Connect / 9. Automatic dual-zone climate control system / 10. Glove compartment / 11. Passenger airbag / 12. Bonnet opening lever /

CarManuals2.com

 KNOWING YOUR VEHICLE

12

THE KEYS

ELECTRONIC KEY

1)

1)

1)

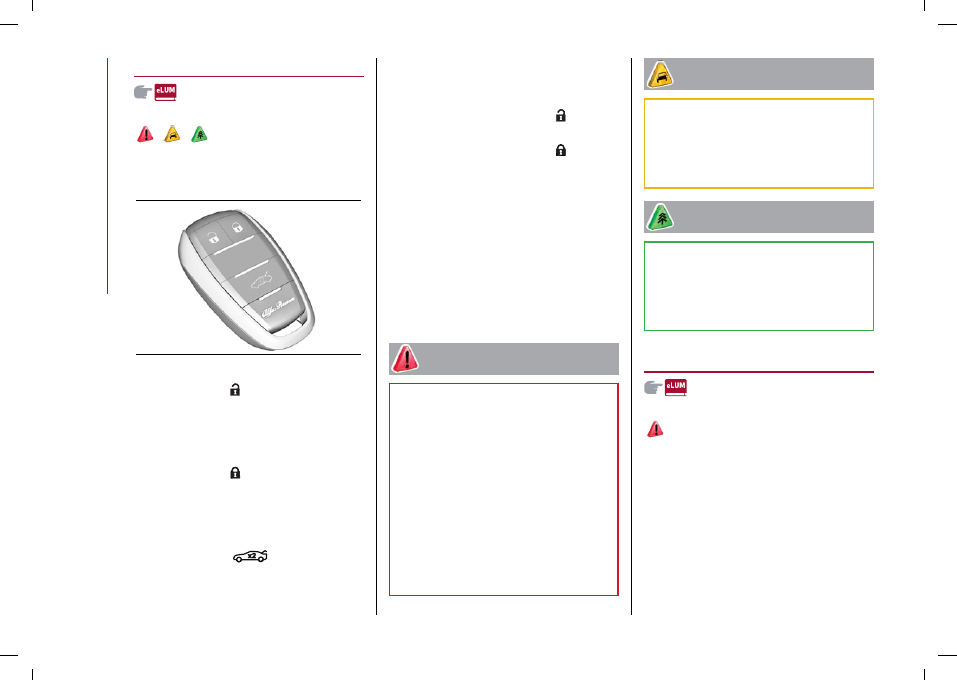

The vehicle is equipped with an

electronic key with a Keyless Start
function fig. 3, provided in duplicate.

3

04016S0010EM

Briefly press the

button: unlocking

of doors and boot, timed switching-on

of interior courtesy lights and single

flashing of direction indicators (if

activated from the Connect system).
Briefly press the

button: locking of

doors and boot, timed switching-off

of interior courtesy light and double

flashing of direction indicators (if

activated from Connect system).
Rapidly press the

button twice

to open the luggage compartment

remotely.

Automatic window opening/closing

function

(where provided)
Prolonged pressing of button : open all

windows.
Prolonged pressing of button : close all

windows.
WARNING GTAm versions are

fitted fixed rear windows in Lexan®

polycarbonate.

REQUEST FOR ADDITIONAL KEYS

If you need a new electronic key, go to a

Dedicated Alfa Romeo Dealership, taking

an ID document and the car ownership

documents.

WARNING

1)

Do not swallow the battery. Danger of

chemical burns. The keys contain a small

battery. If the battery is swallowed, it

can cause severe internal burns in just 2

hours and cause death. Keep new and used

batteries out of the reach of children. If

the battery compartment does not close

securely, discontinue use of the product

and keep it out of reach of children. If you

believe that batteries may have been

swallowed or inserted inside the body,

seek medical attention immediately. The

emergency key (where provided) must be

immediately inserted into the electronic key

to prevent easy access to the battery.

IMPORTANT

1)

The electronic components inside the key

may be damaged if the key is subjected to

strong shocks. In order to ensure complete

efficiency of the electronic devices inside

the key, it should never be exposed to direct

sunlight.

IMPORTANT

1)

Used batteries may be harmful to the

environment if not disposed of correctly.

They must be disposed of as specified by

law in the special containers or taken to a

Dedicated Alfa Romeo Dealership, which

will take care of their disposal.

IGNITION DEVICE

OPERATION

2) 3) 4) 5) 6)

To activate the ignition device fig. 4

the electronic key must be inside the

passenger compartment.

CarManuals2.com

13

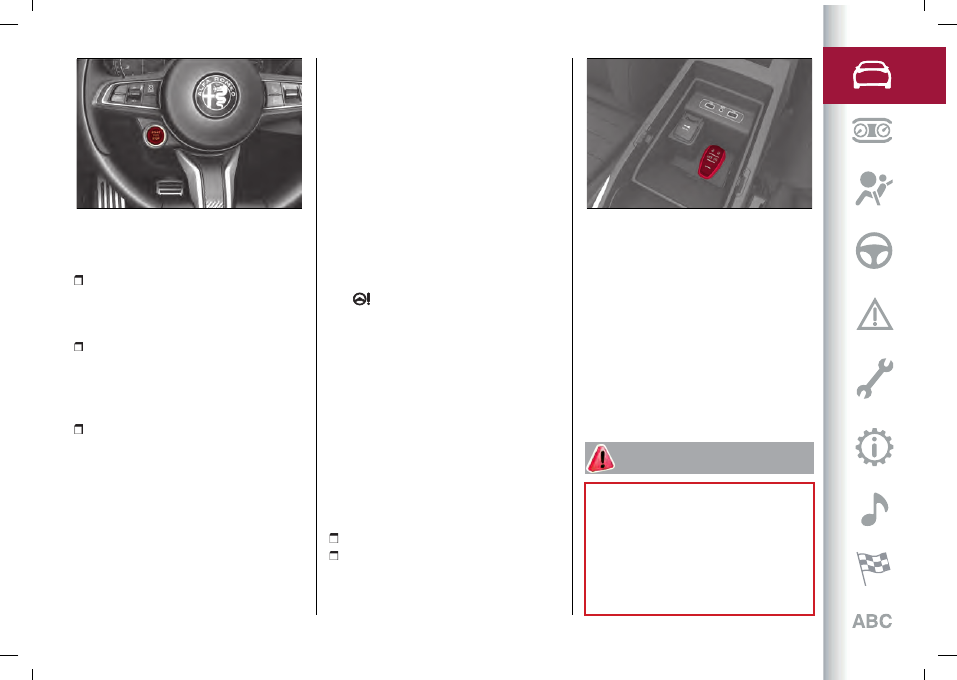

4

04026S0020EM

The ignition device has the following

possible states:

STOP: engine off, steering locked.

Some electrical devices (e.g. central

door locking system, alarm, etc.) are still

available;

ON (single button press): all electrical

devices are available. This state can be

selected by pressing the ignition device

button once, without pressing the brake

pedal;

AVV: engine starting. This state can be

selected by pressing the ignition device

button once and pressing the brake

pedal.
NOTE With the ignition device ON, if

30 minutes pass with P (Park) mode

engaged and the engine stopped, the

ignition device will automatically move to

the STOP position.
NOTE With the engine running, it is

possible to go away from the car taking

the electronic key with you. The engine

will still be running. The car will indicate

the absence of the key on board when

the door is closed.
For more information on the engine

start-up, see the description in the

"Starting the engine" paragraph, in the

"Starting and driving" chapter.
WARNING If the battery was

disconnected, do not start the engine

immediately after reconnecting the

terminals, but press the start button,

without operating the pedals, to turn on

the instrument panel and then start the

engine.
The

symbol on the instrument panel

will remain on, indicating that the

steering must be initialised. To do this,

turn the steering wheel from one end to

the other and bring it back to the centre

position within 30 seconds from starting

the engine. If any red warning lights on

the instrument panel remain lit, stop the

engine, wait for at least 5 seconds and

repeat the starting procedure described

above.

STARTING WITH FLAT KEY BATTERY

If the remote control battery is flat,

proceed as follows to start the car:

lift the front armrest;
lay the key on the indicated spot,

respecting the position shown in fig. 5.

5

04026S0995EM

STEERING COLUMN LOCK

(where provided)

Activation

The steering lock is engaged when the

driver door is opened with the ignition

device button at STOP.

Deactivation

The steering lock disengages when

the ignition device is pressed and the

electronic key is recognised.

WARNING

2)

Always take the key with you when

you leave your car to prevent someone

from accidentally operating the controls.

Remember to engage the electric parking

brake. Never leave children unattended in

the car.

3)

It is absolutely forbidden to carry out any

after-market operation involving steering

system or steering column modifications

CarManuals2.com

 KNOWING YOUR VEHICLE

14

(e.g. installation of anti-theft device) that

could adversely affect performance,

invalidate the warranty, cause SERIOUS

SAFETY PROBLEMS and also result

in the car not meeting type-approval

requirements.

4)

Before leaving the car, ALWAYS engage

the parking brake. On versions equipped

with automatic transmission, activate mode

P (Park) and press the ignition device to set

it to STOP. When leaving the car, always

lock all the doors by pressing the button on

the handle.

5)

For versions equipped with the Keyless

Start system, do not leave the electronic

key inside or near the car or in a place

accessible to children. Do not leave the car

with the ignition device in ON position. A

child could activate the electric window

winders, other controls or even start the car.

6)

If the ignition device has been tampered

with (e.g. an attempted theft), have it

checked over by a Dedicated Alfa Romeo

Dealership before driving again.

ENGINE IMMOBILIZER

The Engine Immobilizer system prevents

unauthorised use of the vehicle

preventing to start the engine.
The system does not need to be

enabled/activated: operation is

automatic, regardless of the fact that the

car's doors are locked or unlocked.
When the ignition device is set to ON, the

Engine Immobilizer system identifies

the code transmitted by the key. If the

code is recognised as valid, the Engine

Immobilizer system enables engine

starting.
When the ignition device is brought back

to STOP, the Engine Immobilizer system

deactivates the control unit controlling

the engine, thus preventing its starting.
For the correct engine starting

procedures, see the instructions in

the "Starting the engine" paragraph,

"Starting and driving" chapter.

Irregular operation

If, during starting, the key code is not
correctly recognised, the

icon is

displayed on the instrument panel (see

the instructions in the "Warning lights

and messages" paragraph, "Knowing

the instrument panel" chapter). This

condition leads to the engine switching

off after 2 seconds. In this case, bring

the ignition device to STOP and then to

ON; if it is still blocked, try with the other

keys provided. If it is still not possible to

start the engine, contact a Dedicated

Alfa Romeo Dealership.
If the

icon is displayed while driving,

this means that the system is running

a self-diagnosis (e.g. due to a voltage

drop). If the display persists, contact a

Dedicated Alfa Romeo Dealership.

ALARM

(where provided)

Activation of the alarm triggers the horn

and the direction indicators.
WARNING The alarm is adapted to meet

requirements in various countries.

TURNING THE ALARM ON

With the doors, bonnet and boot closed

and the ignition device turned to STOP,

point the electronic key towards the car
and press and release button .
Except on some versions for specific

markets, the system produces a visual

and acoustic warning and enables door

locking.
With the alarm engaged, the warning

lights on the panels of the front door
handles flash fig. 6.

CarManuals2.com

15

6

04026S0021EM

TURNING THE ALARM OFF

Press the button.
WARNING The alarm does not switch off

when the central opening is activated

using the metal insert in the key.

DISARMING THE ALARM

To completely deactivate the alarm (e.g.

during a long period of car inactivity),

close the doors by turning the metal

insert of the key with remote control in

the door lock.

DOORS

LOCKING / UNLOCKING CENTRALISED

DOORS FROM THE INSIDE

If all doors are closed properly, they

will automatically be locked once the

vehicle has exceeded about 20 km/h (or

equivalent speed in mph) ("Auto relock"

function active).
Press button

on the driver side door

panel trim fig. 7 or on the passenger side

or on the rear doors (where provided) to

unlock the doors.
With the doors locked, press the

button on the front door panel trims to

unlock them.
NOTE The rear doors cannot be opened

from the inside on GTAm versions.

7

04206S0022EM

LOCKING / UNLOCKING CENTRALISED

DOORS FROM THE OUTSIDE

Locking from the outside

With the doors closed, press the

button on the key.
The door lock can anyway be activated

with all doors locked and the luggage
compartment open. When button

on

the key is pressed, all locks are closed,

including the lock of the open boot. The

latter will be locked when it is closed.

2)

Door unlocking from the outside

Press the button

on the key.

Locking / unlocking doors from the

outside in an emergency

If the battery is flat or the remote control

is faulty, you can lock/unlock the doors

from the outside by inserting and

rotating the metal insert (available inside

the remote control) in the lock of the

driver side door.

PASSIVE ENTRY

3)

The Passive Entry system can identify

the presence of an electronic key near

the doors and the luggage compartment.
The system enables the doors (or

the luggage compartment) to be

locked/released without pressing any

button on the electronic key.

CarManuals2.com

 KNOWING YOUR VEHICLE

16

The key is detected only after the

system recognises the presence of a

hand in one of the front handles. If the

detected key is valid, the doors and the

luggage compartment are unlocked

(the elements that open depend on the

Connect system settings).
Where the function is provided, grasping

the handle of the driver's door unlocks

the driver's door only, or all the doors,

depending on the mode set in the

Connect system.
WARNING If wearing gloves, or if it has

rained and the door handle is wet, the

activation sensitivity of the Passive

Entry function may be reduced, resulting

in a longer reaction time.

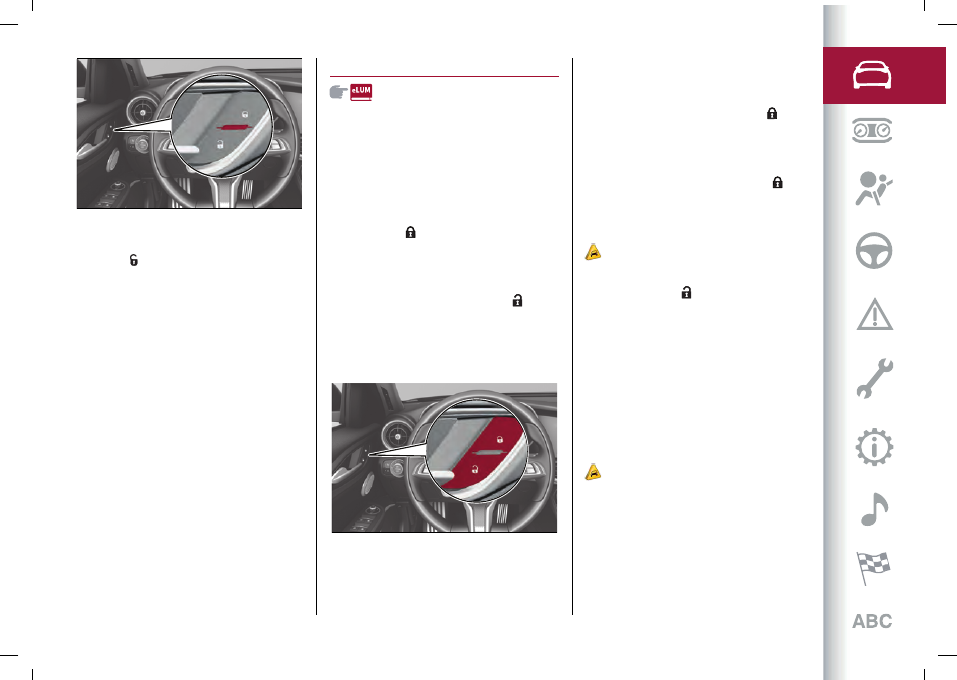

Door locking

To lock the doors, proceed as follows:

make sure that you have the electronic

key and are close to the driver or

passenger side door handle;

press the "door locking" button fig. 8

located on the handle or the fig. 9 button

on the boot near the open button: this

will lock all doors and the boot. Locking

the doors will also activate the alarm

(where provided).

8

04056S0003EM

9

04056S0009EM

WARNING After pressing the "door

locking" button, you need to wait two

seconds before the doors can be

unlocked again using the door handle. It is

therefore possible to check whether the

car is locked correctly by pulling the door

handle within 2 seconds. The doors will

not be unlocked again.
The car doors and luggage compartment
can anyway be locked pressing button

on the electronic key or on the inner door

panel.

Driver side door emergency opening

If the electronic key does not work, e.g.

because its battery is flat or the car

battery is flat, the emergency metal

insert inside the key can anyway be used

to operate the lock, unlocking the driver

side door.

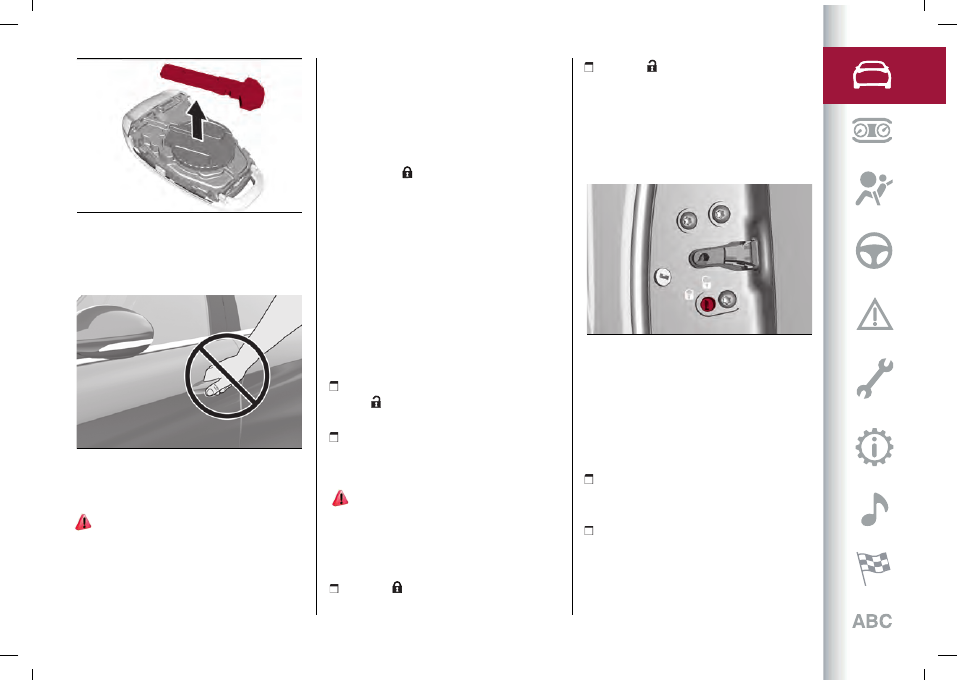

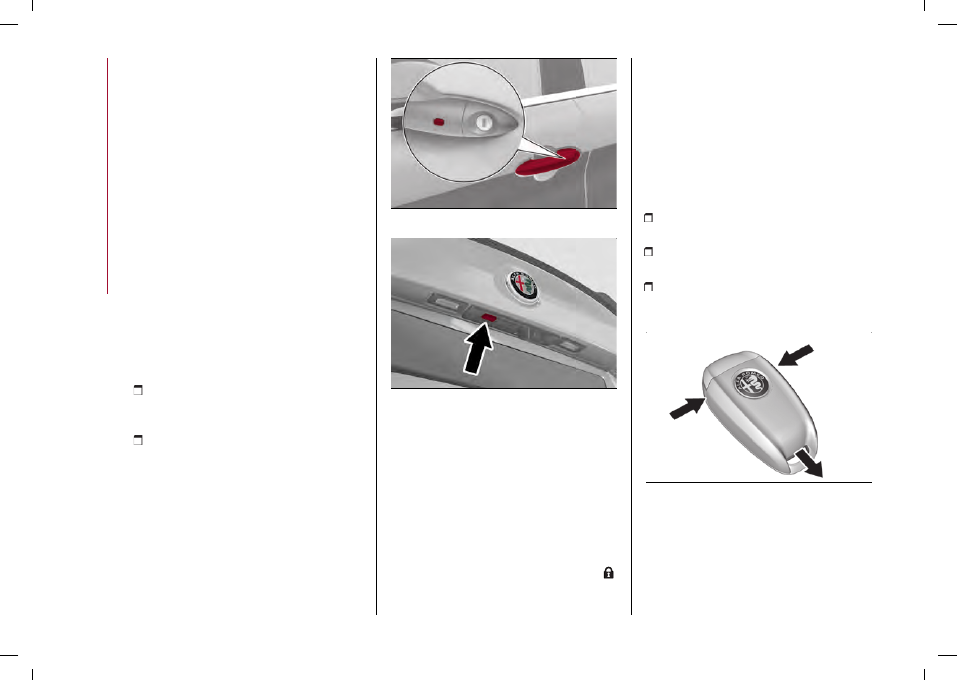

To extract the metal insert, proceed as

follows:

press in the points shown fig. 10 and

slide the cover off downwards;

remove the key insert from its housing

fig. 11;

insert the metal insert in the driver

side door lock and turn it to unlock the

door.

10

04016S0002EM

CarManuals2.com

17

11

04016S0003EM

When pulling the handle, do not press the

door lock/unlock button on the handle

fig. 12.

12

04056S0004EM

POWER LOCK DEVICE

(where provided)

7)

This safety device inhibits the operation

of the interior door handles and the door

locking/unlocking button.
It thereby prevents the opening of

the doors from inside the passenger

compartment, serving as an obstacle to

break-in attempts (e.g. broken window).
We recommend that you activate the

device each time you park your car.

Activating the device

The device is enabled on all the doors by
pressing the

button on the key twice

quickly.
The direction indicators flash 3 times to

let you know that the device is active.
If one or more of the doors are not closed

correctly, the device will not activate,

thus preventing a person from getting

stuck inside the passenger compartment

by entering the car through, and then

closing, the open door.

Deactivating the device

The device disengages automatically:

when the doors are unlocked (pressing

button

on the key with remote

control);

when the ignition device is set to ON.

CHILD SAFETY DEVICE

(GTA versions only)

8) 9)

This system prevents the rear doors

from being opened from the inside.
This device fig. 13 can be engaged only

with the doors open:

position : device engaged (door

locked);

position : device not engaged (door

may be opened from the inside).
The device remains engaged even if the

doors are electrically unlocked.
WARNING The rear doors cannot be

opened from the inside when the child

safety device is engaged.

13

04056S0007EM

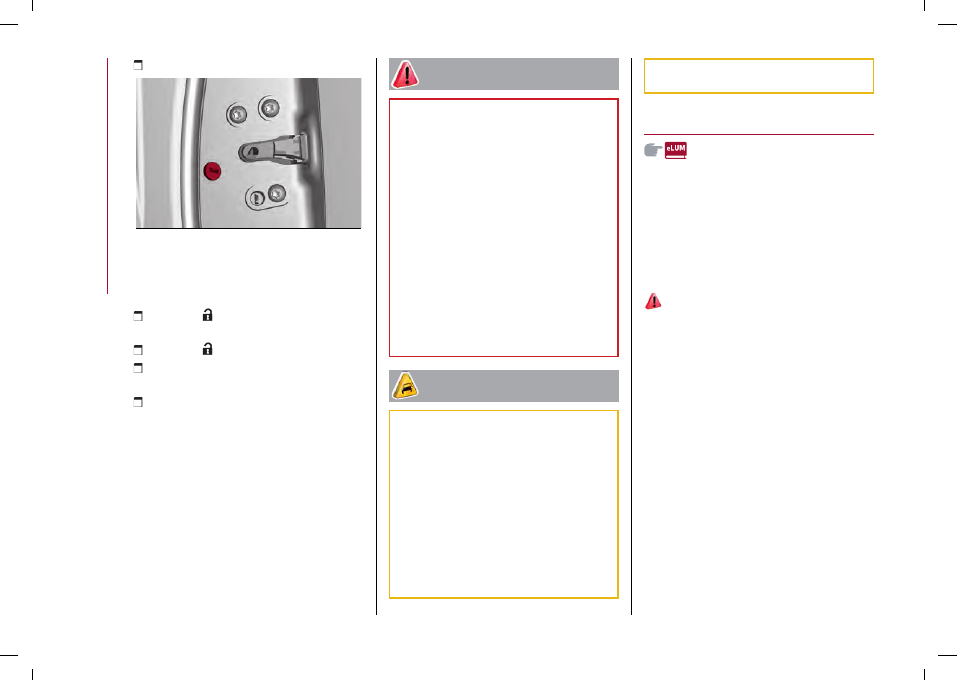

UNLOCKING THE DOORS WITH A FLAT

BATTERY

Proceed as follows to unlock the doors if

the car battery is flat.

Rear doors and passenger door

Proceed as follows:

insert the metal insert of the

electronic key in the release device
housing fig. 14;

turn the key clockwise for the right

door locks or anticlockwise for the left

door locks;

CarManuals2.com

 KNOWING YOUR VEHICLE

18

remove the key from the housing.

14

04056S0008EM

Proceed in one of the following ways to

realign the door lock device (only when

the battery charge has been restored):

press the

button on the electronic

key;

press the

button on the door panel;

open by inserting the key insert in the

driver's door lock;

operate the internal door handle.

WARNING For the rear doors, if the

child lock device was engaged and the

previously described locking procedure

carried out, operating the internal

door opening device will not open the

doors but will only realign the lock

release device. To open the door, pull

the external handle. The door central

locking/unlocking buttons are not

deactivated when the emergency lock is

engaged.

WARNING

7)

Once the Power Lock system is engaged,

it is impossible to open the doors from

inside the car. Before getting out of the car,

please therefore check that there is no-one

left inside.

8)

NEVER leave children unattended inside

the car, let alone leave the car with the

doors unlocked in a place that children can

access easily. Children may seriously, or

even fatally, injure themselves. Also ensure

that children do not inadvertently operate

the electric parking brake, the brake pedal

or the transmission lever.

9)

Always use this device when carrying

children. After engaging the device on both

rear doors (for GTA versions only), check

that it is actually engaged by trying to open

a door with the internal handle.

IMPORTANT

2)

Make sure to take the key with you once

a door or the boot is locked, to prevent

forgetting the key inside the car. If the key is

locked inside, it can only be retrieved by

using the second key provided.

3)

The operation of the recognition system

depends on various factors, such as, for

example, any electromagnetic wave

interference from external sources (e.g.

mobile phones), the charge of the battery in

the electronic key and the presence of metal

objects near the key or the car. In these

cases it is still possible to unlock the doors

by using the metal insert in the electronic

key (see description on the following pages).

SEATS

SPARCO CARBONSHELL SPORT FRONT

SEATS

(GTA versions)
The car is fitted with Sparco Carbonshell

Sport front seats with integral head

restraint.

Longitudinal adjustment

10)

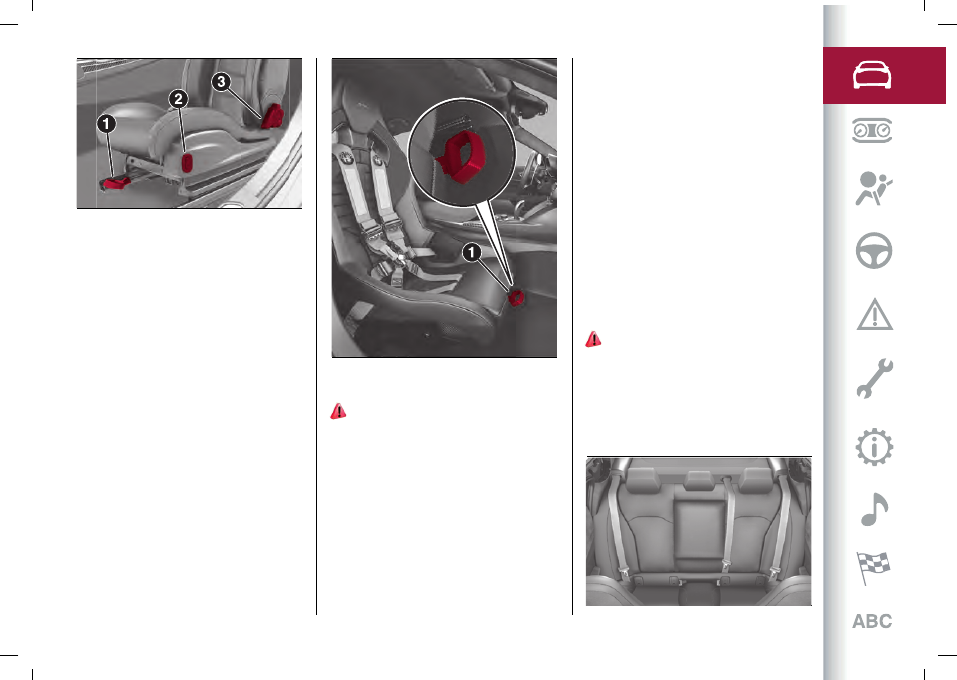

Lift lever (1) fig. 15 and push the seat

forwards or backwards.
WARNING Make adjustments while

sitting in the seat you want to adjust

(driver side or passenger side). Driver

seat adjustment must also be carried out

remembering that, keeping the shoulders

resting firmly against the backrest, the

wrists must be able to reach the top of

the steering wheel rim. It must also be

possible to fully press the brake pedal

with the left foot.

CarManuals2.com

19

15

04066S0022EM

Height adjustment

Press the button (2)fig. 15 up or down

until the required height is reached.

Backrest angle adjustment

Use lever (3)fig. 15 to adjust the

backrest angle, accompanying it with

the movement of the torso (operate

the lever until the desired position is

reached, then release it).

SABELT CARBONSHELL SPORT FRONT

SEATS

(GTAm versions)
The car is fitted with Sabelt Carbonshell

Sport front seats fig. 16 with integral

head restraint.

16

04306S0066EM

Longitudinal adjustment

10)

Lift lever (1) fig. 16 and push the seat

forwards or backwards.
WARNING Make adjustments while

sitting in the seat you want to adjust

(driver side or passenger side). Driver

seat adjustment must also be carried out

remembering that, keeping the shoulders

resting firmly against the backrest, the

wrists must be able to reach the top of

the steering wheel rim. It must also be

possible to fully press the brake pedal

with the left foot.

Height adjustment

The height of the seat is adjusted

according to your height when you

purchase the car.

Backrest angle adjustment

Seat inclination is adjusted when the

vehicle is purchased.
NOTE If further adjustments are

required after purchase of the car,

contact the Dedicated Alfa Romeo

Dealership.

REAR SEATS

(GTA versions only)

11)

The rear seats are able to accommodate

three passengers fig. 17.
The seats and the seat belts are

considered as components of the

protection system for the vehicle's

occupants.

17

04066S0100EM

CarManuals2.com

 KNOWING YOUR VEHICLE

20

WARNING Refer to the "Passenger

protection systems" paragraph in the

"Safety" chapter for the positioning of

the seat belts.

SPLIT FOLDING REAR SEAT

(GTA versions only)
The luggage compartment can be

partially (1/3 or 2/3) or totally extended

by splitting the rear seat.

Partial extension of the luggage

compartment (1/3 or 2/3)

Extending the right side of the boot

allows you to carry two passengers

on the left part of the rear seat, while

extending the left side allows you to

carry one passenger.
Proceed as follows:

completely lower the rear seat head

restraints;

place the seat belt so that it doesn't

impede the movement of the backrest

while tilting it;

operate lever (1) fig. 18 to tilt the left

part or lever (2) to tilt the right part of

the backrest: it will automatically tilt

forward. If necessary, accompany the

backrest during the initial stage of tilting.

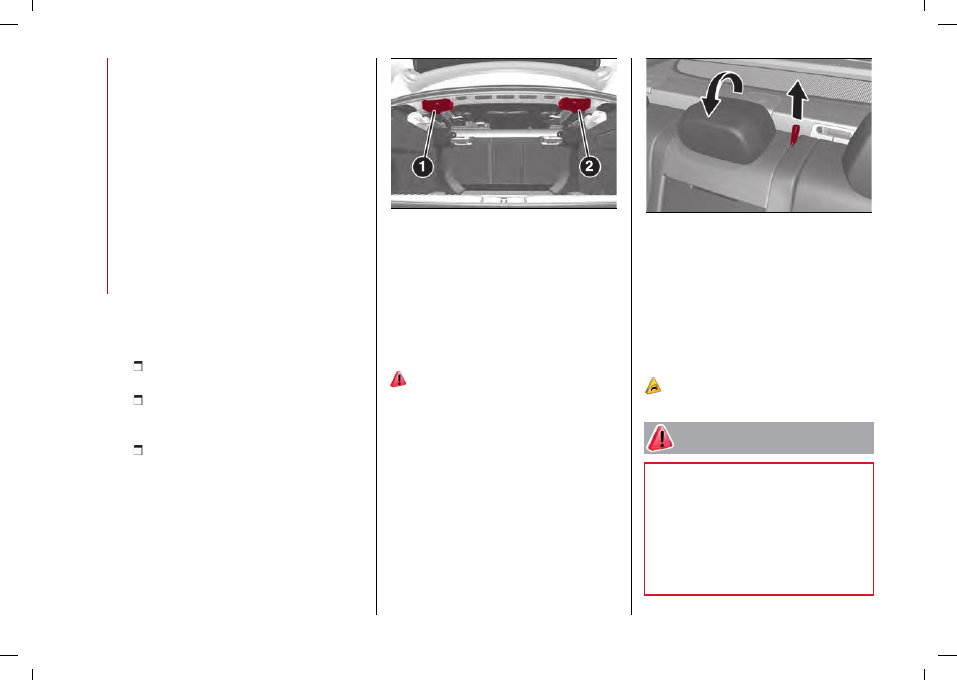

18

04066S0009EM

Repositioning seat backrests

Move the seatbelts to the side, making

sure that they are correctly extended

and not twisted and that they are not

trapped behind the backrests of the

seats, then lift the backrests pushing

them back until you hear the locking click

on both attachment mechanisms.

12)

Central backrest section tilting

Before tilting the backrest, make sure

that the rear central seat belt is not

fastened and that there are no objects

in the central part of the cushion (if there

are any, remove them).
Using the fig. 19 strap, release the central

part of the backrest from its housing and

tilt it using the head restraint.

19

04066S0008EM

Central backrest section repositioning

Using the head restraint, lift the central

portion upwards, accompanying it during

its movement, lightly press to make sure

that it is properly attached.
Make sure that the armrest is properly

attached by trying to move it, if it is not

attached, repeat the operation.

4)

WARNING

10)

After releasing the adjustment lever,

always check that the seat is locked on the

guides by trying to move it back and forth.

If the seat is not locked into place, it may

unexpectedly slide and cause the driver to

lose control of the car.

11)

Always make sure that all those on board

the car are seated and are wearing their

seat belts correctly.

CarManuals2.com

21

12)

Make sure the backrests are properly

secured at both sides to prevent them

from moving forward, in the event of sharp

braking, with possible impact with of the

passengers.

IMPORTANT

4)

Before tilting the backrest, remove any

objects on the seat cushion.

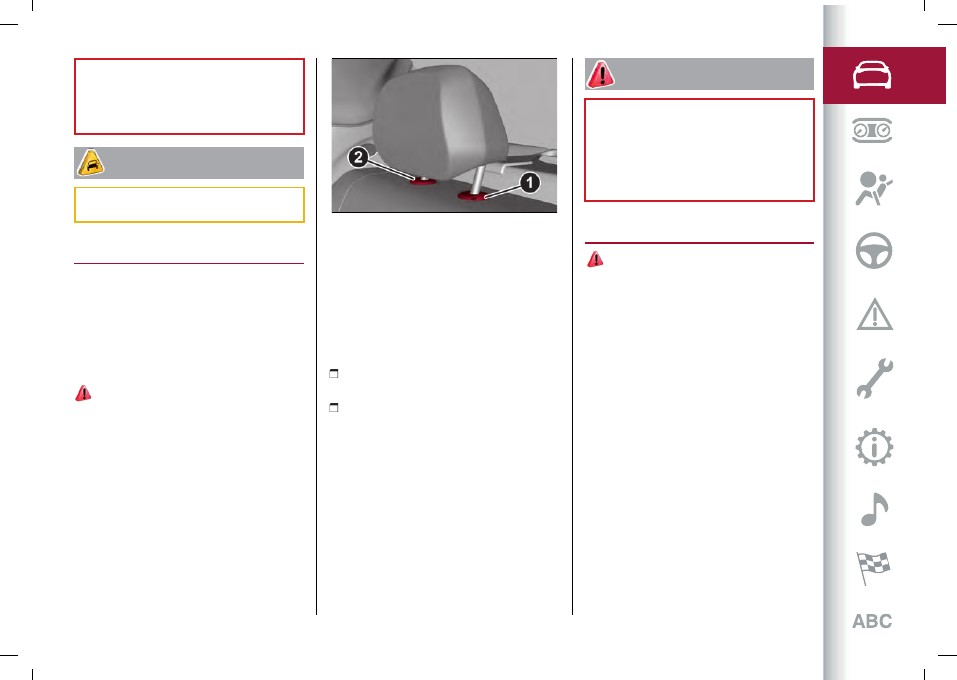

HEAD RESTRAINTS

FRONT HEAD RESTRAINTS

The front seat head restraints are

integral in the seats.

REAR HEAD RESTRAINTS

(GTA versions only)

Adjustments

13)

The height of the side seat head

restraints can be adjusted.
The head restraint of the central seat,

where provided, is only removable.

Upwards adjustment

: raise the head

restraint until it clicks into place.

Downward adjustment

: press button (1)

fig. 20 and lower the head restraint.

20

04076S0002EM

WARNING To permit maximum visibility

for the driver, if the head restraints are

not used, they are moved to the rest

position: fully down.

Removal

Proceed as follows to remove the head

restraints:

raise the head restraints to their

maximum height;

press button (1) and (2)fig. 20 at the

side of the two supports, then remove

the head restraints by pulling them

upwards.
WARNING Always re-position the rear

head restraints if they had been removed

before starting to drive normally.
Re-fit the rods of the head restraints in

their housings, holding buttons (1) and
(2)fig. 20 pressed.
Then, re-position the head restraints

according to your needs.

WARNING

13)

Head restraints must be adjusted so

that the head, rather than the neck, rests

on them. Only in this case they can protect

your head correctly. Any removed head

restraints must be repositioned correctly, in

order to protect the occupants in the event

of a collision: follow the instructions above.

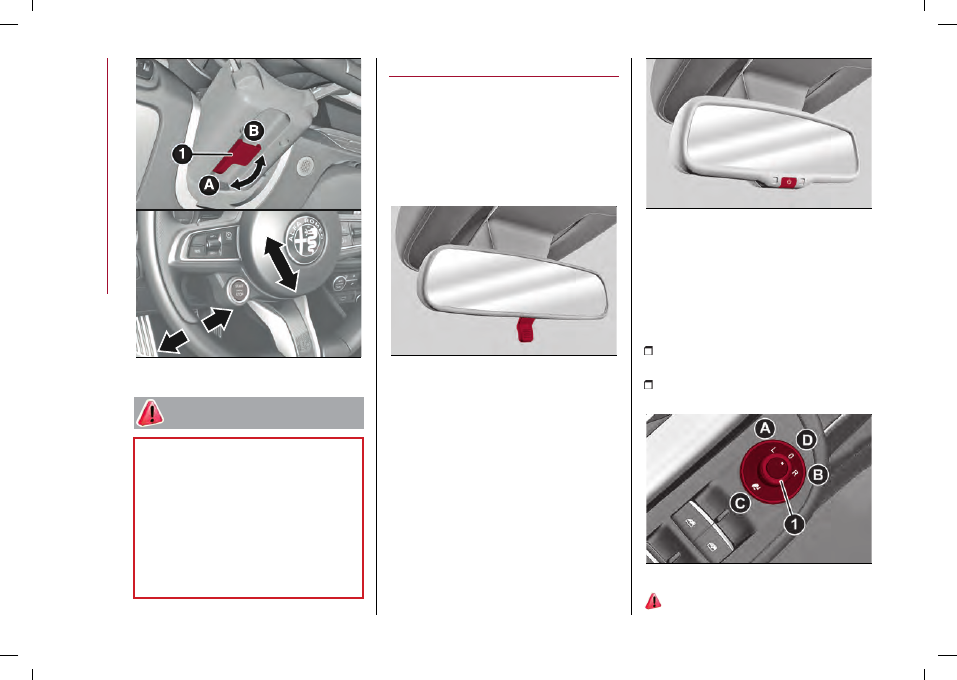

STEERING WHEEL

14) 15)

ADJUSTMENTS

The steering wheel can be adjusted both

in height and in depth.
To carry out the adjustment move the
lever (1) fig. 21 downwards in position

(A), then adjust the steering wheel to the

most suitable position and then lock it in

this position moving the lever (1) again in

position (B).

CarManuals2.com

 KNOWING YOUR VEHICLE

22

21

04086S0005EM

WARNING

14)

All adjustments must be carried out only

with the car stationary and engine off.

15)

It is absolutely forbidden to carry out

any after-market operation involving

steering system or steering column

modifications (e.g. installation of anti-theft

device) that could adversely affect

performance, invalidate the warranty, cause

SERIOUS SAFETY PROBLEMS and also

result in the car not meeting type-approval

requirements.

REAR-VIEW MIRRORS

INTERIOR MIRROR

Operate lever fig. 22 to adjust the mirror

into two different positions: normal or

anti-glare.
The mirror is fitted with a safety device

that causes its release in the event of a

violent impact with the passenger.

22

04106S0001EM

ELECTROCHROMIC REAR-VIEW

MIRROR

(where provided)
An automatic anti-glare device is fitted

on some versions, which automatically

modifies its reflecting properties to
prevent dazzling the driver fig. 23.
The automatic anti-glare device has an

ON/OFF button to activate/deactivate

the electrochromic anti-glaring function.

23

04106S0002EM

DOOR MIRRORS

Electric adjustment

The mirrors can only be adjusted with the

ignition device at ON.
Select the desired mirror using device (1)
fig. 24:

device in position (A): left mirror

selected;

device in position (B): right mirror

selected.

24

04106S0004EM

16)

CarManuals2.com

23

To adjust the selected mirror, use device

(1) in the four directions.
WARNING Once adjustment is complete,

rotate device (1) to position (D) to

prevent accidental movements.

Manual folding

To fold the mirrors move them from

the open position to the closed position
fig. 25.

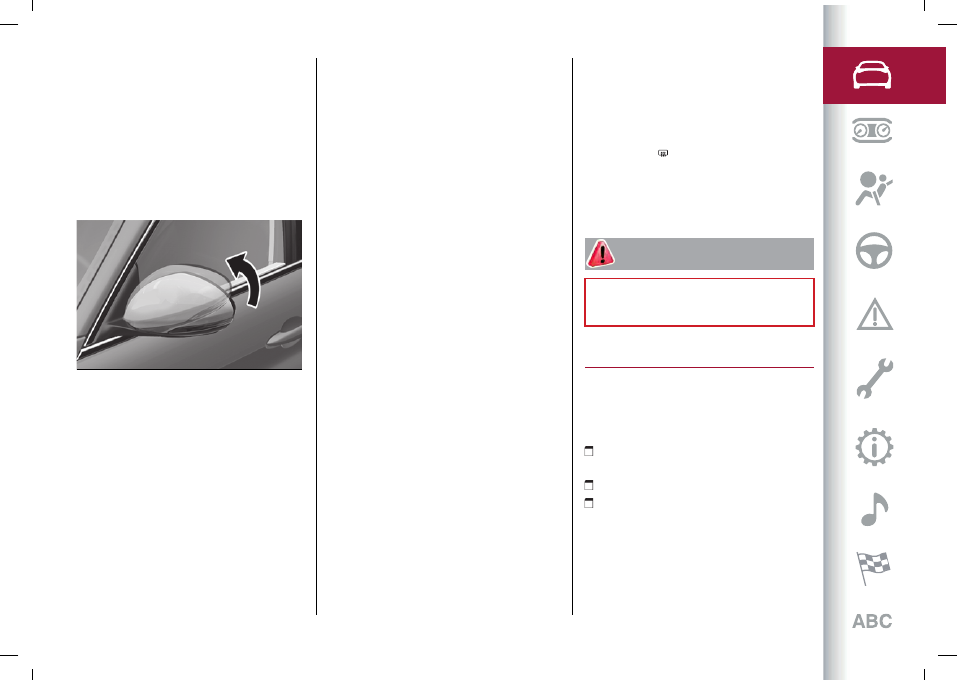

25

04106S0005EM

Electric folding

(where provided)
With the device (1) in position (D) move it
to position (C) fig. 24. Turn the device (1)

again to position (C) to return the mirrors

to the driving position. If the device (1) is

pressed again during door mirror folding

(from closed to open position and vice

versa), their movement direction is

reversed.

Automatic activation

Activating the central door locking

system from outside the car

automatically folds the mirrors, they

return to the driving position when the

ignition device is turned to the ON

position. If the door mirrors were folded

in using device (1), they can only be

returned to the driving position by means

of a new command on the same device.

Activation/deactivation of the

function

The electric mirror folding function

can be activated/deactivated using

the Connect system menu (the default

setting of the function is “Off”).

Alternatively, you can choose to

open/close the mirrors automatically

when opening/closing the doors (using

the electronic key or the Passive Entry

system, where provided).
WARNING The hand-controlled electric

folding operation can be enabled only

when the car speed is lower than 30 mph

(50 km/h), so they can only be manually

controlled up to that speed.
WARNING The mirrors must always be

open while driving and should never be

folded.

ELECTROCHROMIC EXTERIOR

MIRRORS

(where provided)
As well as an inside mirror, an

electrochromic mirror is also available

on some versions, which automatically

modifies its reflecting properties

to prevent dazzling the driver. The

anti-glare electrochromic function
enabling/disabling button fig. 23 is the

same for all rear-view mirrors.

ELECTRIC DOOR MIRROR HEATING

Pressing the

button on the

air conditioner activates the

demisting/defrosting of the door

mirrors.

WARNING

16)

As door mirrors are curved, and

therefore they may slightly alter the

perception of distance.

EXTERNAL LIGHTS

LIGHT SWITCH

The following controls fig. 26 are

available in the panel on the left of the

steering wheel:

(1): side/tail light, daylight running

lights and dipped beam headlight switch;

(2): rear fog lights button;
(3): ring nut for adjusting the

brightness of the instrument panel and

the graphics on the control buttons.

CarManuals2.com

 KNOWING YOUR VEHICLE

24

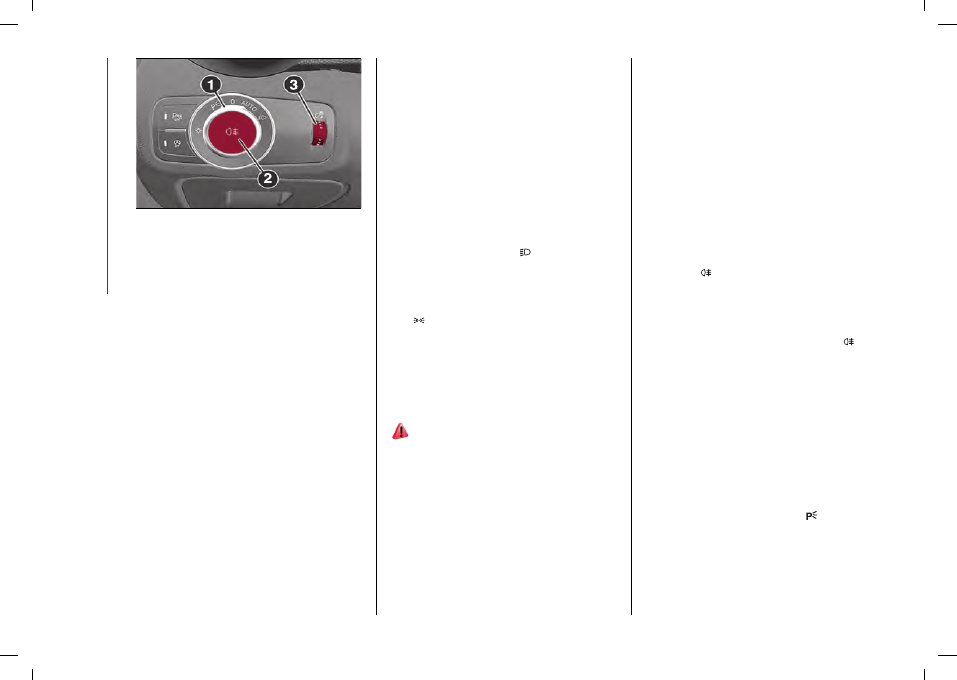

26

04126S0017EM

The external lights can be activated only

when the ignition device is in position

ON, except for the parking lights. See

the "Parking Lights" paragraph in this

chapter for more information.
The instrument panel and the various

controls on the dashboard will be lit up

when the exterior lights are switched on.

AUTO FUNCTION (Dusk sensor)

This is implemented by an infrared LED

sensor on the windscreen that works in

conjunction with the rain sensor. It is able

to detect variations in the outside light

level based on the light sensitivity set

through the Connect system.
The dusk sensor sensitivity can be

adjusted according to 3 levels: level

1=minimum sensitivity, level 2=average

sensitivity, level 3=maximum sensitivity.
The higher the sensitivity set, the lesser

is the external light variation needed to

switch the lights on (e.g. with a setting on

level 3 at sunset the headlights come on

earlier than levels 1 and 2).

Function activation

Turn the light switch to AUTO.
WARNING The function can only be

activated with the ignition device at ON.

Function deactivation

Turn the light switch to a position other

than AUTO.

DIPPED BEAM HEADLIGHTS

Turn the light switch to

to switch

on the side lights, the lights on the

instrument panel and the dipped beam

headlights.
The

warning light switches on in the

instrument panel.

DAYTIME RUNNING LIGHTS (DRL)

(Daytime Running Lights) AND SIDE

LIGHTS

(where provided)

17) 18)

With the ignition device turned to ON and

the light switch turned to the

O

position,

the daytime running lights, the rear light

clusters and the number plate lights are

automatically activated.
Where provided, if the direction

indicators are operated, the brightness

of the corresponding DRL will be

decreased as long as the direction

indicators are on.

Where provided, the DRL can be

activated/deactivated from Connect

system, by selecting the following

functions in sequence on the main MENU:

"Settings", "Lights" and "Daytime Lights".
WARNING For markets where DRL use

is not required, these lights work as side

lights and they are switched on and off

jointly with the main beam headlights.

REAR FOG LIGHT

The rear fog light switch is integrated

with the light switch.
Press the

button to switch the light

on/off.
The rear fog light switches on only when

the dipped headlights are on. The light
can be switched off by pressing the

button again or by switching off the

dipped beam headlights.
When the engine is stopped with the rear

fog lights on, if will be switched off the

next time the engine is started.

PARKING LIGHTS

They are switched on if, within a few

seconds from stopping the engine,

the light switch is taken first to the

O

position and then to position .
All side lights switch on, if you want to

leave only those on one side (right/left)

switched on, you need to move the

direction indicators control on the

position on the side you wish to leave on.

CarManuals2.com

25

When a front door is opened with the
light switch in position , a tone will

be heard to inform the driver that the

parking lights are on.
The

warning light switches on in the

instrument panel.
WARNING Turning the ignition device

to ON turns off the parking lights, which

were on only on one side.

HEADLIGHT SWITCH-OFF TIMER

"Follow Me" function

The "Follow Me" function delays the

switching off of the headlights after the

engine has been stopped.
The function can be enabled from

the Connect system by selecting the

following functions from the main

menu in sequence: "Settings", "Lights"

and "Follow me"; the side lights and the

dipped beam headlights stay on for a

time that can be set between 30, 60 and

90 seconds.

Function activation

With the headlights on, take the ignition

device to the STOP position: the timer

starts when the light switch is rotated to

position

O

.

WARNING To activate this function the

headlights must be deactivated within

2 minutes after the ignition device has

been taken to STOP.

Function deactivation

This function is deactivated by switching

on the headlights, the side lights or

bringing the ignition device to ON.

AFS (Adaptive Frontlight System)

function

(where provided)
This is a system combined with Xenon

headlights (Bi-Xenon Headlamps 35 W

version) which directs the main light

beam, horizontally and vertically,

and continuously and automatically

adapts it to the driving conditions round

bends/when cornering.
The system directs the light beam to

light up the road in the best way, taking

into account the speed of the car, the

bend/corner angle and the speed of

steering.
The adaptive lights are automatically

activated when the car is started.

MAIN BEAM HEADLIGHTS

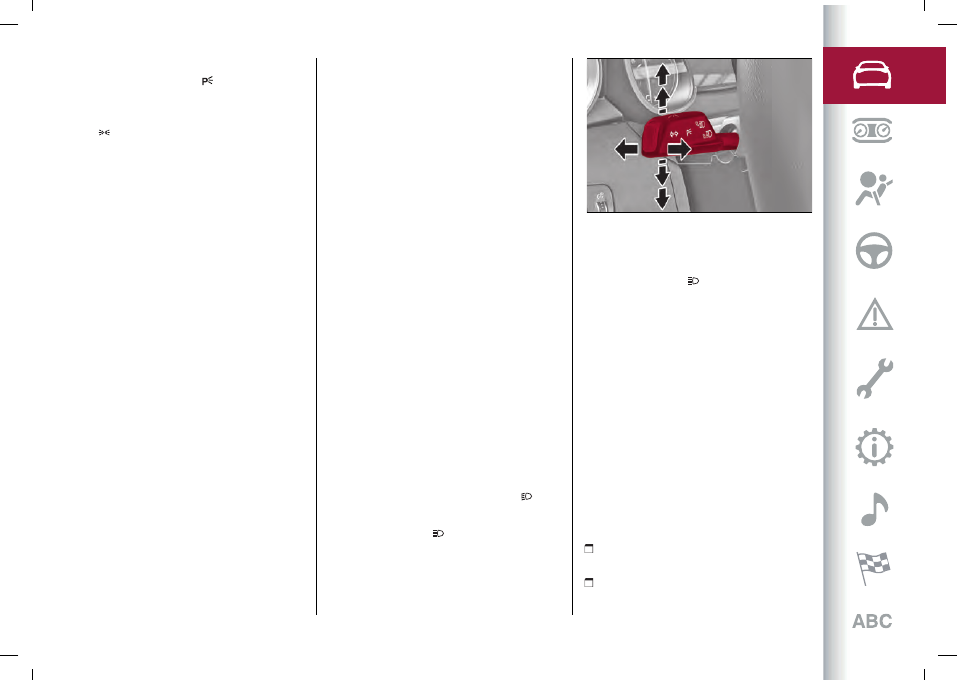

To activate the fixed main beam

headlights push the left lever towards
the instrument panel fig. 27. The light
switch must be turned to

AUTO

or .

With main beam headlights on, the
warning light/icon

on the instrument

panel will come on at the same time.

27

04126S0020EM

The main beam headlights are switched

off by pushing the left stalk again. The
warning light/icon

switches on in the

instrument panel.

Blinking

The flashing of the main beam headlights

is activated by pulling the left stalk

towards the steering wheel, the lights

remain on while you are operating the

lever.

DIRECTION INDICATORS

The direction indicators could assume

two different flashing strategies:

continuous or temporary (Lane Change).
To activate the continuous flashing
function, move the left lever fig. 27 until

end of stroke (unstable):

upwards

: activates the right direction

indicator;

downwards

: activates the left

direction indicator.

CarManuals2.com

 KNOWING YOUR VEHICLE

26

Warning light

or

will blink on the

instrument panel.
The direction indicators turn of

automatically when the car is brought

back onto a straight course or by moving

the lever in the opposite direction until

the first click (about half way).

"Lane Change" function

When you want to signal the change of

the driving lane, move the lever until the

first impulse (about half stroke).
The direction indicator on the side

selected will be activated for 3 flashes

and then go out automatically. To turn of

the flashing before the end of the cycle,

move the lever in the opposite direction

until the first click (about half way).

INSTRUMENT PANEL AND CONTROL

BUTTON GRAPHIC BRIGHTNESS

ADJUSTMENT

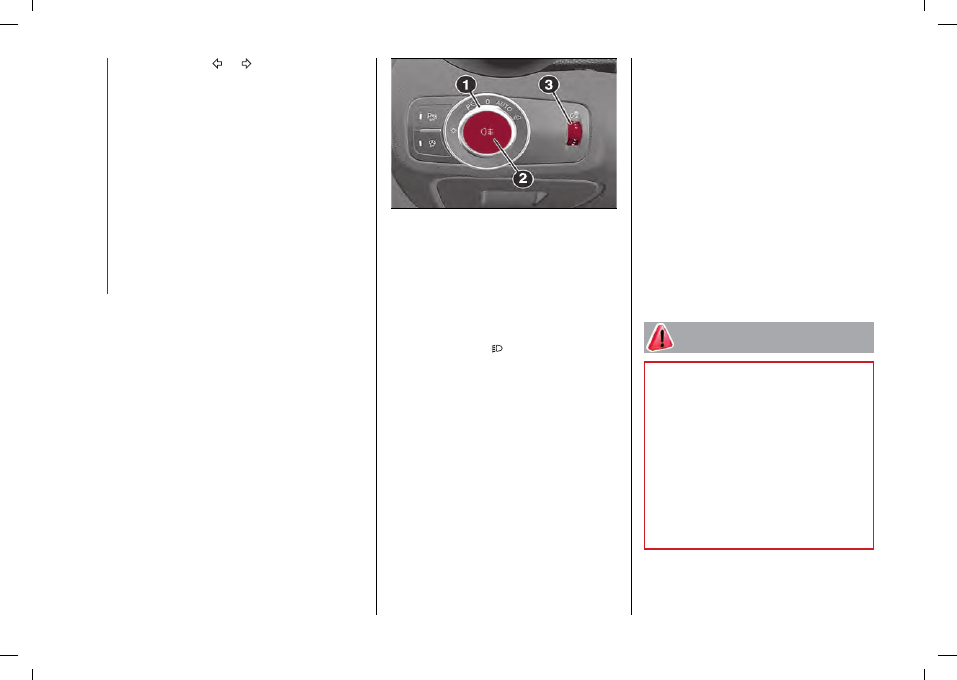

With side lights or headlights on, move
the ring (3)fig. 28 upwards to increase

light brightness of the instrument panel

and of the control button graphics, or

ring downwards to decrease it.
The control is pulsed so that for

every action the level intensity

increases/decreases, up to a maximum

of seven.

28

04126S0017EM

SBL (Static Bending Light) FUNCTION

(where provided)
The SBL LEDs activate to light the road

better and increase the light angle during

cornering.
This function is enabled by rotating the
light switch to the

or

AUTO

position.

The SBL LEDs activate if the steering

radius is below 500 m (or equivalent

value in miles).

HEADLIGHT ALIGNMENT ADJUSTMENT

Light beam direction

The correct aiming of the headlights is

important for the comfort and safety

of not only the driver but all other road

users. This is also covered by a specific

rule of the highway code.
The headlights must be correctly

aligned to guarantee the best visibility

conditions for all drivers while travelling

with headlights on.

Contact a Dedicated Alfa Romeo

Dealership to have the headlights

checked and adjusted, if necessary.

ADJUSTING THE HEADLIGHTS WHEN

ABROAD

Dipped beam headlights are adjusted for

driving in the country where the vehicle

was originally purchased.
When travelling in countries with

opposite driving direction, to avoid

dazzling the drivers on the other side of

the road, you need to cover areas of the

headlight according to the Highway Code

of the country you are travelling in.

WARNING

17)

The daytime running lights are an

alternative to the dipped headlights while

driving during the daytime in countries

where it is compulsory to have lights on

during the day; where it is not compulsory,

the use of daytime running lights is

permitted.

18)

Daytime running lights cannot replace

dipped beam headlights while driving at

night or through tunnels. The use of daytime

running lights is governed by the highway

code of the country in which you are driving.

Comply with legal requirements.

CarManuals2.com

27

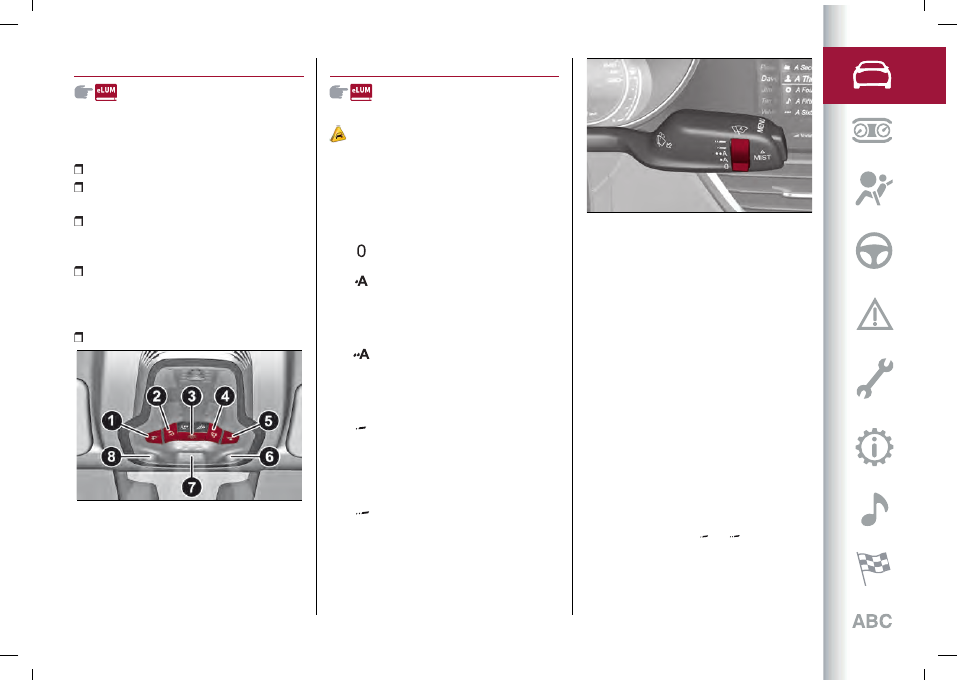

INTERIOR LIGHTS

FRONT CEILING LIGHT

There are switches on the ceiling light

that perform the following functions:

switch (1) turns light (8) on/off;
switch (2) activates/deactivates the

rear ceiling light buttons;

switch (3) turns all lights inside the

ceiling lights (front and rear) in the

passenger compartment on/off;

switch (4) activates or deactivates

turning ceiling lights (6), (7) and (8) on/off

when the doors are opened/closed. The

lights switch on/off gradually;

switch (5) turns light (6) on/off.

29

04136S0001EM

WINDSCREEN WIPER

WINDSCREEN WIPER / WASHER

5) 6)

This operates only with the ignition

device at ON.
The ring fig. 30 can be set to the

following positions:

windscreen wiper off.

rotating the ring nut to the

first position activates the

first sensitivity level of the

rain sensor.

rotating the ring nut to the

second position activates the

second sensitivity level of the

rain sensor.

rotating the ring nut to the

third position activates the

first continuous speed level

of the windscreen wipers in

manual mode.

rotating the ring nut to the

fourth position activates the

second continuous speed

level of the windscreen

wipers in manual mode.

30

04146S0001EM

Move the stalk upwards (unstable

position) to activate the MIST function:

operation is limited to the time for

which the stalk is held in this position.

When released, the stalk will return to

its default position and the windscreen

wiper will be automatically stopped.
This function is useful to remove small

deposits of dust from the windscreen, or

morning dew.
WARNING This function does not

activate the windscreen washer;

windscreen washer fluid will not

therefore be sprayed onto the

windscreen. To spray windscreen washer

fluid onto the windscreen, the washing

function must be used.
With ring in position

or , the

windscreen wiper will automatically

adapt its operating speed to the speed of

the car.

CarManuals2.com

 KNOWING YOUR VEHICLE

28

“Smart washing” function

Pull the stalk towards the steering

wheel (unstable position) to operate the

windscreen washer.
Keep the stalk pulled to activate

both the windscreen washer jet

and the windscreen wiper with a

single movement; the latter turns on

automatically.
The windscreen wiper stops working

three strokes after the stalk is released.
A further stroke after approx. 6 seconds

completes the wiping cycle.

RAIN SENSOR

This is located behind the interior

rear view mirror, in contact with the

windscreen and can detect the presence

of rain and, consequently, manage the

cleaning of the windscreen in accordance

with the amount of water on the screen.

Activation / deactivation

7) 8)

Turn the ring fig. 30 to position

or

to

activate the rain sensor.
Activation of the sensor is signalled by

a flick of the wiper, which indicates that

the command has been acquired.
To deactivate the system, use ring fig. 30

or turn the ignition device to STOP.

19)

WARNING With the windscreen wiper
ring turned to the

or

position,

wiping operates automatically and is

disabled when the outside temperature

is below 0°C (32°F).

WARNING

19)

Make sure the device is turned off

whenever the windscreen glass must be

cleaned.

IMPORTANT

5)

Never use the screen wiper to remove

layers of snow or ice from the windscreen

glass. In such conditions, the windscreen

wiper may be subjected to excessive

stress and the motor cut-out switch, which

prevents operation for a few seconds, may

intervene. If operation is not subsequently

restored, even after restarting the engine,

contact a Dedicated Alfa Romeo Dealership.

6)

Do not operate the screen wiper with the

blades lifted from the windscreen glass.

7)

Do not activate the rain sensor when

washing the car in an automatic car wash.

8)

Make sure the device is switched off if

there is ice on the windscreen glass.

CarManuals2.com

29

CLIMATE CONTROL SYSTEM

AUTOMATIC DUAL-ZONE CLIMATE CONTROL SYSTEM

2)

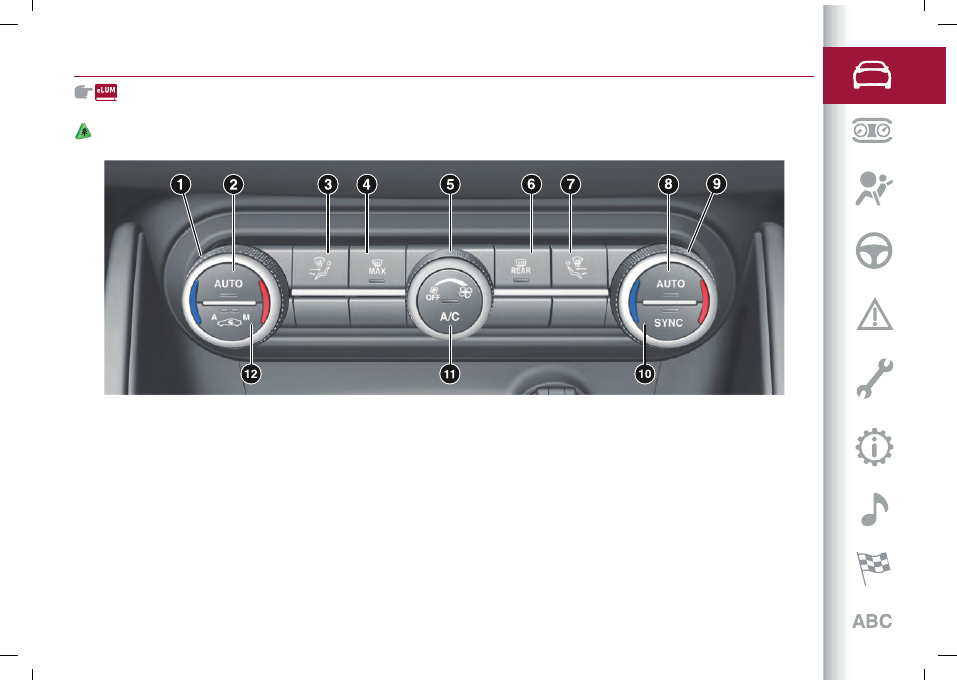

Controls on the climate control front panel

31

04156S0061EM

1. Left side temperature adjustment knob / 2. Left side AUTO function activation button (automatic operation) / 3. Left side air

distribution selection button / 4. MAX-DEF function activation button (rapid defrosting/demisting) / 5. Fan speed adjustment

knob / 6. Heated rear window on/off button (where provided) / 7. Right side air distribution selection button / 8. Right side AUTO

function activation button (automatic operation) / 9. Right side temperature adjustment knob / 10. SYNC function activation button

temperature alignment) (left/right side / 11. Climate control compressor on/off button / 12. Internal air recirculation and automatic

operation on/off button.

CarManuals2.com

 KNOWING YOUR VEHICLE

30

IMPORTANT

2)

The system uses R1234yf coolant gas, which does not pollute the environment in the event of accidental leakage. Under no circumstances use

R134a and R12 fluids, which are incompatible with the components of the system.

CarManuals2.com

31

Controls on Connect system display

32

12126S0976EM

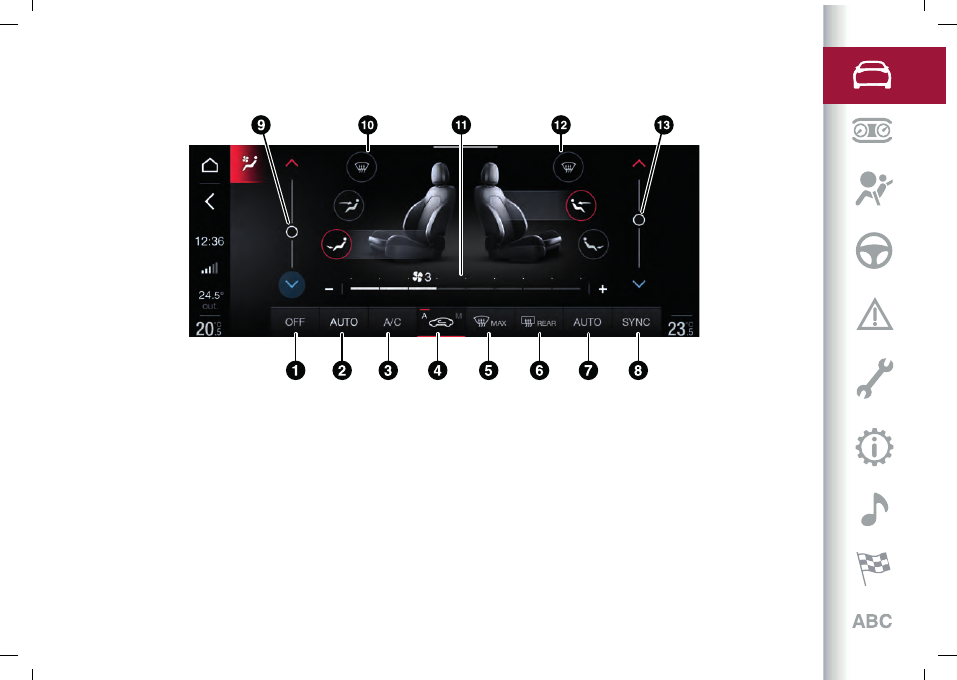

1. Climate control system on/off graphic button 2. Driver side AUTO function activation graphic button (automatic operation) 3.

Graphic button for turning the climate control system compressor on/off 4. Graphic button for turning internal air recirculation

on/off (three "states" available: “OFF” or "Manual" or "Automatic") 5. Graphic buttons for activating/deactivating the MAX-DEF

function (rapid defrosting/demisting) 6. Heated rear window (where provided) on/off graphic button 7. Passenger side AUTO function

activation graphic button (automatic operation) 8. Graphic button for activating the SYNC function (alignment of set temperatures)

on driver/passenger side 9. Graphic bar for temperature adjustment on driver side 10. Graphic buttons for air distribution selection on

driver side 11. Graphic bar for adjusting the fan speed 12. Graphic buttons for air distribution selection on passenger side 13. Graphic

bar for temperature adjustment on passenger side (where provided)

CarManuals2.com

 KNOWING YOUR VEHICLE

32

DESCRIPTION

Air flow to the windscreen

and front side window vents

to demist/defrost them.

Air flow at central and side

dashboard vents to ventilate

the chest and the face during

the hot season.

Air flow to the front and

rear footwell vents. This air

distribution setting heats

the passenger compartment

most quickly, giving a prompt

sensation of warmth.

Air flow distributed between

footwell vents (hotter air) and

central and side dashboard

vents (cooler air). This air

distribution setting is useful

in spring and autumn on

sunny days.

Air flow distributed

between footwell vents and

windscreen and front side

window defrosting/demisting

vents. This distribution

setting allows the passenger

compartment to be warmed

effectively and prevents the

windows from misting.

Air flow distribution

between windscreen

demisting/defrosting

vents and side and central

dashboard vents. This

allows air to be sent to the

windscreen in conditions of

strong sunlight.

Air flow distribution to all

vents on the vehicle.

In AUTO mode, the climate control

system automatically manages the

air distribution. When set manually,

the air distribution is indicated by the

respective symbols on the Connect

system display switching on.

START&STOP EVO

The automatic dual zone climate control

system manages the Start&Stop Evo

system (engine off when car is at a

standstill) to ensure adequate comfort

inside the vehicle.
In particular, the climate control system

turns off the Start&Stop Evo if:

the climate control system is in AUTO

mode (LED on the button switched on)

and the temperature conditions inside

the vehicle are far from a comfort

temperature;

the climate control system is in LO

maximum cooling;

the climate control system is in the

MAX-DEF status.
With Start&Stop Evo function on

(engine off and car stopped), the flow is

reduced as much as possible, to keep the

compartment comfort conditions for

longer.
NOTE For more information on the

operation of the automatic dual-zone

climate control system, refer to the

Owner Handbook and to the Connect

supplement available online.

ELECTRIC WINDOWS

ELECTRIC WINDOWS

20)

They work with the ignition device in

the ON position and for about 3 minutes

after the ignition device has been turned

to the STOP position.
When one of the front doors is opened

this operation is disabled.

ELECTRIC WINDOW CONTROLS

GTA versions

The buttons are located on the door

panels.
All windows can be controlled from the

driver side door panel fig. 33.

CarManuals2.com

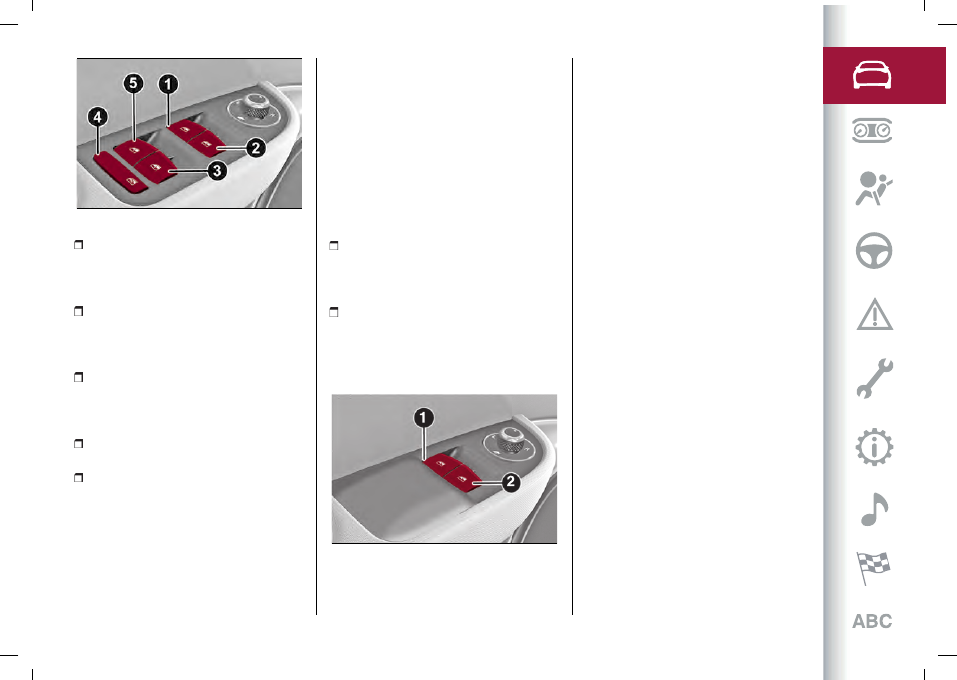

33

33

04166S0001EM

1: front left window opening/closing.

"Automatic continuous" operation during

window opening/closing and anti-pinch

system activated;

2: front right window opening/closing.

"Automatic continuous" operation during

window opening/closing and anti-pinch

system activated;

3: rear right window opening/closing.

"Automatic continuous" operation during

window opening/closing and anti-pinch

system activated;

4: enabling/disabling of rear door

electric window controls;

5: rear left window opening/closing.

"Automatic continuous" operation during

window opening/closing and anti-pinch

system activated.

Passenger side front door / rear door

controls

On the door control panel, buttons are

provided to control the associated

windows.

GTAm versions

NOTE GTAm versions have Lexan® fixed

rear windows with a dark protective film.
The buttons are located on the front door

panels.
The driver’s side door panel fig. 34 can

be used to operate the windows on the

driver's side and the passenger side.

1: driver’s side window opening/closing.

"Automatic continuous" operation during

window opening/closing and anti-pinch

system activated;

2: passenger side window

opening/closing. "Automatic

continuous" operation during window

opening/closing and anti-pinch system

activated.

34

04166S0044EM

Passenger side front door controls

A button is provided to control the

associated windows on the passenger

side door control panel.

WINDOW OPENING / CLOSING

Window opening

Push the buttons to open the desired

window.
Each button has two position steps.

Press gently (first position step) for

manual "burst" window travel, while

pressing the same button harder (second

position step) activates "continuous

automatic" operation.
If the button is pressed again, the

window will stop in the desired position.

Window closing

Lift the buttons to close the desired

window.
The window closing stage occurs

following the same logic described for

the opening stage both of the front door

windows and the rear door windows

(GTA versions only).

WINDOW ANTI-PINCH SYSTEM

The vehicle is equipped with an

anti-pinch device for the raising of the

windows.
This safety system can recognise the

presence of any obstacle during the

window closing movement. If this

occurs, the system stops the window's

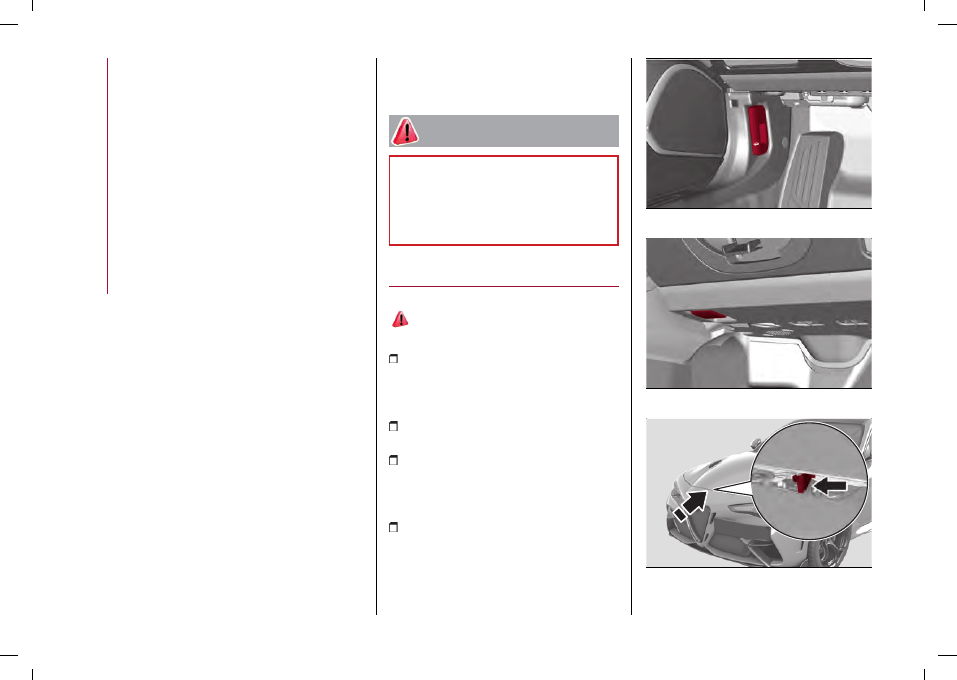

CarManuals2.com

 KNOWING YOUR VEHICLE

34

movement and reverts it, depending on

its position.
This device is also useful if the windows

are activated accidentally by children on

board the car.
The anti-pinch safety function is

activated both during the manual and the

automatic operation of the window.
When the anti-pinch system is activated

the window travel is immediately

interrupted.
Then the window travel is automatically

reversed and the window lowers by

about 20 cm in relation to the first stop

position.
The window cannot be operated in any

way during this time.
WARNING If the anti-pinch protection

intervenes 3 consecutive times within 1

minute or is faulty, the automatic closing

operation of the window is inhibited,

only allowing it in "steps"; the button is

released for the subsequent manoeuvre.

In order to restore the correct operation

of the system, the relevant window must

be lowered.

ELECTRIC WINDOWS SYSTEM

INITIALISATION

If power supply is interrupted, the

electric window automatic operation

must be reinitialised.
To perform the initialization procedure,

which must be done on each door with

the doors closed, manually fully close the

window to be initialized.

WARNING

20)

Improper use of the electric windows

can be dangerous. Before and during

operation, always check that nobody is

exposed to the risk of being injured either

directly by the moving window or through

objects getting caught or hit by it.

BONNET

OPENING

21) 22)

Proceed as follows:

inside the passenger compartment

pull the release lever fig. 35 or fig. 36

(according to the version/market of the

vehicle);

go to the outside of the vehicle and

position yourself in front of the grille;

slightly lift the bonnet and operate the

release device from the side from the

right leftwards as shown by the arrow,
fig. 37;

raise the bonnet completely: the

operation is facilitated by the presence

of a gas shock absorber which holds it

the all open position.

35

04196S0011EM

36

04196S0003EM

37

04196S0012EM

CarManuals2.com

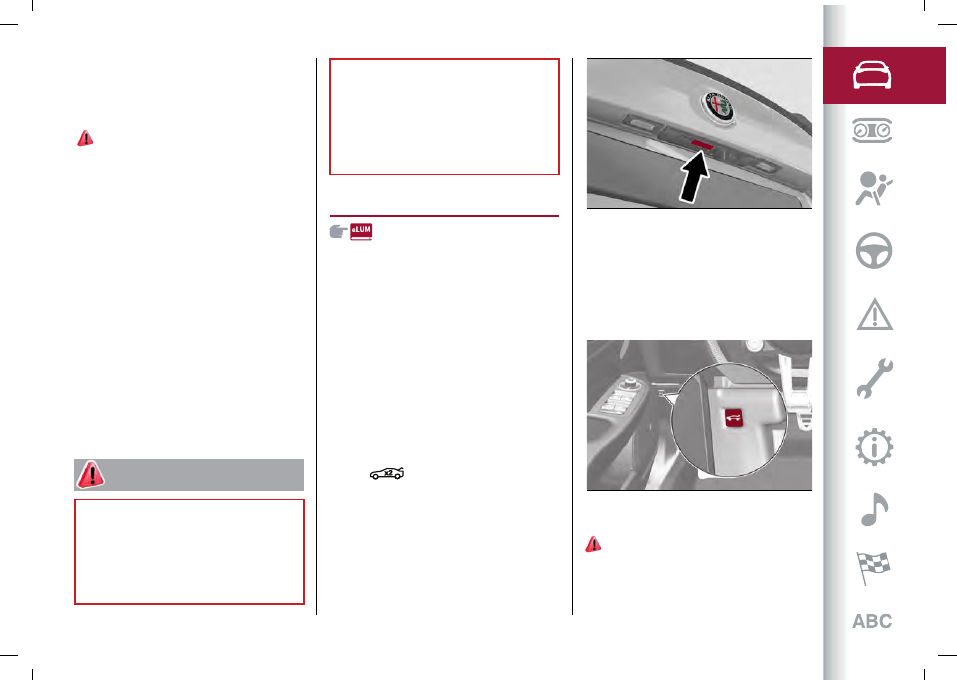

35

Do not tamper with the gas shock

absorber and accompany the bonnet

while lifting it.

CLOSING

21) 23)

As it is extremely light, to close the

bonnet, lower it to approximately 16

inches (40 centimetres) from the

engine compartment then apply a slight

pressure. Make sure that the bonnet is

completely closed and not only fastened

by the locking device by trying to open it.
If it is not perfectly closed, do not try to

press the bonnet down but open it and

repeat the procedure.
WARNING Always check that the bonnet

is closed correctly to prevent it from

opening while the vehicle is travelling.

Since the bonnet is equipped with a

double locking system, one for each side,

you must check that it is closed on both

its side ends.

WARNING

21)

Perform these operations only when the

car is stationary.

22)

Use both hands to lift the bonnet. Before

lifting, check that the windscreen wiper

arms are not raised from the windscreen or

in operation, that the car is stationary and

that the electric parking brake is engaged.

23)

For safety reasons, the bonnet must

always be properly closed while driving.

Therefore, make sure that the bonnet

is properly closed and that the lock is

engaged. If you discover that the bonnet

is not perfectly closed while driving, stop

immediately and close the bonnet in the

correct manner.

TAILGATE

The luggage compartment unlocking is

electrically operated and is deactivated

when the car is in motion.
The warning triangle (1) fig. 42 is housed

inside the luggage compartment, on the

lid lining.

OPENING

Opening from the outside

When unlocked, the tailgate can be

opened from outside the car using the
electric opening button fig. 38 located

between the plate lights, until you hear

the unlocking click or by quickly pressing
button

on the remote control

twice.

38

04056S0010EM

Opening from the inside

When unlocked, the tailgate can be

opened from inside the car using the
opening button fig. 39 positioned under

the dashboard near the bonnet opening

lever until you hear the click.

39

04206S0002EM

Opening the tailgate manually

24)

The luggage compartment tailgate can

be opened in case of an emergency (e.g. if

the battery is flat) as follows:

CarManuals2.com

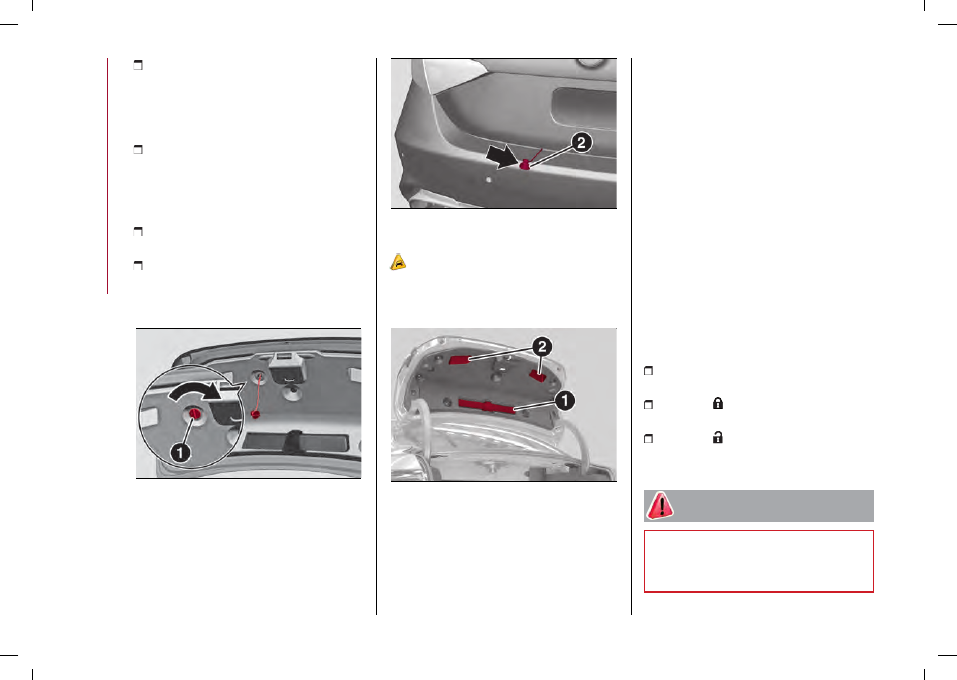

 KNOWING YOUR VEHICLE

36

operating inside the luggage

compartment, turn the device (1) (located
on the left side), as shown in fig. 40 and
extract the cord (2) fig. 41, anchored to

the device itself;

make sure that the end part of the

cord (2) remains outside the luggage

compartment: with tailgate can be

opened manually from the outside in this

manner;

after having opened the tailgate, wind

the cord (2) back around the device (1);

position the device (1) inside its

housing and lock it by turning it in the

opposite sense with respect to that
shown in fig. 40.

40

09086S0001EM

41

04206S0998EM

CLOSING

9)

Grip one of the handles (2), fig. 42, and

lower the tailgate, pressing next to the

lock until it clicks.

42

04206S0003EM

WARNING Before closing the boot make

sure you have the key with you to prevent

locking it in the luggage compartment.

The tailgate will be locked automatically

and can only be opened using another

key.

WARNING With the battery

disconnected it will no longer be possible

to open that tailgate, neither with the

key nor by pressing the button inside the

luggage compartment. Therefore, always

take out the manual tailgate opening

cord before disconnecting the battery

(as described previously).
WARNING This procedure must be

carried out exclusively in safe places

because it allows to open the boot

unconditionally.

INITIALISING THE TAILGATE

WARNING If the battery is disconnected

or the protection fuse blows, the

luggage compartment opening/closing

mechanism must be reinitialised as

follows:

close all the doors and the luggage

compartment;

press the

button on the remote

control;

press the

button on the remote

control.

WARNING

24)

Perform the tailgate emergency

opening operation only with the engine

stopped and in a position where it is not a

danger for oncoming traffic.

CarManuals2.com

37

IMPORTANT

9)

When you need to disconnect or remove

the battery, do not close the boot. Open the

boot manually if it is locked.

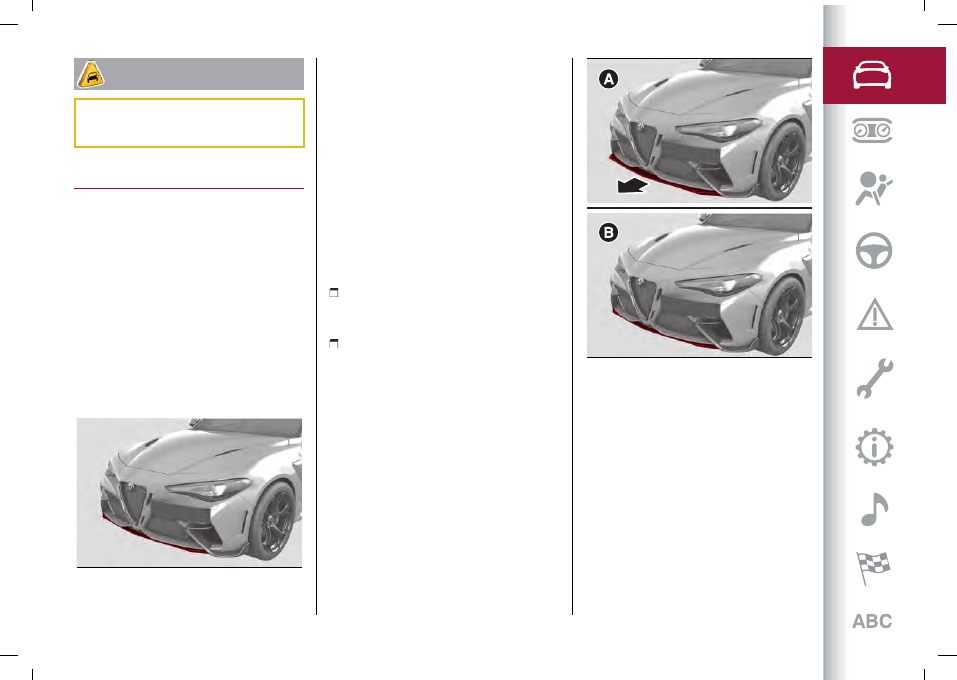

AERODYNAMICS

ACTIVE AERODYNAMICS - MOBILE

FRONT SPLITTER

GTA versions

The device fig. 43, which is automatically

managed according to the speed of the

car, provides greater stability at high

speeds, increasing the aerodynamic load

on the front.
An electromechanical system operates

the descent of the mobile front splitter

at high speeds.
WARNING The device does not work at

temperatures close to or below 0°C.

43

04296S0031EM

GTAm versions

The device fig. 43, which is automatically

managed according to the speed of the

car, provides greater stability at high

speeds, increasing the aerodynamic load

on the front.
An electromechanical system operates

the descent of the mobile front splitter

at high speeds.
WARNING The device does not work at

temperatures close to or below 0°C.
The splitter can also be manually

adjusted to two different positions:

most external (“extended”) position (A)

fig. 44. This position further increases

the aerodynamic load on the front;

most internal (“retracted”) position (B)

fig. 44.
In case of a failure of the mobile front

splitter, the generic failure icon along

with a dedicated message which

identifies the type of malfunction, is

shown on the instrument panel display.

44

04296S0008EM

WARNING The most external

("extended") position of the splitter is

allowed only and exclusively for use on

the race track.

SAUBER REAR SPOILER

(GTA versions)
This device fig. 45 increases the car’s

stability at high speeds by boosting the

aerodynamic load at the rear.

CarManuals2.com

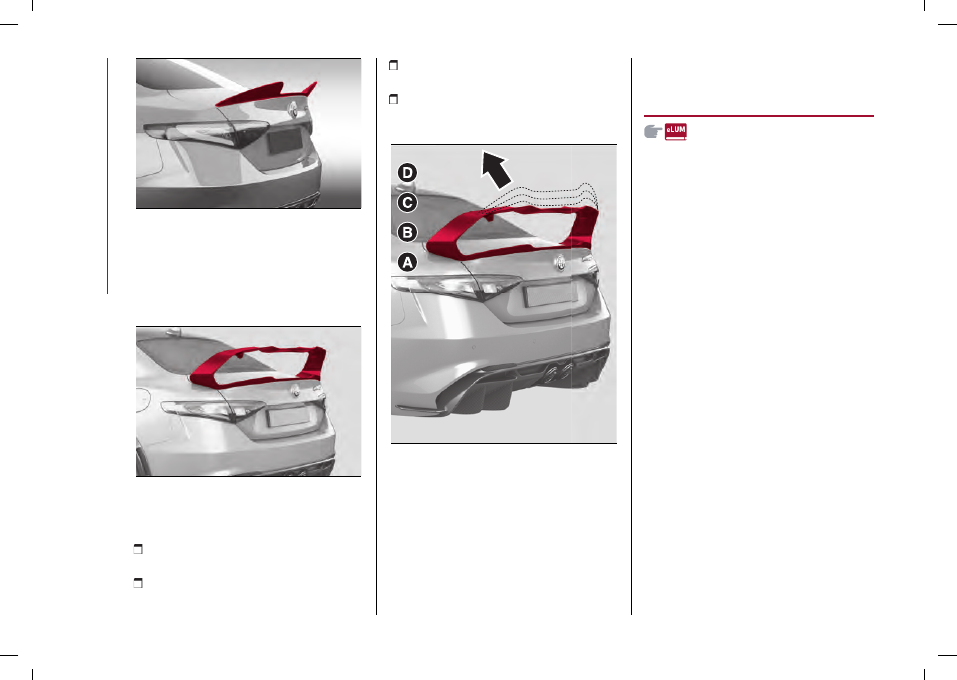

 KNOWING YOUR VEHICLE

38

45

04306S0076EM

MONSTER REAR WING

(GTAm versions)
This device fig. 46 increases the car’s

stability at high speeds by boosting the

aerodynamic load at the rear.

46

04306S0056EM

The wing can be manually adjusted to
four different positions fig. 47 :

STREET

(A) (only position allowed for

road use);

LD

(B), low drag and minimum

aerodynamic load configuration;

MD

(C), medium aerodynamic drag and

medium aerodynamic load configuration;

HD

(D), configuration with high

aerodynamic resistance and maximum

aerodynamic load.

47

04306S0067EM

WARNING The LD, MD and HD positions

of the rear wing are allowed exclusively

for use on the racing track.

WIRELESS CHARGING SYSTEM

- WCPM (Wireless Charge Pad

Module)

(where provided)
The car can be equipped with the Qi®

wireless charger system (maximum

power available 15 W), located in the
housing in the front seat armrest fig. 48.
The Qi® wireless charger system is

designed to wirelessly charge your

mobile phone. Consult the manual of your

phone to check its compatibility.
WARNING Keys must not be placed on

the charging mat or within 15 cm from it.

This could cause excessive heat buildup

and damage to the remote control.
WARNING Placing the keys near the

Wireless charger may prevent the engine

from starting. In this case, a dedicated

message will be shown on the display of

the Connect system to alert the driver of

the need to remove the object from the

wireless charger.
WARNING Do not place the ignition key

or any other type of metal or magnetized

object (e.g. credit cards, coins, etc.) inside

the mobile phone housing.
WARNING Make sure that you place

the mobile correctly (display facing

downwards) in the special charging

CarManuals2.com

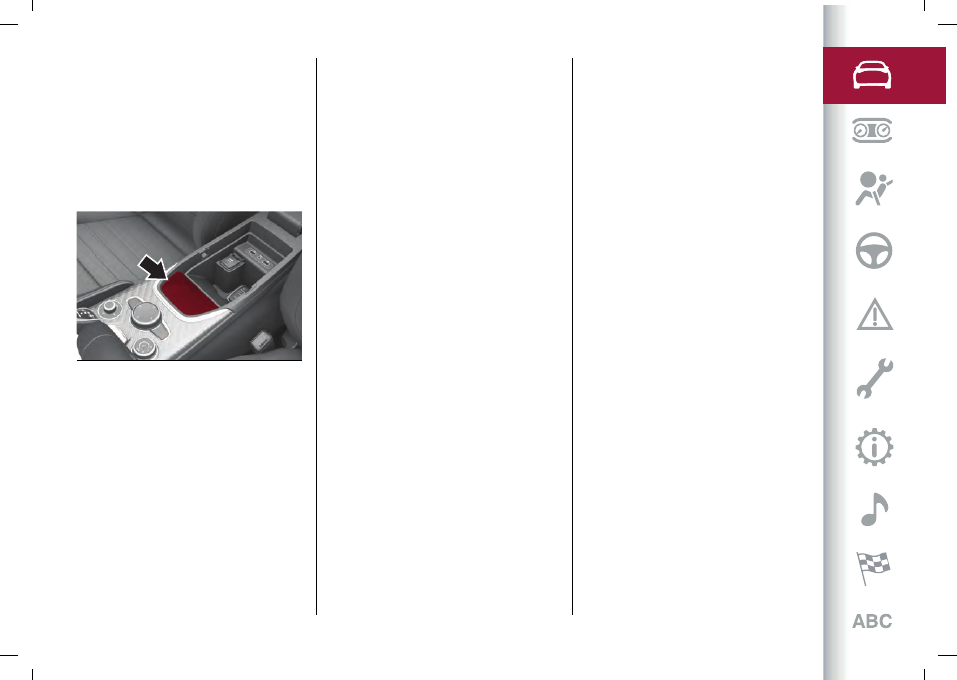

39

location: charging may not be enabled if

it is in the wrong position.
WARNING To avoid interference with the

key search, the wireless charger system

stops charging when any door is opened.
WARNING Make sure that there are no

metal objects between the phone and the

wireless charger system during charging.

Any such objects could overheat.

48

11116S0995EM

OPERATION

The wireless charging system is

activated in automatic mode when the a

mobile phone is placed in the housing

(WCPM) (see the previous instructions),
if the latter is compatible with the Qi®

standard.
If the mobile phone is removed from the

housing during the wireless charging

phase, this will automatically be

interrupted.
The wireless charger system enables

charging when all doors are closed

properly and the engine has been

started.
By interacting with the wireless charger

system and placing the mobile phone

in the charging housing, dedicated

messages appear on the Connect

system display to inform the driver of

the wireless charging system status.

The display of messages relating to

the operating status of the wireless

charging system can be deactivated

using the relevant Connect system menu

(see the description in the dedicated

supplement).

CarManuals2.com

This section of the handbook provides all information that is

useful for getting to know, interpreting, and using the

instrument panel correctly.

KNOWING THE INSTRUMENT PANEL

INSTRUMENT PANEL FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
WARNING LIGHTS AND MESSAGES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

CarManuals2.com

















Content      ..      1       2         ..



//////////////////////////////////////////
