TECHNICAL SPECIFICATIONS

573

CAUTION!

• Mixing of engine coolant (antifreeze) other than speci-

fied  Organic  Additive  Technology  (OAT)  engine

coolant (antifreeze), may result in engine damage and

may  decrease  corrosion  protection.  Organic  Additive

Technology  (OAT)  engine  coolant  is  different  and

should  not  be  mixed  with  Hybrid  Organic  Additive

Technology (HOAT) engine coolant (antifreeze) or any

“globally  compatible”  coolant  (antifreeze).  If  a

non-OAT engine coolant (antifreeze) is introduced into

the cooling system in an emergency, the cooling system

will need to be drained, flushed, and refilled with fresh

OAT coolant (conforming to MS.90032), by an autho-

rized dealer as soon as possible.

• Do not use water alone or alcohol-based engine coolant

(antifreeze) products. Do not use additional rust inhib-

itors or antirust products, as they may not be compat-

ible with the radiator engine coolant and may plug the

radiator.

• This  vehicle  has  not  been  designed  for  use  with

propylene  glycol-based  engine  coolant  (antifreeze).

Use  of  propylene  glycol-based  engine  coolant  (anti-

freeze) is not recommended.

8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

574 TECHNICAL SPECIFICATIONS

Chassis

Component

Fluid, Lubricant, or Genuine Part

Automatic  Transmission  –  Eight-Speed  Automatic  (For

Diesel Engine see Diesel Supplement)

Use only Mopar ZF 8&9 Speed ATF Automatic Transmission

Fluid,  or  equivalent.  Failure  to  use  the  correct  fluid  may

affect the function or performance of your transmission.

Transfer Case

We recommend you use Mopar Transfer Case Lubricant for

Borg Warner 44-44 and 44-45.

Front and Rear Axle

We  recommend  you  use  SAE  75W-85  HD  Ram  GL-5

Synthetic Axle Lubricant in 9.25 Front & 11.5 Rear Axles. Use

Mopar Synthetic Gear Lubricant SAE 75W-140 (MS-8985) in

12.0 Rear axles. Limited slip additive is required for limited

slip axles.

Brake Master Cylinder

We recommend you use Mopar DOT 3.

Power Steering Reservoir

We recommend you use Mopar Power Steering Fluid +4 or

Mopar ATF+4 Automatic Transmission Fluid.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

575

MULTIMEDIA

UCONNECT SYSTEMS

For detailed information about your Uconnect system, refer

to your Uconnect Owner’s Instruction Supplement.
NOTE:

Uconnect  screen  images  are  for  illustration  purposes  only

and may not reflect exact software for your vehicle.

DRAG & DROP MENU BAR

The Uconnect features and services in the main menu bar are

easily  changed  for  your  convenience.  Simply  follow  these

steps:

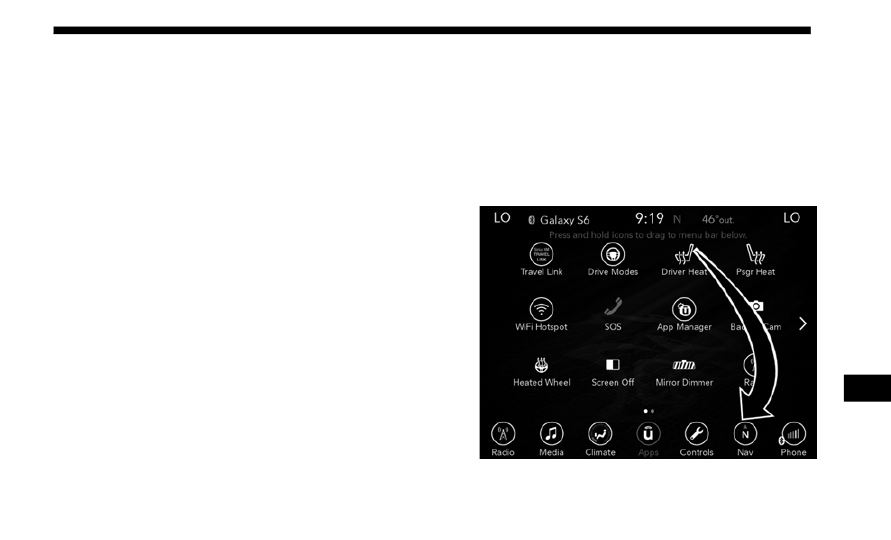

Uconnect 4C/4C NAV With 8.4–inch Display Main Menu

9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

576 MULTIMEDIA

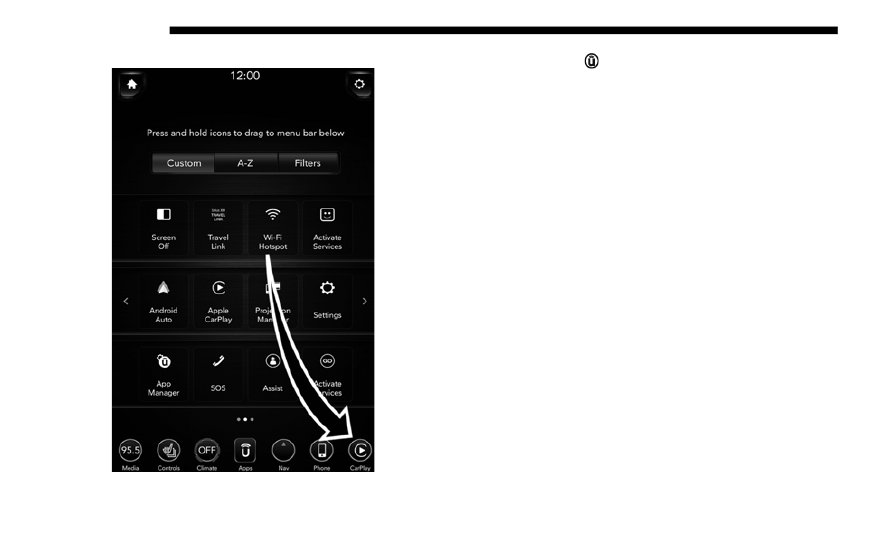

Uconnect 4C NAV With 12–inch Display Main Menu

1. Press the “Apps  ” button to open the App screen.
2. Press and hold, then drag the selected App to replace an

existing shortcut in the main menu bar.
The new shortcut will now be an active App/shortcut on

the main menu bar.

CYBERSECURITY

Your  vehicle  may  be  a  connected  vehicle  and  may  be

equipped  with  both  wired  and  wireless  networks.  These

networks  allow your vehicle to send and receive informa-

tion. This information allows systems and features in your

vehicle to function properly.
Your vehicle may be equipped with certain security features

to reduce the risk of unauthorized and unlawful access to

vehicle systems and wireless communications. Vehicle soft-

ware technology continues to evolve over time and FCA US

LLC, working with its suppliers, evaluates and takes appro-

priate  steps  as  needed.  Similar  to  a  computer  or  other

devices,  your  vehicle  may  require  software  updates  to

improve the usability and performance of your systems or to

reduce  the  potential  risk  of  unauthorized  and  unlawful

access to your vehicle systems.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MULTIMEDIA

577

The risk of unauthorized and unlawful access to your vehicle

systems  may  still  exist,  even  if  the  most  recent  version  of

vehicle software (such as Uconnect software) is installed.

NOTE:
• FCA  US  LLC  or  your  dealer  may  contact  you  directly

regarding software updates.

• To help further improve vehicle security and minimize the

potential risk of a security breach, vehicle owners should:

•Routinely  check

www.driveuconnect.com

  (U.S.  Resi-

dents) or

www.driveuconnect.ca

 (Canadian Residents)

to learn about available Uconnect software updates.

•Only  connect  and  use  trusted  media  devices  (e.g.

personal mobile phones, USBs, CDs).

Privacy of any wireless and wired communications cannot

be assured. Third parties may unlawfully intercept informa-

tion and private communications without your consent. For

further information, refer to “Data Collection & Privacy” in

your Uconnect Owner’s Instruction Supplement or “Onboard

Diagnostic System (OBD II) Cybersecurity” in “Getting To

Know Your Instrument Panel”.

WARNING!

• It  is  not  possible  to  know  or  to  predict  all  of  the

possible  outcomes  if  your  vehicle’s  systems  are

breached.  It  may  be  possible  that  vehicle  systems,

including safety related systems, could be impaired or

a loss of vehicle control could occur that may result in

an accident involving serious injury or death.

• ONLY  insert  media  (e.g.,  USB,  SD  card,  or  CD)  into

your vehicle if it came from a trusted source. Media of

unknown origin could possibly contain malicious soft-

ware, and if installed in your vehicle, it may increase

the possibility for vehicle systems to be breached.

• As always, if you experience unusual vehicle behavior,

take  your  vehicle  to  your  nearest  authorized  dealer

immediately.

9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

578 MULTIMEDIA

UCONNECT SETTINGS

The Uconnect system uses a combination of buttons on the

touchscreen  and  buttons  on  the  faceplate  located  on  the

center of the instrument panel that allows you to access and

change the customer programmable features. Many features

can vary by vehicle.

Uconnect 3 Settings

Uconnect 3 With 5–inch Display Buttons On The Touch-

screen And Buttons On The Faceplate

Push the MORE or SETTINGS button on the faceplate, then

press the “Settings” button on the touchscreen (if equipped)

to display the settings menu screen. In this mode the Ucon-

nect system allows you to access programmable features that

may be equipped such as Display, Units, Voice, Clock, Safety

&  Driving  Assistance,  Lights,  Doors  &  Locks,  Power  Side

Steps, Auto-On Comfort (if equipped), Engine Off Options,

Suspension, Trailer Brake, Audio, Compass Settings, Phone/

Bluetooth,  SiriusXM  Setup  (if  equipped),  Restore  Settings,

Clear Personal Data and System Information.
NOTE:

Only one category may be selected at a time.
When  making  a  selection,  press  the  button  on  the  touch-

screen to enter the desired mode. Once in the desired mode,

press  and  release  the  preferred  setting  until  the  button  is

highlighted.  Once  the  setting  is  complete,  either  press  the

back arrow or the “Done” button on the touchscreen or push

the Back  button  on the  faceplate to  return to the previous

menu. Pressing the Up or Down Arrow buttons on the touch-

screen on the right side of the screen will allow you to toggle

up or down through the list of available settings.
NOTE:

All settings should be changed with the ignition in the RUN

position.

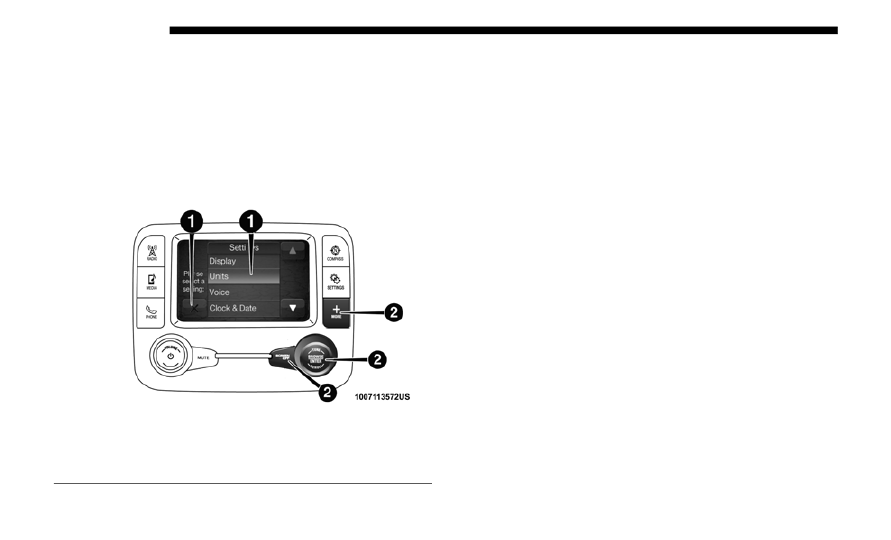

1 — Uconnect Buttons On The Touchscreen

2 — Uconnect Buttons On The Faceplate

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MULTIMEDIA

579

Display

After pressing the “Display” button on the touchscreen, the following settings will be available.

Units — If Equipped

After pressing “Units” on the touchscreen, the following will be available:

Setting Name

Selectable Options

Display Mode

Auto

Instruction

Set Language

English, Français, Español

Touchscreen Beep

On

Off

Fuel Saver Display

On

Off

NOTE:

The “Fuel Saver Display” feature will allow you to enable fuel saver mode and will be displayed in the instrument cluster

display.

Setting Name

Selectable Options

Units

US

Metric

Custom

Speed

MPH

km/h

Distance

mi

km

Fuel Consumption

MPG (UG)

MPG (UK)

L/100 km

km/L

Pressure

psi

kPa

bar

9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

580 MULTIMEDIA

Voice

After pressing the “Voice” button on the touchscreen, the following settings will be available:

Clock

After pressing the “Clock” button on the touchscreen, the following settings will be available:

Power — If Equipped

HP (US)

HP (UK)

Kw

Temperature

°C

°F

Torque — If Equipped

lb-ft

Nm

Setting Name

Selectable Options

Setting Name

Selectable Options

Voice Response Length

Brief

Detailed

Show Command List

Always

With Help

Never

Setting Name

Selectable Options

Set Time

12 hour

24 hour

NOTE:

Within the “Set Time” feature, press the corresponding arrow above and below the current time to adjust, then select “AM”

or “PM.”

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MULTIMEDIA

581

Safety/Assistance

After pressing the “Safety/Assistance” button on the touchscreen, the following settings will be available:

Setting Name

Selectable Options

Forward  Collision  Warning

— If Equipped

Off

Warning Only

Warning & Braking

Forward  Collision  Warning

Sensitivity — If Equipped

Near

Med

Far

Front  ParkSense  Chime

Volume

Low

Med

High

Rear  ParkSense  Chime

Volume — If Equipped

Low

Med

High

Tilt Side Mirrors In Reverse

— If Equipped

On

Off

NOTE:

When the “Tilt Side Mirrors In Reverse” feature is selected, the exterior side-view mirrors tilt downward when the ignition

is in  the  RUN position and the  transmission gear selector  is in the REVERSE position.  The mirrors move back  to their

previous position when the transmission is shifted out of REVERSE.
Surround View Camera — If

Equipped

On

Off

NOTE:

The “Surround View Camera” feature displays a complete 360 degree view of the vehicle's exterior environment while

backing up.

9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

582 MULTIMEDIA

Surround  View  Camera

Delay — If Equipped

On

Off

NOTE:

The “Surround View Camera Delay” setting determines whether or not the screen will display the 360 degree view image

with guidelines for up to ten seconds after the vehicle is shifted out of REVERSE. This delay will be canceled if the vehicle’s

speed exceeds 8 mph (13 km/h), the transmission is shifted into PARK, or the ignition is switched to the OFF position.
Surround  View  Camera

Guidelines — If Equipped

On

Off

NOTE:

The “Surround View Rear Back Up Camera Active Guidelines” feature allows you to see active guidelines over the Surround

View camera display whenever the gear selector is put into REVERSE or the Surround View button on the touchscreen is

pressed. The image will be displayed on the radio touchscreen display.
ParkView  Backup  Camera

Active Guidelines

On

Off

NOTE:

Your vehicle may be equipped with the ParkView Rear Back Up Camera Active Guidelines that allows you to see active

guidelines over the ParkView Back up camera display whenever the gear selector is put into REVERSE. The image will be

displayed on the radio touchscreen display along with a caution note to “check entire surroundings” across the top of the

screen. After five seconds, this note disappears.
ParkView  Backup  Camera

Delay

On

Off

Setting Name

Selectable Options

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MULTIMEDIA

583

NOTE:

When the vehicle is shifted out of REVERSE (with camera delay turned OFF), the rear camera mode is exited and the navi-

gation or audio screen appears again. When the vehicle is shifted out of REVERSE (with camera delay turned ON), the rear

view image with dynamic grid lines will be displayed for up to ten seconds after shifting out of REVERSE unless the forward

vehicle speed exceeds 8 mph (12 km/h), the transmission is shifted into PARK or the ignition is switched to the OFF position.
Forward  Facing  Camera

Guidelines — If Equipped

On

Off

NOTE:

The “Forward Facing Camera Guidelines” feature is an off-road type of feature that shows the path of the tires based on the

steering wheel input.
CHMSL

(Center

High

Mounted

Stop

Lamp)

Camera Dynamic Centerline

— If Equipped

On

Off

NOTE:

When the “CHMSL Camera Dynamic Centerline” feature is selected, it will assist in backing up for trailer alignment and

hook up.
Rain  Sensing  Auto  Wipers

— If Equipped

On

Off

NOTE:

When the “Rain Sensing Auto Wipers” feature is selected, the system automatically activates the windshield wipers if it

senses moisture on the windshield.

Setting Name

Selectable Options

9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

584 MULTIMEDIA

Lights

After pressing the “Lights” button on the touchscreen, the following settings will be available:

Hill  Start  Assist  —  If

Equipped

On

Off

NOTE:

When the “Hill Start Assist” feature is selected, the Hill Start Assist (HSA) system becomes active.
Tire Fill Assist

On

Off

Setting Name

Selectable Options

Setting Name

Selectable Options

Headlight Off Delay

0 sec

30 sec

60 sec

90 sec

Headlight Illumination On Approach

0 sec

30 sec

60 sec

90 sec

NOTE:

When the “Headlight Illumination On Approach” feature is selected, it allows the adjustment of the amount of time the head-

lights remain on when the doors are unlocked with the key fob.
Headlights  With  Wipers  —  If

Equipped

On

Off

Auto Dim High Beams — If Equipped

On

Off

Flash Lights With Lock

On

Off

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MULTIMEDIA

585

Doors & Locks

After pressing the “Doors & Locks” button on the touchscreen, the following settings will be available:

NOTE:

When the “Flash Lights With Lock” feature is selected, the exterior lights flash when the doors are locked or unlocked with

the key fob. This feature may be selected with or without the sound horn on lock feature selected.
Steering Directed Lights

On

Off

NOTE:

When the “Steering Directed Lights” feature is selected, the headlights turn with the direction of the steering wheel.
Rear  Cargo  Guidance  Lights  —  If

Equipped

On

Off

NOTE:

When the “Rear Cargo Guidance Lights” feature is selected, the lights in the cargo and bed of the truck will come on either

when the headlight switch is pressed, or the button on the back bed of the truck is pressed.

Setting Name

Selectable Options

Setting Name

Selectable Options

Auto  Door  Locks  —  If

Equipped

On

Off

NOTE:

When the “Auto Door Locks” feature is selected, all doors lock automatically when the vehicle reaches a speed of 15 mph

(24 km/h).
Auto Unlock On Exit

On

Off

9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

586 MULTIMEDIA

NOTE:

When the “Auto Unlock On Exit” feature is selected, all doors unlock when the vehicle is stopped, the transmission is in the

PARK or NEUTRAL position and the driver's door is opened.
Sound Horn With Lock

Off

1st Press

2nd Press

Remote Door Unlock

All

Driver

NOTE:

The “Remote Door Unlock” feature allows you to program your remote door locks to open “All doors” or only the “Driver

door” with the first push of the key fob or grabbing the Passive Entry door handle.
Sound  Horn  With  Remote

Start

On

Off

NOTE:

When the “Sound Horn With Remote Start” feature is selected, the horn sounds when the remote start is activated.
Memory Linked To Fob — If

Equipped

On

Off

NOTE:
• The  “Memory  Linked  To  Fob”  feature  provides  automatic  driver  seat  positioning  to  enhance  driver  mobility  when

entering and exiting the vehicle.

• The seat returns to the memorized seat location if “Memory Linked To Fob” is set to (On) when the key fob is used to

unlock the door.

Passive Entry — If Equipped

On

Off

Setting Name

Selectable Options

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MULTIMEDIA

587

Power Side Steps — If Equipped

After pressing the “Power Side Steps” button on the touchscreen, the following settings will be available:

NOTE:

The “Passive Entry” feature allows you to lock and unlock the vehicle’s door(s) without having to push the key fob lock or

unlock buttons. It automatically unlocks the doors when the outside door handle is grabbed.
Flash Lights With Lock

On

Off

NOTE:

When the “Flash Lights With Lock” feature is selected, the exterior lights flash when the doors are locked or unlocked with

the key fob. This feature may be selected with or without the “Sound Horn With Lock” feature selected.

Setting Name

Selectable Options

Setting Name

Selectable Options

Power Side Steps

Automatic

Stow

9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

588 MULTIMEDIA

Auto Comfort Systems — If Equipped

After pressing the “Auto-On Comfort” button on the touchscreen, the following settings will be available:

Engine Off Options

After pressing the “Engine Off Options” button on the touchscreen, the following settings will be available:

Setting Name

Selectable Options

Auto-On Driver Heated/

Ventilated Seat & Steering

Wheel With Vehicle Start —

If Equipped

Off

Remote Start Only

All Starts

NOTE:

When the “Auto-On Driver Heated/Ventilated Seat & Steering Wheel With Vehicle Start” feature is selected the driver's

heated seat and heated steering wheel will automatically turn on when temperatures are below 40° F (4.4° C). When tempera-

tures are above 80° F (26.7° C) the driver vented seat will turn on.

Setting Name

Selectable Options

Easy Exit Seats — If Equipped

On

Off

Headlight Off Delay

0 sec

30 sec

60 sec

90 sec

Engine Off Power Delay

0 sec

45 sec

5 min

10 min

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     34      35      36      37     ..
