RAM 3500 (2019 year). Instruction - part 24





STARTING AND OPERATING

381

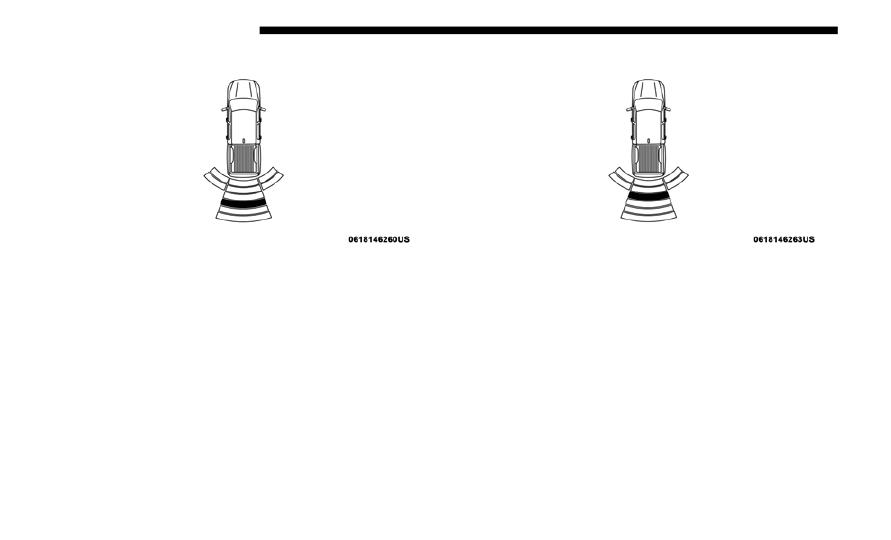

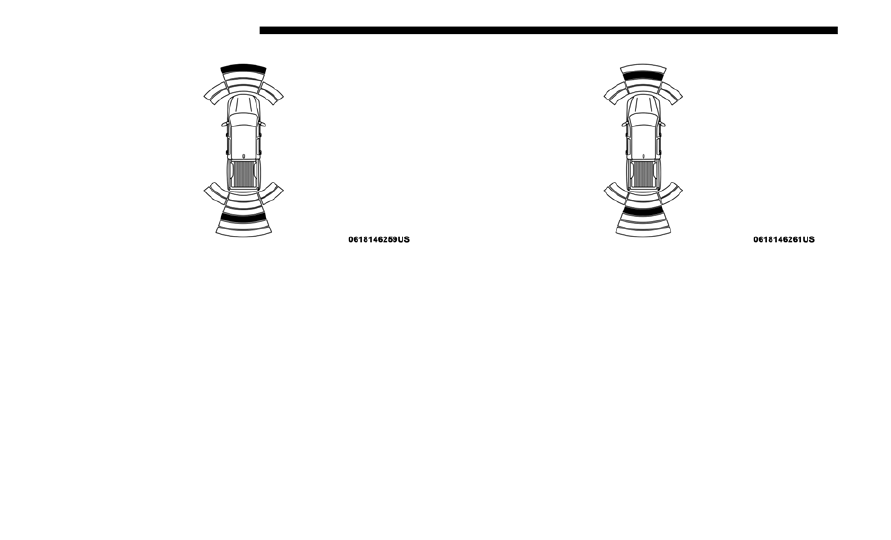

Single 1/2 Second Tone

Slow Tone

5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

382 STARTING AND OPERATING

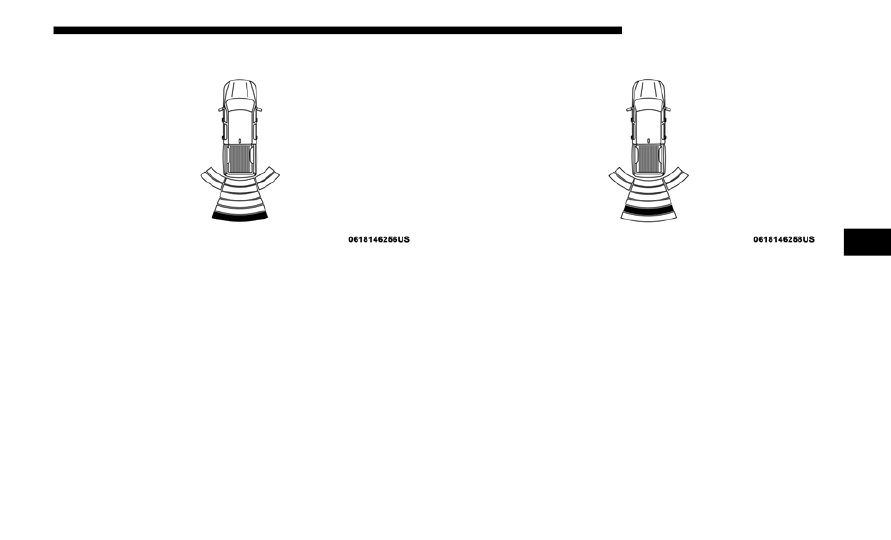

Slow Tone

Fast Tone

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

383

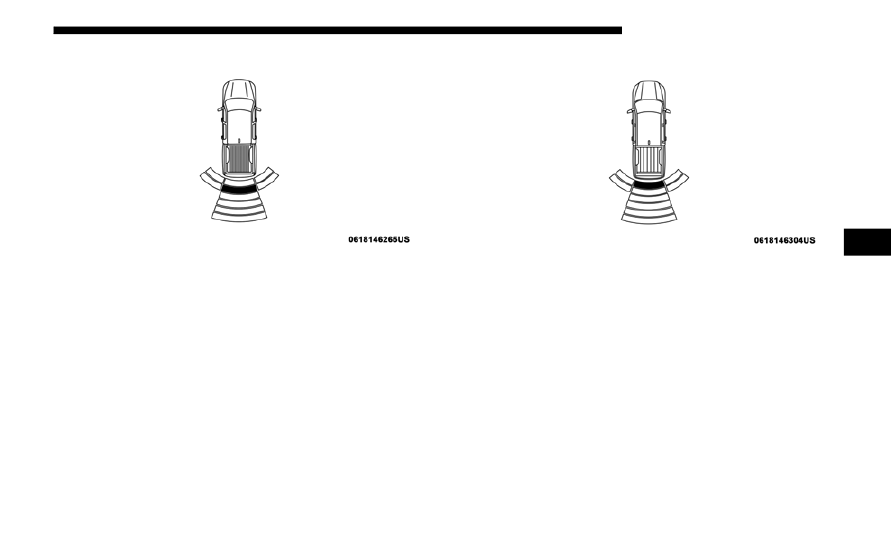

Fast Tone

Continuous Tone

5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

384 STARTING AND OPERATING

The vehicle is close to the obstacle when the warning display shows one flashing arc and sounds a continuous tone. The

following chart shows the warning alert operation when the system is detecting an obstacle:

NOTE:

ParkSense will reduce the volume of the radio, if on, when

the system is sounding an audio tone.

Adjustable Chime Volume Settings
The rear chime volume settings are programmable through

the Uconnect system. Refer to “Uconnect Settings” in “Multi-

media” for further information.
The chime volume settings include low, medium, and high.

The factory default volume is medium.

WARNING ALERTS

Rear Distance

(inches/cm)

Greater than

79 inches

(200 cm)

79-59 inches

(200-150 cm)

59-47 inches

(150-120 cm)

47-39 inches

(120-100 cm)

39-25 inches

(100-65 cm)

25-12 inches

(65-30 cm)

Less than

12 inches

(30 cm)

Audible Alert

Chime

None

Single 1/2

Second Tone

Slow

Slow

Fast

Fast

Continuous

Arcs-Left

None

None

None

None

None

2nd Flashing 1st Flashing

Arcs-Center

None

6th Solid

5th Solid

4th Solid

3rd Flashing 2nd Flashing 1st Flashing

Arcs-Right

None

None

None

None

None

2nd Flashing 1st Flashing

Radio

Volume

Reduced

No

Yes

Yes

Yes

Yes

Yes

Yes

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

385

Enabling And Disabling ParkSense

ParkSense can be enabled and disabled with the ParkSense

switch.

When the gear selector is moved to REVERSE and

the  system  is  disabled,  the  instrument  cluster

display  will  show  the  vehicle  graphic  with  “Off”

over the arcs for as long as the vehicle is in REVERSE.
NOTE:

The ParkSense system will automatically disable when the

system  detects  that  a  trailer  with  trailer  brakes  has  been

connected  to  the  Integrated  Trailer  Brake  Module.  The

instrument cluster display will show an “Off” message over

the arcs if the ParkSense system is off, or a “Trailer” message

if the system is on, for as long as the vehicle is in REVERSE.
The  ParkSense  switch  LED  will  be  on  when  ParkSense  is

disabled or defective. The ParkSense switch LED will be off

when the system is enabled.
If the ParkSense switch is pushed, and the system is disabled

or  requires  service,  the  ParkSense  switch  LED  will  blink

momentarily, and then the LED will be on.

Service The ParkSense Rear Park Assist System

During  vehicle start  up,  when  the  Rear ParkSense  System

has  detected  a  faulted  condition,  the  instrument  cluster

display will show the "Rear ParkSense Unavailable Service

Required" or the "Rear ParkSense Unavailable Wipe Sensors"

message.
When the gear selector is moved into REVERSE, a vehicle

graphic will show in the instrument cluster display, along

with the display overlay “Rear ParkSense Unavailable Wipe

Sensors.” If the system needs service, the display overlay will

read “Rear ParkSense Unavailable Service Required” Under

this condition, ParkSense will not operate.
If "Rear ParkSense Unavailable Wipe Sensors" appears in the

instrument cluster display make sure the outer surface and

the underside of the rear fascia/bumper is clean and clear of

snow, ice, mud, dirt or other obstruction, and then cycle the

ignition. If the message continues to appear, see an autho-

rized dealer.
If "Rear ParkSense Unavailable Service Required" appears in

the instrument cluster display, see an authorized dealer.

5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

386 STARTING AND OPERATING

(Continued)

Cleaning The ParkSense System

Clean the ParkSense sensors with water, car wash soap and

a soft cloth. Do not use rough or hard cloths. Do not scratch

or  poke  the  sensors.  Otherwise,  you  could  damage  the

sensors.

ParkSense System Usage Precautions

NOTE:
• Ensure that the rear bumper is free of snow, ice, mud, dirt

and debris to keep the ParkSense system operating prop-

erly.

• Jackhammers,  large  trucks,  and  other  vibrations  could

affect the performance of ParkSense.

• When  you  move  the  gear  selector  into  REVERSE  with

ParkSense turned off, the instrument cluster display will

show "Off" on the vehicle graphic arcs for as long as the

vehicle is in REVERSE.

• ParkSense, when on, will reduce the volume of the radio

when it is sounding a tone.

• Clean the ParkSense sensors regularly, taking care not to

scratch or damage them. The sensors must not be covered

with ice, snow, slush, mud, dirt or debris. Failure to do so

can result in the system not working properly. The Park-

Sense  system  might  not  detect  an  obstacle  behind  the

fascia/bumper, or it could provide a false indication that

an obstacle is behind the fascia/bumper.

• Ensure  the  ParkSense  system  is  OFF  if  objects  such  as

bicycle  carriers,  trailer  hitches,  etc.,  are  placed  within

18 inches (45 cm) of the rear fascia/bumper while driving

the vehicle. Failure to do so can result in the system misin-

terpreting a close obstacle as a sensor problem, causing the

"Rear ParkSense Unavailable Service Required"  message

to appear in the instrument cluster display.

• On vehicles equipped with a tailgate, ParkSense should be

disabled when the tailgate is in the lowered or open posi-

tion  and  the  vehicle  is  in  REVERSE.  A  lowered  tailgate

could provide a false indication that an obstacle is behind

the vehicle.

WARNING!

• Drivers must be careful when backing up even when

using ParkSense. Always check carefully behind your

vehicle,  look  behind  you,  and  be  sure  to  check  for

pedestrians, animals, other vehicles, obstructions, and

blind spots before backing up. You are responsible for

safety  and  must  continue  to  pay  attention  to  your

surroundings.  Failure  to  do  so  can  result  in  serious

injury or death.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

387

PARKSENSE FRONT AND REAR PARK ASSIST

The  ParkSense  Park  Assist  system  provides  visual  and

audible indications of the distance between the rear, and/or

front fascia/bumper, and a detected obstacle when backing

up or moving forward, e.g. during a parking maneuver.
Refer  to  “ParkSense  System  Usage  Precautions”  in  this

section for limitations of this system and recommendations.
ParkSense  will  retain  the  last  system  state  (enabled  or

disabled)  from  the  last  ignition  cycle  when  the  ignition  is

changed to the ON/RUN position.
ParkSense  can  be  active  only  when  the  gear  selector  is  in

REVERSE or DRIVE. If ParkSense is enabled at one of these

gear selector positions, the system will remain active until

the  vehicle  speed  is  increased  to  approximately  7 mph

(11 km/h) or above. A warning will appear in the instrument

cluster display when the vehicle is in REVERSE, indicating

the vehicle is above ParkSense operating speed. The system

will become active again if the vehicle speed is decreased to

speeds less than approximately 6 mph (9 km/h).

• Before  using  ParkSense,  it  is  strongly  recommended

that the ball mount and hitch ball assembly is discon-

nected from the vehicle when the vehicle is not used for

towing. Failure to do so can result in injury or damage

to vehicles or obstacles because the hitch ball will be

much closer to the obstacle than the rear fascia when

the loudspeaker sounds the continuous tone. Also, the

sensors  could  detect  the  ball  mount  and  hitch  ball

assembly,  depending  on  its  size  and  shape,  giving  a

false indication that an obstacle is behind the vehicle.

CAUTION!

• ParkSense  is  only  a  parking  aid  and  it  is  unable  to

recognize  every  obstacle,  including  small  obstacles.

Parking  curbs  might  be  temporarily  detected  or  not

detected  at  all.  Obstacles  located  above  or  below  the

sensors  will  not  be  detected  when  they  are  in  close

proximity.

• The vehicle must be driven slowly when using Park-

Sense  in  order  to  be  able  to  stop  in  time  when  an

obstacle is detected. It is recommended that the driver

looks over his/her shoulder when using ParkSense.

WARNING! (Continued)

5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

388 STARTING AND OPERATING

ParkSense Sensors

The  four  ParkSense  sensors,  located  in  the  rear  fascia/

bumper, monitor the area behind the vehicle that is within

the sensors’ field of view.
The  sensors  can  detect  obstacles  from  approximately

18 inches  (45  cm)  up  to  79 inches  (200  cm)  from  the  rear

fascia/bumper in the horizontal direction, depending on the

location, type and orientation of the obstacle.
NOTE:

If equipped as a dually, the ParkSense system has six rear

sensors to assist in detection around the dually flares.
The  six  ParkSense  sensors,  located  in  the  front  fascia/

bumper, monitor the area in front of the vehicle that is within

the sensors’ field of view. The sensors can detect obstacles

from approximately 12 inches (30 cm) up to 47 inches (120

cm) from the front fascia/bumper in the horizontal direction,

depending  on  the  location,  type  and  orientation  of  the

obstacle.

ParkSense Warning Display

The ParkSense Warning screen is located within the instru-

ment cluster display. It provides visual warnings to indicate

the distance between the rear fascia/bumper and/or front

fascia/bumper and the detected obstacle. Refer to “Instru-

ment  Cluster  Display”  in  “Getting  To  Know  Your  Instru-

ment Panel” for further information.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

389

ParkSense Display

The  warning  display  will  turn  on  indicating  the  system

status when the vehicle is in REVERSE or when the vehicle is

in DRIVE and an obstacle has been detected.
The system will indicate a detected obstacle by showing a

single arc in the left and/or right rear regions based on the

obstacle’s distance and location relative to the vehicle.

Single 1/2 Second Tone

Slow Tone

5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

390 STARTING AND OPERATING

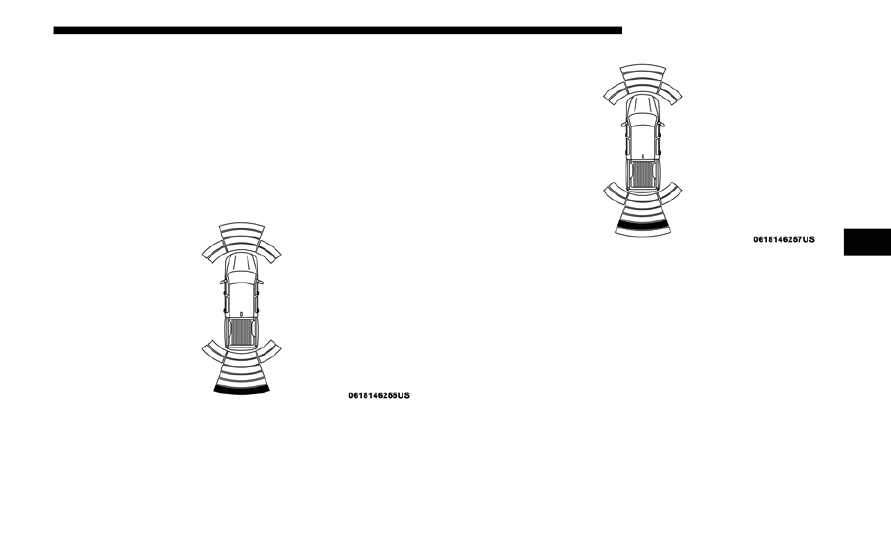

Slow Tone For Rear Only

Fast Tone For Rear Only

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

391

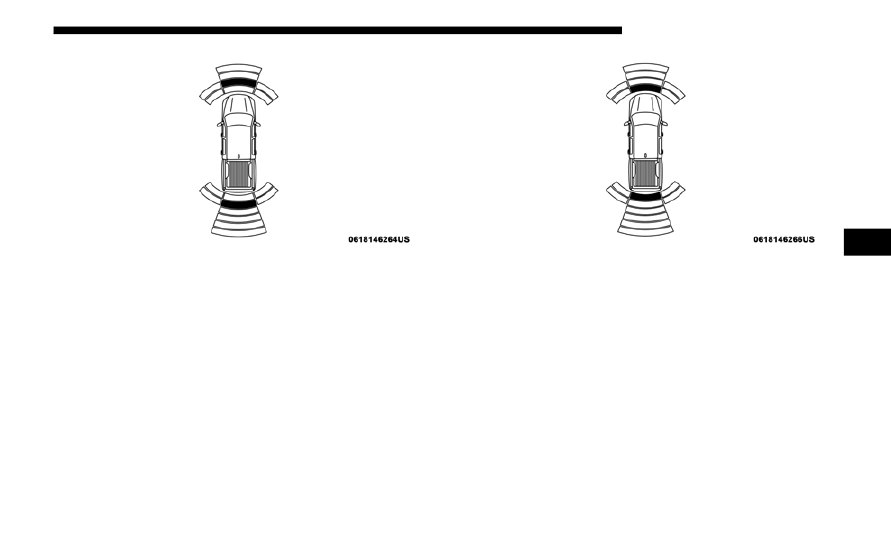

Fast Tone

Continuous Tone

If an obstacle is detected in the left and/or right rear region,

the display will show a single arc in the left and/or right rear

region and the system will produce a tone. As the vehicle

moves closer to the obstacle, the display will show the single

arc moving closer  to the  vehicle  and  the tone will  change

from a single 1/2 second tone to slow, to fast, to continuous.

5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

392 STARTING AND OPERATING

The vehicle is close to the obstacle when the display shows one flashing arc and sounds a continuous tone. The following chart

shows the warning alert operation when the system is detecting an obstacle:

WARNING ALERTS FOR REAR

Rear Distance

(inches/cm)

Greater than

79 inches

(200 cm)

79-59 inches

(200-150 cm)

59-47 inches

(150-120 cm)

47-39 inches

(120-100 cm)

39-25 inches

(100-65 cm)

25-12 inches

(65-30 cm)

Less than

12 inches

(30 cm)

Audible Alert

Chime

None

Single 1/2

Second Tone

Slow

Slow

Fast

Fast

Continuous

Arcs-Left

None

None

None

None

None

2nd Flashing 1st Flashing

Arcs-Center

None

6th Solid

5th Solid

4th Solid

3rd Flashing 2nd Flashing 1st Flashing

Arcs-Right

None

None

None

None

None

2nd Flashing 1st Flashing

Radio

Volume

Reduced

No

Yes

Yes

Yes

Yes

Yes

Yes

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

393

NOTE:

ParkSense will reduce the volume of the radio, if on, when

the system is sounding an audio tone.
Front Park Assist Audible Alerts
ParkSense will turn off the Front Park Assist audible alert

(chime) after approximately three seconds when an obstacle

has been detected, the vehicle is stationary, and brake pedal

is applied.

Adjustable Chime Volume Settings
The  Front  and  Rear  chime  volume  settings  are  program-

mable  through  the  Uconnect  system.  Refer  to  “Uconnect

Settings” in “Multimedia” for further information.
The chime volume settings include low, medium, and high.

The factory default volume is medium.

WARNING ALERTS FOR FRONT

Front Distance

(inches/cm)

Greater than

47 inches (120 cm)

47-39 inches

(120-100 cm)

39-25 inches

(100-65 cm)

25-12 inches

(65-30 cm)

Less than 12 inches

(30 cm)

Audible Alert

Chime

None

None

None

Fast

Continuous

Arcs-Left

None

None

None

2nd Flashing

1st Flashing

Arcs-Center

None

4th Solid

3rd Flashing

2nd Flashing

1st Flashing

Arcs-Right

None

None

None

2nd Flashing

1st Flashing

Radio Volume

Reduced

No

No

No

Yes

Yes

5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

394 STARTING AND OPERATING

Enabling And Disabling Front And/Or Rear ParkSense

Front ParkSense can be enabled and disabled with the Front

ParkSense switch.
Rear ParkSense can be enabled and disabled with the Rear

ParkSense switch.

When the gear selector is moved to REVERSE and

the Front or Rear system is disabled, the instrument

cluster  display  will  show  the  “Off”  message.  This

vehicle graphic will be displayed for as long as the vehicle is

in REVERSE.
The Front or Rear ParkSense switch LED will be on when

Front or Rear ParkSense is disabled or requires service. The

Front or  Rear ParkSense switch  LED  will  be off  when  the

Front or Rear system is enabled. If the Front or Rear Park-

Sense switch is pushed, and the system requires service, the

Front or Rear ParkSense switch LED will blink momentarily,

and then the LED will be on.

Service The ParkSense Front/Rear Park Assist
System

During  vehicle  start  up,  when  the  Front/Rear  ParkSense

System  has  detected  a  faulted  condition,  the  instrument

cluster  display  will  show  the  "Front/Rear  ParkSense

Unavailable Service Required" or the "Front/Rear ParkSense

Unavailable Wipe Sensors" message.
When the gear selector is moved into REVERSE, a vehicle graphic

will show in the instrument cluster display, along with the display

overlay “Front/Rear ParkSense Unavailable Wipe Sensors.” If the

system needs  service,  the  display  overlay  will read  “Front/Rear

ParkSense  Unavailable  Service  Required.”  Under  this  condition,

ParkSense will not operate.
If  "Front/Rear  ParkSense  Unavailable  Wipe  Sensors"

appears  in  the  instrument  cluster  display  make  sure  the

outer surface and the underside of the rear fascia/bumper is

clean and clear of snow, ice, mud, dirt or other obstruction,

and  then  cycle  the  ignition.  If  the  message  continues  to

appear, see an authorized dealer.
If  "Front/Rear  ParkSense  Unavailable  Service  Required"

appears in the instrument cluster display, see an authorized

dealer.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

395

Cleaning The ParkSense System

Clean the ParkSense sensors with water, car wash soap and

a soft cloth. Do not use rough or hard cloths. Do not scratch

or  poke  the  sensors.  Otherwise,  you  could  damage  the

sensors.

ParkSense System Usage Precautions

NOTE:
• Ensure that the front and rear bumpers are free of snow,

ice,  mud,  dirt  and  debris  to  keep  the  ParkSense  system

operating properly.

• Jackhammers,  large  trucks,  and  other  vibrations  could

affect the performance of ParkSense.

• When you move the gear selector to the REVERSE position

and Front or Rear ParkSense is turned off, the instrument

cluster display will show "Off" on the vehicle graphic arcs.

This vehicle graphic will be displayed for as long as the

vehicle is in REVERSE.

• ParkSense, when on, will reduce the volume of the radio

when it is sounding a tone.

• Clean the ParkSense sensors regularly, taking care not to

scratch or damage them. The sensors must not be covered

with ice, snow, slush, mud, dirt or debris. Failure to do so

can result in the system not working properly. The Park-

Sense  system  might  not  detect  an  obstacle  behind  or  in

front of the fascia/bumper, or it could provide a false indi-

cation that an obstacle is behind or in front of the fascia/

bumper.

• Use the ParkSense switch to turn the ParkSense system off

if obstacles such as bicycle carriers, trailer hitches, etc. are

placed  within  18 inches  (45  cm)  from  the  rear  fascia/

bumper. Failure to do so can result in the system misinter-

preting a close obstacle as a sensor problem, causing the

“Front/Rear  ParkSense  Unavailable  Service  Required”

message to be appear in the instrument cluster display.

• On vehicles equipped with a tailgate, ParkSense should be

disabled when the tailgate is in the lowered or open posi-

tion. A lowered tailgate could provide a false indication

that an obstacle is behind the vehicle.

5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

396 STARTING AND OPERATING

WARNING!

• Drivers must be careful when backing up even when

using ParkSense. Always check carefully behind your

vehicle,  look  behind  you,  and  be  sure  to  check  for

pedestrians, animals, other vehicles, obstructions, and

blind spots before backing up. You are responsible for

safety  and  must  continue  to  pay  attention  to  your

surroundings.  Failure  to  do  so  can  result  in  serious

injury or death.

• Before  using  ParkSense,  it  is  strongly  recommended

that the ball mount and hitch ball assembly is discon-

nected from the vehicle when the vehicle is not used for

towing. Failure to do so can result in injury or damage

to vehicles or obstacles because the hitch ball will be

much closer to the obstacle than the rear fascia when

the loudspeaker sounds the continuous tone. Also, the

sensors  could  detect  the  ball  mount  and  hitch  ball

assembly,  depending  on  its  size  and  shape,  giving  a

false indication that an obstacle is behind the vehicle.

CAUTION!

• ParkSense  is  only  a  parking  aid  and  it  is  unable  to

recognize  every  obstacle,  including  small  obstacles.

Parking  curbs  might  be  temporarily  detected  or  not

detected  at  all.  Obstacles  located  above  or  below  the

sensors  will  not  be  detected  when  they  are  in  close

proximity.

• The vehicle must be driven slowly when using Park-

Sense  in  order  to  be  able  to  stop  in  time  when  an

obstacle is detected. It is recommended that the driver

looks over his/her shoulder when using ParkSense.

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     22      23      24      25     ..
