STARTING AND OPERATING

301

NOTE:

You must press and hold the brake pedal while shifting out

of PARK.

Ignition Park Interlock

This  vehicle  is  equipped  with  an  Ignition  Park  Interlock

which requires the transmission to be  in PARK before the

ignition can be turned to the OFF mode. This helps the driver

avoid inadvertently leaving the vehicle without placing the

transmission in PARK. This system also locks the transmis-

sion in PARK whenever the ignition is in the OFF mode.
NOTE:

The transmission is NOT locked in PARK when the ignition

is  in  the ACC  mode  (even  though  the engine will be  off).

Ensure that the transmission is in PARK, and the ignition is

OFF (not in ACC mode) before exiting the vehicle.

Brake/Transmission Shift Interlock System

This  vehicle  is  equipped  with  a  Brake  Transmission  Shift

Interlock  System  (BTSI)  that  holds  the  transmission  gear

selector in PARK unless the brakes are applied. To shift the

transmission out of PARK, the engine must be running and

the brake pedal must be pressed.
The  brake  pedal  must  also  be  pressed  to  shift  from

NEUTRAL  into  DRIVE  or  REVERSE  when  the  vehicle  is

stopped or moving at low speeds.

Eight-Speed Automatic Transmission

The transmission is controlled using a rotary electronic gear

selector located on the instrument panel. The transmission

gear range (PRND) is displayed both above the gear selector

and in the instrument cluster. To select a gear range, simply

rotate the gear selector. You must press the brake pedal to

shift the transmission out of PARK (or NEUTRAL, when the

vehicle is stopped or moving at low speeds). To shift past

multiple  gear  ranges  at  once  (such  as  PARK  to  DRIVE),

simply  rotate  the  gear  selector  to  the  appropriate  detent.

Select the DRIVE range for normal driving.

CAUTION!

• Shift into or out of PARK or REVERSE only after the

vehicle has come to a complete stop.

• Do not shift between PARK, REVERSE, NEUTRAL, or

DRIVE when the engine is above idle speed.

• Before  shifting into  any gear, make  sure  your  foot  is

firmly pressing the brake pedal.

5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

302 STARTING AND OPERATING

NOTE:

In the event of a mismatch between the gear selector position

and the actual transmission gear (for example, driver selects

PARK  while  driving),  the  position  indicator  will  blink

continuously until the selector is returned to the proper posi-

tion, or the requested shift can be completed.
The  electronically-controlled  transmission  adapts  its  shift

schedule based on driver inputs, along with environmental

and  road  conditions.  The  transmission  electronics  are

self-calibrating;  therefore,  the  first  few  shifts  on  a  new

vehicle may be somewhat abrupt. This is a normal condition,

and precision shifts will develop within a few hundred miles

(kilometers).
Only  shift  from  DRIVE  to  PARK  or  REVERSE  when  the

accelerator pedal is released and the vehicle is stopped. Be

sure  to  keep  your  foot  on  the  brake  pedal  when  shifting

between these gears.
The transmission  gear  selector  has  only PARK, REVERSE,

NEUTRAL, and DRIVE positions. Instruction downshifts can be

made using the Electronic Range Select (ERS) shift control.

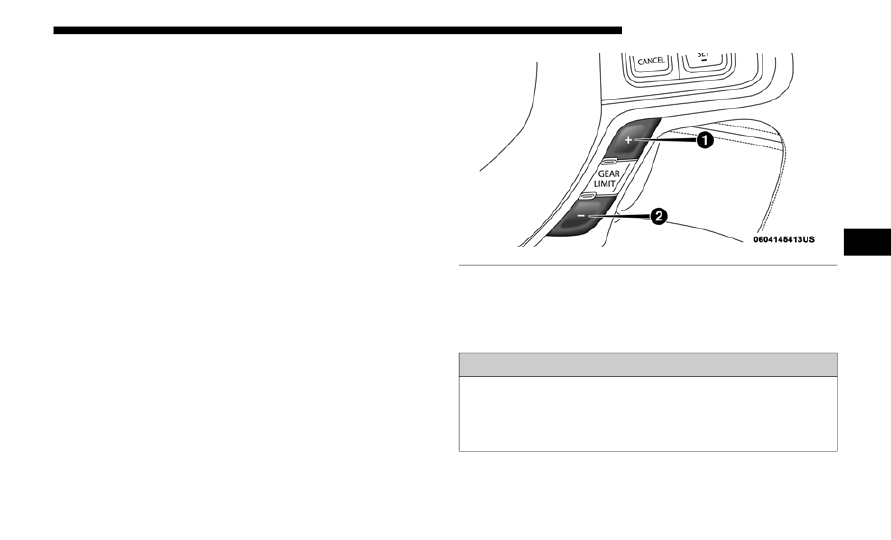

Pressing  the  GEAR-/GEAR+  switches  (on  the  steering

wheel) while in the DRIVE position will select the highest

available transmission gear, and will display that gear limit

in the instrument cluster as 1, 2, 3, etc. Refer to “Electronic

Range  Select  (ERS)  Operation”  in  this  section  for  further

information. Some models will display both the selected gear

limit, and the actual current gear, while in ERS mode.

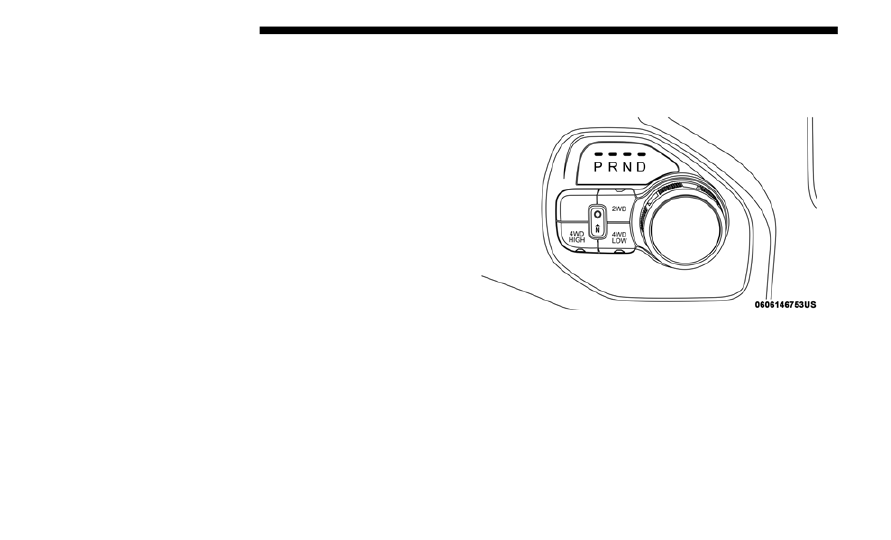

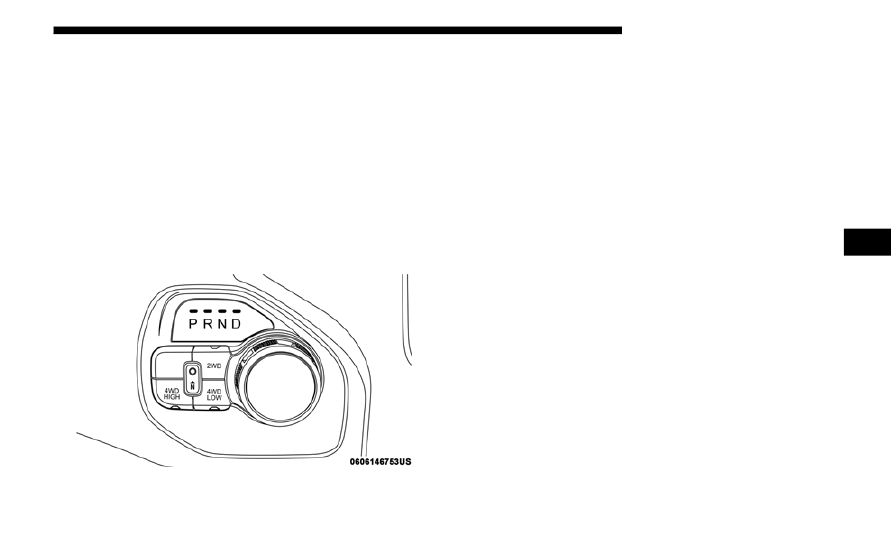

Electronic Transmission Gear Selector

Gear Ranges

Do  not  depress  the  accelerator  pedal  when  shifting  from

PARK or NEUTRAL into another gear range.
NOTE:

After selecting any gear range, wait a moment to allow the

selected gear to engage before accelerating. This is especially

important when the engine is cold.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

303

(Continued)

PARK (P)
This  range  supplements  the  parking  brake  by  locking  the

transmission. The engine can be started in this range. Never

attempt to use PARK while the vehicle is in motion. Apply

the parking brake when exiting the vehicle in this range.
When parking on a level surface, you may shift the transmis-

sion into PARK first, and then apply the parking brake.
When  parking  on  a  hill,  apply  the  parking  brake  before

shifting the transmission to PARK. As an added precaution,

turn the front wheels toward the curb on a downhill grade

and away from the curb on an uphill grade.
NOTE:

On four-wheel drive vehicles be sure that the transfer case is

in a drive position.
When exiting the vehicle, always:
• Apply the parking brake.
• Shift the transmission into PARK.
• Turn the engine OFF.
• Remove the key fob.

WARNING!

• Never  use  the  PARK  position  as  a  substitute  for  the

parking brake. Always apply the parking brake fully

when exiting the vehicle to guard against vehicle move-

ment and possible injury or damage.

• Your vehicle could move and injure you and others if it

is not in PARK. Check by trying to move the transmis-

sion gear  selector out of PARK  with  the  brake pedal

released. Make sure the transmission is in PARK before

exiting the vehicle.

• The transmission may not engage PARK if the vehicle

is moving. Always bring the vehicle to a complete stop

before shifting to PARK, and verify that the transmis-

sion gear position indicator solidly indicates PARK (P)

without blinking. Ensure that the vehicle is completely

stopped, and the PARK position is properly indicated,

before exiting the vehicle.

• It is dangerous to shift out of PARK or NEUTRAL if the

engine speed is higher than idle speed. If your foot is

not firmly pressing the brake pedal, the vehicle could

accelerate quickly forward or in reverse. You could lose

control of the vehicle and hit someone or something.

Only shift into gear when the engine is idling normally

and your foot is firmly pressing the brake pedal.

5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

304 STARTING AND OPERATING

The following indicators should be used to ensure that you

have properly engaged the transmission into the PARK posi-

tion:
• Look at the transmission gear position display and verify

that it indicates the PARK position (P), and is not blinking.

• With brake pedal released, verify that the gear selector will

not move out of PARK.

REVERSE (R)
This  range  is  for  moving  the  vehicle  backward.  Shift  into

REVERSE only after the vehicle has come to a complete stop.

• Unintended movement of a vehicle could injure those

in or near the vehicle. As with all vehicles, you should

never exit a vehicle while the engine is running. Before

exiting a vehicle, always come to a complete stop, then

apply  the  parking  brake,  shift  the  transmission  into

PARK, and turn the ignition OFF. When the ignition is

in the OFF mode, the transmission is locked in PARK,

securing the vehicle against unwanted movement.

• When exiting the vehicle, always make sure the igni-

tion is in the OFF mode, remove the key fob from the

vehicle, and lock the vehicle.

• Never leave children alone in a vehicle, or with access

to  an  unlocked  vehicle.  Allowing  children to  be  in  a

vehicle  unattended  is  dangerous  for  a  number  of

reasons. A child or others could be seriously or fatally

injured. Children should  be  warned not to  touch the

parking  brake,  brake  pedal  or  the  transmission  gear

selector.

• Do not leave the key fob in or near the vehicle (or in a

location  accessible  to  children),  and  do not  leave  the

ignition in the ACC or ON/RUN mode. A child could

operate  power  windows,  other  controls,  or  move  the

vehicle.

WARNING! (Continued)

CAUTION!

• DO NOT race the engine when shifting from PARK or

NEUTRAL into another gear range, as this can damage

the drivetrain.

• Before  moving  the  transmission  gear  selector  out  of

PARK,  you  must  start  the  engine,  and  also  press  the

brake  pedal.  Otherwise,  damage  to  the  gear  selector

could result.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

305

NEUTRAL (N)
Use this range when the vehicle is standing for prolonged

periods with the engine running. Apply the parking brake

and shift the transmission into PARK if you must exit the

vehicle.

DRIVE (D)
This  range  should  be  used  for  most  city  and  highway

driving. It provides the smoothest upshifts and downshifts,

and the best fuel economy. The transmission automatically

upshifts  through  all  forward  gears.  The  DRIVE  position

provides optimum driving characteristics under all normal

operating conditions.

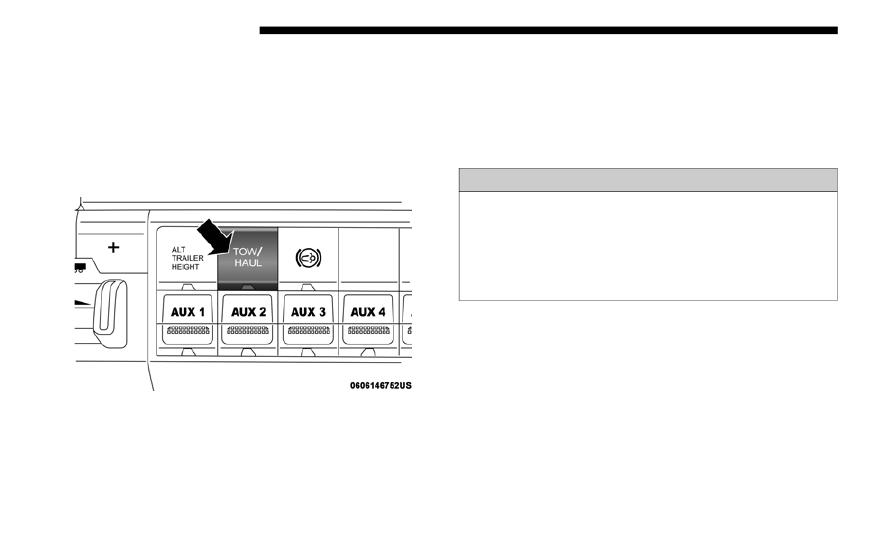

When frequent transmission shifting occurs (such as when

operating  the  vehicle  under  heavy  loading  conditions,  in

hilly  terrain,  traveling  into  strong  head  winds,  or  while

towing a heavy trailer), select TOW/HAUL mode or use the

Electronic  Range  Select  (ERS)  shift  control  (refer  to  "Elec-

tronic  Range  Select  (ERS)  Operation"  in  this  section  for

further  information)  to  select  a  lower  gear  range.  Under

these  conditions,  using  a  lower  gear  range  will  improve

performance and extend transmission life by reducing exces-

sive shifting and heat buildup.
During  extremely  cold  temperatures  (-22°F  [-30°C]  or

below), transmission operation may be modified depending

on engine and transmission temperature as well as vehicle

speed. Normal operation will resume once the transmission

temperature has risen to a suitable level.

WARNING!

Do  not  coast  in  NEUTRAL  and  never  turn  off  the

ignition to coast down a hill. These are unsafe practices

that  limit  your  response  to  changing  traffic  or  road

conditions.  You  might  lose  control  of  the  vehicle  and

have a collision.

CAUTION!

Towing  the  vehicle,  coasting,  or  driving  for  any  other

reason  with  the  transmission  in  NEUTRAL  can  cause

severe  transmission  damage.  Refer  to  “Recreational

Towing”  in  “Starting  And  Operating”  and  “Towing  A

Disabled Vehicle” in “In Case Of Emergency” for further

information.

5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

306 STARTING AND OPERATING

Transmission Limp Home Mode

Transmission  function  is  monitored  electronically  for

abnormal  conditions.  If  a  condition  is  detected  that  could

result  in  transmission  damage,  Transmission  Limp  Home

Mode  is  activated.  In  this  mode,  the  transmission  may

operate only in certain gears, or may not shift at all. Vehicle

performance may be severely degraded and the engine may

stall. In some situations, the transmission may not re-engage

if  the  engine  is  turned  off  and  restarted.  The  Malfunction

Indicator Light (MIL) may be illuminated. A message in the

instrument cluster will inform the driver of the more serious

conditions, and indicate what actions may be necessary.
In the event of a momentary problem, the transmission can

be  reset  to  regain  all  forward  gears  by  performing  the

following steps:
NOTE:

In cases where the instrument cluster message indicates the

transmission  may  not  re-engage  after  engine  shutdown,

perform  this  procedure  only  in  a  desired  location  (prefer-

ably, at an authorized dealer).

1. Stop the vehicle.
2. Shift the transmission into PARK, if possible. If not, shift

the transmission to NEUTRAL.

3. Push and hold the ignition switch until the engine turns

OFF.

4. Wait approximately 30 seconds.
5. Restart the engine.
6. Shift  into  the  desired  gear  range.  If  the  problem  is  no

longer  detected, the transmission will return to  normal

operation.

NOTE:

Even if the transmission can be reset, we recommend that

you  visit  an  authorized  dealer  at  your  earliest  possible

convenience.  An  authorized  dealer  has  diagnostic  equip-

ment to assess the condition of your transmission.
If the transmission cannot be reset, authorized dealer service

is required.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

307

Electronic Range Select (ERS) Operation — Eight-Speed
Transmission

The  Electronic  Range  Select  (ERS)  shift  control  allows  the

driver to limit the highest available gear when the transmis-

sion is in DRIVE. For example, if you set the transmission

gear limit to 4 (fourth gear), the transmission will not shift

above fourth gear (except to prevent engine overspeed), but

will shift through the lower gears normally.
You  can  switch  between  DRIVE  and  ERS  mode  at  any

vehicle  speed.  When  the  transmission  gear  selector  is  in

DRIVE, the transmission will operate automatically, shifting

between all available gears. Tapping the GEAR- switch (on

the  steering  wheel)  will  activate  ERS  mode,  display  the

current gear in the instrument cluster, and set that gear as the

top available gear. Once in ERS mode, tapping the GEAR- or

GEAR+ switch will change the top available gear.

To exit ERS mode, simply push and hold the GEAR+ switch

until the gear limit display disappears from the instrument

cluster.

1 — GEAR + Switch

2 — GEAR – Switch

WARNING!

Do  not  downshift  for  additional  engine  braking  on  a

slippery surface. The drive wheels could lose their grip

and  the  vehicle  could  skid,  causing  a  collision  or

personal injury.

5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

308 STARTING AND OPERATING

When to Use TOW/HAUL Mode

When  driving  in  hilly  areas,  towing  a  trailer,  carrying  a

heavy load, etc., and frequent transmission shifting occurs,

push  the  TOW/HAUL  switch  to  activate  TOW/HAUL

mode. This will improve performance and reduce the poten-

tial for transmission overheating or failure due to excessive

shifting.

TOW/HAUL Switch

The  “TOW/HAUL  Indicator  Light”  will  illuminate  in  the

instrument cluster to indicate that TOW/HAUL mode has

been  activated.  Pushing  the  switch  a  second  time  restores

normal operation. Normal operation is always the default at

engine start-up. If TOW/HAUL mode is desired, the switch

must be pushed each time the engine is started.

ACTIVE NOISE CANCELLATION

Your vehicle is equipped with an Active Noise Cancellation

System.  This  system  is  designed  to  address  exhaust  and

engine  noise.  The  system  relies  on  four  microphones

embedded  in  the  headliner,  which  monitor  exhaust  and

engine  noise,  and  assists an  onboard  frequency  generator,

which  creates  counteracting  sound  waves  in  the  audio

system’s speakers. This helps keep the vehicle quiet at idle

and during drive.

WARNING!

Do  not use the “TOW/HAUL” feature when  driving in

icy or slippery conditions. The increased engine braking

can  cause  the  rear  wheels  to  slide,  and  the  vehicle  to

swing around with the possible loss of vehicle control,

which  may  cause  an  accident  possibly  resulting  in

personal injury or death.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

309

FOUR-WHEEL DRIVE OPERATION — IF EQUIPPED

Four-wheel drive trucks are equipped with either a manu-

ally shifted transfer case or an electronically shifted transfer

case.  Refer  to  the  operating  instructions  for  your  transfer

case, located in this section for further information.

Four-Position Electronically Shifted Transfer Case —
If Equipped

This is an electronic shift transfer case and is operated by the

4WD  Control  Switch  (Transfer  Case  Switch),  which  is

located on the instrument panel.

Four-Position Transfer Case

This electronically shifted transfer case provides four mode

positions:
• Two-Wheel Drive High Range (2WD)
• Four-Wheel Drive High Range (4WD HIGH)
• Four-Wheel Drive Low Range (4WD LOW)
• Neutral (NEUTRAL)
For additional information on the appropriate  use  of  each

transfer case mode position, see the information below:
2WD
Rear-Wheel Drive High Range — This range is for normal

street and highway driving on dry hard surfaced roads.
4WD HIGH
Four-Wheel Drive High Range — This range provides torque

to  the  front  driveshaft  (engages  four-wheel  drive)  which

allows front and rear wheels to spin at the same speed. This

provides additional traction for loose, slippery road surfaces

only.

5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

310 STARTING AND OPERATING

(Continued)

4WD LOW
Four-Wheel Drive Low Range — This range provides low

speed  four-wheel  drive.  It  maximizes  torque  (increased

torque  over  4WD  HIGH)  to the  front  driveshaft;  allowing

front and rear wheels to rotate at the same speed. This range

provides  additional traction  and maximum pulling  power

for loose, slippery road surfaces only. Do not exceed 25 mph

(40 km/h) in this range.
NEUTRAL (N)
Neutral  —  This  range  disengages  both  the  front  and  rear

driveshafts from the powertrain. To be used for flat towing

behind another vehicle. Refer to “Recreational Towing” in

this section for further information.

This  electronically  shifted  transfer  case  is  designed  to  be

driven  in  the two–wheel drive  position  (2WD)  for  normal

street and highway conditions on dry hard surfaced roads).

Driving the vehicle in 2WD will have greater fuel economy

benefits as the front axle is not engaged in 2WD.
When additional traction is required, the transfer case 4WD

HIGH  and 4WD LOW  positions can be used to maximize

torque  to  the  front  driveshaft,  forcing  the  front  and  rear

wheels to rotate at the same speed. This is accomplished by

pushing the desired position on the 4WD control switch.
Refer  to  “Shifting  Procedure”  in  this  section  for  specific

shifting instructions.

WARNING!

• You or others could be injured or killed if you leave the

vehicle  unattended  with  the  transfer  case  in  the

NEUTRAL  (N)  position  without  first  fully  engaging

the  parking  brake.  The  transfer  case  NEUTRAL  (N)

position disengages both the front and rear drive shaft

from the powertrain, and will allow the vehicle to roll,

even if the transmission is in PARK. The parking brake

should always be applied when the driver is not in the

vehicle.

• The transmission may not engage PARK if the vehicle

is moving. Always bring the vehicle to a complete stop

before shifting to PARK, and verify that the transmis-

sion gear position indicator solidly indicates PARK (P)

without blinking. Ensure that the vehicle is completely

stopped, and the PARK position is properly indicated,

before exiting the vehicle.

WARNING! (Continued)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

311

The 4WD HIGH and 4WD LOW positions are designed for

loose, slippery road surfaces only. Driving in the 4WD HIGH

and 4WD LOW positions on dry hard surfaced roads may

cause  increased  tire  wear  and  damage  to  the  driveline

components.
NOTE:

The transfer case NEUTRAL button is located in the center of

the 4WD Control Switch and is pushed by using a ballpoint

pen or similar object. The transfer case NEUTRAL position is

to  be  used  for  recreational  towing  only.  Refer  to  “Recre-

ational  Towing”  in  “Starting  And  Operating”  for  further

information.
Transfer Case Position Indicator Lights
The  Transfer  Case  Position  Indicator  Lights  (4WD  and

4LOW) are located in the instrument cluster and indicate the

current and desired transfer case selection. When you select

a different transfer case position, the indicator lights will do

the following:
If All Of The Following Shift Conditions Are Met:
1. The current position indicator light will turn OFF.
2. The selected position indicator light will flash until the

transfer case completes the shift.

3. When  the  shift  is  complete,  the  indicator  light  for  the

selected position will stop flashing and remain ON.

If One Or More Of The Following  Shift Conditions Are

Not Met:
1. The indicator light  for the  current position will remain

ON.

2. The newly selected position indicator light will continue

to flash.

3. The transfer case will not shift.
NOTE:

Before retrying a selection, make certain that all the neces-

sary requirements for selecting a new transfer case position

have been met. To retry the selection, push the current posi-

tion, wait five seconds, and retry selection. To find the shift

requirements,  refer  to  the  "Shifting  Procedure"  for  your

transfer case, located in this section.
The “SVC 4WD Warning Light” monitors the electronic shift

four-wheel drive system. If this light remains on after engine

start  up  or  illuminates  during  driving,  it  means  that  the

four-wheel drive system is not functioning properly and that

service is required.

5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

312 STARTING AND OPERATING

NOTE:

Do not attempt to make a shift while only the front or rear

wheels are spinning. This could cause damage to driveline

components.
When  operating  your  vehicle  in  4WD  LOW,  the  engine

speed is approximately three times that of the 2WD or 4WD

HIGH positions at a given road speed. Take care not to over-

speed the engine and do not exceed 25 mph (40 km/h).
Proper operation of four-wheel  drive vehicles depends on

tires  of equal size, type and circumference  on each  wheel.

Any difference in tire size can cause damage to the drive-

train.
Because four-wheel drive provides improved traction, there

is a tendency to exceed safe turning and stopping speeds. Do

not go faster than road conditions permit.

Shifting Procedure

NOTE:

• If  any  of  the  requirements  to  select  a  new  transfer  case

position have not been met, the transfer case will not shift.

The position indicator light for the previous position will

remain ON and the newly selected position indicator light

will  continue  to  flash  until  all  the  requirements  for  the

selected position have been met.

• If all the requirements to select a new transfer case position

have  been  met,  the  current  position  indicator  light  will

turn OFF,  the selected  position  indicator  light will  flash

until the transfer case completes the shift. When the shift is

complete, the position indicator light for the selected posi-

tion will stop flashing and remain ON.

2WD To 4WD HIGH
Push the desired position on the 4WD control switch to shift

the transfercase. Shifts between 2WD and 4WD HIGH can be

done with the vehicle stopped or in motion. With the vehicle

in motion, the transfer case will engage/disengage faster if

you momentarily release the accelerator pedal after turning

the  control  switch.  If  the  vehicle  is  stopped,  the  ignition

switch must be  in  the ON  position with  the  engine  either

running or off. This shift cannot be completed if the ignition

switch is in the ACC position.

WARNING!

Always engage the parking brake when powering down the

vehicle  if  the  “SVC  4WD  Warning  Light”  is  illuminated.

Not engaging the  parking brake may allow the vehicle to

roll which may cause personal injury or death.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

313

NOTE:

The four-wheel drive system will not allow shifts between

2WD/4WD HIGH if the front and/or rear wheels are spin-

ning (no traction). In this situation, the selected position indi-

cator light will flash and the original position indicator light

will remain ON. At this time, reduce speed and stop spin-

ning the wheels to complete the shift.
2WD Or 4WD HIGH To 4WD LOW
NOTE:

When shifting into or out of 4WD LOW some gear noise may

be heard. This noise is normal and is not detrimental to the

vehicle or occupants.
Shifting can be performed with the vehicle rolling 2 to 3 mph

(3 to 5 km/h) or completely stopped. You can use either of

the following procedures:
Preferred Procedure
1. With the engine running, slow the vehicle to 2 to 3 mph (3

to 5 km/h).

2. Shift the transmission into NEUTRAL.
3. While  still  rolling,  push  the  desired  position  on  the

transfer case control switch.

4. After  the  desired  position  indicator  light  is  ON  (not

flashing), shift the transmission back into gear.

Alternate Procedure
1. Bring the vehicle to a complete stop.
2. With  the  ignition  switch  in  the  ON  position  and  the

engine running, shift the transmission into NEUTRAL.

3. Push  the  desired  position  on  the  transfer  case  control

switch.

4. After  the  desired  position  indicator  light  is  ON  (not

flashing), shift the transmission back into gear.

NOTE:
• If Steps 1 or 2 of either the Preferred or Alternate Proce-

dure are not satisfied prior to attempting the shift, then the

desired  position  indicator  light  will  flash  continuously

while the original position indicator light is ON, until all

requirements have been met.

• The ignition switch must be in the ON position for a shift

to  take  place  and  for  the  position  indicator  lights  to  be

operable. If the ignition switch is not in the ON position,

the shift will not take place and no position indicator lights

will be on or flashing.

5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

314 STARTING AND OPERATING

Instructionly Shifted Transfer Case — If Equipped

The transfer case provides four mode positions:
• Two-Wheel Drive High Range (2H)
• Four-Wheel Drive Lock High Range (4H)
• Neutral (N)
• Four-Wheel Drive Low Range (4L)
For additional information on the appropriate  use of  each

transfer case mode position, see the information below:
2H
Two-Wheel Drive High Range — This range is for normal

street and highway driving on dry, hard surfaced roads.
4H
Four-Wheel Drive Lock High Range — This range locks the

front and rear driveshafts together forcing the front and rear

wheels to rotate at the same speed. Additional traction for

loose, slippery road surfaces only.
NEUTRAL (N)
Neutral  —  This  range  disengages  both  the  front  and  rear

driveshafts from the powertrain. To be used for flat towing

behind another vehicle. Refer to “Recreational Towing” in

“Starting And Operating” for further information.
4L
Four-Wheel Drive Low Range — This range locks the front

and  rear  driveshafts  together  forcing  the  front  and  rear

wheels to rotate at the same speed. Additional traction and

maximum  pulling  power  for  loose,  slippery  road  surfaces

only. Do not exceed 25 mph (40 km/h).
This transfer case is intended to be driven in the 2H position

for normal street and highway conditions such as dry, hard

surfaced roads.
When additional traction is required, the 4H and 4L posi-

tions  can  be  used  to  lock  the  front  and  rear  driveshafts

together and force the front and rear wheels to rotate at the

same speed. This is accomplished by simply moving the gear

selector to the desired positions once the appropriate speed

and gear requirements are met, refer to “Shifting Procedure

– Instructionly Shifted Transfer Case” in this section for further

information.
The 4H and 4L positions are intended for loose, slippery road

surfaces  only. Driving in the 4H  and  4L positions on dry,

hard  surfaced  roads  may  cause  increased  tire  wear  and

damage to the driveline components.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

315

The “Transfer Case Position Indicator Light” in the instru-

ment  cluster  will  alert  the  driver  that  the  vehicle  is  in

four-wheel drive and that the front and rear driveshafts are

locked together. This light will illuminate when the transfer

case is shifted into either the 4H or 4L position. There is no

light for the 2H or NEUTRAL positions on some models.
When  operating  your  vehicle  in  4L,  the  engine  speed  is

approximately three times that of the 2H or 4H positions at a

given road speed. Take care not to overspeed the engine and

do not exceed 25 mph (40 km/h).
Proper operation of four-wheel  drive vehicles depends on

tires  of equal size, type and circumference  on each  wheel.

Any difference will adversely affect shifting and can cause

damage to the drivetrain.
NOTE:

Do not attempt to make a shift while only the front or rear

wheels are spinning, as this can cause damage to driveline

components.
Because four-wheel drive provides improved traction, there

is a tendency to exceed safe turning and stopping speeds. Do

not go faster than road conditions permit.

NOTE:

Delayed shifts out of four-wheel drive may be experienced

due to uneven tire wear, low or uneven tire pressures, exces-

sive vehicle loading, or cold temperatures.

Two-Wheel Drive High Range (2H)

Rear-Wheel Drive High Range — This range is for normal

street and highway driving on dry hard surfaced roads.
Four-Wheel Drive High Range (4H)

Four-Wheel Drive High Range — This range locks the front

and  rear  driveshafts  together  forcing  the  front  and  rear

wheels to rotate at the same speed. Additional traction for

loose, slippery road surfaces only.

WARNING!

 You or others could be injured or killed if you leave the

vehicle  unattended  with  the  transfer  case  in  the

NEUTRAL  position  without  first  fully  engaging  the

parking  brake.  The  transfer  case  NEUTRAL  position

disengages both the front and rear drive shafts from the

powertrain and will allow the vehicle to roll, even if the

transmission  is  in  PARK.  The  parking  brake  should

always be applied when the driver is not in the vehicle.

5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

316 STARTING AND OPERATING

Neutral (N)

Neutral — This range disengages the front and rear drivesh-

afts from the powertrain. To be used for flat towing behind

another vehicle. Refer to “Recreational Towing” in “Starting

And Operating” for further information.
Four-Wheel Drive Low Range (4L)

Four-Wheel Drive Low Range — This range locks the front

and  rear  driveshafts  together  forcing  the  front  and  rear

wheels to rotate at the same speed. Additional traction and

maximum  pulling  power  for  loose,  slippery  road  surfaces

only. Do not exceed 25 mph (40 km/h).

Shifting Procedure — Manually Shifted Transfer Case

2H To 4H
Shifting between 2H and 4H can be made with the vehicle

stopped or in motion. If the vehicle is in motion, shifts can be

made up to 55 mph (88 km/h). With the vehicle in motion,

the  transfer  case  will  engage/disengage  faster  if  you

momentarily release the accelerator pedal after completing

the shift. Apply a constant force when shifting the transfer

case lever.
2H Or 4H To 4L
NOTE:

When  shifting  into  or  out  of  4L  some  gear  noise  may  be

heard.  This  noise  is  normal  and  is  not  detrimental  to  the

vehicle or occupants.
With the vehicle rolling at 2 to 3 mph (3 to 5 km/h), shift the

transmission into NEUTRAL. While the vehicle is coasting at

2 to 3 mph (3 to 5 km/h), shift the transfer case lever firmly

to  the  desired  position.  Do  not  pause  in  transfer  case

NEUTRAL.
NOTE:
• Pausing in transfer case NEUTRAL in vehicles equipped

with an automatic transmission may require shutting the

engine OFF to avoid gear clash while completing the shift.

If difficulty occurs, shift the transmission into NEUTRAL,

hold  your  foot  on  the  brake,  and  turn  the  engine  OFF.

Complete the range shift to the desired mode.

• Shifting  into  or  out  of  4L  is  possible  with  the  vehicle

completely stopped, however difficulty may occur due to

the mating clutch teeth not being properly aligned. Several

attempts may be required for clutch teeth alignment and

CAUTION!

Do not use 4L (Low) range when operating the vehicle on

dry pavement. Driveline hardware damage can result.

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     17      18      19      20     ..
