SAFETY

285

Installing Three Child Restraints:
1. Place a child restraint on each outboard rear seat. Route

the tether straps following the directions for right and left

seating positions, above.

2. Attach both hooks to the center tether strap loop, but do

not tighten the straps yet.

3. Place a child restraint on the center rear seat. Route the

tether strap following the directions for the center seating

position, above.

4. Attach the hook to the outboard tether strap loop.
5. Tighten  the  tether  straps  according  to  the  child  seat

manufacturer’s instructions, tightening the right and left

tether straps before the center tether strap.

Outboard And Center Seating Positions Shown

WARNING!

• An  incorrectly  anchored  tether  strap  could  lead  to

increased head motion and possible injury to the child.

Use  only  the  anchorage  position  directly  behind  the

child seat to secure a child restraint top tether strap.

• If your vehicle is equipped with a split rear seat, make

sure  the  tether  strap  does  not  slip  into  the  opening

between the seatbacks as you remove slack in the strap.

4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

286 SAFETY

Transporting Pets

Air Bags deploying in the front seat could harm your pet. An

unrestrained pet will be thrown about and possibly injured,

or injure a passenger during panic braking or in a collision.
Pets should be restrained in the rear seat (if equipped) in pet

harnesses or pet carriers that are secured by seat belts.

SAFETY TIPS

Transporting Passengers

NEVER TRANSPORT PASSENGERS IN THE CARGO AREA.

Exhaust Gas

The best protection against carbon monoxide entry into the

vehicle  body  is  a  properly  maintained  engine  exhaust

system.

WARNING!

• Do not leave children or animals inside parked vehicles

in  hot  weather.  Interior  heat  build-up  may  cause

serious injury or death.

• It is extremely dangerous to ride in a cargo area, inside or

outside of a vehicle. In a collision, people riding in these

areas are more likely to be seriously injured or killed.

• Do not allow people to ride in any area of your vehicle

that is not equipped with seats and seat belts.

• Be sure everyone in your vehicle is in a seat and using

a seat belt properly.

WARNING!

Exhaust  gases  can  injure  or  kill.  They  contain  carbon

monoxide  (CO),  which  is  colorless  and  odorless.

Breathing  it  can  make  you  unconscious  and  can

eventually poison you. To avoid breathing (CO), follow

these safety tips:
• Do not run the engine in a closed garage or in confined

areas any longer than needed to move your vehicle in or

out of the area.

• If you are required to drive with the trunk/liftgate/rear

doors open, make sure that all windows are closed and

the  climate  control  BLOWER  switch  is  set  at  high

speed. DO NOT use the recirculation mode.

• If  it  is  necessary  to  sit  in  a  parked  vehicle  with  the

engine running, adjust your heating or cooling controls

to force outside air into the vehicle. Set the blower at

high speed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY

287

Whenever a change is noticed in the sound of the exhaust

system,  when  exhaust  fumes  can  be  detected  inside  the

vehicle,  or  when  the  underside  or  rear  of  the  vehicle  is

damaged, have a competent mechanic inspect the complete

exhaust  system  and  adjacent  body  areas  for  broken,

damaged, deteriorated, or mispositioned parts. Open seams

or loose connections could permit exhaust fumes to seep into

the passenger compartment. In addition, inspect the exhaust

system each time the vehicle is raised for lubrication or oil

change. Replace as required.

Safety Checks You Should Make Inside The Vehicle

Seat Belts

Inspect the seat belt system periodically, checking for cuts,

frays,  and  loose  parts.  Damaged  parts  must  be  replaced

immediately. Do not disassemble or modify the system.
Front seat belt assemblies must be replaced after a collision.

Rear seat belt assemblies must be replaced after a collision if

they have been damaged (i.e., bent retractor, torn webbing,

etc.). If there is any question regarding seat belt or retractor

condition, replace the seat belt.

Air Bag Warning Light

The Air Bag warning light   will turn on for four to eight

seconds  as  a  bulb  check  when  the  ignition  switch  is  first

turned  to  ON/RUN.  If  the  light  is  either  not  on  during

starting, stays on, or turns on while driving, have the system

inspected at an authorized dealer as soon as possible. After

the bulb check, this light will illuminate with a single chime

when a fault with the Air Bag System has been detected. It

will stay on until the fault is removed. If the light comes on

intermittently or remains on while driving, have an autho-

rized dealer service the vehicle immediately.
Refer  to  “Occupant  Restraint  Systems”  in  “Safety”  for

further information.
Defroster

Check operation by selecting the defrost mode and place the

blower control on high speed. You should be able to feel the

air directed against the windshield. See an authorized dealer

for service if your defroster is inoperable.

4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

288 SAFETY

(Continued)

(Continued)

Floor Mat Safety Information

Always use floor mats designed to fit your vehicle. Only use

a floor mat that does not interfere with the operation of the

accelerator, brake or clutch pedals. Only use a floor mat that

is securely attached using the floor mat fasteners so it cannot

slip out of position and interfere with the accelerator, brake

or clutch pedals or impair safe operation of your vehicle in

other ways.

WARNING!

An  improperly  attached,  damaged,  folded,  or  stacked

floor  mat,  or  damaged  floor  mat  fasteners  may  cause

your floor mat to interfere with the accelerator, brake, or

clutch  pedals  and  cause  a  loss  of  vehicle  control.  To

prevent SERIOUS INJURY or DEATH:
• ALWAYS securely attach   your floor mat using the

floor  mat  fasteners.  DO  NOT  install  your  floor  mat

upside down or turn your floor mat over. Lightly pull to

confirm mat is secured using the floor mat fasteners on

a regular basis.

• ALWAYS  REMOVE  THE  EXISTING  FLOOR  MAT

FROM THE VEHICLE

 before installing any other

floor mat. NEVER install or stack an additional floor

mat on top of an existing floor mat.

• ONLY install floor mats designed to fit your vehicle.

NEVER  install  a  floor  mat  that  cannot  be  properly

attached  and  secured  to  your  vehicle.  If  a  floor  mat

needs to be replaced, only use  a FCA approved floor

mat  for  the  specific  make,  model,  and  year  of  your

vehicle.

• ONLY  use  the  driver’s  side  floor mat  on  the  driver’s

side  floor  area.  To  check  for  interference,  with  the

vehicle  properly  parked  with  the  engine  off,  fully

depress the accelerator, the brake, and the clutch pedal

(if present) to check for interference. If your floor mat

interferes  with  the  operation  of  any  pedal,  or  is  not

secure  to  the  floor,  remove  the  floor  mat  from  the

vehicle and place the floor mat in your trunk.

• ONLY  use  the  passenger’s  side  floor  mat  on  the

passenger’s side floor area.

WARNING! (Continued)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY

289

Periodic Safety Checks You Should Make Outside
The Vehicle

Tires

Examine  tires  for  excessive  tread  wear  and  uneven  wear

patterns.  Check  for  stones,  nails,  glass,  or  other  objects

lodged in the tread or sidewall. Inspect the tread for cuts and

cracks. Inspect sidewalls for cuts, cracks, and bulges. Check

the  wheel  bolts  for  tightness.  Check  the  tires  (including

spare) for proper cold inflation pressure.
Lights

Have  someone  observe  the  operation  of  brake  lights  and

exterior  lights  while  you  work  the  controls.  Check  turn

signal  and  high  beam  indicator  lights  on  the  instrument

panel.
Door Latches

Check for proper closing, latching, and locking.
Fluid Leaks

Check  area  under  the  vehicle  after  overnight  parking  for

fuel, coolant, oil, or other fluid leaks. Also, if gasoline fumes

are detected or if fuel, or brake fluid leaks are suspected. The

cause should be located and corrected immediately.

• ALWAYS make sure objects cannot fall or slide into the

driver’s  side  floor  area  when  the  vehicle  is  moving.

Objects can become trapped under accelerator, brake,

or  clutch  pedals  and  could  cause  a  loss  of  vehicle

control.

• NEVER  place  any  objects  under  the  floor  mat  (e.g.,

towels, keys, etc.). These objects could change the posi-

tion of the floor mat and may cause interference with

the accelerator, brake, or clutch pedals.

• If the vehicle carpet has been removed and re-installed,

always properly attach carpet to the floor and check the

floor  mat  fasteners  are  secure  to  the  vehicle  carpet.

Fully depress each pedal to check for interference with

the accelerator, brake, or clutch pedals then re-install

the floor mats.

• It is recommended to only use mild soap and water to

clean  your  floor  mats.  After  cleaning,  always  check

your  floor  mat  has  been  properly  installed  and  is

secured to your vehicle using the floor mat fasteners by

lightly pulling mat.

WARNING! (Continued)

4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

290

(Continued)

STARTING AND OPERATING

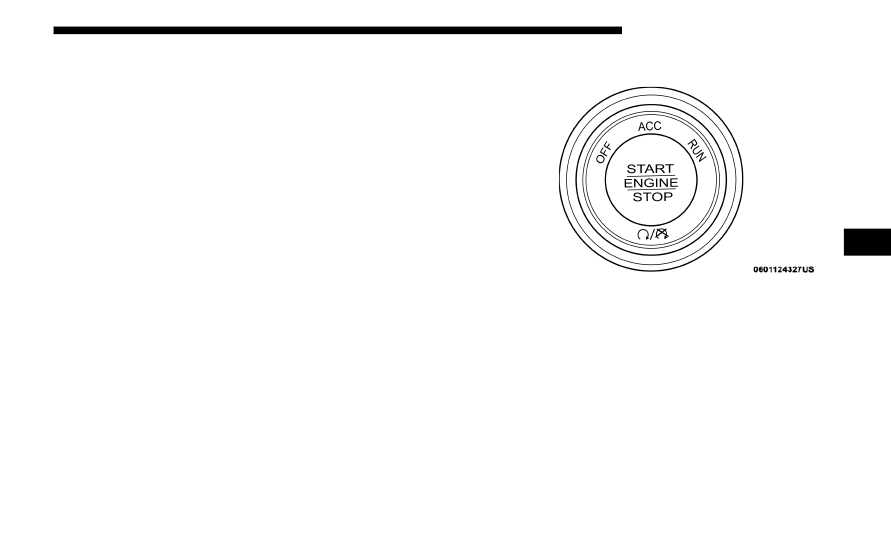

STARTING THE ENGINE

Before  starting  your  vehicle,  adjust  your  seat,  adjust  both

inside and outside mirrors, and fasten your seat belt.
The starter should not be operated for more than 10-second

intervals. Waiting a few seconds between such intervals will

protect the starter from overheating.

WARNING!

• When  leaving  the  vehicle,  always  make  sure  the

keyless ignition node is in the "OFF" mode, remove the

key fob from the vehicle and lock the vehicle.

• Never leave children alone in a vehicle, or with access

to  an  unlocked  vehicle.  Allowing  children to  be  in  a

vehicle  unattended  is  dangerous  for  a  number  of

reasons. A child or others could be seriously or fatally

injured. Children should  be  warned not to  touch the

parking brake, brake pedal or the gear selector.

• Do not leave the key fob in or near the vehicle, or in a

location  accessible  to  children,  and  do  not  leave  the

ignition  of  a  vehicle  equipped  with  Keyless

Enter-N-Go  in  the  ACC  or  ON/RUN  mode.  A  child

could operate power windows, other controls, or move

the vehicle.

• Do not leave children or animals inside parked vehicles

in  hot  weather.  Interior  heat  build-up  may  cause

serious injury or death.

WARNING! (Continued)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

291

Automatic Transmission

Start  the  engine  with  the  transmission  in  PARK  position.

Apply the brake before shifting into any driving range.
NOTE:
• This vehicle is equipped  with a transmission shift inter-

locking system. The brake pedal must be pressed to shift

out of PARK.

• If  equipped  with  an  8-speed  transmission,  starting  the

vehicle  in  NEUTRAL  is  not  possible  unless  the  Instruction

Park  Release  has  been  activated.  For  the  Instruction  Park

Release operation refer to Instruction Park Release in “In Case

Of Emergency”.

Tip Start Feature

Do not press the accelerator. Cycle the ignition switch briefly

to the START position and release it. The starter motor will

continue to run and will automatically disengage when the

engine is running.

Keyless Enter-N-Go — Ignition

Keyless Push Button Ignition

This feature allows the driver to operate the ignition switch

with  the  push  of  a  button,  as  long  as  the  Remote  Start/

Keyless  Enter-N-Go  key  fob  is  in  the  passenger  compart-

ment.

5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

292 STARTING AND OPERATING

Normal Starting Using ENGINE START/STOP Button

To Turn On The Engine Using The ENGINE START/STOP

Button
1. The transmission must be in PARK.
2. Press  and  hold  the  brake  pedal  while  pushing  the

ENGINE START/STOP button once.

3. The system takes over and attempts to start the vehicle. If

the vehicle fails to start, the starter will disengage auto-

matically after 10 seconds.

4. If you wish to stop the cranking of the engine prior to the

engine starting, push the button again.

NOTE:

Normal starting of either a cold or a warm engine is obtained

without pumping or pressing the accelerator pedal.
To  Turn  Off  The  Engine  Using  ENGINE  START/STOP

Button
1. Place the gear selector in PARK, then push and release the

ENGINE START/STOP button.

2. The ignition will return to the OFF mode.

3. If the gear selector is not in PARK, the ENGINE START/

STOP button must be held for two seconds or three short

pushes  in  a  row  with  the  vehicle  speed  above  5  MPH

(8 km/h) before the engine will shut off. The ignition will

remain  in  the  ACC  mode  until  the  gear  selector  is  in

PARK and the button is pushed twice to the OFF mode.

4. If  the  gear  selector  is  not  in  PARK  and  the  ENGINE

START/STOP  button  is  pushed  once  with  the  vehicle

speed above 5 MPH (8 km/h), the instrument cluster will

display a “Vehicle Not In Park” message and the engine

will  remain  running.  Never  leave  a  vehicle  out  of  the

PARK position, or it could roll.

NOTE:

If  the  gear  selector  is  not  in  PARK,  and  the  ENGINE

START/STOP button is pushed once with the vehicle speed

below 5 MPH (8 km/h), the engine will shut off and the igni-

tion will remain in the ACC position. If vehicle speed drops

below 1.2 MPH (1.9 km/h), the vehicle may AutoPark. See

AutoPark section for further details.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

293

ENGINE START/STOP Button Functions — With Driver’s

Foot OFF The Brake Pedal (In PARK Or NEUTRAL Posi-

tion)
The  ENGINE  START/STOP  button  operates  similar  to  an

ignition switch. It has three modes: OFF, ACC, and RUN. To

change the ignition modes without starting the vehicle and

use the accessories, follow these directions:
1. Start with the ignition in the OFF mode.
2. Push the ENGINE START/STOP button once to place the

ignition to the ACC mode.

3. Push the ENGINE START/STOP button a second time to

place the ignition to the RUN mode.

4. Push the ENGINE START/STOP button a third time to

return the ignition to the OFF mode.

AutoPark — Rotary Shifter and 8-Speed Transmission
Only

AutoPark is a supplemental feature to assist in placing the

vehicle  in  PARK  should  the  situations  on  the  following

pages occur. It is a back up system and should not be relied

upon as the primary method by which the driver shifts the

vehicle into PARK.
The  conditions  under  which  AutoPark  will  engage  are

outlined on the following pages.

WARNING!

• Driver inattention could lead to failure to place the vehicle

in  PARK.  ALWAYS  DO  A  VISUAL  CHECK  that  your

vehicle is in PARK by verifying that a solid (not blinking)

“P”  is  indicated  in  the  Instrument  Cluster  Display  and

near the gear selector. If the "P" indicator is blinking, your

vehicle is not in PARK. As an added precaution, always

apply the parking brake when exiting the vehicle.

• AutoPark is a supplemental feature. It is not designed

to replace the need to shift your vehicle into PARK. It is

a back up system and should not be relied upon as the

primary method by which the driver shifts the vehicle

into PARK.

5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

294 STARTING AND OPERATING

If the vehicle is not in PARK and the driver turns off the

engine, the vehicle may AutoPark.
AutoPark will engage when all of these conditions are met:
• Vehicle is equipped with a rotary shifter and an 8-speed

transmission

• Vehicle is not in PARK
• Vehicle Speed is 1.2 MPH (1.9 km/h) or less
• Ignition switched from RUN to ACC
NOTE:

For Keyless Go equipped vehicles, The engine will turn off

and  the  ignition  switch  will  change  to  ACC  mode.  After

30 minutes  the  ignition  switches  to  OFF  automatically,

unless the driver turns the ignition switch OFF.

If the vehicle is not in PARK and the driver exits the vehicle

with the engine running, the vehicle may AutoPark.
AutoPark will engage when all of these conditions are met:
• Vehicle is equipped with a rotary shifter and an 8-speed

transmission

• Vehicle is not in PARK
• Vehicle speed is 1.2 MPH (1.9 km/h) or less
• Driver’s seat belt is unbuckled
• Driver’s door is ajar
• Brake Pedal is not depressed
The MESSAGE “AutoPark Engaged Shift to P then Shift to

Gear” will display in the instrument cluster.
NOTE:

In some cases the ParkSense graphic will be displayed in the

instrument cluster, causing the “AutoPark Engaged Shift to

P then Shift to Gear” to not be seen. In these cases, the shifter

must be returned to “P” to select desired gear.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

295

If the driver shifts into PARK while moving, the vehicle

may AutoPark.
AutoPark will engage ONLYwhen vehicle speed is 1.2 MPH

(1.9 km/h) or less.
The  MESSAGE  “Vehicle  Speed  is  Too  High  to  Shift  to

P”will be displayed in the instrument cluster if vehicle speed

is above 1.2 MPH (1.9 km/h).

4WD LOW — If Equipped
AutoPark will be disabled when operating the vehicle in

4WD LOW.
The MESSAGE “AutoPark Disabled” will be displayed in

the instrument cluster.

Additional customer warnings will be given when all of

these conditions are met:
• Vehicle is not in PARK
• Driver’s Door is ajar
• Vehicle is in 4WD LOW range
The MESSAGE “AutoPark Not Engaged” will be displayed

in  the  instrument  cluster.  A  warning  chime  will  continue

until you shift the vehicle into PARK or the Driver’s Door is

closed.
ALWAYS  DO  A  VISUAL  CHECKthat  your  vehicle  is  in

PARK  by  looking  for  the  "P"  in  the  Instrument  Cluster

Display and near the shifter. As an added precaution, always

apply the parking brake when exiting the vehicle.
If Engine Fails To Start

If  the  engine  fails  to  start  after  you  have  followed  the

“Normal Starting” procedure, it may be flooded. Push the

accelerator pedal all the way to the floor and hold it there

while the engine is cranking. This should clear any excess

fuel in case the engine is flooded.
The  starter  motor  will  engage  automatically,  run  for  10

seconds, and then disengage. Once this occurs, release the

WARNING!

If  vehicle  speed  is  above  1.2  MPH  (1.9 km/h),  the

transmission will default to NEUTRAL until the vehicle

speed  drops  below  1.2  MPH  (1.9 km).  A  vehicle  left  in

the NEUTRAL position can roll. As an added precaution,

always  apply  the  parking  brake  when  exiting  the

vehicle.

5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

296 STARTING AND OPERATING

accelerator pedal and the brake pedal, wait 10 to 15 seconds,

then repeat the “Normal Starting” procedure.

If the engine has been flooded, it may start to run, but not

have enough power to continue running when the ignition

button/key is released. If this occurs, continue cranking with

the accelerator pedal pushed all the way to the floor. Release

the accelerator pedal and the ignition button/key once the

engine is running smoothly.
If  the  engine  shows  no  sign  of  starting  after  a  10  second

period of engine cranking with the accelerator pedal held to

the  floor,  wait  10  to  15  seconds,  then  repeat  the  “Normal

Starting” procedure.

Cold Weather Operation (Below –22°F Or −30°C)

To ensure reliable starting at these temperatures, use of an

externally  powered  electric  engine  block  heater  (available

from your authorized dealer) is recommended.

After Starting

The  idle  speed  is  controlled  automatically,  and  it  will

decrease as the engine warms up.

WARNING!

• Never  pour  fuel  or  other  flammable  liquid  into  the

throttle body air inlet opening in an attempt to start the

vehicle. This could result in flash fire causing serious

personal injury.

• Do  not  attempt  to  push  or  tow  your  vehicle  to  get  it

started. Vehicles equipped with an automatic transmis-

sion cannot be started this way. Unburned fuel could

enter  the  catalytic  converter  and  once  the  engine  has

started, ignite and damage the converter and vehicle.

• If the vehicle has a discharged battery, booster cables

may be used to obtain a start from a booster battery or

the battery in another vehicle. This type of start can be

dangerous if done improperly. Refer to “Jump Starting

Procedure”  in  “In  Case  Of  Emergency”  for  further

information.

CAUTION!

To prevent damage to the starter, do not crank the engine

for more than 10 seconds at a time. Wait 10 to 15 seconds

before trying again.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

297

ENGINE BLOCK HEATER — IF EQUIPPED

The  engine  block  heater  warms  the  engine,  and  permits

quicker starts in cold weather. Connect the cord to a stan-

dard  110-115  Volt  AC  electrical  outlet  with  a  grounded,

three-wire extension cord.
The engine block heater cord is routed through the grille by

the right front tow hook.
It  includes  a  removable  cap  that  is  secured  by  a  tethered

strap. It also has a c-clip that is used for storage when not in

use for the winter months. During winter months, remove

the heater cord wiring assembly from itself on the c-clip.
The engine block heater must be plugged in at least one hour

to have an adequate warming effect on the engine.

ENGINE BREAK-IN RECOMMENDATIONS

A long break-in  period  is not required for the engine  and

drivetrain (transmission and axle) in your vehicle.

Drive moderately during the first 300 miles (500 km). After

the initial 60 miles (100 km), speeds up to 50 or 55 mph (80 or

90 km/h) are desirable.
While  cruising,  brief  full-throttle  acceleration  within  the

limits  of  local  traffic  laws  contributes  to  a  good  break-in.

Wide-open  throttle  acceleration  in  low  gear  can  be  detri-

mental and should be avoided.
The  engine  oil  installed  in  the  engine  at  the  factory  is  a

high-quality energy conserving type lubricant. Oil changes

should  be  consistent  with  anticipated  climate  conditions

under which vehicle operations will occur. For the recom-

mended viscosity and quality grades, refer to “Fluids And

Lubricants” in “Technical Specifications”.

NOTE:

A new engine may consume some oil during its first few thou-

sand miles (kilometers) of operation. This should be considered

a normal part of the break-in and not interpreted as a problem.

Please check your oil level with the engine oil indicator often

during the break in period. Add oil as required.

WARNING!

Remember  to  disconnect  the  engine  block  heater  cord

before  driving.  Damage  to  the  110-115  Volt  electrical

cord could cause electrocution.

CAUTION!

Never use Non-Detergent Oil or Straight Mineral Oil in

the engine or damage may result.

5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

298 STARTING AND OPERATING

PARKING BRAKE

Before leaving the vehicle, make sure that the parking brake

is fully applied. Also, be certain to leave the transmission in

PARK.
The foot operated parking brake is located below the lower

left corner of the instrument panel. To apply the park brake,

firmly  push  the  park  brake  pedal  fully.  To  release  the

parking brake, pull the parking brake release handle.

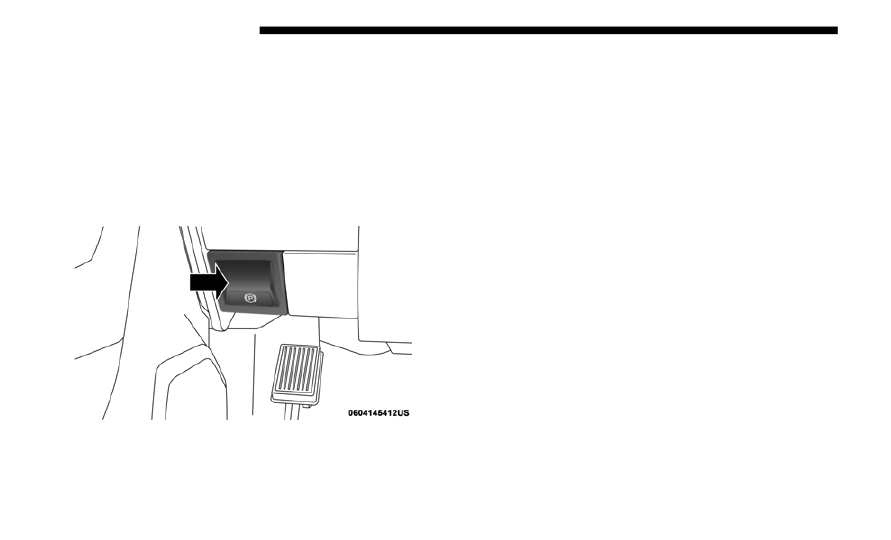

Parking Brake Release

When the parking brake is applied with the ignition switch

ON,  the  “Brake  Warning  Light”  in  the  instrument  cluster

will illuminate.
NOTE:
• When the parking brake is applied and the transmission is

placed  in  gear,  the  “Brake  Warning  Light”  will  flash.  If

vehicle speed is detected, a chime will sound to alert the

driver. Fully release the parking brake before attempting

to move the vehicle.

• This light only shows that the parking brake is applied. It

does not show the degree of brake application.

When  parking  on  a  hill,  it  is  important  to  turn  the  front

wheels toward the curb on a downhill grade and away from

the curb on an uphill grade. Apply the parking brake before

placing the gear selector in PARK, otherwise the load on the

transmission  locking  mechanism  may  make  it  difficult  to

move  the  gear  selector  out  of  PARK.  The  parking  brake

should always be applied whenever the driver is not in the

vehicle.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

299

(Continued)

AUTOMATIC TRANSMISSION

WARNING!

• Never  use  the  PARK  position  as  a  substitute  for  the

parking brake. Always apply the parking brake fully

when parked to guard against vehicle movement and

possible injury or damage.

• Never leave children alone in a vehicle, or with access

to an unlocked vehicle. Leaving unattended children in

a vehicle is dangerous for a number of reasons. A child

or others could be seriously or fatally injured.

• Do not leave the key fob in or near the vehicle, or in a

location  accessible  to  children,  and  do  not  leave  a

vehicle equipped with Keyless Enter-N-Go in the ACC

or  ON/RUN  mode.  A  child  could  operate  power

windows, other controls, or move the vehicle.

• Be sure the parking brake is fully disengaged before

driving; failure to do so can lead to brake failure and a

collision.

• Always  fully  apply  the  parking  brake  when  leaving

your vehicle or it may roll and cause damage or injury.

Also,  be  certain  to  leave  the  transmission  in  PARK.

Failure to do so may cause the vehicle to roll and cause

damage or injury.

CAUTION!

If the Brake System Warning Light remains on with the

parking  brake  released,  a  brake  system  malfunction  is

indicated.  Have  the  brake  system  serviced  by  an

authorized dealer immediately.

WARNING!

• Never  use  the  PARK  position  as  a  substitute  for  the

parking brake. Always apply the parking brake fully

when exiting the vehicle to guard against vehicle move-

ment and possible injury or damage.

• Your vehicle could move and injure you and others if it

is not in PARK. Check by trying to move the transmis-

sion gear  selector out of PARK  with  the  brake pedal

released. Make sure the transmission is in PARK before

exiting the vehicle.

5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

300 STARTING AND OPERATING

(Continued)

• The transmission may not engage PARK if the vehicle

is moving. Always bring the vehicle to a complete stop

before shifting to PARK, and verify that the transmis-

sion gear position indicator solidly indicates PARK (P)

without blinking. Ensure that the vehicle is completely

stopped, and the PARK position is properly indicated,

before exiting the vehicle.

• It is dangerous to shift out of PARK or NEUTRAL if the

engine speed is higher than idle speed. If your foot is

not firmly pressing the brake pedal, the vehicle could

accelerate quickly forward or in reverse. You could lose

control of the vehicle and hit someone or something.

Only shift into gear when the engine is idling normally

and your foot is firmly pressing the brake pedal.

• Unintended movement of a vehicle could injure those

in or near the vehicle. As with all vehicles, you should

never exit a vehicle while the engine is running. Before

exiting a vehicle, always come to a complete stop, then

apply  the  parking  brake,  shift  the  transmission  into

PARK, and turn the ignition OFF. When the ignition is

in the OFF mode, the transmission is locked in PARK,

securing the vehicle against unwanted movement.

WARNING! (Continued)

• When exiting the vehicle, always make sure the igni-

tion is in the OFF mode, remove the key fob from the

vehicle, and lock the vehicle.

• Never leave children alone in a vehicle, or with access

to  an unlocked  vehicle.  Allowing  children to  be  in  a

vehicle  unattended  is  dangerous  for  a  number  of

reasons. A child or others could be seriously or fatally

injured. Children should  be warned  not to  touch the

parking  brake,  brake  pedal  or  the  transmission  gear

selector.

• Do not leave the key fob in or near the vehicle (or in a

location  accessible  to  children),  and  do  not  leave  the

ignition in the ACC or ON/RUN mode. A child could

operate  power  windows,  other  controls,  or  move  the

vehicle.

WARNING! (Continued)

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     16      17      18      19     ..
