RAM 3500 (2019 year). Instruction - part 10





GETTING TO KNOW YOUR VEHICLE

157

7. Completely unfold the Tonneau Cover.

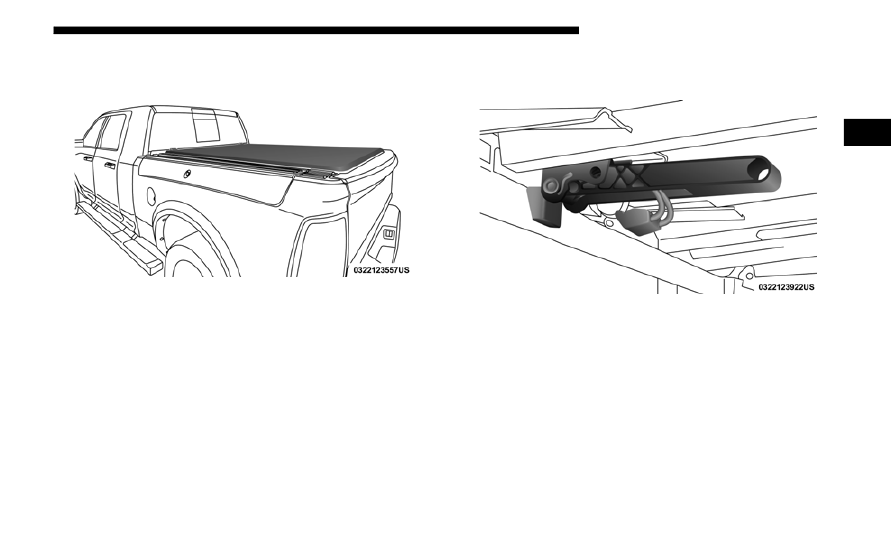

Fully Unfolded Position

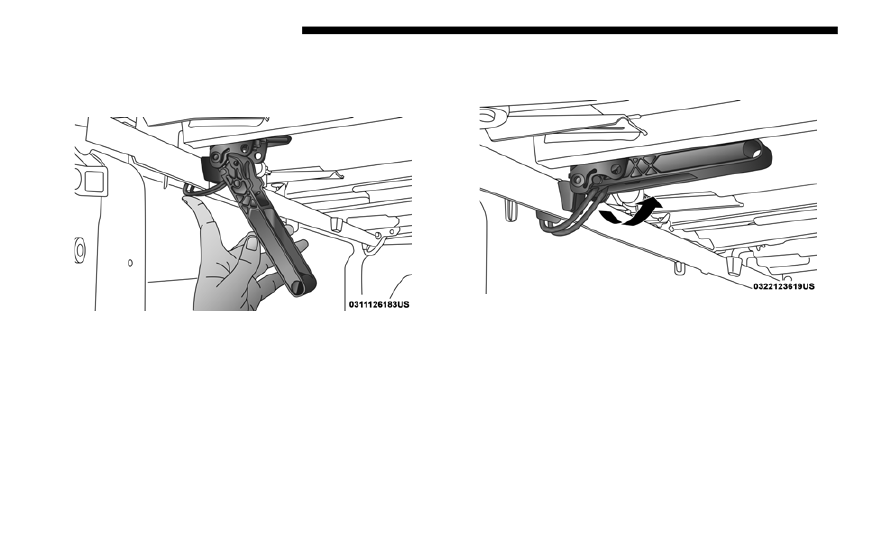

8. Pull the rear clamp handles down into the released posi-

tion.

Stowed Position

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

158 GETTING TO KNOW YOUR VEHICLE

9. Push  clamp  wires  up  and  under  the  flange  of  box  (or

flange of Ram Box rail, if equipped) to the semi clamped

position.

Semi Clamped Position

10. Push clamp handles upward to the clamped position to

properly engage the clamps.

Clamped Position

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GETTING TO KNOW YOUR VEHICLE

159

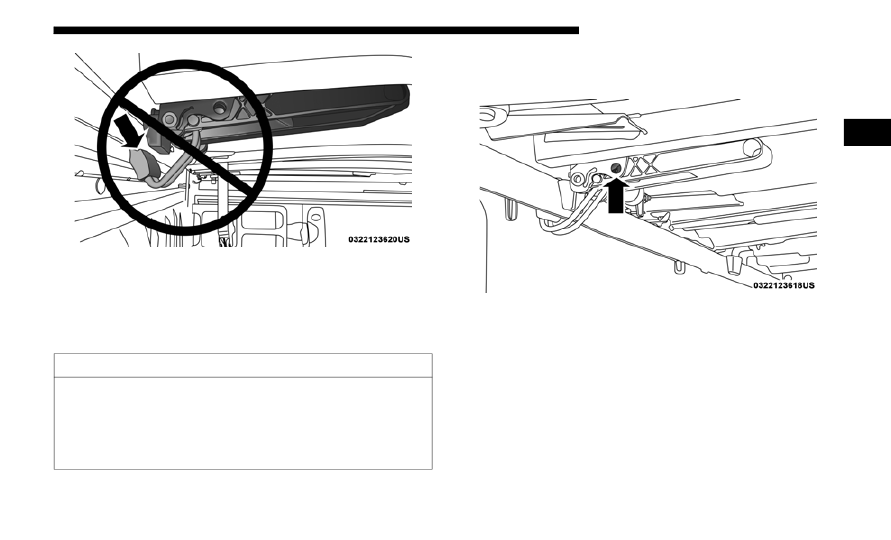

Improper Clamp Position

NOTE:

Once clamped, be sure the clamps are not partially clamped

to the truck bed flange.

The  Tonneau  Cover  clamps  can  be  locked  when  in  the

clamped position by placing a lock through the locking hole.

Locking Hole

Tri-Fold Tonneau Cover Cleaning

For proper cleaning of the Tonneau Cover, use Mopar White-

wall & Vinyl Top Cleaner and Mopar Leather & Vinyl Condi-

tioner/Protectant.

CAUTION!

It  is  the  driver’s  responsibility  to  ensure  the  Tonneau

Cover  is  properly  installed  on  the  vehicle.  Failure  to

follow  this  procedure  can  result  in  detachment  of  the

Tonneau  Cover  from  the  vehicle  and/or  damage  to  the

vehicle/Tonneau Cover.

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

160

GETTING TO KNOW YOUR INSTRUMENT PANEL

BASE / MIDLINE INSTRUMENT CLUSTER

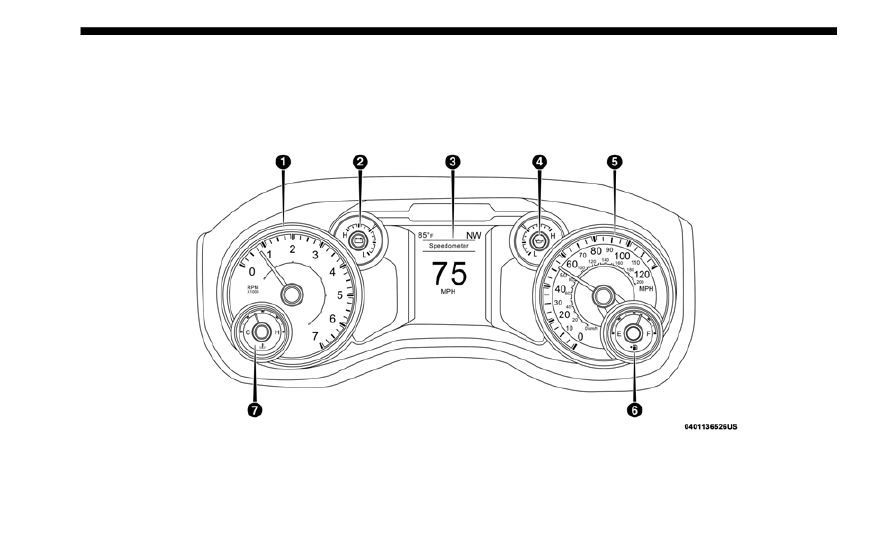

Base / Midline Instrument Cluster

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GETTING TO KNOW YOUR INSTRUMENT PANEL

161

Base / Midline Instrument Cluster Descriptions

1. Tachometer

•Indicates  the  engine  speed  in  revolutions  per  minute

(RPM x 1000).

2. Voltmeter

•When the vehicle is in the RUN state, the gauge indi-

cates the electrical system voltage. The pointer should

stay within the normal range if the battery is charged.

If the pointer moves to either extreme left or right and

remains  there  during  normal  driving,  the  electrical

system should be serviced.

3. Instrument Cluster Display

•When  the  appropriate  conditions  exist,  this  display

shows the instrument cluster display messages. Refer

to “Instrument Cluster Display” in “Getting To Know

Your Instrument Panel” for further information.

4. Oil Pressure Gauge

•The  pointer  should  always  indicate  the  oil  pressure

when the engine is running. A continuous high or low

reading under normal driving conditions may indicate

a  lubrication  system  malfunction.  Immediate  service

should be obtained from an authorized dealer.

NOTE:

In vehicles equipped with Stop/Start, an oil pressure indica-

tion of zero is normal during an Autostop.
5. Speedometer

•Indicates vehicle speed.

6. Fuel Gauge

•The pointer shows the level of fuel in the fuel tank when

the ignition is in the ON/RUN position.

•   The  fuel  pump  symbol  points  to  the  side  of  the

vehicle where the fuel door is located.

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

162 GETTING TO KNOW YOUR INSTRUMENT PANEL

7. Temperature Gauge

•The gauge pointer shows engine coolant temperature.

The pointer positioned within the normal range indi-

cates that the engine cooling system is operating satis-

factorily.

•The gauge pointer will likely indicate a higher tempera-

ture when driving in hot weather, up mountain grades,

or when towing a trailer. It should not be allowed to

exceed the upper limits of the normal operating range.

WARNING!

A hot engine cooling system is dangerous. You or others

could be badly burned by steam or boiling coolant. You

may want to call an authorized dealer for service if your

vehicle overheats. If you decide to look under the hood

yourself, see “Servicing  And Maintenance.” Follow the

warnings  under  the  Cooling  System  Pressure  Cap

paragraph.

CAUTION!

Driving with a hot engine cooling system could damage

your  vehicle.  If  the  temperature  gauge  reads  “H,”  pull

over  and  stop the  vehicle. Idle the  vehicle with the  air

conditioner turned off until the pointer drops back into

the normal range. If the pointer remains on the “H,” turn

the engine off immediately and call an authorized dealer

for service.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GETTING TO KNOW YOUR INSTRUMENT PANEL

163

PREMIUM INSTRUMENT CLUSTER

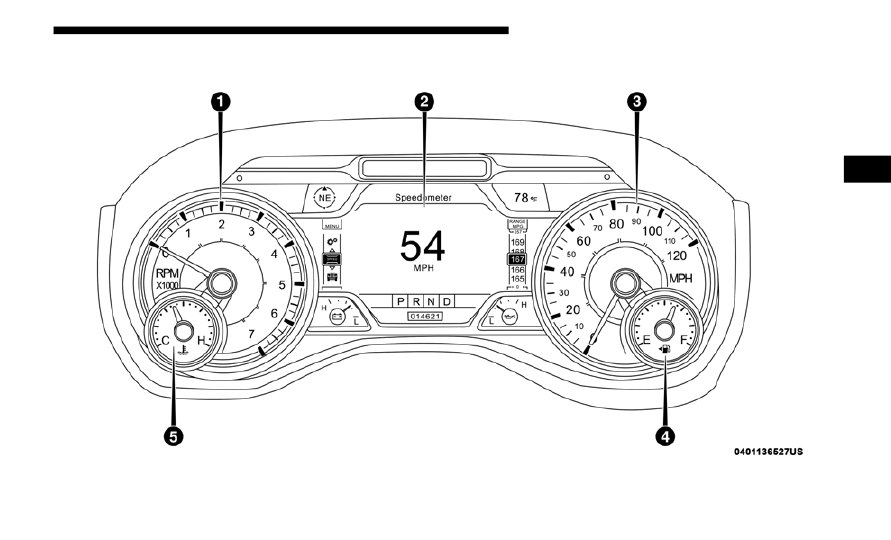

Premium Instrument Cluster

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

164 GETTING TO KNOW YOUR INSTRUMENT PANEL

Premium Instrument Cluster Descriptions

1. Tachometer

•Indicates  the  engine  speed  in  revolutions  per  minute

(RPM x 1000).

2. Instrument Cluster Display

• When  the  appropriate  conditions  exist,  this  display

shows the instrument cluster display messages. Refer

to “Instrument Cluster Display” in “Getting To Know

Your Instrument Panel” for further information.

3. Speedometer

•Indicates vehicle speed.

4. Fuel Gauge

•The pointer shows the level of fuel in the fuel tank when

the ignition is in the ON/RUN position.

•   The  fuel  pump  symbol  points  to  the  side  of  the

vehicle where the fuel door is located.

5. Temperature Gauge

•The gauge pointer shows engine coolant temperature.

The pointer positioned within the normal range indi-

cates that the engine cooling system is operating satis-

factorily.

•The gauge pointer will likely indicate a higher tempera-

ture when driving in hot weather, up mountain grades,

or when towing a trailer. It should not be allowed to

exceed the upper limits of the normal operating range.

WARNING!

A hot engine cooling system is dangerous. You or others

could be badly burned by steam or boiling coolant. You

may want to call an authorized dealer for service if your

vehicle overheats. If you decide to look under the hood

yourself, see “Servicing  And Maintenance.” Follow the

warnings  under  the  Cooling  System  Pressure  Cap

paragraph.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GETTING TO KNOW YOUR INSTRUMENT PANEL

165

INSTRUMENT CLUSTER DISPLAY

Your  vehicle  will  be  equipped  with  an  instrument  cluster

display, which offers useful information to the driver. With

the ignition in the STOP/OFF mode, opening/closing of a

door will activate the display for viewing, and display the

total miles, or kilometers, in the odometer. Your instrument

cluster display is designed to display important information

about  your  vehicle’s  systems  and  features.  Using  a  driver

interactive  display  located  on  the  instrument  panel,  your

instrument cluster display can show you how systems are

working  and  give  you  warnings  when  they  are  not.  The

steering wheel mounted controls allow you to scroll through

the main menus and submenus. You can access the specific

information you want and make selections and adjustments.

Instrument Cluster Display Controls

The instrument cluster display features a driver-interactive

display that is located in the instrument cluster.

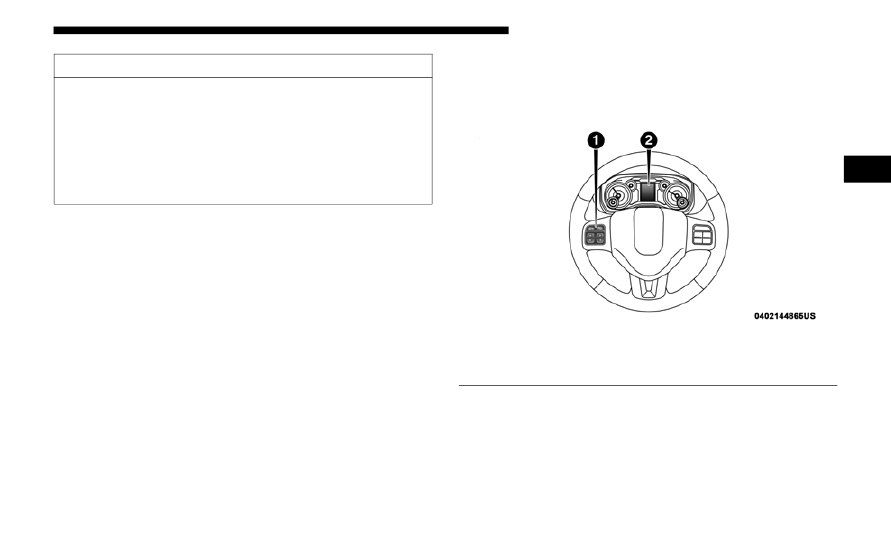

Base Instrument Cluster Display

CAUTION!

Driving with a hot engine cooling system could damage

your  vehicle.  If  the  temperature  gauge  reads  “H,”  pull

over  and  stop the  vehicle.  Idle the  vehicle with the  air

conditioner turned off until the pointer drops back into

the normal range. If the pointer remains on the “H,” turn

the engine off immediately and call an authorized dealer

for service.

1 – Instrument Cluster Display Controls

2 – Instrument Cluster Display Screen

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

166 GETTING TO KNOW YOUR INSTRUMENT PANEL

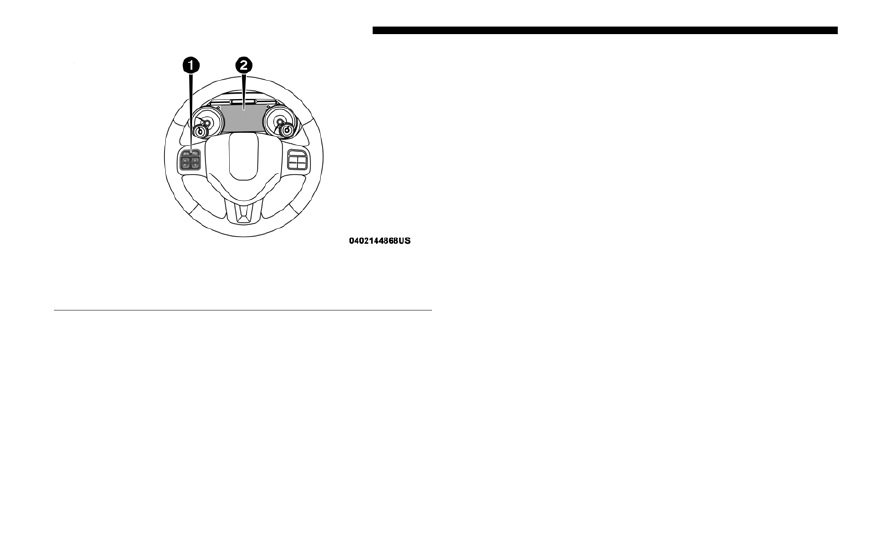

Premium Instrument Cluster Display

The instrument cluster display menu items may consist of

the following:
• Speedometer
• Vehicle Info
• Driver Assist — If Equipped
• Fuel Economy
• Trip
• Trailer Tow
• Audio
• Stored Messages
• Screen Set Up
• Commercial Settings — If Equipped
The  system  allows  the  driver  to  select  information  by

pushing  the  following  instrument  cluster  display  control

buttons located on the left side of the steering wheel:

1 – Instrument Cluster Display Controls

2 – Instrument Cluster Display Screen

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GETTING TO KNOW YOUR INSTRUMENT PANEL

167

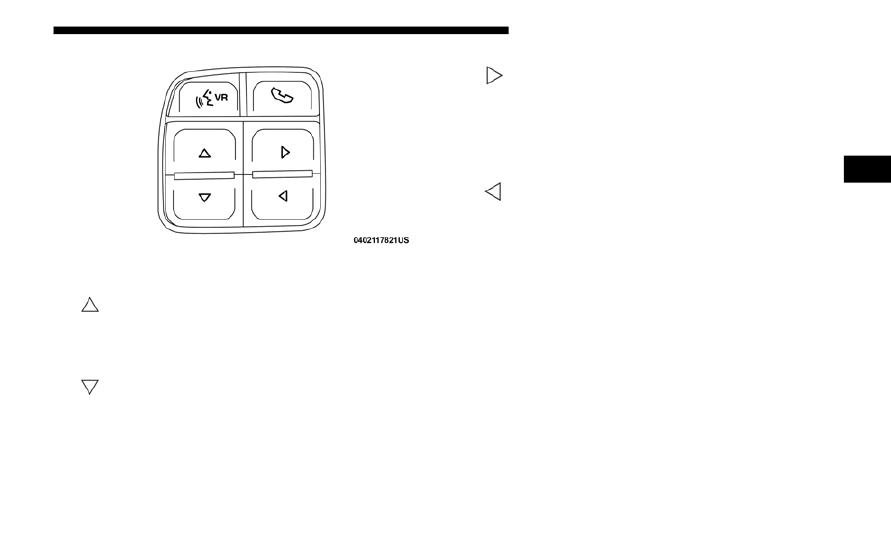

Instrument Cluster Display Control Buttons

Up Arrow Button
Push  and  release  the  up  arrow  button  to  scroll

upward through the main menu items, submenu

screen, and vehicle settings.

Down Arrow Button
Push and release the down arrow button to scroll

downward  through  the  main  menu  items,

submenu screen, and vehicle settings.

Right Arrow Button
Push and release the right arrow button to access/

select the information screens or submenu screens

of  a main menu  item.  Push  and  hold  the RIGHT  arrow

button  for  two  seconds  to  reset  displayed/selected

features that can be reset.

Left Arrow Button
Push and release the left arrow button to access/

select the information screens, submenu screens of

a main menu item, or to return to the main menu.

Oil Life Reset

Your vehicle is equipped with an engine oil change indicator

system. The “Oil Change Required” message will display in

the  instrument  cluster  display  after  a  single  chime  has

sounded, to indicate the next scheduled oil change interval.

The engine oil change indicator system is duty cycle based,

which means the engine oil change interval may fluctuate,

dependent upon your personal driving style.
NOTE:

Use the steering wheel instrument cluster display controls

for the following procedure.

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

168 GETTING TO KNOW YOUR INSTRUMENT PANEL

Oil Life Reset Procedure
1. Without  pushing  the  brake  pedal,  push  the  ENGINE

START/STOP button and place the ignition to the ON/

RUN position (do not start the engine).

2. Push and release the down arrow button to scroll down-

ward through the main menu to “Vehicle Info.”

3. Push  and  release  the  right  arrow  button  to  access  the

”Vehicle Info”  screen,  then  scroll  up  or  down  to  select

“Oil Life.”

4. Push and hold the right arrow button to select “Reset”.
5. Push and release the down arrow button to select “Yes,”

then push and release the right arrow button to reset the

Oil Life to 100%.

6. Push and release the up arrow button to exit the instru-

ment cluster display screen.

Secondary Method Of Resetting Engine Oil Life
1. Without  pressing  the  brake  pedal,  push  the  ENGINE

START/STOP button and place the ignition to the ON/

RUN position (do not start the engine).

2. Fully  press  the  accelerator  pedal,  slowly,  three  times

within ten seconds.

3. Without  pushing  the  brake  pedal,  push  the  ENGINE

START/STOP button  once to return the ignition to the

OFF/LOCK position.

NOTE:

If  the  indicator  message  illuminates  when  you  start  the

vehicle,  the  oil  change  indicator  system  did  not  reset.  If

necessary, repeat this procedure.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GETTING TO KNOW YOUR INSTRUMENT PANEL

169

Display Menu Items

Push  and  release  the  up  or  down  arrow  button  until  the

desired selectable menu icon is highlighted in the instrument

cluster display.
Speedometer

Push  and  release  the  up  or  down  arrow  button  until  the

speedometer  menu  item  is  highlighted  in  the  instrument

cluster display. Push and release the right arrow button to

cycle the display between mph and km/h.
Vehicle Info

Push  and  release  the  up  or  down  arrow  button  until  the

Vehicle  Info  menu  item  is  highlighted  in  the  instrument

cluster display. Push and release the right arrow button to

enter the submenus items of Vehicle Info. Follow the direc-

tional prompts to access or reset any of the following Vehicle

Info submenu items:
• Tire Pressure
• Coolant Temperature — If Equipped
• Transmission Temperature — If Equipped
• Oil Temperature — If Equipped
• Oil Pressure

• Exhaust Brake — If Equipped
• Turbo Boost — If Equipped
• Oil Life
• Fuel Filter Life — If Equipped
• Battery Voltage
• Gauge Summary — If Equipped
• Engine Hours
Driver Assist — If Equipped

The  Driver  Assist  menu  displays  the  status  of  the  ACC

system.
Push  and  release  the  up  or  down  arrow  button  until  the

Driver  Assist  menu  is  displayed  in  the  instrument  cluster

display.
Adaptive Cruise Control (ACC) Feature
The  instrument  cluster  display  displays  the  current  ACC

system settings. The information displayed depends on ACC

system status.

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

170 GETTING TO KNOW YOUR INSTRUMENT PANEL

Push  the  Adaptive  Cruise  Control  (ACC)  on/off  button

(located  on  the  steering  wheel)  until  one  of  the  following

displays in the instrument cluster display:
Adaptive Cruise Control Off
When ACC is deactivated, the display will read “Adaptive

Cruise Control Off.”
Adaptive Cruise Control Ready
When ACC is activated but the vehicle speed setting has not

been  selected,  the  display  will  read  “Adaptive  Cruise

Control Ready.”
Push the SET + or the SET- button (located on the steering

wheel)  and  the  following  will  display  in  the  instrument

cluster display:
ACC SET
When ACC is set, the set speed will display in the instrument

cluster.

The ACC screen may display once again if any ACC activity

occurs, which may include any of the following:
• Distance Setting Change
• System Cancel
• Driver Override
• System Off
• ACC Proximity Warning
• ACC Unavailable Warning
For further information, refer to “Adaptive Cruise Control

(ACC) — If Equipped” in “Starting And Operating.”
Fuel Economy

Push and release the up or down arrow button until the Fuel

Economy menu item is highlighted in the instrument cluster

display.  Push  and  Hold  the  right  arrow  button  to  reset

Average Fuel Economy.
• Current Fuel Economy Gauge
• Average Fuel Economy Value
• Range To Empty

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GETTING TO KNOW YOUR INSTRUMENT PANEL

171

Trip A/Trip B

Push and release the up or down arrow button until the Trip

menu item is highlighted in the instrument cluster display.

Push  and  release  the  right  arrow  button  to  enter  the

submenus of Trip A and Trip B. The Trip A or Trip B infor-

mation will display the following:
• Distance
• Average Fuel Economy
• Elapsed Time
Push and hold right arrow button to reset all information.
Trailer Tow

Push  and  release  the  up  or  down  arrow  button  until  the

Trailer  Tow  menu  item  is  highlighted  in  the  instrument

cluster display. Push and release the right arrow button and

the next screen will display the following trailer trip infor-

mation:
• Trip  (trailer  specific)  Distance:  Push  and  hold  the  right

arrow button to reset the distance.

• Trailer Brake

•Output

•Type

•Gain

• Trailer Tire Pressure — If Equipped
Audio

Push  and  release  the  up  or  down  arrow  button  until  the

Audio  Menu  icon/title  is  highlighted  in  the  instrument

cluster  display.  This  menu  will  display  the  audio  source

information,  including  the  Song  name,  Artist  name,  and

audio source with an accompanying graphic.
Phone Call Status
When  a call is incoming,  a Phone Call  Status  pop-up will

display  on  the  screen.  The  pop-up  will  remain  until  the

phone is answered or ignored.
NOTE:

The call status will temporarily replace the previous media

source  information  displayed  on  the  screen.  When  the

pop-up is no longer displayed, the display will return to the

last used screen.

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

172 GETTING TO KNOW YOUR INSTRUMENT PANEL

Stored Messages

Push  and  release  the  up  or  down  arrow  button  until  the

Messages Menu item is highlighted. This feature shows the

number of stored warning messages. Push and release the

right or left arrow buttons to cycle through stored messages.
Screen Setup Menu Item

Push  and  release  the  up  or  down  arrow  button  until  the

Screen  Setup  menu  item  is  highlighted  in  the  instrument

cluster display. Push and release the right arrow button to

enter the Screen Setup submenu. The Screen Setup feature

allows you to change what information is displayed in the

instrument cluster as well as the location that information is

displayed.
Current Gear
• Off (Default Setting)
• On
Odometer
• Unit Without Decimal (Default Setting)
• Unit With Decimal

Favorite Menu
• Speedometer
• Vehicle Info
• Driver Assist (Show/Hide) — If Equipped
• Fuel Economy (Show/Hide)
• Trip Info (Show/Hide)
• Trailer Tow (Show/Hide)
• Audio (Show/Hide)
• Messages
• Screen Setup
• Commercial Settings — If Equipped
NOTE:

Menus with (Show/Hide) can push the OK button to choose

whether to show or hide this menu in the instrument cluster

display.

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     8      9      10      11     ..
