Gauges and Multi-Information Display (MID)

u

MID

Continued

In

strum

e

nt Pa

nel

MID

The MID shows the odometer, trip meter, outside temperature indicator, and other
gauges. It also displays important messages such as warnings and other helpful
information.

Main displays

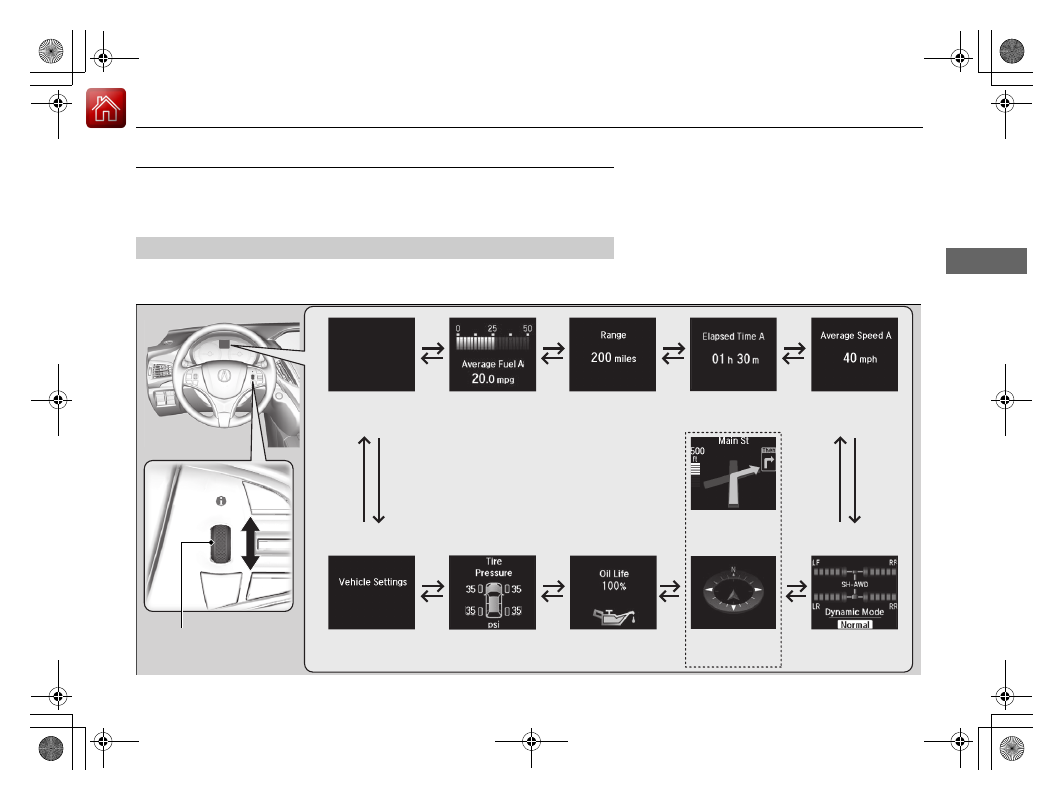

Roll the multi-function steering-wheel controls to change the display.

Switching the Display

Blank

Instant Fuel
Economy/
Average Fuel
Economy

Range

Elapsed Time

Average Speed

SH-AWD®/
Dynamic Mode

Vehicle
Settings

Tire Pressure
for Each Tire

Engine Oil Life

Turn-by-Turn
Directions

Multi-function Steering-
wheel Controls

Compass

17 ACURA MDX E-AWD-31TRX6000.book  119 ページ  2017年1月20日 金曜日 午後2時53分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

120

uu

Gauges and Multi-Information Display (MID)

u

MID

In

strum

e

nt Pa

nel

Lower displays

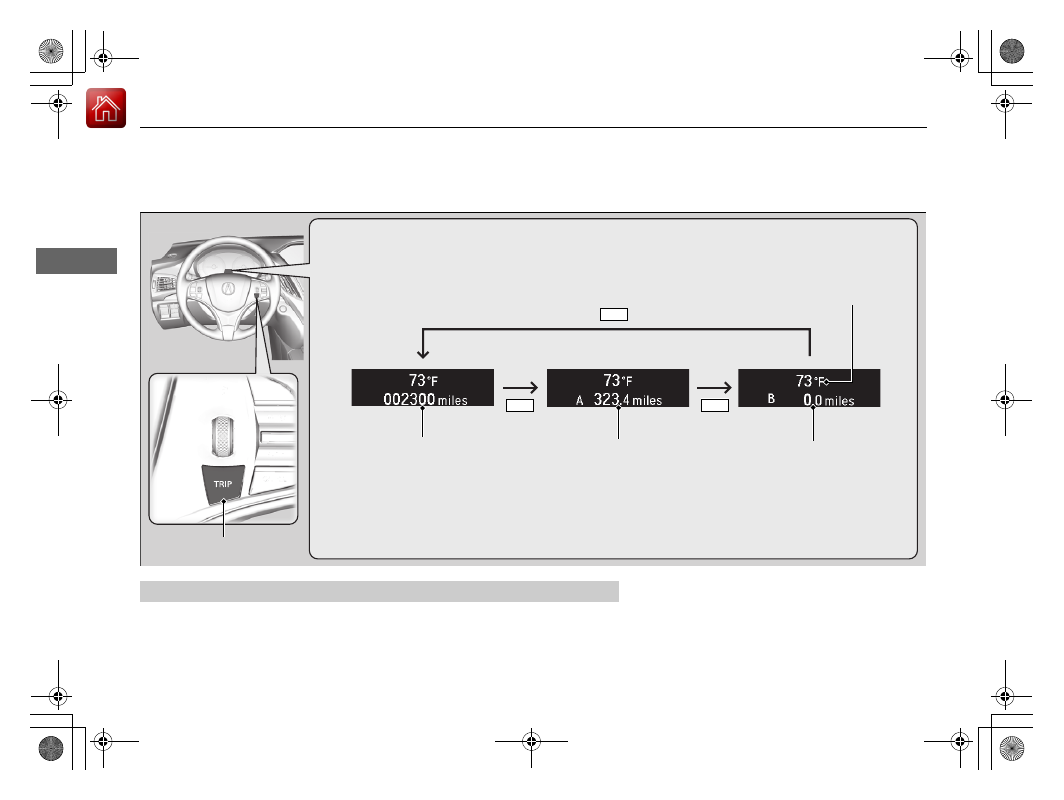

Press the TRIP button to change the display.

Shows the total number of miles (U.S.) or kilometers (Canada) that your vehicle has
accumulated.

Odometer

TRIP Button

Outside Temperature

Trip A

Trip B

Odometer

TRIP

TRIP

TRIP

17 ACURA MDX E-AWD-31TRX6000.book  120 ページ  2017年1月20日 金曜日 午後2時53分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Continued

121

uu

Gauges and Multi-Information Display (MID)

u

MID

In

strum

e

nt Pa

nel

Shows the total number of miles (U.S.) or kilometers (Canada) driven since the last
reset. Meters A and B can be used to measure two separate trips.

Resetting a trip meter

To reset a trip meter, display it, then press and hold the TRIP button until the trip
meter is reset to 0.0.

Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada).

Adjusting the outside temperature display

Adjust the temperature reading up to ±5°F or ±3°C if the temperature reading
seems incorrect.

Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.

Trip Meter

Outside Temperature

Average Fuel Economy

1

Trip Meter

Switch between trip meter A and trip meter B by
pressing the TRIP button.

1

Outside Temperature

The temperature sensor is located in the front
bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).

It may take several minutes for the display to be
updated after the temperature reading has stabilized.

Use the MID’s customized features to correct the
temperature.

Customized Features P. 125

1

Average Fuel Economy

You can change when to reset the average fuel
economy.

Customized Features P. 125

17 ACURA MDX E-AWD-31TRX6000.book  121 ページ  2017年1月20日 金曜日 午後2時53分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

uu

Gauges and Multi-Information Display (MID)

u

MID

122

In

strum

e

nt Pa

nel

Shows the instant fuel economy as a bar graph in mpg (U.S.) or l/100 km (Canada).

Shows the estimated distance you can travel on the remaining power and fuel. This
distance is estimated from the fuel economy of your previous trips.

Shows the time elapsed since Trip A or Trip B was reset.

Shows the average speed in mph (U.S.) or km/h (Canada) since Trip A or Trip B was
reset.

Instant Fuel Economy

Range

Elapsed Time

Average Speed

1

Elapsed Time

You can change when to reset the elapsed time.

Customized Features P. 125

1

Average Speed

You can change when to reset the average speed.

Customized Features P. 125

17 ACURA MDX E-AWD-31TRX6000.book  122 ページ  2017年1月20日 金曜日 午後2時53分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Continued

123

uu

Gauges and Multi-Information Display (MID)

u

MID

In

strum

e

nt Pa

nel

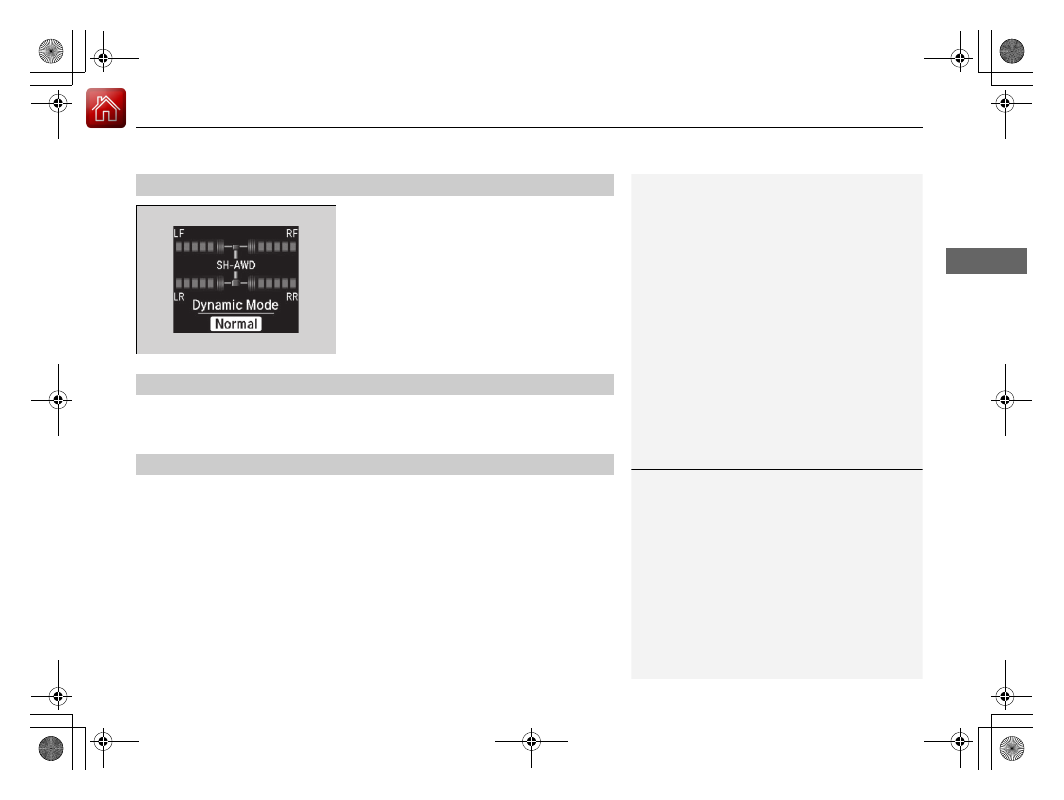

The indicators on the display show the
amount of torque being transferred to the
right front, left front, right rear, and left rear
wheels.

SPORT HYBRID Super Handling-All Wheel

Drive

TM

 (SPORT HYBRID SH-AWD®) P. 290

Shows the current mode for Dynamic Mode.

Integrated Dynamics System P. 256

Shows you turn-by-turn driving directions to your destination linked with the
navigation system.

Refer to the navigation system

SH-AWD® Torque Distribution Monitor

Current Mode for Dynamic Mode

Turn-by-Turn Directions

1

Turn-by-Turn Directions

The multi-information display shows a compass when
the route guidance is not used.

You can select whether the turn-by-turn display
comes on or not during the route guidance.

Customized Features P. 125
Refer to the navigation system

17 ACURA MDX E-AWD-31TRX6000.book  123 ページ  2017年1月20日 金曜日 午後2時53分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

124

uu

Gauges and Multi-Information Display (MID)

u

MID

In

strum

e

nt Pa

nel

Shows the remaining oil life and Maintenance Minder

TM

.

Maintenance Minder

TM

 P. 335

Shows each tire’s pressure.

Tire Pressure Monitoring System (TPMS) with Tire Fill Assist P. 294

Engine Oil Life and Maintenance Items

Tire Pressure Monitor

17 ACURA MDX E-AWD-31TRX6000.book  124 ページ  2017年1月20日 金曜日 午後2時53分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Continued

125

uu

Gauges and Multi-Information Display (MID)

u

MID

In

strum

e

nt Pa

nel

Use the MID to customize certain features.

How to customize

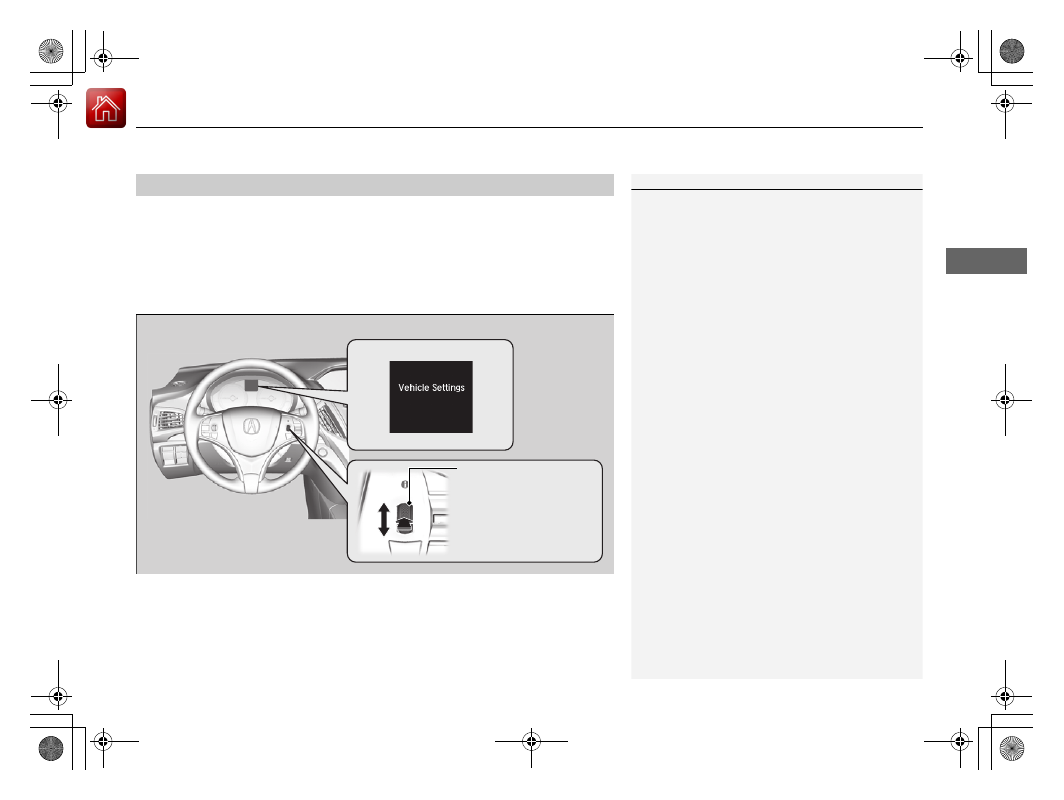

Select the Vehicle Settings screen by rolling the multi-function steering-wheel
controls while the power mode is in ON, and the vehicle is at a complete stop. Push
the multi-function steering-wheel controls.

Customized Features

1

Customized Features

To customize other features, roll the multi-function
steering-wheel controls.

List of customizable options P. 128
Example of customization settings P. 133

Customization is possible when you see the driver’s
ID (Driver 1 or Driver 2) on the screen.
The driver’s ID indicates which remote transmitter
you have used to unlock the driver’s door. The
customized settings are recalled every time you
unlock the driver’s door with that remote.

Change to

(

P before you attempt to change any

customized setting.

Customizing is also available from the audio/
information screen.
You cannot have Vehicle Settings displayed on the
multi-information display while the audio/
information screen shows the same menu.

Customized Features P. 125

Multi-function Steering-
wheel Controls
Roll:
 Changes the
customize menus and
items.
Push: Enter the selected
item.

MID: Goes to Vehicle Settings.

17 ACURA MDX E-AWD-31TRX6000.book  125 ページ  2017年1月20日 金曜日 午後2時53分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

126

uu

Gauges and Multi-Information Display (MID)

u

MID

In

strum

e

nt Pa

nel

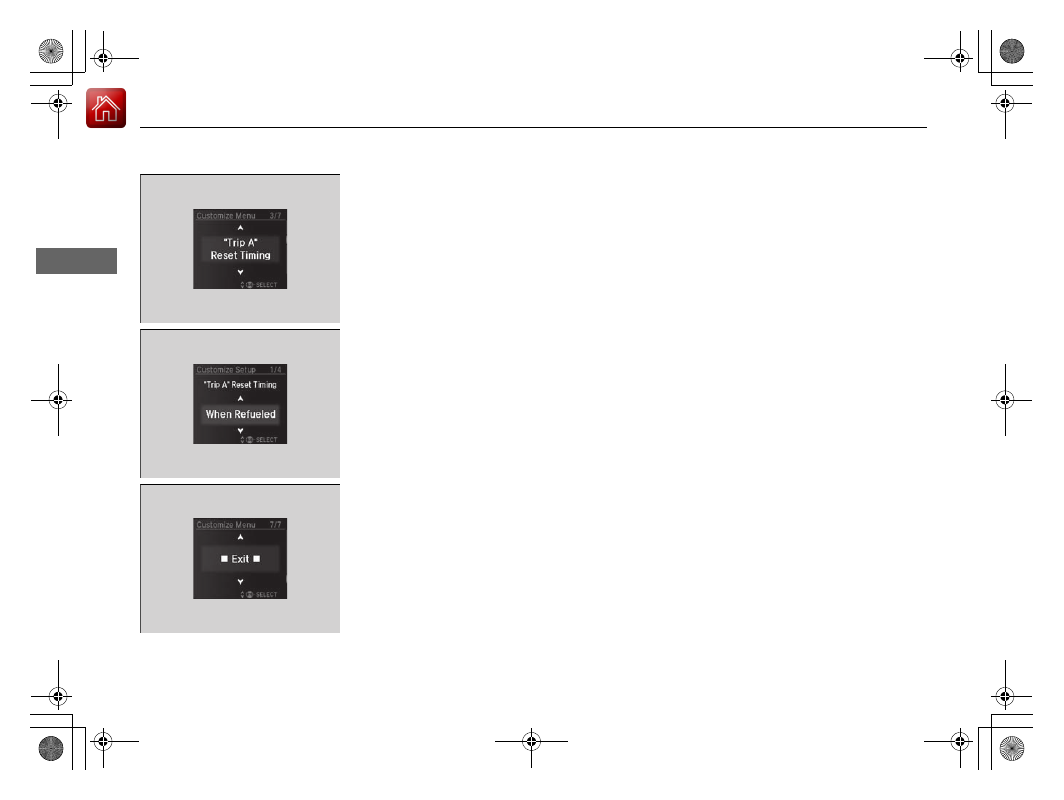

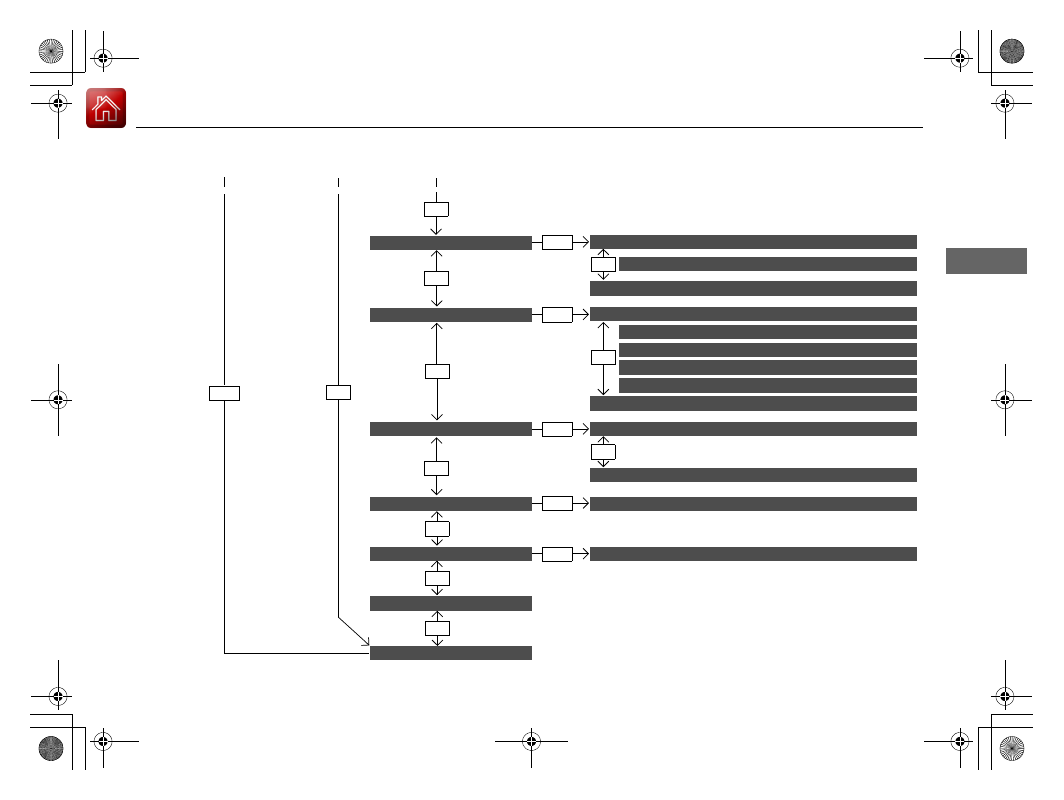

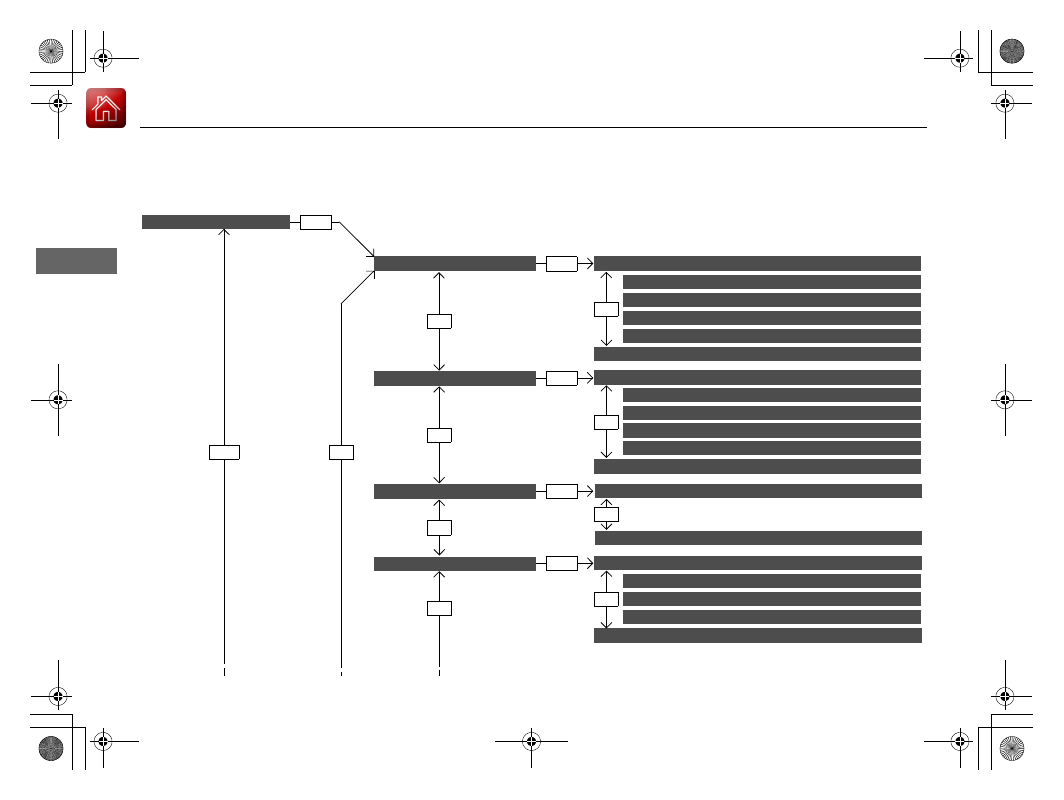

Customization flow

Roll the multi-function steering-wheel controls to select Vehicle Settings and push the multi-function steering-wheel controls.

Vehicle Settings

“Trip A” Reset Timing

Language Selection

Adjust Outside Temp. Display

Memory Position Link

Door Unlock Mode

Keyless Access Beep

Driver Assist System Setup

Meter Setup

Driving Position Setup

Keyless Access Setup

“Trip B” Reset Timing

Forward Collision Warning Distance

ACC Forward Vehicle Detect Beep

ACC Display Speed Unit

Push

Lane Keeping Assist Suspend Beep

Blind Spot Info

Easy Entry/Exit

Roll

Walk Away Auto Lock

Push

Keyless Access Light Flash

Roll

Turn by Turn Display

Road Departure Mitigation Setting

Reverse Alert Tone

Remote Start System On/Off

Roll

Roll

Roll

Roll

Push

Push

Push

Push

Roll

Roll

Roll

17 ACURA MDX E-AWD-31TRX6000.book  126 ページ  2017年1月20日 金曜日 午後2時53分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

127

uu

Gauges and Multi-Information Display (MID)

u

MID

Continued

In

strum

e

nt Pa

nel

Exit

Door Setup

Dynamic Mode Setup

Default All

Lighting Setup

Key And Remote Unlock Mode

Auto Door Lock

Auto Door Unlock

Keyless Lock Answer Back

Auto Folding Door Mirror

Interior Light Dimming Time

Headlight Auto Off Timer

Auto Light Sensitivity

Roll

Push

Push

Roll

Roll

Roll

Roll

Roll

Roll

Power Tailgate Setup

Push

Power Open By Outer Handle

Keyless Open Mode

Push

Maintenance Info.

Roll

Push

Preferred Dynamic Mode

Roll

Roll

Roll

Push

Maintenance Reset

Security Relock Timer

17 ACURA MDX E-AWD-31TRX6000.book  127 ページ  2017年1月20日 金曜日 午後2時53分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

128

uu

Gauges and Multi-Information Display (MID)

u

MID

In

strum

e

nt Pa

nel

List of customizable options

*1:Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Driver Assist
System Setup

Forward Collision
Warning Distance

Changes at which distance forward collision
warning alerts.

Long/Normal

*1

/Short

ACC Forward Vehicle
Detect Beep

Causes the system to beep when the system detects
a vehicle, or when the vehicle goes out of the ACC
with LSF range.

On/Off

*1

ACC Display Speed Unit

Changes the speed unit for ACC with LSF on the
MID.

mph

*1

/km/h (U.S.)

mph/km/h

*1

 (Canada)

Road Departure
Mitigation Setting

Changes the setting for the road departure
mitigation system.

Normal

*1

/Wide/Warning

Only

Lane Keeping Assist
Suspend Beep

Causes the system to beep when the LKAS is
suspended.

On/Off

*1

Blind Spot Info

Changes the setting for the blind spot information.

Audible And Visual Alert

*1

/

Visual Alert/Off

17 ACURA MDX E-AWD-31TRX6000.book  128 ページ  2017年1月20日 金曜日 午後2時53分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

129

uu

Gauges and Multi-Information Display (MID)

u

MID

Continued

In

strum

e

nt Pa

nel

*1:Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Meter Setup

Language Selection

Changes the displayed language.

English

*1

/Français/Español

Adjust Outside Temp.
Display

Adjusts the temperature reading by a few degrees.

-5°F ~ ±0°F

*1

 ~ +5°F (U.S.)

-3°C ~ ±0°C

*1

 ~ +3°C (Canada)

“Trip A” Reset Timing

Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and
elapsed time A.

When Refueled/IGN Off/
Instructionly Reset

*1

“Trip B” Reset Timing

Changes the setting of how to reset trip meter B,
average fuel economy B, average speed B, and
elapsed time B.

When Refueled/IGN Off/
Instructionly Reset

*1

Reverse Alert Tone

Causes the beeper to sound once when the change
the gear position to

(

R.

On

*1

/Off

Turn by Turn Display

Select whether the turn-by-turn display comes on
during the route guidance.

On

*1

/Off

17 ACURA MDX E-AWD-31TRX6000.book  129 ページ  2017年1月20日 金曜日 午後2時53分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

130

uu

Gauges and Multi-Information Display (MID)

u

MID

In

strum

e

nt Pa

nel

*1: Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Driving
Position
Setup

Memory Position Link

Turns the driving position memory system on and
off.

On

*1

/Off

Easy Entry/Exit

Moves the seat rearward and steering wheel fully up
when you get in/get out of the vehicle. Changes the
setting for this feature.

Seat & Steering Wheel

*1

/

Seat Only/Steering Wheel
Only
/Off

Keyless
Access Setup

Door Unlock Mode

Changes which doors unlock when you grab the
driver’s door handle.

Driver’s Door or Tailgate
Only

*1

/All Doors

Keyless Access Light
Flash

Causes some exterior lights to flash when you
unlock/lock the doors.

On

*1

/Off

Keyless Access Beep

Causes the beeper to sound when you unlock/lock
the doors.

On

*1

/Off

Remote Start System
On/Off

Turns the remote engine start feature on and off.

On

*1

/Off

Walk Away Auto Lock

Changes the settings for the automatic locking the
doors when you walk away from the vehicle while
carrying the keyless access remote.

On/Off

*1

17 ACURA MDX E-AWD-31TRX6000.book  130 ページ  2017年1月20日 金曜日 午後2時53分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

131

uu

Gauges and Multi-Information Display (MID)

u

MID

Continued

In

strum

e

nt Pa

nel

*1: Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Lighting
Setup

Interior Light Dimming
Time

Changes the length of time the interior lights stay
on after you close the doors.

60sec/30sec

*1

/15sec

Headlight Auto Off
Timer

Changes the length of time the exterior lights stay
on after you close the driver’s door.

60sec/30sec/15sec

*1

/0sec

Auto Light Sensitivity

Changes the timing for the headlights to come on.

Max/High/Mid

*1

/Low/Min

Door Setup

Auto Door Lock

Changes the setting for when the doors
automatically lock.

With Vehicle Speed

*1

/Shift

From P/Off

Auto Door Unlock

Changes the setting for when the doors
automatically unlock.

All Doors When Driver’s
Door Opens

*1

/All Doors

When Shifted To Park/All
Doors When Ignition
Switched Off
/Off

Key And Remote Unlock
Mode

Sets up either the driver’s door or all doors to unlock
on the first operation of the remote or built-in key.

Driver Door

*1

/All Doors

Keyless Lock Answer
Back

LOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.

On

*1

/Off

Security Relock Timer

Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening any door.

90sec/60sec/30sec

*1

Auto Folding Door
Mirror

Changes how you can fold the door mirrors.

Auto Fold With Keyless

*1

/

Manual Only

17 ACURA MDX E-AWD-31TRX6000.book  131 ページ  2017年1月20日 金曜日 午後2時53分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

132

uu

Gauges and Multi-Information Display (MID)

u

MID

In

strum

e

nt Pa

nel

*1: Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Power
Tailgate Setup

Keyless Open Mode

Changes the keyless setting for when the power
tailgate opens.

Anytime

*1

/When Unlocked

Power Open By Outer
Handle

Changes the setting to open power tailgate by
tailgate outer handle.

Off (Manual Only)/On
(Power/Manual)

*1

Dynamic
Mode Setup

Preferred Dynamic
Mode

Changes the Dynamic Mode setting for when you
set the power mode to ON.

Last Used

*1

/Comfort/

Normal/Sport

Maintenance
Info.

Maintenance Reset

Resets/Cancels the engine oil life display when you
have performed the maintenance service.

Cancel/Reset

Default All

Cancels/Resets all the customized settings as
default.

Cancel/Set

17 ACURA MDX E-AWD-31TRX6000.book  132 ページ  2017年1月20日 金曜日 午後2時53分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

133

uu

Gauges and Multi-Information Display (MID)

u

MID

Continued

In

strum

e

nt Pa

nel

Example of customization settings

The steps for changing the “Trip A” Reset Timing setting to When Refueled are
shown below. The default setting for “Trip A” Reset Timing is Manually Reset.

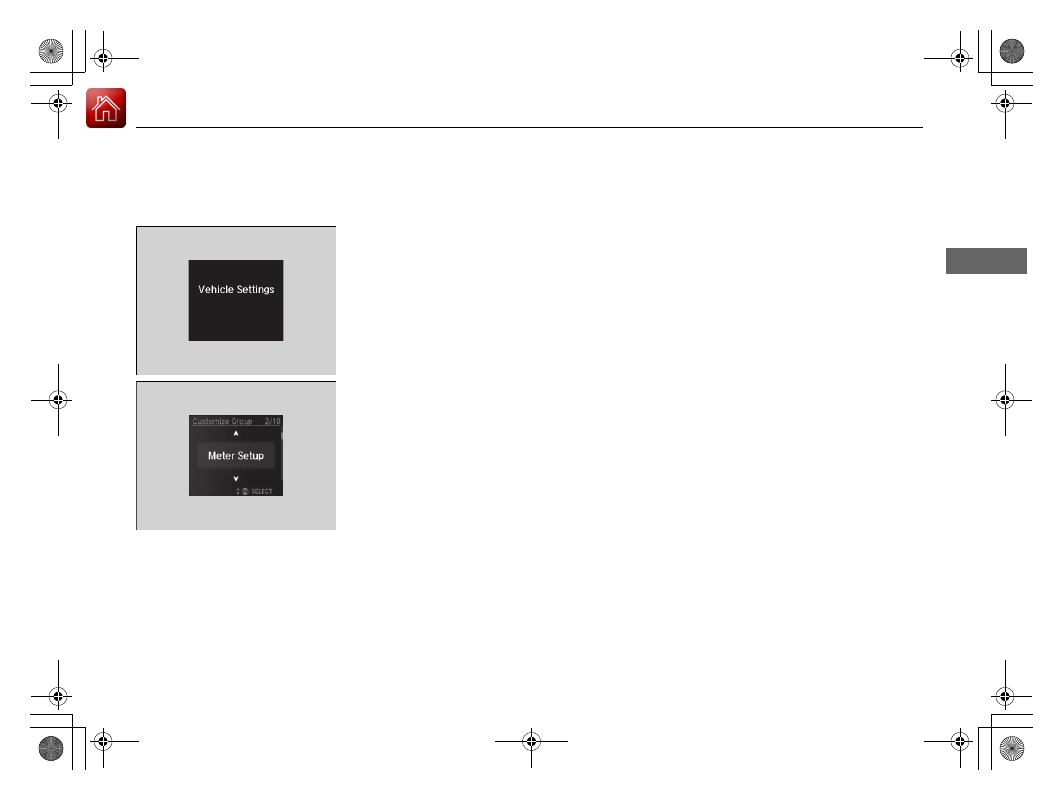

1. Roll the multi-function steering-wheel

controls to select Vehicle Settings, then
push the multi-function steering-wheel
controls.

2. Roll the multi-function steering-wheel

controls until Meter Setup appears on the
display.

3. Push the multi-function steering-wheel

controls.

u

Language Selection appears first on
the display.

17 ACURA MDX E-AWD-31TRX6000.book  133 ページ  2017年1月20日 金曜日 午後2時53分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

134

uu

Gauges and Multi-Information Display (MID)

u

MID

In

strum

e

nt Pa

nel

4. Roll the multi-function steering-wheel

controls until “Trip A” Reset Timing
appears on the display, then push the multi-
function steering-wheel controls.

u

The display switches to the
customization setup screen, where you
can select When RefueledIGN Off
Manually Reset, or Exit.

5. Roll the multi-function steering-wheel

controls and select When Refueled, then
push the multi-function steering-wheel
controls.

u

The When Refueled Setup screen
appears, then the display returns to the
customization menu screen.

6. Roll the multi-function steering-wheel

controls until Exit appears on the display,
then push the multi-function steering-
wheel controls.

7. Repeat Step 6 until you return to the

normal screen.

17 ACURA MDX E-AWD-31TRX6000.book  134 ページ  2017年1月20日 金曜日 午後2時53分

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     6      7      8      9     ..
