Chapter 4
CAUTION
Center the ACS assemblies widthwise on the load.
1
2
7
8
3
4
5
16
15
6
5
1
Center the front ACS on the roof protection honeycomb with the 4- by 4-inch piece of
lumber facing the rear.
2
Center the rear ACS as far forward as possible on the ledge in the roof protection
honeycomb. Face the 4- by 4-inch piece of lumber to the front.
3
Attach a 3 ¾-inch two-point link to an 11-foot (4-loop), Type XXVI nylon sling. Pass a 3
foot (4-loop), Type XXVI nylon sling through the two-point link. Repeat this procedure three
times.
4
Attach the ends of a 3-foot sling placed in step 3 to clevises 5 and 6.
5
Attach the ends of another of the 3-foot slings placed in step 3 to clevises 15 and 16.
6
Repeat steps 4 and 5 for clevises 5A and 6A, and for 15A and 16A (not shown).
7
Pad the 11-foot slings with felt and tape 6 inches below the ACS clevis and extending to 6
inches above the top of the ACS. Pass each suspension sling through the closest ACS
clevis.
8
Safety tie the two-point links to the ACS clevises with loops of Type III nylon cord.

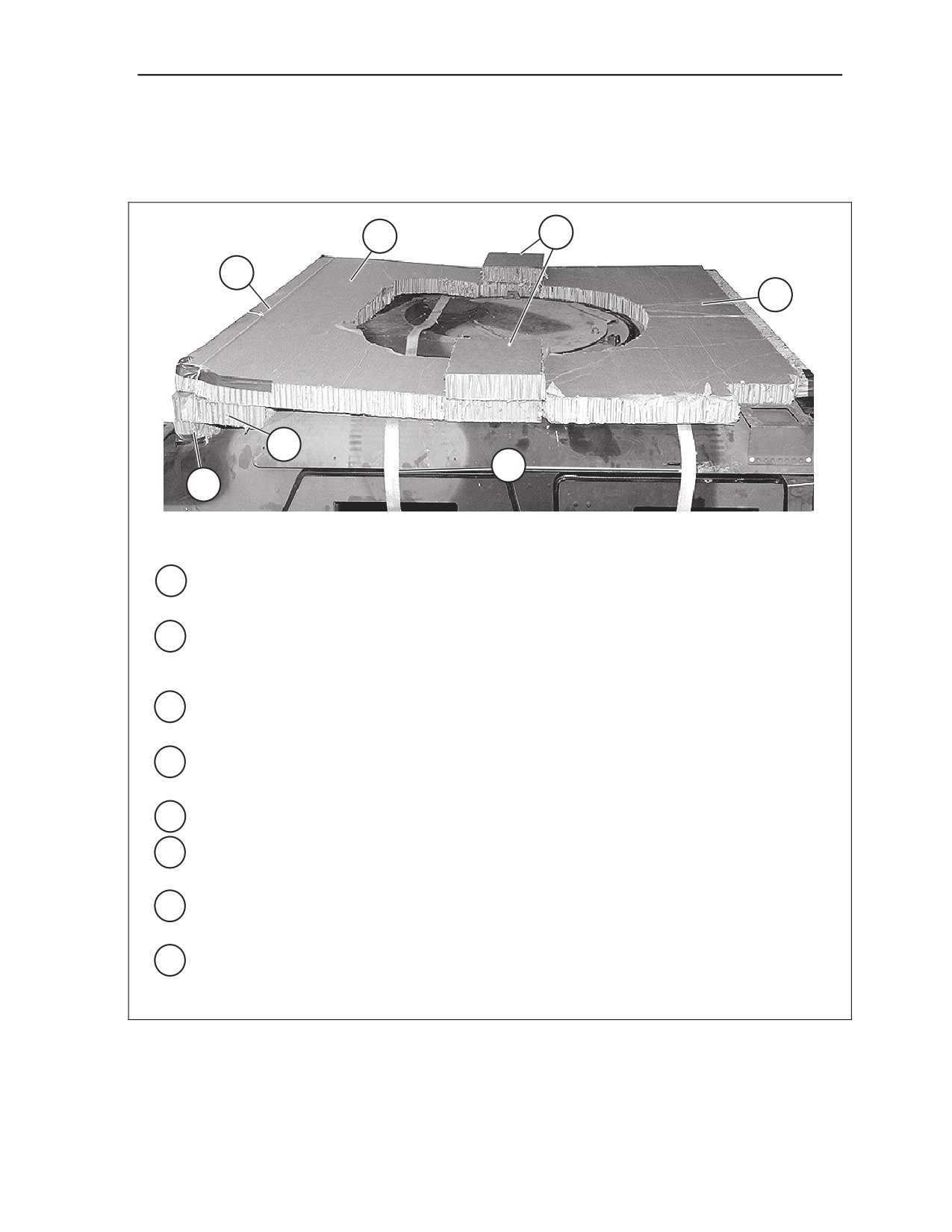

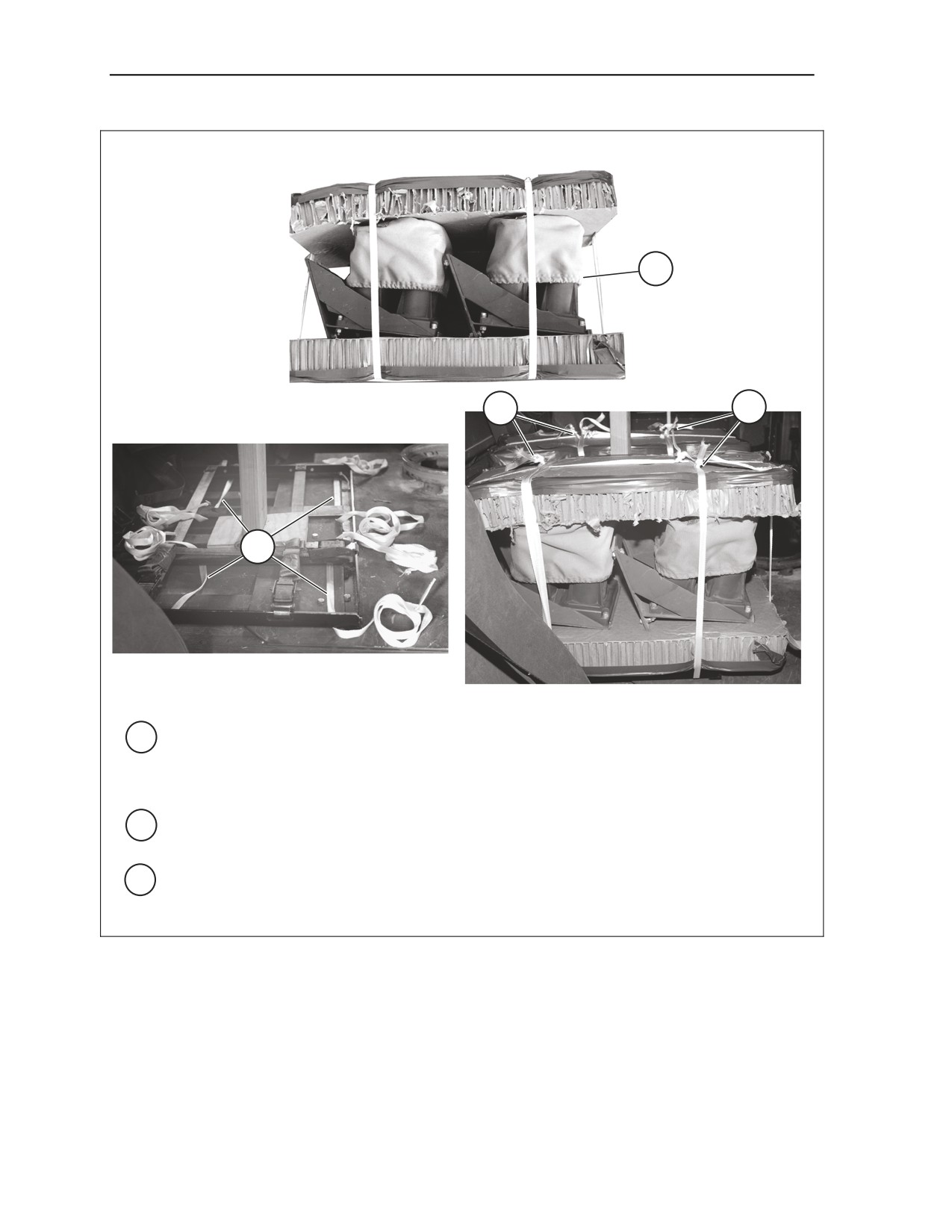

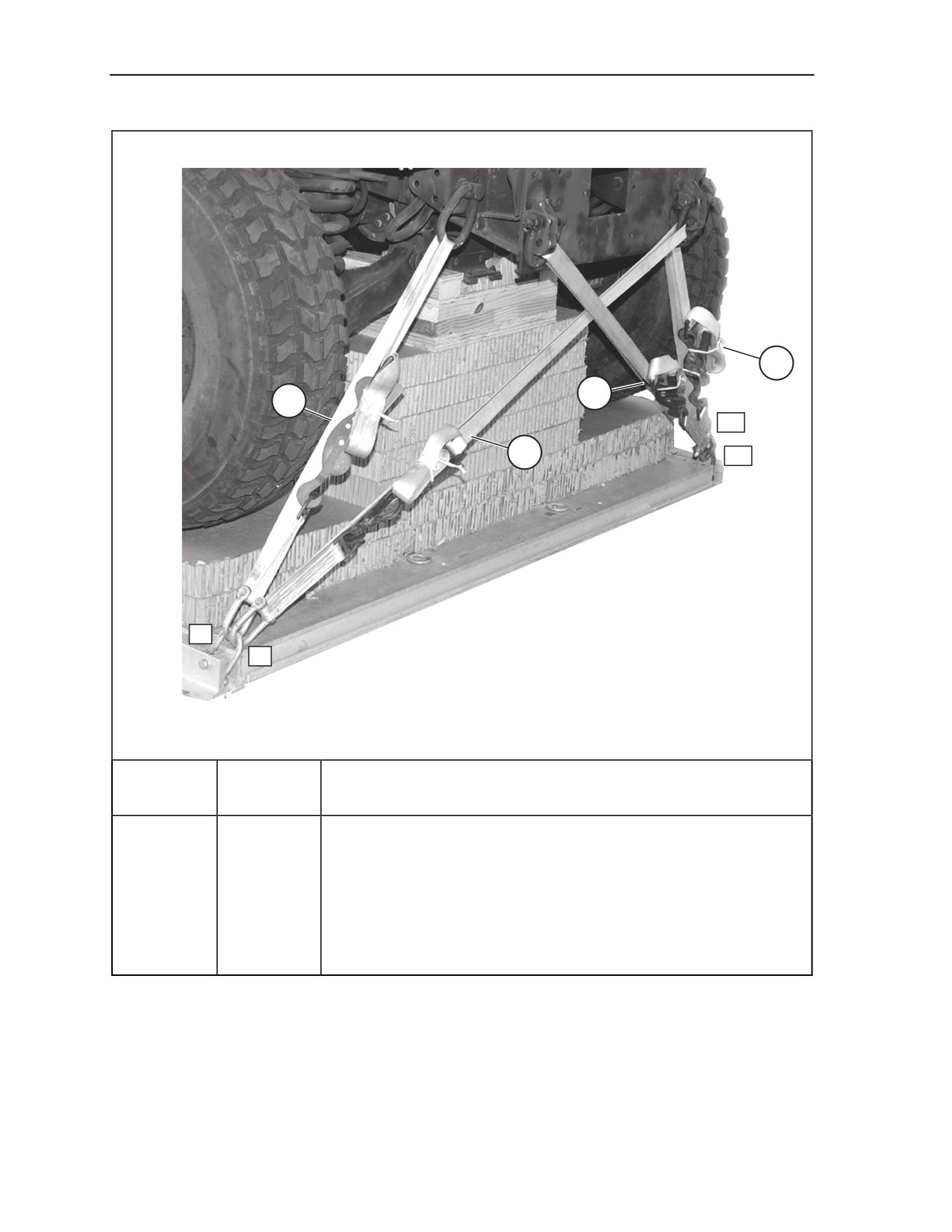

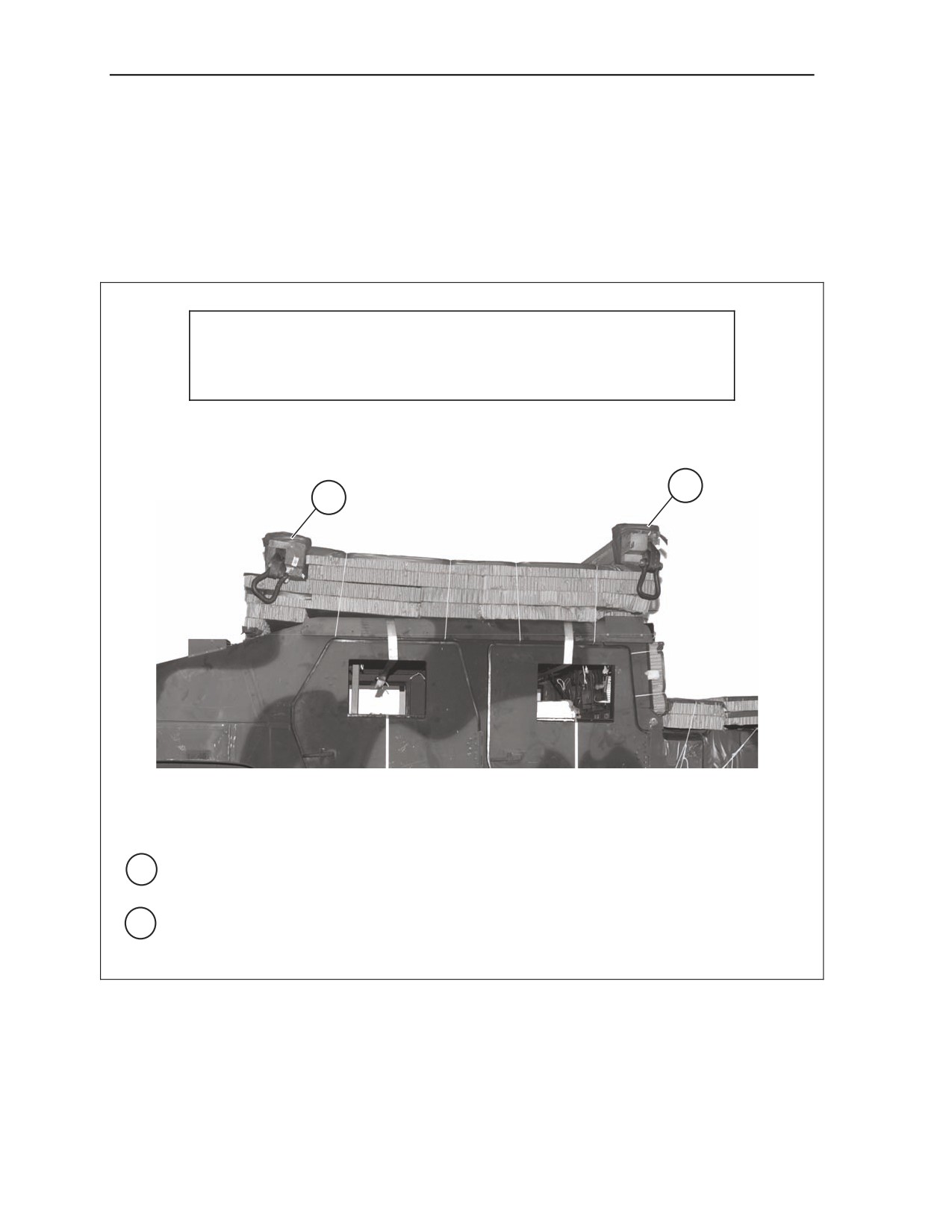

Figure 4-12. Front and Rear ACS Installed, and Suspension Slings Installed
4-22
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
1
4
2
3
4
3
12
7

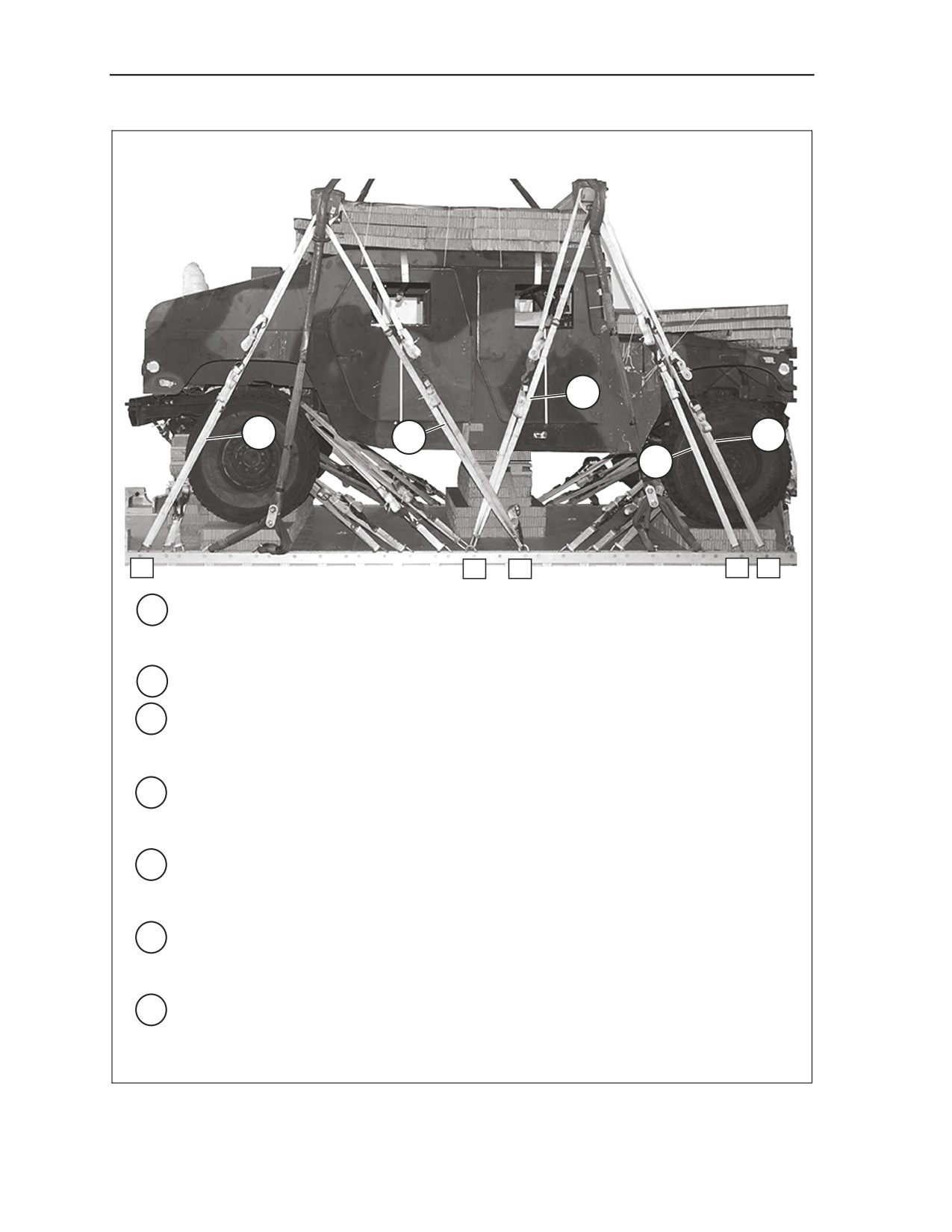

1 Run a 30-foot lashing from clevis 4, through the ACS clevis from outside to inside, rear to
front, around the 4- by 4-inch piece of lumber, and back to clevis 4. Loosely secure the
lashing. Repeat on the left side with clevis 4A.
2 Repeat step 1 using clevises 3 and 3A.
3 Run a 30-foot lashing from clevis 12, through the ACS clevis from outside to inside, front to
rear, around the 4- by 4-inch piece of lumber, and back to clevis 12. Loosely secure the
lashing. Repeat on the left side with clevis 12A.
4 Run a lashing from clevis 7, through the ACS clevis, and back to clevis 7. Loosely secure
the lashing. Repeat on the left side with clevis 7A.
5 Make sure the ACS is centered on the load, and tighten the load binders on the left and
right at the same time. Tighten the lashings in the following order: 4 and 4A, 3 and 3A, 12
and 12A, 7 and 7A.

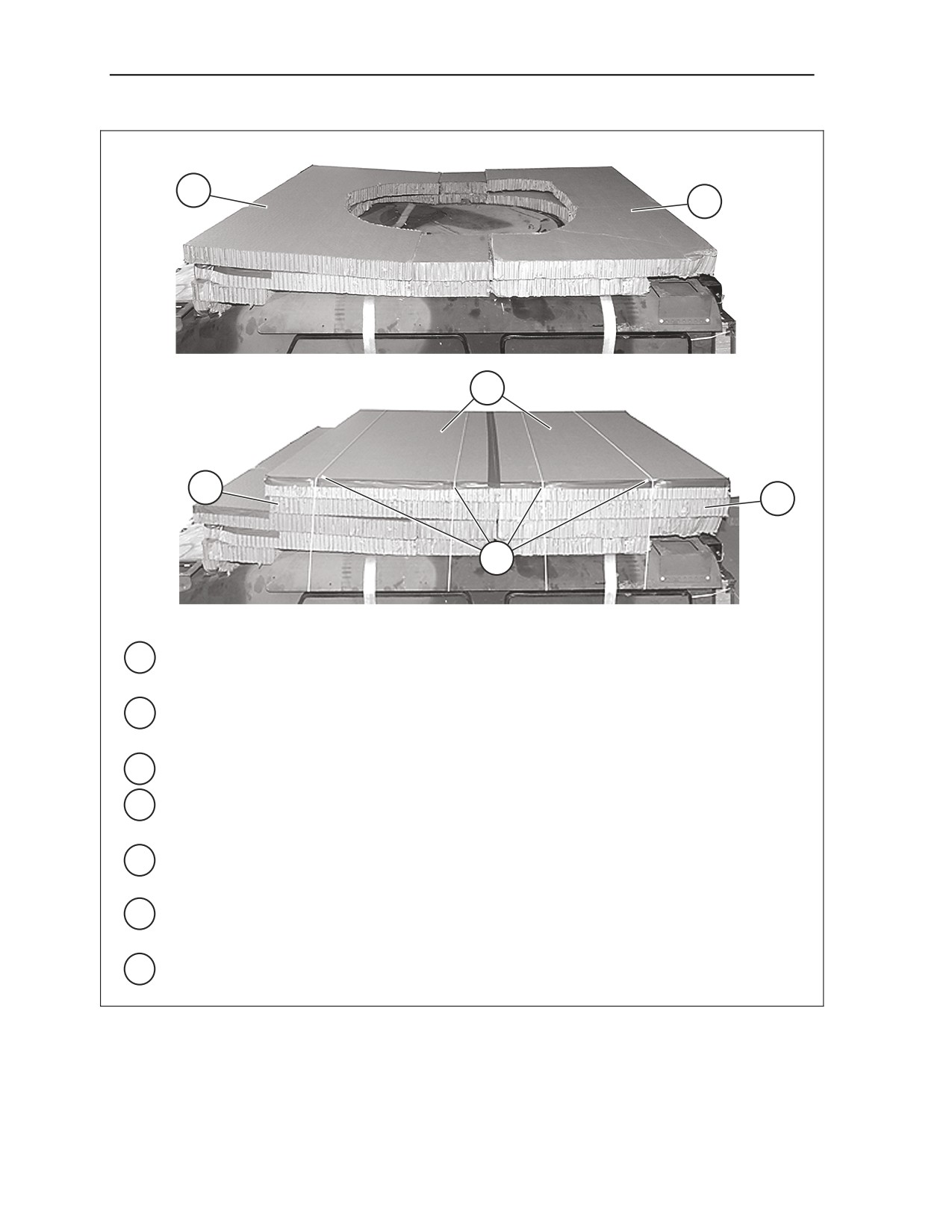

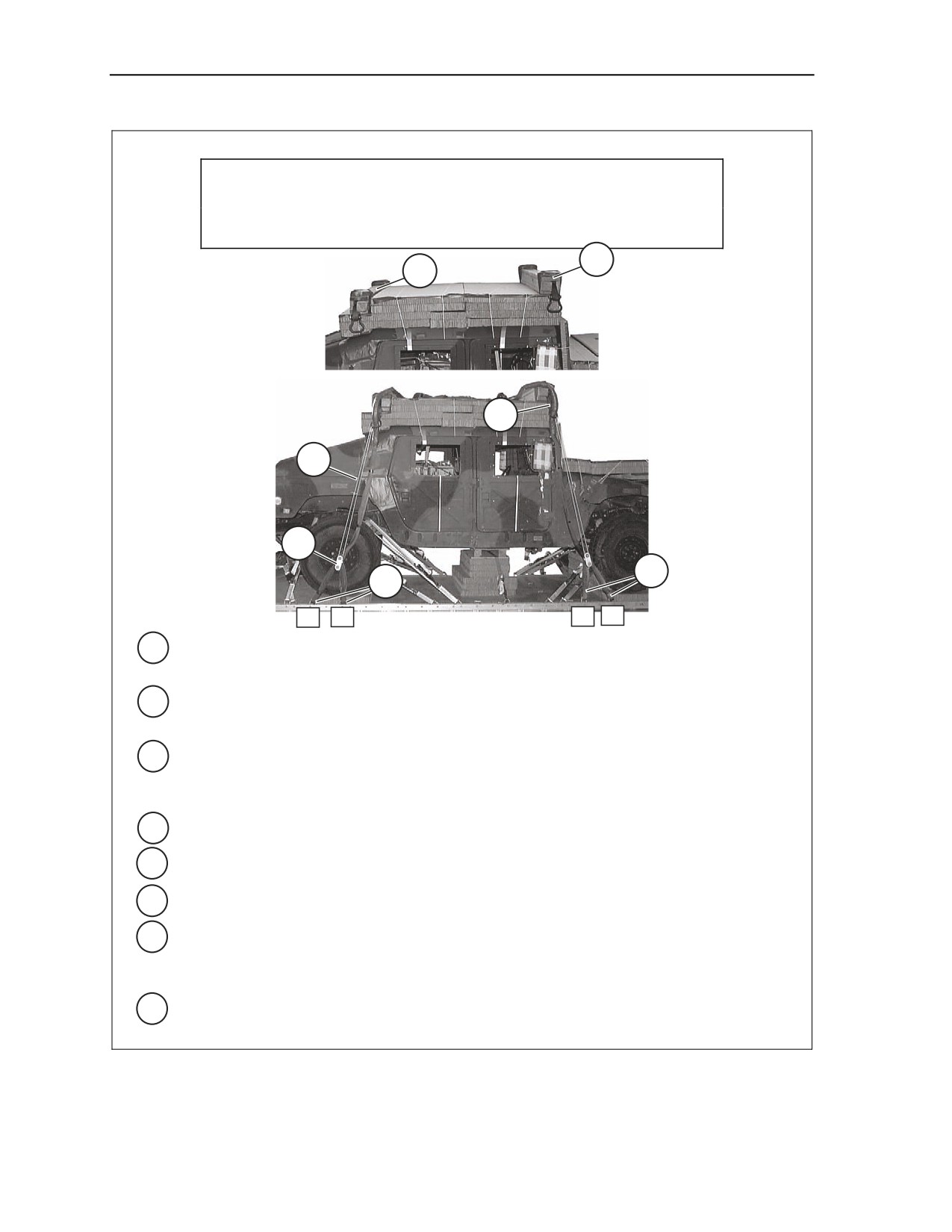

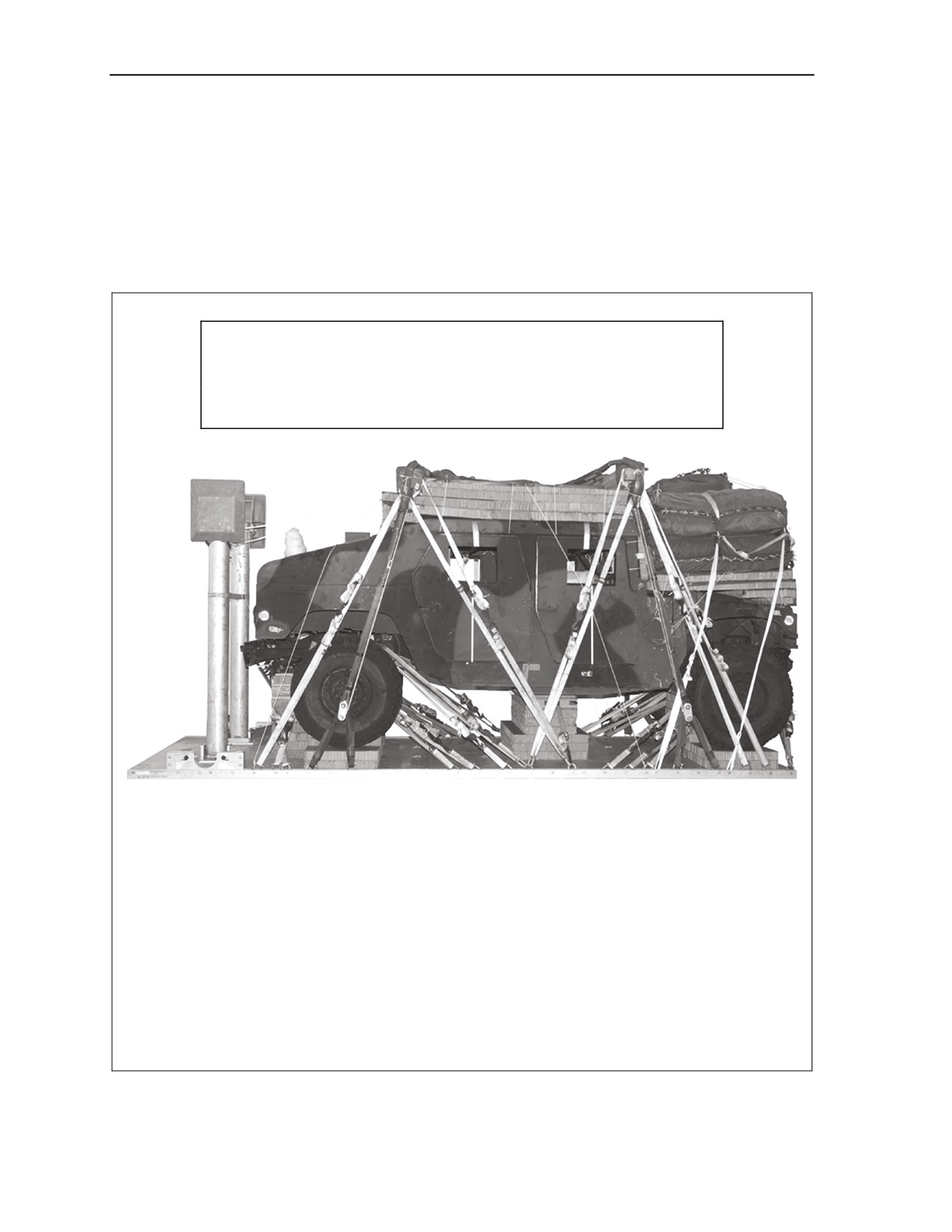

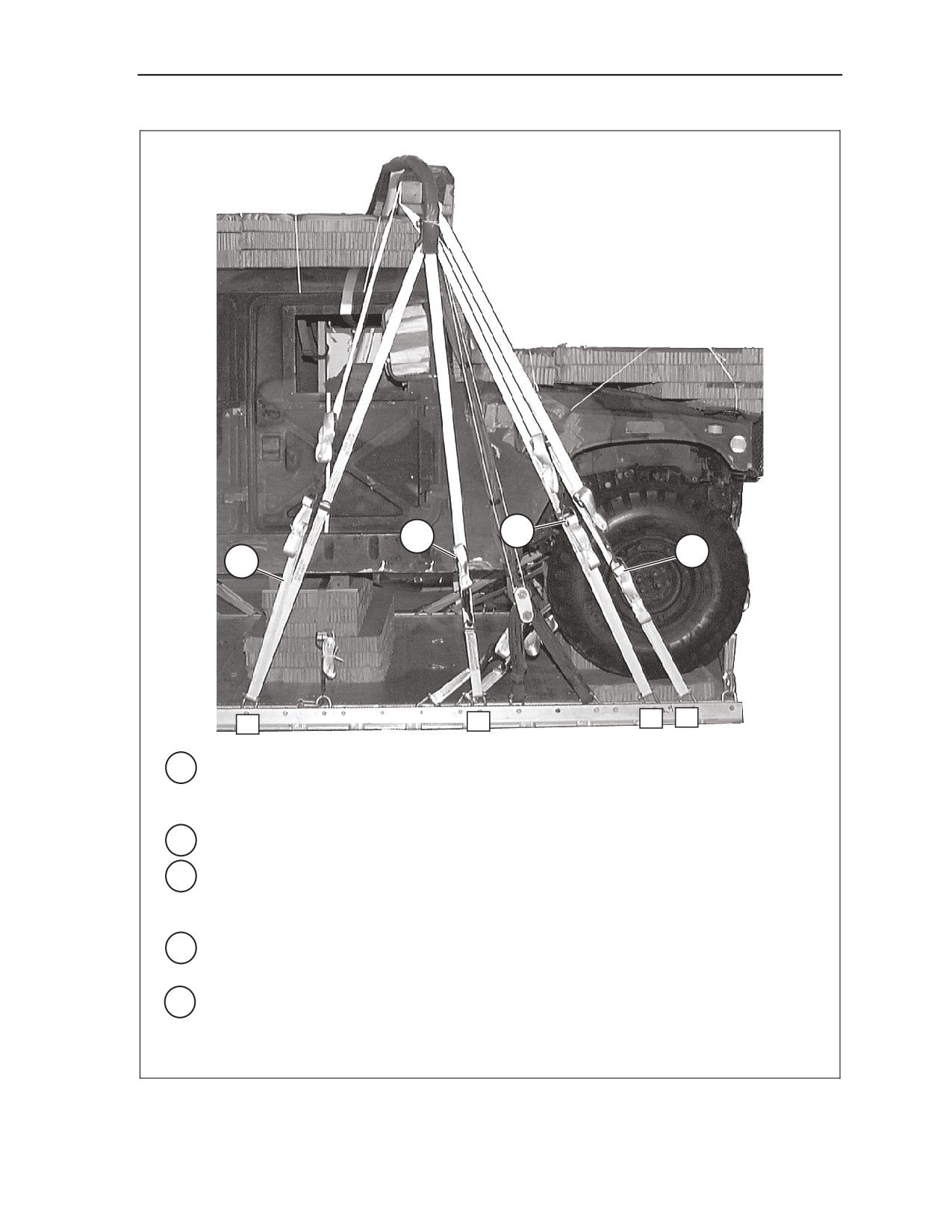

Figure 4-13. Front ACS Secured
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-23
Chapter 4
1
2
11
19

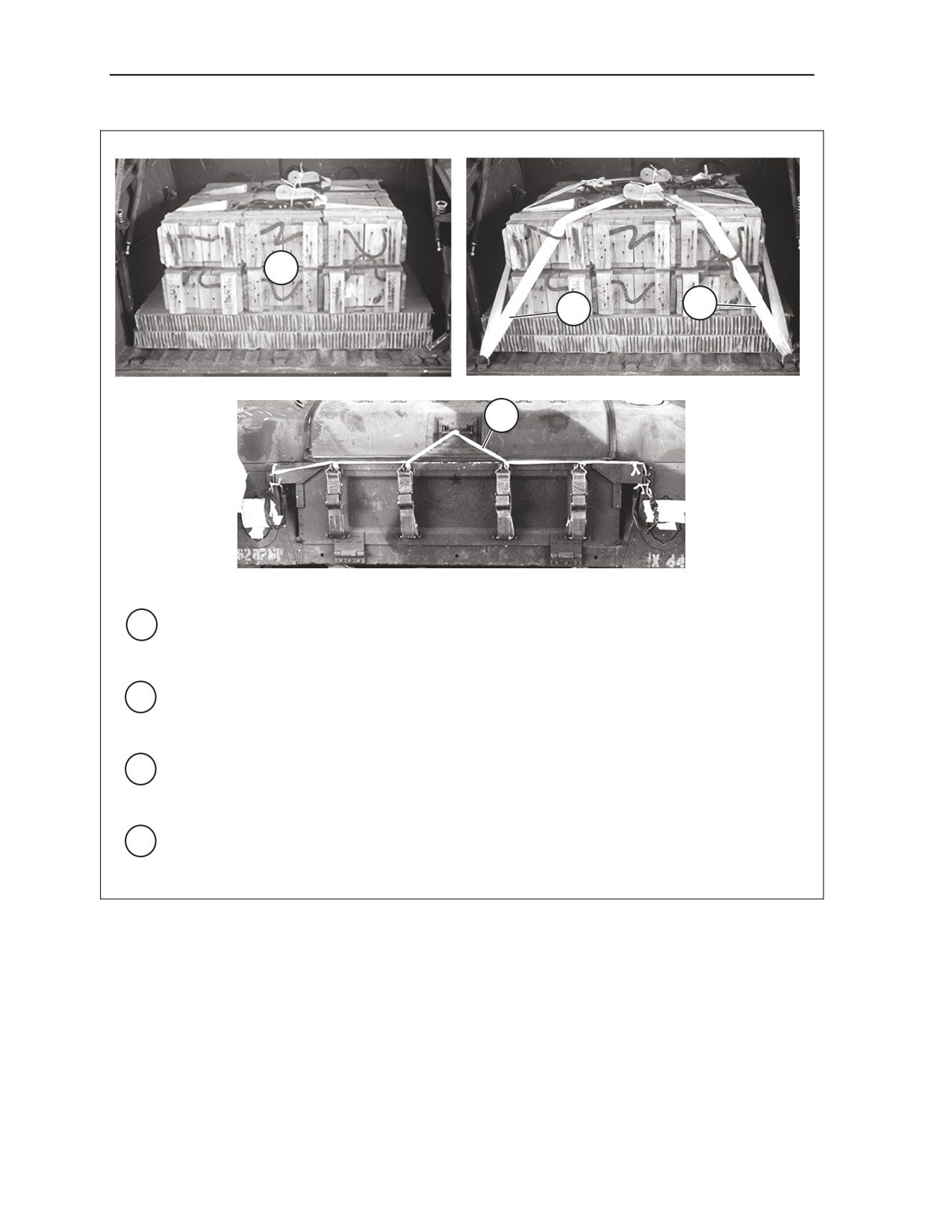

1 Run a 30-foot lashing from clevis 11, through the ACS clevis from outside to inside, rear to
front, around the 4- by 4-inch piece of lumber, and back to clevis 11. Loosely secure the
lashing. Repeat on the left side with clevis 11A.
2 Run a 30-foot lashing from clevis 19, through the ACS clevis from outside to inside, front to
rear, around the 4- by 4-inch piece of lumber, and back to clevis 19. Loosely secure the
lashing. Repeat on the left side with clevis 19A.
3 Make sure the ACS is centered on the load, and tighten the load binders on the left and
right at the same time. Tighten the lashings in the following order: 11 and 11A, 19 and 19A.

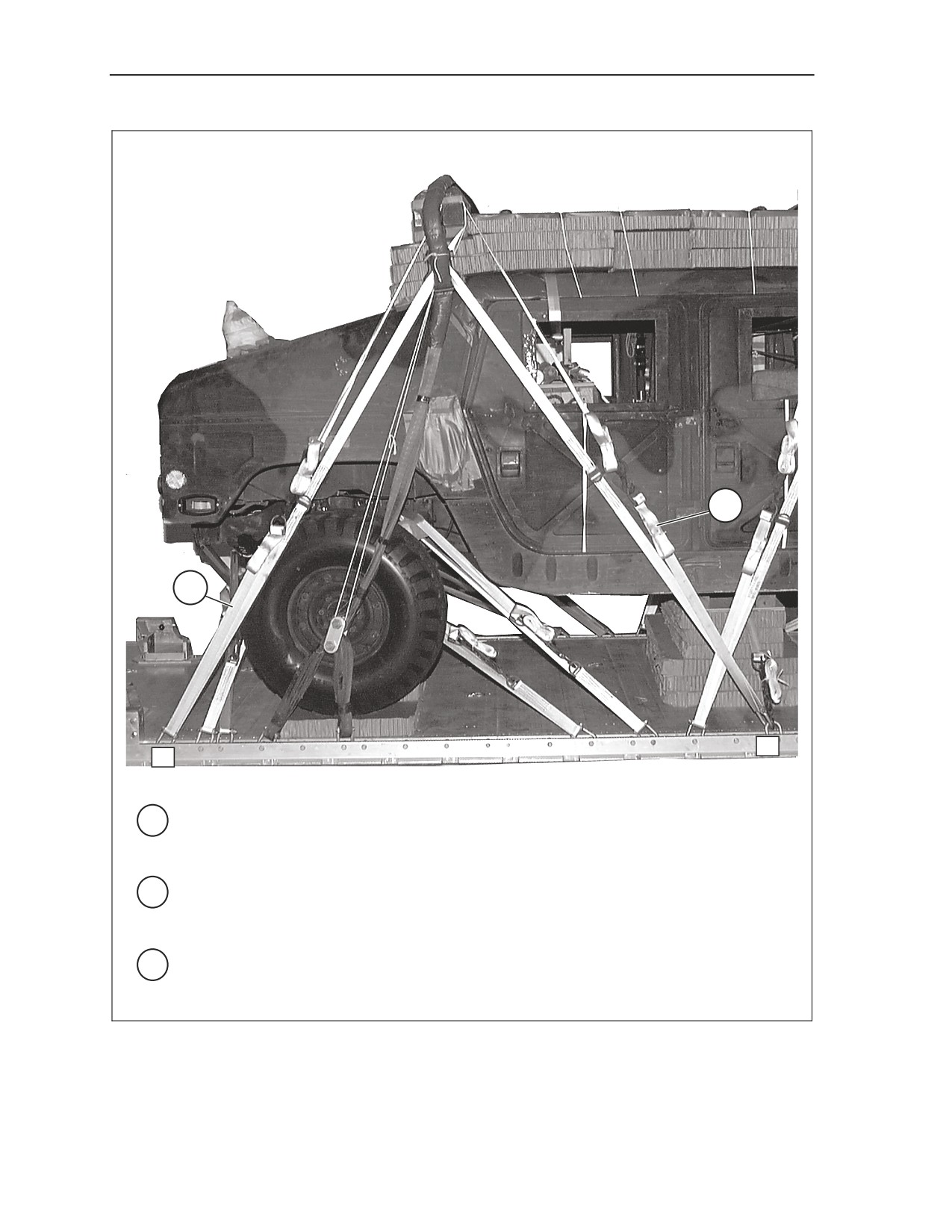

Figure 4-14. Rear ACS Secured
4-24
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
2
1
4
3
1

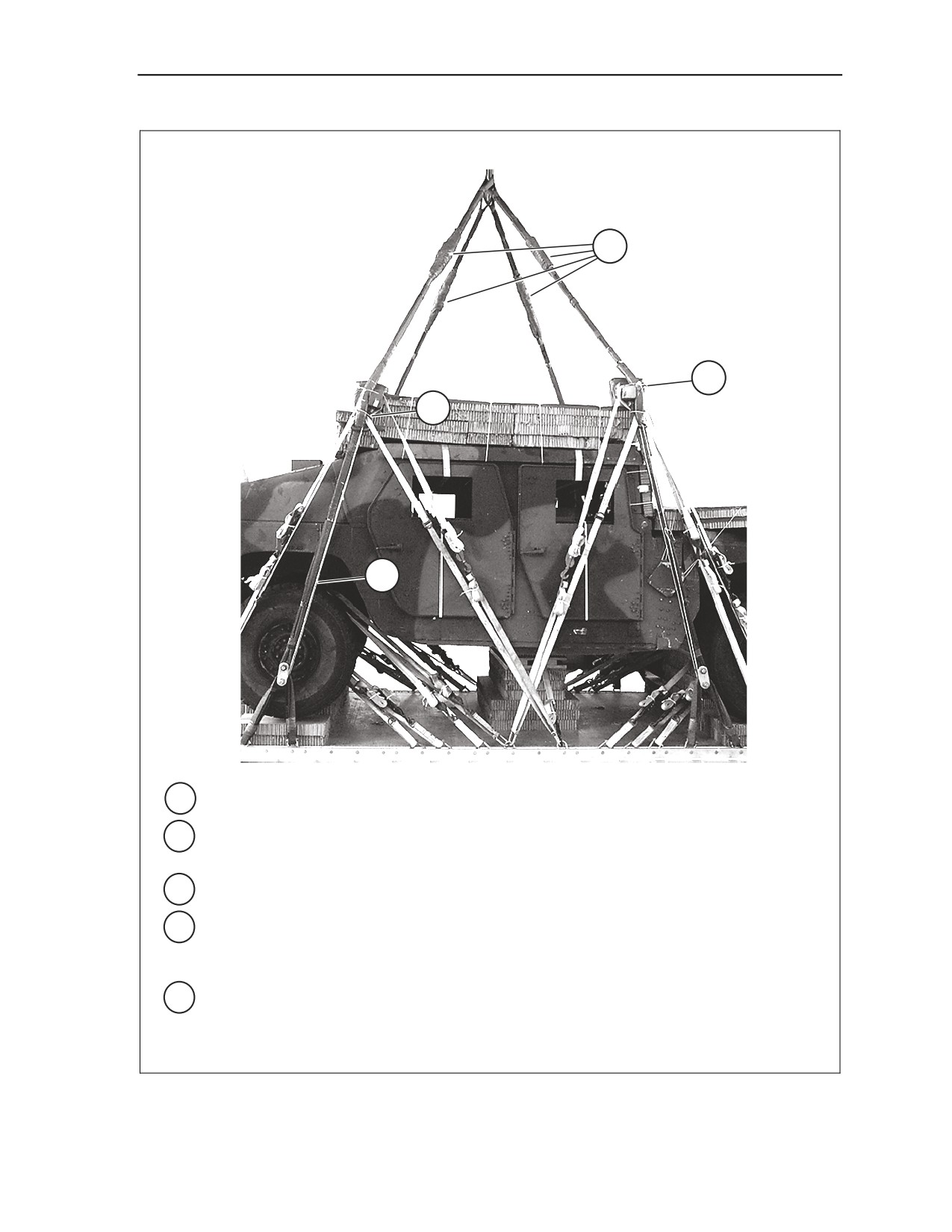

Attach a 3-foot (4-loop), Type XXVI nylon sling to the free end of each 11-foot sling with a
3 ¾-inch two-point link. Pad each link with felt taped in place.
2
Extend the slings upward, place them in the crane hook, and pull them taut.
3
Tie a length of Type III nylon cord around and behind the suspension sling, and around
each ACS sling. See Figure 3-19 for a detailed view. Repeat for the remaining three
suspension slings.
4 Tie a length of Type III nylon cord around the suspension sling, behind all lashings, and
around the 4- by 4-inch piece of lumber of the ACS. See Figure 3-19 for a detailed view.
Repeat for the remaining three suspension slings.

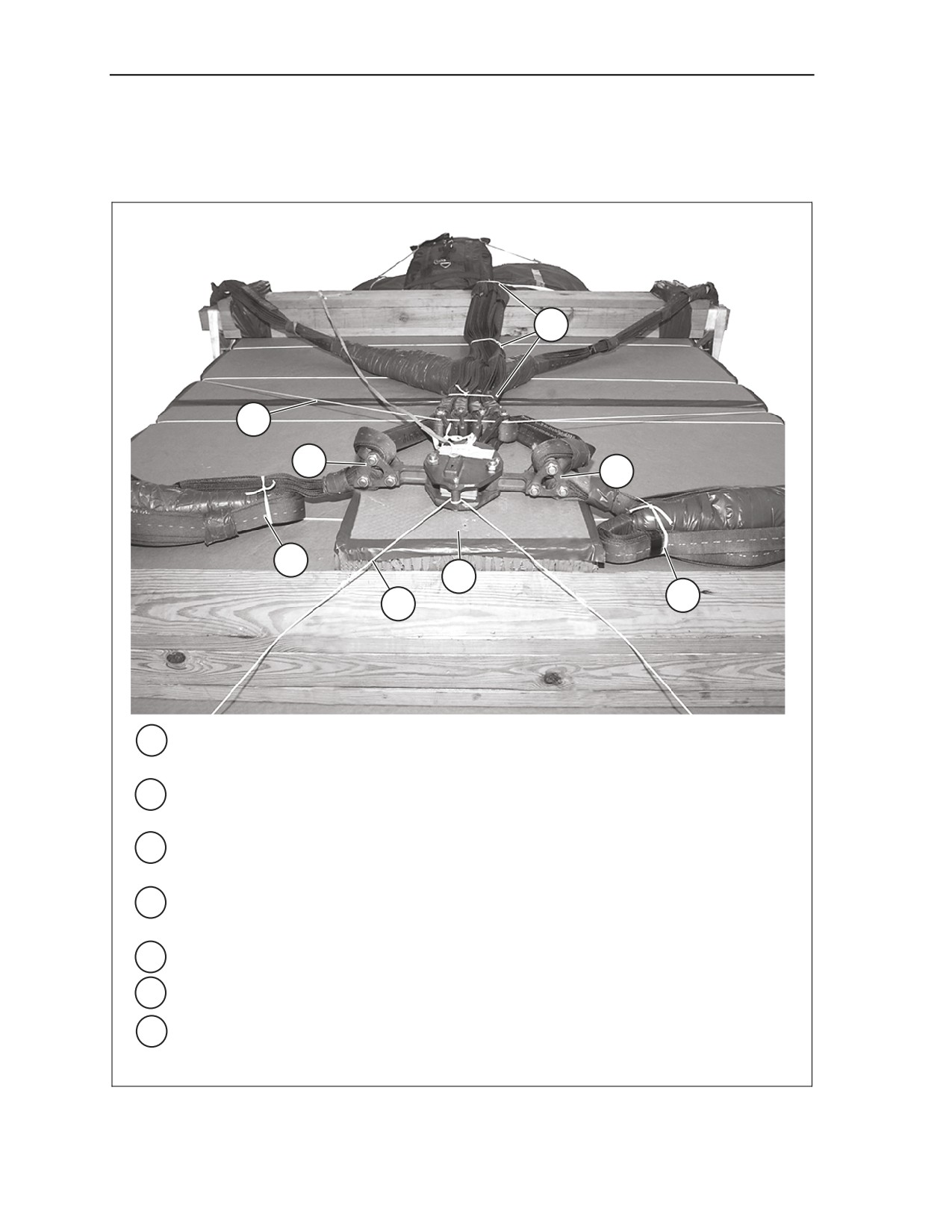

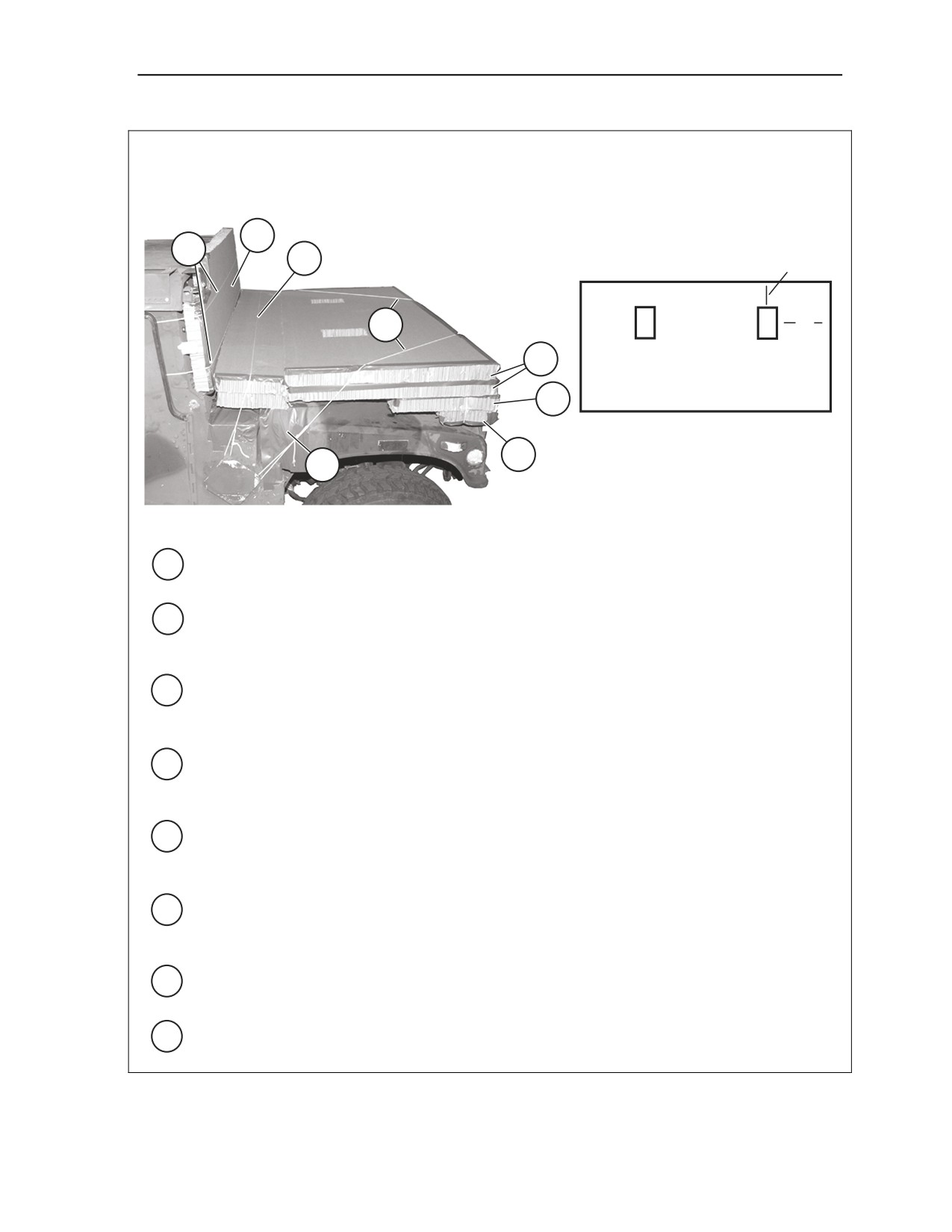

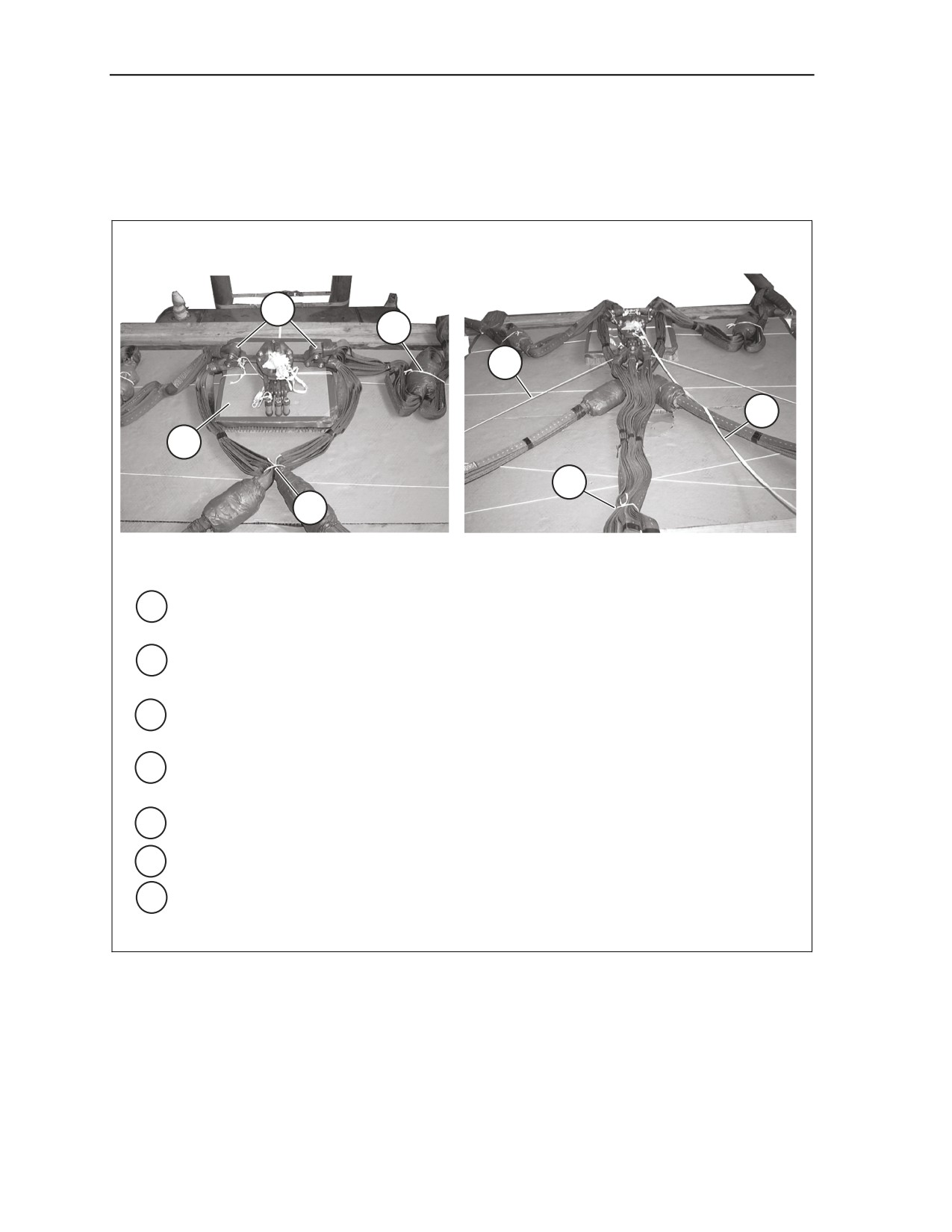

Figure 4-15. Suspension Slings Completed, Raised, Padded, and Secured
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-25
Chapter 4
INSTALLING OUTRIGGER ASSEMBLIES
4-12. Assemble, install, and safety tie the mast and foot assemblies on the DRAS platform as shown in
Chapter 2, Figures 2-42 through 2-45, steps 1 through 3.
STOWING CARGO PARACHUTES
4-13. Prepare, stow, and restrain three G-11D cargo parachutes on the hood of the truck as shown in
Chapter 2 and in Figure 4-16.
1

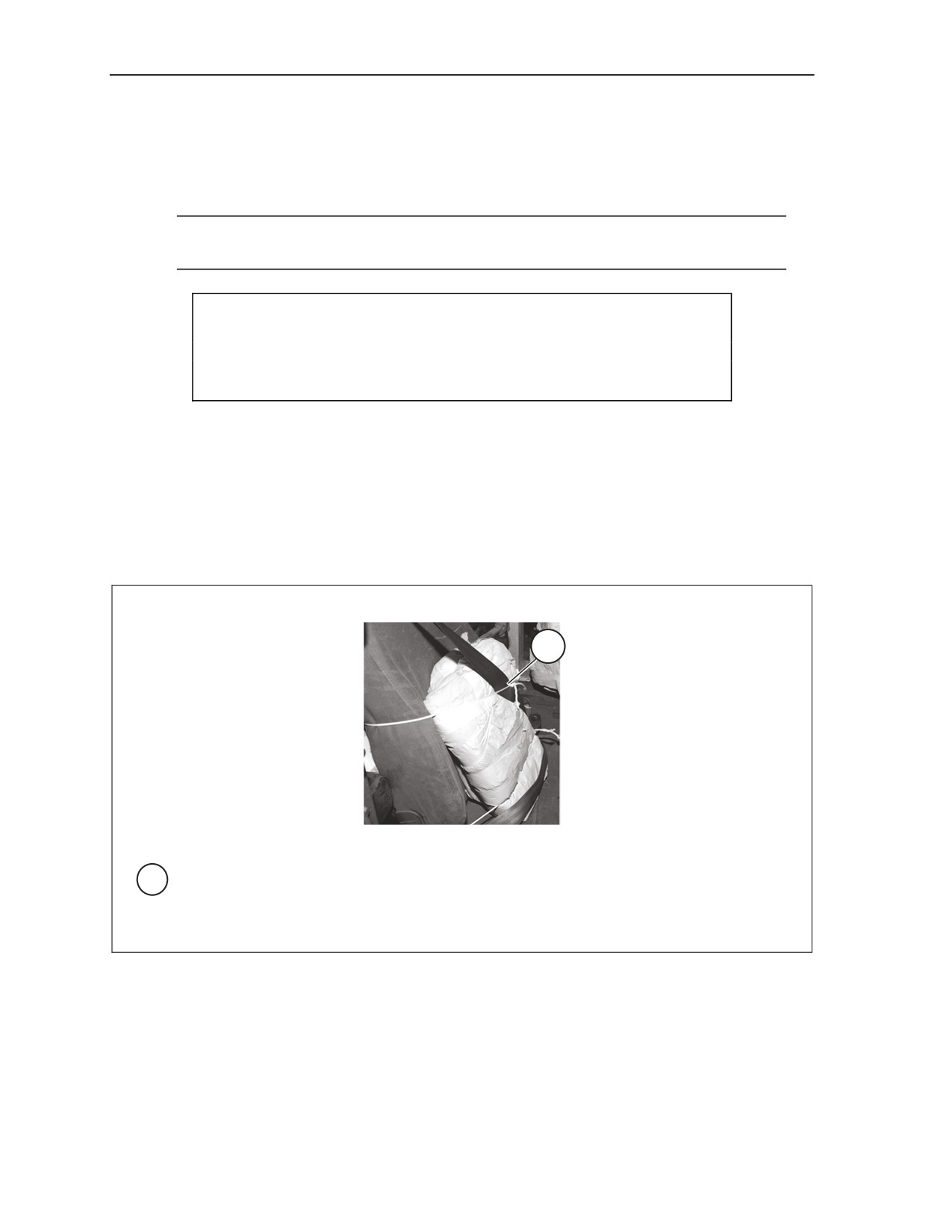

1 Restrain the parachutes with Type VIII nylon webbing to bushings 6 and 6A, and to 11 and
11A.

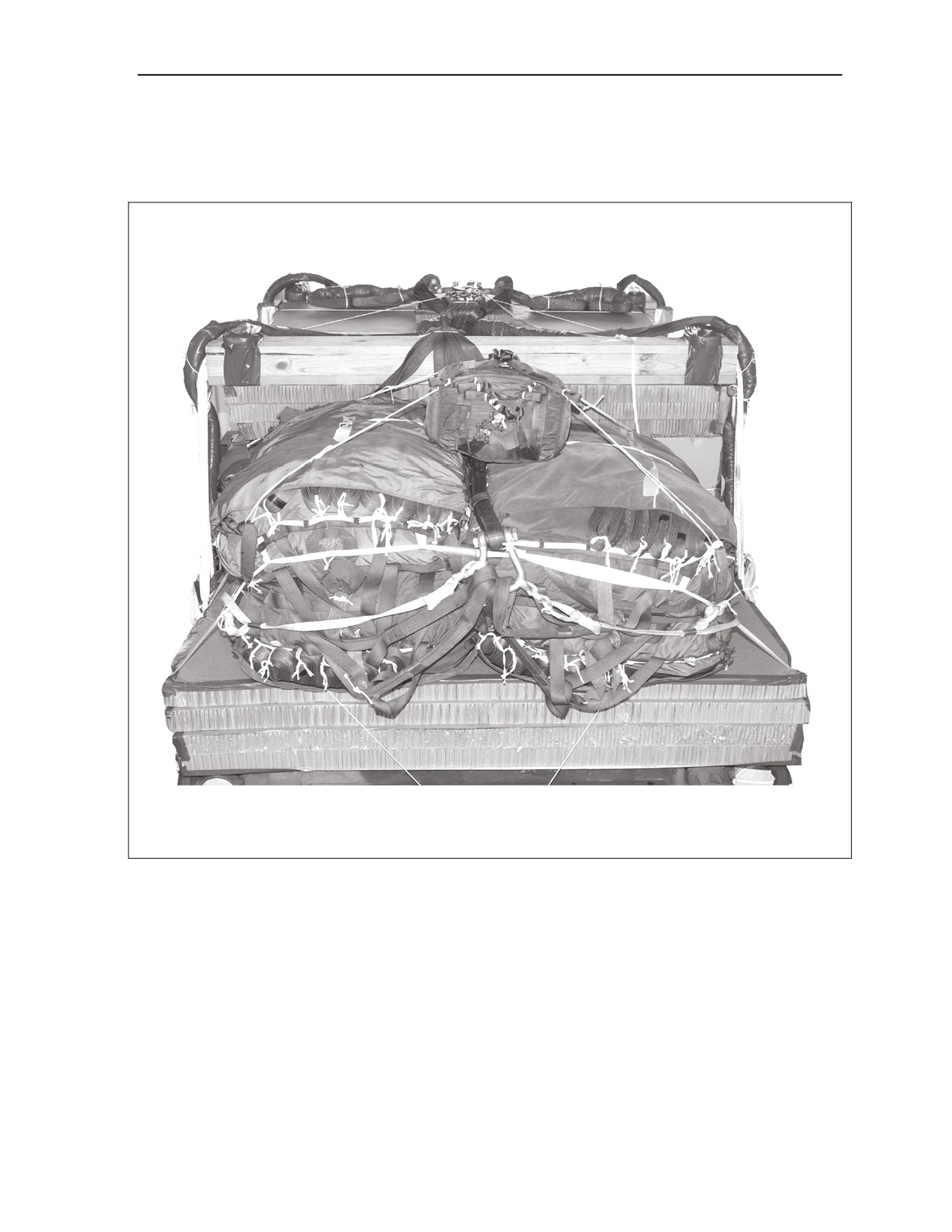

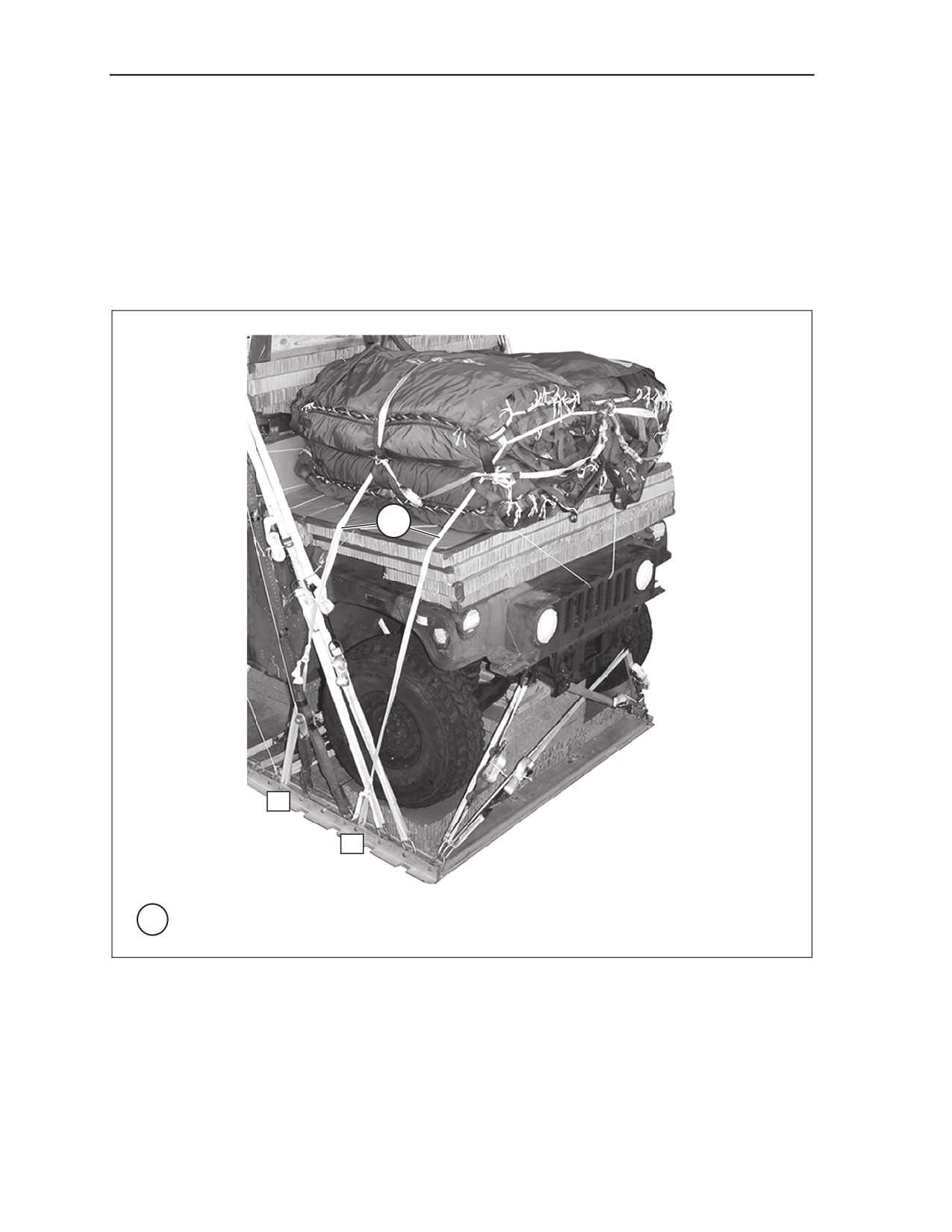

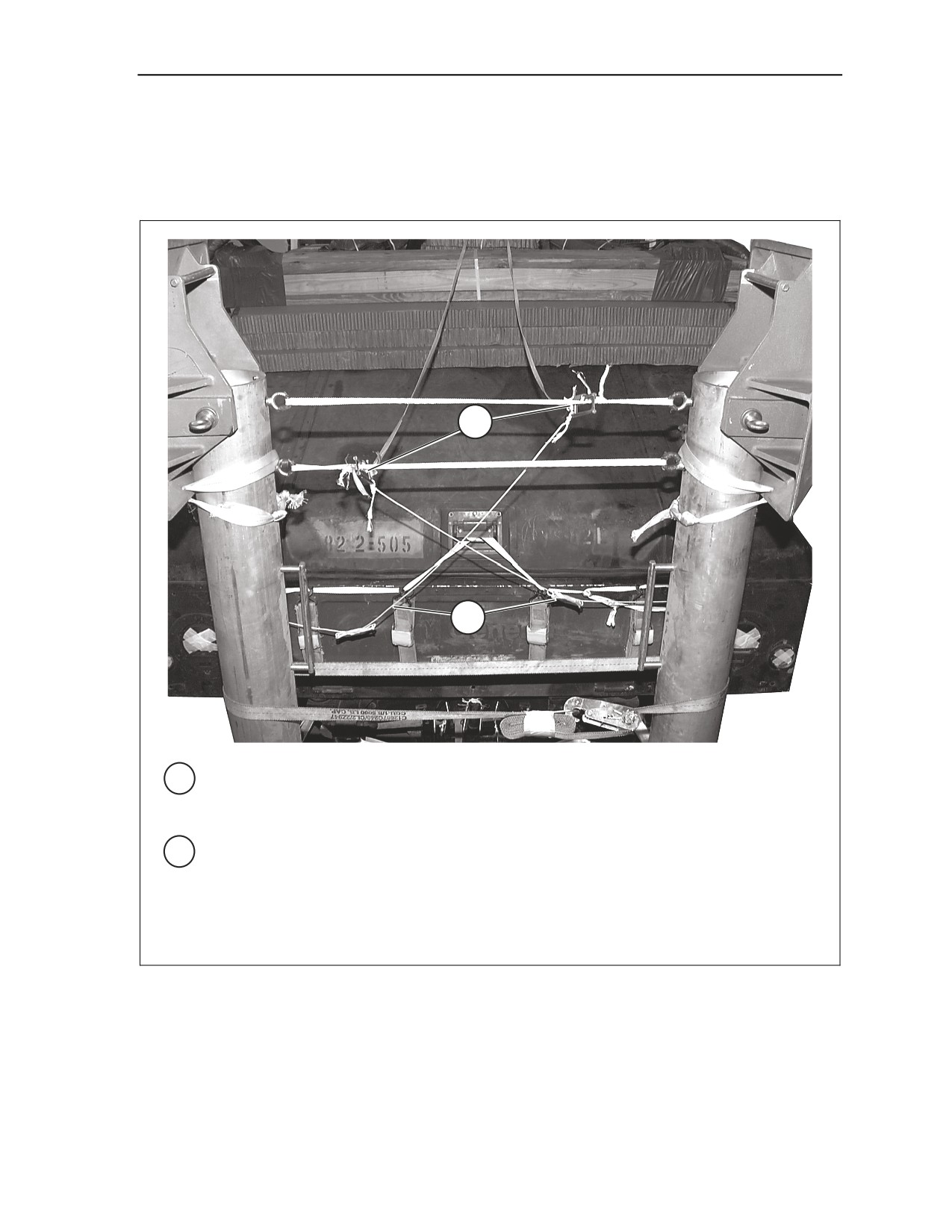

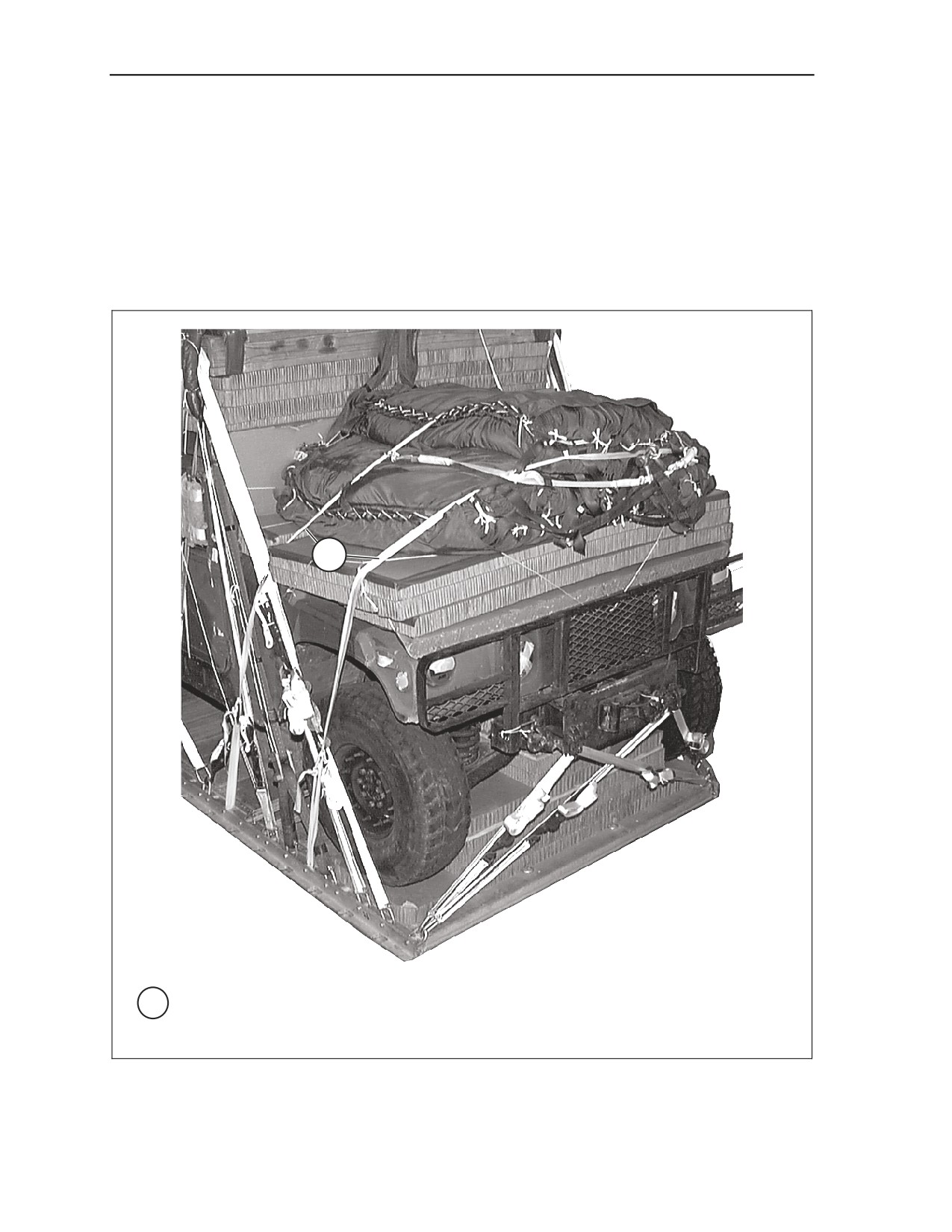

Figure 4-16. Cargo Parachutes Installed
4-26
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
STOWING DEPLOYMENT PARACHUTE

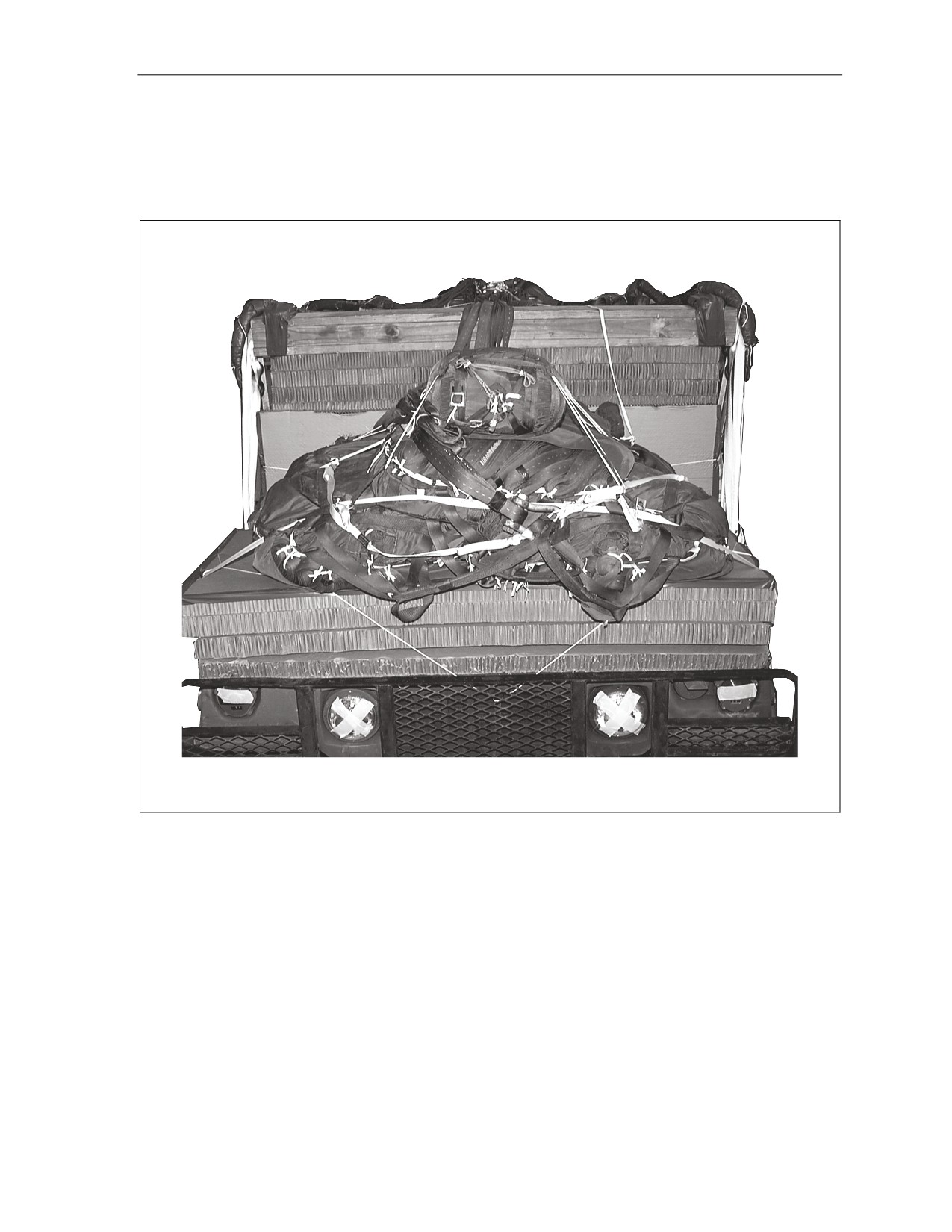

4-14. Prepare, stow, and install the deployment parachute according to Chapter 2, Figure 2-30, and as
shown in Figure 4-17.

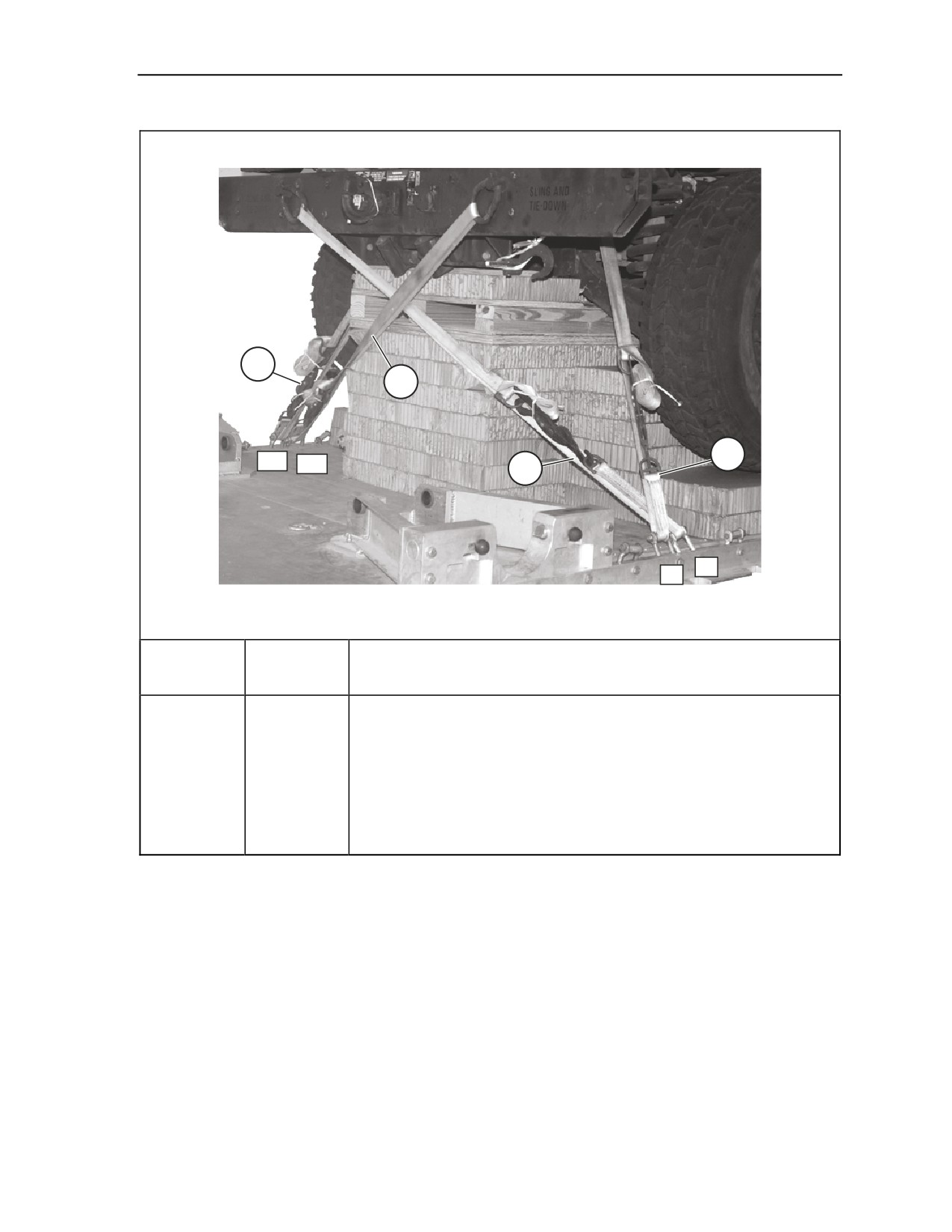

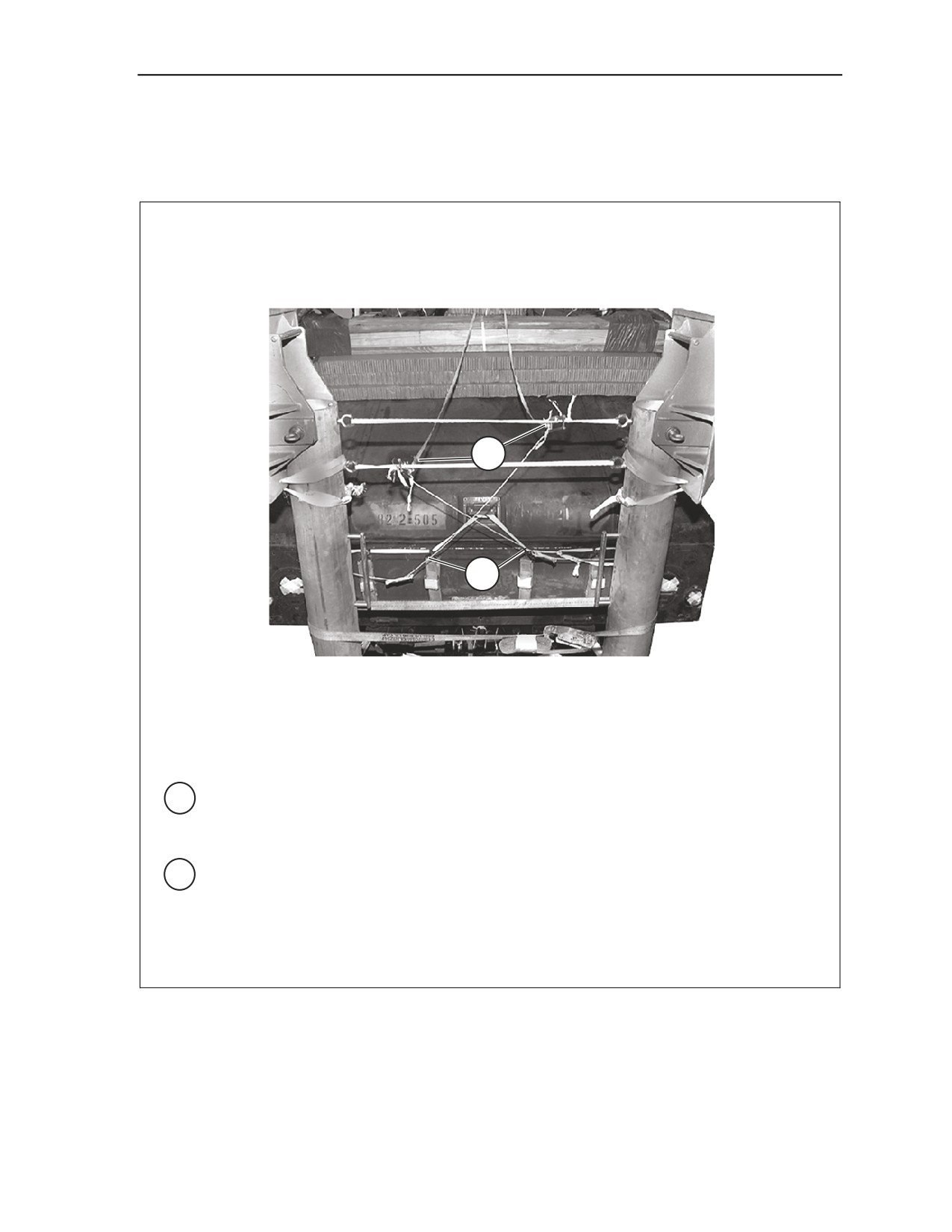

Figure 4-17. Deployment Parachute Installed
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-27
Chapter 4
INSTALLING M-1 RELEASE SYSTEM
4-15. Prepare and install the M-1 parachute release system according to Chapter 2, and as shown in Figure
4-18.
2
4
6
7
1
5
3
1

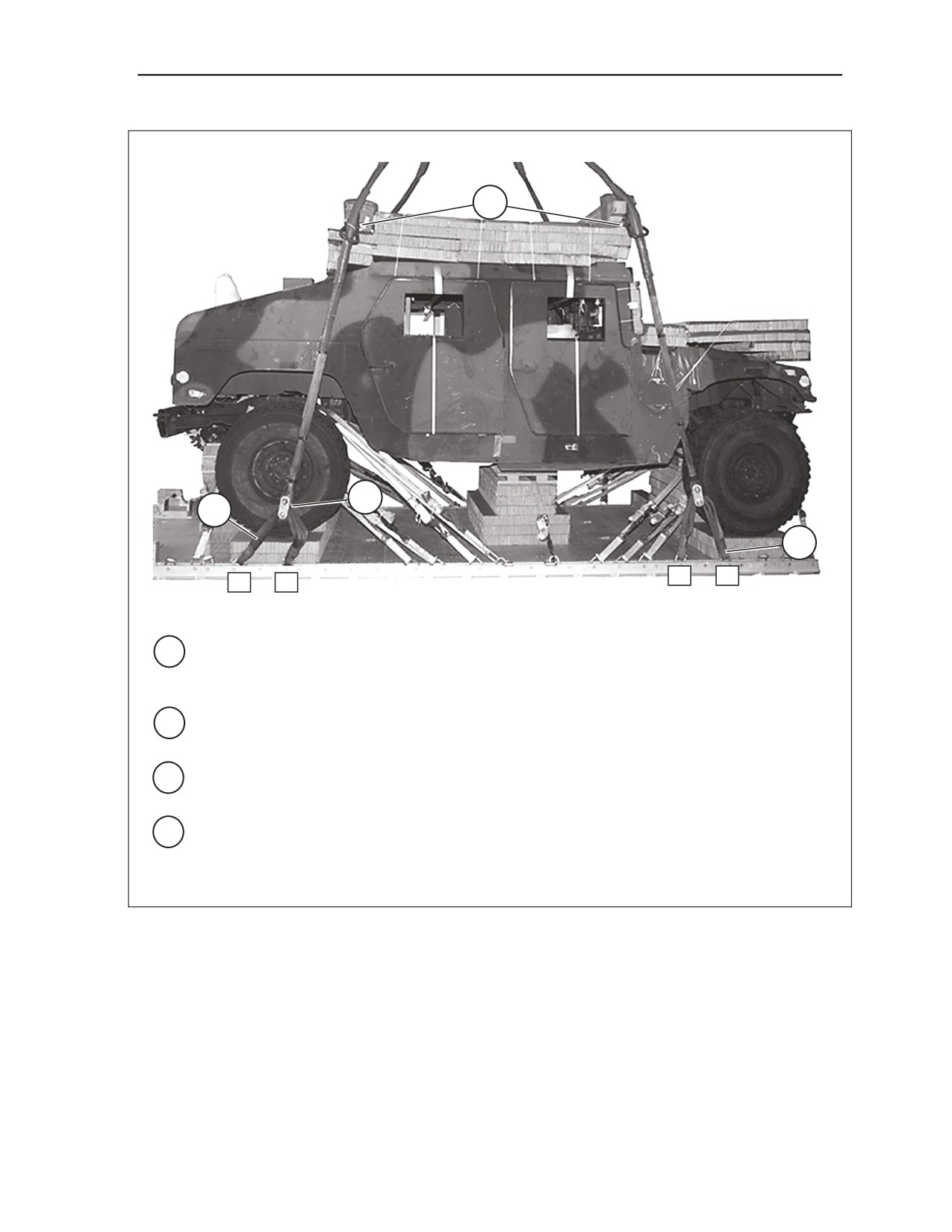

Tape the upper edges of a 20-inch square piece of honeycomb, and center it along the
rear ACS.
2
Remove the cotton buffers from the ends of the suspension slings and attach them to the
release routed as shown.
3
Secure the front suspensions slings together above the 3 ¾-inch, two-point links with one
turn of Type I, ¼-inch cotton webbing.
4
S-fold the slack in the rear suspension slings and tie them around the links with Type I, ¼
inch cotton webbing.
5
Attach the riser extensions. Tie them in three places with Type I, ¼-inch cotton webbing.
6
Secure the release to convenient points on the load with Type III nylon cord.
7 Attach the arming wire and lanyard to a carrying handle on the parachute with three
alternating half hitches with a knot in the running end.

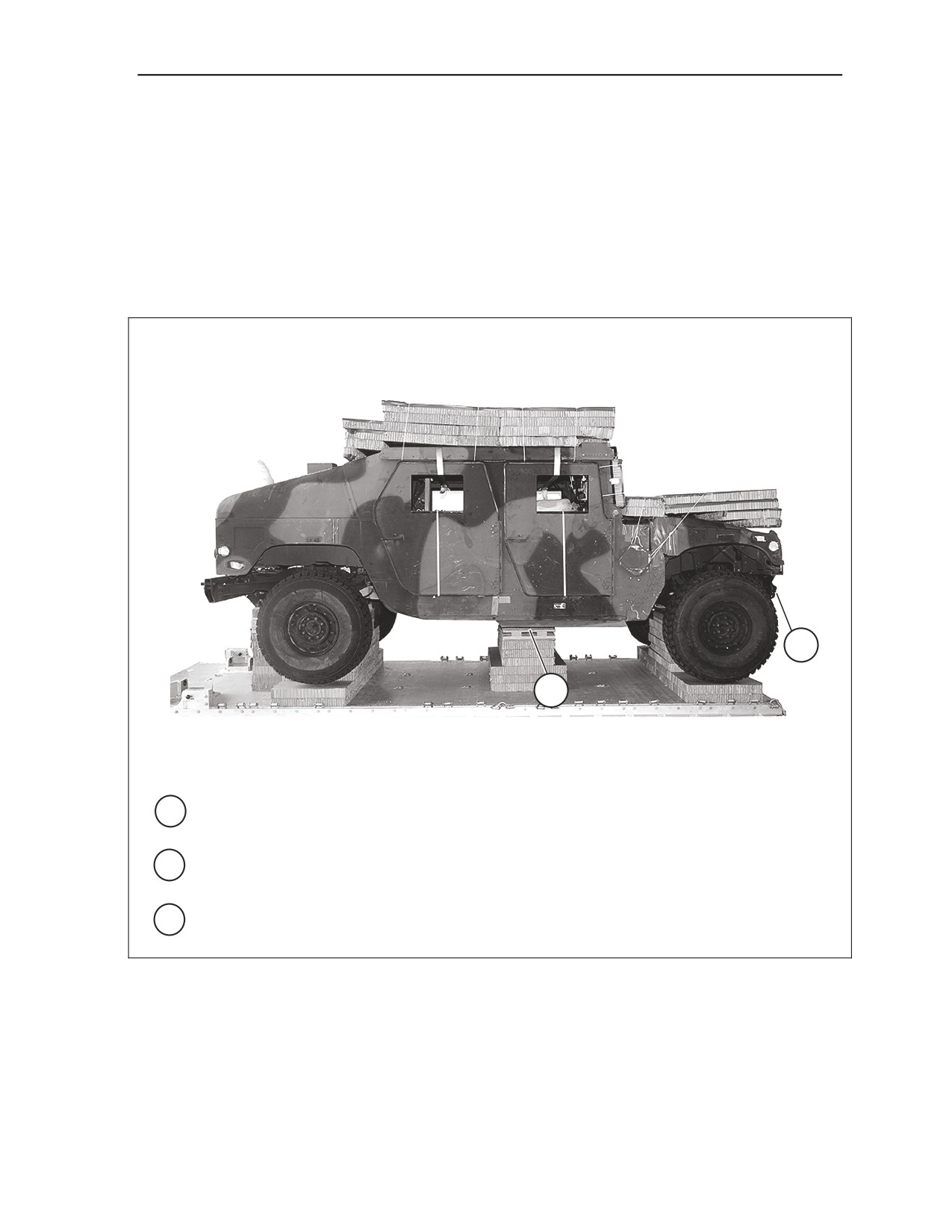

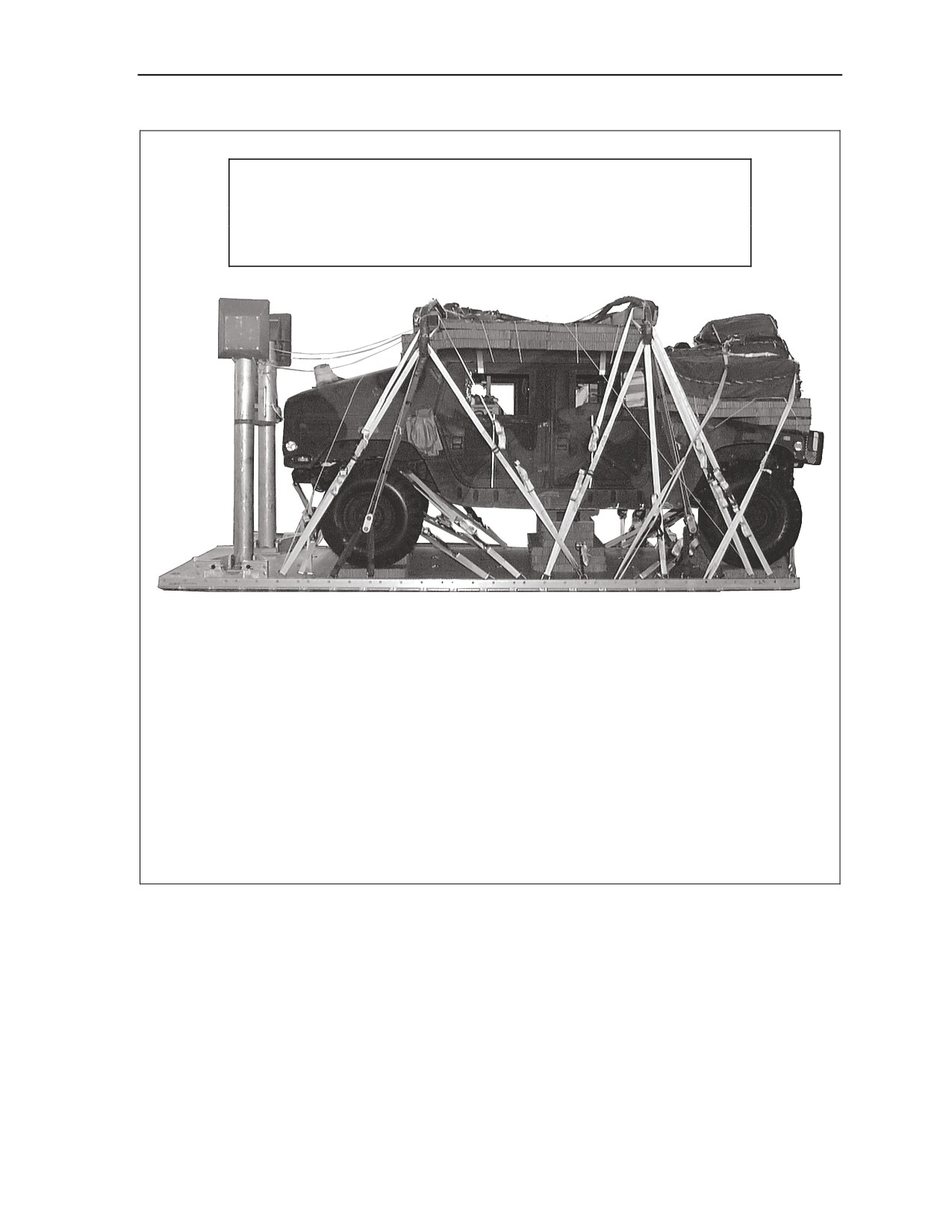

Figure 4-18. M-1 Cargo Parachute Release Installed
4-28
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
INSTALLING MAST RELEASE KNIVES
4-16. Install the mast release knives according to Chapter 2, Figure 2-45, steps 4 through 10 and as shown
in Figure 4-19.
1
2
1 The length of the left and right ½-inch tubular nylon webbing from the base of the guillotine
knives to the lower suspension links of the M-1 release is 78 inches (shown in steps 5
through 7 of Figure 2-45).
2 Tie a length of type III nylon cord through the left tailgate sling guide and to the body of the
right top guillotine knife that measures 69-inches from the tailgate sling guide to the base
of the guillotine knife. Repeat for right tailgate sling guide and left lower guillotine knife
(shown in steps 9 and 10 of Figure 2-45).
Note. All measurements are from knot to knot.

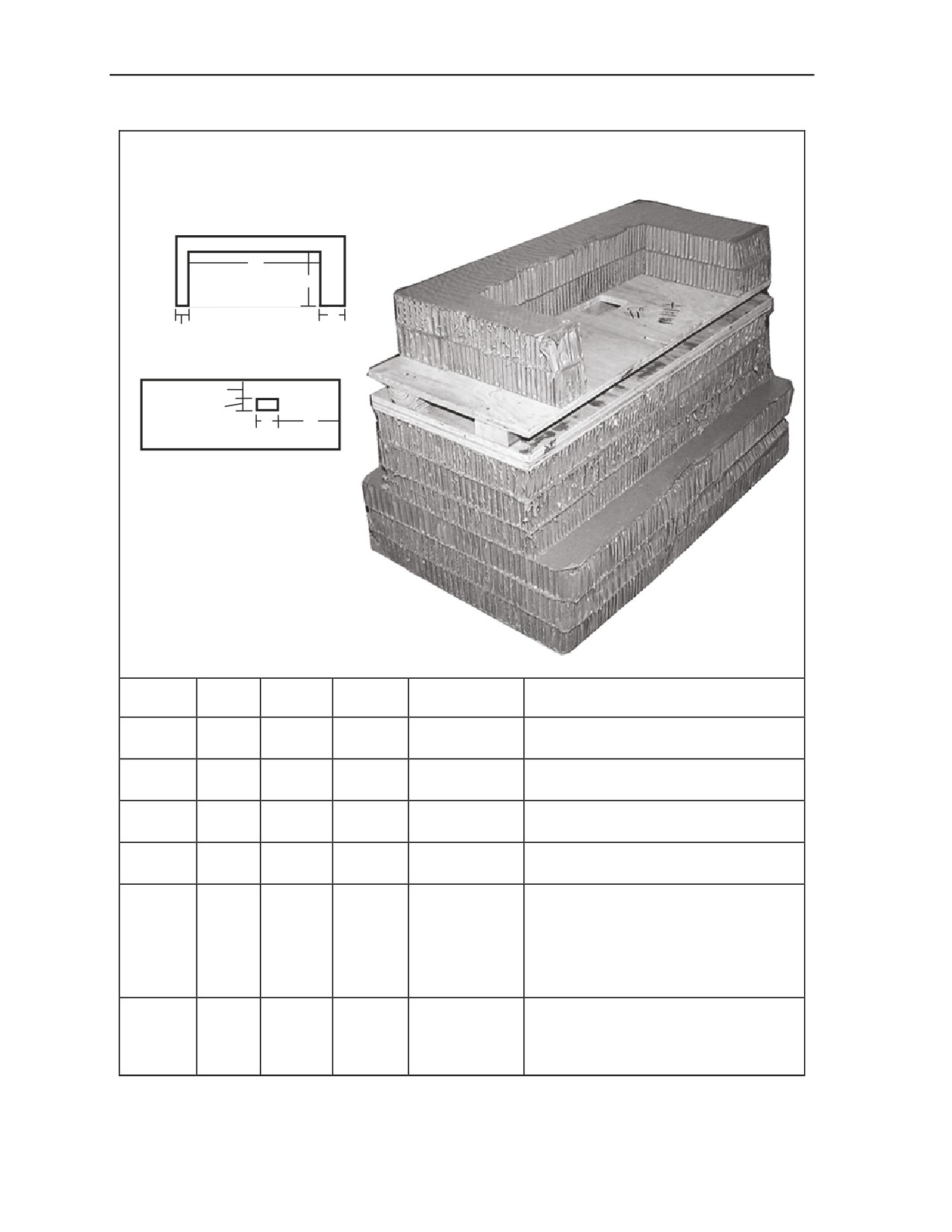

Figure 4-19. Mast Release Knives Installed
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-29
Chapter 4
MARKING RIGGED LOAD
4-17. Mark the rigged load according to Chapter 2, Section IX and as shown in Figures 4-20 and 4-21. If
the load varies from the one shown, the weight, height, CB, and parachute requirements must be
recomputed.
EQUIPMENT REQUIRED
4-18. The equipment required to rig this load is listed in Table 4-1.
CAUTION
Make the final rigger inspection required by Chapter 2, Section IX
before the load leaves the rigging site.
RIGGED LOAD DATA
Weight: Load shown
12,637 pounds
Maximum load allowed
12,750 pounds
Height (with three G-11D parachutes)
98 inches
Width
94 inches
Overall Length
229 inches
Overhang: Front (brush guard)
13 inches
Rear
0 inches
Center of Balance (from front edge of platform):
94 inches

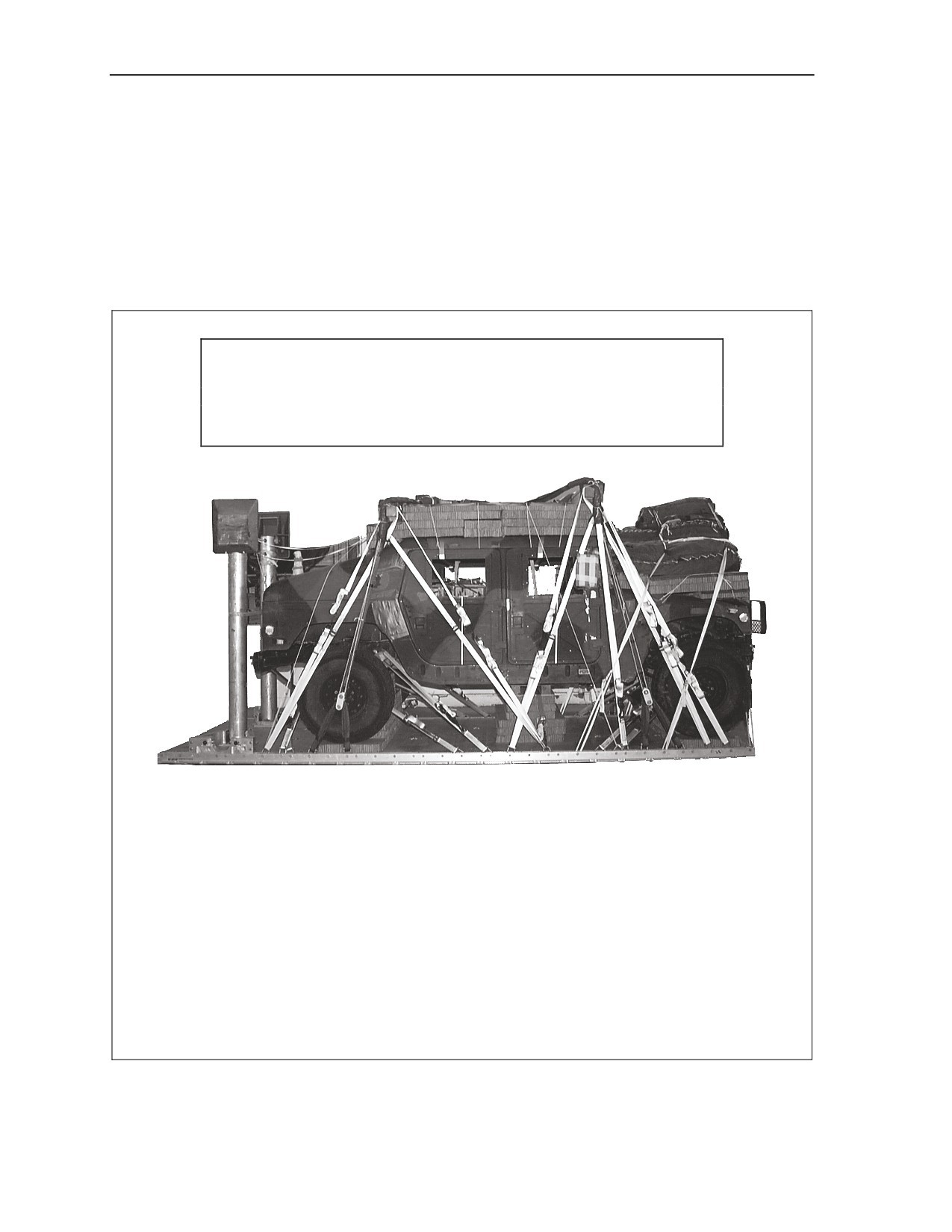

Figure 4-20. M1025 Armament Carrier Rigged on DRAS Platform
4-30
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
CAUTION
Make the final rigger inspection required by Chapter 2, Section IX
before the load leaves the rigging site.
RIGGED LOAD DATA
Weight: Load shown
10,455 pounds
Maximum load allowed
12,750 pounds
Height (with three G-11D parachutes)
98 inches
Width
94 inches
Overall Length
224 inches
Overhang: Front (brush guard)
8 inches
Rear
0 inches
Center of Balance (from front edge of platform):
86 inches
Figure 4-21. M1121 TOW Carrier Rigged on DRAS Platform
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-31
Chapter 4
Table 4-1. Equipment Required for Rigging M1025 Armament Carrier and M1121 TOW
Carrier on DRAS Platform
National Stock Number
Item
Quantity
8040-00-273-8713
Adhesive paste, 1-gallon
As required
4020-00-240-2146
Cord, nylon, type III, 550-pound
As required
Clevis:
4030-00-090-5354
Large
5
4030-00-678-8562
Medium
8
1670-00-360-0328
Cover, clevis, large
3
8135-00-664-6958
Cushioning material, packaging, cellulose wadding
As required
8305-00-191-1101
Felt, ½-inch
As required
1670-01-493-6418
Link assembly, two-point, 3 ¾-inch
9
Lumber:
5510-00-220-6146
2- by 4-inch
As required
5510-00-220-6148
2- by 6-inch
As required
5510-00-220-6274
4- by 4-inch
As required
5530-00-618-8073
Plywood, ¾-inch
5 sheets
Nail, steel wire, common,
5315-00-010-4659
8d
As required
5315-00-753-3883
10d
As required
1670-00-753-3928
Pad, energy dissipating, honeycomb
18 sheets
1670-01-487-5461
Static line assembly release away
1
Parachute:
Cargo:
1670-01-016-7841
G-11D
3
1670-00-040-8135
Cargo extraction: 28-foot (deployment parachute)
1
Platform, dual row, 18-foot
1670-01-485-1654
Rail, DRAS
2
1670-01-486-1342
Roller Pad, DRAS
4
1670-01-486-1656
Panel Assembly, Main
9
1670-01-162-2372
Clevis assembly
38
1670-01-097-8816
Release, cargo parachute, M-1
1
Sling, cargo airdrop
For suspension:
1670-01-062-6310
11-ft (4-loop), type XXVI nylon webbing
4
1670-01-062-6306
3-ft (4-loop), type XXVI nylon webbing
8
For deployment:
1670-01-062-6306
3-ft (4-loop), type XXVI nylon webbing
1
For riser extension:
1670-01-062-6313
60-ft (3-loop), type XXVI nylon webbing
3
For ACS:
1670-01-063-7761
16-ft (2-loop), type XXVI nylon webbing
2
4-32
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
Table 4-1. Equipment Required for Rigging M1025 Armament Carrier and M1121 TOW
Carrier on DRAS Platform (Continued)
National Stock Number
Item
Quantity
For lifting:
1670-01-062-6304
9-ft (2-loop), type XXVI nylon webbing
2
1670-01-062-6303
12-ft (2-loop), type XXVI nylon webbing
2
1670-00-040-8219
Strap, parachute release, multicut
2
1670-00-937-0271
Knife release, cargo (guillotine)
6
1670-01-487-5464
Outrigger assembly
1
7510-00-266-5016
Tape, adhesive, 2-in
As required
1670-00-937-0271
Tie-down assembly, 15-ft
51
1670-00-725-1437
Tie-down, cargo, aircraft, (CGU-1B)
5
Webbing:
8305-00-268-2411
Cotton, ¼-in, type I
As required
Nylon:
8305-00-082-5752
Tubular, ½-in
As required
8305-00-263-3591
Type VIII
As required
SECTION II - RIGGING M1114 UP-ARMORED ARMAMENT CARRIER HMMWV
DESCRIPTION OF LOAD
4-19. The M1114 HMMWV- series truck has a heavy-duty suspension and additional armor in the sides,
door and floor. The truck is rigged on a Dual Row Airdrop System (DRAS) platform with four G-11D
parachutes.

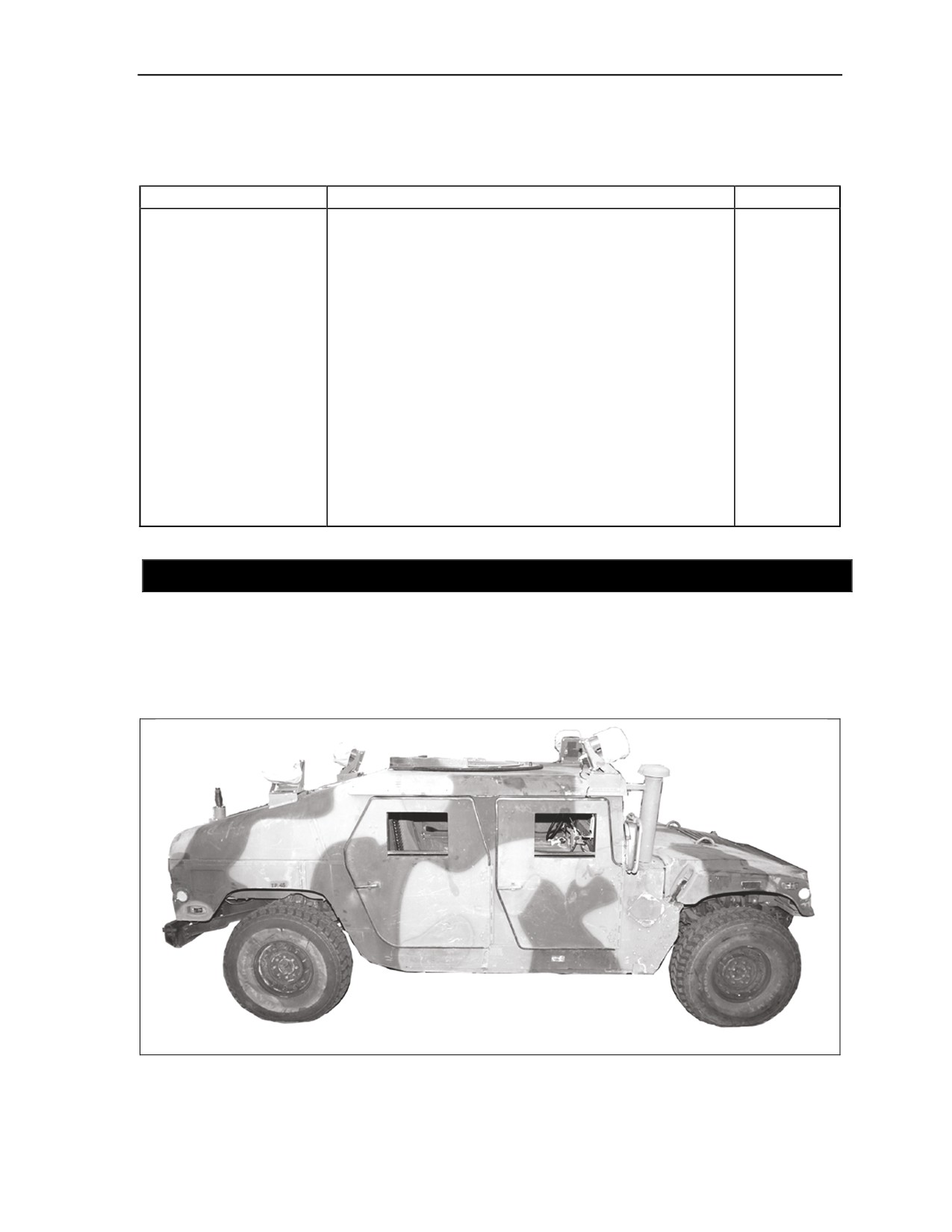

Figure 4-22. M1114 Up-Armored Armament Carrier
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-33
Chapter 4
PREPARING PLATFORM
4-20. Inspect, or assemble and inspect, a DRAS platform with outrigger assemblies, outrigger platform
support weldments, and link assemblies according to TM 10-1670-268-20&P/TO 13C7-52-22 and as
shown in Figure 4-23.
CLEVISES
21A THROUGH 1 A
LEFT
REAR
FRONT
RIGHT
CLEVISES
21 THROUGH 1
Steps:
1. Starting at the front of each platform side rail, install clevises on the bushings bolted to holes
1 (tripled), 2, 3, 5, 7, 9, 10, 11, 13 (doubled), 15 (tripled), 16, 18, 19, 25, 27, 28, 29, and 30.
2. Starting at the front of the platform side rail, number the clevises 1 through 21 on the right
side and from 1A through 21A on the left side.

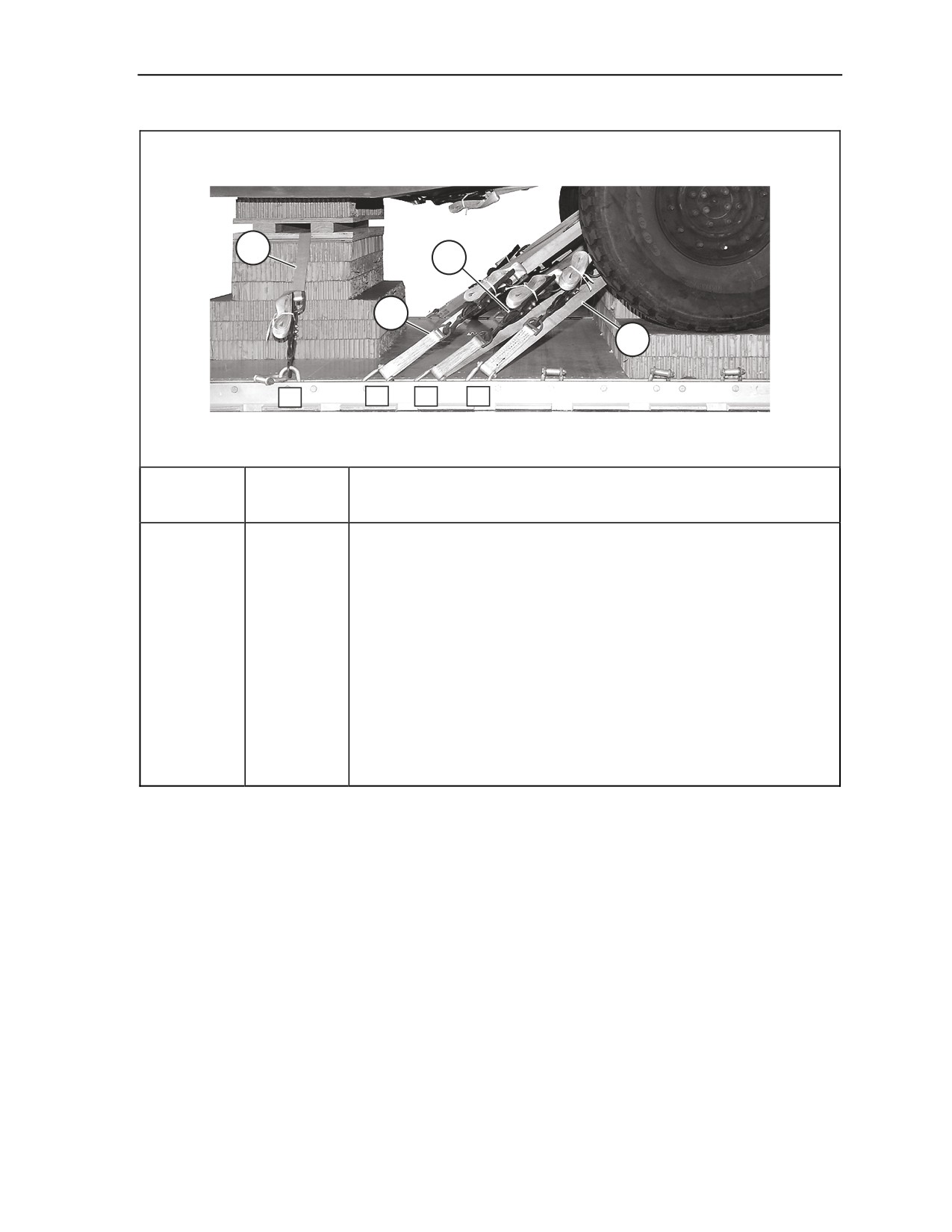

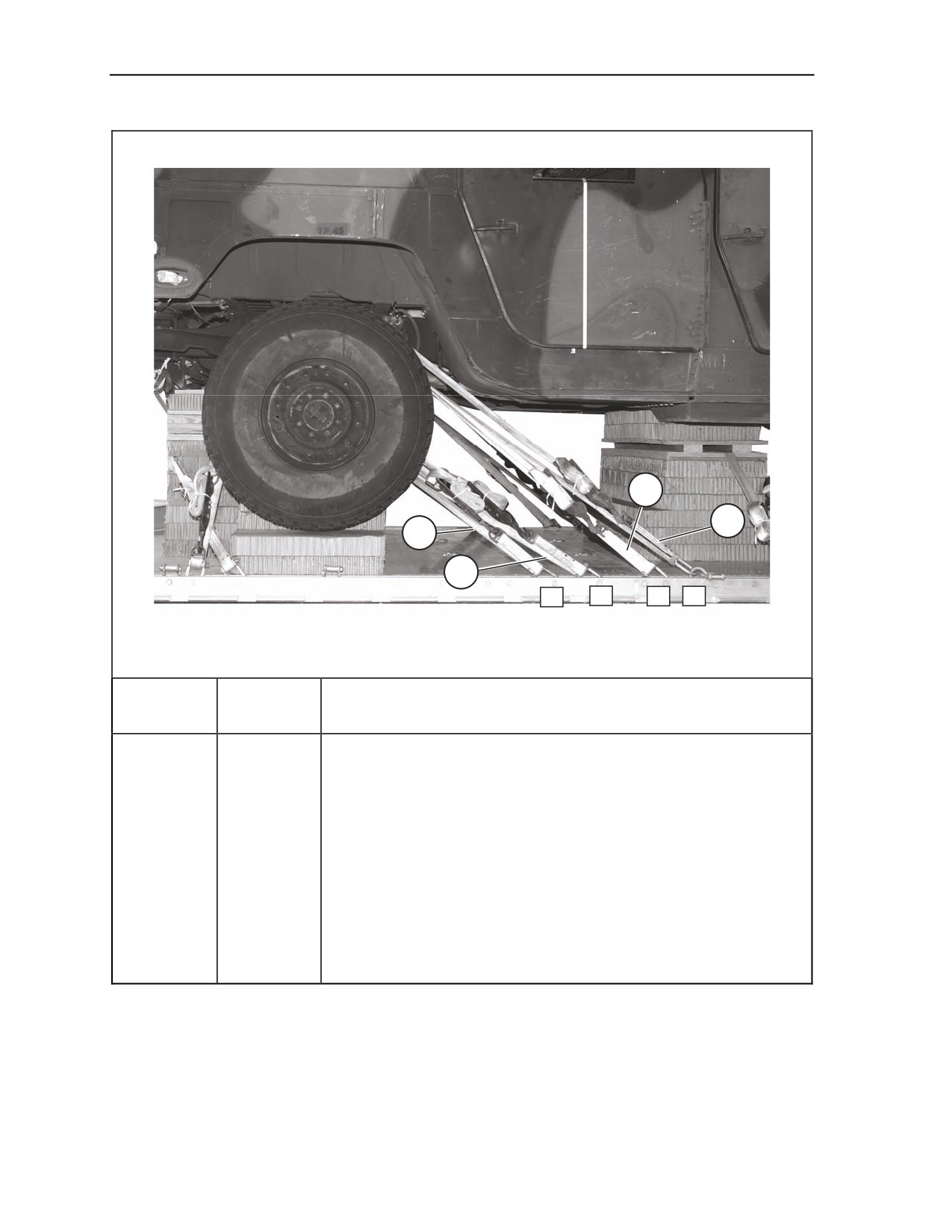

3. Label the panel tie-down rings according to Figure 2-2.
Figure 4-23. Platform Prepared
4-34
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
BUILDING AND PLACING HONEYCOMB STACKS
4-21. Build the honeycomb stacks as described in Figures 4-24 through 4-26. Position the stacks as shown
in Figure 4-27.
FRONT
REAR
Stack
Pieces
Width
Length
Material
Instructions
Number
(inches)
(inches)
1
2
24
80
Honeycomb
Glue to form base.
5
24
35
Honeycomb
Center and glue to base.
2
24
21
¾-inch
Center and glue to top of 24-inch by
Plywood
35-inch honeycomb.
6
21
2 x 4 Lumber
Nail six pieces in stacks of two on the
plywood. Position one stack flush
along the front, center and rear
edges.
1
24
2 x 4 Lumber
Nail lumber flush along the left edge.
1
24
17
¾-inch
Nail plywood flush with the right edge.
Plywood
1
24
2 x 4 Lumber
Nail lumber flush with the right edge
of the plywood.
1
24
3 ½
¾-inch
Nail plywood flush over the lumber
Plywood
placed above. Glue and center wood
stack section on top of honeycomb
base.
1
5
13
Honeycomb
Glue honeycomb along the front edge
of the honeycomb stack.

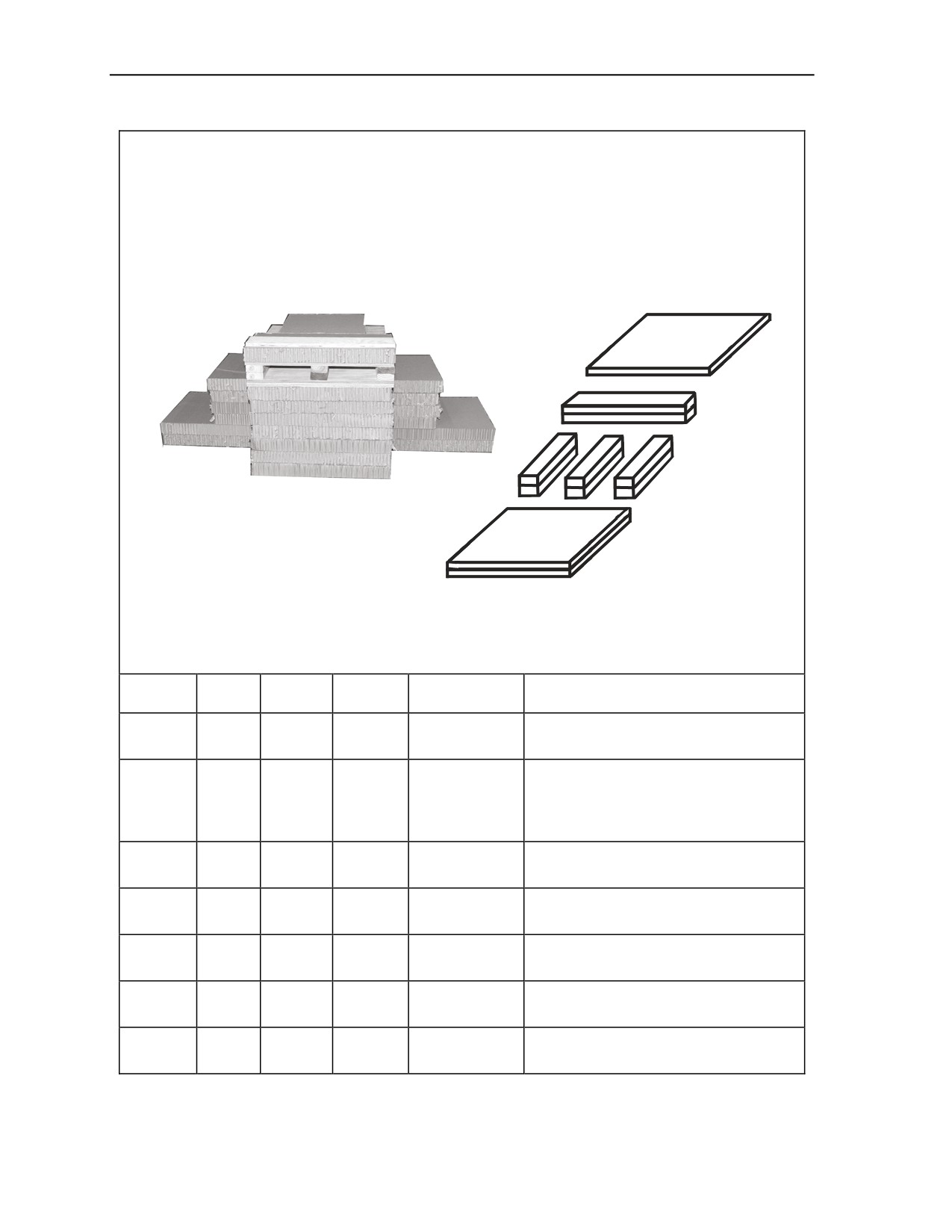

Figure 4-24.
Honeycomb Stack 1 Prepared
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-35
Chapter 4
Notes. 1. All measurements are given in inches.
2. This drawing is not drawn to scale.
REAR
27
12
18 X 39
8
4
HONEYCOMB
8½
3½
5
16
18 X 43
¾-INCH PLYWOOD
FRONT
Stack
Pieces
Width
Length
Material
Instructions
Number
(inches)
(inches)
2
3
26
43
Honeycomb
Glue honeycomb together to form a
base.
3
18
43
Honeycomb
Center and glue honeycomb on the
base.
2
18
43
¾-inch
Nail plywood flush together.
Plywood
2
43
2 x 4 Lumber
Nail lumber to plywood and 3 inches
from each long edge.
1
18
43
¾-inch
Cut plywood as shown in diagram.
Plywood
Nail the plywood to the lumber and
flush with the bottom layers of
plywood. Glue the wood section of
the stack flush on the honeycomb
base.
2
18
39
Honeycomb
Cut honeycomb as shown in diagram.
Glue honeycomb flush with the left
edge of the plywood, with the cutout
facing the front of the stack.

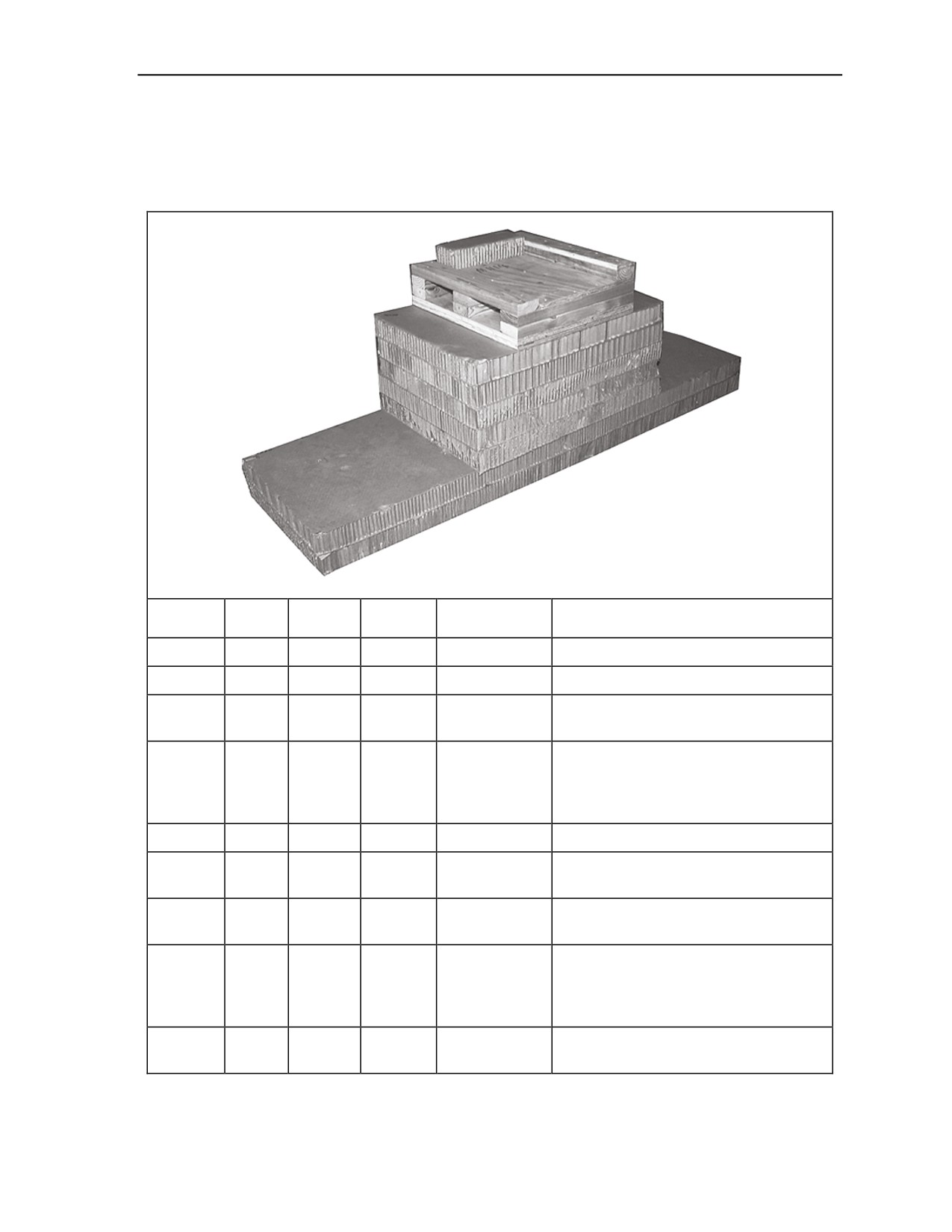

Figure 4-25. Honeycomb Stack 2 Prepared
4-36
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
Notes. 1. This drawing is not drawn to scale.
2. All dimensions are in inches.
FRONT
LAYER 7
38 x 30
24 x 12
38 x 30
24 x 12
LAYER 4 AND 6
24 x 54
REAR
14 x 30
LAYER 3 AND 5
24 x 25
24 x 25
38 x 30
LAYER 2
24 x 80
14 x 30
LAYER 1
Stack
Pieces
Width
Length
Material
Instructions
Number
(inches)
(inches)
3
1
24
80
Honeycomb
Layer 1, see drawing.
1
14
30
Honeycomb
Layer 1, see drawing.
1
38
30
Honeycomb
Layer 2, see drawing. Glue centered
and flush with front edge of layer 1.
2
24
25
Honeycomb
Layer 2, see drawing. Glue one piece
flush with front edge along side the
38- by 30-inch honeycomb positioned.
2
24
54
Honeycomb
Layers 3 and 5, see drawing. Glue
centered and flush with front edge of
honeycomb stack.
2
14
30
Honeycomb
Layers 3 and 5, see drawing. Glue
centered and flush with rear edge of
honeycomb stack.
2
38
30
Honeycomb
Layers 4 and 6, see drawing. Glue
centered and flush with front edge of
honeycomb stack.
4
24
12
Honeycomb
Layers 4 and 6, see drawing. Glue
one piece flush with front edge along
side the 38- by 30-inch honeycomb
positioned.
1
38
30
Honeycomb
Layer 7, see drawing. Glue center
and flush with front edge of
honeycomb stack.

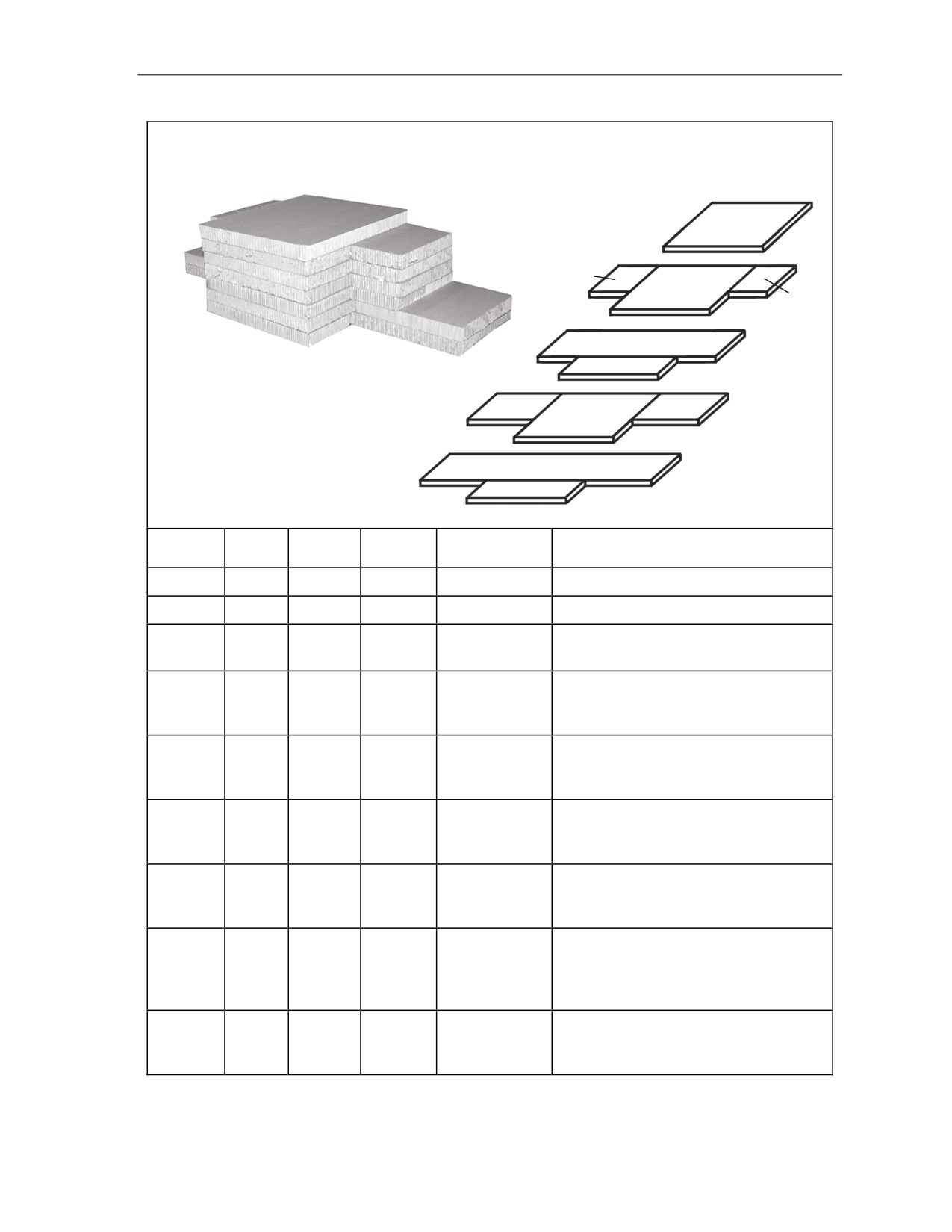

Figure 4-26.
Honeycomb Stack 3 Prepared
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-37
Chapter 4
Notes. 1. All measurements are given in inches.
2. This drawing is not drawn to scale.
FRONT
REAR
REAR
Stack
Pieces
Width
Length
Material
Instructions
Number
(inches)
(inches)
3
2
30
38
¾-inch
Glue together to form wooden stack.
Plywood
8
30
2 x 4 Lumber
Nail in pairs of two. Nail one pair
centered and one flush with left and
right side of plywood. Nail one pair
flush against front edge of plywood.
1
30
38
¾-inch
Nail to 2 x 4 stacks of lumber.
Plywood
Center and glue wood stack to
honeycomb base.
1
30
14
Honeycomb
Center and glue flush along rear
edge.
1
24
20
Honeycomb
Center the 20-inch side along the
front edge.
1
6
20
¾-inch
Glue 1 inch from the rear edge of the
Plywood
stack.
Figure 4-26. Honeycomb Stack 3 Prepared (Continued)
4-38
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
Notes. 1. All measurements are given in inches.
2. This drawing is not drawn to scale.
STACK
STACK
STACK
2
1
3
5
64
131
Stack Number
Position of Stack on Platform
Place stack:
1
Centered 5 inches from front edge of platform.
2
Centered 64 inches from front edge of platform.
3
Centered 131 inches from front edge of platform.
Figure 4-27. Honeycomb Stacks Placed on Platform
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-39
Chapter 4
PREPARING M1114 TRUCK
4-22. Prepare the M1114 truck as described below.
• Prepare the fuel tank as shown in Figures 3-5 and 3-6.
Note. Certain units may be authorized a waiver allowing 95% fuel. One way to verify the tank
is 95% full is to fill the tank and withdraw 1 ¼ gallons with a hand pump.
CAUTION
A full tank does not allow for expansion, and is a danger to aircraft and
air crew.
• Make sure the batteries and battery compartment comply with AFMAN 24-204(I)/TM 38-250.
• Prepare the cab of the truck as shown in Figures 4-2, 4-3 and 4-28.
• Prepare the body of the truck as shown in Figure 4-29.
• Prepare the underside of the truck as shown in Figure 4-30.
• Prepare the front of the truck as shown in Figure 4-31.
• Prepare the turret housing as shown in Figure 4-5.
• Prepare the light vehicle obscuration smoke system (LVOSS) units as shown in Figure 4-32.
1
1 Remove the side view mirrors and wrap with cellulose wadding and tape. Secure them to
the front passenger seat with type III nylon cord. Fasten the seat belt around the padded
mirrors.

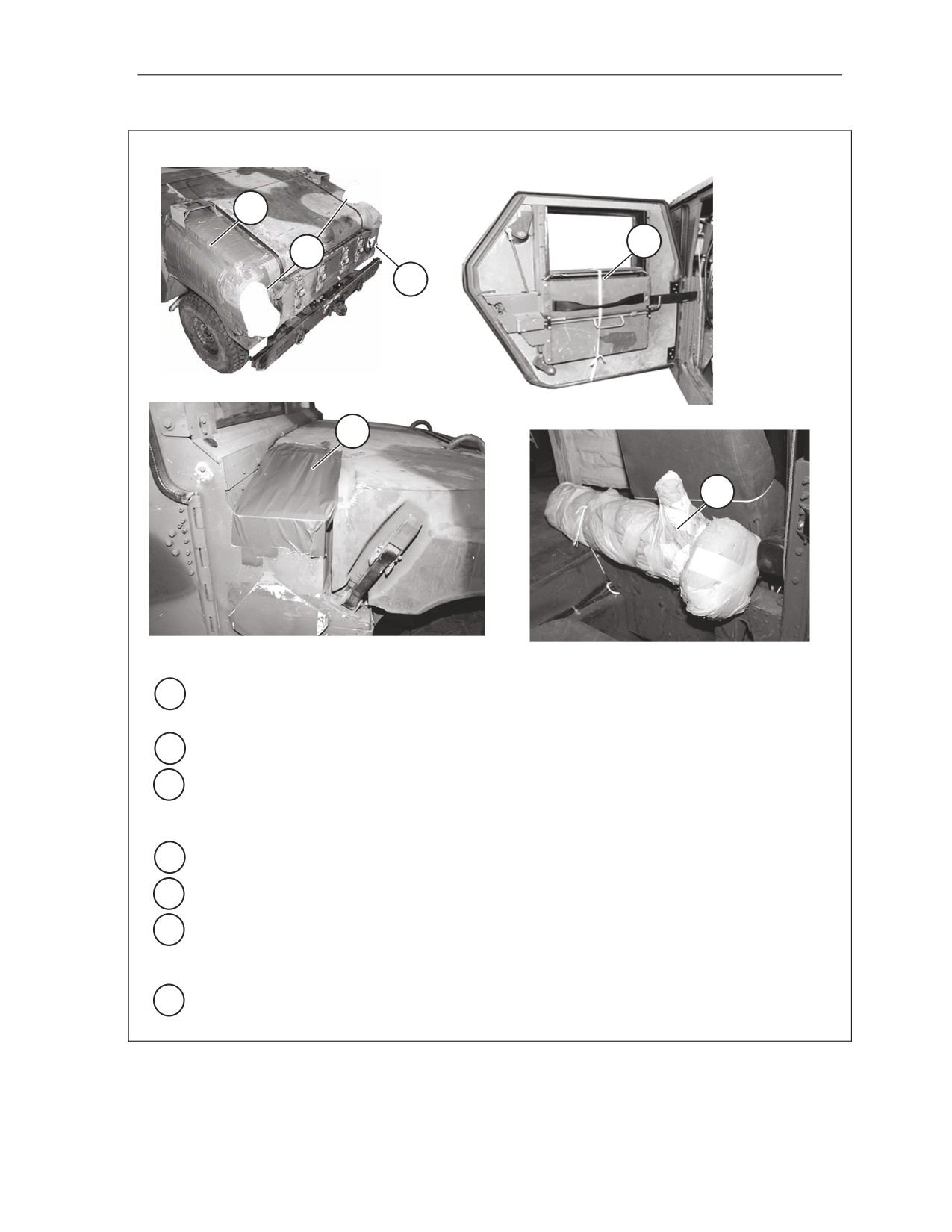

Figure 4-28. Inside of Cab Prepared
4-40
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
2
5
1
4
7
6
1
Remove the antennae and pad the antenna mounts with cellulose wadding and tape in place.
Secure the antennae in a convenient place inside the vehicle.
2
Pad the air vents with felt and tape in place.
3
Remove the four Light Vehicle Obscuration Smoke System (LVOSS) units from the roof
corners. Pad the brackets with felt and cellulose wadding. Set the LVOSS units aside for
later stowage procedures (not shown).
4
Tape all lights and reflectors.
5
Lower all windows. Tie them in the lowered position with ½-inch tubular nylon.
6
Remove the breather cap and fording stack and pad the breather cap and fording stack with
cellulose wadding. Tape and secure to the rear of the front passenger seat with type III nylon
cord.
7 Place a layer of felt over the intake hole and tape the felt in place.
Figure 4-29. Body of Truck Prepared
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-41
Chapter 4
1
1
1
1
2
4
3
1
Pad the lower control arms at the front and rear of the truck with cellulose wadding. Tape in
place.
2
Route a 15-foot lashing around the right side frame member and to the front side of the
stabilizer bar. Route the free end of the lashing around the radius rod on the left side of the
cross member in front of the fuel tank. Do not tighten lashing at this time.
3
Route a second 15-foot lashing around the left side frame member to the front side of the
stabilizer bar. Route the free end of the lashing around the radius rod on the right side of the
cross member in front of the fuel tank. Do not tighten lashing at this time.
4 Cut a 12- by 12-inch piece of honeycomb and a 16 inch length of 2- by 6- inch lumber. Place
the honeycomb and lumber under the oil pan. Tighten and secure both lashings over the
honeycomb and lumber. Separate the load binders so they do not interfere with each other.

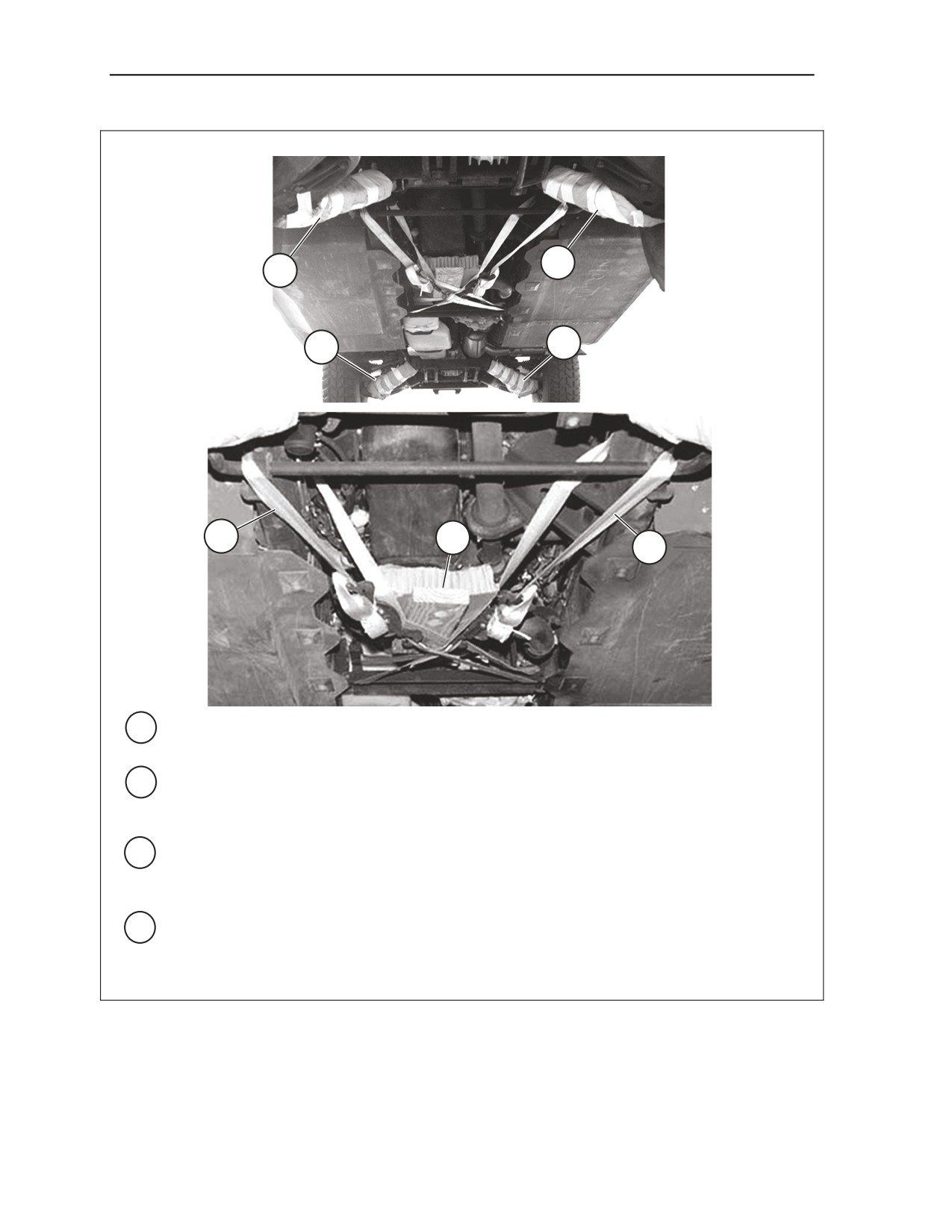

Figure 4-30. Underside of Truck Prepared
4-42
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
Notes. 1. All measurements are given in inches.
2. This drawing is not drawn to scale.
6
7
5
8
9
20
4
6
3
36 x 83
2
1
8
1
Cut a 10- by 80-inch piece of honeycomb. Tape the 10 inch side on the bottom of both ends.
Place the honeycomb flush on the front end of the hood.
2
Cut an 18- by 80-inch piece of honeycomb. Position on top of and flush with the 10- by 80
inch piece of honeycomb. Tape the top of the 18 inch sides. Tie the two pieces of honeycomb
together with a length of type III nylon cord around the 80 inch length.
3
Place two 36- by 83-inch pieces of honeycomb, with the cutouts as shown, on top of the
previously positioned honeycomb and flush with the front. Tape the 36 inch sides on the top
piece of honeycomb.
4
Secure the 36- by 83-inch pieces of honeycomb with type III nylon cord. Tie the type III nylon
cord to the left hood latch and route it over the honeycomb, through the grill, over the
honeycomb, and secure it to the right hood latch.
5
Cut two 12- by 83-inch pieces of honeycomb and position them behind the honeycomb
positioned in step 5. Tape the top outside edges. Secure the honeycomb to the left and right
vent protector.
6
Cut a 21- by 83-inch piece of honeycomb. Make a 6- by 12-inch cut out on the right front top
of the honeycomb for the breather cap and fording stack brace. Tape the outside edges and
position the honeycomb in front of the windshield.
7
Secure the honeycomb with two lengths of type III nylon cord around the honeycomb and
inside the cab.
8
Tape the hood latches with 2-inch adhesive tape.
Figure 4-31. Front of Truck Prepared
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-43
Chapter 4
1
3
3
2
1
Cut four 12- by 26- inch pieces of honeycomb. Place two LVOSS units on top of one piece of
the 12- by 26- inch honeycomb. Place the second piece of 12- by 26-inch honeycomb on top
of the LVOSS units. Tape the edges of the honeycomb. Secure with three lengths of ½-inch
tubular nylon. Repeat this step for the other two LVOSS units.
2
Preposition two 6 foot lengths of ½- inch tubular nylon webbing under each ammunition rack
on each side of the turret support from side to side.
3 Place the LVOSS units prepared on each side of the turret support frame. Secure the units to
the ammunition racks with the pre-positioned lengths of ½- inch tubular nylon.
Figure 4-32. LVOSS Units Secured
4-44
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
STOWING THE ACCOMPANYING LOAD

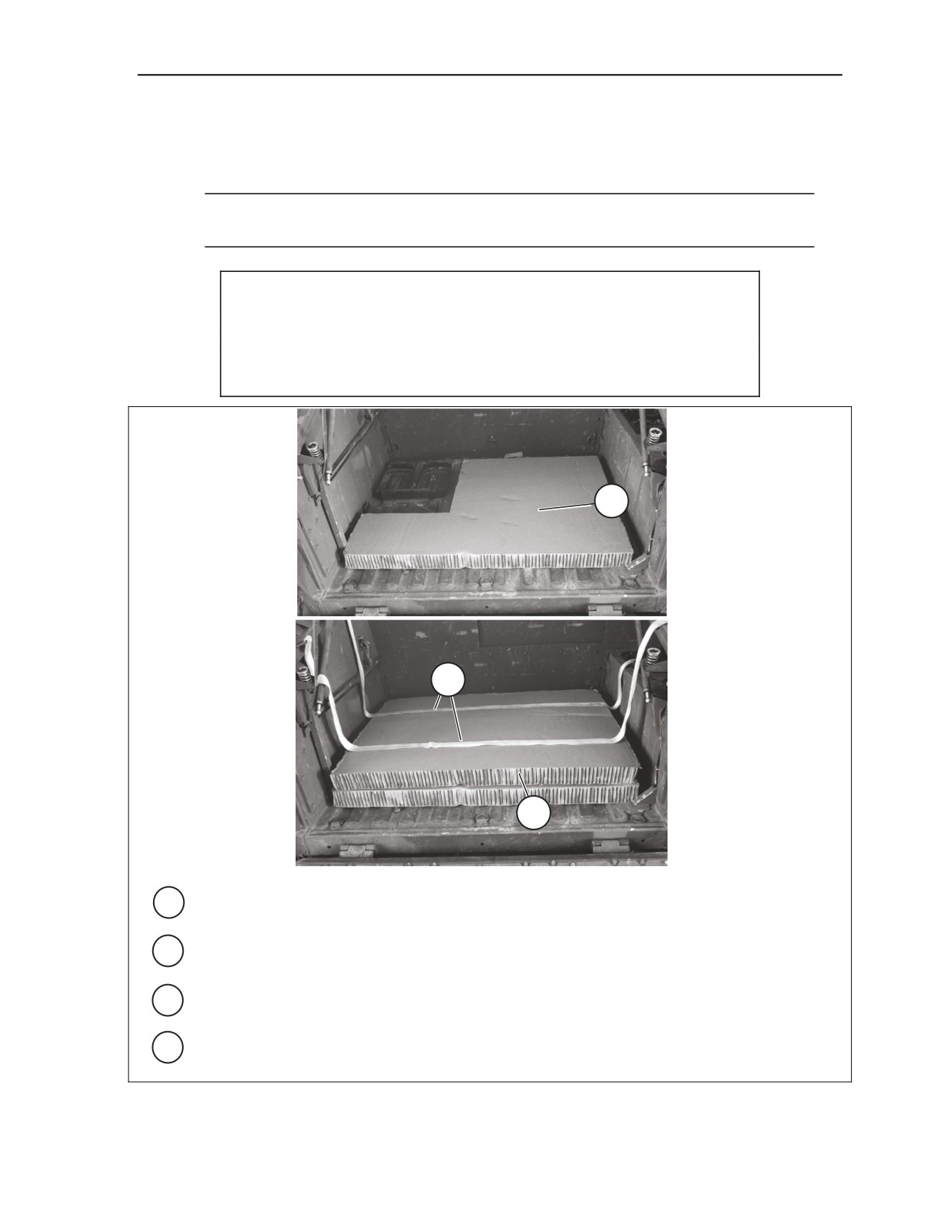

4-23. Stow the accompanying load as shown in Figure 4-33.
Note. The accompanying load may vary from the one shown. Ensure the load is properly
secured and weighs between 800 and 2,000 pounds.
CAUTION
Only ammunition listed in FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
may be airdropped. Package, label and mark hazardous material
according to AFMAN 24-204(I)/TM 38-250.
2
4
3
1
Tighten all straps in the rear cargo compartment and secure with 2-inch adhesive tape (not
shown).
2
Cut a 36- by 47-inch piece of honeycomb. Make a 16- by 22-inch cut out to accommodate the
fuel water can rack. Place it on the floor of the compartment.
3
Cut and place a 36- by 47-inch piece of honeycomb, and place it on top of the previously
positioned piece of honeycomb in step 2.
4 Preposition two 15 foot lashings on top of the honeycomb in step 3. Place the first lashing 8
inches and the second lashing 25 inches from the rear of the honeycomb.
Figure 4-33. Accompanying Load Stowed
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-45
Chapter 4
5
7
6
8
5
Position two layers of three ammunition boxes on the pre-positioned lashings. The boxes
must weigh between 500 and 600 pounds. Secure the lashings on top with D-rings and load
binders.
6
Route a 15-foot lashing through the cargo compartment left rear tie-down ring. Route the
lashing over the ammunition boxes, through the compartment right front tie-down ring and
back over the ammunition boxes. Secure the lashings with a D-ring and load binder.
7
Route a 15-foot lashing through the cargo compartment right rear tie-down ring. Route the
lashing over the ammunition boxes, through the compartment left front tie-down ring and back
over the ammunition boxes. Secure the lashings with a D-ring and load binder.
8 Close the tailgate and hatch. Secure the tailgate and hatch with doubled length of ½ inch
tubular nylon webbing.
Figure 4-33. Accompanying Load Stowed (Continued)
4-46
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
PREPARING ROOF
4-24. Prepare the roof of the M1114 as shown in Figure 4-34.
4
6
8
3
5
2
7
1
Secure all the LVOSS cables to the LVOSS brackets or to the inside of the cab with type I, ¼-
inch cotton webbing or adhesive tape. (not shown)
2
Place two 15-foot lashings over the roof. Center the lashings on the front and rear door
window openings. Place the lashings so that the D-rings and running ends will be accessible
from outside the truck.
3
Place a 36- by 81-inch piece of honeycomb on the front top of the truck. Make a cutout in the
honeycomb for the turret ring and the LVOSS brackets.
4
Place two pieces of honeycomb 12 inches long and cut to fit on each side of the turret fixture
to the rear of the honeycomb placed in step 3.
5
Cut a 12- by 81-inch piece of honeycomb and place it on the top part of the hatch.
6
Place a 36- by 81-inch piece of honeycomb behind the pieces in step 4. Make a cutout for the
turret.
7
Cut an additional piece of 8- by 81-inch honeycomb and place it under the 12- by 81-inch
piece to make it level.
8
Secure the honeycomb in steps 5, 6 and 7 together with type III nylon cord. Tape the edges
where the type III nylon cord comes into contact with the honeycomb.
Figure 4-34. Roof Prepared
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-47
Chapter 4
10
9
13
12
11
14
9
Place a second layer of 36- by 81-inch honeycomb on top of the front piece of honeycomb.
Make a cutout for the turret ring.
10
Place a second layer of 36- by 81- inch honeycomb on top of the rear piece of honeycomb
and flush against the piece of honeycomb placed in step 5. Make a cutout for the turret ring.
11
Place a 36- by 81-inch piece of honeycomb on top of the front pieces of honeycomb.
12
Place a 36- by 81-inch piece of honeycomb on top of the rear pieces of honeycomb and flush
against the piece placed in step 11.
13
Place two 36- by 81-inch pieces of honeycomb on top of the honeycomb placed in steps 11
and 12.
14
Secure the pieces of honeycomb with four lengths of type III nylon cord over the top and
inside the cab. Tape the edges of the honeycomb where the type III nylon cord contacts it.
15 Close the doors and secure them shut with the lashings provided in step 2 (not shown).
Figure 4-34. Roof Prepared (Continued)
4-48
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
LIFTING AND POSITIONING TRUCK AND INSTALLING OPTIONAL
DRIVE-OFF AIDS
4-25. Install the lifting slings as shown in Figure 3-13. Attach the optional drive-off aids to the wheels of
the truck as shown in Chapter 2 of this manual. Position the truck on the platform as shown in Figure 4-35.
LASHING TRUCK
4-26. Lash the truck to the platform as shown in Figures 4-36 through 4-39.
1
2
1
Position the truck so the front bumper has 6 ½ inches of overhang from the front edge of the
platform.
2
Ensure the center frame cross member rests squarely on the 6 inch part of honeycomb stack
2.
3 Remove the lift kit (not shown).
Figure 4-35. Truck Positioned on Platform
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-49
Chapter 4
4
2
3
2A
1
1A
2
1
Lashing
Tiedown
Instructions
Number
Clevis
Number
Pass lashing:
1
1
Through left front tie-down provision.
2
1A
Through right front tie-down provision.
3
2
Through right front tie-down provision.
4
2A
Through left front tie-down provision.
Figure 4-36. Lashings 1 Through 4 Installed
4-50
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
11
7
9
5
10
9
8
7
Lashing
Tiedown
Instructions
Number
Clevis
Number
Pass lashing:
5
7
Around right front lower control arm.
6
7A
Around left front lower control arm.
7
8
Around right front lower control arm.
8
8A
Around left front lower control arm.
9
9
Through the tiedown bracket behind the right front coil spring.
10
9A
Through the tiedown bracket behind the left front coil spring.
11
10 and 10A
Through clevis 10A and through its own D-ring. Pass the lashing
through the holes in stack 2 and attach it a D-ring and load binder to
clevis 10.
Figure 4-37. Lashings 5 Through 11 Installed
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-51
Chapter 4
12
14
18
16
16
15
14
13
Lashing
Tiedown
Instructions
Number
Clevis
Number
Pass lashing:
12
14
Through tiedown bracket in front of right rear coil spring.
13
14A
Through tiedown bracket in front of left rear coil spring.
14
13
Through tiedown bracket in front of right rear coil spring.
15
13A
Through tiedown bracket in front of left rear coil spring.
16
15
Around right rear lower control arm.
17
15A
Around left rear lower control arm.
18
16
Around right rear lower control arm.
19
16A
Around left rear lower control arm.
Figure 4-38. Lashings 12 Through 19 Installed
4-52
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
23
21
22
20A
19A
20
19
20
Lashing
Tiedown
Instructions
Number
Clevis
Number
Pass lashing:
20
19
Through left rear tiedown point.
21
19A
Through right rear tiedown point.
22
20
Through right rear tiedown point behind the coil spring.
23
20A
Through left rear tiedown point behind the coil spring.
Figure 4-39. Lashings 20 Through 23 Installed
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-53
Chapter 4
INSTALLING ATTITUDE CONTROL SYSTEM AND SUSPENSION
SLINGS
4-27. Construct and inspect the ACS according to Chapter 2. Install the ACS as shown in Figure 4-40.
Install the suspension slings as shown in Figure 4-41. Secure the ACS according to Chapter 2 and as
shown in Figure 4-42. Complete the installation of the suspension slings, pad the two-point links and
safety tie and secure the slings as shown in Figure 4-43.
CAUTION
Center the ACS assemblies widthwise on the load.
1
2
1 Center the front ACS on the roof protection honeycomb. Place the 4- by 4-inch piece of
lumber facing the rear.
2 Center the rear ACS as far forward as possible on the ledge on the roof protection
honeycomb. Place the 4- by 4-inch piece of lumber to the front.
Figure 4-40. ACS Installed
4-54
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
4
1
3
2
6
5
18
17
1 Attach a 3 ¾-inch, two-point link to an 11-foot (4-loop), type XXVI nylon sling. Pass a 3-foot (4
loop), type XXVI nylon sling through the two-point link. Repeat this procedure three times for
the other three suspension slings.
2 Attach the ends of a 3-foot sling from step 1 to clevises 5 and 6 and repeat for clevises 5A and
6A.
3 Attach the ends of a 3-foot sling from step 1 to clevises 17 and 18 and repeat for clevises 17A
and 18A.
4 Pad the 11-foot slings with felt and tape approximately 6 to 12 inches below the ACS clevis,
extending to 6 to 12 inches above the top of the ACS. Pass each suspension sling through the
closest ACS clevis.
Figure 4-41. Suspension Slings Installed
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-55
Chapter 4
3
6
2
5
1
21
12
11
4
3
1
Run a 30-foot lashing from clevis 4, through the ACS clevis from the outside to inside, rear
to front, around the 4- by 4-inch piece of lumber, and back to clevis 4. Loosely secure the
lashing. Repeat on the left side using clevis 4A.
2
Repeat step 1 using clevises 3 and 3 A
3
Run a 30-foot lashing from clevis 12, through the ACS clevis from outside to inside, front to
rear, around the 4- by 4-inch piece of lumber, and back to clevis 12. Loosely secure the
lashing and repeat on the left side using clevis 12A.
4
Make sure the ACS is centered on the load, and tighten all the lashings on the left and
right at the same time. Tighten the lashings in the following order; 4 and 4A, 3 and 3A, and
12 and 12A.
5
Run a 30-foot lashing from clevis 11, through the ACS clevis from outside to inside, rear to
front, around the 4- by 4-inch piece of lumber, and back to clevis 11. Loosely secure the
lashing and repeat on the left side using clevis 11A.
6
Run a 30-foot lashing from clevis 21, through the ACS clevis from outside to inside, front to
rear, around the 4- by 4-inch piece of lumber, and back to clevis 21. Loosely secure the
lashing and repeat on the left side using clevis 21A.
7
Make sure the ACS is centered on the load, and tighten all the lashings on the left and
right at the same time. Tighten the lashings in the following order; 11 and 11A, 21 and
21A.
Figure 4-42. ACS Secured
4-56
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
2
5
4
1
1
Safety tie the two-point links to the ACS clevises with a loop of type III nylon cord.
2
Attach a 3-foot (4-loop), type XXVI nylon sling to the free end of each 11-foot, 4-loop with a
3 ¾-inch, two-point link. Pad each link with felt and tape in place.
3
Extend the slings upward with a lifting device until they are taut.
4
Tie a length of type III nylon cord around and behind the suspension sling, and around
each ACS sling. See Figure 3-19 for a detailed view. Repeat for the remaining three
suspension slings.
5 Tie a length of type III nylon cord around the suspension sling, behind all lashings and
around the 4- by 4-inch piece of lumber of the ACS. See Figure 3-19 for a detailed view.
Repeat for all suspension slings.
Figure 4-43. Two-point Links and Suspension Slings Secured
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-57
Chapter 4
INSTALLING OUTRIGGER ASSEMBLIES
4-28. Assemble, install, and safety tie the mast and foot assemblies on the DRAS platform as shown in
Chapter 2, Figures 2-42 through 2-45, steps 1 through 3.
STOWING CARGO PARACHUTES
4-29. Prepare, stow and restrain four G-11D cargo parachutes on the hood of the truck as shown in
Chapter 2 and Figure 4-44.
1
8
4
1 Restrain the parachutes with type VIII nylon webbing to bushings 4, and 4A and 8 and 8A.
Figure 4-44. Cargo Parachutes Installed and Restrained
4-58
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
STOWING DEPLOYMENT PARACHUTE
4-30. Prepare, stow and install the deployment parachute according to Chapter 2, Figures 2-30 and 4-45.
Figure 4-45. Deployment Parachute Installed
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-59
Chapter 4
INSTALLING M-1 PARACHUTE RELEASE SYSTEM
4-31. Prepare and install the M-1 parachute release system according to Chapter 2 and Figure 4-46.
5
6
2
2
4
1
4
6
1
Cut and position a 20- by 20-inch piece of honeycomb. Center the honeycomb along the
rear ACS. Tape the outside edges of the honeycomb.
2
Remove the cotton buffers from the free ends of the suspension slings. Attach them to the
release as shown.
3
Secure the front suspension slings together above the 3 ¾-inch, two-point links with one
turn of ¼-inch cotton webbing (not shown).
4
S-fold the slack in the rear suspension slings and tie them around the two-point links with
¼-inch cotton webbing.
5
Attach the riser extensions. Tie them in three places with type I, ¼-inch cotton webbing.
6
Secure the release to a convenient place on the load with type III nylon cord.
7 Attach the arming wire and lanyard to a carrying handle on the parachute with three
alternating half hitches with a knot in the running end.
Figure 4-46. M-1 Cargo Parachute Release Installed
4-60
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
INSTALLING MAST RELEASE KNIVES
4-32. Install the mast release knives as shown in Chapter 2 Figure 2-45 steps 4 through 10 and as shown in
Figure 4-47.
1
2
1 The length of the left and right ½-inch tubular nylon webbing from the base of the guillotine
knives to the lower suspension links of the M-1 release is 78 inches (shown in steps 5
through 7 of Figure 2-45).
2 Tie a length of type III nylon cord through the left tailgate sling guide and to the body of the
right top guillotine knife that measures 69-inches from the tailgate sling guide to the base
of the guillotine knife. Repeat for right tailgate sling guide and left lower guillotine knife
(shown in steps 9 and 10 of Figure 2-45).
Note. All measurements are from knot to knot.
Figure 4-47. Mast Release Knives Installed
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-61
Chapter 4
MARKING RIGGED LOAD
4-33. Mark the rigged load according to Chapter 2, Section IX and as shown in Figure 4-48. If the load
varies from the one shown, the weight, height, CB, and parachute requirements must be recomputed.
EQUIPMENT REQUIRED
4-34. The equipment required to rig this load is listed in Table 4-2.
CAUTION
Make the final rigger inspection required by Chapter 2, Section IX
before the load leaves the rigging site.
RIGGED LOAD DATA
Weight: Load shown
14,400 pounds
Maximum load allowed
14,500 pounds
Height (with four G-11D parachutes)
106 inches
Width
94 inches
Overall Length
222 ½ inches
Overhang: Front (brush guard)
6 ½ inches
Rear
0 inches
Center of Balance (from front edge of platform):
94 inches
Figure 4-48. M1114 Up-Armored HMMWV Rigged on DRAS Platform
4-62
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
|
|
