Rigging M998/M1038/M1097 Cargo/Troop Carrier HMMWV on Dual Row Airdrop System Platform
STOWING ACCOMPANYING LOAD

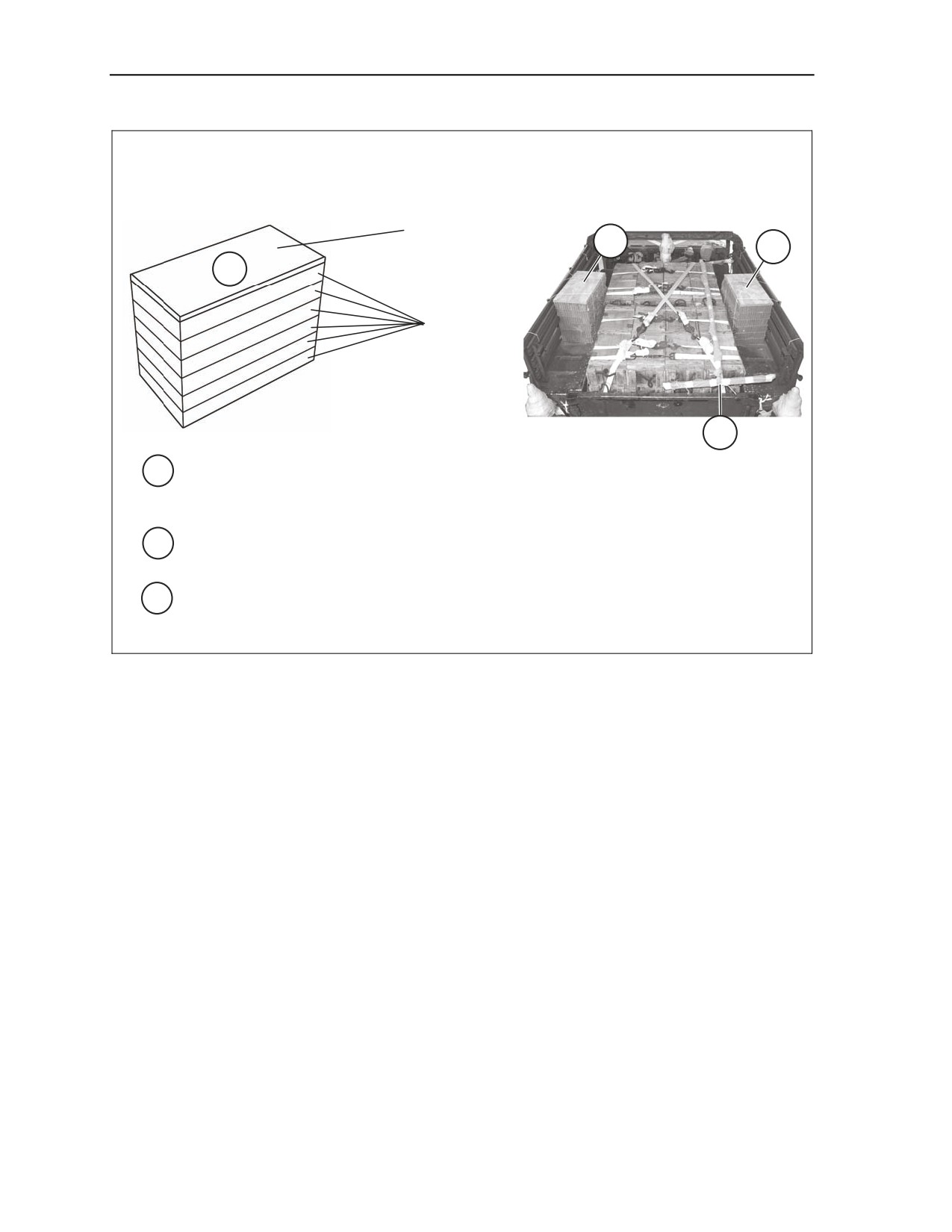

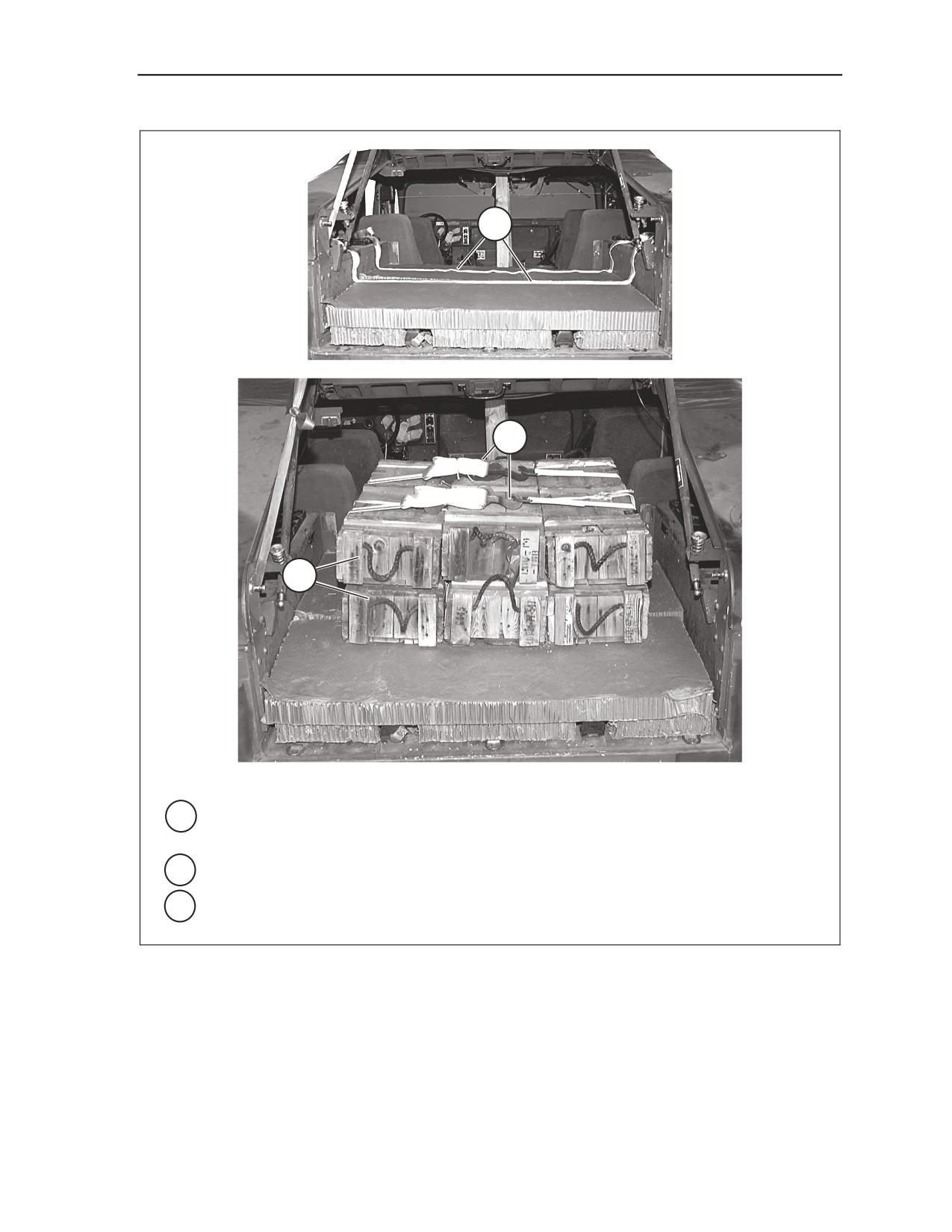

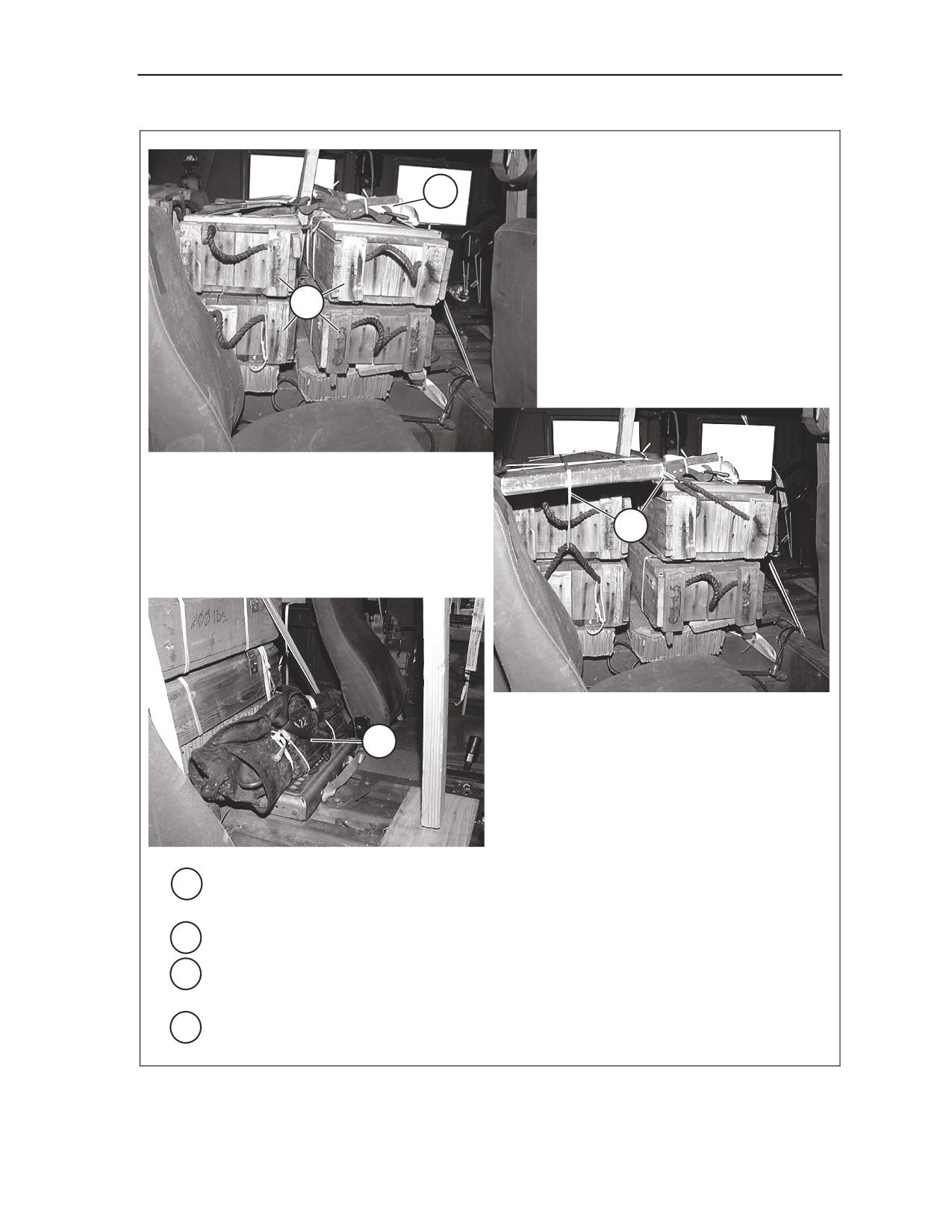

3-22. Use the procedures shown in Figure 3-29 to stow ammunition boxes and truck equipment.
Note. The accompanying load may vary from the one shown. Ensure the load is properly
secured and weighs between 800 and 2,000 pounds.
2
1
5
6
4
3
1

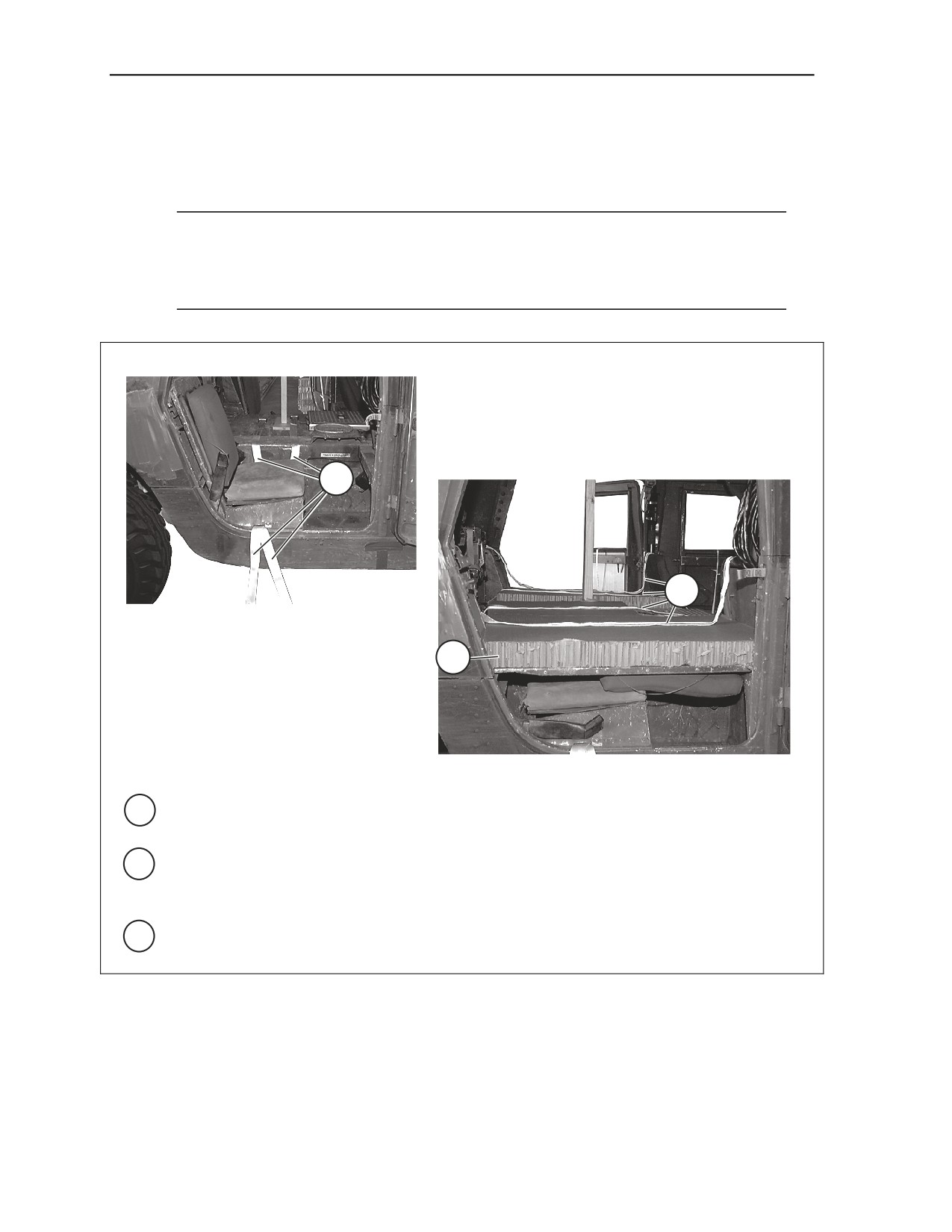

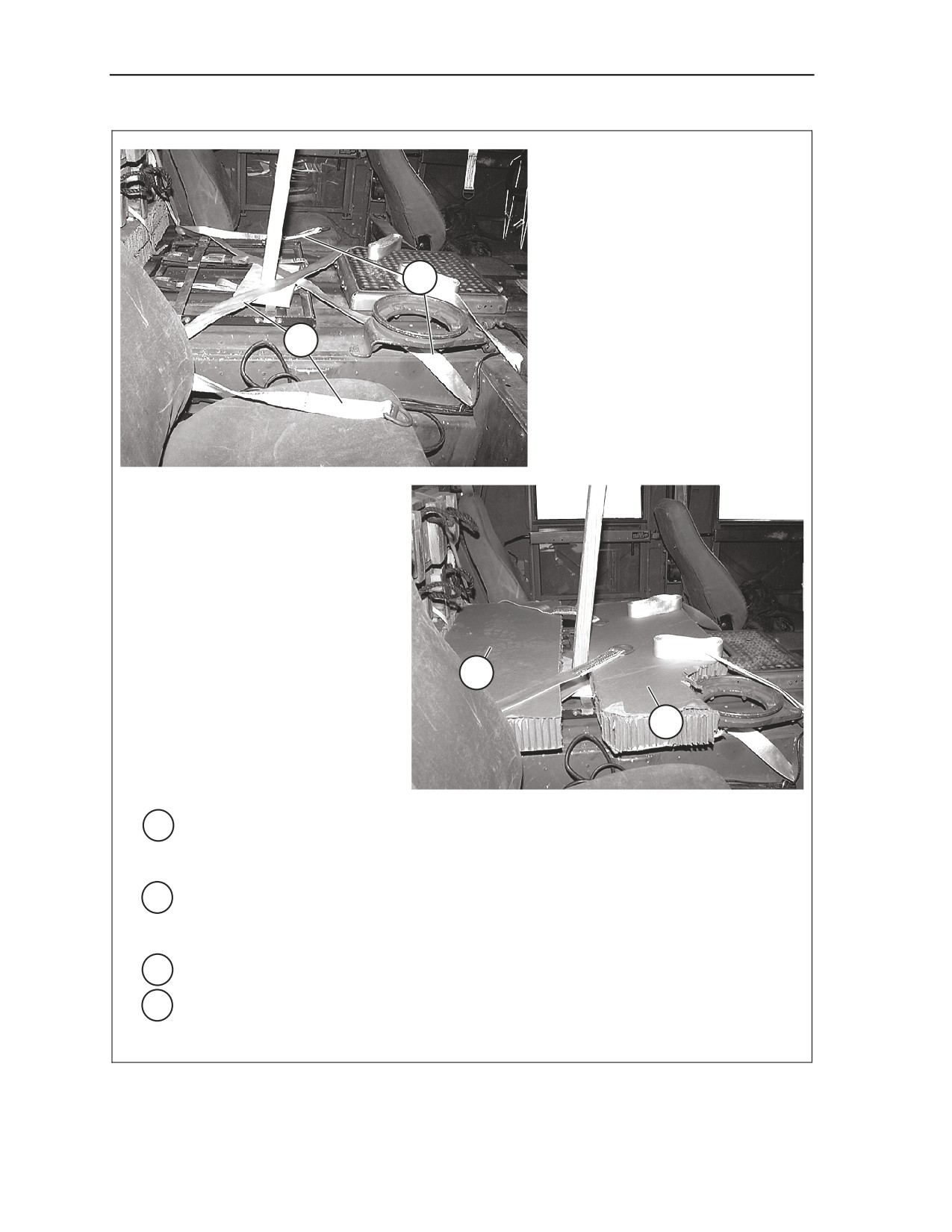

Secure the seats in the up position and secure to the sides with lengths of type III nylon
cord.
2

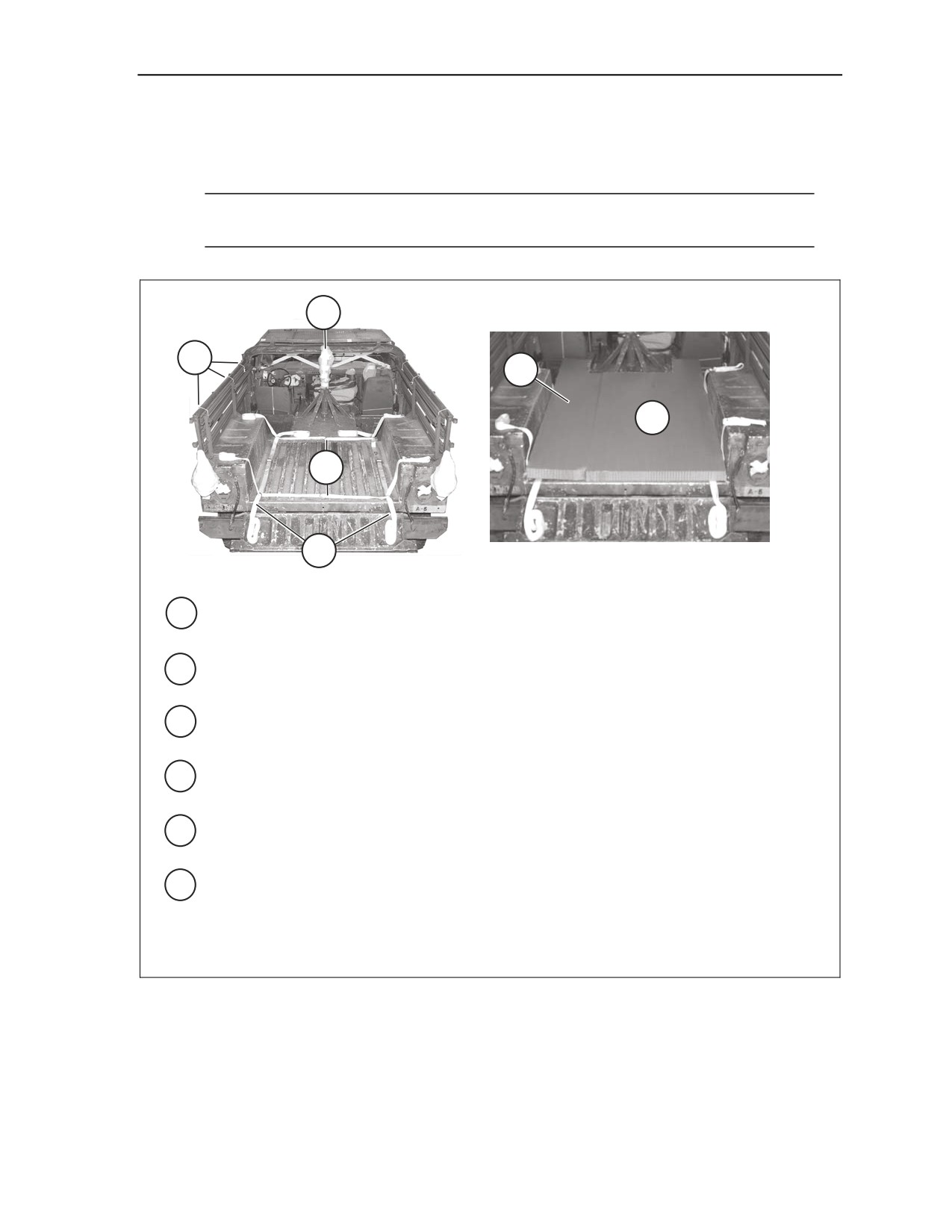

Pad the weapon support in the bed of the truck with cellulose wadding and tape with 2-inch
cloth-backed tape.
3

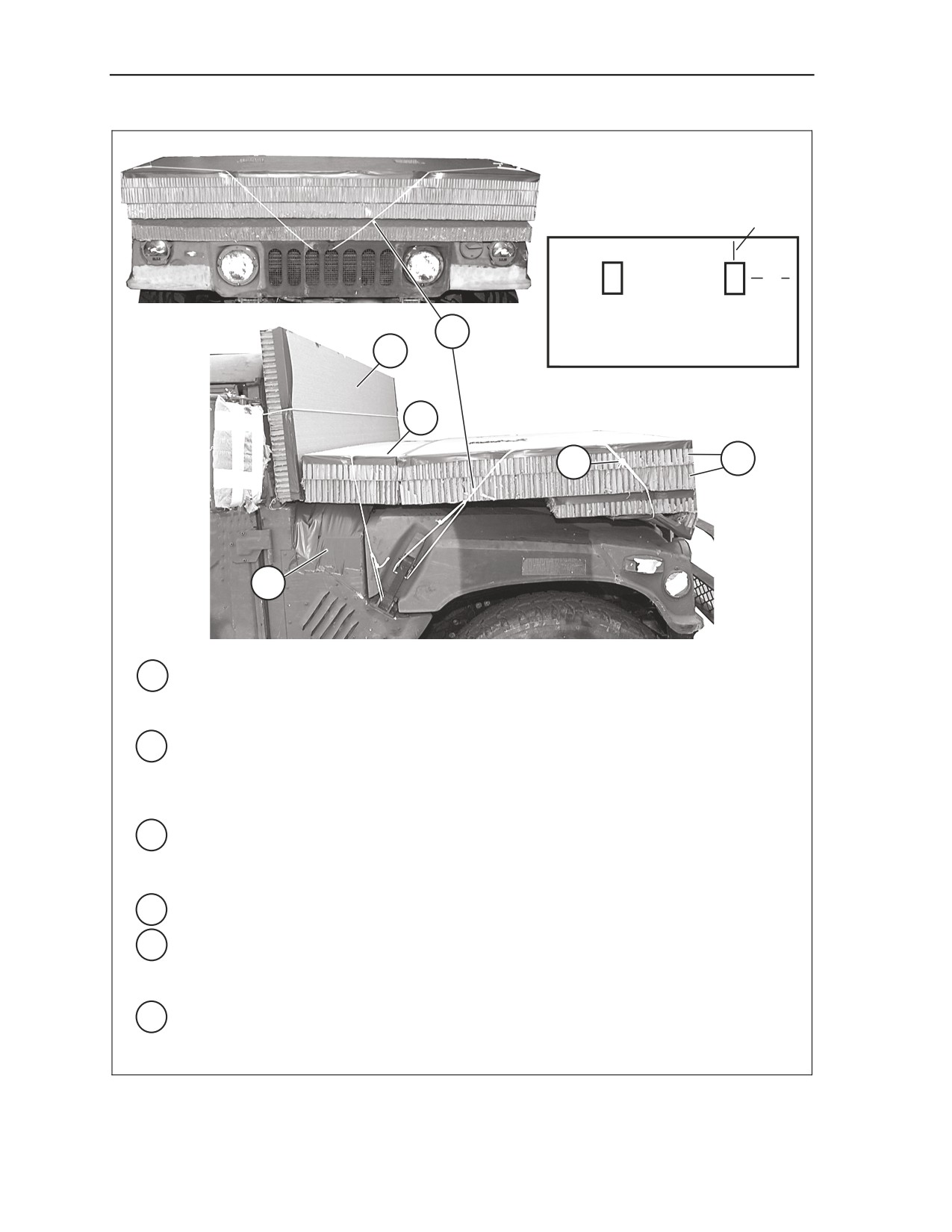

Pre-position two 30-foot lashings lengthwise across the cargo bed, passing them through
the left and right tie-down rings in the cargo floor.
4
Pre-position two 15-foot lashings widthwise across the cargo bed, passing them through
the front and rear tie-down rings in the cargo floor.
5

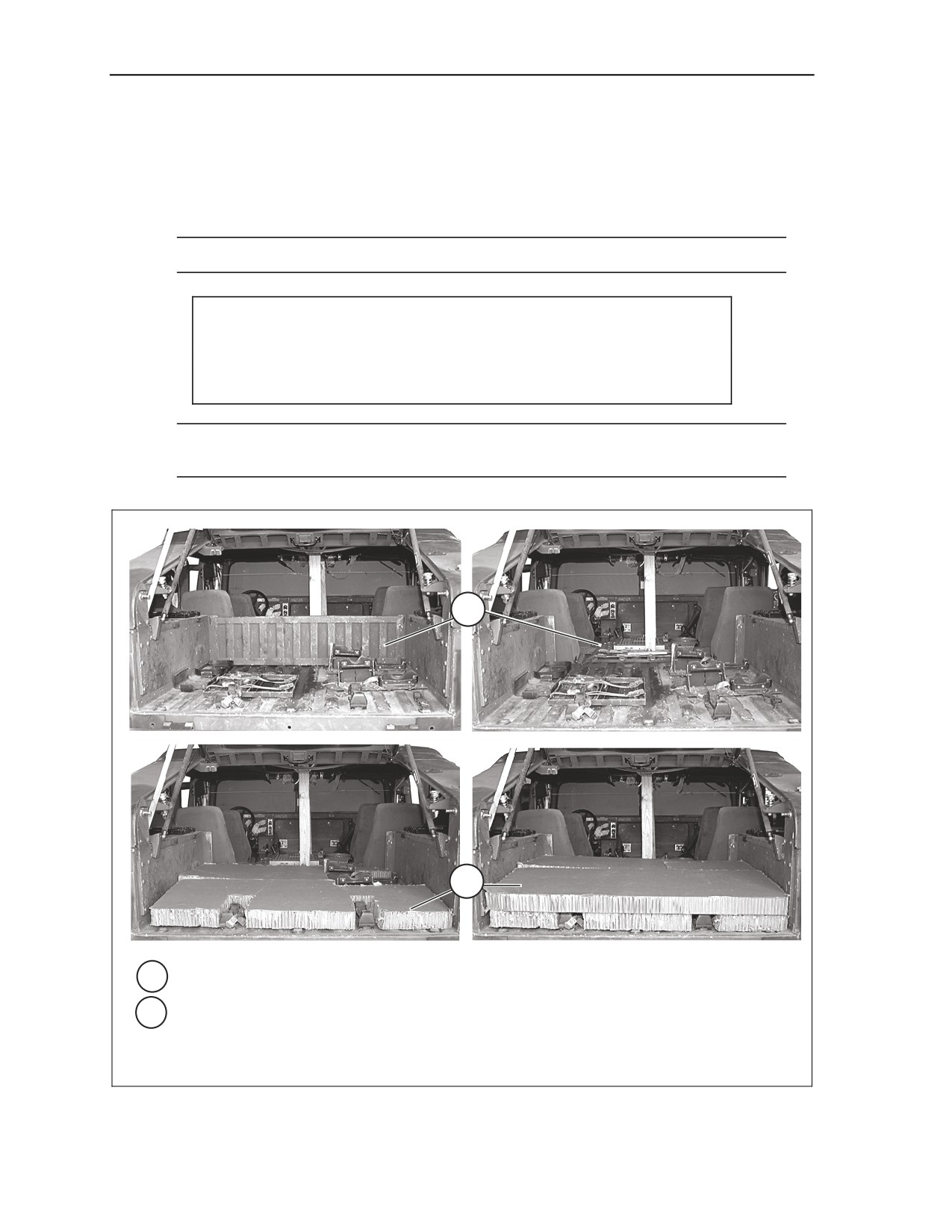

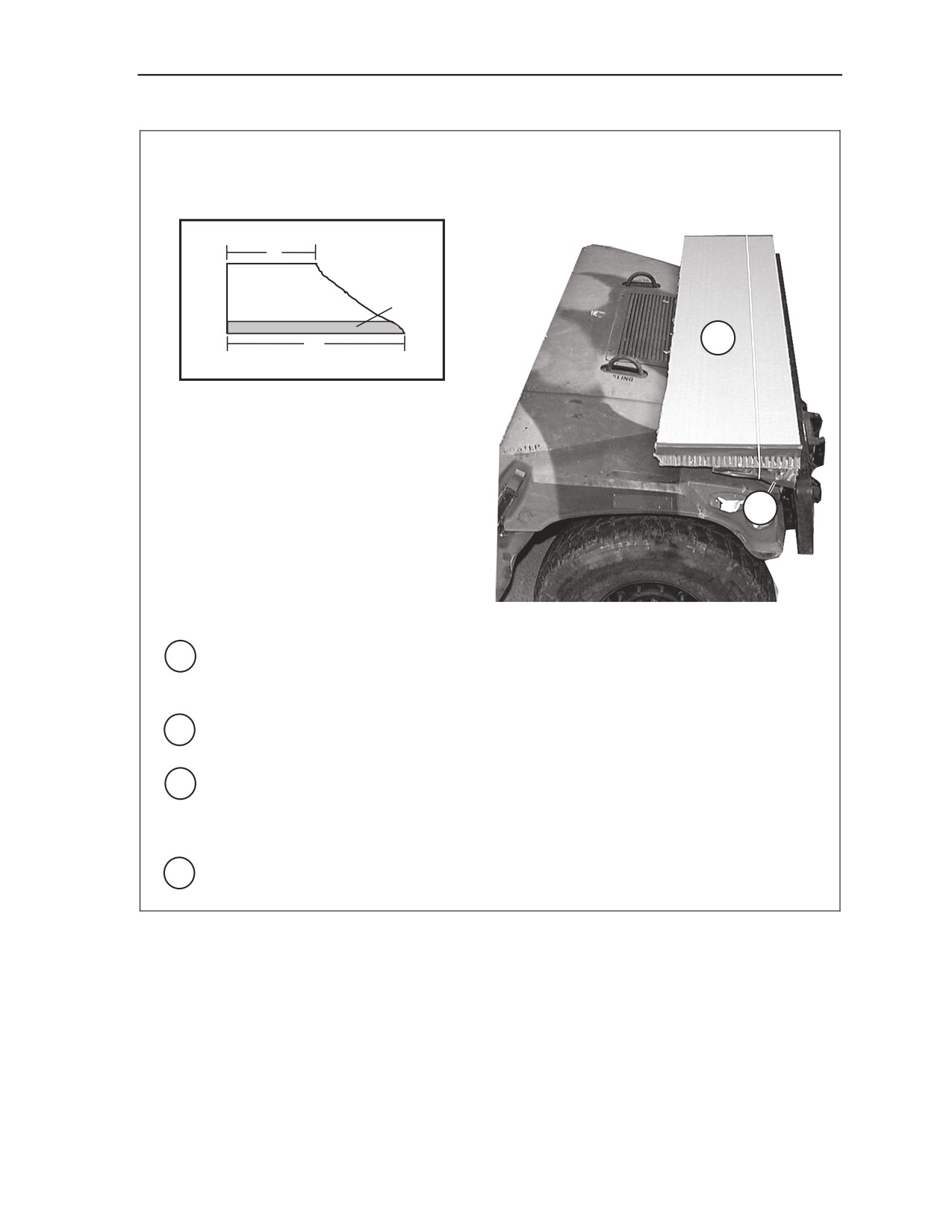

Cut a 15 ½- by 80-inch piece of honeycomb. On one end of the 15 ½- by 80-inch piece,
make a cutout 14-inches down the 80-inch edge and 5 ½-inches on the 15 ½-inch side.
6 Cut a 36- by 80-inch piece of honeycomb. On one end of the 36-by 80-inch piece, make a
14-inch cutout cut on the 80-inch edge and a 25-inch cut out on the 36-inch edge. These
cutouts will fit around the support brace. Place honeycomb on top of the pre-positioned
lashings in the cargo bed.
Figure 3-29. Ammunition and Truck Equipment Stowed
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
3-45
Chapter 3
9
10
8
7
7

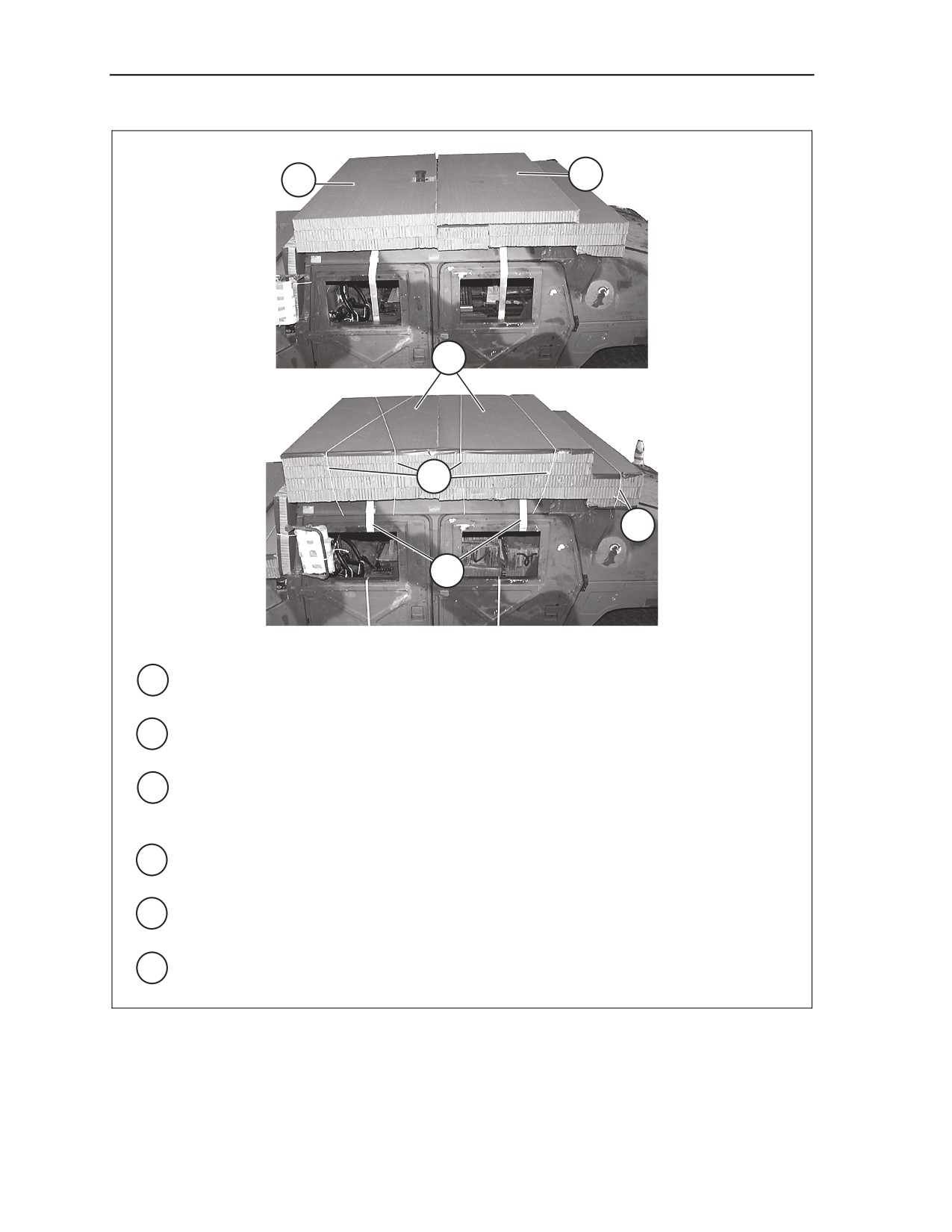

Cut a 15 ½- by 80-inch piece of honeycomb. On one end of the 15 ½- by 80-inch piece,
make a cutout 12 inches down the 80-inch edge and 3 ½ inches on the 15 ½-inch side.
8
Cut a 36- by 80-inch piece of honeycomb. On one end of the 36-by 80-inch piece, make a
12-inch cutout on the 80-inch edge and a 23-inch cutout on the 36 inch edge. These
cutouts will fit around the support brace. Place on top of the honeycomb previously
positioned.
9
Cut a 15 ½- by 80-inch and a 36- by 80-inch piece of honeycomb. On one end of the 36-
by 80-inch piece, make a 12-inch cutout on the 80-inch edge and a 19-inch cutout on the
36-inch edge. These cutouts will fit around the support brace. Place on top of the
honeycomb previously positioned.
10 Position four 15-foot lashings evenly spaced across the honeycomb widthwise.
Figure 3-29. Ammunition and Truck Equipment Stowed (Continued)
3-46
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M998/M1038/M1097 Cargo/Troop Carrier HMMWV on Dual Row Airdrop System Platform
16
14
15
13
15
11
17
17

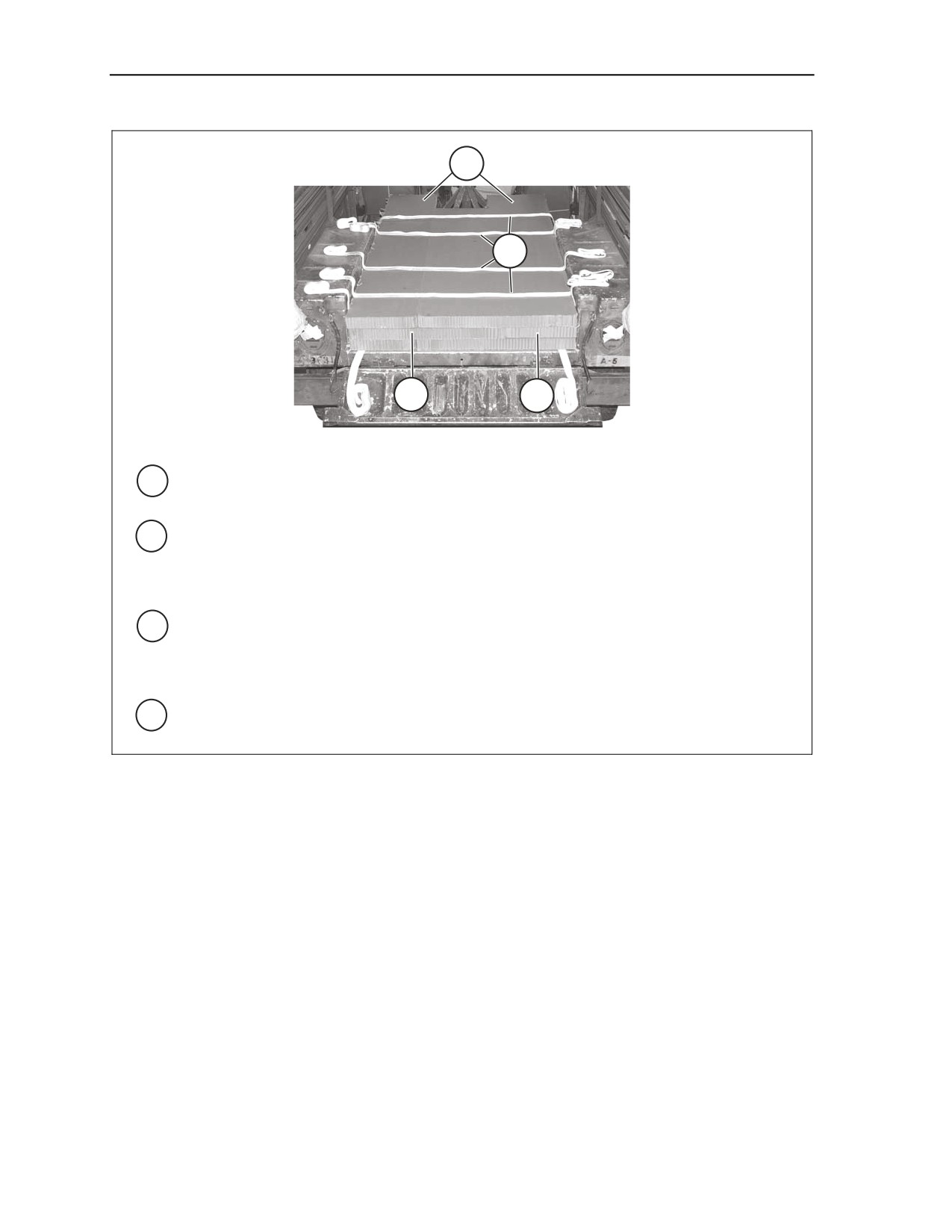

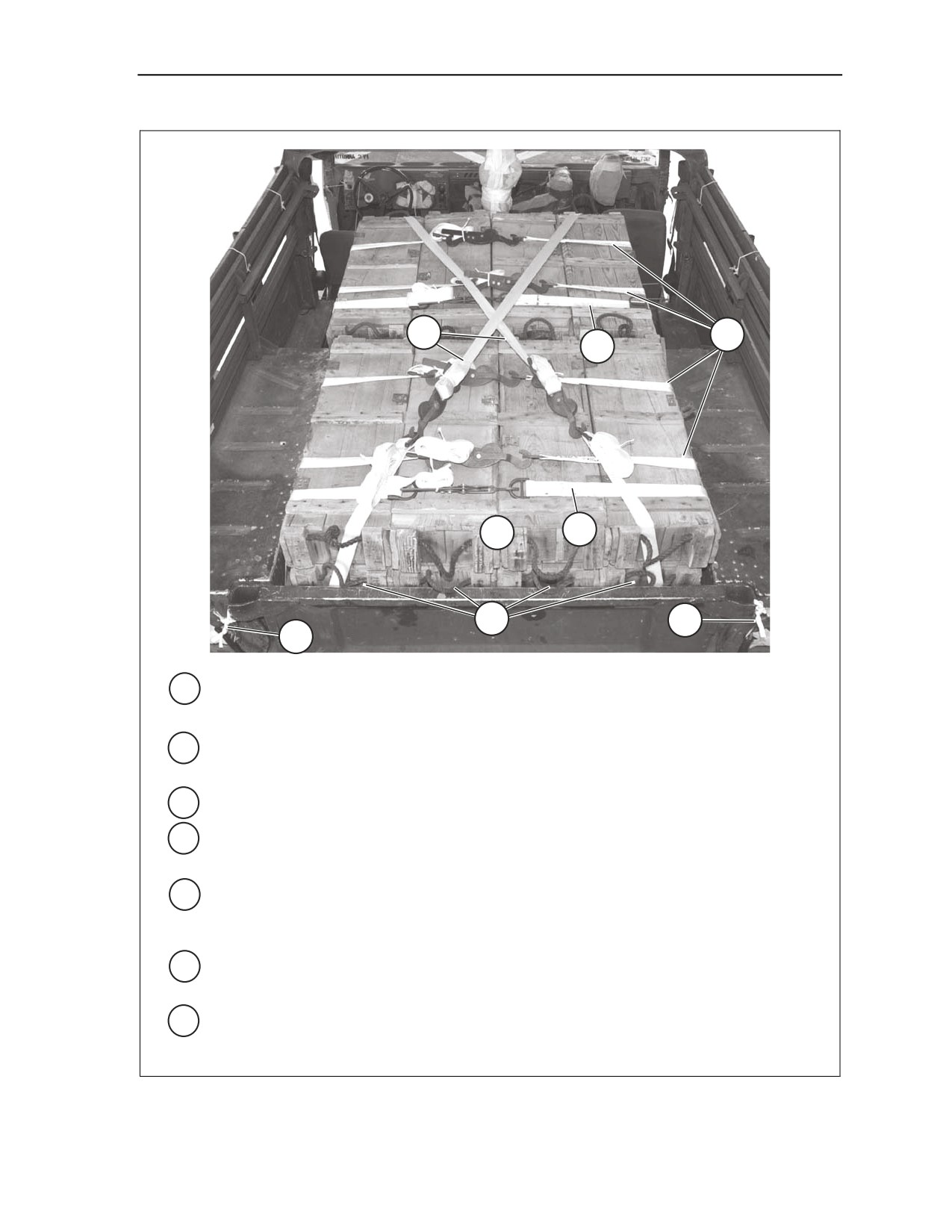

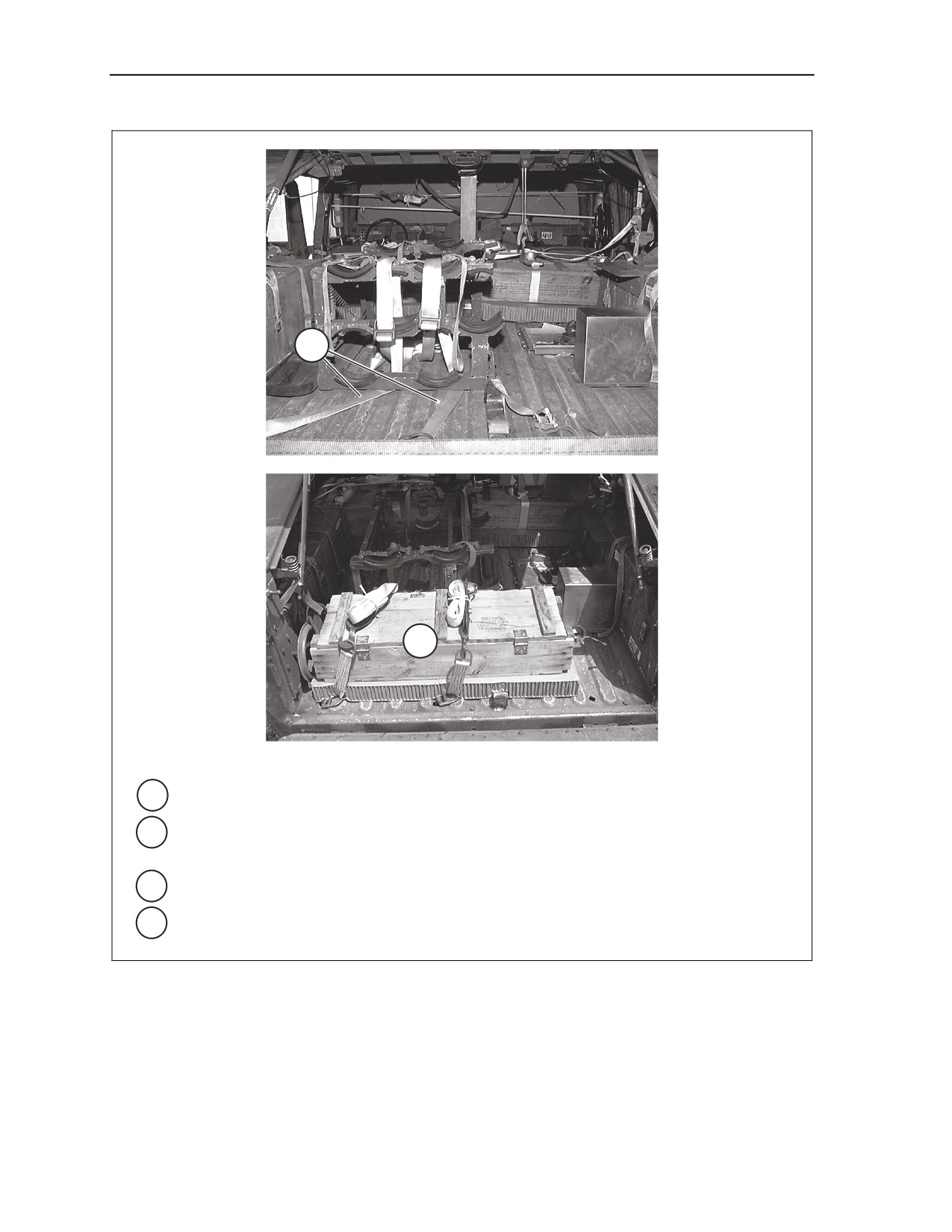

11 Position four ammunition boxes across and flush with the rear edge of the honeycomb.
Note. Lift the tailgate to ensure it closes completely. Do not close permanently.
12 Position four ammunition boxes in front of the previously positioned ammunition boxes on
top of the honeycomb (not shown).
13 Position eight ammunition boxes on top of the previously positioned ammunition boxes.

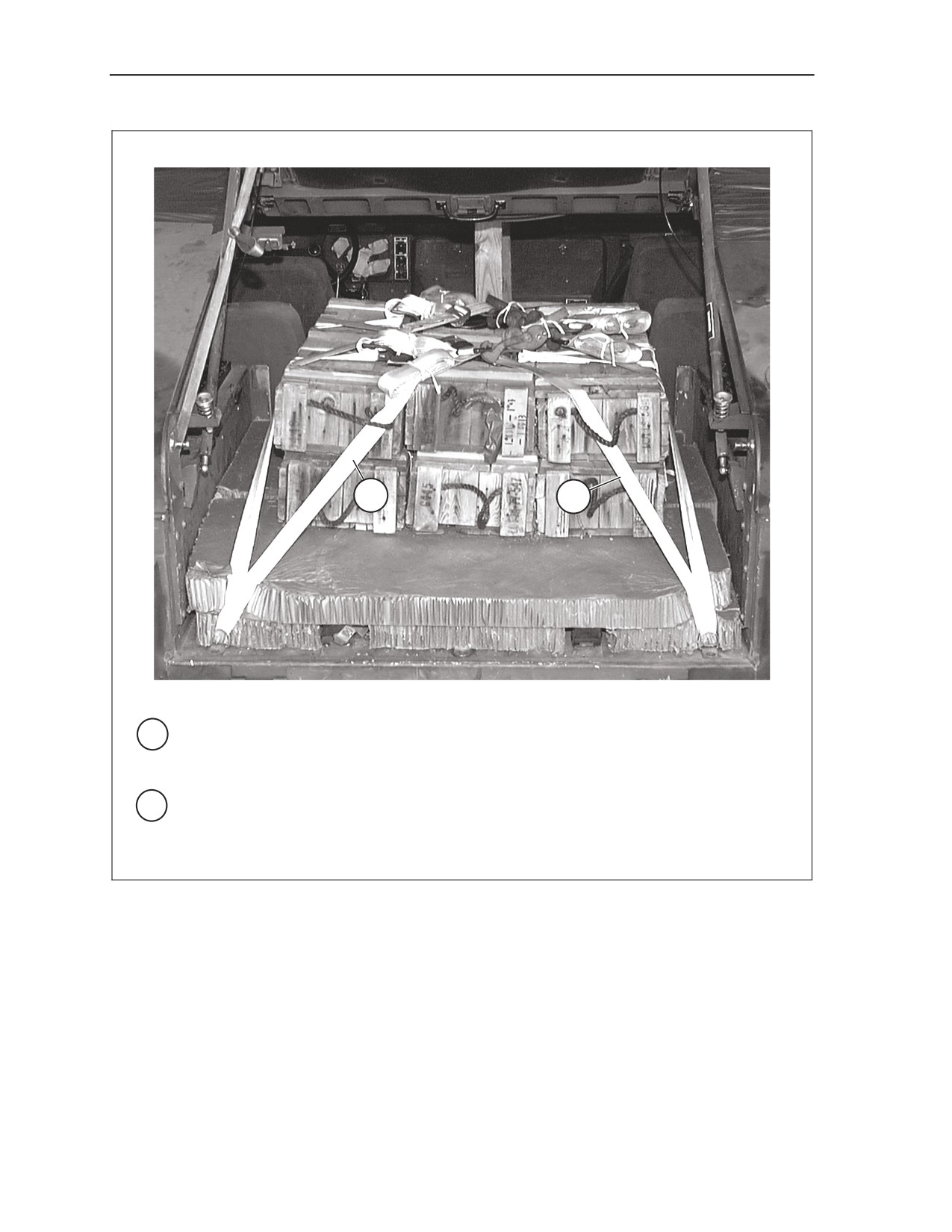

14 Secure the four pre-positioned lashings on top of the honeycomb around all the
ammunition boxes. Secure the load binders on top of the ammunition boxes.
15 Secure the two pre-positioned lashings that are routed through the cargo bed tie-down
rings around the ammunition boxes. Secure the load binders on top of the ammunition
boxes.

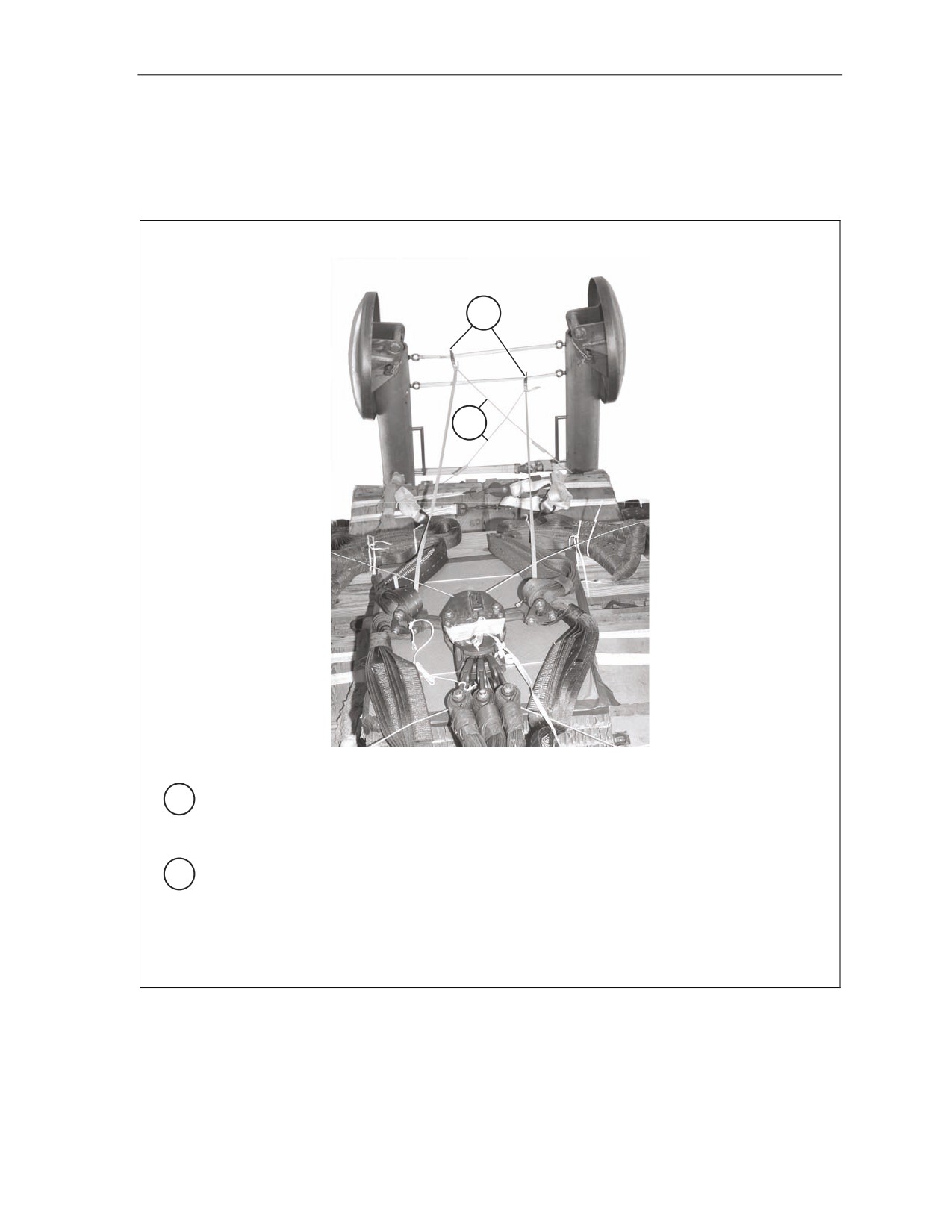

16 Join the pre-positioned left front and right rear and the right front and left rear 30-foot
lashings to form an X. The load binders will be secured on top of the ammunition boxes.
17 Close the tailgate and secure the tailgate with two ½-inch tubular nylon webbing ties on
each side.
Figure 3-29. Ammunition and Truck Equipment Stowed (Continued)
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
3-47
Chapter 3
Notes. 1. All measurements are given in inches.
2. This drawing is not drawn to scale.
PLYWOOD
¾ X 12 X 24
19
19
18
HONEYCOMB
(12 X 24)
20
18 Cut twelve 12-inch by 24-inch pieces of honeycomb. Form two rear ACS support stacks by
gluing six layers of 12-inch by 24-inch honeycomb. Cut two 12-inch by 24-inch by ¾-inch
pieces of plywood and glue one piece on top of each stack as shown above.
19 Position the rear ACS support stacks on the front edge of the rear wheel wells. Secure the
support stacks with two lengths of type III nylon cord to a convenient point on the load.
20 Position the cab bar on top of the ammunition boxes and secure the bar to a convenient
point on the load. Ensure the bar can not move or shift.
Figure 3-29. Ammunition and Truck Equipment Stowed (Continued)
3-48
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M998/M1038/M1097 Cargo/Troop Carrier HMMWV on Dual Row Airdrop System Platform

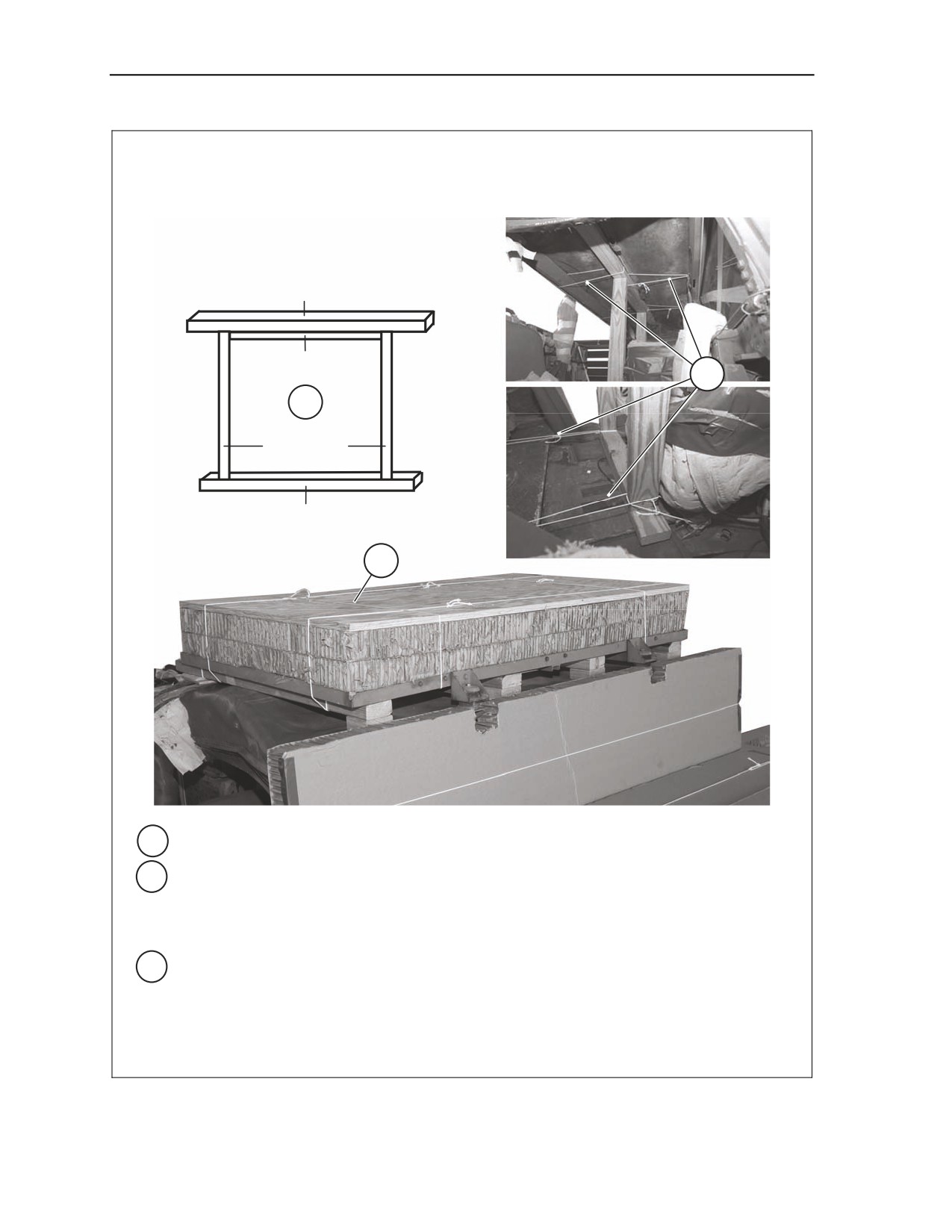

BUILDING THE CAB SUPPORT
3-23. Build the cab support as shown in Figure 3-30.
3
1
2
3
2
1

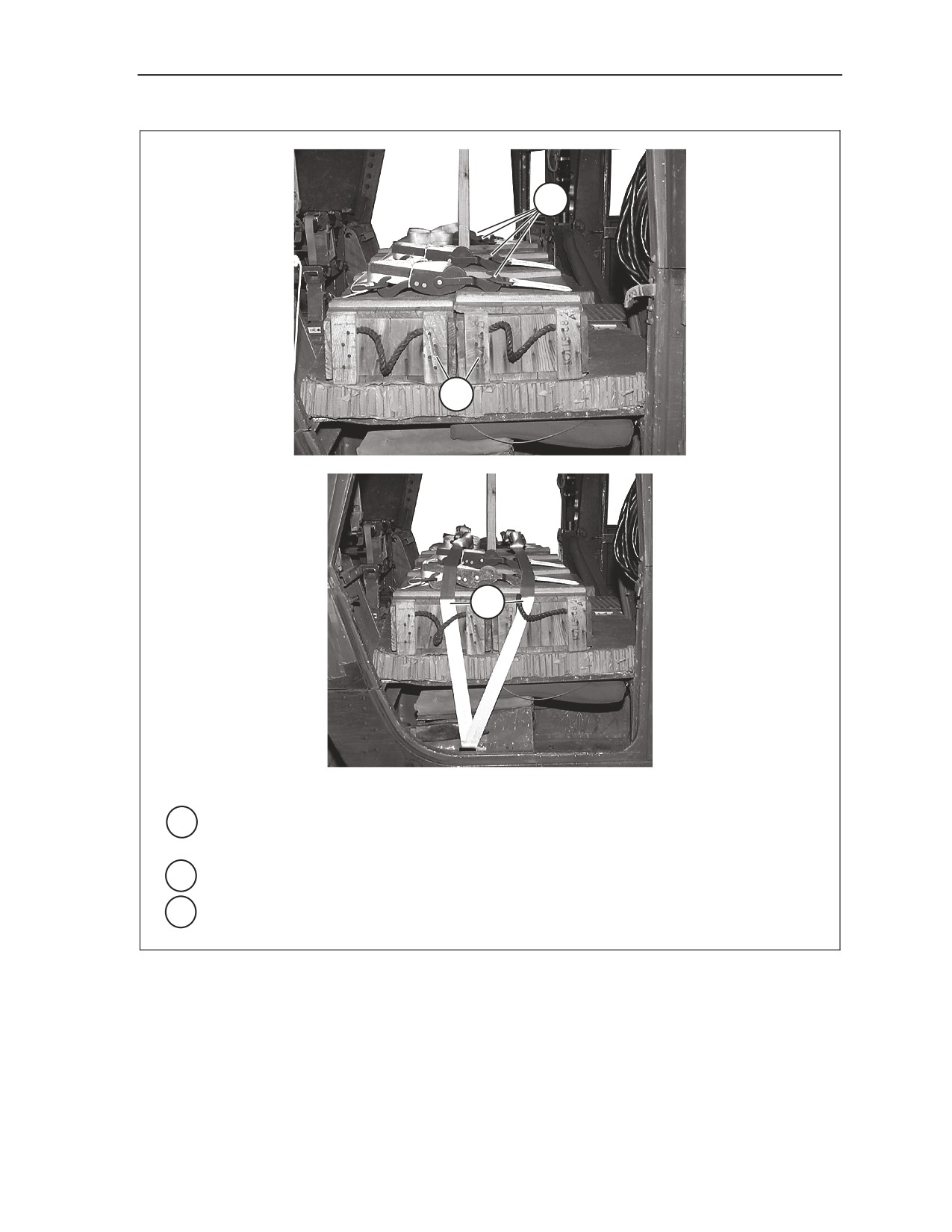

Cut four 2- by 4- by 39 ½-inch pieces of lumber and four 2- by 4- by 3-inch pieces of
lumber. Nail the 2- by 4- by 3- inch pieces of lumber to one end of each 2- by 4- by
39 ½-inch pieces of lumber. Position the four pieces of lumber under the ammunition
rack.
2
Small pieces of ¼-inch plywood may be needed as a shimmy to make the 39 ½-inch
pieces fit tight between the cab frame and the rack.
3 Secure each end of the lumber pieces to the ammunition rack with type III nylon cord.
Figure 3-30. Cab Support Built
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
3-49
Chapter 3
Notes. 1. Drawing not to scale.
2. All dimensions are given in inches.
3. Use 8d nails.
2 x 4 x 68
2 x 4 x 21
5
4
2 x 4 x 33 ½
2 x 4 x 32
6
4 Build the cab support as shown above. Nail the lumber together with 8d nails.
5 Center the support under the ammunition rack running widthwise across. Secure the
supports in place with several lengths of type III nylon cord to the front and rear cab frame
supports. Secure the bottom of the support with lengths of type III nylon cord pulling in
opposite directions to convenient points.
6 Cut two pieces of 64- by 35-inch honeycomb and one 64- by 35- by ¾-inch piece of
plywood. Position the honeycomb inside the ammunition rack and the plywood on top.
Secure the pieces in place with four lengths of type III nylon cord. Place two pieces of type
III nylon cord running front to rear and two side to side under the ammunition rack and
support pieces.
Figure 3-30. Cab Support Built (Continued)
3-50
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M998/M1038/M1097 Cargo/Troop Carrier HMMWV on Dual Row Airdrop System Platform

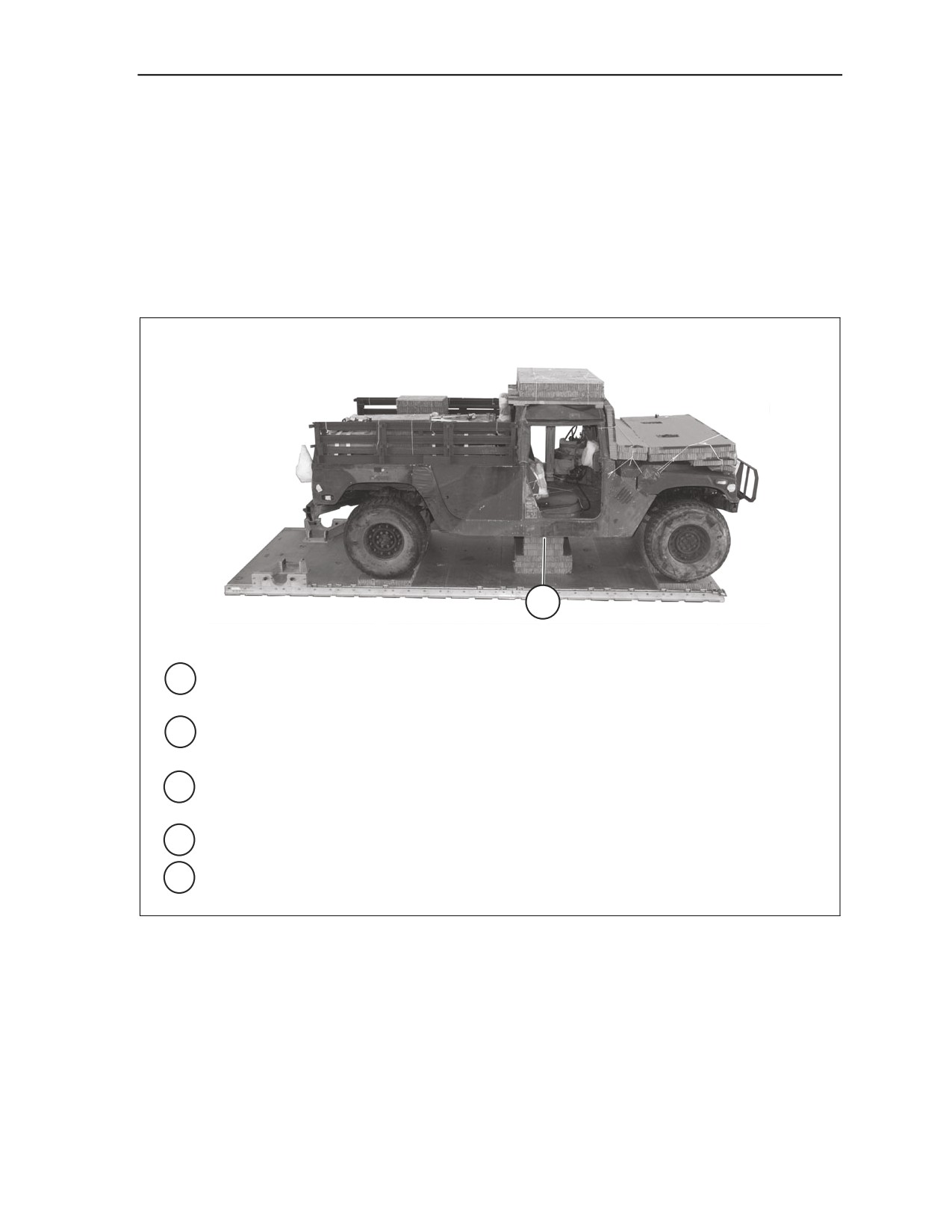

LIFTING AND POSITIONING TRUCK AND INSTALLING OPTIONAL
DRIVE-OFF AIDS

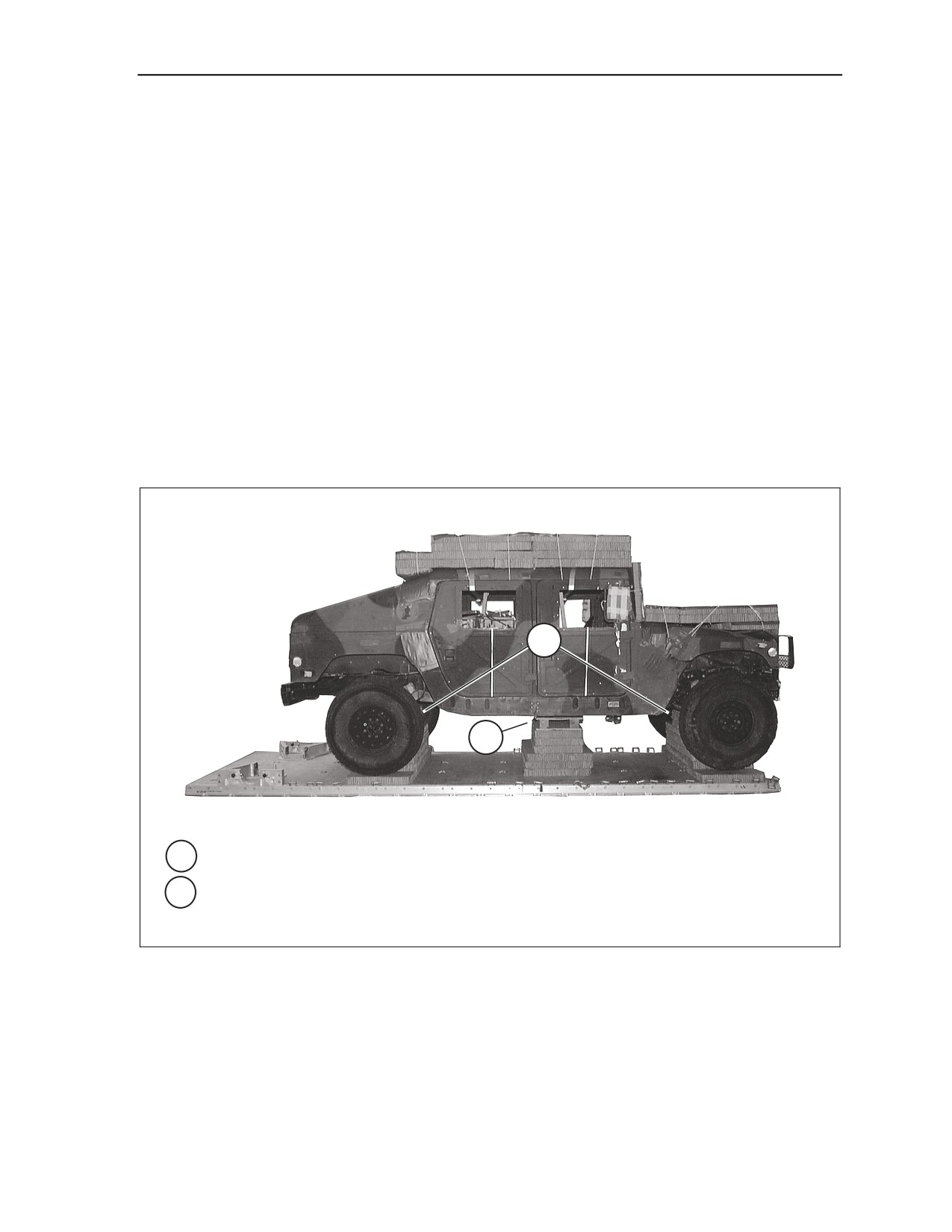

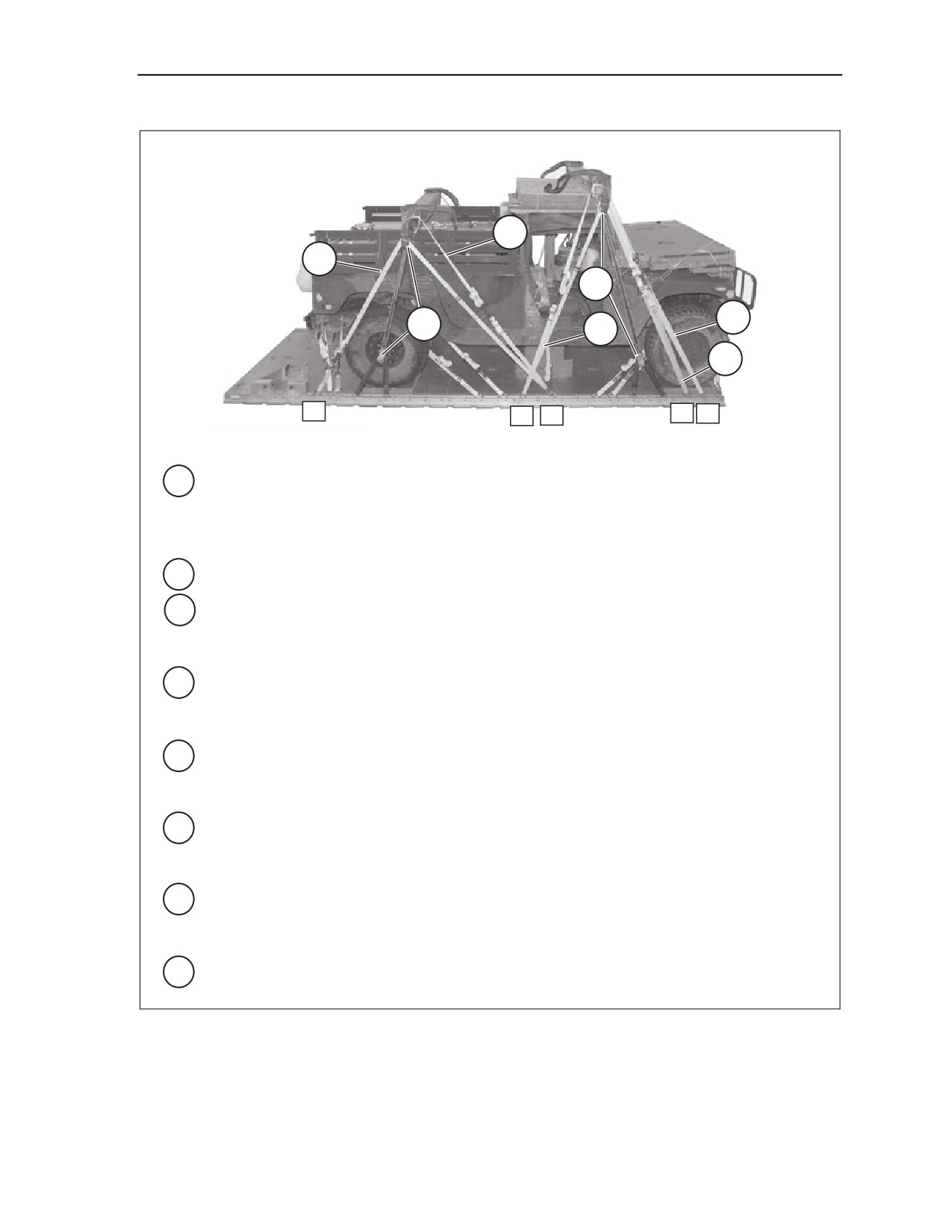

3-24. Install the lifting slings and position the truck on the honeycomb stacks as shown in Figure 3-31.
Attach the optional drive-off aids to the wheels of the truck as shown in Chapter 2.
LASHING TRUCK
3-25. Lash the truck to the platform as shown in Figures 3-32 through 3-35.
3
1
Attach a 9-foot, (2-loop) type XXVI nylon sling to each airlift bracket on the hood with a
medium clevis (not shown).
2
Attach a 12-foot, (2-loop) type XXVI nylon sling to each rear-lifting shackle with a medium
clevis. Route the slings through the sling guides on each side of the tailgate (not shown).
3
Position the truck with the front cross member on the front edge of stack 1. Ensure the
center frame cross member rests squarely on the 6-inch part of honeycomb stack 2.
4
Install optional drive off aides (not shown).
5 Remove the lift kit (not shown).
Figure 3-31. M1097 Positioned on Platform
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
3-51
Chapter 3
4
3
1
2A
2
2
1
1A
Lashing
Tiedown
Instructions
Number
Clevis
Number

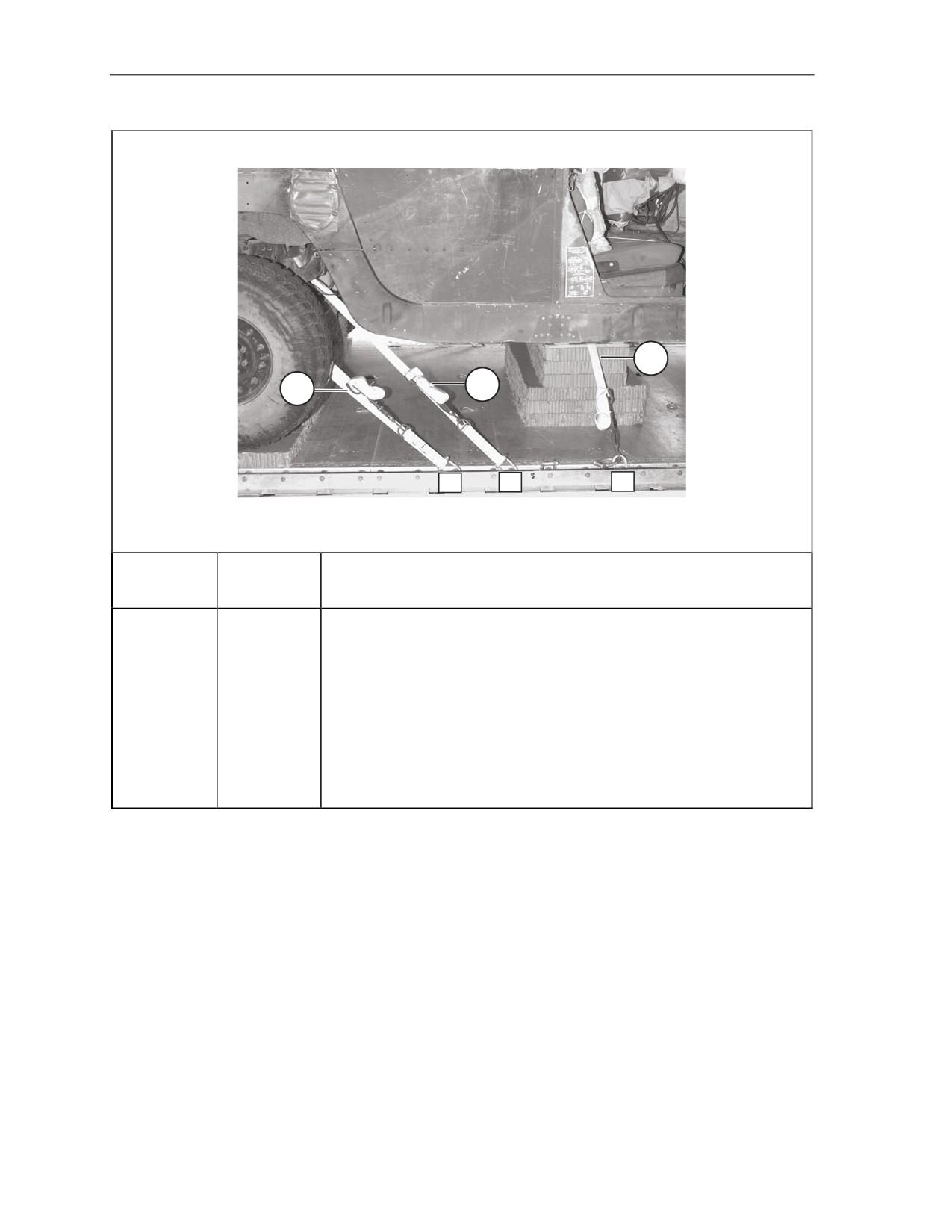

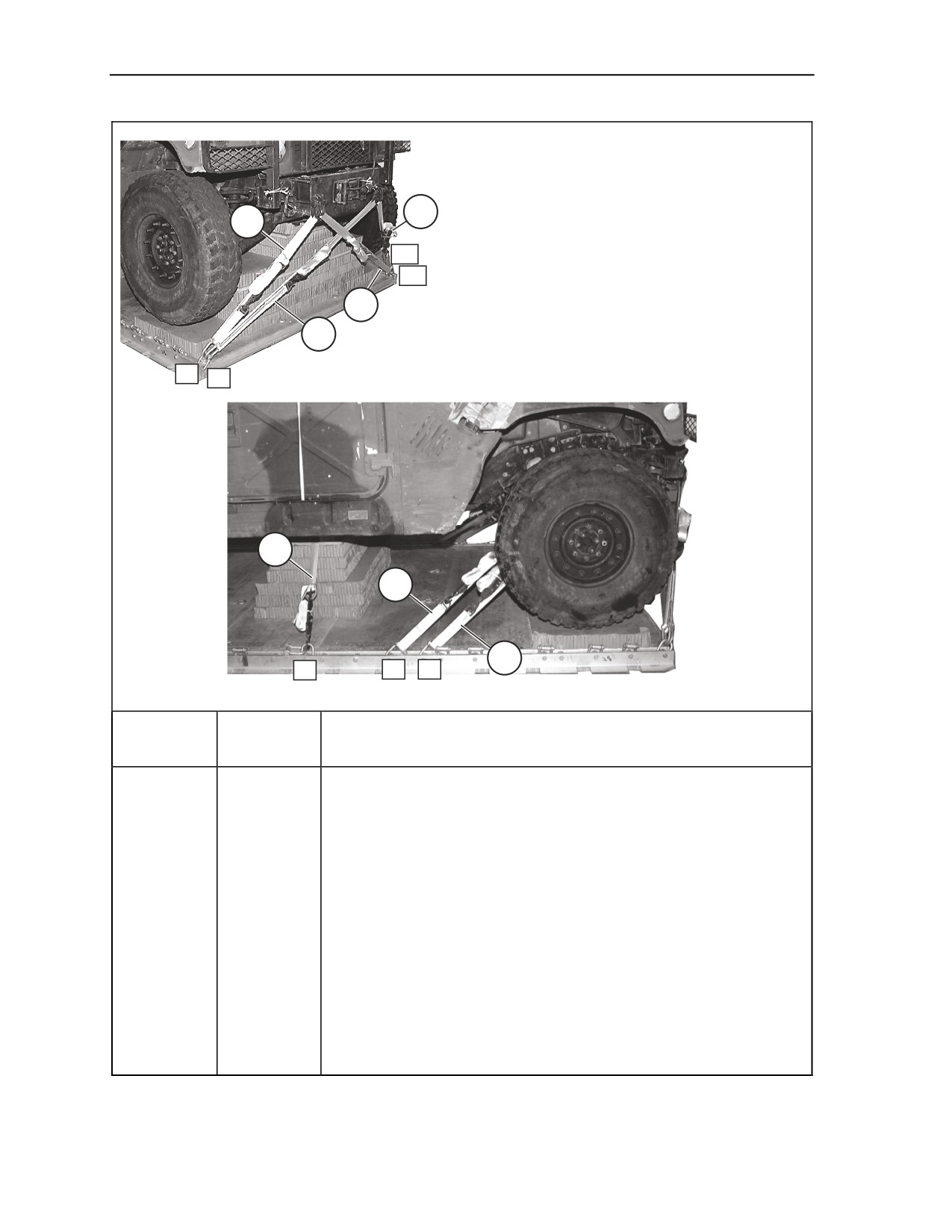

Pass lashing:
1
1
Through left front tiedown point.
2
1A
Through right front tiedown point.
3
2
Through right front tiedown point.
4

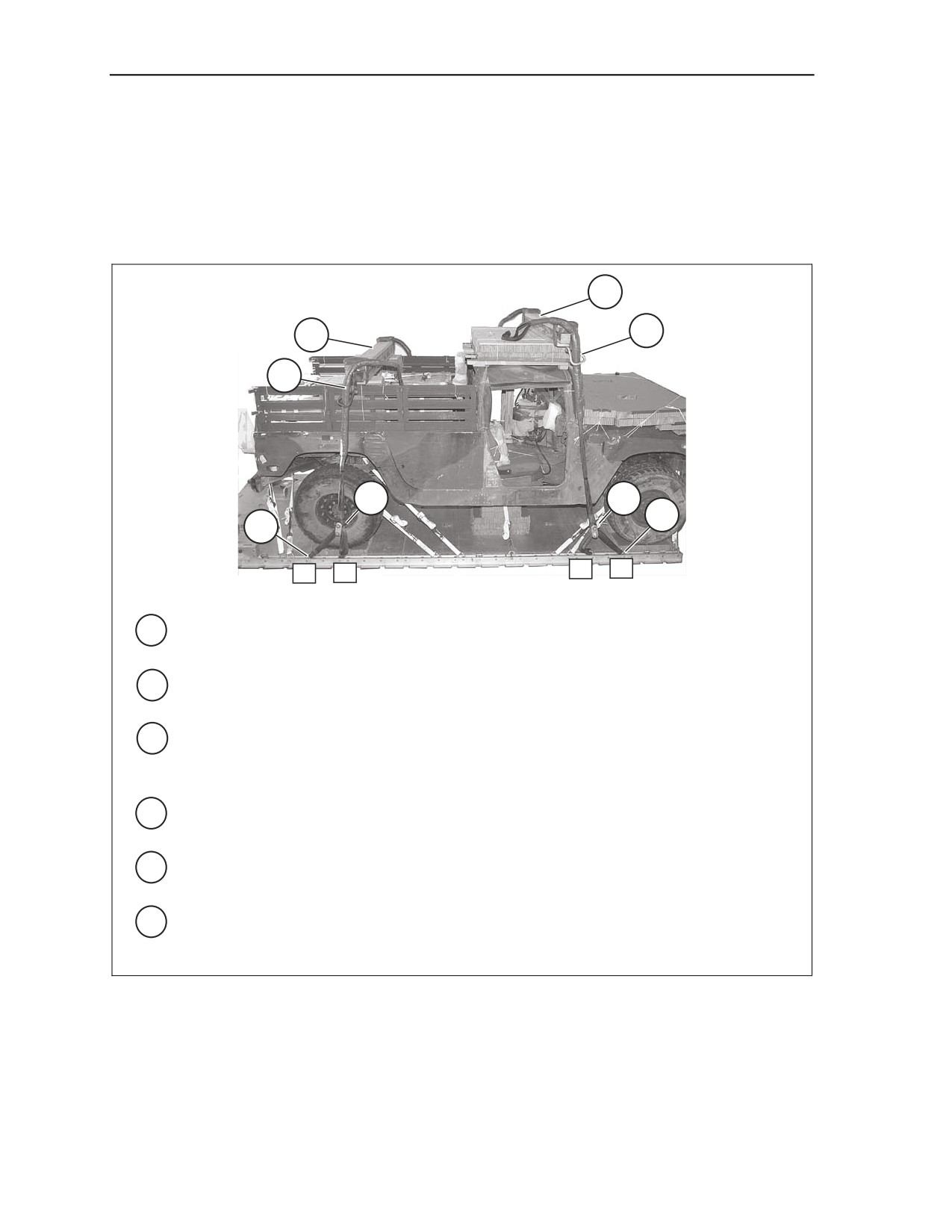

2A
Through left front tiedown point.

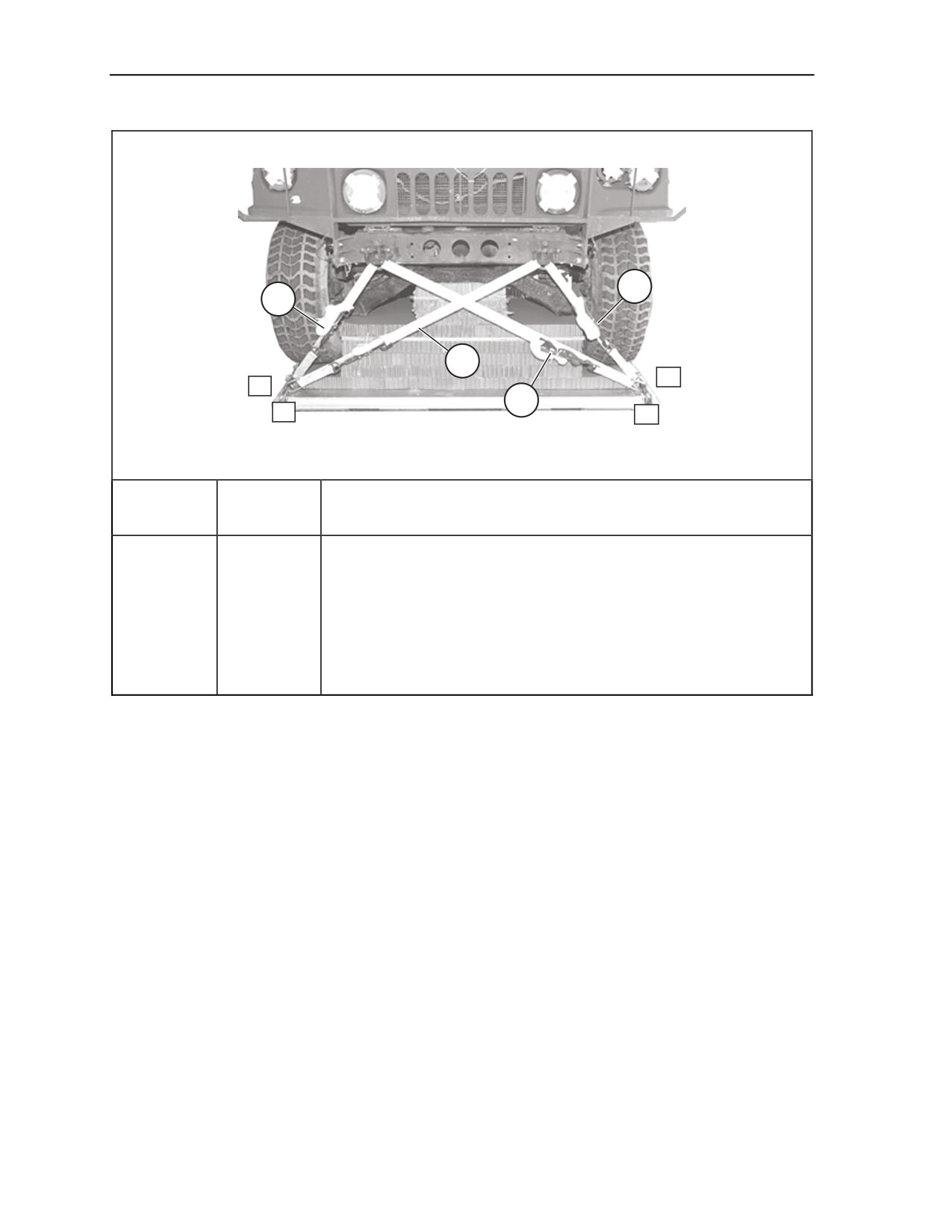

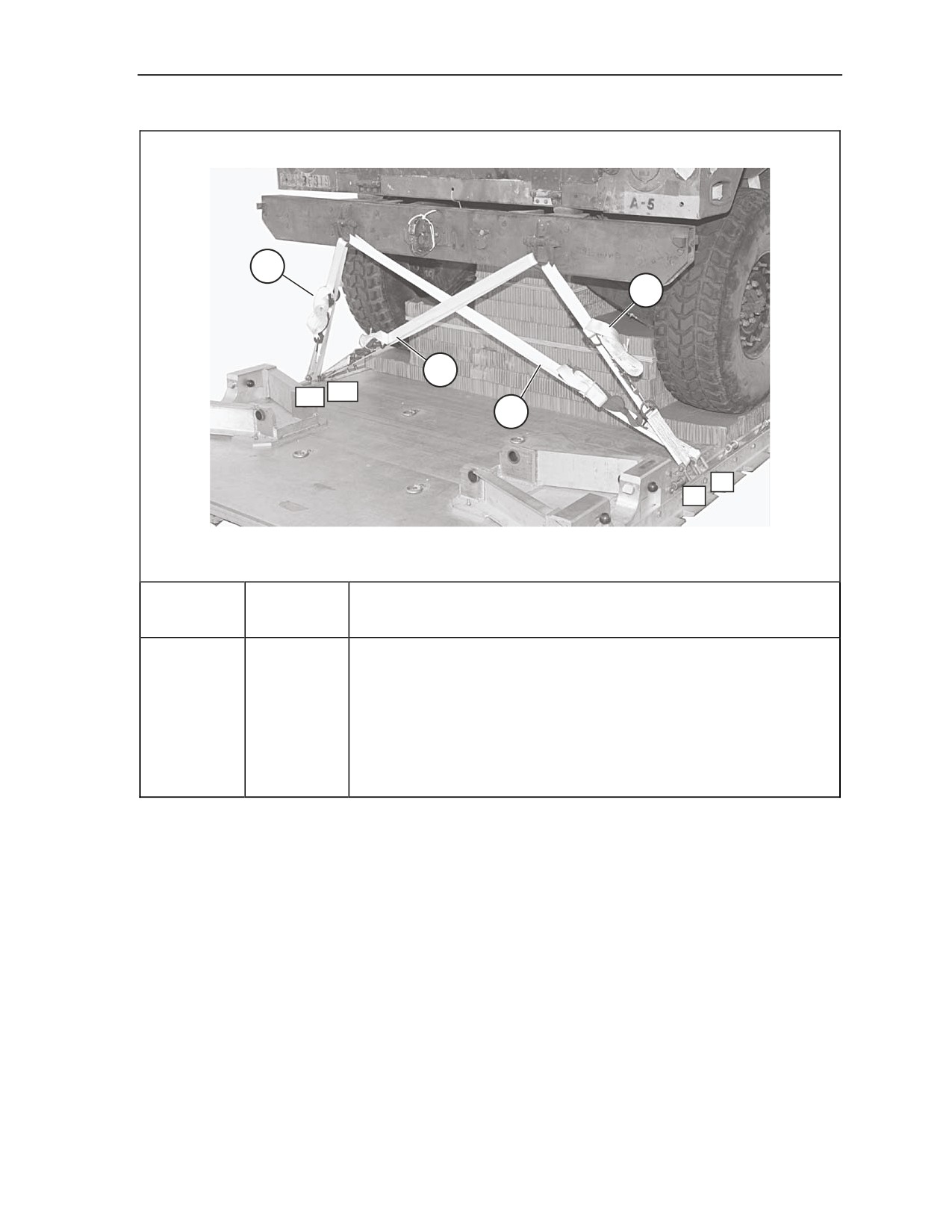

Figure 3-32. Lashings 1 Through 4 Installed
3-52
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M998/M1038/M1097 Cargo/Troop Carrier HMMWV on Dual Row Airdrop System Platform
8
6
8A
7A
7
5
8
7
Lashing
Tiedown
Instructions
Number
Clevis
Number
Pass lashing:
5
7
Around right front lower control arm.
6
7A
Around left front lower control arm.
7
8
Through the tiedown bracket behind the right front coil spring.
8
8A
Through the tiedown bracket behind the left front coil spring.

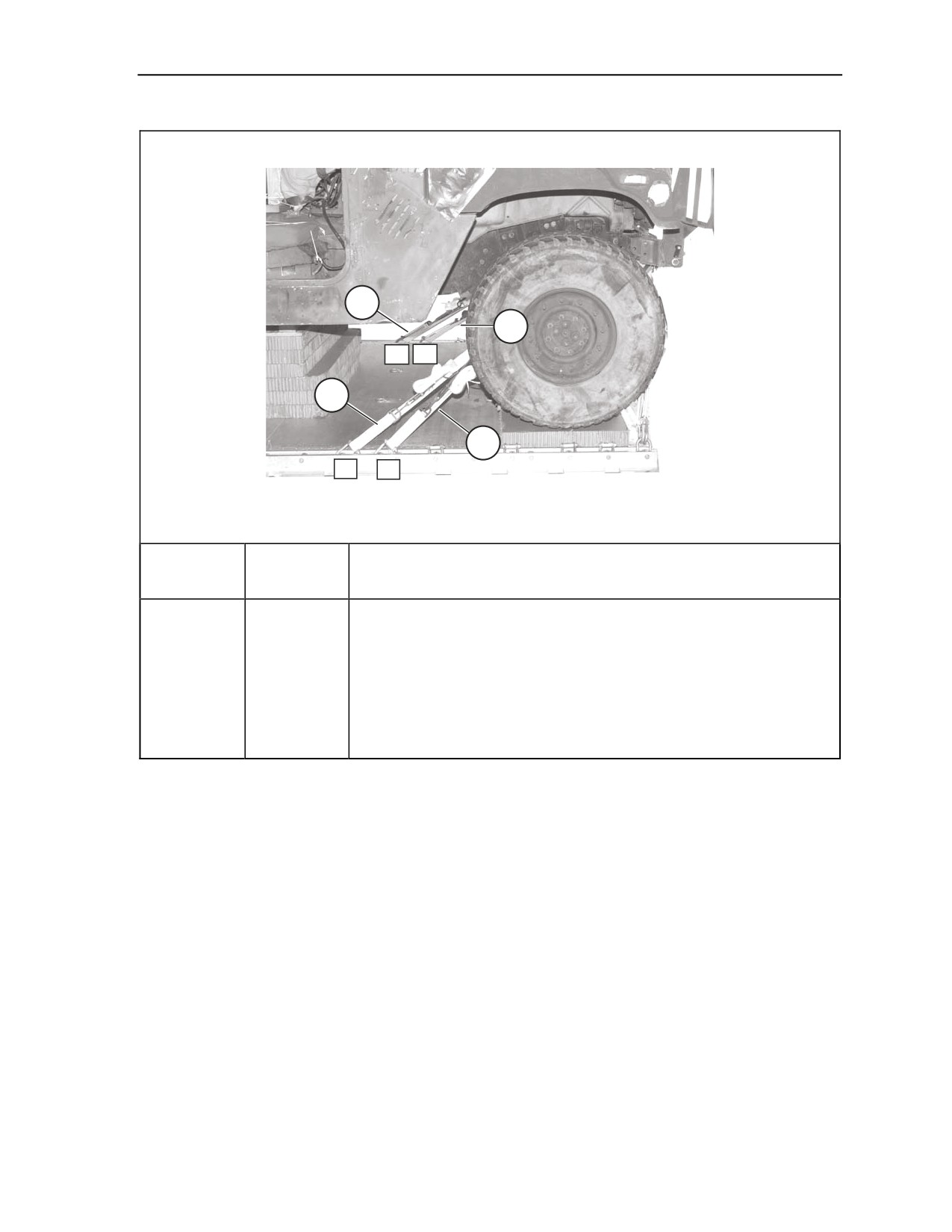

Figure 3-33. Lashings 5 Through 8 Installed
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
3-53
Chapter 3
9
12
10
13
12
9
Lashing
Tiedown
Instructions
Number
Clevis
Number
Pass lashing:
9
9A and 9
Through clevis 9A and back through its own D-ring through stack 2
and attach it with a loadbinder to clevis 9.
10
12
Through tiedown bracket behind right rear coil spring.
11
12A
Through tiedown bracket behind left rear coil spring.
12
13
Around right rear control arm.
13
13A
Around left rear control arm.

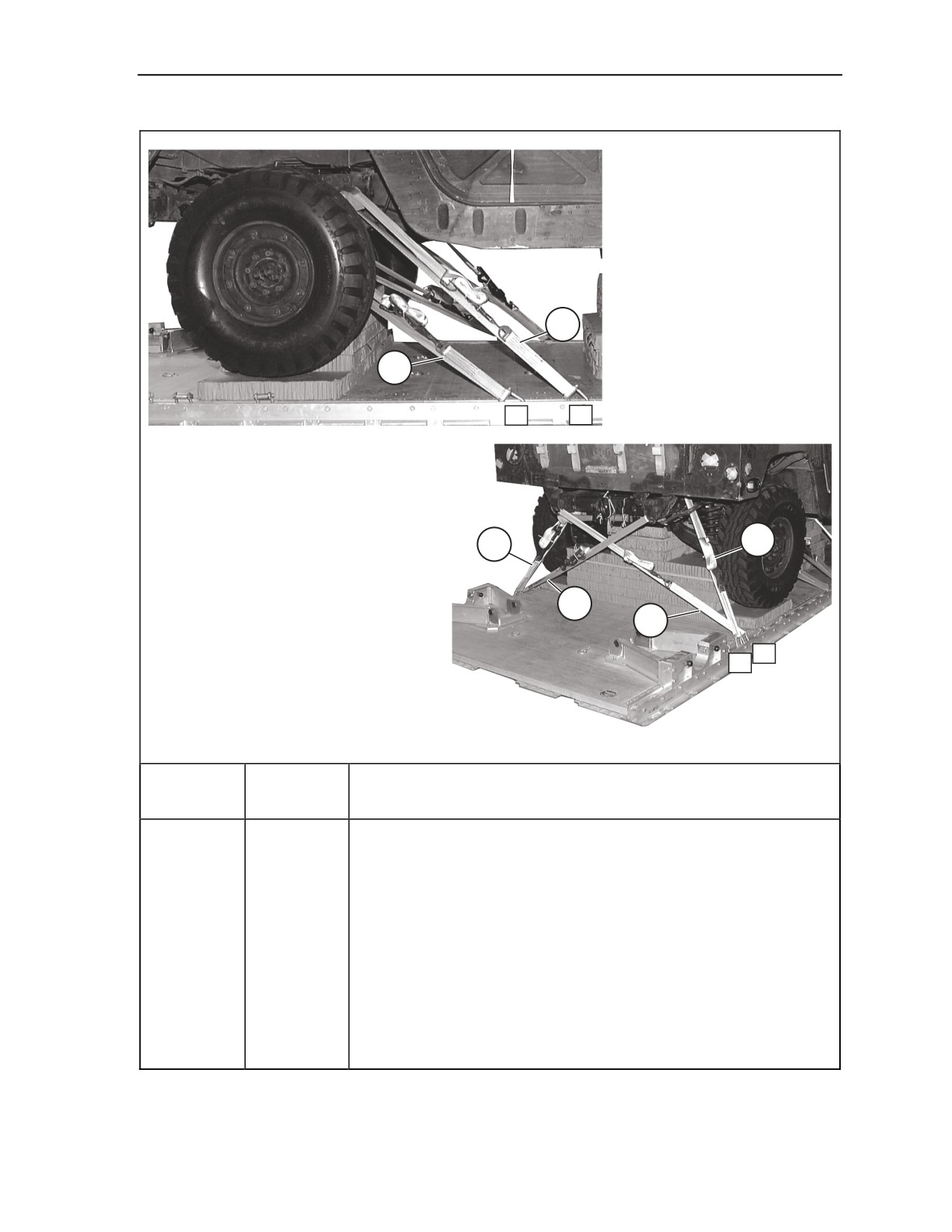

Figure 3-34. Lashings 9 Through 13 Installed
3-54
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M998/M1038/M1097 Cargo/Troop Carrier HMMWV on Dual Row Airdrop System Platform
17
16
15
16A
17A
14
16
17
Lashing
Tiedown
Instructions
Number
Clevis
Number
Pass lashing:
14
16
Through left rear tiedown point.
15
16A
Through right rear tiedown point.
16
17
Through right rear tiedown point.
17
17A
Through left rear tiedown point.
Figure 3-35. Lashings 14 Through 17 Installed
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
3-55
Chapter 3

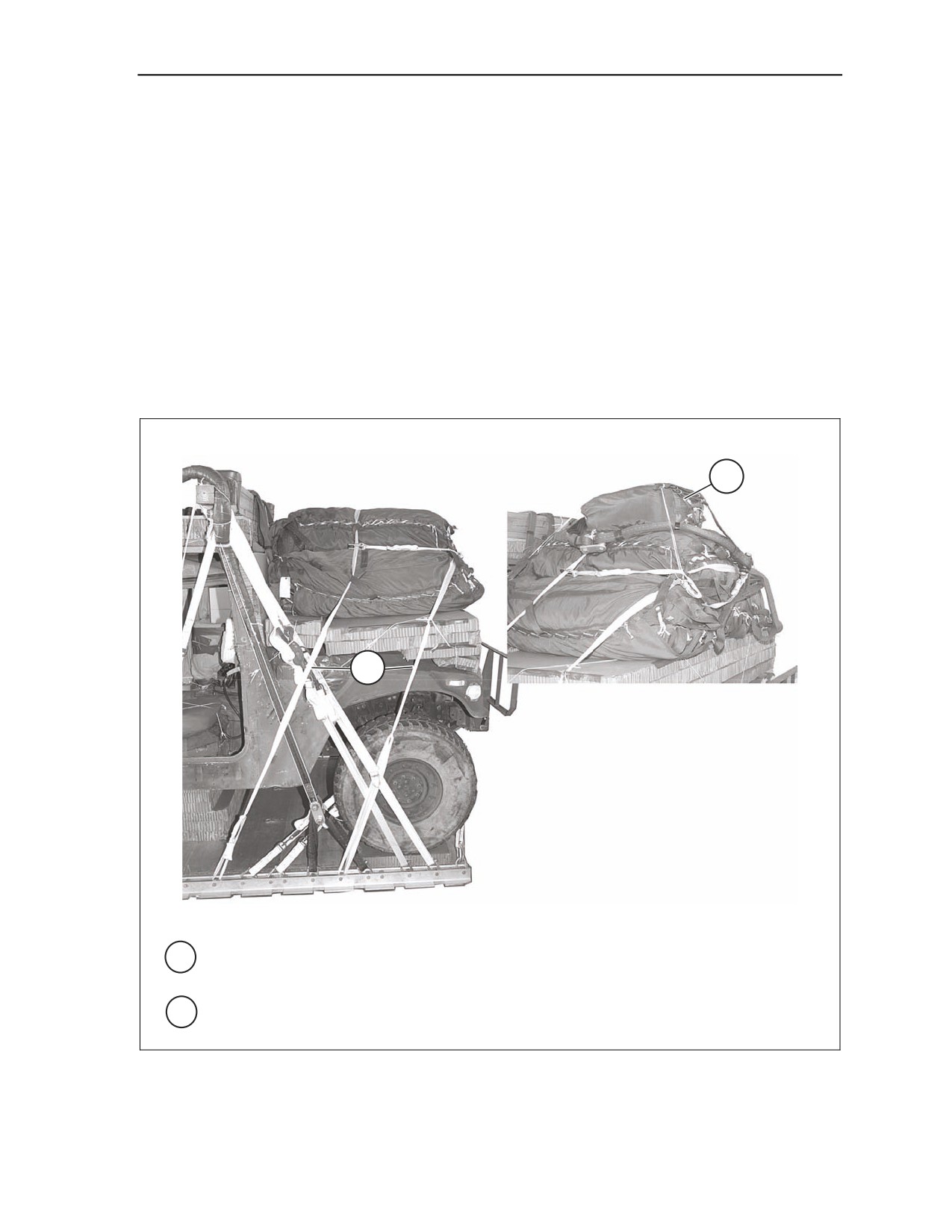

INSTALLING SUSPENSION SLINGS AND THE ATTITUDE
CONTROL SYSTEM

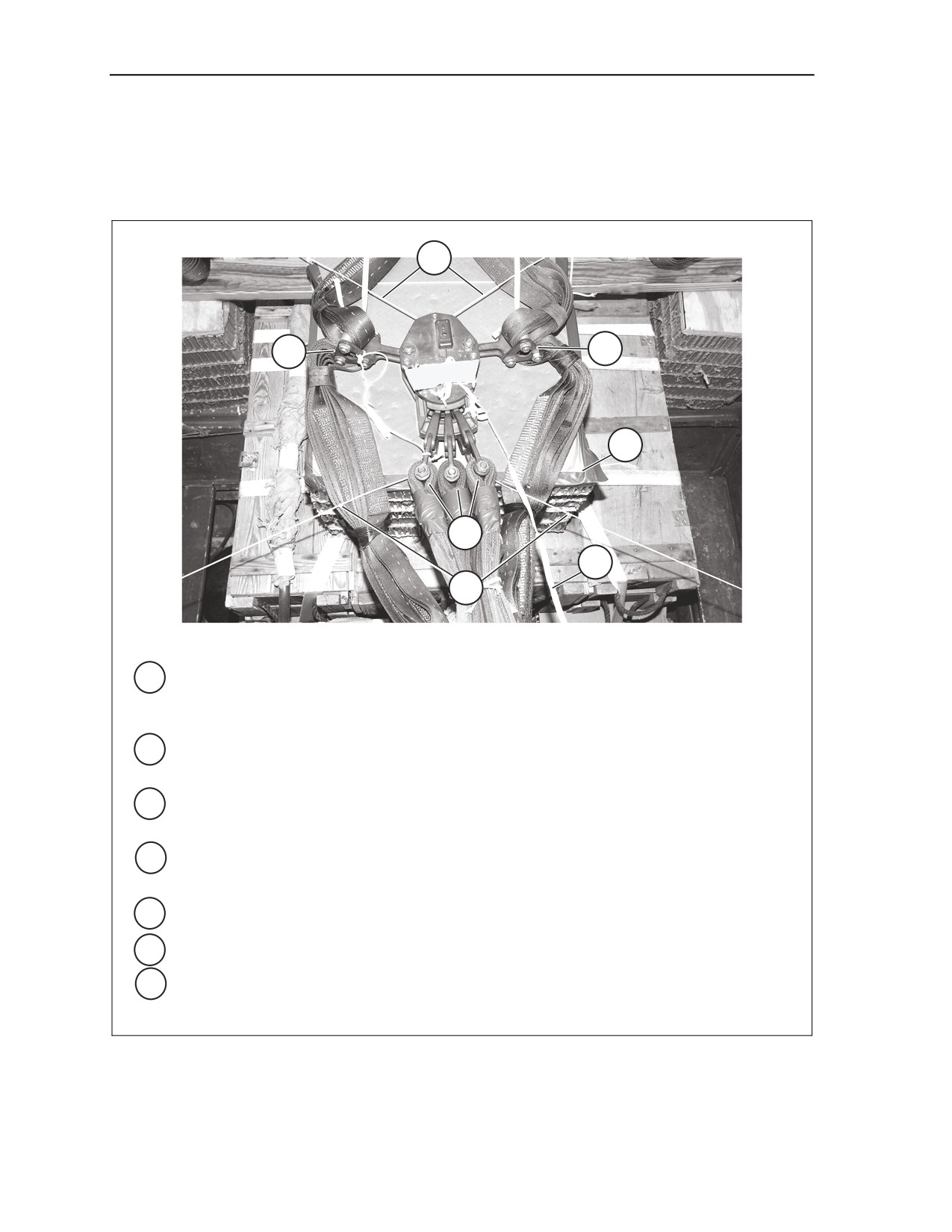

3-26. Construct and inspect the Altitude Control System (ACS) in accordance with Chapter 2, Section VII.
Position and secure the front and rear ACS and install the suspension slings according to Figure 3-36.

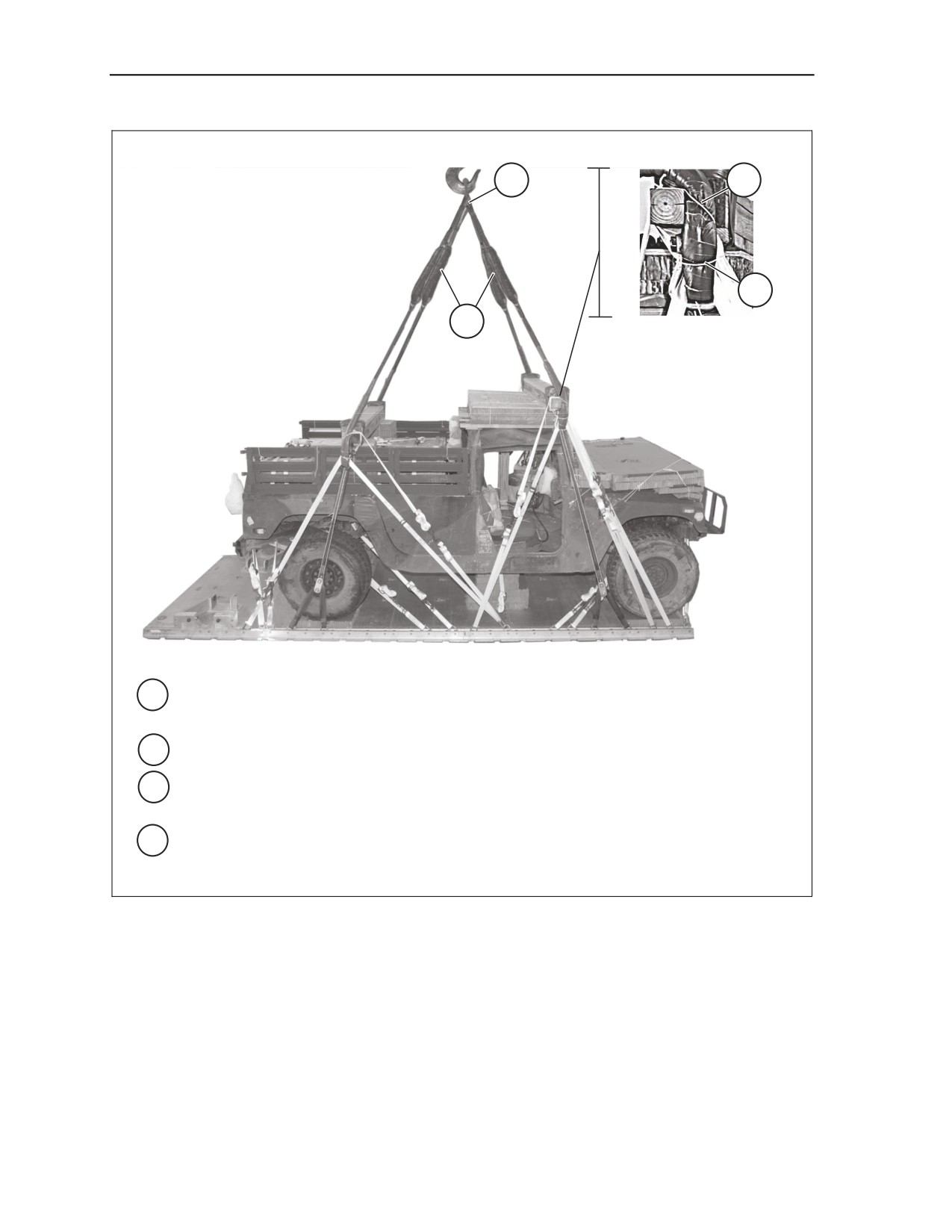

Secure the suspension slings according to Figure 3-37.
1
6
2
6
3
3
4
5
6
5
15
14
1

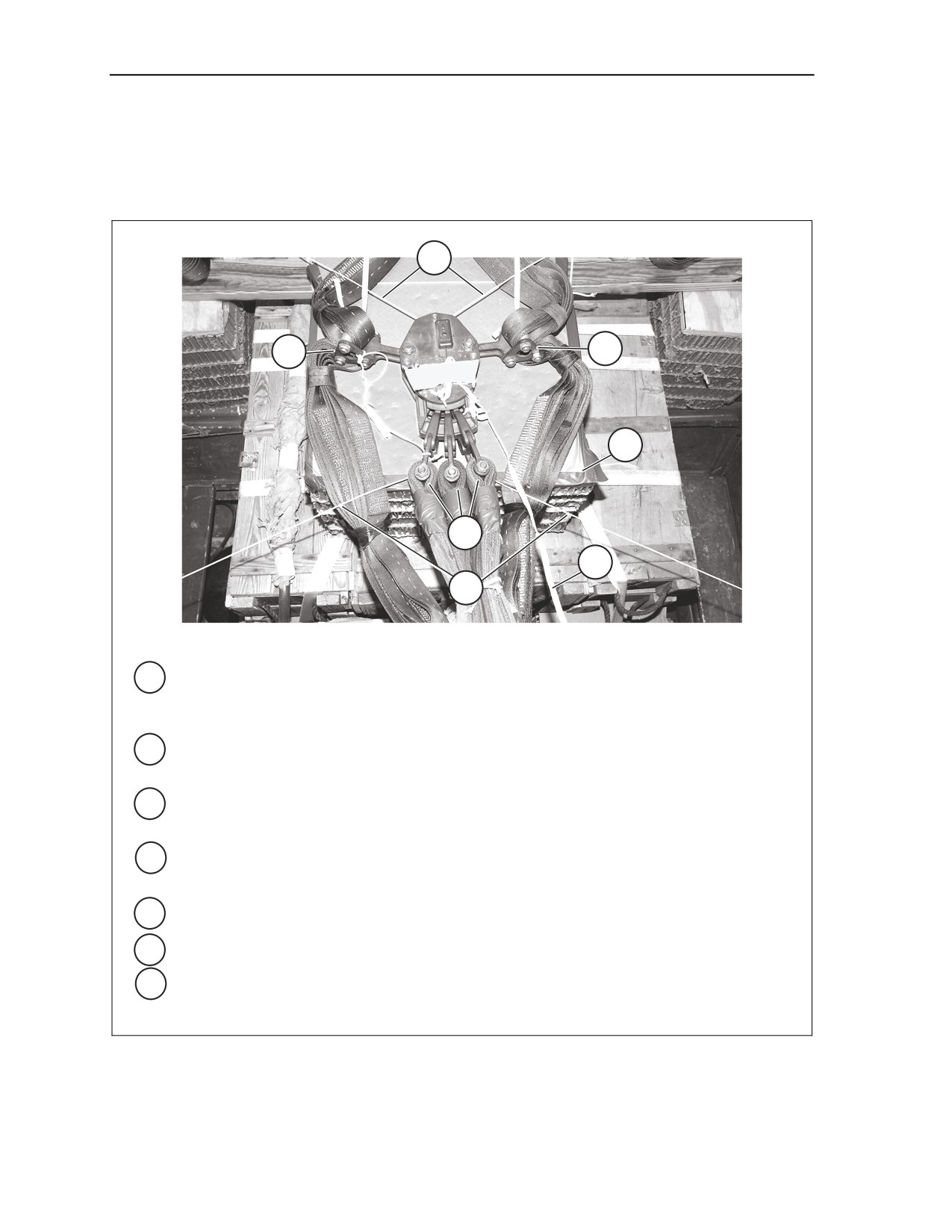

Position the front ACS even with the front edge of the honeycomb on top of the
ammunition rack with the 4- by 4-inch lumber to the rear of the truck.
2
Position the rear ACS 12 inches from the rear of the ACS support stacks with the 4- by 4
inch lumber to the front of the truck.
3
Attach a 3 ¾-inch two-point link to an 11-foot, (4-loop) type XXVI nylon sling. Pass a
3-foot, (4-loop) type XXVI sling through the two-point link. Repeat this procedure three
times.
4
Attach the ends of one 3-foot, (4-loop) nylon sling to clevises 5 and 6. Repeat for clevises
5A and 6A.
5
Attach the ends of one 3-foot, (4-loop) nylon sling to clevises 14 and 15. Repeat for
clevises 14A and 15A.
6
Pad and tape the slings 6 inches above and 6 inches below the ACS clevis. Pass each
sling through the closest ACS clevis.
Figure 3-36. Suspension Slings Installed and ACS Secured
3-56
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M998/M1038/M1097 Cargo/Troop Carrier HMMWV on Dual Row Airdrop System Platform
11
12
14
8
14
9
7
18
4
3
11
10
7

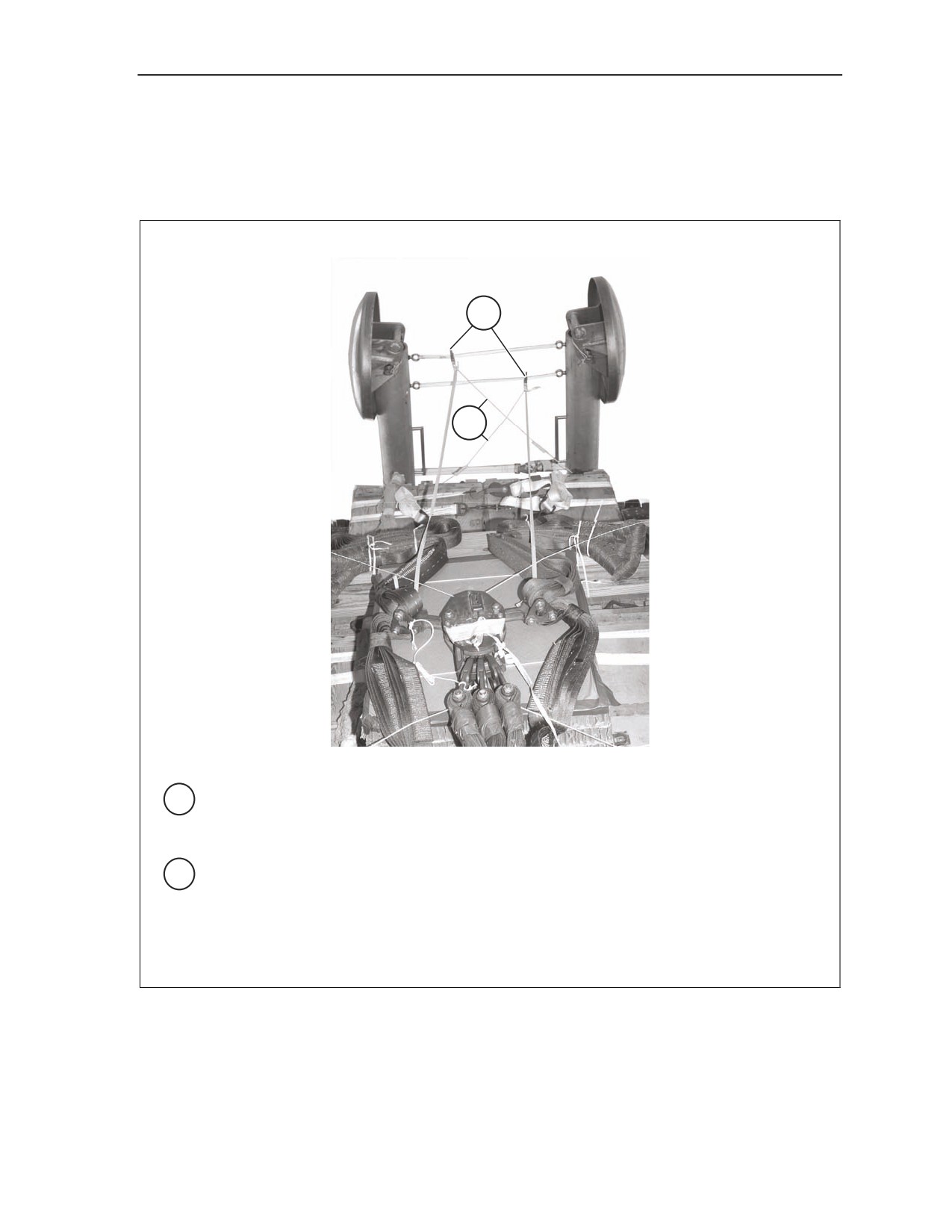

Form a 30-foot lashing according to Chapter 2, Figure 2-14. Run a 30-foot lashing from
clevis 4, through the ACS clevis from the outside to inside, rear to front, around the 4- by
4-inch lumber, and back to clevis 4. Loosely secure the lashing and repeat on the other
side using clevis 4A.
8
Repeat procedures for clevises 3 and 3A.
9
Run a 30-foot lashing from clevis 11, through the ACS clevis, from the outside to inside,
front to rear, around the 4- by 4-inch lumber, and back to clevis 11. Loosely secure the
lashing. Repeat on the left side using clevis 11A.
10
Make sure the ACS is centered on the load, and tighten all the lashings on the left and
right side at the same time. Tighten the lashings in the following order: 4 and 4A, 3 and
3A, and 11 and 11A.
11
Run a 30-foot lashing from clevis 10, through the ACS clevis from the outside to inside,
rear to front, around the 4- by 4-inch lumber, and back to clevis 10. Loosely secure the
lashing and repeat on the other side with clevis 10A.
12
Run a 30-foot lashing from clevis 18, through the ACS clevis from the outside to inside
front to rear, around the 4- by 4-inch lumber, and back to clevis 18. Loosely secure the
lashing and repeat on the other side with clevis 18A.
13
Make sure the ACS is centered on the load, and tighten all the lashings on the left and
right side at the same time. Tighten the lashings in the following order: 10 and 10A and,
18 and 18A.
14
Safety tie the two-point links to the ACS clevis with looped lengths of type III nylon cord.
Figure 3-36. Suspension Slings Installed and ACS Secured (Continued)
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
3-57
Chapter 3
2
4
3
1
1
Attach a 3-foot, (4-loop) type XXVI nylon sling to the free end of each 11-foot, (4-loop) with
a 3 ¾-inch two-point link. Pad each link and tape in place with 2-inch adhesive tape.
2
Extend the slings upwards with a lifting device until they are taut.
3
Tie a length of type III nylon cord around and behind the suspension sling and around
each ACS sling. Repeat for all suspension slings.
4 Tie a length of type III nylon cord around the suspension sling, behind all lashings, and
around the 4- by 4-inch lumber of the ACS. Repeat for all suspension slings.
Figure 3-37. Suspension Slings Secured
3-58
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M998/M1038/M1097 Cargo/Troop Carrier HMMWV on Dual Row Airdrop System Platform
INSTALLING OUTRIGGER ASSEMBLIES
3-27. Assemble, install, and safety tie the mast and foot assemblies on the DRAS platform according to
TM 10-1670-268-20&P/TO 13C7-52-22 and as shown in Chapter 2, Figures 2-42 through 2-45, steps 1, 2
and 3.
STOWING CARGO PARACHUTES
3-28. Prepare, stow and restrain three G-11D cargo parachutes on the hood of the truck as shown in
Chapter 2 and as shown in Figure 3-38.
STOWING DEPLOYMENT PARACHUTE
3-29. Prepare, stow and install the deployment parachute according to Chapter 2, Section V and as shown
in Figure 3-38.
2
1
1 Restrain the parachutes using type VIII nylon webbing tied to bushings 6 and 6A and 11
and 11A.
2 Prepare, stow, and install the deployment parachute IAW Chapter 2.
Figure 3-38. Cargo Parachutes and Deployment Parachute Installed
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
3-59
Chapter 3
INSTALLING PARACHUTE RELEASE SYSTEM
3-30. Build an M-1 release stack as shown in Figure 3-39. Prepare and install an M-1 release system
according to Chapter 2, Section VI and as shown in Figure 3-39.
6
2
2
1
5
7
6
1
Cut and glue five 24- by 24-inch pieces of honeycomb. Center the stack in front of the rear
ACS. Tape the top outside edges. Secure the stack with two lengths of type III nylon cord
to convenient points on the load. Position the release centered on top of the stack.
2
Remove the cotton buffers from the free ends of the suspension slings and attach them to
the release.
3
Secure the front suspension slings together above the 3 ¾-inch two-point links with one
turn of ¼-inch cotton webbing (not shown).
4
S-fold the slack in the rear suspension slings and tie them around the links with ¼-inch
cotton webbing (not shown).
5
Attach the riser extensions. Tie them in three places with ¼-inch cotton webbing.
6
Secure the release to a convenient place on the load with type III nylon cord.
7 Secure arming wire and lanyard to a carrying handle of a parachute with three alternating
half hitches and an overhand knot in the running end.
Figure 3-39. M-1 Cargo Parachute Release Installed
3-60
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M998/M1038/M1097 Cargo/Troop Carrier HMMWV on Dual Row Airdrop System Platform
INSTALLING MAST RELEASE KNIVES
3-31. Install the mast release knives as shown in Chapter 2, Figure 2-45, steps 4 through 10 and as shown
in Figure 3-40.
1
2
1 The length of the left and right ½-inch tubular nylon webbing from the base of the guillotine
knives to the lower suspension links of the M-1 release is 67 inches (shown in steps 5
through 7 of Figure 2-45).
2 Tie a length of type III nylon cord through the left tailgate sling guide and to the body of the
right top guillotine knife that measures 86-inches from the tailgate sling guide to the base
of the guillotine knife. Repeat for right tailgate sling guide and left lower guillotine knife
(shown in steps 9 and 10 of Figure 2-45).
Note. All measurements are from knot to knot.
Figure 3-40. Mast Release Knives Installed
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
3-61
Chapter 3
MARKING RIGGED LOAD
3-32. Mark the rigged load according to Chapter 2, Section IX and as shown in Figure 3-41. If the load
varies from the one shown, the weight, height, CB, and parachute requirements must be recomputed.
EQUIPMENT REQUIRED
3-33. The equipment required to rig this load is listed in Table 3-2.
CAUTION
Make the final rigger inspection required by Chapter 2, Section IX
before the load leaves the rigging site.
RIGGED LOAD DATA

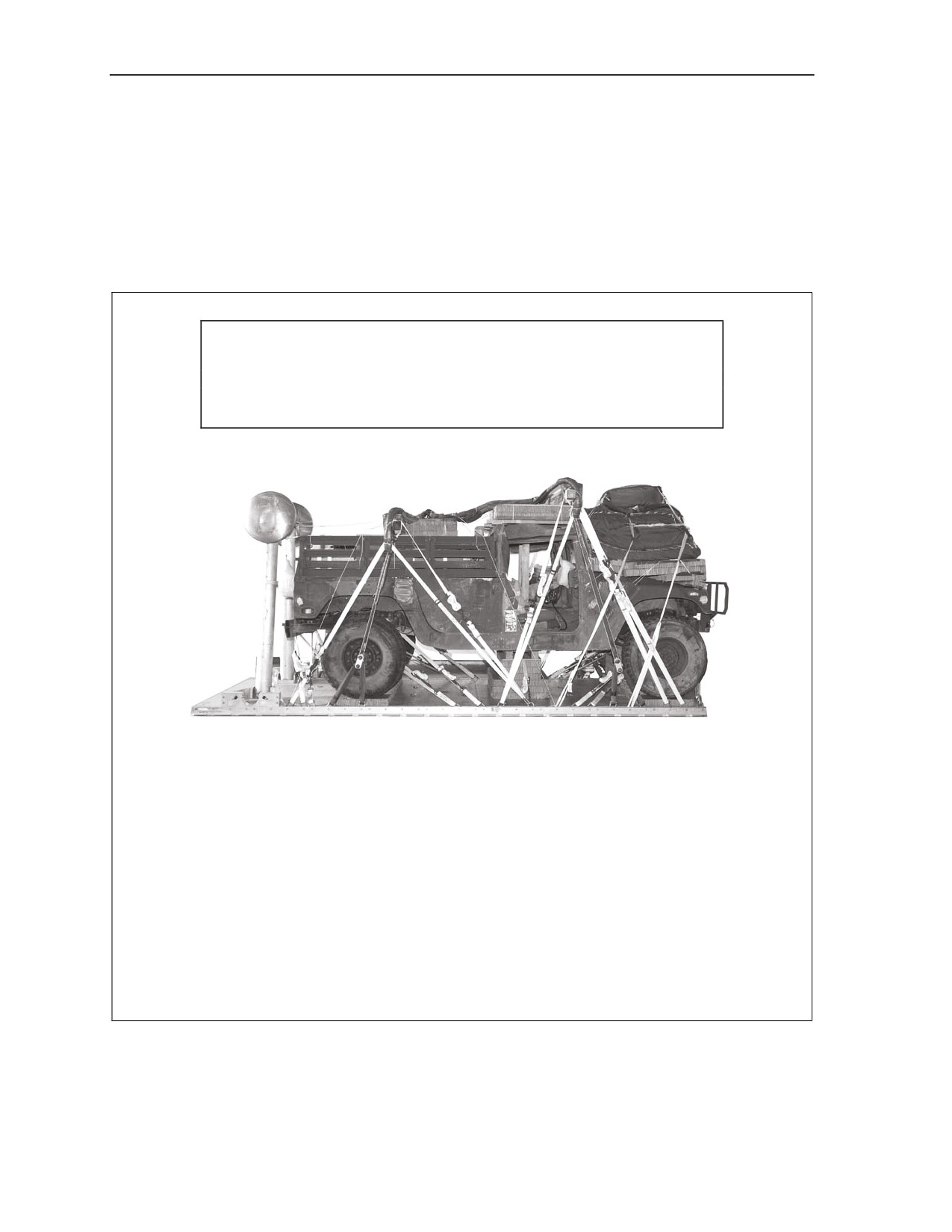

Weight: Load shown
11,140 pounds
Maximum load allowed
12,750 pounds
Height (with three G-11D parachutes)
104 inches
Width
94 inches
Overall Length
224 inches
Overhang: Front (brush guard)
8 inches
Rear
0 inches
Center of Balance (from front edge of platform):
88 inches
Figure 3-41. M1097 Variant Rigged on DRAS Platform
3-62
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M998/M1038/M1097 Cargo/Troop Carrier HMMWV on Dual Row Airdrop System Platform
Table 3-2. Equipment Required for Rigging M1097 Variant Cargo/Troop Carrier on DRAS
Platform
National Stock Number
Item
Quantity
8040-00-273-8713
Adhesive paste, 1-gallon
As required
4020-00-240-2146
Cord, nylon, type III, 550-pound
As required
Clevis,
4030-00-090-5354
Large
5
4030-00-678-8562
Medium
4
1670-00-360-0328
Cover, clevis, large
3
8135-00-664-6958
Cushioning material, packaging, cellulose wadding
As required
8305-00-191-1101
Felt, ½-inch
As required
1670-01-493-6418
Link assembly, two-point, 3 ¾-inch
9
Lumber:
5510-00-220-6146
2- by 4-inch
As required
5510-00-220-6148
2- by 6-inch
As required
5510-00-220-6274
4- by 4-inch
As required
5530-00-618-8073
Plywood, ¾-inch
5 sheets
Nail, steel wire, common,
5315-00-010-4659
8d
As required
5315-00-753-3883
10d
As required
5315-00-753-3885
16d
As required
1670-00-753-3928
Pad, energy dissipating, honeycomb
18 sheets
1670-01-487-5461
Static line assembly release away
1
Parachute:
Cargo:
1670-01-016-7841
G-11D
3
1670-00-040-8135
Cargo extraction: 28-foot (deployment parachute)
1
Platform, dual row, 18-foot
1670-01-485-1654
Rail, DRAS
2
1670-01-486-1342
Roller Pad, DRAS
4
1670-01-486-1656
Panel Assembly, Main
9
1670-01-162-2372
Clevis assembly
38
N/A
Plywood, ¼-inch
1 sheet
1670-01-097-8816
Release, cargo parachute, M-1
1
Sling, cargo airdrop
For suspension:
1670-01-062-6310
11-ft (4-loop), type XXVI nylon webbing
4
1670-01-062-6306
3-ft (4-loop), type XXVI nylon webbing
8
For deployment:
1670-01-062-6306
3-ft (4-loop), type XXVI nylon webbing
1
For riser extension:
1670-01-062-6313
60-ft (3-loop), type XXVI nylon webbing
3
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
3-63
Chapter 3
Table 3-2. Equipment Required for Rigging M1097 Variant Cargo/Troop Carrier on DRAS
Platform (Continued)
National Stock Number
Item
Quantity
For ACS:
1670-01-063-7761
16-ft (2-loop), type XXVI nylon webbing
2
For lifting:
1670-01-062-6304
9-ft (2-loop), type XXVI nylon webbing
2
1670-01-062-6303
12-ft (2-loop), type XXVI nylon webbing
2
1670-00-040-8219
Strap, parachute release, multicut
2
1670-00-937-0271
Knife release, cargo (guillotine)
6
1670-01-487-5464
Outrigger assembly
1
7510-00-266-5016
Tape, adhesive, 2-in
As required
1670-00-937-0271
Tie-down assembly, 15-ft
43
1670-00-725-1437
Tie-down, cargo, aircraft, (CGU-1B)
5
Webbing:
8305-00-268-2411
Cotton, ¼-in, type I
As required
Nylon:
8305-00-082-5752
Tubular, ½-in
As required
8305-00-263-3591
Type VIII
As required
3-64
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Chapter 4
Rigging M1025/M1121/M1114 Armament/TOW Carrier
HMMWV on Dual Row Airdrop System Platform
SECTION I - RIGGING M1025/M1121 ARMAMENT/TOW CARRIER HMMWV
DESCRIPTION OF LOAD
4-1. The HMMWV truck is rigged on a DRAS platform for DRAS airdrop. An accompanying load
weighing a minimum of 800 pounds and a maximum of 2,000 pounds must be rigged in the truck. The load
is rigged with three G-11D cargo parachutes.
• The M1025 Armament Carrier (Figure 4-1). It weighs 5,960 pounds. It is 180 inches long, 85
inches wide and is 74 inches high.
• The M1025A1 Armament Carrier. It weighs 6,140 pounds. It is 180 inches long, 85 inches wide
and is 74 inches high.
• The M1025A2 Armament Carrier. It weighs 6,780 pounds. It is 180 inches long, 85 inches wide
and is 74 inches high.
• The M1121 TOW Carrier. It weighs 7,900 pounds. It is 180 inches long, 85 inches wide and is 74
inches high.

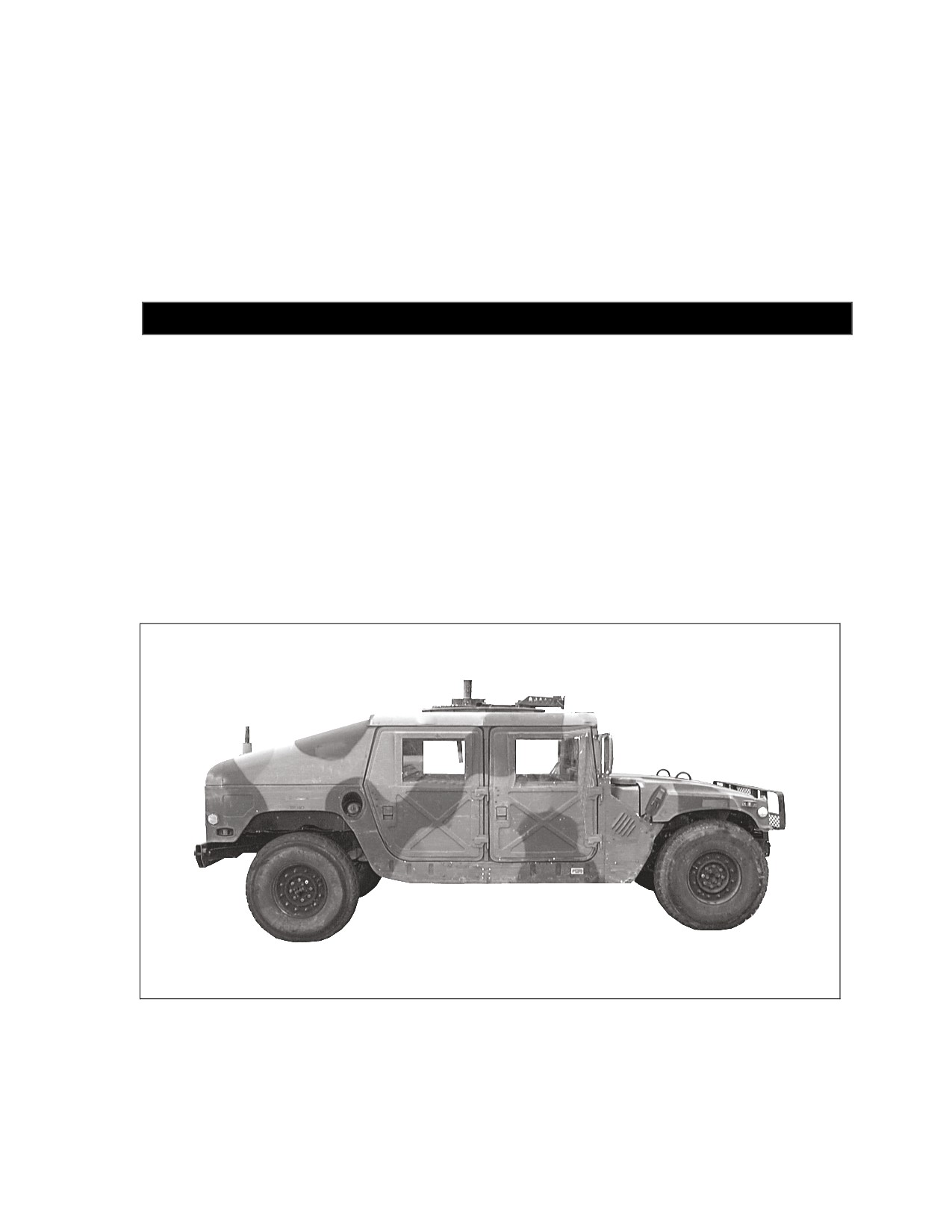

Figure 4-1. M1025/M1121 Armament/TOW Carrier HMMWV
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-1
Chapter 4
PREPARING PLATFORM
4-2. Inspect, or assemble and inspect, a DRAS platform with outrigger assemblies, outrigger platform
support weldments, and link assemblies according to TM 10-1670-268-20&P/TO 13C7-52-22, and as
shown in Figure 3-2.
BUILDING AND PLACING HONEYCOMB STACK
4-3. Prepare the honeycomb stacks for the trucks as shown in Figure 3-3. Position the honeycomb stacks
as shown in Figure 3-4.
INSTALLING OPTIONAL DRIVE- OFF AID ON PLATFORM
4-4. Install the drive-off aid as described in Paragraph 2-7.
PREPARING M1025/M1121 TRUCK
4-5. Prepare the M1025/M1121 truck as described below.
• Prepare the fuel tank as shown in Figures 3-5 and 3-6.
Note. Certain units may be authorized a waiver allowing 95% fuel. One way to verify the tank
is 95% full is to fill the tank and withdraw 1 ¼ gallons with a hand pump.
CAUTION
A full tank does not allow for expansion, and is a danger to aircraft and
air crew.
• Make sure the batteries and battery compartment comply with AFMAN 24-204(I)/TM 38-250.
• Prepare the cab of the truck as shown in Figure 4-2.
• Secure and pad radio equipment in the cab section as shown in Figure 4-3.
• Prepare the front of the trucks as shown in Figure 4-4.
• Prepare the turret housing as shown in Figure 4-5.
• Prepare and secure the pioneer tool kit according to TM 9-2320-280-10/TO 36A12-1A-2091-1/
TM 2320-10/6B and as shown in Figure 3-10.
• Prepare the underside of the truck as shown in Figure 3-11.
4-2
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
8
2
4
5
3
7
1

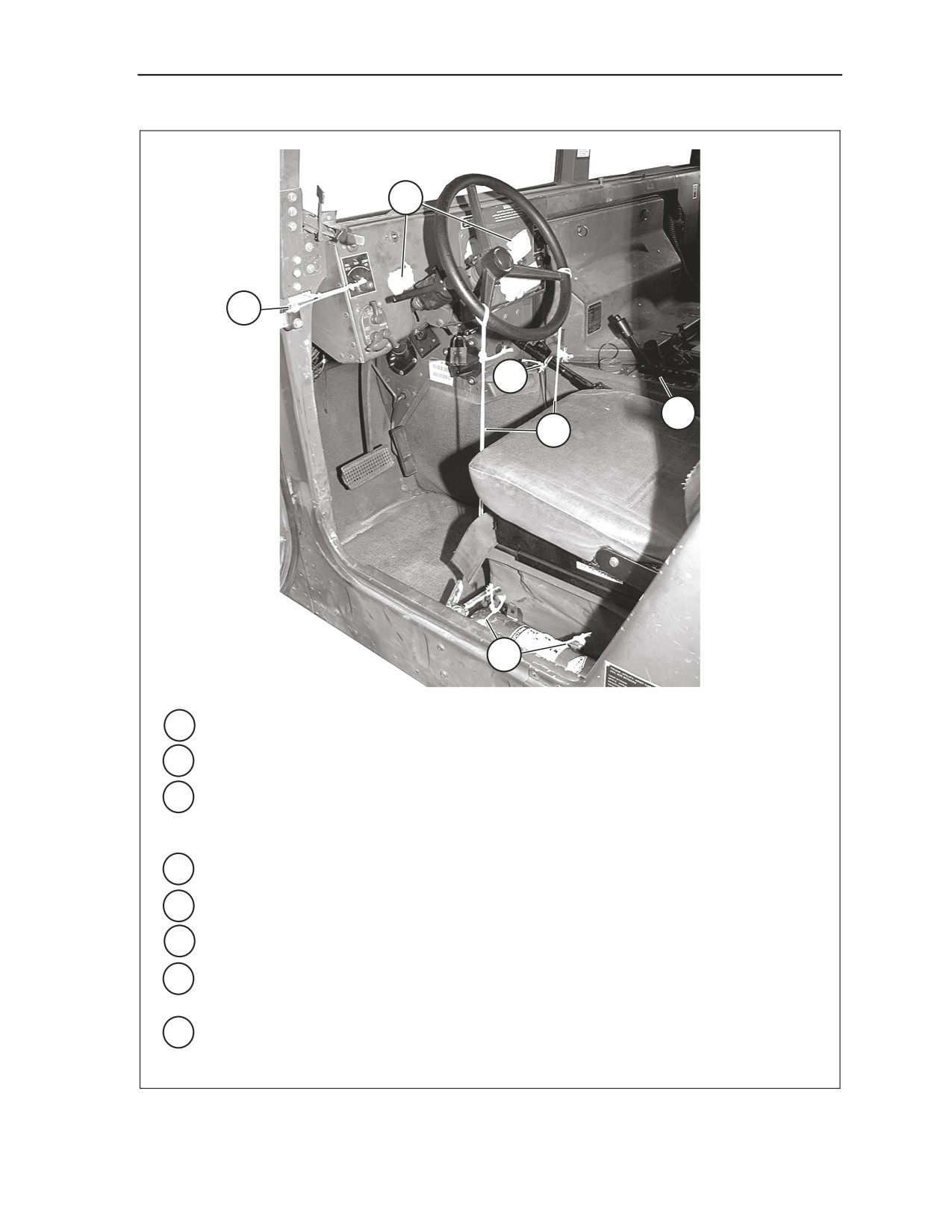

Pad the mirrors with cellulose wadding and tape (not shown).
2
Tie the engine start switch in the engine stop position with Type I, ¼-inch cotton webbing.
3
Tie the steering wheel to the seat frame in two places with Type III nylon cord, or use the
retractable steering wheel locking cable. If the locking cable is used, secure it to the
steering wheel with Type III nylon cord, not a padlock.
4
Tie the emergency brake handle in the off position with Type III nylon cord.
5
Place the transmission and four-wheel drive levers in the neutral position.
6
Tie the seat cushions to the seat frames with Type III nylon cord (not shown).
7
Tie the fire extinguisher and decontamination apparatus in place in its designated rack with
two lengths of Type III nylon cord.
8 Tape all lights, reflectors, windshield and instrument panel gauges. Place the antenna with
accompanying load.
Figure 4-2. Cab Prepared
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-3
Chapter 4
2
1
3
1

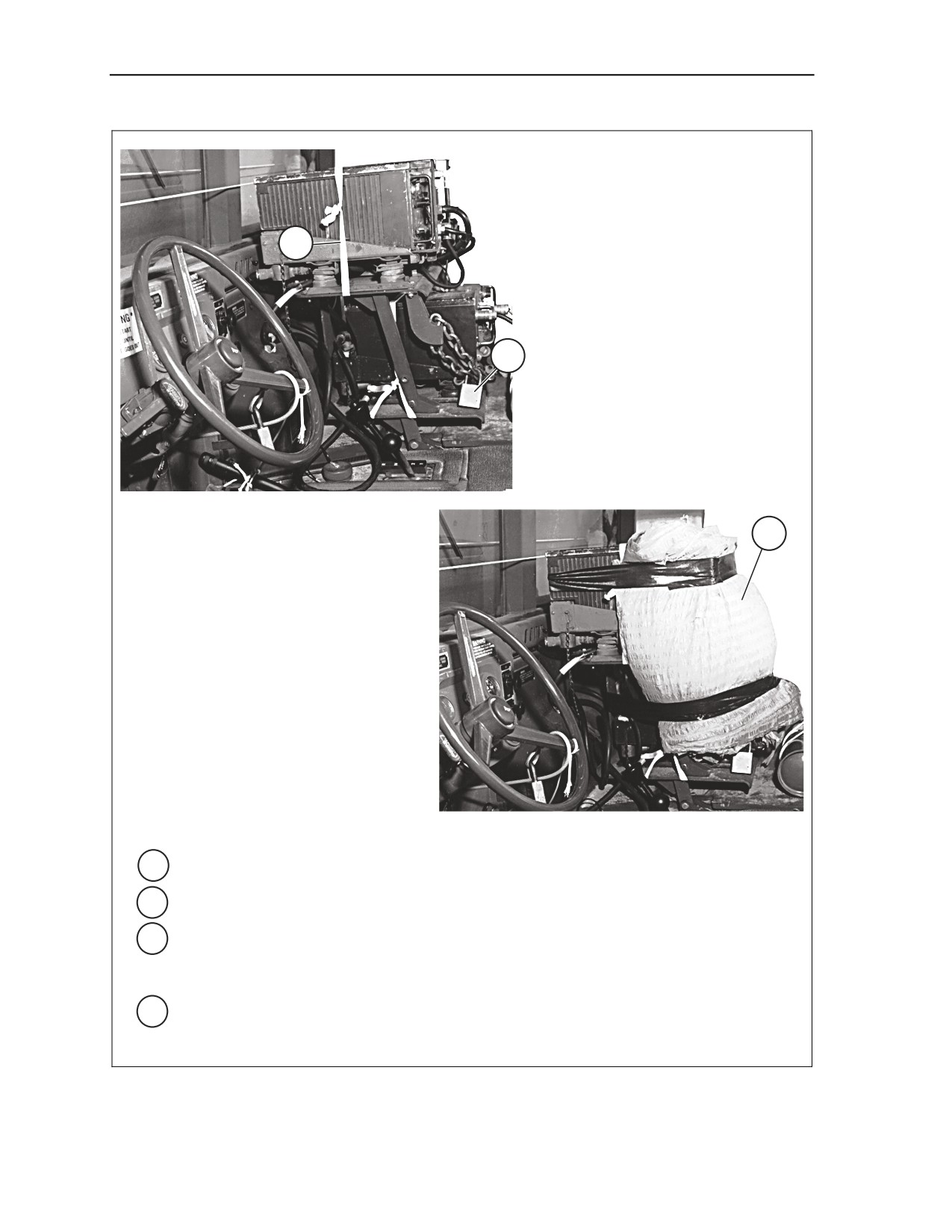

Secure communications equipment in its mount with chains and padlocks.
2
Tie the equipment to its mount with 1-inch tubular nylon webbing.
3
Pad the front of the equipment generously with cellulose wadding taped in place. Pad the
radio handset with cellulose wadding and tie the handset to the mount with Type III nylon
cord.
4 Remove antennas and pad the antenna mounts with cellulose wadding taped in place (not
shown).
Figure 4-3. Communications Equipment Secured and Padded
4-4
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
Notes. 1. All measurements are given in inches.
2. This drawing is not drawn to scale.
10- by 80-inch Honeycomb
5
TAPE
3
10
DIAGRAM 1
2
1
Cut a 10-inch by 80-inch piece of honeycomb. Taper crush 5 inches of the width along the
entire length of the honeycomb. Tape the 10-inch width of the honeycomb (See
diagram 1).
2
Place the honeycomb flush on the front end of the hood with the tapered side up and to the
rear of the truck.
3
Cut an 18-inch by 80-inch piece of honeycomb. Position on top of and flush with the front
of the 10-inch by 80-inch piece of honeycomb. Tie the two pieces of honeycomb together
with Type III nylon cord around the 80 inch length. Tape the top piece of honeycomb where
the Type III nylon cord will come in contact.
4 Secure the winch hook with Type III nylon cord (not shown).
Figure 4-4. Front of Truck Prepared
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-5
Chapter 4
8
20
9
6
6
36 x 83
10
9
5
7
8
5 Place two 36-inch by 83-inch pieces of honeycomb, with cutouts as shown, on top of the
previously positioned honeycomb and flush with the front. Tape the 36-inch sides on the
top piece of honeycomb.
6 Secure the 36-inch by 83-inch honeycomb pieces with a length of Type III nylon cord. Tie
the Type III nylon cord to the left hood latch. Pass the cord over the honeycomb, through
the center of the grille, and over to the right side of the honeycomb. Tie the cord to the right
hood latch.
7 Run a length of Type III nylon cord through the securing tie on the bottom two layers of
honeycomb and through the securing tie on the top two layers of honeycomb on each side
of the load.
8 Cover the breather cap with one layer of felt and tape in place with cloth backed tape.
9 Cut two 12-inch by 83-inch pieces of honeycomb and position behind the honeycomb
installed in step 5. Tape the top outside edges. Secure the honeycomb to the hood
latches with Type III nylon cord. Tape the hood latches.
10 Cut a 21-inch by 83-inch piece of honeycomb. Position the honeycomb on the windshield.
Tape the outside edges and secure with Type III nylon around the windshield.
Figure 4-4. Front of Truck Prepared (Continued)
4-6
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
Notes. 1. Drawing not to scale.
2. All dimensions are given in inches.
1
3
1
Build the turret housing support as shown. Nail the lumber together with 8d nails.
2
Close the turret cover and secure it with the fasteners provided (not shown).
3 Center the support under the turret housing with the front end of the support toward the
front end of the truck. Tie the support in place with two lengths of ½-inch tubular nylon
webbing.
Figure 4-5. Turret Support Built and Placed
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-7
Chapter 4
STOWING ACCOMPANYING LOAD ON M1025 ARMAMENT
CARRIER
4-6. Use the procedures shown in Figure 4-6 to stow ten 105-millimeter ammunition boxes and truck
equipment.
Note. The accompanying load may vary from the one shown.
CAUTION
Load weight limits of 800-2,000 pounds and CB requirements given in
Chapter 1 must be strictly observed.
Note. The accompanying load rigging procedures for the M1121 TOW Carrier differ from
those for the M1025 procedures and are described in paragraph 4-7.
1
2
1 Remove the panel behind the rear seats and set it aside.
2 Cut and position two layers of honeycomb in the bed of the vehicle. Make cutouts in the
bottom layer to accommodate the fixtures on the truck floor. Do not cover the front and rear
tiedown rings.
Figure 4-6. M1025 Accompanying Load Stowed
4-8
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
3
5
4
3
Position two lashings across the bed of the vehicle at 21 inches and 38 inches from the
rear edge of the honeycomb.
4
Center two layers of three ammunition boxes on the lashings in step 3.
5 Secure the lashings placed in step 3 with D-rings and load binders.
Figure 4-6. M1025 Accompanying Load Stowed (Continued)
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-9
Chapter 4
7
6
6 Route a 30-foot lashing through the right rear tiedown, over the ammunition boxes, and
through the left front tiedown. Close the lashing with D-rings and a load binder on top of
the boxes.
7 Route a 30-foot lashing through the left rear tiedown, over the ammunition boxes, and
through the right front tiedown. Close the lashing with D-rings and a load binder on top of
the boxes.
Figure 4-6. M1025 Accompanying Load Stowed (Continued)
4-10
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
8
9
8 Close the tailgate and hatch. Secure the tailgate and hatch with a doubled length of ½
inch tubular nylon webbing.
9 Lower all windows. Secure all windows in the lowered position with a length of ½-inch
tubular nylon webbing.
Figure 4-6. M1025 Accompanying Load Stowed (Continued)
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-11
Chapter 4
11
10
12
13
10 Run a 30-foot lashing through the tie-down ring behind the right passenger seat. Rest the
short end of the lashing on the right passenger seat. Run the long end of the lashing over
the base of the turret support, and pass it around the cross bar behind the driver’s seat.
11 Run a 30-foot lashing through the tie-down ring behind the left passenger seat. Rest the
short end of the lashing on the left passenger seat. Run the long end of the lashing over
the base of the turret support, and pass it around the cross bar behind the right front seat.
12 Center a 14- by 38-inch piece of honeycomb between the rear passenger seats.
13 Center a 14- by 38-inch piece of honeycomb ahead of the turret support leg. Make a cutout
to allow for the traversing unit stowage pedestal.
Figure 4-6. M1025 Accompanying Load Stowed (Continued)
4-12
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
15
14
16
17
14
Center two ammunition boxes over each of the honeycomb pieces placed in steps 12 and
13.
15
Secure the lashings placed in steps 10 and 11 over the ammunition boxes.
16
Tie the panel removed in step 1 over the ammunition boxes with ½-inch tubular nylon
webbing tied to the box carrying handles.
17 Secure the jack to the gunner’s platform with ½-inch tubular nylon webbing.
Figure 4-6. M1025 Accompanying Load Stowed (Continued)
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-13
Chapter 4
STOWING ACCOMPANYING LOAD IN M1121 TOW CARRIER
4-7. Use the procedures shown in Figure 4-7 to stow mission and truck equipment weighing 800-2000
pounds. An 800-pound load is shown here.
Notes.
1. The accompanying load rigging procedures for the M1025 Armament Carrier are
different from the M1121 procedures and are described in paragraph 4-6.
2. The accompanying load may vary from the one shown. Ensure the load is properly
secured and weighs between 800 and 2,000 pounds.
1
3
2
1
Center two 30-foot lashings between the rear seats about 12 inches apart. Bring the free
ends of the lashings through the cutouts under the seat support on each side.
2
Fold the seat backs forward over the footwells. Cover the rear seating area with two pieces of
honeycomb cut to fit between the front seat backs and the rear seat backs, on either side of
the turret support.
3 Evenly space two 15-foot lashings lengthwise on each piece of honeycomb placed in step 2.
Figure 4-7. M1121 TOW Carrier Accompanying Load Stowed
4-14
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
5
4
6
4
Center two ammunition boxes across the width of each of the pieces of honeycomb placed
in step 2.
5
Secure each of the four lashings placed in step 3 over the ammunition boxes.
6 Secure the lashings placed in step 1 to each other on top of the ammunition boxes.
Figure 4-7. M1121 TOW Carrier Accompanying Load Stowed (Continued)
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-15
Chapter 4
7
8
7
Run two lashings through the two left rear cargo bed rings and under the TOW racks.
8
Place a piece of honeycomb cut to fit and one ammunition box over the lashings. Secure
the lashings on top of the box.
9
Tie all windows open as shown in Figure 4-6, step 9.
10 Close and secure the tailgate as shown in Figure 4-6, step 8.
Figure 4-7. M1121 TOW Carrier Accompanying Load Stowed (Continued)
4-16
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform

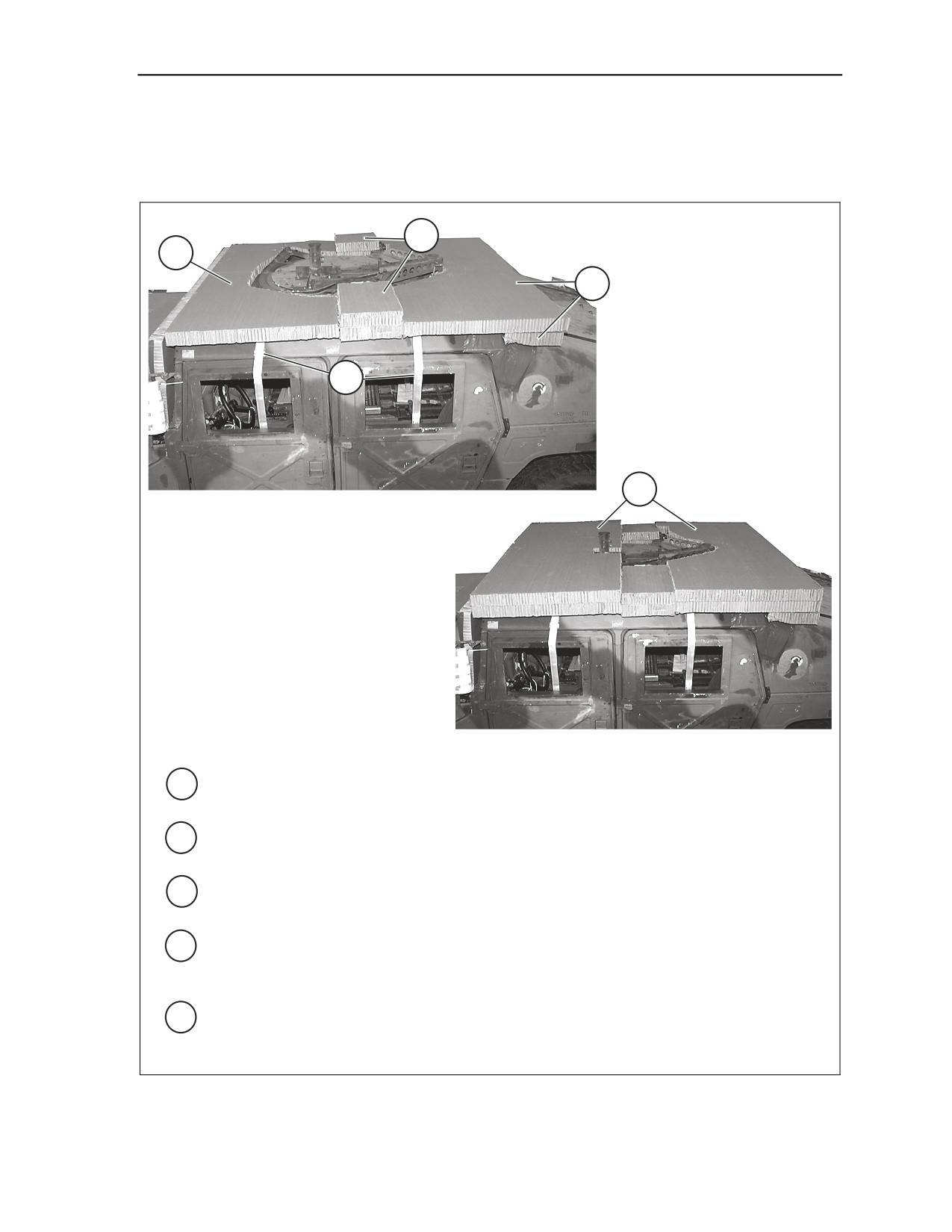

PREPARING ROOF OF TOW CARRIERS
4-8. Prepare the roof of the M1025 and M1121 TOW carriers as shown in Figure 4-8.
3
2
4
1
5
1
Place two lashings over the roof, centered on the front and rear window openings. Place
the lashings so that the D-rings and running ends will be accessible from outside the truck.
2
Place a 36- by 81-inch piece of honeycomb even with the front edge of the windshield. Cut
this honeycomb to allow for the turret fixtures on the roof.
3
Place two pieces of honeycomb 12 inches wide and cut to fit, to the rear of and flush with
the edges of the honeycomb placed in step 2.
4
Place a 36- by 81-inch piece of honeycomb to the rear of the honeycomb placed in step 3.
Cut this piece to allow for the roof turret fixtures. Crush a 12- by 81-inch piece of
honeycomb to place under the wider piece so that the wider piece is level.
5 Place two additional 36- by 81-inch pieces of honeycomb flush with the pieces placed in
steps 2 and 4. Cut these pieces to allow for the turret fixtures on the roof.
Figure 4-8. TOW Carrier Roof Prepared
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-17
Chapter 4
7
6
8
9
10
11
6
Place a 36- by 81-inch piece of honeycomb flush with the pieces placed in steps 2 and 5.
Cut this piece to allow for the roof turret fixtures.
7
Place a 36- by 81-inch piece of honeycomb aligned with the piece placed in step 6. A 12
inch ledge should result at the rear.
8
Place two 36- by 81-inch pieces of honeycomb flush with the pieces placed in steps 6 and
7. Crush this honeycomb, if necessary, to allow for the roof turret fixtures. Tape the upper
outside edges of these pieces of honeycomb.
9
Open the truck doors and tie all four layers of honeycomb together through the door
openings with Type III nylon cord.
10
Tape the lower outside edges of the 12-inch wedge piece of honeycomb placed in step 4.
Tie this piece to the two layers above it with Type III nylon cord.
11 Close the doors, and secure them shut with the lashings placed in step 1.
Figure 4-8. TOW Carrier Roof Prepared (Continued)
4-18
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
LIFTING AND POSITIONING TRUCK AND INSTALLING OPTIONAL
DRIVE-OFF AIDS
4-9. Install the lifting slings and position the truck on the honeycomb stacks as shown in Figure 3-13.
Attach the optional drive-off aids to the wheels of the truck as shown in Chapter 2 of this manual. Position
the truck on the platform as shown in Figure 4-9.
LASHING TRUCK
4-10. Lash the truck to the platform as shown in Figures 4-10 and 4-11.
INSTALLING SUSPENSION SLINGS AND ATTITUDE CONTROL
SYSTEM
4-11. Construct and inspect the Attitude Control System (ACS) according to Chapter 2. Position the ACS
and suspension slings as shown in Figure 4-12. Secure the ACS according to Chapter 2 and as shown in
Figures 4-13 and 4-14. Complete the suspension slings, pad the links, and safety tie the slings as shown in
Figure 4-15.
1
2
1 Be sure that the suspension cross members of the truck rest squarely on stacks 1 and 3.
2 Be sure that the frame cross member rests squarely on the 6-inch part of the honeycomb
at the rear of stack 2.
Figure 4-9. M1025 Armament Carrier Positioned on Platform
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-19
Chapter 4
4
3
2A
1A
2
1
2
1
9
7
5
10
9
8
Lashing
Tiedown
Instructions
Number
Clevis
Number
Pass lashing:
1
1
Through left front tie-down provision.
2
1A
Through right front tie-down provision.
3
2
Through right front tie-down provision.
4
2A
Through left front tie-down provision.
5
8
Around right front lower control arm.
6
8A
Around left front lower control arm.
7
9
Through tiedown bracket behind right front coil spring.
8
9A
Through tiedown bracket behind left front coil spring.
9
10 and 10A
Pass a 15-foot lashing through clevis 10A and through its own D-
ring. Pass the lashing through the holes in stack 2. Attach the
lashing to clevis 10 with a load binder.
Figure 4-10. Lashings 1 Through 9 Installed
4-20
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging M1025/M1121/M1114 Armament/TOW Carrier HMMWV on Dual Row Airdrop System Platform
10
12
14
13
16
17
15
14
17
18
Lashing
Tiedown
Instructions
Number
Clevis
Number
Pass lashing:
10
13
Through tiedown bracket in front of right rear coil spring.
11
13A
Through tiedown bracket in front of left rear coil spring.
12
14
Around right rear lower control arm.
13
14A
Around left rear lower control arm.
14
17
Through left rear tiedown point.
15
17A
Through right rear tiedown point.
16
18
Through right rear tiedown point behind the coil spring.
17
18A
Through left rear tiedown point behind the coil spring.
Figure 4-11. Lashings 10 Through 17 Installed
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
4-21
|
|
