Rigging Palletized Load System (PLS) on a 24-Foot, Type V Platform for Low-Velocity Airdrop
PLACING EXTRACTION PARACHUTE
7-13. Select the extraction parachute and extraction line needed using the extraction line requirements
table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Place the extraction
parachute and line on the load for installation in the aircraft.
INSTALLING PROVISIONS FOR EMERGENCY RESTRAINTS
7-14. Select and install the provisions for the emergency aft restraints according to the emergency aft
restraint requirements table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-
5.
MARKING RIGGED LOAD
7-15. Mark the rigged load according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5, and as shown in Figure 7-21. Complete Shipper’s Declaration for Dangerous Goods. If
the load varies from the one shown, the weight, height, CB, and parachute requirements must be
recomputed.
EQUIPMENT REQUIRED
7-16. Use the equipment listed in Table 7-1 to rig this load.
20 February 2009
FM 4-20.112/TO 13C7-1-8
7-27
Chapter 7
CAUTION
Make the final rigger inspection required by AR 59-4 and FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5
before the load leaves the rigging site.
CB
RIGGED LOAD DATA
Weight:
33,343 pounds
Maximum Suspended Weight
35,000 pounds
Height
97 inches
Width
108 inches
Overall Length
288 inches
Overhang: Front
0 inches
Rear
0 inches
Center of Balance (from front edge of the platform)
132 inches
Extraction System with 24-foot cable (adds 18 inches to length of platform)
EFTC

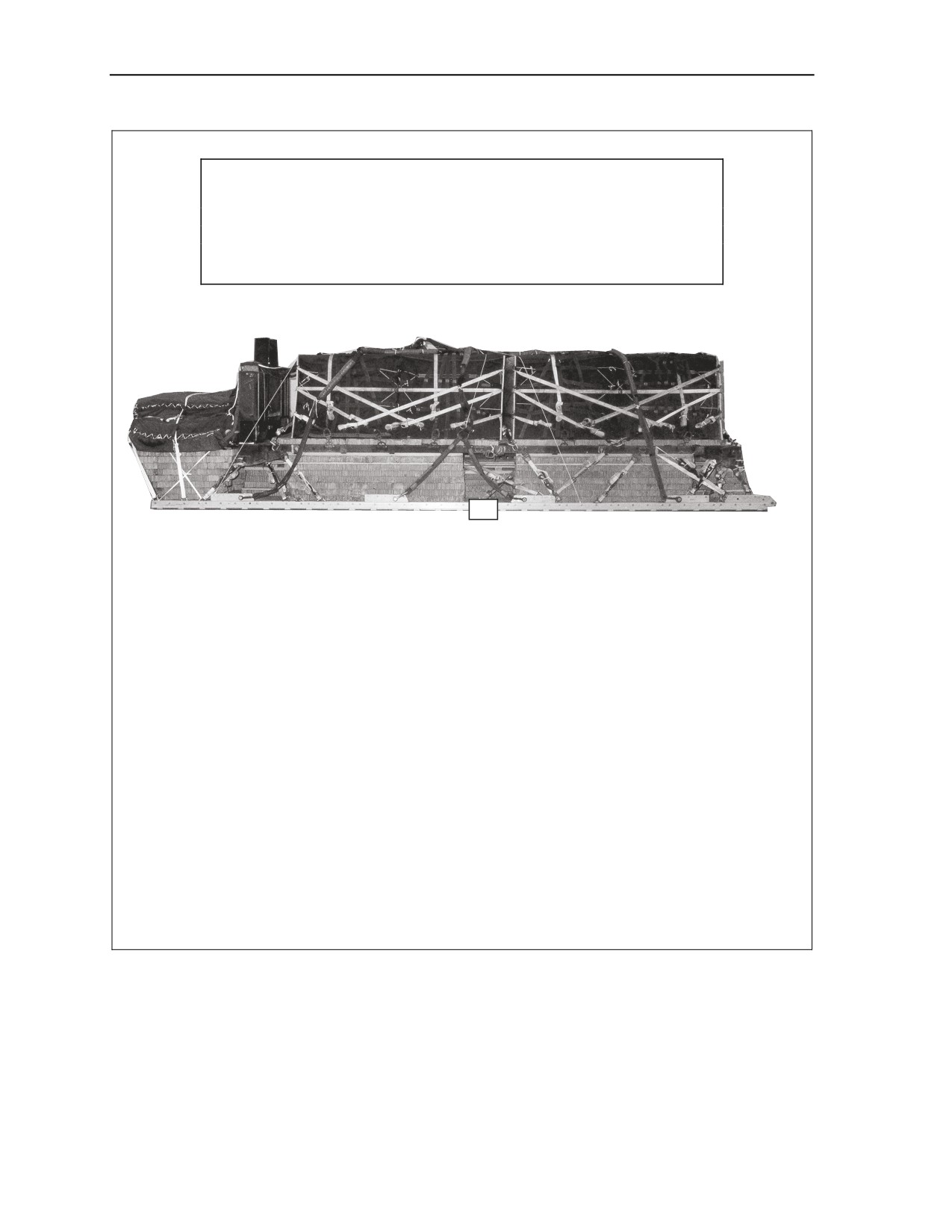

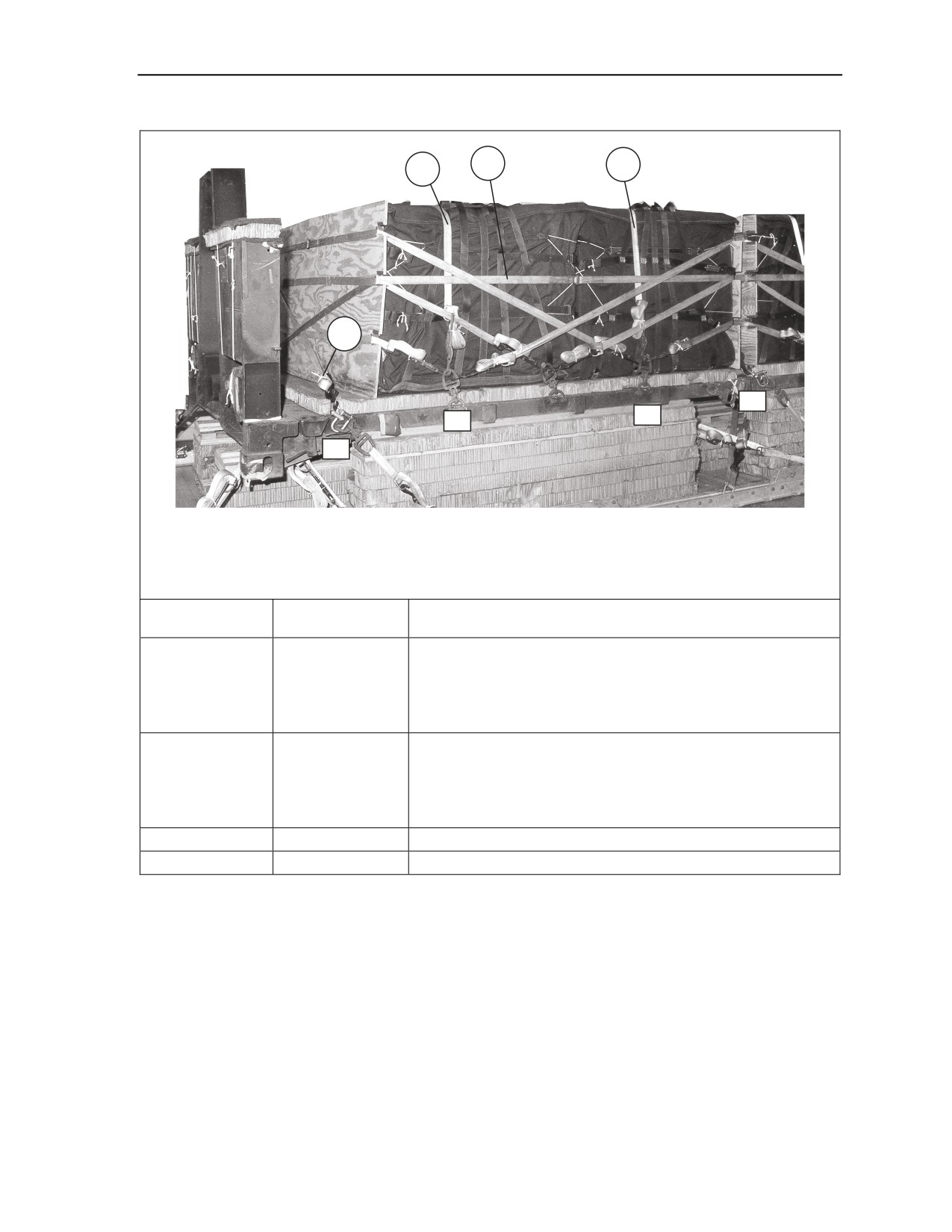

Figure 7-21. PLS Pallet with 105-Millimeter Ammunition Rigged on a 24-Foot, Type V Platform
for Low-Velocity Airdrop
7-28
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Palletized Load System (PLS) on a 24-Foot, Type V Platform for Low-Velocity Airdrop
Table 7-1. Equipment Required for Rigging PLS Pallet with 105-Millimeter Ammunition on a
24-Foot, Type V Platform for Low-Velocity Airdrop
National Stock Number
Item
Quantity
8040-00-273-8713
Adhesive, paste, 1-gallon
As required
Clevis, suspension:
4030-00-090-5354
1-inch (large)
14
8305-00-880-8155
Cloth, coated (nylon, type II, green, 60-in)
As required
4020-00-240-2146
Cord, nylon, type III
As required
1670-00-434-5782
Coupling, airdrop, extraction force transfer with
24-foot cable
1
1670-00-360-0328
Cover, clevis, large
7
8135-00-664-6958
Cushioning material, packaging, cellulose wadding
As required
8305-00-191-1101
Felt, ½-inch thick
As required
1670-01-183-2678
Leaf, extraction line (line bag) (add 2 for C-17)
2
Line, extraction, type XXVI nylon webbing:
1670-01-062-6313
60-foot (3-loop), type XXVI
1
1670-01-107-7651
140-foot (3-loop), type XXVI
1
1670-01-062-6313
60-foot (3-loop), type XXVI for C-17 drogue line
1
1670-01-493-6418
Link assembly, two-point:
5
5510-00-220-6146
Lumber, 2- by 4-in
As required
5351-00-010-4659
Nail, steel wire, common 8d
As required
1670-00-753-3928
Pad, energy-dissipating, honeycomb
46 sheets
Parachute:
1670-01-016-7841
Cargo, G-11
7
1670-00-040-8135
Cargo, extraction, 28-foot
1
1670-01-063-3715
Cargo, extraction, 15-foot for C-17
1
Platform, airdrop, type V, 20-foot
1
1670-00-128-4981
Plywood, ¾- by 48- by 96-inches
11 sheets
1670-01-353-8425
Bracket assembly, EFTC
1
1670-01-162-2372
Bracket assembly, extraction
1
1670-01-162-2376
Clevis assembly
68
1670-01-247-2389
Suspension bracket link, type V
8
1670-01-162-2381
Tandem link
2
1670-01-097-8817
Release, cargo parachute, M-2
1
20 February 2009
FM 4-20.112/TO 13C7-1-8
7-29
Chapter 7
Table 7-1. Equipment Required for Rigging PLS Pallet with 105-Millimeter Ammunition on a
24-Foot, Type V Platform for Low-Velocity Airdrop (Continued)
National Stock Number
Item
Quantity
Sling, cargo airdrop:
1670-01-062-6307
12-foot (2-loop), type XXVI nylon webbing
1
1670-01-064-4453
20-foot (4-loop), type XXVI nylon webbing
2
1670-01-062-6306
3-foot (4-loop), type XXVI nylon webbing
8
1670-01-062-6340
9-foot (2-loop), type XXVI nylon webbing
3
1670-01-063-7761
16-foot (2-loop), type XXVI nylon webbing
2
1670-01-062-6311
120-foot (2-loop), type XXVI nylon webbing
7
5340-00-040-8219
Strap parachute release, multicut
2
7501-00-266-5016
Tape, adhesive, 2-inch
As required
7501-00-266-6710
Tape, masking
As required
1670-00-937-0271
Tiedown assembly, 15-foot
92
1670-01-483-8259
Towplate release mechanism (H-block) (C-17)
1
Webbing:
8305-00-268-2411
Cotton, 1/4-inch, type I
As required
Nylon:
8305-00-082-5752
Tubular, 1/2-inch
As required
8305-00-263-3591
Type VIII webbing
As required
7-30
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Palletized Load System (PLS) on a 24-Foot, Type V Platform for Low-Velocity Airdrop
SECTION II-RIGGING A-22 CARGO BAGS
DESCRIPTION OF LOAD
7-17. The palletized load system can be moved from the drop zone and transported on a specially designed
truck. Bulk supplies are lashed to the pallet, giving the load integrity for transport. The pallet has swivel
rings along the sides for lashing the load. The pallet is lashed to the airdrop platform for low-velocity
airdrop. The load shown consists of eight A-22 cargo bags. Adapt these procedures to rig other items of
bulk supplies. Ammunition listed in FM 4-20.153/MCPR 4-11.3B/TO 13C7-18-41, as certified for low-
velocity airdrop, may be rigged using these procedures. The rigged load may not be more than 100 inches
high. Refer to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 for the weight
limitations for the number of parachutes to be used.
PREPARING PLATFORM

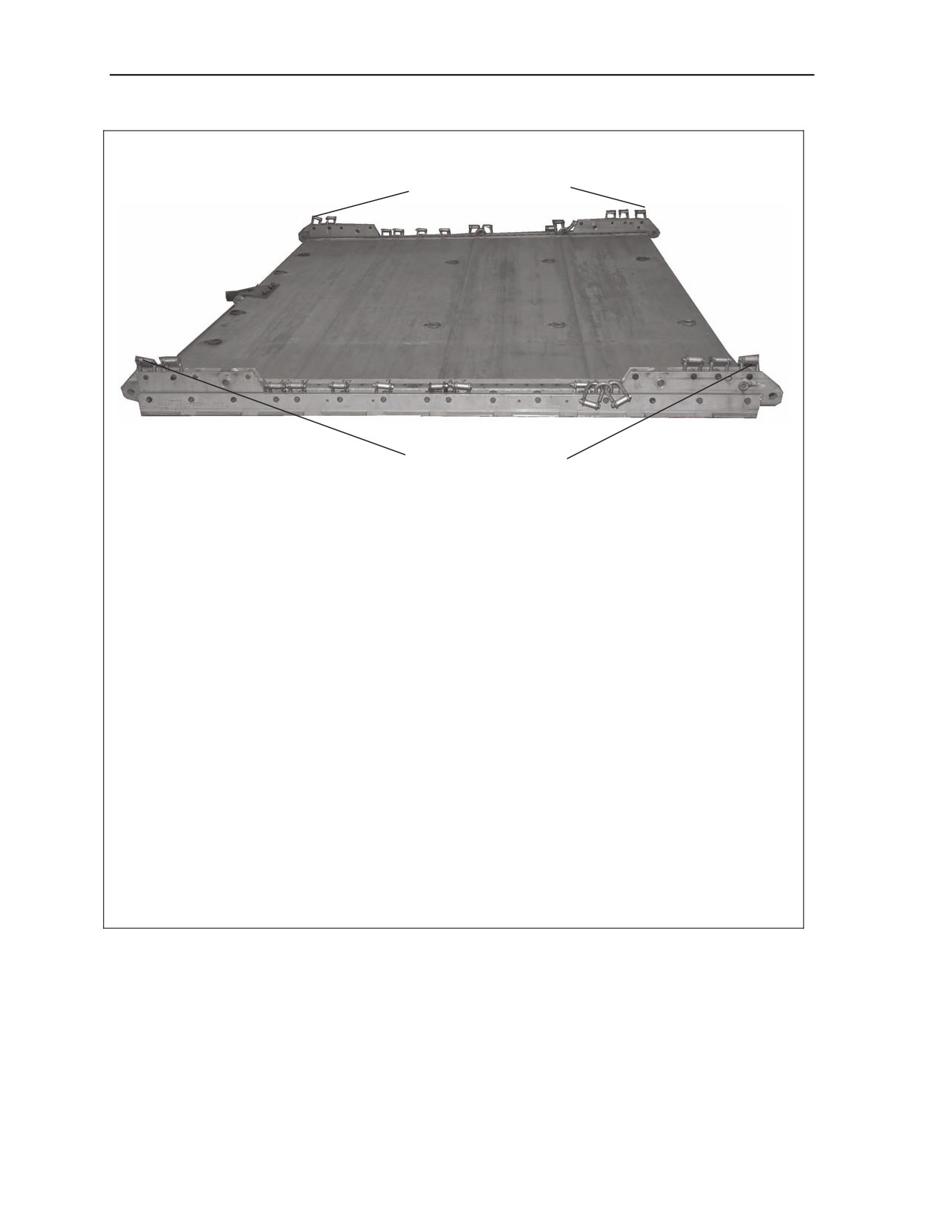

7-18. Prepare a 24-foot, type V platform as shown in Figure 7-22.
20 February 2009
FM 4-20.112/TO 13C7-1-8
7-31
Chapter 7

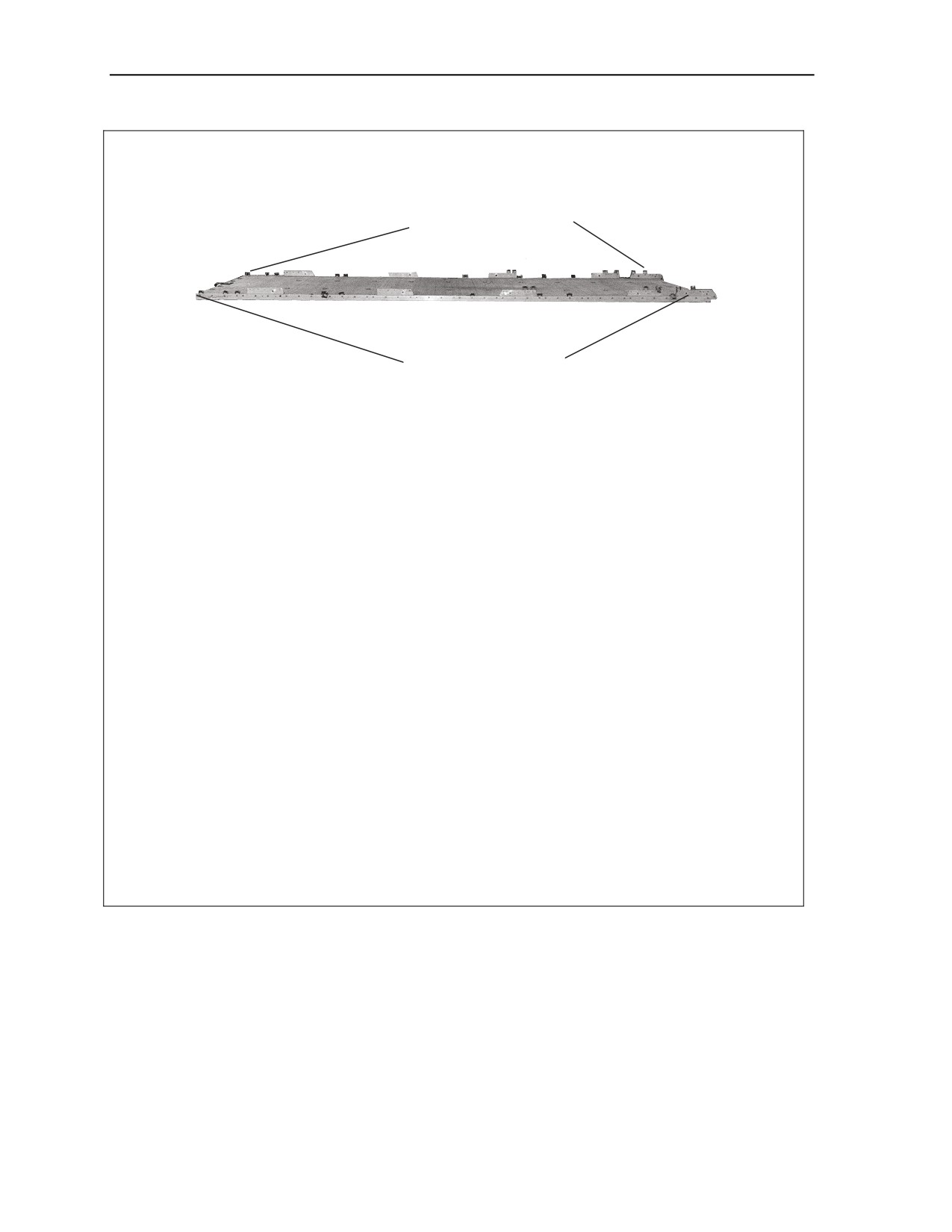

CLEVISES
16A THROUGH 1A
LEFT
REAR
FRONT
RIGHT
CLEVISES
16 THROUGH 1
Step:
1. Inspect, or assemble and inspect, a 24-foot, type V platform as outlined in TM 10-1670-
268-20&P/TO 13C7-52-22.
2. Install a suspension link in holes 18, 19, and 20 on each side of the platform.
3. Install a suspension link in holes 6, 7, and 8 on each side of the platform.
4. Install a tandem link on the front of each platform side rail using holes 1, 2, and 3.
5. Install a suspension link in holes 29, 30, and 31 on each side rail.
6. Install a suspension link in holes 41, 42, and 43 on each side of the platform.
7. Install clevises on bushings 3 and 4 of each front tandem link.
8. Install clevises on bushings 1 and 3 of each first suspension link.
9. Install clevises on bushings 1 and 2 of each second suspension link.
10. Starting at the front of the right and left platform side rail, install clevises on the bushings
bolted to holes 4, 14, 17, 23, 35, 37, 38, 45, 46, and 48.
11. Install a double clevis on bushings 4 and 37 on each side of the platform.
12. Starting at the front of the platform, number the clevises 1 through 16 on the right side,
and 1A through 16A on the left side.
Figure 7-22. Platform Prepared
7-32
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Palletized Load System (PLS) on a 24-Foot, Type V Platform for Low-Velocity Airdrop
PREPARING AND POSITIONING HONEYCOMB

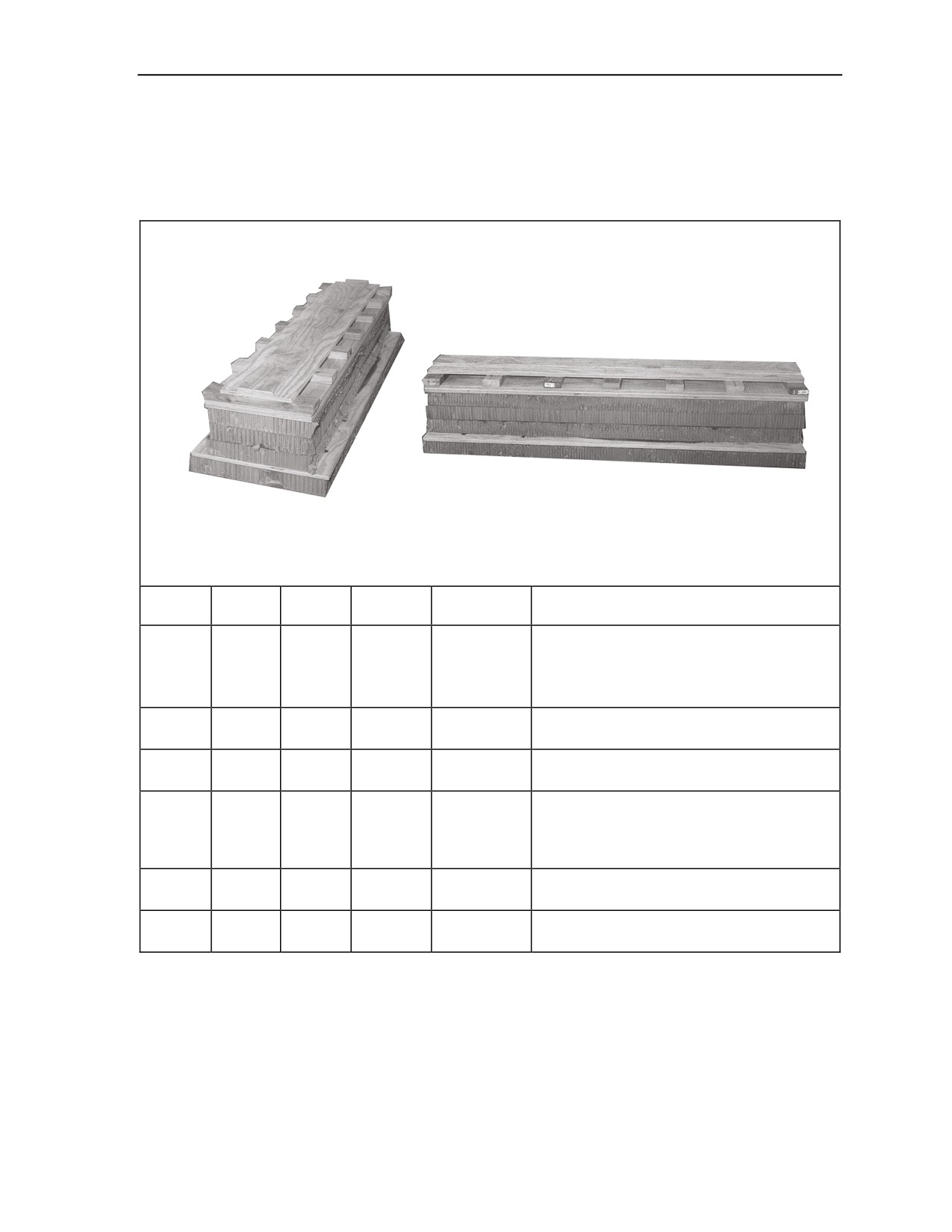

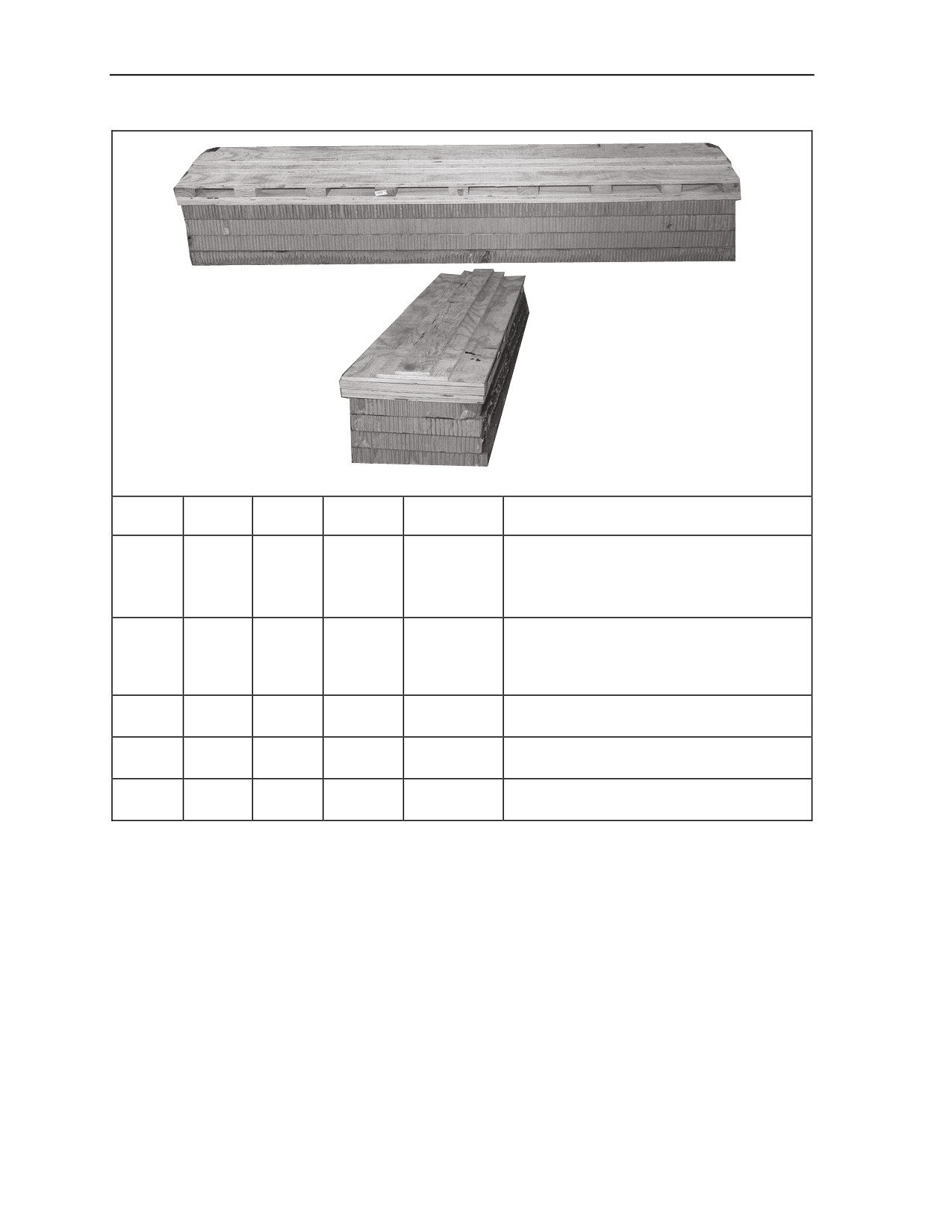

7-19. Prepare ten honeycomb stacks as shown in Figures 7-23 through 7-25. Position the stacks on the
platform as shown in Figure 7-26.
Stack
Pieces
Width
Length
Material
Instructions
Number
(Inches)
(Inches)
1, 2, 5,
1
24
76
Honeycom
Glue plywood flush over honeycomb to
and 6
b
form base.
1
24
76
¾-inch
plywood
3
18
76
Honeycom
Center and glue on base.
b
2
18
76
¾-inch
Glue flush over honeycomb.
plywood
7
18
*3 1/2
2- by 4-inch
Nail one piece flush over each end of the
lumber
plywood. Center a third piece between the
ends. Space two pieces evenly between
each end piece and the center piece.
1
12
76
¾-inch
Center and nail over lumber.
plywood
1
6
76
¾-inch
Center and nail over plywood.
plywood
* Two- by four-inch lumber is actually 3 ½ inches wide.

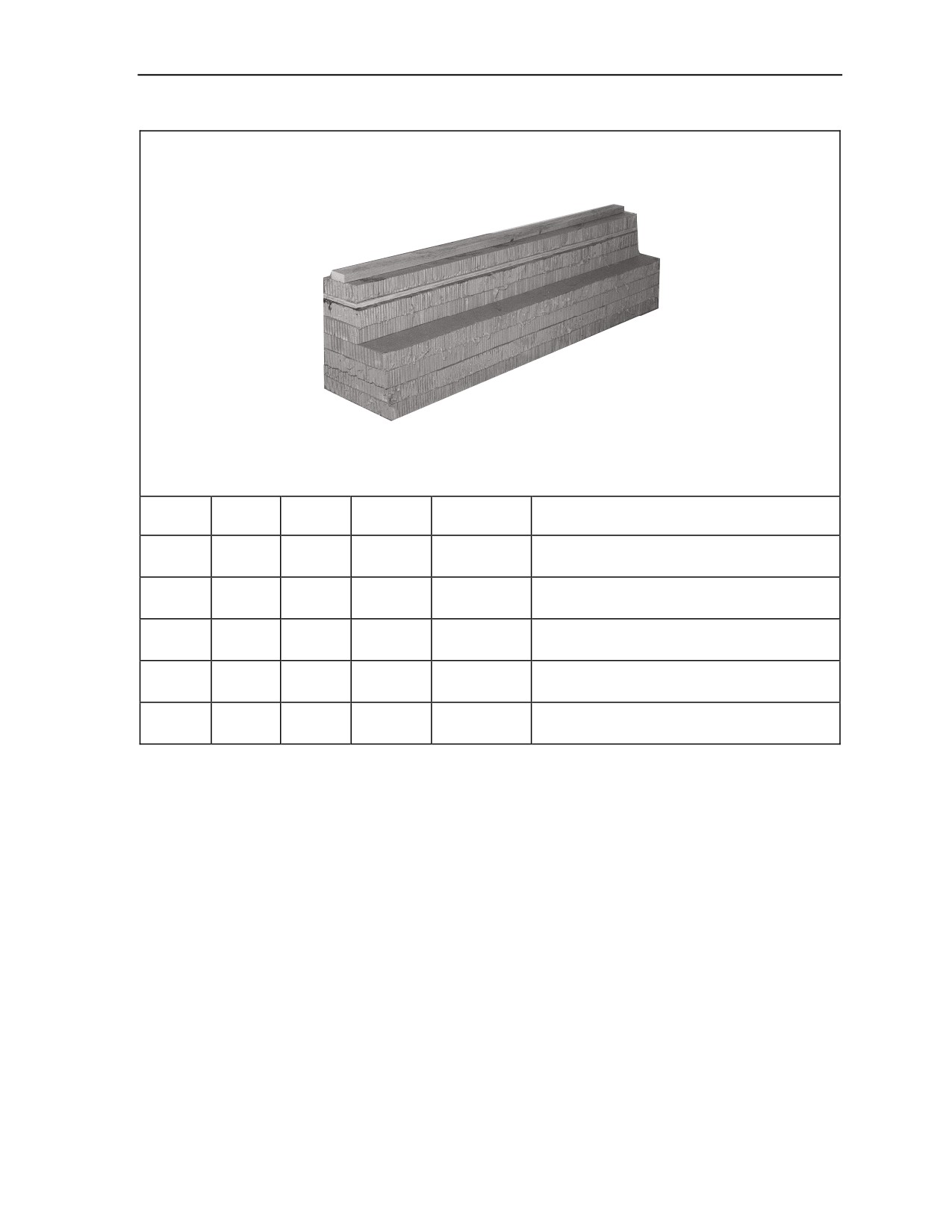

Figure 7-23. Stacks 1, 2, 5 and 6 Prepared
20 February 2009
FM 4-20.112/TO 13C7-1-8
7-33
Chapter 7
Stack
Pieces
Width
Length
Material
Instructions
Number
(Inches)
(Inches)
3 and 4
4
24
96
Honeycom
Glue plywood flush over honeycomb to
b
form base.
2
24
96
¾-inch
plywood
9
24
*3 1/2
2- by 4-inch
Nail one piece flush over each end of the
lumber
plywood. Center a third piece between the
ends. Space three pieces evenly between
each end piece and the center piece.
1
24
96
¾-inch
Center and nail over lumber.
plywood
1
12
96
¾-inch
Center and nail over plywood.
plywood
1
6
96
¾-inch
Center and nail over plywood.
plywood
* Two- by four-inch lumber is actually 3 ½ inches wide.
Figure 7-24. Stacks 3 and 4 Prepared
7-34
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Palletized Load System (PLS) on a 24-Foot, Type V Platform for Low-Velocity Airdrop
Stack
Pieces
Width
Length
Material
Instructions
Number
(Inches)
(Inches)
7, 8, 9,
4
16
84
Honeycom
Glue flush to form base.
and 10
b
2
9
84
Honeycom
Glue flush on one side of base.
b
1
9
84
¾-inch
Center and glue over honeycomb.
plywood
1
9
84
Honeycom
Center and glue over plywood.
b
1
*3 1/2
84
2- by 4-inch
Center and glue on honeycomb.
lumber
* Two- by four-inch lumber is actually 3 ½ inches wide.
Figure 7-25. Stacks 7, 8, 9, and 10 Prepared
20 February 2009
FM 4-20.112/TO 13C7-1-8
7-35
Chapter 7
Notes.
1. This drawing is not to scale
2. All dimensions are in inches.
10
8
24
6
4
2
5
3
1
9
22
7
32
Stack
Position of Stack on the Platform
Number
1
Place flush with the front edge of the platform and 24 inches from the right inside
platform edge.
2
Place flush with the front edge of the platform and 24 inches from the left inside
platform edge.
3
Place against and aligned behind stack 1.
4
Place against and aligned behind stack 2.
5
Place against and aligned behind stack 3.
6
Place against and aligned behind stack 4.
7
Place 32 inches from the front edge of the platform and flush with the right sides of
stacks 1 and 3.
8
Place 32 inches from the front edge of the platform and flush with the left sides of
stacks 2 and 4.
9
Place 22 inches to the rear of stack 7 and flush with the right sides of stacks 3 and 5.
10
Place 22 inches to the rear of stack 8 and flush with the left sides of stacks 4 and 6.

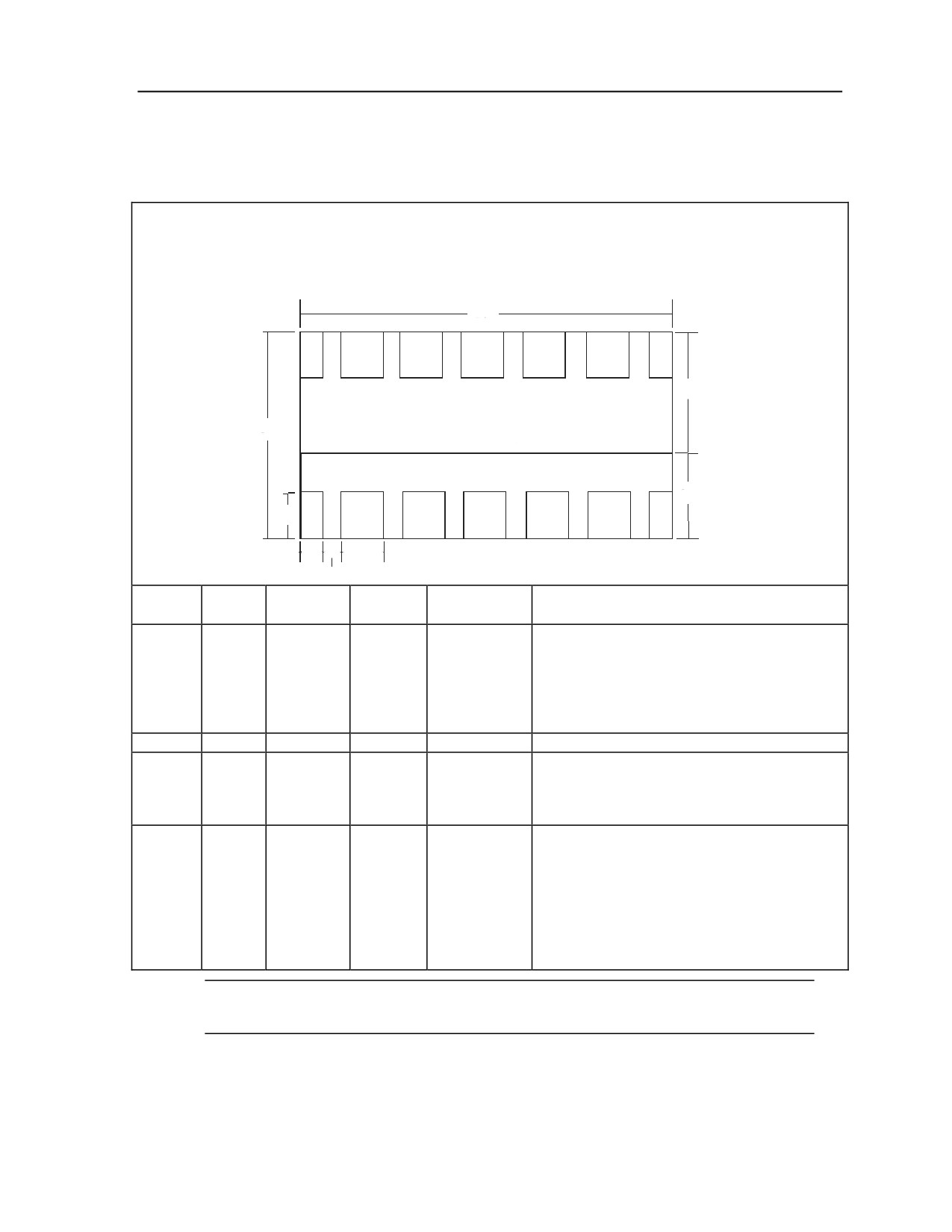

Figure 7-26. Honeycomb Stacks Positioned on Platform
7-36
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Palletized Load System (PLS) on a 24-Foot, Type V Platform for Low-Velocity Airdrop
PREPARING PLS PALLET
7-20. Prepare the pallet as shown in Figure 7-27.
2
1
4
3
3

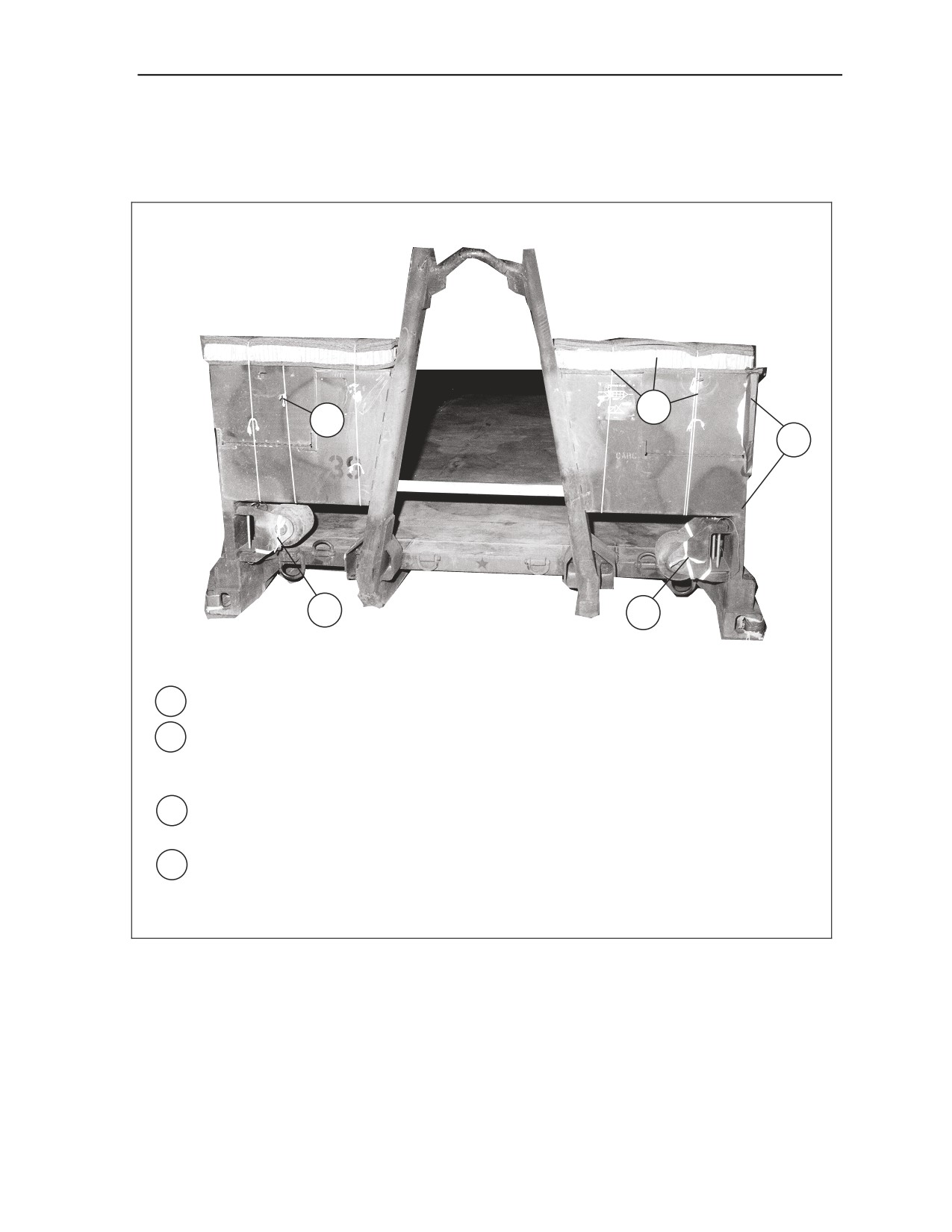

1 Tie the storage compartments on each side shut with type III nylon cord.
2 Pad the top of each box area with a 7- by 30-inch piece of felt, a 7- by 30-inch piece of
honeycomb, and two 7- by 30-inch pieces of felt. Tie the padding in place with lengths of
type III nylon cord.

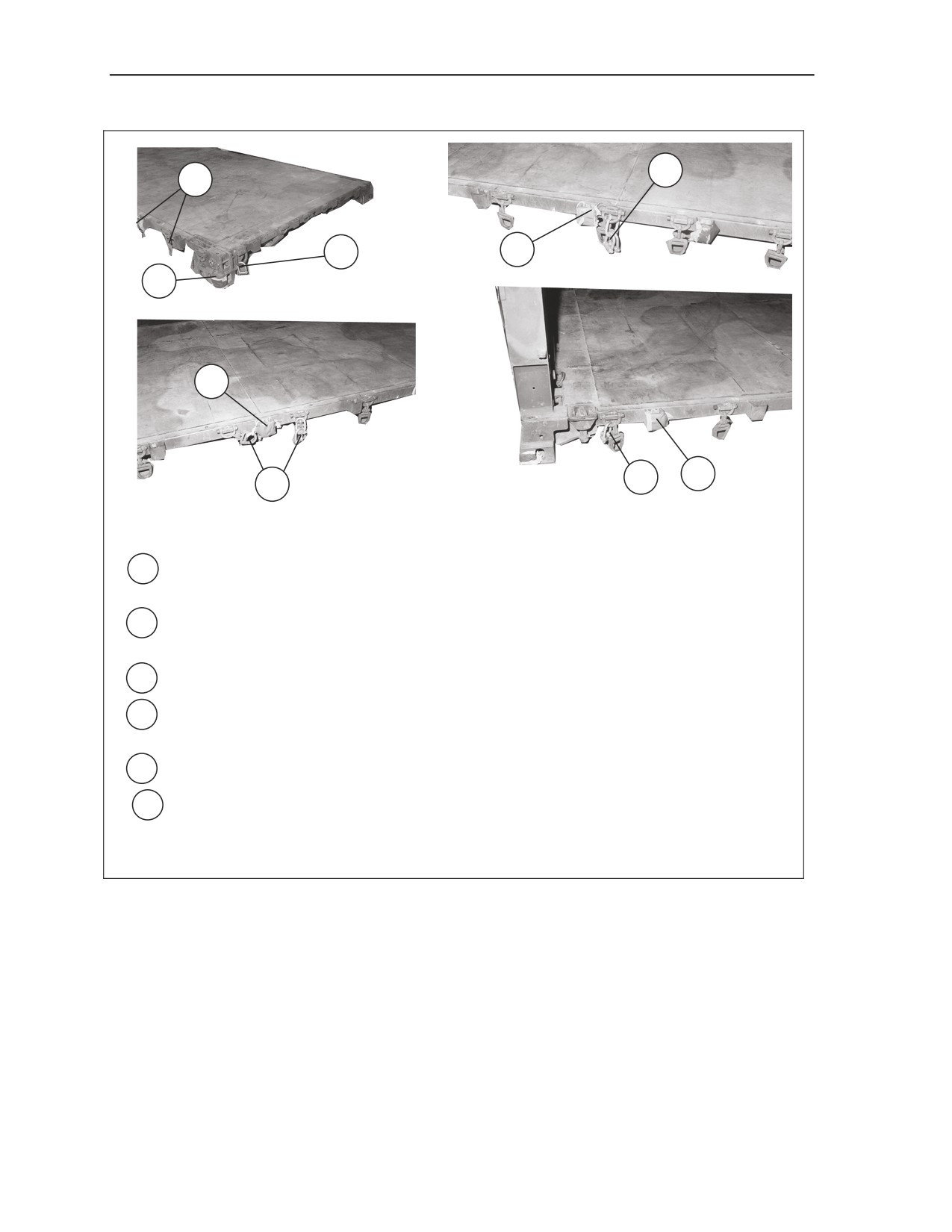

3 Remove the wheels and secure them in place with the pins provided. Tie the wheels to
their brackets with a length of 1/2-inch tubular nylon webbing.
4 Pad the fixtures on the outsides of the boxes with cellulose wadding and tape.
Figure 7-27. Pallet Prepared
20 February 2009
FM 4-20.112/TO 13C7-1-8
7-37
Chapter 7
9
5
7
5
6
5
10
5
8
5 Pad the first, second, third, fifth, and ninth stake brackets on each side with cellulose
wadding and tape.

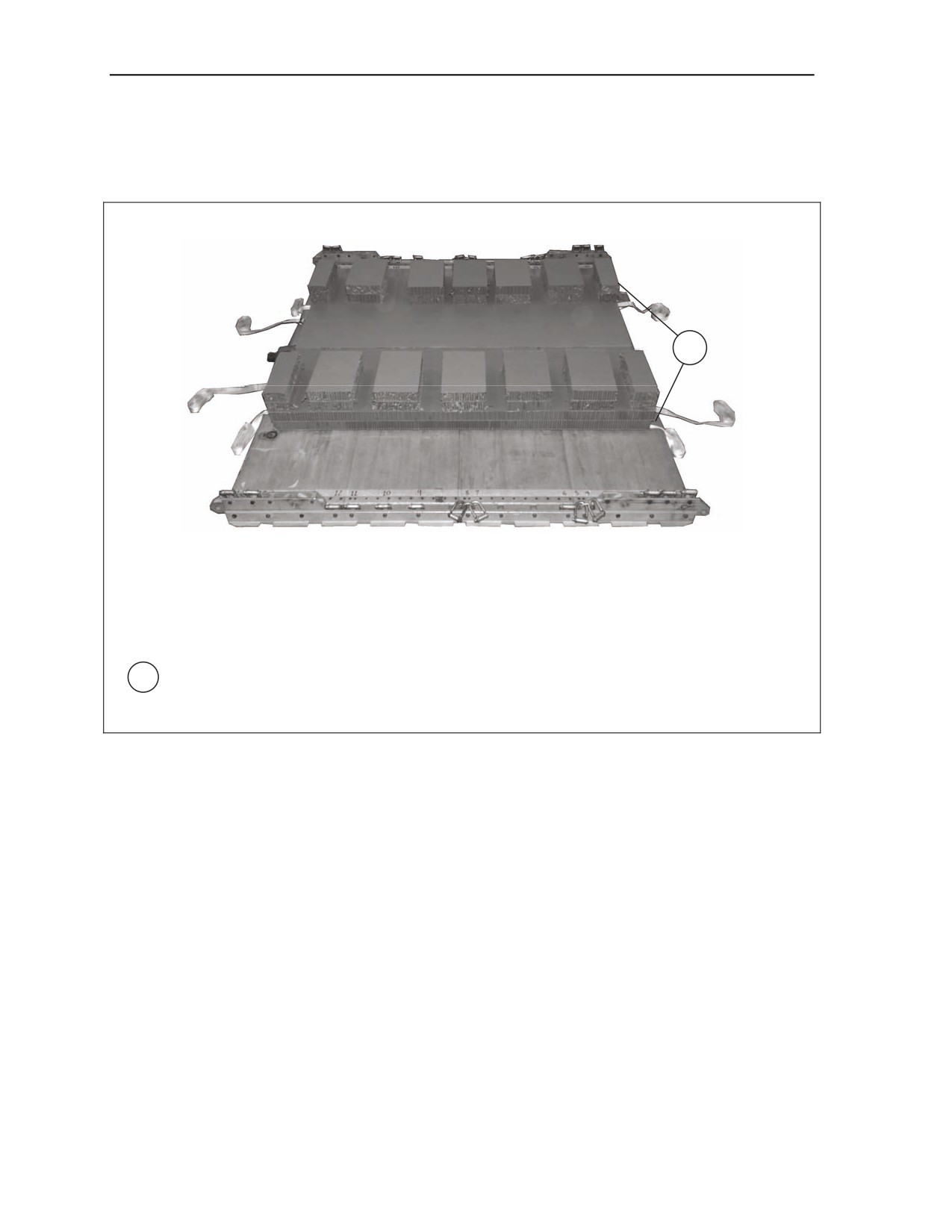

6 Pad all four corners of the PLS pallet around the bottom holes with cellulose wadding and
tape as shown.
7 Add a platform clevis to each of the large tiedown brackets at the rear of the PLS pallet.
8 Add two platform clevises on the bracket for sixth swivel ring bracket on each side. Tie the
seventh swivel ring to the stake bracket with type I, 1/4-inch cotton webbing.
9 Add three platform clevises to the fourth swivel ring bracket on each side of the PLS pallet.
10 Add two clevises to the eleventh swivel ring bracket on each side of the PLS pallet.
Figure 7-27. Pallet Prepared (Continued)
7-38
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Palletized Load System (PLS) on a 24-Foot, Type V Platform for Low-Velocity Airdrop
POSITIONING PLS PALLET ON PLATFORM

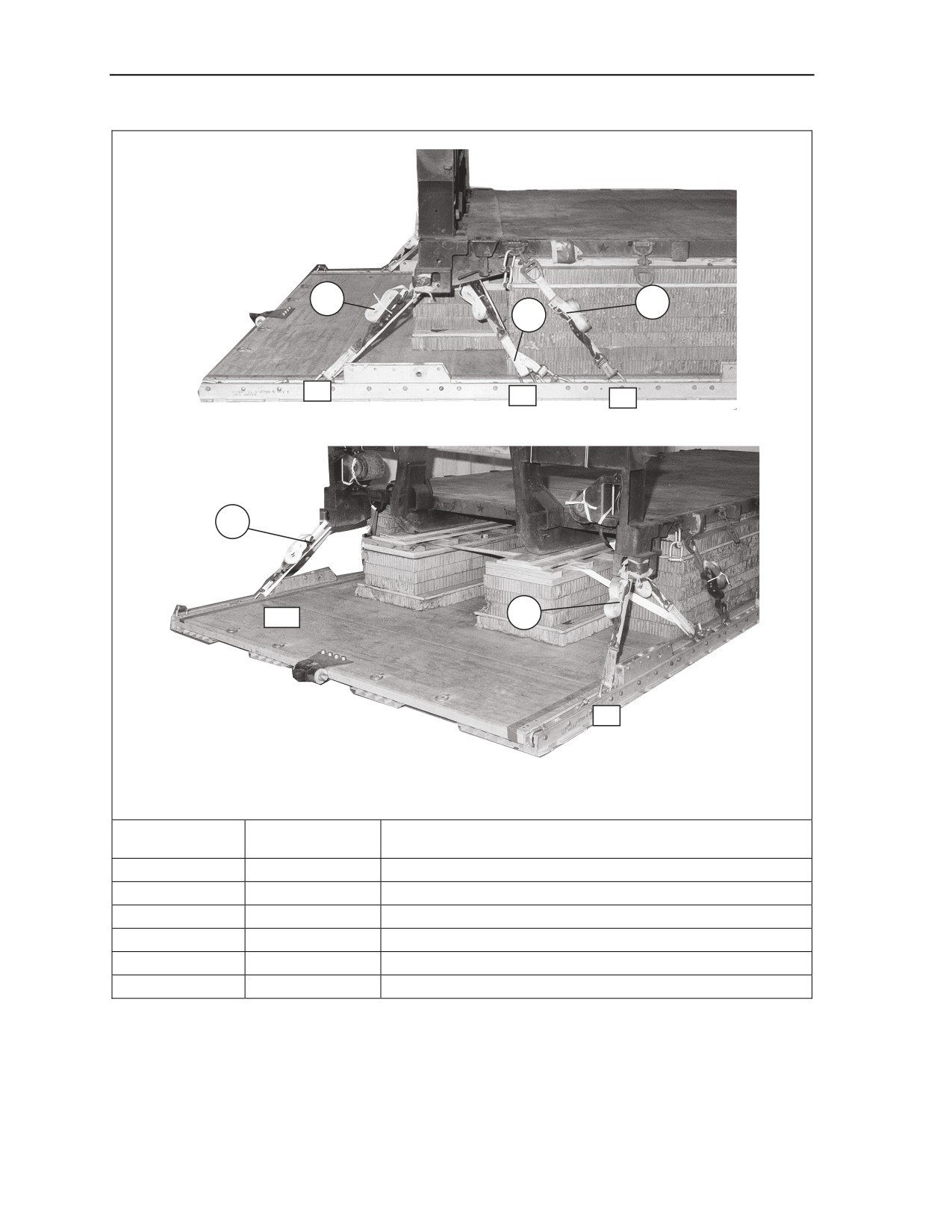

7-21. Position the pallet on the platform and install the restraint lashings around the honeycomb stacks
according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in
Figure 7-28.

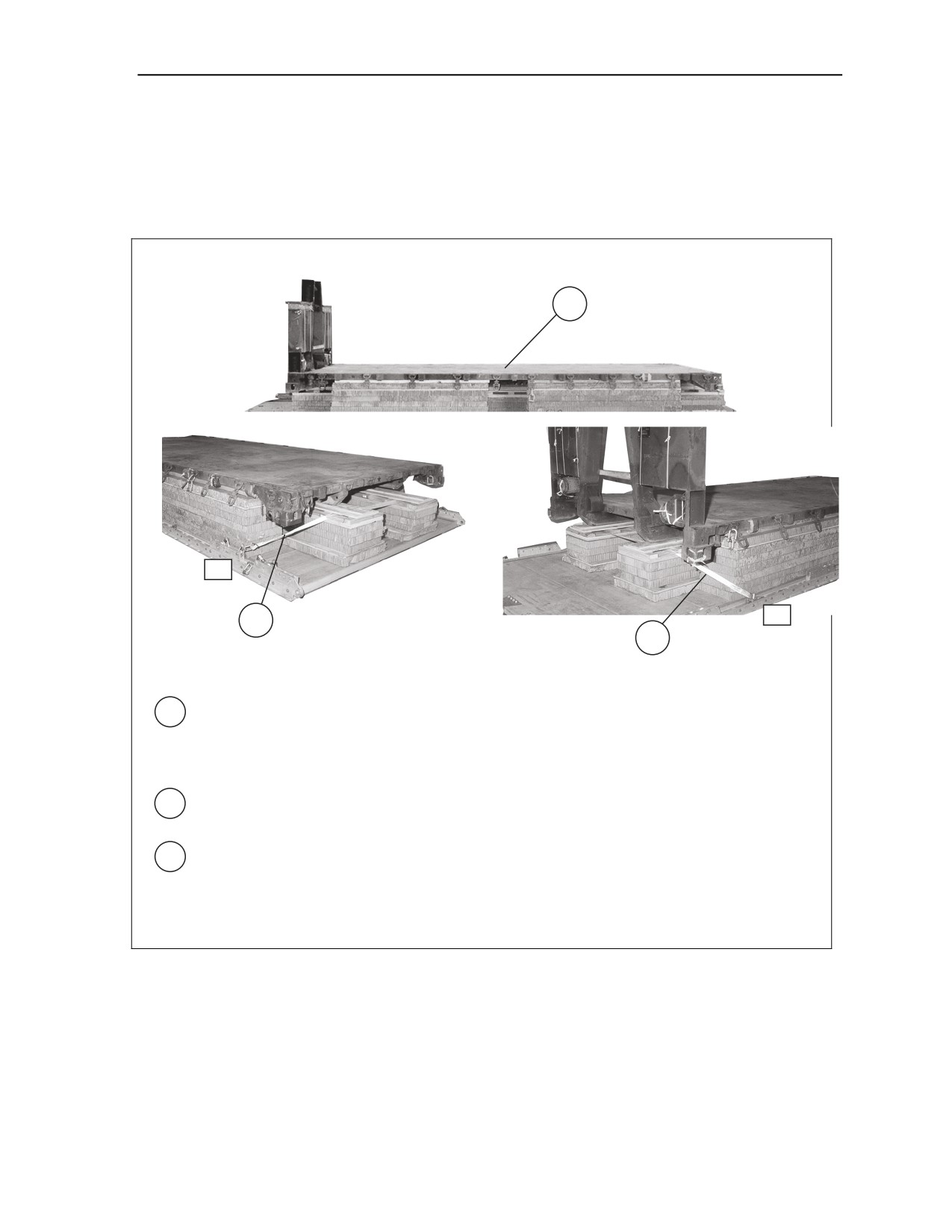

1
4
2
12
3

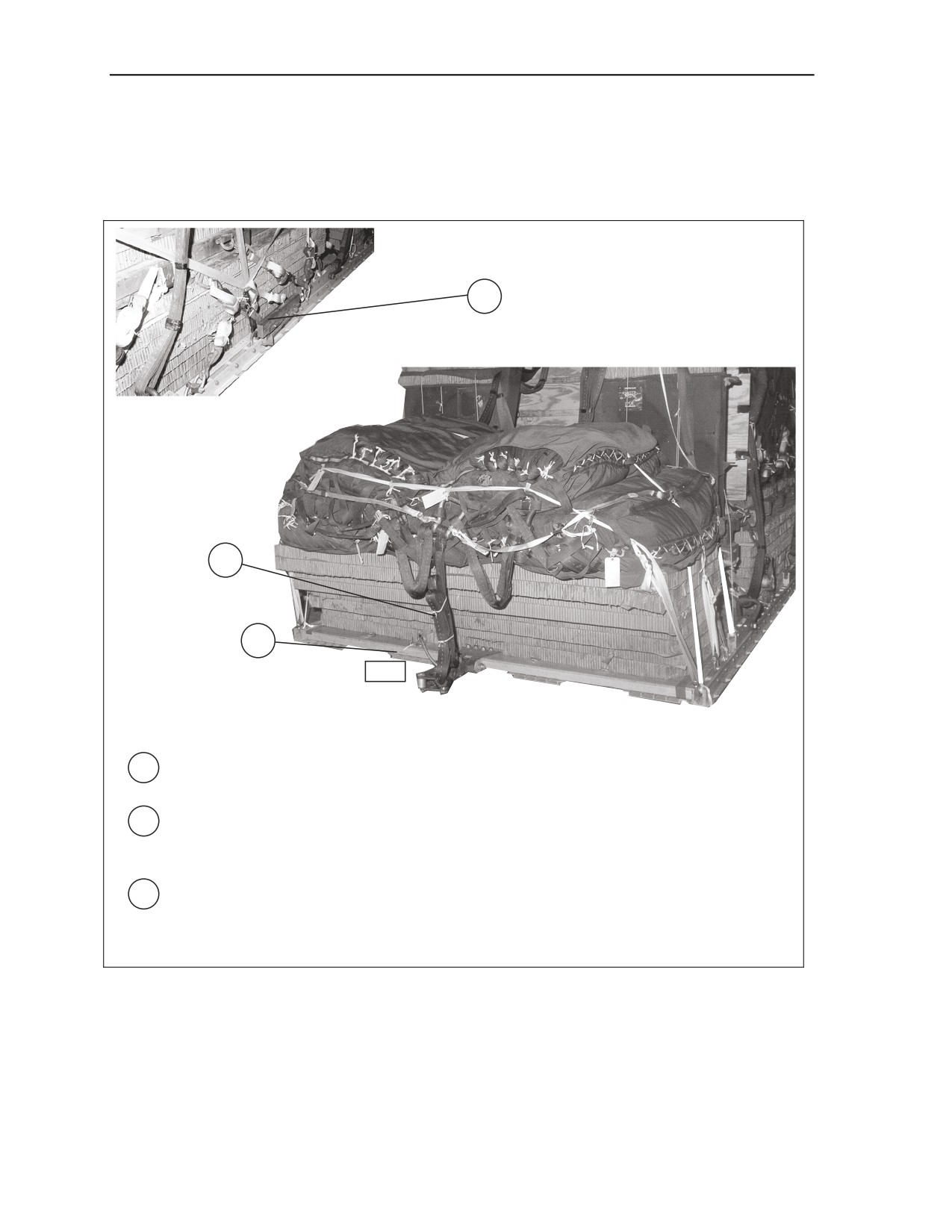

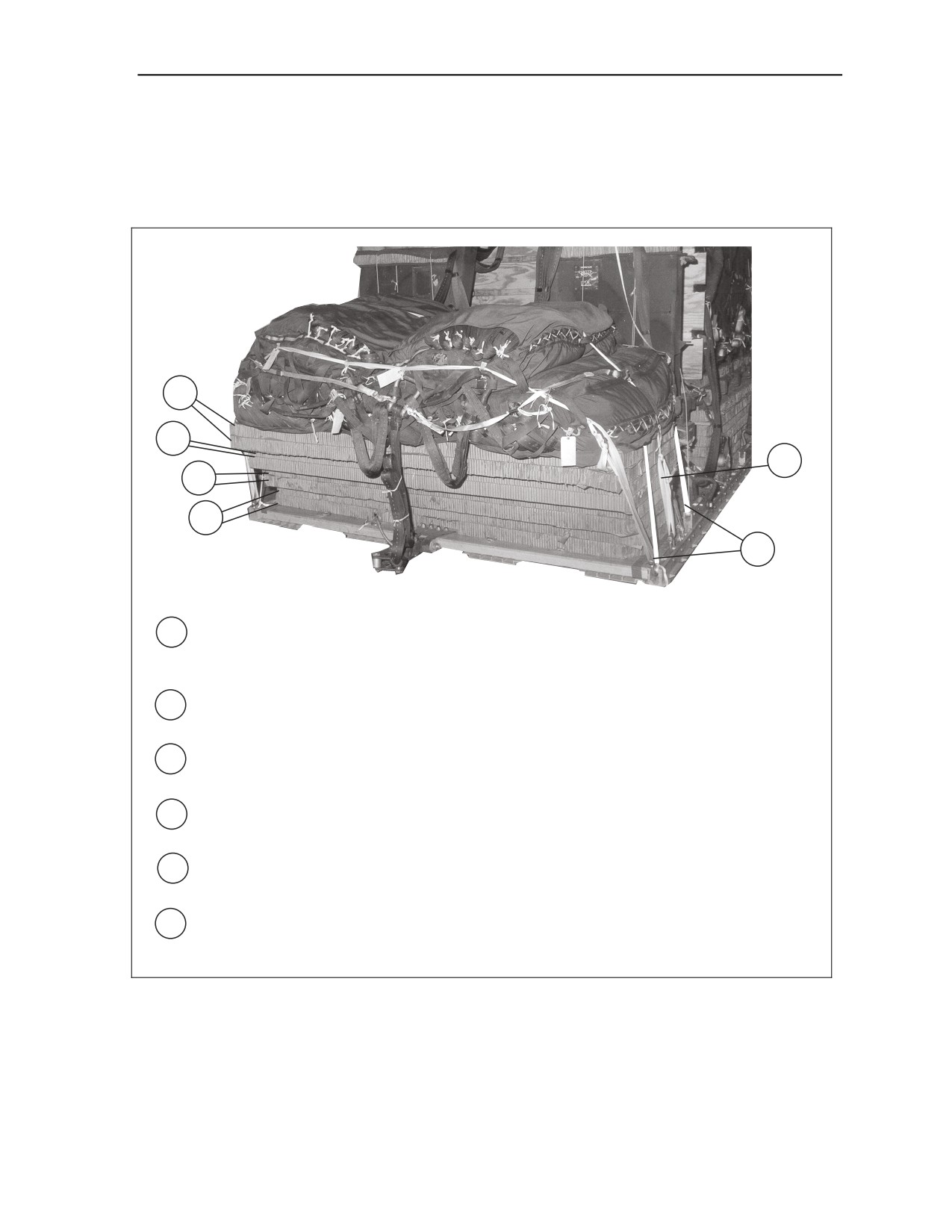

1 Center the pallet on the stacks with the yoke assembly to the rear. The rear edge of the
pallet must be even with the rear edges of stacks 5 and 6. Be sure that the center runners
of the pallet rest squarely on stacks 1, 2, 3, 4, 5, and 6. Be sure that the pallet side rails
rest on the lumber portion of stacks 7, 8, 9, and 10.
2 Pass a 15-foot lashing through clevis 4 and through its own D-ring. Pass the lashing
through the first holes in stacks 1 and 2. Secure the lashing to clevis 4A with a load binder.
3 Pass a 15-foot lashing through clevis 12 and through its own D-ring. Pass the lashing
through the rear holes in stacks 5 and 6. Secure the lashing to clevis 12A with a load
binder.
Figure 7-28. Pallet Positioned and Restraint Lashing Installed
20 February 2009
FM 4-20.112/TO 13C7-1-8
7-39
Chapter 7
LASHING PLS PALLET TO PLATFORM

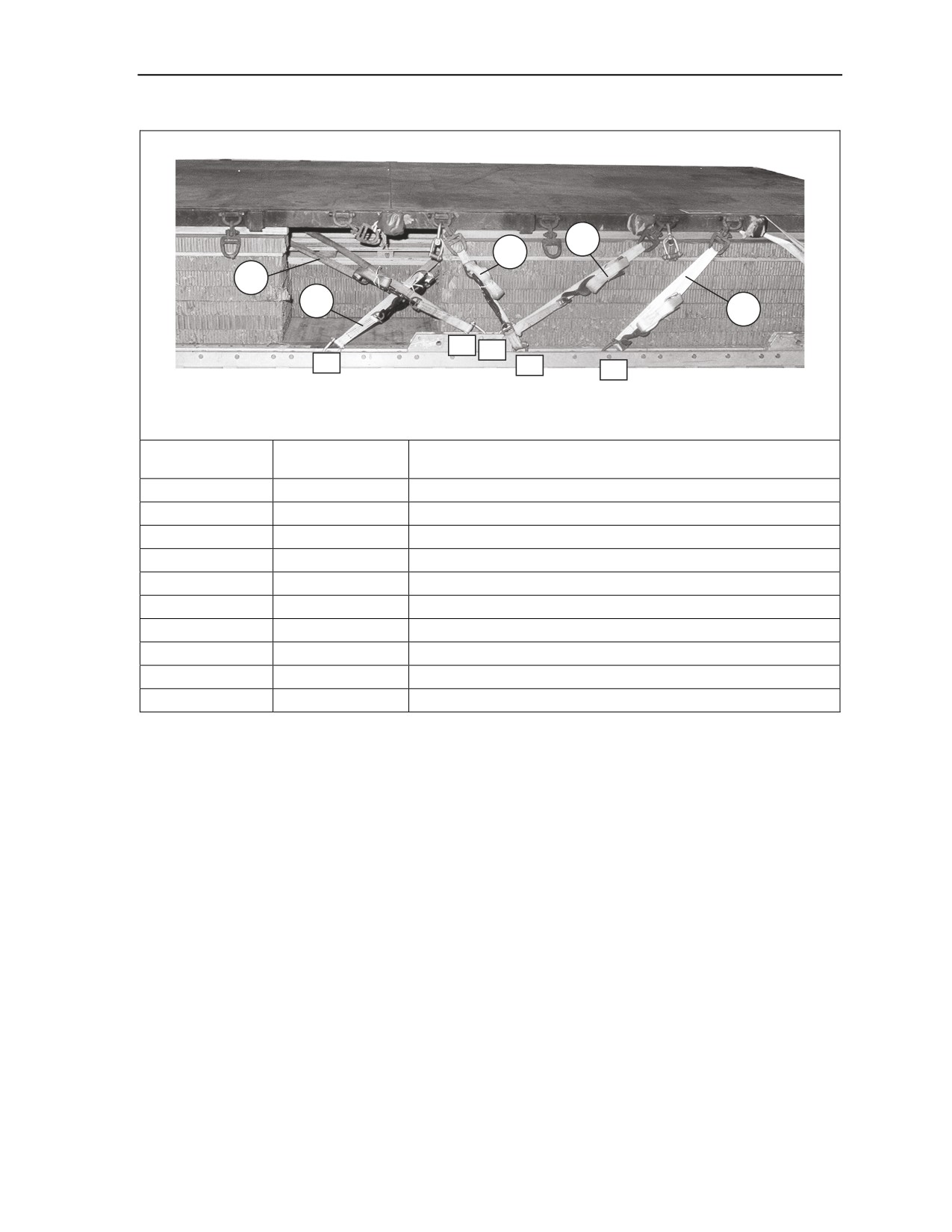

7-22. Lash the PLS pallet to the platform as shown in Figure 7-29.
7
1
3
5
2
1
5
4
3
Lashing Number
Tiedown Clevis
Instructions
Number
1
1
Pass lashing through the right front inside tiedown point.
2
1A
Pass lashing through the left front inside tiedown point.
3
2
Pass lashing through the second stake bracket.
4
2A
Pass lashing through the second stake bracket.
5
3
Pass lashing through the right front outside tiedown point.
6
3A
Pass lashing through the left front outside tiedown point.
7
5
Pass lashing through the first swivel ring.
8
5A
Pass lashing through the first swivel ring.
Figure 7-29. Pallet Lashed to Platform
7-40
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Palletized Load System (PLS) on a 24-Foot, Type V Platform for Low-Velocity Airdrop
13
11
15
17
9
9
8
10
7
6
Lashing Number
Tiedown Clevis
Instructions
Number
9
6
Pass lashing through the third swivel ring.
10
6A
Pass lashing through the third swivel ring.
11
7
Pass lashing through the sixth swivel ring.
12
7A
Pass lashing through the sixth swivel ring.
13
8
Pass lashing through the fourth swivel ring.
14
8A
Pass lashing through the fourth swivel ring.
15
9
Pass lashing through the rear holes in the skid.
16
9A
Pass lashing through the rear holes in the skid.
17
10
Pass lashing through the front holes in the skid.
18
10A
Pass lashing through the front holes in the skid.
Figure 7-29. Pallet Lashed to Platform (Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
7-41
Chapter 7
23
19
21
14
13
11
24
23
14A
14
Lashing Number
Tiedown Clevis
Instructions
Number
19
11
Pass lashing through the eleventh swivel ring.
20
11A
Pass lashing through the eleventh swivel ring.
21
13
Pass lashing through the right corner tiedown ring.
22
13A
Pass lashing through the left corner tiedown ring.
23
14
Pass lashing through the right corner hole.
24
14A
Pass lashing through the left corner hole.
Figure 7-29. Pallet Lashed to Platform (Continued)
7-42
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Palletized Load System (PLS) on a 24-Foot, Type V Platform for Low-Velocity Airdrop
PLACING AND LASHING THE LOAD

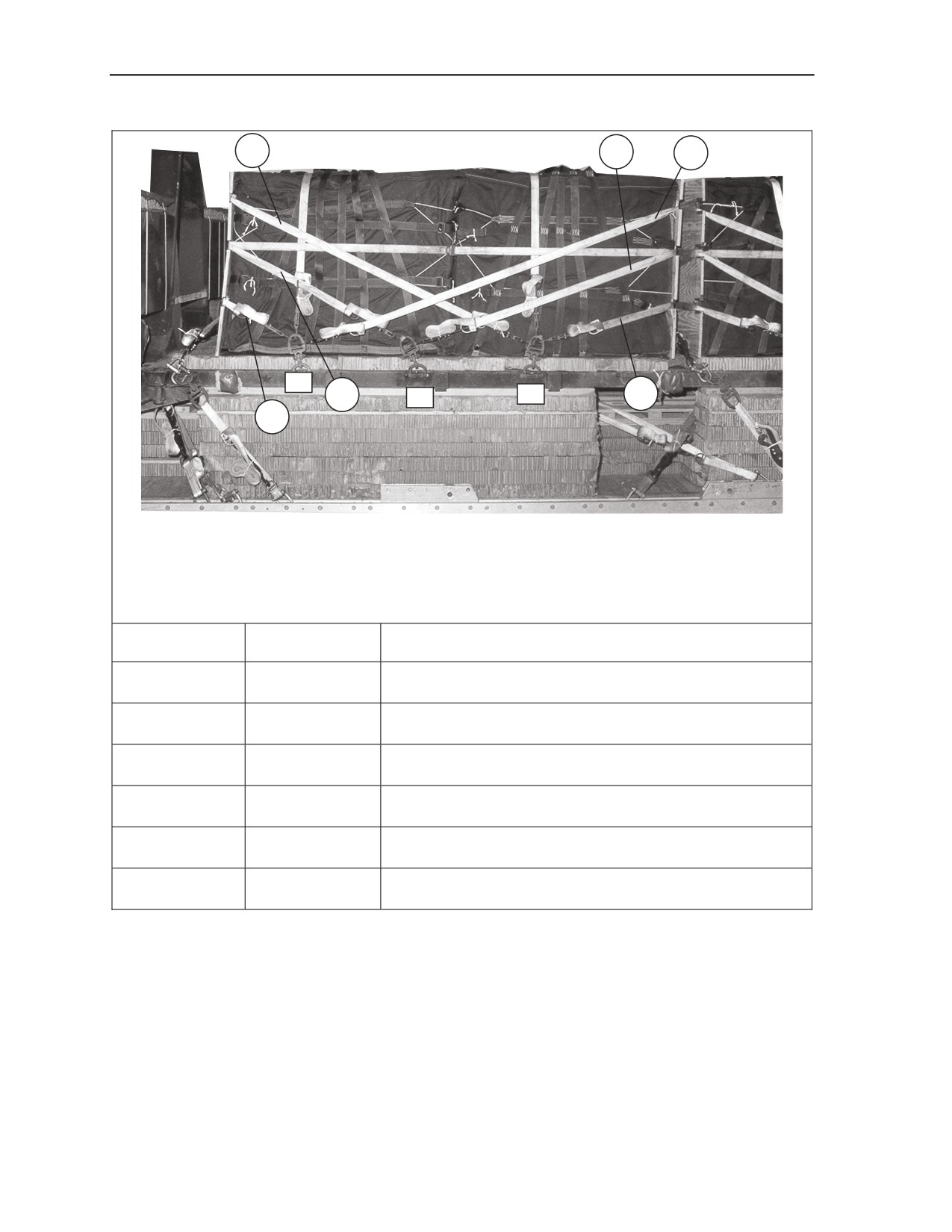

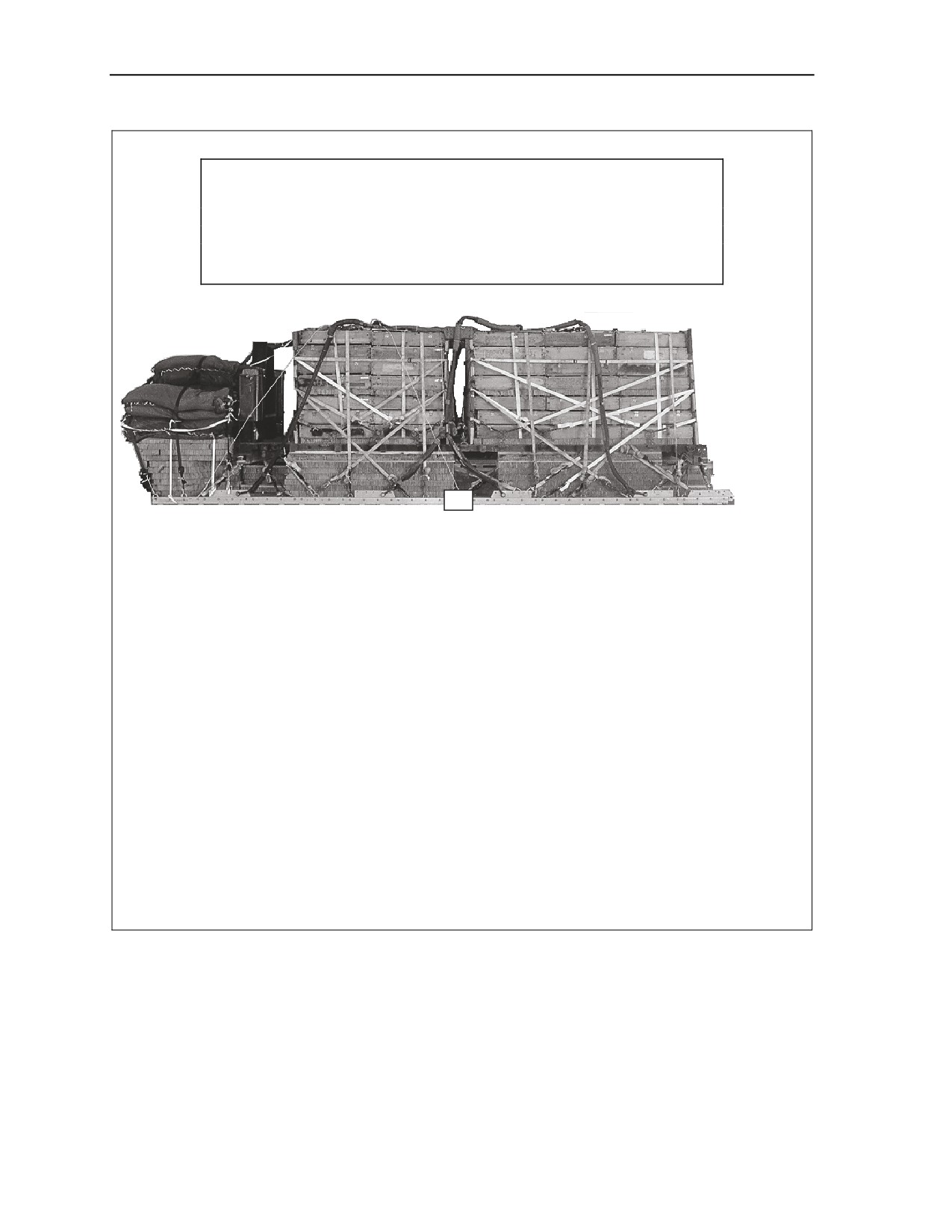

7-23. Cover the pallet with a layer of honeycomb and place eight A-22 containers on the pallet as shown in
Figure 7-30. Construct four endboards as shown in Figure 7-31. Lash the containers and endboards to the
front section of the pallet according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO
13C7-1-5 and as shown in Figure 7-32. Lash the containers and endboards to the rear section of the pallet
as shown in Figure 7-33.
3
2
1
1 Cover the pallet with six 96- by 36-inch pieces of honeycomb, beginning 4 1/2 inches from
the front edge. Space the third and fourth pieces 8 inches apart.
Note. Rig the A-22 containers according to FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41.
2 Place four A-22 containers on the honeycomb, 8 inches from the front edge of the pallet.
Allow space for the endboards to rest on the honeycomb.
3 Place four A-22 containers on the second section of honeycomb, at least 8 inches from the
containers placed in step 2 above. Allow space for the endboards to rest on the
honeycomb.
Figure 7-30. Honeycomb and A-22 Containers Placed on the Pallet
20 February 2009
FM 4-20.112/TO 13C7-1-8
7-43
Chapter 7
Notes.
1. This drawing is not to scale.
2. All dimensions are in inches.
3. For loads different from that shown in this section, make the endboards the same height as the
load configuration.
4. The instructions given are for one endboard. Four are required for this load.

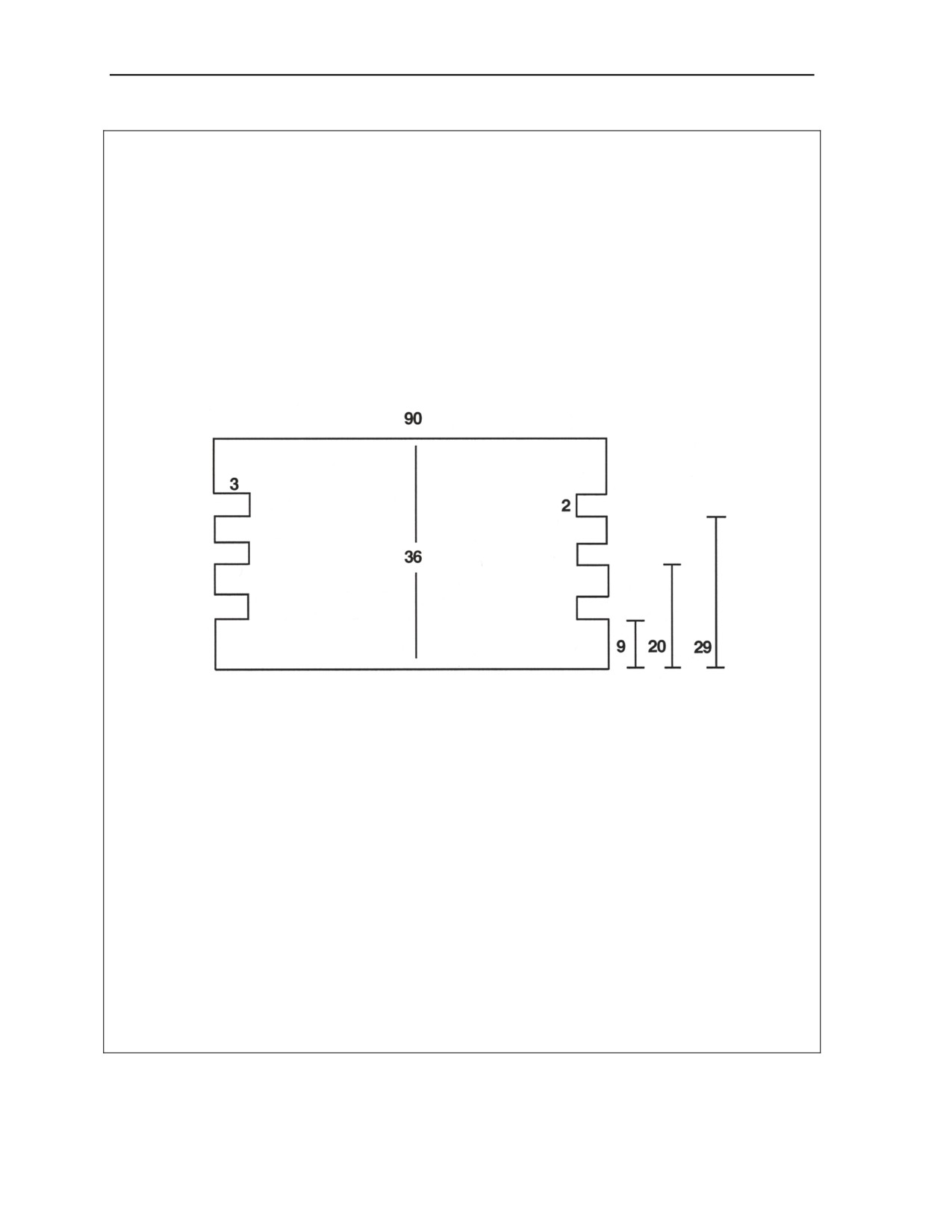

Step:
1. Cut four 90- by 36-inch pieces of 3/4-inch plywood.
2. Make 2- by 3-inch cutouts as shown. Tape the sharp edges of the cutouts.
3. Place an endboard against the front and rear of each of the two groups of containers. (Not
shown)
Figure 7-31. Four Endboards Constructed
7-44
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Palletized Load System (PLS) on a 24-Foot, Type V Platform for Low-Velocity Airdrop
4
3
1
2
5
2
Note. Secure all lashings to the pallet with load binders.
Lashing Number
Pallet Ring
Instructions
Number
1
6

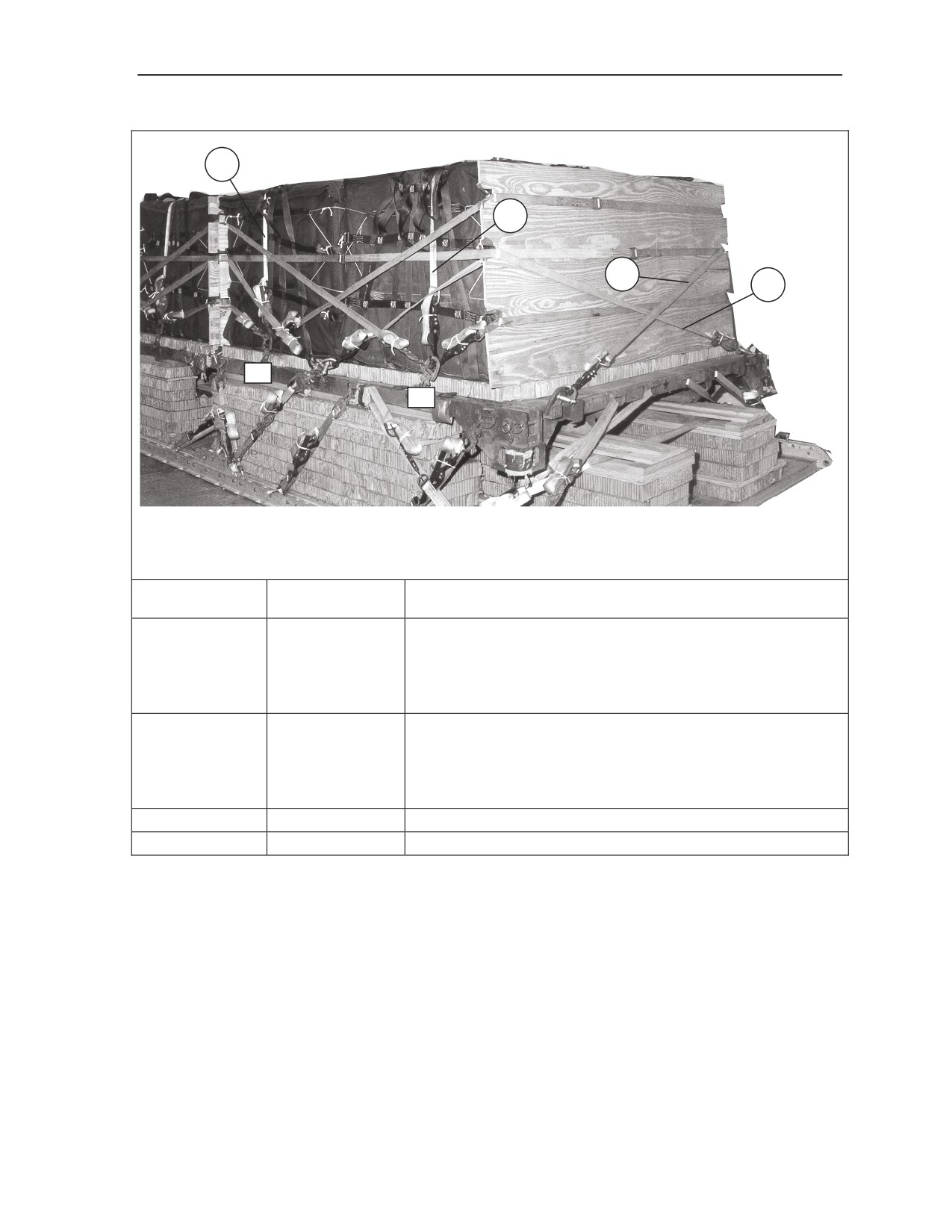

Run a 30-foot lashing from the right front tiedown to the left
middle cutout in the front endboard, and around the left side.
Pass the lashing through the left middle cutout in the second
endboard. Secure the lashing to the end clevis on the sixth
pallet ring on the right side.
2
6
Run a 30-foot lashing from the left front tiedown to the right
middle cutout in the front endboard, and around the right side.
Pass the lashing through the right middle cutout in the second
endboard. Secure the lashing to the end clevis on the sixth
pallet ring on the left side.
3
2A to 2
Run the lashing over the tops of the first two containers.
4
5A to 5
Run the lashing over the tops of the second two containers.
Figure 7-32. First Four Containers Lashed to Pallet
20 February 2009
FM 4-20.112/TO 13C7-1-8
7-45
Chapter 7
10
7
6
5
8
9
5
4
2
Note. Secure all lashings to the pallet with load binders.
Lashing Number
Pallet Ring
Instructions
Number
5
2A to 2

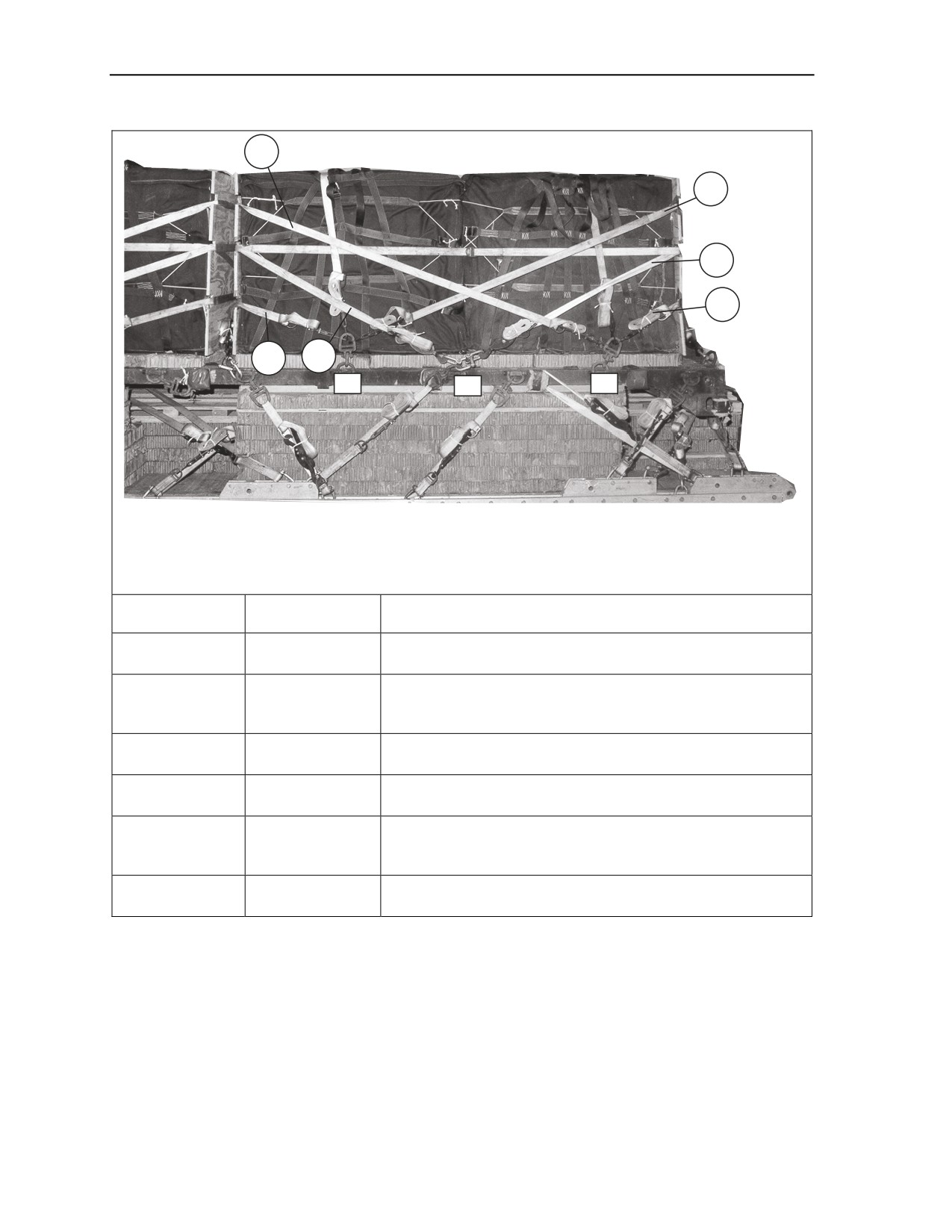

Run a lashing from the second pallet ring on each side
through the lower cutouts in the first endboard.
6
4 and 4A
Run a 30-foot lashing from one of the end clevises on the
fourth pallet ring on each side through the middle cutouts in
the first endboard.
7
5 and 5A
Run a 30-foot lashing from the fifth pallet ring on both sides
through the upper cutouts in the first endboard.
8
5A to 5
Run a lashing from the fifth pallet ring on each side through
the lower cutouts in the second endboard.
9
4 and 4A
Run a 30-foot lashing from the remaining end clevis on the
fourth pallet ring on each side through the middle cutouts on
the second endboard.
10
2 and 2A
Run a 30-foot lashing from the second pallet ring on each
side through the upper cutouts in the second endboard.
Figure 7-32. First Four Containers Lashed to Pallet (Continued)
7-46
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Palletized Load System (PLS) on a 24-Foot, Type V Platform for Low-Velocity Airdrop
12
13
14
11
6
8
10
11
Note. Secure all lashings to the pallet with load binders.
Lashing Number
Pallet Ring
Instructions
Number
11
6 and 11

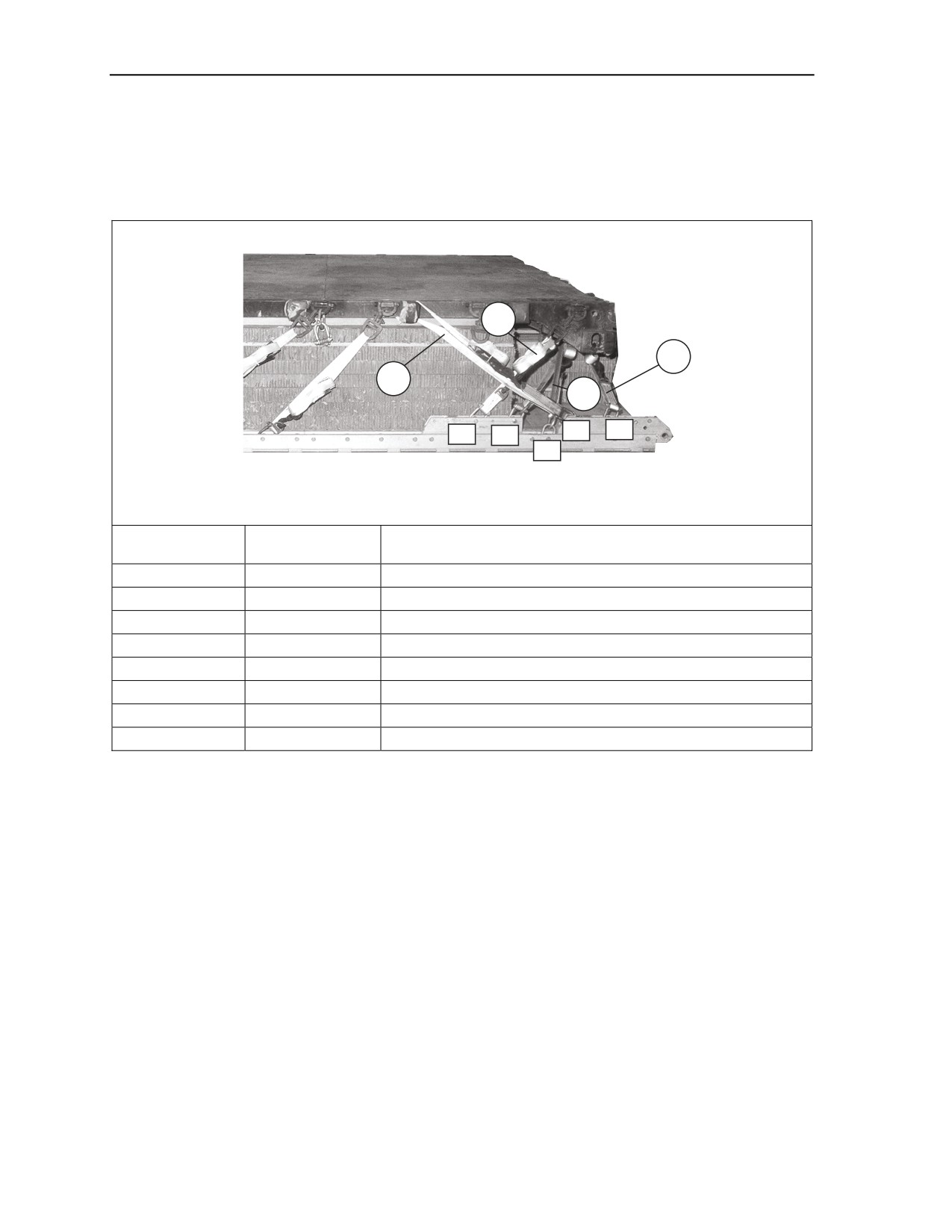

Run a 30-foot lashing from the end clevis on the sixth pallet
ring to the left middle cutout in the third endboard, and
around the left side. Pass the lashing through the left middle
cutout to the rear endboard. Secure the lashing to the end
clevis on the eleventh pallet ring on the right side.
12
6A and 11A
Run a 30-foot lashing from the end clevis on the sixth pallet
ring to the right middle cutout in the third endboard, and
around the right side. Pass the lashing through the right
middle cutout to the rear endboard. Secure the lashing to
the end clevis on the eleventh pallet ring on the left side.
13
8A to 8
Run the lashing over the tops of the first two containers.
14
10A to 10
Run the lashing over the tops of the second two containers.
Figure 7-33. Second Four Containers Lashed to Pallet
20 February 2009
FM 4-20.112/TO 13C7-1-8
7-47
Chapter 7
20
16
17
10
19
8
15
9
18
Note. Secure all lashings to the pallet with load binders according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
Lashing Number
Pallet Ring
Instructions
Number
15
8 and 8A
Run a lashing from the eighth pallet ring on each side
through the lower cutouts in the third endboard.
16
9 and 9A
Run a 30-foot lashing from the ninth pallet ring on each side
through the middle cutouts in the third endboard.
17
10 and 10A
Run a 30-foot lashing from the tenth pallet ring on both
sides through the upper cutouts in the third endboard.
18
10 and 10A
Run a lashing from the tenth pallet ring on each side
through the lower cutouts in the rear endboard.
19
9 and 9A
Run a 30-foot lashing from the ninth pallet ring on each side
through the middle cutouts in the rear endboard.
20
8 and 8A
Run a 30-foot lashing from the eighth pallet ring on each
side through the upper cutouts in the rear endboard.
Figure 7-33. Second Four Containers Lashed to Pallet (Continued)
7-48
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Palletized Load System (PLS) on a 24-Foot, Type V Platform for Low-Velocity Airdrop
INSTALLING AND SAFETYING SUSPENSION SLINGS

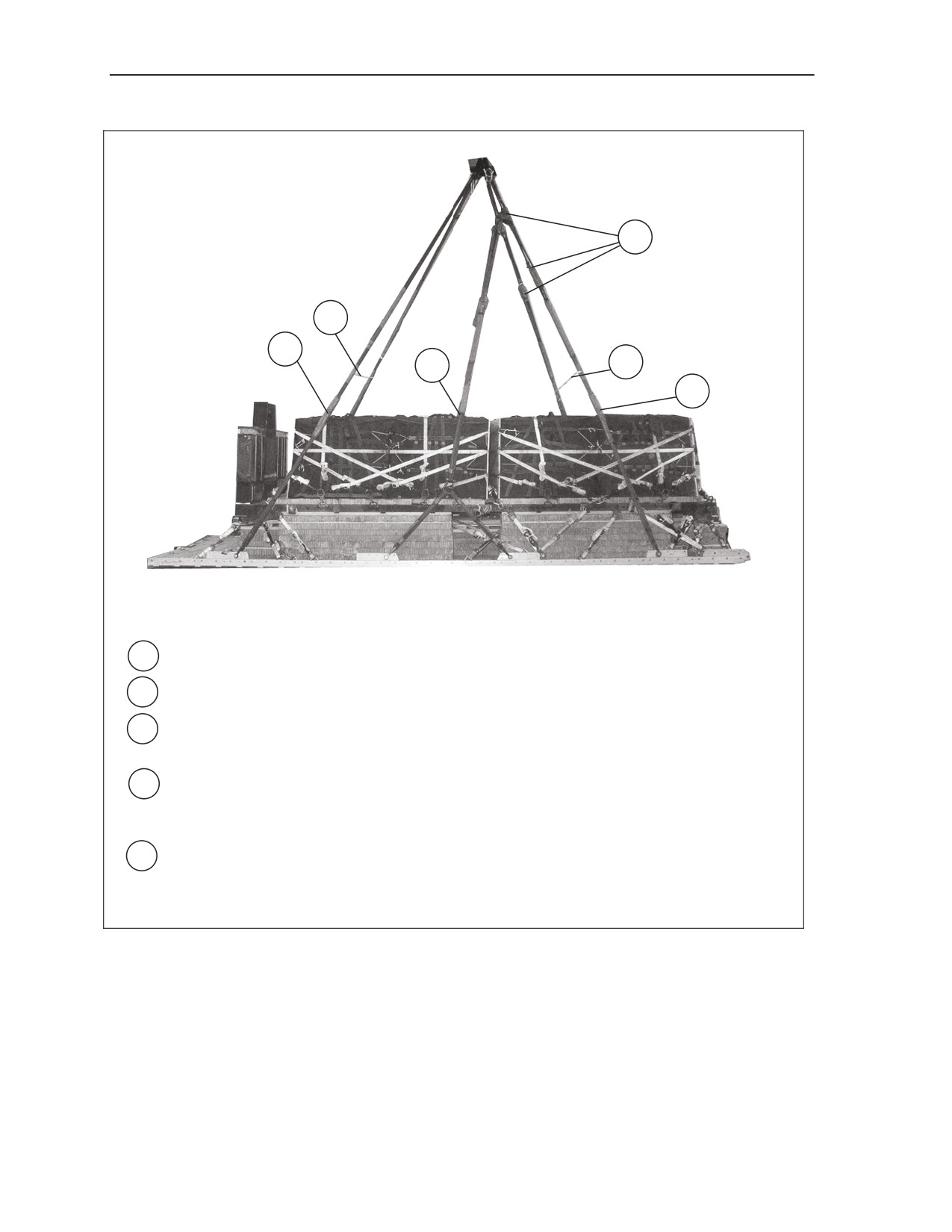

7-24. Install the components of the centerline suspension system according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 7-34. Safety the suspension
slings as shown in Figure 7-35.
Notes.
1. This drawing is not to scale.
2. Instructions are for one side. Repeat for the other side of the load.
Step:

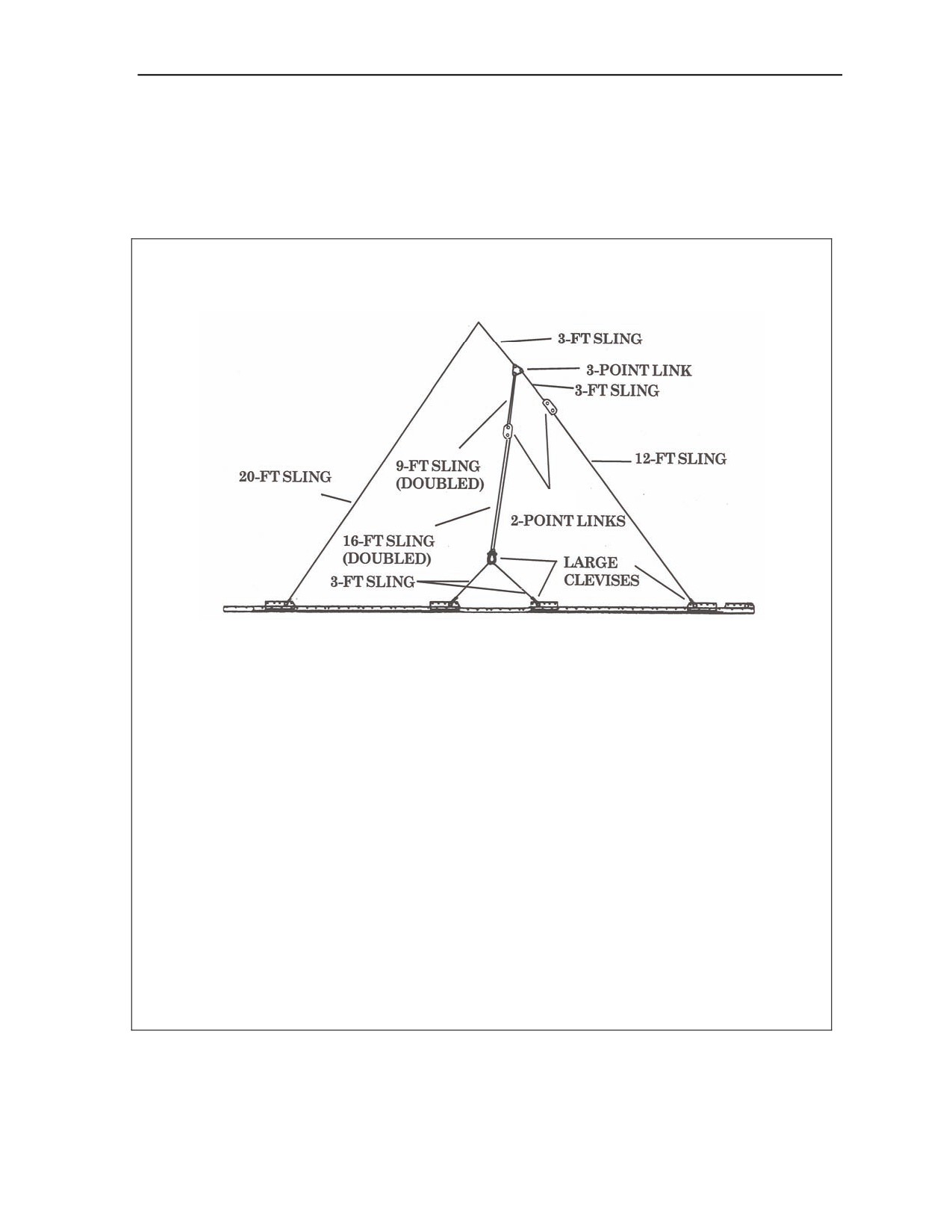

1. Place the end loop of a 12-foot (4-loop), type XXVI sling in the bell of a large clevis. Bolt
the clevis to the right front suspension link. Connect the free end of the 12-foot sling to a
3-foot (4-loop), type XXVI sling with a two-point link.
2. Attach a 3-foot (4-loop), type XXVI sling to each center suspension link with a large clevis.
Place both 3-foot slings in the bell of a large clevis. Pass a 16-foot (2-loop), type XXVI
sling through one spool of a two-point link. Place both ends of a 16-foot sling on the bolt
of the large clevis.
3. Pass a 9-foot (2-loop), type XXVI sling through a spool of a three-point link. Place both
ends of the sling on the remaining spool of the two-point link used in step 2 above.
4. Bolt the 3-foot sling used in step 1 above to the three-point link so that the third spool
points upward. Bolt a 3-foot (4-loop), type XXVI sling to the upper spool of the three-point
link.
5. Place the end loop of a 20-foot (4-loop), type XXVI sling in the bell of a large clevis. Bolt
the clevis to the rear suspension link.
6. Repeat steps 1 through 5 for the left side.
Figure 7-34. Suspension Slings Installed
20 February 2009
FM 4-20.112/TO 13C7-1-8
7-49
Chapter 7
1
5
2
4
3
2
1 Pad the two-point and three-point links with felt and tape. Raise the suspension slings.
2 Pad the suspension slings where they pass over the corners of the load with felt and tape.
3 Tie a length of type III nylon cord to the center clevis on one side. Pass the cord over the
load, and tie it to the center clevis on the other side so that both clevises are supported.
4 Tie the front suspension slings together with the modified deadman’s tie 12 inches above
the load with 1/2-inch tubular nylon webbing as shown in FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
5 Tie the rear suspension slings together with the modified deadman’s tie 12 inches above
the load with type VIII webbing as shown in the FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5.
Figure 7-35. Suspension Slings Safetied
7-50
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Palletized Load System (PLS) on a 24-Foot, Type V Platform for Low-Velocity Airdrop
BUILDING PARACHUTE STOWAGE PLATFORM AND INSTALLING
CARGO PARACHUTES
7-25. Build the parachute stowage platform and install the G-11 cargo parachutes as shown in Figure 7-36.
5
3
4
2
1
6
1 Alternate and glue two 96- by 36-inch and two 96- by 6-inch pieces of honeycomb to form
a two-layer base 96 by 42 inches. Cut a channel in the bottom layer of honeycomb to
accommodate the EFTC cable.
2 Alternate and glue two 96- by 36-inch and two 96- by 8-inch pieces of honeycomb to form
two 96- by 44-inch pieces. Place these layers over the base and flush with the front edge.
3 Alternate and glue two 96- by 36-inch and two 96- by 10-inch pieces of honeycomb to form
two 96- by 46-inch pieces. Place these layers over the base and flush with the front edge.
4 Cut the front corners of the honeycomb placed in steps 1, 2, and 3 above to allow for the
lashings.
5 Alternate and glue two 96- by 36-inch and two 96- by 12-inch pieces of honeycomb to form
two 96- by 48-inch pieces. Place these layers over the base and flush with the front edge.
6 Secure the parachute stowage platform to the rails with a length of type VIII webbing tied
to the fourth bushing on each rear suspension link, and to bushing 48 on each side.
Figure 7-36. Parachute Stowage Platform Built and Cargo Parachutes Installed
20 February 2009
FM 4-20.112/TO 13C7-1-8
7-51
Chapter 7

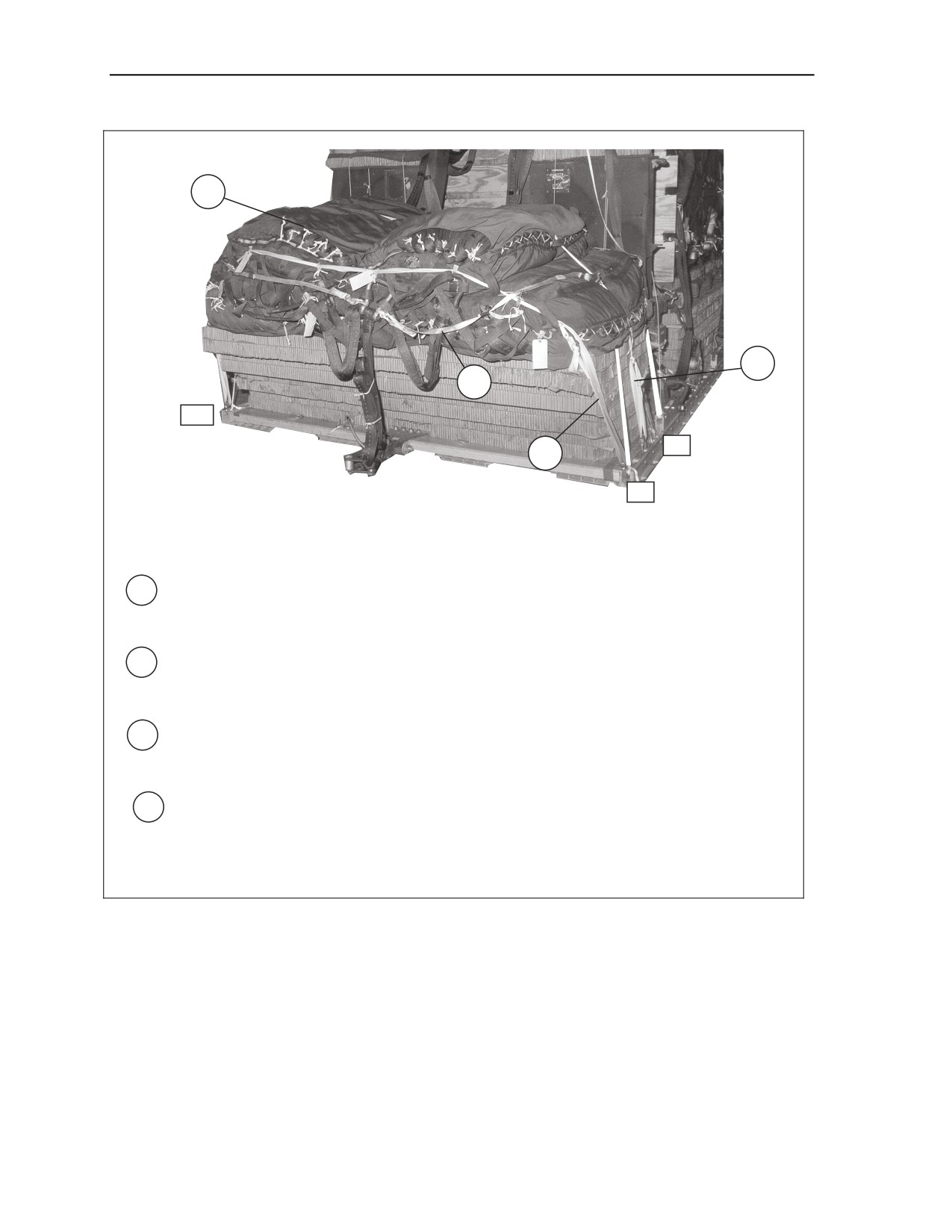

7
8
10
16A
15
9
16
7 Prepare, position, and stow five G-11C cargo parachutes on the parachute stowage
platform according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO
13C7-1-5.
8 Install the front cargo parachute restraints according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 using type VIII nylon webbing to
clevises 15 and 15A.
9 Install the rear cargo parachute restraints according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 using type VIII nylon webbing to
clevises 16 and 16A.
10 Install the parachute release straps according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5.
Figure 7-36. Parachute Stowage Platform Built and Cargo Parachutes Installed (Continued)
7-52
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Palletized Load System (PLS) on a 24-Foot, Type V Platform for Low-Velocity Airdrop
INSTALLING THE RELEASE SYSTEM
7-26. Prepare, attach, and safety an M-2 cargo parachute release according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 7-37.
4
1
2
3

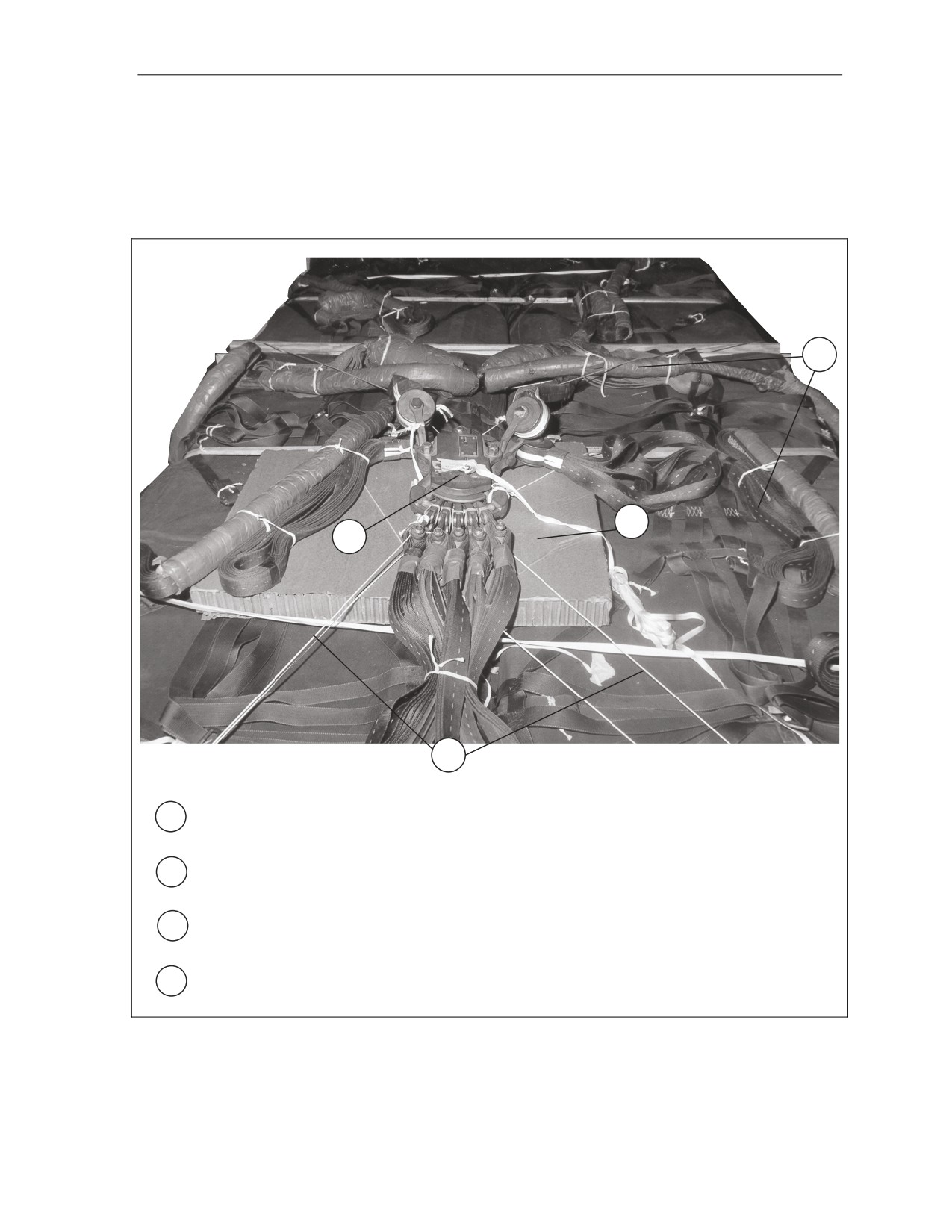

1 Center a 24- by 36-inch piece of honeycomb on top of the load between the third and fourth
endboard. Secure the release platform to the load with type III nylon cord.
2 Prepare and install the M-2 cargo parachute release according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Place the assembly on the honeycomb.
3 Safety the release to convenient points on the load with type III nylon cord according to FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
4 S-fold and tie any excess suspension slings with one turn of type I, 1/4-inch cotton webbing.
Figure 7-37. M-2 Release System Installed
20 February 2009
FM 4-20.112/TO 13C7-1-8
7-53
Chapter 7
INSTALLING THE EXTRACTION SYSTEM
7-27. Install the extraction system according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5 and as shown in Figure 7-38.
1
3
2
D10
1 Install the components of the EFTC according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5. Use the rear mounting holes for the EFTC brackets.
2 Install a 24-foot EFTC cable according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-
AB-MMO-010/TO 13C7-1-5 and safety the cable to tiedown ring D10 with one turn of type
I, 1/4-inch cotton webbing.
3 Attach a 9-foot (2-loop) type XXVI nylon sling according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 to be used as a deployment line. S-fold
the excess and tie it in two places with type I, 1/4-inch cotton webbing.
Figure 7-38. Extraction System Installed
7-54
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Palletized Load System (PLS) on a 24-Foot, Type V Platform for Low-Velocity Airdrop
PLACING EXTRACTION PARACHUTE
7-28. Select the extraction parachute and extraction line needed using the extraction line requirements
table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Place the extraction
parachute and line on the load for installation in the aircraft.
INSTALLING PROVISIONS FOR EMERGENCY RESTRAINTS
7-29. Select and install the provisions for the emergency aft restraints according to the emergency aft
restraint requirements table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-
5.
MARKING RIGGED LOAD
7-30. Mark the rigged load according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5, and as shown in Figure 7-39. Complete Shipper’s Declaration for Dangerous Goods. If
the load varies from the one shown, the weight, height, CB, and parachute requirements must be
recomputed.
EQUIPMENT REQUIRED
7-31. Use the equipment listed in Table 7-2 to rig this load.
20 February 2009
FM 4-20.112/TO 13C7-1-8
7-55
Chapter 7
CAUTION
Make the final rigger inspection required by AR 59-4 and FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5
before the load leaves the rigging site.
CB
RIGGED LOAD DATA
Weight:
24,278 pounds
Maximum Suspended Weight
25,000 pounds
Height
84 inches
Width
108 inches
Overall Length
288 inches
Overhang: Front
0 inches
Rear
0 inches
Center of Balance (from front edge of the platform)
137 inches
Extraction System with 24-foot cable (adds 18 inches to length of platform)
EFTC
Figure 7-39. PLS Pallet with A-22 Containers Rigged on a 24-Foot, Type V Platform for Low-
Velocity Airdrop
7-56
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Palletized Load System (PLS) on a 24-Foot, Type V Platform for Low-Velocity Airdrop
Table 7-2. Equipment Required for Rigging PLS Pallet with A-22 Cargo Bags on a 24-Foot,
Type V Platform for Low-Velocity Airdrop
National Stock Number
Item
Quantity
8040-00-273-8713
Adhesive, paste, 1-gallon
As required
1670-00-587-3421
Bag, cargo, (A-22)
8
Clevis, suspension:
4030-00-090-5354
1-inch (large)
13
8305-00-880-8155
Cloth, coated (nylon, type II, green, 60-in)
As required
4020-00-240-2146
Cord, nylon, type III
As required
1670-00-434-5782
Coupling, airdrop, extraction force transfer with
24-foot cable
1
1670-00-360-0328
Cover, clevis, large
5
8135-00-664-6958
Cushioning material, packaging, cellulose wadding
As required
8305-00-191-1101
Felt, ½-inch thick
As required
1670-01-183-2678
Leaf, extraction line (line bag) (add 2 for C-17)
2
Line, extraction, type XXVI nylon webbing:
1670-01-062-6313
60-foot (3-loop), type XXVI
1
1670-01-107-7651
140-foot (3-loop), type XXVI
1
1670-01-062-6313
60-foot (3-loop), type XXVI for C-17 drogue line
1
1670-01-493-6418
Link assembly, two-point:
5
5510-00-220-6146
Lumber, 2- by 4-in
As required
5351-00-010-4659
Nail, steel wire, common 8d
As required
1670-00-753-3928
Pad, energy-dissipating, honeycomb
44 sheets
Parachute:
1670-01-016-7841
Cargo, G-11
5
1670-00-040-8135
Cargo, extraction, 28-foot
1
1670-01-063-3715
Cargo, extraction, 15-foot for C-17
1
Platform, airdrop, type V, 24-foot
1
1670-00-128-4981
Plywood, ¾- by 48- by 96-inches
7 sheets
1670-01-353-8425
Bracket assembly, EFTC
1
1670-01-162-2372
Bracket assembly, extraction
1
1670-01-162-2376
Clevis assembly
48
1670-01-247-2389
Suspension bracket link, type V
8
1670-01-162-2381
Tandem link
2
1670-01-097-8817
Release, cargo parachute, M-2
1
20 February 2009
FM 4-20.112/TO 13C7-1-8
7-57
Chapter 7
Table 7-2. Equipment Required for Rigging PLS Pallet with A-22 Cargo Bags on a 24-Foot,
Type V Platform for Low-Velocity Airdrop (Continued)
National Stock Number
Item
Quantity
Sling, cargo airdrop:
1670-01-062-6307
12-foot (2-loop), type XXVI nylon webbing
1
1670-01-064-4453
20-foot (4-loop), type XXVI nylon webbing
2
1670-01-062-6306
3-foot (4-loop), type XXVI nylon webbing
8
1670-01-062-6340
9-foot (2-loop), type XXVI nylon webbing
3
1670-01-063-7761
16-foot (2-loop), type XXVI nylon webbing
2
1670-01-062-6311
120-foot (2-loop), type XXVI nylon webbing
7
5340-00-040-8219
Strap parachute release, multicut
2
7501-00-266-5016
Tape, adhesive, 2-inch
As required
7501-00-266-6710
Tape, masking
As required
1670-00-937-0271
Tie-down assembly, 15-foot
58
1670-01-483-8259
Towplate release mechanism (H-block) (C-17)
1
Webbing:
8305-00-268-2411
Cotton, 1/4-inch, type I
As required
Nylon:
8305-00-082-5752
Tubular, 1/2-inch
As required
8305-00-263-3591
Type VIII webbing
As required
7-58
FM 4-20.112/TO 13C7-1-8
20 February 2009
Chapter 8
Rigging 155-Millimeter (MM) Ammunition Modular Artillery
Charge System Package (MACS PAC) on a Type V Platform
for Low-Velocity Airdrop
SECTION I-RIGGING THE MACS PAC ON AN 8-FOOT, TYPE V PLATFORM
DESCRIPTION OF LOAD
8-1. Forty-eight 155-millimeter projectiles, twenty-four (M231) powder canisters and six fuse cans are
rigged for low-velocity airdrop on an 8-foot, type V airdrop platform. The load uses two G-11B cargo
parachutes.
Notes.
1. The load shown is using metal crates. However, wooden crates may be used with three
lashings and a load binder.
2. If the metal locking rods are missing, three lashings, D-rings and load binders will be needed.
PREPARING PLATFORM
8-2. Prepare an 8-foot, type V platform as shown in Figure 8-1.
20 February 2009
FM 4-20.112/TO 13C7-1-8
8-1
Chapter 8
CLEVISES
14A THROUGH 1A
LEFT
REAR
FRONT
RIGHT
CLEVISES
14 THROUGH 1
Step:
1. Inspect, or assemble and inspect, an 8-foot, type V platform as outlined in TM 10-1670-
268-20&P/TO 13C7-52-22.
2. Install a tandem link to the front of each platform side rail using holes 1, 2, and 3.
3. Install a tandem link to the rear of each platform side rail using holes 14, 15, and 16.
4. Install clevises on bushings 1, 2 and 3 of each front tandem link.
5. Install clevises on bushings 3 and 4 of each rear tandem link.
6. Starting at the front of each platform side rail, install clevises on the bushings bolted to
holes 4 (triple clevis), 5, 8 (triple clevis), 10, 11, 12, and 13.
7. Starting at the front of the platform, number the clevises 1 through 14 on the right side, and
1A through 14A on the left side.
8. Label the tiedown rings according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5.
Figure 8-1. Platform Prepared
8-2
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging 155-Millimeter (MM) Ammunition Modular Artillery Charge System Package (MACS PAC) on a
Type V Platform for Low-Velocity Airdrop

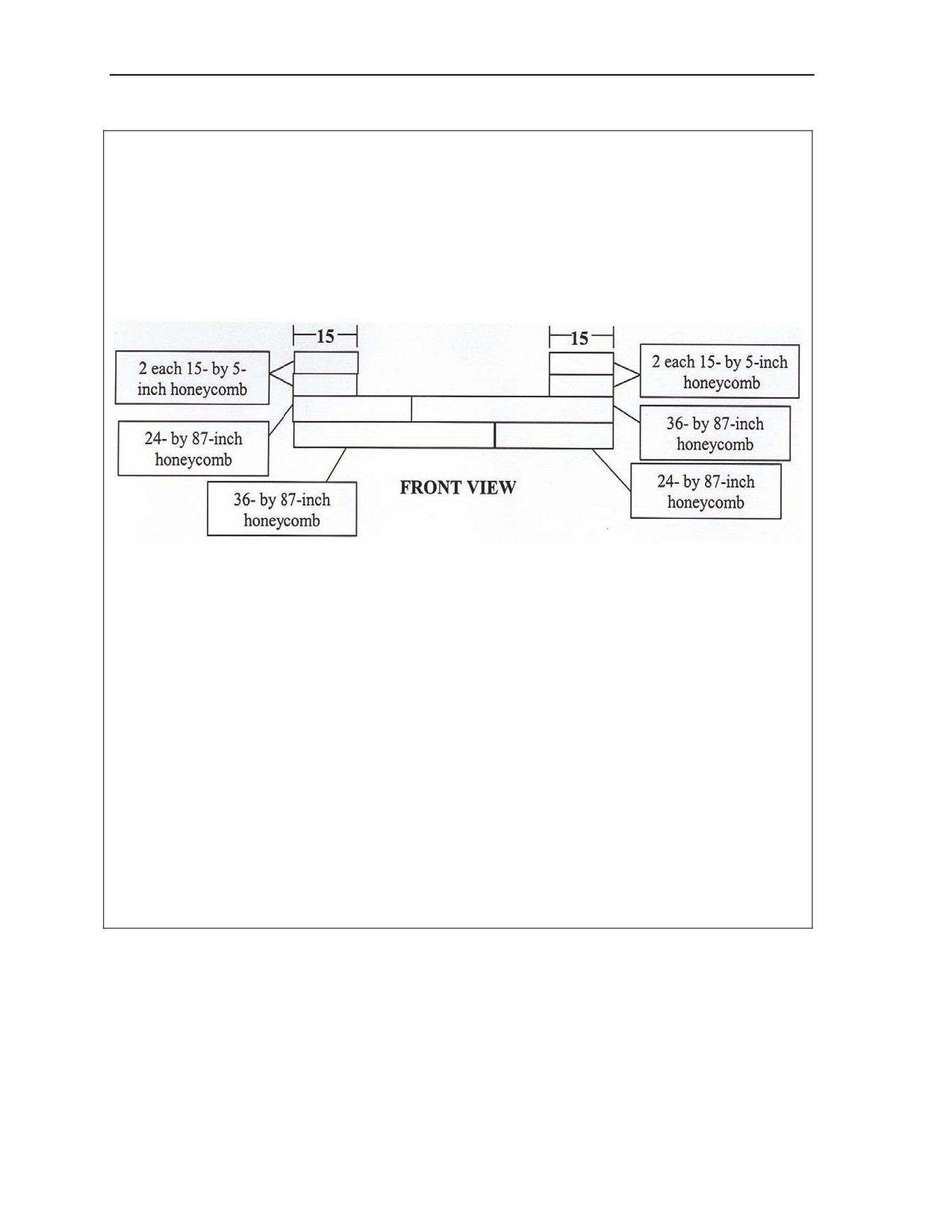

BUILDING HONEYCOMB STACKS
8-3. Prepare honeycomb stack 1 as shown in Figure 8-2.
Notes.
1. This drawing is not to scale.
2. All dimensions are in inches.
3. Leave 4 1/2 inches between the 15- by 5-inch and 15- by 10-inch honeycomb stacks.
87
36
TOP VIEW
FRONT
REAR
60
24
15
5
10
4 1/2
Stack
Pieces
Width
Length
Material
Instructions
Number
(Inches)
(Inches)
1
2
36
87
Honeycomb
Form a two-layer base 87 inches long and
60 inches wide. Use a 36- by 87-inch piece
and a 24- by 87-inch piece. Ensure the 87-
inch edges are flush. Alternate the layers
of honeycomb. (Repeat to form a 2 layer
base stack)
2
24
87
Honeycomb
Included with the first step.
8
15
5
Honeycomb
Place two pieces of honeycomb on each
corner of the base stack with the 5 inch
sides on the 87 inch sides of the
honeycomb.
20
15
10
Honeycomb
Form ten stacks of two. Center a stack of
honeycomb along each 87-inch side of the
base stack, with the 10-inch sides facing
the left and right sides of the platform.
Evenly space two layer pieces of
honeycomb between the center and corner
pieces (On each side). The spaces
between the pieces are 4 ½ inches.
Note. Do not glue the 15- by 5 and 15- by 10-inch honeycomb stacks to the base stack. Slight
adjustments may be necessary as you place the projectiles.
Figure 8-2. Honeycomb Stack 1 Prepared
20 February 2009
FM 4-20.112/TO 13C7-1-8
8-3
Chapter 8
Notes.
1. This drawing is not to scale.
2. All dimensions are in inches.
Figure 8-2. Honeycomb Stack 1 Prepared (Continued)
8-4
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging 155-Millimeter (MM) Ammunition Modular Artillery Charge System Package (MACS PAC) on a
Type V Platform for Low-Velocity Airdrop
POSITIONING LASHINGS ON THE PLATFORM
8-4. Position eight 15-foot lashings according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5 and as shown in Figure 8-3.
4
2
1
3

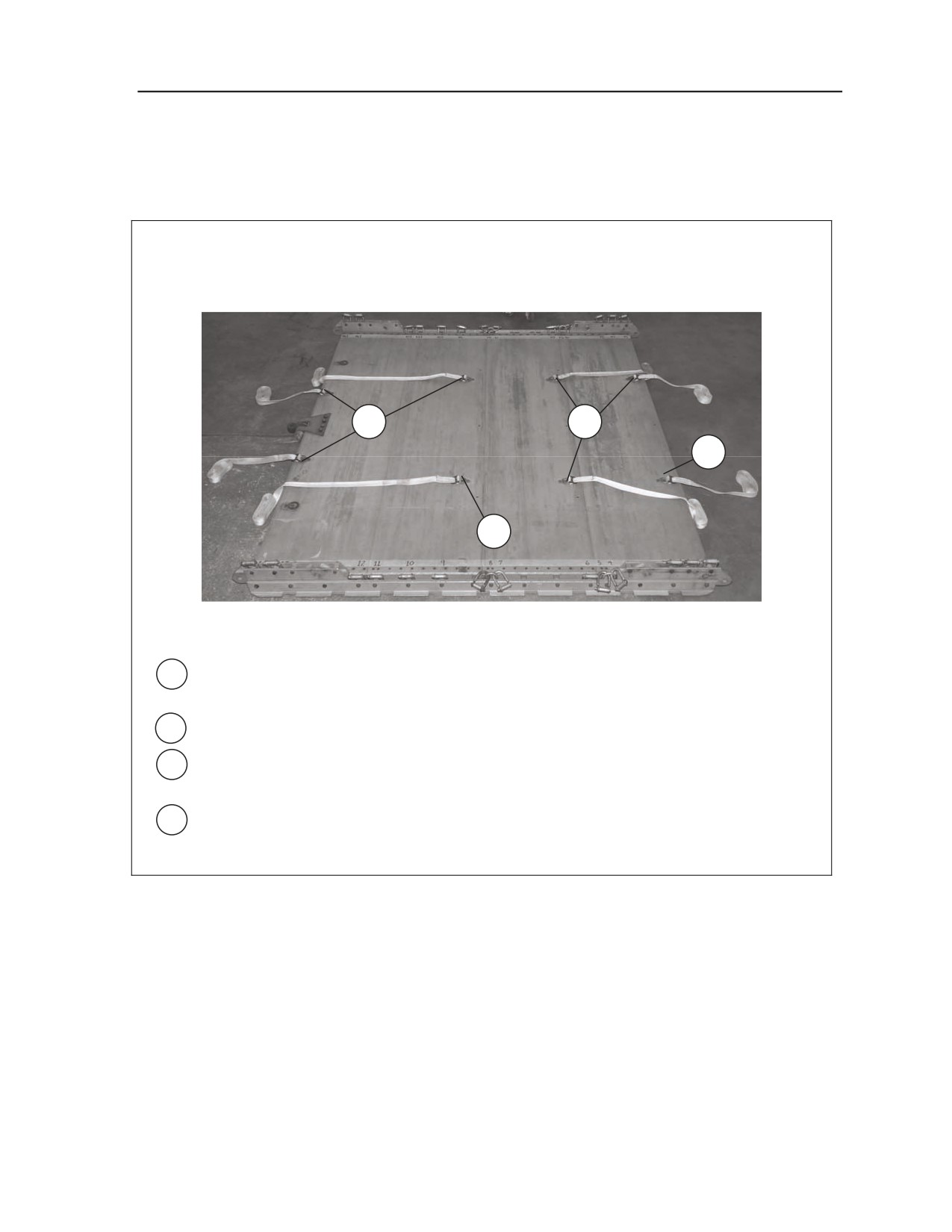

1 Pass a 15-foot lashing through tie-down ring A1 and back through its own D-ring. Run the
lashing off the front edge of the platform and S-fold the excess.
2 Repeat for tie-down ring B1, A2 and B2.
3 Pass a 15-foot lashing through tie-down ring A3 and back through its own D-ring. Run the
lashing off the rear edge of the platform and S-fold the excess.
4 Repeat for tie-down ring B3, B4 and C4.
Figure 8-3. Lashings Positioned on Platform
20 February 2009
FM 4-20.112/TO 13C7-1-8
8-5
Chapter 8
POSITIONING THE HONEYCOMB STACK ON THE PLATFORM
8-5. Position the honeycomb stack as shown in Figure 8-4.
1
Note. When positioning the honeycomb, stack ensure the bolts and nuts of the platform extraction
bracket are not covered.

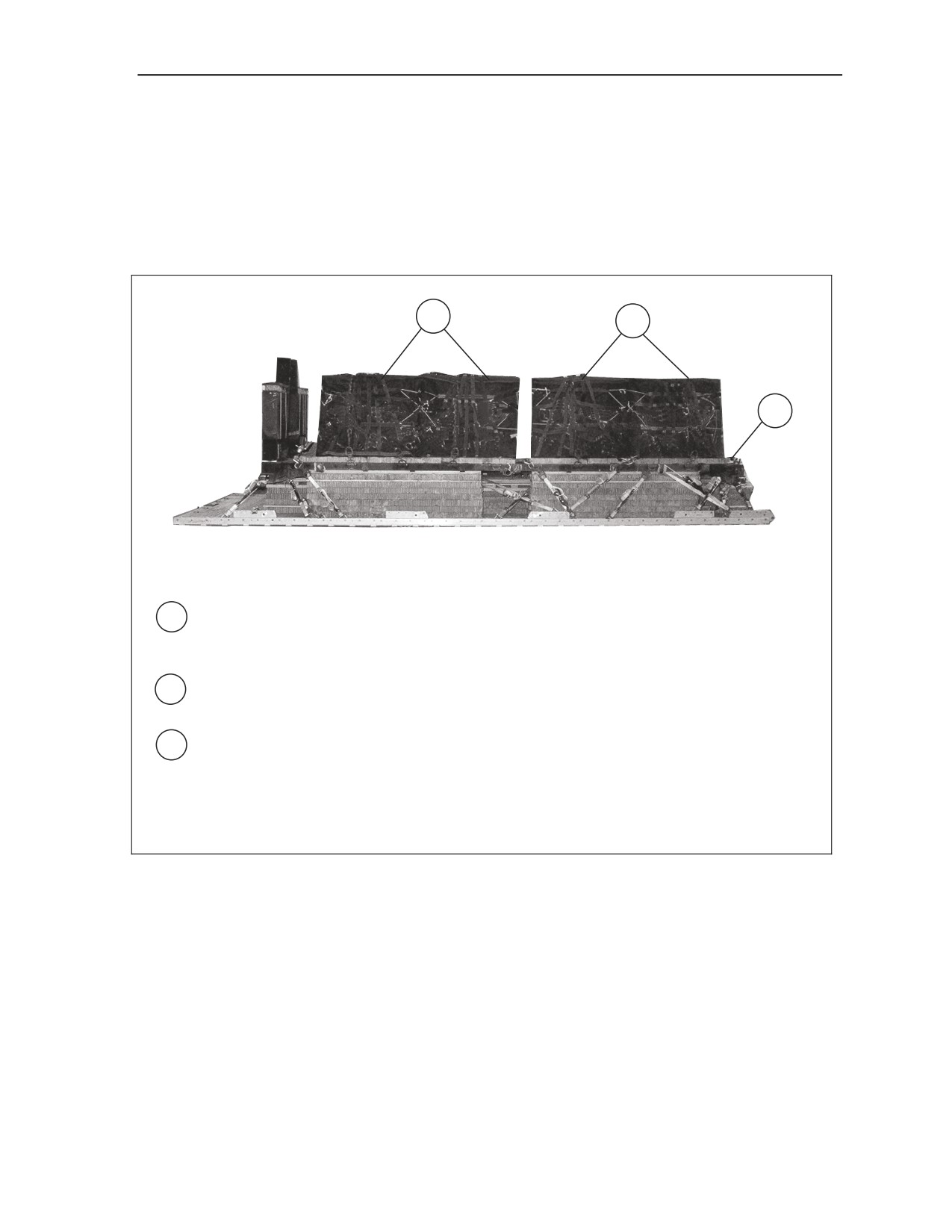

1 Position the honeycomb stack 4 inches from the front edge of the platform and centered.
Figure 8-4. Honeycomb Stack Positioned on the Platform
8-6
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging 155-Millimeter (MM) Ammunition Modular Artillery Charge System Package (MACS PAC) on a
Type V Platform for Low-Velocity Airdrop
POSITIONING AND SECURING THE AMMUNITION STACK
8-6. Position and secure the first ammunition stack as shown in Figure 8-5.
1

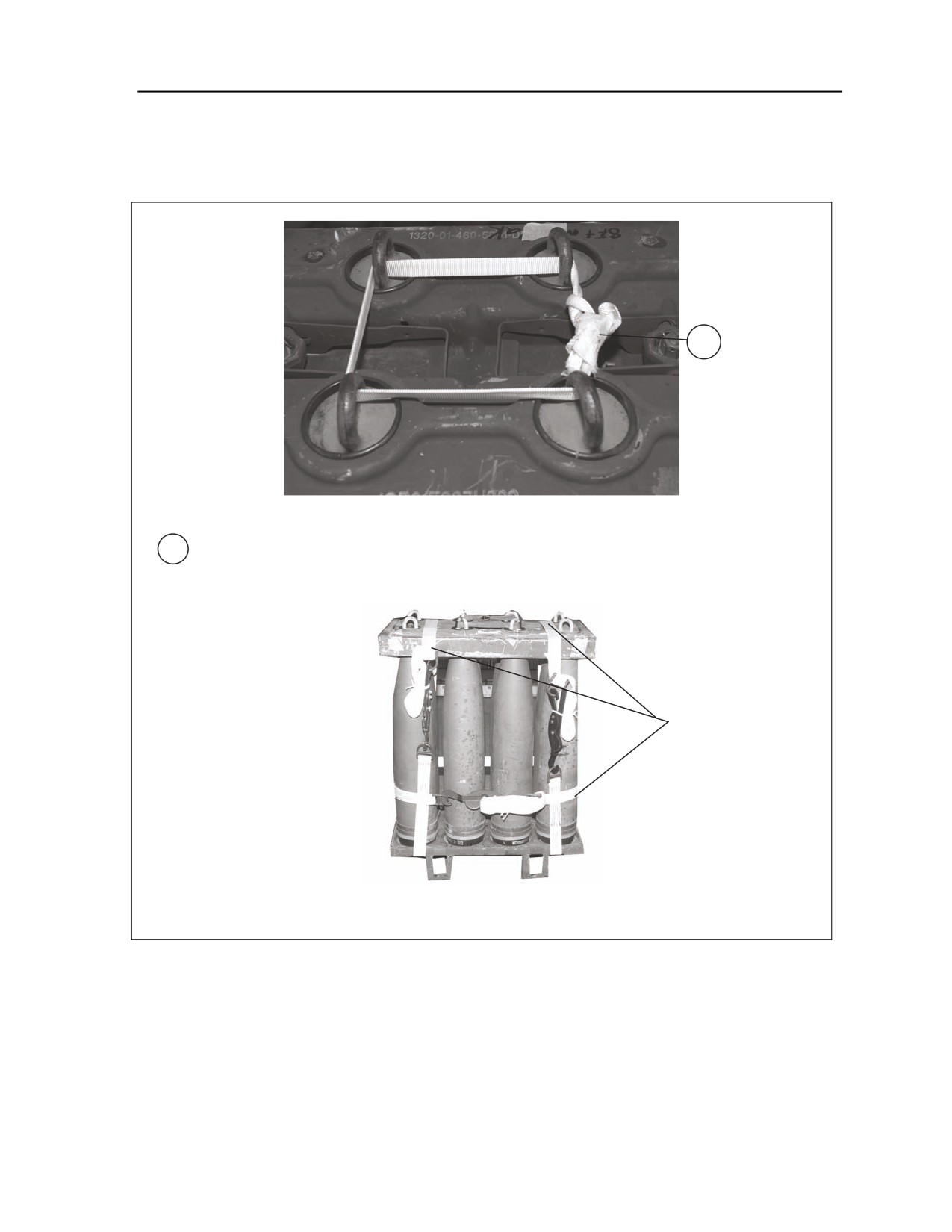

1 Tie the four center eyelets of each bundle together with 1-inch tubular nylon webbing.
Secure with a surgeon’s knot locking knot and cover with cloth backed tape. Use for lifting
purposes only.
THREE LASHINGS
Note. The racks of projectiles will need three lashings if the locking pins of the racks are missing.
Figure 8-5. Ammunition Positioned and Secured
20 February 2009
FM 4-20.112/TO 13C7-1-8
8-7
Chapter 8
2
2

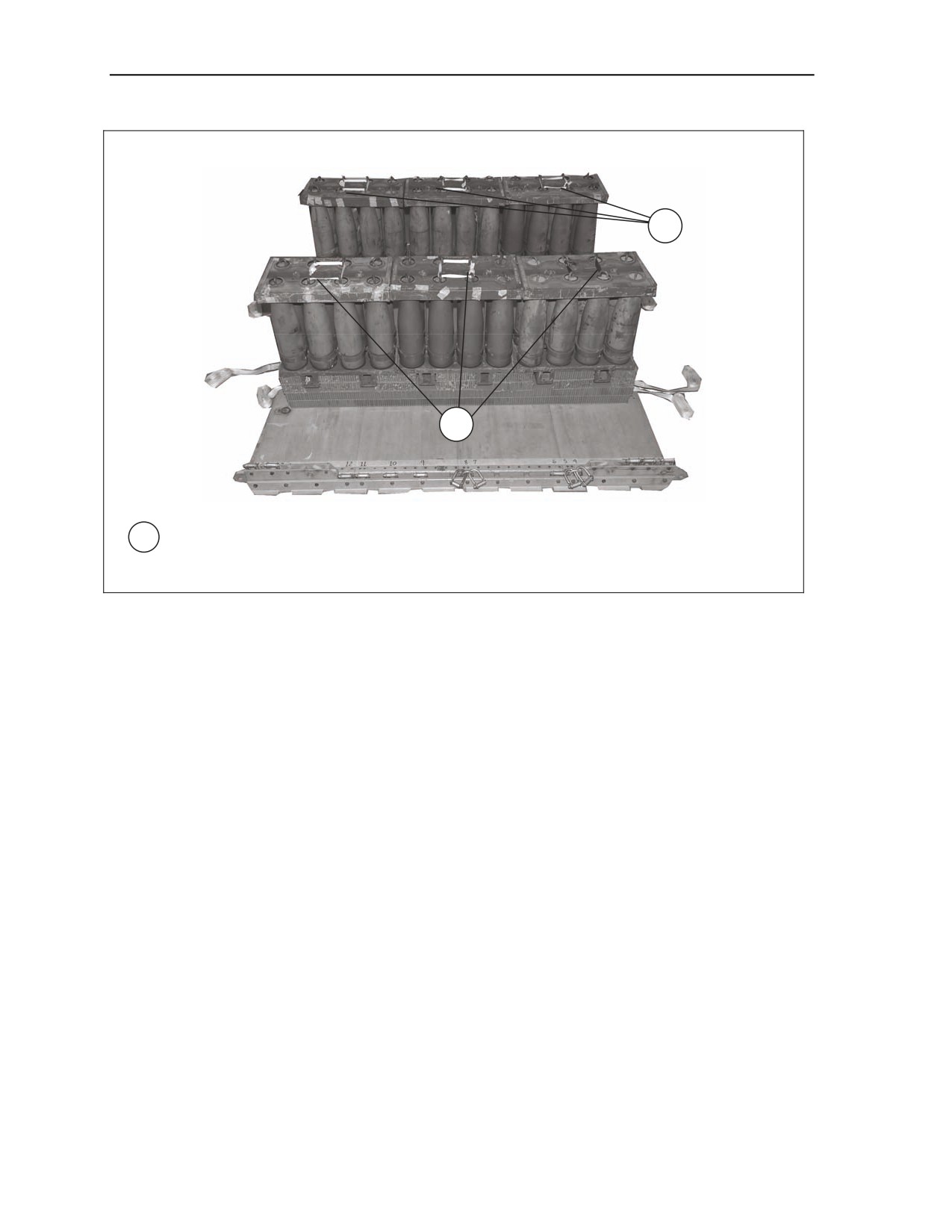

2 Position three sets of projectiles flush on the honeycomb on each side (48 total). Fit the
skids at the bottom of the bundles into the slots in the honeycomb stack.
Figure 8-5. Ammunition Positioned and Secured (Continued)
8-8
FM 4-20.112/TO 13C7-1-8
20 February 2009
|
|
