Chapter 9
LASHING TRAILER TO PLATFORM
9-6. Lash the trailer to the platform according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5 and as shown in Figures 9-19 and 9-20.
Note. Pad any sharp edges on the load where a lashing may pass.
Note. Left, right, front, and rear refer to the trailer, NOT the platform.
TIEDOWN
PROVISION
5
TIEDOWN
TIEDOWN
PROVISION
PROVISION
4
6
3
1
7
5
2
1
4
3
Lashing
Tie-down
Instructions
Number
Clevis Number
Pass lashing:
1
1
Through tiedown provision 5, left side.
2
1A
Through tiedown provision 5, right side.
3
2
Through tiedown provision 4, left side.
4
2A
Through tiedown provision 4, right side.
5
3
Through tiedown provision 6, left side.
6
3A
Through tiedown provision 6, right side.
7
4
Through tiedown provision 5, left side.
8
4A
Through tiedown provision 5, right side.

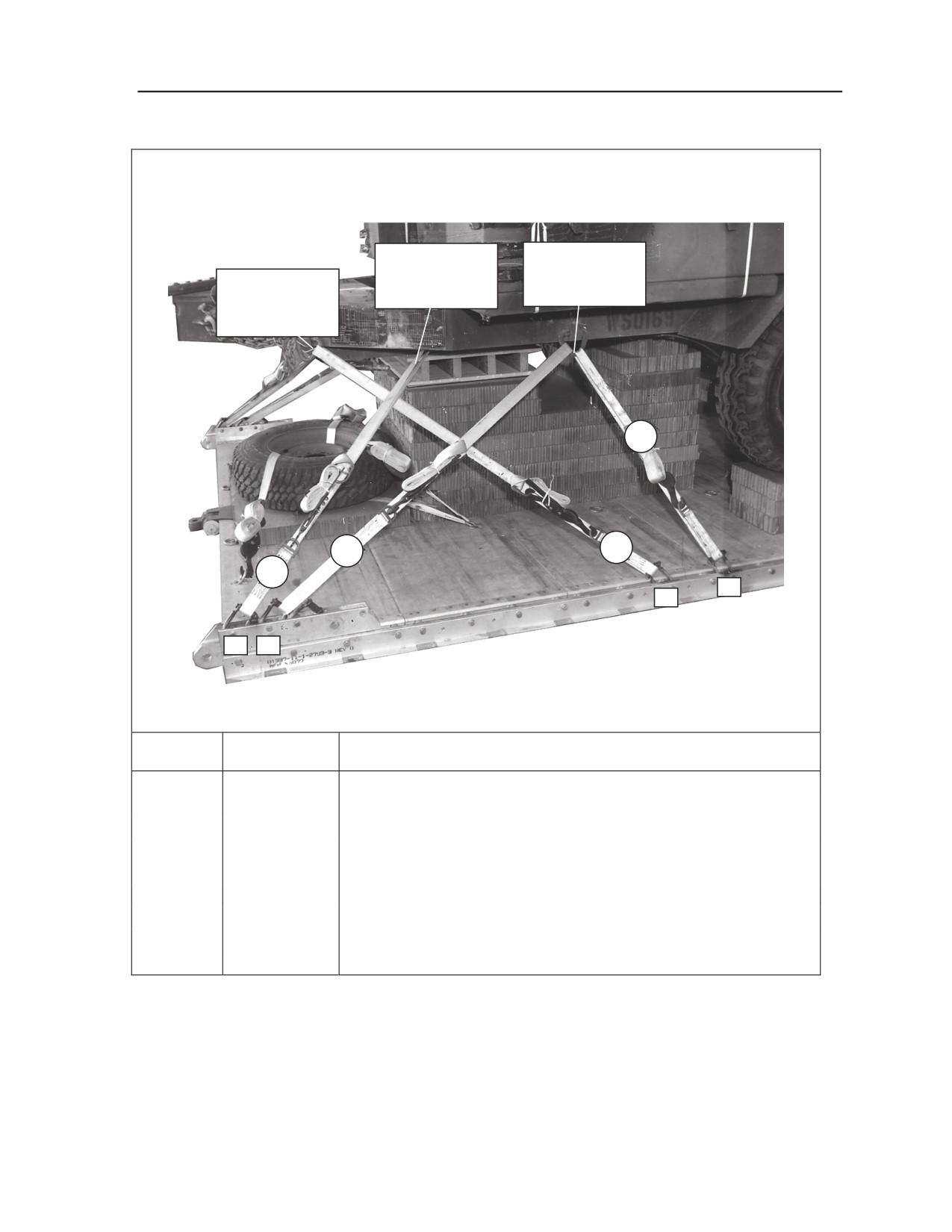

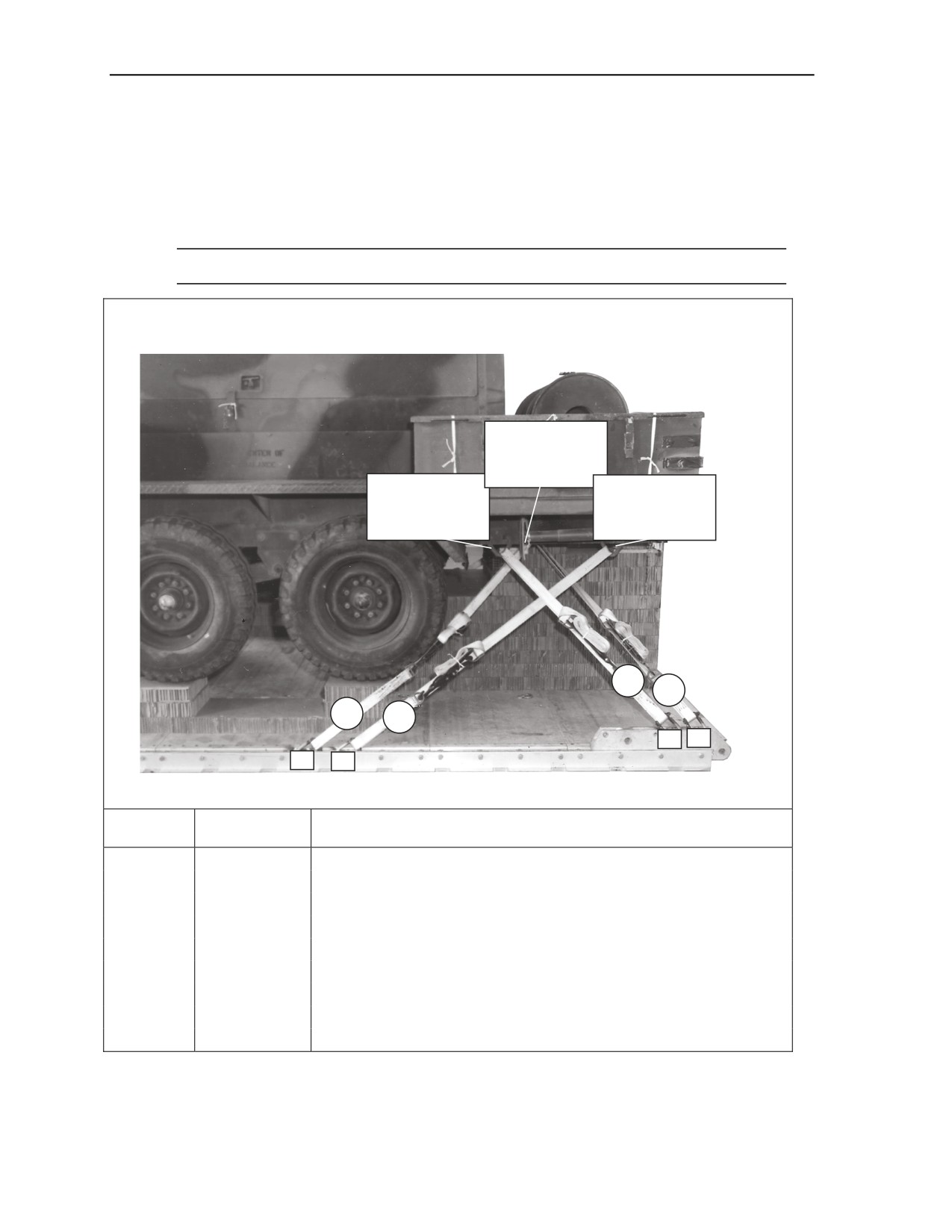

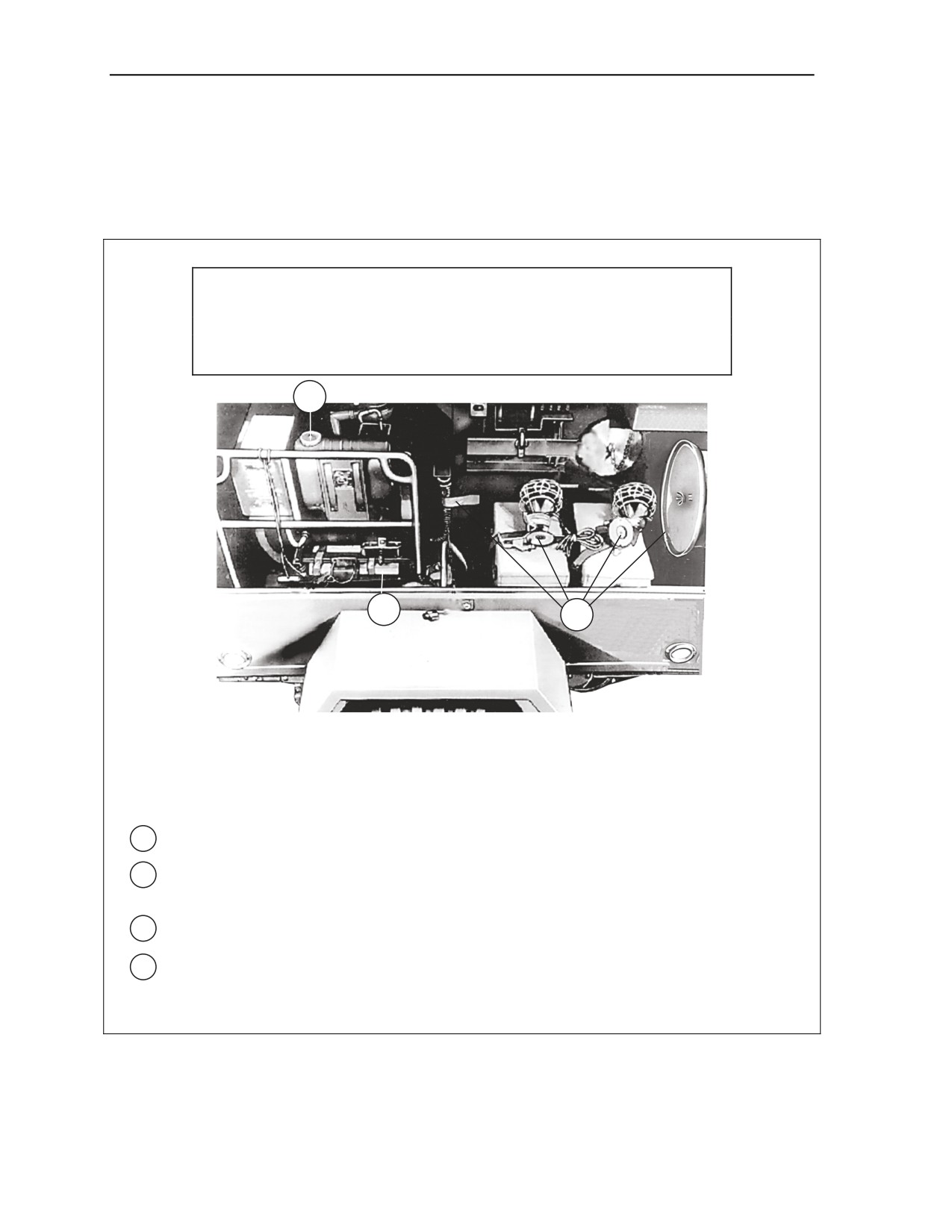

Figure 9-19. Lashings 1 through 8 Installed
9-22
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging the Ingersol-Rand Model, 250-CFM, Trailer-Mounted Air Compressor on a 16-Foot, Type V
Platform for Low-Velocity Airdrop
Note. Left, right, front, and rear refer to the trailer, NOT the platform.
TIEDOWN
TIEDOWN
PROVISION
PROVISION
TIEDOWN
2
3
PROVISION
1
9
11
13
15
5
6
9
8
Lashing
Tie-down
Instructions
Number
Clevis Number
Pass lashing:
9
5
Through tiedown provision 3, left side.
10
5A
Through tiedown provision 3, right side.
11
6
Through tiedown provision 1 left side.
12
6A
Through tiedown provision 1, right side.
13
8
Through tiedown provision 3 left side.
14
8A
Through tiedown provision 3, right side.
15
9
Through tiedown provision 2, left side.
16
9A
Through tiedown provision 2, right side.

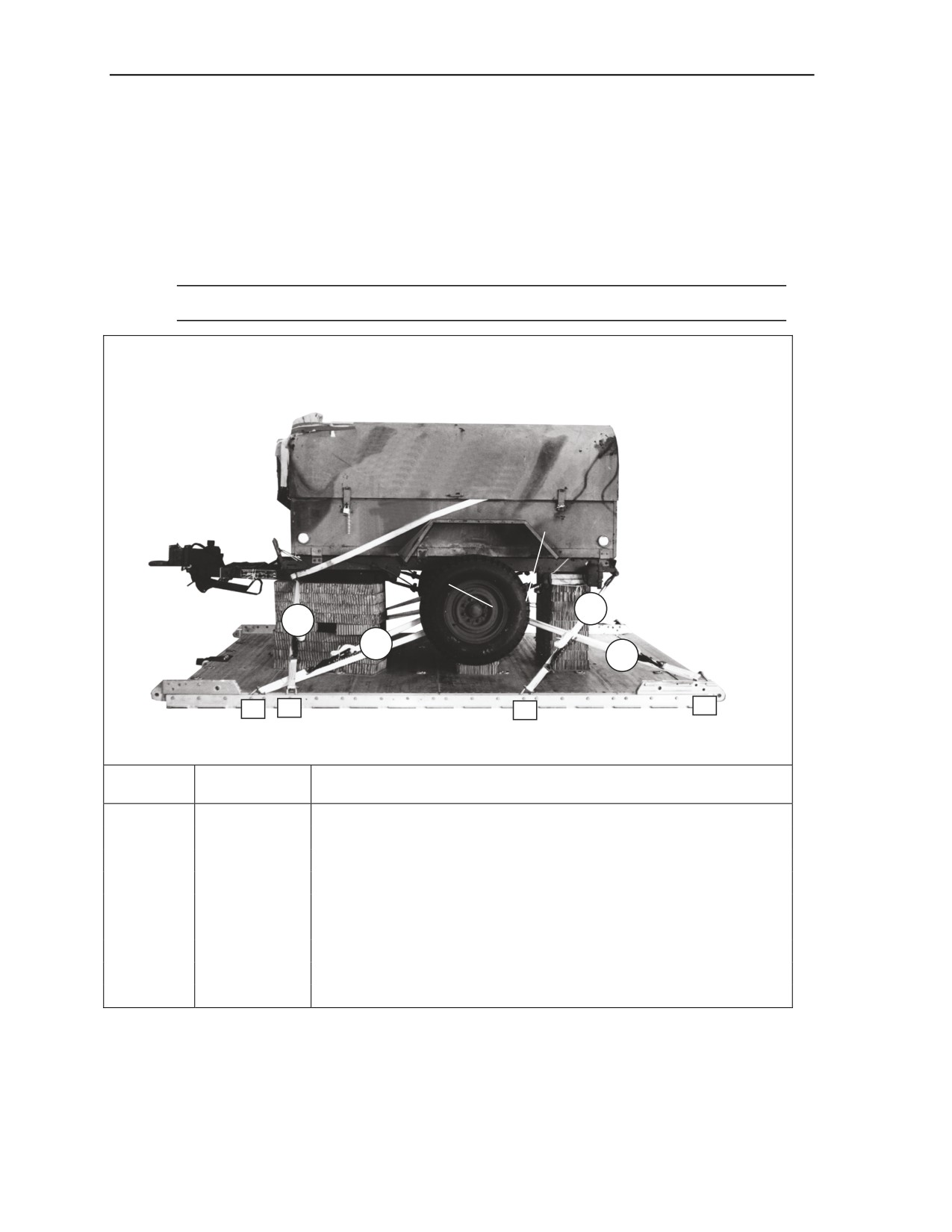

Figure 9-20. Lashings 9 through 16 Installed
27 March 2009
FM 4-20.113/TO 13C7-3-51
9-23
Chapter 9
INSTALLING AND SAFETY TIEING THE SUSPENSION SLINGS

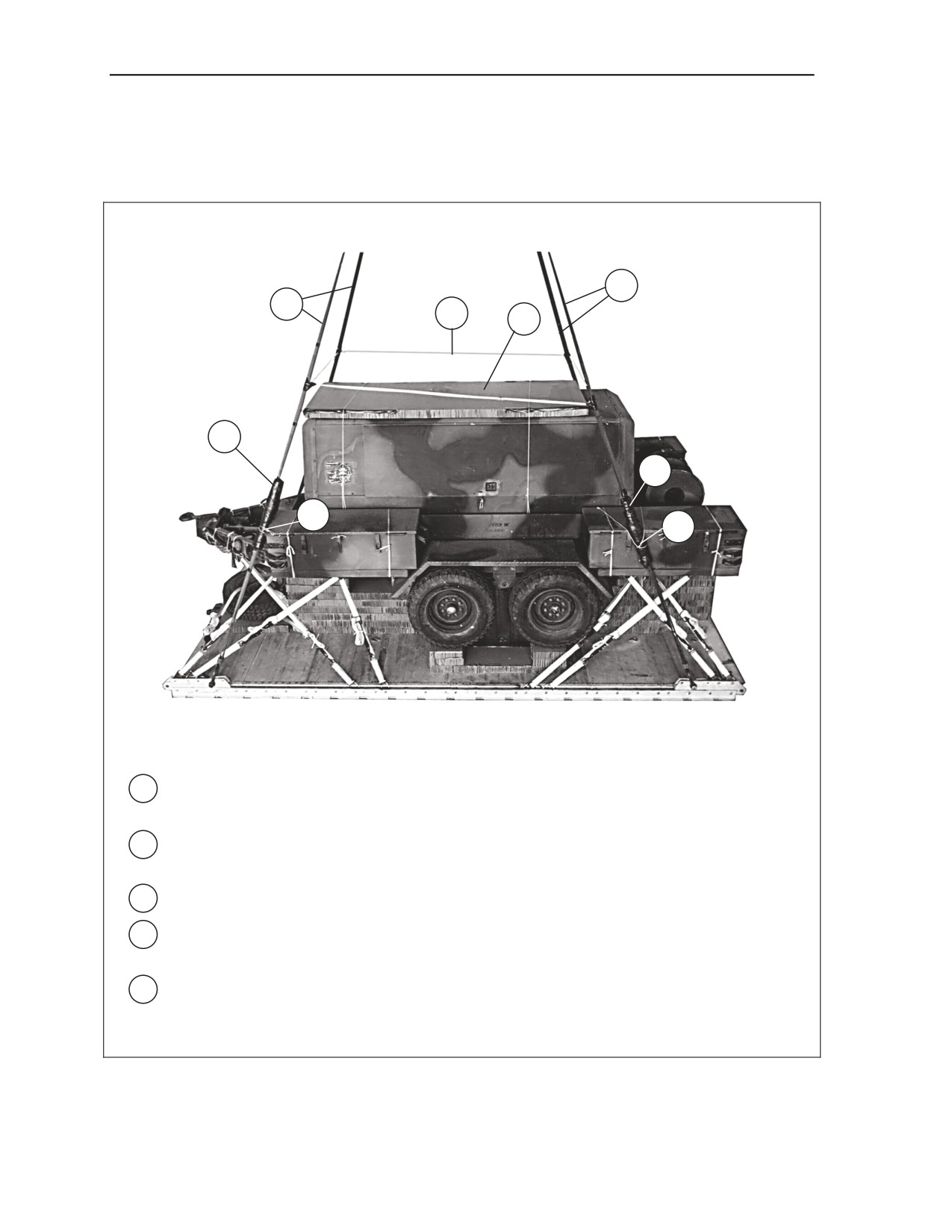

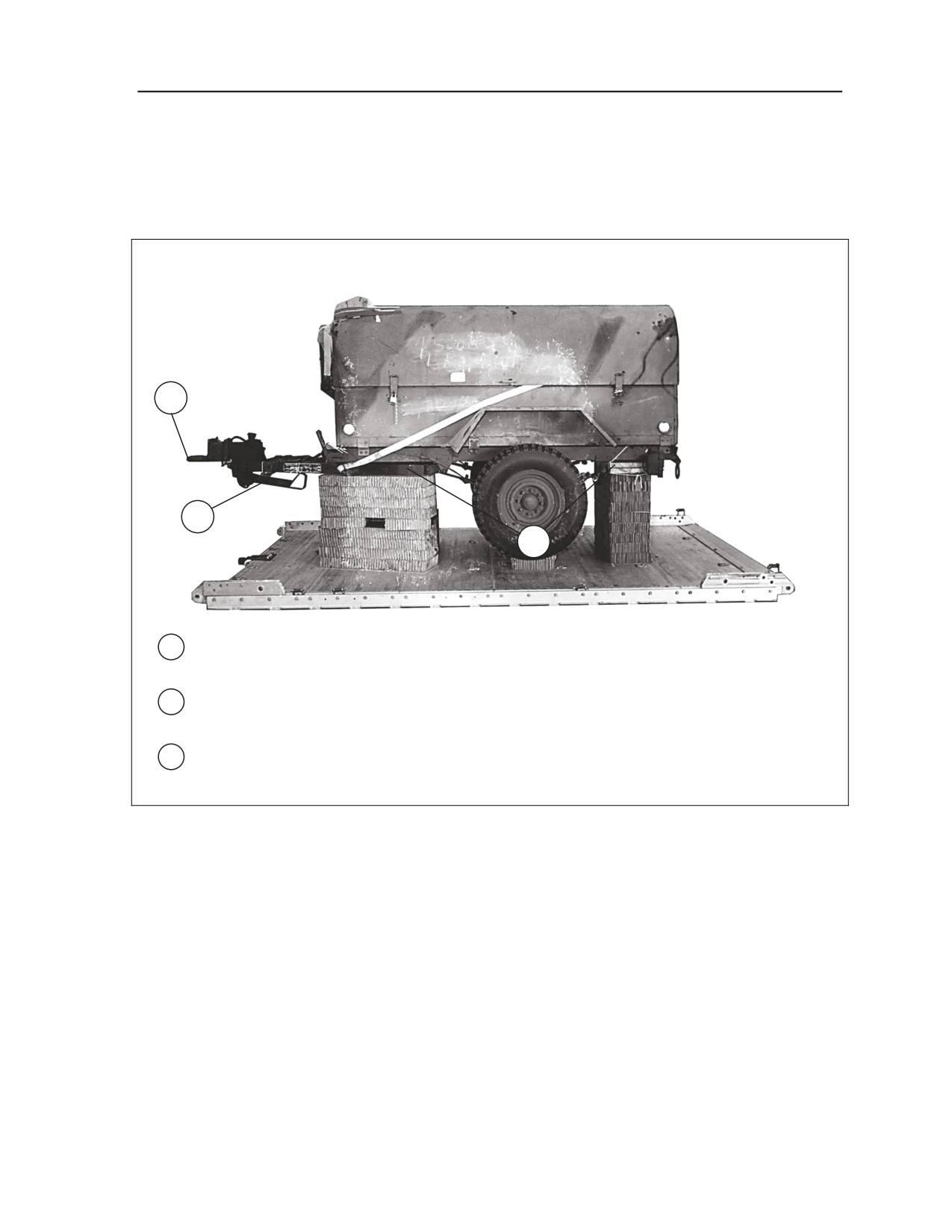

9-7. Install and safety tie the suspension slings as shown in Figure 9-21.
1
1
4
5
2
2
3
3

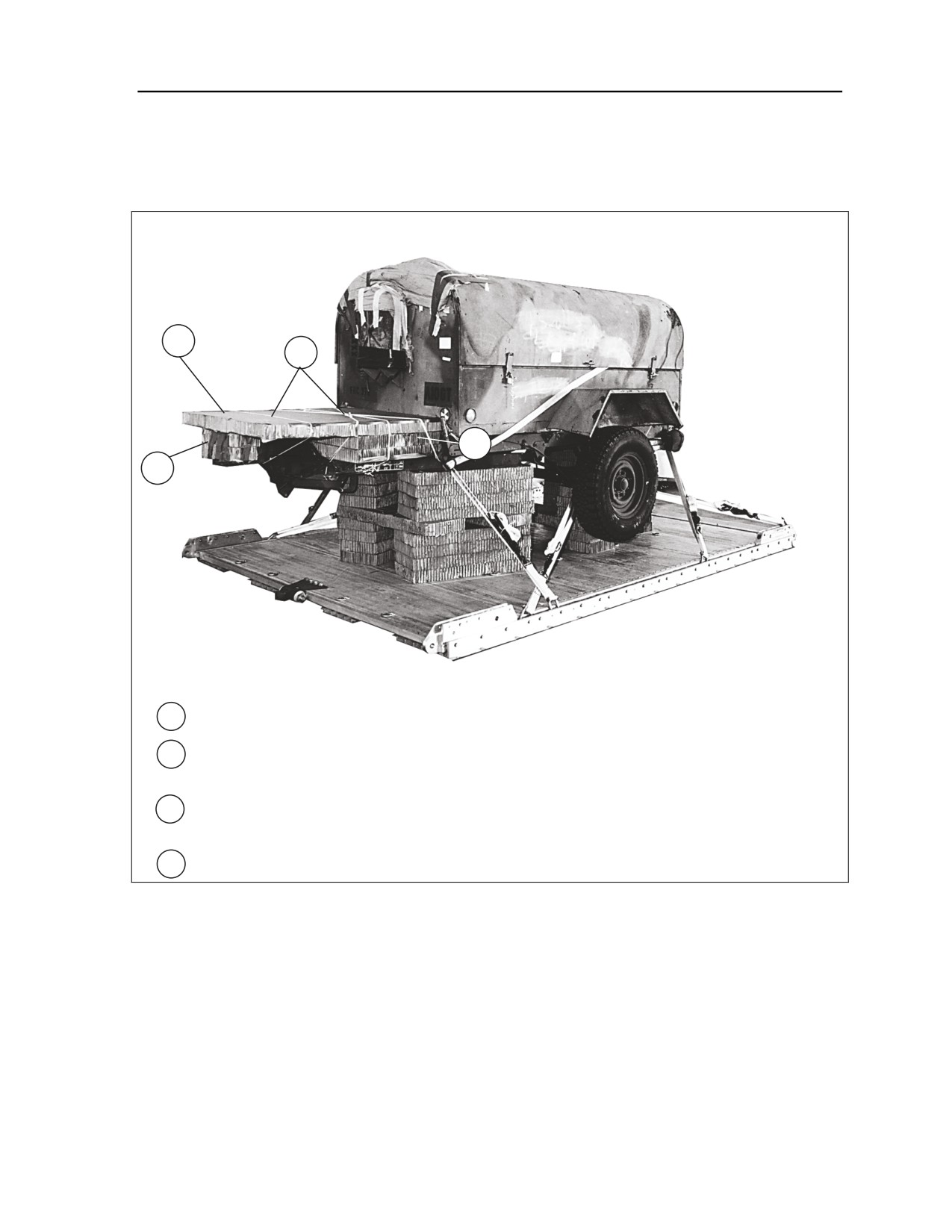

1 Attach a 20-foot (2-loop), type XXVI nylon sling to each tandem link with a large suspension
clevis.
2 Pad each suspension sling with a 9- by 18-inch piece of felt, 48 inches from each clevis.
Secure the felt with tape.
3 Secure the suspension slings to the front and rear cross members with type III nylon cord.
4 Raise the slings and install a deadman’s tie on the suspension slings as shown in FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
5 Place a 36- by 96-inch piece of honeycomb on top of the compressor and secure the
honeycomb to convenient places on the load with type III nylon cord.

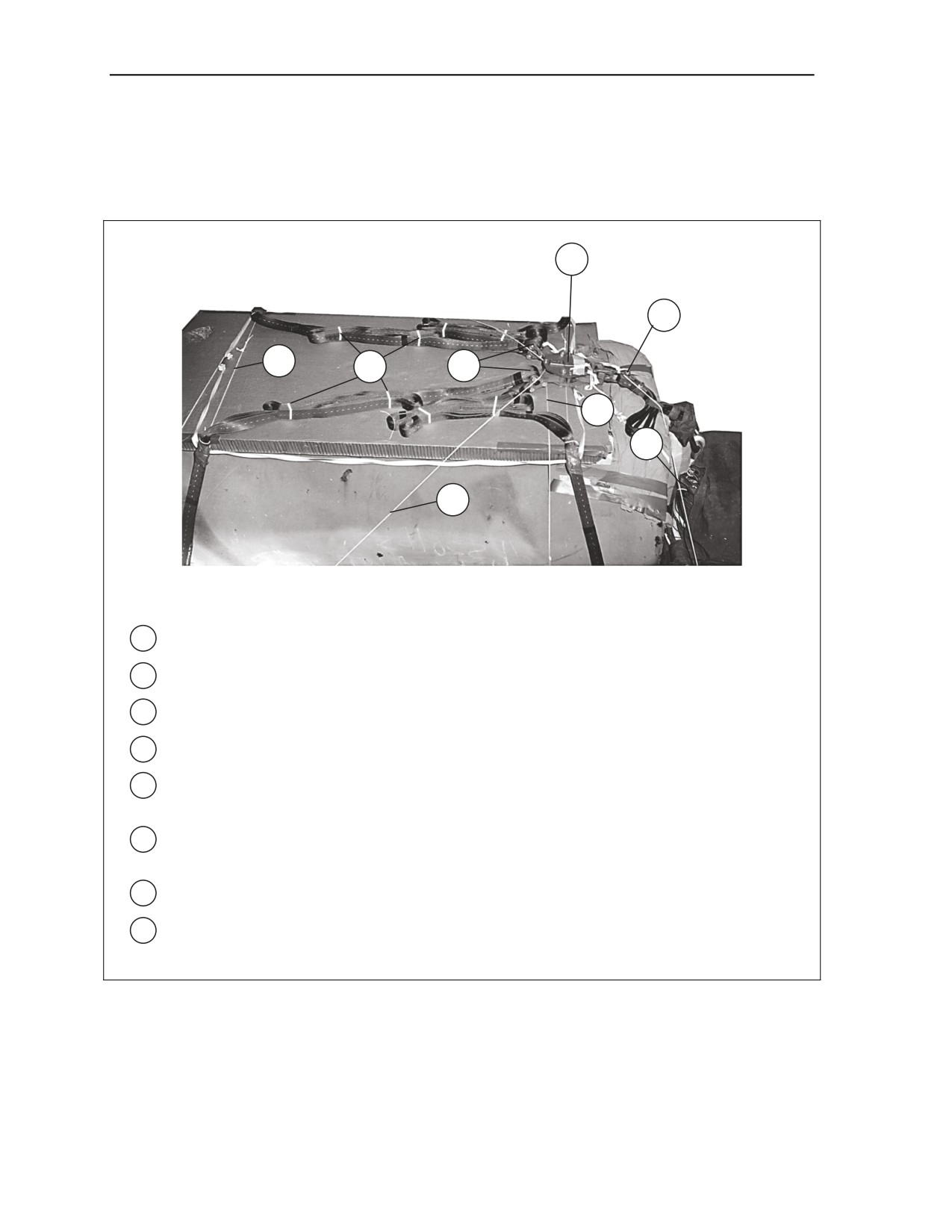

Figure 9-21. Suspension Slings Installed and Safety Tied
9-24
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging the Ingersol-Rand Model, 250-CFM, Trailer-Mounted Air Compressor on a 16-Foot, Type V
Platform for Low-Velocity Airdrop
PREPARING THE PARACHUTE STOWAGE PLATFORM

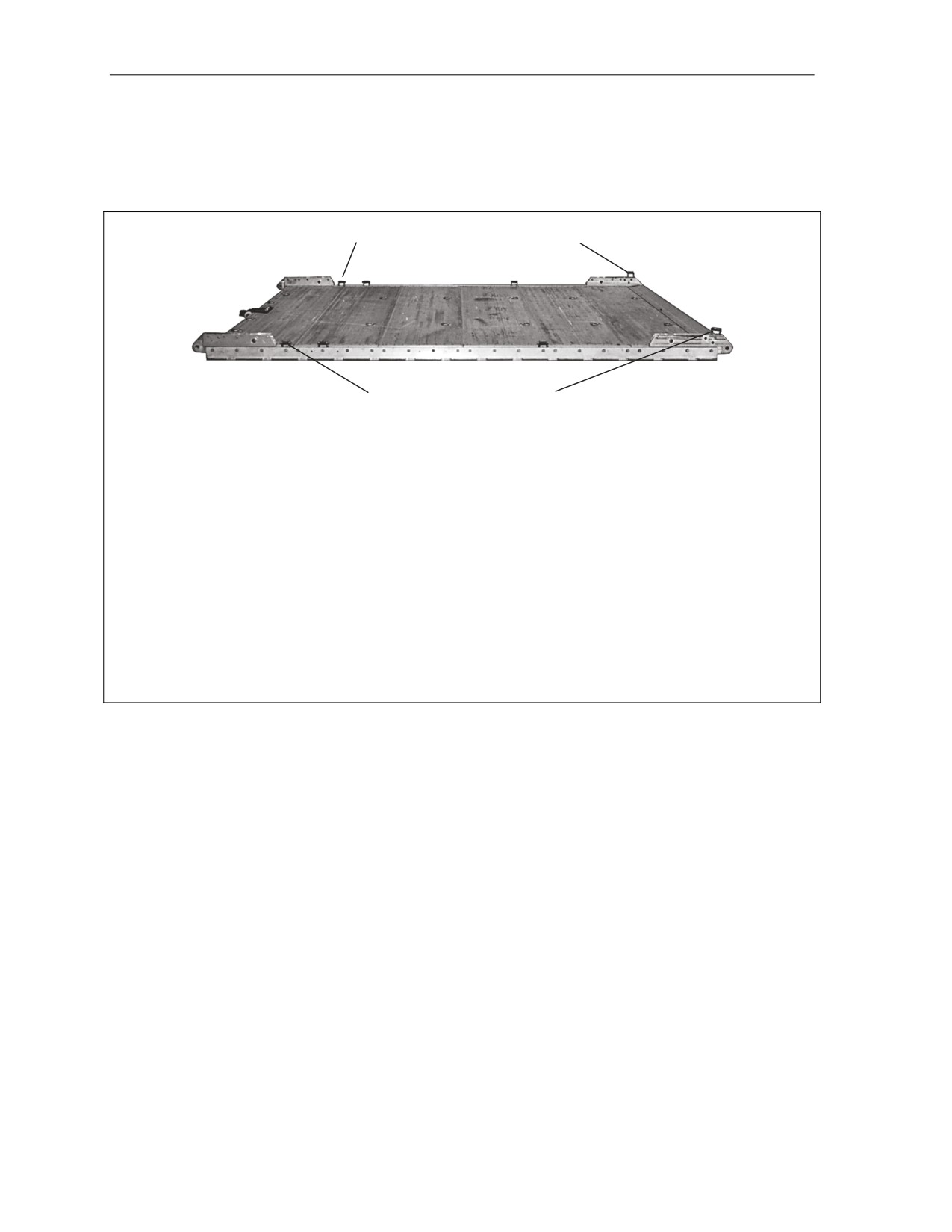

9-8. Prepare the parachute stowage platform as shown in Figure 9-22. Secure the parachute stowage
platform as shown in Figure 9-23.
Notes. 1. All measurements are given in inches.
2. This drawing is not drawn to scale.
3. All holes are 2-inches in diameter.
6
2
2 X 4 X 64 LUMBER
24
¾ X 48 X 64
PLYWOOD
1” HOLE
2” HOLES
1” HOLE
1
2 X 4 X 64 LUMBER
2
2

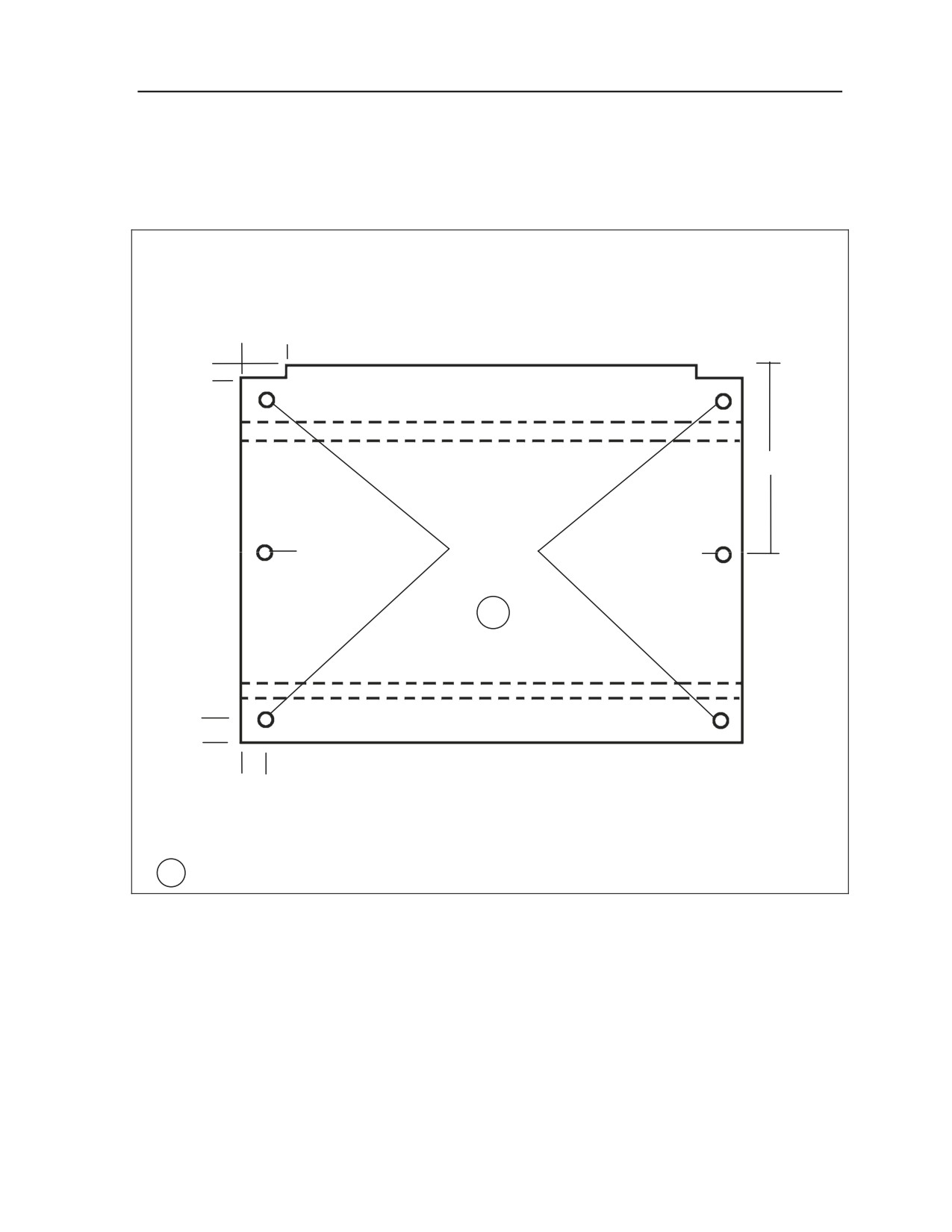

1 Build the parachute stowage platform as shown.

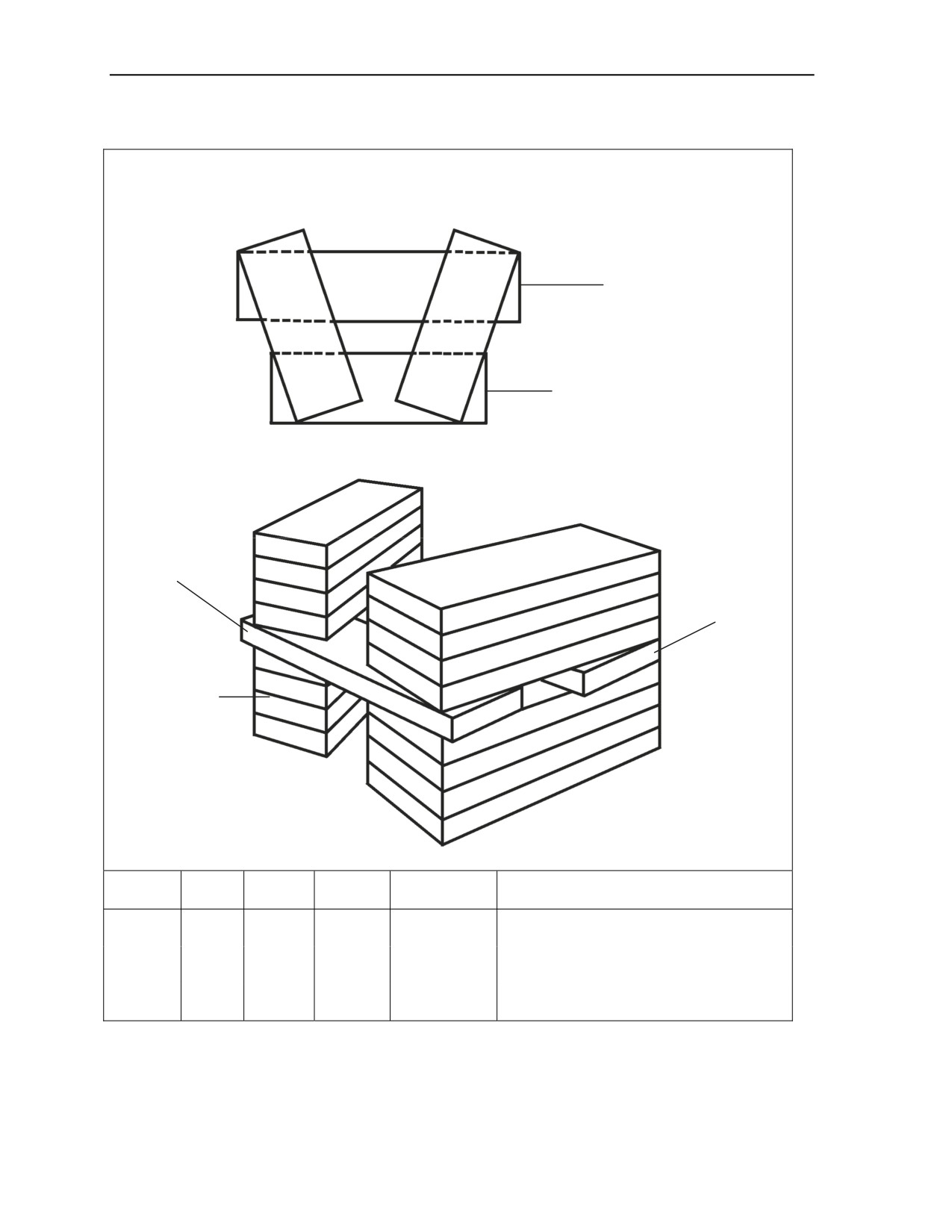

Figure 9-22. Parachute Stowage Platform Built
27 March 2009
FM 4-20.113/TO 13C7-3-51
9-25
Chapter 9
Note. All measurements are given in inches.
1
2
7
1 Place the parachute stowage platform on the drawbar frame with the 2- by 6-inch cutouts
facing the load and the 2- by 4- by 64-inch pieces of lumber facing down and parallel to the
front of the load.

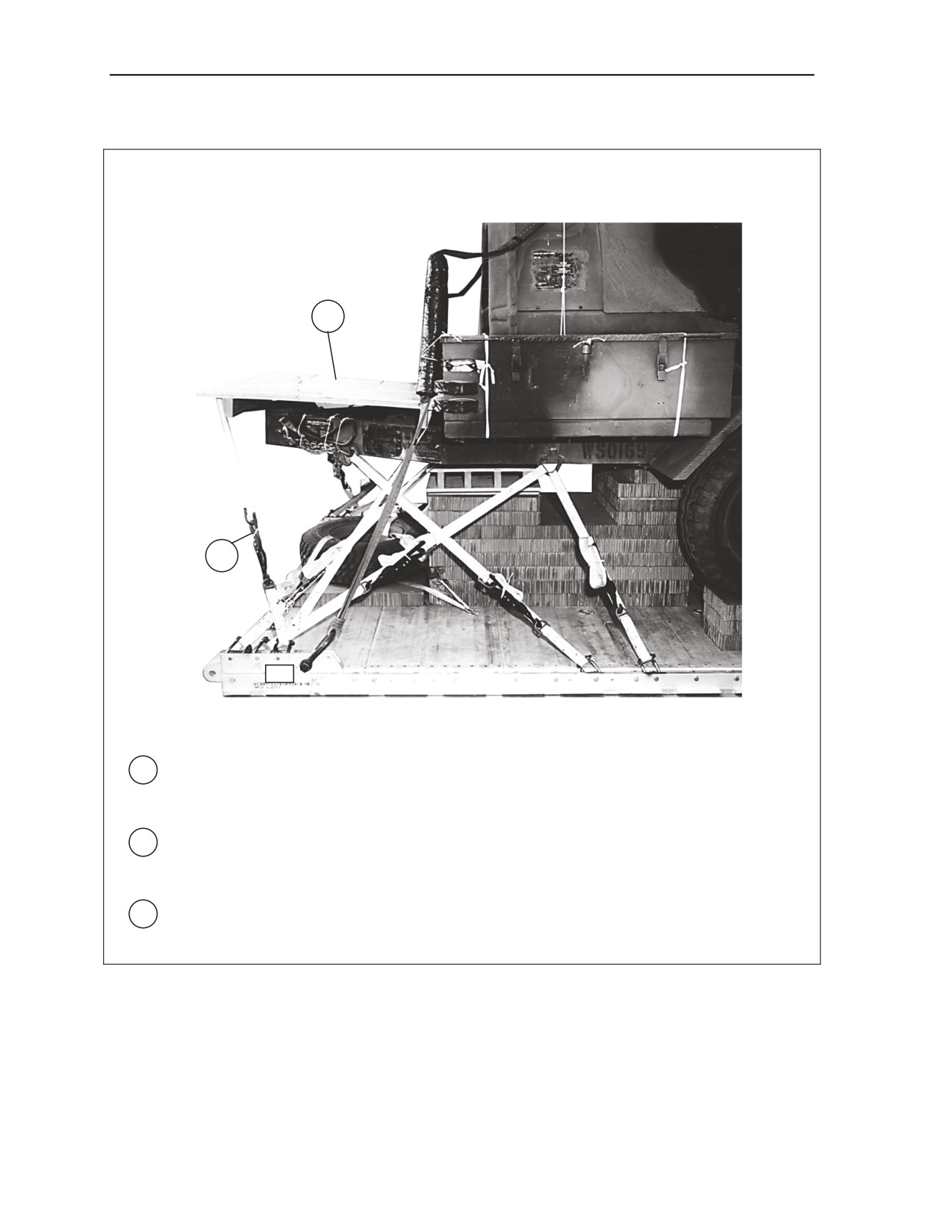

2 Route a 15-foot lashing through clevis 7, through the front corner hole on the right side of the
stowage platform, over the platform, and through the rear corner hole. Secure the lashing
with a D-ring and load binder.
3 Repeat the procedure on the left side using clevis 7A (not shown).
Figure 9-23. Parachute Stowage Platform Installed
9-26
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging the Ingersol-Rand Model, 250-CFM, Trailer-Mounted Air Compressor on a 16-Foot, Type V
Platform for Low-Velocity Airdrop
STOWING CARGO PARACHUTES
9-9. Prepare, stow, and restrain three G-11B cargo parachutes according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 9-24.
1
4
3
2
9
8

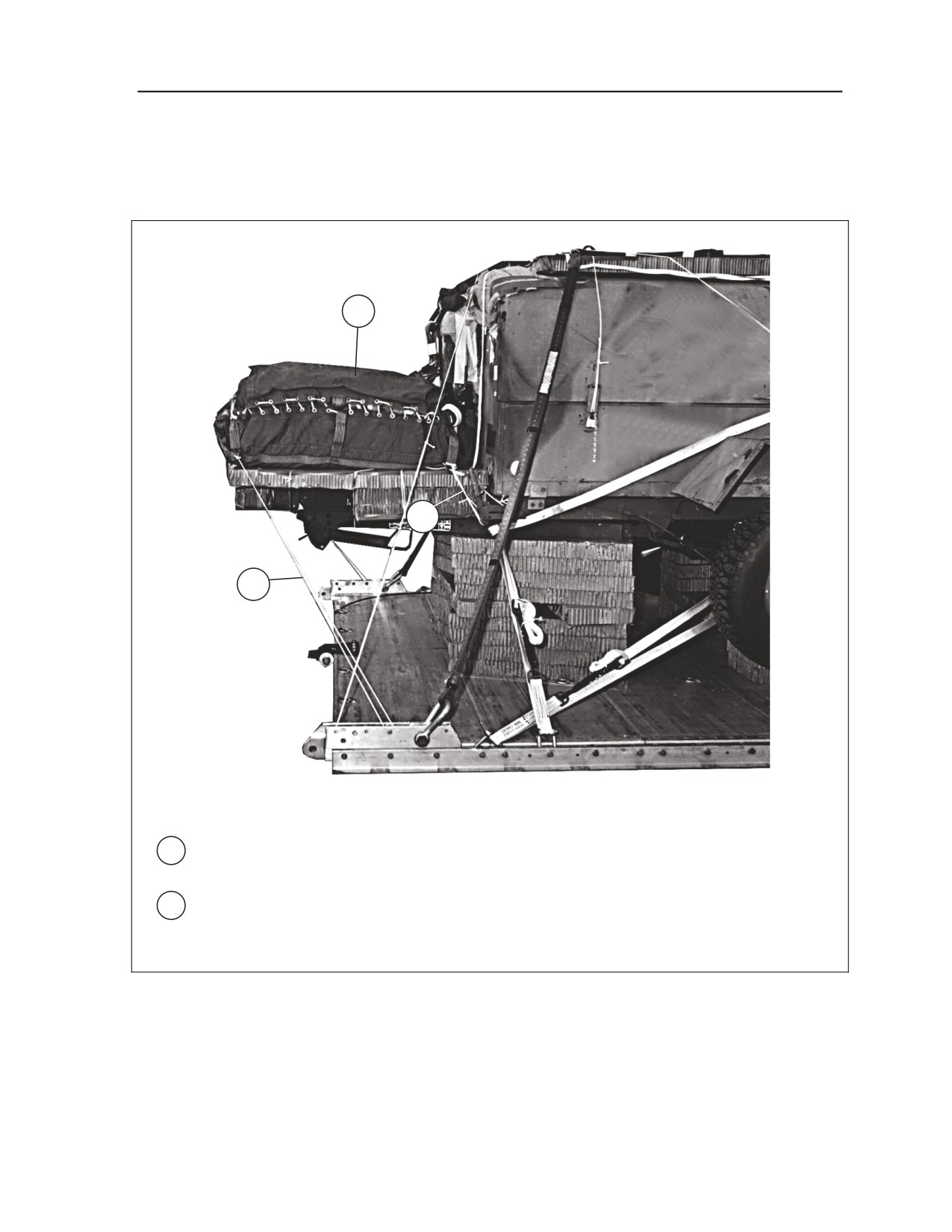

1 Position three G-11B cargo parachutes on the parachute stowage platform according to FM
4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
2 Install the front parachute restraint strap using type VIII nylon webbing through the center
hole of the parachute stowage platform and clevises 8 and 8A.
3 Install the rear parachute restraint strap using type VIII nylon webbing through the rear hole
of the parachute stowage platform and clevises 9 and 9A.
4 Install the parachute release strap according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5.

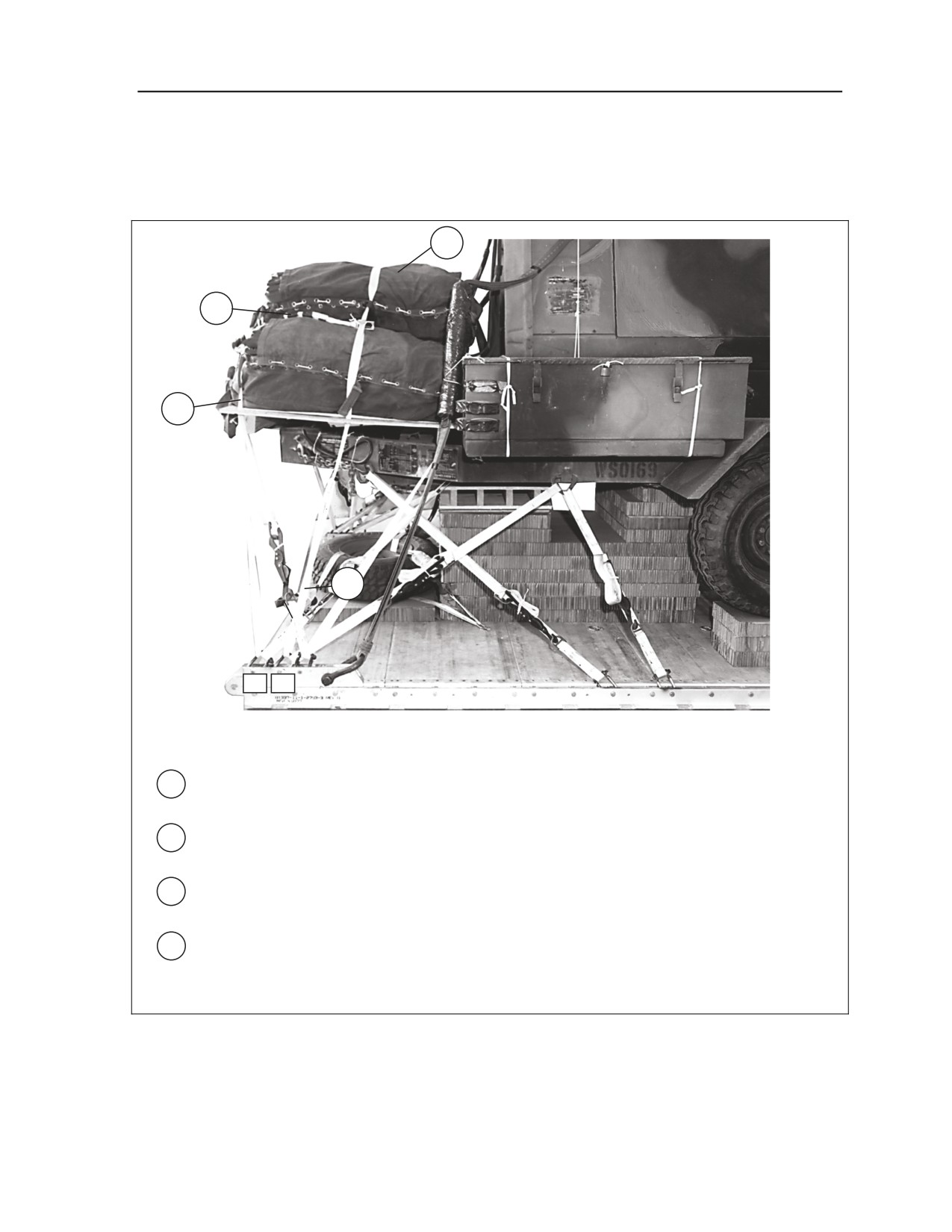

Figure 9-24. Cargo Parachutes Positioned and Restrained
27 March 2009
FM 4-20.113/TO 13C7-3-51
9-27
Chapter 9
INSTALLING PARACHUTE RELEASE SYSTEM
9-10. Prepare and install an M-1 parachute release system according to FM
4-20.102/MCRP
4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 9-25.
1
3
2
4
6
5

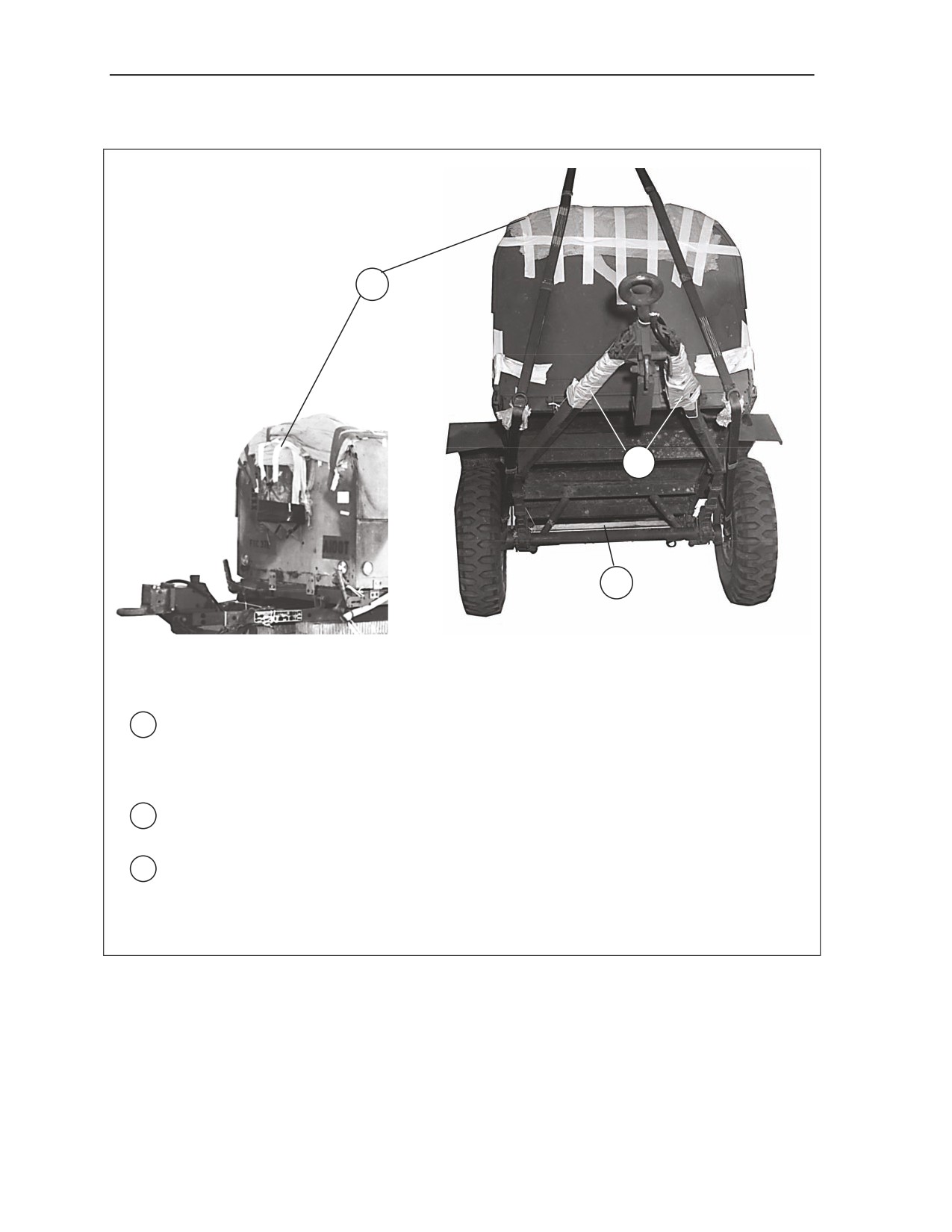

1 Center an M-1 parachute release assembly on top of the honeycomb.
2 Attach the parachute riser extensions to the parachute release connectors.
3 Attach the suspension slings to the lower suspension links.
4 Fold the excess suspension slings and safety tie with type I, ¼-inch cotton webbing.
5 Tie the front M-1 parachute release safety tie to clevises 4 and 4A with type III nylon cord.
6 Tie the rear M-1 parachute release safety tie to clevises 9 and 9A with type III nylon cord.

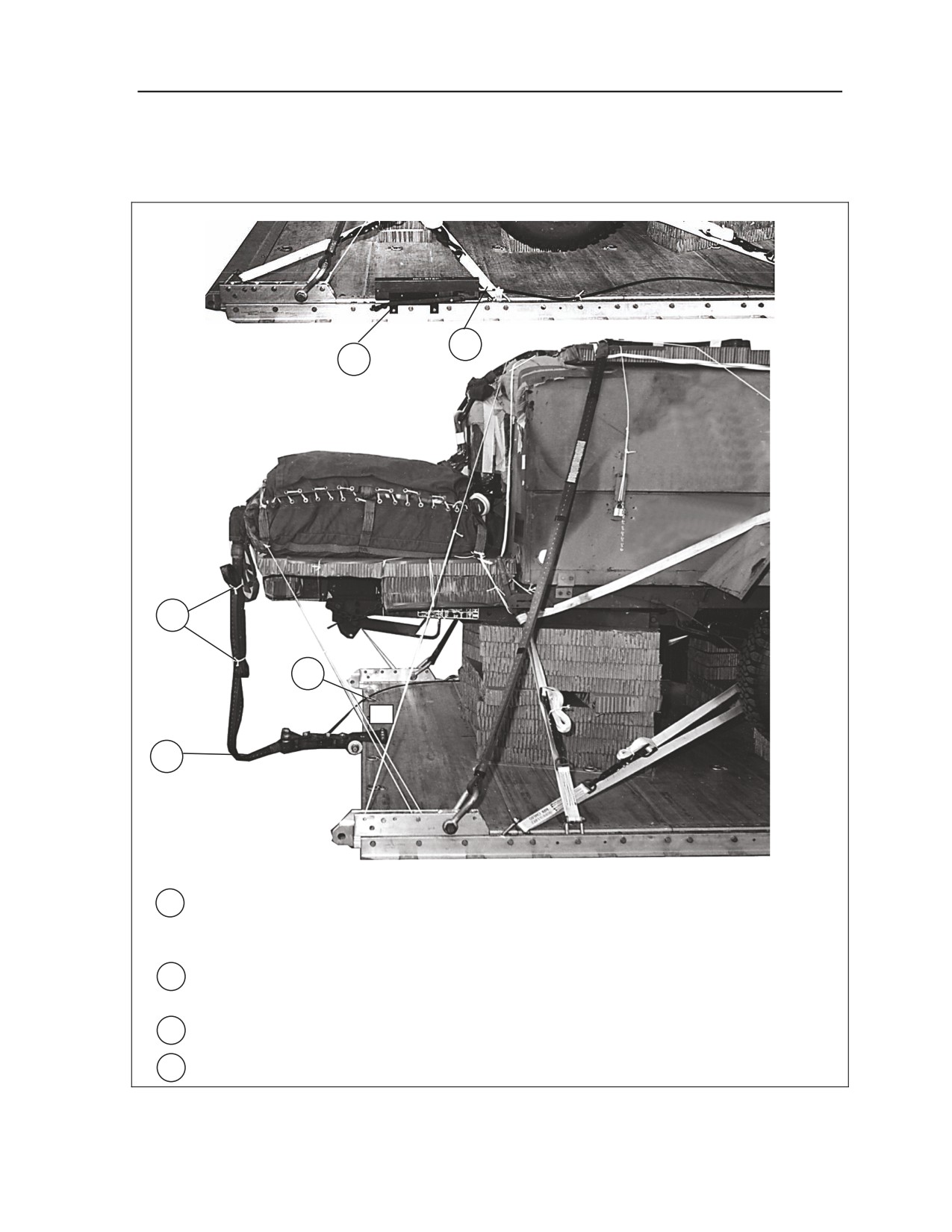

Figure 9-25. M-1 Parachute Release Installed
9-28
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging the Ingersol-Rand Model, 250-CFM, Trailer-Mounted Air Compressor on a 16-Foot, Type V
Platform for Low-Velocity Airdrop
INSTALLING EXTRACTION SYSTEM
9-11. Install the extraction system as shown in Figure 9-26.
2
1
4
3
D8
2

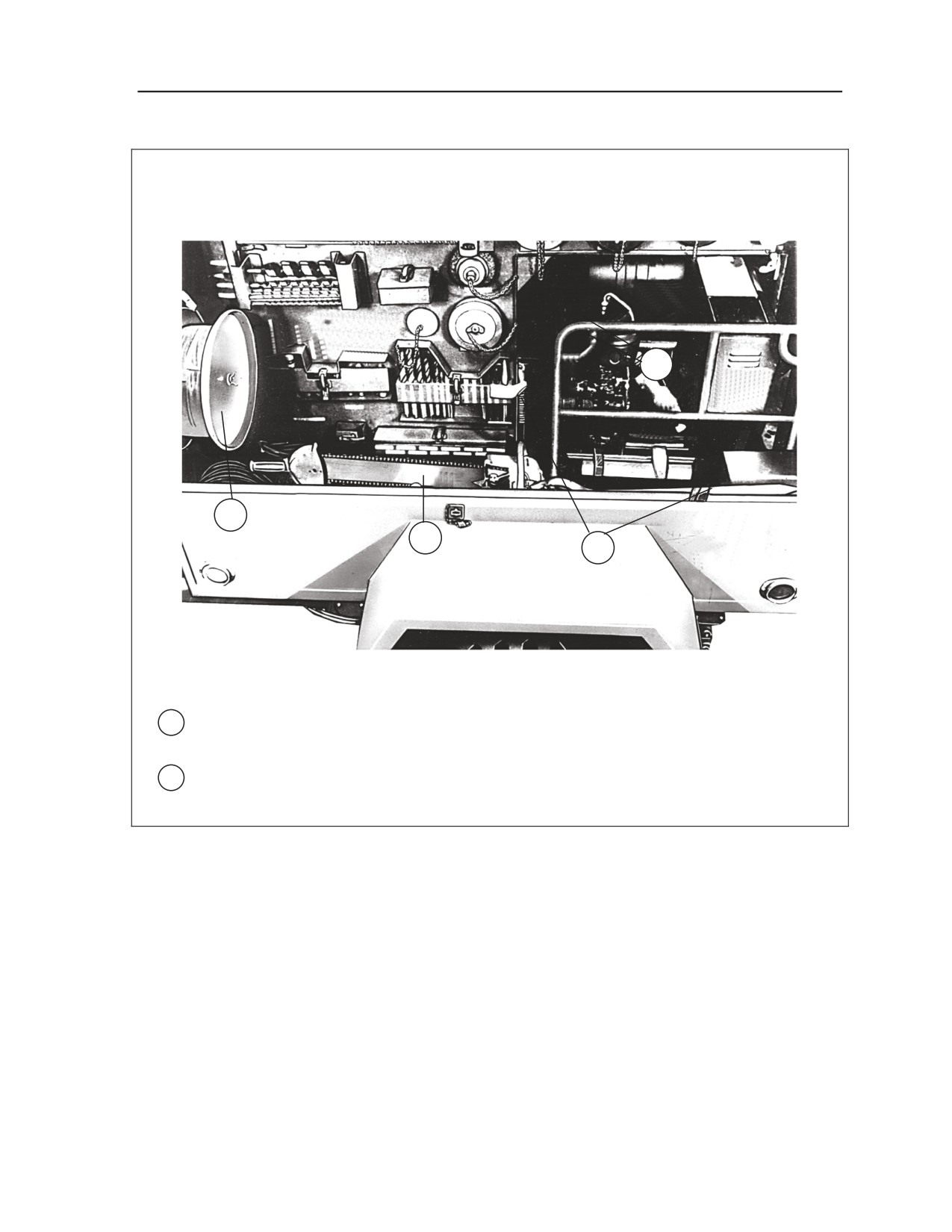

1 Install the components of the EFTC according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5. Use the front mounting holes for the EFTC actuator
brackets.
2 Use a 16-foot cable and safety tie the cable to the platform clevises and tiedown ring D8 with
type I, ¼-inch cotton webbing.
3 Attach a 9-foot (2-loop), type XXVI nylon sling to be used as a deployment line.
4 Secure the excess deployment line with type I, ¼-inch cotton webbing.

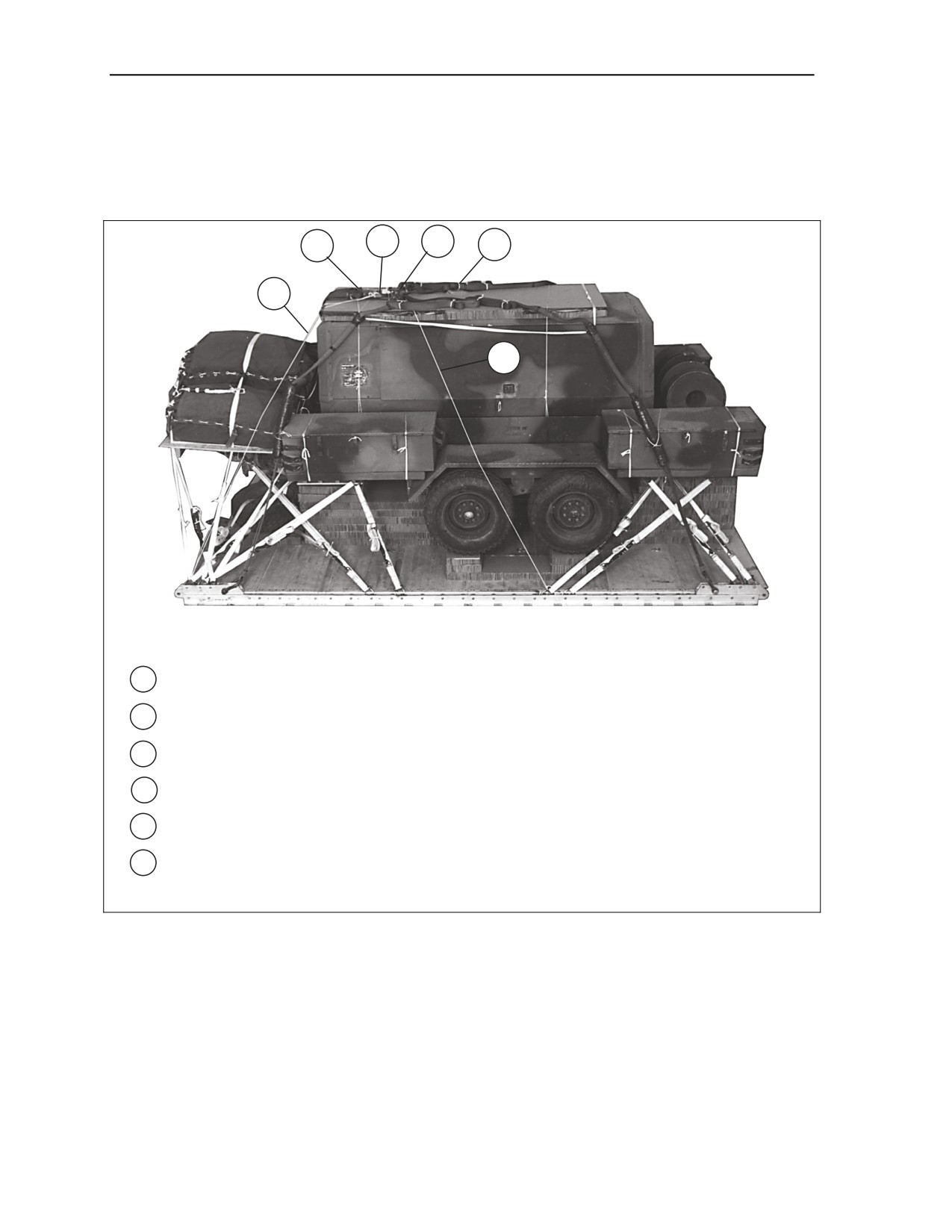

Figure 9-26. Extraction System Installed
27 March 2009
FM 4-20.113/TO 13C7-3-51
9-29
Chapter 9
PLACING EXTRACTION PARACHUTE
9-12. Select the extraction parachute and extraction line needed using the extraction line requirements
table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Place the extraction
parachute and line on the load for installation in the aircraft.
INSTALLING PROVISIONS FOR EMERGENCY RESTRAINTS
9-13. Select and install the provisions for the emergency aft restraints according to the emergency aft
restraint requirements table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-
5.
MARKING RIGGED LOAD
9-14. Mark the rigged load according to FM
4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-

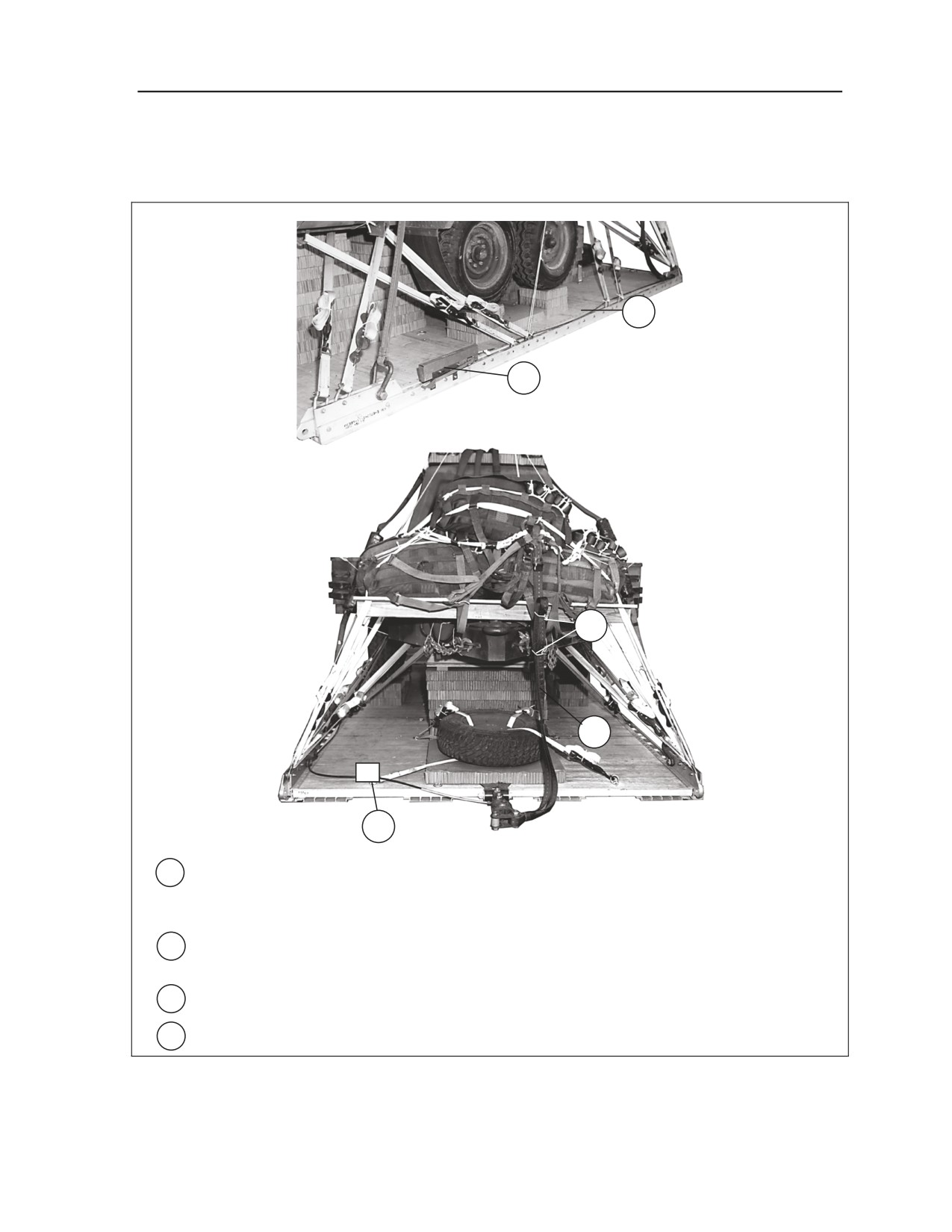

010/TO 13C7-1-5, and as shown in Figure 9-26. Complete Shipper's Declaration for Dangerous Goods. If
the load varies from the one shown, the weight, height, CB, and parachute requirements must be
recomputed.
EQUIPMENT REQUIRED
9-15. Use the equipment listed in Table 9-1 to rig this load.
9-30
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging the Ingersol-Rand Model, 250-CFM, Trailer-Mounted Air Compressor on a 16-Foot, Type V
Platform for Low-Velocity Airdrop
CAUTION
Make the final rigger inspection required by AR 59-4 and FM 4-
20.102/MCRP
4-11.3J/NAVSEA SS400-AB-MMO-010/TO
13C7-1-5
before the load leaves the rigging site.
C/B
RIGGED LOAD DATA
Weight: Load Shown
10,100 pounds
Maximum Weight Load
10,500 pounds
Height
96 inches
Width
108 inches
Overall Length
214 ½ inches
Overhang: Front
0
Rear (Lunette)
0 inches
Center of Balance (CB) (from front edge of the platform)
94 ½ inches
Extraction System with 16-foot cable (adds 18 inches to the length of the load)

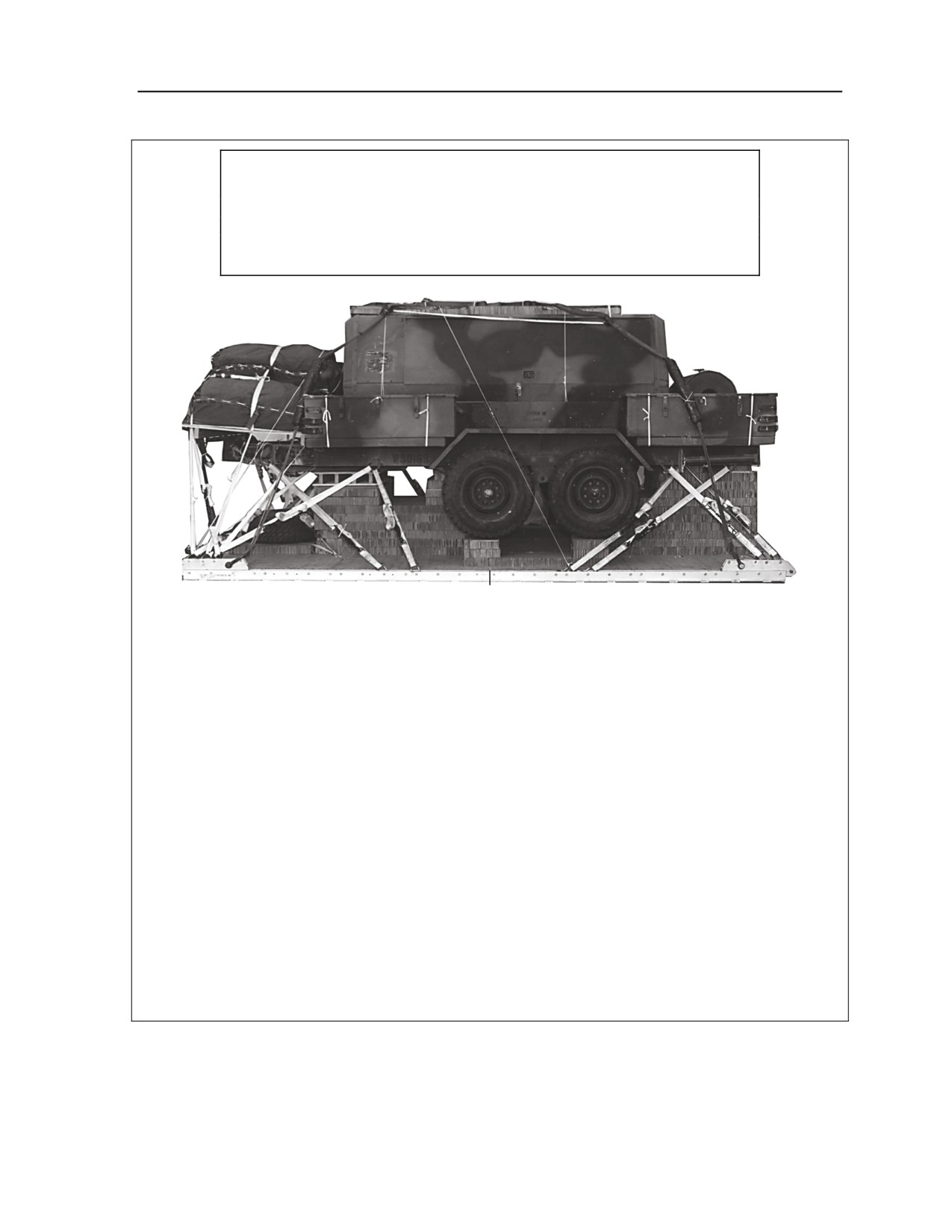

Figure 9-27. Ingersol-Rand Model, 250-CFM, Trailer-Mounted Air Compressor Rigged on a 16-
Foot, Type V Platform for Low-Velocity Airdrop
27 March 2009
FM 4-20.113/TO 13C7-3-51
9-31
Chapter 9
Table 9-1. Equipment Required for Rigging the Ingersol-Rand Model, 250-CFM, Trailer-
Mounted Air Compressor on a 16-Foot, Type V Platform for Low-Velocity Airdrop
National
Item
Quantity
Stock Number
8040-00-273-8713
Adhesive paste, 1-gal.
As required
1670-01-035-6054
Bridle, extraction line bag
1
4030-00-678-8562
Clevis, suspension, ¾-inch (medium)
6
4030-00-090-5354
Clevis, suspension, 1-inch (large)
8
4020-00-240-2146
Cord, nylon, type III, 550-lb
As required
1670-00-434-5785
Coupling, airdrop extraction force transfer, w/16-ft. cable
1
8135-00-664-6958
Cushioning material (Cellulose padding)
As required
8305-00-958-3685
Felt, ½-inch
As required
1670-01-183-2678
Leaf, extraction line (line bag) ( add 2 for C-17)
2
Line extraction:
1670-01-062-6313
60-foot (3-loop), type XXVI (for C-130)
1
1670-01-107-7651
140-foot (3-loop), type XXVI (for C-17)
1
1670-01-064-4452
60-foot (1-loop), type XXVI (for C-17), (drogue line)
1
1670-00-783-5988
Link assembly, type IV (C-17 only)
1
1670-01-493-6418
Link assembly, small (3 ¾-inch):
2
Lumber:
5510-00-220-6274
2- by 4- by 96-inch
4
5315-00-010-4659
Nail, steel, common, 8D
As required
1670-00-753-3928
Pad, energy-dissipating (honeycomb)
18 sheets
1670-01-016-7841
Parachute, cargo, G-11B
3
Parachute, cargo, extraction:
1670-01-063-3716
22-foot
1
1670-01-063-3715
15-foot (C-17 only)
1
Platform, airdrop, type V, 16-foot:
1670-01-162-2372
Clevis assembly (type V)
14
1670-01-162-2376
Extraction bracket assembly
4
1670-01-162-2381
Tandem link assembly (Multipurpose link)
2
5530-00-129-7721
Plywood, 1/4-inch
1 sheet
5530-00-128-4981
Plywood, 1/2-inch
1 sheet
5530-00-128-4981
Plywood, 3/4-inch
3 sheets
9-32
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging the Ingersol-Rand Model, 250-CFM, Trailer-Mounted Air Compressor on a 16-Foot, Type V
Platform for Low-Velocity Airdrop
Table 9-1. Equipment Required for Rigging the Ingersol-Rand Model, 250-CFM, Trailer-
Mounted Air Compressor on a 16-Foot, Type V Platform for Low-Velocity Airdrop (Continued)
National
Item
Quantity
Stock Number
1670-01-097-8816
Release, cargo parachute, M-1
1
Sling, cargo, airdrop:
1670-00-753-3790
9-foot (2-loop), type XXVI
1
1670-01-063-6308
16-foot (4 loop), type XXVI
4
1670-01-062-6313
60-foot (3-loop), type XXVI
3
1670-00-040-8219
Strap, parachute, release, multi-cut
2
7501-00-266-5016
Tape, adhesive, 2-inch
As required
1670-00-937-0271
Tie-down assembly, 15-foot.
20
1670-01-483-8259
Link, Parachute, Connector (H-block) (C-17 only)
1
Webbing:
8305-00-268-2411
Cotton, 1/4-inch, type I
As required
8305-00-082-5752
Nylon, tubular, 1/2-inch
As required
8305-00-261-8585
Nylon, type VIII
As required
27 March 2009
FM 4-20.113/TO 13C7-3-51
9-33
This page intentionally left blank.
Chapter 10
Rigging the Trailer-Mounted Engineer Electrical Tool Outfit
on a 12-Foot, Type V Platform for Low-Velocity Airdrop
DESCRIPTION OF THE LOAD

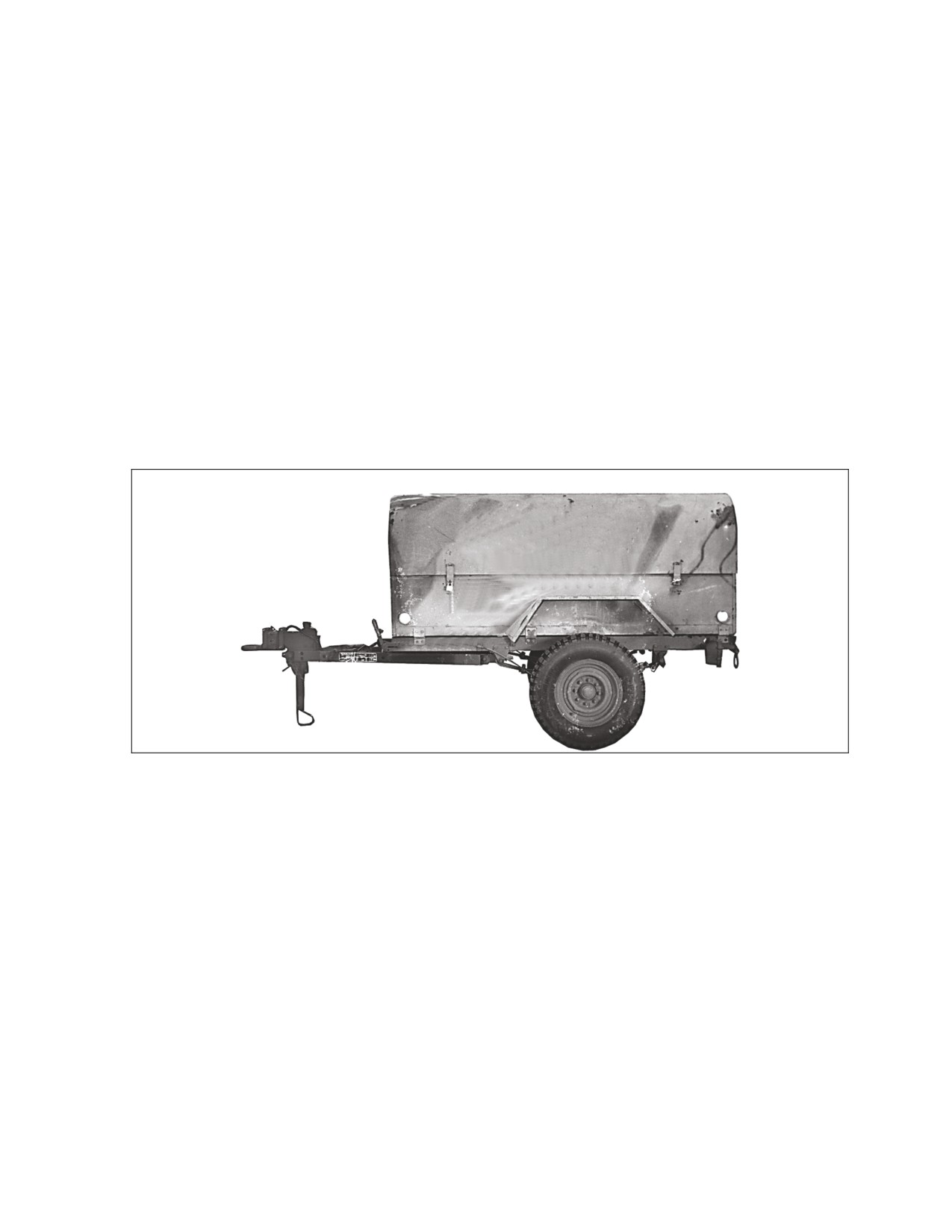

10-1. The trailer-mounted engineer electrical tool outfit (NSN 5180-00-289-95690) (Figure 10-1) is rigged
on a 12-foot, type V airdrop platform with one G-11 cargo parachute. The unrigged trailer weighs 2,720
pounds The trailer is 147 inches long, 75 inches high, and 71 inches wide. Other trailer-mounted engineer
electrical tool outfits may also be rigged for airdrop by adapting these procedures.
Figure 10-1. Trailer-Mounted Engineer Electrical Tool Outfit
27 March 2009
FM 4-20.121/TO 13C7-6-21
10-1
Chapter 10
PREPARING PLATFORM
10-2. Prepare a 12-foot, type V airdrop platform as shown in Figure 10-2.
CLEVISES 4A THROUGH 1A
REAR
FRONT
CLEVISES 4 THROUGH 1
Step:
1. Inspect, or assemble and inspect, a 12-foot, type V airdrop platform as outlined in TM 10-
1670-268-20&P/TO 13C7-52-22.
2. Install a tandem link to the front of each platform side rail using holes 1, 2, and 3.
3. Install a clevis on bushings 1 of each front tandem link.
4. Install a tandem link to the rear of each platform side rail using holes 30, 31, and 32.
5. Starting at the front of each platform side rail, install clevises on the bushings bolted to holes
9, 19, and 21.
6. Starting at the front of the platform, number the clevises 1 through 4 on the right side and 1A
through 4A on the left side.
7. Label the tie-down rings according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5.
Figure 10-2. Platform Prepared
10-2
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging the Trailer-Mounted Engineer Electrical Tool Outfit on a 12-Foot, Type V Platform for Low-
Velocity Airdrop
BUILDING AND POSITIONING HONEYCOMB STACKS

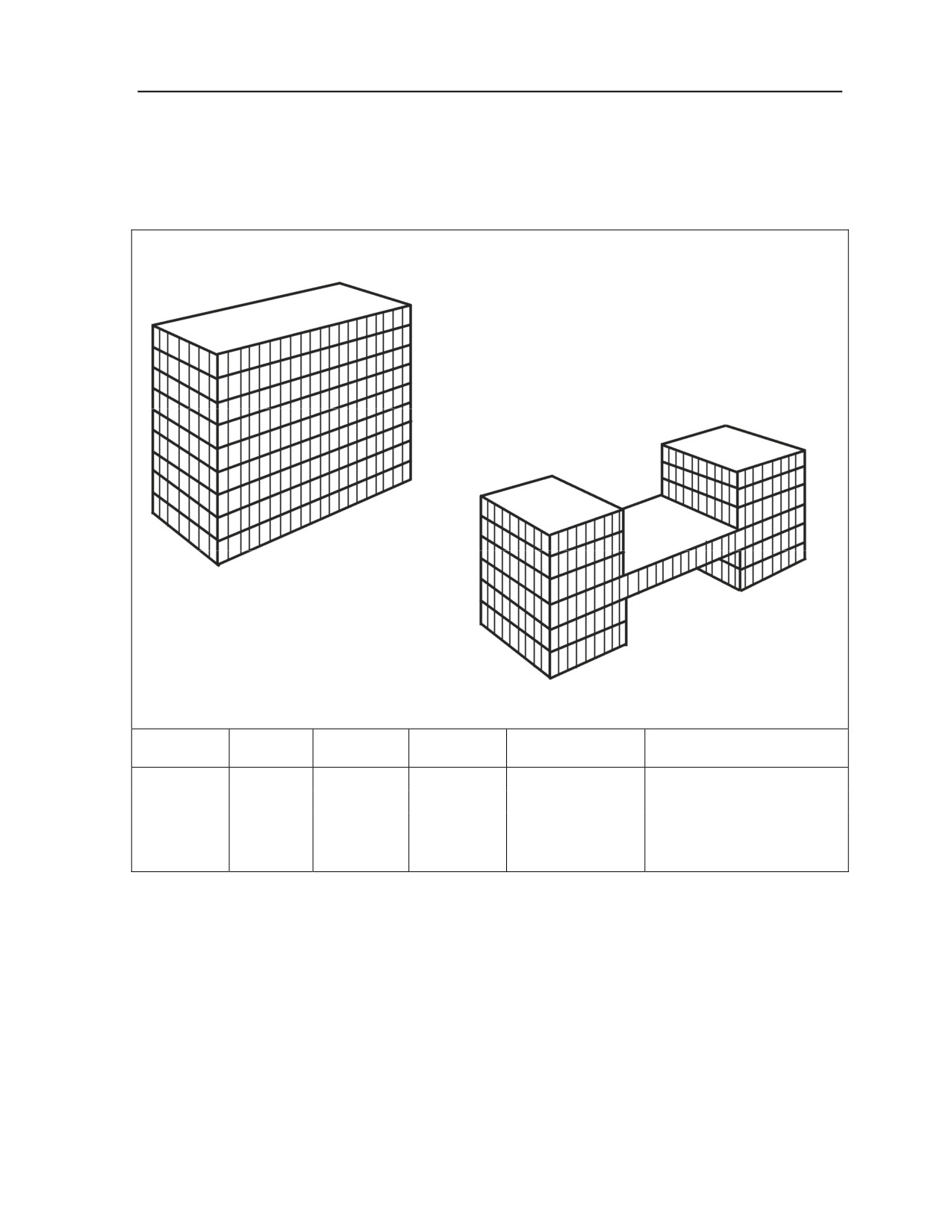

10-3. Build the honeycomb stacks as shown in Figures 10-3 and 10-4. Place the honeycomb stacks as
shown in Figure 10-5.
Note. This drawing is not drawn to scale.
STACK 2
STACK 1
Stack
Width
Length
Number
Pieces
(Inches)
(Inches)
Material
Instructions
1
9
12
36
Honeycomb
Glue to form a stack.
2
10
12
12
Honeycomb
Glue honeycomb flush.
1
12
49
Honeycomb
Bridge the two stacks
between the second and
third layers as shown.
Figure 10-3. Honeycomb Stack 1 and 2 Built
27 March 2009
FM 4-20.113/TO 13C7-3-51
10-3
Chapter 10
Notes. 1. All measurements are given in inches.
2. This drawing is not drawn to scale.
TOP VIEW
HONEYCOMB
12 X 50
HONEYCOMB
12 X 39
HONEYCOMB
12 X 39
HONEYCOMB
12 X 50
HONEYCOMB
12 X 32
STACK 3
Stack
Width
Length
Number
Pieces
(Inches)
(Inches)
Material
Instructions
3
16
12
32
Honeycomb
Glue four stacks of four layers each. Place
them at an angle as shown.
1
12
39
Honeycomb
Bridge the two stacks between the fourth
and fifth layers of honeycomb as shown.
1
12
50
Honeycomb
Bridge the two stacks between the fourth
and fifth layers of honeycomb as shown.
Figure 10-4. Honeycomb Stack 3 Built
10-4
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging the Trailer-Mounted Engineer Electrical Tool Outfit on a 12-Foot, Type V Platform for Low-
Velocity Airdrop
Note. All measurements are given in inches.
STACK 3
STACK 1
STACK 2
REAR
FRONT
23
17
25

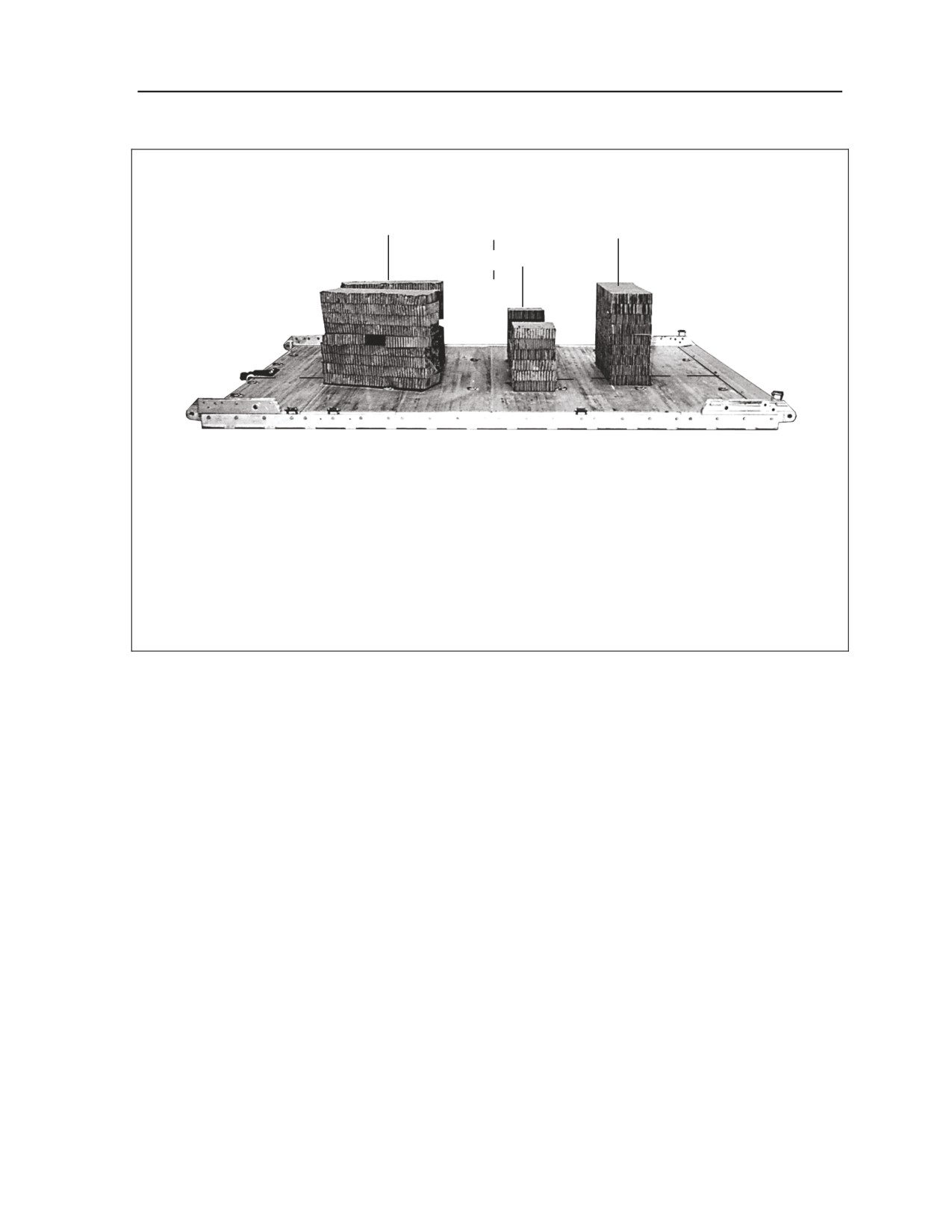

Step:
1. Center stack one 25 inches from the front edge of the platform.
2. Center stack two 17 inches from the rear edge of stack one.
3. Center stack three 23 inches from the rear edge of the platform and the narrow part of the V
facing the rear of the platform.
Figure 10-5. Honeycomb Stacks Positioned on Platform
27 March 2009
FM 4-20.113/TO 13C7-3-51
10-5
Chapter 10
PREPARING TRAILER
10-4. Prepare the trailer as shown in Figures 10-6 through 10-8.
CAUTION
Package, mark, and label gasoline according to AFMAN 24-204 (I)/TM
38-250/NAVSUP PUB 505.MCOP4030.191/DLAI 4145.3
1
2
3
Note: Ensure the generator is bolted to the floor of the trailer. If the generator cannot be secured in
this way, route a 15-foot lashing through each front tiedown ring and through its own D-ring. Route
the lashing through each side of the generator frame. Secure the lashings with a D-ring and load
binder. These lashings are shown in later pictures.
1 Ensure the generator fuel tank is no more than three-fourths full.
2 Position and tape two 2- by 4- by 15-inch pieces of lumber under the generator frame on the
right and left sides.
3 Tape the nozzle, extension cables, and floodlights.
4 Tie the ground rods together with type III nylon cord, and place them in the storage area
provided for long drill bits (not shown).
Figure 10-6. Right Side of Trailer Prepared
10-6
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging the Trailer-Mounted Engineer Electrical Tool Outfit on a 12-Foot, Type V Platform for Low-
Velocity Airdrop
1
1
2
1
2
1 Place the multipurpose saw on top of the circular saw. Secure it with a tiedown strap around
the lower frame of the generator and through the handle of the circular saw.
2 Tape the nozzle, extension cable, and survey stick.
Figure 10-7 Left Side of Trailer Prepared
27 March 2009
FM 4-20.113/TO 13C7-3-51
10-7
Chapter 10
1
3
2
1 Pad the top edge of the trailer. Ensure the gasoline can is filled to a level 1 inch below the
bottom of the filler neck threads when the can is in a level position. Stow the can in the
bracket provided. Pad the top of the can. If the straps are missing, secure the gasoline can
with ½-inch tubular nylon webbing.
2 Position two 2- by 12- 47-inch pieces of lumber under the trailer frame to the rear of the
spring shackles. Tie the lumber in place with type III nylon cord.
3 Secure the intervehicular cable and chains to the drawbar with type III nylon cord and tape.
Close and lock the metal canopy and compartments. If the lock is missing secure the tool
compartment with type III nylon card.
Figure 10-8. Outside of Trailer Prepared
10-8
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging the Trailer-Mounted Engineer Electrical Tool Outfit on a 12-Foot, Type V Platform for Low-
Velocity Airdrop
LIFTING AND POSITIONING THE TRAILER
10-5. Install the lifting slings and position the trailer as shown in Figure 10-9.
3
2
2
1 Attach a 12-foot (2-loop), type XXVI nylon sling to each tiedown ring on each side of the
trailer with a medium suspension clevis (not shown).
2 Raise the front jack stand and place the trailer on the honeycomb stacks so the lumber
pieces rest squarely on stack 1 and the drawbars rest squarely on stack 3.
3 The lunette should overhang the rear of the platform by 20 inches.
Figure 10-9. Trailer Lift Slings Installed
27 March 2009
FM 4-20.113/TO 13C7-3-51
10-9
Chapter 10
LASHING TRAILER TO PLATFORM
10-6. Lash the trailer to the platform according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5 and as shown in Figures 10-10.
Note. Pad any sharp edges on the load where a lashing may pass.
Note. Left, right, front, and rear refer to the trailer, NOT the platform.
3
5
7
1
3
1
2
4
Lashing
Tie-down
Instructions
Number
Clevis Number
Pass lashing:
1
1
Around axle between shock absorber and spring, left side.
2
1A
Around axle between shock absorber and spring, right side.
3
2
Through left rear tiedown provision.
4
2A
Through right rear tiedown provision.
5
3
Through left front tiedown provision.
6
3A
Through right front tiedown provision.
7
4
Around axle to right of shock absorber.
8
4A
Around axle to left of shock absorber.
Figure 10-10. Lashings 1 through 8 Installed
10-10
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging the Trailer-Mounted Engineer Electrical Tool Outfit on a 12-Foot, Type V Platform for Low-
Velocity Airdrop
PREPARING THE PARACHUTE STOWAGE PLATFORM
10-7. Prepare and secure the parachute stowage platform as shown in Figure 10-11.
3
4
2
1
1 Tape to 12- by 6-inch pieces of honeycomb to the lunette.
2 Position two 24- by 36-inch pieces of honeycomb on the trailer drawbar. Tape the bottom left
and right edges of the honeycomb.
3 Glue a 36- by 48-inch piece of honeycomb on top of the honeycomb placed in steps 1 and 2.
Tape the right and left top edges of the honeycomb.
4 Secure the honeycomb with type III nylon cord.
Figure 10-11. Parachute Stowage Platform Prepared and Positioned
27 March 2009
FM 4-20.113/TO 13C7-3-51
10-11
Chapter 10
INSTALLING AND SAFETY TIEING THE SUSPENSION SLINGS
10-8. Install and safety tie the suspension slings as shown in Figure 10-12.
1
1
4
2
3
1 Attach a 16-foot (2-loop), type XXVI nylon sling to each tandem link with a large suspension
clevis.
2 Place a 36- by 96-inch piece of honeycomb on top of the trailer. Tape the right and left top
edges and secure the honeycomb to convenient places on the load with type III nylon cord.
3 Pad and tape the cover latches.
4 Raise the slings and install a deadman’s tie on the suspension slings as shown in FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
Figure 10-12. Suspension Slings Installed and Safety Tied
10-12
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging the Trailer-Mounted Engineer Electrical Tool Outfit on a 12-Foot, Type V Platform for Low-
Velocity Airdrop
STOWING CARGO PARACHUTES
10-9. Prepare, stow, and restrain one G-11B cargo parachutes according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 10-13.
1
2
2
1 Position a G-11B cargo parachutes on the parachute stowage platform according to FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
2 Secure the parachute with type III nylon cord from the front and rear carrying handles to a
convenient place on the load.
Figure 10-13. Cargo Parachute Positioned and Restrained
27 March 2009
FM 4-20.113/TO 13C7-3-51
10-13
Chapter 10
INSTALLING PARACHUTE RELEASE SYSTEM
10-10. Prepare and install an M-1 parachute release system according to FM
4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 10-14.
1
2
7
4
3
8
6
5
1 Center an M-1 parachute release assembly on the top rear of the honeycomb.
2 Attach the parachute riser extension to the parachute release connector.
3 Attach the suspension slings to the lower suspension links.
4 Fold the excess suspension slings and safety tie with type I, ¼-inch cotton webbing.
5 Tie the front M-1 parachute release safety tie to convenient points on the load with type III
nylon cord.
6 Tie the rear M-1 parachute release safety tie to convenient points on the load with type III
nylon cord.
7 Safety tie the front set of slings together just above the deadman’s tie with type III nylon cord.
8 Safety tie the rear set of slings together just above the deadman’s tie with type III nylon cord.
Figure 10-14. M-1 Parachute Release Installed
10-14
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging the Trailer-Mounted Engineer Electrical Tool Outfit on a 12-Foot, Type V Platform for Low-
Velocity Airdrop
INSTALLING EXTRACTION SYSTEM
10-11. Install the extraction system as shown in Figure 10-15.
2
1
4
2
D6
3
1 Install the components of the EFTC according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5. Use the front mounting holes for the EFTC actuator
brackets.
2 Use a 12-foot cable and safety tie the cable to the platform clevises and tiedown ring D6 with
type I, ¼-inch cotton webbing.
3 Attach a 9-foot (2-loop), type XXVI nylon sling to be used as a deployment line.
4 Secure the excess deployment line with type I, ¼-inch cotton webbing.
Figure 10-15. Extraction System Installed
27 March 2009
FM 4-20.113/TO 13C7-3-51
10-15
Chapter 10
PLACING EXTRACTION PARACHUTE
10-12. Select the extraction parachute and extraction line needed using the extraction line requirements
table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Place the extraction
parachute and line on the load for installation in the aircraft.
INSTALLING PROVISIONS FOR EMERGENCY RESTRAINTS
10-13. Select and install the provisions for the emergency aft restraints according to the emergency aft
restraint requirements table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-
5.
MARKING RIGGED LOAD
10-14. Mark the rigged load according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5, and as shown in Figure 10-16. Complete Shipper's Declaration for Dangerous Goods.
If the load varies from the one shown, the weight, height, CB, and parachute requirements must be
recomputed.
EQUIPMENT REQUIRED
10-15. Use the equipment listed in Table 10-1 to rig this load.
10-16
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging the Trailer-Mounted Engineer Electrical Tool Outfit on a 12-Foot, Type V Platform for Low-
Velocity Airdrop
CAUTION
Make the final rigger inspection required by AR 59-4 and FM 4-
20.102/MCRP
4-11.3J/NAVSEA SS400-AB-MMO-010/TO
13C7-1-5
before the load leaves the rigging site.
C/B
RIGGED LOAD DATA
Weight: Load Shown
4,520 pounds
Maximum Weight Load
5,000 pounds
Height
82 inches
Width
108 inches
Overall Length
164 inches
Overhang: Front
0
Rear (Lunette)
20 inches
Center of Balance (CB) (from front edge of the platform)
72 inches
Extraction System with 12-foot cable (adds 0 inches to the length of the load)
Figure 10-16. Trailer-Mounted Engineer Electrical Tool Outfit Rigged on a 12-Foot, Type V
Platform for Low-Velocity Airdrop
27 March 2009
FM 4-20.113/TO 13C7-3-51
10-17
Chapter 10
Table 10-1. Equipment Required for Rigging the Trailer-Mounted Engineer Electrical Tool
Outfit on a 12-Foot, Type V Platform for Low-Velocity Airdrop
National
Item
Quantity
Stock Number
8040-00-273-8713
Adhesive paste, 1-gal.
As required
1670-01-035-6054
Bridle, extraction line bag
1
4030-00-678-8562
Clevis, suspension, ¾-inch (medium)
4
4030-00-090-5354
Clevis, suspension, 1-inch (large)
5
4020-00-240-2146
Cord, nylon, type III, 550-lb
As required
1670-00-434-5783
Coupling, airdrop extraction force transfer, w/12-ft. cable
1
8135-00-664-6958
Cushioning material (Cellulose padding)
As required
1670-01-183-2678
Leaf, extraction line (line bag) ( add 2 for C-17)
2
Line extraction:
1670-01-062-6313
60-foot (3-loop), type XXVI (for C-130)
1
1670-01-107-7651
140-foot (3-loop), type XXVI (for C-17)
1
1670-01-064-4452
60-foot (1-loop), type XXVI (for C-17), (drogue line)
1
1670-00-783-5988
Link assembly, type IV (C-17 only)
1
1670-01-493-6418
Link assembly, small (3 ¾-inch):
1
Lumber:
5510-00-220-6274
2- by 4- by 96-inch
1
5510-00-220-6250
2- by 12- by 96-inch
1
1670-00-753-3928
Pad, energy-dissipating (honeycomb)
7 sheets
1670-01-016-7841
Parachute, cargo, G-11B
1
Parachute, cargo, extraction:
1670-01-063-3715
15-foot (add one for C-17 only)
1
Platform, airdrop, type V, 12-foot:
1670-01-162-2372
Clevis assembly (type V)
8
1670-01-162-2376
Extraction bracket assembly
1
1670-01-162-2381
Tandem link assembly (Multipurpose link)
4
1670-01-097-8816
Release, cargo parachute, M-1
1
Sling, cargo, airdrop:
1670-00-753-3790
9-foot (2-loop), type XXVI
1
1670-01-063-6308
16-foot (4 loop), type XXVI
4
1670-00-998-0116
Strap, parachute, release
1
7501-00-266-5016
Tape, adhesive, 2-inch
As required
1670-00-937-0271
Tie-down assembly, 15-foot.
10
1670-01-483-8259
Link, Parachute, Connector (H-block) (C-17 only)
1
Webbing:
8305-00-268-2411
Cotton, 1/4-inch, type I
As required
8305-00-082-5752
Nylon, tubular, 1/2-inch
As required
10-18
FM 4-20.113/TO 13C7-3-51
27 March 2009
Glossary
AFB
Air Force Base
AFMAN
Air Force Manual
AFR
Air Force regulation
AFTO
Air Force Technical Order
AFSOC
Air Force Special Operations Command
attn
attention
ALC
Airlift Logistics Center
AMC
Air Mobility Command
CB
center of balance
DA
Department of the Army
DC
District of Columbia
diam
diameter
eftc
extraction force transfer coupler
FM
field manual
ft
foot/feet
HQ
headquarters
in
inch
lb
pound
MICLIC
mine-clearing line charge
NO
number
NSN
national stock number
TM
technical manual
TO
technical order
TRADOC
United States Army Training and Doctrine Command
US
United States (of America)
USAR
United States Army Reserve
VA
Virginia
w
with
27 March 2009
FM 4-20.113/TO 13C7-3-51
Glossary-1















Content      ..     5      6      7
