Chapter 6
PLACING EXTRACTION PARACHUTE
6-14. Select the extraction parachute and extraction line needed using the extraction line requirements
table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Place the extraction
parachute and line on the load for installation in the aircraft.

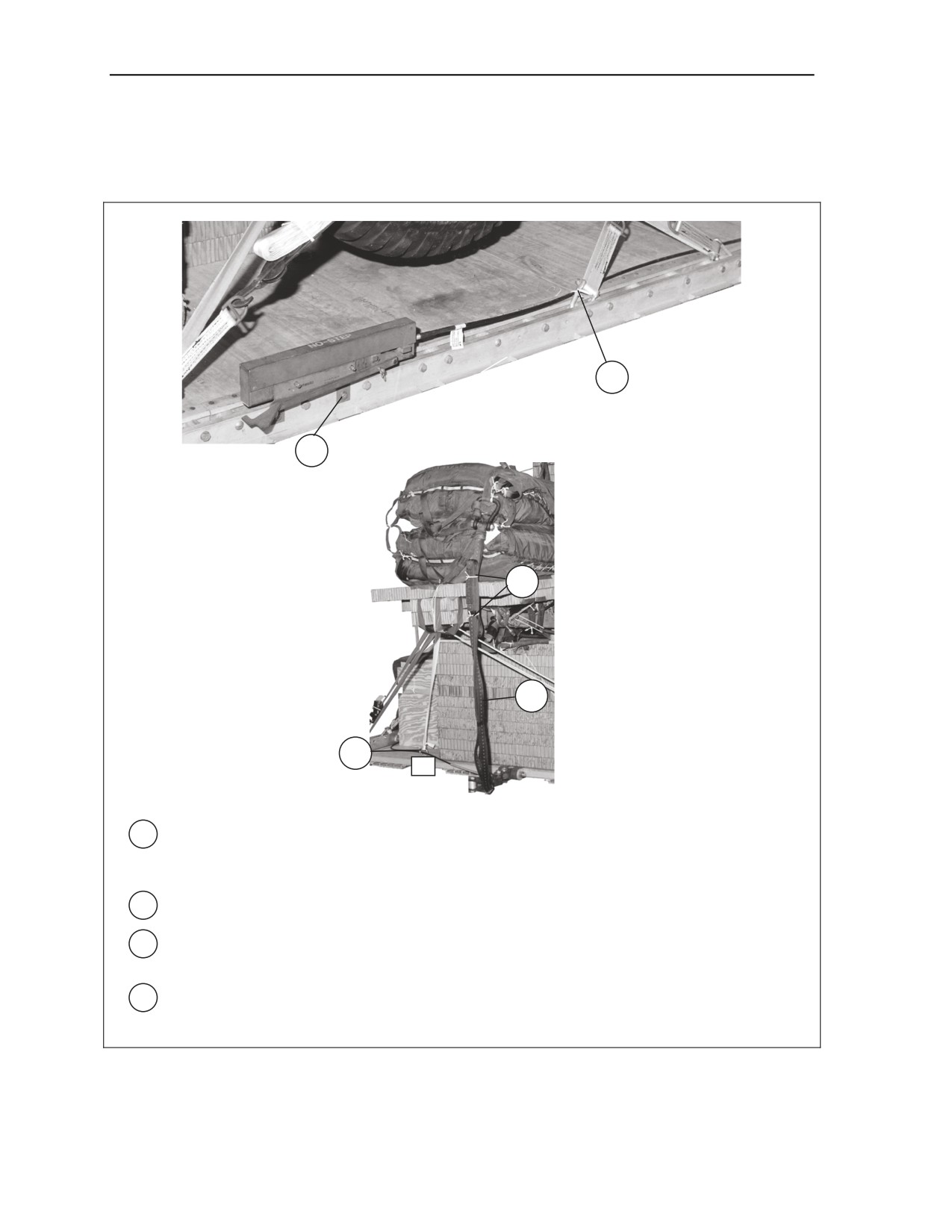

INSTALLING PROVISIONS FOR EMERGENCY RESTRAINTS
6-15. Select and install the provisions for the emergency aft restraints according to the emergency aft
restraint requirements table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-
5.
MARKING RIGGED LOAD
6-16. Mark the rigged load according to FM
4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5, and as shown in Figure 6-20. Complete Shipper's Declaration for Dangerous Goods. If
the load varies from the one shown, the weight, height, CB, and parachute requirements must be
recomputed.
EQUIPMENT REQUIRED
6-17. Use the equipment listed in Table 6-1 to rig this load.
6-24
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging Ammunition Trailer on a 12-Foot, Type V Platform for Low-Velocity Airdrop
CAUTION
Make the final rigger inspection required by AR 59-4 and FM 4-
20.102/MCRP
4-11.3J/NAVSEA SS400-AB-MMO-010/TO
13C7-1-5
before the load leaves the rigging site.
C/B
RIGGED LOAD DATA
Weight: Load Shown
8,200 pounds
Maximum Weight Load
10,000 pounds
Height
81 inches
Width
108 inches
Overall Length
181 inches
Overhang: Front
0
Rear (lunette)
32 inches
Center of Balance (CB) (from front edge of the platform)
71 inches
Extraction System with 12-foot cable (adds 0 inches to the length of the load)

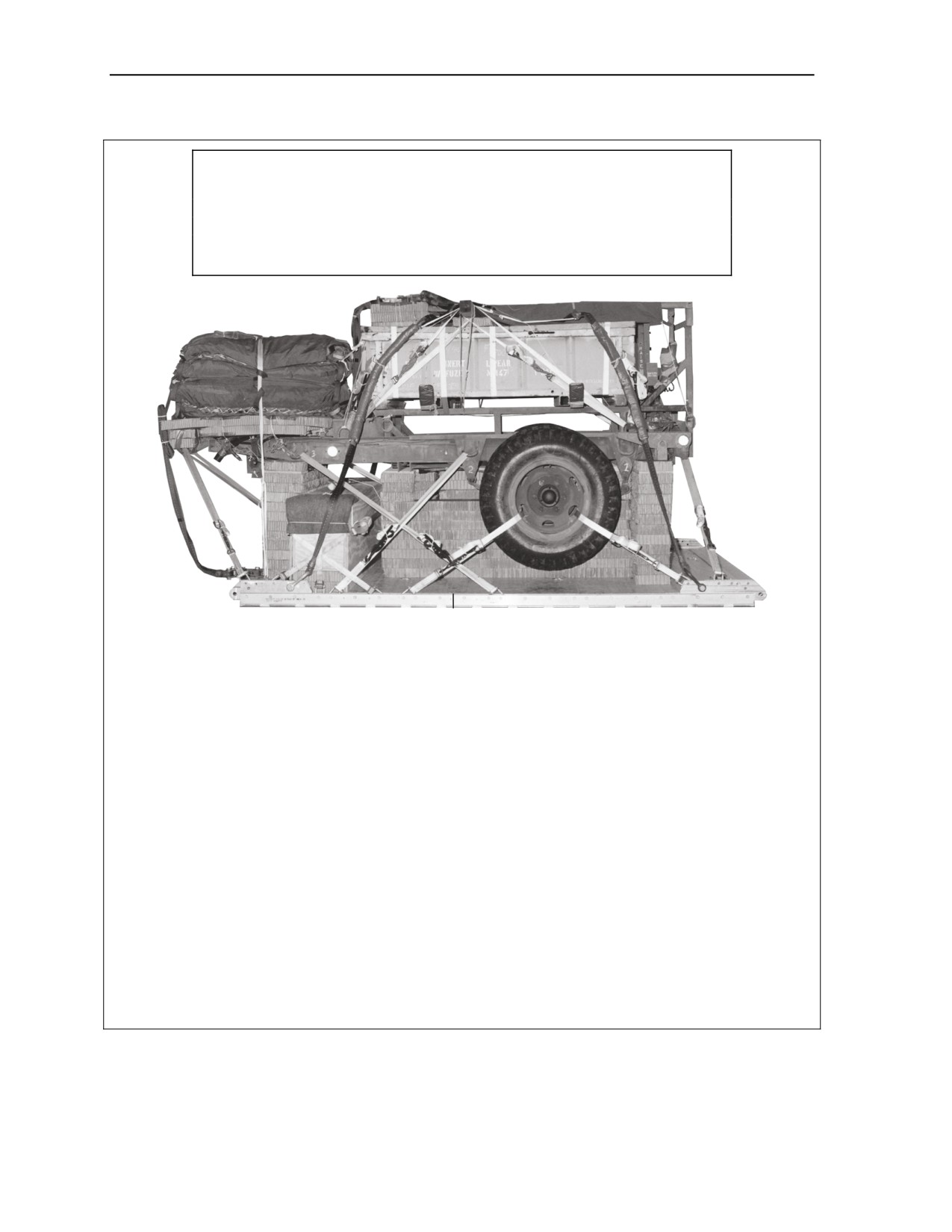

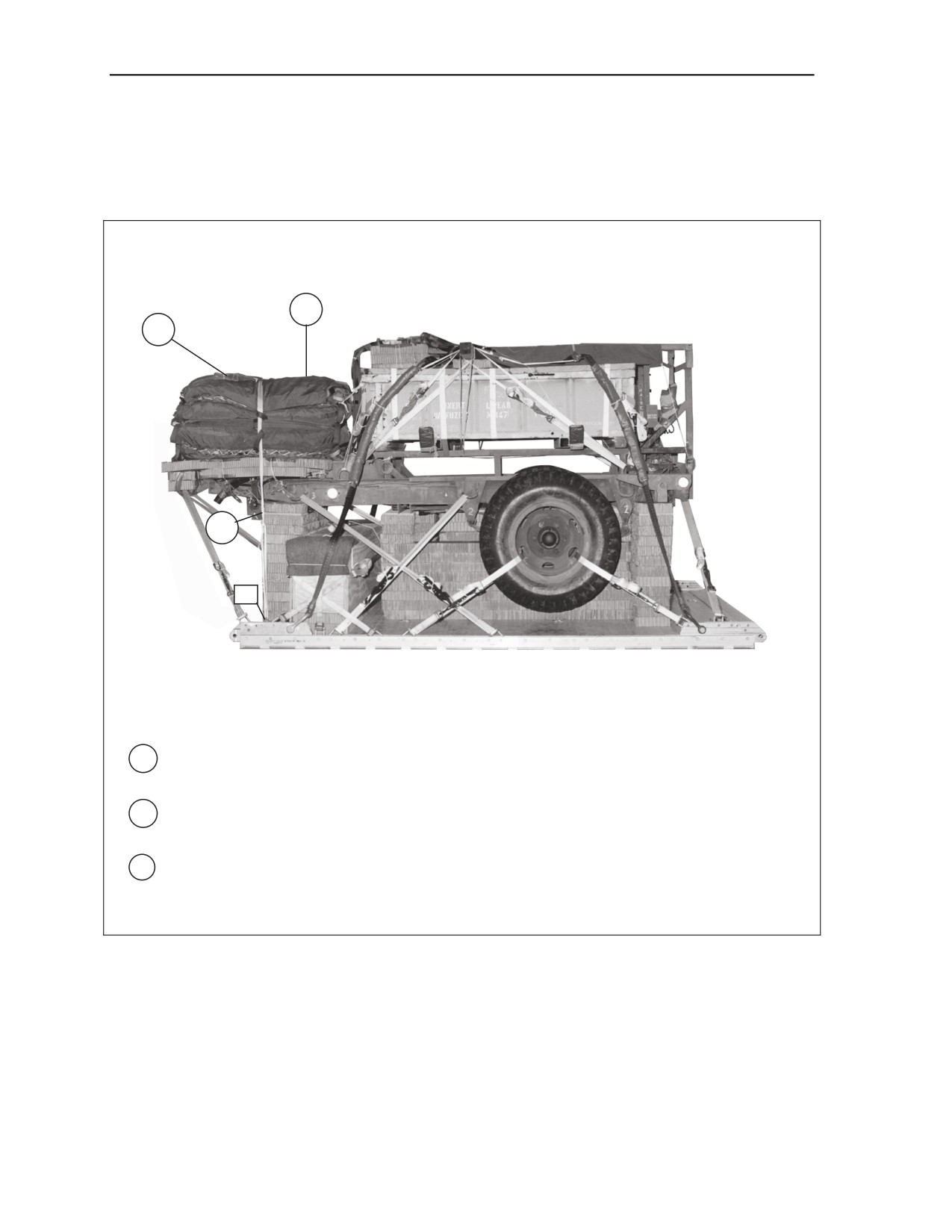

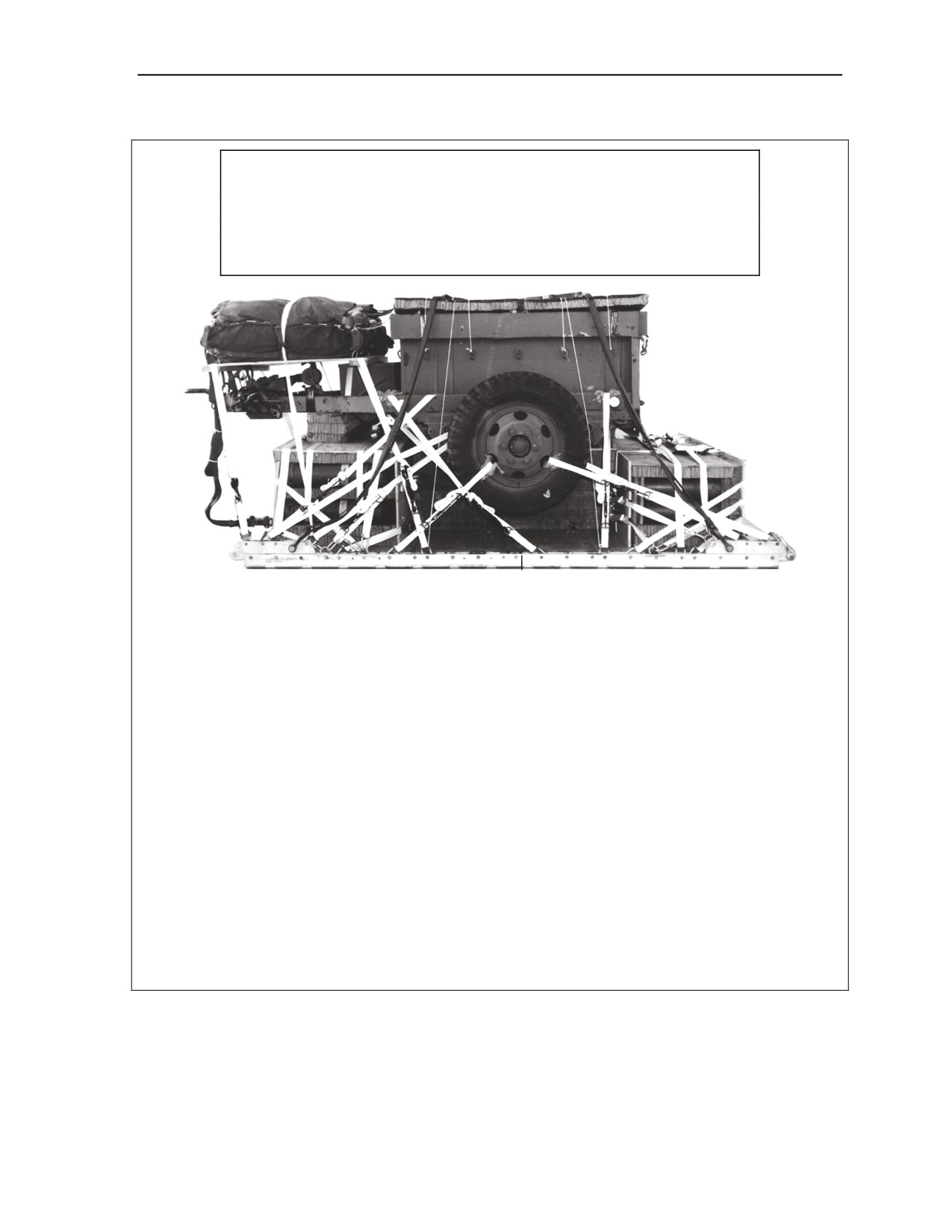

Figure 6-20. 1 ½-Ton Ammunition Trailer Rigged on a 12-Foot, Type V Platform for Low-
Velocity Airdrop
27 March 2009
FM 4-20.113/TO 13C7-3-51
6-25
Chapter 6
Table 6-1. Equipment Required for Rigging the 1 ½-Ton Ammunition Trailer on a 12-Foot,
Type V Platform for Low-Velocity Airdrop
National
Item
Quantity
Stock Number
8040-00-273-8713
Adhesive paste, 1-gal.
As required
1670-01-035-6054
Bridle, extraction line bag
1
4030-00-090-5354
Clevis, suspension, 1-inch (large)
5
4030-00-678-8562
Clevis, suspension, (medium)
6
4020-00-240-2146
Cord, nylon, type III, 550-lb
As required
1670-00-434-5783
Coupling, airdrop extraction force transfer, w/12-ft. cable
1
8135-00-664-6958
Cushioning material (Cellulose padding)
As required
1670-01-183-2678
Leaf, extraction line (line bag) ( add 2 for C-17)
2
Line extraction:
1670-01-062-6313
60-foot (3-loop), type XXVI (for C-130)
1
1670-01-107-7651
140-foot (3-loop), type XXVI (for C-17)
1
1670-01-064-4452
60-foot (1-loop), type XXVI (for C-17), (drogue line)
1
1670-00-783-5988
Link assembly, type IV (C-17 only)
1
1670-01-493-6418
Link assembly, two-point, small, 3 ¾-inch:
1
Lumber:
5510-00-220-6146
2- by 6- by 96-inch
2
5315-00-010-4659
Nail, steel, common, 8D
As required
1670-00-753-3928
Pad, energy-dissipating (honeycomb)
18 sheets
1670-01-016-7841
Parachute, cargo, G-11B
2
Parachute, cargo, extraction:
1670-01-063-3716
22-foot
1
1670-01-063-3715
15-foot (C-17 only)
1
Platform, airdrop, type V, 12-foot:
1670-01-162-2372
Clevis assembly (type V)
52
1670-01-162-2376
Extraction bracket assembly
6
1670-01-162-2381
Tandem link assembly (Multipurpose link)
4
5530-00-128-4981
Plywood, 3/4-inch
6 sheets
6-26
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging Ammunition Trailer on a 12-Foot, Type V Platform for Low-Velocity Airdrop
Table 6-1. Equipment Required for Rigging the 1 ½-Ton Ammunition Trailer on a 12-Foot,
Type V Platform for Low-Velocity Airdrop (Continued)
National
Item
Quantity
Stock Number
1670-01-097-8816
Release, cargo parachute, M-1
1
Sling, cargo, airdrop:
1670-00-753-3790
9-foot (2-loop), type XXVI
1
1670-01-062-6303
12-foot (2-loop), type XXVI
4
1670-01-062-6302
20-foot (2-loop), type XXVI
2
1670-00-998-0116
Strap, parachute, release
1
7501-00-266-5016
Tape, adhesive, 2-inch
As required
1670-00-937-0271
Tie-down assembly, 15-foot.
55
1670-01-483-8259
Link, Parachute, Connector (H-block) (C-17 only)
1
Webbing:
8305-00-268-2411
Cotton, 1/4-inch, type I
As required
8305-00-082-5752
Nylon, tubular, 1/2-inch
As required
8305-00-261-8585
Nylon, type VIII
As required
27 March 2009
FM 4-20.113/TO 13C7-3-51
6-27
This page intentionally left blank.
Chapter 7
Rigging Mine Clearing Line Charge, 2 ½-Ton Trailer, on a
12-Foot, Type V Platform for Low-Velocity Airdrop
DESCRIPTION OF THE LOAD
7-1. The Mine Clearing Line Charge (MICLIC), 2 ½-ton trailer (Figure 7-1) is rigged on a 12-foot, type
V airdrop platform using two G-11 cargo parachutes. The rocket projectile is rigged on the platform in its
shipping container as an accompanying load. The MICLIC and its trailer weigh 2,855 pounds, and the
rocket projectile in its container weighs 270 pounds.

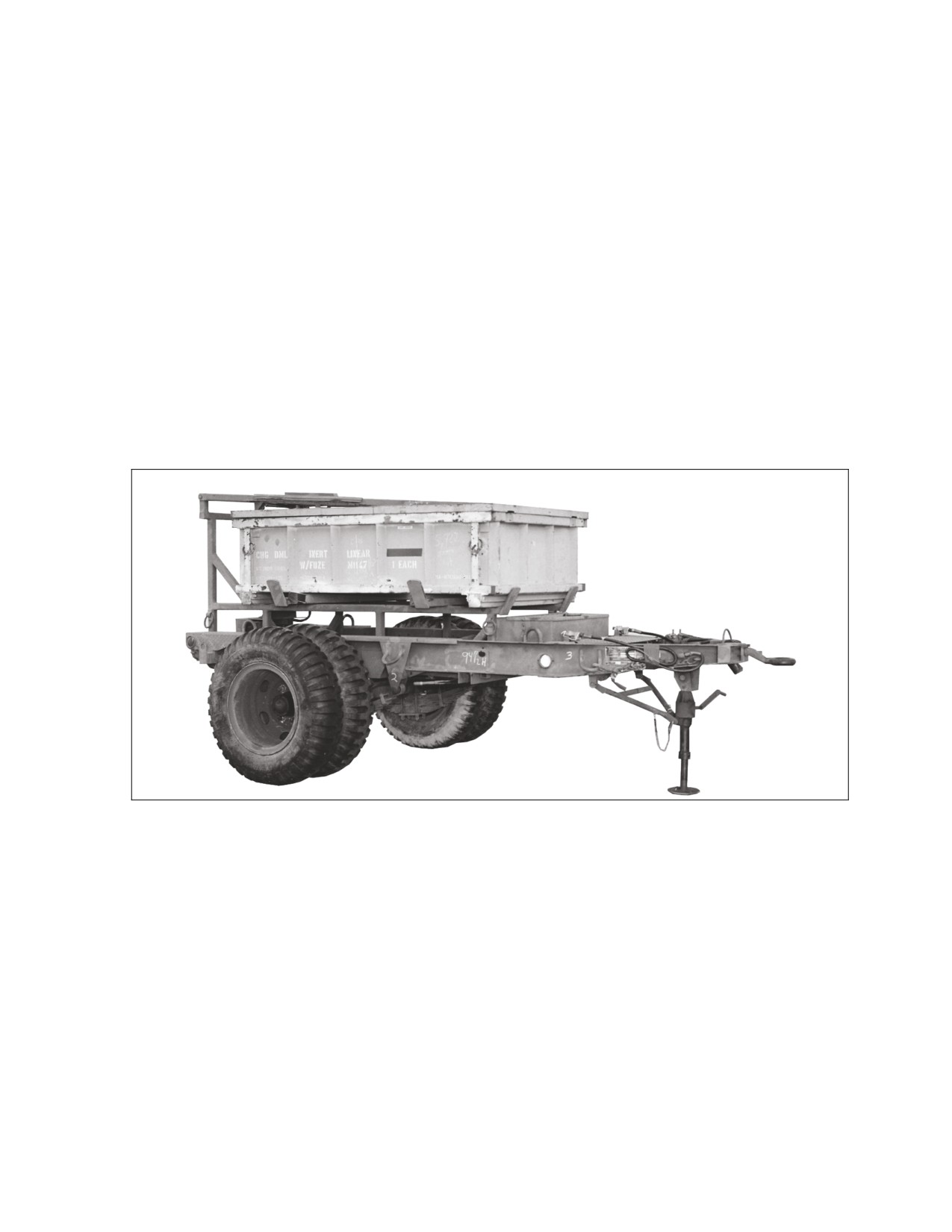

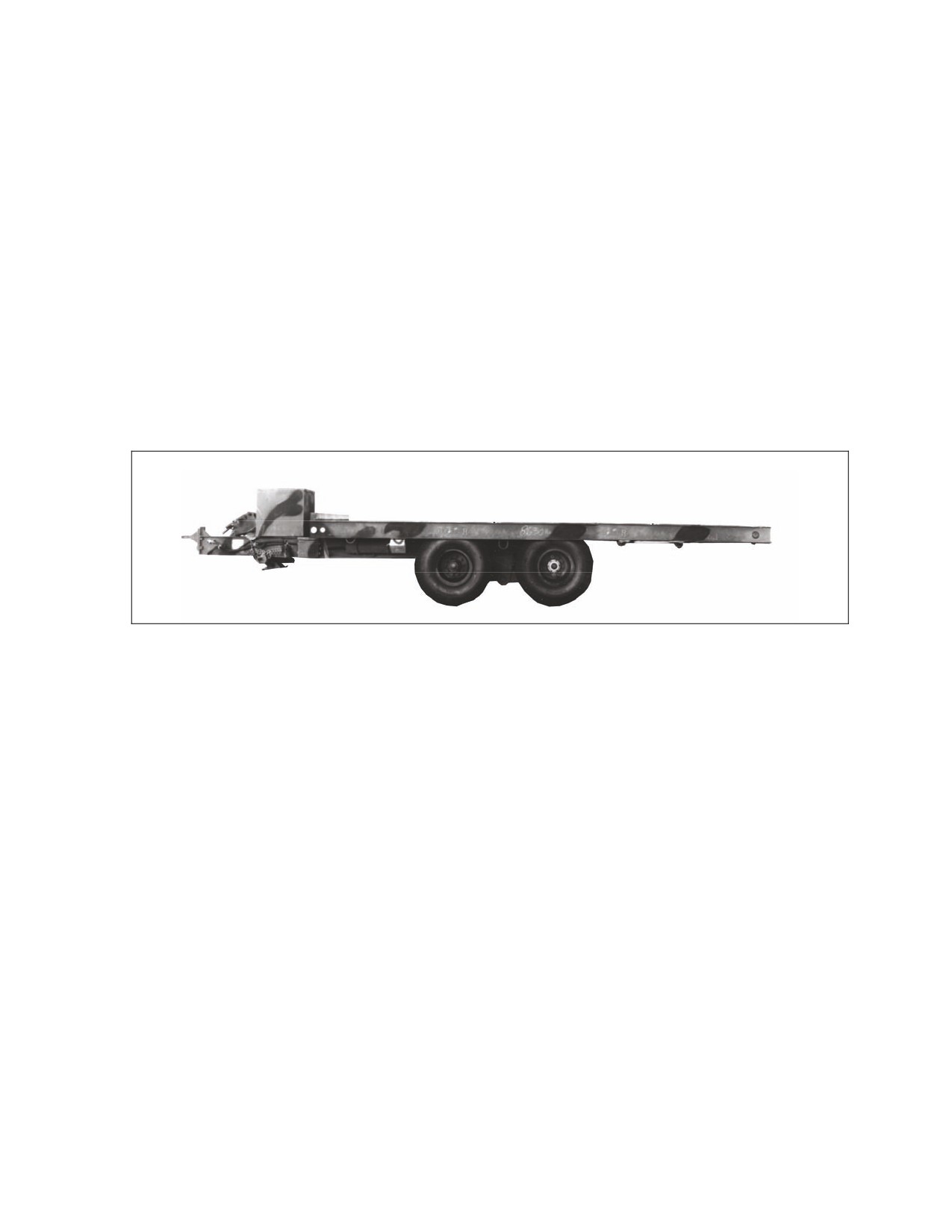

Figure 7-1. MICLIC on 2 ½-Ton Trailer
27 March 2009
FM 4-20.121/TO 13C7-6-21
7-1
Chapter 7
PREPARING PLATFORM

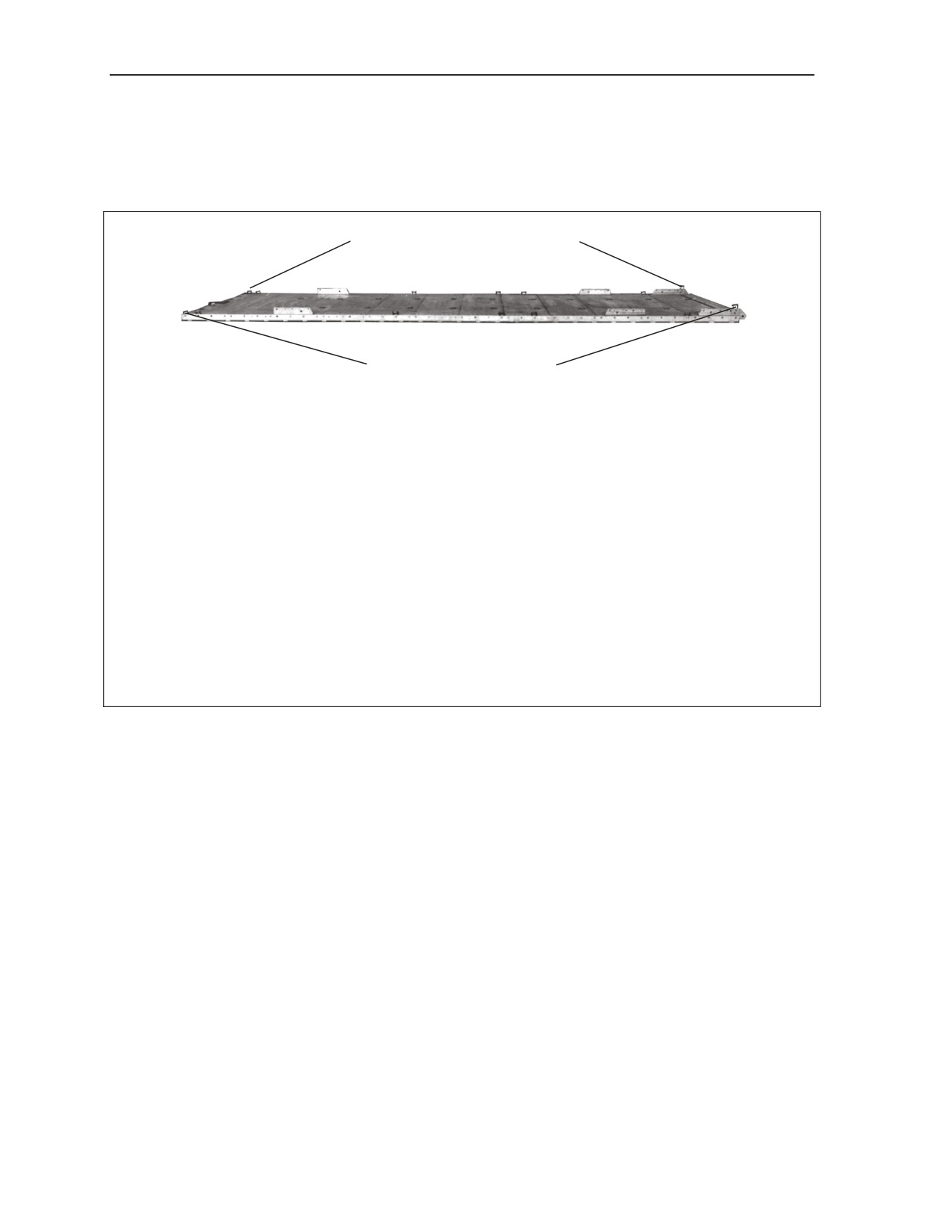

7-2. Prepare a 12-foot, type V airdrop platform as shown in Figure 6-2.
CLEVISES 9A THROUGH 1A
FRONT
REAR
CLEVISES 9 THROUGH 1
Step:
1. Inspect, or assemble and inspect, a 12-foot, type V airdrop platform as outlined in TM 10-
1670-268-20&P/TO 13C7-52-22.
2. Install a tandem link to the front of each platform side rail using holes 1, 2, and 3.
3. Install a tandem link to the rear of each platform side rail using holes 22, 23, and 24.
4. Install a clevis on bushings 3 and 4 of each front tandem link.
5. Install a clevis on bushings 2 and 4 of each rear tandem link.
6. Starting at the front of each platform side rail, install clevises on the bushings bolted to holes
12, 17, 18, 20, and 21.
7. Starting at the front of the platform, number the clevises 1 through 9 on the right side and 1A
through 9A on the left side.
8. Label the tie-down rings according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5.

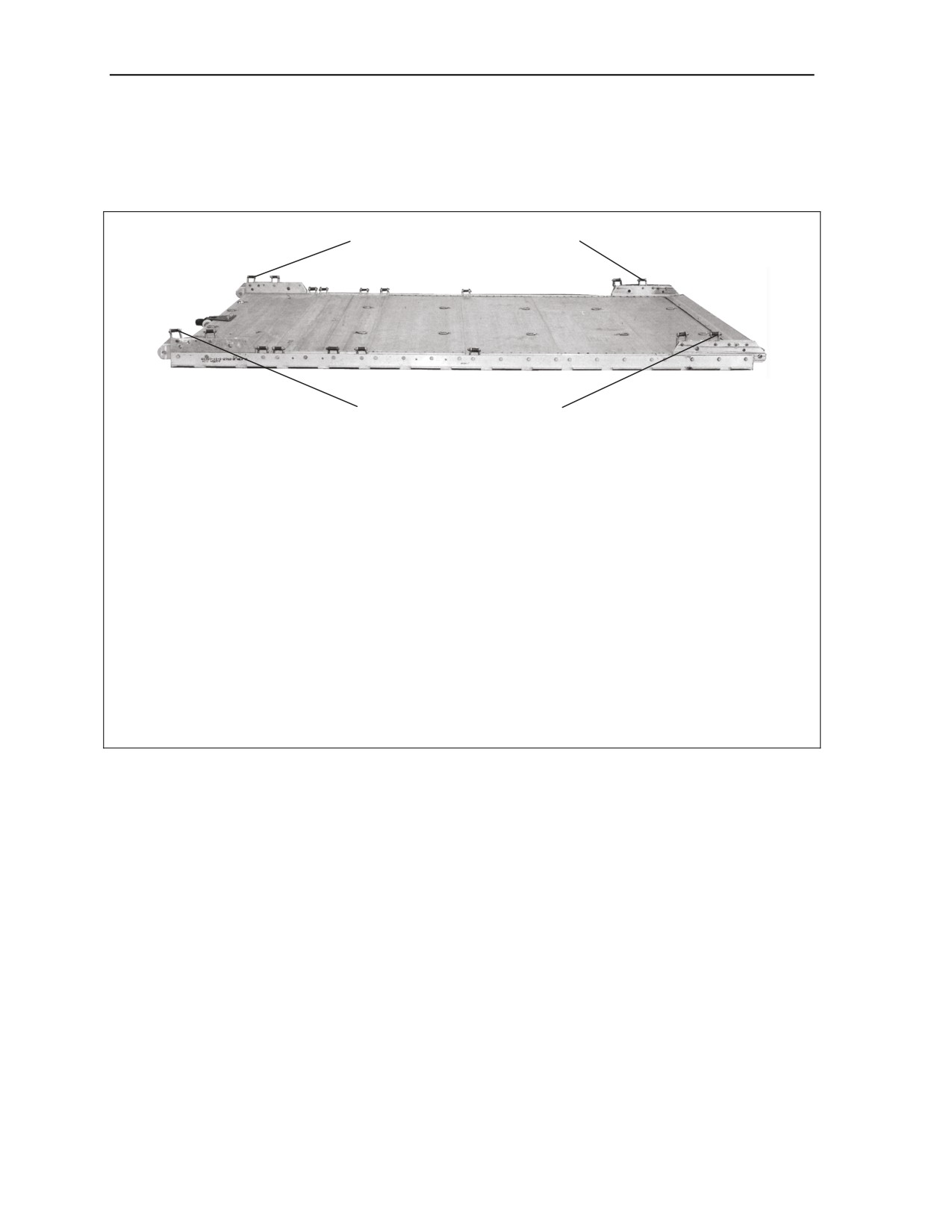

Figure 7-2. Platform Prepared
7-2
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging Mine Clearing Line Charge, 2 ½-Ton Trailer, on a 12-Foot, Type V Platform for Low-Velocity
Airdrop
BUILDING AND POSITIONING HONEYCOMB STACKS
7-3. Build the honeycomb stacks as shown in Figures 7-3 through 7-6. Place the honeycomb stacks as
shown in Figure 7-7.
Notes. 1. All measurements are given in inches.
2. This drawing is not drawn to scale.
¾ X 24 X 10
PLYWOOD
Stack
Width
Length
Number
Pieces
(Inches)
(Inches)
Material
Instructions
1
11
24
10
Honeycomb
Glue to form a base.
1
24
10
¾-inch
Glue flush on top of honeycomb.
Plywood
1
24
10
Honeycomb
Glue flush on top of plywood.
2
11
24
10
Honeycomb
Glue to form a base.
1
24
10
¾-inch
Glue flush on top of honeycomb.
Plywood
1
24
10
Honeycomb
Glue flush on top of plywood.

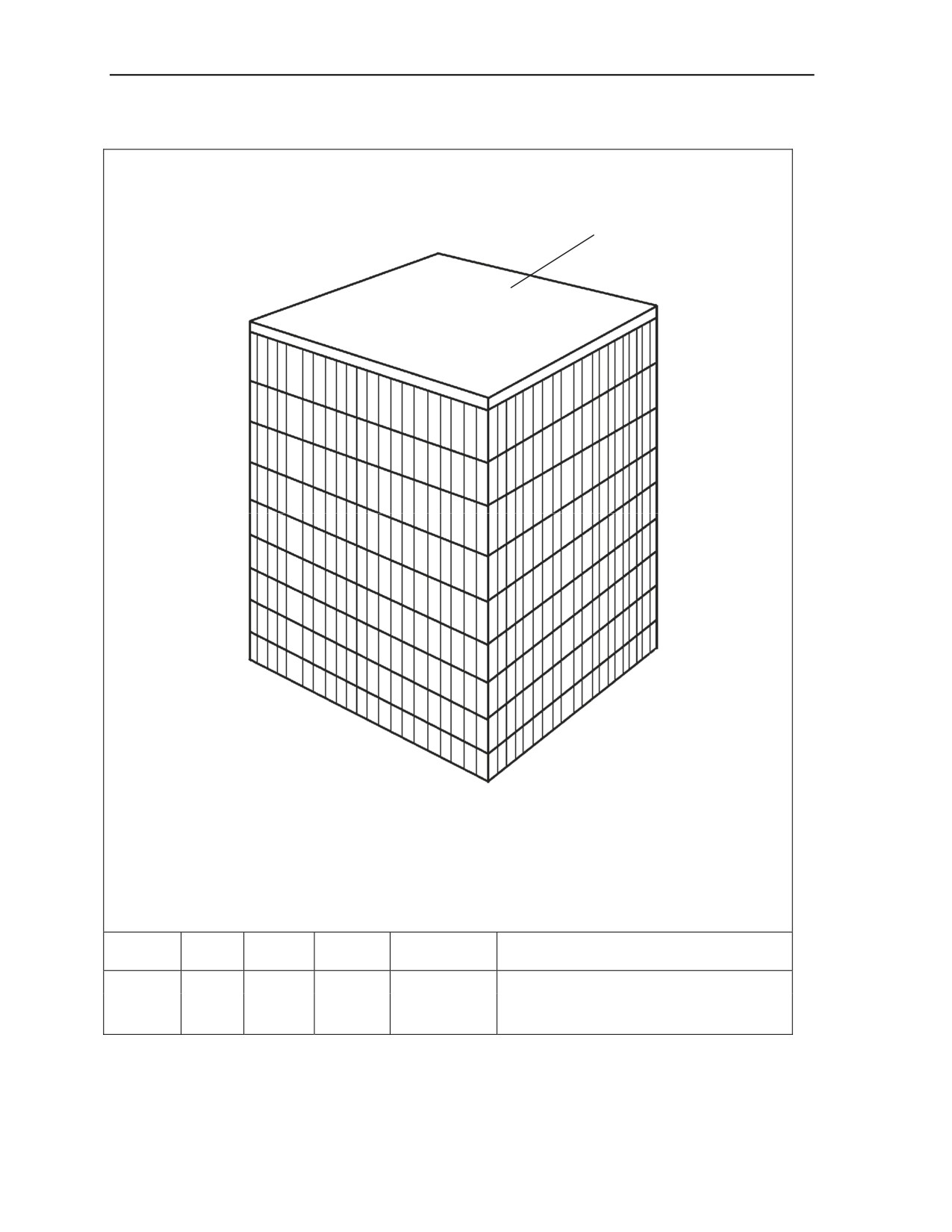

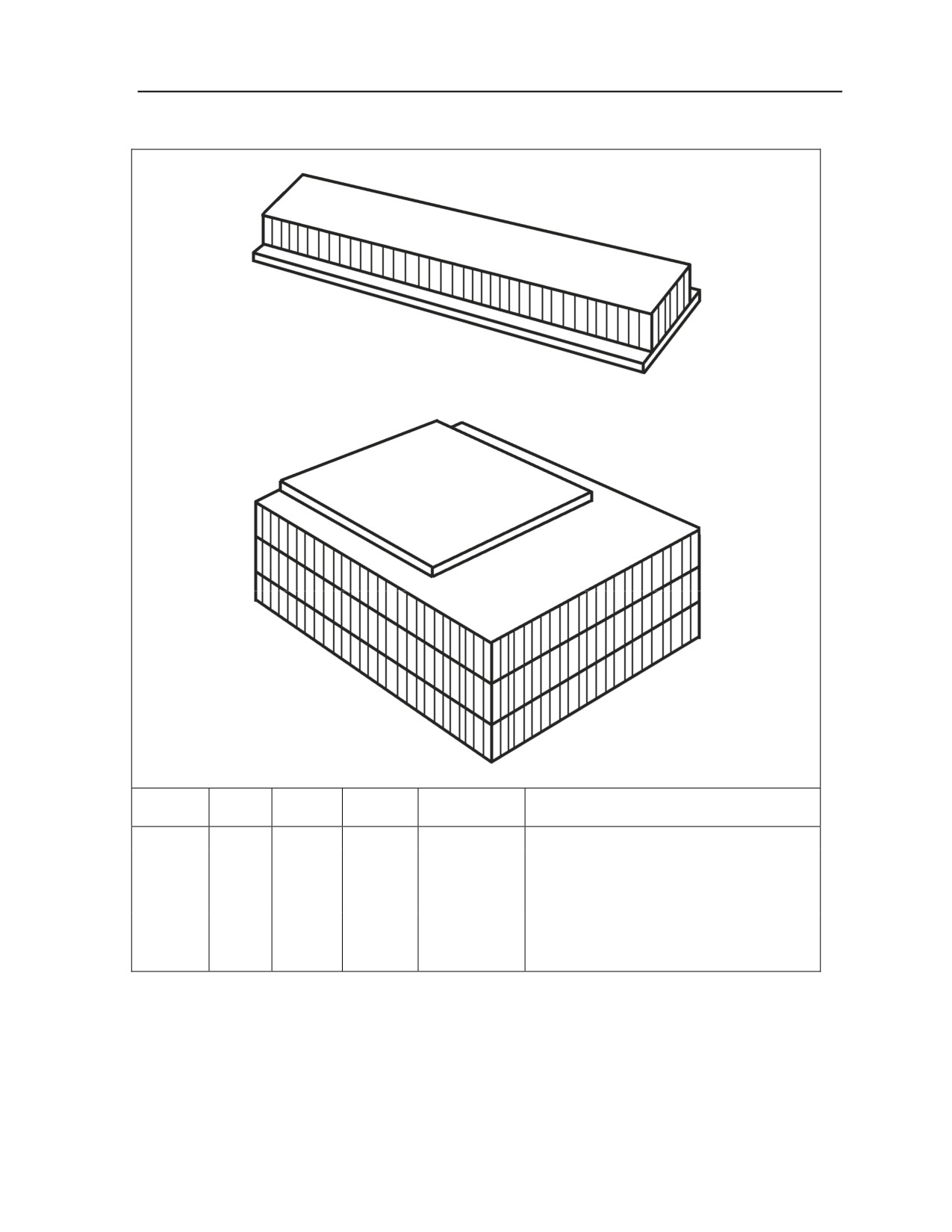

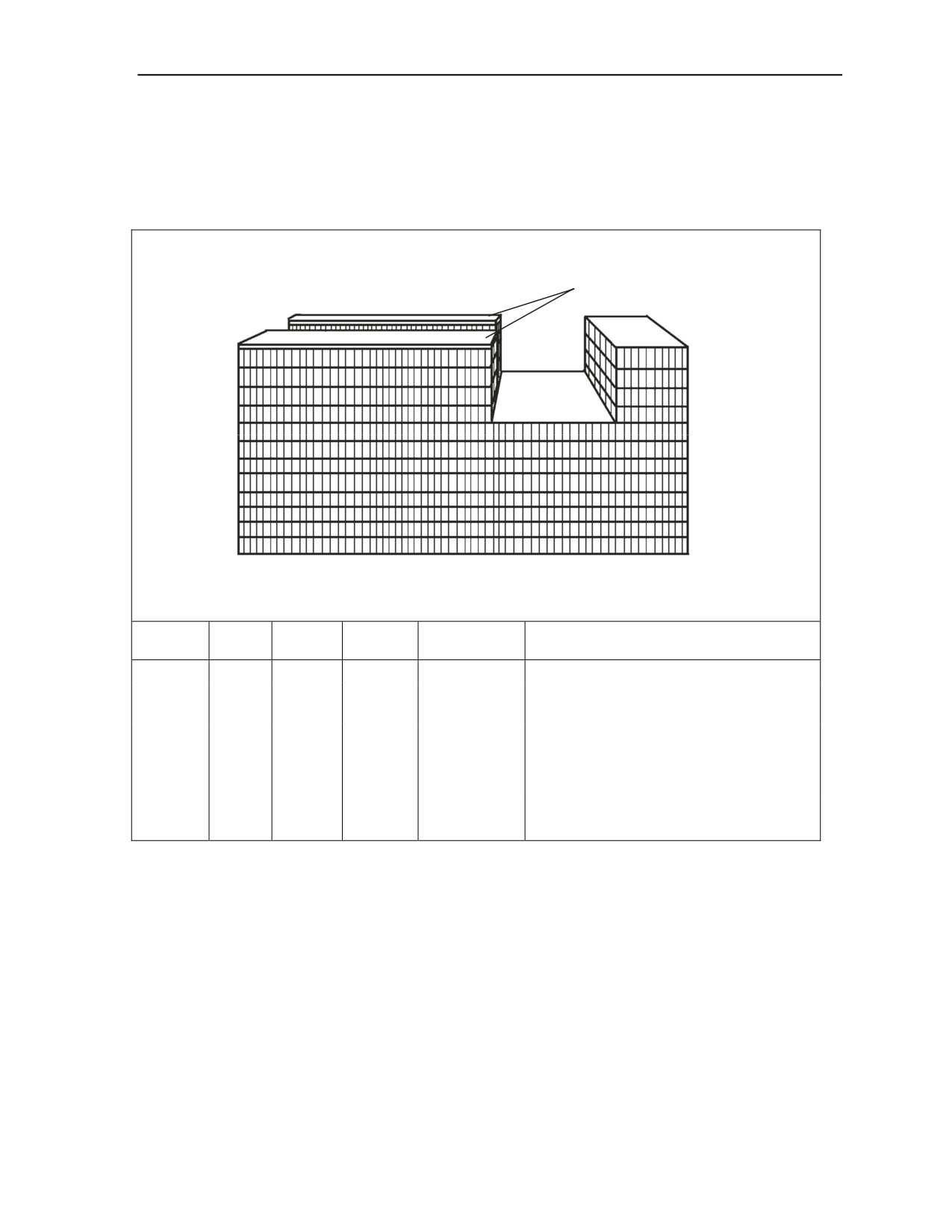

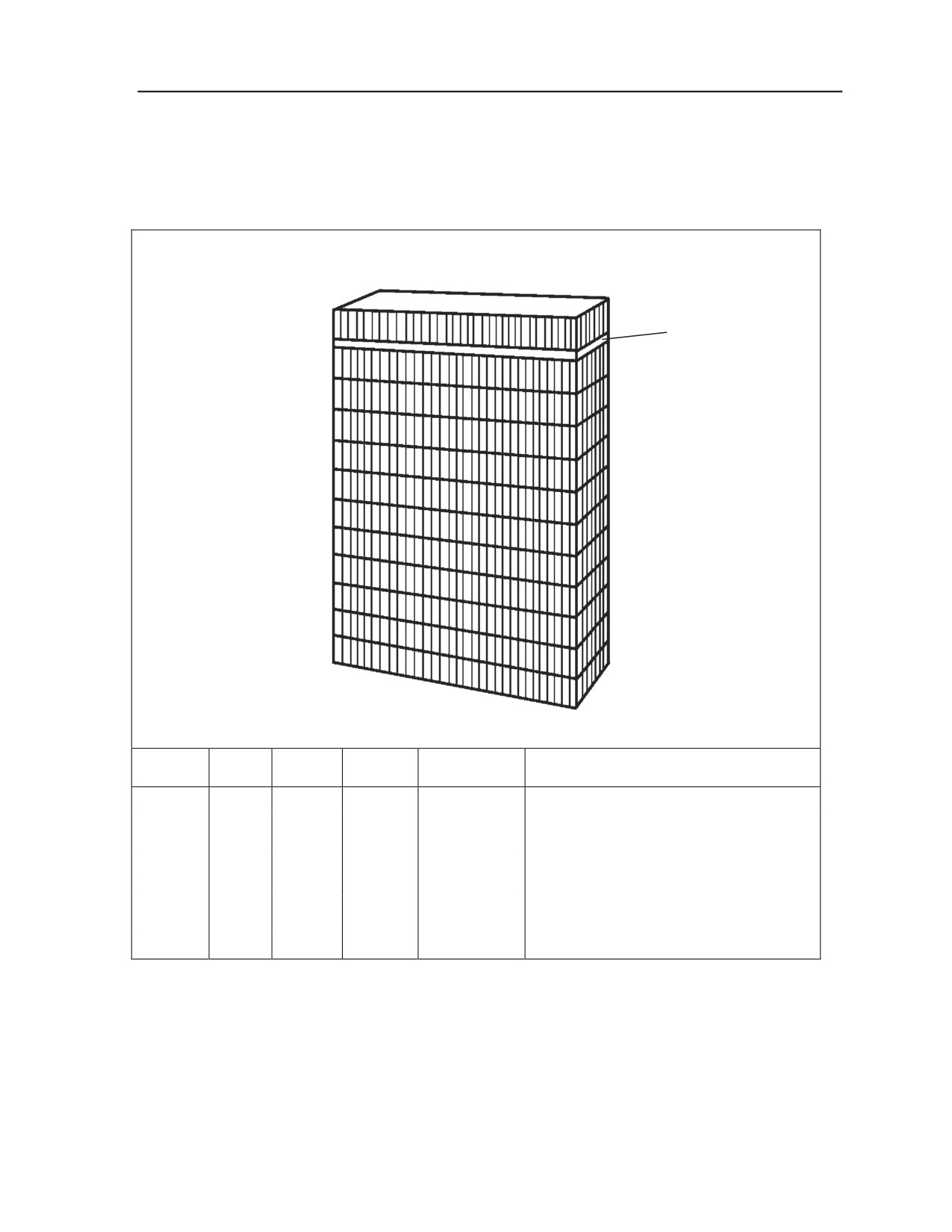

Figure 7-3. Honeycomb Stacks 1 and 2 Built
27 March 2009
FM 4-20.113/TO 13C7-3-51
7-3
Chapter 7
Notes. 1. All measurements are given in inches.
2. This drawing is not drawn to scale.
6
8
STACK 3
(BASE)
8
6
STACK 3A
Stack
Width
Length
Number
Pieces
(Inches)
(Inches)
Material
Instructions
3 (Base)
8
36
84
Honeycomb
Make 8- by 6-inch cutouts in each piece
as shown. Glue to form a base.
3A
3
36
25
Honeycomb
Make cutouts as above and glue flush.
1
36
25
¾-inch
Make cutouts as above and glue flush
Plywood
on top of honeycomb.
1
36
12
¾-inch
Make cutouts as above and glue flush
Plywood
on top of plywood. Set stack 3A aside.

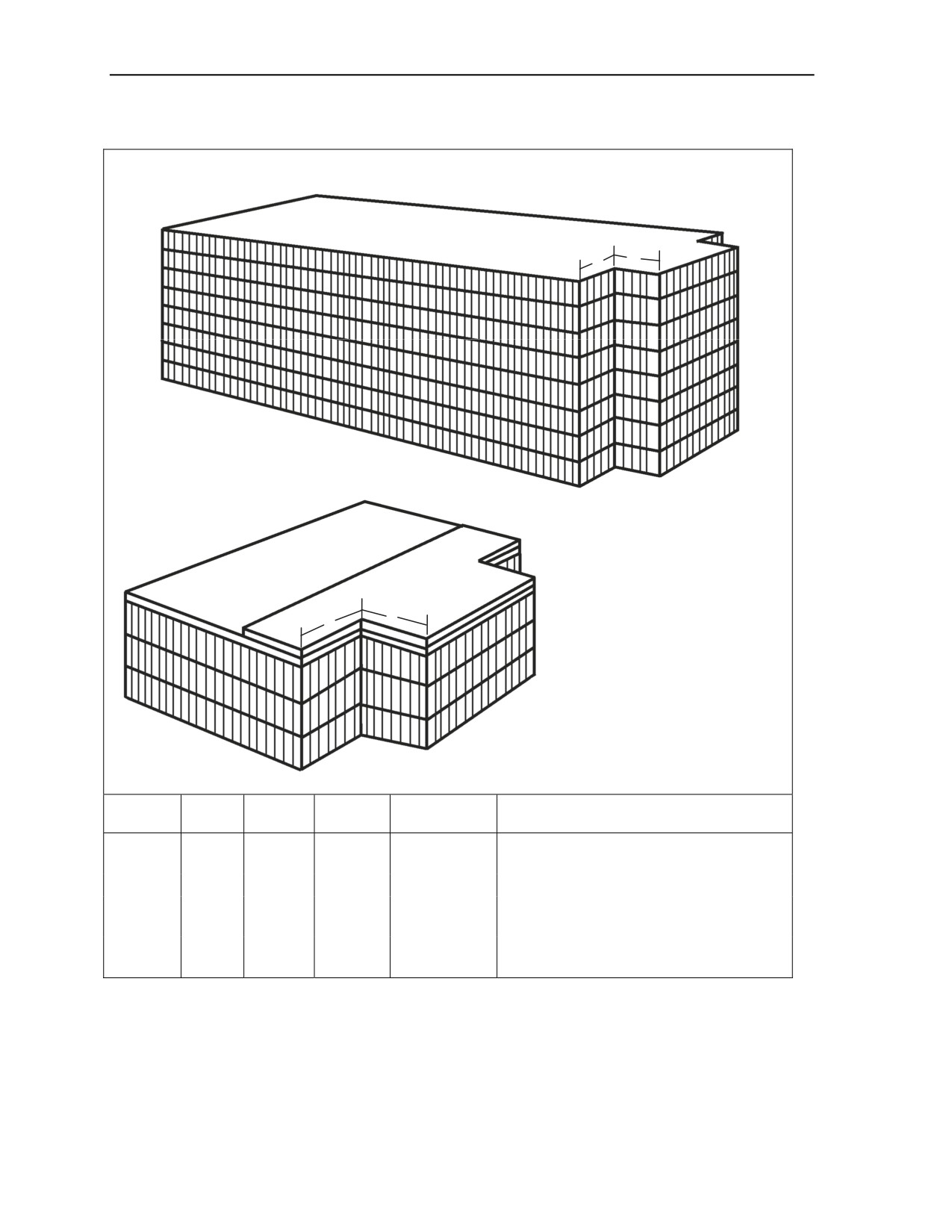

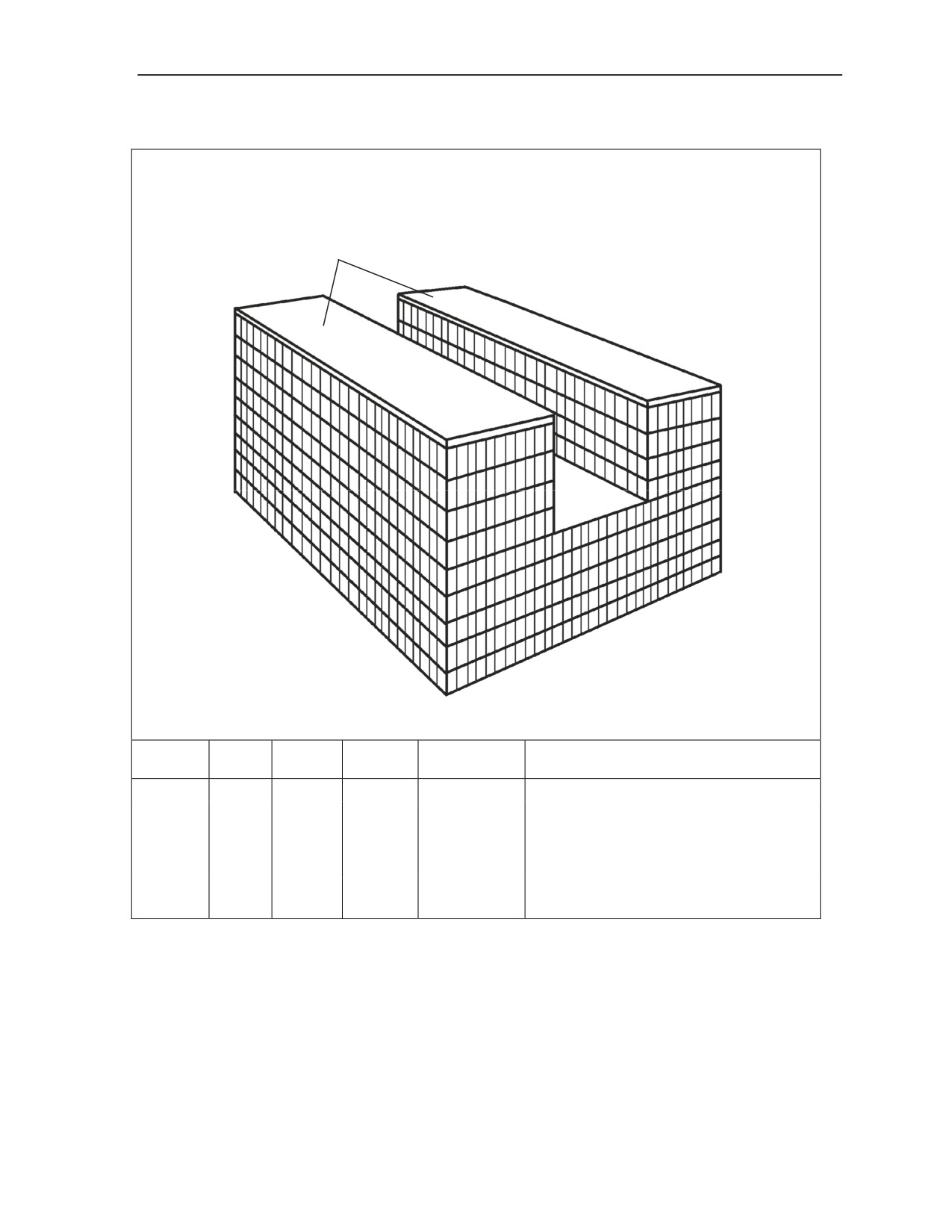

Figure 7-4. Components of Stack 3 Prepared
7-4
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging Mine Clearing Line Charge, 2 ½-Ton Trailer, on a 12-Foot, Type V Platform for Low-Velocity
Airdrop

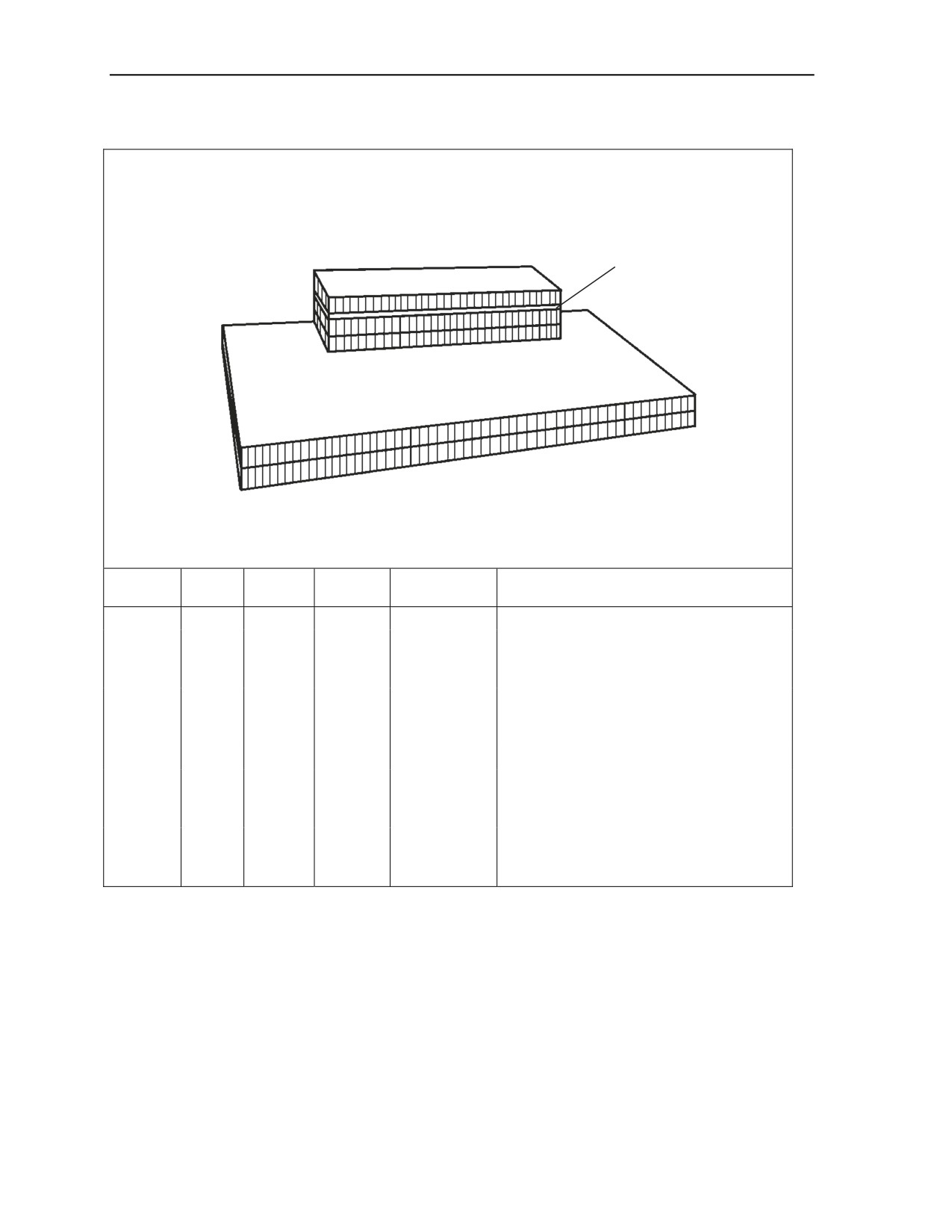

Note. This drawing is not drawn to scale.
STACK 3B
STACK 3C
Stack
Width
Length
Number
Pieces
(Inches)
(Inches)
Material
Instructions
3B
1
34
6
Honeycomb
1
34
8
¾-inch
Center and glue honeycomb on
Plywood
plywood. Set stack 3B aside.
3C
3
20
24
Honeycomb
Glue flush.
1
16
15
¾-inch
Center and glue on top of honeycomb
Plywood
with rear edges aligned. Set stack 3C
aside.
Figure 7-4. Components of Stack 3 Prepared (Continued)
27 March 2009
FM 4-20.113/TO 13C7-3-51
7-5
Chapter 7
Notes. 1. All measurements are given in inches.
2. This drawing is not drawn to scale.
8
6
STACK 3D
Stack
Width
Length
Number
Pieces
(Inches)
(Inches)
Material
Instructions
3D
3
36
16
Honeycomb
Make cutouts as above and glue flush.
1
36
16
¾-inch
Center and glue honeycomb on
Plywood
plywood. Set stack 3B aside.
Figure 7-4. Components of Stack 3 Prepared (Continued)
7-6
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging Mine Clearing Line Charge, 2 ½-Ton Trailer, on a 12-Foot, Type V Platform for Low-Velocity
Airdrop
STACK 3D
STACK 3C
STACK 3B
STACK 3A
6
3
STACK
REAR
FRONT
(BASE)
1 Align the cutouts of stack 3A with the base and glue in place.
2 Glue stack 3B on the base 3 inches to the rear of stack 3A.
3 Center stack 3C on the base 6 inches to the rear of stack 3B.
4 Glue stack 3D flush on the rear end of base with the cutouts to the front.

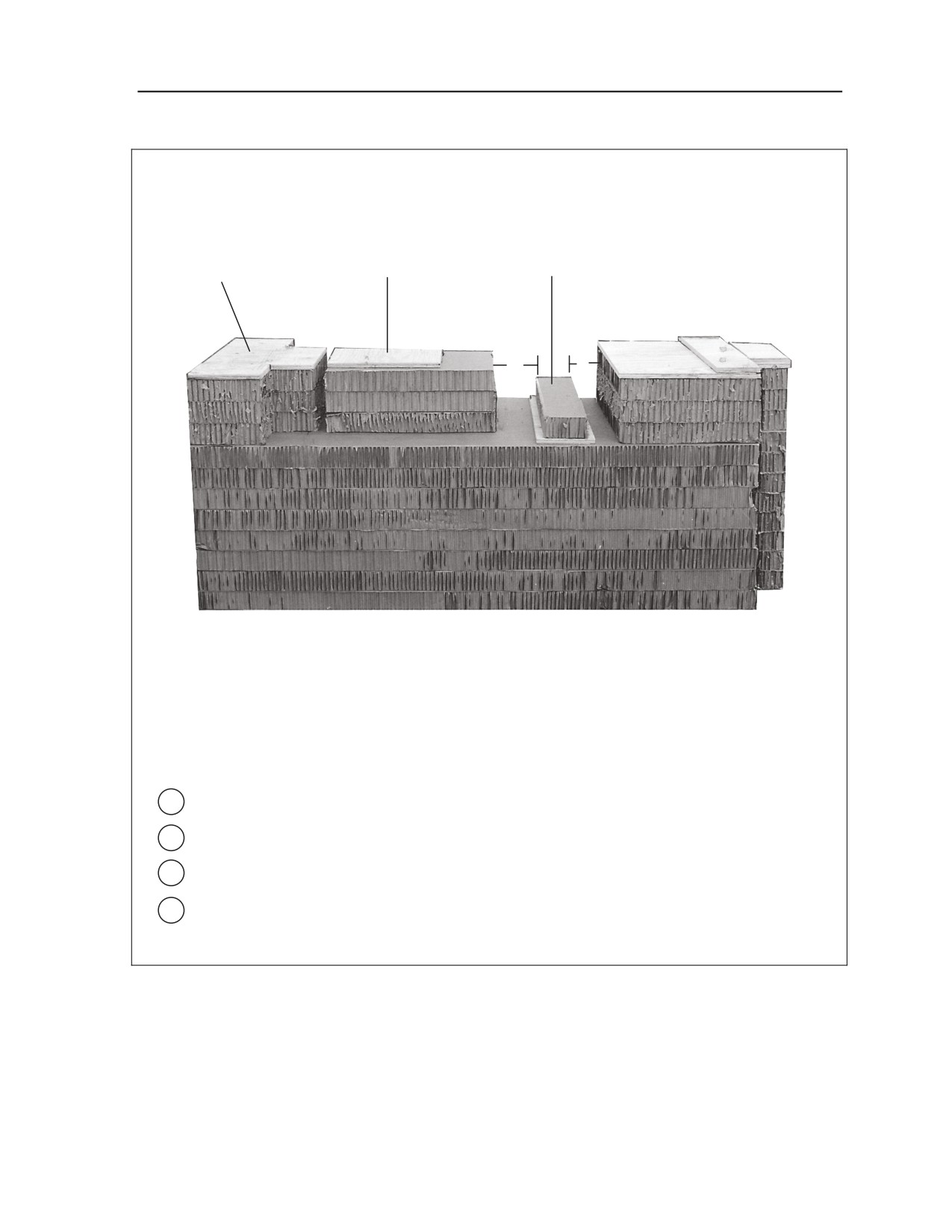

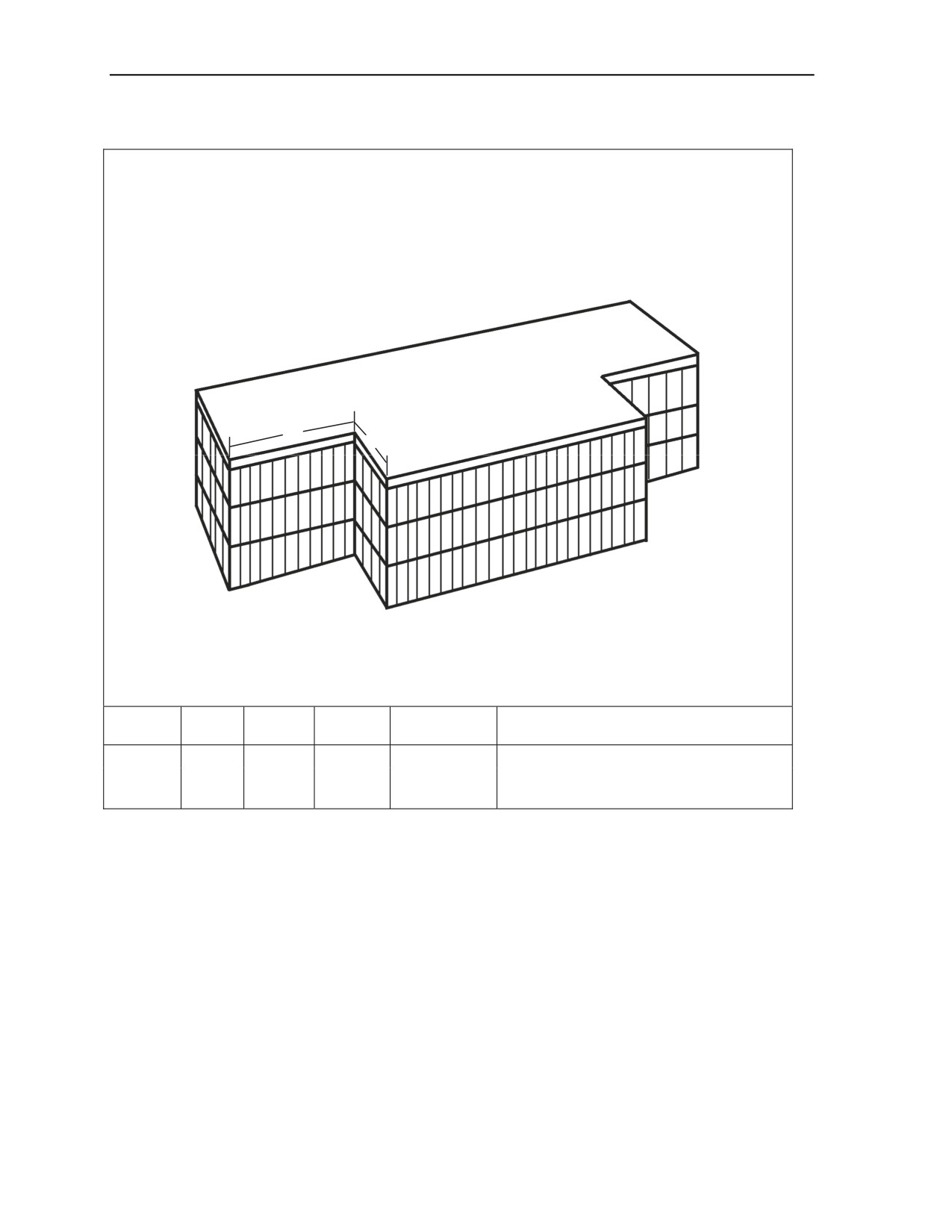

Figure 7-5. Stack 3 Assembled
27 March 2009
FM 4-20.113/TO 13C7-3-51
7-7
Chapter 7
Notes. 1. All measurements are given in inches.
2. This drawing is not drawn to scale.
STACK 4
11 1/2
4
12
4
9
STACK 5
Stack
Width
Length
Number
Pieces
(Inches)
(Inches)
Material
Instructions
4
2
96
15
Honeycomb
Glue flush together.
5
11
48
12
Honeycomb
Glue flush together.
2
11 ½
12
¾-inch
Make cutouts as shown and glue flush
Plywood
over sides of stack facing in the same
direction.
2
11 ½
12
Honeycomb
Make cutouts as above and glue flush
over plywood.
Figure 7-6. Stacks 4 and 5 Prepared
7-8
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging Mine Clearing Line Charge, 2 ½-Ton Trailer, on a 12-Foot, Type V Platform for Low-Velocity
Airdrop
STACK 5
STACK 4
STACK 3
STACK 2
STACK 1
FRONT
REAR
Step:
1. Center stack three 24 inches from the front edge of the platform.
2. Place stack one in the right cutout of stack three, 20 inches from the front edge of the
platform.
3. Place stack two in the left cutout of stack three, 20 inches from the front edge of the platform.
4. Center stack four 14 inches from the rear edge of the platform.
5. Place stack five centered and flush on the rear edge of the platform.

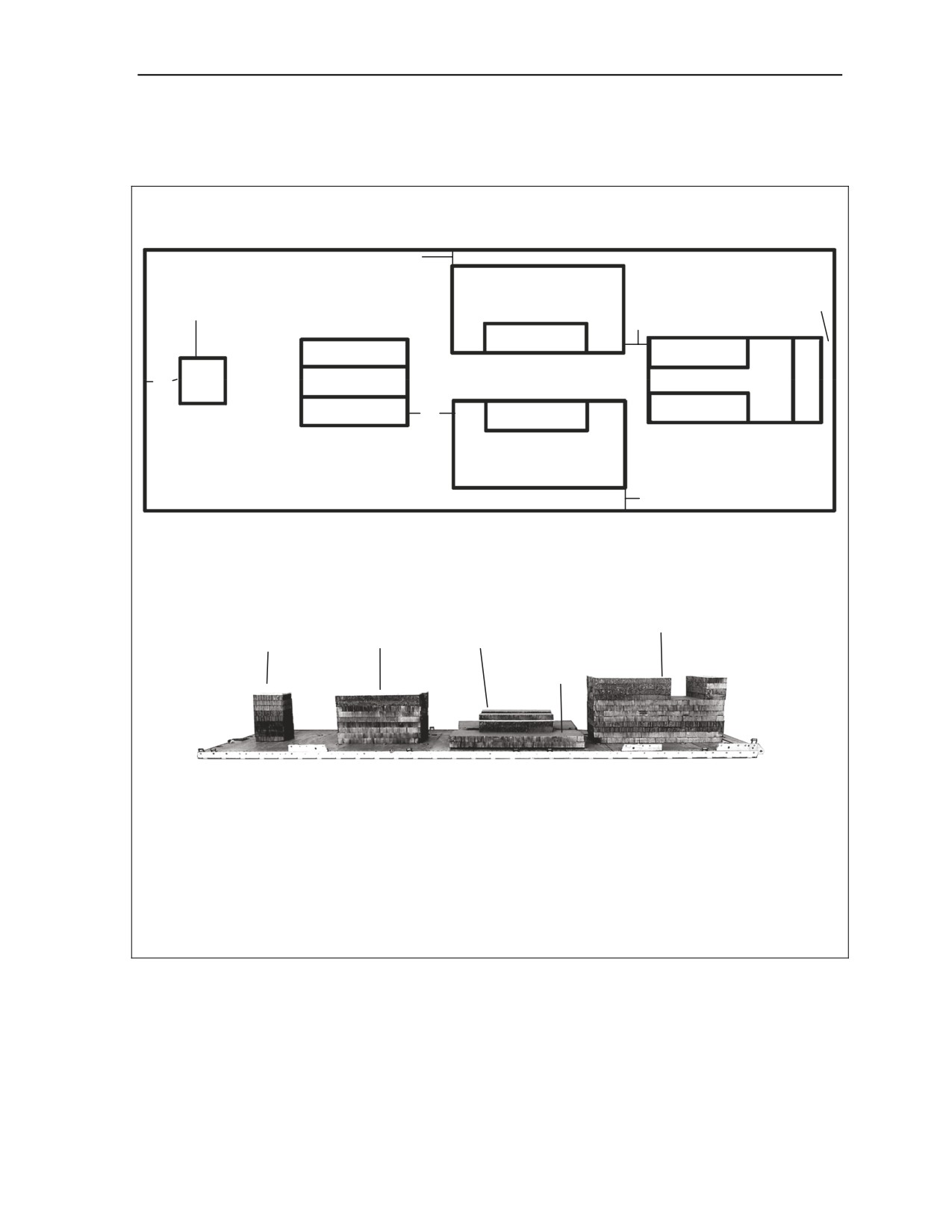

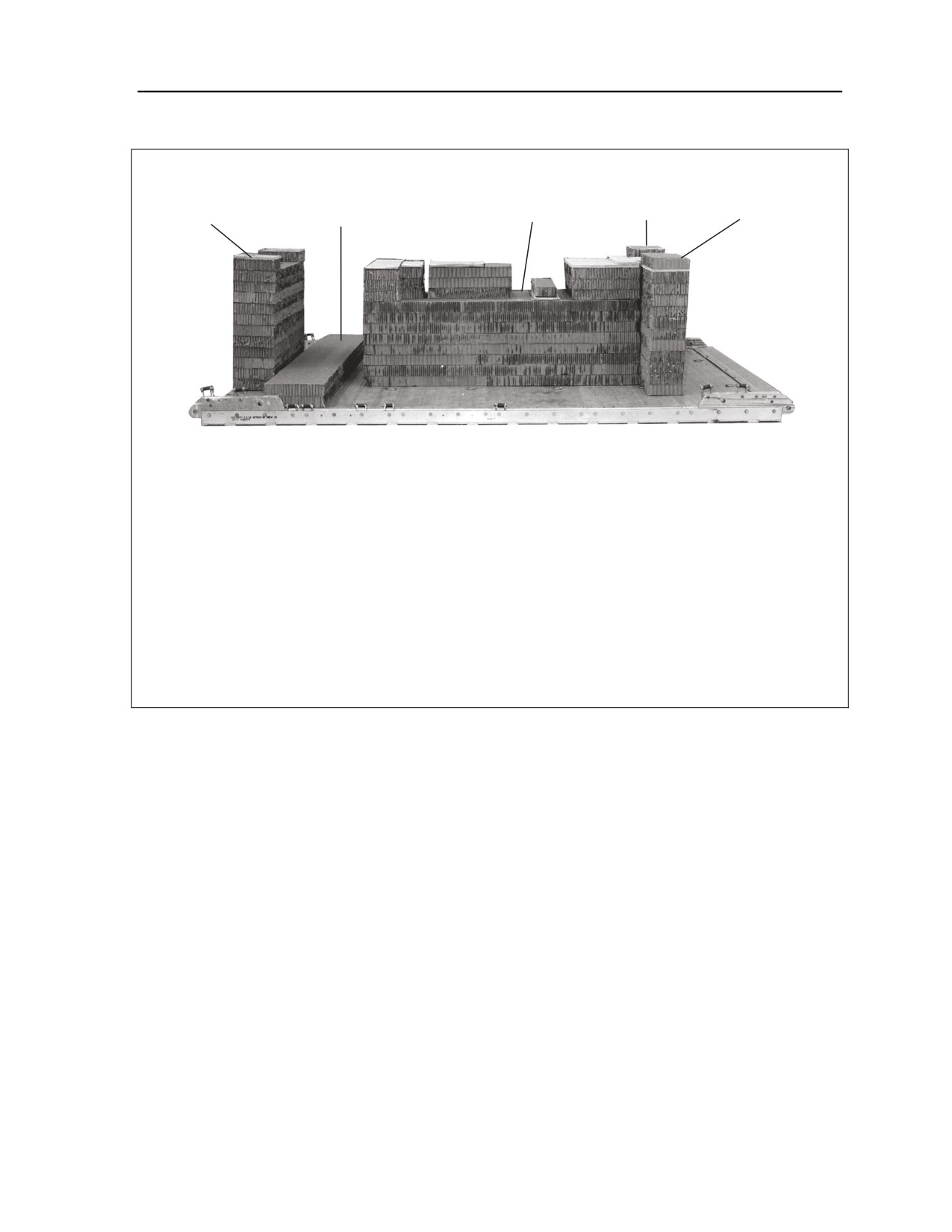

Figure 7-7. Honeycomb Stacks Positioned on Platform
27 March 2009
FM 4-20.113/TO 13C7-3-51
7-9
Chapter 7
PREPARING MICLIC AND TRAILER

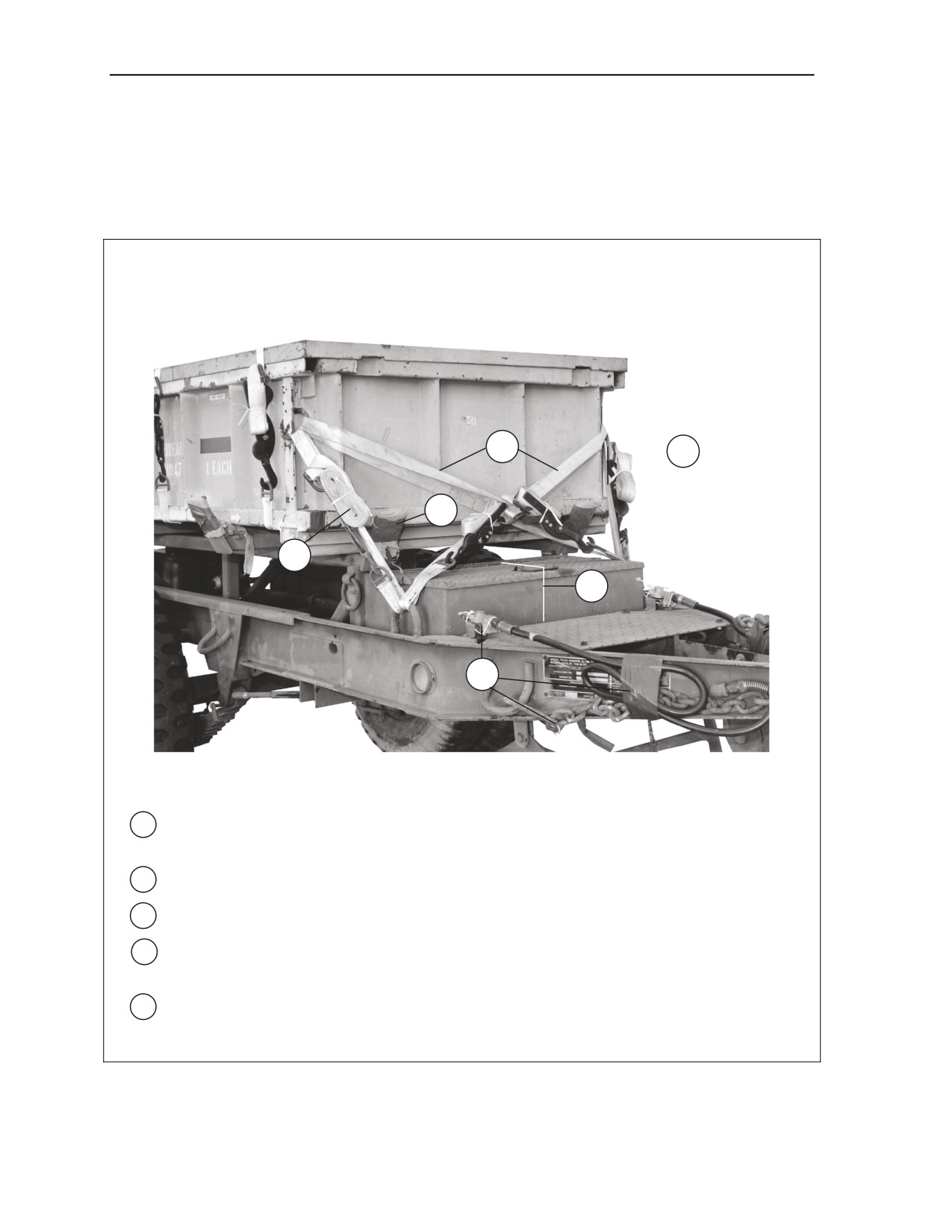

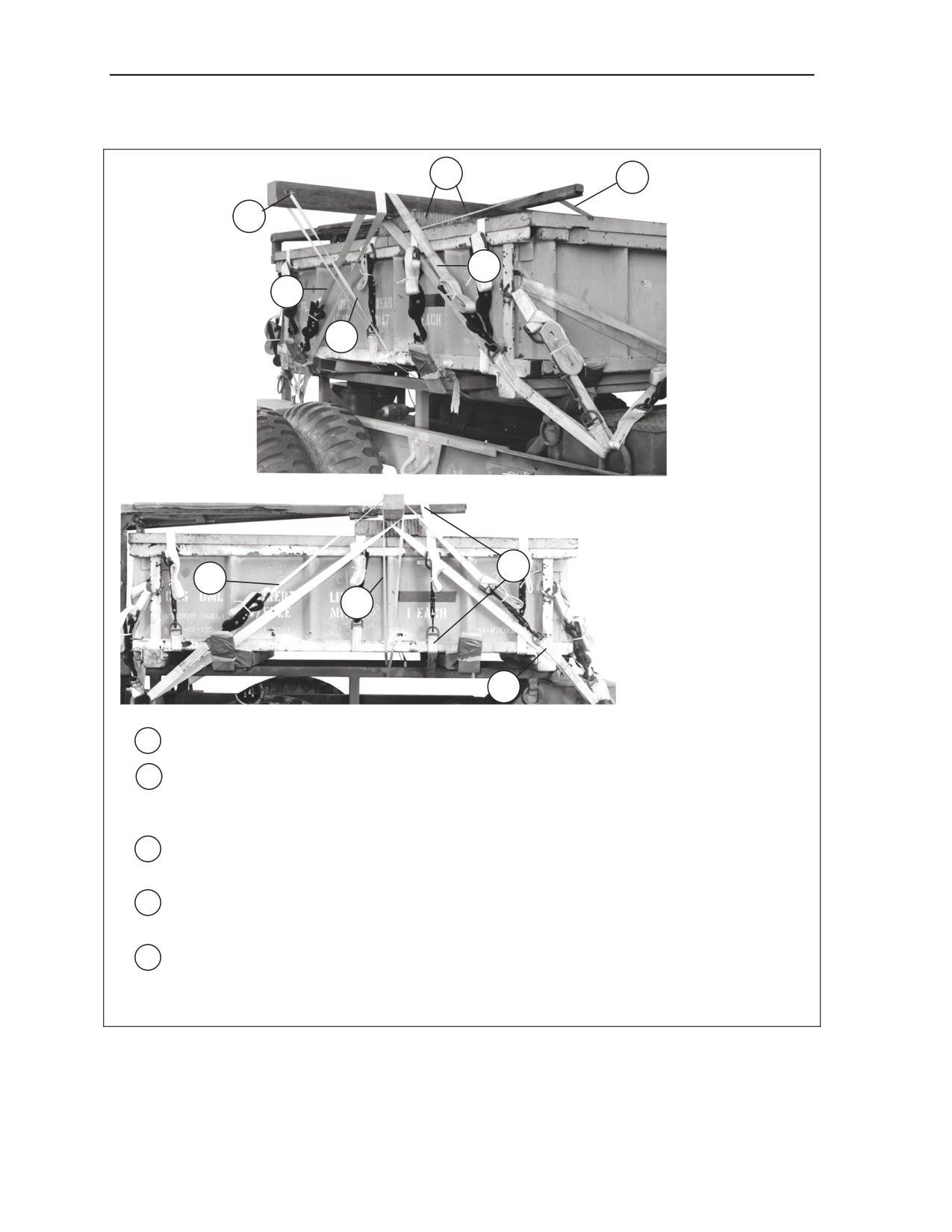

7-4. Prepare the MICLIC as shown in Figure 7-8.
5
4
3
1
2
1
1 Secure tow chains and electrical and brake lines to the trailer tongue with type III nylon cord
and tape.
2 Secure the tool box lid with type III nylon cord.
3 Pad sharp edges with cellulose wadding and tape.
4 Lash the right front tiedown ring on the MICLIC box to the right front tiedown point on the
trailer frame. Repeat on the left side.
5 Lash the right front tiedown ring on the MICLIC box to the left front tiedown point on the trailer
frame. Lash the left front tiedown ring on the MICLIC box to the right front tiedown point on
the trailer frame.

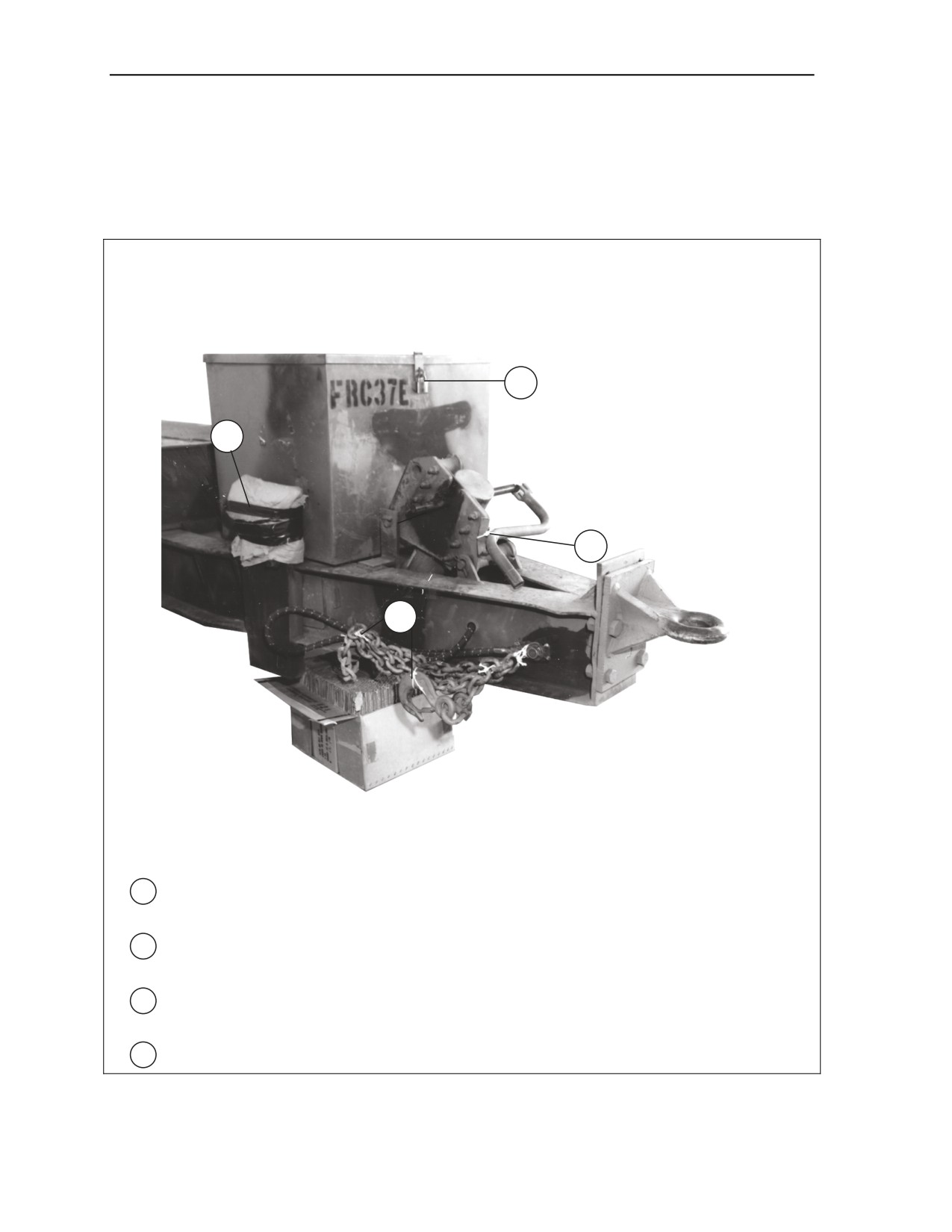

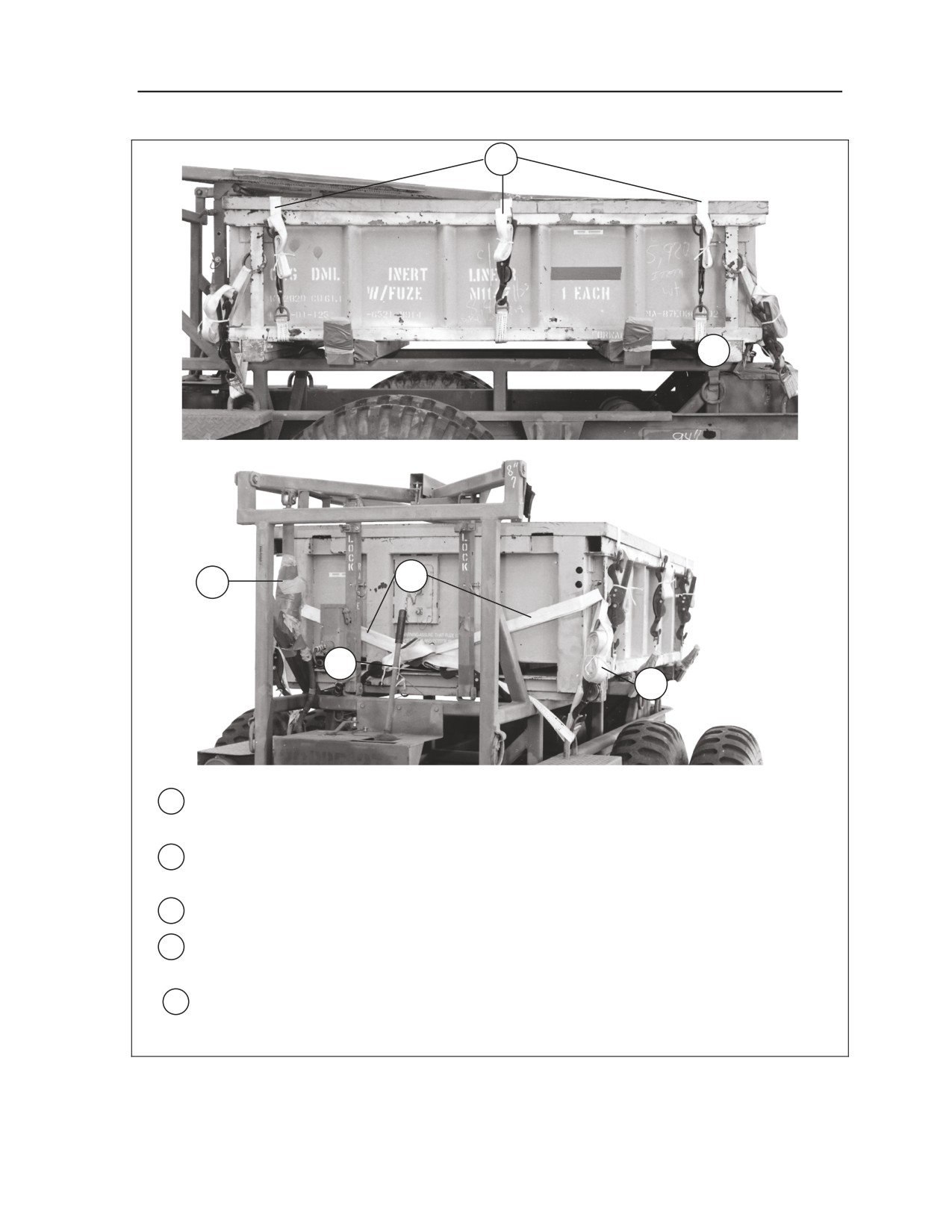

Figure 7-8. MICLIC Prepared
7-10
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging Mine Clearing Line Charge, 2 ½-Ton Trailer, on a 12-Foot, Type V Platform for Low-Velocity
Airdrop
6
4
10
8
7
9
6 Secure the MICLIC lid with three evenly spaced lashings. Pass the lashings over the box
ONLY, not the launcher arm. Fasten the lashings on the side with a D-ring and load binder.
7 Secure the hydraulics control lever in the forward position with type III nylon cord to the box
frame.
8 Pad the hydraulic cylinder with cellulose wadding and tape.
9 Lash the right rear tiedown ring on the MICLIC box to the right rear tiedown point on the
trailer frame. Repeat on the left side.
10 Lash the right rear tiedown ring on the MICLIC box to the left rear tiedown point on the trailer
frame. Lash the left rear tiedown ring on the MICLIC box to the right rear tiedown point on
the trailer frame.
Figure 7-8. MICLIC Prepared (Continued)
27 March 2009
FM 4-20.113/TO 13C7-3-51
7-11
Chapter 7
12
15
11
14
14
13
15
14
13
14

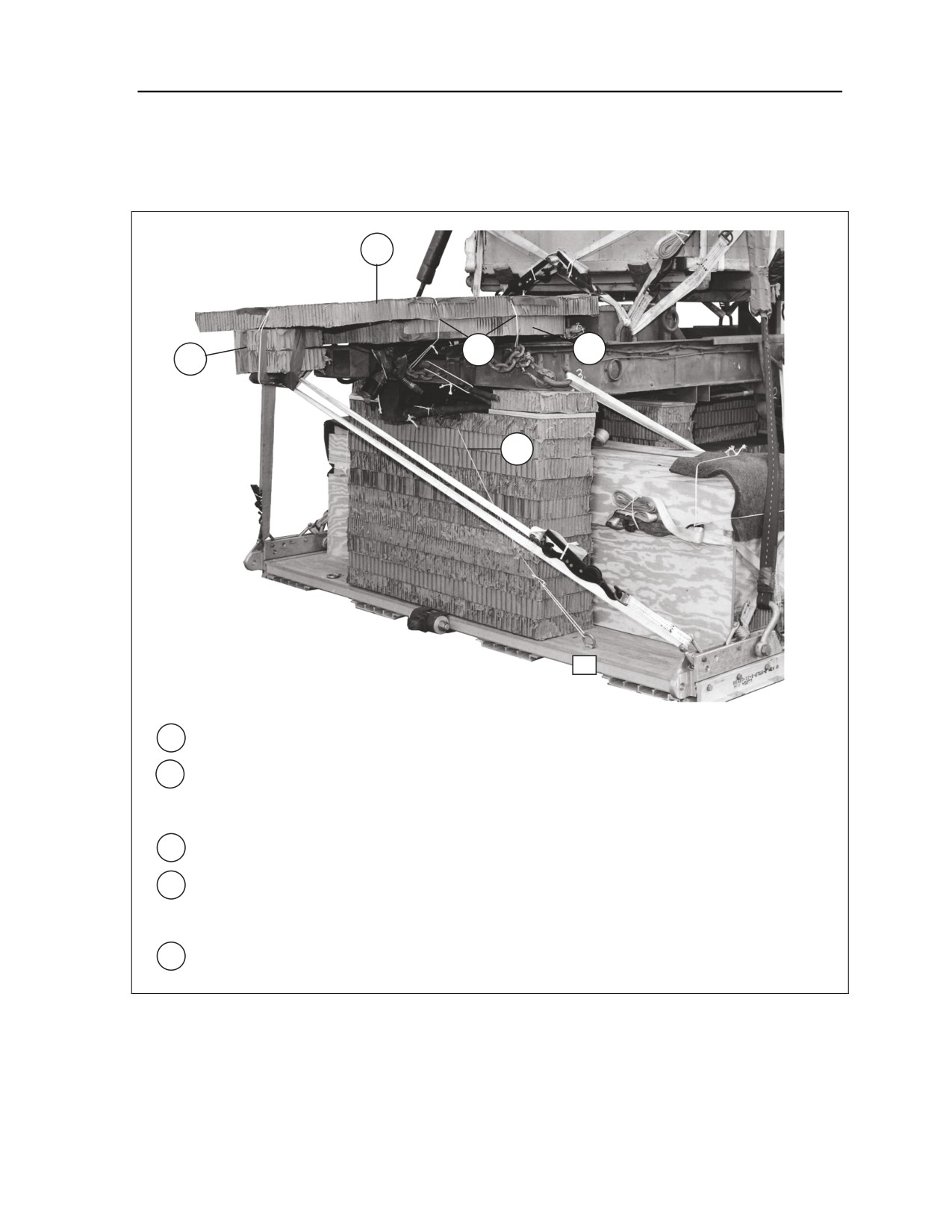

11 Drill a ½-inch hole 2 inches from each end of a 96-inch piece of 4- by 4-inch lumber.
12 Center the lumber over a 54- by 12-inch piece of honeycomb. Place the lumber and
honeycomb under the launcher arm and over the MICLIC box so the edge of the lumber is 32
inches from the front edge of the MICLIC box.
13 Ensure the lumber stays in place and tie it to the trailer frame through the drilled holes on
each side with 1/3-inc tubular nylon webbing.
14 Lash the lumber to the tiedown points on each side used previously.
Note. Ensure the lumber remains properly aligned when securing the lashings.
15 Pass a 15-foot lashing around the trailer frame and the launcher arm immediately in front of
the lumber and honeycomb placed in step 12.
Figure 7-8. MICLIC Prepared (Continued)
7-12
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging Mine Clearing Line Charge, 2 ½-Ton Trailer, on a 12-Foot, Type V Platform for Low-Velocity
Airdrop
STOWING ACCOMPANYING LOAD ON PLATFORM
7-5. Stow the rocket container on the platform as shown in Figure 7-9. Construct the endboards for the
accompanying load as shown in Figure 7-9.
Notes. 1. All measurements are given in inches.
2. This drawing is not drawn to scale.
3. Stack 5 is removed for viewing purposes.
TOP
6
1
2
24
2¾
¾ X 24 X 96
16
PLYWOOD
BOTTOM
2

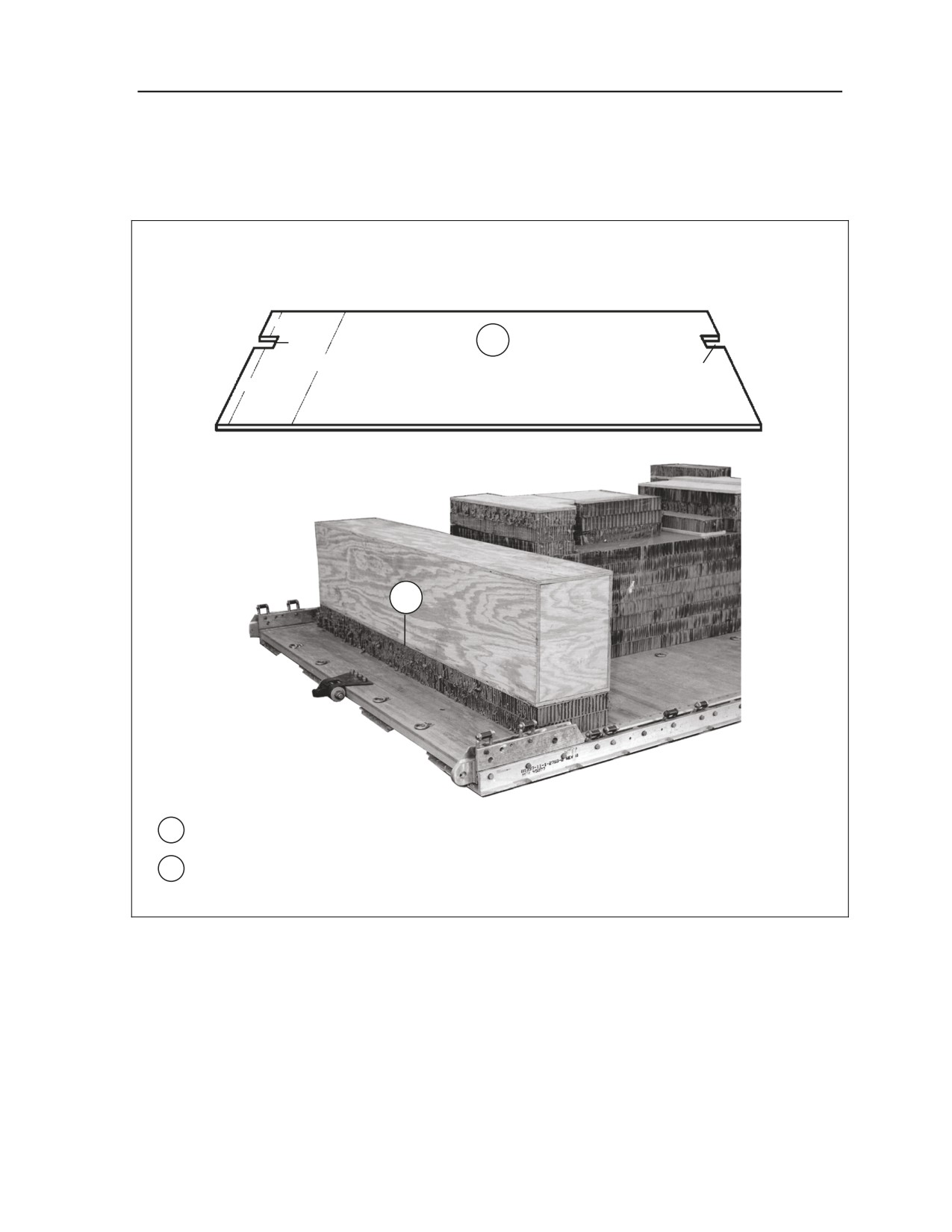

1 Build two endboards as shown with ¾- by 24- by 96-inch plywood.
2 Place the rocket container flush on stack 4.
Figure 7-9. Rocket Container Stowed on Platform
27 March 2009
FM 4-20.113/TO 13C7-3-51
7-13
Chapter 7
Note. Stack 5 is removed for viewing purposes.
2¾
3
6
5
3
4
8
7
5

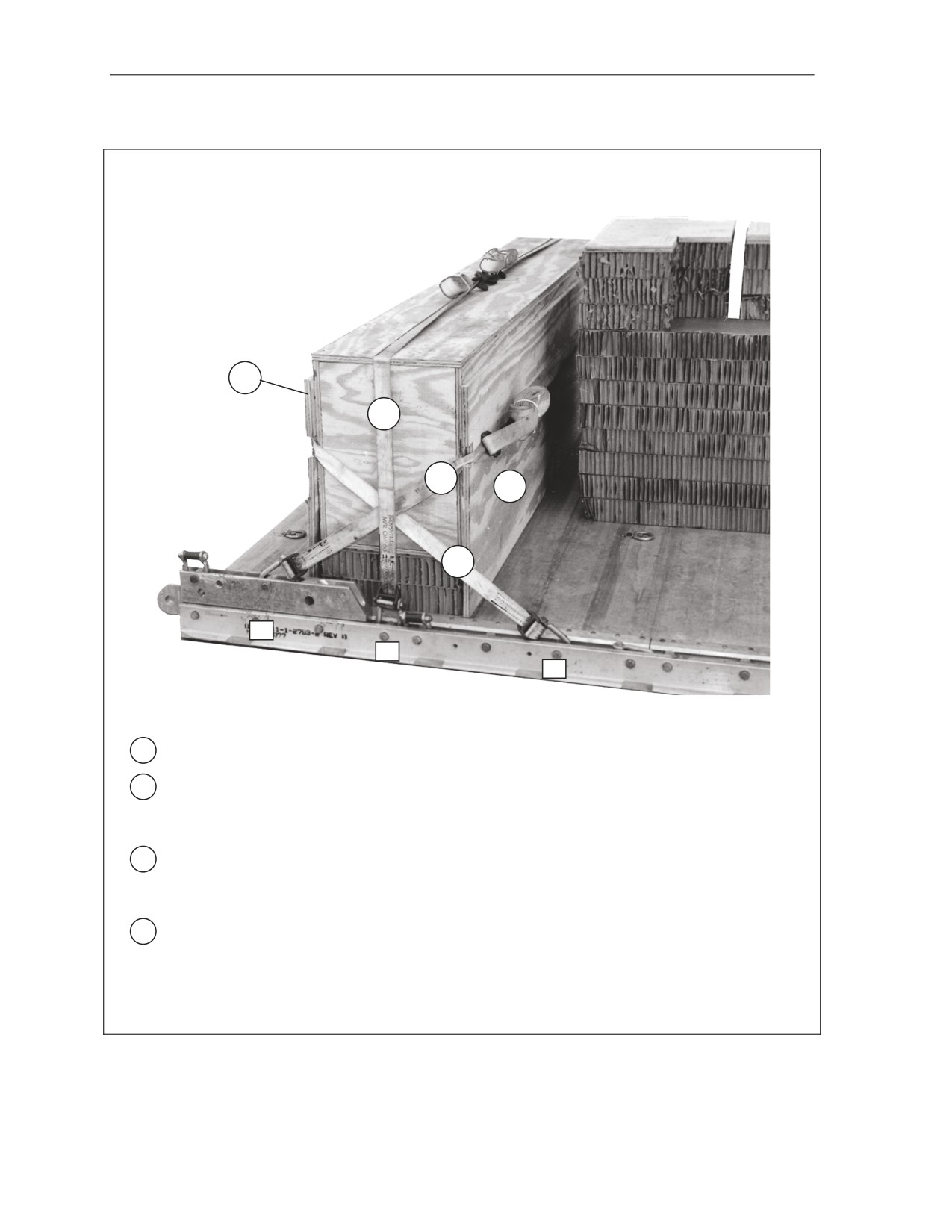

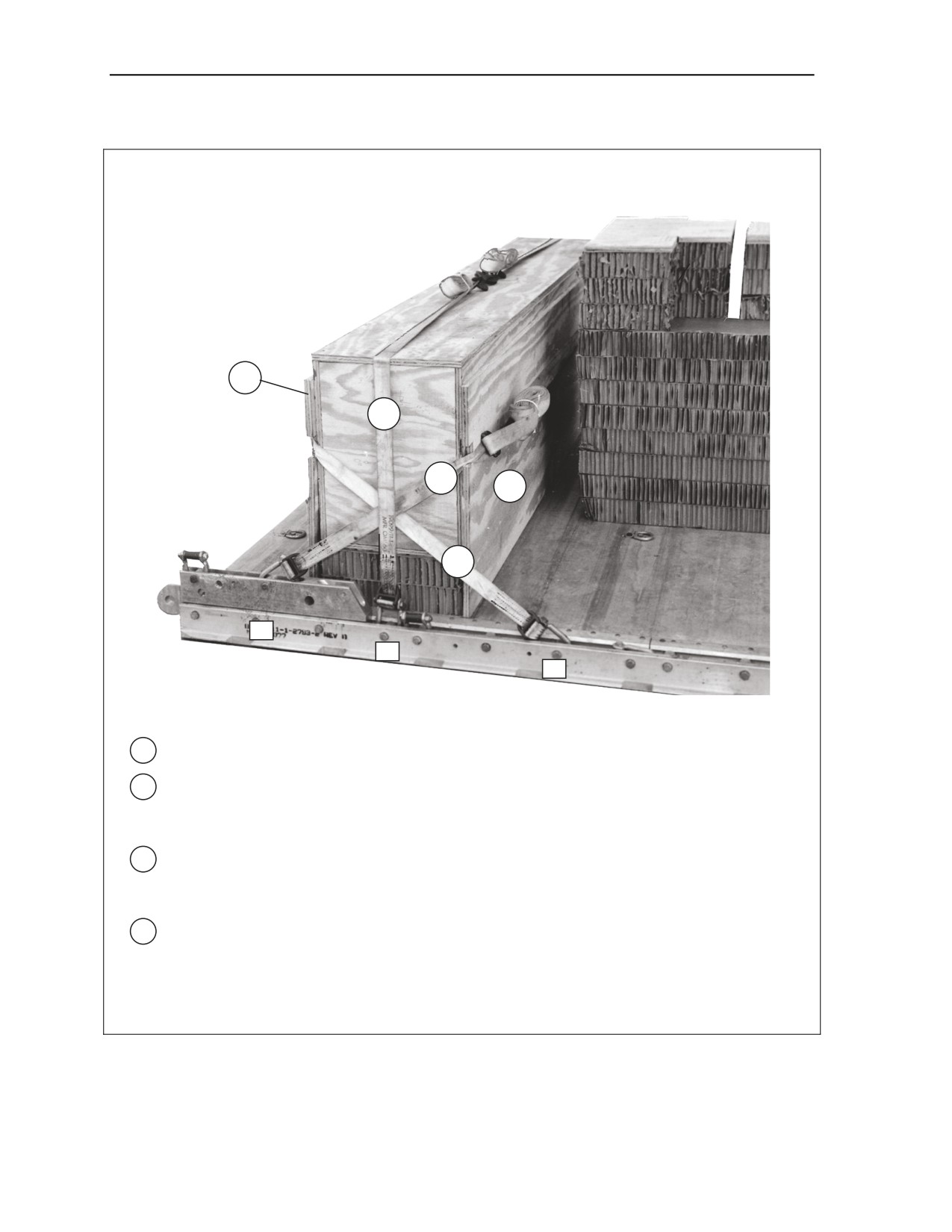

3 Place one endboard on the front and rear of the rocket container.
4 Pass a 15-foot lashing through clevis 5 and through its own D-ring. Pass a 15-foot lashing
through clevis 5A and through its own D-ring. Pass the lashings through the slots in the rear
endboard and secure on the rear endboard with D-rings and a load binder.
5 Pass a 15-foot lashing through clevis 8 and through its own D-ring. Pass a 15-foot lashing
through clevis 8A and through its own D-ring. Pass the lashings through the slots in the front
endboard and secure on the front endboard with D-rings and a load binder.
6 Pass a 15-foot lashing through clevis 7 and through its own D-ring. Pass a 15-foot lashing
through clevis 7A and through its own D-ring. Pass the lashings over the top of the rocket
container and secure the lashings on top of the rocket container with D-rings and a load
binder.
Figure 7-9. Rocket Container Stowed on Platform (Continued)
7-14
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging Mine Clearing Line Charge, 2 ½-Ton Trailer, on a 12-Foot, Type V Platform for Low-Velocity
Airdrop

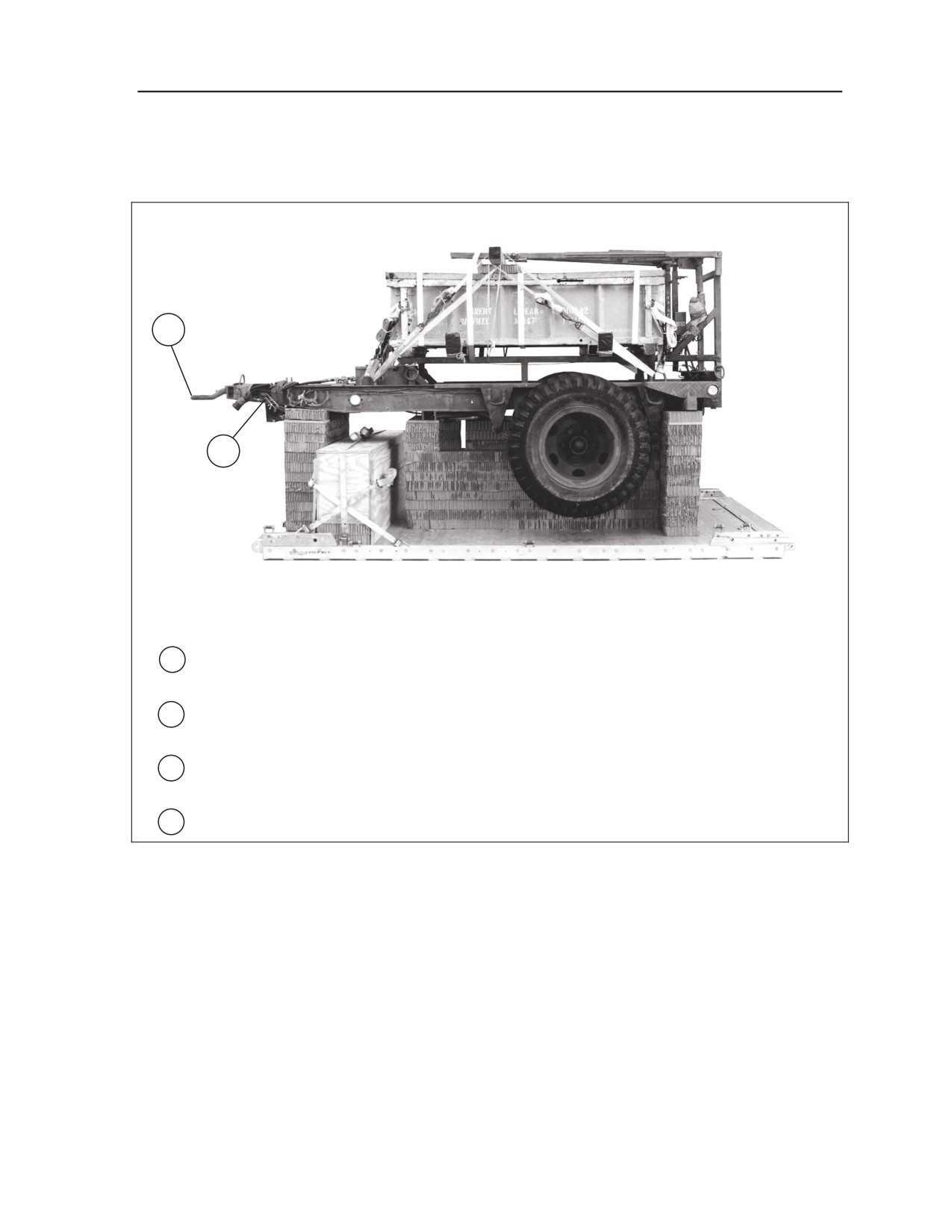

LIFTING AND POSITIONING THE MICLIC
7-6. Install the lifting slings and position the MICLIC as shown in Figure 7-10.
3
2
1 Attach a 12-foot (2-loop), type XXVI nylon sling to each of the four lifting points with a
medium suspension clevis (not shown).
2 Lift the trailer. Raise and lock the trailer support leg and A-frame. Tie them and the hand
crank to the trailer frame with type III nylon cord.
3 Position the trailer on the honeycomb stacks so the lunette overhangs the rear of the platform
by 34 inches.
4 Remove the lifting slings.
Figure 7-10. MICLIC Trailer Lifted and Positioned on Platform
27 March 2009
FM 4-20.113/TO 13C7-3-51
7-15
Chapter 7

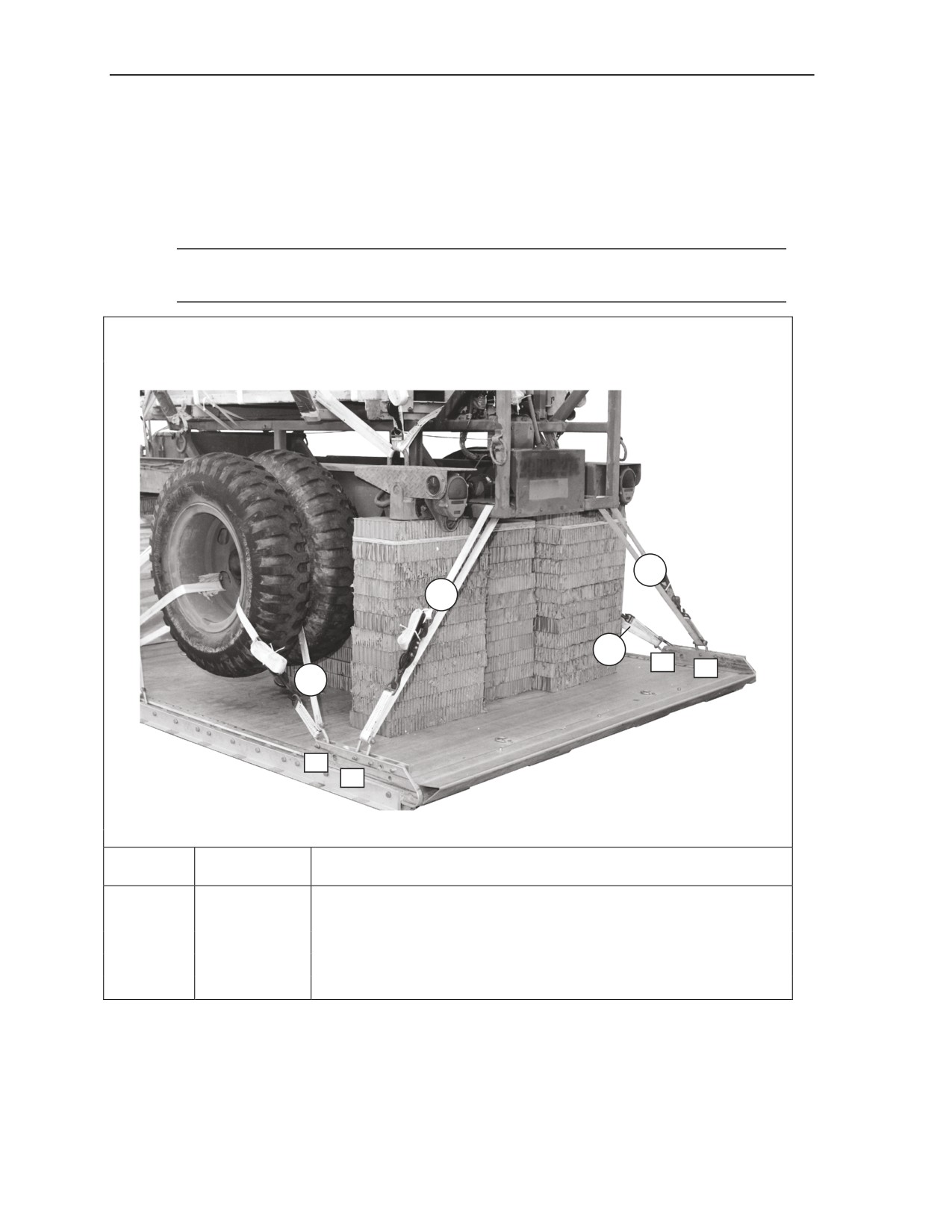

LASHING LOAD TO PLATFORM
7-7. Lash the MICLIC to the platform according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5 and as shown in Figures 7-11 and 7-12.
Note. Pad any sharp edges on the load where a lashing may pass. Pad the wheel openings. Use
cellulose padding and masking tape.
Note. Left, right, front, and rear refer to the trailer, NOT the platform.
2
1
4
2A
1A
3
2
1
Lashing
Tie-down
Instructions
Number
Clevis Number
Pass lashing:
1
1
Around trailer frame, left side.
2
1A
Around trailer frame, right side
3
2
Around outside wheel, right side.
4
2A
Around outside wheel, left side.
Figure 7-11. Lashing 1 through 4 Installed
7-16
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging Mine Clearing Line Charge, 2 ½-Ton Trailer, on a 12-Foot, Type V Platform for Low-Velocity
Airdrop

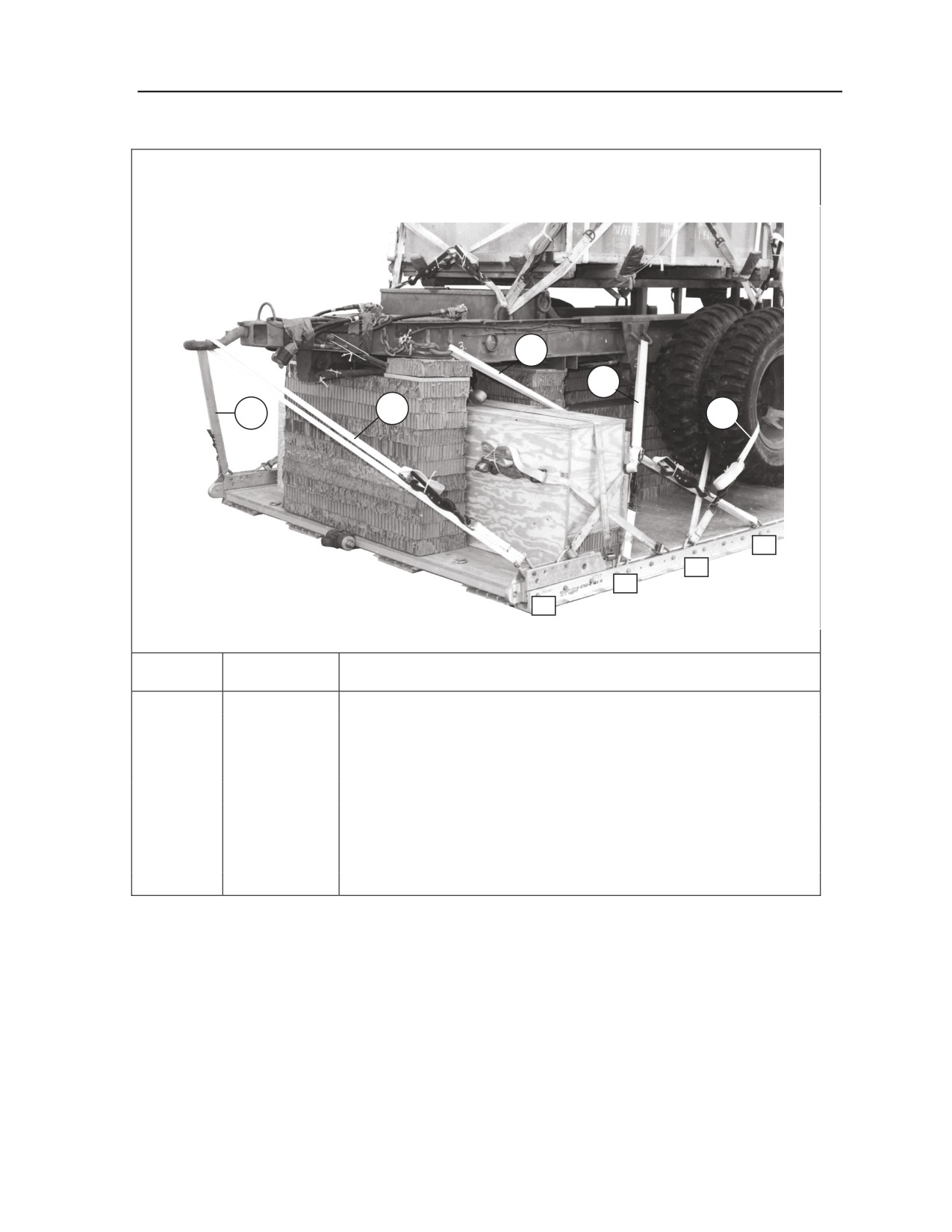

Note. Left, right, front, and rear refer to the trailer, NOT the platform.
5
9
11
12
7
3
4
6
9
Lashing
Tie-down
Instructions
Number
Clevis Number
Pass lashing:
5
3
Through front tiedown point, left side.
6
3A
Through front tiedown point, right side.
7
4
Around outside wheel, left side.
8
4A
Around outside wheel, right side.
9
6
Through center tiedown point, left side.
10
6A
Through center tiedown point, right side.
11
9
Through lunette.
12
9A
Through lunette.
Figure 7-12. Lashing 5 through 12 Installed
27 March 2009
FM 4-20.113/TO 13C7-3-51
7-17
Chapter 7
INSTALLING AND SAFETY TIEING THE SUSPENSION SLINGS
7-8. Install and safety tie the suspension slings as shown in Figure 7-13.
4
1
6
5
2
3

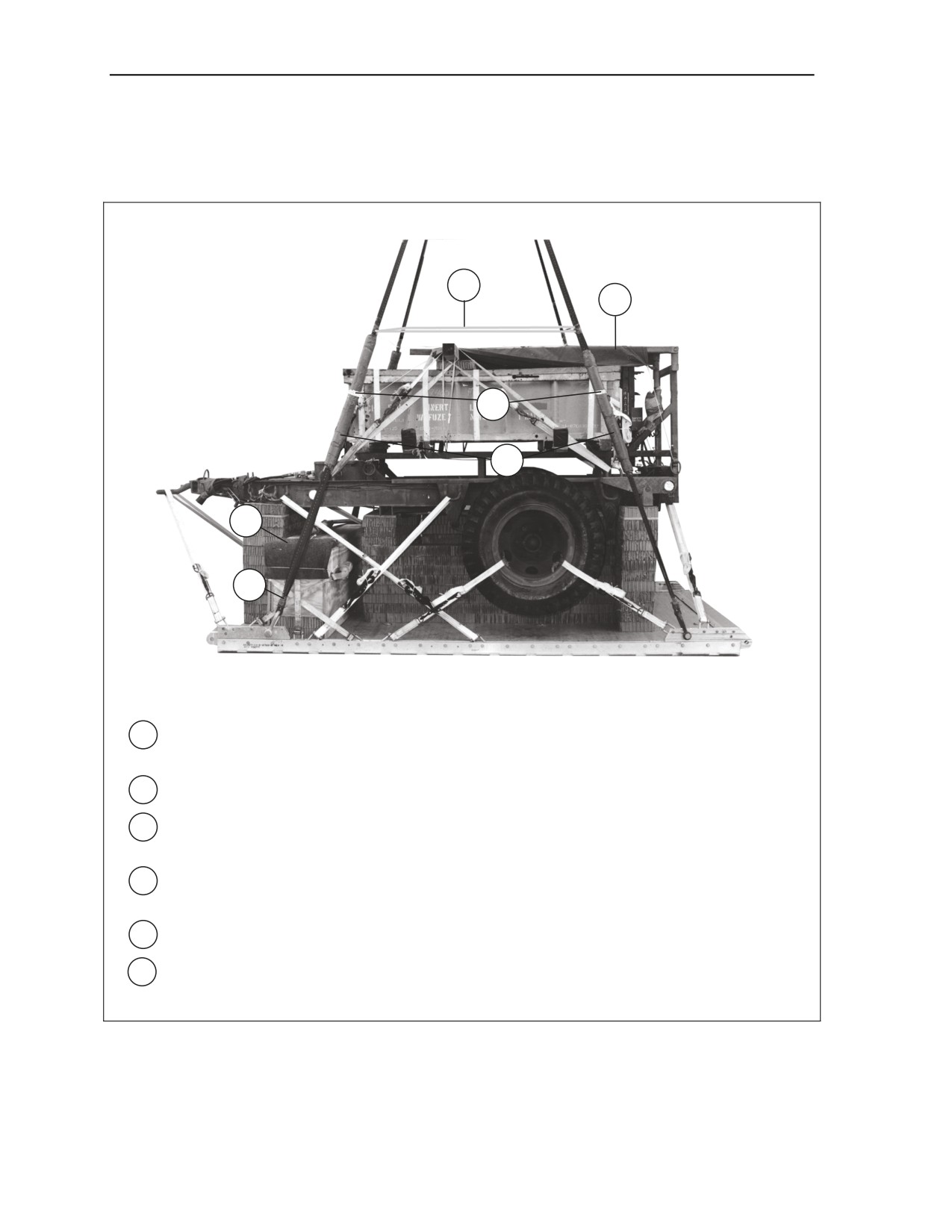

1 Place a 60- by 72-inch piece of canvas over the launcher arm and the lumber on top of the
MICLIC. Tie the corners with lengths of type III nylon cord to convenient points on the load.
2 Tie a 36- by 18-inch piece of felt over each corner of the rocket box with type III nylon cord.
3 Attach a 16-foot (2-loop), type XXVI nylon sling to each tandem link with a large suspension
clevis.
4 Raise the slings and install a deadman’s tie on the suspension slings as shown in FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
5 Pad each suspension sling where it makes contact with the MICLIC box with felt and tape.
6 Tie each suspension sling to the nearest tiedown ring with type III nylon cord.
Figure 7-13. Suspension Slings Installed and Safety Tied
7-18
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging Mine Clearing Line Charge, 2 ½-Ton Trailer, on a 12-Foot, Type V Platform for Low-Velocity
Airdrop
PREPARING THE PARACHUTE STOWAGE PLATFORM
7-9. Construct and secure the parachute stowage platform as shown in Figure 7-14.
3
4
2
1
5
A6
1 Place two 6- by 12-inch pieces of honeycomb on the lunette and secure with tape.
2 Place a 36- by 42-inch piece of honeycomb over the trailer frame immediately in front of the
pieces placed in step 1 above. Make 8- by 8-inch cutouts in the corners of this piece to allow
for the air brake hoses.
3 Place a 36- by 54-inch piece of honeycomb over the pieces placed in steps 1 and 2.
4 Tie the honeycomb to the trailer frame in a side-to-side direction with two lengths of type III
nylon cord. Tie the honeycomb to the trailer frame in a front-to-rear direction with a length of
type III nylon cord.
5 Secure honeycomb stack 5 in place with a length of type III nylon cord tied between the
upper lashing on the rocket box and tiedown ring A6.
Figure 7-14. Parachute Stowage Platform Built and Secured
27 March 2009
FM 4-20.113/TO 13C7-3-51
7-19
Chapter 7
STOWING CARGO PARACHUTES
7-10. Prepare, stow, and restrain two G-11B cargo parachutes according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 7-19.
1
3
2
A6
1 Position two G-11B cargo parachutes on the parachute stowage platform according to FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
2 Install the parachute restraint strap using type VIII nylon webbing on tiedown rings A6 and
D6.
3 Install the parachute release strap according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5.
Figure 7-15. Cargo Parachutes Positioned and Restrained
7-20
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging Mine Clearing Line Charge, 2 ½-Ton Trailer, on a 12-Foot, Type V Platform for Low-Velocity
Airdrop

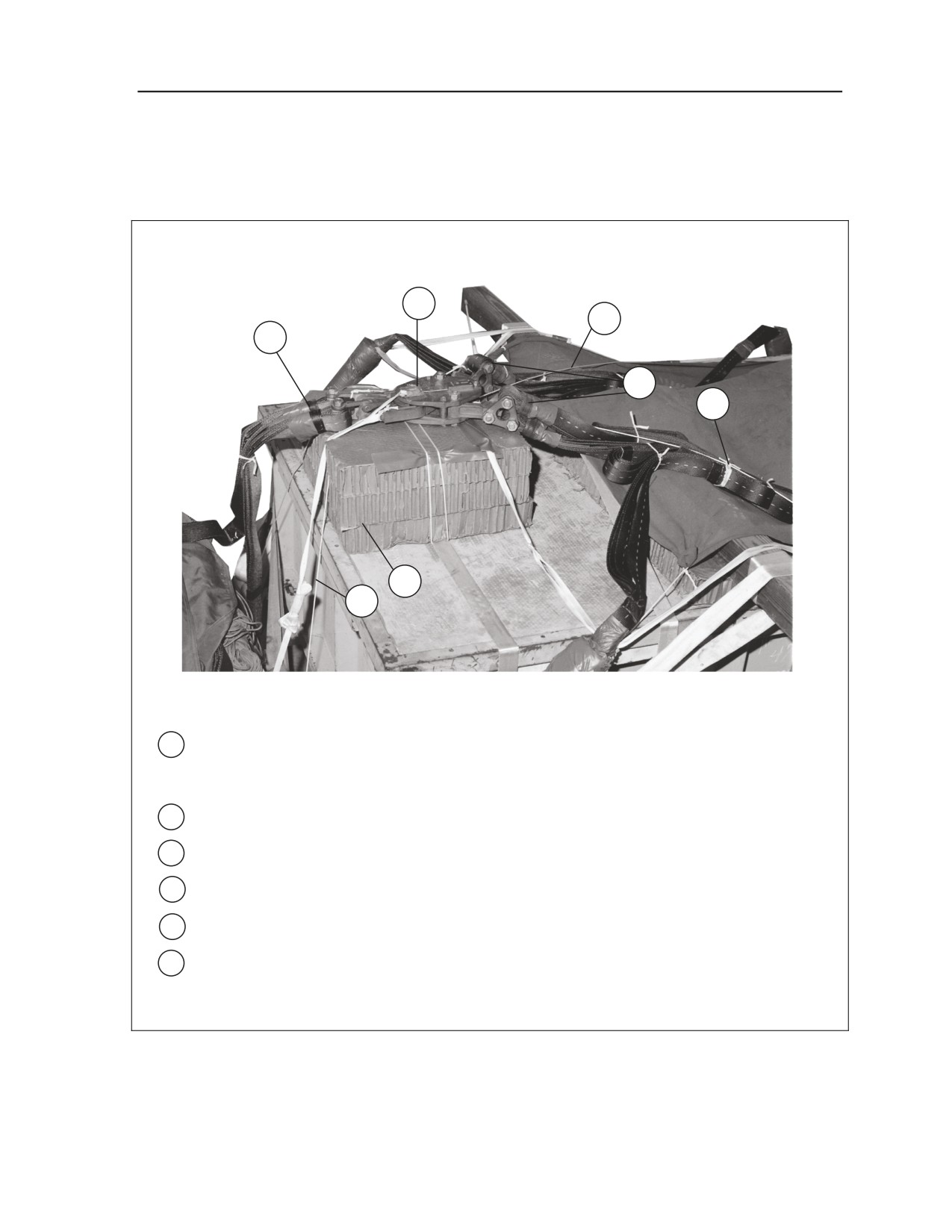

INSTALLING PARACHUTE RELEASE SYSTEM
7-11. Prepare and install an M-1 parachute release system according to FM
4-20.102/MCRP
4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 7-16.
2
6
3
4
5
1
6
1 Center a stack of three 18- by 18-inch pieces of honeycomb over the rear lashing on top of
the MICLIC box. Tape the rear section of the deadman’s tie to the honeycomb. Tie the
honeycomb to the lashing with type III nylon cord.
2 Center an M-1 parachute release assembly on top of the honeycomb.
3 Attach the parachute riser extensions to the parachute release connectors.
4 Attach the suspension slings to the lower suspension links.
5 Fold the excess suspension slings and safety tie with type I, ¼-inch cotton webbing.
6 Tie the front and rear M-1 parachute release safety ties to convenient points on the load with
type III nylon cord.
Figure 7-16. M-1 Parachute Release Installed
27 March 2009
FM 4-20.113/TO 13C7-3-51
7-21
Chapter 7
INSTALLING EXTRACTION SYSTEM
7-12. Install the extraction system as shown in Figure 7-17.
3
1
4
2
3
D6

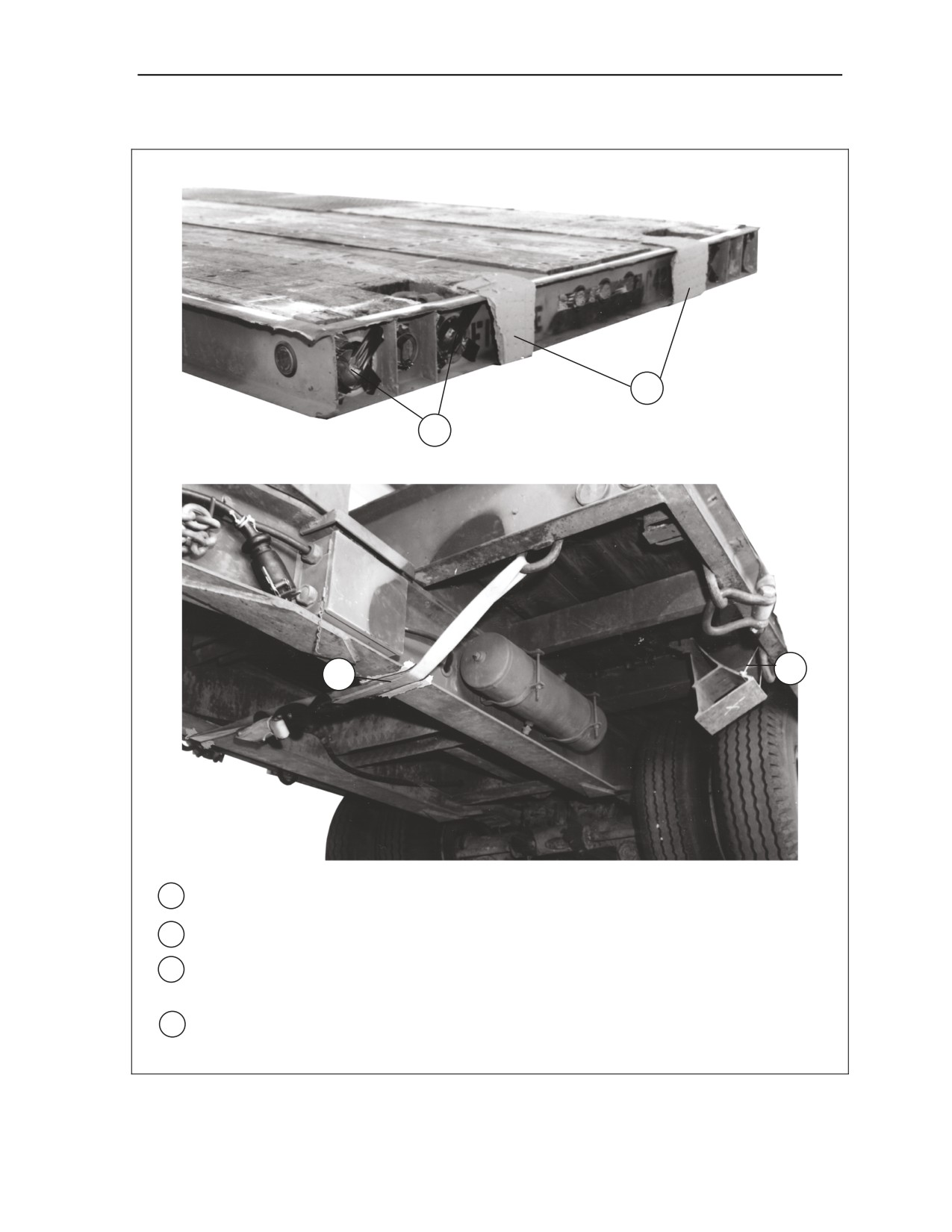

1 Install the components of the EFTC according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5. Use the rear mounting holes for the EFTC actuator
brackets.
2 Attach a 9-foot (2-loop), type XXVI nylon sling to be used as a deployment line.
3 Use a 12-foot cable and safety tie the cable to the platform clevises and tiedown ring D6 on
the platform with type I, ¼-inch cotton webbing.
4 Secure the excess deployment line with type I, ¼-inch cotton webbing.
Figure 7-17. Extraction System Installed
7-22
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging Mine Clearing Line Charge, 2 ½-Ton Trailer, on a 12-Foot, Type V Platform for Low-Velocity
Airdrop
PLACING EXTRACTION PARACHUTE
7-13. Select the extraction parachute and extraction line needed using the extraction line requirements
table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Place the extraction
parachute and line on the load for installation in the aircraft.
INSTALLING PROVISIONS FOR EMERGENCY RESTRAINTS
7-14. Select and install the provisions for the emergency aft restraints according to the emergency aft
restraint requirements table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-
5.
MARKING RIGGED LOAD
7-15. Mark the rigged load according to FM
4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5, and as shown in Figure 7-18. Complete Shipper's Declaration for Dangerous Goods. If
the load varies from the one shown, the weight, height, CB, and parachute requirements must be
recomputed.
EQUIPMENT REQUIRED
7-16. Use the equipment listed in Table 7-1 to rig this load.
27 March 2009
FM 4-20.113/TO 13C7-3-51
7-23
Chapter 7
CAUTION
Make the final rigger inspection required by AR 59-4 and FM 4-
20.102/MCRP
4-11.3J/NAVSEA SS400-AB-MMO-010/TO
13C7-1-5
before the load leaves the rigging site.
C/B
RIGGED LOAD DATA
Weight: Load Shown
8,400 pounds
Maximum Weight Load
8,600 pounds
Height
94 ½ inches
Width
108 inches
Overall Length
178 inches
Overhang: Front
0
Rear (lunette)
34 inches
Center of Balance (CB) (from front edge of the platform)
77 inches
Extraction System with 12-foot cable (adds 0 inches to the length of the load)
Figure 7-18. MICLIC on 2 ½-Ton Trailer Rigged on a 12-Foot, Type V Platform for Low-Velocity
Airdrop
7-24
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging Mine Clearing Line Charge, 2 ½-Ton Trailer, on a 12-Foot, Type V Platform for Low-Velocity
Airdrop
Table 7-1. Equipment Required for Rigging the MICLIC on 2 ½-Ton Trailer on a 12-Foot, Type
V Platform for Low-Velocity Airdrop
National
Item
Quantity
Stock Number
8040-00-273-8713
Adhesive paste, 1-gal.
As required
1670-01-035-6054
Bridle, extraction line bag
1
4030-00-090-5354
Clevis, suspension, 1-inch (large)
5
4030-00-678-8562
Clevis, suspension, ¾-inch (medium)
4
4020-00-240-2146
Cord, nylon, type III, 550-lb
As required
1670-00-434-5783
Coupling, airdrop extraction force transfer, w/12-ft. cable
1
8135-00-664-6958
Cushioning material (Cellulose padding)
As required
8305-00-958-3685
Felt, ½-inch
As required
1670-01-183-2678
Leaf, extraction line (line bag) ( add 2 for C-17)
2
Line extraction:
1670-01-062-6313
60-foot (3-loop), type XXVI (for C-130)
1
1670-01-107-7651
140-foot (3-loop), type XXVI (for C-17)
1
1670-01-064-4452
60-foot (1-loop), type XXVI (for C-17), (drogue line)
1
1670-00-783-5988
Link assembly, type IV (C-17 only)
1
1670-01-493-6418
Link assembly, two-point, small, 3 ¾-inch:
1
Lumber:
5510-00-220-6274
4- by 4- by 96-inch
2
5315-00-010-4659
Nail, steel, common, 8D
As required
1670-00-753-3928
Pad, energy-dissipating (honeycomb)
16 sheets
1670-01-016-7841
Parachute, cargo, G-11B
2
Parachute, cargo, extraction:
1670-01-063-3716
22-foot
1
1670-01-063-3715
15-foot (C-17 only)
1
Platform, airdrop, type V, 12-foot:
1670-01-162-2372
Clevis assembly (type V)
18
1670-01-162-2376
Extraction bracket assembly
6
1670-01-162-2381
Tandem link assembly (Multipurpose link)
4
5530-00-128-4981
Plywood, 3/4-inch
3 sheets
27 March 2009
FM 4-20.113/TO 13C7-3-51
7-25
Chapter 7
Table 7-1. Equipment Required for Rigging the MICLIC on 2 ½-Ton Trailer on a 12-Foot, Type
V Platform for Low-Velocity Airdrop (Continued)
National
Item
Quantity
Stock Number
1670-01-097-8816
Release, cargo parachute, M-1
1
Sling, cargo, airdrop:
1670-00-753-3790
9-foot (2-loop), type XXVI
1
1670-01-062-6303
12-foot (2-loop), type XXVI
4
1670-01-063-7761
16-foot (2 loop), type XXVI
4
1670-01-062-6302
20-foot (2-loop), type XXVI
2
1670-00-998-0116
Strap, parachute, release
1
7501-00-266-5016
Tape, adhesive, 2-inch
As required
1670-00-937-0271
Tie-down assembly, 15-foot.
32
1670-01-483-8259
Link, Parachute, Connector (H-block) (C-17 only)
1
Webbing:
8305-00-268-2411
Cotton, 1/4-inch, type I
As required
8305-00-082-5752
Nylon, tubular, 1/2-inch
As required
8305-00-261-8585
Nylon, type VIII
As required
7-26
FM 4-20.113/TO 13C7-3-51
27 March 2009
Chapter 8
Rigging 15-Ton Tilt Bed Trailer, on a 24-Foot, Type V
Platform for Low-Velocity Airdrop
DESCRIPTION OF THE LOAD
8-1. The 15-ton tilt bed trailer (Figure 8-1) is rigged on a 24-foot, type V airdrop platform using three G-
11 cargo parachutes. The unrigged trailer weighs 8,630 pounds. It is 292 inches long; however the length
may vary by 2 inches. The trailer is 96 inches wide and 52 inches high.
Figure 8-1. 15-Ton Tilt Bed Trailer
27 March 2009
FM 4-20.121/TO 13C7-6-21
8-1
Chapter 8
PREPARING PLATFORM
8-2. Prepare a 24-foot, type V airdrop platform as shown in Figure 8-2.
CLEVISES 7A THROUGH 1A
REAR
FRONT
CLEVISES 7 THROUGH 1
Step:
1. Inspect, or assemble and inspect, a 24-foot, type V airdrop platform as outlined in TM 10-
1670-268-20&P/TO 13C7-52-22.
2. Install a suspension bracket assembly on each platform side rail using holes 9, 10, and 11.
3. Install a tandem link to the front of each platform side rail using holes 1, 2, and 3.
4. Install a suspension bracket assembly on each platform side rail using holes 38, 39, and 40.
5. Install a clevis on bushings 1 of each tandem link.
6. Starting at the front of each platform side rail, install clevises on the bushings bolted to holes
5, 18, 21, 30, 47 and 48.
7. Starting at the front of the platform, number the clevises 1 through 7 on the right side and 1A
through 7A on the left side.
8. Label the tie-down rings according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5.
Figure 8-2. Platform Prepared
8-2
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging 15-Ton Tilt Bed Trailer, on a 24-Foot, Type V Platform for Low-Velocity Airdrop
BUILDING AND POSITIONING HONEYCOMB STACKS

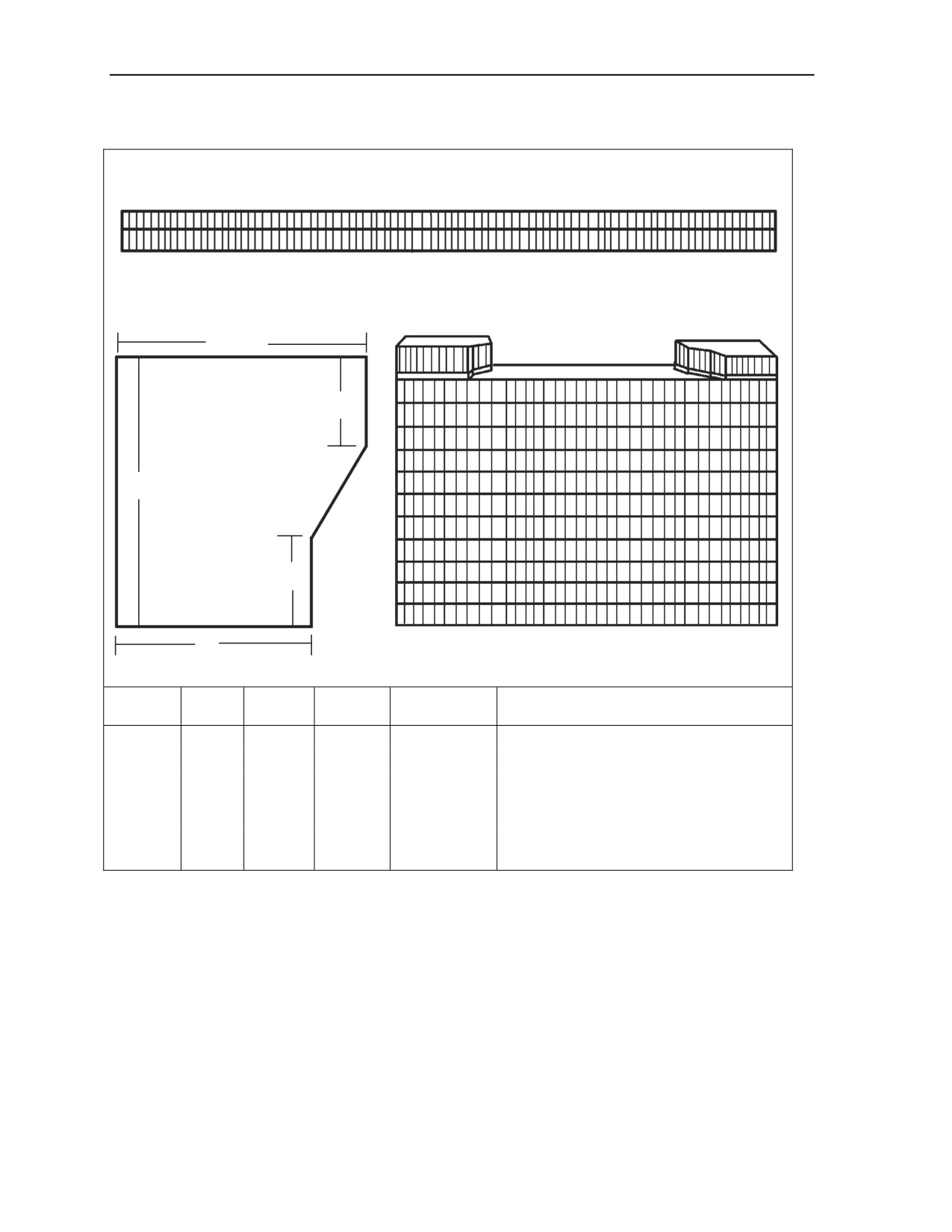

8-3. Build the honeycomb stacks as shown in Figures 8-3 through 8-6. Place the honeycomb stacks as
shown in Figure 8-7.
Notes. 1. All measurements are given in inches.
2. This drawing is not drawn to scale.
¾ X 12 X 42
PLYWOOD
REAR
FRONT
Stack
Width
Length
Number
Pieces
(Inches)
(Inches)
Material
Instructions
1
8
36
72
Honeycomb
Glue to form a base.
4
36
12
Honeycomb
Glue flush with the front edge on top of
honeycomb.
8
12
42
Honeycomb
Form two stacks of four layers each.
Place one stack on the right rear and
the other stack on the left rear flush with
the rear edge of the base.
2
12
42
¾-inch
Glue flush on top of each stack of 12-
Plywood
by 42-inch honeycomb.
Figure 8-3. Honeycomb Stack 1 Built
27 March 2009
FM 4-20.113/TO 13C7-3-51
8-3
Chapter 8
Notes. 1. All measurements are given in inches.
2. This drawing is not drawn to scale.
¾ X 12 X 42
PLYWOOD
Stack
Width
Length
Number
Pieces
(Inches)
(Inches)
Material
Instructions
2
2
36
72
Honeycomb
Glue to form a base.
3
12
42
Honeycomb
Center and glue honeycomb on top of
the base flush with the left edge of the
base stack.
1
12
42
¾-inch
Glue plywood between the second and
Plywood
third 12- by 42- inch piece of
honeycomb.
3
2
36
72
Honeycomb
Glue to form a base.
3
12
42
Honeycomb
Center and glue honeycomb on top of
the base flush with the right edge of the
base stack.
1
12
42
¾-inch
Glue plywood between the second and
Plywood
third 12- by 42- inch piece of
honeycomb.
Figure 8-4. Honeycomb Stacks 2 and 3 Built
8-4
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging 15-Ton Tilt Bed Trailer, on a 24-Foot, Type V Platform for Low-Velocity Airdrop
Notes. 1. All measurements are given in inches.
2. This drawing is not drawn to scale.
¾ X 12 X 48
PLYWOOD
Stack
Width
Length
Number
Pieces
(Inches)
(Inches)
Material
Instructions
4
5
36
48
Honeycomb
Glue to form base.
8
12
48
Honeycomb
Form two stacks of four layers each.
Place one stack on the right side and
the other stack on the left side flush with
the side edge of the base.
1
12
48
¾-inch
Glue flush on top of each stack of 12-
Plywood
by 48-inch honeycomb.
Figure 8-5. Stack 4 Built
27 March 2009
FM 4-20.113/TO 13C7-3-51
8-5
Chapter 8
Notes. 1. All measurements are given in inches.
2. This drawing is not drawn to scale.
¾ X 18 X 18
PLYWOOD
Stack
Width
Length
Number
Pieces
(Inches)
(Inches)
Material
Instructions
5
9
18
18
Honeycomb
Glue to form base.
1
18
18
¾-inch
Glue flush on honeycomb base.
Plywood
Figure 8-6. Stack 5 Built
8-6
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging 15-Ton Tilt Bed Trailer, on a 24-Foot, Type V Platform for Low-Velocity Airdrop
Notes. 1. All measurements are given in inches.
2. This drawing is not drawn to scale.
11
STACK 3
6
STACK 5
8
14
STACK 4
STACK 1
18
STACK 2
11
STACK 1
STACK 5
STACK 4
STACK 3
STACK 2
REAR
FRONT
Step:
1. Center stack one 6 inches from the front edge of the platform.
2. Place stack two 8 inches from the rear of stack 1 and 11 inches from the right side rail.
3. Place stack three 8 inches from the rear of stack 1 and 11 inches from the left side rail.
4. Center stack four 18 inches from the rear edge of stacks 2 and 3.
5. Center stack five 14 inches from the rear edge of the platform.
Figure 8-7. Honeycomb Stacks Positioned on Platform
27 March 2009
FM 4-20.113/TO 13C7-3-51
8-7
Chapter 8
PREPARING TRAILER
8-4. Prepare the trailer as shown in Figures 8-8 through 8-12.
Note. Place a support device under the front of the trailer before raising the front landing gear.
3
4
1
2
1 Raise the front landing gear. Tie the landing gear handle in the stowed position using type III
nylon cord.
2 Fold the air hoses, cables, and chains along the drawbar. Tie them in place with type III nylon
cord.
3 Fill the toolbox with honeycomb. Close the toolbox lid and secure the lid with a lock or type III
nylon cord.
4 Wrap the spare tire wheel stowage bracket with cellulose wadding and tape.
Figure 8-8. Trailer Components Secured
8-8
FM 4-20.113/TO 13C7-3-51
27 March 2009
Rigging 15-Ton Tilt Bed Trailer, on a 24-Foot, Type V Platform for Low-Velocity Airdrop
Note. Pad all sharp areas of the trailer where contact is made with the lashing.
2
1
4
3
1 Tape the rear lights and reflectors on the trailer.
2 Pad the rear bumper with cellulose wadding and tape.
3 Route a 15-foot lashing through the left front tiedown provision, under the drawbar, and
through the right front tiedown provision and secure with a D-ring and load binder.
4 Tie the chocks in place with type III nylon cord.
Figure 8-9. Rear of Trailer Prepared
27 March 2009
FM 4-20.113/TO 13C7-3-51
8-9
|
|
