FM 4-20.127/TO 13C7-10-191
2
1
4
1
3
3
1

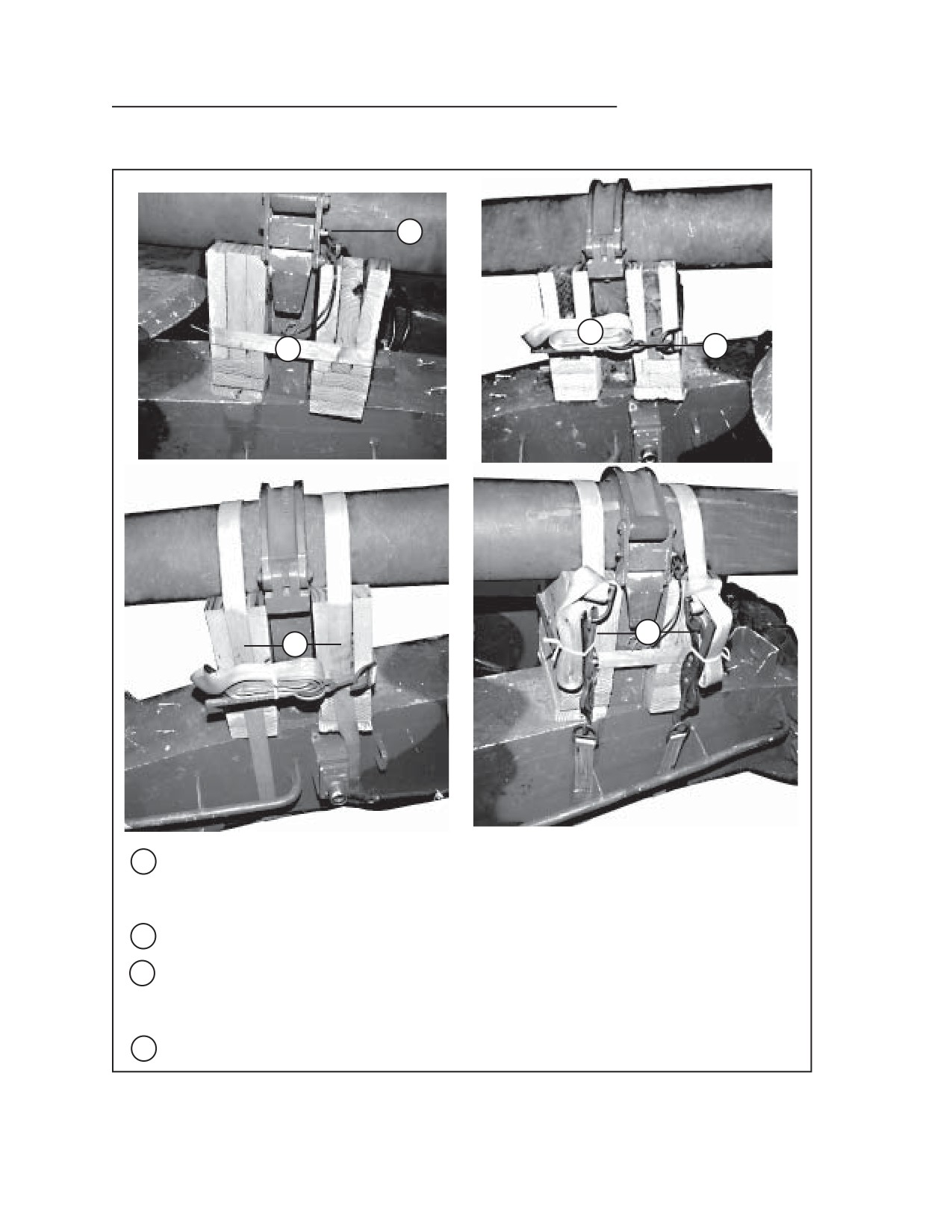

Lash the support blocks to the gun tube travel lock with a 15-foot lashing. Loosely
secure the lashings with a D-ring and a load binder to the outside of the gun tube
travel lock.
2
Close the gun tube travel lock, and secure it with the pin provided.
3
Lash the gun tube left trail with two 15-foot lashings over each forward gun tube
support block. Pass them under the load binder from step 1. Secure the lashings
with a D-ring and a load binder to the outside of the gun tube travel lock.
4
Tighten and secure the load binder in step 1.
Figure 3-10. Gun Tube Lashed
3-19
FM 4-20.127/TO 13C7-10-191
1
2
4
3
1
Lash the firing baseplate in its stowed position with a 15-foot lashing. Route the lashing
around both trails and through the holes in the baseplate. Secure with a D-ring and load
binder.
2
Secure the hoses and aiming poles latches to convenient places on the trail with type III
nylon cord. Tie the hoses together with 1/4-inch cotton webbing.
3
Secure the trail lock latch with type III nylon cord.
4
Secure the air hose to the left trail lifting handle with type III nylon cord.
Figure 3-11. Base Plate, Hoses, Aiming Stakes and Trail Lock Secured
3-20
FM 4-20.127/TO 13C7-10-191
1
2
3
3
4
4
1
Insert the muzzle plug into the muzzle and secure with 2-inch adhesive tape.
2
Pad the muzzle with cellulose wadding on each side and tape in place with 2-inch
adhesive tape.
3
Secure the ramming staff on the inside of the trails with type III nylon cord.
4
Secure the sight box in its bracket with doubled type III nylon cord.
Figure 3-12. Muzzle Plugged and Ramming Staff and Sight Box Secured
3-21
FM 4-20.127/TO 13C7-10-191
1
2
3
3
1

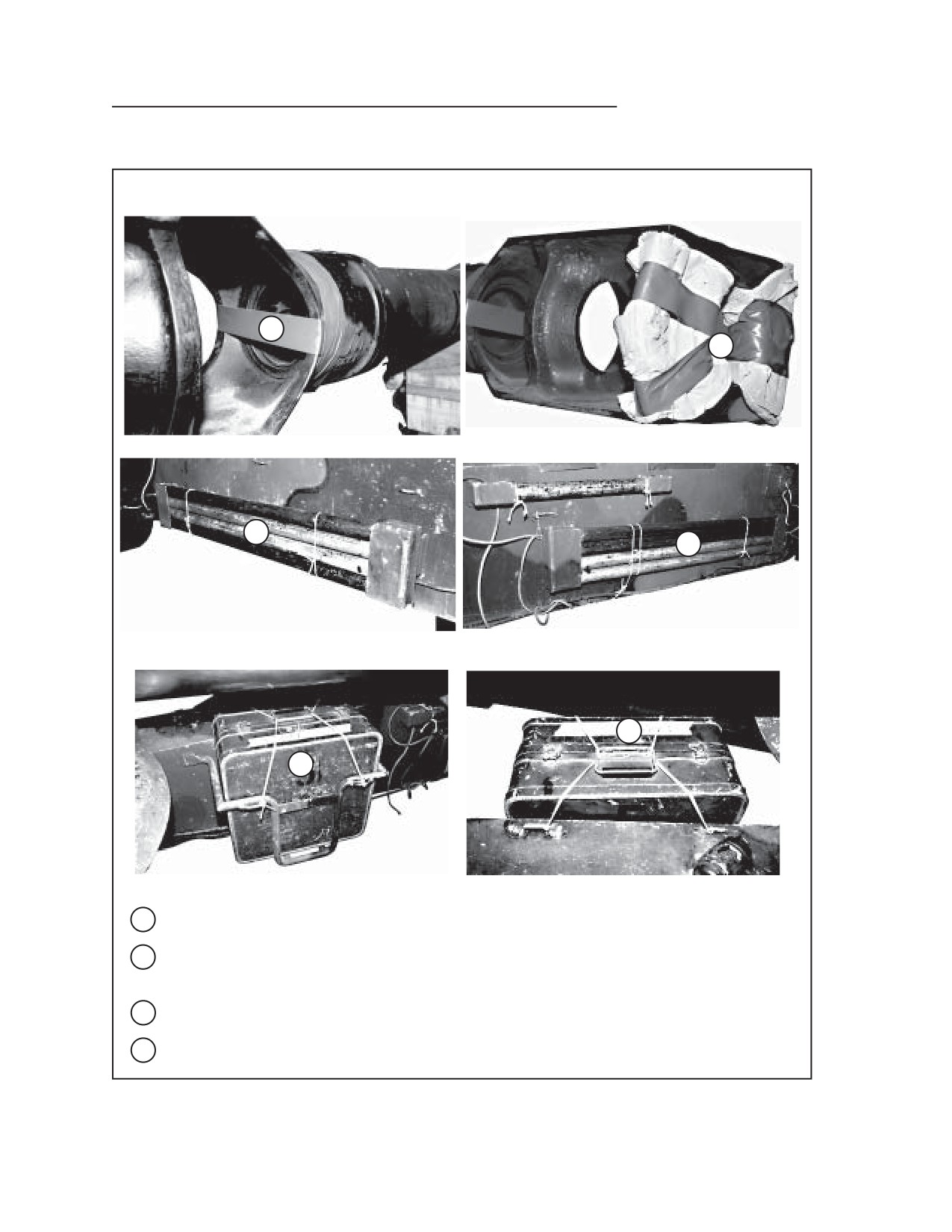

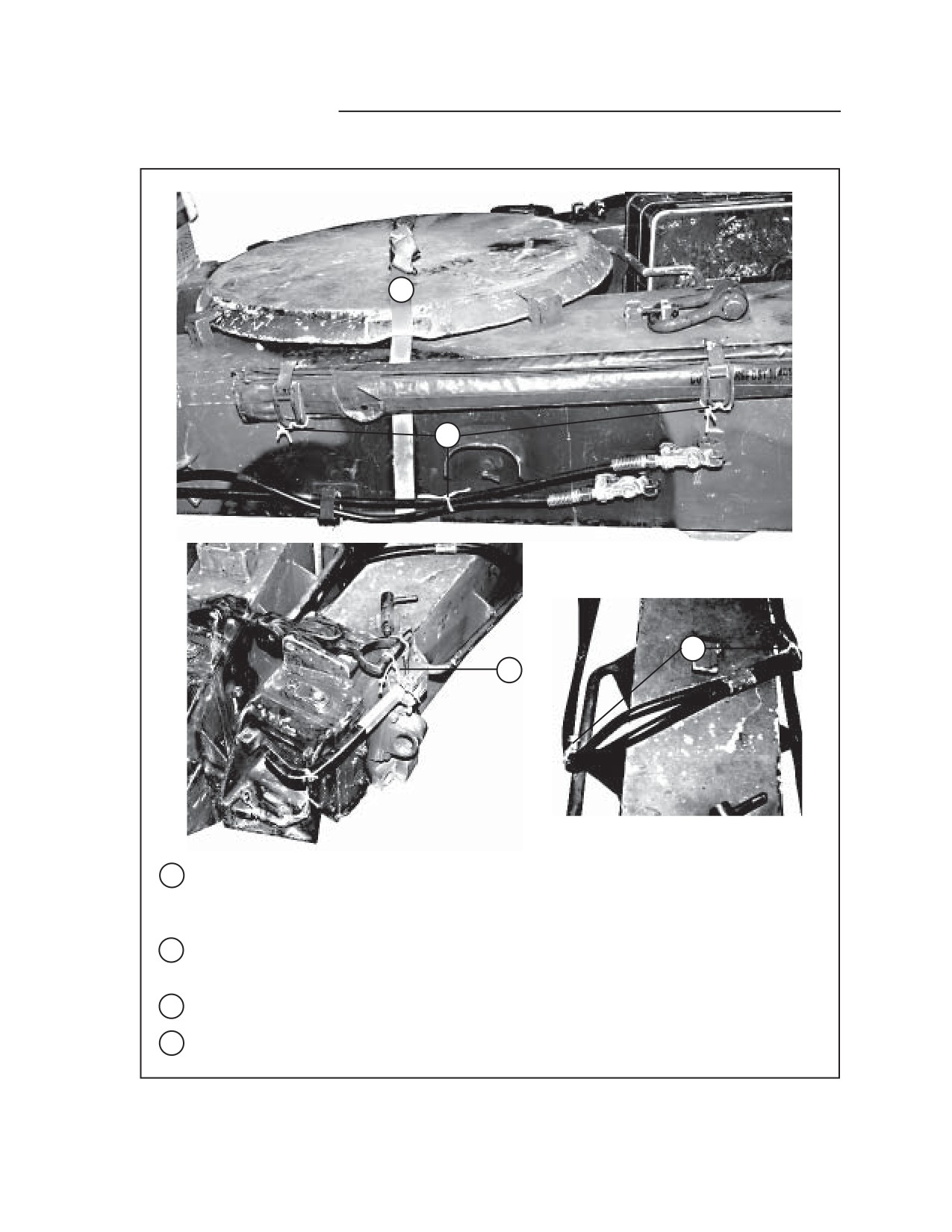

Secure the pole on the left trail with type III nylon cord.
2
Pad and tape the brake precheck box with cellulose wadding and 2-inch adhesive tape.
3
Lash each spade in its bracket on each trail with a 15-foot lashing. Pad and tape the
edges with cellulose wadding and 2-inch adhesive tape. Secure with D-rings and
load binders.
Figure 3-13. Pole Secured, Brake Precheck Box Padded and Spades Secured
3-22
FM 4-20.127/TO 13C7-10-191
1
1
1
2
3
1
1

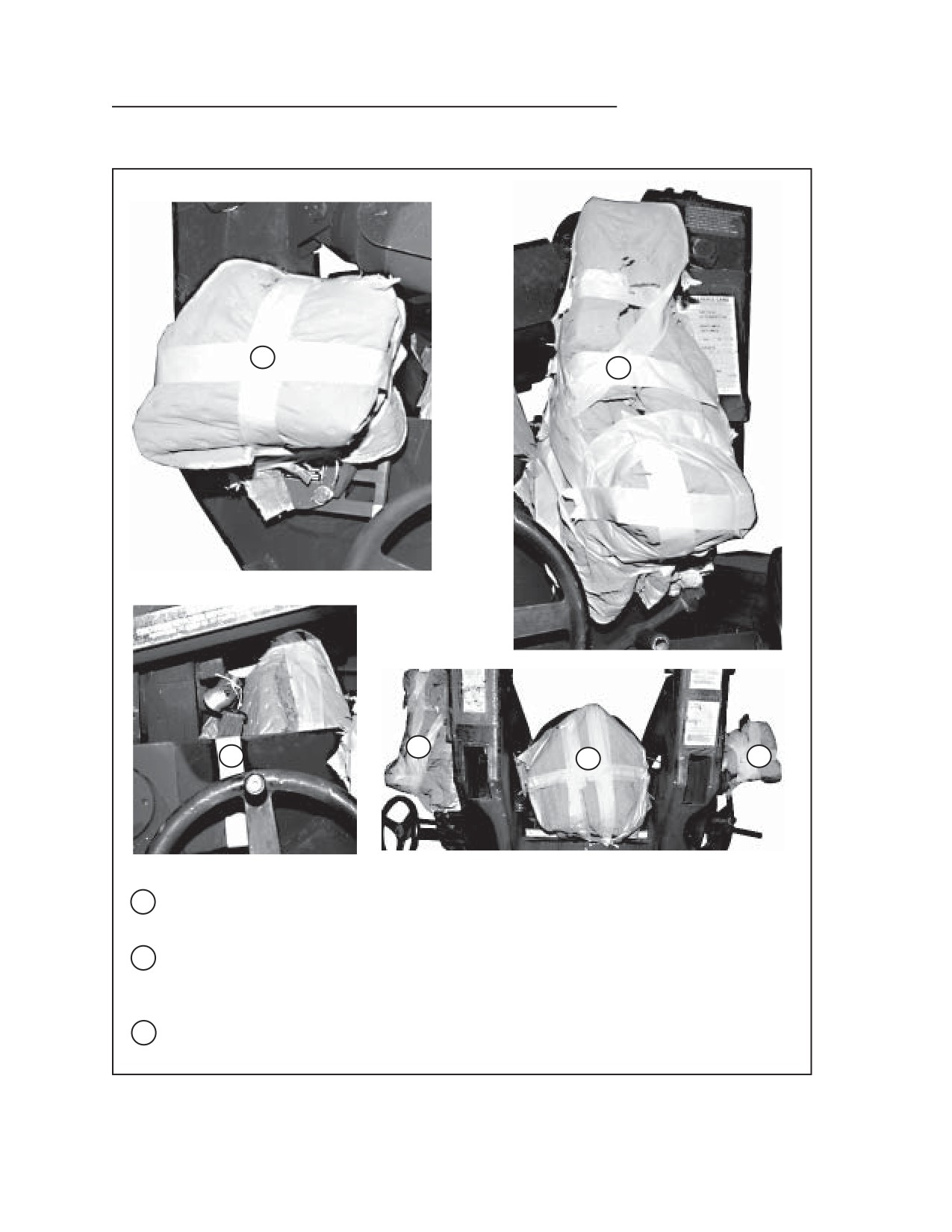

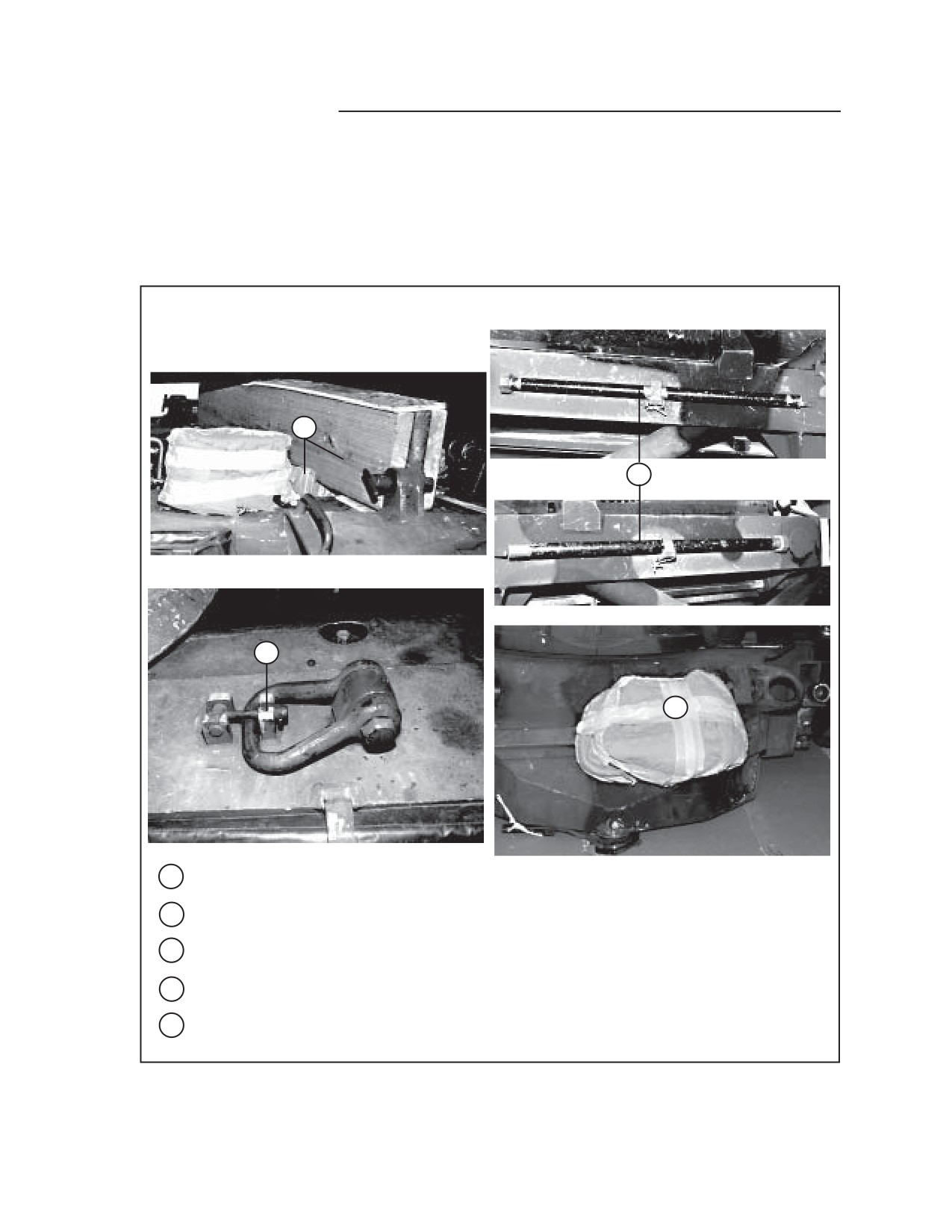

Pad and tape the quadrant and telescope mounts on both sides with cellulose wadding
and 2-inch adhesive tape.
2
Secure the breechblock with a 15-foot lashing. Run the lashing under the cradle
assembly, over the breechblock, and under the thermal warning device. Secure on top
with a D-ring and load binder.
3
Pad the breech with cellulose wadding and tape in place. Put on the breechblock cover,
if available.
Figure 3-14. Mounts and Breech Padded and Breechblock Secured
3-23
FM 4-20.127/TO 13C7-10-191
INSTALLING LIFTING SLINGS AND POSITIONING HOWITZER
3-7. Install lifting slings and position the howitzer according to
Paragraph 2-7, Figure 2-15, steps 1 through 5 and Figure 3-15.
1
3
4
5
1
Ensure the tube support blocks are resting solidly on honeycomb stack 3.
2
Remove the lifting slings and large clevises (Not Shown).
3
Stow the pump handles into their brackets and secure the latch with type III nylon cord.
4
Stow the lifting point clevises.
5
Pad and tape the manifold assembly (speed shift) with cellulose wadding and tape.
Figure 3-15. Howitzer Positioned
3-24
FM 4-20.127/TO 13C7-10-191
LASHING HOWITZER

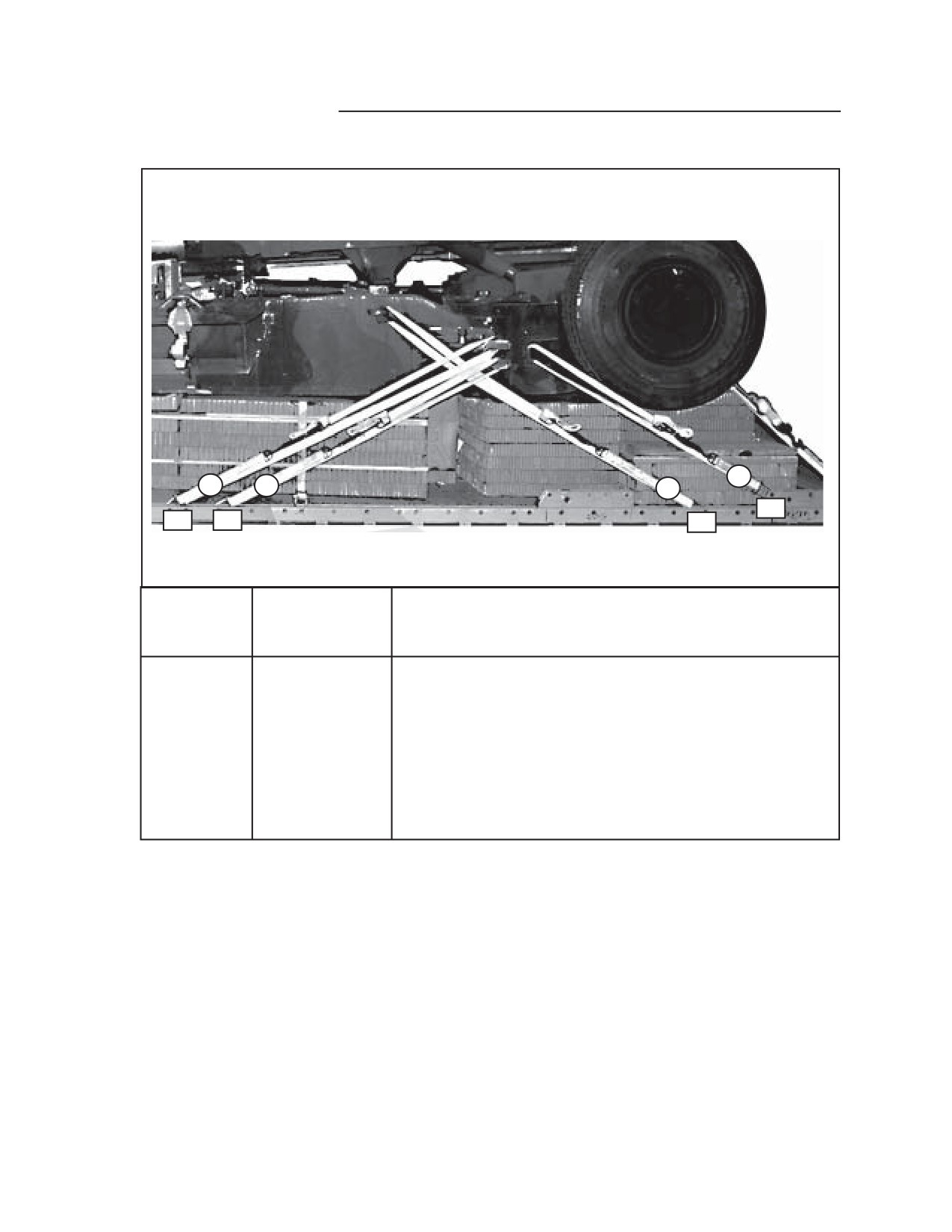

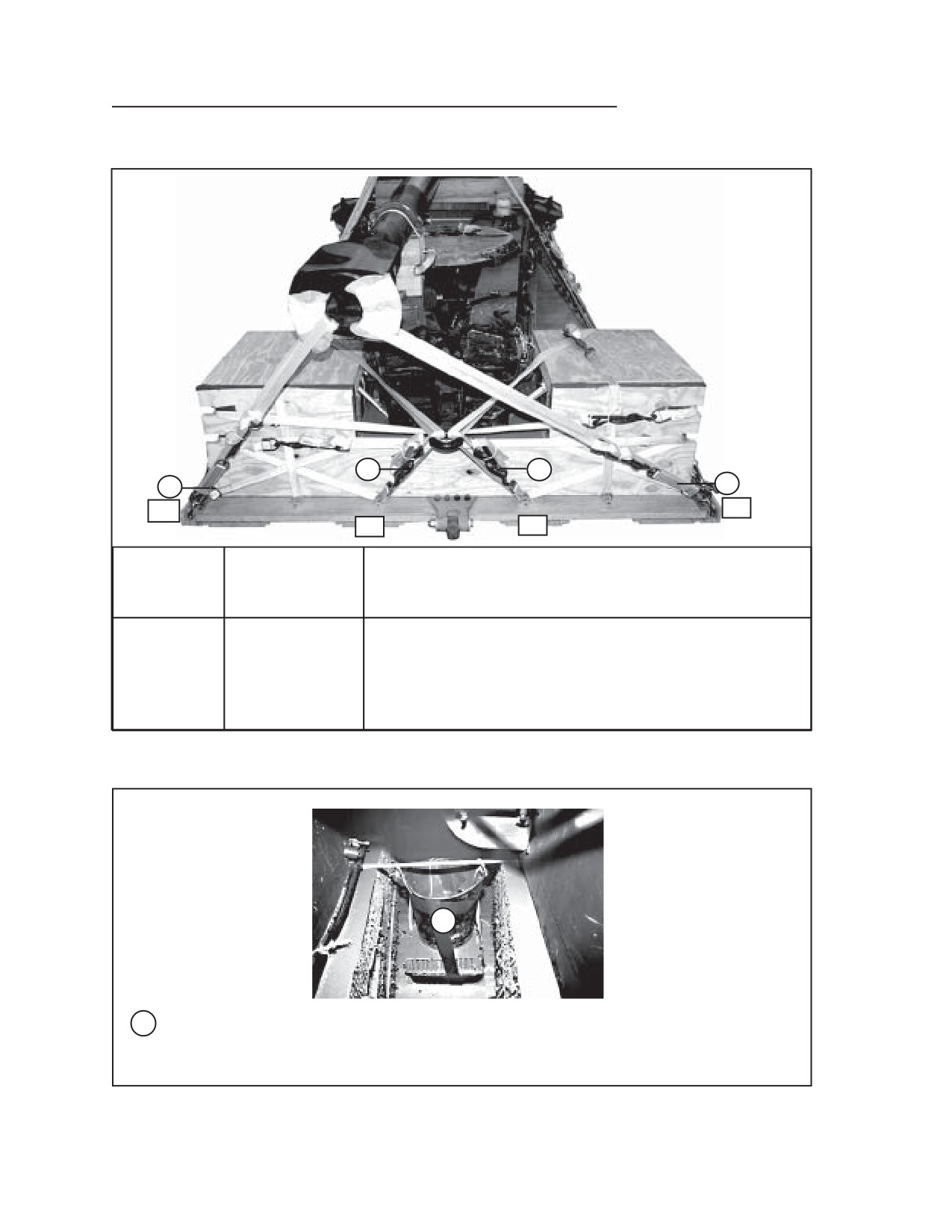

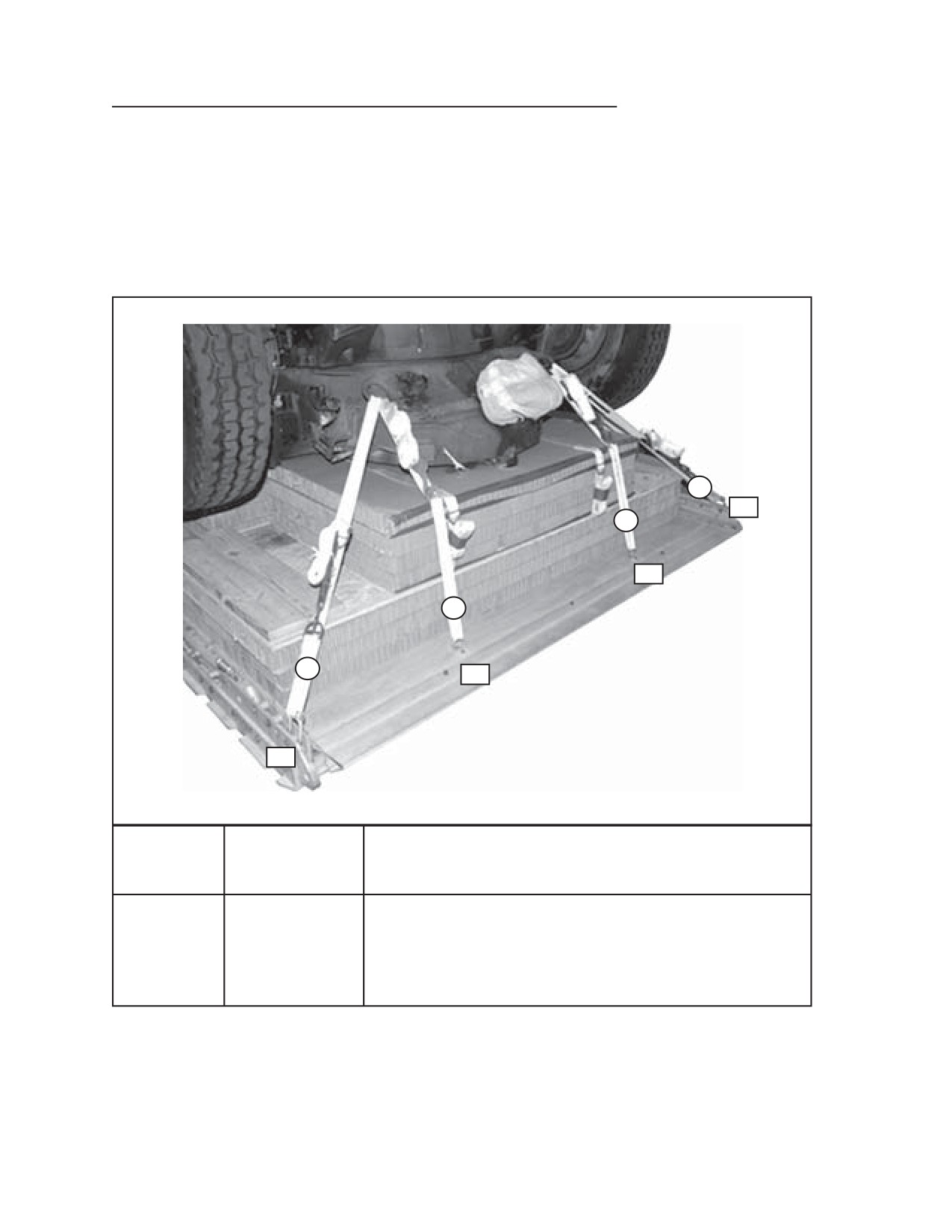

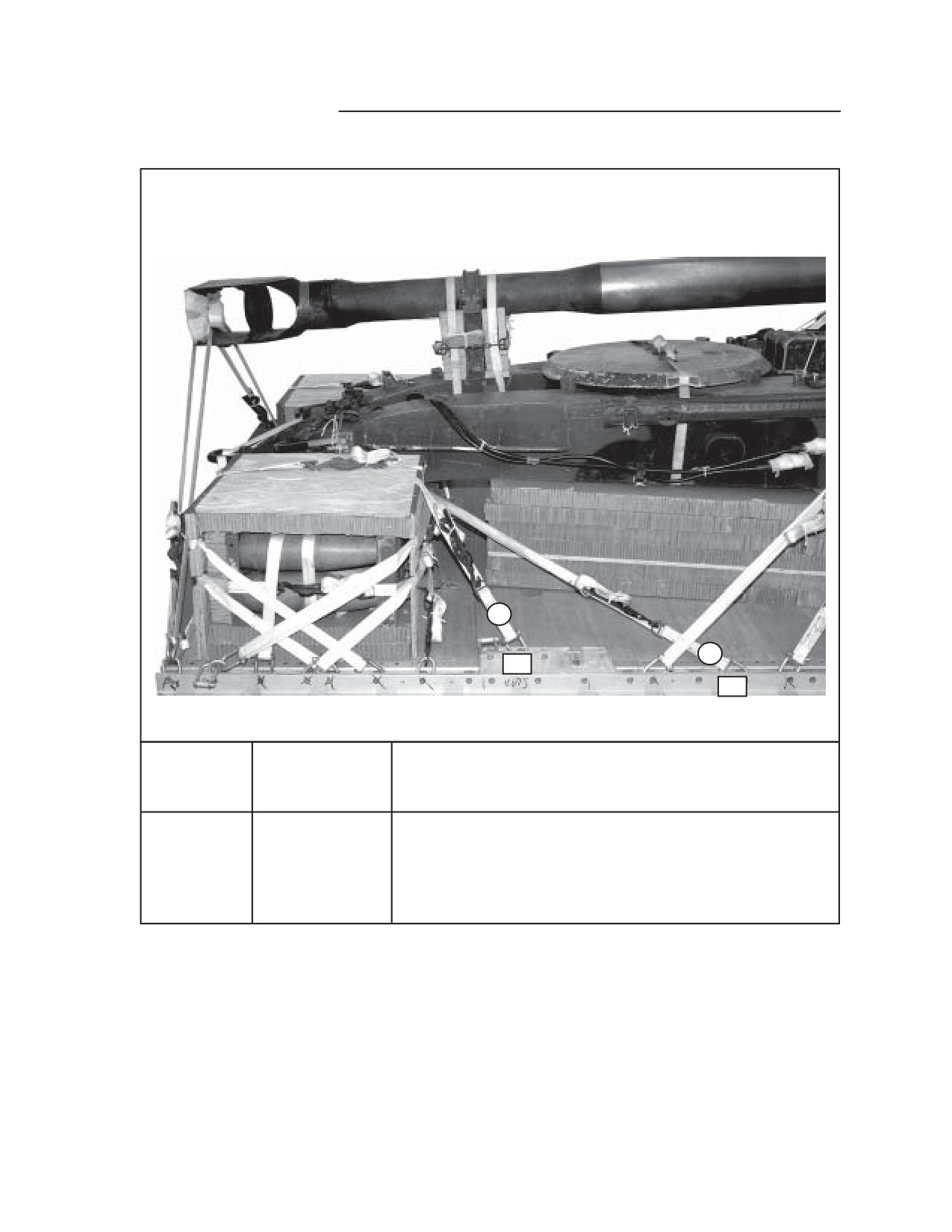

3-8. Lash the howitzer to the platform using thirty 15-foot tiedown
assemblies. Install the lashings as shown in Figures 3-16 through 3-20.
Secure the bucket between the trails as shown in Figure 3-21.
4
1A
2
B1
1
3
A1
1
Tie-dow n
Lashin g
Clevis
Instruction s
Number
Number
Pass lashing:
1
A1
Through right front tiedow n provision on low er carriage.
2
B1
Through left front tiedow n provision on low er carriage.
3
1
Through right front tiedow n provision on low er carriage.
4
1A
Through left front tiedow n provision on low er carriage.

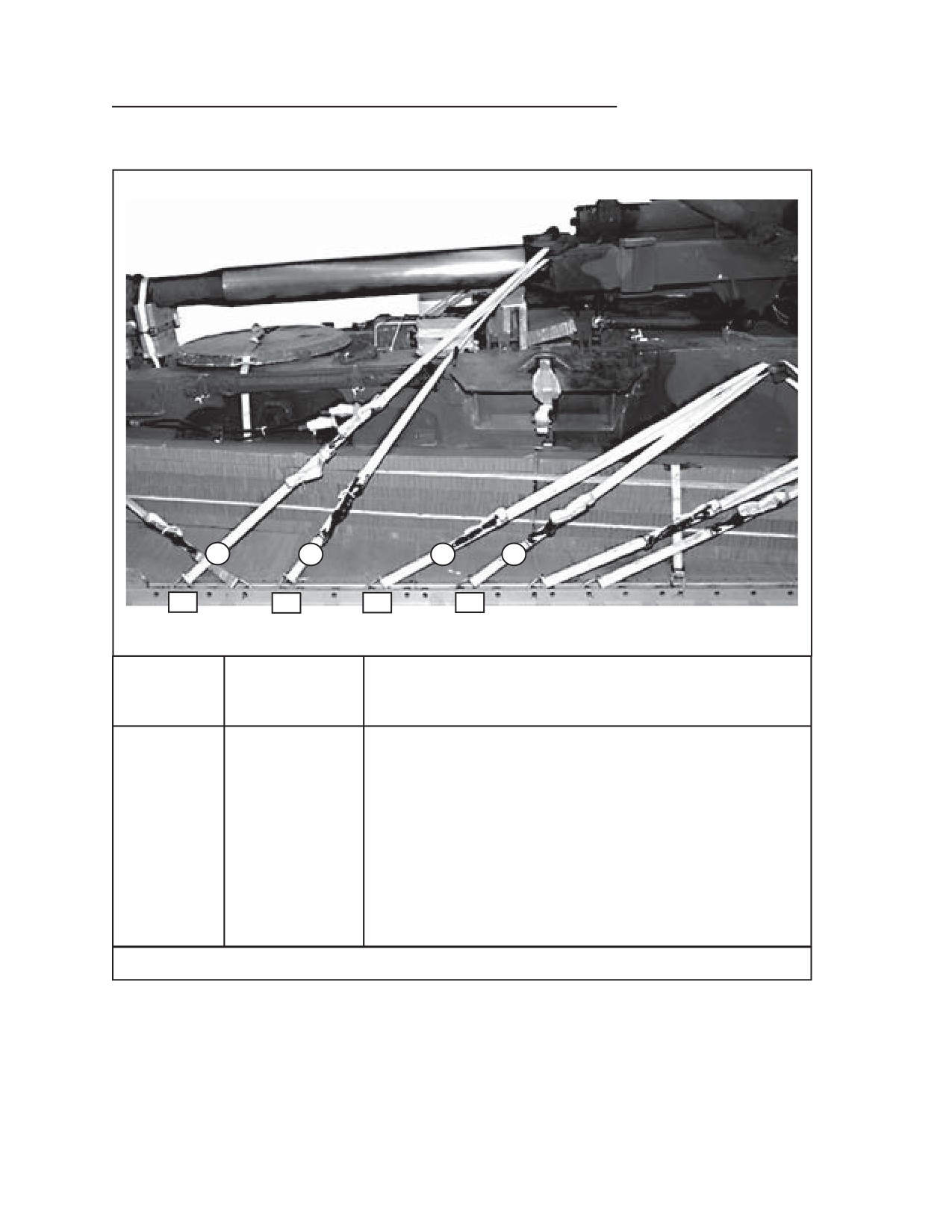

Figure 3-16. Lashings 1 through 4 Installed
3-25
FM 4-20.127/TO 13C7-10-191
5
11
9
7
2
6
5
3
Tie-dow n
Lashin g
Clevis
Instruction s
Number
Number
Pad the contact point with felt and pass lashing:
5
2
Through right locking plug hole on low er carriage.
6
2A
Through left locking plug hole on low er carriage.
7
3
Through tiedow n provision on right trail.
8
3A
Through tiedow n provision on left trail.
9
5
Through the low er trail locking plug hole on right trail.
10
5A
Through the low er trail locking plug hole on left trail.
11
6
Through the upper trail locking plug hole on right trail.
12
6A
Through the upper trail locking plug hole on the left trail.
Figure 3-17. Lashings 5 through 12 Installed
3-26
FM 4-20.127/TO 13C7-10-191
19
17
15
13
11
9
8
7
Tie-dow n
Lashin g
Clevis
Instruction s
Number
Number
Pad the contact point with felt and pass lashing:
13
7
Through tiedow n provision on right trail.
14
7A
Through tiedow n provision on left trail.
15
8
Through tiedow n provision on right trail.
16
8A
Through tiedow n provision on left trail.
17
9
Through the clevis on the right corner of the cradle
assembly.
18
9A
Through the clevis on the left corner of the cradle assembly.
19*
11
Through the clevis on the right corner of the cradle
assembly.
20*
11A
Through the clevis on the left corner of the cradle assembly.
* 30-foot lashing
Figure 3-18. Lashings 13 through 20 Installed
3-27
FM 4-20.127/TO 13C7-10-191
23
21
12
10
Tie-dow n
Lashin g
Clevis
Instruction s
Number
Number
Pass lashing:
21
10
Through tiedow n provision on right trail.
22
10a
Through tiedow n provision on left trail.
23
12
Over the ammunition load, and through the lunette.
24
12a
Over the ammunition load, and through the lunette.
Figure 3-19. Lashings 21 through 24 Installed
3-28
FM 4-20.127/TO 13C7-10-191
27
28
26
25
22A
22
C12
B12
Tie-dow n
Lashin g
Clevis
Instruction s
Number
Number
Pass lashing:
25
22
Through the muzzle brake on the right side.
26
22A
Through the muzzle brake on the left side.
27
B12
Through the lunette.
28
C12
Through the lunette.
Figure 3-20. Lashings 25 through 28 Installed
1
1

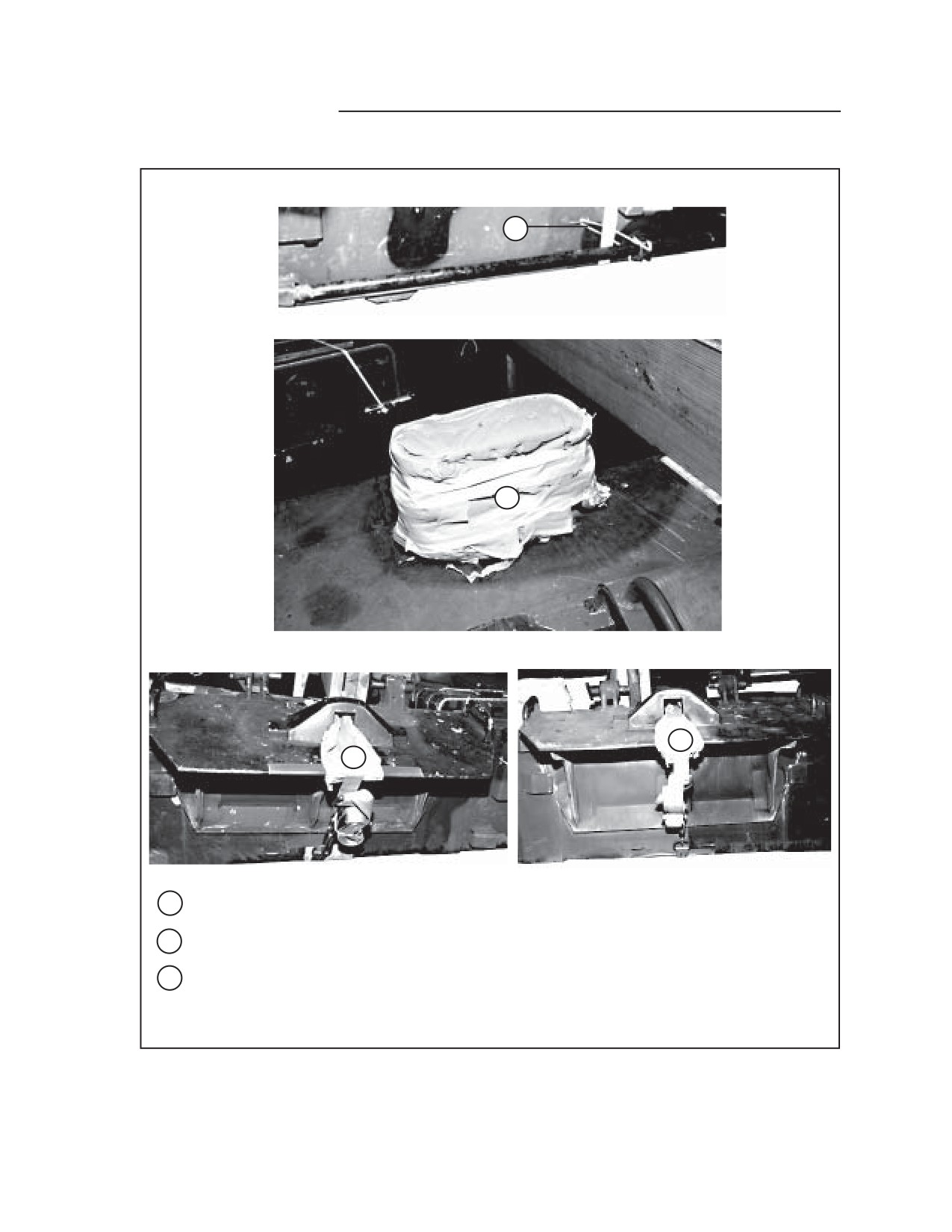

Cut and glue two 12- by 12- inch pieces of honeycomb. Secure the pieces of
honeycomb to the bottom of the bucket using 2-inch adhesive tape. Secure the
bucket handle to the baseplate lashing between the trails with type III nylon cord.
Figure 3-21. Bucket Placed and Secured
3-29
FM 4-20.127/TO 13C7-10-191
BUILDING AND INSTALLING RELEASE STOWAGE PLATFORM
3-9. Build the release stowage platform as shown in Figures 3-22 and 3-23.
Install the release stowage platform as shown in Figure 3-24.
4
4
3
2
3
1
4
3
2
1
1

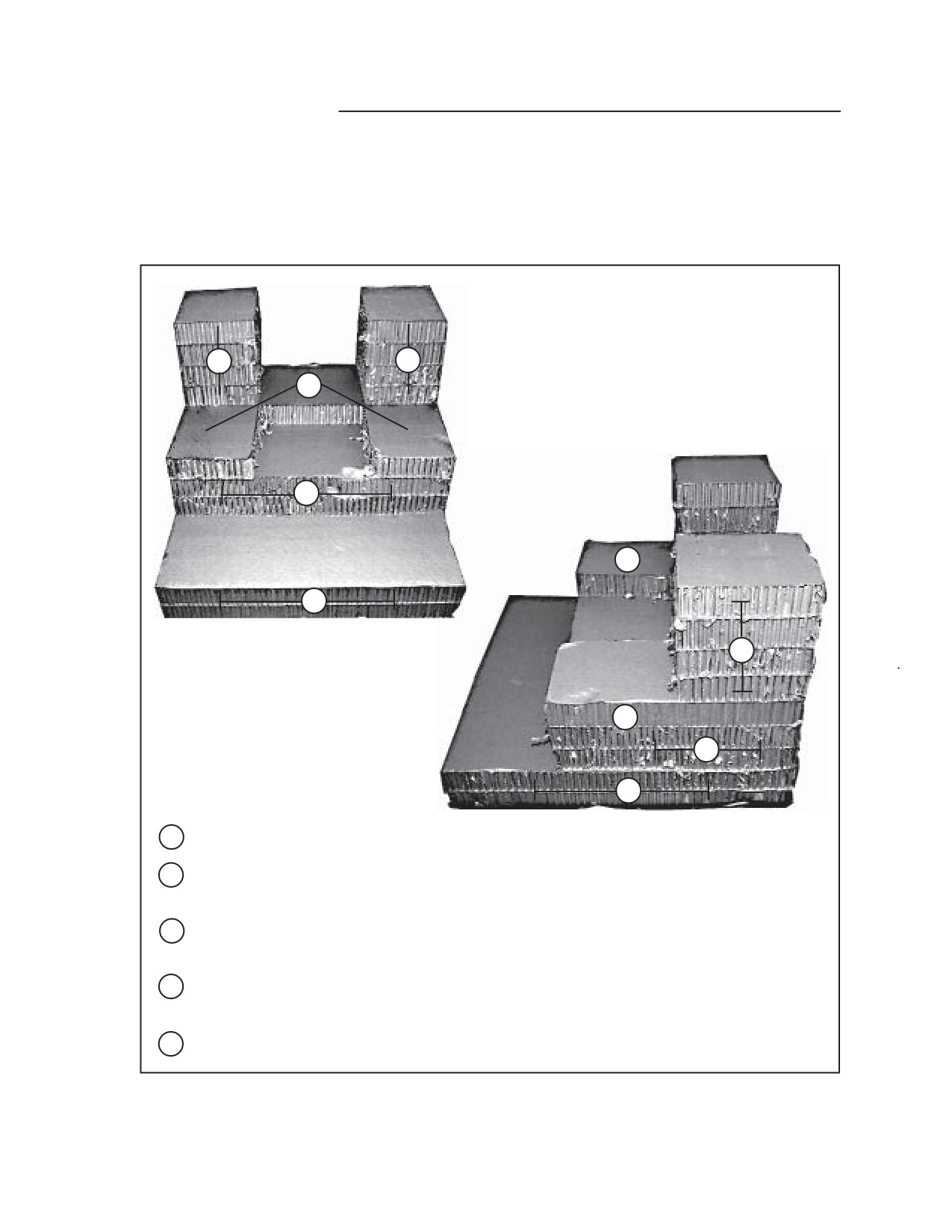

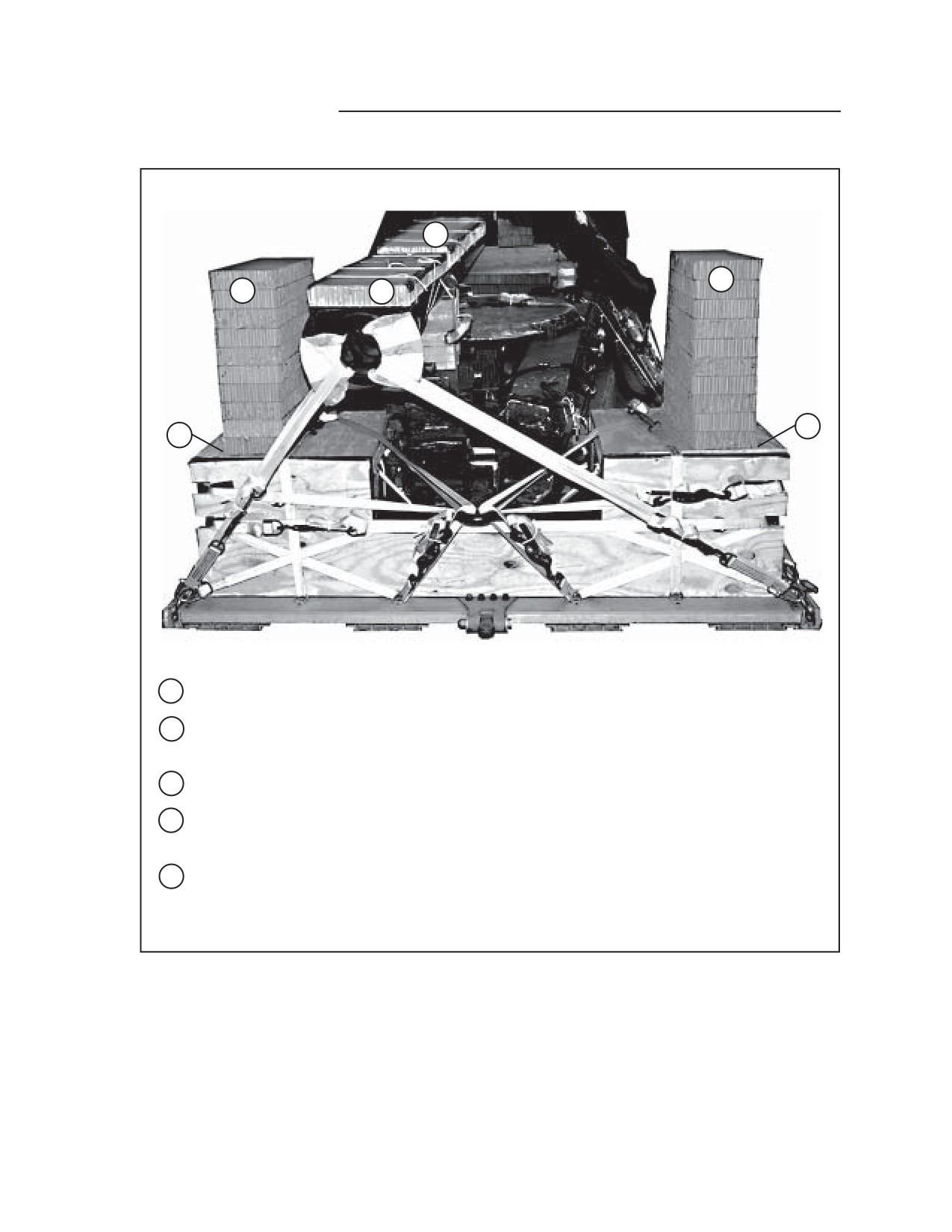

Form a base with two 34- by 36-inch pieces of honeycomb.
2
Cut and glue two 34- by 24-inch pieces of honeycomb flush with the rear edge of the base
stack.
3
Cut and glue a 34- by 24-inch piece of honeycomb with a 14- by 12-inch cutout on the 34-
inch edge. Place the cutout to the front.
5
Cut and glue two stacks of four 10- by 12-inch pieces of honeycomb. Place them flush
with the rear right and left corners.
6
Allow the stacks to dry after being glued.
Figure 3-22. Release Stowage Platform Built
3-30
FM 4-20.127/TO 13C7-10-191
1
2
3
1

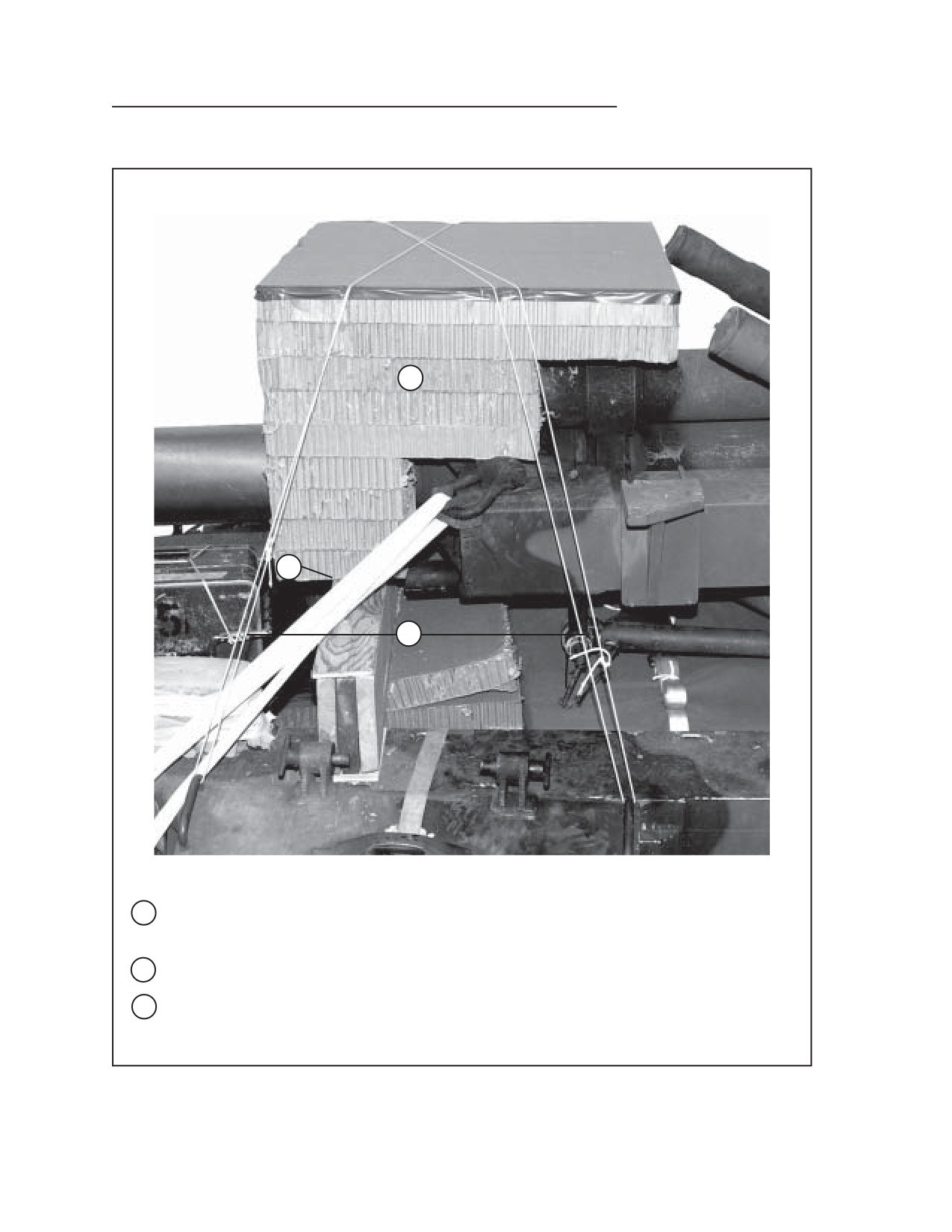

Invert the release platform. Place 2-inch adhesive tape along the top left and right
sides of the honeycomb platform.
2
Place the platform over the top of the gun tube, flush with the tube support lumber.
3
Secure the release platform to the load with type III nylon cord at convenient points on
the load.
Figure 3-23. Release Platform Installed
3-31
FM 4-20.127/TO 13C7-10-191
1
2
3
1

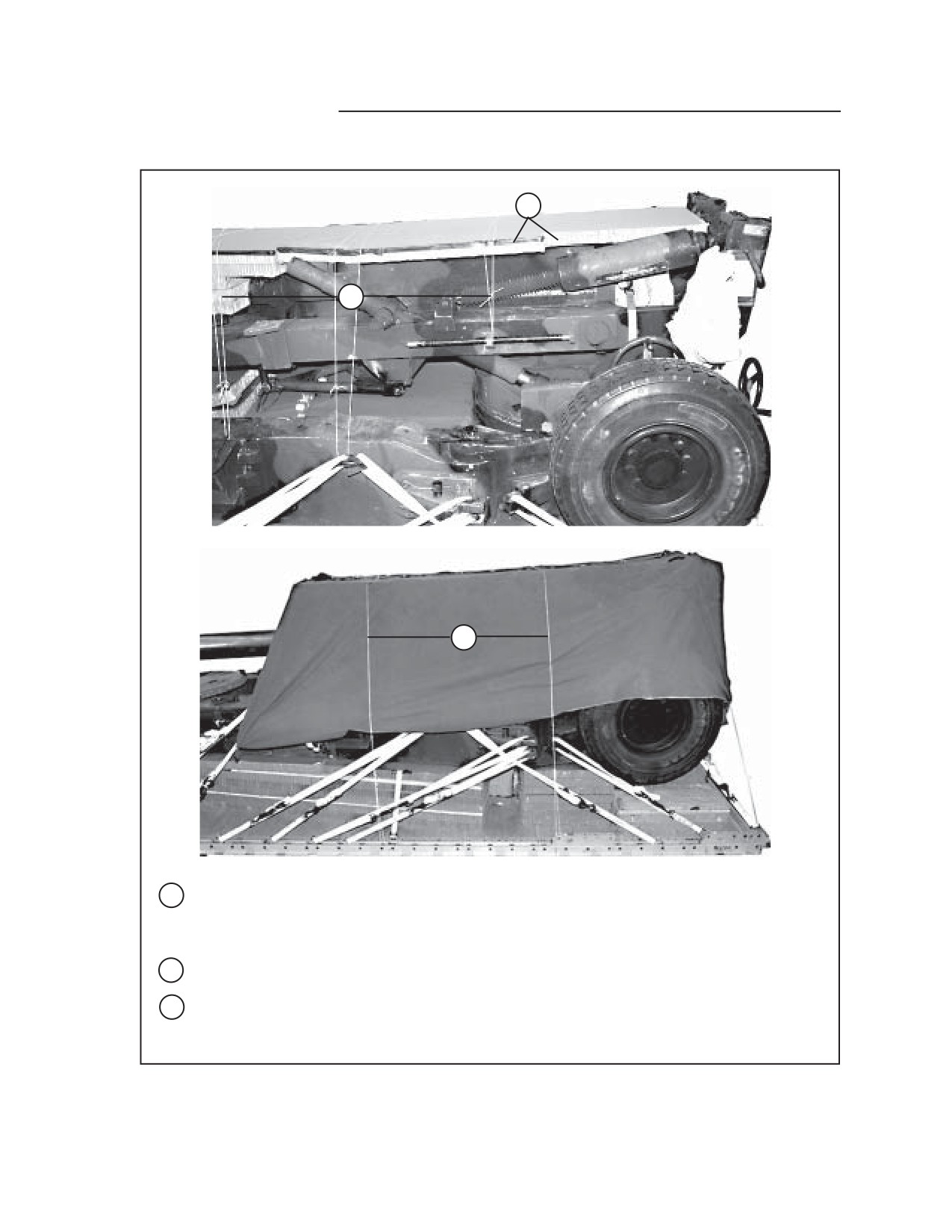

Make a 3- by 36-inch cutout in each front corner of a 36- by 96-inch piece of honeycomb.
Place 2-inch adhesive tape along the sides of the honeycomb. Place the piece on top of
the cradle assembly.
2
Tie the 36- by 96-inch piece of honeycomb in place with type III nylon cord.
3

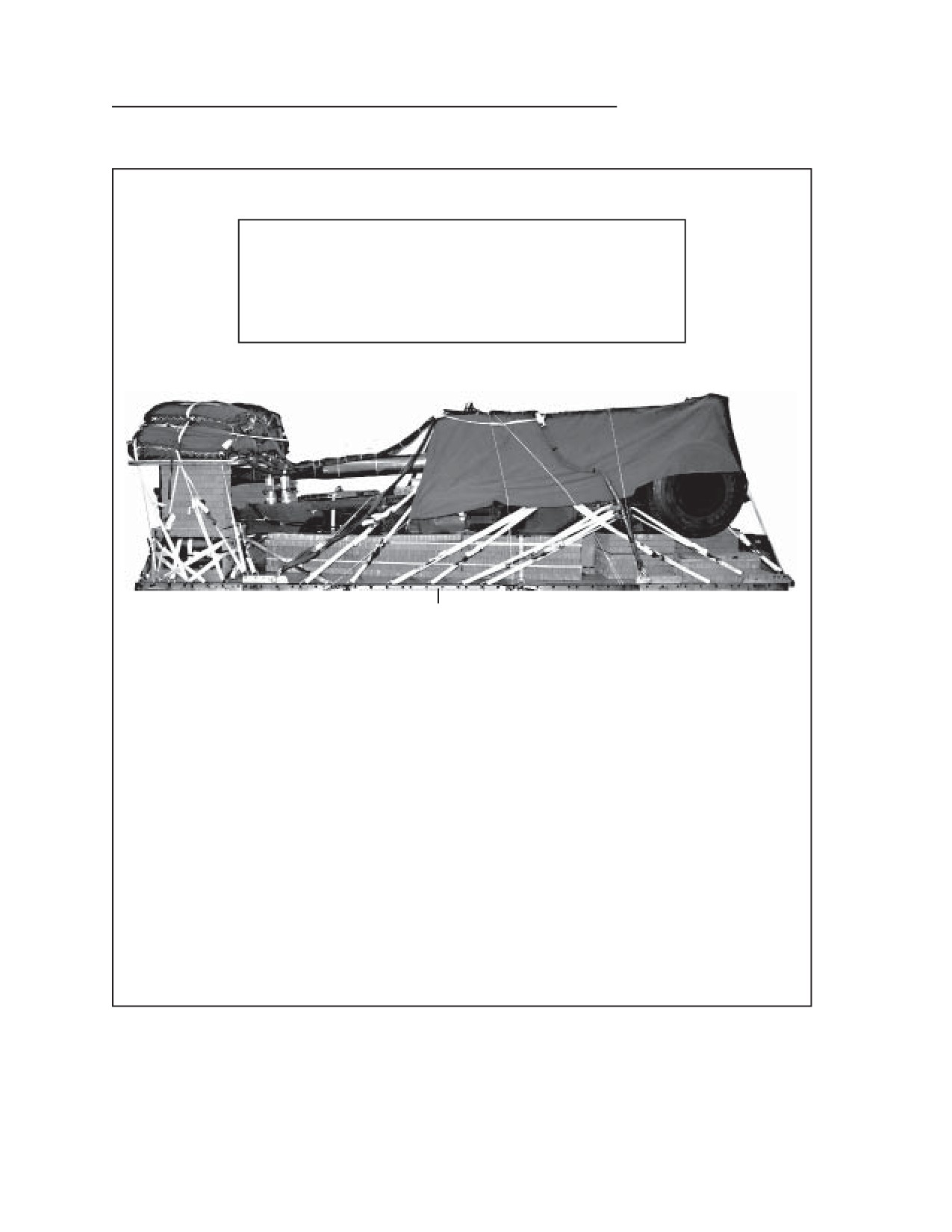

Place a 10- by 16-foot piece of canvas over the load. Tie the canvas in place with type
III nylon cord under the gun tube and to convenient points on the load.
Figure 3-24. Release Platform Installed and Load Covered
3-32
FM 4-20.127/TO 13C7-10-191
INSTALLING, PADDING AND SECURING SUSPENSION SLINGS
3-10. Install suspension slings according to FM 4-20.102/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 3-25.
Pad and secure the suspension slings as shown in Figure 3-26.
5
2
3
1
Note: Pad and tape any sharp areas the suspension slings may come in
contact with during deployment.
1
Attach a 16-foot (4-loop), type XXVI nylon sling to each front suspension bracket with a
large clevis.
2
Place one end of a 3-foot (4-loop), type XXVI nylon sling on a large clevis. Pass the free
end of the sling through a 5 1/2-inch two point link. Place the free end on the large
clevis and attach it to the rear suspension bracket. Repeat for the opposite side
(Not Shown).
3
Attach a 16-foot (4-loop), type XXVI nylon sling to the 5 1/2 -inch two-point link.
4
Repeat for the opposite side (Not Shown).
5
Raise the suspension slings and install the safety tie according to FM 4-20.102/NAVSEA
SS400-AB-MMO-010/TO13C7-1-5.
Figure 3-25. Suspension Slings Installed
3-33
FM 4-20.127/TO 13C7-10-191
1
2
3
1
Pad both front suspension slings with a 24- by 6-inch piece of felt. Center the felt on
the slings where they make contact with the rear trail locking plug holes. Tape the
felt in place with 2-inch adhesive tape. Tape both rear trail locking plug holes with
2-inch adhesive tape.
2

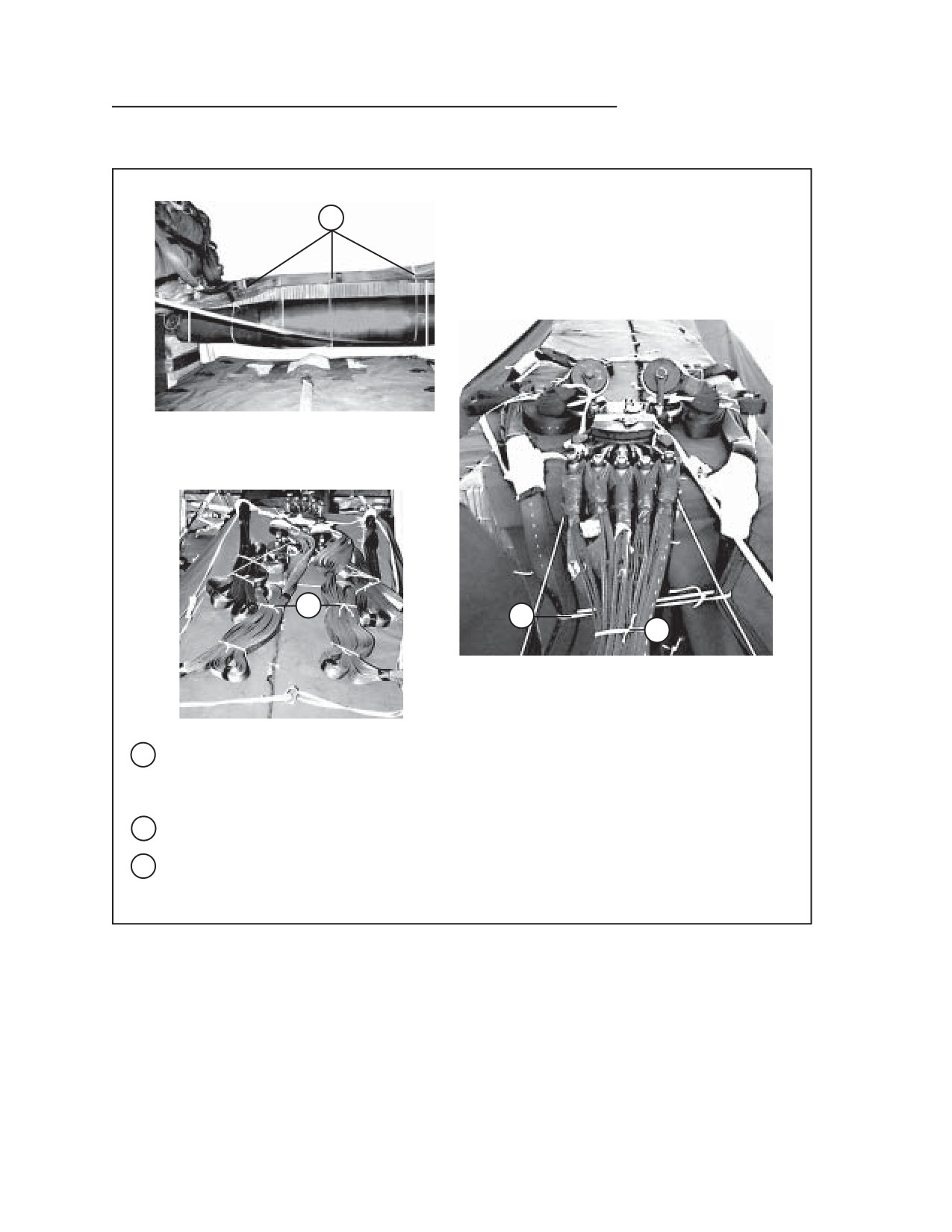

Route a length of type III nylon cord through the rear trail locking plug holes, around
the sling, and back through the rear trail locking plug holes. Secure it against the rear
trail locking plug hole. Repeat for the other side of gun.
3
Secure the 5 1/2-inch two-point links to the lifting provisions on the trails with type III
nylon cord.
4
Lower the suspension slings (Not Shown).
Figure 3-26. Suspension Slings Padded and Secured
3-34
FM 4-20.127/TO 13C7-10-191
STOWING CARGO PARACHUTES

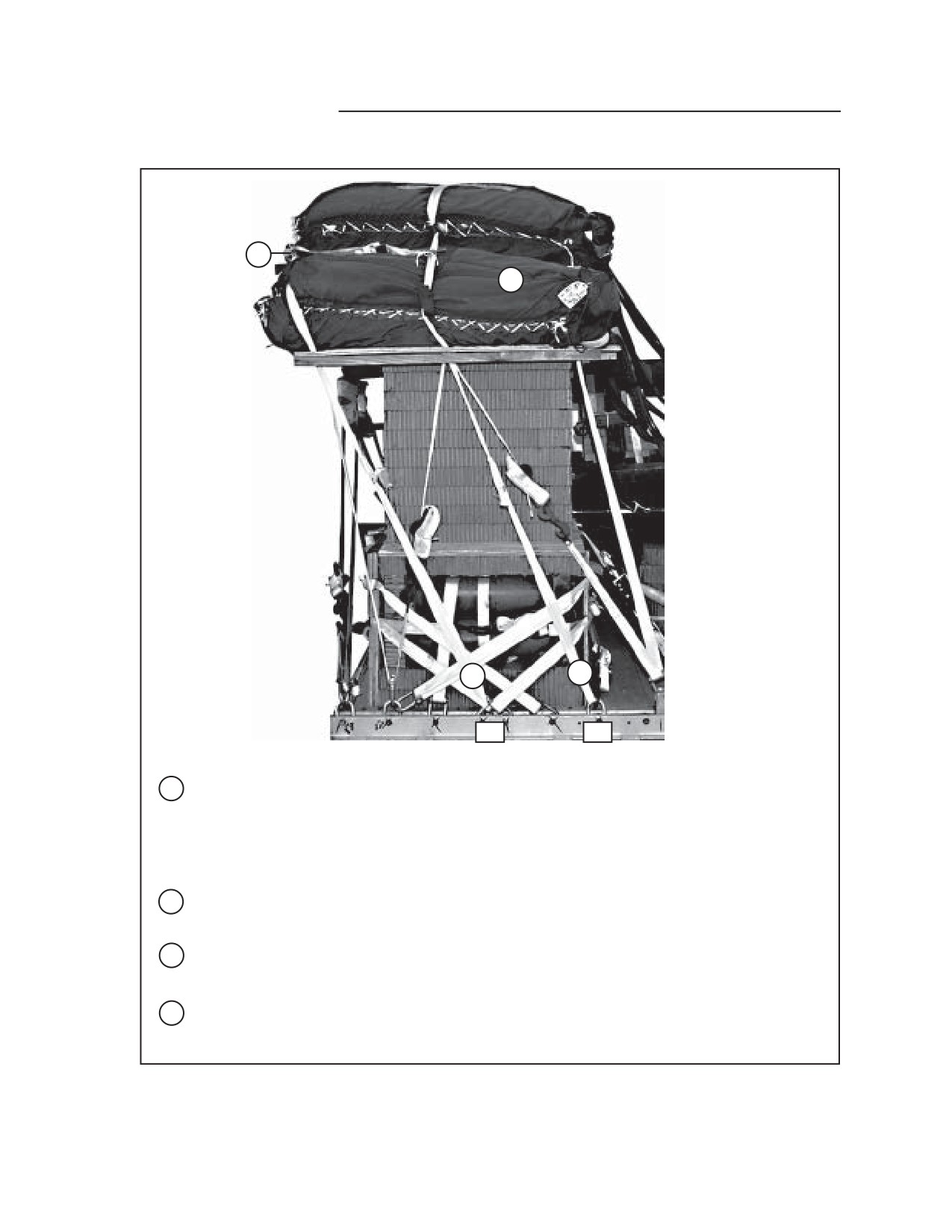

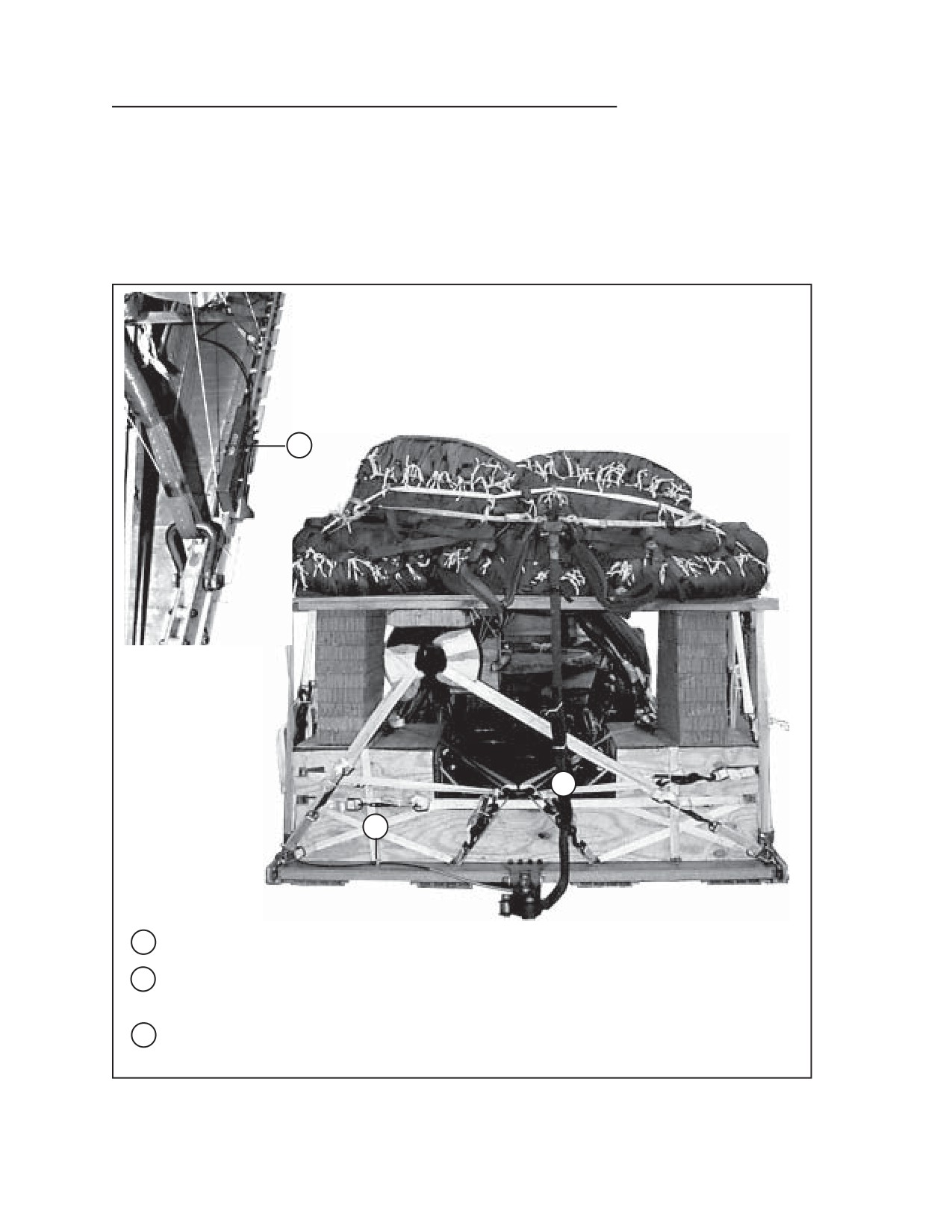

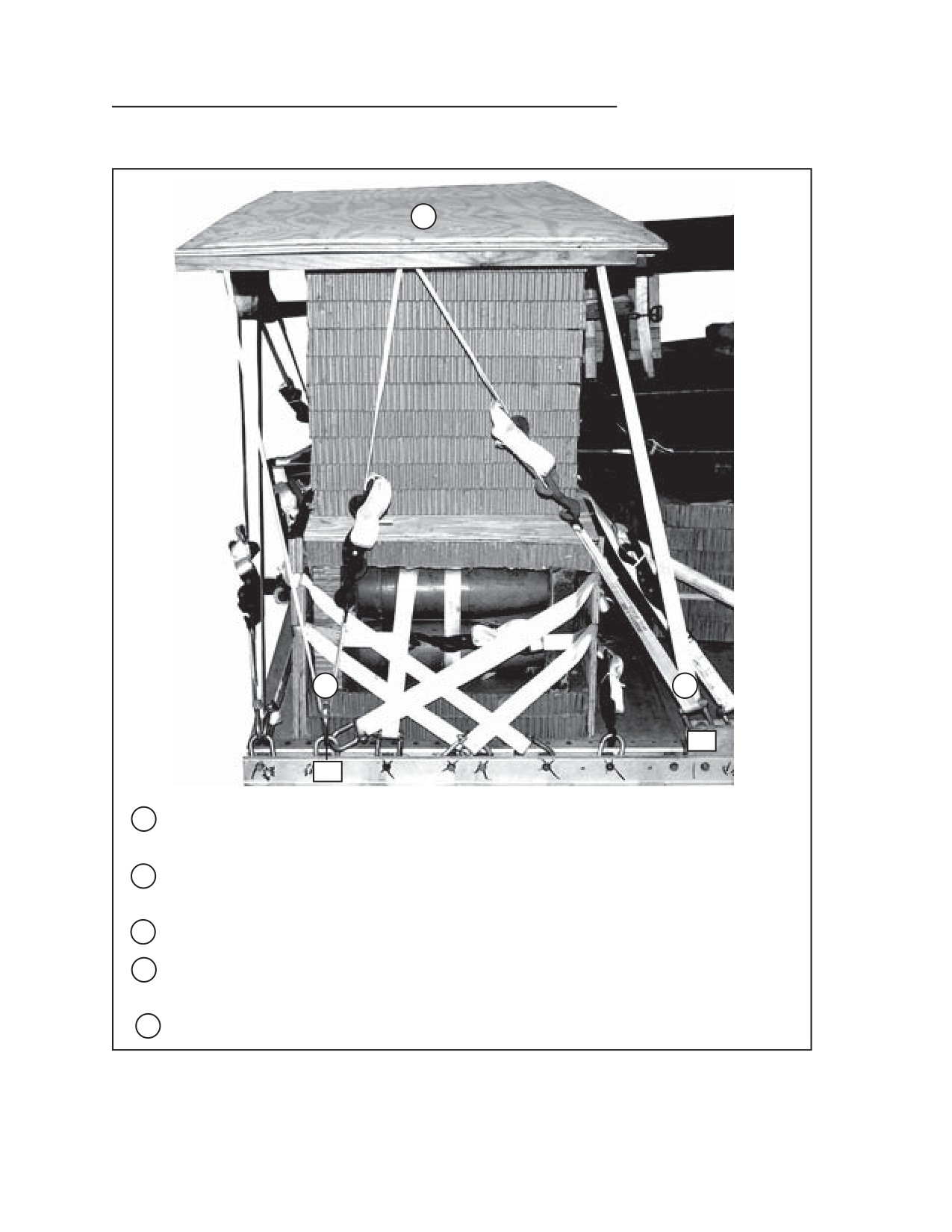

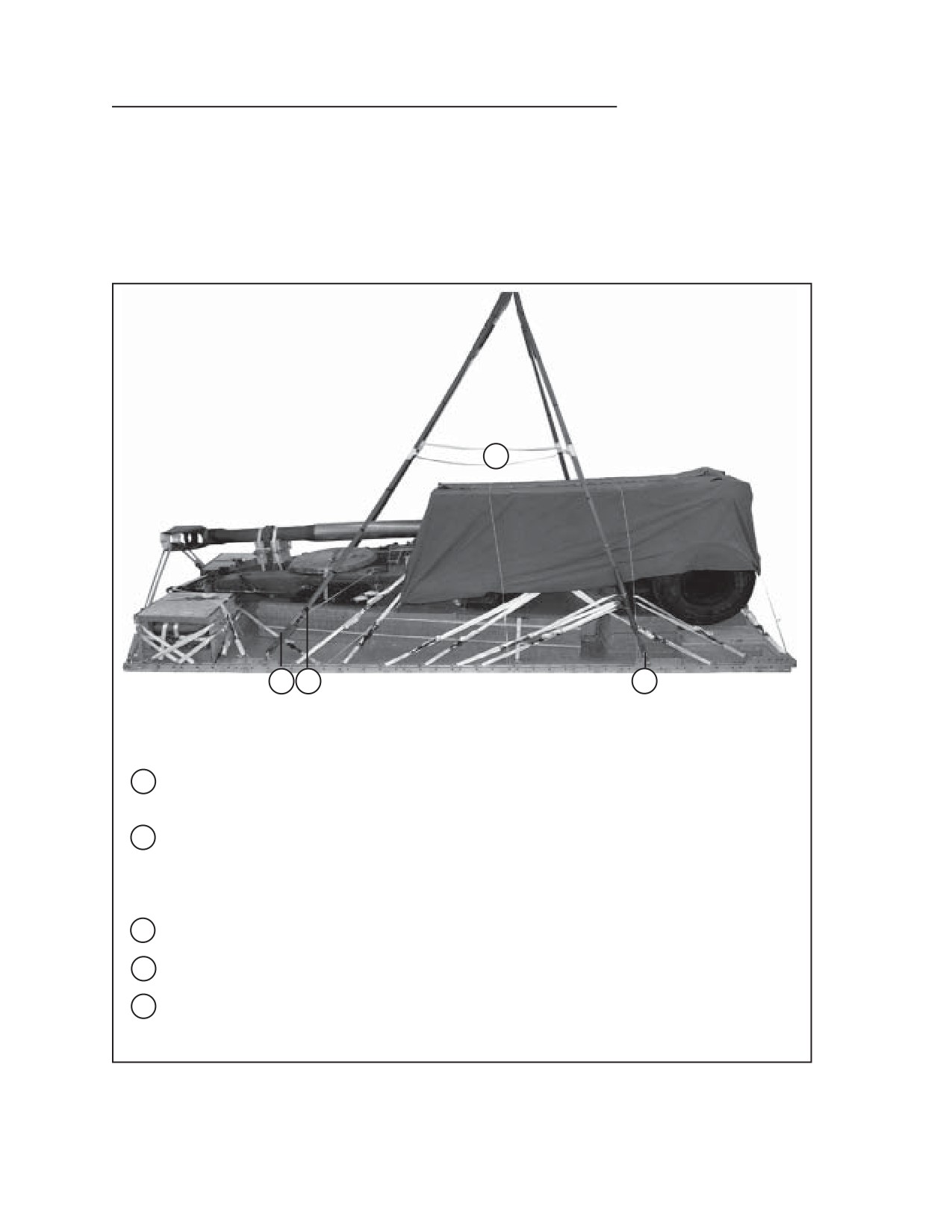

3-11. Build the stowage platform as shown in Figure 3-27. Install the
parachute stowage platform as shown in Figure 3-28. Stow five G-11C
cargo parachutes and install the parachute restraint straps and install
the multicut parachute release straps as shown in Figure 3-29.

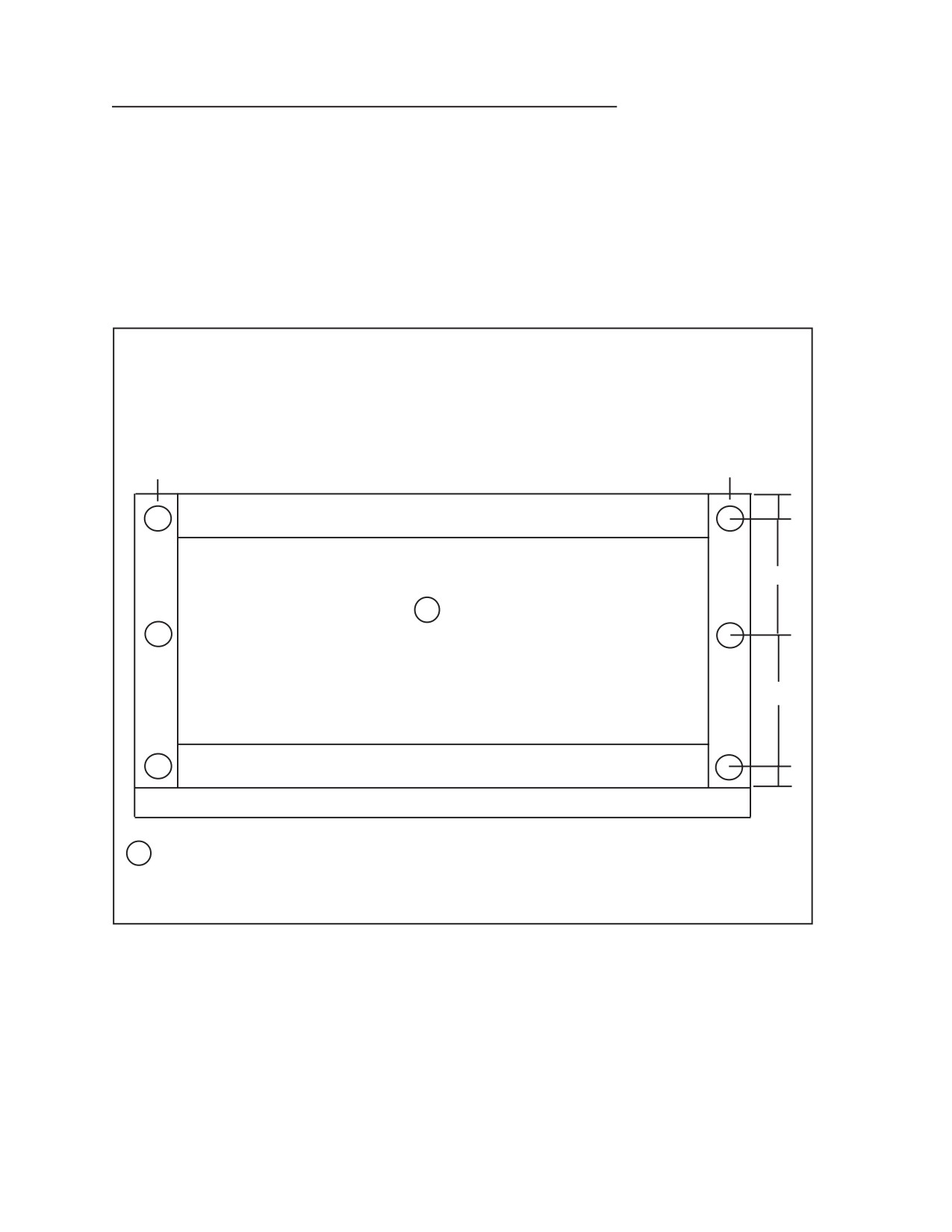

Notes: 1. Drawing is not to scale.
2. All dimensions are given in inches.
2 x 6 x 45
2 x 6 x 45
3
2 x 6 x 85
19 1/2
1
3/4 x 48 x 96
19 1/2
2 x 6 x 85
3
1
Build the parachute stowage platform as shown using 8d nails. Drill 2-inch
holes through the plywood and the end pieces of the 2- by 6-inch lumber as
shown.
Figure 3-27. Parachute Stowage Platform Built
3-35
FM 4-20.127/TO 13C7-10-191
5
1
1
4
2
3
1
Cut 20 pieces of 12- by 29-inch honeycomb and make two 10-layer support stacks.
2
Place one honeycomb stack 5 inches from the right side and flush with the rear edge of
the ammunition load.
3
Repeat step 2 for the left side.
4
Place a 14- by 50-inch piece of honeycomb on top of the muzzle brake. Tape the edges
with 2-inch adhesive tape. Secure the piece with four lengths of type III nylon cord.
5
Place a 10- by 56-inch piece of honeycomb on top of the gun tube. Tape the edges with
2-inch adhesive tape. Secure with type III nylon in three evenly spaced places. Do not
use tape on the gun tube.
Figure 3-28. Parachute Stowage Platform Installed
3-36
FM 4-20.127/TO 13C7-10-191
6
9
7
13
REAR
20
6
Center the parachute stowage platform on top of the honeycomb support stacks with
the rear edge of the stowage platform flush with the rear edge of the type V platform.
7
Route a 15-foot lashing through clevis 13, up through the right front hole, down through
the center hole, and secure with a D-ring and load binder.
8
Repeat step 7 on the left side clevis 13A (Not Shown).
9
Route a 15-foot lashing up through clevis 20, up through the right rear hole, down
through the center hole, and secure with a D-ring and load binder.
10 Repeat step 8 on the left side using clevis 20A (Not Shown).
Figure 3-28. Parachute Stowage Platform Installed (Continued)
3-37
FM 4-20.127/TO 13C7-10-191
4
1
3
2
17
14
1
Prepare and stow five G-11C cargo parachutes on the parachute stowage platform
according to FM 4-20.102/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
Note: If needed, a stow or two of the riser extension may be removed from the
riser extension compartment of each cargo parachute.
2
Install the first parachute restraint strap through the center hole of the parachute
stowage platform and to clevises 14 and 14A.
3
Install the second parachute restraint strap through the rear holes of the parachute
stowage platform and to clevises 17 and 17A.
4
Install two multicut parachute release straps according to FM 4-20.102/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5.
Figure 3-29. Cargo Parachutes Stowed and Restraint Installed
3-38
FM 4-20.127/TO 13C7-10-191
INSTALLING EXTRACTION SYSTEM
3-12. Install the Extraction Force Transfer Coupling (EFTC) system
according to FM 4-20.102/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5
and as shown in Figure 3-30.
1
3
2
1
Install the EFTC actuator mounting brackets using the rear mounting holes.
2
Install a 24-foot cable. Safety tie the cable in convenient places with one turn type I,
1/4-inch cotton webbing.
3
Attach a 9-foot (2 loop), type XXVI nylon sling as the deployment line.
Figure 3-30. Extraction System Installed
3-39
FM 4-20.127/TO 13C7-10-191
INSTALLING PARACHUTE RELEASE SYSTEM
3-13. Install an M-2 parachute release system according to FM 4-20.102/
NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 3-31.
1
NOTICE OF EXCEPTION
The procedures in this manual for using the 25-foot arming wire
lanyard are different from those in FM 4-20.102/NAVSEA SS400-
AB-MMO-010/TO 13C7-1-5 and an exception is granted. The
procedures in step 1 below MUST be followed.
1
Using a 25-foot arming wire lanyard, install the M-2 parachute release on top of the
load cover at the rear edge of the release stowage platform. Attach suspension slings
and parachute riser extensions according to FM 4-20.102/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5.
Figure 3-31. Parachute Release Installed and Suspension Slings Secured
3-40
FM 4-20.127/TO 13C7-10-191
2
4
3
2
2

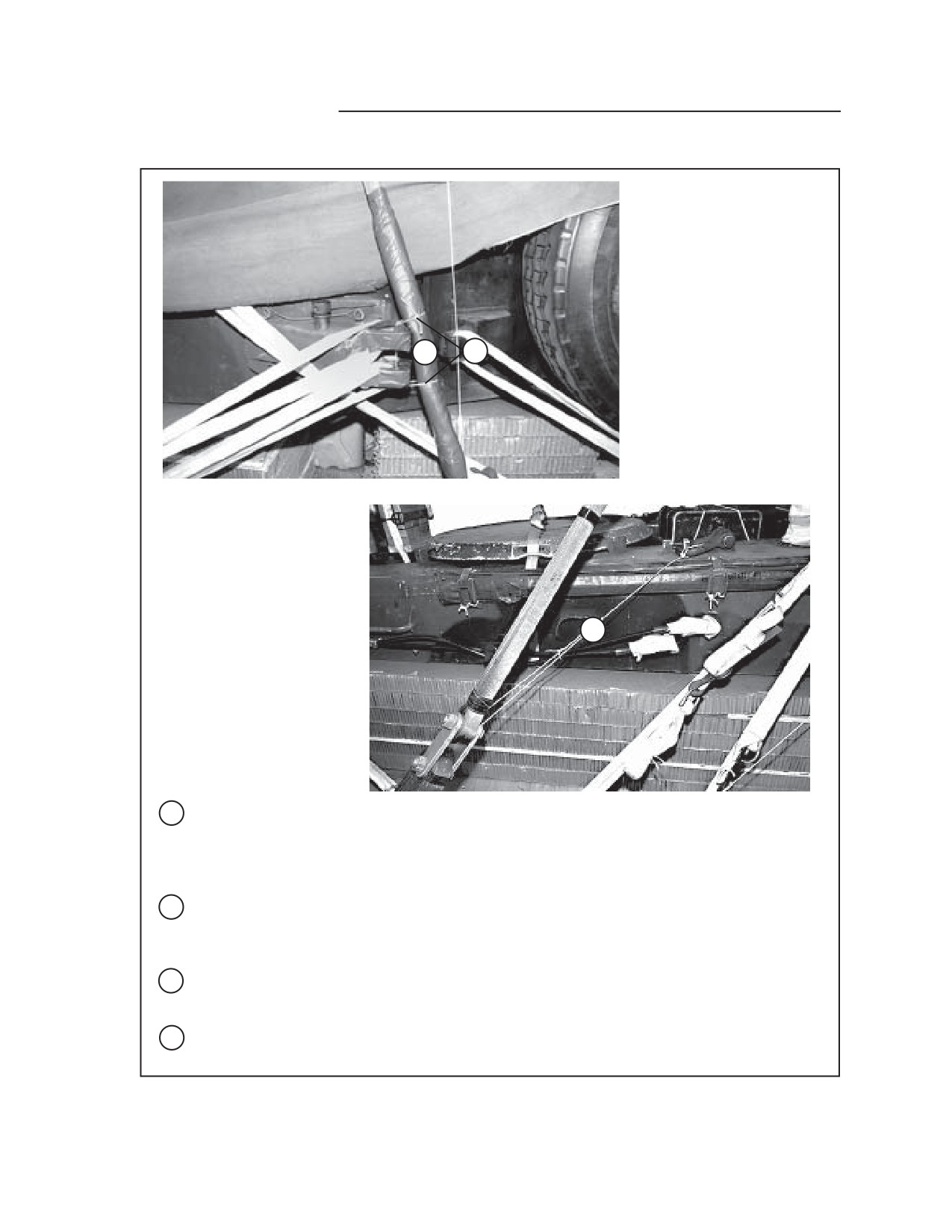

Group and tie the parachute riser extensions with type I, 1/4-inch cotton webbing
using a girth hitch. Route the free ends around honeycomb and gun barrel and tie
underneath.
3
Secure the rear suspension slings together with a length of 1/4-inch cotton webbing.
4
S-fold all the slack in the front suspension slings and secure with 1/4-inch cotton
webbing.
Figure 3-31. Parachute Release Installed and Suspension Slings Secured (Continued)
3-41
FM 4-20.127/TO 13C7-10-191
INSTALLING PROVISIONS FOR EMERGENCY RESTRAINTS
3-14. Install the provisions for the emergency restraints on the load
according to FM 4-20.102/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
PLACING EXTRACTION PARACHUTE
3-15. Select the extraction parachute and extraction line needed using the
extraction line requirements table in FM 4-20.102/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5. Rig the extraction line in an extraction line bag
according to TM 10-1670-286-20/TO 13C5-2-41. Place the extraction
parachute and extraction line on the load for installation in the aircraft.
If a drogue parachute and drogue line are required, place them on the
platform for installation in the aircraft as well.
MARKING RIGGED LOAD
3-16. Mark the rigged load according to FM 4-20.102/NAVSEA SS400-
AB-MMO-010/TO 13C7-1-5 and as shown in Figure 3-32. Complete
the Shipper’s Declaration for Dangerous Goods. If the load varies from
the one shown, the weight, height, center of balance (CB), and parachute
requirements must be recomputed.
EQUIPMENT REQUIRED
3-17. Use the equipment listed in Table 3-1 to rig this load.
3-42
FM 4-20.127/TO 13C7-10-191
CAUTION
Make the final rigger inspection required by AR 59-4/AFJ
13-210(I) and FM 4-20.102/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5 before the load leaves the rigging site.
CB
RIGGED LOAD DATA
Weight
23,700 pounds
Maximum Weight
25,000 pounds
Height
92 inches
Width
108 inches
Overall Length
288 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Center of Balance (CB) (from front edge of platform)
124 inches
Figure 3-32. M198, 155-mm Howitzer with MACS Rigged on a Type V Platform for
Low Velocity Airdrop
3-43
FM 4-20.127/TO 13C7-10-191
Table 3-1. Equipment Required for Rigging the M198, 155-mm Howitzer With Accompanying
Ammunition Load on a Type V Platform for Low-Velocity Airdrop
National Stock
Item
Quantity
Number
8040-00-273-8713
Adhesive paste, 1-gal
As required
1670-01-035-6054
Bridle, extraction line lead, (line bag for DES
)
1
4030-00-090-5354
Clevis, large
7
4030-00-678-8562
Clevis, medium
6
8305-00-880-8155
Cloth, coated (nylon, type II, 17 oz, green, 60 in)
As required
4020-00-240-2146
Cord, nylon, type III, 550-lb
As required
1670-00-434-5782
Coupling, airdrop, EFTC, 24-ft
1
1670-00-360-0328
Cover, clevis, large
3
8135-00-664-6958
Cushioning material, packaging, cellulose wadding
As required
1670-00-003-4391
Knife, parachute bag (for DES
)
1
1670-01-183-2678
Leaf, extraction line, (line bag) (add 1 for DES
)
1
Line, drogue (for DES
)
1670-01-064-4452
60-ft 1-loop, type XXV I
1
Line, extraction, type XXVI nylon webbing
1670-01-062-6313
60-ft (3-loop, C-130
)
1
1670-01-107-7651
140-ft (3-loop, C-17, C-5)
1
Link
1670-01-493-6418
Assembly small, two-point, 3 3/4-in
2
1670-01-493-6420
Assembly large, two-point, 5 1/2-in
2
1670-01-483-8259
T
ow Release Mechanism (TRM)(H-block) C17 aircraft
1
Lumber:
5510-00-220-6148
2- by 6- by 12-in
2
2- by 6- by 36-in
4
2- by 6- by 45-in
2
2- by 6- by 85-in
2
5510-00-220-6248
2- by 10- by 12-in
6
2- by 10- by 57-in
4
Nail, steel wire, common,
5315-00-164-5121
20d
As required
5315-00-010-4659
8d
As required
3-44
FM 4-20.127/TO 13C7-10-191
Table 3-1. Equipment Required for Rigging the M198, 155-mm Howitzer With Accompanying
Ammunition Load on a Type V Platform for Low-Velocity Airdrop (Continued)
National Stock
Item
Quantity
Number
1670-00-753-3928
Pad, energy dissipating, honeycomb, 3- by
36- by
96-in
34 sheets
Parachute:
1670-01-016-7481
Cargo: G-11C
5
1670-00-040-8135
Cargo extraction 28-foot
1
1670-01-063-3715
Cargo extraction, 15-ft (Drogue for DES
)
1
Platform, airdrop type
V
, 24-ft
1670-01-353-8425
Bracket assembly, coupling
1
1670-01-353-8424
Bracket, assembly, extraction
1
1670-01-162-2372
Clevis assembly, type
V
, tiedown clevis
48
1670-01-162-2381
T
andem link assembly (Multipurpose link)
4
5530-00-128-4981
Plywood, 3/4-in by 48- by 96 inch sheet
8
1670-01-097-8817
Release, cargo parachute, M-2
1
Sling, cargo airdrop
For suspension:
1670-01-062-6306
3-ft (4-loop), type XXVI nylon webbing
2
1670-01-062-6308
16-ft (4-loop), type XXVI nylon webbing
4
For deployment:
1670-01-062-6305
9-ft (2-loop), type XXVI nylon webbing
1
For riser extentsion
:
1670-01-062-6311
120-ft (2-loop), type XXVI nylon webbing
5
5340-00-040-8219
Strap, parachute release, multicut
2
7510-00-266-5016
T
ape, adhesive, 2-in, O D
As required
7510-00-266-6710
T
ape, masking, 2-in
As required
1670-00-937-0271
Tie-down assembly, 15-ft
61
5365-00-937-0147
D-ring, heavy duty, 10,000-lb
55
1670-00-937-0272
Binder, load, 10,000-lb
51
Webbing:
8305-00-268-2411
Cotton, 1/4-in, type I
As required
Nylon:
8305-00-082-5752
Tubular, 1/2-in
As required
8305-00-263-3591
T
ype VIII
As required
3-45
FM 4-20.127/TO 13C7-10-191
GLOSSARY
AD
airdrop
AFB
Air Force base
AFJMAN
Air Force Joint Manual
AFTO
Air Force Technical Order
AGL
Above Ground Level
ALC
Airlift Logistics Center
AMC
Air Mobility Command
attn
attention
CB
center of balance
chap
chapter
d
penny
DA
Department of the Army
DES
Drogue Extraction System
DC
District of Columbia
DD
Department of Defense
diam
diameter
fig
figure
FM
field manual
ft
foot/feet
gal
gallon
HQ
headquarters
in
inch
JAI
joint airdrop inspector
lb
pound
MAJCOM
Major Command
MACS
Modular Artillery Charged System
LV
low-velocity
MCRP
Marine Corps Reference Publication
mm
millimeter
NAVSEA
Navel Sea Command
NSN
national stock number
PFA
platform fitting assembly
TM
technical manual
TO
technical order
TRADOC
US Army Training and Doctrine Command
US
United States
wt
weight
w
with
w/o
without
yd
yard
Glossary-1
FM 4-20.127/TO 13C7-10-191
REFERENCES
AR 59-4/AFJ 13-210(I)
Joint Airdrop Inspection Records, Malfunction Investigation
and Activity Reporting 1 May 1998
AFMAN 24-204(I)/
Preparing Hazardous Materials for Military Air Shipments.
TM 38-250/NAVSUP
11 December 2001.
PUB 505/MCOP4030
FM 4-20.102/NAVSEA
Airdrop of Supplies and Equipment: Rigging Airdrop
SS400-AB-MM0-010/
Platforms. 22 August 2001.
TO 13C7-1-5
FM 4-20.153/
Airdrop of Supplies and Equipment: Rigging
MCRP 4-11.351/
Ammunition.
TO 13C7-18-41
TM 9-1025-211-10
Operator’s Manual for Howitzer, Medium, Towed:
155-MM, M198, 10 January 1991
TM 10-1670-268-20&P/
Organizational Maintenance Manual With Repair Parts and
MCRP 4-3.8/
Special Tools List: Type V Airdrop Platform and Dual Row
TO 13C7-52-22
Airdrop Platform. 15 September 2002.
TM 10-1670-277-23&P/
Unit and Direct Support (DS) Maintenance Manual
TO 13C5-28-2/
(Including Repair Parts and Special Tools List) for
NAVAIR 13-1-30
Parachute, Cargo Type: 28-Foot Diameter, Cargo
Extraction Parachute NSN 1670-01-262-1797 and NSN
1670-00-040-8135, 5 August 1991.
TM 10-1670-280-23&P/
Unit and Intermediate Direct Support (DS) Maintenance
TO 13C5-31-2/
Manual (Including Repair Parts and Special Tools List)
NAVAIR 13-1-31
for Parachute, Cargo Type: 100-Foot Diameter, G-11B,
G-11C and G-11D, (NSN 1670-01-016-7841).
15 September 2002.
TM 10-1670-286-20/
Unit Maintenance Manual for Sling/Extraction Line
TO 13C5-2-41
Panel (Including Stowing Procedures). 15 March 2001.
TM 10-1670-296-20&P/
Unit Maintenance Manual Including Repair Parts
TO 13C7-49-2
and Special Tools List for Ancillary Equipment
for Low Velocity Airdrop System. 30 October 2002.
References-1
FM 4-20.127/TO 13C7-10-191
AFTO Form 22
Technical Order Publication Improvement Report
DA Form 2028
Recommended Changes to Publication and Blank Forms.
February 1974.
DD Form 1748 Series Joint Airdrop Inspection Record.
Shipper’s Declaration Locally procured form.
for Dangerous Goods
References- 2















Content      ..     2      3      4
