FM 4-20.105-2 Airdrop of Supplies and Equipment: Dual Row Airdrop Systems, Volume II (August 2006) - page 2





Chapter 10
Note. All dimensions are given in inches.
THIRD
SECOND
FIRST
REAR
FRONT
16
14
40
Stack
Pieces
Width
Length
Material
Instructions
Number
(inches)
(inches)
2
3
72
12
Honeycomb
Position on the floor with the second
piece 40 inches from the first and the
third piece 14 inches from the second.
Cut a 6- by 6-inch hole in each piece
of honeycomb 6 inches in from the
side and centered.
1
9
9
Honeycomb
Centered and 16 inches from the rear
of the first piece of honeycomb.
1
12
90
Honeycomb
Center and glue across the first four
pieces of honeycomb.
6
30
12
Honeycomb
Cut 6- by 6-inch holes, 6 inches from
one side, in the center of each piece.
Line the holes up on the base and
glue in place.
3
72
12
Honeycomb
Cut 6- by 6-inch holes on each side of
the honeycomb, 6 inches from the
sides and centered. Line the holes up
on the base and glue in place.
6
12
12
Honeycomb
Center and glue three pieces on the
second and third sections.
2
9
9
Honeycomb
Center and glue on the first section’s
front edge.
3
9
9
¾-inch
Glue on top of the 9- by 9-inch
Plywood
honeycomb stack.
1
9
9
Honeycomb
Glue on top of the 9- by 9-inch
plywood stack.

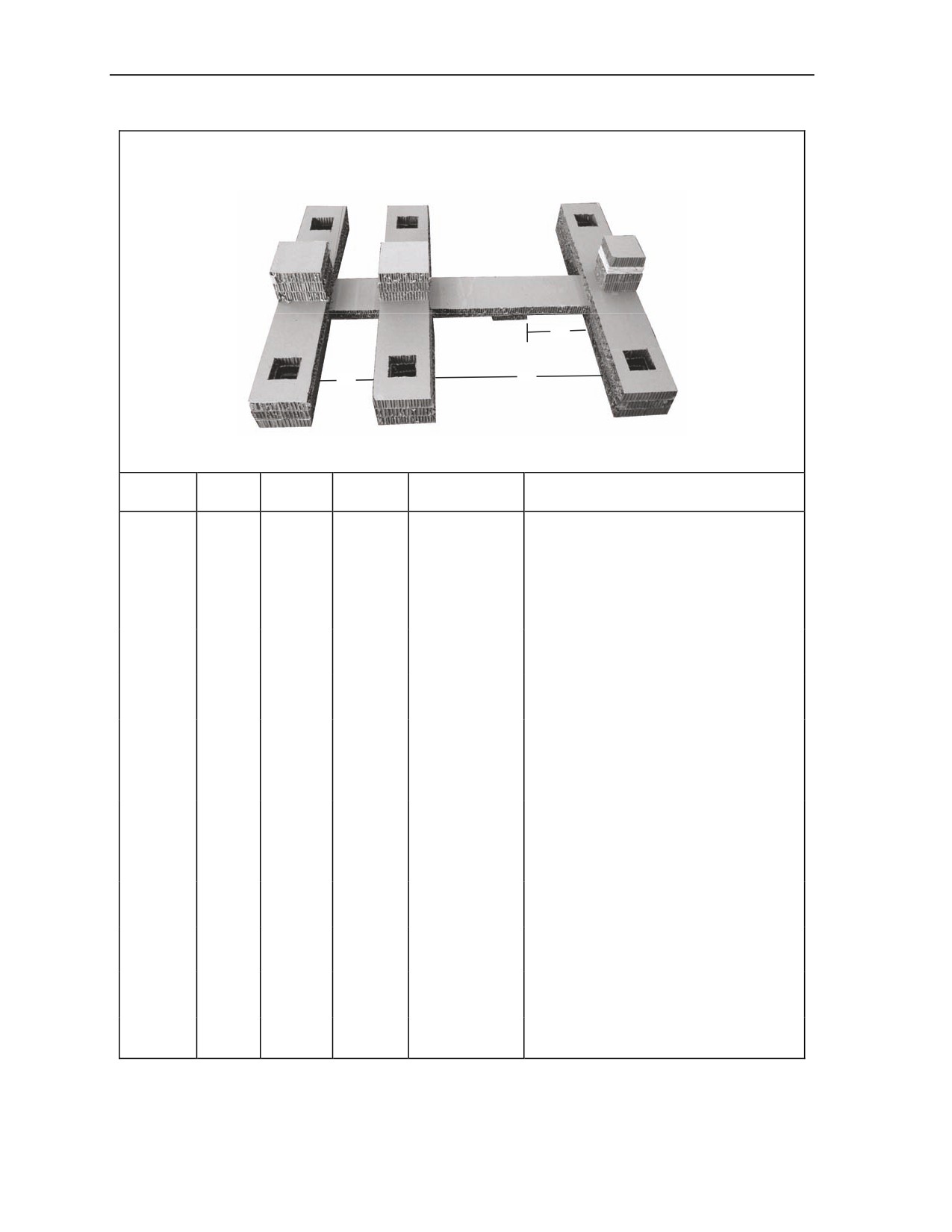

Figure 10-3.
Honeycomb Stacks Prepared (Continued)
10-4
FM 4-20.105-2/TO 13C7-1-51 VOL II
29 August 2006
Rigging M-Gator with Accompanying Load on Dual Row Airdrop System Platform
Note. All dimensions are given in inches.
B8
B7
B2
B1
2
1
A8
A7
A2
A1
4
5
3
14
24 ½
2

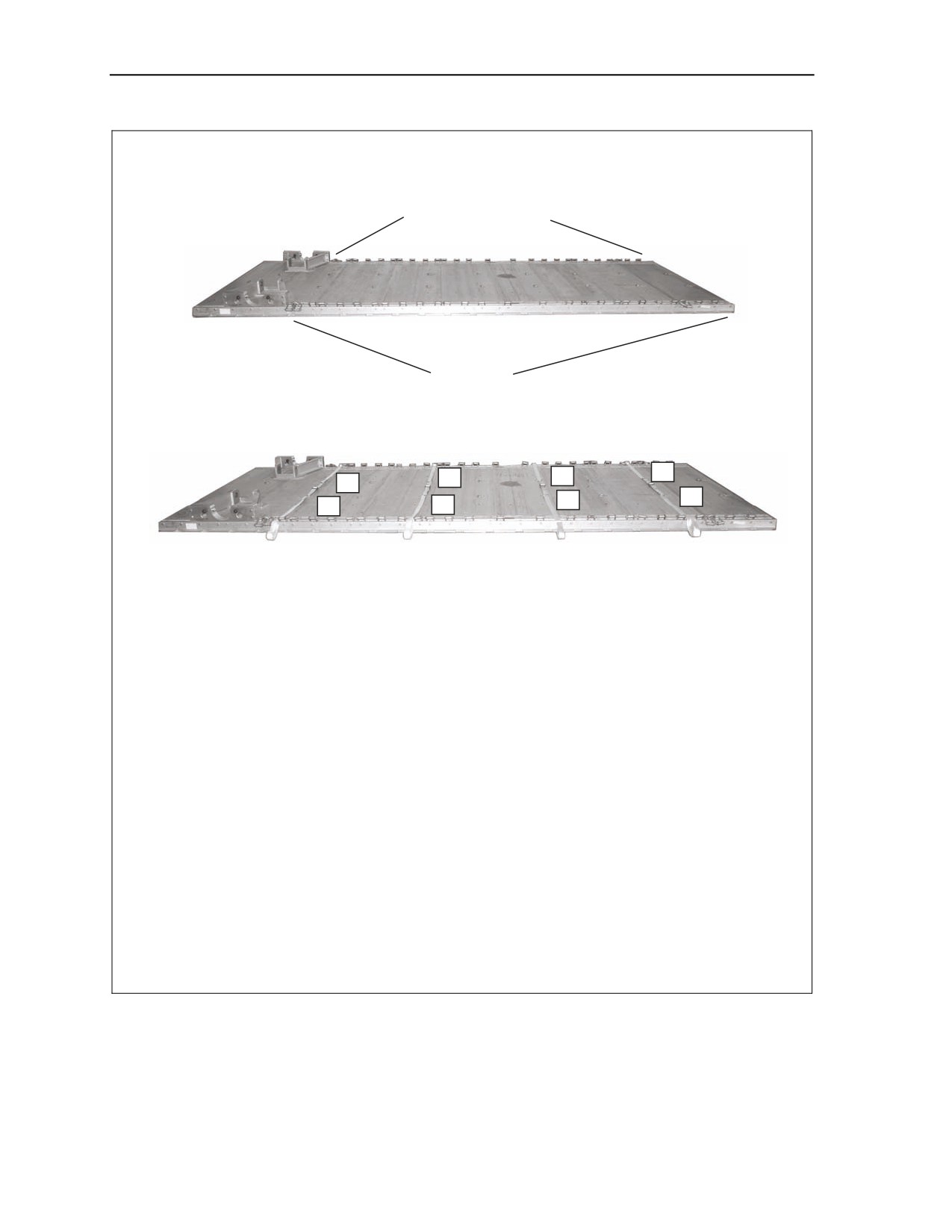

1 Route a 15-foot lashing though platform tie-down ring A1 and through its own D-ring.
Repeat this step for platform tie-down rings A2, B1, and B2.
2 Route a 15-foot lashing though platform tie-down ring A7 and through its own D-ring.
Repeat this step for platform tie-down rings A8, B7, and B8.
3 Position stack 1 between the pre-positioned lashings 2 inches from the front edge.
4 Position stack 2 24 ½ inches from stack 1 and centered or 50 inches from the front edge.
5 Position stack 3 between the pre-positioned lashings 14 inches from stack 2 and centered
or 154 inches from the front edge.

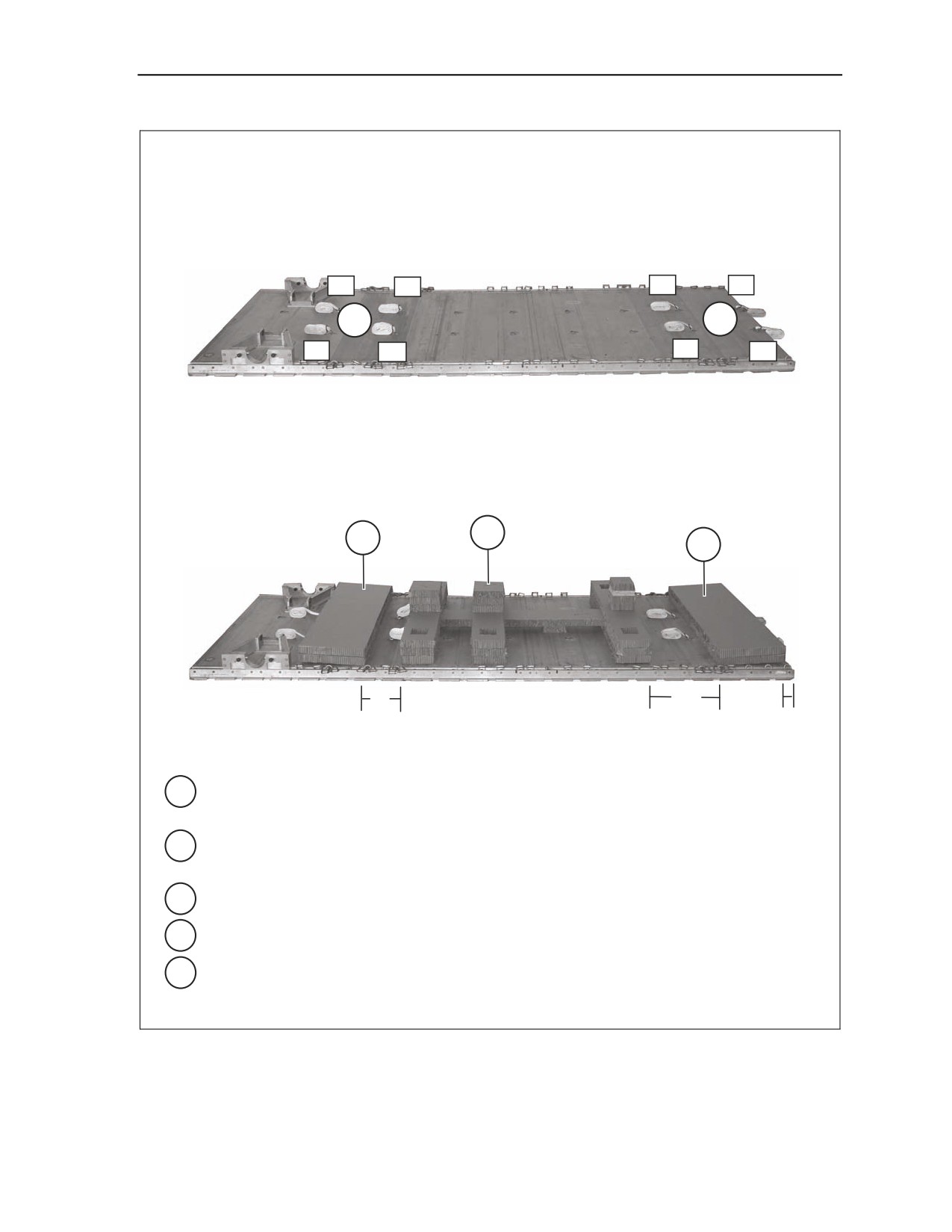

Figure 10-4. Honeycomb Stack Positioned
29 August 2006
FM 4-20.105-2/TO 13C7-1-51 VOL II
10-5
Chapter 10
PREPARING THE M-GATOR

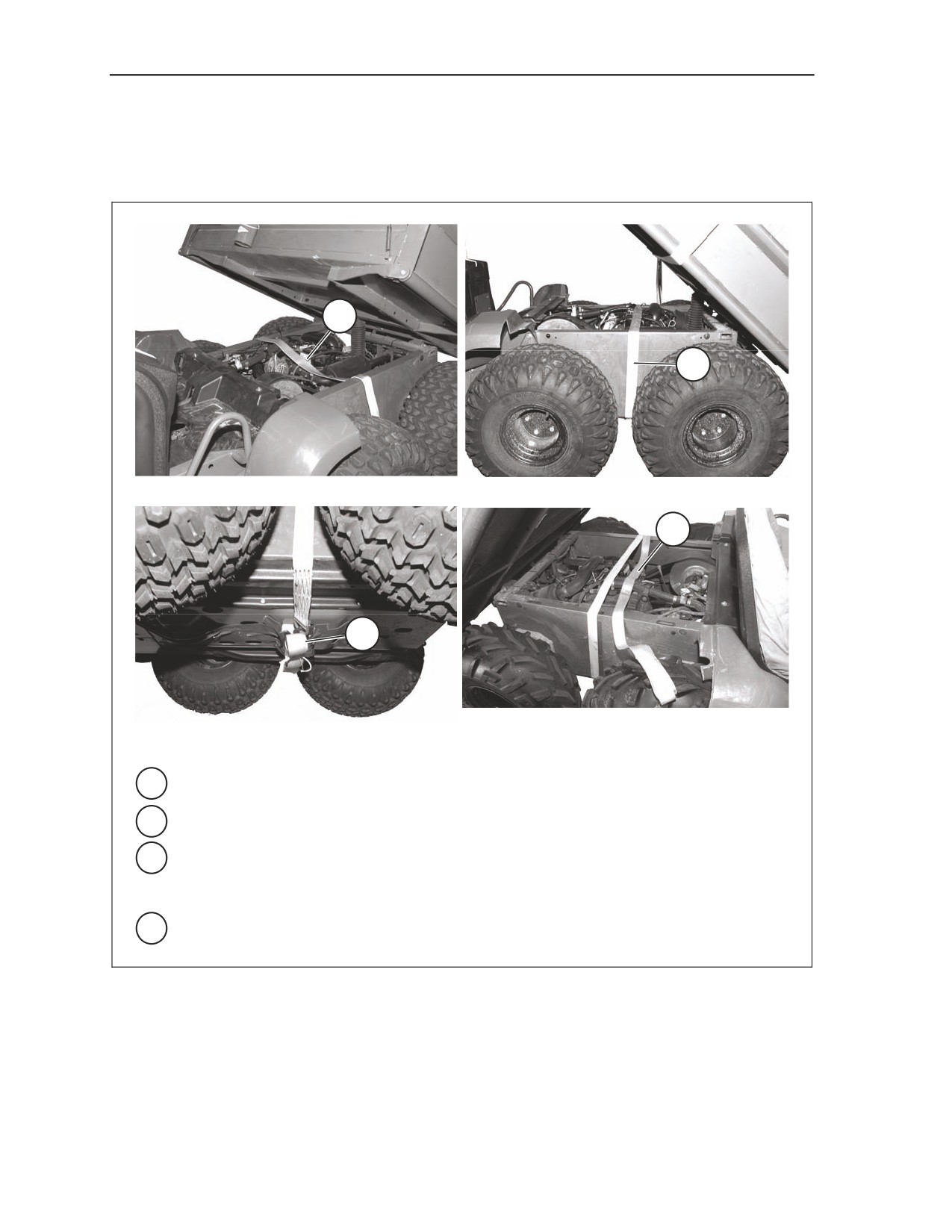

10-4. Prepare the M-Gator according to Figure 10-5.
1
2
4
3
1
Raise the bed and position a lashing across the frame, centered between the rear tires.
2
Route lashing around the frame and the engine.
3
Secure a piece of 2-inch by 4-inch by 8 1/2-inch lumber, laterally, under the engine.
Lumber may be temporarily secured using cloth-backed tape. Position the load binder
against the lumber.
4 Pre-position a 15-foot lashing to the front of the previously installed lashing over the frame.
Figure 10-5. M-Gator Prepared
10-6
FM 4-20.105-2/TO 13C7-1-51 VOL II
29 August 2006
Rigging M-Gator with Accompanying Load on Dual Row Airdrop System Platform
6
5
8
7
5

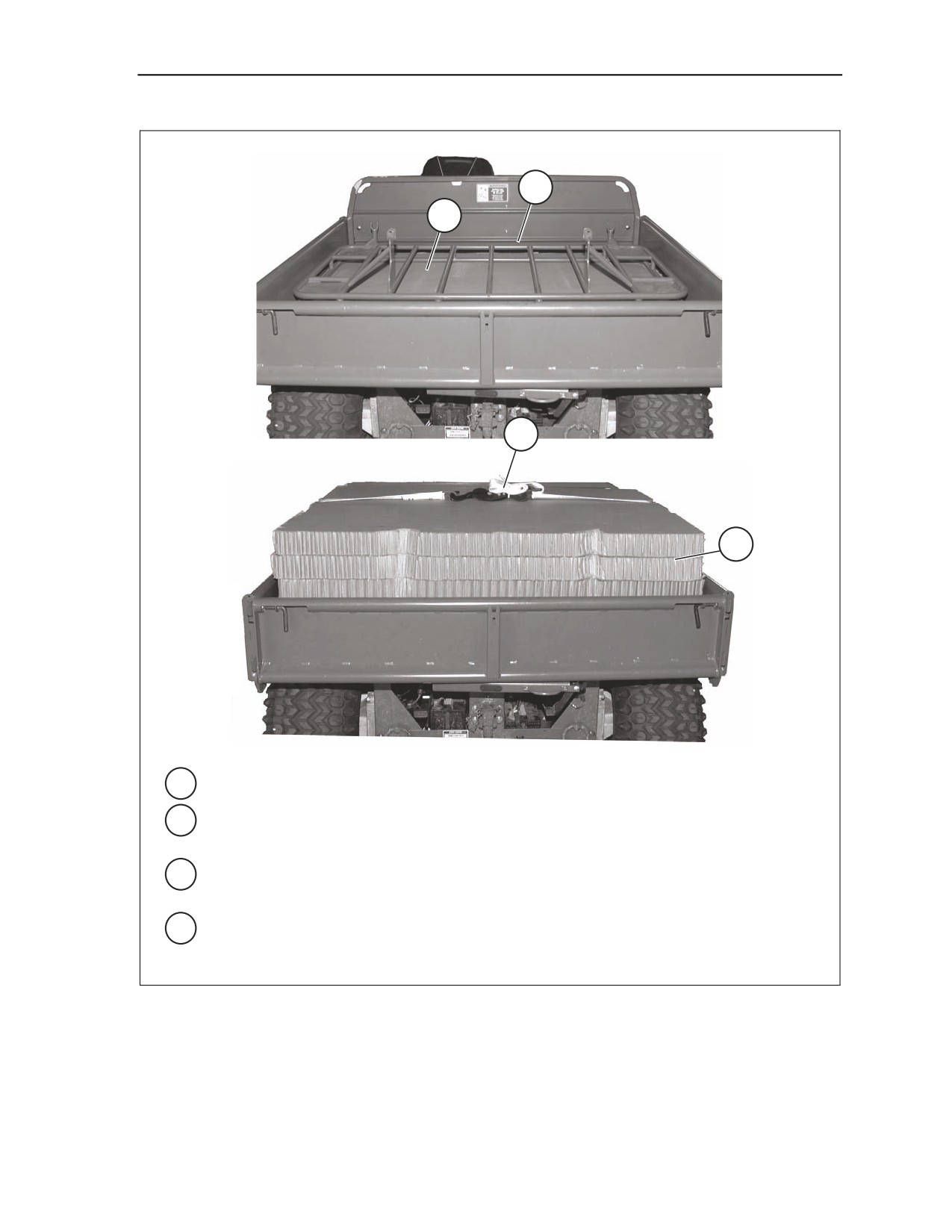

Lower the bed and place one layer of 36-inch by 56-inch honeycomb in it.
6
Remove the litter from the front of the M-Gator and place the litter upside down and
centered on the honeycomb.
7
Place three more 36-inch by 56-inch pieces of honeycomb pieces on the litter and force
them all the way down.
8 Secure the litter and honeycomb to the bed with the pre-positioned lashing shown in Step
4.
Figure 10-5. M-Gator Prepared (Continued)
29 August 2006
FM 4-20.105-2/TO 13C7-1-51 VOL II
10-7
Chapter 10
13
9
10
11
12
9

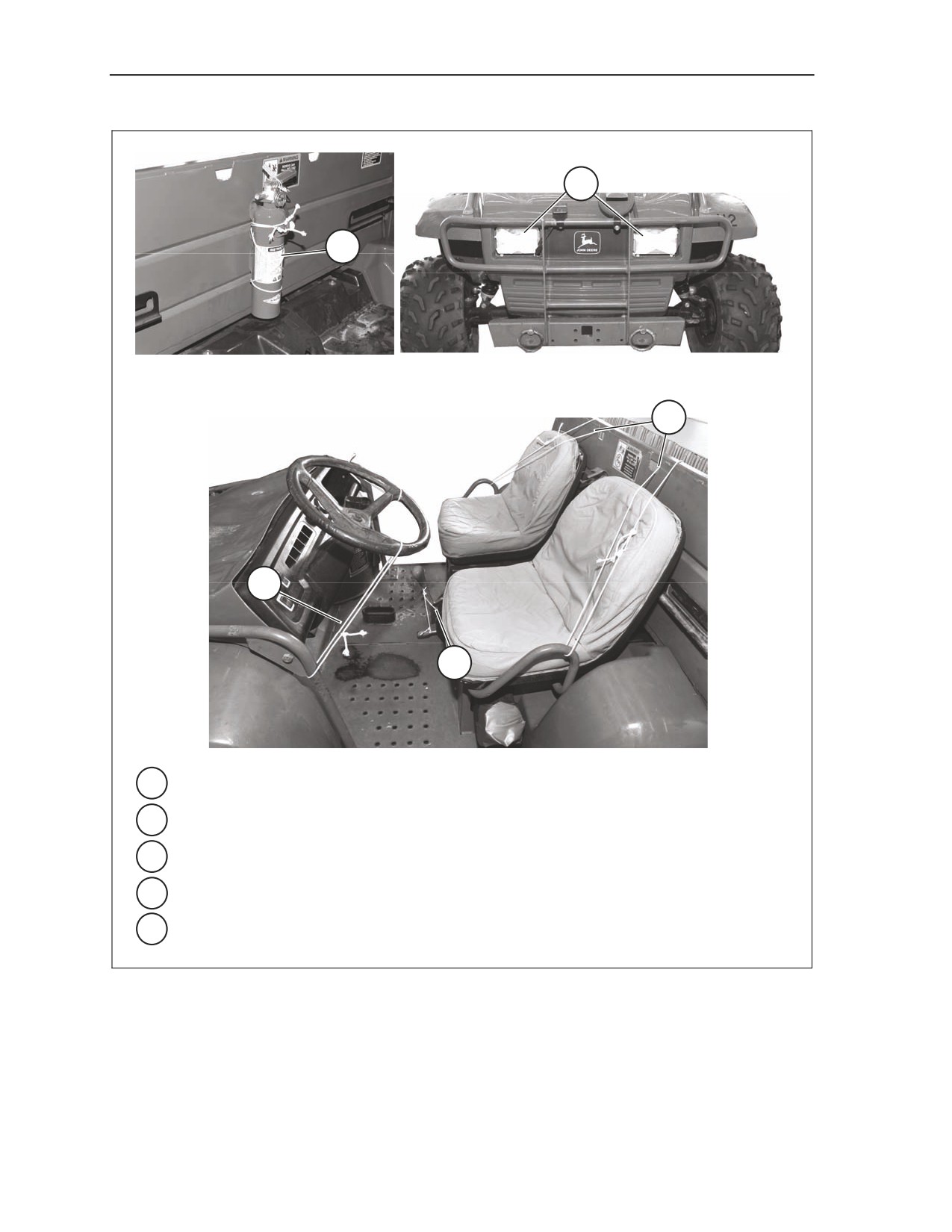

Secure the fire extinguisher in place with lengths of type III nylon cord if present.
10
Secure the seats in place with type III nylon cord.
11
Secure the steering wheel in place with lengths of type III nylon cord.
12
Secure the gear stick to the emergency brake with type III nylon cord.
13 Tape the lights with 2-inch masking tape.
Figure 10-5. M-Gator Prepared (Continued)
10-8
FM 4-20.105-2/TO 13C7-1-51 VOL II
29 August 2006
Rigging M-Gator with Accompanying Load on Dual Row Airdrop System Platform

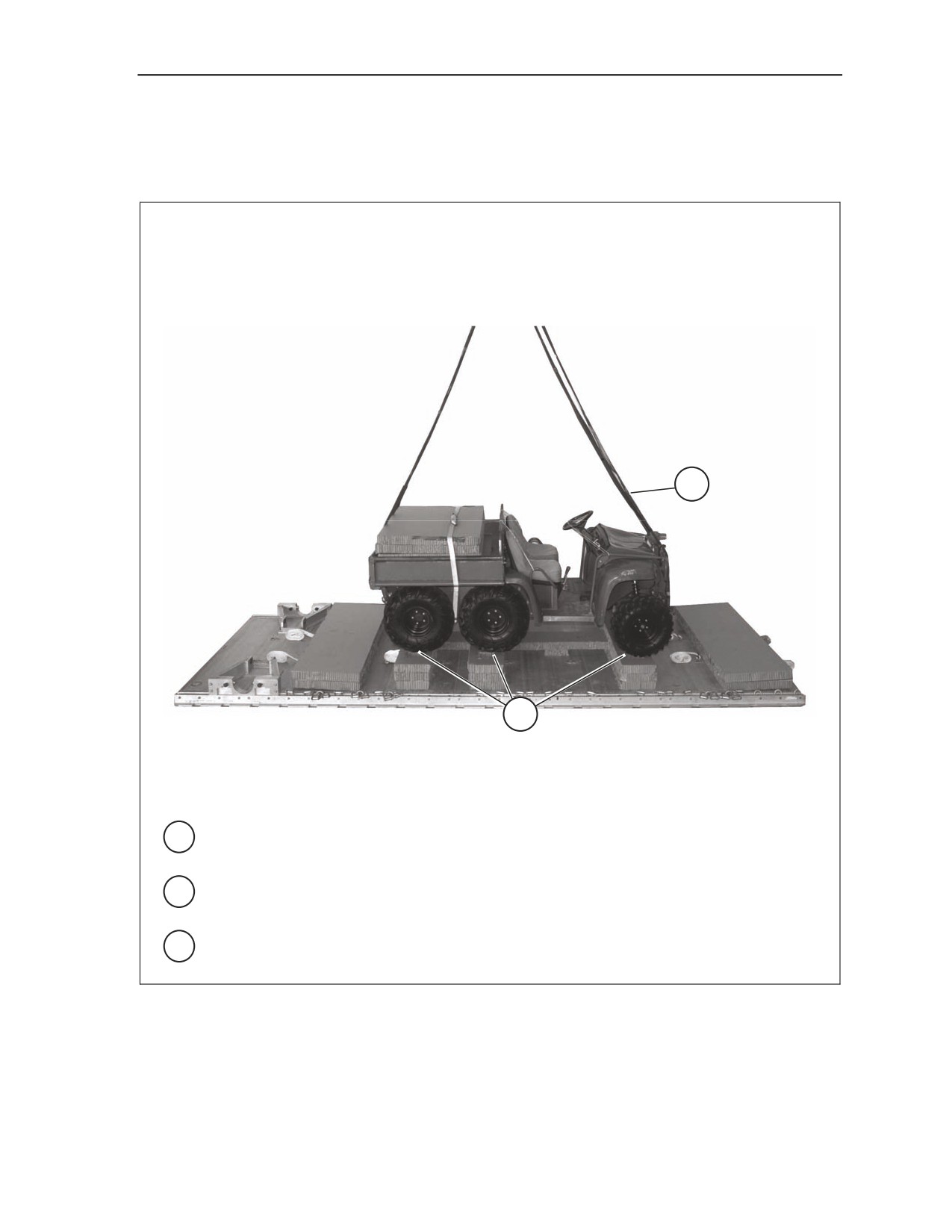

POSITIONING THE M-GATOR
10-5. Position the M-Gator as shown in Figure 10-6.
1
2
1
Attach a 12-foot (2-loop), type XXVI nylon sling to each lifting point on the front and rear of
the vehicle with a large clevis.
2
Position the M-Gator with the front of the vehicle toward the front of the platform with the
tires centered over the cutouts in honeycomb stack 2.
3 Remove the lift kit (not shown).
Figure 10-6. M-Gator Positioned
29 August 2006
FM 4-20.105-2/TO 13C7-1-51 VOL II
10-9
Chapter 10
LASHING THE M-GATOR
10-6. Lash the M-Gator to the platform according to Chapter 2, Volume I and as shown in Figures 10-7
through 10-9.
10A
2
3
16
1
10
Lashing
Tiedown
Instructions
Number
Clevis
Number
Pass lashing:
1
10
Through left front lifting point.
2
10A
Through right front lifting point.
3
16
Under the tire and axle through right front lifting point.
4
16A
Under the tire and axle through left front lifting point.

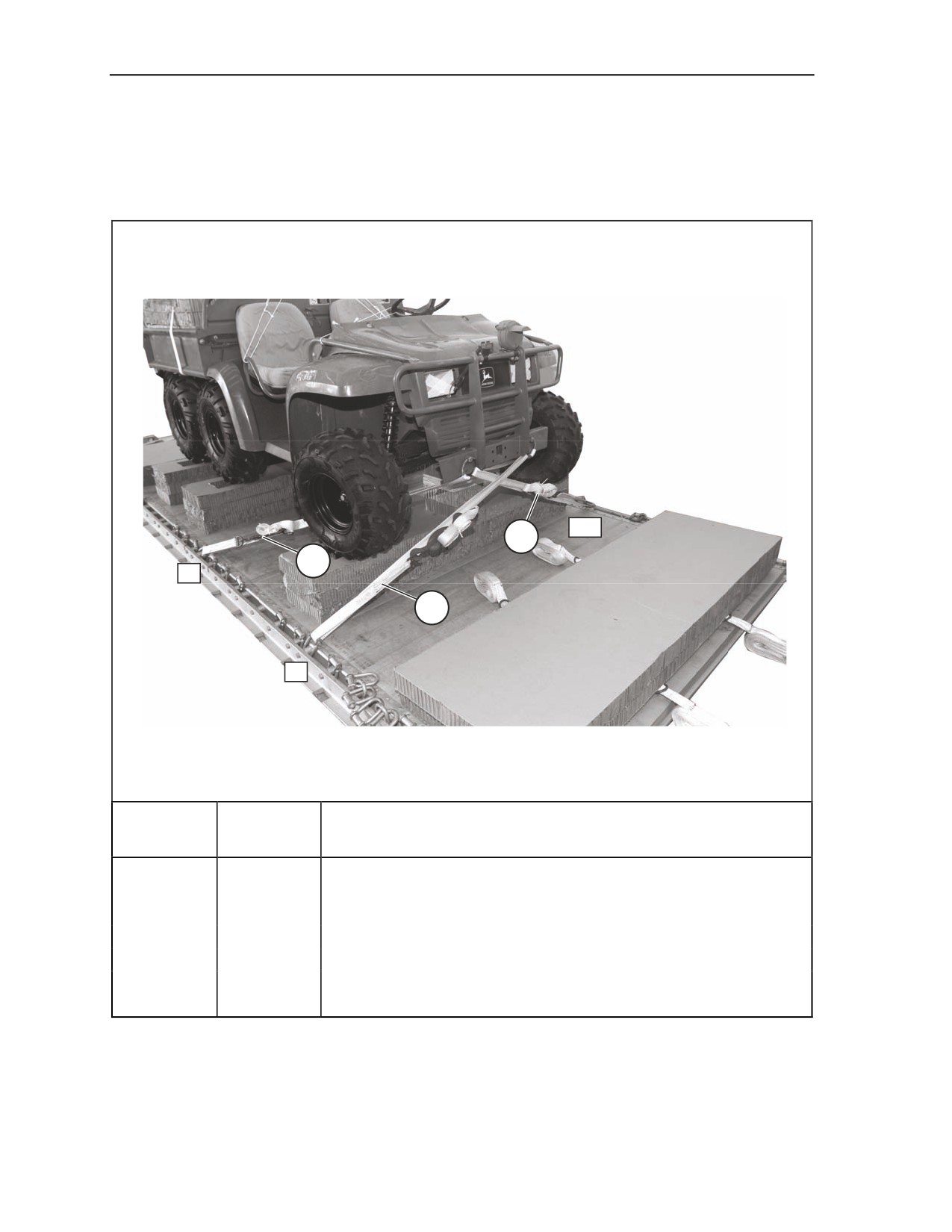

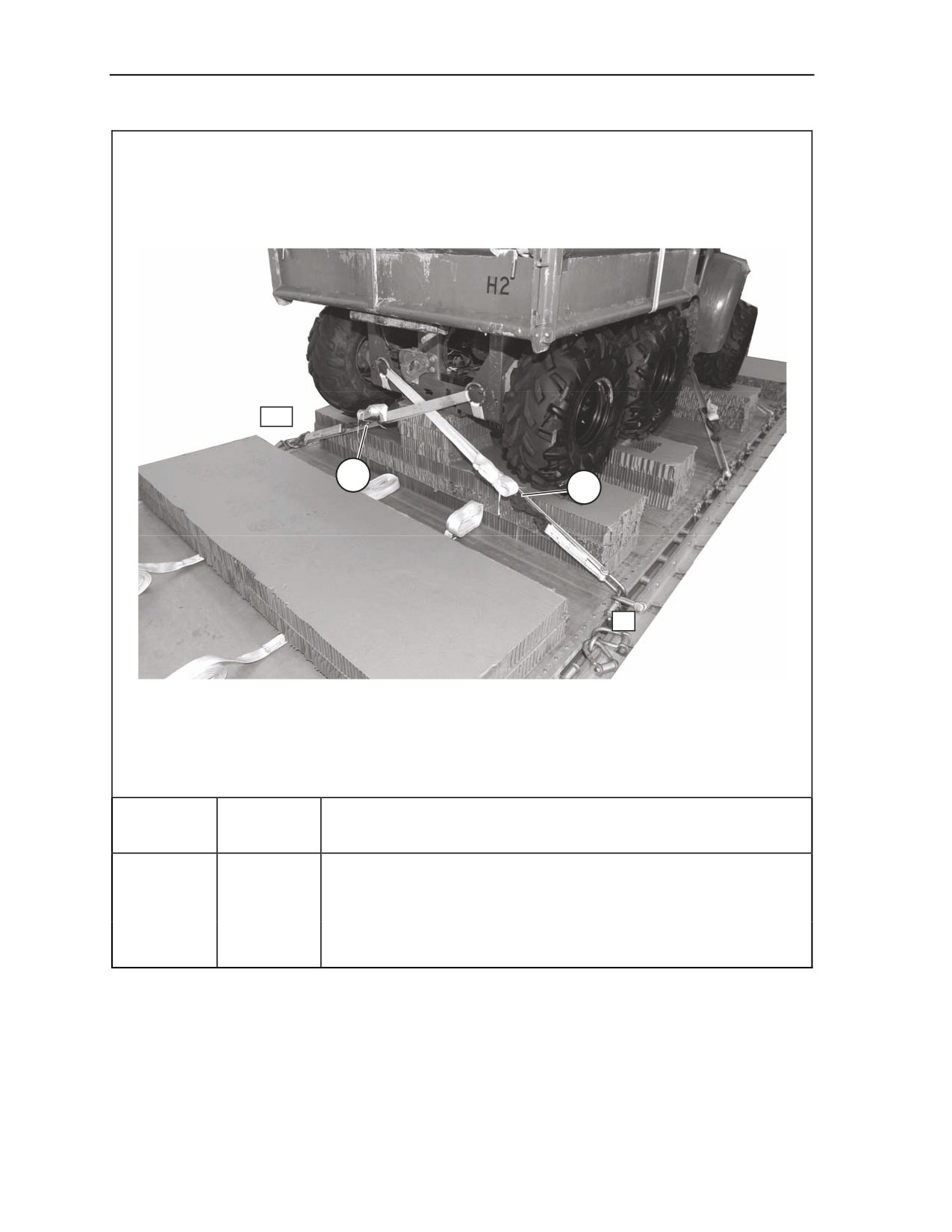

Figure 10-7. Lashings 1 Through 4 Installed
10-10
FM 4-20.105-2/TO 13C7-1-51 VOL II
29 August 2006
Rigging M-Gator with Accompanying Load on Dual Row Airdrop System Platform
5
A4
Lashing
Platform
Instructions
Number
Clevis
Number
Pass lashing:
5
A4
Under the frame through right rear lifting point.
6
B4
Under the frame through left rear lifting point.

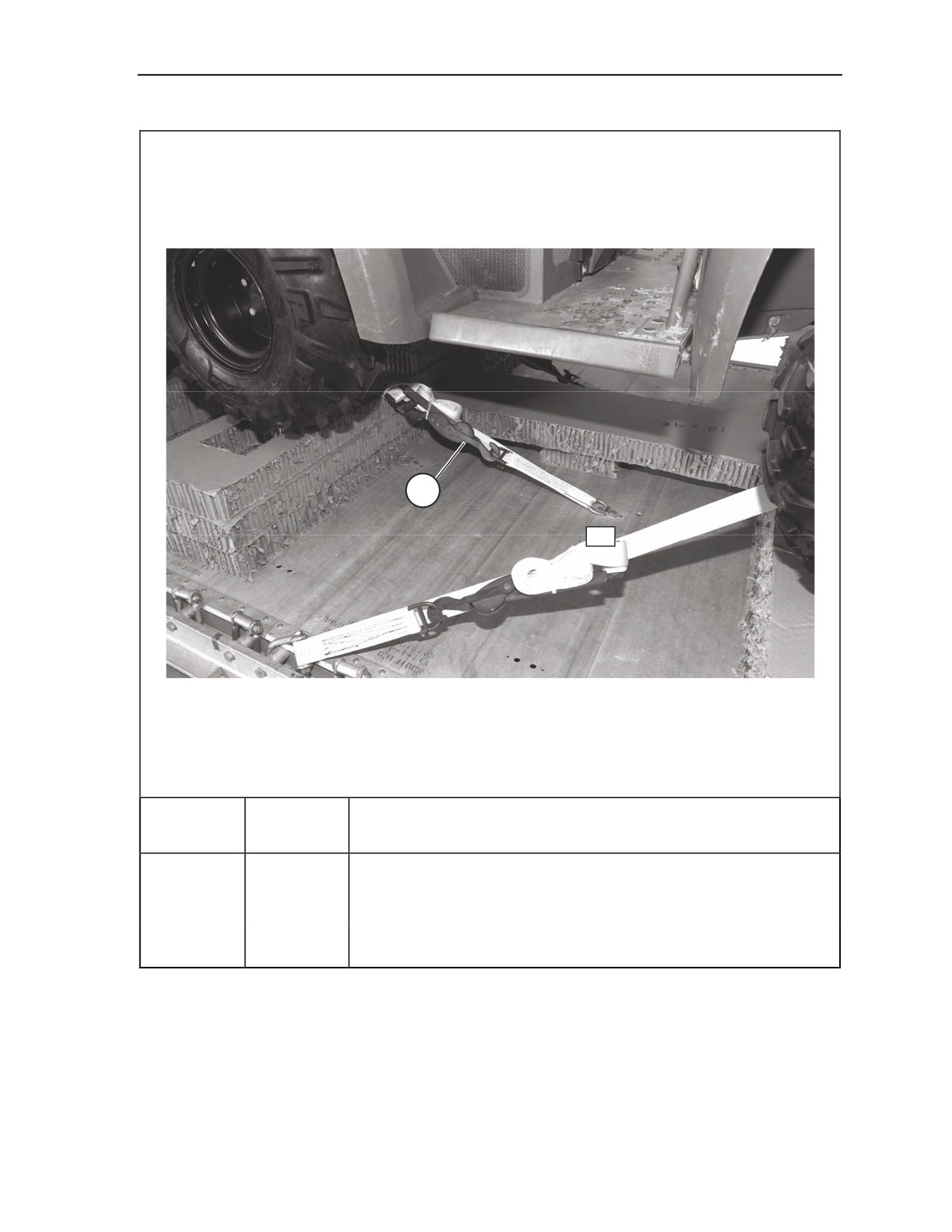

Figure 10-8. Lashings 5 and 6 Installed
29 August 2006
FM 4-20.105-2/TO 13C7-1-51 VOL II
10-11
Chapter 10
20A
8
7
20
Lashing
Tiedown
Instructions
Number
Clevis
Number
Pass lashing through:
7
20
Left rear lifting point.
8
20A
Right rear lifting point.
Figure 10-9. Lashings 7 and 8 Installed
10-12
FM 4-20.105-2/TO 13C7-1-51 VOL II
29 August 2006
Rigging M-Gator with Accompanying Load on Dual Row Airdrop System Platform

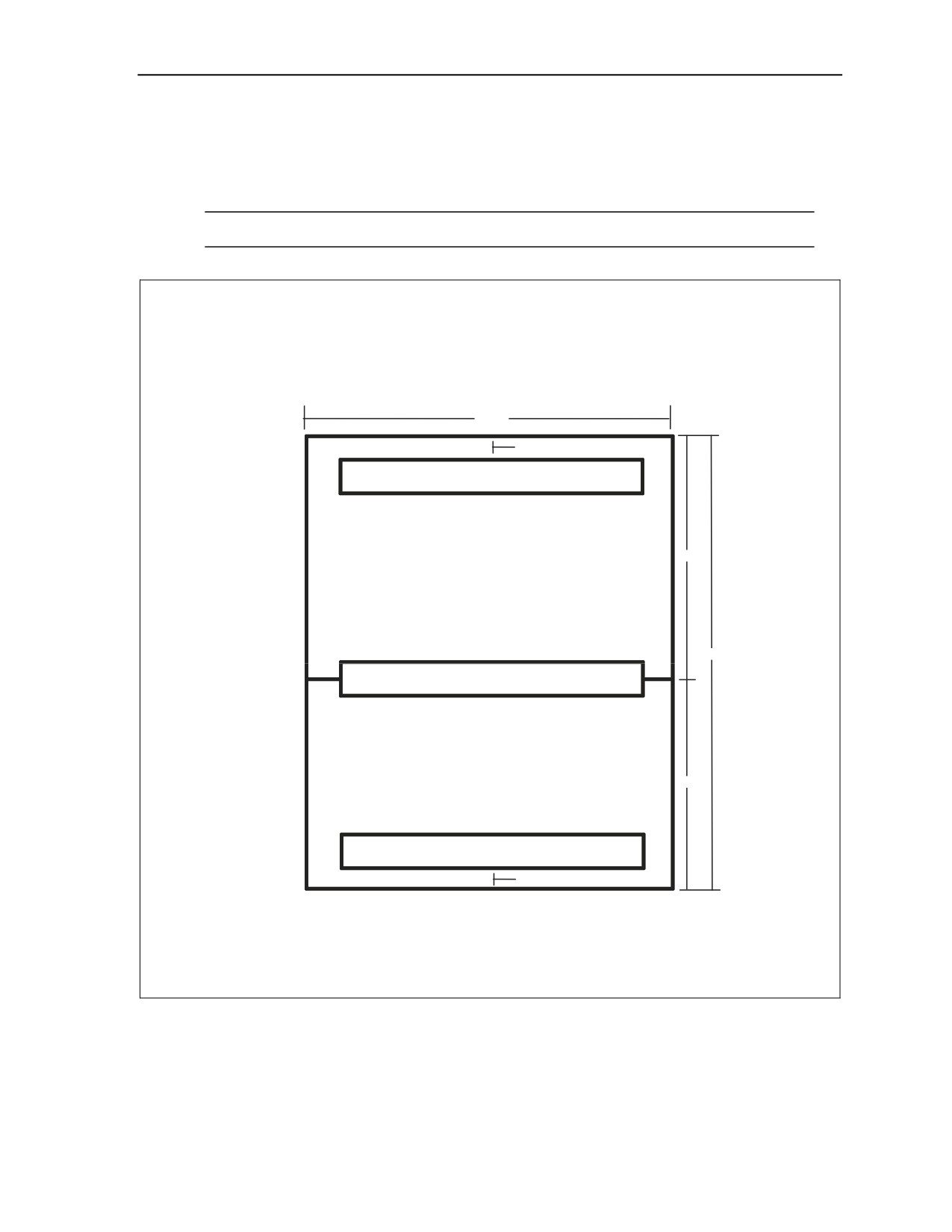

BUILDING M-GATOR BOX
10-7. Build the M-Gator box using 8d common nails as shown in Figure 10-10.
Note. Use wood glue and 1 ½ inch long, #4 wood screws to sturdy box for multiple airdrop use.

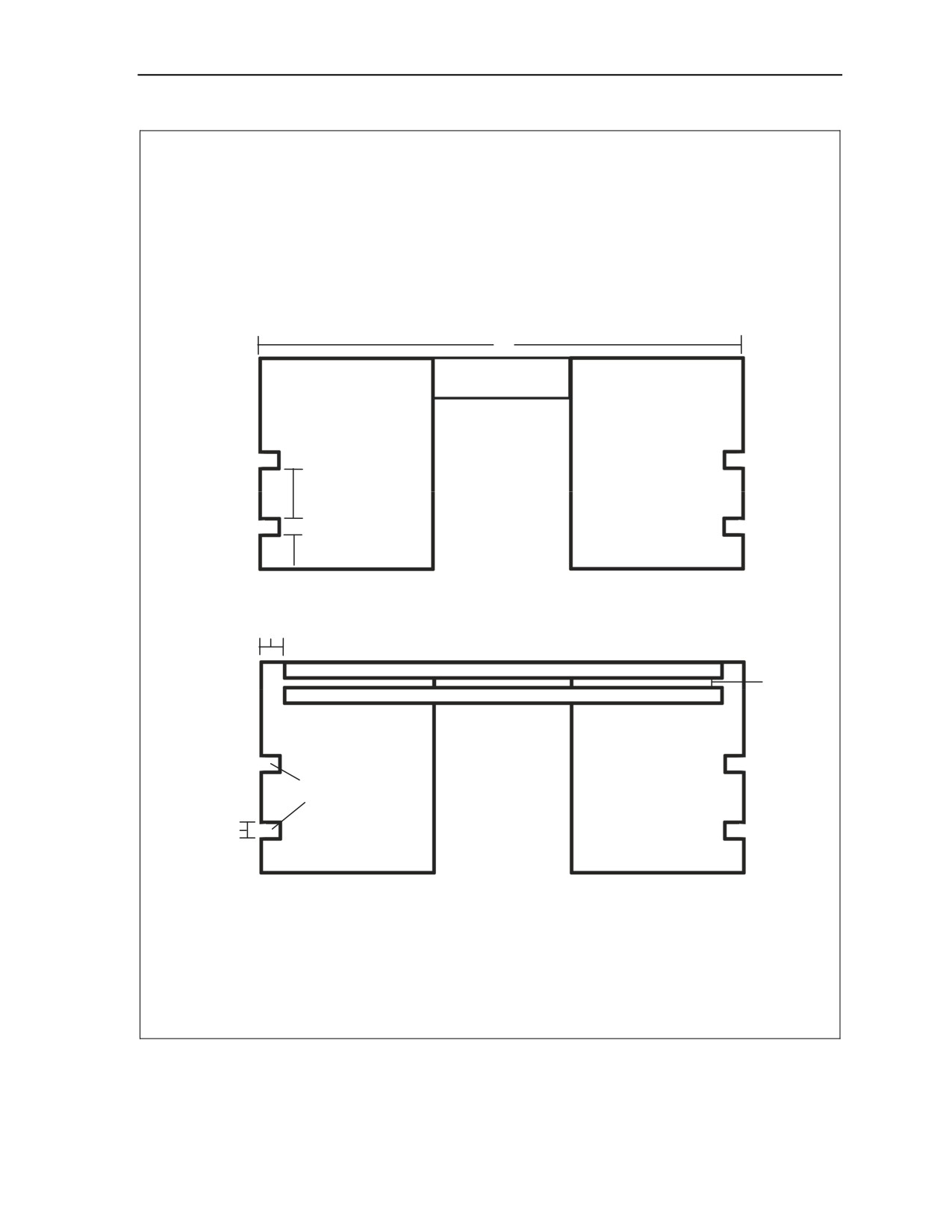

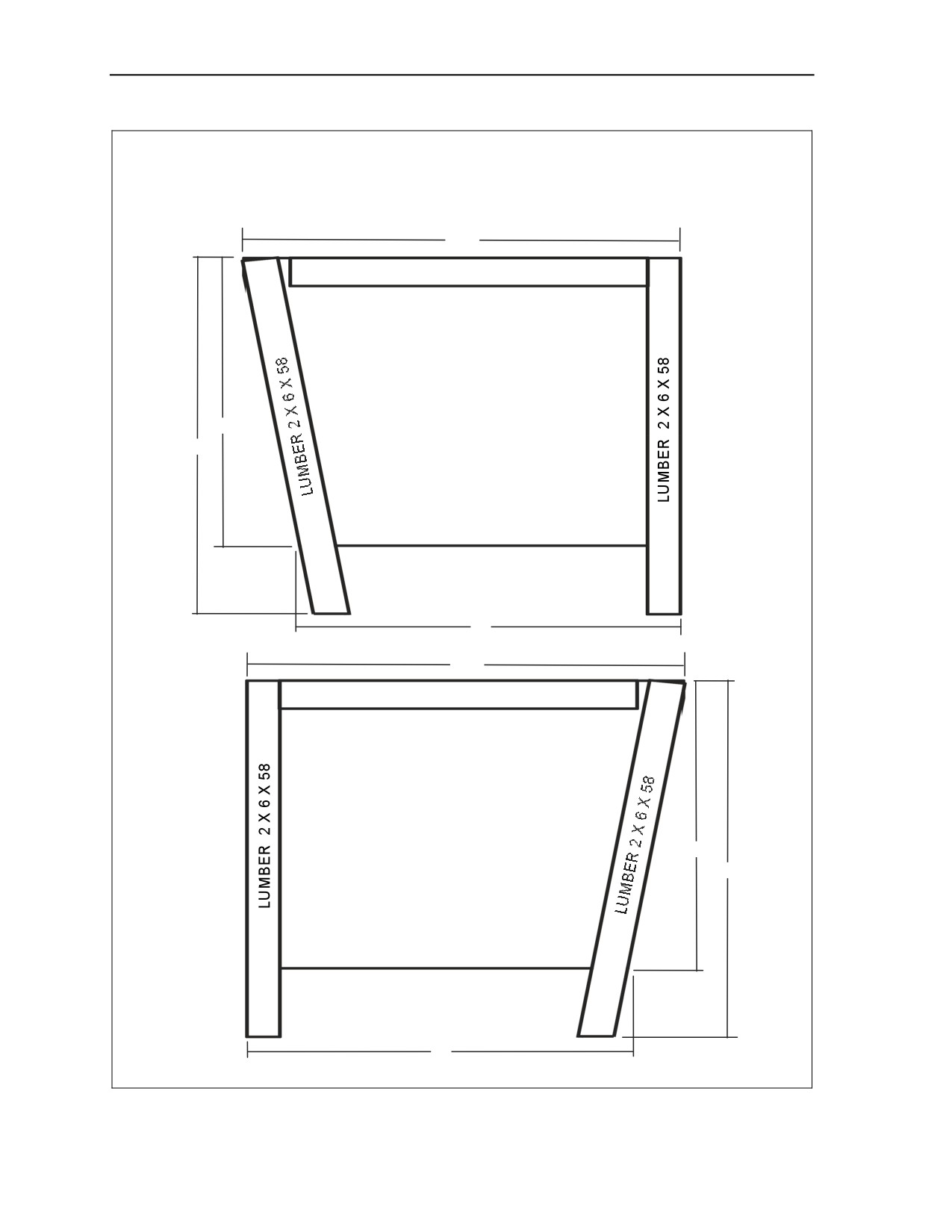

Notes. 1. All dimensions are given in inches.
2. Drawing is not drawn to scale.
TOP OF BOX
69 ½
4 ½
LUMBER 2 X 6 X 65
PLYWOOD
48
¾ X 48 X 69 ½
81
LUMBER 2 X 6 X 65 (centered on joint)
PLYWOOD
¾ X 33 X 69 ½
33
LUMBER 2 X 6 X 65
4 ½
Figure 10-10. M-Gator Box Built
29 August 2006
FM 4-20.105-2/TO 13C7-1-51 VOL II
10-13
Chapter 10
Notes. 1. All dimensions are given in inches.
2. Drawing is not drawn to scale.
81
LUMBER 2 X 6 X 73
PLYWOOD
¾ X 48 X 81
FRONT
RIGHT SIDE OF BOX
REAR
INSIDE VIEW
48
58
78
81
LUMBER 2 X 6 X 73
PLYWOOD
¾ X 48 X 81
LEFT SIDE OF BOX
INSIDE VIEW
FRONT
48
REAR
58
78
Figure 10-10. M-Gator Box Built (Continued)
10-14
FM 4-20.105-2/TO 13C7-1-51 VOL II
29 August 2006
Rigging M-Gator with Accompanying Load on Dual Row Airdrop System Platform
Notes. 1. All dimensions are given in inches.
2. Drawing is not drawn to scale.
FRONT OF BOX
72
PLYWOOD
¾ X 9 X 24
PLYWOOD
PLYWOOD
¾ X 24 X 58
¾ X 24 X 58
OUTSIDE VIEW
19 ¼
11
3 ½
LUMBER 2 X 4 X 65
LUMBER 2 X 4 X 65
INSIDE VIEW
ALL CUTOUTS
2 ¾ X 1 ¼
2 ¾
Figure 10-10. M-Gator Box Built (Continued)
29 August 2006
FM 4-20.105-2/TO 13C7-1-51 VOL II
10-15
Chapter 10
POSITIONING M-GATOR BOX
10-8. Position the M-Gator Box as shown in Figure 10-11.
1
1 Position the front of the box 41 inches from the front edge of the platform.

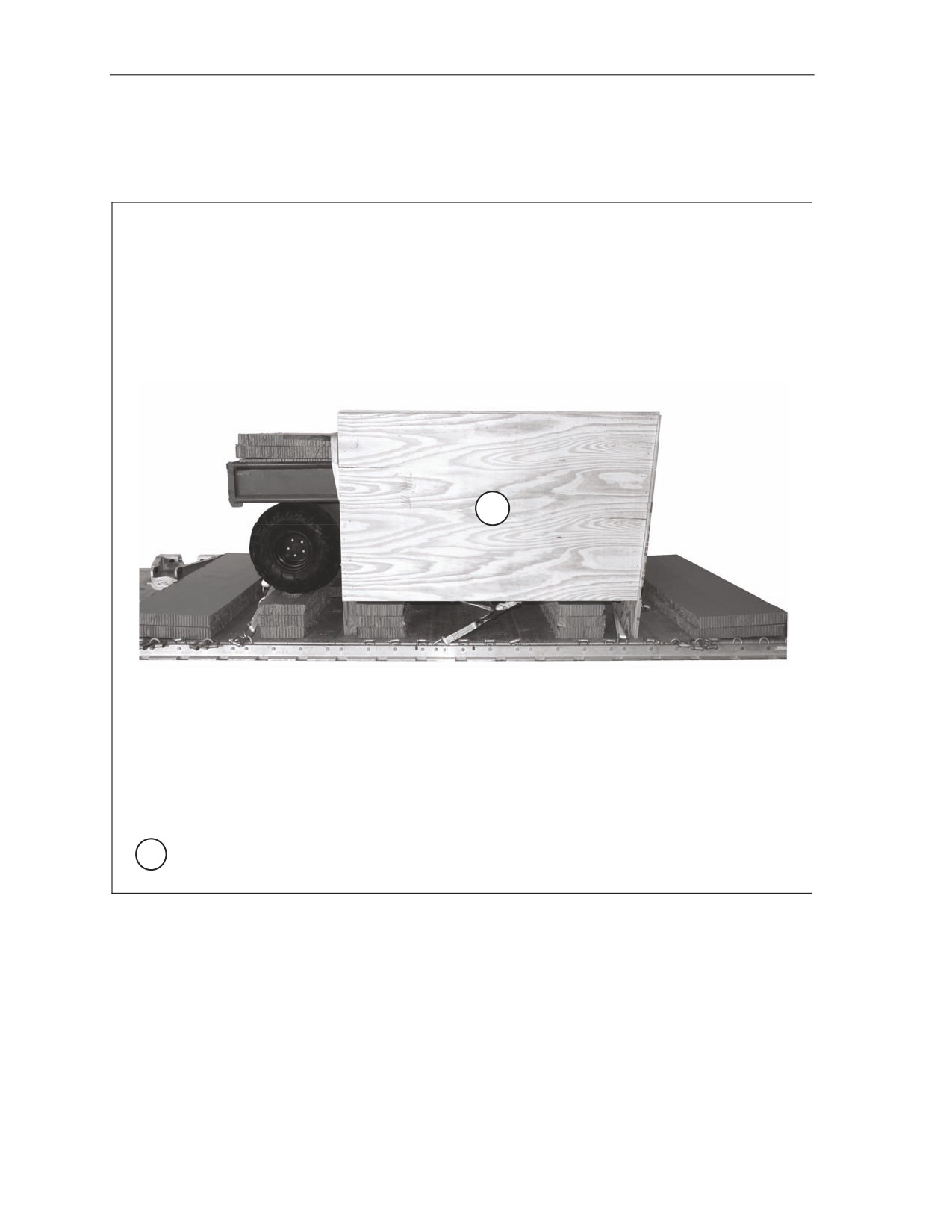

Figure 10-11. M-Gator Box Positioned
10-16
FM 4-20.105-2/TO 13C7-1-51 VOL II
29 August 2006
Rigging M-Gator with Accompanying Load on Dual Row Airdrop System Platform

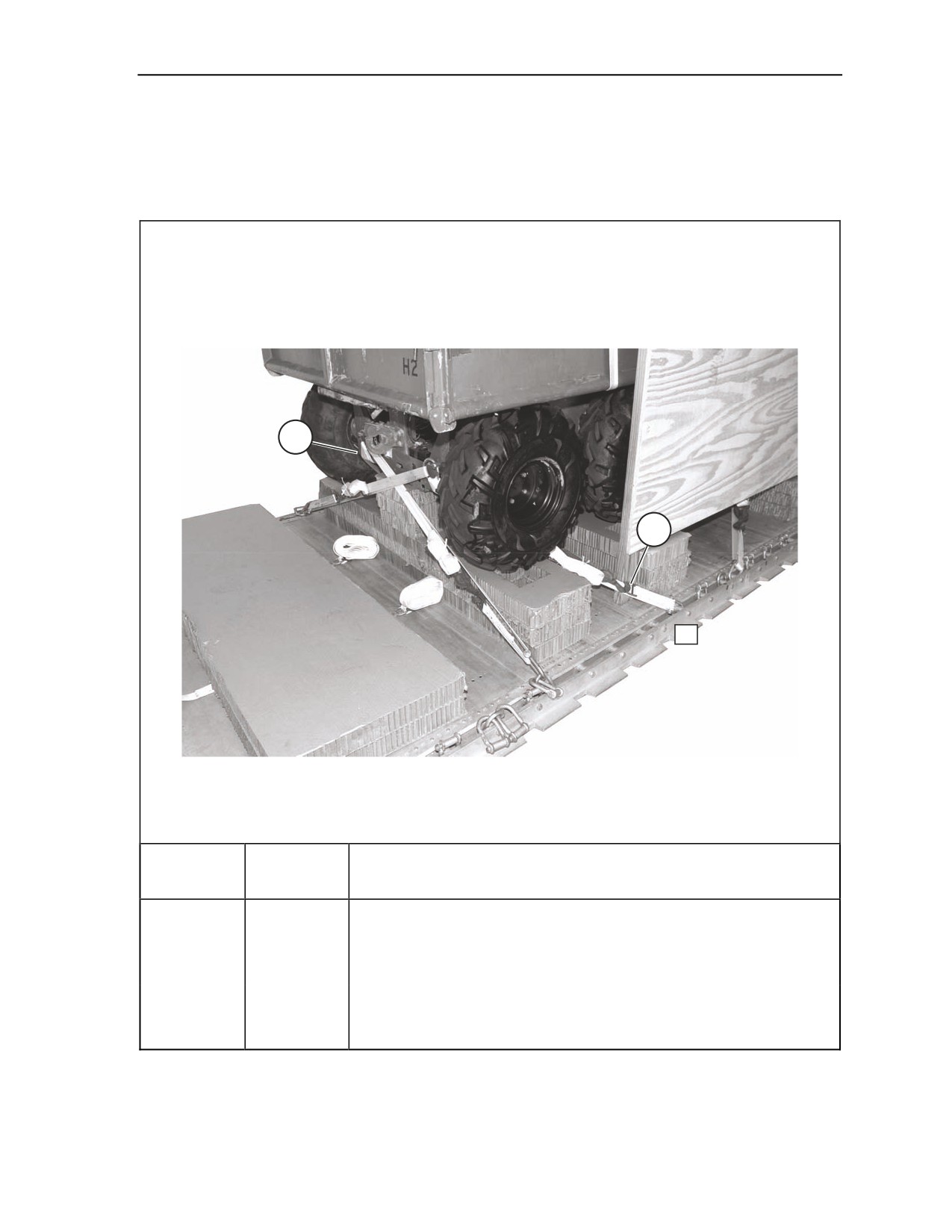

LASHING M-GATOR BOX
10-9. Lash the M-Gator box to the platform according to Chapter 2, Volume I and as shown in Figures 10
12 through 10-14.
2
1
19
Lashing
Tiedown
Instructions
Number
Clevis
Number
Pass lashing:
1
19
Around the leg of the box, under the tire, and to the right rear lifting
point.
2
19A
Around the leg of the box, under the tire, and to the left rear lifting
point.

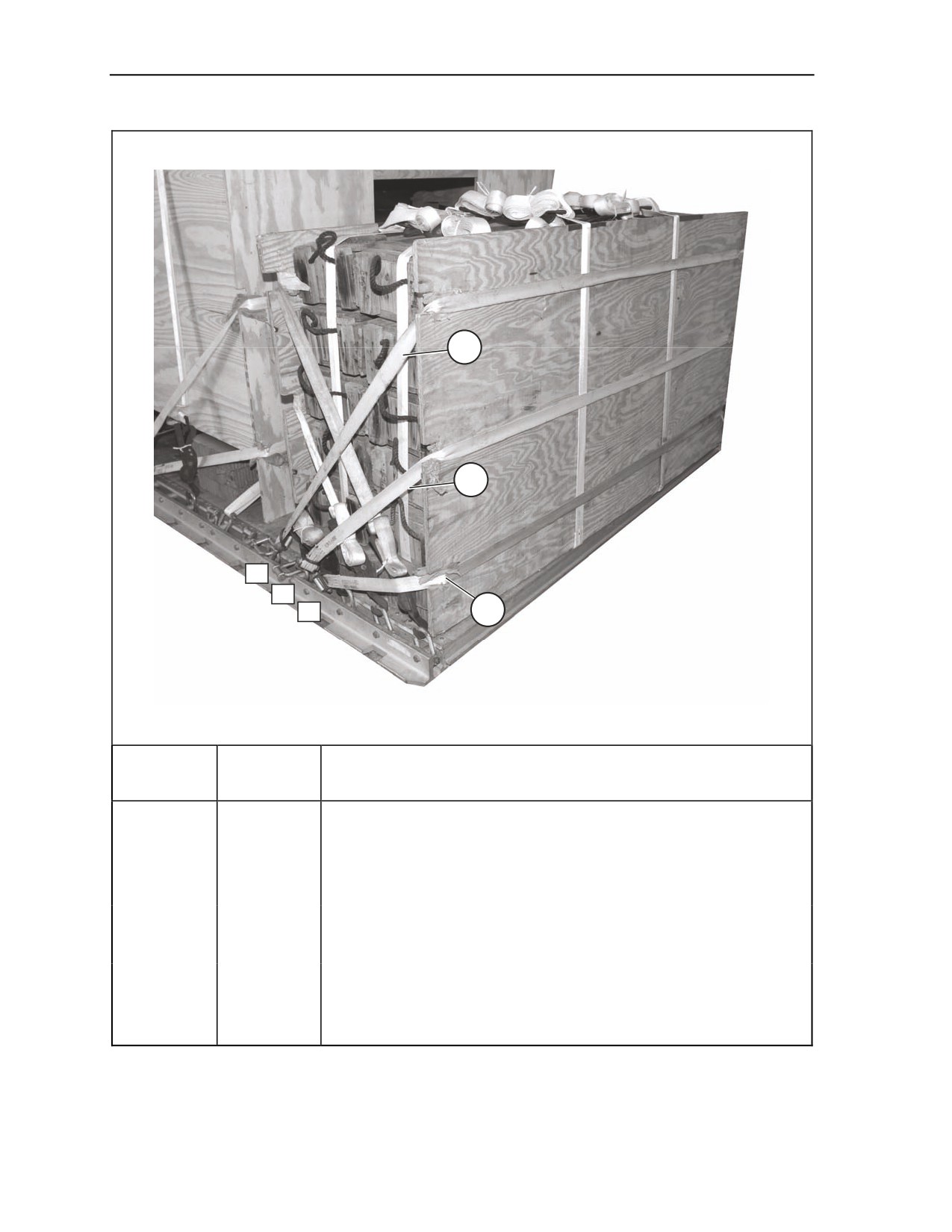

Figure 10-12. Lashings 1 and 2 Installed on M-Gator Box
29 August 2006
FM 4-20.105-2/TO 13C7-1-51 VOL II
10-17
Chapter 10
3
4
17
12
Lashing
Tiedown
Instructions
Number
Clevis
Number
Pass lashing:
3
12 and 12A
Through clevis 12A and through its own D-ring. Route the lashing
over the box and secure the lashing to clevis 12 with a D-ring and
load binder.
4
17 and 17A
Through clevis 17A and through its own D-ring. Route the lashing
over the box and secure the lashing to clevis 17 with a D-ring and
load binder.
Note. Pad plywood edge with cellulose wadding where lashings make contact.

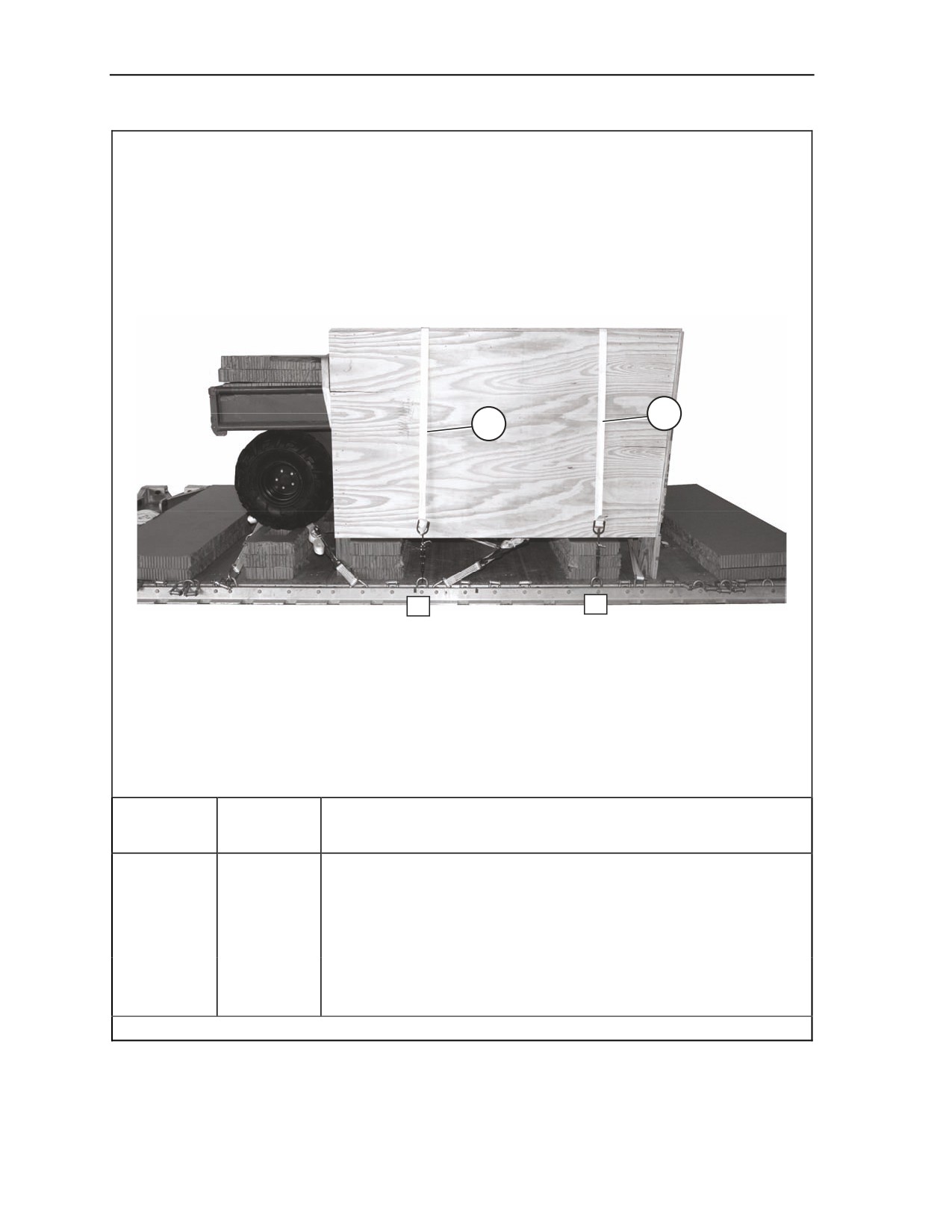

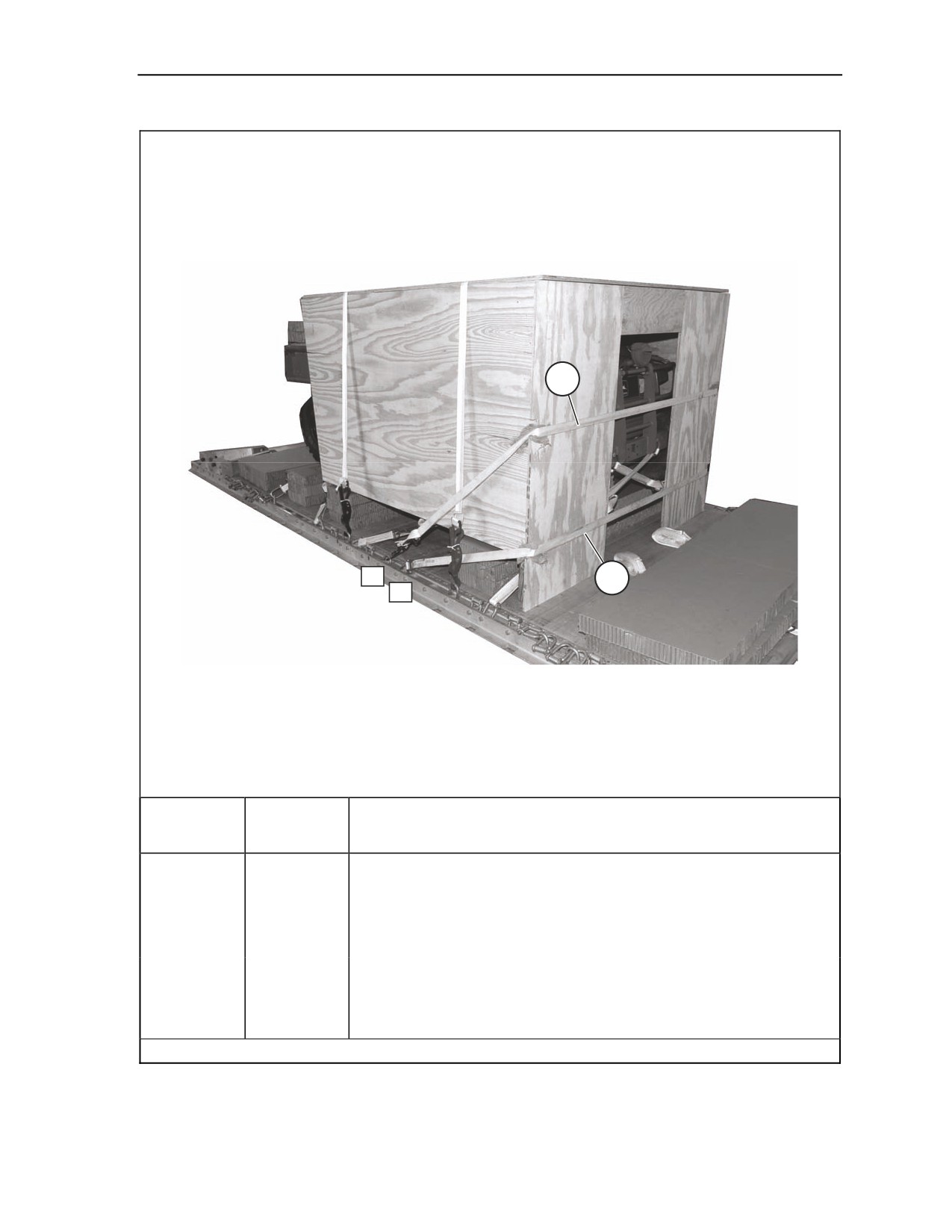

Figure 10-13. Lashings 3 and 4 Installed on M-Gator Box
10-18
FM 4-20.105-2/TO 13C7-1-51 VOL II
29 August 2006
Rigging M-Gator with Accompanying Load on Dual Row Airdrop System Platform
6
14
5
13
Lashing
Tiedown
Instructions
Number
Clevis
Number
Pass lashing:
5
13 and 13A
Through clevis 13 and through its own D-ring. Route the lashing
through the bottom cutouts of the box and secure the lashing to
clevis 13A with a D-ring and load binder.
6
14 and 14A
Through clevis 14A and through its own D-ring. Route the lashing
through the top cutouts of the box and secure the lashing to clevis
14 with a D-ring and load binder.
Note. Pad cutouts with cellulose wadding.
Figure 10-14. Lashings 5 and 6 Installed on M-Gator Box
29 August 2006
FM 4-20.105-2/TO 13C7-1-51 VOL II
10-19
Chapter 10

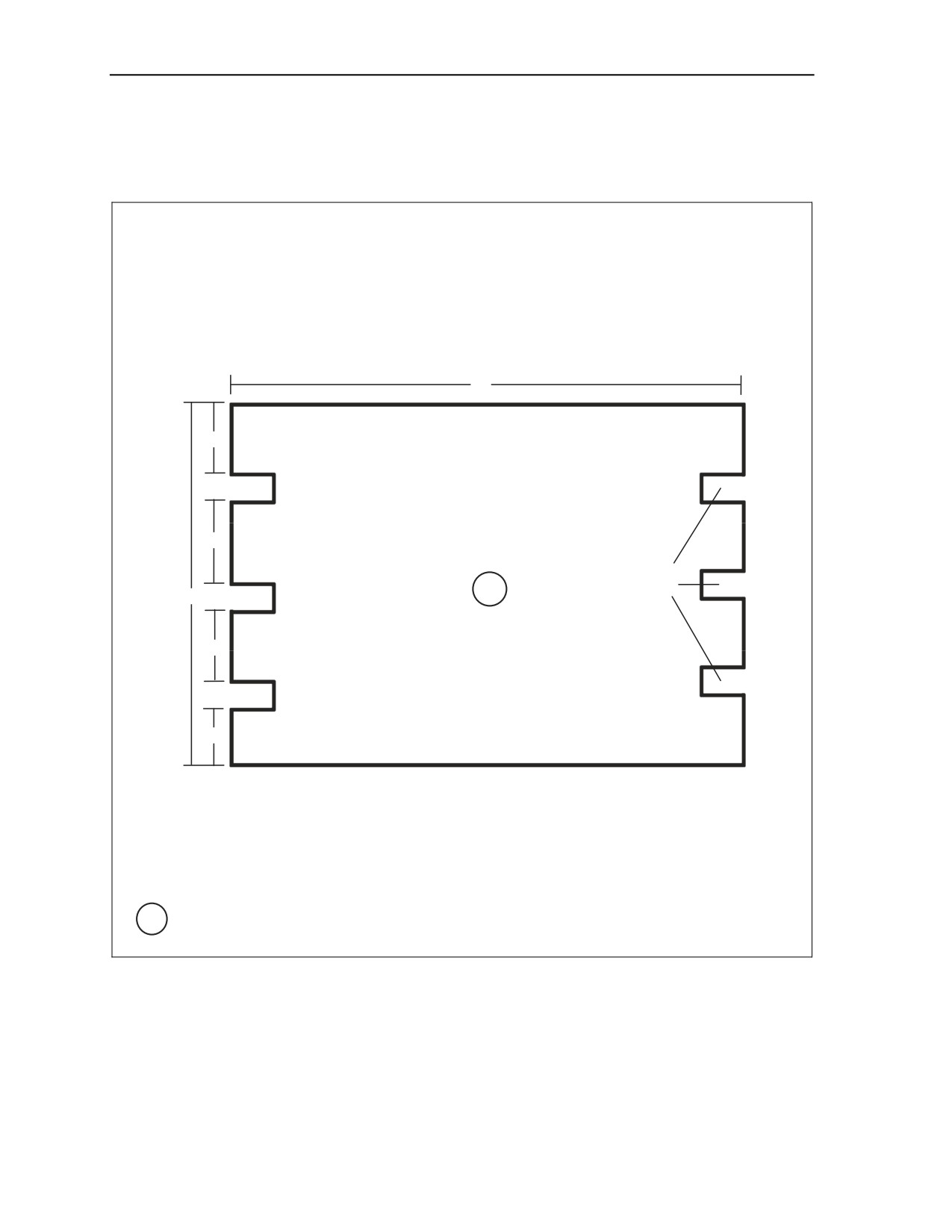

CONSTRUCTING ENDBOARDS FOR AMMUNITION STACK 1
10-10. Construct two endboards as shown in Figure 10-15.
Notes. 1. All dimensions are given in inches.
2. Drawing is not drawn to scale.
79
5
13
PLYWOOD
¾ X 44 X 76
CUTOUTS
44
1
2 X 2
13
7
1 Construct two endboards using a ¾- by 44- by 79-inch piece of plywood.

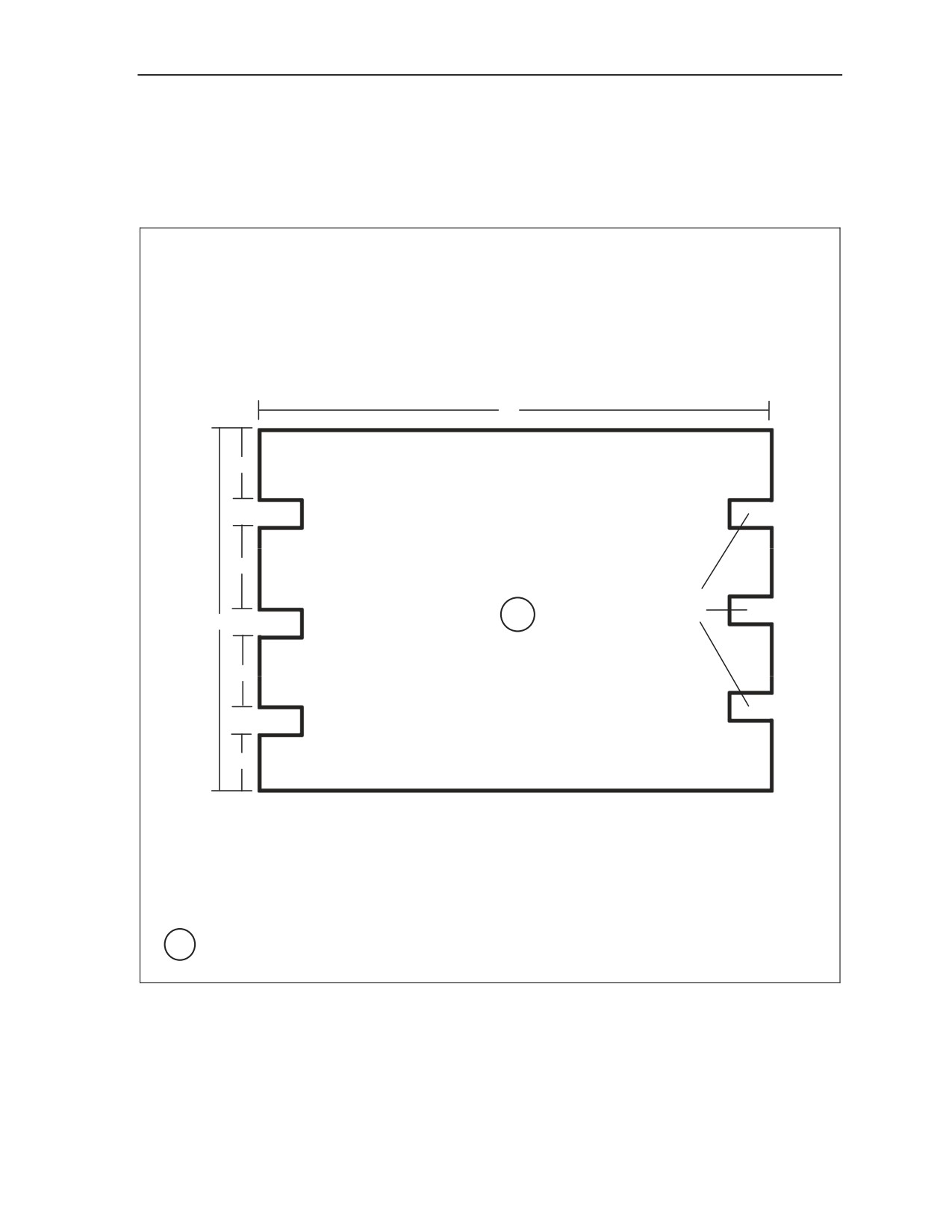

Figure 10-15. Endboards Constructed
10-20
FM 4-20.105-2/TO 13C7-1-51 VOL II
29 August 2006
Rigging M-Gator with Accompanying Load on Dual Row Airdrop System Platform

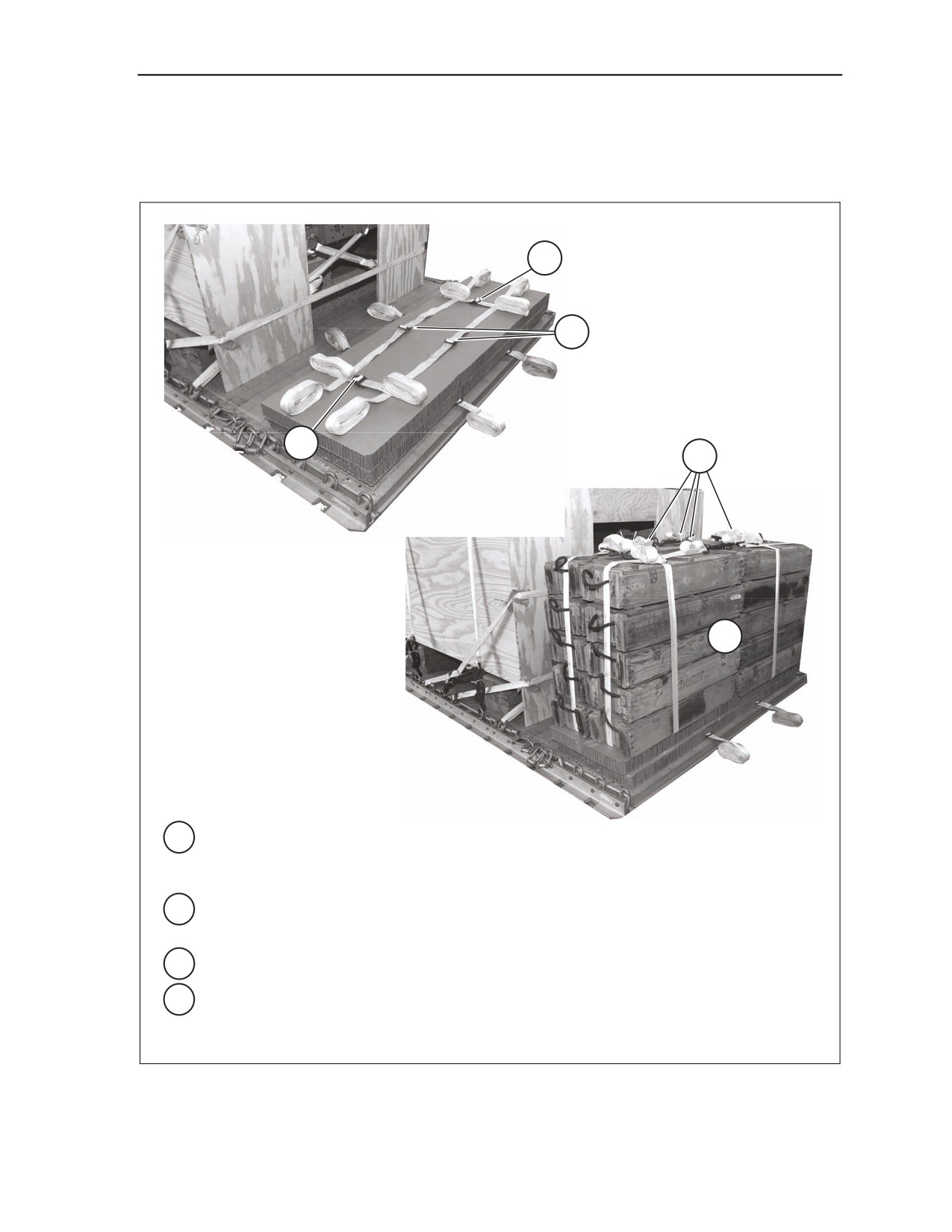

POSITIONING FIRST AMMUNITION STACK
10-11. Position the first ammunition stack as shown in Figure 10-16.
2
1
2
4
3
1 Form two 30-foot lashings. Pre-position one 30-foot lashing widthwise 6 inches in from the
front edge and the other widthwise 6 inches in from the rear edge of stack 1. Ensure the
D-rings are centered on stack.
2 Form two 30-foot lashings. Pre-position a 30-foot lashing centered between the D-rings
and the right edge of stack 1. Repeat this for the left side of stack 1.
3 Position twenty 105-mm ammunition boxes on stack 1.
4 Secure the pre-positioned lashings from steps 1 and 2 around the 105-mm ammunition
boxes with D-rings and load binders. Secure the load binders on top of the ammunition
boxes.

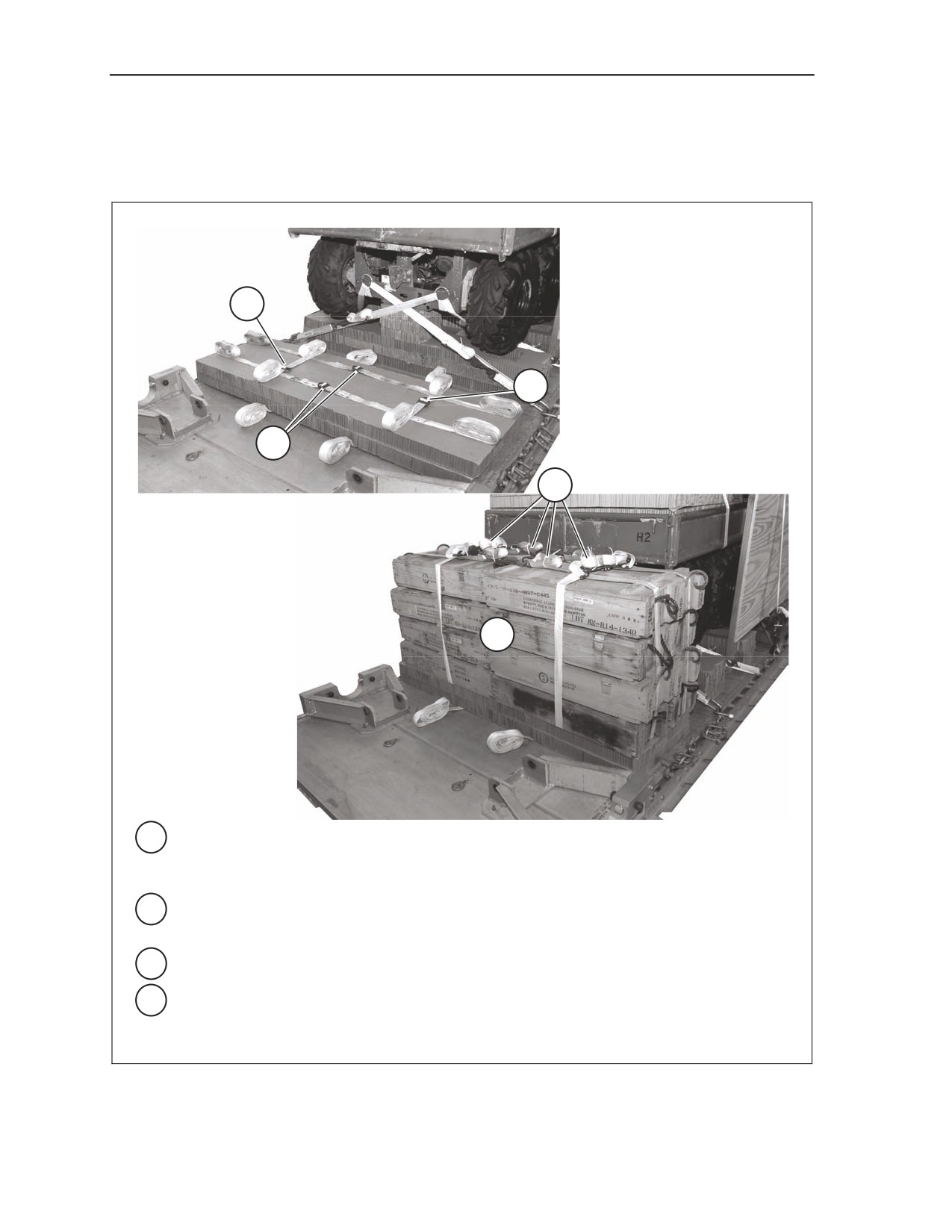

Figure 10-16. First Ammunition Stack Positioned
29 August 2006
FM 4-20.105-2/TO 13C7-1-51 VOL II
10-21
Chapter 10
6
5

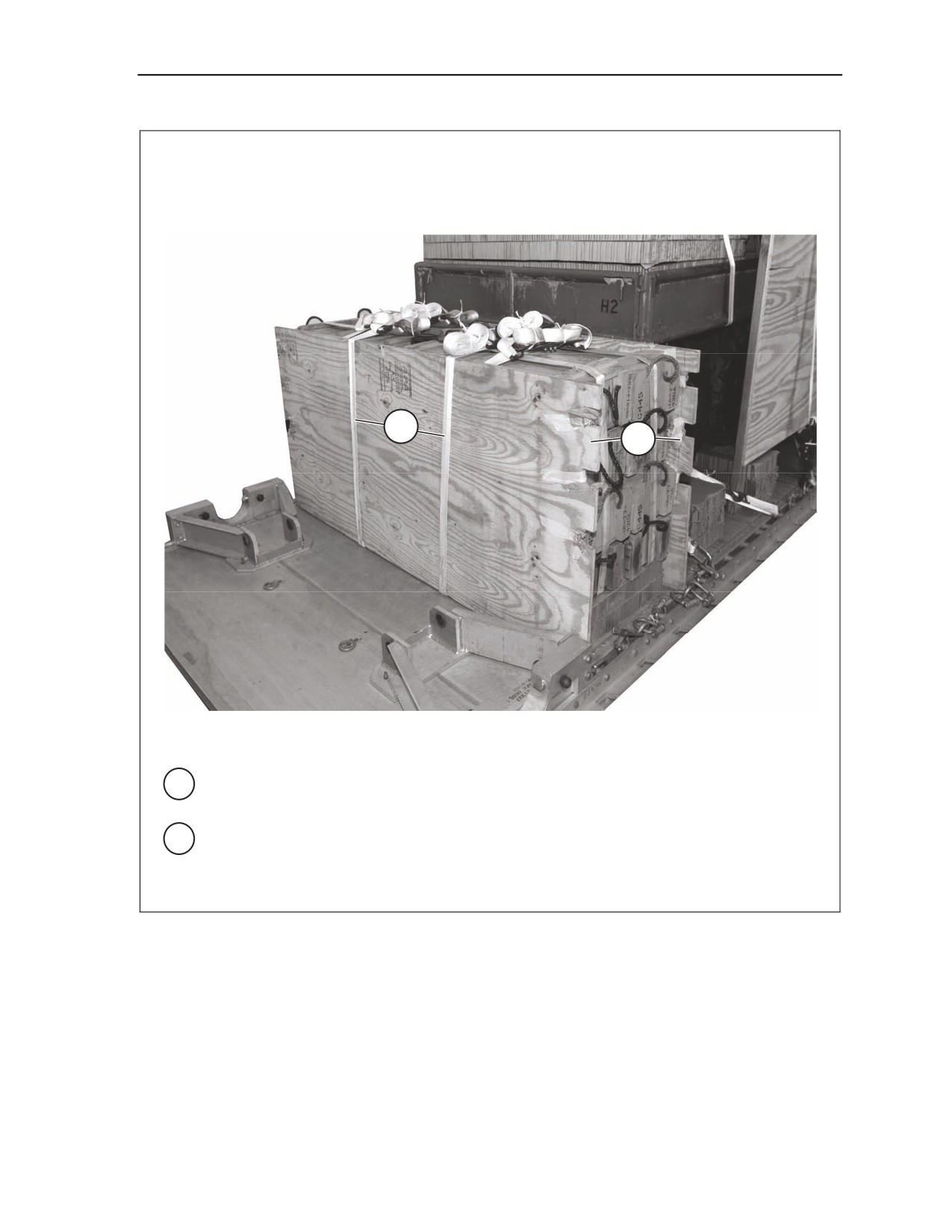

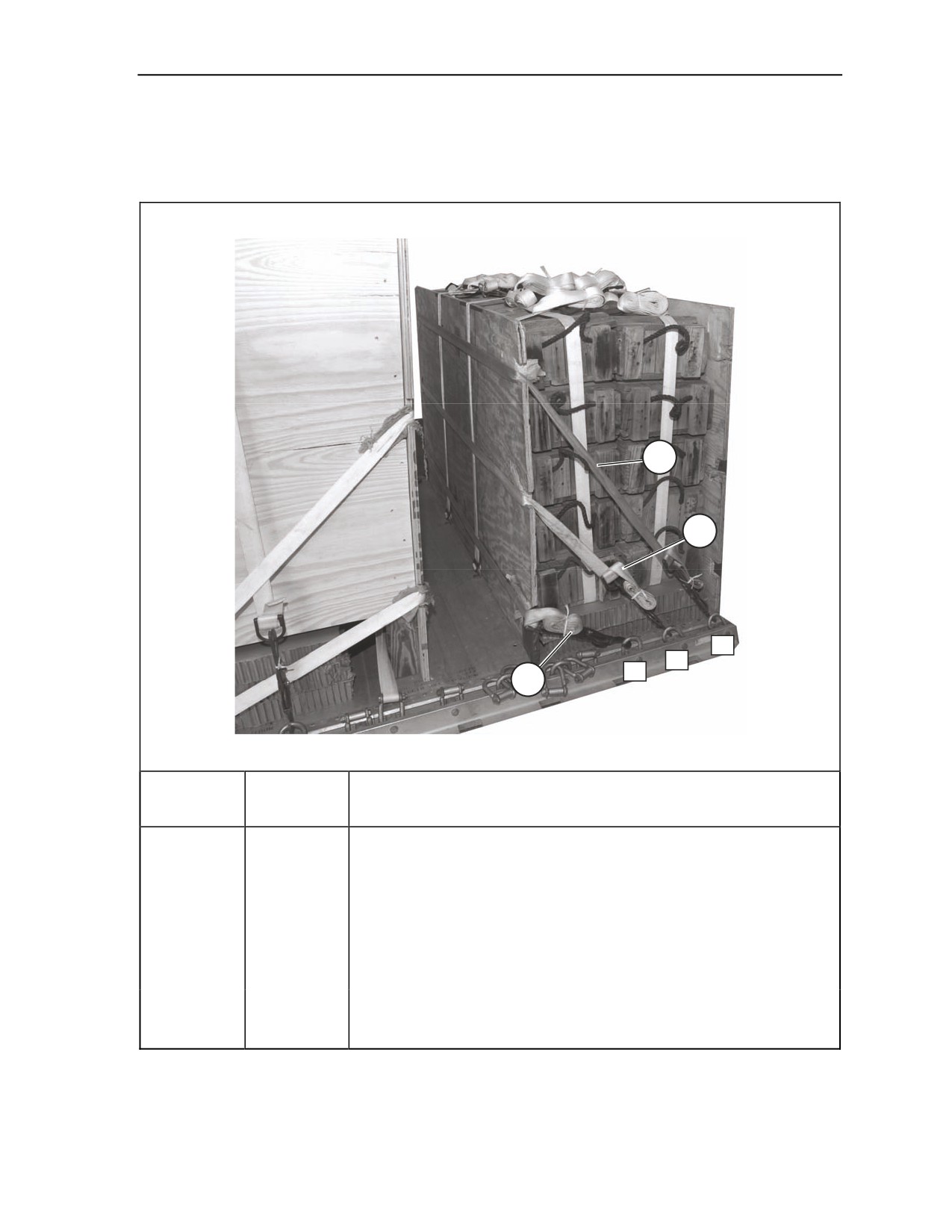

5 Position an endboard in front of ammunition stack 1 and one behind ammunition stack 1.
Pad the cutouts with cellulose wadding and tape in place.
6 Secure the pre-positioned lashings routed through platform tie-down rings A1, A2, B1 and
B2 over the top of the endboard. Secure on top of ammunition stack 1 with D-rings and
load binders.
Figure 10-16. First Ammunition Stack Positioned (Continued)
10-22
FM 4-20.105-2/TO 13C7-1-51 VOL II
29 August 2006
Rigging M-Gator with Accompanying Load on Dual Row Airdrop System Platform
LASHING ENDBOARD OF FIRST AMMUNITION STACK
10-12. Lash the endboard to the platform as shown in Figures 10-17 and 10-18.
1
2
1
2
3
3
Lashing
Tiedown
Instructions
Number
Clevis
Number
Pass lashing:
1
1 and 1A
Through clevis 1A and through its own D-ring. Route the lashing
through rear top cutouts in the endboard and secure to clevis 1 with
a D-ring and load binder.
2
2 and 2A
Through clevis 2A and through its own D-ring. Route the lashing
through rear center cutouts in the endboard and secure to clevis 2
with a D-ring and load binder.
3
3 and 3A
Through clevis 3A and through its own D-ring. Route the lashing
through rear bottom cutouts in the endboard and secure to clevis 3
with a D-ring and load binder.

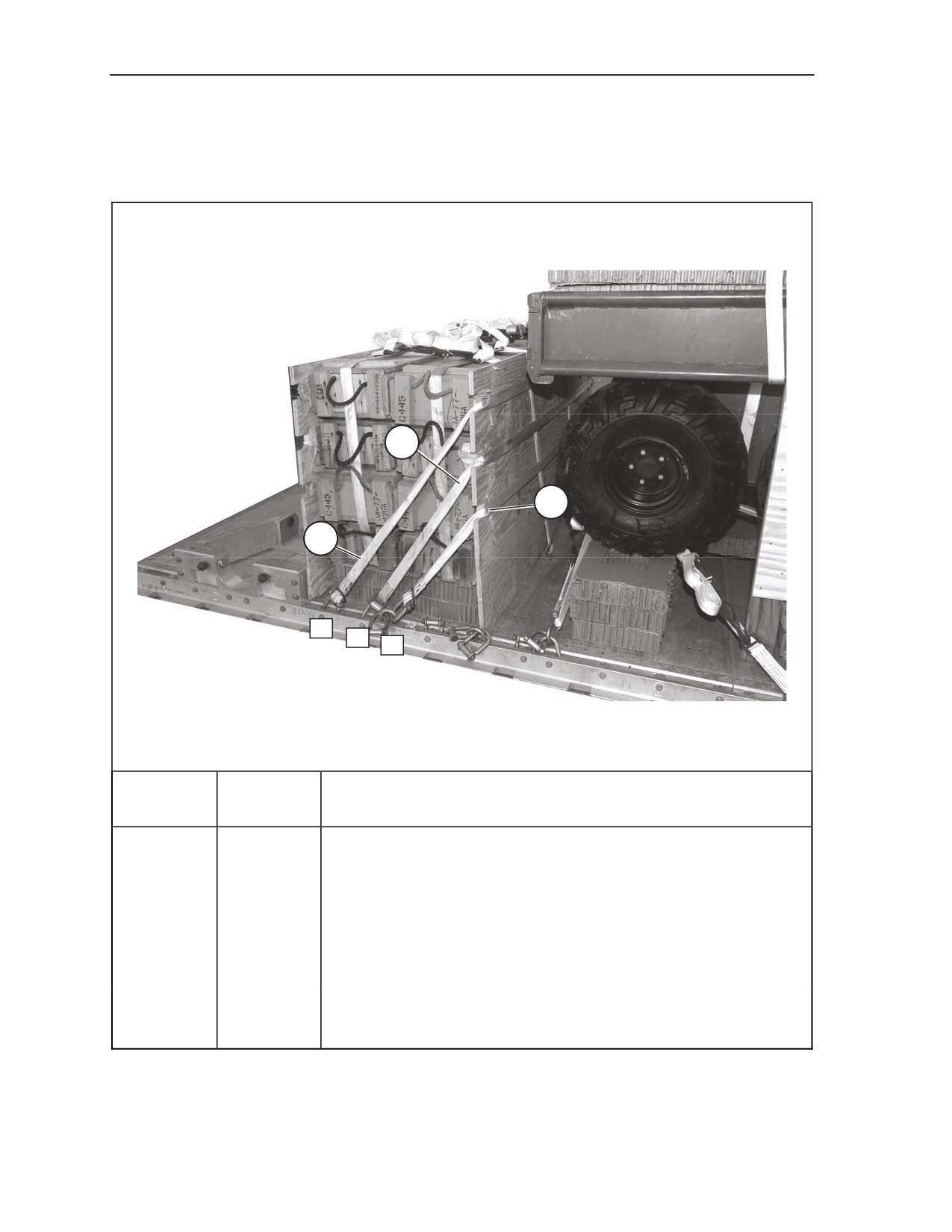

Figure 10-17. Lashings 1 Through 3 Installed on First Ammunition Stack
29 August 2006
FM 4-20.105-2/TO 13C7-1-51 VOL II
10-23
Chapter 10
6
5
7
5
4
4
Lashing
Tiedown
Instructions
Number
Clevis
Number
Pass lashing:
4
4 and 4A
Through clevis 4 and through its own D-ring. Route the lashing
through front bottom cutouts in the endboard and secure to clevis 4A
with D-ring and a load binder.
5
5 and 5A
Through clevis 5 and through its own D-ring. Route the lashing
through front center cutouts in the endboard and secure to clevis 5A
with D-ring and a load binder.
6
7 and 7A
Through clevis 7 and through its own D-ring. Route the lashing
through front top cutouts in the endboard and secure to clevis 7A
with D-ring and a load binder.
Figure 10-18. Lashings 4 Through 6 Installed on First Ammunition Stack
10-24
FM 4-20.105-2/TO 13C7-1-51 VOL II
29 August 2006
Rigging M-Gator with Accompanying Load on Dual Row Airdrop System Platform
CONSTRUCTING ENDBOARDS FOR SECOND AMMUNITION
STACK
10-13. Construct two endboards as shown in Figure 10-19.
Notes. 1. All dimensions are given in inches.
2. Drawing is not drawn to scale.
76
3
5
PLYWOOD
¾ X 36 X 79
CUTOUTS
36
1
2 X 2
5
3
1 Construct two endboards using a ¾- by 36- by 76-inch piece of plywood.
Figure 10-19. Endboards Constructed
29 August 2006
FM 4-20.105-2/TO 13C7-1-51 VOL II
10-25
Chapter 10
POSITIONING SECOND AMMUNITION STACK
10-14. Position second ammunition stack as shown in Figure 10-20.
2
2
1
4
3
1
Form two 30-foot lashings. Preposition one 30-foot lashing widthwise 6 inches in from the
front edge and the other widthwise 6 inches in from the rear edge of stack 2. Ensure the
D-rings are centered on stack.
2
Form two 30-foot lashings. Pre-position a 30-foot lashing centered between the D-rings
and the right edge of stack 2. Repeat this for the left side of stack 2.
3
Position sixteen 105-mm ammunition boxes on stack 2.
4 Secure the pre-positioned lashings from steps 1 and 2 around the 105-mm ammunition
boxes with D-rings and load binders. Secure the load binders on top of the ammunition
boxes.
Figure 10-20. Second Ammunition Stack Positioned
10-26
FM 4-20.105-2/TO 13C7-1-51 VOL II
29 August 2006
Rigging M-Gator with Accompanying Load on Dual Row Airdrop System Platform
5
6
5 Position an endboard in front of ammunition stack and one behind ammunition stack. Pad
the cutouts with cellulose wadding and tape in place.
6 Secure the pre-positioned lashings routed through platform tie-down rings A7, A8, B7 and
B8 over the top of the endboard. Secure on top of ammunition stack 2 with D-rings and
load binders.

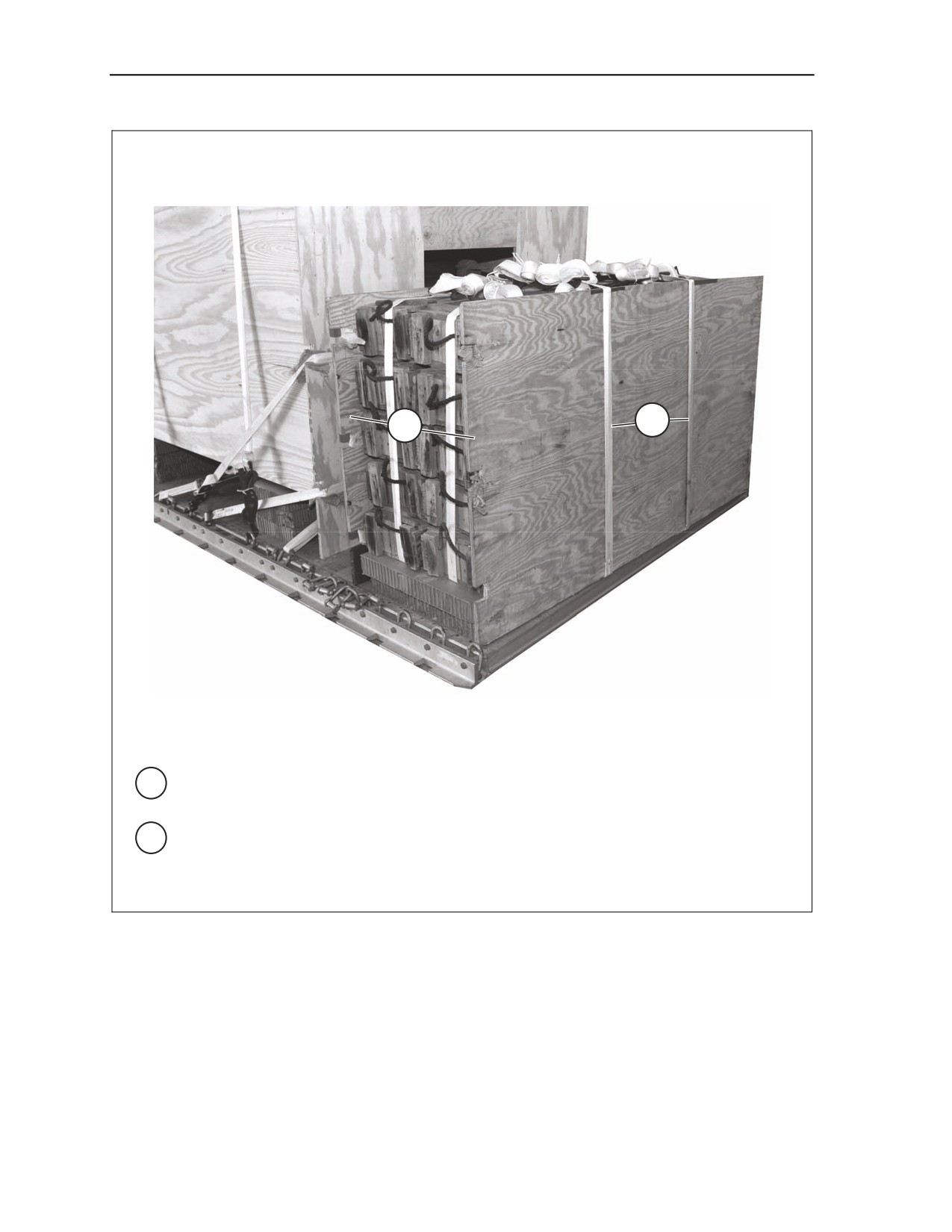

Figure 10-20. Second Ammunition Stack Positioned (Continued)
29 August 2006
FM 4-20.105-2/TO 13C7-1-51 VOL II
10-27
Chapter 10
LASHING ENDBOARD OF SECOND AMMUNITION STACK
10-15. Lash the endboard to the platform as shown in Figures 10-21 and 10-22.
2
1
3
29
28
26
Lashing
Tiedown
Instructions
Number
Clevis
Number
Pass lashing:
1
26 and 26A
Through clevis 26 and through its own D-ring. Route the lashing
through front bottom cutouts in the endboard and secure to clevis
26A with a D-ring and load binder.
2
28 and 28A
Through clevis 28 and through its own D-ring. Route the lashing
through front center cutouts in the endboard and secure to clevis
28A with a D-ring and load binder.
3
29 and 29A
Through clevis 29 and through its own D-ring. Route the lashing
through front top cutouts in the endboard and secure to clevis 29A
with a D-ring and load binder.

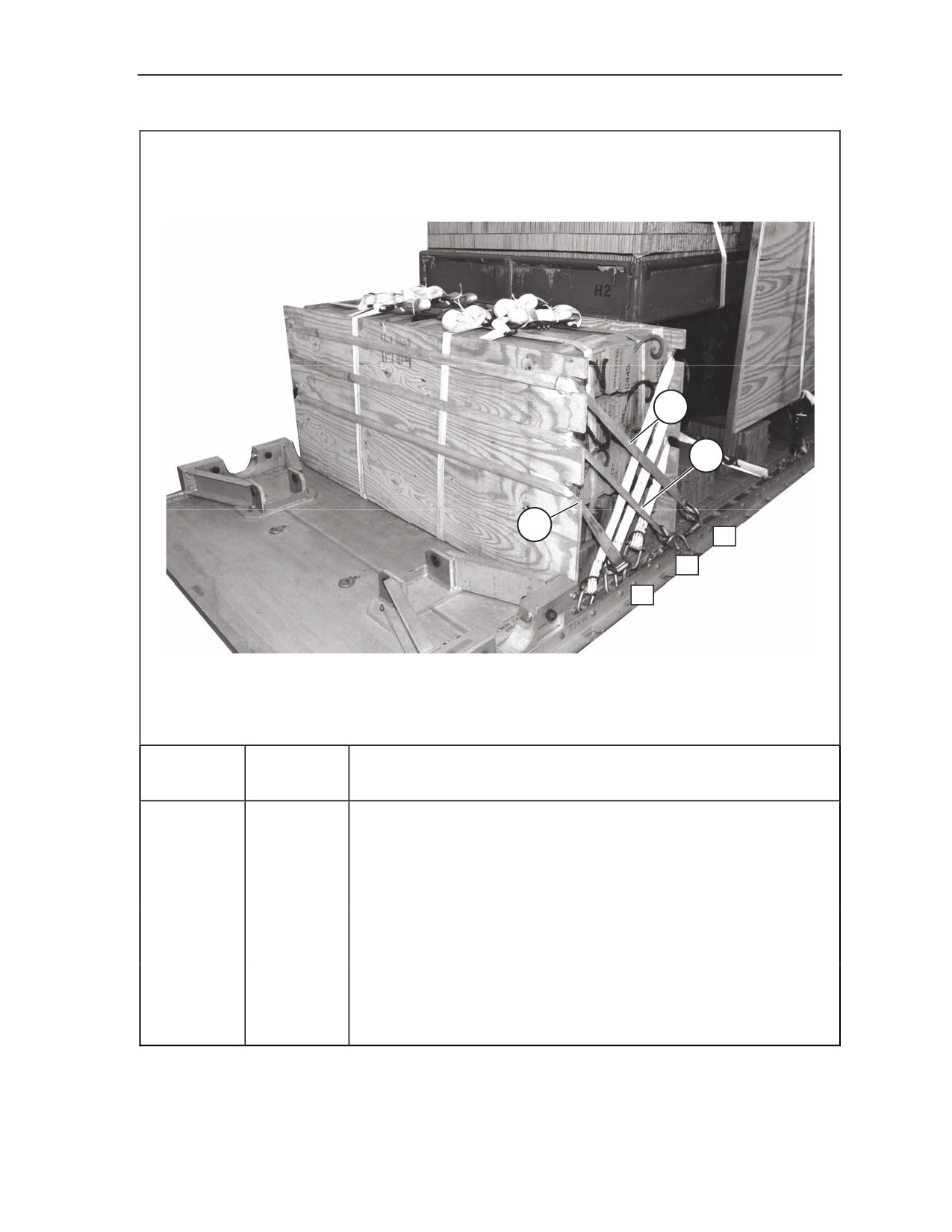

Figure 10-21. Lashings 1 Through 3 Installed on Second Ammunition Stack
10-28
FM 4-20.105-2/TO 13C7-1-51 VOL II
29 August 2006
Rigging M-Gator with Accompanying Load on Dual Row Airdrop System Platform
4
5
6
21
24
27
Lashing
Tiedown
Instructions
Number
Clevis
Number
Pass lashing:
4
21 and 21A
Through clevis 21 and through its own D-ring. Route the lashing
through rear top cutouts in the endboard and secure to clevis 21A
with D-ring and a load binder.
5
24 and 24A
Through clevis 24 and through its own D-ring. Route the lashing
through rear center cutouts in the endboard and secure to clevis 24A
with D-ring and a load binder.
6
27 and 27A
Through clevis 27 and through its own D-ring. Route the lashing
through rear bottom cutouts in the endboard and secure to clevis
27A with D-ring and a load binder.
Figure 10-22. Lashings 4 Through 6 Installed on Second Ammunition Stack
29 August 2006
FM 4-20.105-2/TO 13C7-1-51 VOL II
10-29
Chapter 10
POSITIONING THE ATTITUDE CONTROL SYSTEM (ACS) AND
INSTALLING SUSPENSION SLINGS
10-16. Construct the ACS according to Chapter 2, Section VII, Volume I. Position the ACS and install
the suspension slings as shown in Figures 10-23 and 10-24.
1
2
1 Position the front ACS to the rear of the front lashing on top of the M-Gator box with the 4-
by 4-inch piece of lumber to the rear of the platform.
2 Position the rear ACS on top of the honeycomb in the M-Gator’s bed with the 4- by 4-inch
piece of lumber to the front of platform.

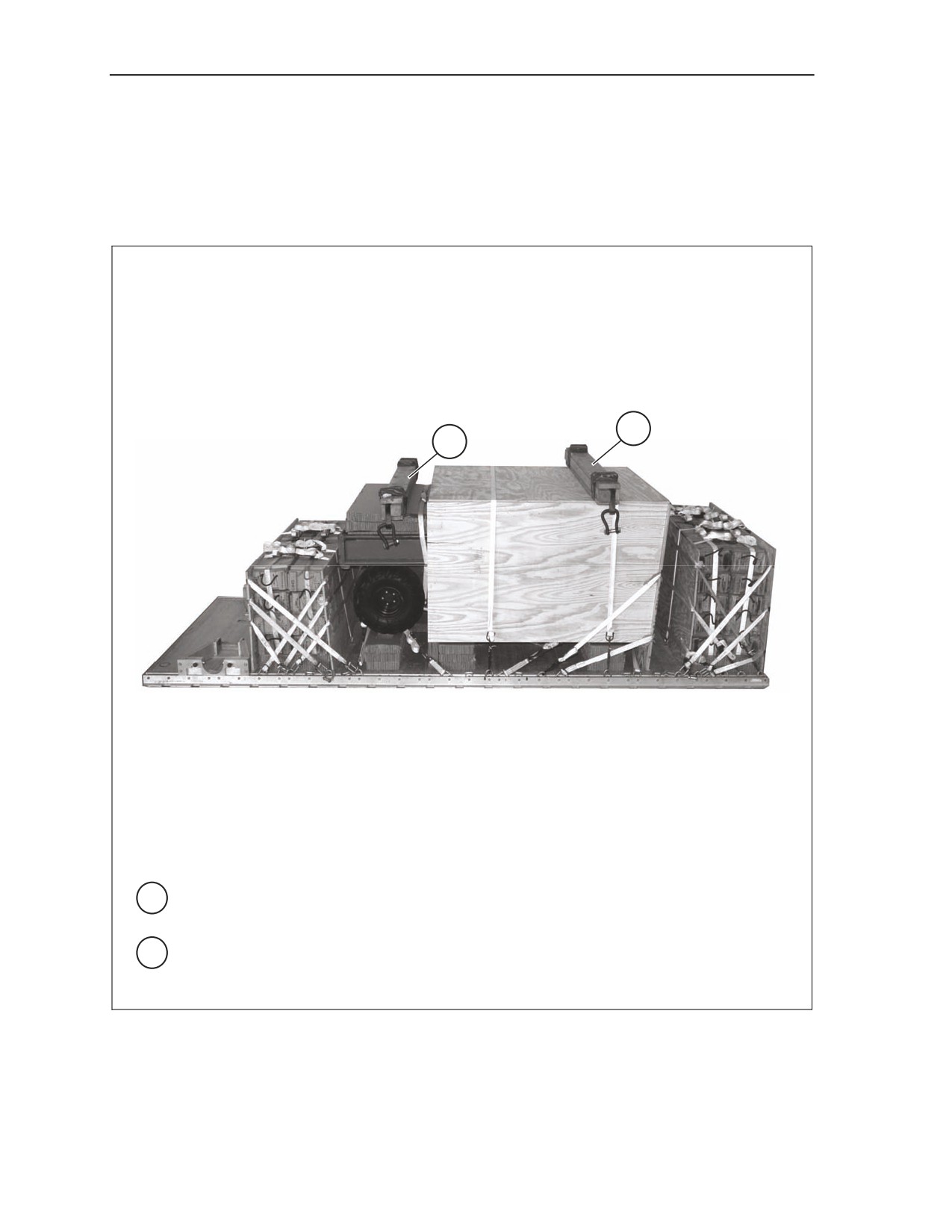

Figure 10-23. ACS Positioned
10-30
FM 4-20.105-2/TO 13C7-1-51 VOL II
29 August 2006
Rigging M-Gator with Accompanying Load on Dual Row Airdrop System Platform
3
2
6
1
25
22
11
9
1 Install a 3-foot (4-loop), type XXVI nylon sling to clevises 9 and 11. Connect an 11-foot (4
loop), type XXVI nylon sling to the center of the sling with a 3 ¾-inch, two-point link.
2 Route the sling through the clevis on the front ACS from front to rear. Pad and tape the
11-foot (4 loop), type XXVI nylon sling with felt from a point 12 inches below the clevis to a
point 12 inches above the ACS.
3 Install a 3-foot (4-loop), type XXVI nylon sling to the other end of the 11-foot (4 loop),
type XXVI nylon sling with a 3 ¾-inch, two-point link. Pad and tape the link with felt (not
shown).
4 Safety tie the 3 ¾-inch, two-point link with a length of type III nylon cord to the ACS clevis.
Ensure the tie is tight (not shown).
5 Repeat steps 1 through 4 on the front left side of the load using clevises 9A and 11A (not
shown).
6 Repeat steps 1 through 4 for the rear of the load using clevises 22 and 25, and 22A and
25A.

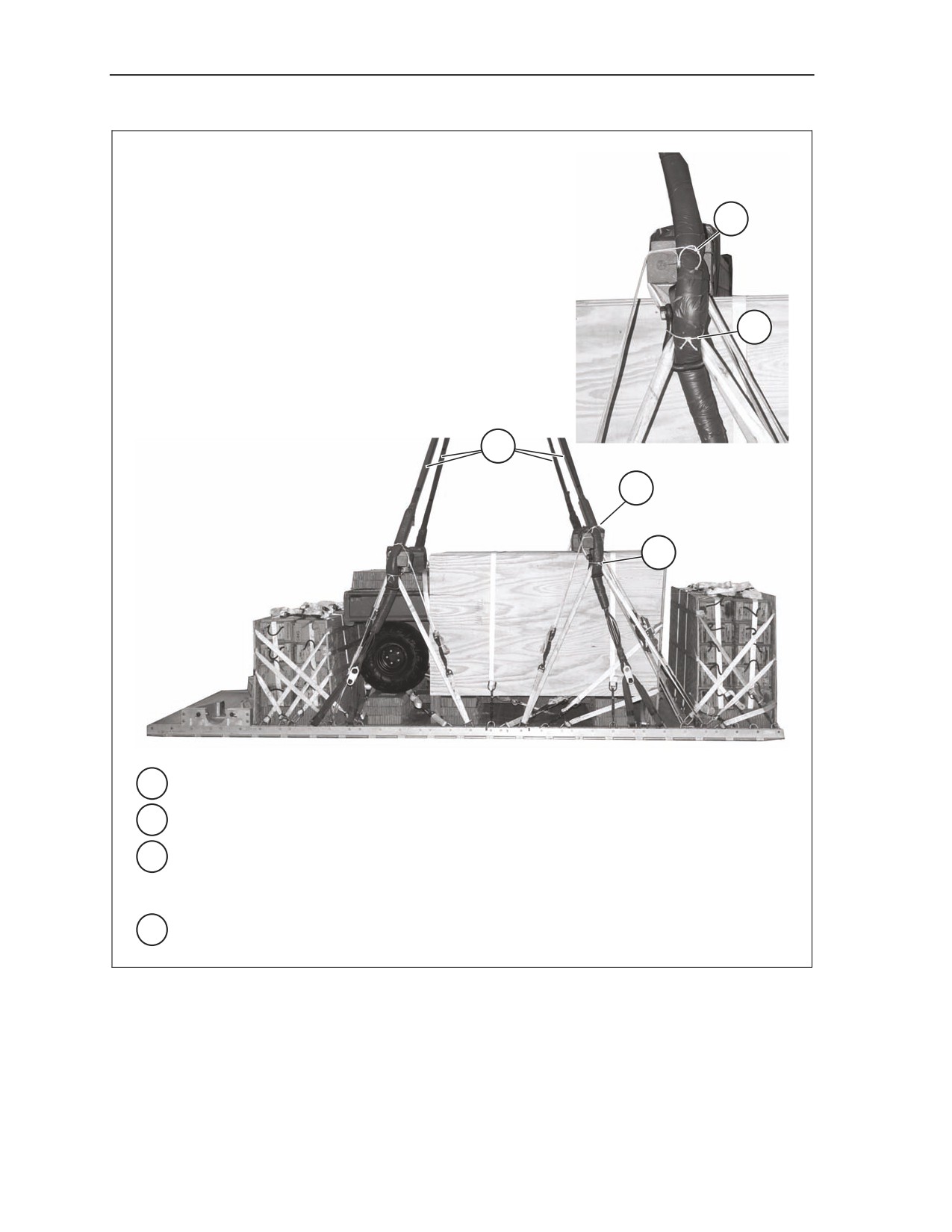

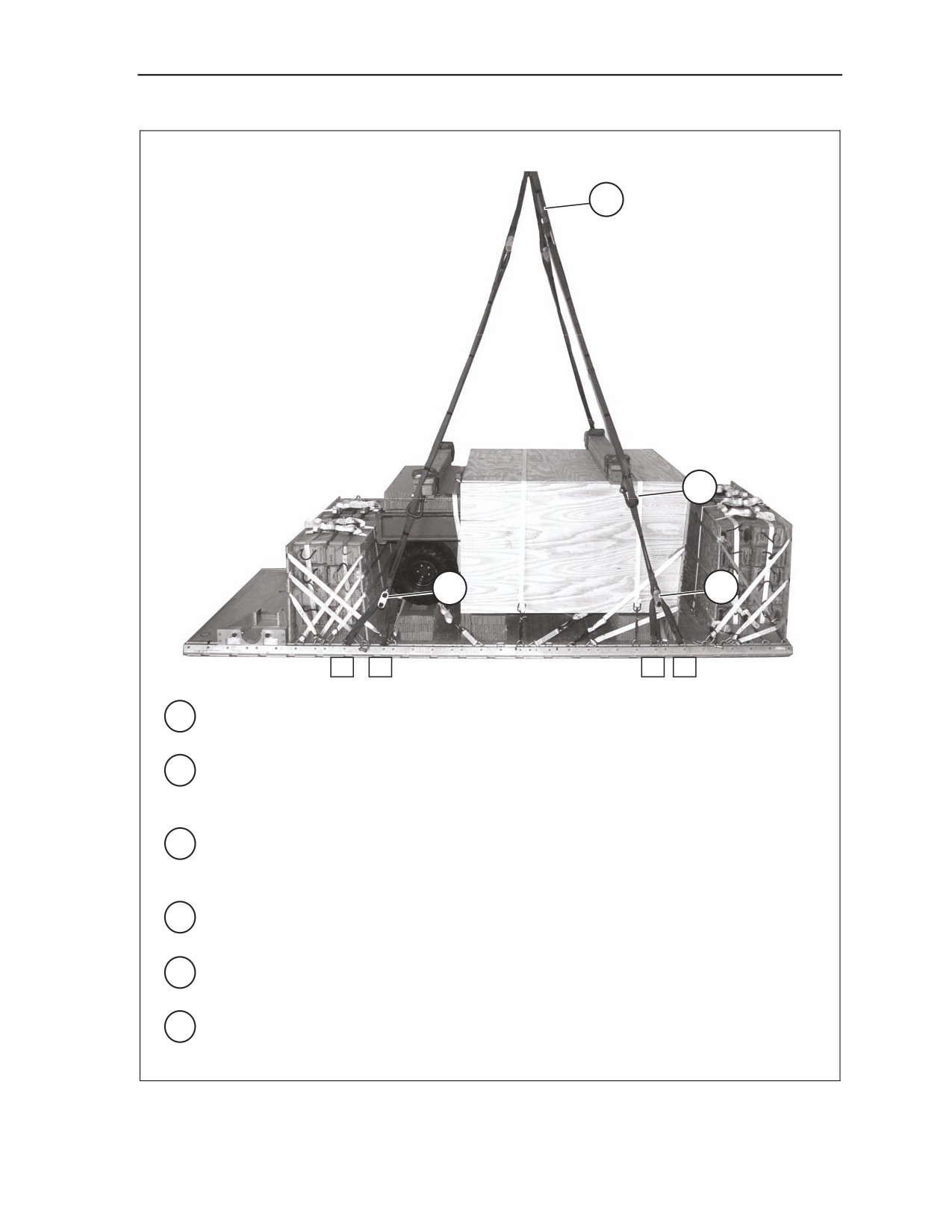

Figure 10-24. Suspension Slings Installed and Secured
29 August 2006
FM 4-20.105-2/TO 13C7-1-51 VOL II
10-31
Chapter 10
11
9
8
7
15
8
6
7 Route a 15-foot lashing from clevis 6 through the right front ACS clevis from outside to
inside, rear to front and around the ACS 4- by 4-inch piece of lumber and back to clevis 6.
8 Repeat above step using clevis 8.
9 Route a 15-foot lashing from clevis 15 through the right front ACS clevis from outside to
inside, front to rear and around the ACS 4- by 4-inch piece of lumber and back to clevis
15.
10 Repeat steps 7 and 9 on the left side of the load using clevises 6A, 8A, and 15A (not
shown).
11 Ensure that the ACS is straight and centered on the load. Load binders on both sides of
the load must be closed at the same time in the following sequence: 6 and 6A, 8 and 8A
and 15 and 15A.

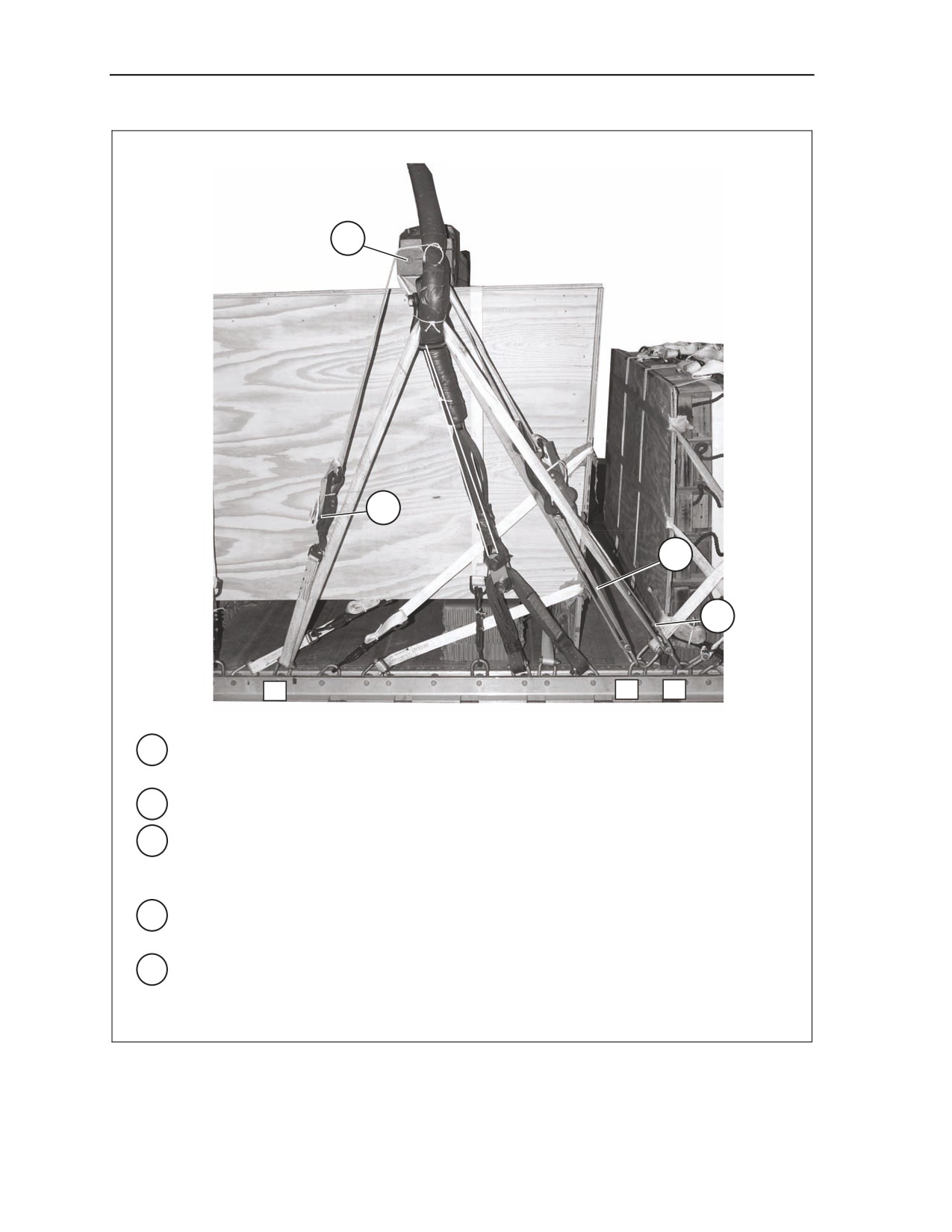

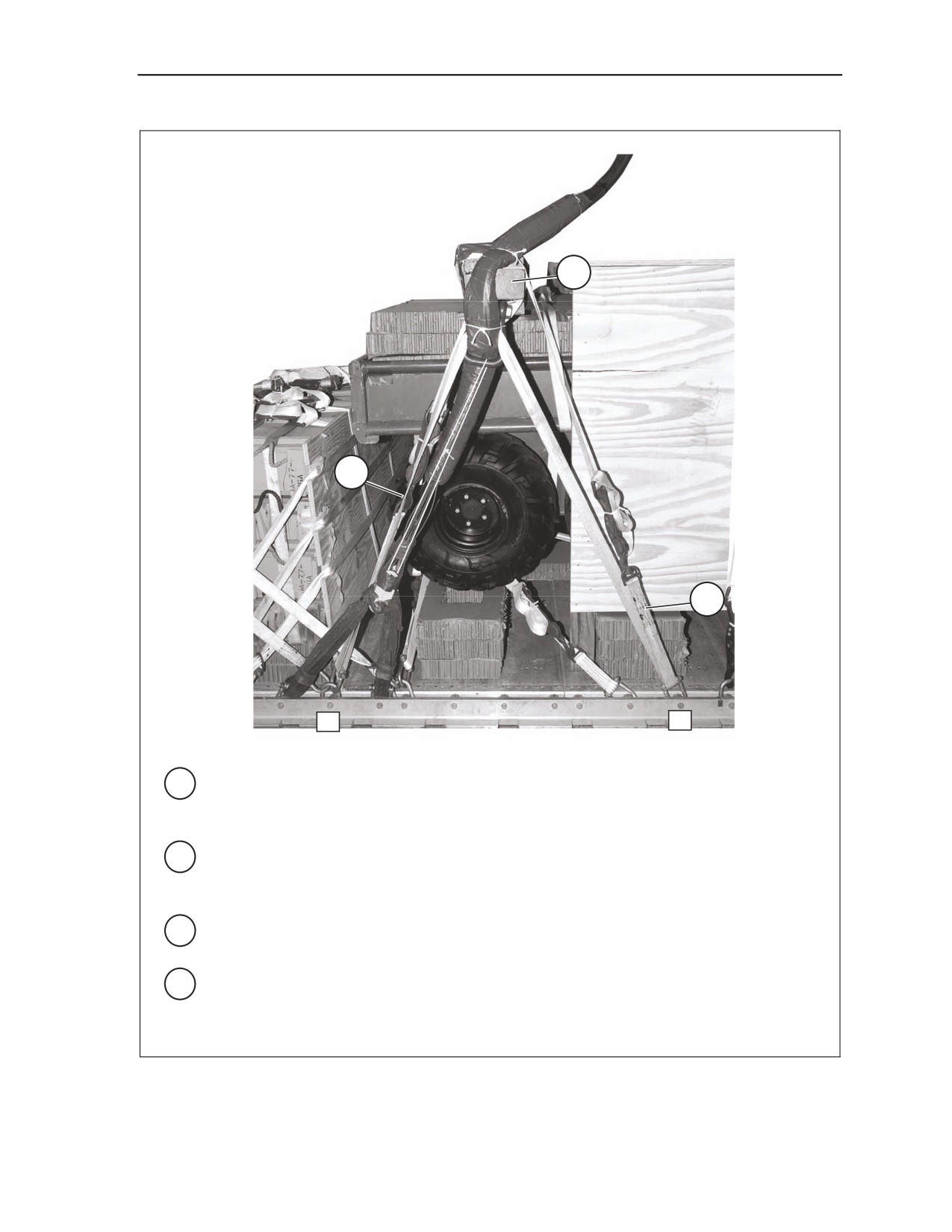

Figure 10-24. Suspension Slings Installed and Secured (Continued)
10-32
FM 4-20.105-2/TO 13C7-1-51 VOL II
29 August 2006
Rigging M-Gator with Accompanying Load on Dual Row Airdrop System Platform
15
13
12
23
18
12 Route a 15-foot lashing from clevis 18 through the right rear ACS clevis from outside to
inside, rear to front and around the ACS 4- by 4-inch piece of lumber and back to clevis
18.
13 Route a 15-foot lashing from clevis 23 through the right rear ACS clevis from outside to
inside, front to rear and around the ACS 4- by 4-inch piece of lumber and back to clevis
23.
14 Repeat steps 12 and 13 on the left side of the load using clevises 18A and 23A (not
shown).
15 Ensure that the ACS is straight and centered on the load. Load binders on both sides of
the load must be closed at the same time in the following sequence: 18 and 18A, and 23
and 23A.
Figure 10-24. Suspension Slings Installed and Secured (Continued)
29 August 2006
FM 4-20.105-2/TO 13C7-1-51 VOL II
10-33
Chapter 10
17
18
16
17
18
16
Extend the slings upward and remove all slack.
17
Tie a length of type III nylon cord around the 11-foot sling and the ACS sling.
18
Tie a length of type III nylon cord around the 11-foot (4 loop), type XXVI nylon sling, behind
all lashings, and around the 4- by 4-inch piece of lumber of the ACS and tie the ends
together.
19 Repeat steps 16 through 18 on all slings (not shown).
Figure 10-24. Suspension Slings Installed and Secured (Continued)
10-34
FM 4-20.105-2/TO 13C7-1-51 VOL II
29 August 2006
Rigging M-Gator with Accompanying Load on Dual Row Airdrop System Platform

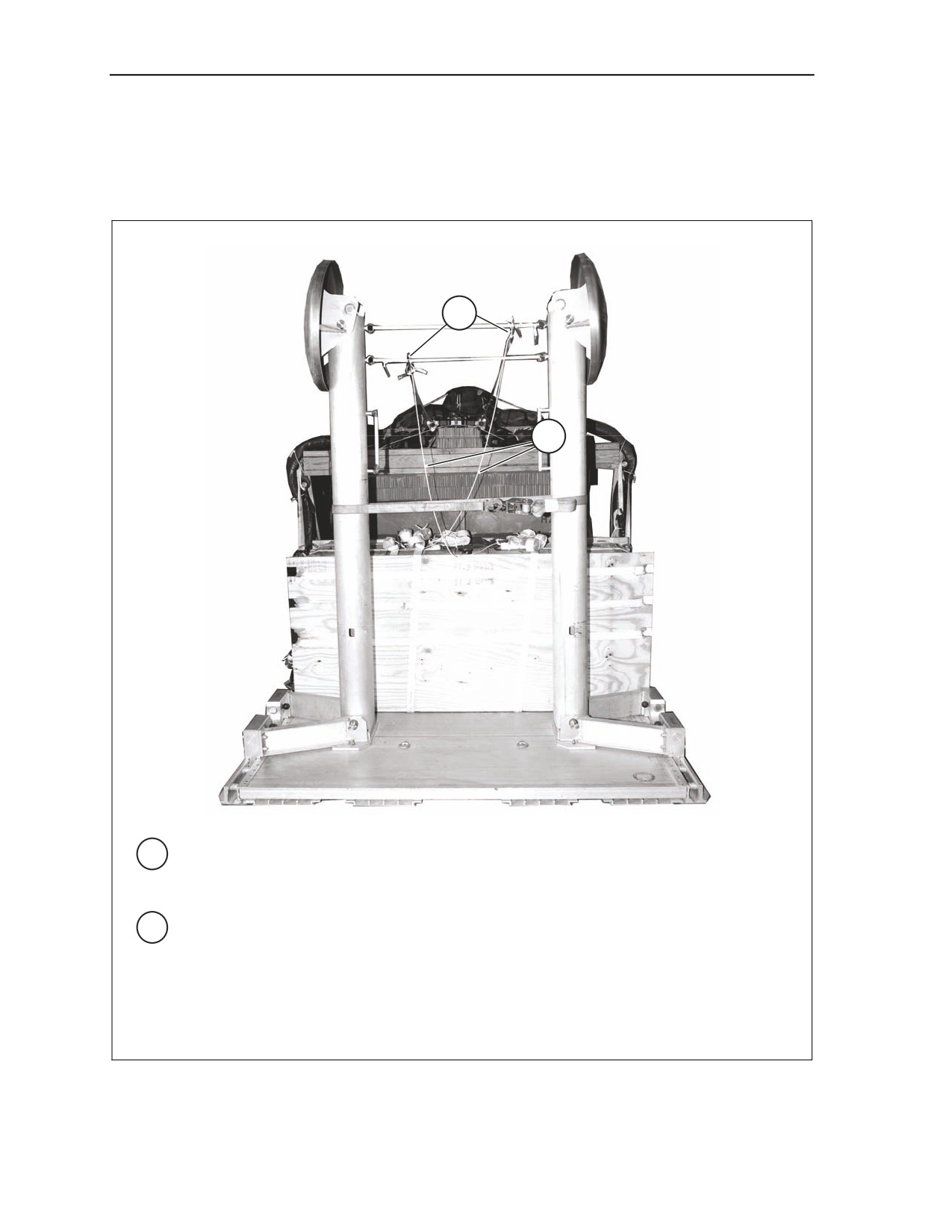

INSTALLING OUTRIGGER ASSEMBLIES
10-17. Assemble, install and safety tie the mast and foot assemblies on the DRAS platform according to
TM 10-1670-268-20&P/TO 13C7-52-22 and as shown in Chapter 2, Volume I, Figures 2-42 through 2-44
and Figure 2-45 Steps 1, 2, and 3.
STOWING CARGO PARACHUTES
10-18. Stow and restrain two G-11D cargo parachutes on top of the stowage platform as shown in
Chapter 2, Volume I and Figure 10-25.
2
3
1
12
5
1 Cut and position four 36- by 78-inch pieces of honeycomb on top of the first ammunition
stack with the rear edge against the M-Gator box. Secure the honeycomb to a convenient
point on the load with type III nylon cord.
2 Prepare and install two G-11D cargo parachutes on top of the honeycomb as shown above
and in Chapter 2, Volume I.
3 Restrain the parachutes as shown in Chapter 2, Volume I using type VIII nylon webbing
tied to clevises 5 and 5A, and 12 and 12A.

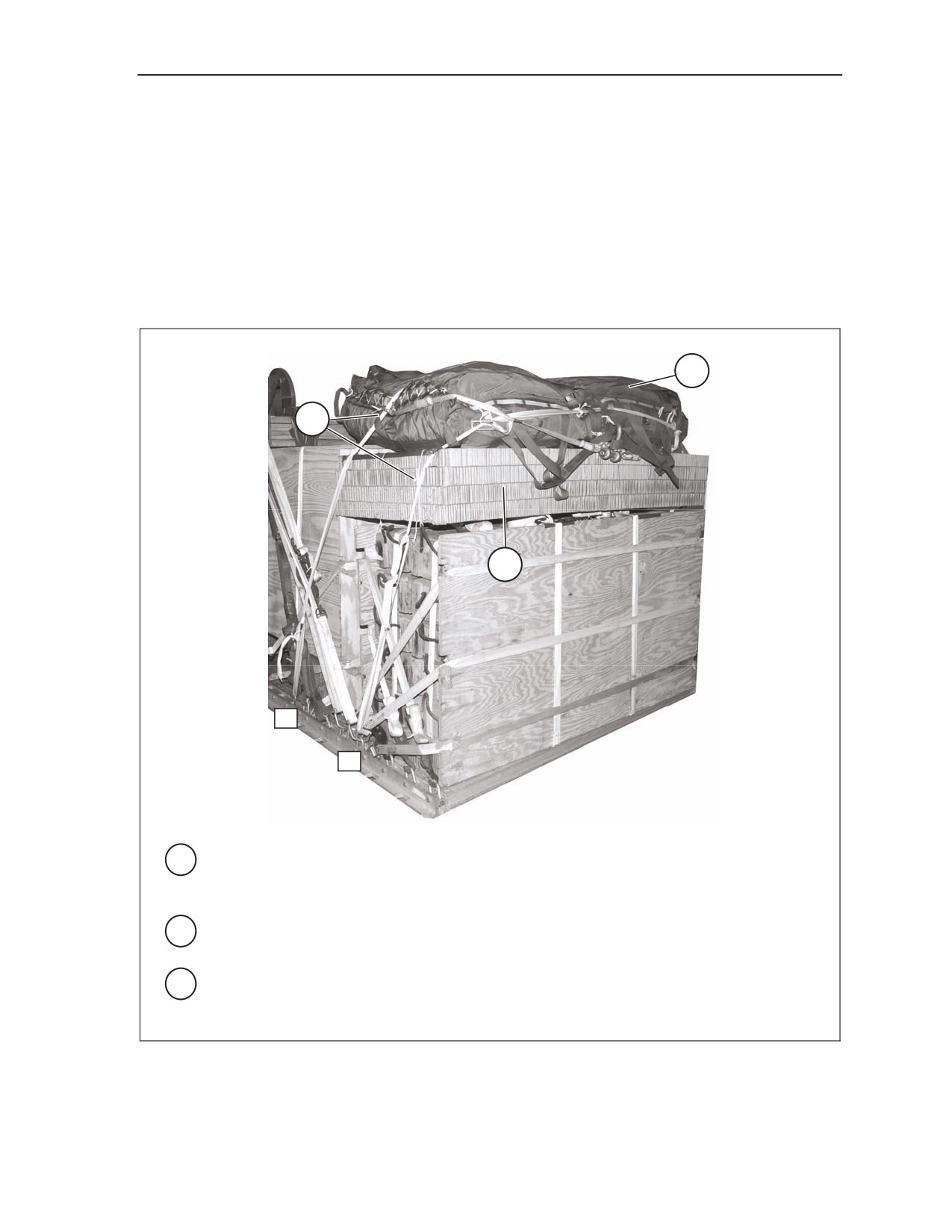

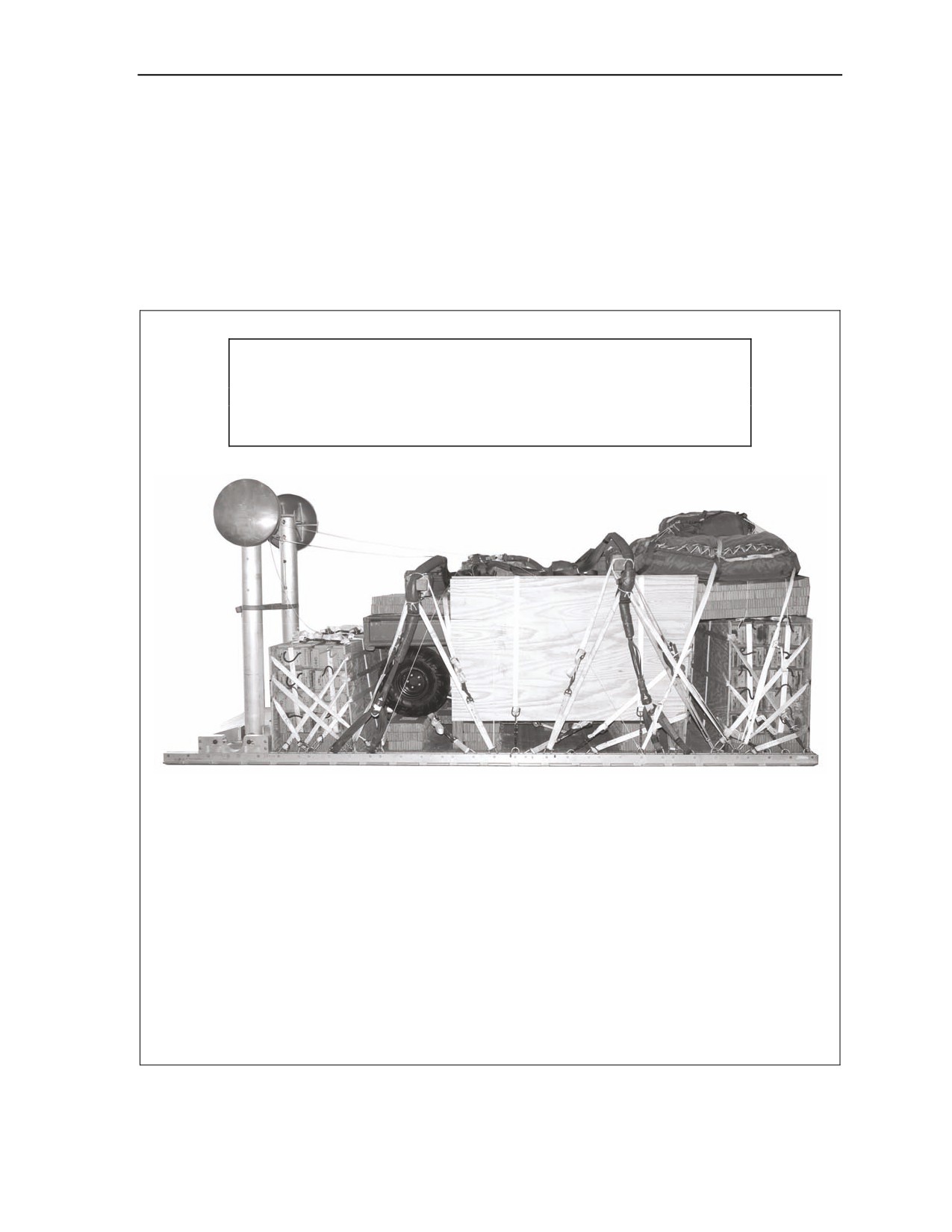

Figure 10-25. Cargo Parachute Stowed
29 August 2006
FM 4-20.105-2/TO 13C7-1-51 VOL II
10-35
Chapter 10
STOWING DEPLOYMENT PARACHUTE
10-19. Prepare, stow and install the deployment parachute according to Chapter 2, Section V, Volume I
and as shown in Figure 10-26.
1
1 Prepare, stow and install the deployment parachute according to Chapter 2, Section V,
Volume I and as shown above.

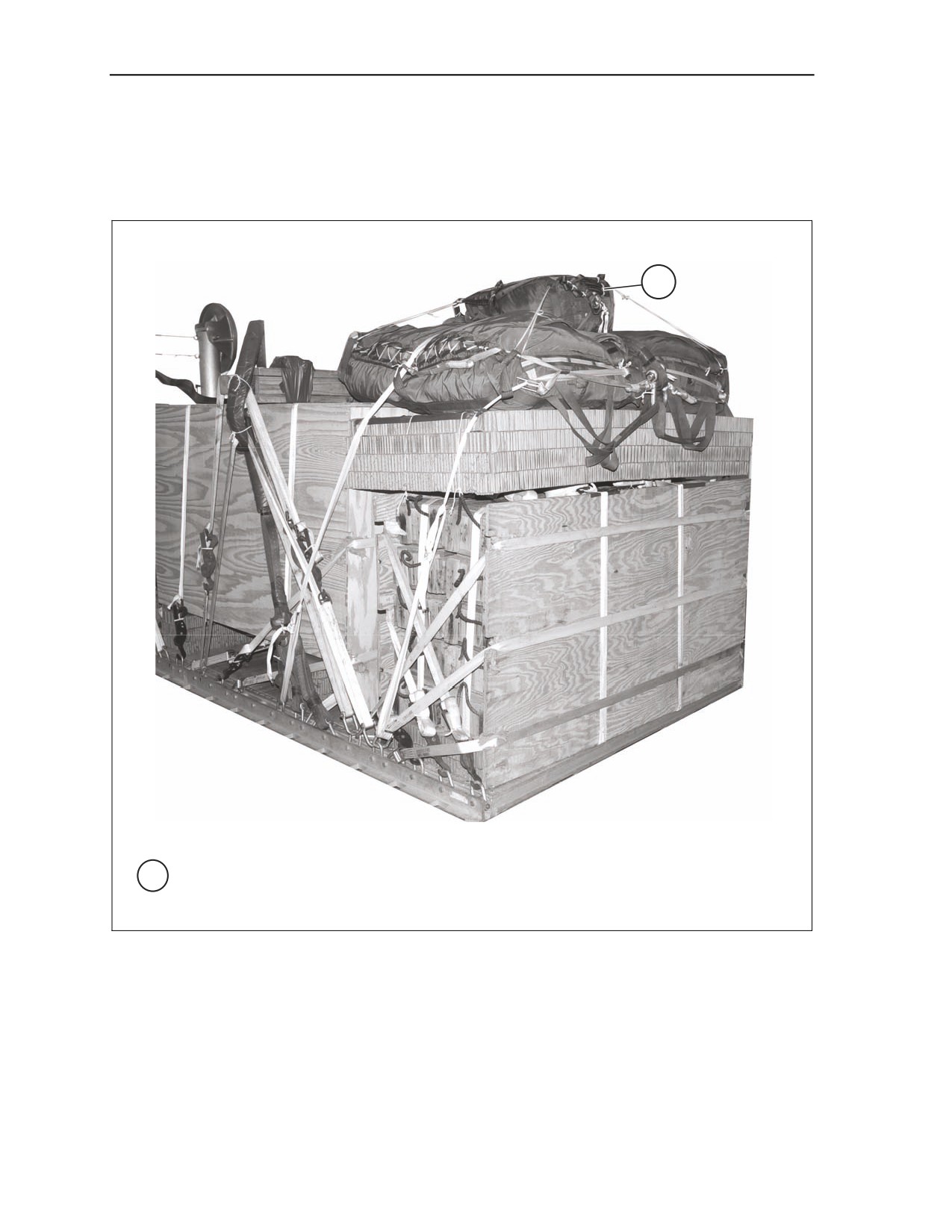

Figure 10-26. Deployment Parachute Installed
10-36
FM 4-20.105-2/TO 13C7-1-51 VOL II
29 August 2006
Rigging M-Gator with Accompanying Load on Dual Row Airdrop System Platform
INSTALLING PARACHUTE RELEASE SYSTEM
10-20. Build an M-1 parachute release stack, prepare and install an M-1 parachute release system
according to Chapter 2, Section VI, Volume I and as shown in Figure 10-27.
5
1
2
4
5
6
3
1

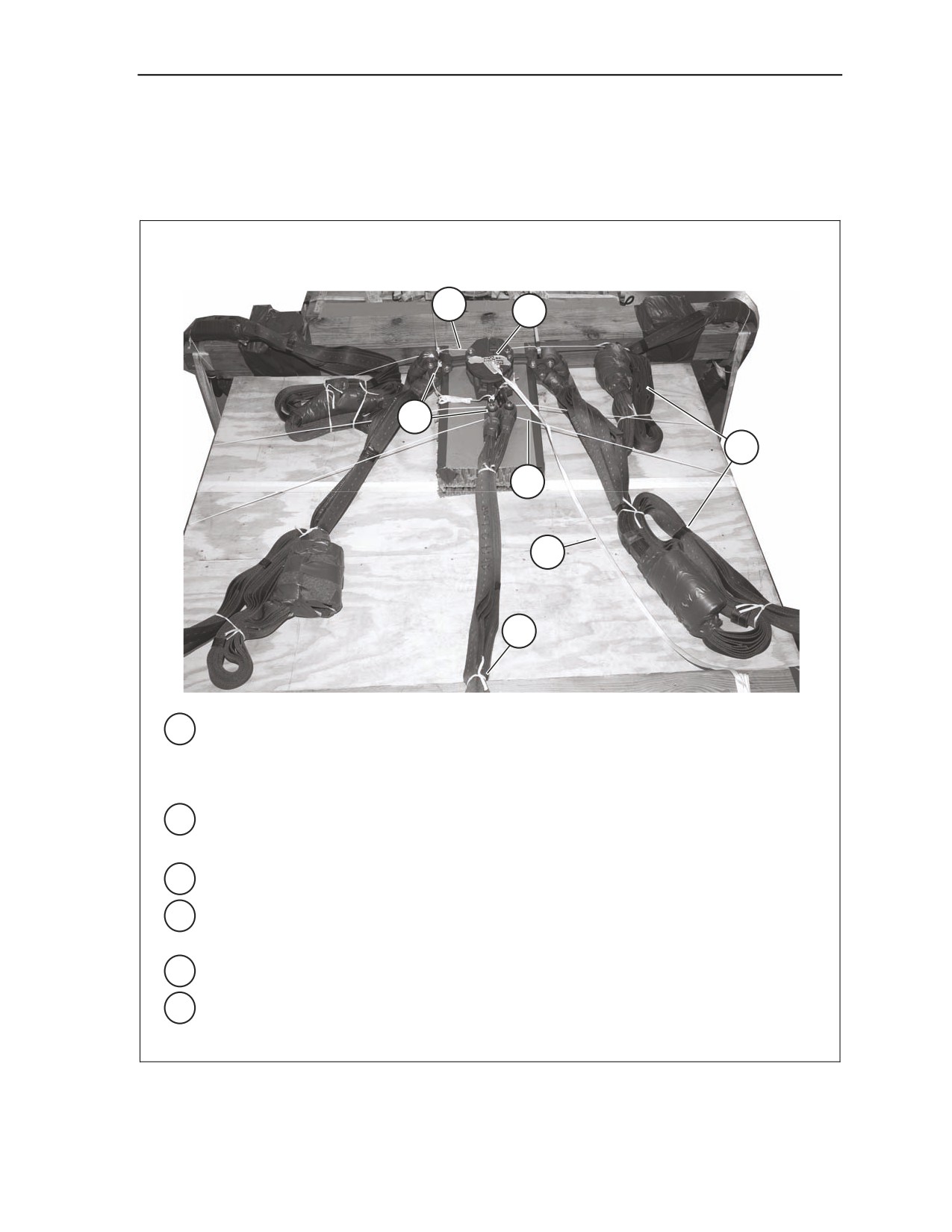

Cut two 12- by 24-inch pieces of honeycomb and glue together. Tape the edges and
position and center the honeycomb with the 12-inch side flush with M-Gator box. Secure
the honeycomb to a convenient point on the load using type III nylon cord. Center the M-1
release on the honeycomb stack.
2
Attach the riser extensions and suspension slings to the M-1 release.
Note. Remove the buffers from the ends of the suspension slings that attach to the M-1 release.
3
Secure the riser extensions in three places with type I, ¼-inch cotton webbing.
4
S-fold the slack in the front and rear suspension slings and secure with type I, ¼-inch
cotton webbing.
5
Secure the release to convenient points on the load with type III nylon cord.
6 Secure the arming wire and lanyard to a parachute carrying handle with three alternating
half hitches and a knot in the running end.
Figure 10-27. M-1 Cargo Parachute Release Installed
29 August 2006
FM 4-20.105-2/TO 13C7-1-51 VOL II
10-37
Chapter 10
INSTALLING MAST RELEASE KNIVES
10-21. Install the mast release knives as shown in Chapter 2, Volume I, Figure 2-45, steps 4 through 10
and as shown in Figure 10-28.
1
2
1 The length of the left and right ½-inch tubular nylon webbing from the base of the guillotine
knives to the lower suspension links of the release is 80 inches as shown in Figure 2-45,
steps 5 and 6.
2 Tie a length of type III nylon cord from the upper guillotine knife to a lashing on the left rear
endboard of the second ammunition stack that measures 56 inches. Repeat for the lower
guillotine knife attaching the type III nylon cord to a lashing on the left rear endboard of the
second ammunition stack as shown in Figure 2-45, steps 9 and 10. Fold the slack in the
type III nylon cord and tape with 2-inch masking tape.
Note. All measurements are from knot to knot.
Figure 10-28. Mast Release Knives Installed
10-38
FM 4-20.105-2/TO 13C7-1-51 VOL II
29 August 2006
Rigging M-Gator with Accompanying Load on Dual Row Airdrop System Platform
MARKING RIGGED LOAD
10-22. Mark the rigged load according to Chapter 2, Section IX, Volume I and as shown in Figure 10-29.
A Shipper’s Declaration for Dangerous Goods is required. If load varies from the one shown, the weight,
height, CB and parachute requirements must be recomputed.
EQUIPMENT REQUIRED
10-23. The equipment required to rig this load is listed in Table 10-1.
CAUTION
Make the final rigger inspection required by Chapter 2, Section IX,
Volume I before the load leaves the rigging site.
RIGGED LOAD DATA
Weight: Load shown
8,650 pounds
Maximum load allowed
8,820 pounds
Height
97 inches
Width
94 inches
Overall Length
216 inches
Overhang: Front
0 inches
Rear
0 inches
Center of Balance: (from front edge of platform):
90 inches
Figure 10-29. M-Gator with Accompanying Load Rigged on DRAS Platform
29 August 2006
FM 4-20.105-2/TO 13C7-1-51 VOL II
10-39
Chapter 10
Table 10-1. Equipment Required for Rigging M-Gator with Accompanying Load on DRAS
Platform
National Stock Number
Item
Quantity
8040-00-273-8713
Adhesive paste, 1-gallon
As required
4020-00-240-2146
Cord, nylon, type III, 550-pound
As required
Clevis,
4030-00-090-5354
Large
5
4030-00-678-8562
Medium
4
1670-00-360-0328
Cover, clevis, large
2
8135-00-664-6958
Cushioning material, packaging, cellulose wadding
As required
8305-00-191-1101
Felt, ½-inch
As required
1670-01-493-6418
Link assembly, two-point, 3 ¾-inch
9
Lumber:
5510-00-220-6146
2- by 4-inch
As required
5510-00-220-6148
2- by 6-inch
As required
5510-00-220-6274
4- by 4-inch
As required
5530-00-618-8073
Plywood, ¾-inch
6 sheets
5315-00-010-4659
Nail, steel wire, common, 8d
As required
1670-00-753-3928
Pad, energy dissipating, honeycomb
12 sheets
1670-01-487-5461
Static line assembly release away
1
Parachute:
Cargo:
1670-01-016-7841
G-11D
2
1670-00-040-8135
Cargo extraction: 28-foot (deployment parachute)
1
Platform, dual row, 18-foot
1670-01-485-1654
Rail, DRAS
2
1670-01-486-1342
Roller Pad, DRAS
4
1670-01-486-1656
Panel Assembly, Main
9
1670-01-162-2372
Clevis assembly
68
1670-01-097-8816
Release, cargo parachute, M-1
1
Sling, cargo airdrop
For suspension:
1670-01-062-6310
11-foot (4-loop), type XXVI nylon webbing
4
1670-01-062-6306
3-foot (4-loop), type XXVI nylon webbing
8
For deployment:
1670-01-062-6306
3-foot (4-loop), type XXVI nylon webbing
1
For riser extension:
1670-01-062-6313
60-foot (3-loop), type XXVI nylon webbing
2
For ACS:
1670-01-063-7761
16-foot (2-loop), type XXVI nylon webbing
2
For lifting:
1670-01-062-6303
12-foot (2-loop), type XXVI nylon webbing
4
10-40
FM 4-20.105-2/TO 13C7-1-51 VOL II
29 August 2006
Rigging M-Gator with Accompanying Load on Dual Row Airdrop System Platform
Table 10-1. Equipment Required for Rigging M-Gator with Accompanying Load on DRAS
Platform (Continued)
National Stock Number
Item
Quantity
1670-00-040-8219
Strap, parachute release, multicut
2
1670-00-937-0271
Knife release, cargo (guillotine)
6
1670-01-487-5464
Outrigger assembly
1
7510-00-266-5016
Tape, adhesive, 2-inch
As required
1670-00-937-0271
Tie-down assembly, 15-foot
64
1670-00-725-1437
Tie-down, cargo, aircraft, (CGU-1B)
5
Webbing:
8305-00-268-2411
Cotton, ¼-inch, type I
As required
Nylon:
8305-00-082-5752
Tubular, ½-inch
As required
8305-00-263-3591
Type VIII
As required
29 August 2006
FM 4-20.105-2/TO 13C7-1-51 VOL II
10-41
Chapter 11
Rigging the Mass Supply Load on Dual Row Airdrop
System Platform
DESCRIPTION OF LOAD
11-1. The mass supply (fast box) load (Figure 11-1) is rigged on an 18-foot dual row platform. The rigged
weight is 14,120 pounds. The load is rigged with two pre-constructed plywood boxes. The forward box
(box 1) has a minimum weight of 3,500 pounds and a maximum weight of 6,000 pounds. The aft box (box
2) has a minimum weight of 2,800 pounds and a maximum weight of 5,000 pounds. The load is 97 inches
high, 94 inches wide, 216 inches long, and the center of balance is 90 inches from the front edge of the
platform. The load is rigged with two to four G-11D cargo parachutes. The M-1 release is used with this
load. The minimum allowable weight is 8,100 and the maximum allowable weight is 14,500.
PREPARING PLATFORM
11-2. Inspect, or assemble and inspect, a dual row airdrop platform with outrigger assemblies and
outrigger platform support weldments according to TM 10-1670-268-20&P/TO 13C7-52-22 and as shown
in Figure 11-2.

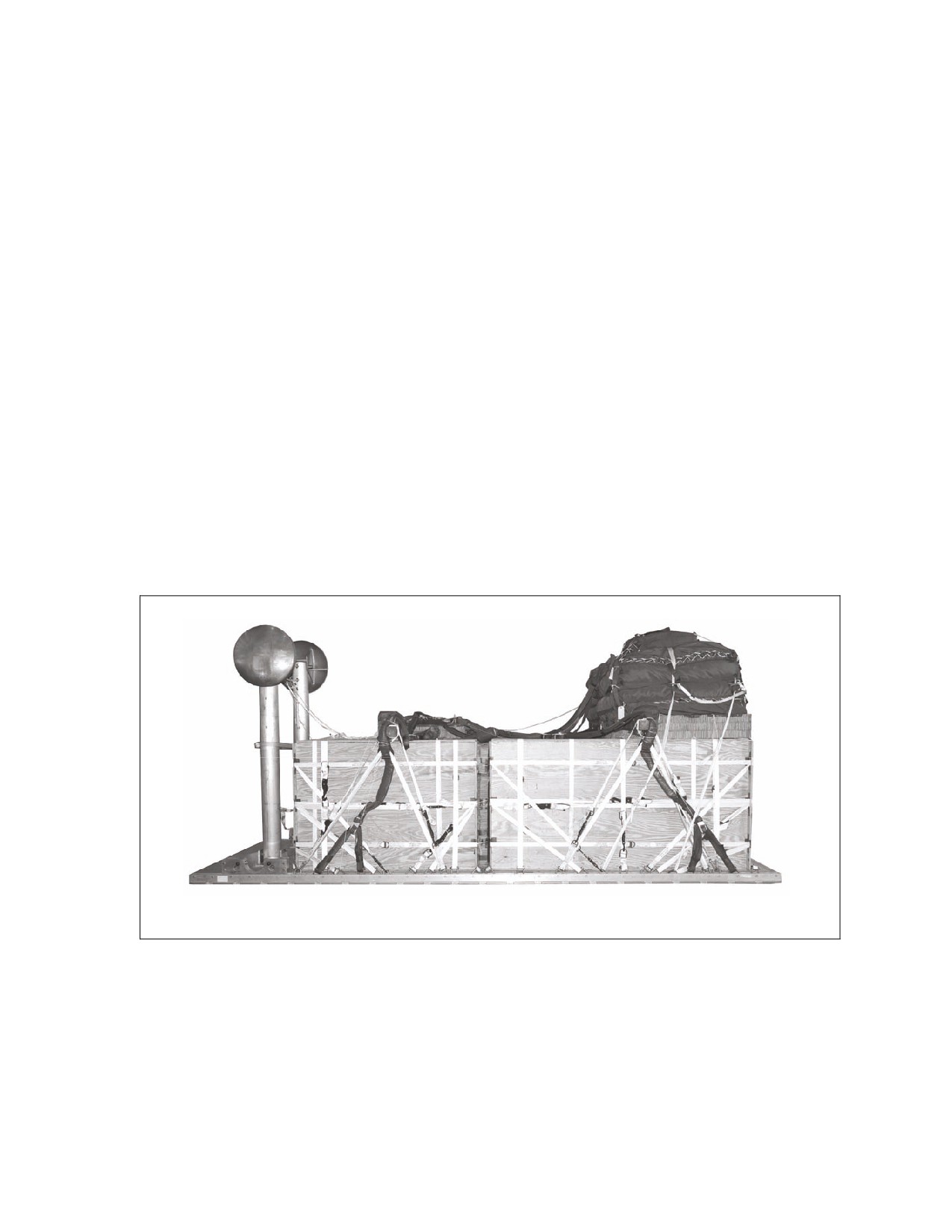

Figure 11-1. Mass Supply Load Rigged on DRAS Platform
29 August 2006
FM 4-20.105-2/TO 13C7-1-51 VOL II
11-1
Chapter 11
CLEVISES
29A THROUGH 1 A
LEFT
REAR
FRONT
RIGHT
CLEVISES
29 THROUGH 1
B6
B4
B2
B8
A4
A2
A8
A6
Step:
1. Starting at the front of each platform side rail, install clevises on the bushings bolted on
holes 2, 3, 4 (tripled), 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 21, 22, 23, 24, 25, 26,
27, 28, 29, and 30 (tripled).
2. Starting at the front of each platform side rail, number the clevises 1 through 29 on the
right side and 1A through 29A on the left side.
3. Label the tie-down rings according to Figure 2-2.
4. Construct four 30-foot lashings. Route the free ends of the one 30-foot lashing through
platform tie-down rings A2 and B2.
5. Route the free ends of one 30-foot lashing through tie down rings A4 and B4.
6. Route the free ends of one 30-foot lashing through tie down rings A6 and B6.
7. Route the free ends of one 30-foot lashing through tie down rings A8 and B8.
Figure 11-2. Platform Prepared
11-2
FM 4-20.105-2/TO 13C7-1-51 VOL II
29 August 2006















Content      ..      1      2      3      ..
