FM 3-36
Field Manual
Headquarters
Department of the Army
No. 3-36
Washington, DC, 25 February 2009
Electronic Warfare in Operations
Contents
PREFACE
iv
Chapter 1
ELECTRONIC WARFARE OVERVIEW
1-1
Operational Environments
1-1
Information and the Electromagnetic Spectrum
1-1
Divisions of Electronic Warfare
1-4
Activities and Terminology
1-7
Summary
1-12
Chapter 2
ELECTRONIC WARFARE IN FULL SPECTRUM OPERATIONS
2-1
The Role of Electronic Warfare
2-1
The Application of Electronic Warfare
2-3
Summary
2-7
Chapter 3
ELECTRONIC WARFARE ORGANIZATION
3-1
Organizing Electronic Warfare Operations
3-1
Planning and Coordinating Electronic Warfare Activities
3-4
Summary
3-6
Chapter 4
ELECTRONIC WARFARE AND THE OPERATIONS PROCESS
4-1
Section I — Electronic Warfare Planning
4-1
The Military Decisionmaking Process
4-2
Decisionmaking in a Time-Constrained Environment
4-9
The Integrating Processes and Continuing Activities
4-10
Employment Considerations
4-15
Section II — Electronic Warfare Preparation
4-19
Section III — Electronic Warfare Execution
4-19
Section IV — Electronic Warfare Assessment
4-20
Summary
4-21
Chapter 5
COORDINATION, DECONFLICTION, AND SYNCHRONIZATION
5-1
Coordination and Deconfliction
5-1
Synchronization
5-5
Summary
5-5
Distribution Restriction: Approved for public release; distribution is unlimited.
i
Contents
Chapter 6
INTEGRATION WITH JOINT AND MULTINATIONAL OPERATIONS
6-1
Joint Electronic Warfare Operations
6-1
Multinational Electronic Warfare Operations
6-4
Summary
6-6
Chapter 7
ELECTRONIC WARFARE CAPABILITIES
7-1
Service Electronic Warfare Capabilities
7-1
External Support Agencies and Activities
7-1
Summary
7-3
Appendix A
THE ELECTROMAGNETIC ENVIRONMENT
A-1
Appendix B
ELECTRONIC WARFARE INPUT TO OPERATION PLANS AND ORDERS . B-1
Appendix C
ELECTRONIC WARFARE RUNNING ESTIMATE
C-1
Appendix D
ELECTRONIC WARFARE-RELATED REPORTS AND MESSAGES
D-1
Appendix E
ARMY AND JOINT ELECTRONIC WARFARE CAPABILITIES
E-1
Appendix F
TOOLS AND RESOURCES RELATED TO ELECTRONIC WARFARE
F-1
GLOSSARY
Glossary-1
REFERENCES
References-1
INDEX
Index-1
Figures
Figure 1-1. The electromagnetic spectrum
1-2

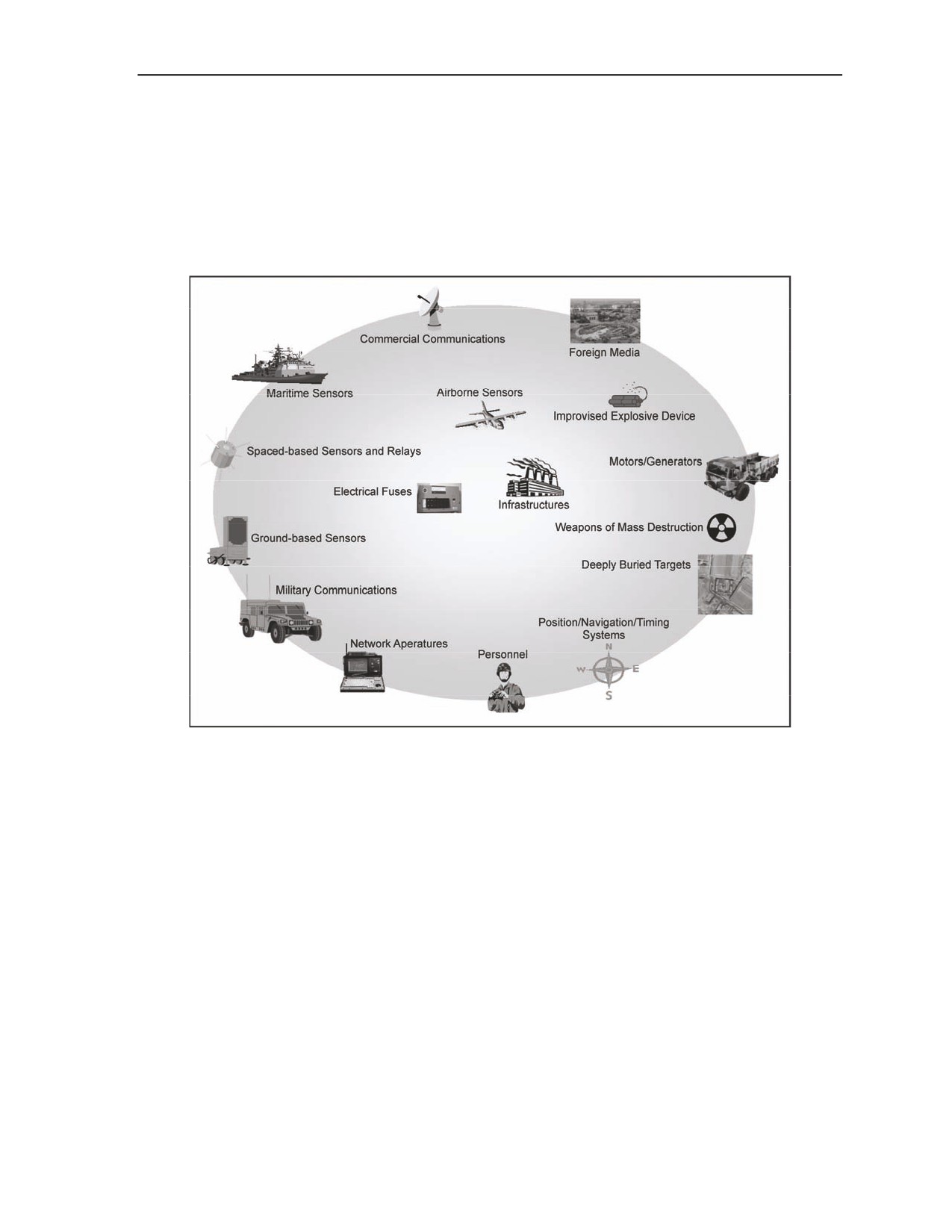

Figure 1-2. Electromagnetic spectrum targets
1-3

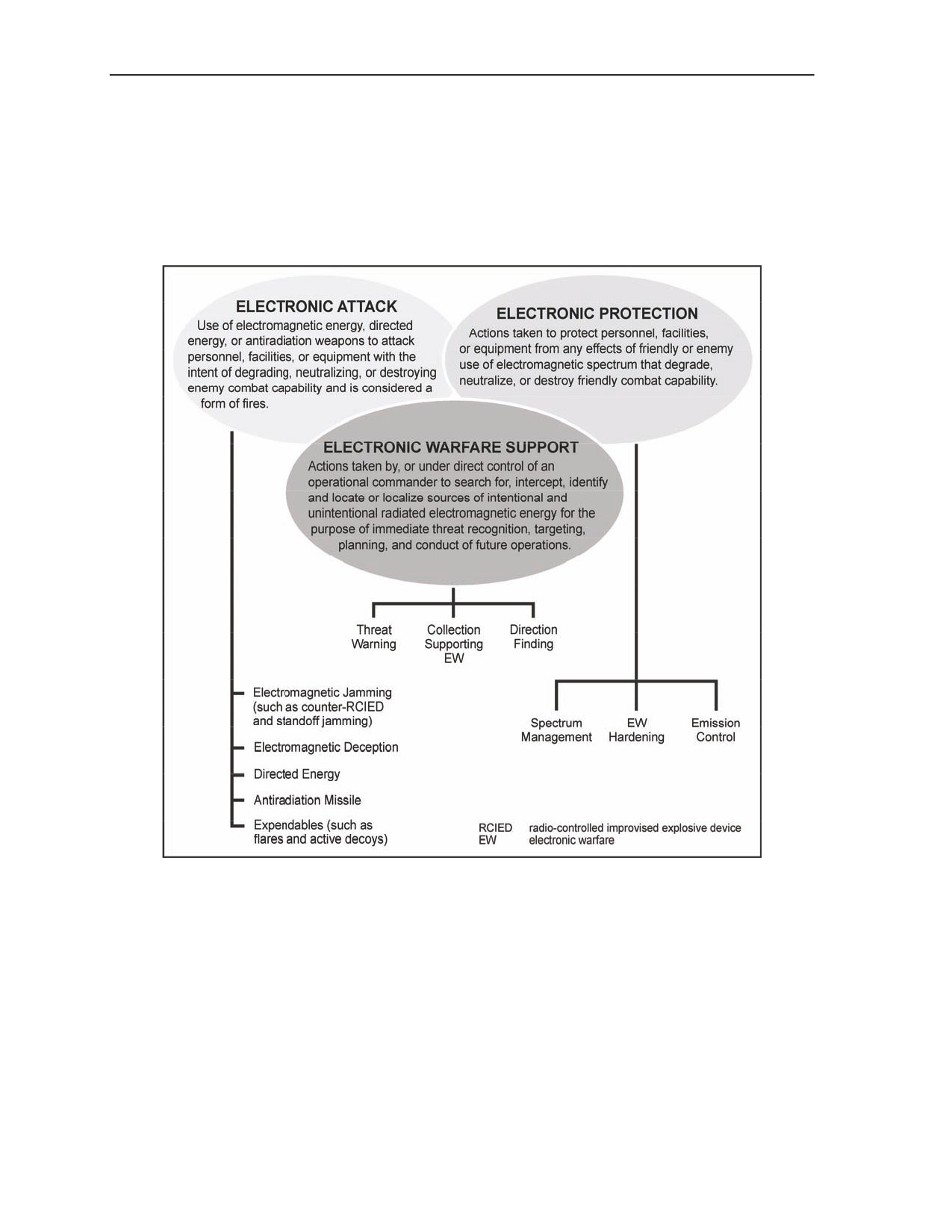

Figure 1-3. The three subdivisions of electronic warfare
1-4

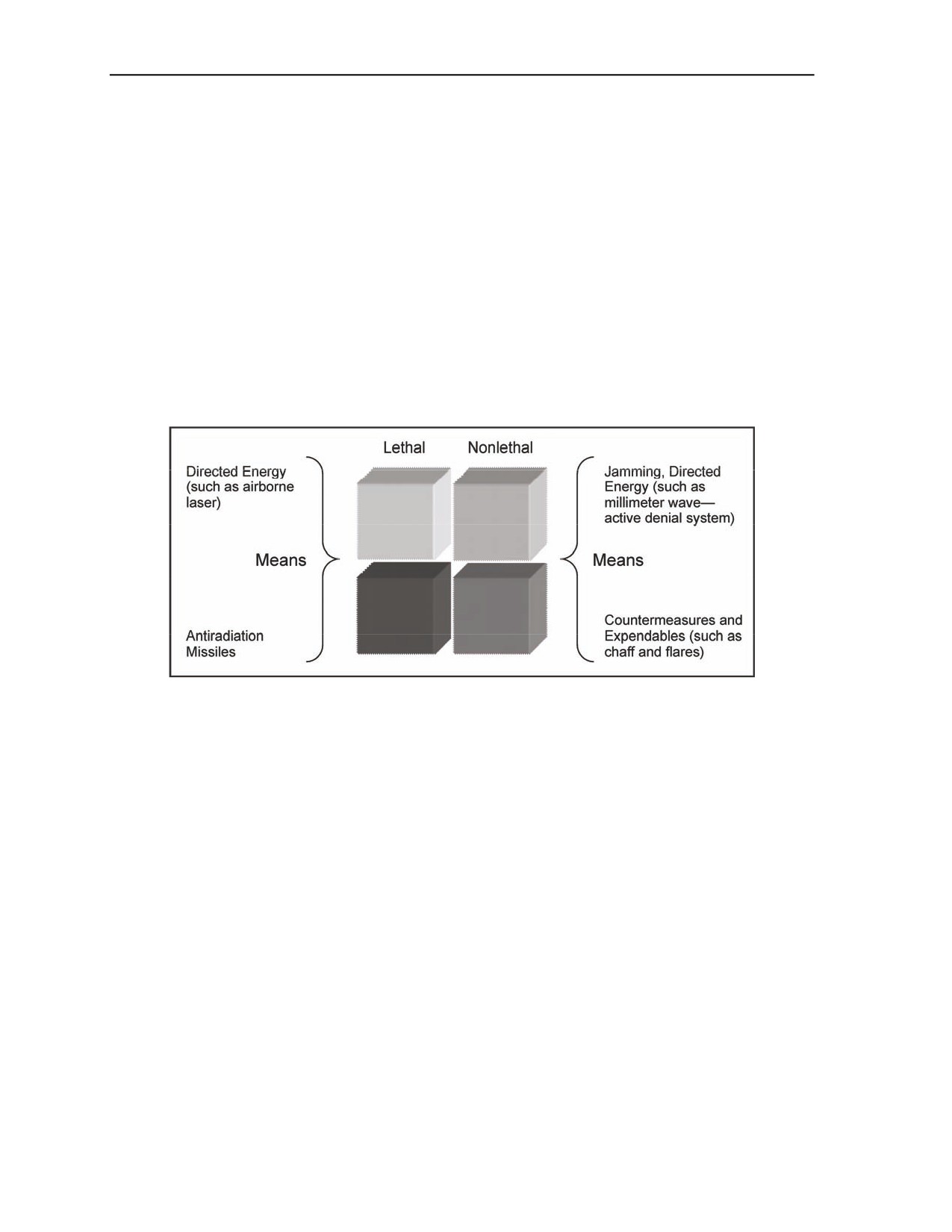

Figure 1-4. Means versus effects
1-12
Figure 2-1. Electronic warfare weight of effort during operations
2-2

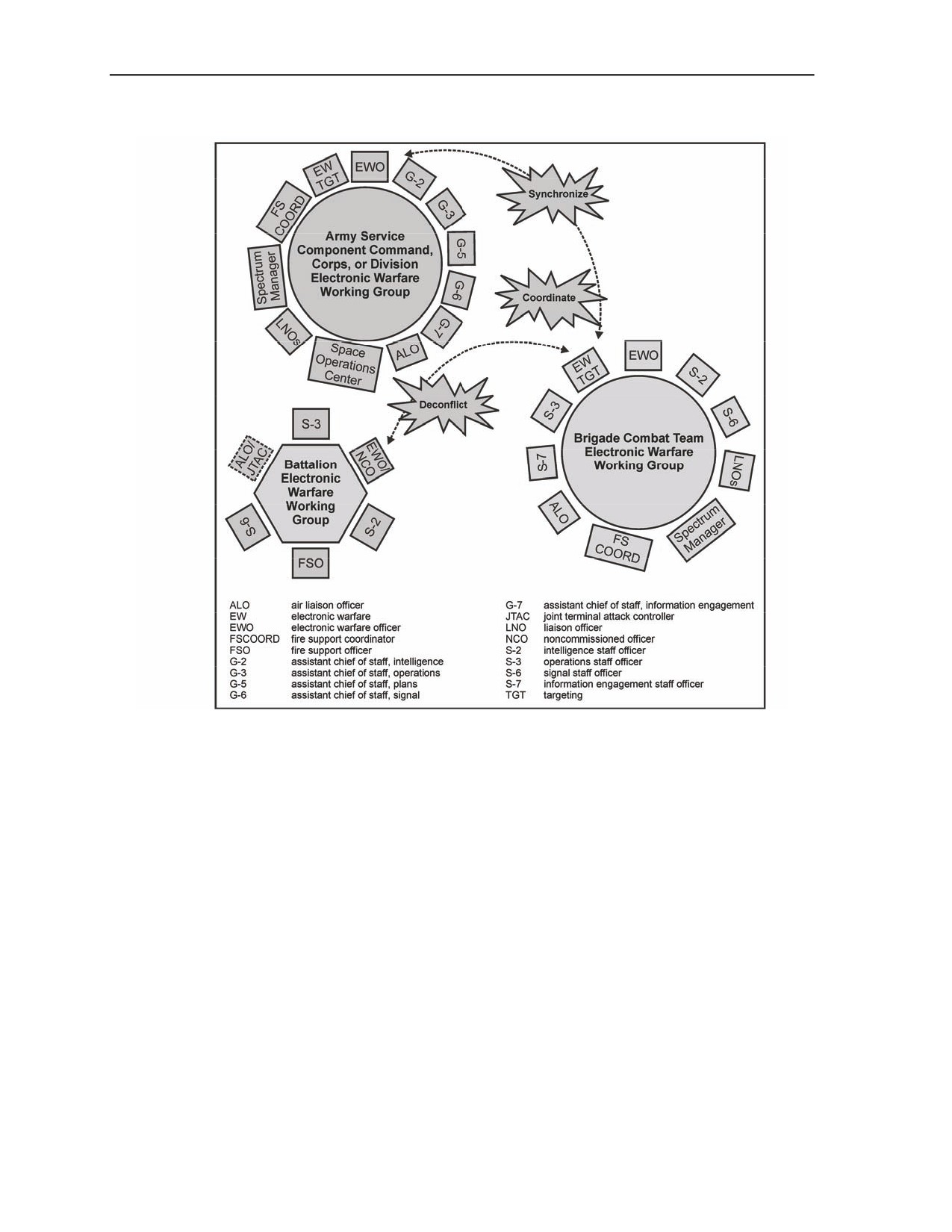

Figure 3-1. Electronic warfare coordination organizational framework
3-2

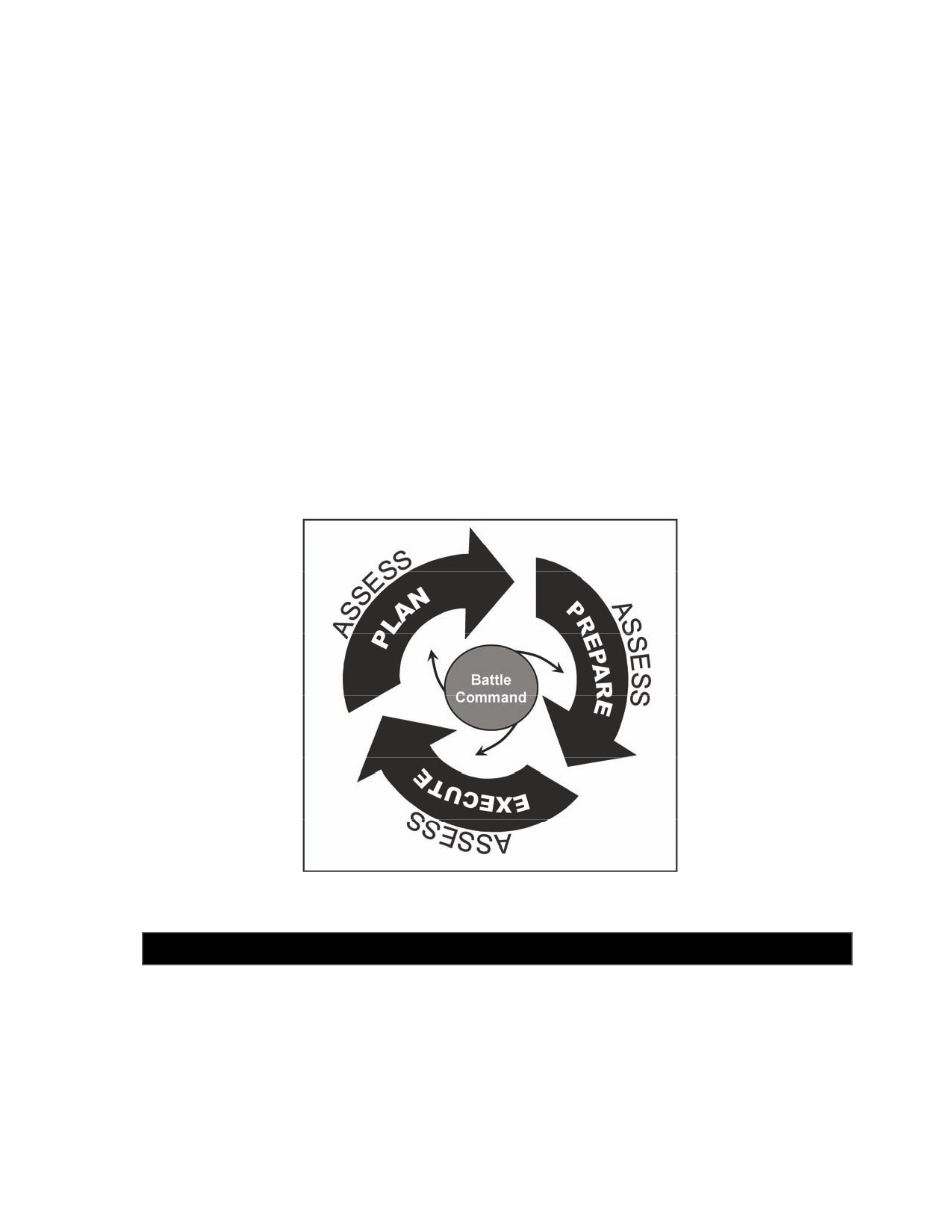

Figure 4-1. The operations process
4-1
Figure 4-2. Example of analysis for an enemy center of gravity
4-3
Figure 4-3. Course of action development
4-5
Figure 4-4. Course of action comparison
4-8
Figure 4-5. Integrating processes and continuing activities
4-10
Figure 4-6. Electronic warfare support to intelligence preparation of the battlefield
4-11
Figure 4-7. Electronic warfare in the targeting process
4-13
Figure 5-1. Spectrum deconfliction procedures
5-3
Figure 6-1. Joint frequency management coordination
6-3
Figure 6-2. Electronic warfare support request coordination
6-4
Figure A-1. The electromagnetic spectrum
A-2
Figure B-1. Appendix 4 (Electronic Warfare) to annex P (Information Operations)
instructions
B-2
Figure C-1. Example of an electronic warfare running estimate
C-2
ii
FM 3-36
25 February 2009
Contents
Figure C-2. Sample update information to the electronic warfare running estimate
C-3
Figure E-1. Guardrail common sensor
E-2
Figure E-2. Aerial common sensor (concept)
E-2
Figure E-3. Prophet (vehicle-mounted)
E-3
Figure E-4. AN/MLQ-36A mobile electronic warfare support system
E-5
Figure E-5. EA-6B Prowler
E-6
Figure E-6. EC-130H Compass Call
E-8
Figure E-7. RC-135V/W Rivet Joint
E-9
Figure E-8. Navy EA-6B Prowler
E-10
Figure E-9. EA-18 Growler
E-11
Tables
Table 2-1. Two Army information tasks: command and control warfare and
information protection
2-4

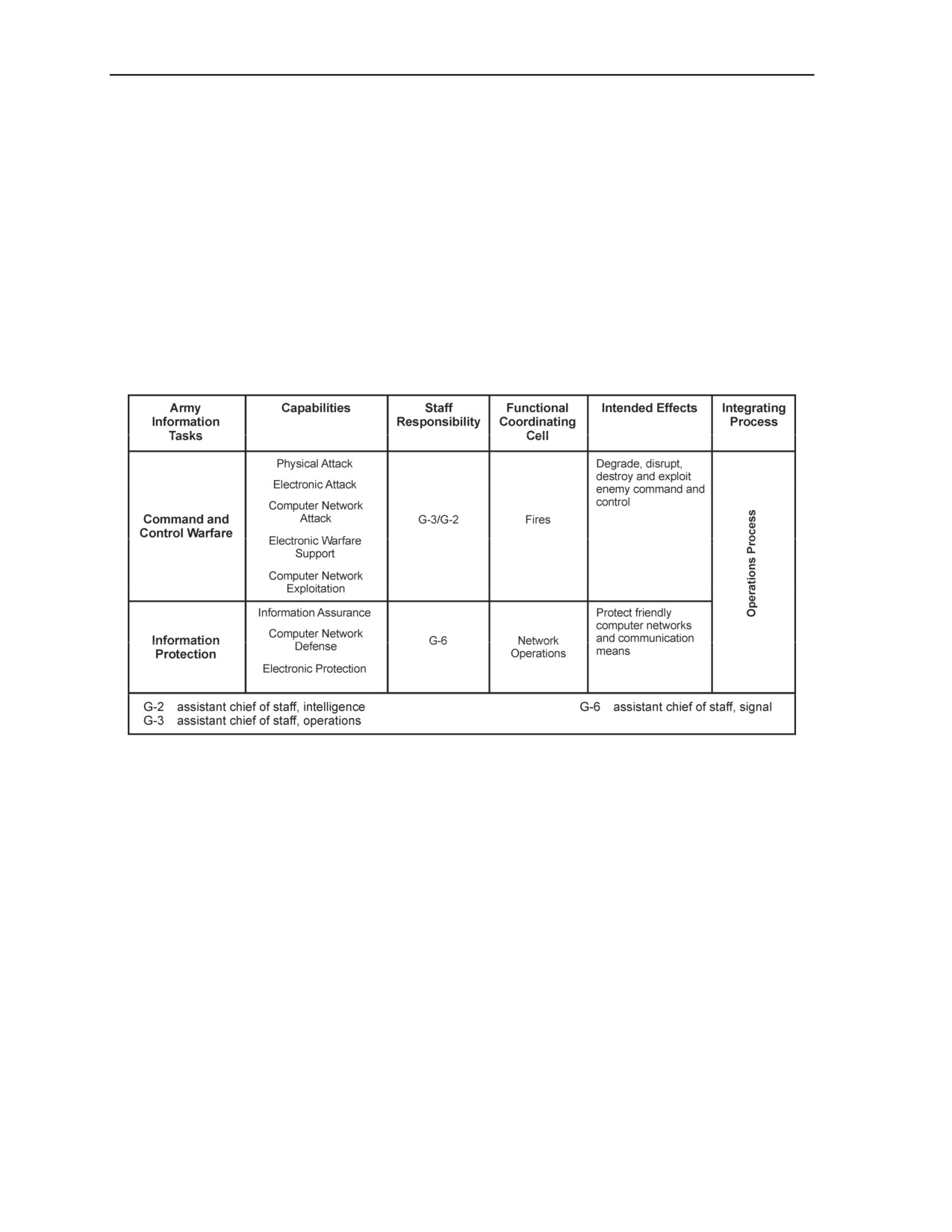

Table 2-2. Electronic warfare support to two Army information tasks
2-5

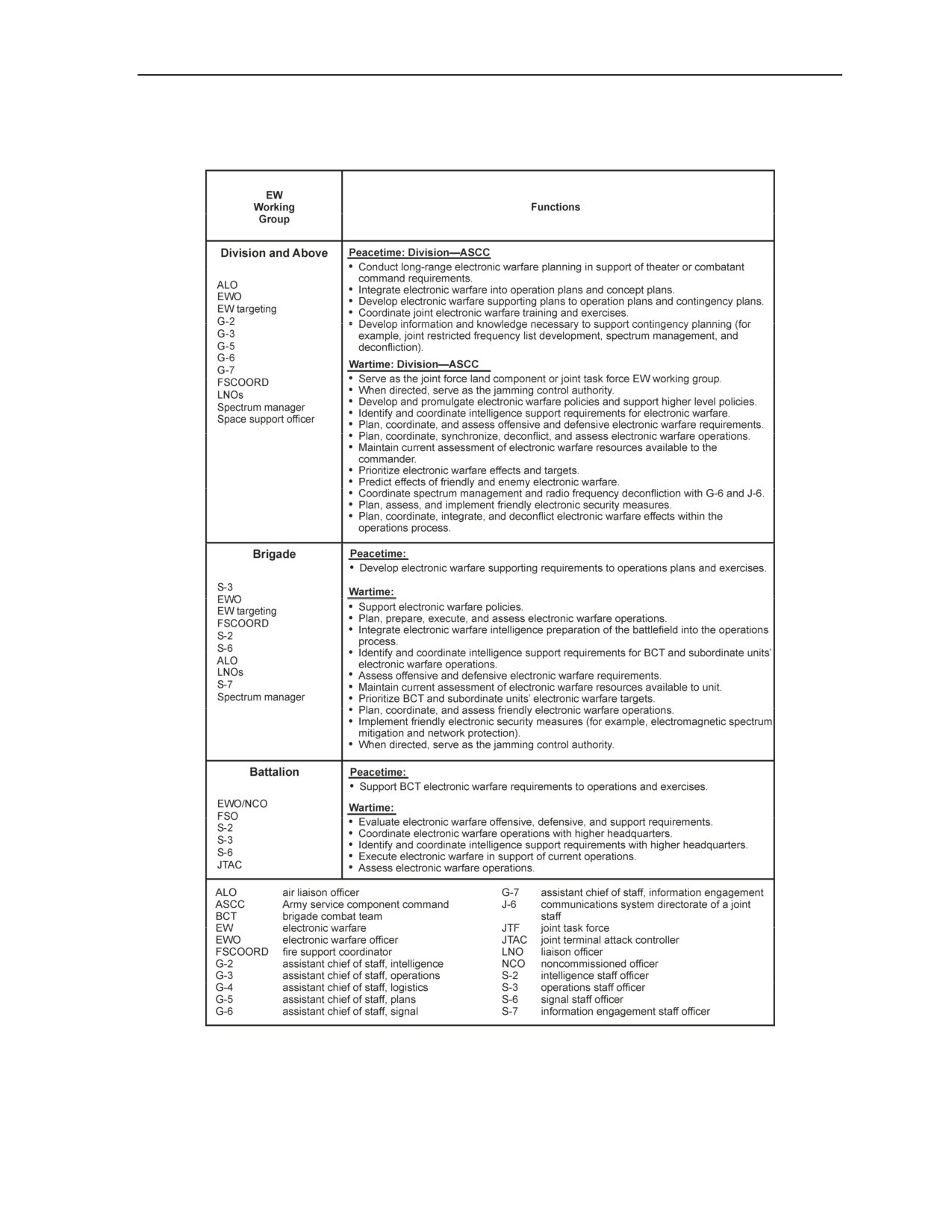

Table 3-1. Functions of electronic warfare working groups
3-3
Table 4-1. Sample input to synchronization matrix
4-7
Table A-1. Radio and radar designators and frequency bands
A-3
Table E-1. Army and joint electronic warfare capabilities
E-13
Table E-2. Electronic warfare systems and platforms resources
E-14
This publication is available at
Army Knowledge Online (AKO) (www.us.army.mil )
and the Reimer Digital Library (RDL) at
25 February 2009
FM 3-36
iii
Preface
PURPOSE
FM 3-36 provides Army doctrine for electronic warfare (EW) planning, preparation, execution, and assessment
in support of full spectrum operations. Users of FM 3-36 must be familiar with full spectrum operations
established in FM 3-0; the military decisionmaking process established in FM 5-0; the operations process
established in FMI 5-0.1; commander’s visualization described in FM 6-0; and electronic warfare described in
JP 3-13.1.
SCOPE
FM 3-36 is organized into seven chapters and six appendixes. Each chapter addresses a major aspect of Army
EW operations. The appendixes address aspects of EW operations that complement the operational doctrine. A
glossary contains selected terms.
Chapter
1 discusses the nature and scope of electronic warfare and the impact of the
electromagnetic environment on Army operations.
Chapter 2 offers a discussion of EW support to full spectrum operations, combat power, the
warfighting functions, and information tasks.
Chapter 3 introduces the organizational framework for command and control of EW operations.
Chapter 4 describes how commanders integrate EW operations throughout the operations process.
Chapter 5 discusses the coordination required to synchronize and deconflict EW operations
effectively.
Chapter 6 provides the baseline for integrating EW operations into joint and multinational
operations.
Chapter 7 discusses the enabling activities that support EW operations, such as command and
control, intelligence, logistics, technical support and EW training.
Appendix A discusses the electromagnetic environment.
Appendix B illustrates an EW appendix to an operation order.
Appendix C illustrates an EW running estimate.
Appendix D discusses EW related reports and messages.
Appendix E offers a reference guide to Army and joint EW capabilities.
Appendix F discusses EW-related tools and resources.
APPLICABILITY
FM 3-36 provides guidance on EW operations for commanders and staffs at all echelons. This FM serves as an
authoritative reference for personnel who—
Develop doctrine (fundamental principles and tactics, techniques, and procedures), materiel, and
force structure.
Develop institutional and unit training.
Develop standing operating procedures for unit operations.
Conduct planning, preparation, execution and assessment of electronic warfare.
FM 3-36 applies to the Active Army, Army National Guard/Army National Guard of the United States, and
U.S. Army Reserve, unless otherwise stated.
iv
FM 3-36
25 February 2009
Preface
ADMINISTRATIVE INFORMATION
Headquarters, U.S. Army Training and Doctrine Command, is the proponent for this publication. The preparing
agency is the U.S. Army Electronic Warfare Proponent, U.S. Army Combined Arms Center. Send written
comments and recommendations on a DA Form 2028 (Recommended Changes to Publications and Blank
Forms) to Commander, U.S. Army Combined Arms Center and Fort Leavenworth, ATTN: ATZL-CSB-EW
(FM
3-36),
950 Bluntville Lane, Building
391, Fort Leavenworth, KS
66027-2337; by e-mail to
usacewpops@conus.army.mil; or submit an electronic DA Form 2028.
25 February 2009
FM 3-36
v
Chapter 1
Electronic Warfare Overview
This chapter provides an overview of electronic warfare and the conceptual
foundation that leaders require to understand the electromagnetic environment and its
impact on Army operations.
OPERATIONAL ENVIRONMENTS
1-1. An operational environment is a composite of the conditions, circumstances, and influences that
affect the employment of capabilities and bear on the decisions of the commander (JP 3-0). An operational
environment includes physical areas—the air, land, maritime, and space domains. It also includes the
information that shapes the operational environment as well as enemy, adversary, friendly, and neutral
systems relevant to a joint operation. Joint planners analyze operational environments in terms of six
interrelated operational variables: political, military, economic, social, information, and infrastructure. To
these variables Army doctrine adds two more: physical environment and time. (See FM 3-0 for additional
information on the operational variables). Army leaders use operational variables to understand and
analyze the broad environment in which they are conducting operations.
1-2. Army leaders use mission variables to synthesize operational variables and tactical-level information
with local knowledge about conditions relevant to their mission. They use mission variables to focus
analysis on specific elements that directly affect their mission. Upon receipt of a warning order or mission,
Army tactical leaders narrow their focus to six mission variables known as METT-TC. They are mission,
enemy, terrain and weather, troops and support available, time available and civil considerations. The
mission variables outline the situation as it applies to a specific Army unit.
1-3. Commanders employ and integrate their unit’s capabilities and actions within their operational
environment to achieve a desired end state. Through analyzing their operational environment, commanders
understand how the results of friendly, adversary, and neutral actions may impact that end state. During
military operations, both friendly and enemy commanders depend on the flow of information to make
informed decisions. This flow of information depends on the electronic systems and devices used to
communicate, navigate, sense, store, and process information.
INFORMATION AND THE ELECTROMAGNETIC SPECTRUM
1-4. Commanders plan for and operate electronic systems and the weapon systems that depend on them in
an intensive and nonpermissive electromagnetic environment. They ensure the flow of information
required for their decisionmaking.
(Appendix A further discusses the electromagnetic environment.)
Within the electromagnetic environment, electronic systems and devices operate in the electromagnetic
spectrum. (See figure 1-1, page 1-2.)
1-5. The electromagnetic spectrum has been used for commercial and military applications for over a
century. However, the full potential for its use as the primary enabler of military operations is not yet fully
appreciated. New technologies are expanding beyond the traditional radio frequency spectrum. They
include high-power microwaves and directed-energy weapons. These new technologies are part of an
electronic warfare (EW) revolution by military forces. Just as friendly forces leverage the electromagnetic
spectrum to their advantage, so do capable enemies use the electromagnetic spectrum to threaten friendly
force operations. The threat is compounded by the growth of a wireless world and the increasingly
sophisticated use of commercial off-the-shelf technologies.
25 February 2009
FM 3-36
1-1
Chapter 1

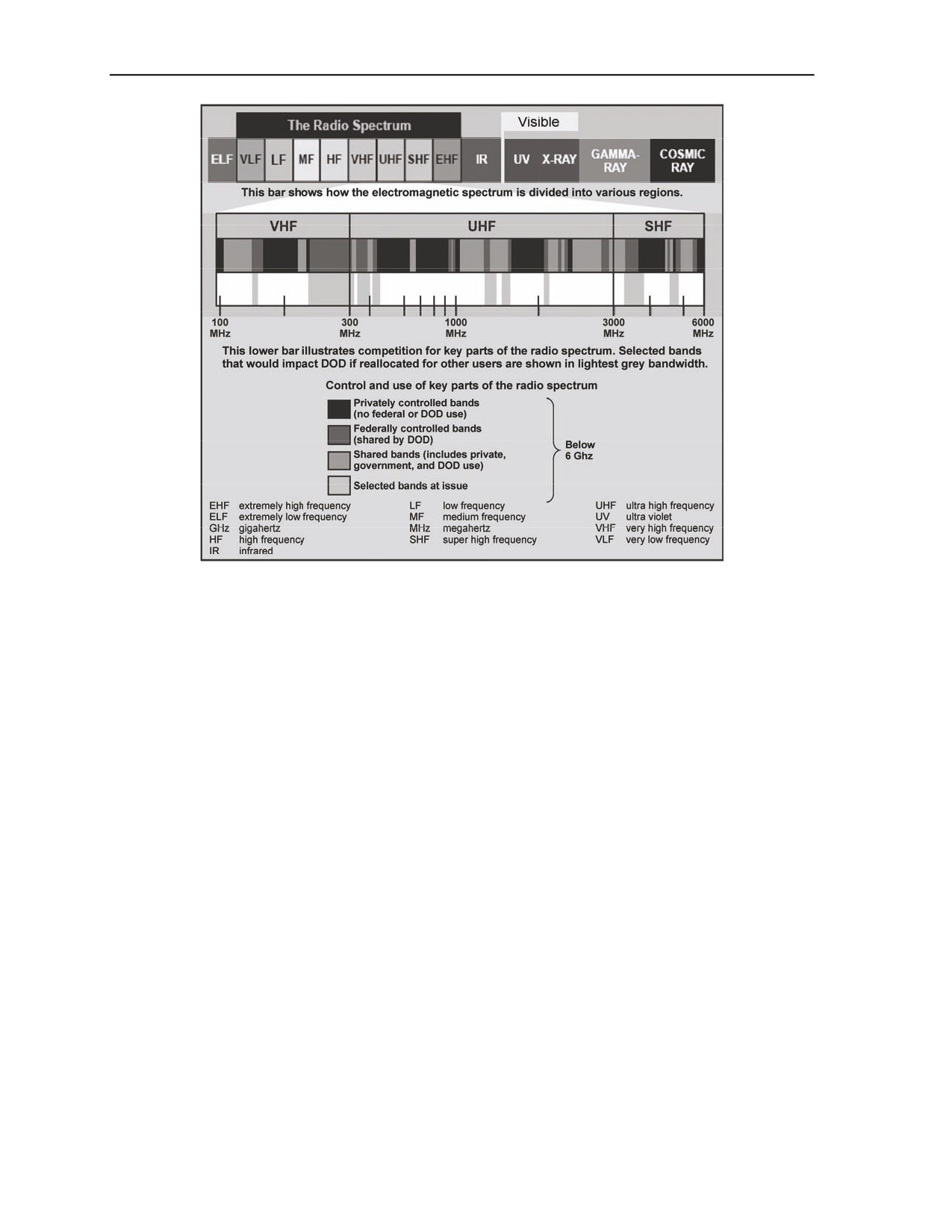

Figure 1-1. The electromagnetic spectrum
1-6. Adversaries and enemies, from small and single actors to large state, multinational, and nonstate
actors, use the most modern technology. Such technology is moving into the cellular and satellite
communications area. Most military and commercial operations rely on electromagnetic technologies and
are susceptible to the inherent vulnerabilities associated with their use. This reliance requires Army forces
to dominate the electromagnetic spectrum (within their operational environment) with the same authority
that they dominate traditional land warfare operations. Emerging electromagnetic technologies offer
expanded EW capabilities. They dynamically affect the electromagnetic spectrum through delivery and
integration with other types of emerging weapons and capabilities. Examples are directed-energy weapons,
high-powered microwaves, lasers, infrared, and electro-optical and wireless networks and devices.
1-2
FM 3-36
25 February 2009
Electronic Warfare Overview
1-7. In any conflict, commanders attempt to dominate the electromagnetic spectrum. They do this by
locating, targeting, exploiting, disrupting, degrading, deceiving, denying, or destroying the enemy’s
electronic systems that support military operations or deny the spectrum’s use by friendly forces. The
increasing portability and affordability of sophisticated electronic equipment guarantees that the
electromagnetic environment in which forces operate will become even more complex. To ensure
unimpeded access to and use of the electromagnetic spectrum, commanders plan, prepare, execute, and
assess EW operations against a broad set of targets within the electromagnetic spectrum. (See figure 1-2.)
Figure 1-2. Electromagnetic spectrum targets
25 February 2009
FM 3-36
1-3
Chapter 1
DIVISIONS OF ELECTRONIC WARFARE
1-8. Electronic warfare is defined as military action involving the use of electromagnetic and directed
energy to control the electromagnetic spectrum or to attack the enemy. Electronic warfare consists of three
divisions: electronic attack, electronic protection, and electronic warfare support (JP 3-13.1). (See figure
1-3.)
Figure 1-3. The three subdivisions of electronic warfare
1-4
FM 3-36
25 February 2009
Electronic Warfare Overview
ELECTRONIC ATTACK
1-9. Electronic attack is a division of electronic warfare involving the use of electromagnetic energy,
directed energy, or antiradiation weapons to attack personnel, facilities, or equipment with the intent of
degrading, neutralizing, or destroying enemy combat capability and is considered a form of fires (JP 3-
13.1). Electronic attack includes—
z
Actions taken to prevent or reduce an enemy’s effective use of the electromagnetic spectrum,
such as jamming and electromagnetic deception.
z
Employment of weapons that use either electromagnetic or directed energy as their primary
destructive mechanism (lasers, radio frequency weapons, particle beams).
z
Offensive and defensive activities including countermeasures.
1-10. Common types of electronic attack include spot, barrage, and sweep electromagnetic jamming.
Electronic attack actions also include various electromagnetic deception techniques such as false target or
duplicate target generation.
(See paragraphs 1-23 to 1-31 for further discussion of electronic attack
activities.)
1-11. Directed energy is an umbrella term covering technologies that relate to the production of a beam of
concentrated electromagnetic energy or atomic or subatomic particles (JP 1-02). A directed-energy weapon
uses directed energy primarily as a direct means to damage or destroy an enemy’s equipment, facilities, and
personnel. In addition to destructive effects, directed-energy weapon systems support area denial and
crowd control. (See appendix A for more information on directed energy.)
1-12. Examples of offensive electronic attack include—
z
Jamming enemy radar or electronic command and control systems.
z
Using antiradiation missiles to suppress enemy air defenses (antiradiation weapons use radiated
energy emitted from the target as their mechanism for guidance onto targeted emitters).
z
Using electronic deception techniques to confuse enemy intelligence, surveillance, and
reconnaissance systems.
z
Using directed-energy weapons to disable an enemy’s equipment or capability.
1-13. Defensive electronic attack uses the electromagnetic spectrum to protect personnel, facilities,
capabilities, and equipment. Examples include self-protection and other protection measures such as use of
expendables (flares and active decoys), jammers, towed decoys, directed-energy infrared countermeasure
systems, and counter-radio-controlled improvised-explosive-device systems.
(See JP 3-13.1 for more
discussion of electronic attack.)
ELECTRONIC PROTECTION
1-14. Electronic protection is a division of electronic warfare involving actions taken to protect personnel,
facilities, and equipment from any effects of friendly or enemy use of the electromagnetic spectrum that
degrade, neutralize, or destroy friendly combat capability (JP 3-13.1). For example, electronic protection
includes actions taken to ensure friendly use of the electromagnetic spectrum, such as frequency agility in a
radio, or variable pulse repetition frequency in radar. Electronic protection should not be confused with
self-protection. Both defensive electronic attack and electronic protection protect personnel, facilities,
capabilities, and equipment. However, electronic protection protects from the effects of electronic attack
(friendly and enemy), while defensive electronic attack primarily protects against lethal attacks by denying
enemy use of the electromagnetic spectrum to guide or trigger weapons.
25 February 2009
FM 3-36
1-5
Chapter 1
1-15. During operations, electronic protection includes, but is not limited to, the application of training and
procedures for countering enemy electronic attack. Army commanders and forces understand the threat and
vulnerability of friendly electronic equipment to enemy electronic attack and take appropriate actions to
safeguard friendly combat capability from exploitation and attack. Electronic protection measures
minimize the enemy’s ability to conduct electronic warfare support (electronic warfare support is discussed
in paragraphs 1-18 to 1-20) and electronic attack operations successfully against friendly forces. To protect
friendly combat capabilities, units—
z
Regularly brief force personnel on the EW threat.
z
Ensure that electronic system capabilities are safeguarded during exercises, workups, and
predeployment training.
z
Coordinate and deconflict electromagnetic spectrum usage.
z
Provide training during routine home station planning and training activities on appropriate
electronic protection active and passive measures.
z
Take appropriate actions to minimize the vulnerability of friendly receivers to enemy jamming
(such as reduced power, brevity of transmissions, and directional antennas).
1-16. Electronic protection also includes spectrum management. The spectrum manager works for the G-6
or S-6 and plays a key role in the coordination and deconfliction of spectrum resources allocated to the
force. Spectrum managers or their direct representatives participate in the planning for EW operations.
1-17. The development and acquisition of communications and electronic systems includes electronic
protection requirements to clarify performance parameters. Army forces design their equipment to limit
inherent vulnerabilities. If electronic attack vulnerabilities are detected, then units must review these
programs. (See DODI 4650.01 for information on the spectrum certification process and electromagnetic
compatibility.)
ELECTRONIC WARFARE SUPPORT
1-18. Electronic warfare support is a division of electronic warfare involving actions tasked by, or under
the direct control of, an operational commander to search for, intercept, identify, and locate or localize
sources of intentional and unintentional radiated electromagnetic energy for the purpose of immediate
threat recognition, targeting, planning, and conduct of future operations (JP 3-13.1).
1-19. Electronic warfare support systems are a source of information for immediate decisions involving
electronic attack, electronic protection, avoidance, targeting, and other tactical employments of forces.
Electronic warfare support systems collect data and produce information or intelligence to—
z
Corroborate other sources of information or intelligence.
z
Conduct or direct electronic attack operations.
z
Initiate self-protection measures.
z
Task weapon systems.
z
Support electronic protection efforts.
z
Create or update EW databases.
z
Support information tasks.
1-20. Electronic warfare support and signals intelligence missions use the same resources. The two differ
in the detected information’s intended use, the degree of analytical effort expended, the detail of
information provided, and the time lines required. Like tactical signals intelligence, electronic warfare
support missions respond to the immediate requirements of a tactical commander. Signals intelligence
above the tactical level is under the operational control of the National Security Agency and directly
supports the overarching national security mission. Resources that collect tactical-level electronic warfare
support data can simultaneously collect national-level signals intelligence. See FM
2-0 for more
information on signals intelligence.
1-6
FM 3-36
25 February 2009
Electronic Warfare Overview
ACTIVITIES AND TERMINOLOGY
1-21. Although new equipment and tactics, techniques, and procedures continue to be developed, the
physics of electromagnetic energy remains constant. Hence, effective EW activities remain the same
despite changes in hardware and tactics. Principal EW activities are discussed in the following paragraphs.
PRINCIPAL ACTIVITIES
1-22. Principal EW activities support full spectrum operations by exploiting the opportunities and
vulnerabilities inherent in the use of the electromagnetic spectrum. The numerous EW activities are
categorized by the EW subdivisions with which they are most closely associated: electronic attack,
electronic warfare support, and electronic protection. JP 3-13.1 discusses these principal activities in detail.
Electronic Attack Activities
1-23. Activities related to electronic attack are either offensive or defensive and include—
z
Countermeasures.
z
Electromagnetic deception.
z
Electromagnetic intrusion.
z
Electromagnetic jamming.
z
Electromagnetic pulse.
z
Electronic probing.
Countermeasures
1-24. Countermeasures are that form of military science that, by the employment of devices and/or
techniques, has as its objective the impairment of the operational effectiveness of enemy activity (JP 1-02).
They can be deployed preemptively or reactively. Devices and techniques used for EW countermeasures
include electro-optical-infrared countermeasures and radio frequency countermeasures.
1-25. Electro-optical-infrared countermeasures consist of any device or technique employing electro-
optical-infrared materials or technology that is intended to impair or counter the effectiveness of enemy
activity, particularly with respect to precision guided weapons and sensor systems. Electro-optical-infrared
is the part of the electromagnetic spectrum between the high end of the far infrared and the low end of
ultraviolet. Electro-optical-infrared countermeasures may use laser and broadband jammers,
smokes/aerosols, signature suppressants, decoys, pyrotechnics/pyrophorics, high-energy lasers, or directed
infrared energy countermeasures (JP 3-13.1).
1-26. Radio frequency countermeasures consist of any device or technique employing radio frequency
materials or technology that is intended to impair the effectiveness of or counter enemy activity,
particularly with respect to precision guided weapons and sensor systems (JP 3-13.1).
Electromagnetic Deception
1-27. Electromagnetic deception is the deliberate radiation, reradiation, alteration, suppression, absorption,
denial, enhancement, or reflection of electromagnetic energy in a manner intended to convey misleading
information to an enemy or to enemy electromagnetic-dependent weapons, thereby degrading or
neutralizing the enemy’s combat capability (JP 3-13.4). Among the types of electromagnetic deception are
the following:
z
Manipulative electromagnetic deception involves actions to eliminate revealing, or convey
misleading, electromagnetic telltale indicators that may be used by hostile forces.
z
Simulative electromagnetic deception involves actions to simulate friendly, notional, or actual
capabilities to mislead hostile forces.
z
Imitative electromagnetic deception introduces electromagnetic energy into enemy systems that
imitates enemy emissions.
25 February 2009
FM 3-36
1-7
Chapter 1
Electromagnetic Intrusion
1-28. Electromagnetic intrusion is the intentional insertion of electromagnetic energy into transmission
paths in any manner, with the objective of deceiving operators or of causing confusion (JP 1-02).
Electromagnetic Jamming
1-29. Electromagnetic jamming is the deliberate radiation, re-radiation, or reflection of electromagnetic
energy for the purpose of preventing or reducing an enemy’s effective use of the electromagnetic spectrum,
with the intent of degrading or neutralizing the enemy’s combat capability (JP 1-02).
Electromagnetic Pulse
1-30. Electromagnetic pulse is the electromagnetic radiation from a strong electronic pulse, most
commonly caused by a nuclear explosion that may couple with electrical or electronic systems to produce
damaging current and voltage surges (JP 1-02).
Electronic Probing
1-31. Electronic probing is the intentional radiation designed to be introduced into the devices or systems
of potential enemies for the purpose of learning the functions and operational capabilities of the devices (JP
1-02). This activity is coordinated through joint or interagency channels and supported by Army forces.
Electronic Warfare Support Activities
1-32. Activities related to electronic warfare support include—
z
Electronic reconnaissance.
z
Electronic intelligence.
z
Electronics security.
Electronic Reconnaisance
1-33. Electronic reconnaissance is the detection, location, identification, and evaluation of foreign
electromagnetic radiations (JP 1-02).
Electronic Intelligence
1-34. Electronic intelligence is technical and geolocation intelligence derived from foreign
noncommunications electromagnetic radiations emanating from other than nuclear detonations or
radioactive sources (JP 1-02).
Electronics Security
1-35. Electronics security is the protection resulting from all measures designed to deny unauthorized
persons information of value that might be derived from their interception and study of
noncommunications electromagnetic radiations, e.g., radar (JP 1-02).
1-8
FM 3-36
25 February 2009
Electronic Warfare Overview
Electronic Protection Activities
1-36. Activities related to electronic protection include—
z
Electromagnetic hardening.
z
Electromagnetic interference.
z
Electronic masking.
z
Electronic warfare reprogramming.
z
Emission control.
z
Spectrum management.
z
Wartime reserve modes.
z
Electromagnetic compatibility.
Electromagnetic Hardening
1-37. Electromagnetic hardening consists of action taken to protect personnel, facilities, and/or equipment
by filtering, attenuating, grounding, bonding, and/or shielding against undesirable effects of
electromagnetic energy (JP 1-02).
Electromagnetic Interference
1-38. Electromagnetic interference is any electromagnetic disturbance that interrupts, obstructs, or
otherwise degrades or limits the effective performance of electronics and electrical equipment. It can be
induced intentionally, as in some forms of electronic warfare, or unintentionally, as a result of spurious
emissions and responses, intermodulation products and the like (JP 1-02).
Electronic Masking
1-39. Electronic masking is the controlled radiation of electromagnetic energy on friendly frequencies in a
manner to protect the emissions of friendly communications and electronic systems against enemy
electronic warfare support measures/signals intelligence, without significantly degrading the operation of
friendly systems (JP 1-02).
Electronic Warfare Reprogramming
1-40. Electronic warfare reprogramming is the deliberate alteration or modification of electronic warfare
or target sensing systems, or the tactics and procedures that employ them, in response to validated changes
in equipment, tactics, or the electromagnetic environment. These changes may be the result of deliberate
actions on the part of friendly, adversary, or third parties; or may be brought about by electromagnetic
interference or other inadvertent phenomena. The purpose of electronic warfare reprogramming is to
maintain or enhance the effectiveness of electronic warfare and target sensing system equipment.
Electronic warfare reprogramming includes changes to self-defense systems, offensive weapons systems,
and intelligence collection systems (JP 3-13.1).
Emission Control
1-41. Emission control is the selective and controlled use of electromagnetic, acoustic, or other emitters to
optimize command and control capabilities while minimizing transmissions for operations security: a.
detection by enemy sensors; b. mutual interference among friendly systems; and/or c. enemy interference
with the ability to execute a military deception plan (JP 1-02).
25 February 2009
FM 3-36
1-9
Chapter 1
Electromagnetic Spectrum Management
1-42. Electromagnetic spectrum management is planning, coordinating, and managing joint use of the
electromagnetic spectrum through operational, engineering, and administrative procedures. The objective
of spectrum management is to enable electronic systems to perform their functions in the intended
environment without causing or suffering unacceptable interference (JP 6-0).
Wartime Reserve Modes
1-43. Wartime reserve modes are characteristics and operating procedures of sensors, communications,
navigation aids, threat recognition, weapons, and countermeasures systems that will contribute to military
effectiveness if unknown to or misunderstood by opposing commanders before they are used, but could be
exploited or neutralized if known in advance. Wartime reserve modes are deliberately held in reserve for
wartime or emergency use and seldom, if ever, applied or intercepted prior to such use (JP 1-02).
Electromagnetic Compatibility
1-44. Electromagnetic compatibility is the ability of systems, equipment, and devices that utilize the
electromagnetic spectrum to operate in their intended operational environments without suffering
unacceptable degradation or causing unintentional degradation because of electromagnetic radiation or
response. It involves the application of sound electromagnetic spectrum management; system, equipment,
and device design configuration that ensures interference-free operation; and clear concepts and doctrines
that maximize operational effectiveness (JP 1-02).
APPLICATION TERMINOLOGY
1-45. EW capabilities are applied from the air, land, sea, and space by manned, unmanned, attended, or
unattended systems. Units employ EW capabilities to achieve the desired lethal or nonlethal effect on a
given target. Units maintain freedom of action in the electromagnetic spectrum while controlling the use of
it by the enemy. Regardless of the application, units employing EW capabilities must use appropriate levels
of control and protection of the electromagnetic spectrum. In this way, they avoid adversely affecting
friendly forces. (Improper EW actions must be avoided because they may cause fratricide or eliminate
high-value intelligence targets.)
1-46. In the context of EW application, units use several terms to facilitate control and protection of the
electromagnetic spectrum. Terms used in EW application include control, detection, denial, deception,
disruption and degradation, protection, and destruction. The three subdivisions of EW—electronic attack,
electronic protection, and electronic warfare support—are specified within the following descriptions.
Control
1-47. In the context of EW, control of the electromagnetic spectrum is achieved by effectively
coordinating friendly systems while countering enemy systems. Electronic attack limits enemy use of the
electromagnetic spectrum. Electronic protection secures use of the electromagnetic spectrum for friendly
forces, and electronic warfare support enables the commander’s accurate assessment of the situation. All
three are integrated for effectiveness. Commanders ensure maximum integration of communications;
intelligence, surveillance, and reconnaissance; and information tasks.
Detection
1-48. In the context of EW, detection is the active and passive monitoring of the operational environment
for radio frequency, electro-optic, laser, infrared, and ultraviolet electromagnetic threats. Detection is the
first step in EW for exploitation, targeting, and defensive planning. Friendly forces maintain the capability
to detect and characterize interference as hostile jamming or unintentional electromagnetic interference.
1-10
FM 3-36
25 February 2009
Electronic Warfare Overview
Denial
1-49. In the context of EW, denial is controlling the information an enemy receives via the electromagnetic
spectrum and preventing the acquisition of accurate information about friendly forces. Degradation uses
traditional jamming techniques, expendable countermeasures, destructive measures, or network
applications. These range from limited effects up to complete denial of usage.
Deception
1-50. In the context of EW, deception is confusing or misleading an enemy by using some combination of
human-produced, mechanical, or electronic means. Through use of the electromagnetic spectrum, EW
deception manipulates the enemy’s decision loop, making it difficult to establish accurate situational
awareness.
Disruption and Degradation
1-51. In the context of EW, disruption and degradation techniques interfere with the enemy’s use of the
electromagnetic spectrum to limit enemy combat capabilities. This is achieved with electronic jamming,
electronic deception, and electronic intrusion. These enhance attacks on hostile forces and act as force
multipliers by increasing enemy uncertainty, while reducing uncertainty for friendly forces. Advanced
electronic attack techniques offer the opportunity to nondestructively disrupt or degrade enemy
infrastructure.
Protection
1-52. In the context of EW, protection is the use of physical properties; operational tactics, techniques, and
procedures; and planning and employment processes to ensure friendly use of the electromagnetic
spectrum. This includes ensuring that offensive EW activities do not electronically destroy or degrade
friendly intelligence sensors or communications systems. Protection is achieved by component hardening,
emission control, and frequency management and deconfliction. Frequency management and deconfliction
include the capability to detect, characterize, geolocate, and mitigate electromagnetic interference that
affects operations. Protection includes other means to counterattack and defeat enemy attempts to control
the electromagnetic spectrum. Additionally, organizations such as a joint force commander’s EW staff or a
joint EW coordination cell enhance electronic protection by deconflicting EW efforts.
Destruction
1-53. Destruction, in the context of EW, is the elimination of targeted enemy systems. Sensors and
command and control nodes are lucrative targets because their destruction strongly influences the enemy’s
perceptions and ability to coordinate actions. Various weapons and techniques ranging from conventional
munitions and directed energy weapons to network attacks can destroy enemy systems that use the
electromagnetic spectrum. Electronic warfare support provides target location and related information.
While destroying enemy equipment can effectively deny the enemy use of the electromagnetic spectrum,
the duration of denial will depend on the enemy’s ability to reconstitute. (See JP 3-13.1.)
25 February 2009
FM 3-36
1-11
Chapter 1
MEANS VERSUS EFFECTS
1-54. EW means are applied against targets to create a full range of lethal and nonlethal effects. (See figure
1-4.) Choosing a specific EW capability depends on the desired effect on the target and other
considerations, such as time sensitivity or limiting collateral damage. EW capabilities provide commanders
with additional options for achieving their objectives. During major combat operations there may be
circumstances where commanders want to limit the physical damage on a given target. Under such
circumstances, the EW staff articulates clearly to the commander the lethal and nonlethal effects EW
capabilities can achieve. For example, a target might be enemy radar mounted on a fixed tower. Two EW
options to defeat the radar could be to jam the radar or destroy it with antiradiation missiles. If the
commander desired to limit damage to the tower, an electronic attack jamming platform would be
preferred. In circumstances where commanders cannot sufficiently limit undesired effects such as collateral
damage, they may be constrained from applying physical force. The EW staff articulates succinctly how
EW capabilities can support actions to achieve desired effects and provide lethal and nonlethal options for
commanders.
Figure 1-4. Means versus effects
SUMMARY
1-55. As the modern battlefield becomes more technologically sophisticated, military operations continue
to be executed in an increasingly complex electromagnetic environment. Therefore, commanders and staffs
need to thoroughly understand and articulate how the electromagnetic environment impacts their
operations and how friendly EW operations can be used to gain an advantage. Commanders and staffs use
the terminology presented in this chapter to describe the application of EW. This ensures a common
understanding and consistency within plans, orders, standing operating procedures, and directives.
1-12
FM 3-36
25 February 2009
Chapter 2
Electronic Warfare in Full Spectrum Operations
Information technology is becoming universally available. Most enemies rely on
communications and computer networks to make and implement decisions. Radios
remain the backbone of tactical military command and control architectures.
However, most communications relayed over radio networks are becoming digital as
more computers link networks through transmitted frequencies. Therefore, the ability
to dominate the electromagnetic spectrum is central to full spectrum operations. This
chapter describes how commanders apply electronic warfare capabilities to support
full spectrum operations.
THE ROLE OF ELECTRONIC WARFARE
2-1. Army electronic warfare
(EW) operations seek to provide the land force commander with
capabilities to support full spectrum operations. Full spectrum operations consist of the purposeful,
simultaneous combination of offense, defense, and stability or civil support. The goal of full spectrum
operations is to change the operational environment so that peaceful processes are dominant. Nonetheless,
operational environments are complex; commanders must conduct operations across the entire spectrum of
conflict. The Army maintains flexible forces with balanced capabilities and capacities. These flexible and
balanced forces remain able to conduct major operations while executing other day-to-day smaller-scale
operations. (See FM 3-0.)
2-2. Figure 2-1 (page 2-2) shows the weight of effort for using EW during operations. This figure adapts
the elements of full spectrum operations (offense, defense, and stability or civil support) as described in
FM 3-0. Overseas, Army forces conduct full spectrum operations (offensive, defensive, and stability)
simultaneously as part of a joint force. Within the United States, Army forces conduct homeland defense
and civil support operations as part of homeland security. Army electronic warfare (EW) operations seek to
provide the land force commander with capabilities to support full spectrum operations. As noted in figure
2-1, statutory law limits the use of EW capabilities in support of civil support operations.
25 February 2009
FM 3-36
2-1
Chapter 2
Figure 2-1. Electronic warfare weight of effort during operations
2-3. Full spectrum operations involve more than executing all elements of operations simultaneously.
They require that commanders and staffs consider their unit’s capabilities and capacities relative to each of
the elements of full spectrum operations. Commanders consider how much can be accomplished
simultaneously, how much can be phased, and what nonorganic resources may be available to solve
problems. The same applies to EW in support of full spectrum operations. Commanders and staffs
determine which resident and joint force EW capabilities to leverage in support of each element of full
spectrum operations. Weighting the EW focus of effort within each of the elements assists commanders
and their staffs in visualizing how EW capabilities can support their operations. Commanders combine
offensive, defensive, and stability or civil support operations to seize, retain, and exploit the initiative. As
they apply the appropriate level of EW effort to support these elements, commanders can seize, retain, and
exploit the initiative within the electromagnetic environment.
2-2
FM 3-36
25 February 2009
Electronic Warfare in Full Spectrum Operations
THE APPLICATION OF ELECTRONIC WARFARE
2-4. To support full spectrum operations and achieve the goal of electromagnetic spectrum dominance,
commanders fully integrate EW capabilities and apply them across the elements of combat power.
Leadership and information are applied through, and multiply the effects of, the other six elements of
combat power. Paragraphs 2-5 through 2-16 discuss the elements of combat power and how EW
capabilities can support them.
IN SUPPORT OF LEADERSHIP
2-5. Leadership initiates the conditions for success. Commanders balance the ability to mass the effects of
lethal and nonlethal systems with the requirements to deploy and sustain the units that employ those
systems. Generating and maintaining combat power throughout an operation is essential. Today’s
operational environments require leaders who are competent, confident, and informed in using and
protecting combat capabilities that operate within the electromagnetic spectrum. Commanders plan,
prepare, execute, and assess EW operations to dominate the electromagnetic spectrum within their
operational environment. To accomplish this domination, commanders effectively apply and integrate EW
operations across the warfighting functions.
IN SUPPORT OF INFORMATION TASKS AND CAPABILITIES
2-6. Information is the element of combat power consisting of meaningful facts, data, and impressions
used to develop a common situational understanding, to enable battle command, and to affect the
operational environment. (See FM 3-0 for a discussion of combat power.) In modern conflict, gaining
information superiority has become as important as lethal action in determining the outcome of operations.
Information superiority is the operational advantage derived from the ability to collect, process, and
disseminate an uninterrupted flow of information while exploiting or denying an adversary’s ability to do
the same (JP 3-13). To achieve this operational advantage, Army commanders direct efforts that contribute
to information superiority. These efforts fall into four primary areas: Army information tasks; intelligence,
surveillance, and reconnaissance; knowledge management; and information management. (See FM 3-0 for
a discussion of information superiority.)
2-7. The Army information tasks are used to shape a commander’s operational environment. These tasks
are information engagement, command and control warfare, information protection, operations security,
and military deception. Information capabilities can be used to produce both destructive and constructive
effects. For example, destructive actions use information capabilities against the enemy’s command and
control system and other assets to reduce their combat capability. Constructive actions use information
capabilities to inform or influence a particular audience or as a means to affect enemy morale. Although
applicable to all elements of full spectrum operations, EW capabilities play a major role in enabling and
supporting the execution of the command and control warfare and information protection tasks.
25 February 2009
FM 3-36
2-3
Chapter 2
2-8. Command and control warfare is the integrated use of physical attack, electronic warfare, and
computer network operations, supported by intelligence, to degrade, destroy, and exploit an enemy’s or
adversary’s command and control system or to deny information to it (FM 3-0). It includes operations
intended to degrade, destroy, and exploit an enemy’s or adversary’s ability to use the electromagnetic
spectrum and computer and telecommunications networks. Information protection is active or passive
measures that protect and defend friendly information and information systems to ensure timely, accurate,
and relevant friendly information. Information protection denies enemies, adversaries, and others the
opportunity to exploit friendly information and information systems for their own purposes (FM 3-0).
Table 2-1 shows capabilities, intended effects, staff responsibilities, and functional cells for the command
and control warfare and information protection tasks. (For further information on the information tasks,
refer to FM 3-0.)
Table 2-1. Two Army information tasks: command and control warfare and information
protection
2-9. To support these information tasks, commanders ensure EW is coordinated, integrated, and
synchronized with all other tasks. This occurs within the operations process through the various functional
and integrating cells. Table
2-2 illustrates EW capabilities, actions, and objectives that support the
command and control warfare and information protection tasks.
2-4
FM 3-36
25 February 2009
Electronic Warfare in Full Spectrum Operations
Table 2-2. Electronic warfare support to two Army information tasks
IN SUPPORT OF THE WARFIGHTING FUNCTIONS
2-10. EW capabilities support each of the six warfighting functions. Examples of specific supporting
capabilities are given in the following paragraphs.
Movement and Maneuver
2-11. The movement and maneuver warfighting function is the related tasks and systems that move forces
to achieve a position of advantage in relation to the enemy. Direct fire is inherent in maneuver, as is close
combat (FM 3-0). EW capabilities that enable the movement and maneuver of Army forces include—
z
Suppression and destruction of enemy integrated air defenses.
z
Denial of enemy information systems and intelligence, surveillance, and reconnaissance sensors.
z
Target designation and range finding.
z
Protection from effects of friendly and enemy EW.
z
Lethal and nonlethal effects against enemy combat capability
(personnel, facilities, and
equipment).
z
Threat warning and direction finding.
z
Use of the electromagnetic spectrum to counter improvised explosive device operations.
z
Electromagnetic spectrum obscuration, low observability, and multispectral stealth.
25 February 2009
FM 3-36
2-5
Chapter 2
Intelligence
2-12. The intelligence warfighting function is the related tasks and systems that facilitate understanding of
the operational environment, enemy, terrain, and civil considerations (FM 3-0). It includes tasks associated
with intelligence, surveillance, and reconnaissance. EW capabilities that enable the intelligence warfighting
function include—
z
Increased access for intelligence collection assets
(systems and personnel) by reducing
antiaccess, antipersonnel, and antisystems threats.
z
Increased capability to search for, intercept, identify, and locate sources of radiated
electromagnetic energy in support of targeting, information tasks, and future operations.
z
Increased capability in providing threat recognition and threat warning to the force.
z
Indications and warning of threat emitters and radar.
z
Denial and destruction of counter-intelligence, -surveillance, and -reconnaissance systems.
Fires
2-13. The fires warfighting function is the related tasks and systems that provide collective and
coordinated use of Army indirect fires, joint fires, and command and control warfare, including nonlethal
fires, through the targeting process (FM 3-0). It includes tasks associated with integrating command and
control warfare. EW capabilities that enable the fires warfighting function include—
z
Detection and location of targets radiating electromagnetic energy.
z
Disruption, degradation, and destruction options for servicing targets. This includes information
systems, targets requiring precision strike (such as minimal collateral damage and minimal
weapons signature), hard and deeply buried targets, weapons of mass destruction, and power
generation and infrastructure targets.
z
Control, dispersion, or neutralization of combatant and noncombatant personnel with
nonpersistent effects and minimum collateral damage (scalable and nonlethal).
z
Area denial capabilities against vehicles, vessels, and aircraft.
Sustainment
2-14. The sustainment warfighting function is the related tasks and systems that provide support and
services to ensure freedom of action, extend operational reach, and prolong endurance (FM 3-0). EW
capabilities that enable the sustainment warfighting function include—
z
Protection of sustainment forces from friendly and adversary use of EW in static or mobile
environments.
z
Enhanced electromagnetic environment situational awareness through the interception,
detection, identification, and location of adversary electromagnetic emissions and by providing
indications and warnings. (This information can assist in convoy planning, asset tracking, and
targeting of potential threats to sustainment operations.)
z
Countering improvised explosive devices to support ground lines of communication (includes
counter-radio-controlled improvised-explosive-device systems and countering other threats
triggered through the electromagnetic spectrum, such as lasers).
z
Spectrum deconfliction and emissions control procedures in support of sustainment command
and control.
z
Electromagnetic spectrum obscuration, low-observability, and multispectral stealth
(These
capabilities provide protection during sustainment operations).
2-6
FM 3-36
25 February 2009
Electronic Warfare in Full Spectrum Operations
Command and Control
2-15. The command and control warfighting function is the related tasks and systems that support
commanders in exercising authority and direction (FM 3-0). EW capabilities that enable the command and
control warfighting function include—
z
Protection of friendly critical information systems and command and control nodes, personnel,
and facilities from the effects of friendly and adversary EW operations.
z
Control of friendly EW systems through—
„ Frequency deconfliction.
„ Asset tracking.
„ Employment execution.
„ Reprogramming of EW systems.
„ Registration of all electromagnetic spectrum emitting devices with the spectrum manager
(both prior to deployment and when new systems or devices are added to the deployed
force).
z
The development of EW command and control tools to enhance required coordination between
Army and joint EW operations.
z
EW operations integration, coordination, deconfliction, and synchronization through the EW
working group (see chapter 3).
z
Increased commander situational understanding through improved common operational picture
input of electromagnetic spectrum- and EW-related information.
z
EW operations monitoring and assessment.
Protection
2-16. The protection warfighting function is the related tasks and systems that preserve the force so the
commander can apply maximum combat power (FM 3-0). EW capabilities and actions that enable the
protection warfighting function include—
z
Enhanced electromagnetic spectrum situational awareness through the interception, detection,
identification, and location of adversary electromagnetic emissions used to providing indications
and warnings of threat emitters and radars.
z
Denial, disruption, or destruction of electromagnetic-spectrum-triggered improvised explosive
devices and enemy air defense systems.
z
Deception of enemy forces.
z
Electromagnetic spectrum obscuration, low-observability, and multispectral stealth.
z
EW countermeasures for platform survivability (air and ground).
z
Area denial capabilities (lethal and nonlethal) against personnel, vehicles, and aircraft.
z
Protection of friendly personnel, equipment, and facilities from friendly and enemy electronic
attack, including friendly information systems and information. (This includes the coordination
and use of both airborne and ground-based electronic attack with higher and adjacent units.)
SUMMARY
2-17. Army EW operations provide the land force commander capabilities to support full spectrum
operations (offensive, defensive, and stability or civil support operations). EW supports full spectrum
operations by applying EW capabilities to detect, deny, deceive, disrupt, or degrade and destroy enemy
combat capability and by controlling and protecting friendly use of the electromagnetic spectrum. These
capabilities—when applied across the warfighting functions—enable commanders to address a broad set of
electromagnetic-spectrum-related targets to gain and maintain an advantage within the electromagnetic
spectrum.
25 February 2009
FM 3-36
2-7
This page intentionally left blank.
Chapter 3
Electronic Warfare Organization
A flexible organizational framework and capable, proficient electronic warfare
personnel enable the commander’s electronic warfare capability on the battlefield.
This chapter discusses a framework that ensures coordination, synchronization, and
integration of electronic warfare into full spectrum operations. This electronic
warfare organizational framework supports current operations and is adaptable for
future operations.
ORGANIZING ELECTRONIC WARFARE OPERATIONS
3-1. Operational challenges across the electromagnetic spectrum are expanding rapidly. As Army
electronic warfare (EW) capabilities expand to meet these challenges, the organizational design required to
coordinate, synchronize, integrate, and deconflict these capabilities must transform as rapidly. To meet
current and future requirements, command and control of EW operations is built around the concept of EW
working groups. Figure 3-1, page 3-2, illustrates the EW coordination organizational framework.
ARMY SERVICE COMPONENT COMMAND, CORPS, AND DIVISION LEVELS
3-2. A working group is a temporary grouping of predetermined staff representatives who meet to
coordinate and provide recommendations for a particular purpose or function (FMI 5-0.1). The EW
working group, when established, is responsible to the G-3 through the fires cell. An EW working group
usually includes representation from the G-2, G-3, G-5, G-6, and G-7.
(Joint doctrine calls this
organization the EW coordination cell.) The EW working groups depicted in figure 3-1 (page 3-2)
facilitate the internal (Army) and external (joint) integration, synchronization, and deconfliction of EW
actions with fires, command and control, movement and maneuver, intelligence, sustainment and
protection warfighting functions. Normally, EW working groups do not add additional structure to an
existing organization. As depicted in figure 3-1, working groups vary in size and composition based on
echelon.
3-3. Normally, the senior EW officer heads the EW working group and is accountable to the G-3 for
integrating EW requirements. Working within the fires cell, the EW officer coordinates directly with the
fire support coordinator for the integration of EW into the targeting process. This ensures EW capabilities
are fully integrated with all other effects. Additional staff representation within EW working groups may
include a fire support coordinator, a spectrum manager, a space operations officer, and liaison officers as
required. Depending on the echelon, liaisons could include joint, interagency, and multinational
representatives. When an Army headquarters serves as the headquarters of a joint task force or joint force
land component command, the Army headquarters’ working group becomes the joint force EW
coordination cell.
3-4. When Army forces are employed as part of a joint or multinational force, they normally have EW
representatives supporting higher headquarters’ EW coordination organizations. These organizations may
include the joint force commander’s EW staff or the information operations cell within a joint task force.
Sometimes a component EW organization may be designated as the joint EW coordination cell. (Chapter 6
discusses joint electronic warfare operations in more detail.) The overall structure of the combatant force
and the level of EW to be conducted determine the structure of the joint EW coordination cell. The
organization to accomplish the required EW coordination and functions varies by echelon.
25 February 2009
FM 3-36
3-1
Chapter 3
Figure 3-1. Electronic warfare coordination organizational framework
3-5. Regardless of the organizational framework employed, EW working groups perform specific tasks.
Table 3-1 (page 3-3) details the functions of the EW working groups by echelon from battalion to Army
Service component command. There is no formal organizational framework for EW at the company level
(see paragraph 3-9).
3-2
FM 3-36
25 February 2009
Electronic Warfare Organization
Table 3-1. Functions of electronic warfare working groups
25 February 2009
FM 3-36
3-3
Chapter 3
BRIGADE LEVEL
3-6. At the brigade level, the EW officer heads the EW working group and is accountable to the S-3 for
integrating EW requirements. Additional staff representation within EW working groups at the brigade
combat team level may include the fire support coordinator, EW targeting technician, S-2, S-6, spectrum
manager, S-7, and liaison officers as required.
3-7. The EW working group at the brigade combat team coordinates with the higher echelon EW working
groups. The brigade working group plays an important role in requesting and integrating joint air and
ground EW support. It also manages the brigade’s organic EW “fight” within the fires cell. The EW officer
works as part of the brigade combat team staff. In this position, the EW officer synchronizes, integrates,
and deconflicts brigade combat team EW actions with the EW working group at division level. Although
EW falls under the control of the S-3, EW officers are fully immersed in fires targeting and planning to
ensure proper use and coordination of EW. See table 3-1, page 3-3, for an outline of the functions of the
brigade combat team EW working group.
BATTALION LEVEL
3-8. At the battalion level, the EW officer or noncommissioned officer leads the EW working group and
is accountable to the S-3 for integrating EW requirements. Additional staff representation within EW
working groups at the battalion level may include the S-2, S-6, fire support officer, and a joint terminal
attack controller when assigned. The battalion EW working group coordinates battalion EW operations
with the brigade combat team EW working group. See table 3-1, page 3-3, for an outline of the functions
of the battalion EW working group.
COMPANY LEVEL
3-9. At the company level, trained EW personnel holding an additional skill identifier of 1K (tactical EW
operations) or 1J (operational EW operations) perform several tasks. They advise the commander on the
employment of EW equipment, track EW equipment status, assist operators in the use and maintenance of
EW equipment, and coordinate with higher headquarters EW working groups.
PLANNING AND COORDINATING ELECTRONIC WARFARE
ACTIVITIES
3-10. Key personnel involved in the planning and coordination of EW activities are—
z
G-3 and S-3 staff.
z
EW officer.
z
Fire support coordinator.
z
G-2 and S-2 staff.
z
G-6 and S-6 staff.
z
Electromagnetic spectrum manager.
z
Liaisons.
G-3 OR S-3 STAFF
3-11. The G-3 or S-3 staff is responsible for the overall planning, coordination, and supervision of EW
activities, except for intelligence. The EW officer is part of the G-3 or S-3 staff. The G-3 or S-3 staff—
z
Plans for and incorporates EW into operation plans and orders, in particular within the fire
support plan and the information operations plan (in joint operations).
z
Tasks EW actions to assigned and attached units.
z
Exercises control over electronic attack, including integration of electromagnetic deception
plans.
3-4
FM 3-36
25 February 2009
Electronic Warfare Organization
z
Directs electronic protection measures the unit will take based on recommendations from the G-
6 or S-6, the EW officer, and the EW working group.
z
Coordinates and synchronizes EW training with other unit training requirements.
z
Coordinates and synchronizes EW training with other unit training requirements.
z
Issues EW support tasks within the unit intelligence, surveillance, and reconnaissance plan.
These tasks are according to the collection plan and the intelligence synchronization matrices
developed by the G-2 or S-2 and the collection manager.
z
Coordinates with the EW working group to ensure planned EW operations support the overall
tactical plan.
z
Integrates electronic attack as a form of fires within the fires cell.
ELECTRONIC WARFARE OFFICER
3-12. As a member of the G-3 or S-3 staff, the EW officer plans, coordinates, and supports the execution
of EW. The EW officer—
z
Leads the EW working group.
z
Plans, coordinates, and assesses EW offensive, defensive, and support requirements.
z
Supports the G-2 or S-2 during intelligence preparation of the battlefield.
z
Supports the fire support coordinator to ensure electronic attack fires are integrated with all
other effects.
z
Plans, assesses, and implements friendly electronics security measures.
z
Prioritizes EW effects and targets with the fire support coordinator.
z
Plans and coordinates EW operations across functional and integrating cells.
z
Deconflicts EW operations with the spectrum manager.
z
Maintains a current assessment of available EW resources.
z
Participates in other cells and working groups (as required) to ensure EW integration.
z
Serves as EW subject matter expert on existing EW rules of engagement.
z
When designated, serves as the jamming control authority.
z
Prepares, submits for approval, and supervises the issuing and implementation of fragmentary
orders for EW operations.
G-2 OR S-2 STAFF
3-13. The G-2 or S-2 staff advises the commander and staff on the intelligence aspects of EW. The G-2 or
S-2 staff—
z
Provides threat data to support programming of unit EW systems and deconfliction of their use
by the EW working group.
z
Ensures that electronic order of battle requirements are included in the intelligence collection
plan.
z
Determines enemy EW organizations, disposition, capabilities, and intentions via collection and
analysis.
z
Determines enemy EW vulnerabilities and high-value targets.
z
Assesses effects of friendly EW operations on the enemy.
z
Helps prepare the intelligence-related portion of the EW running estimate.
z
Provides input to the restricted frequency list by recommending guarded frequencies.
z
Provides updates on the rapid electronic order of battle.
z
Maintains appropriate threat EW databases.
z
Works with the EW working group to ensure that intelligence collection is synchronized with
EW requirements and deconflicted with planned EW actions. Ensures that EW threat data is
deconflicted with friendly electromagnetic spectrum needs.
25 February 2009
FM 3-36
3-5
Chapter 3
NETWORK OPERATIONS OFFICER
3-14. The network operations officer (in the G-6 or S-6 staff) coordinates the communications network for
the following services:
z
Preparing the electronic protection policy on behalf of the commander.
z
Assisting in preparing EW plans and orders.
z
Reporting all enemy electronic attack activity detected by friendly communications and
electronics elements to the EW working group for counteraction.
z
Assisting the unit EW officer with resolving EW systems maintenance and communications
fratricide problems.
SPECTRUM MANAGER
3-15. The spectrum manager coordinates electromagnetic spectrum use for a wide variety of
communications and electronic resources. The spectrum manager—
z
Issues the signal operating instructions.
z
Provides all spectrum resources to the task force.
z
Coordinates for spectrum usage with higher echelon G-6 or S-6, and applicable host-nation and
international agencies as necessary.
z
Coordinates the preparation of the restricted frequency list and issuance of emissions control
guidance.
z
Coordinates frequency allotment, assignment, and use.
z
Coordinates electromagnetic deception plans and operations in which assigned communications
resources participate.
z
Coordinates measures to reduce electromagnetic interference.
z
Coordinates with higher echelon spectrum managers for electromagnetic interference resolution
that cannot be resolved internally.
z
Assists the EW officer in issuing guidance in the unit
(including subordinate elements)
regarding deconfliction and resolution of interference problems between EW systems and other
friendly systems.
z
Participates in the EW working group to deconflict friendly electromagnetic spectrum
requirements with planned EW operations and intelligence collection.
SUMMARY
3-16. The organizational framework for EW coordination and functions varies by echelon. The necessity
to form an EW working group is largely based on the overall structure of the combatant force and the level
of EW to be conducted. During unified actions, other Service EW officers, signals intelligence officers,
and EW asset representatives are invaluable to Army EW working groups in the planning, preparation,
execution, and assessment of EW operations. As Army EW capabilities and concepts for employment
continue to evolve, so do the organizational designs that ensure their effective command and control and
execution in support of operations.
3-6
FM 3-36
25 February 2009
Chapter 4
Electronic Warfare and the Operations Process
The operations process consists of the major command and control activities
performed during operations: planning, preparing, executing, and continuously
assessing the operation. The commander drives the operations process (FM 3-0).
These activities occur continuously throughout an operation, overlapping and
recurring as required (see figure 4-1). The staff electronic warfare officer is actively
involved in the operations process. Electronic warfare planning, preparation,
execution, and assessment require collective expertise from operations, intelligence,
signal, and battle command. The electronic warfare officer—through the unit’s
electronic warfare working group—integrates efforts across the warfighting
functions. This ensures that electronic warfare operations support the commander’s
objectives.
Figure 4-1. The operations process
SECTION I — ELECTRONIC WARFARE PLANNING
4-1. Electronic warfare (EW) planning is based on three main considerations. The first is applying the
military decisionmaking process (MDMP). EW planners understand and follow its seven steps. In a time-
constrained environment they still follow all seven steps, abbreviating the MDMP process appropriately.
Additionally, EW planners apply EW integrating processes. They understand how EW actions contribute
to operations. They integrate and synchronize EW activities starting with planning and continuing
throughout operations. Finally, EW planners apply EW employment considerations according to the
characteristics of EW capabilities.
25 February 2009
FM 3-36
4-1

















Content      ..      1       2         ..





///////////////////////////////////////
