Acronym

Meaning

FCRC

Fire Code Reform Centre Ltd

FE

Fire engineer

FER

Fire Engineering Report

HRR

Heat release rate

IAFSS

International Association for Fire Safety Science

IFE

The Institution of Fire Engineers, UK

IFEG

International Fire Engineering Guidelines

IFSS

International Fire Safety Standards

ISO

International Organization for Standardization

NCC

National Construction Code

NER

National Engineering Register

NFPA

National Fire Protection Association, USA

PBDB

performance-based design brief

RSET

Required safe evacuation time

SFPE

Society of Fire Protection Engineers, USA

SFS

Society of Fire Safety (Engineers Australia)

SS

Sub-system

1.5.3 Further information sources

The guidance in the AFEG is expected to remain constant over time. However, it is

anticipated that the list of external information sources will be regularly updated to

reflect continuously evolving research and best practice. The recommended use of

the AFEG and other information sources is discussed in Part 4.

Australian Fire Engineering Guidelines

abcb.gov.au

Page 27

2 Process

2.1



Overview

2.1.1 The fire engineering process

The typical fire engineering process normally goes through five stages, as shown in

Figure 2.2.1.

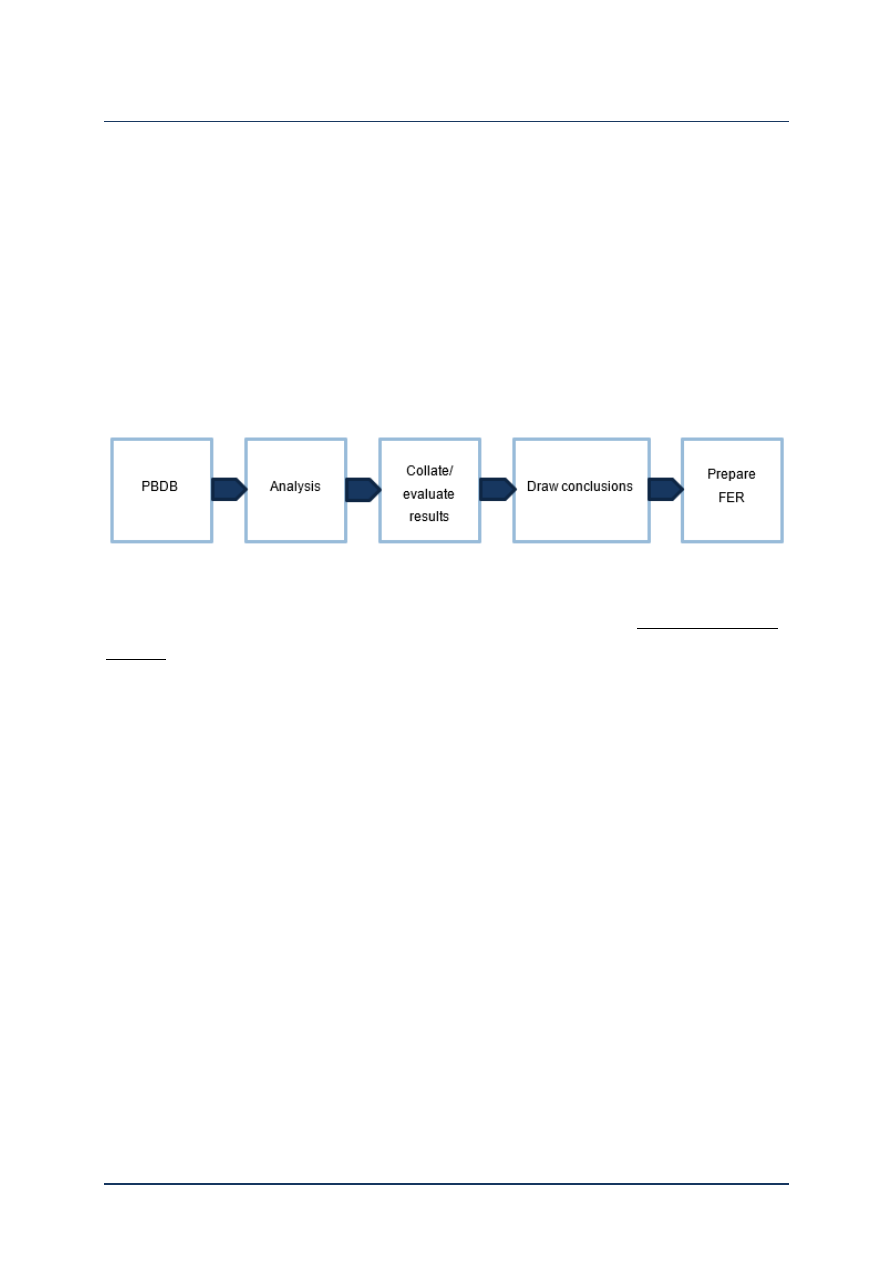

Figure 2.1.1 Typical fire engineering process



The first step is preparing a PBDB. This fundamental task is important and forms the

basis of the fire engineering process. Although a PBDB process is required for every

project, the outcome of that process may vary depending on the size and nature of

the project. Therefore, not all PBDB processes and outcomes need to be

documented in a separate comprehensive PBDB report. The PBDB process is

discussed further in 2.2.

In any building, there are many features that combine to create an overall fire safety

system for the building. To assist in the analysis of the fire safety system, it is

convenient to consider it as comprising six sub-systems, each of which is shown

below (for further discussion of these sub-systems, Appendix A). Each sub-system

needs to be considered, but not all sub-systems need an in-depth analysis.

Australian Fire Engineering Guidelines

abcb.gov.au

Page 28

Table 2.1.1 Sub-system descriptions

Icon



Sub-system

Description



Sub-system A

SS-A

Fire initiation &
development &
control

(see Appendix A.1)

Sub-system A (SS-A) is used to define design
fires in the enclosure of fire origin as well as
enclosures to which the fire has subsequently
spread, and how fire initiation and
development might be controlled.



Sub-system B

SS-B

Smoke
development, spread
& control

(see Appendix A.2)



Sub-system B (SS-B) is used to analyse the
development of smoke, its spread within the
building, the properties of the smoke at
locations of interest, and how the development
and spread might be controlled.



Sub-system C

SS-C

Fire spread, impact
& control

(see Appendix A.3)



Sub-system C (SS-C) is used to analyse the
spread of fire beyond an enclosure, the impact
a fire might have on the structure, and how the
spread and impact might be controlled.



Sub-system D

SS-D

Fire detection,
warning &
suppression

(see Appendix A.4)



Sub-system D (SS-D) is used to analyse
detection, warning and suppression for fires.
This process enables estimates to be made of
the effectiveness of suppression.



Sub-system E

SS-E

Occupant
evacuation & control

(see Appendix A.5)



Sub-system E (SS-E) is used to analyse the
evacuation of the occupants of a building. This
process enables estimates to be made of the
times required for occupants to reach a place
of safety.



Sub-system F

SS-F

Fire services
intervention

(see Appendix A.6)



Sub-system F (SS-F) is used to analyse the
compatibility of the standard intervention
activities of fire brigade services with a fire
according to the FBIM.

Careful collation and evaluation of the results from the analysis is vital, and this is

discussed in 2.4. Drawing conclusions requires engineering judgement, as discussed

in Section 2.4.2. If the conclusions reveal the particular trial design is unsatisfactory,

the analysis has to be repeated on a different trial design. This process is repeated

until an acceptable trial design is found.

Australian Fire Engineering Guidelines

abcb.gov.au

Page 29

The overall fire engineering process (preparing a PBDB, carrying out the requisite

analysis, collating the results, and drawing conclusions) is of little use unless the FER

documents it in a transparent manner that is responsible, accurate and aimed at

helping the ultimate decision maker and user of the report. This essential process is

discussed in 2.5.

2.1.2 Application of the process

All fire engineering studies will be a mixture of design and evaluation. To that end,

the FE needs to understand that as the design moves from early concept or scheme

design through design development and into detailed design, the project design

options are reduced, and costs are refined continually. If further fire engineering

analysis is required during the construction stage, there may be further limitations to

solutions and cost implications. Once the FE has completed the evaluation of the fire

safety strategy and design solution, the other designers still have to complete the

design of components, such as sprinklers and detection and smoke control systems.

Therefore, it is critical that any fire safety evaluation is completed before the design

or cost estimate of the project is finalised.

The fire engineering process outlined in Section 2.1.1 may be carried out in many

different ways. As discussed in 2.2, the knowledge and skills of a FE are needed to

determine the most effective way of devising a fire engineering analysis strategy and

carrying out the evaluation. The AFEG provides guidance for FEs to select an

analysis and evaluation strategy appropriate to the project in hand.





Australian Fire Engineering Guidelines

abcb.gov.au

Page 30

2.2



Preparing a fire engineering PBDB

For each project, the FE must prepare a PBDB. This section provides guidance on

issues which should be addressed in the PBDB. A PBDB follows a process that

defines the scope of work for the fire engineering analysis. Its purpose is to set down

the basis on which the fire safety analysis will be undertaken. Note that the outcome

of this process may vary depending on the size and nature of the project, and may

therefore not be required to be documented in a separate PDBD report.

The PBDB is an essential part of the fire engineering process. Where appropriate, it

may allow broader community aspirations to be taken into account during the

development and evaluation of Performance Solutions, while ensuring that

acceptable levels of safety are maintained.

In the case of a fire engineering analysis that considers a simple departure from a

DTS Provision, the PBDB might be a short document (written, printed or electronic,

which could include email communication). However, for large and/or complex

projects, the PBDB could be a comprehensive report.

The PBDB process should be developed collaboratively by all the relevant

stakeholders, but this may vary according to the particular circumstances of the

project, as discussed in Section 2.2.2. All stakeholders must make best endeavours

to provide input / feedback in a timely manner in order to deliver projects in the public

interest.

The flow chart in Figure 2.2.1 illustrates the process for developing the PBDB, and

refers to the relevant sections of the AFEG. However, the process will vary for any

particular project and steps may be reordered or omitted. In some cases, an iterative

process may be introduced. The FE should ensure that the process followed is

appropriate for the design or evaluation.

In principle, the proposed trial designs, analysis methods and acceptance criteria are

agreed before the analysis commences. However, in practice, preliminary

calculations may be carried out to establish the likelihood of success before trial

designs are proposed and the full analysis carried out.

Australian Fire Engineering Guidelines

abcb.gov.au

Page 31

Where a trial design is found (through analysis) to be unacceptable (it does not meet

the Performance Requirements) the PBDB process is revisited and a further trial

design developed.

It is appropriate to invite stakeholder comments and input on the trial design,

assessment criteria, and objectives. The ‘final’ PBDB will be incorporated into the

overall report (2.5)

Each step in the flow chart (Figure 2.2.1) is discussed in Sections 2.2.1 to 2.2.13.

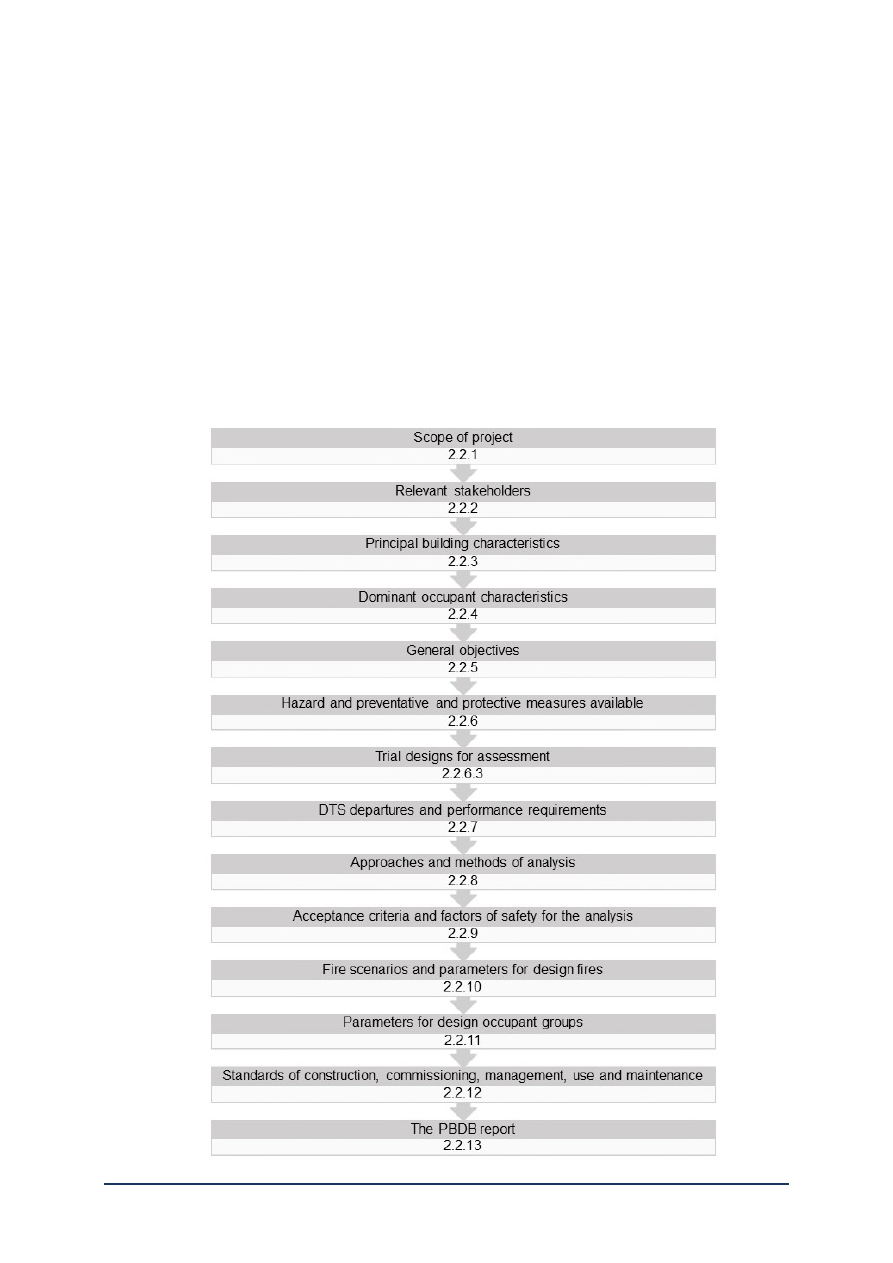

Figure 2.2.1 A process for developing a PBDB



Australian Fire Engineering Guidelines

abcb.gov.au

Page 32

2.2.1 Scope of the project

In order to help stakeholders contribute effectively to the PBDB process, the FE

should explain the scope and intent of the project and invite questions and ongoing

contact. Some topics that might be explained are discussed below.

2.2.1.1 Regulatory framework

It is important for the PBDB team to understand, right from the outset, the regulatory

framework in which the building is to be designed and constructed. Questions might

include:



Are there any relevant legislative requirements relating to the building project?



What is the process of accepting a performance-based solution as an
alternative to a prescriptive design?



Who are the appropriate authorities for the building permits / approvals?



Which other stakeholders should be consulted?



What timeframes can be expected for the various regulatory approval options
available?

In some cases, there may be no applicable regulatory framework. For example, when

an owner or tenant voluntarily upgrades all or part of an existing building to meet their

own risk management requirements. Nevertheless, in this situation, the owner or

tenant should give due regard to the regulatory environment to ensure there is not

regulatory impact.

Alert:

Upgrade works may not be required under legislation to be submitted to the local

fire authority but where a performance solution relates to equipment required to be

used by the fire authority, it is considered prudent that they be included as a

stakeholder irrespective of the size of the development.

2.2.1.2 Project schedule

Time constraints dictated by the project schedule may also affect the fire engineering

process. For example:

Australian Fire Engineering Guidelines

abcb.gov.au

Page 33



If a project is urgent, there may not be time to prepare a performance-based fire
engineering analysis. Therefore, a standard DTS design may have to be
adopted, although a performance-based solution may offer cost savings,
flexibility and design innovation.



Project schedules incorporating staged occupation of the building may affect the
design of the fire safety system.

It is also important to understand the time required for the various stages of the

regulatory process, including the fire engineering analysis.

2.2.2 Relevant stakeholders

Consultation and active engagement with stakeholders is a fundamental component

in the process of formulating an appropriate scope of work and consequently, the

brief and all that flows from it.

The PBDB must be developed collaboratively by the relevant stakeholders in the

particular project. The following parties may be involved:



Client or client’s representative (such as project manager)



Fire engineer



Architect or designer



Various specialist consultants



Fire service (public or private)



Appropriate authority (Authority Having Jurisdiction – subject to state legislation)



Tenants or tenants representative for the proposed building (if available)



Building operations management (if available)



representative of owner's insurance company.

Conducting a simple stakeholder analysis can be used to determine who must be

involved in the PBDB process. This analysis must identify stakeholders with a high

level of interest in the design process, and/or likely to be affected by the

consequences of a fire should it occur in the building. This stakeholder analysis

should be included in the PBDB Report and the Fire Engineering Report.

Selection and engagement of the relevant stakeholders will often happen in

conjunction with scoping the proposed solution. Identification of relevant stakeholders

will stem from initial scoping of the attributes and parameters of the project and also

the relevant parts of the building that are to be subject to a performance-based

Australian Fire Engineering Guidelines

abcb.gov.au

Page 34

design approach. Within the proposed scope, the stakeholders can provide advice on

appropriate acceptance criteria, NCC Assessment Methods (suitable for the

acceptance criteria), potential risks and mitigation strategies.

As the design, assessment, and construction of any proposed work will normally

involve more than one stakeholder, the process will require collaboration and

negotiation to achieve a mutually acceptable performance-based outcome.

Consultation with an appropriate authority should be initiated as soon as possible to

ensure the proposed acceptance criteria can be accepted in support of the approval

process. However, the stage at which consultation is commenced is a decision for

the person responsible for managing the brief process and may be influenced by the

complexity of the project. Legislation may also dictate when this must occur.

The complexity of the project will influence:

a.

the suitability of qualified and experienced individuals; and/or

b.

the need for, and breadth of, stakeholder consultation.

A primary benefit of early consultation is that stakeholders, who will be required to

contribute to decision making processes during the course of the project, have an

opportunity to express their needs. This could be regarding preferred processes,

technical methodologies, and the scope of documentation to support future decision

making.

In practice, a draft PBDB is often prepared by the FE, submitted for comment to the

other stakeholders, and refined. The circumstances of each project and its method of

regulatory approval will generally dictate the precise process of stakeholder

consultation, including how many meetings are held and if appropriate, any meeting

forum (e.g. face-to-face, telephone, or video conferencing).

Alert:

It is crucial that the appropriate authority is not asked to provide design advice. It is

a conflict of interest for those with regulatory responsibility to assess aspects of a

design that they have contributed to the development of.

Australian Fire Engineering Guidelines

abcb.gov.au

Page 35

2.2.3 Principal building characteristics

In order to evaluate or design a building’s fire safety system, it is important to

understand the building’s characteristics and its normal mode of functioning. The

principal characteristics should be identified early in the PBDB process to facilitate

decision-making and resolution of any issues (see Figure 2.2.1). The information

available will vary for each stage in the design process. Table 2.1.1 includes a list of

some characteristics (and examples of each) which may be appropriate.

Table 2.2.1 Example of principal building characteristics

Characteristics

Examples



Occupancy

Building classification

Usage, particularly unusual uses

Location

Proximity to other buildings and boundaries

Proximity to buildings of high importance (e.g. buildings
used for post-disaster recovery)

Proximity to other hazards

Proximity to fire station(s)

Fire services access

Size and shape

Number of floors

Area of each floor

General layout

Structure

Construction materials

Hidden voids

Openings, shafts and ducts

Ventilation and air movement

Unusual features

Hazards

See Section 2.2.6.1

Fire preventive and
protective measures

See Section 2.2.6.2

Management and use  Regular inspections of preventive and protective

measures

Training of occupants

Maintenance

Frequency and adequacy of maintenance regimes

Availability of parts and personnel for repairs

Environmental
conditions

Ventilation and prevailing internal air currents

Prevailing patterns of wind and snow

Australian Fire Engineering Guidelines

abcb.gov.au

Page 36

Characteristics

Examples



Value

Capital

Community Infrastructure

Heritage

Other

Environmental impact of a fire

Fire-fighting concerns

2.2.4 Dominant occupant characteristics

Understanding the likely nature of the building's occupants is an important element of

the PBDB process. There are many characteristics that may be identified, which

makes complete characterisation difficult. For a given fire engineering evaluation, a

limited number of dominant occupant characteristics may affect the outcome. Table

2.2.2 gives some examples of dominant occupant characteristics which may be

relevant.

Table 2.2.2 Examples of dominant occupant characteristics

Characteristics

Examples



Distribution

Number

Gender

Age

Location

State

Awake or asleep

Intoxicated or sober

Unconscious or fully conscious

Physical attributes

Mobility

Speed of travel

Hearing ability

Visual ability

Mental attributes

Level of understanding

Potential emergency behaviour

Ability to interpret cues

Ability to make and implement decisions independently

Level of assistance
required

Requires full assistance

Requires some assistance

Does not require assistance

Level of assistance
available

Shift schedules

Staff numbers and type

Australian Fire Engineering Guidelines

abcb.gov.au

Page 37

Characteristics

Examples



Staff to patient / child etc. ratio.

Emergency training

Trained

Untrained

Occupant (group)
roles

Parent or child

Teacher or student

Nurse or patient

Staff or customer

Activity at the
outbreak of fire

Asleep or awake

Working in a noisy environment

Watching a performance

Familiarity with the
building

Unfamiliar

Relatively familiar

Familiar

Table 2.2.2 should be considered in identifying the design occupant groups for the

building. The concept of design occupant groups is  explained in Section 2.2.11 of

the AFEG.

The

 dominant occupant characteristics chosen for the analysis may impose limitations

on potential future uses of the building. Therefore, it may be prudent to consider

potential future building occupancies as well as those planned for the immediate

future.

2.2.5 General objectives

The PBDB should define the agreed fire safety objectives for the project in order to

define the objectives. As stakeholders may have differing objectives, it is useful to

consult with a range of relevant stakeholders. Project objectives can be divided into

three broad categories: building regulatory objectives, other regulatory objectives,

and non-regulatory objectives. These three categories are discussed in Sections

2.2.5.1, 2.2.5.2 and 2.2.5.3 respectively.

2.2.5.1 Building regulatory objectives

The building regulatory objectives for the project will normally be the broad objectives

set out in the building legislation and/or building codes. These may include, but are

not limited to:

Australian Fire Engineering Guidelines

abcb.gov.au

Page 38



protecting building occupants



facilitating the activities of emergency services personnel



protecting the property



preventing the spread of fire between buildings.

2.2.5.2 Other regulatory objectives

The other regulatory objectives for the project will normally be the broad objectives

set out in other legislation. These may include, but are not limited to:



environmental protection



occupational health and safety



fire services



dangerous goods



land use and other planning matters.

2.2.5.3 Non-regulatory objectives

The non-regulatory objectives for the project may include other objectives set by the

client or other stakeholders (e.g. the insurer) such as:



limiting structural and fabric damage



limiting building contents and equipment damage



maintaining continuity of business operations and financial viability



safeguarding community interests and infrastructure



protecting corporate and public image



protecting heritage in older or significant buildings



limiting the release of hazardous materials into the environment.

The client may also have various non fire-related objectives for the building design

that impact the fire safety of the building. For example, the client may require:



increased security



extensive natural lighting



an open-plan layout



the use of new materials



measures to improve energy efficiency and sustainability above NCC
requirements

Australian Fire Engineering Guidelines

abcb.gov.au

Page 39



flexibility for future uses



low life-cycle costs.

2.2.6 Hazards and preventive and protective measures

A systematic review should be conducted to establish potential fire hazards (both

normal and special) of the building. The information gathered when determining the

principal building characteristics (see Section 2.2.3) forms the basis for this review.

Section 2.2.6.1 provides examples of potential fire hazards.

The next step in the process is identifying which preventative and protective

measures are in place or planned to address the hazards, and which additional

measures could be used. Examples of preventative and protective measures are

listed in Section 2.2.6.2.

2.2.6.1 Hazards

Table 2.2.3 lists some examples of factors which may be considered when

determining likely hazards.

Table 2.2.3 Examples of factors to be considered when determining likely hazards

Factors



Examples



General layout



Long dead end corridors

Unusual egress provisions

Location of hazardous materials/processes

Exposures to external radiant sources

Building/architectural features

Innovative construction methods

Activities



Repair and maintenance

Process and construction

Disregarding safety procedures

Ignition sources

Smoking materials

Electrical equipment

Heating appliances

Unusual ignition sources



Australian Fire Engineering Guidelines

abcb.gov.au

Page 40

Factors



Examples



Fuel sources

Amount of combustible materials

Location of combustible materials

Fire behaviour properties

Dangerous goods and explosives



2.2.6.2 Preventative and protective measures

Table 2.2.4 lists examples of preventative and protective measures for each of the

fire safety sub-systems used in the AFEG.

Table 2.2.4 Examples of preventative and protective measures

Sub-system



Measures



SS-A – Fire initiation,
development and
control

Limitation of ignition sources

Limitation of nature and quantity of fuel

Arrangement and configuration of fuel

Separation of ignition sources and fuel

Management of combustibles including housekeeping
measures

Electrical safety equipment

Regular plant maintenance

Adherence to procedures for 'hot work' (e.g. welding)

SS-B – Smoke
development, spread
and control

Smoke barriers

Natural smoke venting

Mechanical smoke management

SS-C – Fire spread,
impact and control

Separation of fuel

Separation of buildings

Fire resistive barriers

Fire resistive structural elements

Fire resistive air-handling ducts

Fire resistive dampers

Exposure protection

SS-D – Fire detection,
warning and
suppression

Automatic and manual detection equipment

Automatic and manual warning equipment

Surveillance equipment

Automatic suppression equipment

Manual suppression equipment

Australian Fire Engineering Guidelines

abcb.gov.au

Page 41

Sub-system



Measures



SS-E – Occupant
evacuation and control

Evacuation plans

Occupant training

Emergency communications

Egress signage

Egress routes (including fire-isolated elements)

SS-F – Fire services
intervention

Type of fire services available (full-time/permanent or
volunteer)

Characteristics of fire services’ capability and resources

Fire services’ access to the site and the building

Water supplies and infrastructure

2.2.6.3 Trial designs for evaluation

As the architectural and engineering drawings develop, the design team (including

the FE) should incorporate measures which are expected to achieve an acceptable

level of fire safety. The PBDB team should select one or more trial designs for

detailed analysis as described in 2.3. Examples of factors which may be considered

when developing trial designs may include: aesthetics, cost, ease of everyday use,

speed of construction, and the importance of maintenance. The trial designs may

incorporate measures which are not required by the relevant DTS Provisions.

In addition, trial designs should incorporate sensitivity, redundancies and

uncertainties to compensate for potential failures of components of the trial design’s

fire safety system (see Section 2.2.8.5)

Additional trial designs will need to be developed if the selected trial designs do not

meet the required performance criteria.

Each trial design considered should be clearly identified. All of its features, including

those relating to fire safety, should be described. This description needs to be

sufficiently detailed to allow the essential features of the design to be readily

identified for analysis and future reference.

2.2.7 DTS departures and Performance Requirements

After defining the general objectives (Section 2.2.5), the next step in the process is

determining which Performance Requirements will be used to evaluate the trial

















Content      ..     1      2      3      4      ..
