Snowmobile Ski Doo REV SERIES (2004 year). Instruction - part 86





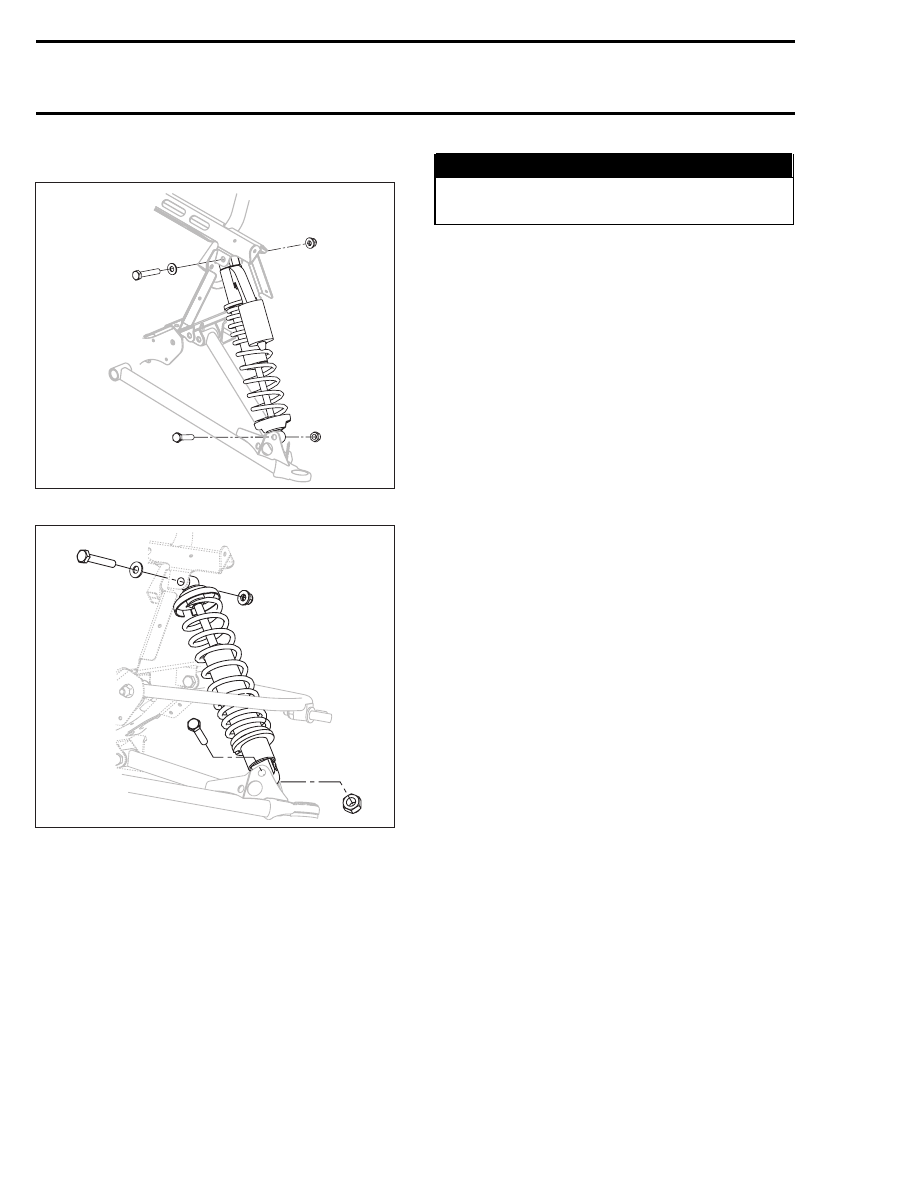

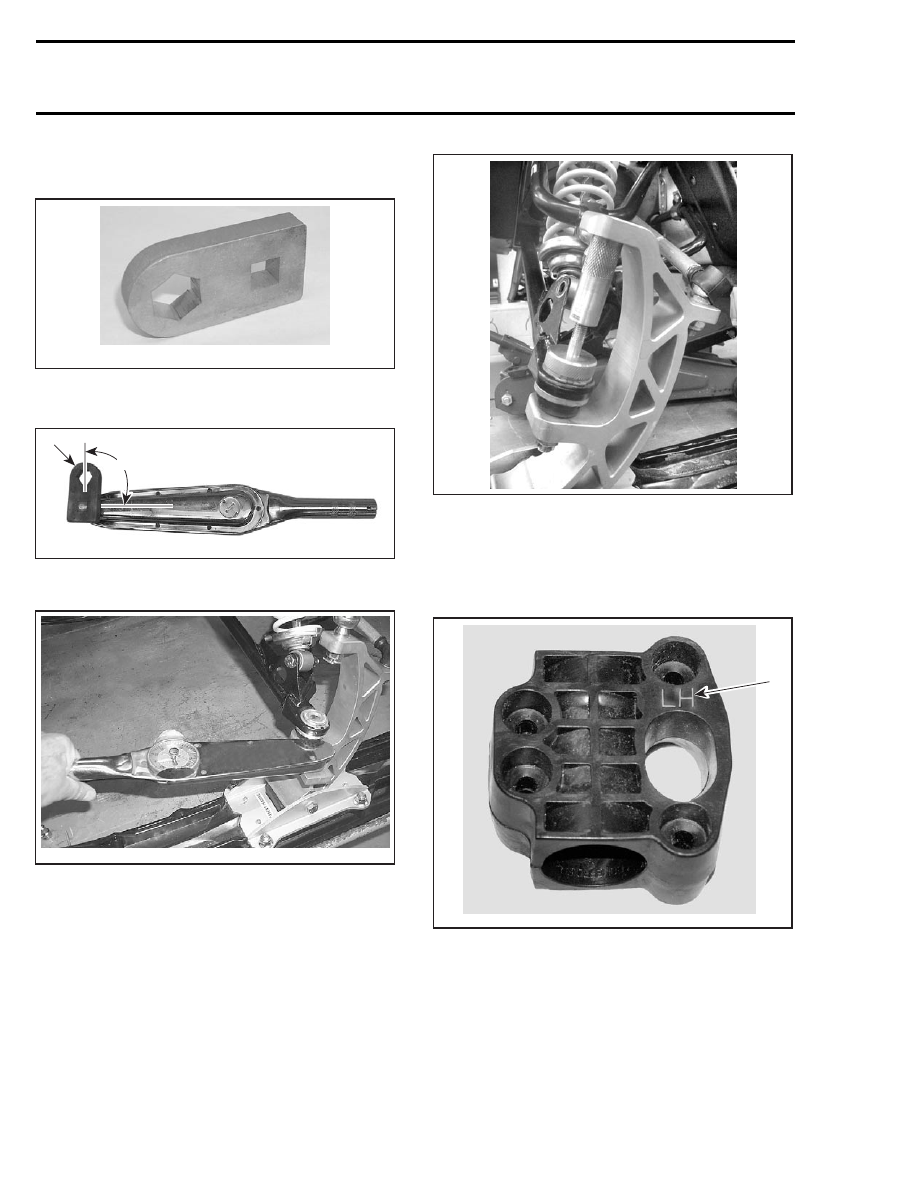

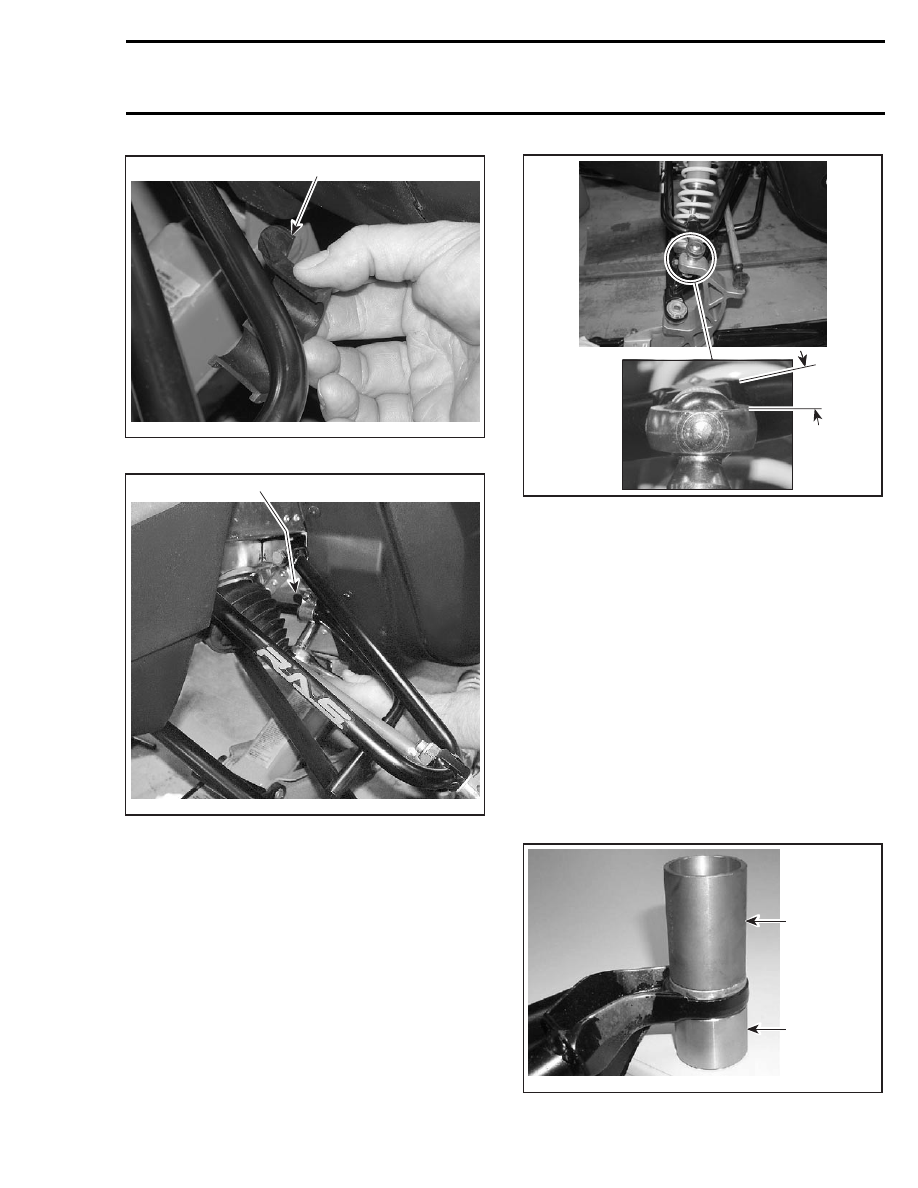

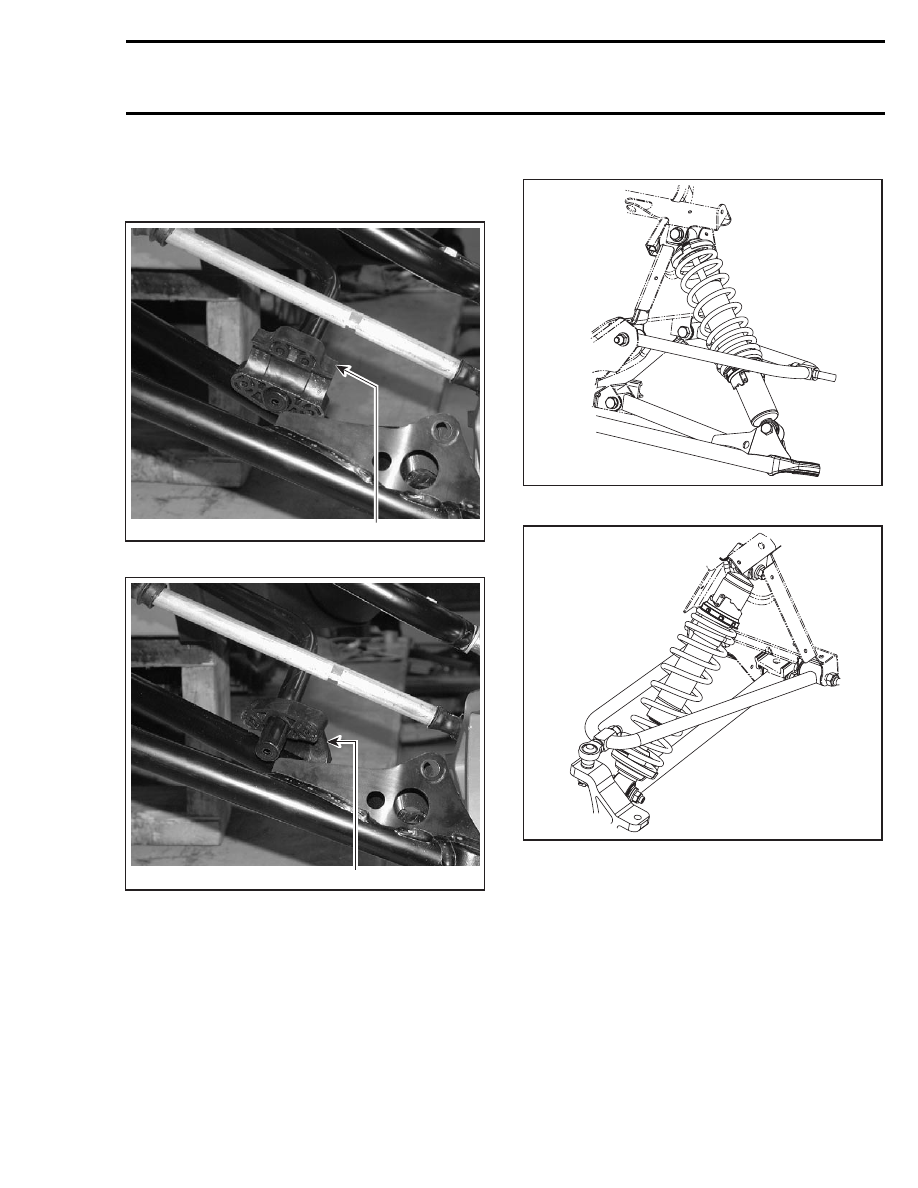

Section 09 STEERING/FRONT SUSPENSION

Subsection 02 (FRONT SUSPENSION)

1

A33F28A

1. Install bushing as shown

1

A33F27B

1. Tab here to obstruct access hole

Upper Arm

When installing ball joint no. 15 to upper arm, en-
sure to tilt it with the proper angle as shown. The
ball joint housing must be parallel to ski leg tab.
This mounting position corresponds to 10° ± 3°
angle from upper arm.

10° ± 3°

A33F2IB

Lower Arm

Position lower arm below stabilizer bar.

Prior to installing ball joint in lower arm, ensure to
clean the tapered surfaces with the Pulley flange
cleaner product (P/N 413 711 809). Surface con-
tacts must be clean and free of dirt, oil and grease.
Apply the cleaner on a rag then use the rag to clean
the surfaces of ball joint and ski leg.

To install ball joint, proceed as follows:

– Install ball joint support (P/N 529 035 875) on

top side of lower arm (operating position).

– Position ball joint installer (P/N 529 035 975) on

bottom side of lower arm (operating position).

– Press joint in.
– Install snap ring no. 13 with its opening toward

front of vehicle.

529 035 975

A33F29B

529 035 875

mmr2004-Rev

339

Section 09 STEERING/FRONT SUSPENSION
Subsection 02 (FRONT SUSPENSION)

To properly torque ball joint nut, use the A-arm nut
wrench (P/N 529 035 876).

529 035 876

A33F2AA

Ensure to install the tool perpendicularly (90°) to
torque wrench.

1

A33F22A

A

1. Tool perpendicular (90°) to torque wrench

A. 90°

A33F2KA

Use ball joint lock tool (P/N 529 035 945) to restrain
ball joint during nut tightening.

NOTE: The upper arm ball joint has to be removed
in order to use this tool. Also remove the small
screw from top of ball joint to allow proper seating
of tool.

A32F3XA

TYPICAL

Stabilizer Bar

Notice that LH and RH sliding blocks are different.
Look for their molded identification with LH or RH
letters.

1

A33F2DA

1. Molded identification for proper side installation

To install sliding blocks:

– Temporarily rotate the rear block by 180°.
– Insert on stabilizer bar end and push beyond the

lower arm.

– Rotate block back by 180° to its normal position.
– Install the other block half.

340

mmr2004-Rev

Section 09 STEERING/FRONT SUSPENSION

Subsection 02 (FRONT SUSPENSION)

– Install screws and nuts.
– Ensure blocks slide easily when compressing

and releasing suspension.

1

A33F2EA

1. Temporarily rotate block by 180° for its insertion

1

A33F2FA

1. Push block on bar end beyong lower arm then rotate

back to its normal position

Shock Absorber

Ensure to reinstall shock absorber in the proper
position according to model.

GSX and MX Z Trail

A33F3RA

MX Z Adrenaline and Renegade

A33F3SA

mmr2004-Rev

341

Section 09 STEERING/FRONT SUSPENSION
Subsection 02 (FRONT SUSPENSION)

MX Z X/Renegade X/Trail — Europe

A33F3NA

Summit

A33F3MA

Readjust spring preload.

Ski

Apply suspension synthetic grease (P/N 293 550
033) between bushing no. 28 and spacer no. 27
and also on inner tube of ski leg.

Summit Only

Install bushing no. 29 and spacer no. 30 inward
on each ski leg for the wide ski stance. Install
outward for narrow ski stance.

WARNING

Install skis with proper side facing inward.
Refer to warning on ski.

Adjustment

All Models

Proceed with ski alignment. Refer to STEERING
SYSTEM.

342

mmr2004-Rev
