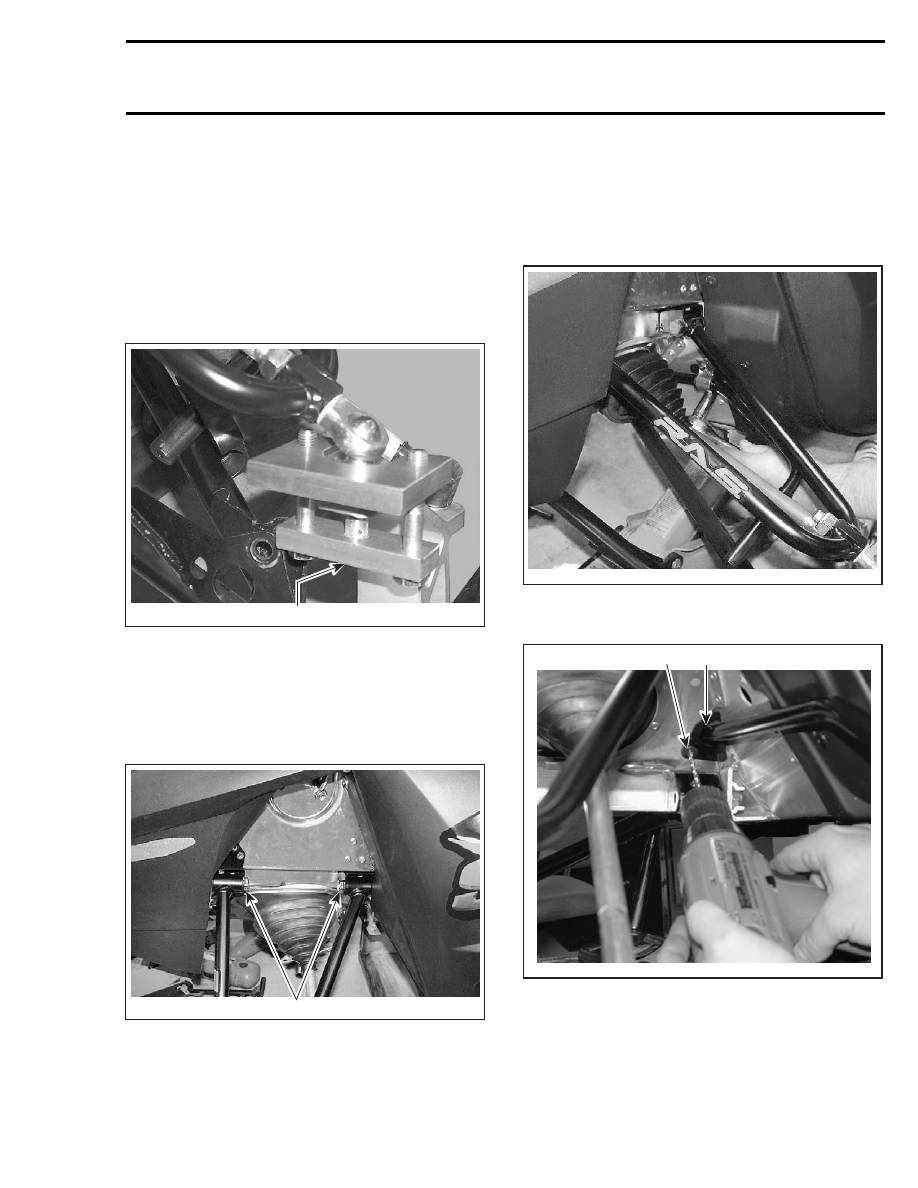

Section 09 STEERING/FRONT SUSPENSION

Subsection 02 (FRONT SUSPENSION)

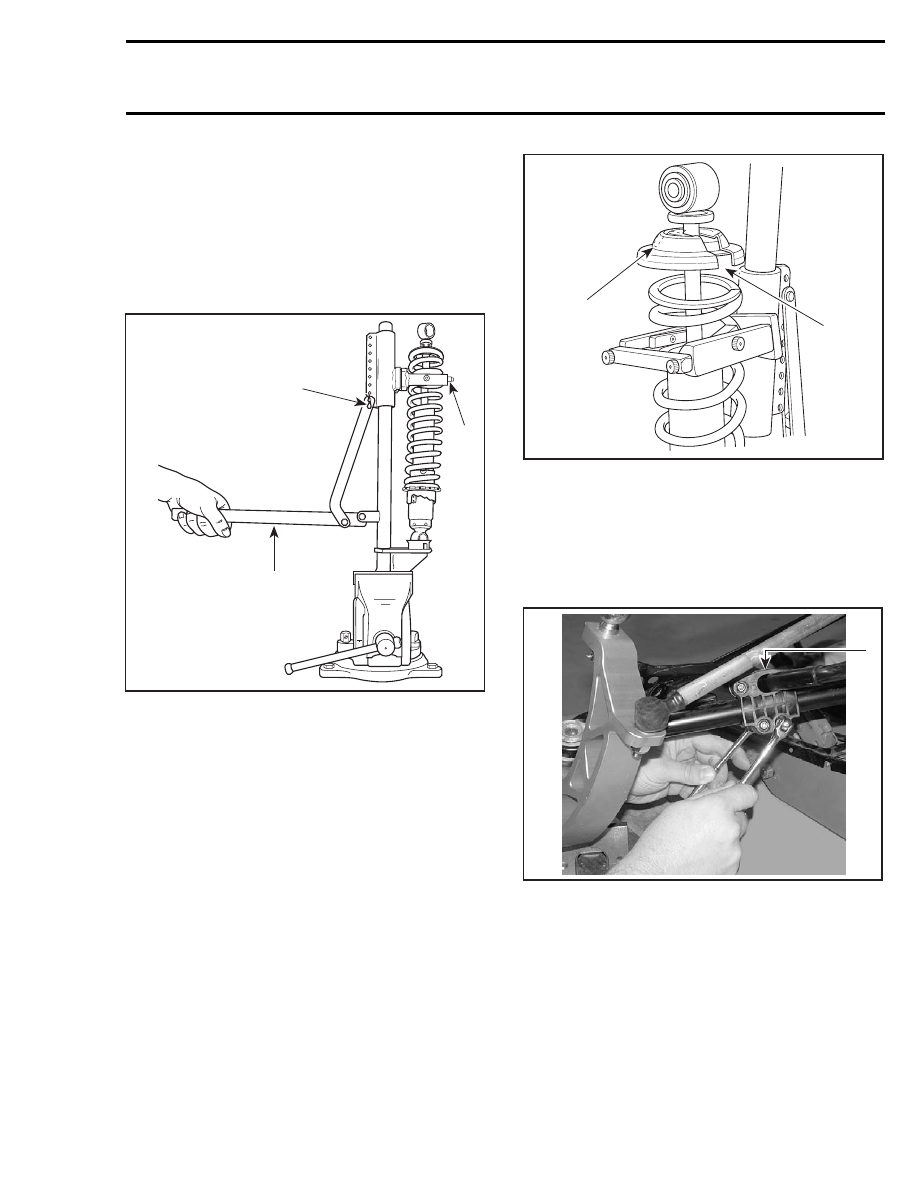

For shock absorber spring disassembly use shock
absorber spring remover (P/N 529 035 504) in a
vise. Mount shock absorber in it and turn shock
absorber so that spring coils match spring com-
pressor.

Close and lock the bar. Adjust the handle at hori-
zontal position by changing the position of the cle-
vis pin.

1

A01B4LA

2

3

TYPICAL
1. Clevis pin
2. Bar
3. Handle horizontal

Push down on the handle until it locks. Remove
spring stopper then release handle.

Some Models

At installation, cap opening no. 30 must be 180°
from spring stopper no. 29 opening.

A03F12A

1

2

1. Cap opening
2. Spring stopper opening

Lower Arm

All Models

Remove shock absorber.

Remove sliding blocks no. 6 of stabilizer bar no. 7.

1

A33F1VA

1. Sliding blocks

Remove cotter pin no. 8 and unscrew ball joint nut
no. 9.

Raise lower arm no. 10 so that ball joint no. 11
becomes parallel with ski leg no. 12.

Install ball joint remover (P/N 529 035 827) and
detach ball joint from ski leg.

mmr2004-Rev

335

Section 09 STEERING/FRONT SUSPENSION
Subsection 02 (FRONT SUSPENSION)

529 035 827

A33F1XA

1

A33F1YA

TYPICAL
1. Ball joint parallel with ski leg

Remove lower arm no. 14 from frame. For front
screw no. 17 removal, hold nut no. 18 from engine
compartment.

To remove ball joint, proceed as follows:

– Remove snap ring no. 13.
– Install ball joint remover support (P/N 529 035

873) under joint.

– Press joint out.

A33F1WA

TYPICAL

529 035 873

A33F1ZA

A33F20A

TYPICAL

336

mmr2004-Rev

Section 09 STEERING/FRONT SUSPENSION

Subsection 02 (FRONT SUSPENSION)

Tie Rod

Refer to STEERING SYSTEM section and remove
tie rod from ski leg.

Upper Arm

Remove cotter pin no. 31 and unscrew ball joint
nut no. 32.

Install ball joint remover (P/N 529 035 827) and
detach ball joint no. 15 from ski leg.

529 035 827

A33F2BA

Use a 11 mm (7/16 in) open wrench to hold ball
joint housing and unscrew nut no. 16, then re-
move ball joint from upper arm.

Remove upper arm no. 14 from frame.

For

screws no. 19 removal, hold nuts no. 20 from
engine compartment.

1

A33F21A

1. Remove screws while holding nuts from engine compartment

Stabilizer Bar

Remove shock absorbers, stabilizer bar slider
blocks and unfasten lower ball joints from ski
legs.

Remove screws no. 21 from clamps no. 22.

A33F27A

Using a 4.8 mm (3/16 in) drill bit, drill rivet no. 24
out. Remove cap.

1

A33F23A

2

1. Drill rivet out with a 4.8 mm (3/16 in) drill bit
2. Cap

mmr2004-Rev

337

Section 09 STEERING/FRONT SUSPENSION
Subsection 02 (FRONT SUSPENSION)

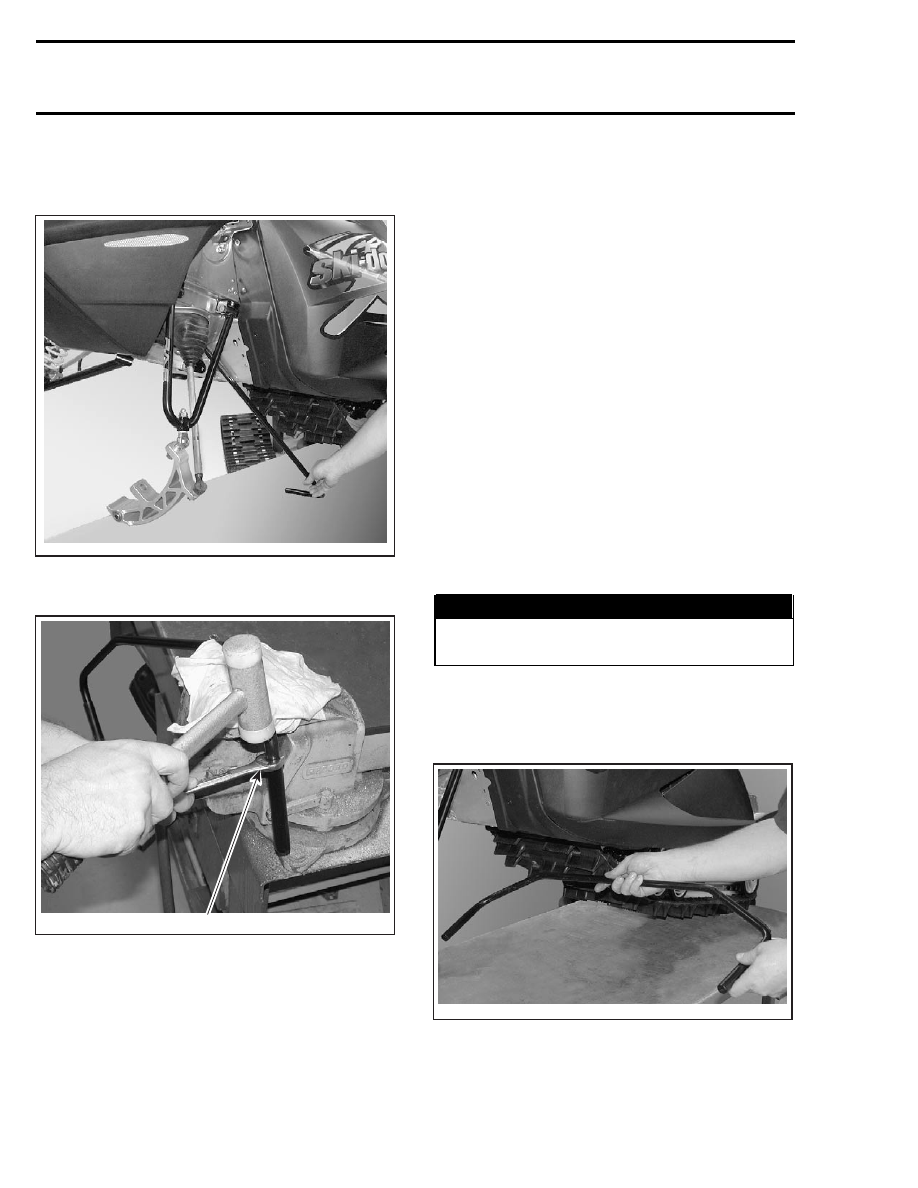

Lift front of vehicle enough so that stabilizer bar
no. 7 can be rotated downward to allow to slide it
out.

A33F24A

To remove bushing no. 25, use a 13 mm (1/2 in)
open wrench and tap bushing out as shown.

1

A33F25A

1. Use a 13 mm (1/2 in) open wrench to push bushing out

INSPECTION

Check all plastic bushings for wear. Replace as
required.

Check condition of ski leg no. 12. Replace as re-
quired.

Check for straightness of lower and upper arms.
Replace as required.

Check condition of ball joints. Replace as re-
quired.

Check skis and runners no. 5 for wear, replace as
necessary.

Check condition of ski stopper no. 26. Replace it
when deteriorated.

To check condition of shock absorber, refer to
SUSPENSION then look for SHOCK ABSORBER
INSPECTION.

INSTALLATION

For assembly, reverse the disassembly procedure.
However, pay attention to the following.

Tighten nuts and screws to proper torque as men-
tioned in exploded view.

Nuts with a cotter pin: After applying the proper
torque, continue tightening as necessary to allow
cotter pin insertion. Ensure to properly secure
cotter pin.

WARNING

Always install new cotter pins at assembly
and properly bend their ends.

Stabilizer Bar

Ensure to properly position stabilizer bar before
insertion in frame.

A33F26A

Install the stabilizer bar bushing no. 23 making
sure to place its tab over the access hole located
on the LH side.

338

mmr2004-Rev
