Section 04 ENGINE

Subsection 08 (FUEL TANK AND FUEL PUMP)

FUEL TANK AND FUEL PUMP

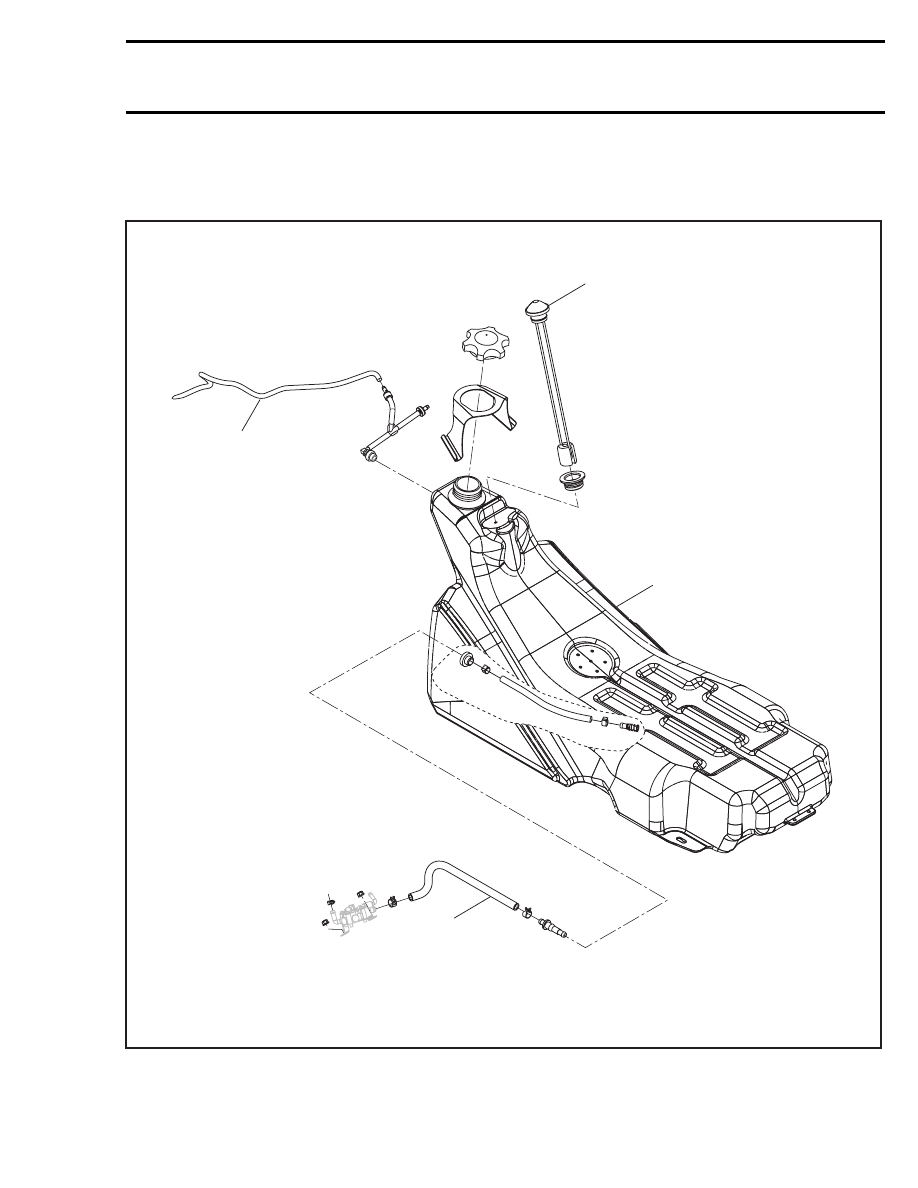

All Models except SDI

2

4

3

1

A33C2VS

mmr2004-Rev

157

Section 04 ENGINE
Subsection 08 (FUEL TANK AND FUEL PUMP)

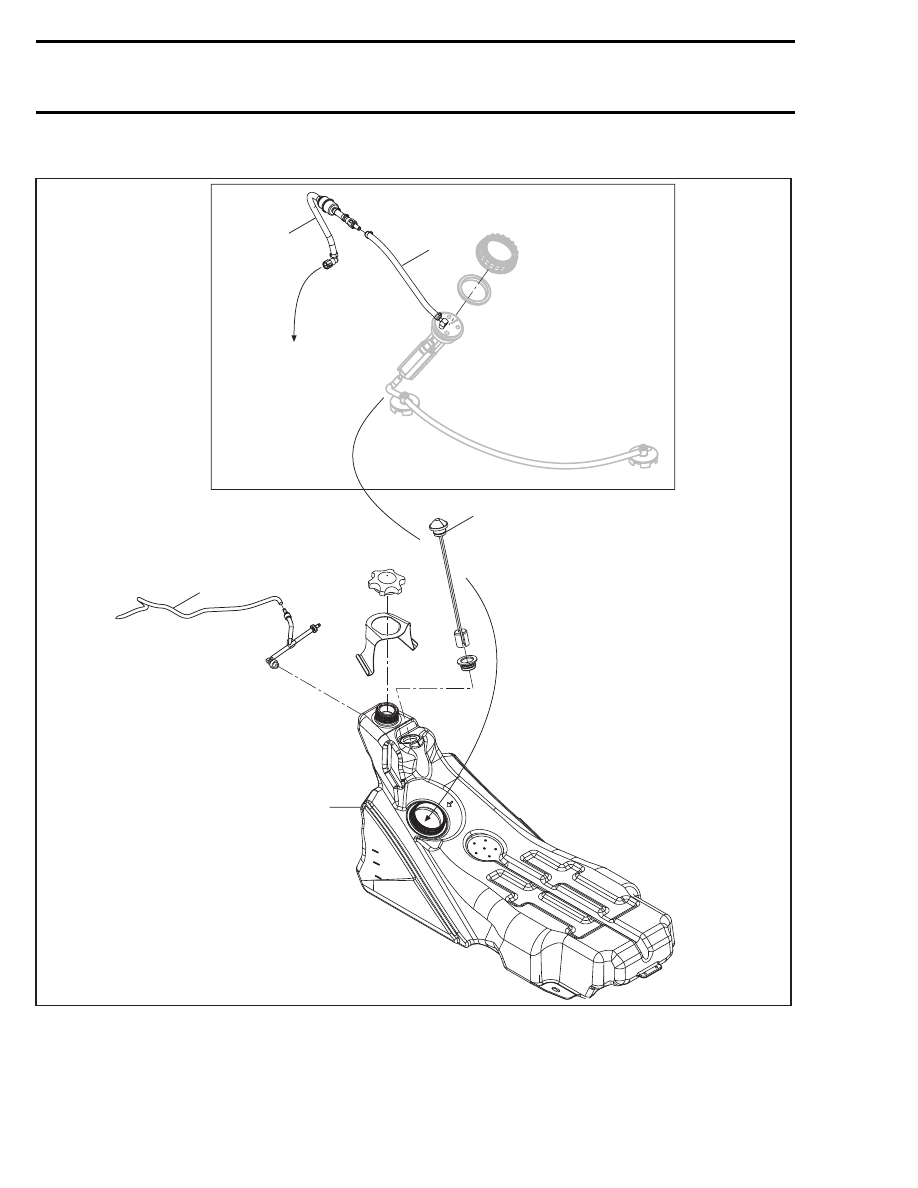

SDI Models

A33C2WS

1

To throttle body

5

4

3

2

158

mmr2004-Rev

Section 04 ENGINE

Subsection 08 (FUEL TANK AND FUEL PUMP)

FUEL FILTER

For fuel filter servicing, refer to PRESEASON
PREPARATION.

FUEL TANK

Removal

Remove seat, refer to BODY.

Remove fuel tank cap.

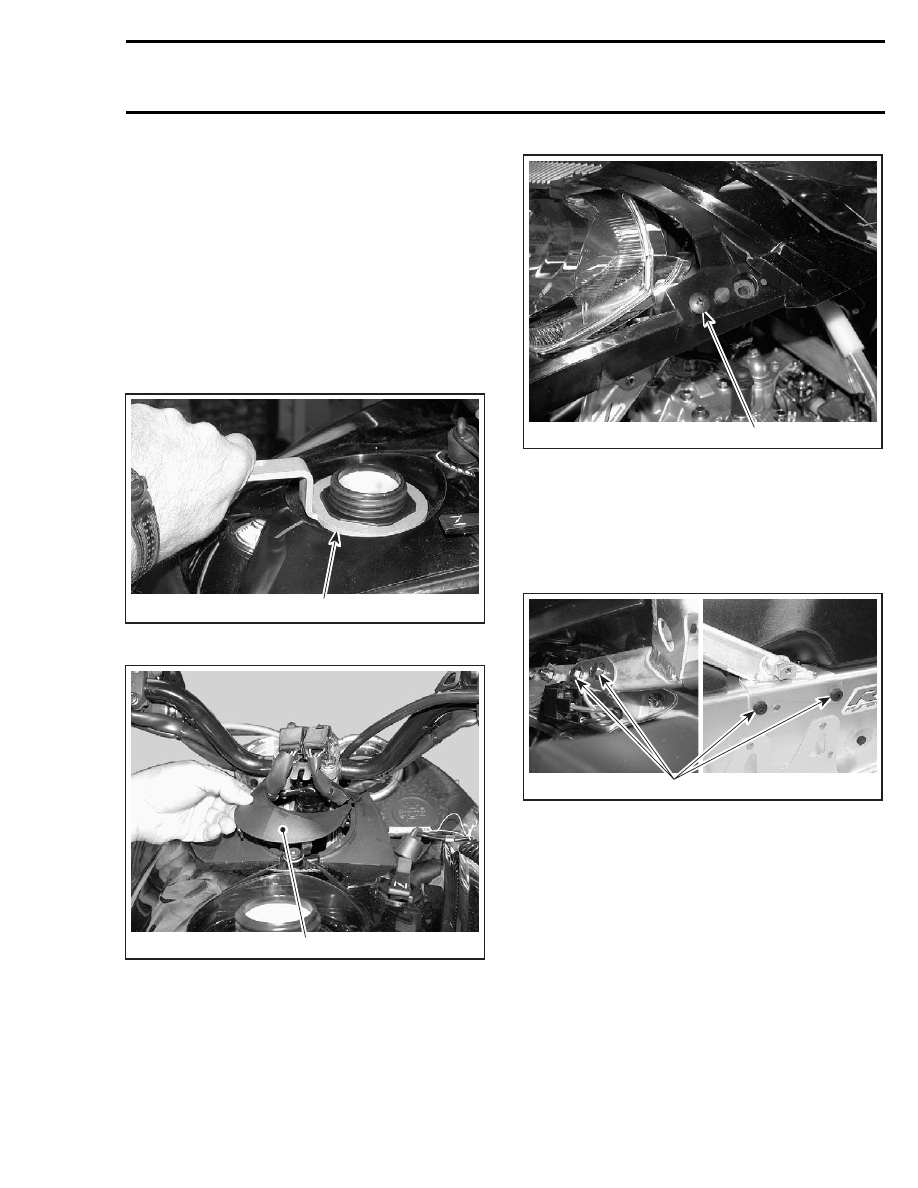

Remove filler neck plastic nut using special tool
(P/N 529 035 891).

529 035 891

A33C1TA

Unclip and remove console center trim cap.

1

A33F0XA

1. Remove this cap

Remove retaining screw on both sides of cen-
ter console; this will allow lifting of console just
enough to ease tank removal.

1

A33F0YA

1. Remove this screw on both sides

Remove both sides fuel tank aluminum braces:

– by removing and discarding lower M8 x 20 Torx

screws (2 on each side);

– and by removing upper M8 flanged hexagonal

bolts (2 on each side) and discarding their nuts.

1

A33F0ZA

1. Remove and discard lower Torx screws on both sides — remove

upper flanged hexagonal bolts and discard their nuts on both sides

All Models except SDI

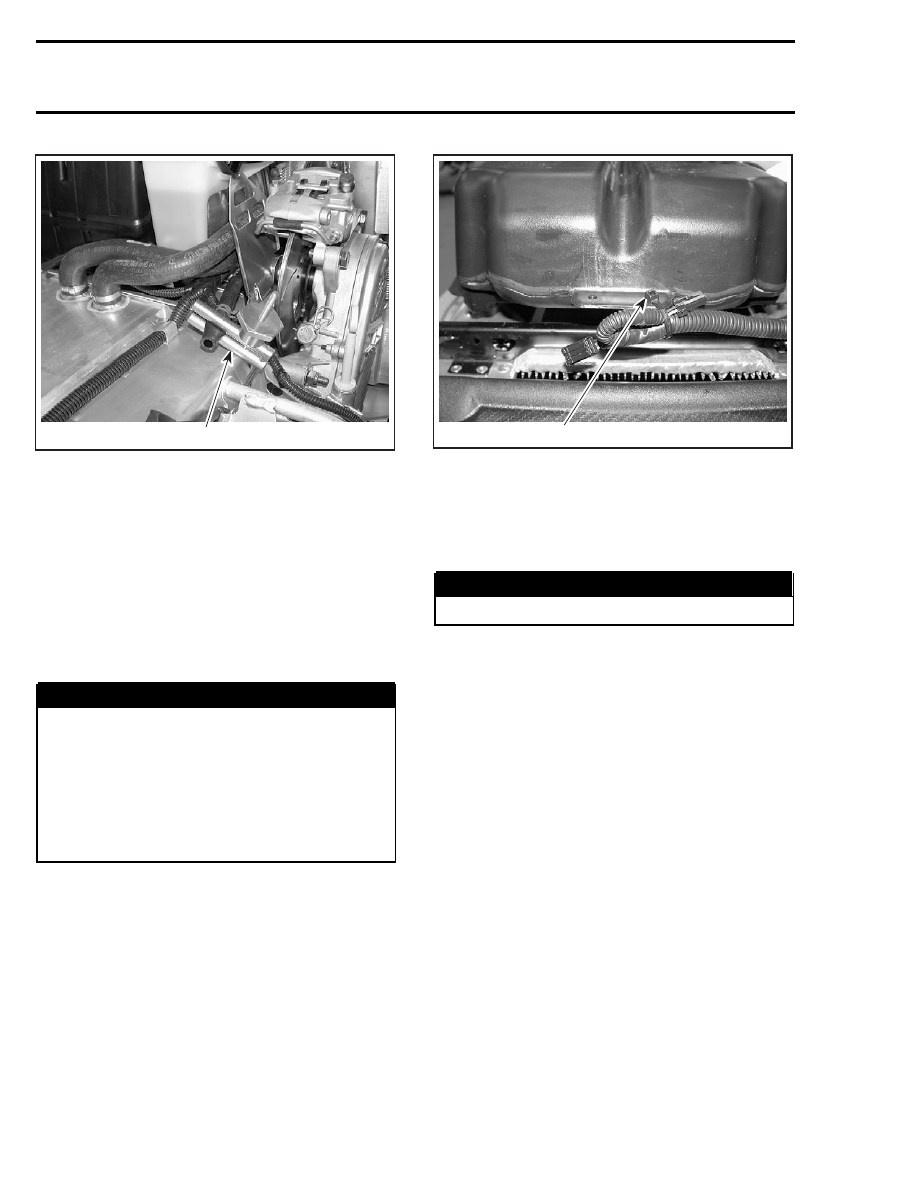

Empty fuel tank and install a hose pincher on fuel
line no. 1 as shown in following photo.

mmr2004-Rev

159

Section 04 ENGINE
Subsection 08 (FUEL TANK AND FUEL PUMP)

1

A33F10A

FUEL TANK REMOVED
1. Hose pincher installed on fuel line

SDI Models

Release fuel pressure of the system. Refer to
COMPONENT INSPECTION AND ADJUSTMENT.

Empty fuel tank no. 3.

Install a hose pincher on fuel pump hose no. 5
then disconnect it from fuel line no. 1.

Unplug fuel pump connector.

All Models

WARNING

Whenever a fuel line is disconnected, ob-
struct line with a hose pincher (P/N 295 000
076) or (P/N 529 032 500). Fuel is flammable
and explosive under certain conditions. Al-
ways wipe off any fuel or oil spillage from the
vehicle. Ensure work area is well ventilated.
Do not smoke or allow open flames or sparks
in the vicinity.

Unplug vent tube no. 2 from tank.

Some Models

Cut locking tie holding wiring harness to fuel tank
at rear.

1

A33F11A

1. Cut this locking tie

Remove fuel tank no. 3 and set it aside.

Installation

Reinstall fuel tank and plug-in vent tube.

WARNING

Make sure vent tube is not kinked.

Connect fuel line and remove hose pincher.

Reinstall right and left fuel tank aluminum braces
using new lower Torx screws (with Scotch Grip)
and previously removed upper flanged hexagonal
bolts with new M8 flanged elastic stop nuts.

Reinstall filler neck nut using special tool (P/N 529
035 891).

Reinstall fuel cap.

Reinstall center console.

Reinstall console center trim cap.

Reinstall seat.

SDI Models

Perform a fuel pressure test and a fuel bleeding
procedure. Refer to COMPONENT INSPECTION
AND ADJUSTMENT.

IMPULSE/FUEL LINES SPRING
CLIPS (ALL MODELS)

Always reposition spring clips after any repair to
prevent possible leaks. If a spring clip seems
loose, replace it with a new one.

160

mmr2004-Rev
