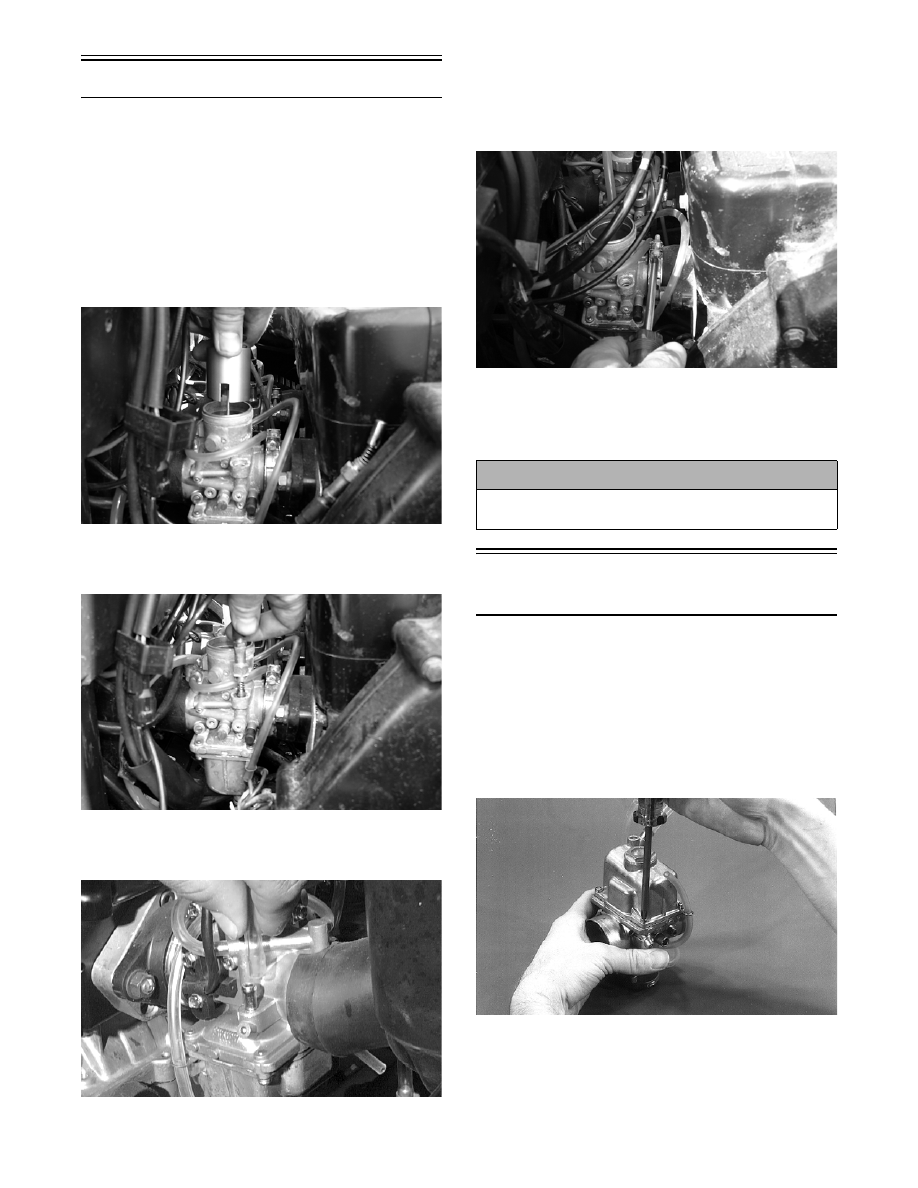

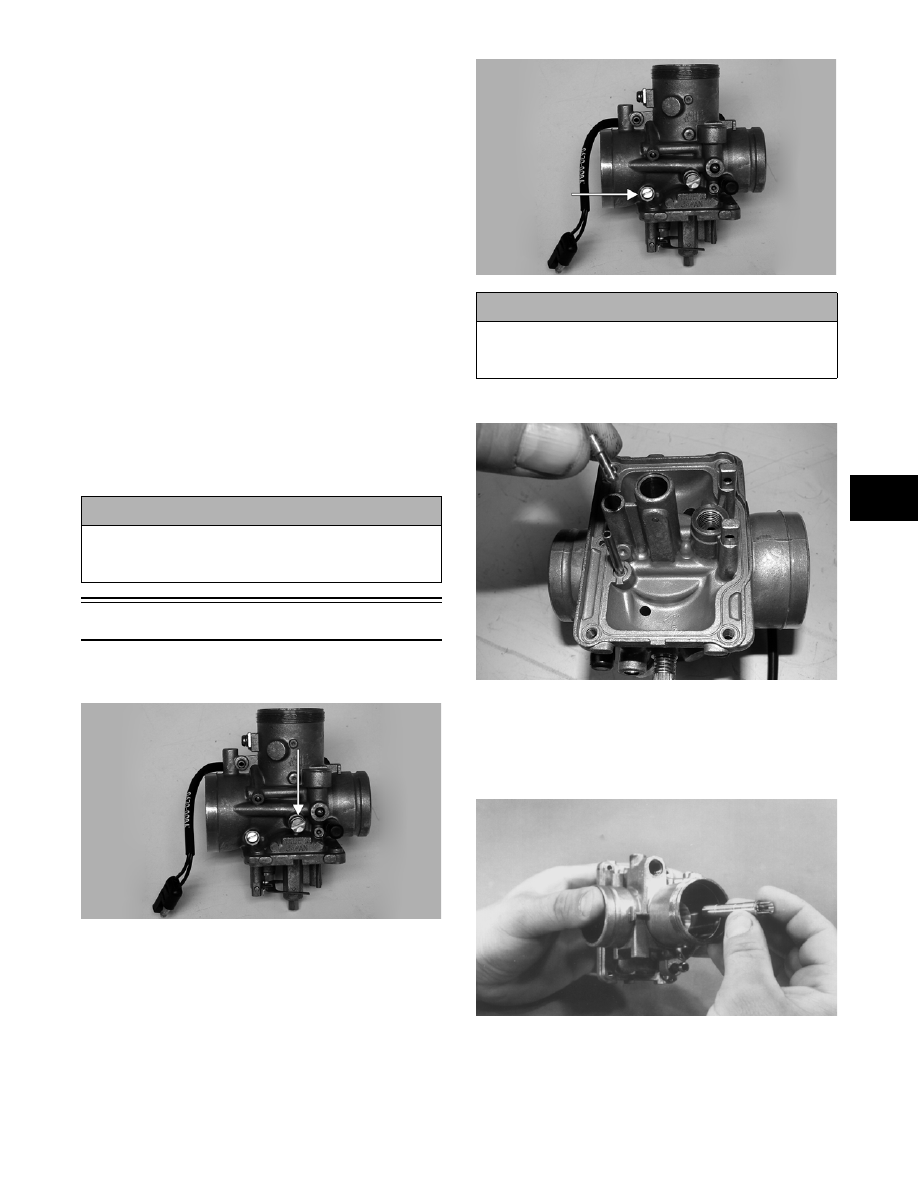

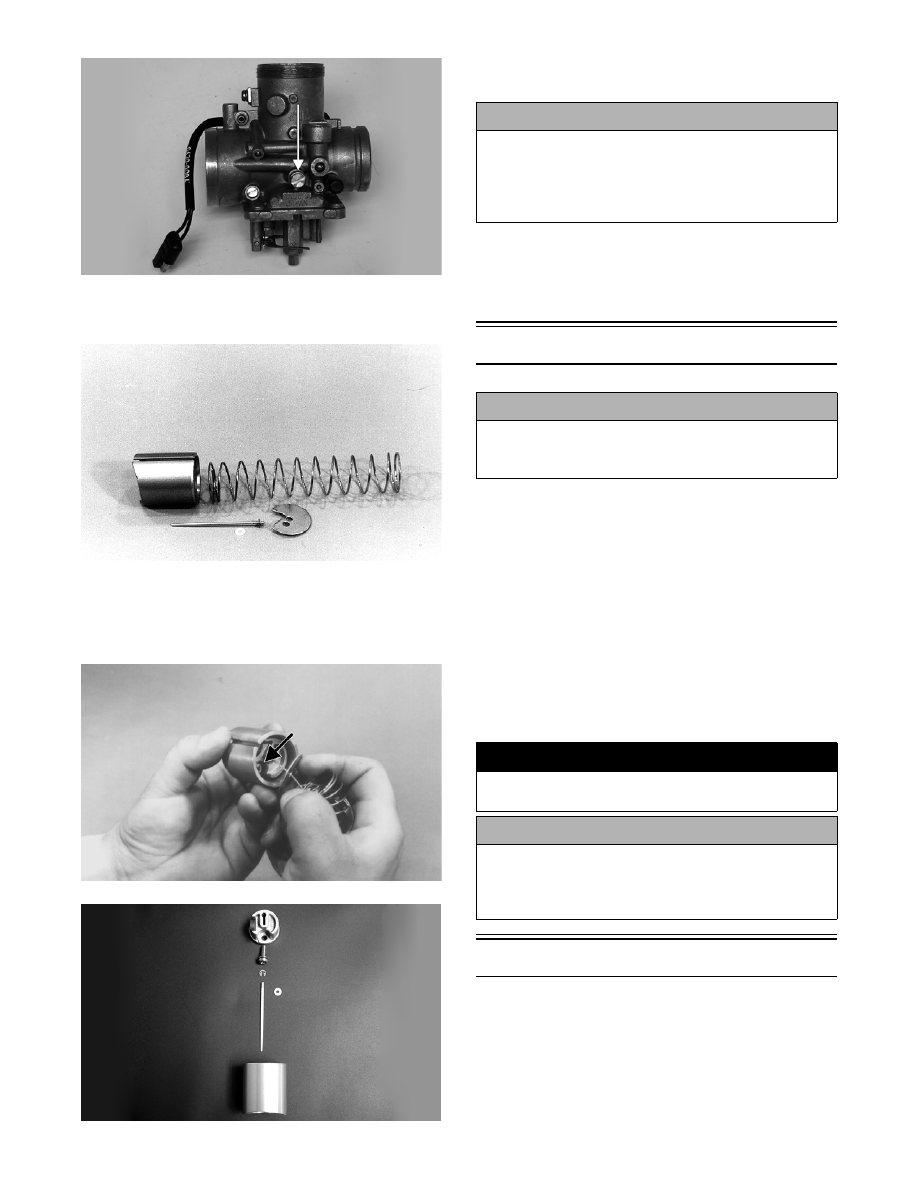

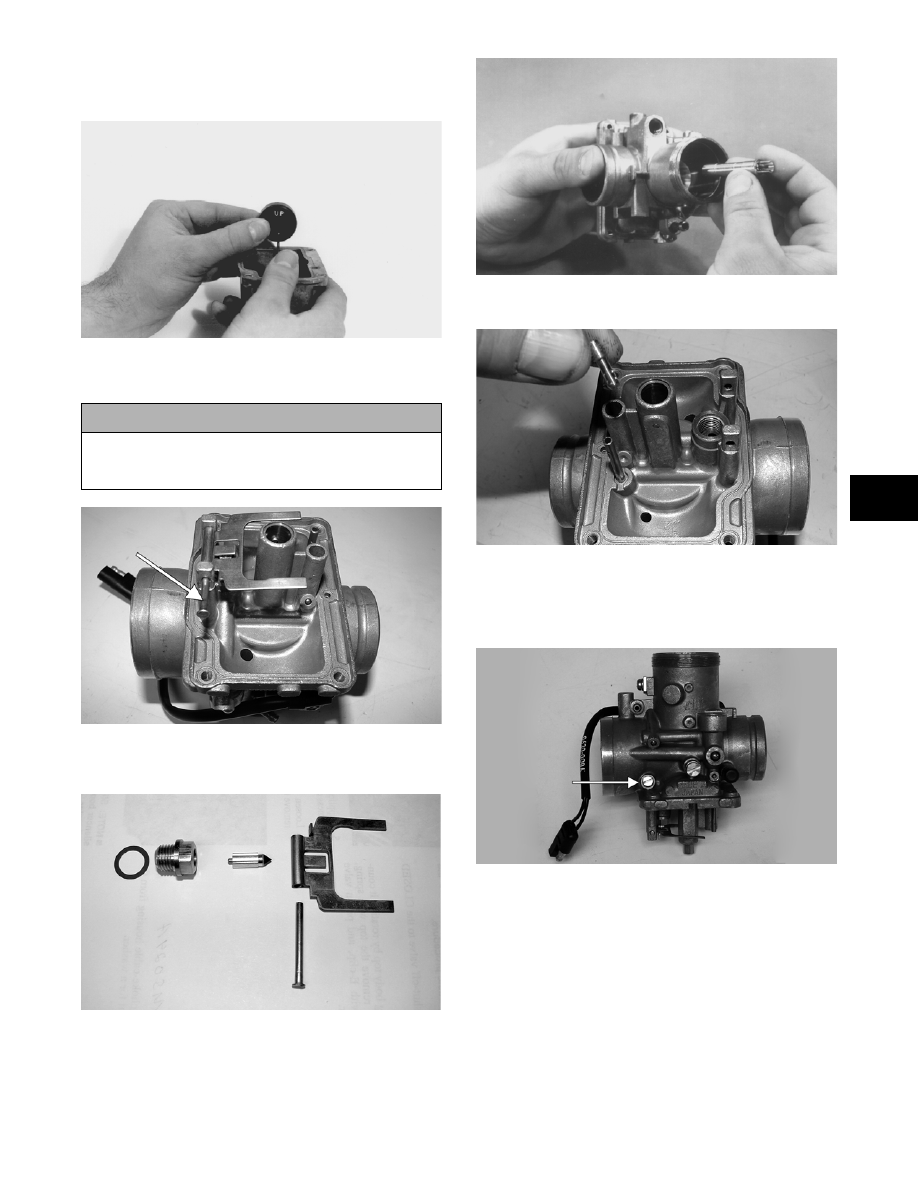

4-4 Removing Carburetor NOTE: On twin carburetor models, remove the 1. Turn the gas tank shut-off valve to the CLOSED position. 2. Remove the mixing body top by rotating it coun- terclockwise; then remove the top with spring, plate, jet needle with E-clip, and piston valve from the carburetor. CM047 3. Remove the brass choke-cable housing from the carburetor. Account for a washer. CM048 4. Disconnect the fuel hose from the carburetor inlet fitting. AH284D 5. If applicable, disconnect the safety switch wiring harness connector from the main wiring harness. 6. Loosen the carburetor-flange clamp; then remove the carburetor. CM049 NOTE: Slide the carburetor into the air-intake Disassembling Carburetor NOTE: On twin carburetor models unless there 1. Remove the four screws and lock washers secur- ing the float chamber; then remove the float cham- ber and gasket. AH144 NOTE: The floats should be removed only if ! CAUTION Keep MAG-side and PTO-side carburetors identified |
