Snowmobile Arctic Cat (2007 year). Instruction - part 119





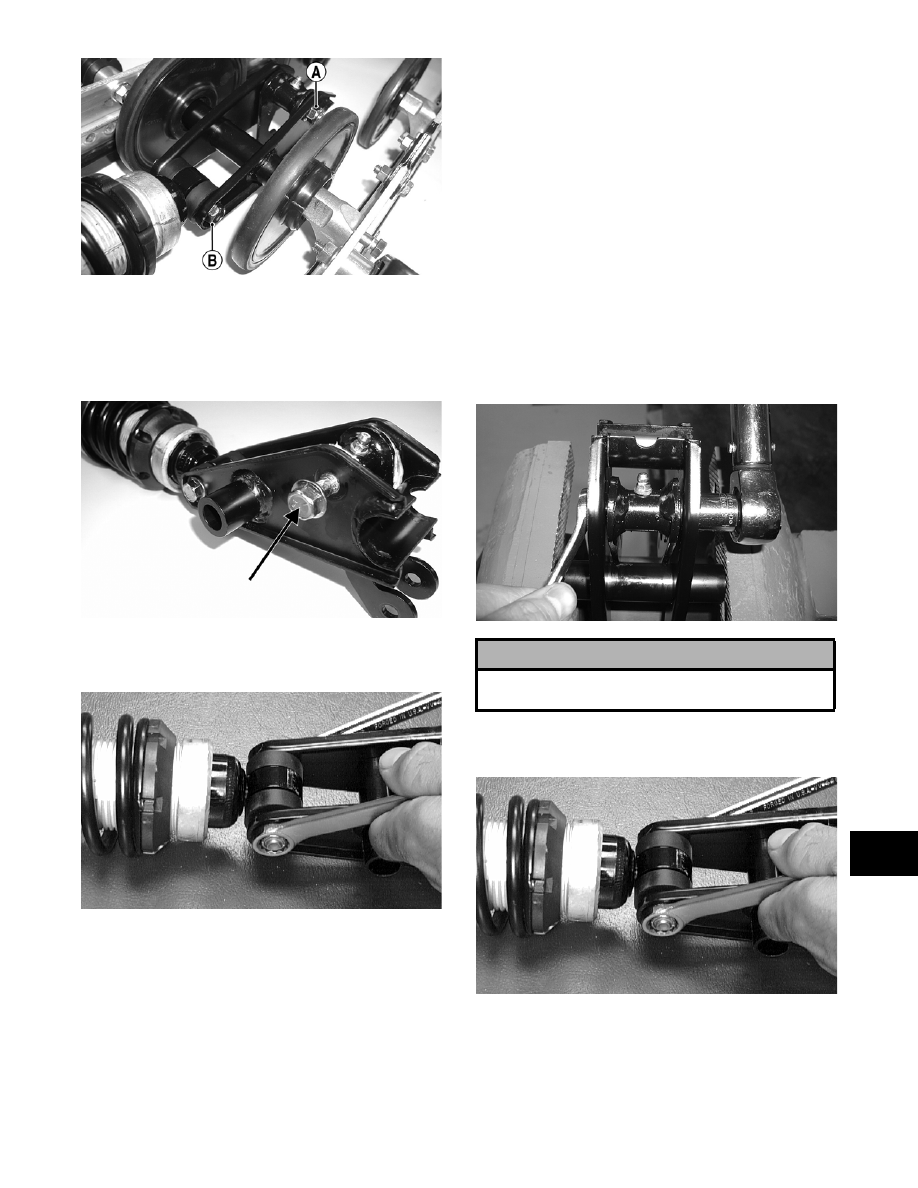

9-91

9

MS038C

7. With the mounting blocks and idler wheels

removed from the assembly, remove the cap

screw securing the front shock mounting bracket

to the rear shock pivot. Account for an axle, cap

screw, and lock nut.

MS041A

8. Remove the cap screw securing the front shock

to the mounting bracket.

AG691D

INSPECTING

„ NOTE: Whenever a part is worn excessively,
cracked, or damaged in any way, replacement is
necessary.

1. Inspect all front arm weldments for cracks or

unusual bends.

2. Closely inspect all tubing for cracks or unusual

bends.

3. Inspect the bearings, bushings, and front arm

spacers for wear or damage.

4. Inspect the shock absorber for any signs of oil

leakage especially at the point where the shock

shaft enters the shock body.

5. Inspect the shock absorber eyelet welds (at each

end) for any cracks, signs of separation, or for

unthreading.

6. Inspect the shock absorber for damage.

INSTALLING

1. Secure the front shock mounting bracket in a

vise; then install the rear shock pivot with axle

to the mounting bracket with the cap screw and

lock nut. Tighten securely.

MS099

2. Securely tighten the shock eyelet to the front

shock mounting bracket.

AG691D

3. Place the idler wheels with mounting blocks

onto the bracket assembly.

! CAUTION

Take care when clamping the bracket in a vise not to
damage the bracket.

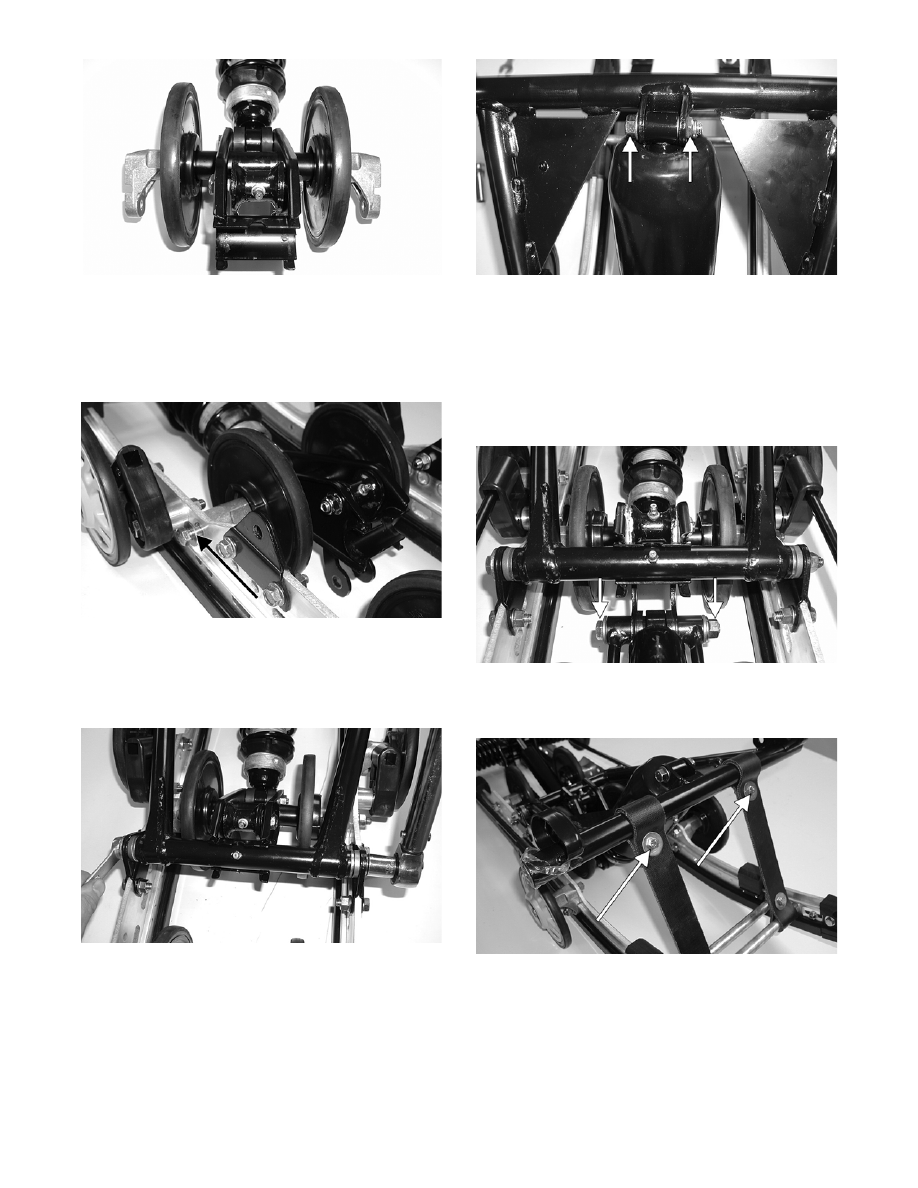

9-92

MS044

4. Slide the front inner idler wheel assembly into

position on the slide rail; then align the assem-

bly with the proper hole (as noted in removing).

Install the cap screw, flat washer, and lock nut;

then tighten to specifications.

MS040A

5. Position the front arm with spacers, an axle tube,

and serrated axles to the mounting brackets.

Secure with the cap screw and lock nut. Tighten

to specifications.

MS045

6. Position the upper shock eyelet and serrated axle

in the front arm. Secure with a cap screw and

lock nut. Tighten securely.

MS039A

„ NOTE: Do not over-tighten the shock absorber
cap screw as the shock eyelet must be free to
pivot.

7. Place the rear shock absorber and shock links

into position on the pivot; then install the axles,

cap screw, and lock nut. Tighten securely.

MS035B

8. Secure the limiter straps with cap screws, wash-

ers, and lock nuts. Tighten to specifications.

MS034A

9. Install the skid frame (see Installing Skid Frame

in this sub-section ).

„ NOTE: It is advisable to install the rear arm
springs onto the adjuster blocks after the skid
frame has been installed.

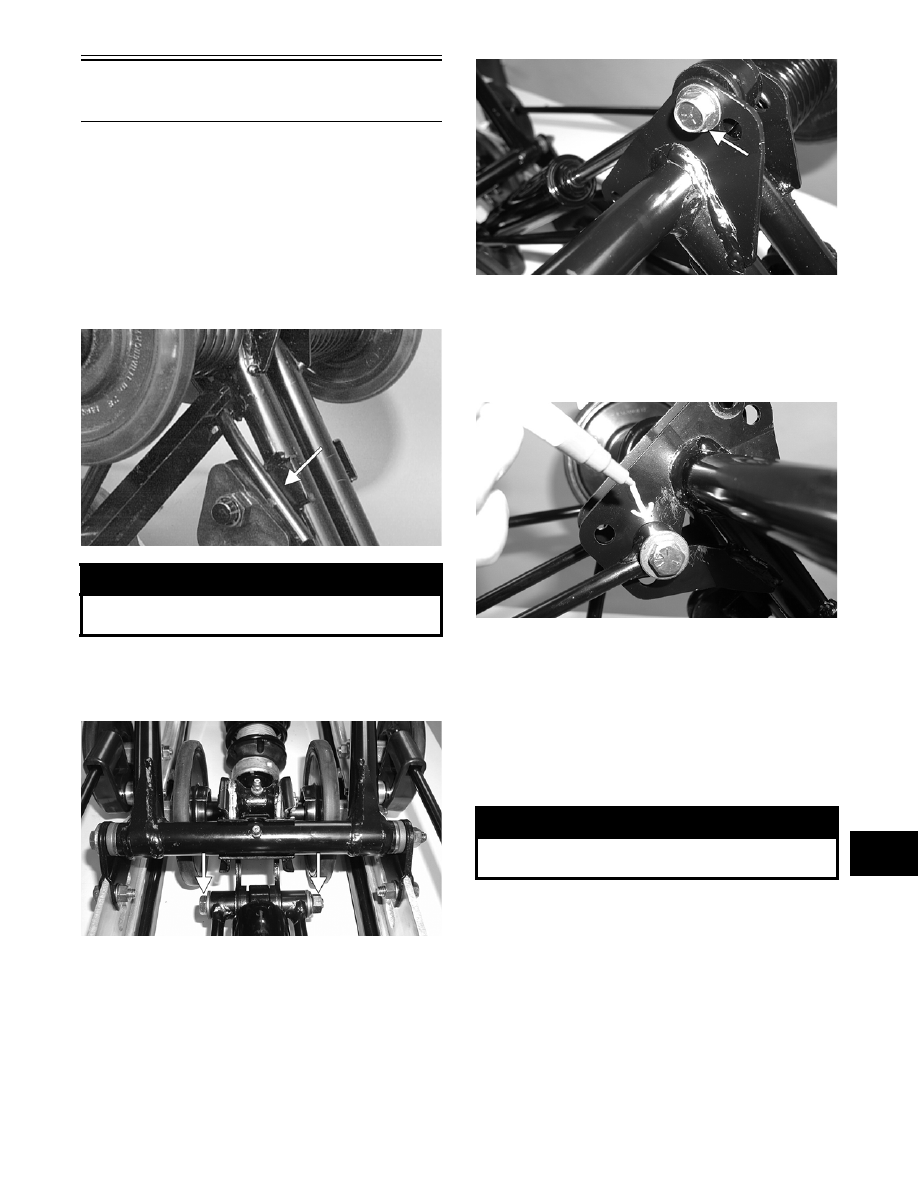

9-93

9

Rear Shock Absorber

and Shock Links

„ NOTE: The skid frame must be removed for this
procedure (see Removing Skid Frame in this sub-
section).

DISASSEMBLING

1. Using the Rear Suspension Spring Tool (p/n

0144-311), remove the spring from the adjusting

cam.

AG624DA

2. Remove the cap screw securing the lower shock

eyelet and shock links. Account for shock

sleeves, axle links, and a lock nut.

MS035B

„ NOTE: Lay components out in order as they are
removed.

3. Remove the cap screw and lock nut securing the

shock absorber at the upper eyelet and remove

the shock absorber. Account for a sleeve and

bushings.

MS024A

4. Mark the hole that the upper shock links are

mounted in for assembly purposes; then remove

the cap screw and lock nut securing the shock

links to the upper arm bracket. Account for all

mounting hardware.

MS025

CLEANING AND INSPECTING

„ NOTE: Whenever a part is worn excessively,
cracked, or damaged in any way, replacement is
necessary.

1. Clean shock pivot and idler wheel axle in part-

cleaning solvent. Dry with compressed air.

2. Clean the idler wheel bearings with a clean

cloth.

3. Closely inspect the idler wheel axle for wear,

bends, or damaged threads at either end.

4. Inspect the idler wheels for signs of cracking,

wear, or outer rubber separation from plastic

wheel.

5. Rotate the idler wheel bearings (by hand) and

inspect for any signs of binding or roughness.

! WARNING

Care must be taken when removing the spring from
the adjusting cam or damage or injury could result.

! WARNING

Always wear an approved pair of safety glasses
when using compressed air.

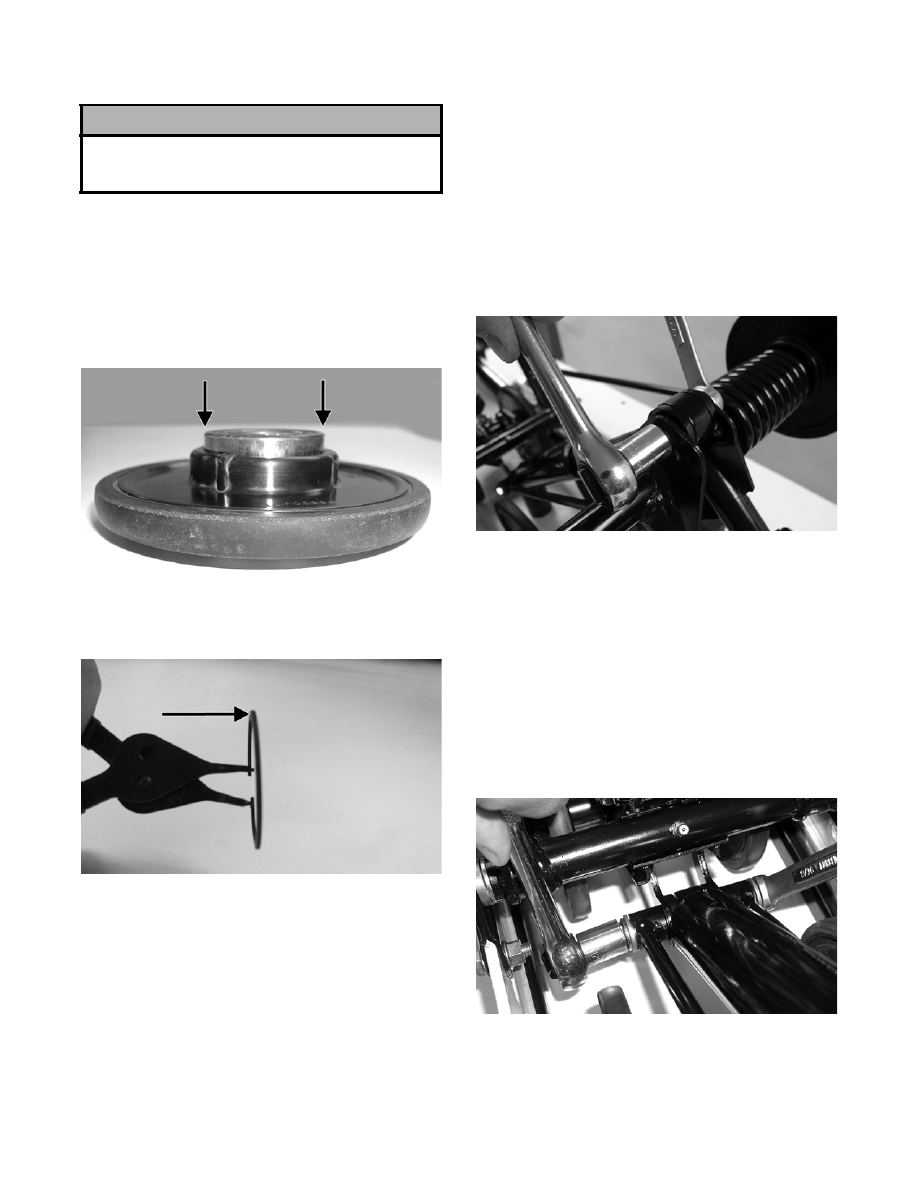

9-94

6. If a bearing must be replaced, use this proce-

dure.

A. Remove the wheel insert (if applicable) and

the snap ring.

B. Using a hydraulic press, press the bearing out

the inside of the wheel.

C. Press the new bearing (on its outer race) into

the idler wheel.

MS006A

D. Install the snap ring making sure the “sharp

side” is directed away from the bearing.

MS007A

E. Install the insert (if applicable).

7. Inspect the shock absorber for any signs of oil

leakage especially at the point where the shock

shaft enters the shock body.

8. Inspect the rubber shock bushings located in the

shock absorber eyelets for cracks or deteriora-

tion.

9. Inspect the shock absorber eyelet welds (at each

end) for any cracks or signs of separation.

10. Inspect the welds securing the eyelets of the

shock links for cracks or signs of separation.

Either weld the eyelet or replace the shock link.

11. Inspect the axle surfaces for any signs of corro-

sion. If corrosion is found, lightly buff the sur-

face of the axle with #400 wet-or-dry sandpaper;

then apply a light coat of grease.

ASSEMBLING

1. Secure the shock eyelet to the idler arm with

bushings, sleeve, lock nut, and a cap screw.

Tighten securely.

MS027

2. Secure the rear shock links and the lower shock

absorber eyelet to the shock pivot bracket by

placing the bushings and shock sleeve into the

shock eyelet; then install the axle links into the

rear shock links. Secure the assembly by install-

ing a cap screw through the shock link assem-

bly, shock pivot bracket and shock eyelet

assembly, and shock link assembly. Secure the

assembly with a lock nut. Tighten securely.

„ NOTE: Do not over-tighten the shock absorber
cap screw as the shock eyelet must be free to
pivot.

MS047

! CAUTION

Do not remove the bearing unless it is absolutely
necessary. The bearing will be damaged during
removal.
