8-87

8

Troubleshooting

Drive Belt

Problem: Drive Clutch Engagement (Before Specified RPM)

Condition

Remedy

1. Drive clutch spring weak — bent

2. Cam arms incorrect — worn

1. Replace spring

2. Replace cam arms

Problem: Drive Clutch Engagement (After Specified RPM)

Condition

Remedy

1. Drive clutch spring incorrect

2. Spider buttons worn

1. Replace spring

2. Replace buttons

Problem: Drive Clutch Sticks

Condition

Remedy

1. Drive clutch components dirty

2. Movable sheave bent — binding

3. Spider buttons worn

1. Clean drive clutch components

2. Clean — replace movable sheave

3. Replace buttons

Problem: Drive Clutch Jerks—Shifts Erratically

Condition

Remedy

1. Drive clutch dirty

2. Rollers worn

3. Cam arms rough

4. Spider buttons worn

5. Sheaves dirty

1. Clean drive clutch components

2. Replace rollers

3. Polish — replace cam arms

4. Replace buttons

5. Clean sheaves

Problem: Drive Belt Glazed

Condition

Remedy

1. Drive belt does not meet measurement specifications

2. Drive clutch spring tension inadequate

3. Drive clutch components dirty — damaged

4. Offset — parallelism — center-to-center distance

adjusted incorrectly

1. Replace drive belt

2. Replace drive clutch spring

3. Clean — replace drive clutch

4. Adjust offset — parallelism — center-to-center dis-

tance

Problem: Drive Belt Lugs Torn Off—Frayed—Worn in One Spot

Condition

Remedy

1. Drive belt does not meet measurement specifications

2. Offset — parallelism — center-to-center distance

adjusted incorrectly

3. Drive clutch engagement — idle RPM too high

4. Drive clutch components dirty — damaged

5. Driven pulley/shaft rotation impaired

1. Replace drive belt

2. Adjust offset — parallelism — center-to-center dis-

tance

3. Service drive clutch — reduce idle RPM

4. Clean — replace drive clutch components

5. Service driven pulley/shaft — chain-case components

Troubleshooting

Hydraulic Brake

System

Problem: Caliper Leaks

Condition

Remedy

1. Caliper O-ring deteriorated — severed

2. Piston — O-ring damaged

1. Replace O-ring

2. Repair piston — replace piston — O-ring

Problem: Lever Spongy — Bottoms Out

Condition

Remedy

1. Brake system air bubbles present

2. Master cylinder damaged — faulty

1. Bleed brake system

2. Replace master cylinder

Problem: Oscillation Feedback in Lever

Condition

Remedy

1. Brake pad residue present on brake disc

2. Caliper loose

3. Brake disc warped — cracked — damaged — mis-

aligned

1. Replace pads — clean disc

2. Tighten mounting bolts

3. Replace disc — driven shaft bearing

Problem: Loss of Brake

Condition

Remedy

1. Brake fluid overheated — contaminated

2. Master cylinder damaged — faulty

3. Caliper — brake hose leaking

4. Air ducts obstructed — missing

5. Brake lever linkage damaged

1. Replace fluid

2. Replace master cylinder

3. Replace caliper O-ring — repair piston — replace pis-

ton — O-ring — brake hose

4. Remove obstruction — replace air ducts

5. Repair — replace lever — mounting bolt

Problem: Brakes Drag

Condition

Remedy

1. Master cylinder damaged — faulty

2. Brake disc warped — damaged — misaligned

3. Brake pads worn — tapered

1. Replace master cylinder

2. Replace disc — driven shaft bearing

3. Replace pads

Problem: Snowmobile Won’t Stop — Have to Pull Too Hard on Lever

Condition

Remedy

1. Pads/brake disc glazed

2. Brake lever binding

3. Caliper pistons binding

1. Replace pads — clean disc

2. Loosen pivot bolt — replace master cylinder

3. Service caliper assembly

9-1

9

SECTION 9 — TRACK/REAR

SUSPENSION

TABLE OF

CONTENTS

Understanding the Suspension ............................... 9-2
Suspension Setup Basics ....................................... 9-3
Suspension Mounting Location Chart ..................... 9-5
Servicing Chart ....................................................... 9-6
Slide Rail/Articulating Skid Frame Schematics ....... 9-7
Front Arm Schematics........................................... 9-11
Rear Arm Schematics ........................................... 9-13
Idler Wheels Schematics....................................... 9-16
Skid Frame Mounting Schematics......................... 9-19
Repair Procedure 1 ............................................... 9-22
Repair Procedure 2 ............................................... 9-30
Repair Procedure 3 ............................................... 9-73
Repair Procedure 4 ............................................. 9-103
Drive Sprocket/Timing Marks Location................ 9-134
2007 Drive Track Usage Chart ............................ 9-136
Drive Track Lug Patterns ..................................... 9-137
Track Warranty Guidelines .................................. 9-138
2007 Idler Wheel Selection Chart ....................... 9-139
Torque Specifications (Bearcat Wide Track/

Panther 660/T660/Jaguar Z1) .......................... 9-140

Torque Specifications (AC 120)........................... 9-141
2007 Shock Absorber Usage Chart .................... 9-141
2007 Rear Suspension Spring Selection Chart .. 9-142
2007 Ski Shock Spring Specifications................. 9-142
2007 Front Suspension Sway Bar ....................... 9-143
2007 Rear Suspension (Front Arm Springs) ....... 9-143
2007 Standard Shock & Spring Chart ................. 9-144
2007 Optional Rear Arm Spring Chart ................ 9-144
Troubleshooting Track ......................................... 9-144
2007 Rebuildable Shock Specifications .............. 9-145
Rebuildable Shock Tools Required...................... 9-145
Servicing Position Sensitive Shock

 (T660 Turbo Trail) ............................................ 9-145

Ski Shocks Bottom-Out Bumper.......................... 9-150
Pressurizing Rebuildable Shocks ........................ 9-150

9-2

UNDERSTANDING THE SUSPENSION

GENERAL

Quick acceleration and the ability to go through the

turns with power are the most important handling

qualities. This section explains how the skid frame

functions to provide these two important handling

qualities. Before proceeding, however, note these

terms.

Weight Transfer — A shift in the center of gravity

in any direction depends on the force applied.

Track Tension — The amount of tightness or loose-

ness of the track when correctly mounted in the

chassis.

Spring Tension — The amount of force exerted on

the spring by either fork tension adjustment or eye-

bolt adjustment.

Ski Pressure — The amount of force exerted down-

ward on the skis.

Good weight transfer characteristics are needed for

fast acceleration (shift of weight from skis to track)

and for cornering (shift of weight back to skis to

hold the front end in turns). Effective weight trans-

fer depends on suspension tension, position of rider,

and the position of the front arm limiter.

To understand how the suspension system works,

think of the entire system in terms of three points;

the skid frame rear axle center, the skid frame front

arm, and the ski saddle center.

Assume that the front arm functions as a stationary

pivot point between the rear axle center and the ski

saddle center. Also assume that the ski saddle center

is the same height off the ground as the rear axle

center. This produces the standard position arrange-

ment.

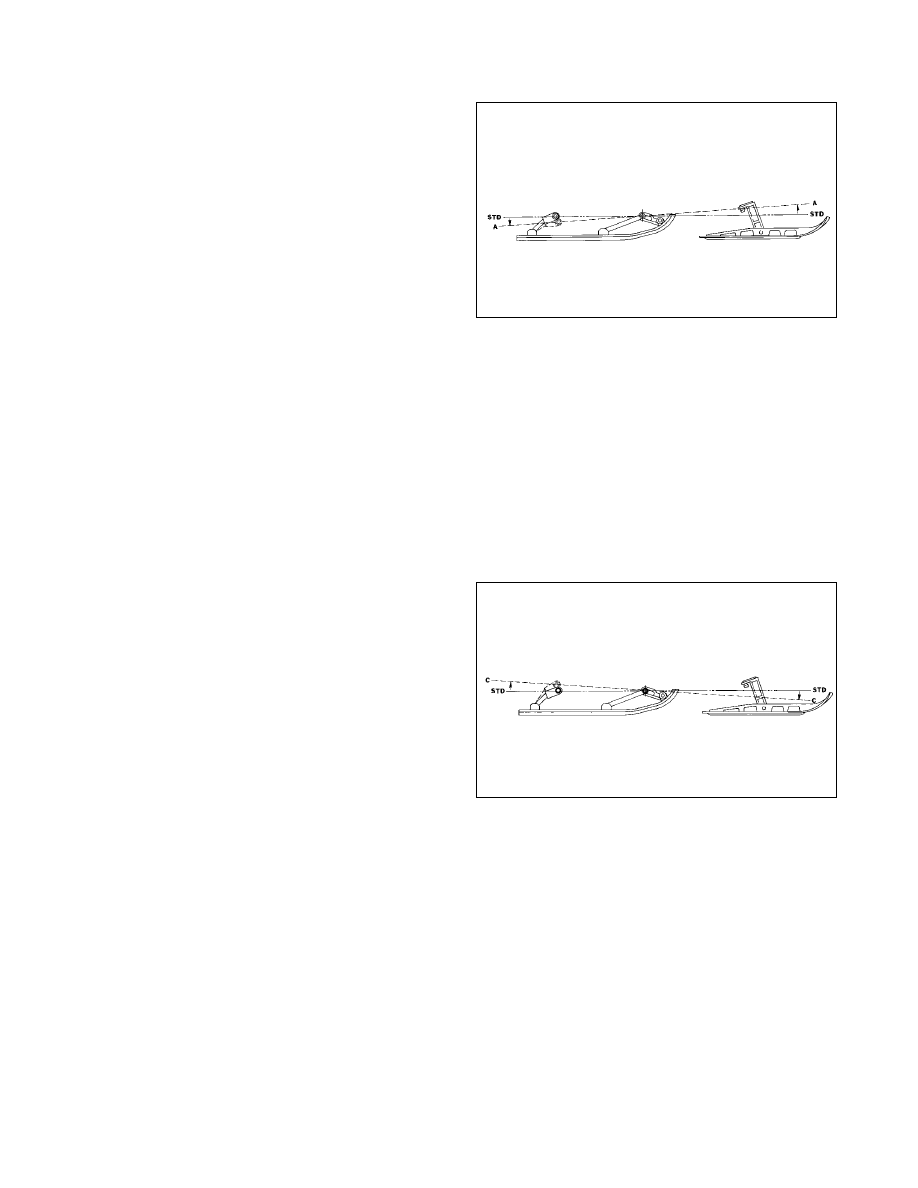

0728-180

Under acceleration when the center of gravity is

transferred to the rear of the machine, the rear sus-

pension collapses slightly. This brings the rear arm

point downward and with the front arm stationary,

the teeter-totter effect reduces the pressure on the

skis, position A.

However, for controlled cornering, more pressure is

needed on the skis. So when the driver decelerates

coming into a corner, the center of gravity is trans-

ferred forward, putting the required pressure onto

the skis and reducing the pressure on the rear sus-

pension, position C.

0728-181

This is essentially what weight transfer is all about

— the shift of weight to the rear of the machine for

positive traction and good acceleration or to the

front of the machine for positive handling and cor-

nering control.
