Snowmobile Arctic Cat (2007 year). Instruction - part 72





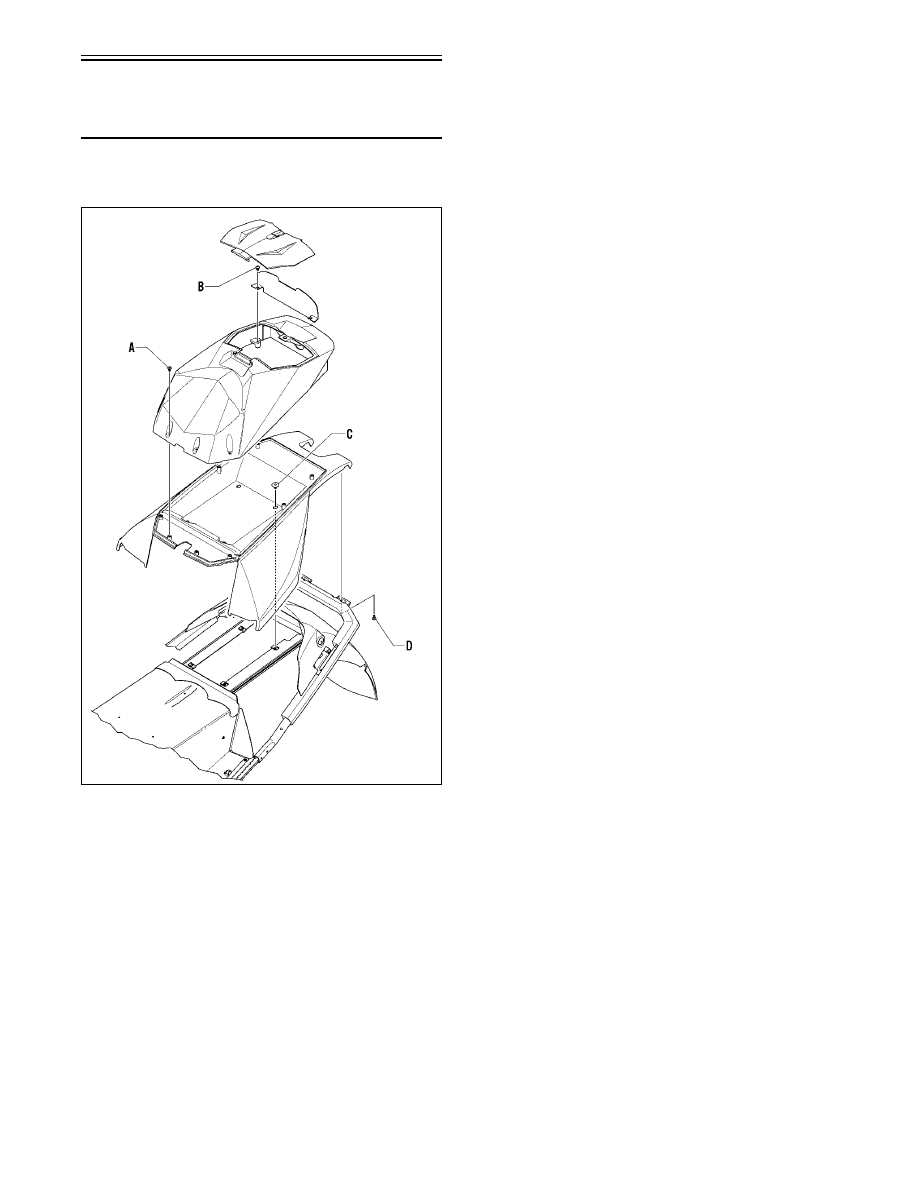

7-62

Rear Storage

Compartment

(Jaguar Z1)

REMOVING

0741-967

1. Remove the four self-tapping screws (A) and the

four pan-head screws (B) securing the storage

compartment to the tunnel fender.

2. Remove the four body screws (C) securing the

fender to the tunnel; then remove the two pan-

head screws (D) securing the fender to the

bumper. Disconnect the taillight plug-in and

remove the fender.

INSTALLING

1. Connect the taillight harness plug-in and install

the fender with the two pan-head screws (D) and

the four body screws (C); then tighten the

screws securely.

2. Install the storage compartment to the fender

with the four pan-head screws (B); then install

the four self-tapping screws (A). Tighten the

screws securely.

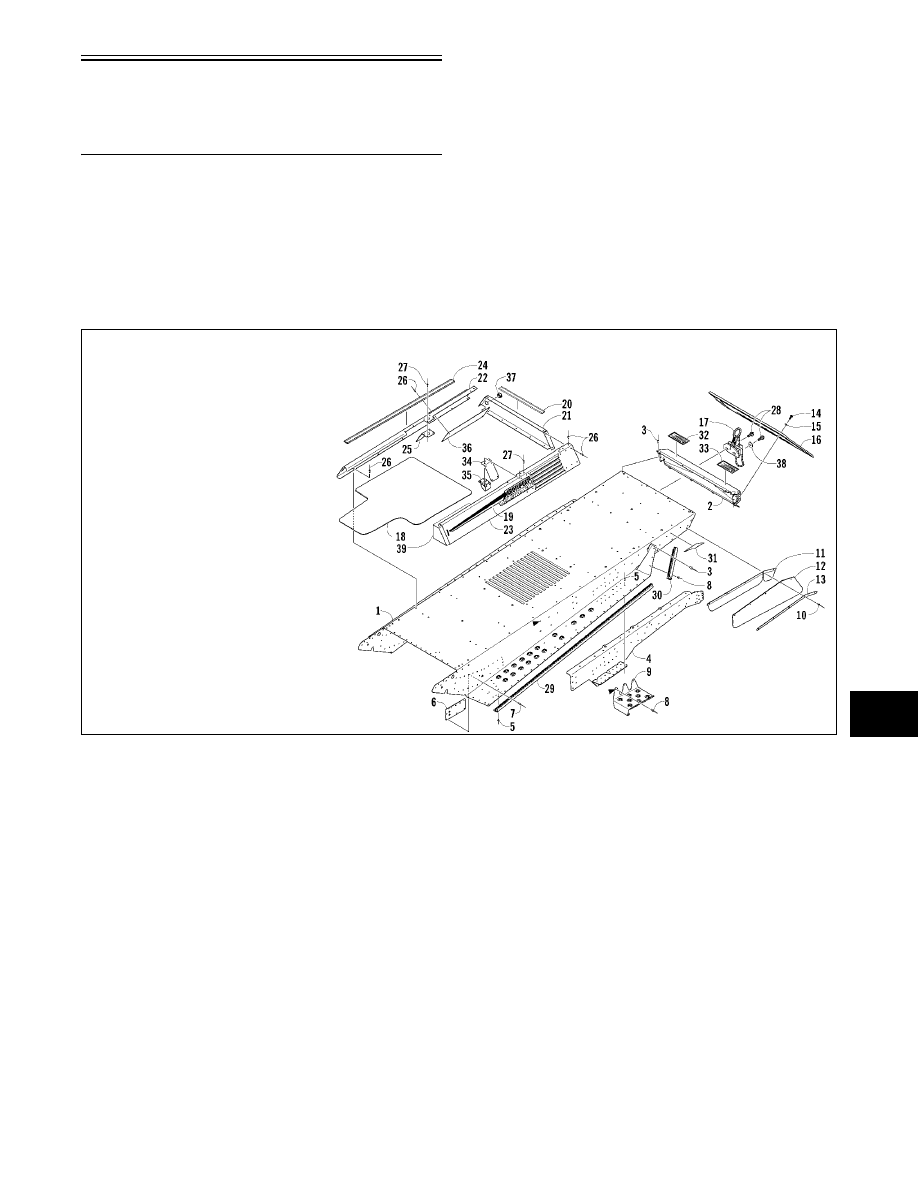

7-63

7

Tunnel/Chassis/

Rear Bumper/ Snowflap

(Bearcat Wide Track/Jaguar Z1/

Panther 660/T660)

„ NOTE: Determine which style tunnel/chassis
assembly is being disassembled and refer to the
appropriate illustration for component details;
then remove/ disassemble and assemble/install
accordingly. Some components will vary from
model to model. The technician should use discre-
tion and sound judgment.

0740-921

Key

1. Tunnel Assy

2. Plate

3. Rivet

4. Bracket

5. Rivet

6. Plate

7. Rivet

8. Rivet

9. Footrest

10. Rivet

11. Bracket

12. Side Snowflap

13. Retainer

14. Machine Screw

15. Washer

16. Snowflap

17. Hitch

18. Pad

19. Decal

20. Seal

21. Plate

22. Plate

23. Plate

24. Seal

25. Bracket

26. Rivet

27. Rivet

28. Cap Screw

29. Tunnel Roll

30. Tunnel Roll

31. Decal

32. Decal

33. Decal

34. Bracket

35. Hinge

36. Cover

37. Grommet

38. Washer

39. Plate

Bearcat W/T Models

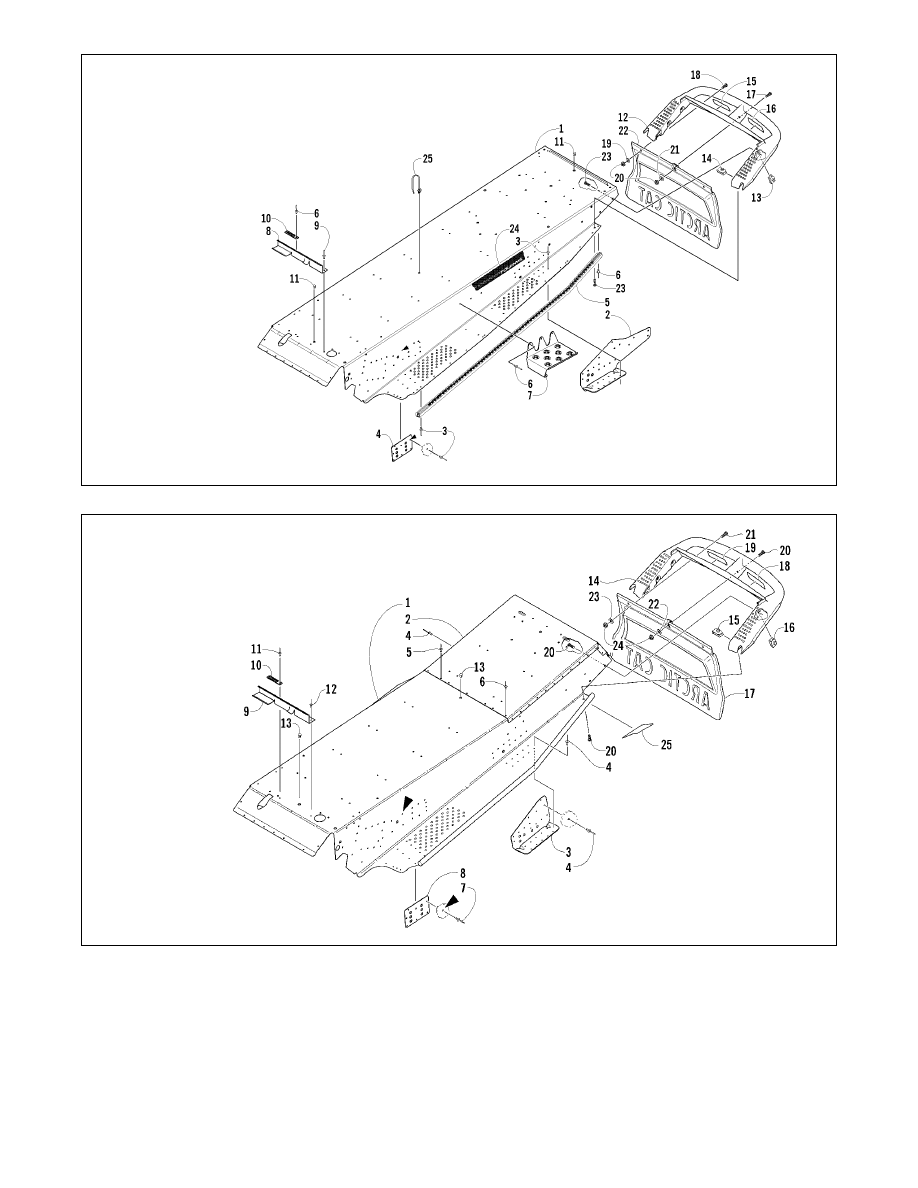

7-64

0741-048

0741-186

KEY

1. Tunnel Assy

2. Bracket

3. Rivet

4. Plate

5. Tunnel Roll

6. Rivet

7. Footrest

8. Bracket

9. Rivet

10. Wire Clamp

11. Hole Plug

12. Bumper

13. U-Nut

14. U-Nut

15. Decal

16. Decal

17. Machine Screw

18. Machine Screw

19. Washer

20. Lock Nut

21. Washer

22. Snowflap

23. Machine Screw

24. Decal

25. Cable Tie

Touring Models

KEY

1. Tunnel Assy

2. Plate

3. Bracket

4. Rivet

5. Rivet

6. Rivet

7. Rivet

8. Plate

9. Bracket

10. Wire Clamp

11. Rivet

12. Rivet

13. Hole Plug

14. Bumper

15. U-Nut

16. U-Nut

17. Snowflap

18. Decal

19. Decal

20. Machine Screw

21. Machine Screw

22. Washer

23. Washer

24. Lock Nut

25. Decal

Panther 660 Trail

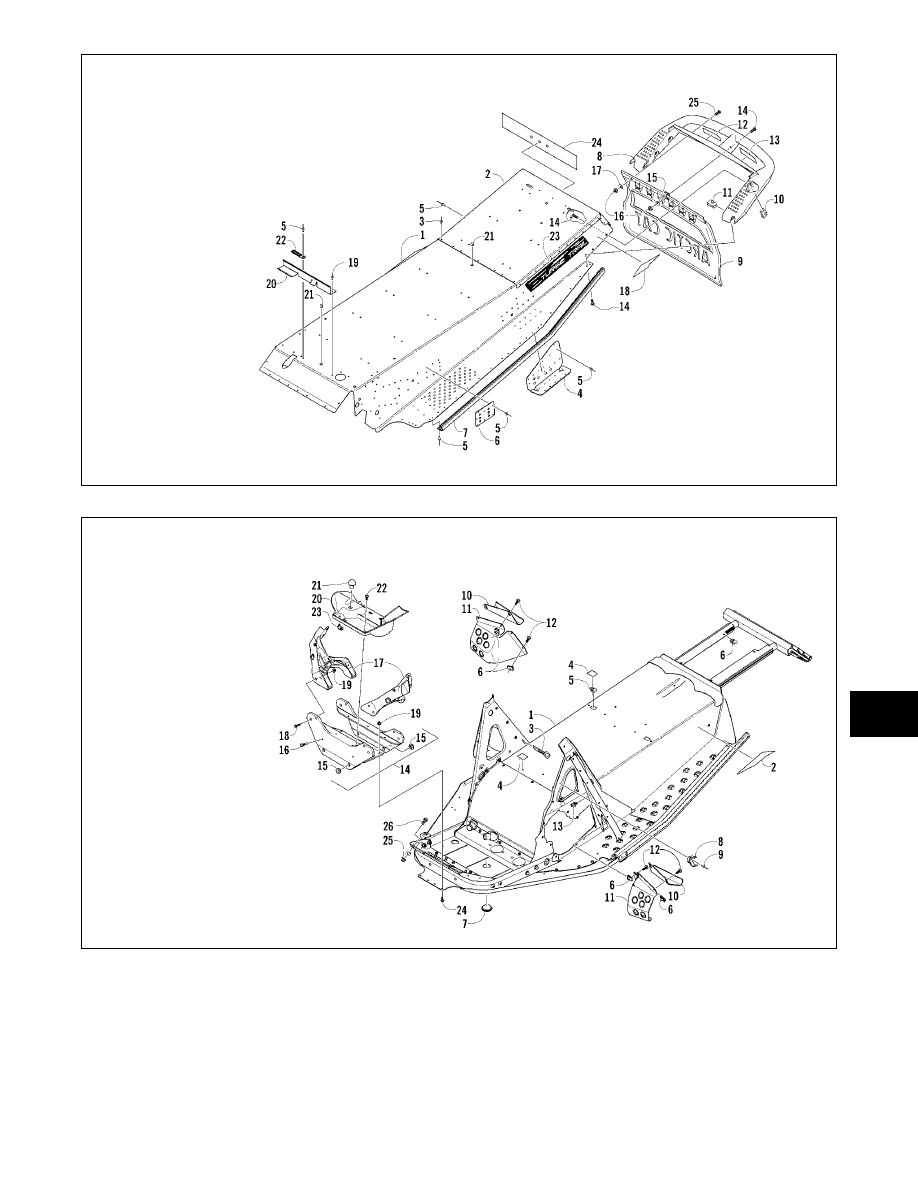

7-65

7

0741-054

0741-354

KEY

1. Tunnel Assy

2. Plate

3. Rivet

4. Bracket

5. Rivet

6. Mounting Plate

7. Tunnel Roll

8. Rear Bumper

9. Snowflap

10. U-Nut

11. U-Nut

12. Decal

13. Decal

14. Machine Screw

15. Washer

16. Lock Nut

17. Washer

18. Decal

19. Rivet

20. Bracket

21. Plug

22. Wire Clamp

23. Decal

24. Decal

25. Machine Screw

Turbo Trail

KEY

1. Chassis/Tunnel Assy

2. Decal

3. Hold-Down Strap

4. Foil

5. U-Nut

6. U-Nut

7. Plug

8. Bracket (Fuel Filter)

9. Rivet

10. Bracket (Toe Shield)

11. Toe Shield

12. Machine Screw

13. Cable Tie

14. Bracket (Front Suspension

Mounting)

15. Bushing

16. Bolt

17. Mounting Frame (Upper-Shock)

18. Cap Screw

19. Lock Nut

20. Close-Off Cover

21. Rubber Bumper

22. Screw

23. Mounting Tab

24. Cap Screw

25. Lock Nut

26. Cap Screw

Jaguar Z1
