Snowmobile Arctic Cat (2007 year). Instruction - part 69





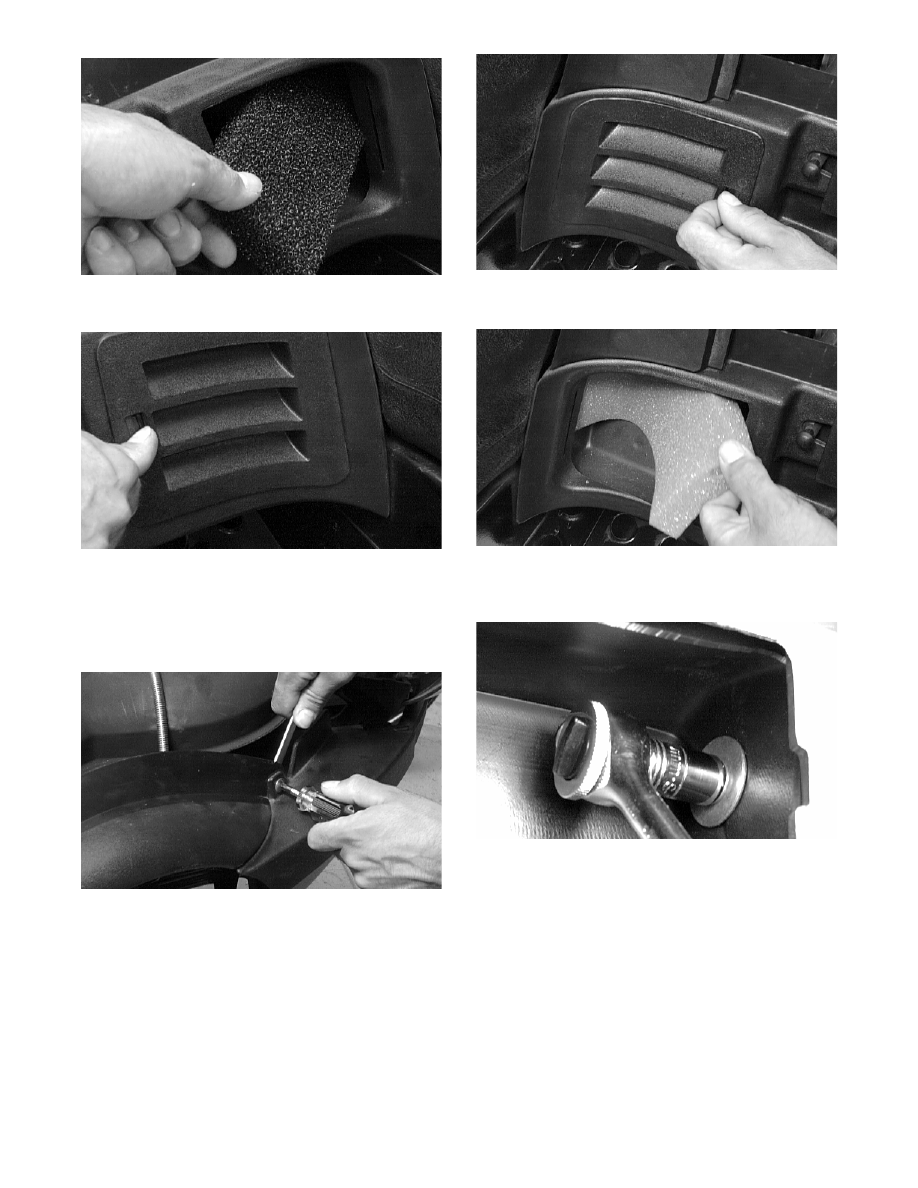

7-50

AL171D

12. Install the left-side louver.

AL170D

REMOVING RIGHT-SIDE

1. Remove the right-side front belly pan cap screw.

Account for a flat washer and a lock nut.

AL183D

2. Remove the right-side louver.

AL184D

3. Remove the right-side louver foam.

AL185D

4. Remove the right-side cap screws securing the

bumper to the air-intake silencer plenum.

AL186D

5. Using a piece of cardboard to protect the finish,

tip the snowmobile on the left side; then remove

the right-side belly pan torx-head screws from

the center belly pan and tunnel.

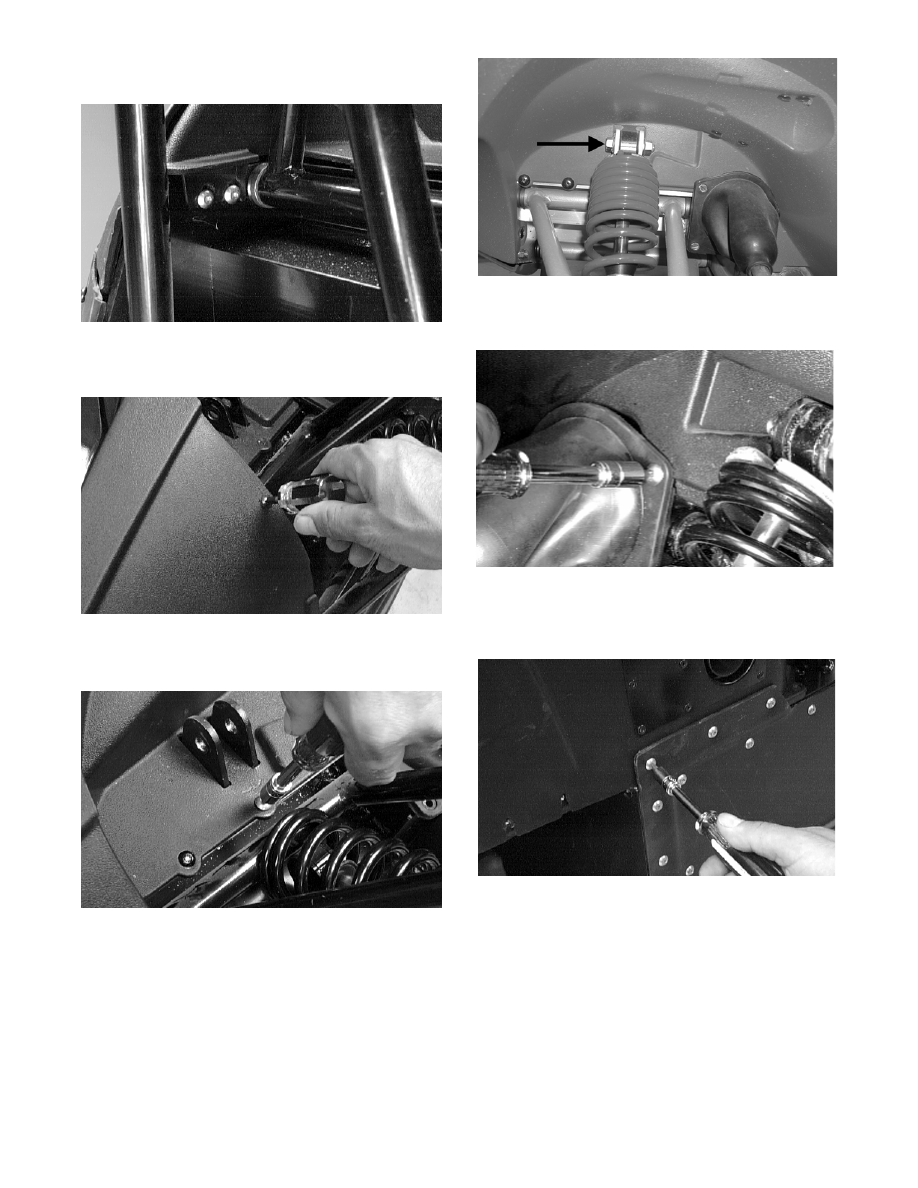

7-51

7

AL188D

6. Remove the screws securing the right-side steer-

ing tie rod boot; then remove the boot.

AL190D

7. Remove the shock absorber.

MS475B

8. Remove the belly pan torx-head screws under-

neath the shock mount.

AL179D

9. Remove the front belly pan-to-nosepiece Phil-

lips-head screw.

AL181D

10. Remove the front belly pan-to-nosepiece torx-

head screws.

AL182D

11. Remove the belly pan from the frame.

INSPECTING RIGHT-SIDE

1. Inspect for gouges, cuts, and tears.

2. Inspect all belly pan threaded bosses that they

are in good shape.

INSTALLING RIGHT-SIDE

1. Place the belly pan assembly in position in the

frame.

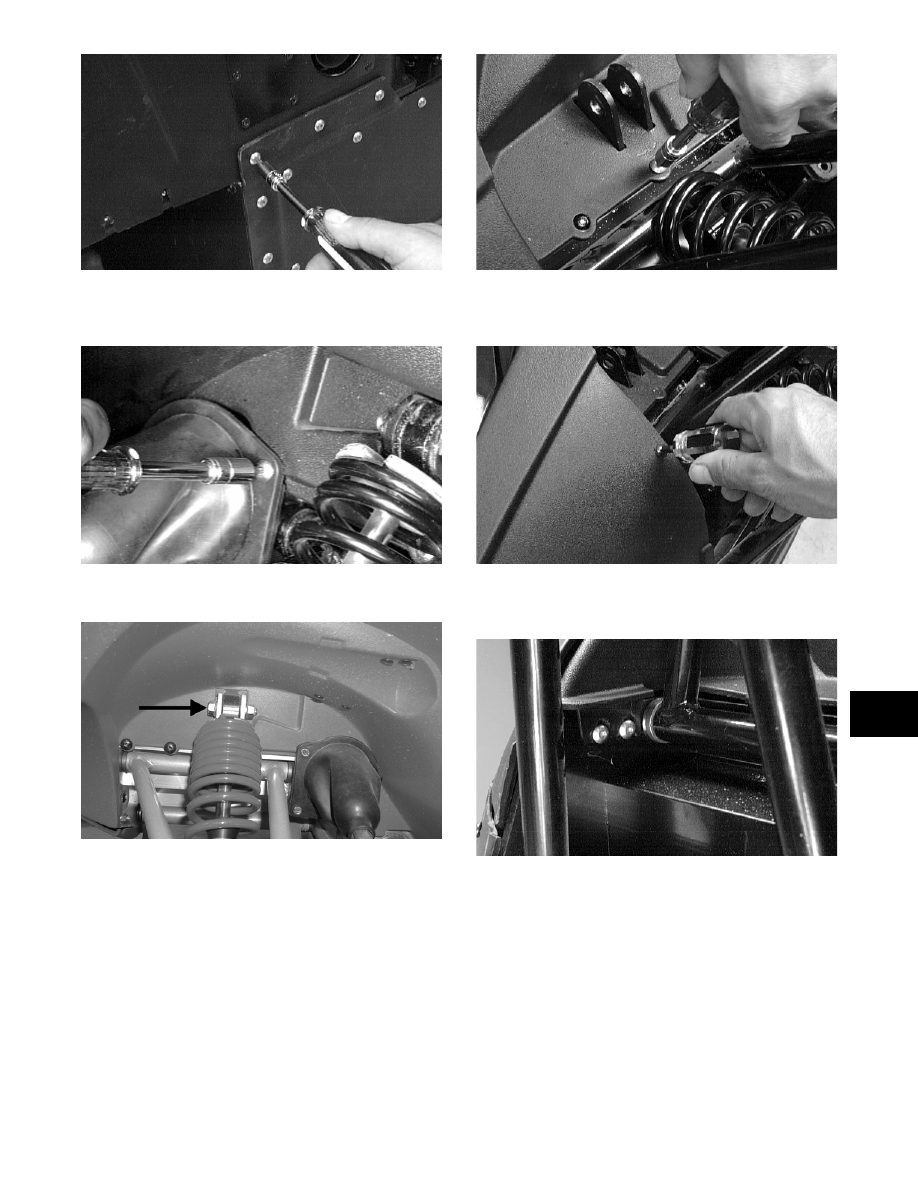

7-52

2. Install the nosepiece torx-head screws to the

front belly pan.

AL182D

3. Install the nosepiece Phillips-head screw to the

front belly pan.

AL181D

4. Install the belly pan torx-head screws under-

neath the shock mount.

AL179D

5. Install the shock absorber. Tighten to specifica-

tions.

MS475B

6. Install the right-side steering rod boot. Secure

with the screws.

AL190D

7. Install the right-side belly pan torx-head screws

to the center belly pan and tunnel; then return

the snowmobile to an upright position.

AL188D

8. Install the right-side cap screws securing the

bumper to the air-intake silencer plenum.

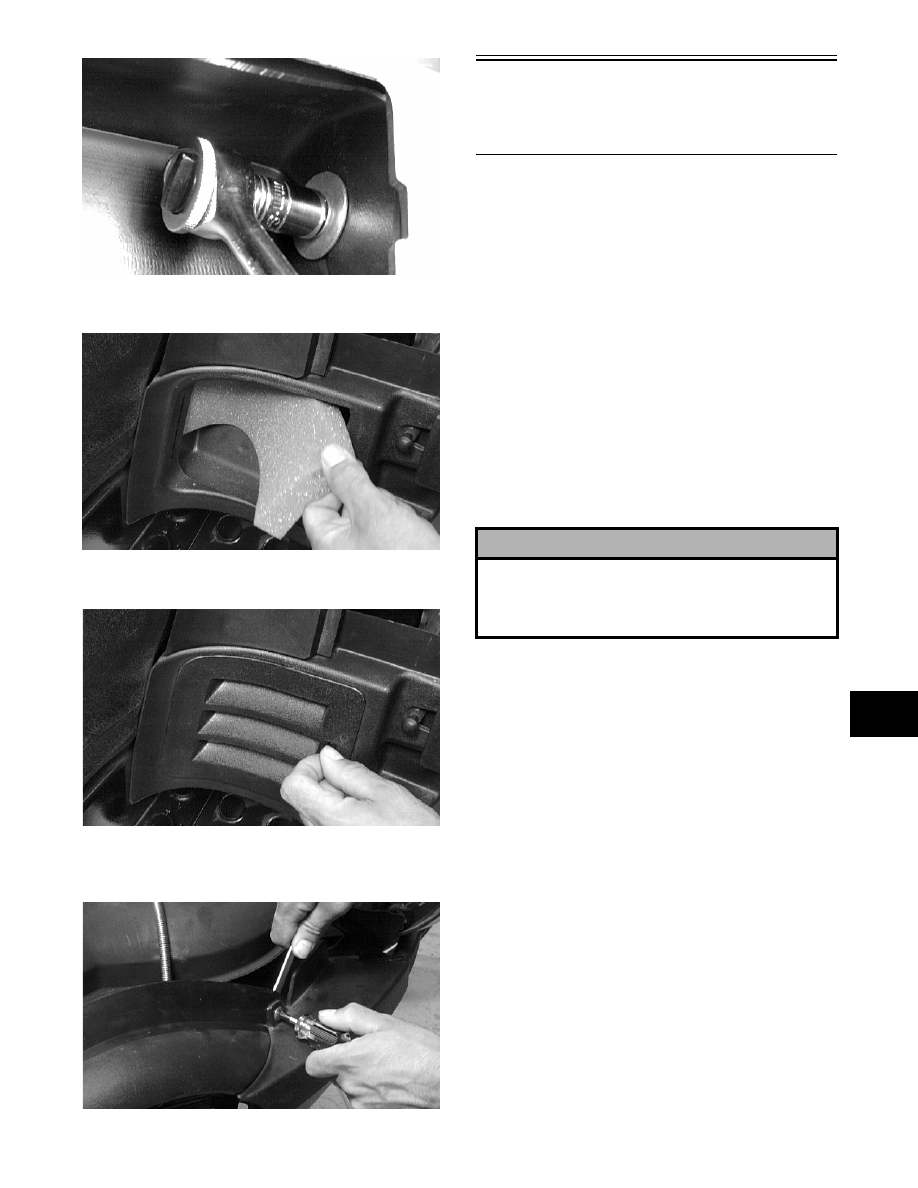

7-53

7

AL186D

9.  Insert the right-side louver foam.

AL185D

10. Install the right-side louver.

AL184D

11. Install the right-side front belly pan cap screw,

washer, and lock nut.

AL183D

Gas Tank/Seat

Assembly

(Bearcat Wide Track/Panther 660/

T660)

„ NOTE: Some components may vary from model
to model. The technician should use discretion
and sound judgment.

REMOVING (Touring Models)

1. Remove the console (see Console in this sec-

tion).

2. Remove the two cap screws, washers, and lock

nuts (located in the rear compartment) securing

the seat to the tunnel.

3.  Remove the vent hose from the gas tank.

4. Disconnect the wiring harness from the fuel

pump. Label the fuel hoses “supply” and

“return”; then remove the hoses from the fuel

pump.

5. Raise the rear of the seat high enough to discon-

nect the taillight wiring harness.

„ NOTE: On LE models, disconnect the seat heater
harness.

6.  Remove the gas tank/seat assembly.

INSTALLING (Touring Models)

1. Place the seat in position on the tunnel; then on

carbureted models, connect the fuel hose.

2.  Connect the vent hose to the gas tank.

3. Connect the fuel supply and return hoses to the

fuel pump. Secure with clamps; then connect the

wiring harness to the fuel pump.

4. Raise the rear of the seat high enough to connect

the taillight wiring harness making sure the har-

ness is positioned into the groove of the seat

base.

„ NOTE: On LE models, connect the seat heater
harness.

! CAUTION

Since the fuel supply hose may be under pressure,
remove it slowly to release the pressure. Place an
absorbent towel around the connection to absorb
fuel.
