Snowmobile Arctic Cat (2007 year). Instruction - part 32





3-6

ADJUSTING BELT TENSON

1. Remove the cap screws securing the belt guard

to the engine; then remove the belt guard from

the engine compartment.

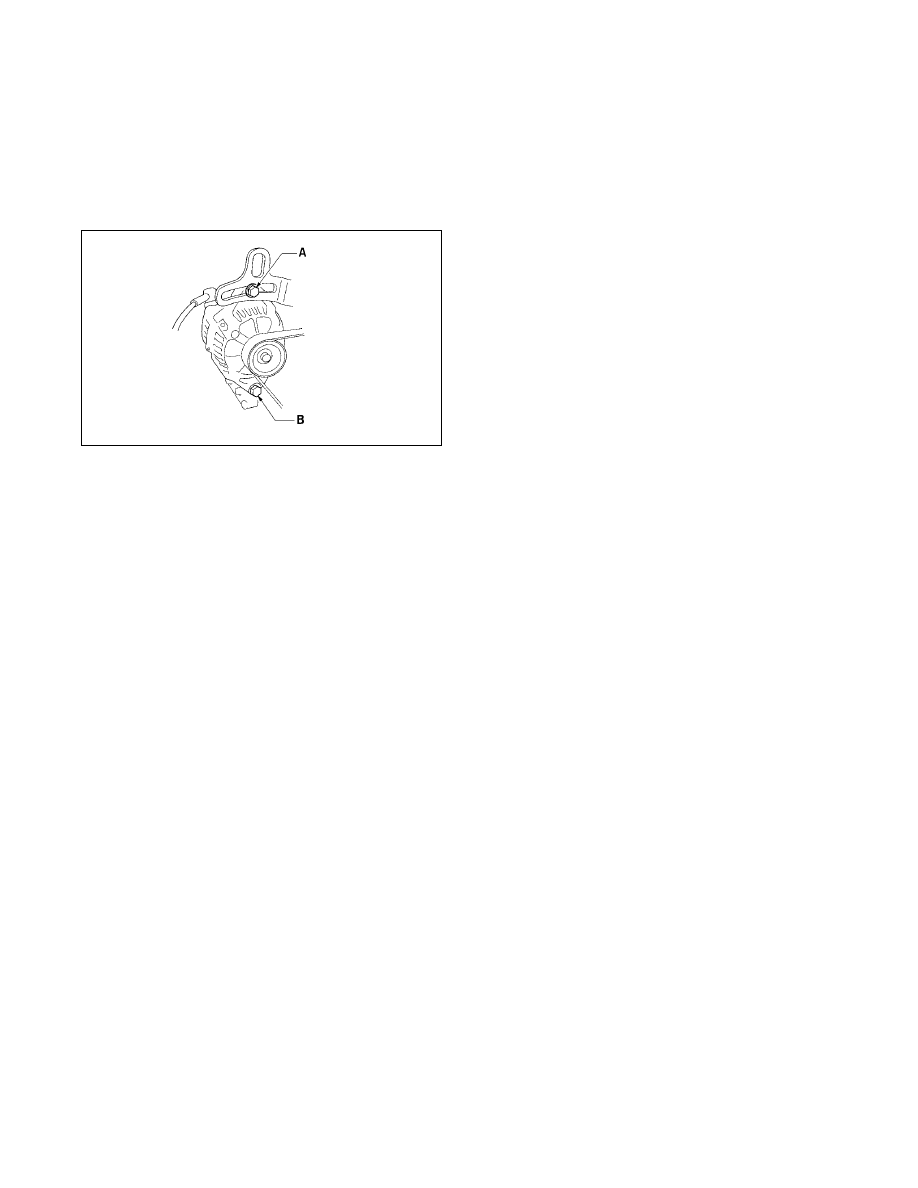

2. On the alternator, loosen, but do not remove, the

adjustment cap screw (A) and the pivot cap

screw (B).

0736-553

3. Insert a wooden pry bar (such as a hammer han-

dle) between the engine and the alternator, pry

the alternator away from the engine, and tighten

the accessory belt.

4. When the accessory belt is tensioned properly

(see Checking Tension in this sub-section),

tighten the adjustment screw (A) to 2.2 kg-m

(16 ft-lb).

5. Tighten the pivot cap screw (B) to 5.1 kg-m (37

ft-lb).

6. Place the belt guard into position and secure

with the cap screws.

3-7

3

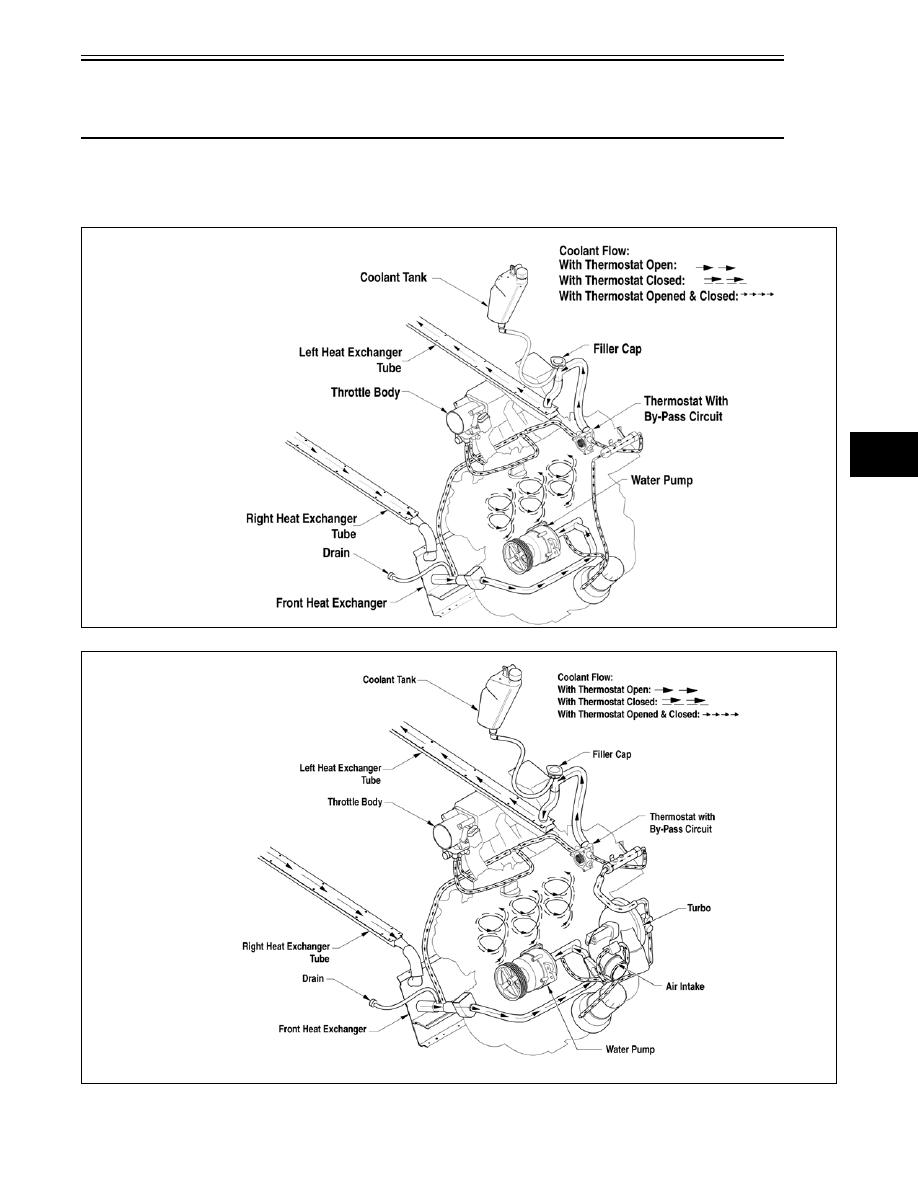

Cooling System Flow/

Component Schematics

(660 cc/1100 cc Z1)

The following schematics are representative of the different styles of 4-stroke cooling systems in the 2007

Arctic Cat snowmobiles. Some components may vary from model to model; therefore, the technician should

use discretion and sound judgment when servicing a particular cooling system.

738-241A

740-259A

660 cc Non-Turbo Models

660 cc Turbo Models

3-8

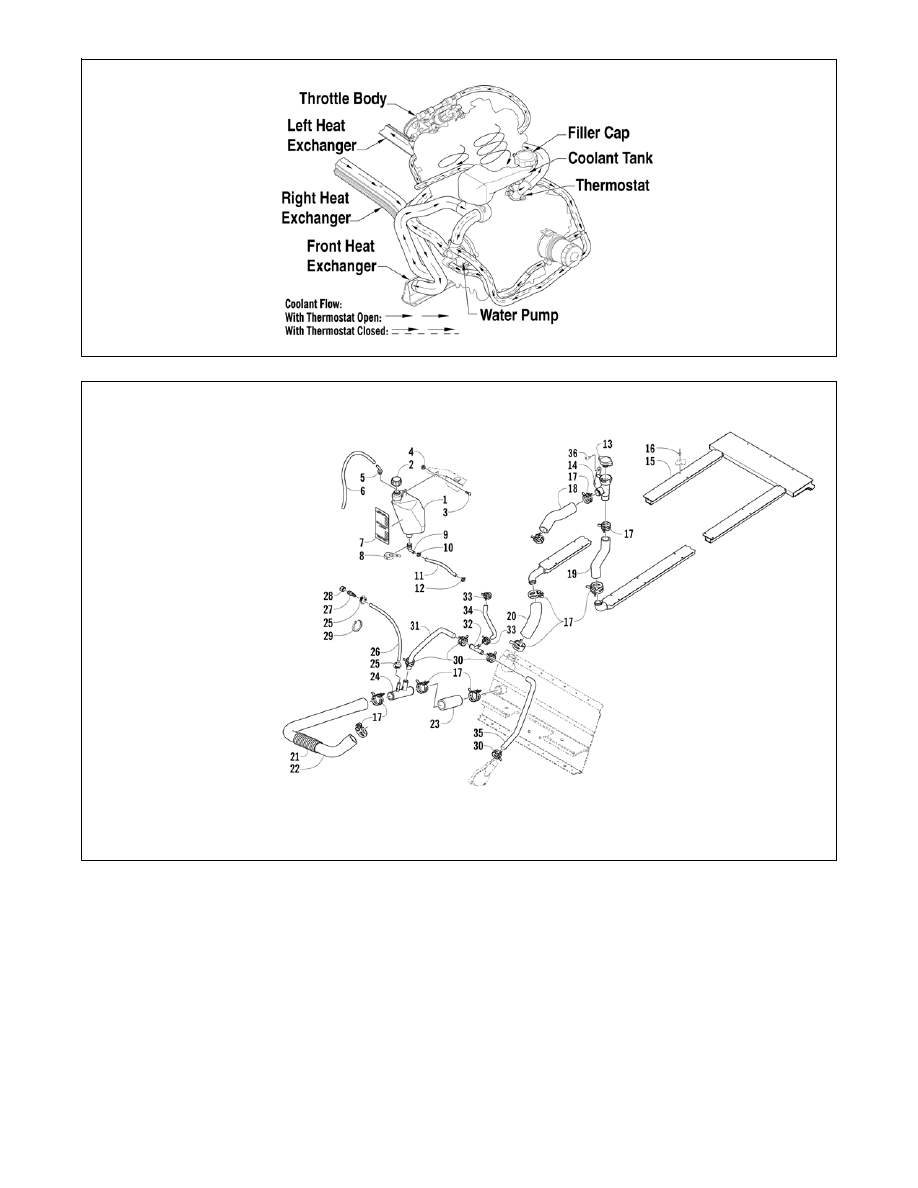

741-577A

0740-490

Jaguar Z1

KEY

1. Coolant Tank

2. Cap

3. Machine Screw

4. Lock Nut

5. Vent Fitting

6. Vent Hose

7. Decal

8. Teflon Tape

9. Elbow Fitting

10. Clamp

11. Hose

12. Clamp

13. Filler Neck Cap

14. Filler Neck

15. Heat Exchanger

16. Rivet

17. Clamp

18. Hose

19. Hose

20. Hose

21. Hose Protector

22. Hose

23. Hose

24. T-Fitting

25. Clamp

26. Hose

27. Adapter Fitting

28. Plug

29. Cable Tie

30. Clamp

31. Hose

32. Y-Fitting

33. Clamp

34. Hose

35. Hose

36. Machine Screw

Panther 660/T660 Touring

3-9

3

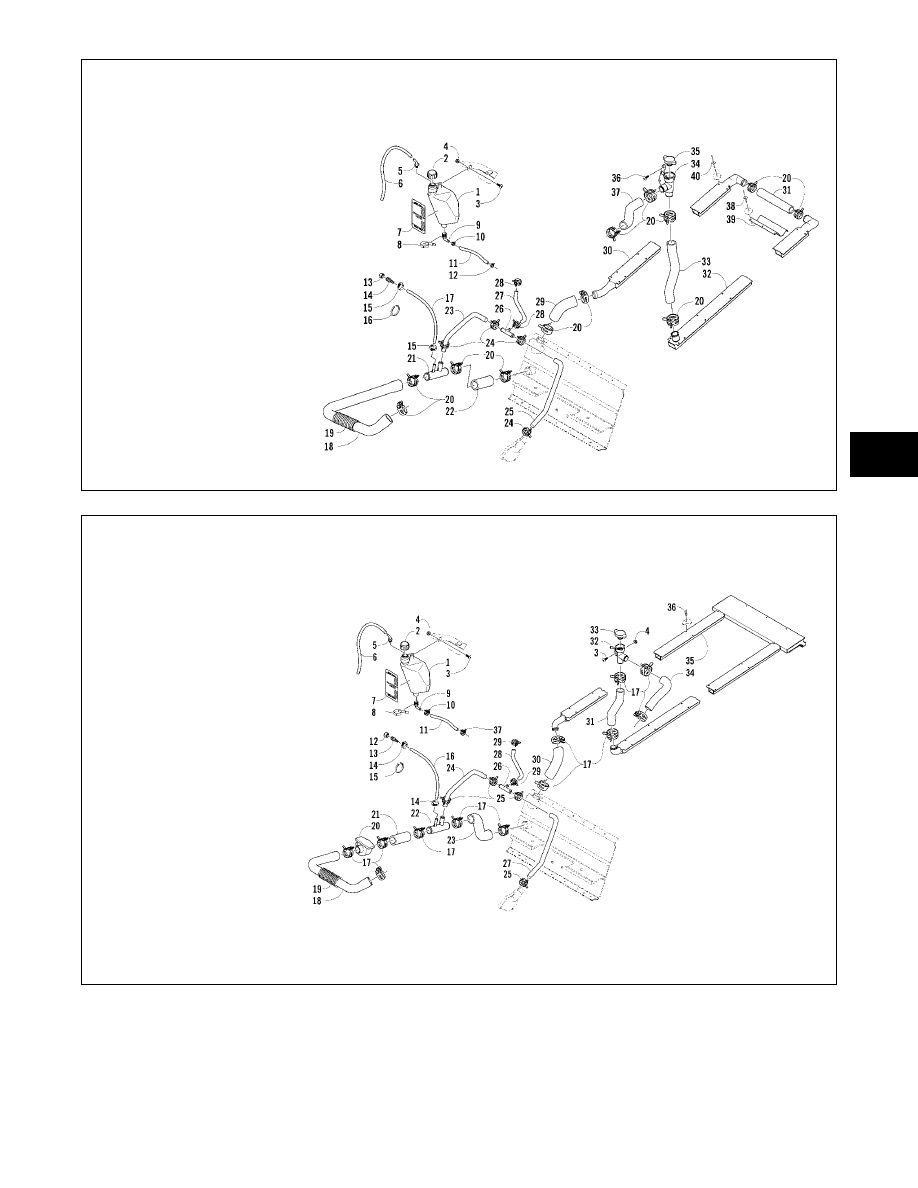

0741-187

0739-682

KEY

1. Coolant Tank

2. Cap

3. Machine Screw

4. Lock Nut

5. Vent Fitting

6. Vent Hose

7. Decal

8. Teflon Tape

9. Elbow Fitting

10. Clamp

11. Hose

12. Clamp

13. Plug

14. Fitting

15. Clamp

16. Cable Tie

17. Hose

18. Hose

19. Protector

20. Clamp

21. T-Fitting

22. Hose

23. Hose

24. Clamp

25. Hose

26. Y-Fitting

27. Hose

28. Clamp

29. Hose

30. Heat Exchanger

31. Hose

32. Heat Exchanger

33. Hose

34. Filler Neck

35. Filler Neck Cap

36. Machine Screw

37. Hose

38. Rivet

39. Guard

40. Rivet

Panther 660 Trail

KEY

1. Coolant Tank

2. Cap

3. Machine Screw

4. Lock Nut

5. Vent Fitting

6. Vent Hose

7. Decal

8. Teflon Tape

9. Elbow Fitting

10. Clamp

11. Hose

12. Drain Cap

13. Adapter Fitting

14. Clamp

15. Cable Tie

16. Hose

17. Clamp

18. Hose

19. Hose Protector

20. Inline Heater

21. Hose

22. T-Fitting

23. Hose

24. Hose

25. Clamp

26. Y-Fitting

27. Hose

28. Hose

29. Clamp

30. Hose

31. Hose

32. Filler Neck

33. Filler Neck Cap

34. Hose

35. Heat Exchanger

36. Rivet

37. Clamp

Bearcat W/T/T660 Turbo Touring
