Snowmobile Arctic Cat (2002 year). Instruction - part 139





9-34

0736-456

736-150B

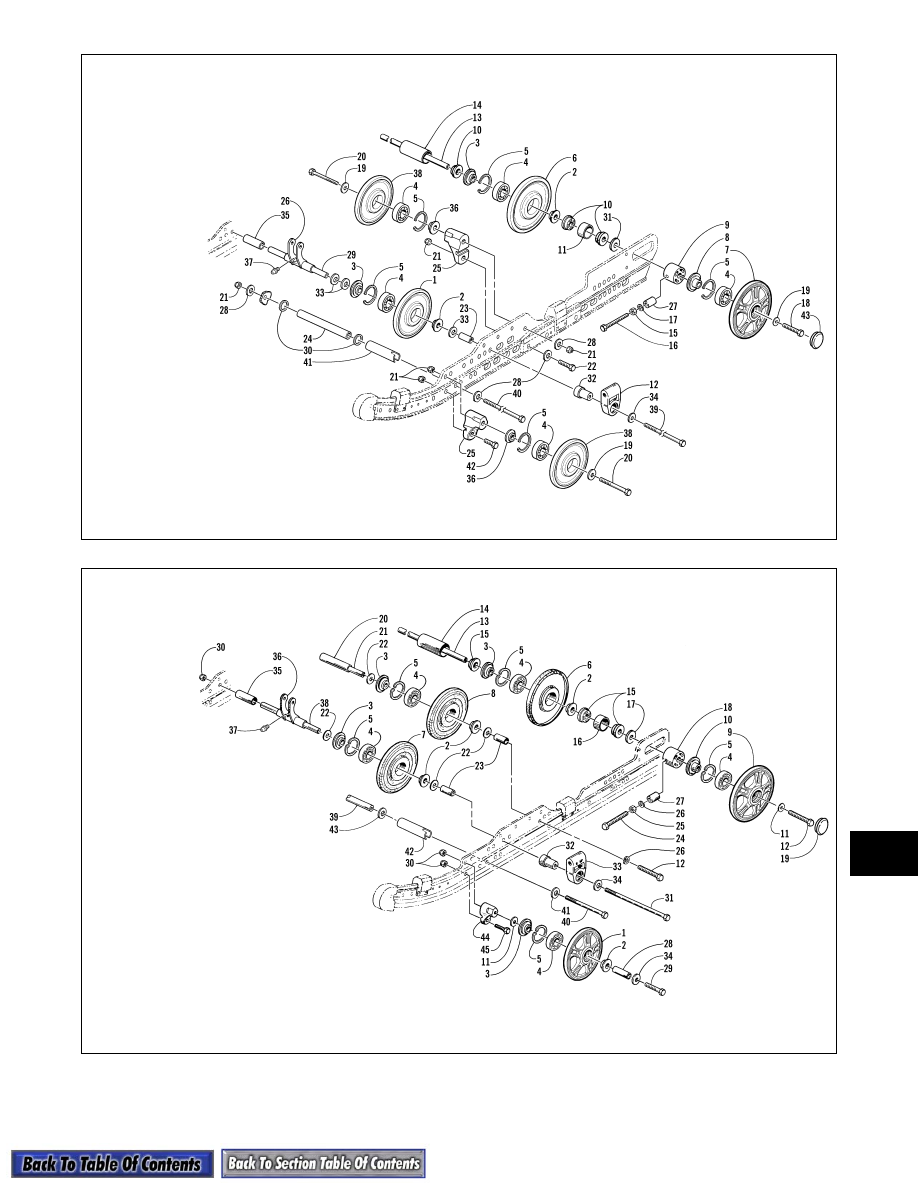

KEY

1. Idler Wheel
2. Wheel Insert
3. Wheel Insert
4. Bearing
5. Retaining Ring
6. Idler Wheel
7. Idler Wheel
8. Wheel Insert
9. Adjuster Bushing

10. Spacer Bushing
11. Spacer
12. Spring Slide
13. Axle
14. Spacer
15. Nut
16. Cap Screw
17. Lock Washer
18. Cap Screw
19. Washer
20. Cap Screw
21. Lock Nut
22. Cap Screw
23. Spacer
24. Axle
25. Mounting Block
26. Pivot
27. Spacer
28. Spacer
29. Axle
30. Support
31. Washer
32. Slide Block
33. Washer
34. Washer
35. Spacer
36. Axle

37. Grease Fitting
38. Idler Wheel
39. Cap Screw
40. Washer
41. Washer
42. Cap
43. Cap Screw
44. Cap Screw

Style K

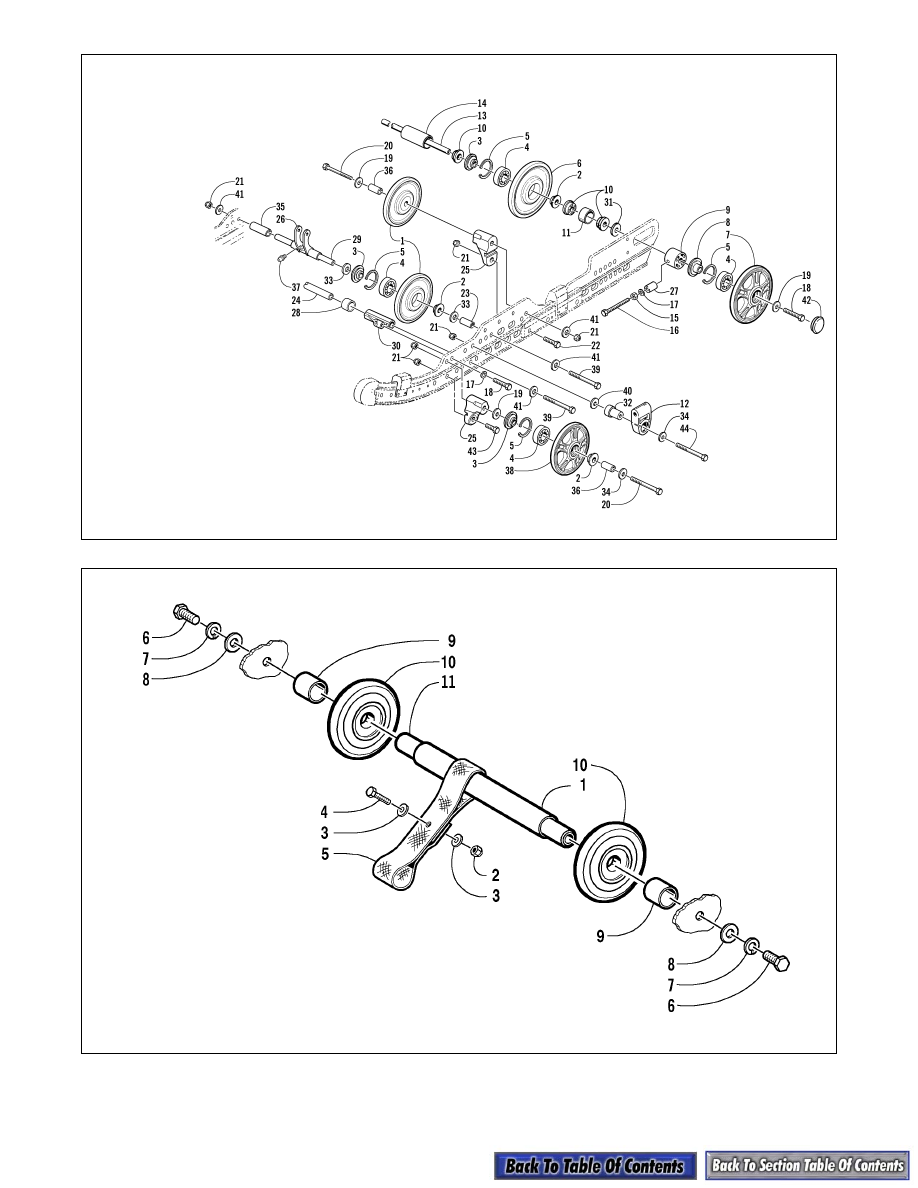

KEY

1. Spacer
2. Lock Nut
3. Washer
4. Cap Screw
5. Limiter Strap
6. Cap Screw
7. Lock Washer
8. Washer
9. Spacer

10. Idler Wheel
11. Axle

Style L

9-35

9

0736-429

0736-943

KEY

1. Idler Wheel
2. Wheel Insert
3. Wheel Insert
4. Bearing
5. Retaining Ring
6. Idler Wheel
7. Idler Wheel
8. Wheel Insert
9. Adjuster Bushing

10. Spacer Bushing
11. Spacer
12. Spring Slide
13. Axle
14. Spacer
15. Nut
16. Cap Screw
17. Lock Washer
18. Cap Screw
19. Washer
20. Cap Screw
21. Lock Nut
22. Cap Screw
23. Spacer
24. Axle
25. Mounting Block
26. Pivot
27. Spacer
28. Washer
29. Axle
30. Washer
31. Washer
32. Slide Block
33. Washer
34. Washer
35. Spacer
36. Insert

37. Grease Fitting
38. Idler Wheel
39. Cap Screw
40. Cap Screw
41. Spacer
42. Cap Screw
43. Cap

Style M

KEY

1. Idler Wheel
2. Wheel Insert
3. Wheel Insert
4. Bearing
5. Retaining Ring
6. Idler Wheel
7. Idler Wheel
8. Idler Wheel
9. Idler Wheel

10. Insert
11. Washer
12. Cap Screw
13. Axle
14. Spacer
15. Bushing
16. Spacer
17. Washer
18. Bushing
19. Cap
20. Spacer
21. Axle
22. Washer
23. Spacer
24. Cap Screw
25. Nut
26. Lock Washer
27. Spacer
28. Axle
29. Cap Screw
30. Lock Nut
31. Cap Screw
32. Slide Block
33. Spring Slide
34. Washer
35. Spacer
36. Pivot

37. Grease Fitting
38. Axle
39. Axle
40. Cap Screw
41. Washer
42. Spacer
43. Washer
44. Mounting Block
45. Cap Screw

Style N

9-36

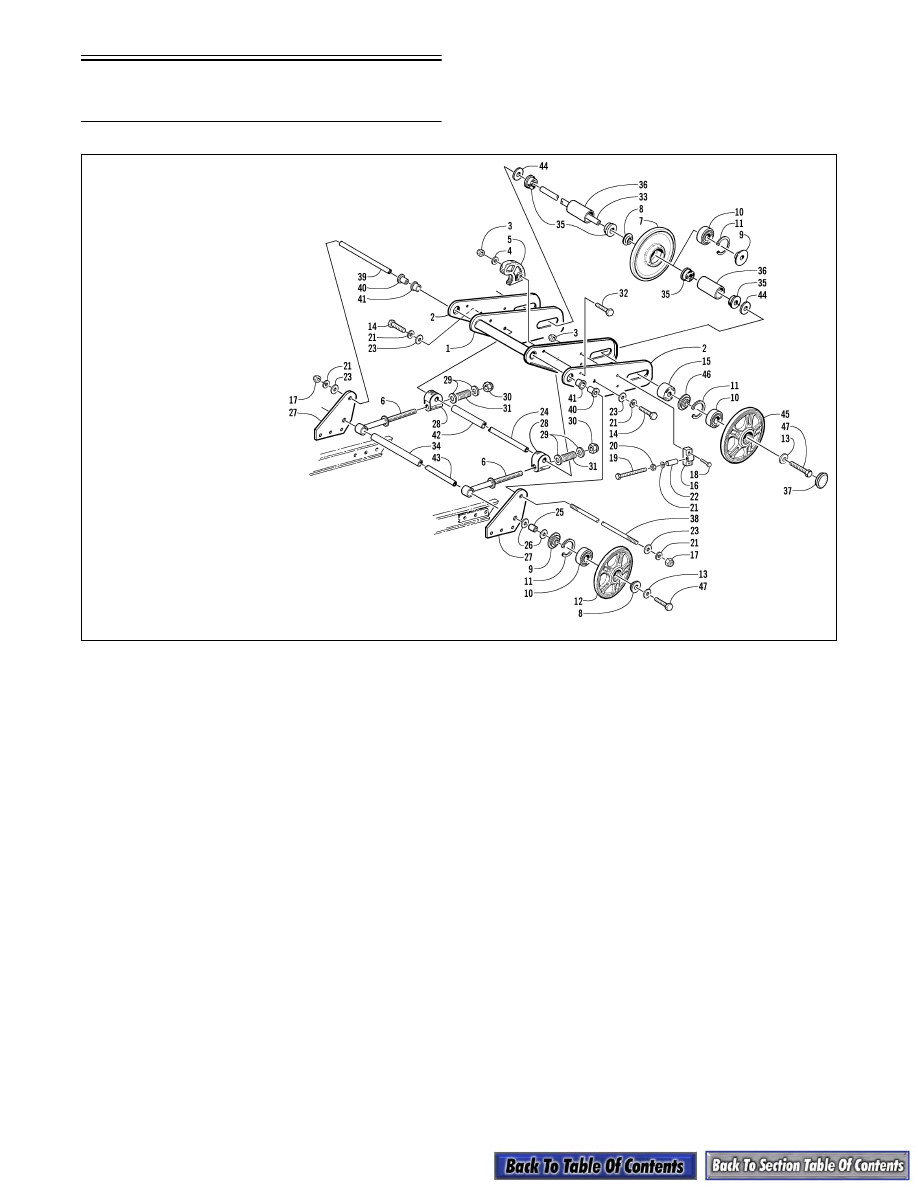

Articulating Skid

Frame Schematic

0736-581

KEY

1. Swing Arm
2. Mounting Bracket
3. Lock Nut
4. Washer
5. Track Guide Bumper
6. Spring Bracket
7. Idler Wheel
8. Wheel Insert
9. Wheel Insert

10. Bearing
11. Retaining Ring
12. Idler Wheel
13. Washer
14. Cap Screw
15. Adjuster Bushing
16. Track Adjuster
17. Lock Nut
18. Cap Screw
19. Cap Screw
20. Nut
21. Lock Washer
22. Track Adjuster Spacer
23. Washer
24. Slide Block Axle
25. Outer Axle
26. Washer
27. Mounting Bracket
28. Slide Block
29. Washer
30. Lock Nut
31. Spring
32. Cap Screw
33. Rear Axle
34. Axle Tube
35. Spacer Bushing
36. Center Spacer

37. Idler Wheel Cap
38. Stud Bolt
39. Swing Arm Axle
40. Serrated Axle
41. Rear Arm Bushing
42. Spacer
43. Axle
44. Washer
45. Idler Wheel
46. Wheel Insert
47. Cap Screw

Style A

9-37

9

Repair Procedure 1 -

Track/Rear Suspension

This Track/Rear Suspension sub-section (Repair Pro-

cedure 1) has been organized so each procedure can be

completed individually and efficiently. Each sub-sec-

tion has (as necessary) Removing, Disassembling,

Cleaning and Inspecting, Assembling, and Installing

procedures. Some components may vary from model

to model. The technician should use discretion and

sound judgment when removing and installing compo-

nents.

„

NOTE: Some illustrations and photographs used

in this sub-section are used for clarity purposes
only and are not designed to depict actual condi-
tions.

Removing

Skid Frame

„

NOTE: Many service procedures can be per-

formed without removing the skid frame. Closely
observe the note introducing each subsequent
sub-section for this important information.

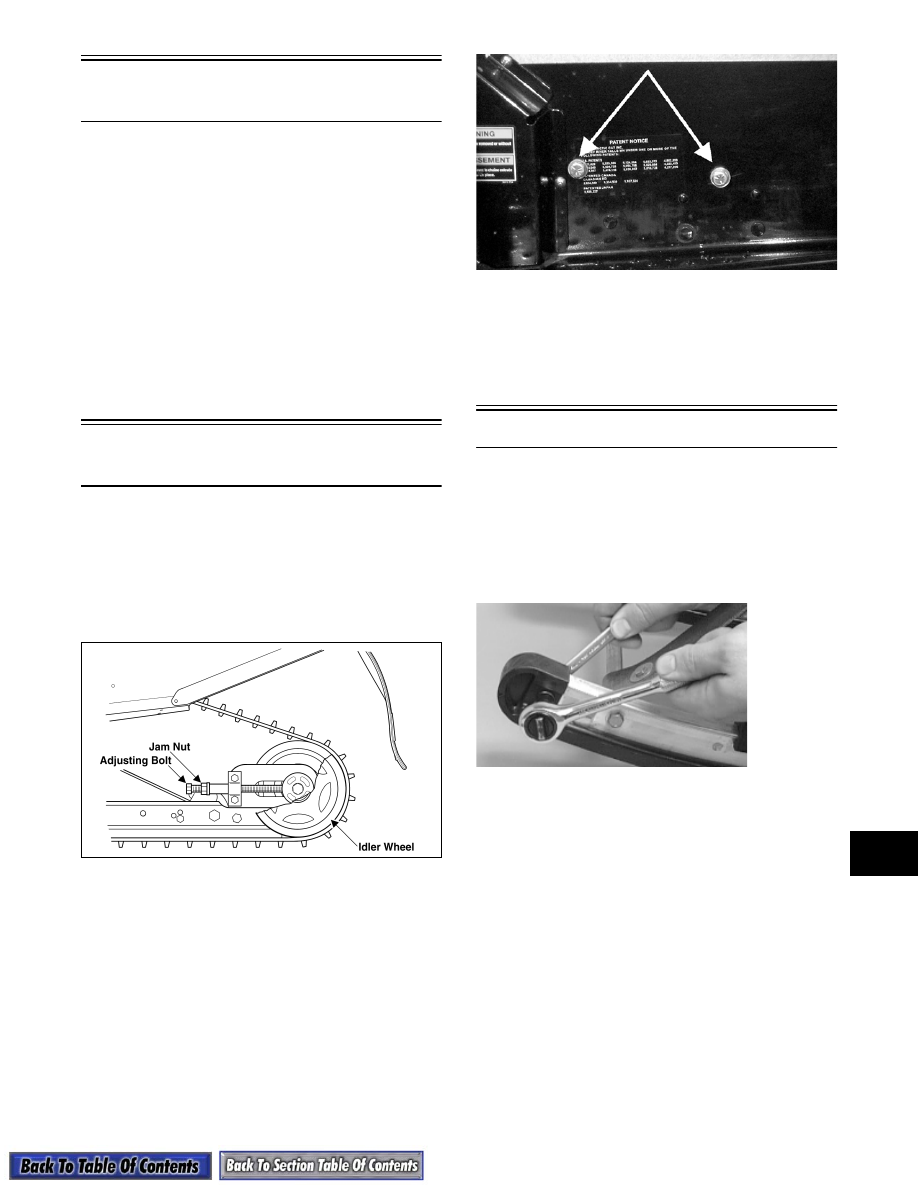

1. Loosen the jam nuts and the two track tension

adjusting bolts.

0735-454

2. Place a support stand under the rear bumper; then

remove the two cap screws securing the upper

idler wheel assembly to the tunnel. Remove the

idler wheel assembly.

„

NOTE: The support stand should hold the snow-

mobile level and not raised off the floor.

3. Remove the four cap screws securing the skid

frame and axle to the tunnel.

AO163A

4. Remove the support stand; then tip the snowmo-

bile onto one side using a piece of cardboard to

protect against scratching. Remove the axle and

skid frame.

End Cap

„

NOTE: The skid frame does not have to be

removed for this procedure.

REMOVING

1. Remove the lock nut, washer, and cap screw

securing the end cap.

AG297D

2. Using a hammer, tap the end cap off the rail.

CLEANING AND INSPECTING

„

NOTE: Whenever a part is worn excessively,

cracked, or damaged in any way, replacement is
necessary.

1. Inspect the end cap area of the slide rail for cracks

and wear.

2. Inspect the end cap for any signs of cracking or

wear.
