Snowmobile Arctic Cat (2002 year). Instruction - part 137

9-26

736-150A

0736-461

KEY

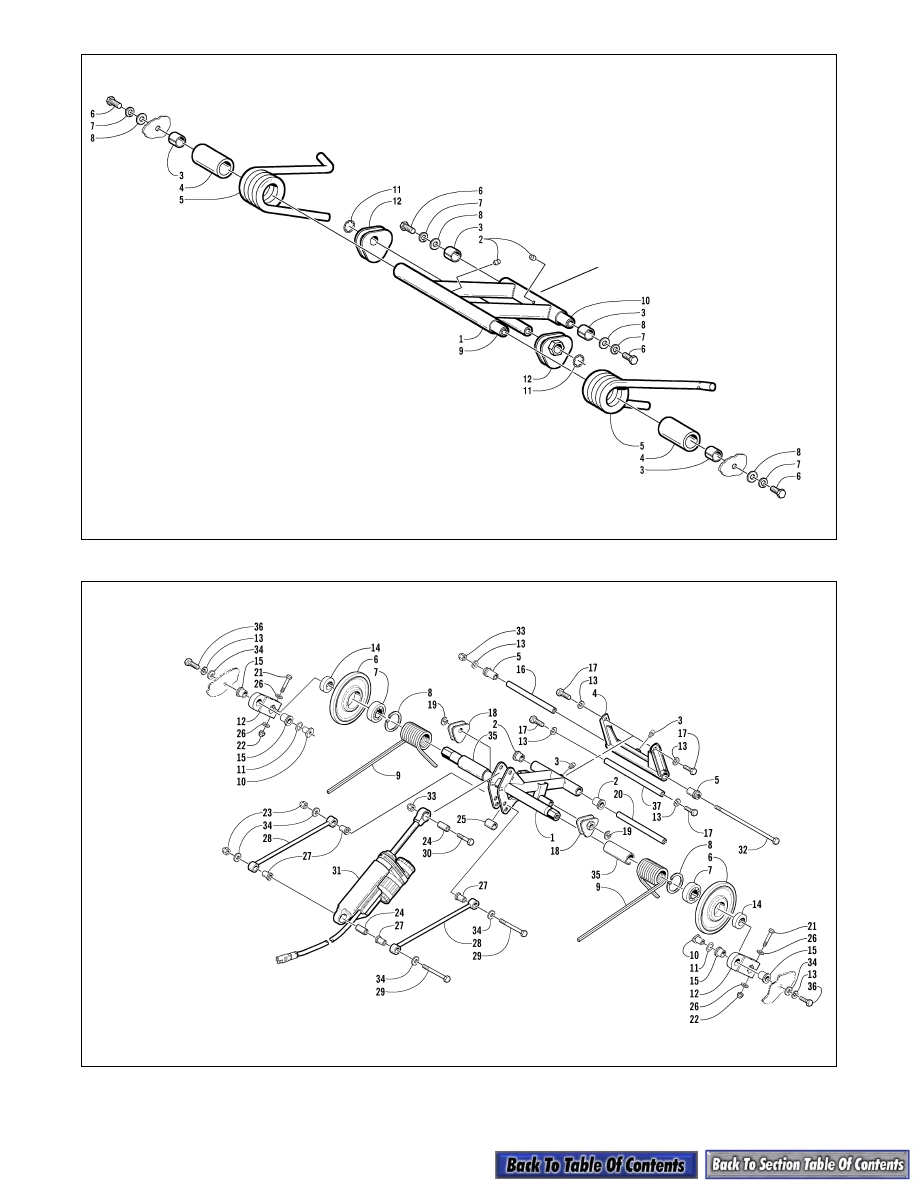

1. Rear Arm
2. Grease Fitting
3. Bearing
4. Sleeve
5. Spring
6. Cap Screw
7. Lock Washer
8. Washer
9. Axle

10. Axle
11. Retaining Ring
12. Adjusting Cam (Block)

Style G

KEY

1. Idler Arm
2. Bushing
3. Grease Fitting
4. Rear Arm
5. Axle
6. Idler Wheel
7. Bearing
8. Retaining Ring
9. Suspension Spring

10. Axle
11. Washer
12. Pivot Idler Arm
13. Lock Washer
14. Spacer
15. Bushing
16. Axle Tube
17. Cap Screw
18. Spring Block
19. Retainer Ring
20. Axle
21. Cap Screw
22. Lock Nut
23. Lock Nut
24. Sleeve
25. Spacer
26. Washer
27. Link Axle
28. Link
29. Cap Screw
30. Cap Screw
31. Shock Absorber
32. Cap Screw
33. Lock Nut
34. Washer
35. Sleeve

36. Cap Screw
37. Axle

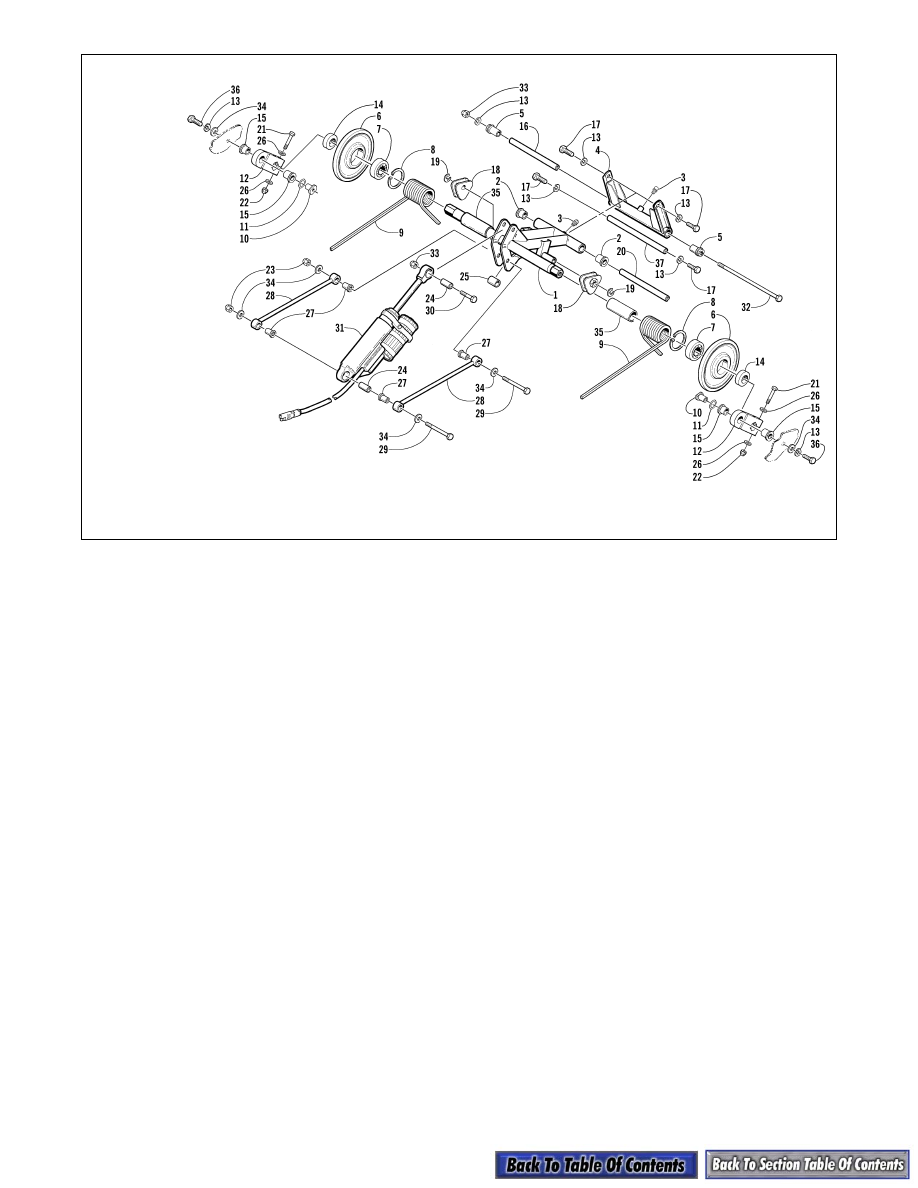

Style H

9-27

0736-432

0736-589

KEY

1. Idler Arm
2. Bushing
3. Grease Fitting
4. Rear Arm
5. Axle
6. Idler Wheel
7. Bearing
8. Retaining Ring
9. Suspension Spring

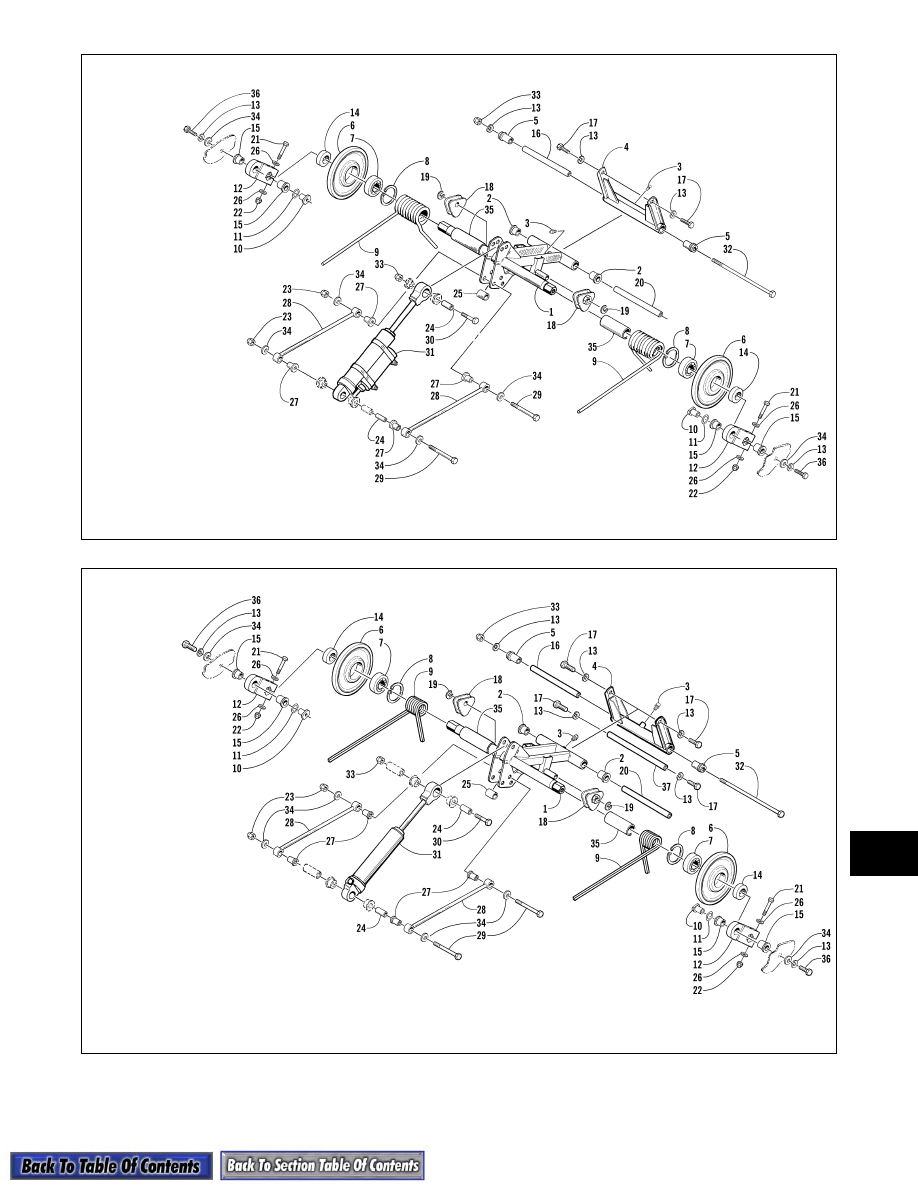

Style I

KEY

1. Idler Arm
2. Bushing
3. Grease Fitting
4. Rear Arm
5. Axle
6. Idler Wheel
7. Bearing
8. Retaining Ring
9. Suspension Spring

36. Cap Screw
37. Axle

Style J

9-28

0736-727

KEY

1. Idler Arm
2. Bushing
3. Grease Fitting
4. Rear Arm
5. Axle
6. Idler Wheel
7. Bearing
8. Retaining Ring
9. Suspension Spring

36. Cap Screw
37. Lock Nut

Style K

9-29

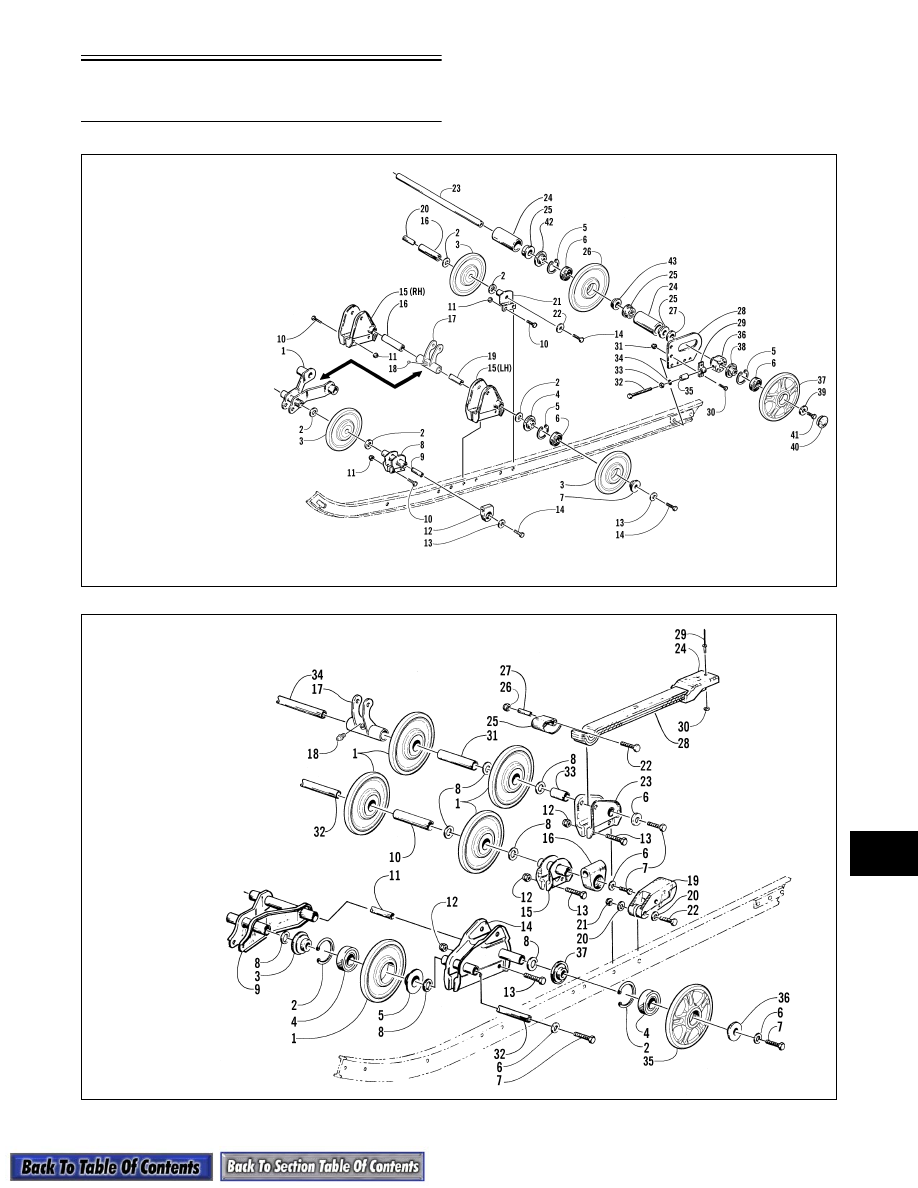

Idler Wheels

Schematics

0736-496

0736-582

KEY

1. Bracket
2. Washer
3. Idler Wheel
4. Insert
5. Ring
6. Bearing
7. Insert
8. Bracket
9. Axle

10. Cap Screw
11. Lock Nut
12. Spring Slide
13. Washer
14. Cap Screw
15. Bracket
16. Spacer
17. Pivot
18. Grease Fitting
19. Axle
20. Axle
21. Support
22. Washer
23. Axle
24. Spacer
25. Bushing
26. Idler Wheel
27. Washer
28. Housing
29. Track Adjuster
30. Cap Screw
31. Lock Nut
32. Cap Screw

33. Nut
34. Lock Washer
35. Spacer
36. Bushing
37. Idler Wheel
38. Insert
39. Washer
40. Cap
41. Cap Screw
42. Insert
43. Insert

Style A

KEY

1. Idler Wheel
2. Retaining Ring
3. Wheel Insert
4. Bearing
5. Wheel Insert
6. Washer
7. Cap Screw
8. Washer
9. Front Shock Bracket

10. Idler Wheel Spacer
11. Idler Wheel Axle
12. Lock Nut
13. Cap Screw
14. Mounting Bracket
15. Wheel Bracket
16. Spring Slide
17. Shock Pivot
18. Grease Fitting
19. Spring Tension Block
20. Washer
21. Lock Nut
22. Cap Screw
23. Mounting Bracket
24. Wear Block
25. Retaining Clip
26. Lock Nut
27. Overload Spring

Bushing

28. Overload Spring Assy
29. Rivet
30. Washer
31. Spacer
32. Axle
33. Spacer
34. Axle
35. Idler Wheel
36. Wheel Insert
37. Wheel Insert

Style B

NOTE: Some components illustrated in this

sub-section may vary from actual conditions.
The technician should use discretion and sound
judgment when removing and installing compo-
nents.
