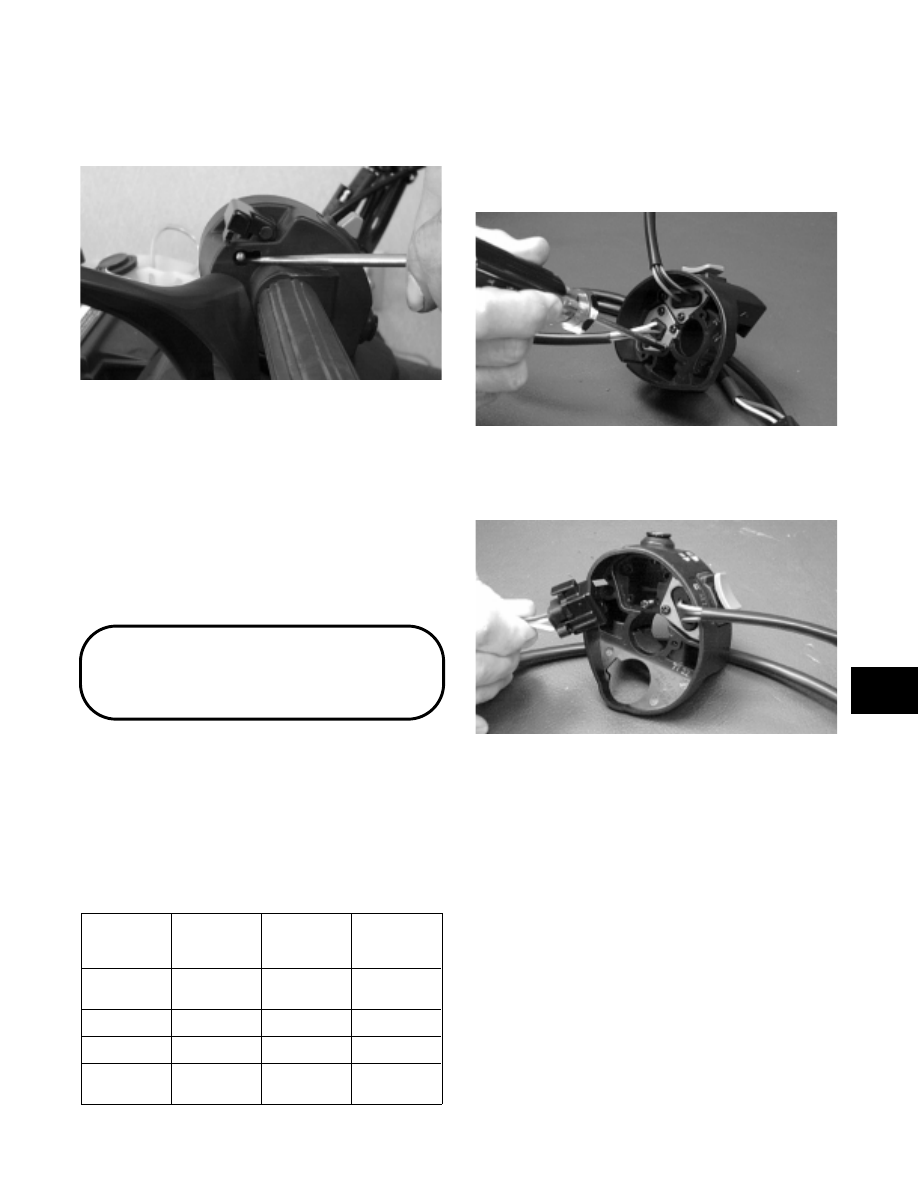

4. Use a small screwdriver to compress the plastic locking tabs by pushing in on the tabs; then slide the Fig. 6-4 AF907D INSTALLING 1. Slide the brakelight switch into the brake control assembly until the self-locking tabs snap into 2. Connect the switch harness to the main wiring harness. Position the wires so they will not be either Headlight Dimmer Switch TESTING 1. Disconnect the headlight dimmer switch plug (located next to the air-intake silencer). 2. Use the tester connections indicated in the following chart. If the meter does not read as Position Lead to Terminal (Wire Color) Lead to Terminal (Wire Color) Meter Reading High Beam 1 (Yellow) 2 (Blue) Less than 1 ohm High Beam 1 (Yellow) 3 (White) OL Low Beam 1 (Yellow) 2 (Blue) OL Low Beam 1 (Yellow) 3 (White) Less than 1 ohm REMOVING 1. Remove the handlebar pad. 2. Remove the screws from the cover plate securing the dimmer switch. Fig. 6-5 AF908D 3. Remove the plate and lift the switch free of the control. Fig. 6-6 AF909D INSTALLING 1. Place the dimmer switch into the control and secure with the cover plate and screws. 2. Connect the four-prong plug; then install and secure the handlebar pad. 6 6-3 |
