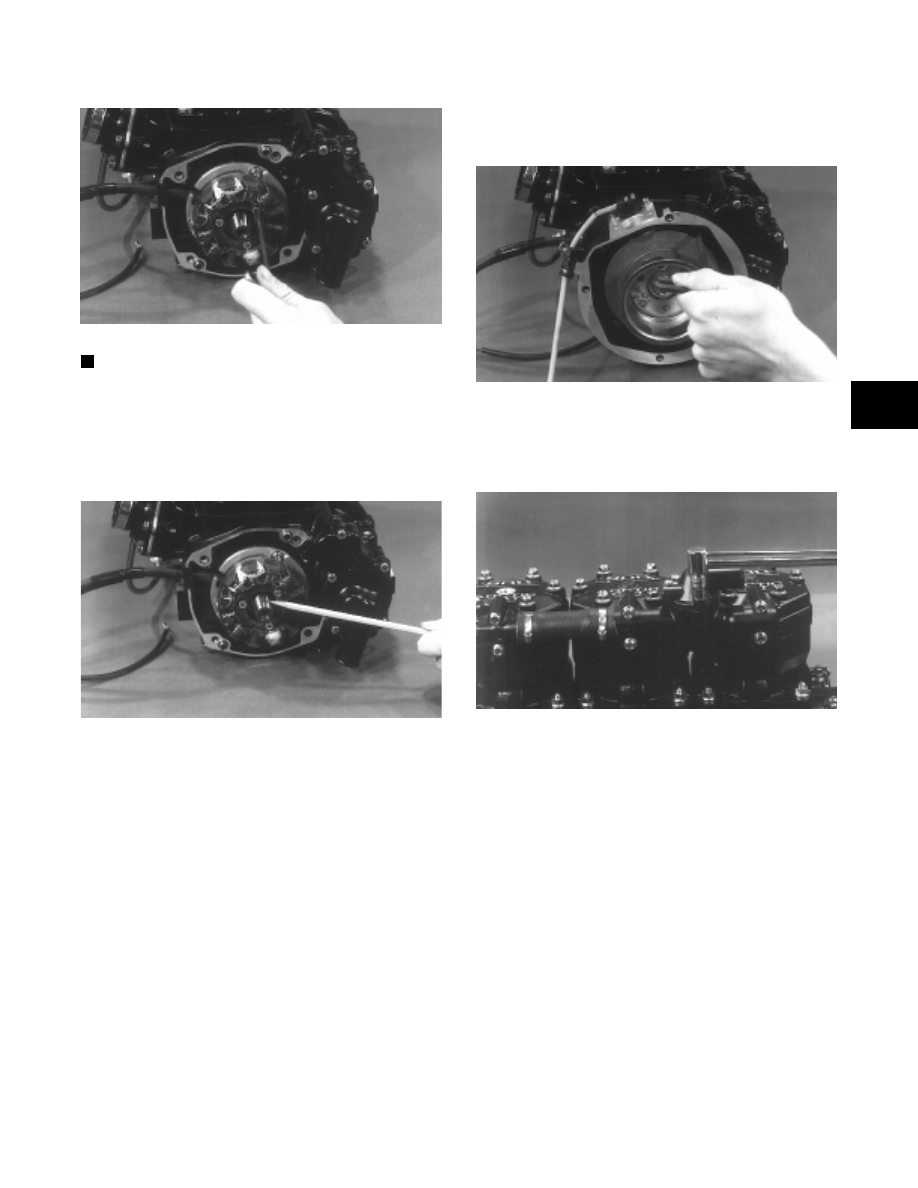

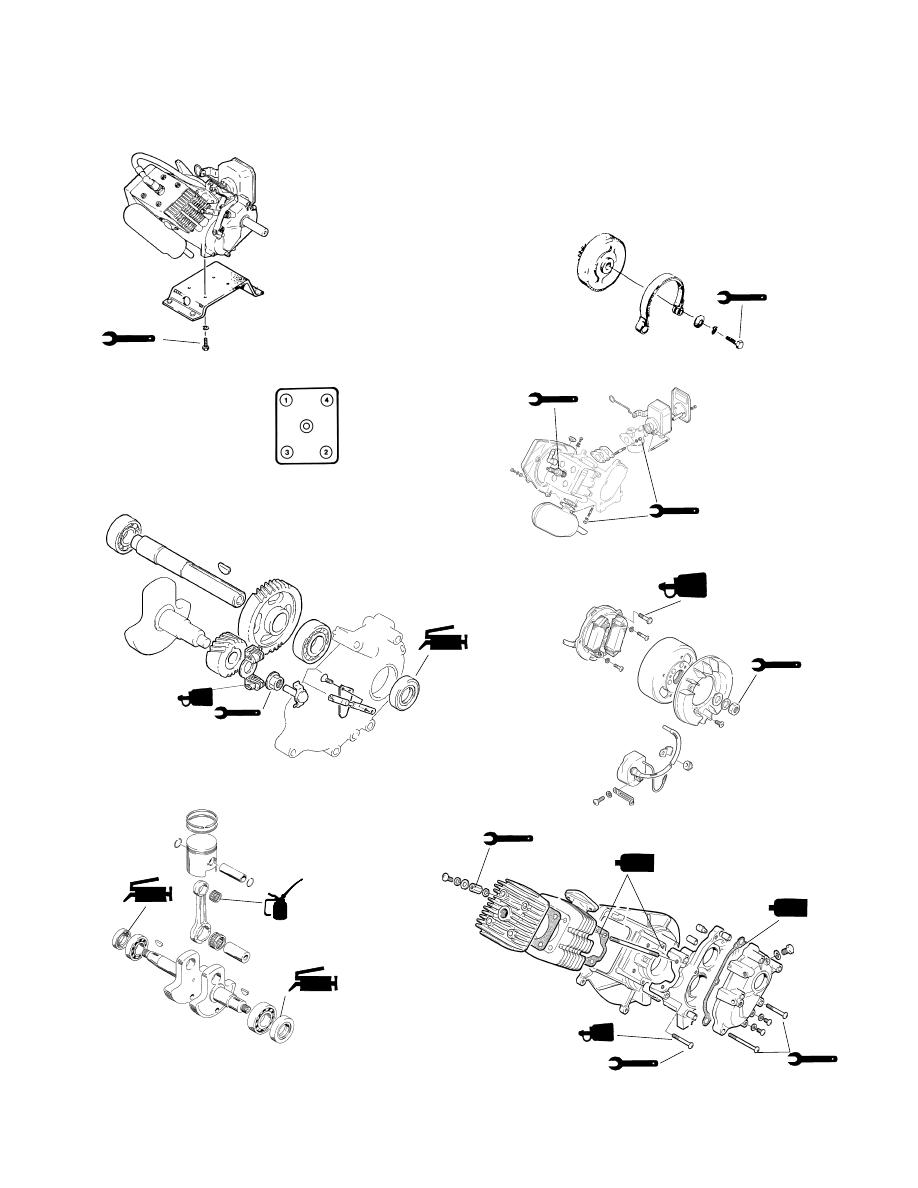

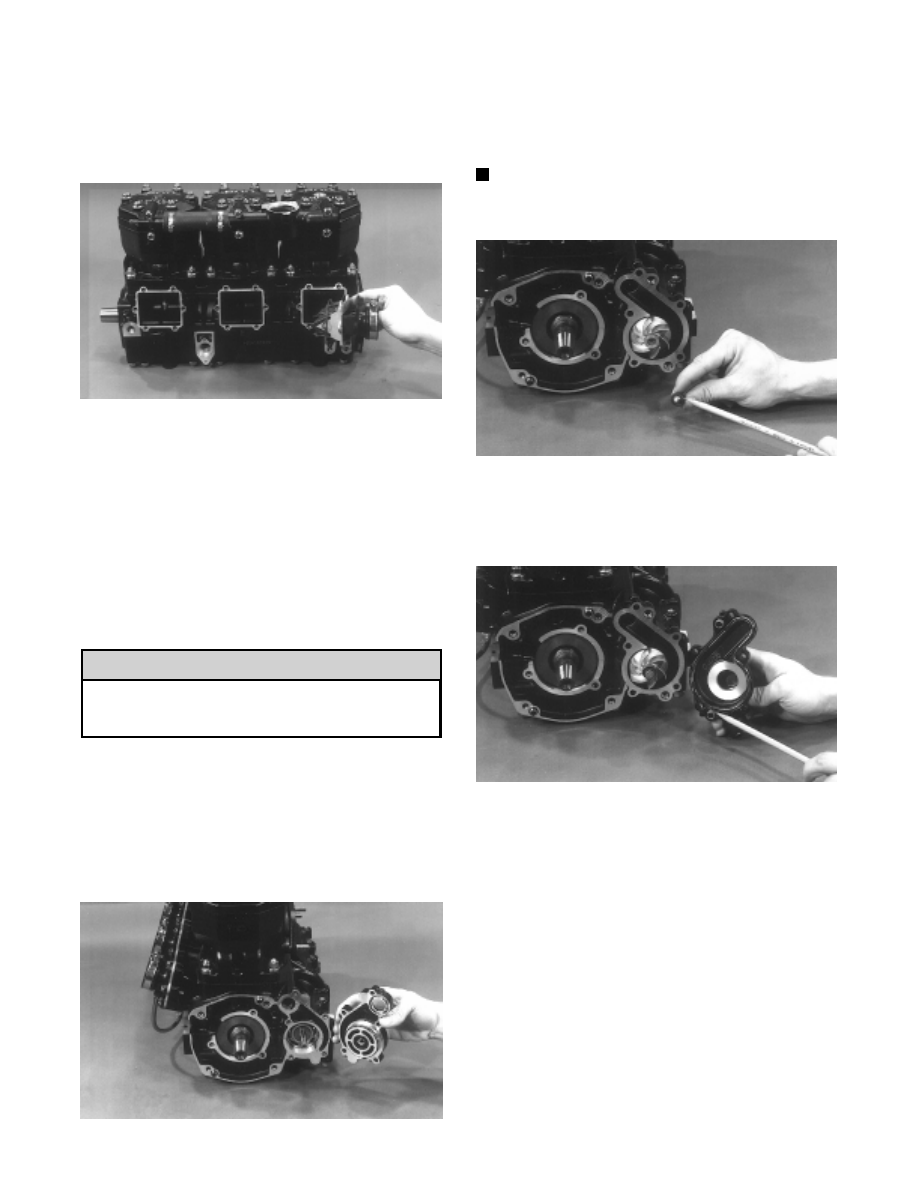

23. In turn for each cylinder, install the gasket, reed assembly, and carburetor flange to the crankcase; Fig. 2-417 AQ066 24. Place the thrust washer on the outward end of the oil-injection pump driveshaft. Lubricate the shaft 25. Apply a light coat of oil to the shaft adapter; then install the O-ring and slide the adapter into position 26. Being careful to align the slot of the oil-injection pump shaft with the flat end of the oil-injection When installing the oil-injection pump, the pump 27. Place the PTO-end plate into position on the crankcase; then apply blue Loctite #242 to the four 28. Place the water pump housing into position on the crankcase. Make sure the two O-ring seals on the Fig. 2-418 AQ068 29. Install the water pump impeller. Apply blue Loctite #242 to the threads of the impeller cap screw; then NOTE: The rubber side of the washer must be toward the impeller. Fig. 2-419 AQ069 30. Install the alignment pins in the water pump cover and apply a low-temperature grease to the cover Fig. 2-420 AQ070 31. Place the water pump cover into position and secure. 32. Install the stator plate with the notch for the wiring harness in the 10 o’clock position; then secure. 33. Install the stator; then route the wiring harness through the stator plate and crankcase housing and 34. Apply blue Loctite #242 to the threads of the three Allen-head cap screws and secure the stator to the ! CAUTION 2-96 |
