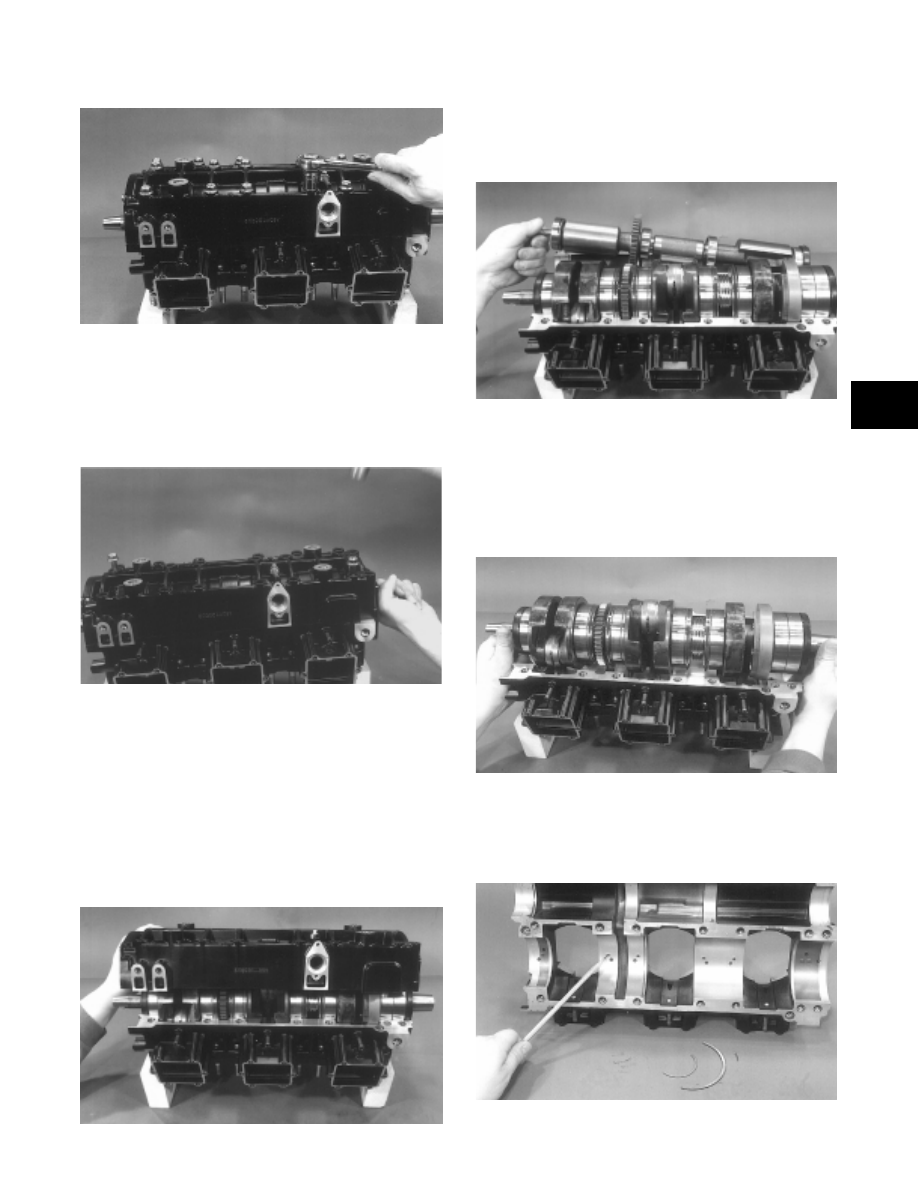

Fig. 2-187 AQ035 30. To separate the crankcase halves, start two of the crankcase cap screws into the crankcase at opposite Fig. 2-188 AQ036 31. Set the crankcase on its side with the flat reed surfaces resting on the work bench. Using a plastic 32. Once there is a 6.4 mm (1/4 in.) space between the two case halves, set the crankcase down on the work Fig. 2-189 AQ037 33. Remove the balancer shaft from the crankcase. Notice that it has a timing mark located on the side Fig. 2-190 AQ038 34. Remove the balancer shaft end seals from the crankcase. 35. Grasp the crankshaft at either end and carefully lift it from the crankcase. Have a clean area ready to lay Fig. 2-191 AQ039 36. With the crankshaft removed from the top half of the crankcase, remove the seven bearing dowel pins Fig. 2-192 AQ040 2 2-43 |
