TRACK TENSION ADJUSTMENT

1. Loosen the rear idler shaft bolt.

2. Tighten or loosen the track adjusting screws to provide equal adjustment on

both sides of the track.

3. Repeat the measurement on the other side of the track.

TIP

Check tension more frequently when the machine is new.

WARNING

When performing the following checks and adjustments, stay clear of all

moving parts to avoid serious personal injury. Make sure the track contains no

objects that could be thrown out while the track is rotating. Keep clear of track.

This includes but is not limited to hands, tools, feet and clothing. Make sure no

one is standing close to the machine while the track is rotating.

4. Start the engine and slowly rotate the track at least five revolutions. Allow the

track to stop rotating by itself (do not apply brakes).

5. Check and adjust track alignment. See page 65.

6. Tighten the idler shaft bolt to specified torque.

TORQUE

Idler Shaft Bolt

35-40 ft-lbs (47-54 N·m)

7. Readjust the toe block to proper spacing and tighten.

TRACK ALIGNMENT

Check track alignment at the intervals outlined in the periodic maintenance chart
beginning on page 51. Make sure the track is centered and running evenly on
the slide rails. Misalignment will cause excessive wear to the track and slide rail.

WARNING

When performing the following checks and adjustments, stay clear of all

moving parts to avoid serious personal injury. Make sure the track contains no

objects that could be thrown out while the track is rotating. Keep clear of track.

This includes but is not limited to hands, tools, feet and clothing. Make sure no

one is standing close to the machine while the track is rotating.

65

MAINTENANCE

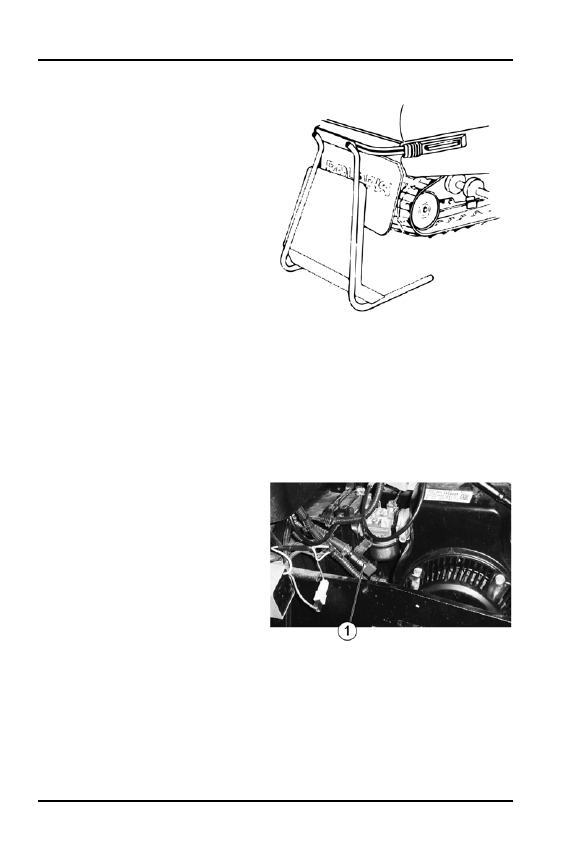

1. Support the rear of the snowmobile slightly off the ground with an appropriate

snowmobile support.

2. Start the engine and apply a small amount of throttle until the track turns

slowly

at least five complete revolutions. Stop the engine.

3. Inspect track alignment by looking through the track windows to make sure

the rails

q

are evenly spaced in the slider

w

on each side. If the track runs

to the left, loosen the left idler wheel mounting bolt and tighten the left track
adjusting bolt. If the track runs to the right, loosen the right idler wheel
mounting bolt and tighten the right track adjusting bolt.

q

Track Rail

w

Rail Slider

66

MAINTENANCE

4. After adjustments are complete, tighten the locknuts and idler shaft bolts.

TORQUE

Locknuts and Idler Shaft Bolts

35-40 ft-lbs (47-54 N·m)

5. Repeat step 2 to verify proper alignment.

TRACK WARM UP

After storing your snowmobile outside overnight, warm up the track before
driving the snowmobile. This reduces drive clutch wear.

1. Support the rear of the snowmobile slightly off the ground with an appropriate

snowmobile support.

WARNING

Never hold the snowmobile up or stand behind it while rotating the track. A

loose track or flying debris could cause serious personal injury or death.

2. Start the engine.

3. Abruptly engage the clutch, allowing the track to turn for several revolutions.

4. Release the throttle and apply the brakes.

5. Stop the engine.

6. Lower the rear of the snowmobile to the ground while the engine is off.

67

MAINTENANCE

TRACK INSPECTION

WARNING

Inspecting the track while the engine is running can result in serious personal

injury if the track should being to move. Never inspect the track with the engine

running. Never hold the snowmobile up or stand behind it while rotating the

track. A loose track or flying debris could cause serious personal injury or

death.

Check track condition at the intervals outlined in the periodic maintenance chart
beginning on page 51.

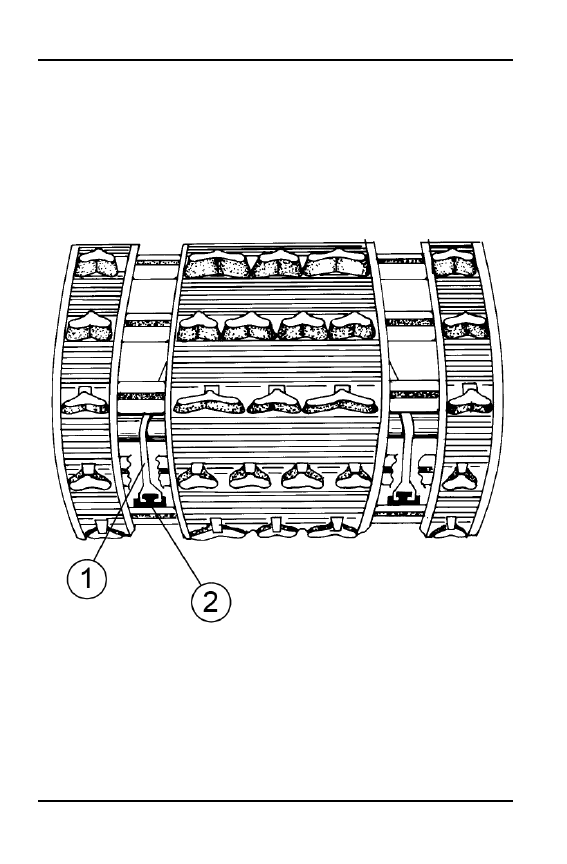

q

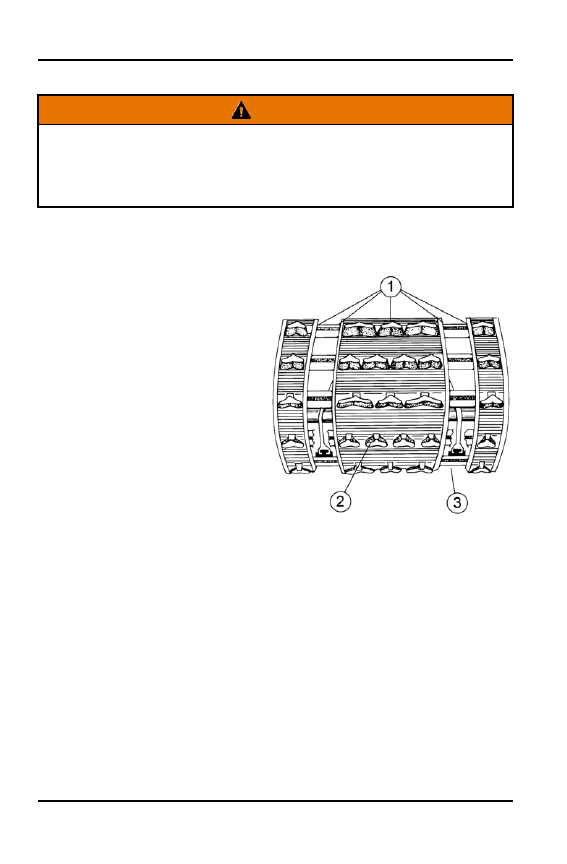

Common Breakage Areas

w

Lug

e

Track Window

1. Support the rear of the snowmobile slightly off the ground with an appropriate

snowmobile support.

2. Rotate the track by hand to check for wear or damage.

68

MAINTENANCE

3. Carefully examine the track along the entire length of each track rod, bending

the track and inspecting for breakage.

NOTICE

The three most common places where breakage occurs are shown in the

illustration

q

.

4. Check the track clips and tighten any loose clips. If any rod damage is found,

install a new track.

NOTICE

This snowmobile track has molded-in track clips. It is common for a thin layer

of rubber to detach from the clip area and peel off during initial use.

SLIDER REPLACEMENT

POLARIS rail slides have a wear limit
indicator groove to indicate the
minimum permissible slide thickness

q

. Replace the rail slides if they are

worn to the top of the groove

w

at any

point along their length. Failure to do
so may result in permanent damage to
the track or rails.

STEERING SYSTEM

The steering systems on POLARIS snowmobiles can be adjusted with ski toe
alignment. Improper toe alignment can cause erratic steering. Your dealer can
assist with adjustments.

WARNING

Improper alignment or adjustment may cause loss of steering control, resulting

in serious injury or death. Do not attempt to change the ski alignment. Your

POLARIS dealer can assist.

69

MAINTENANCE

STEERING INSPECTION

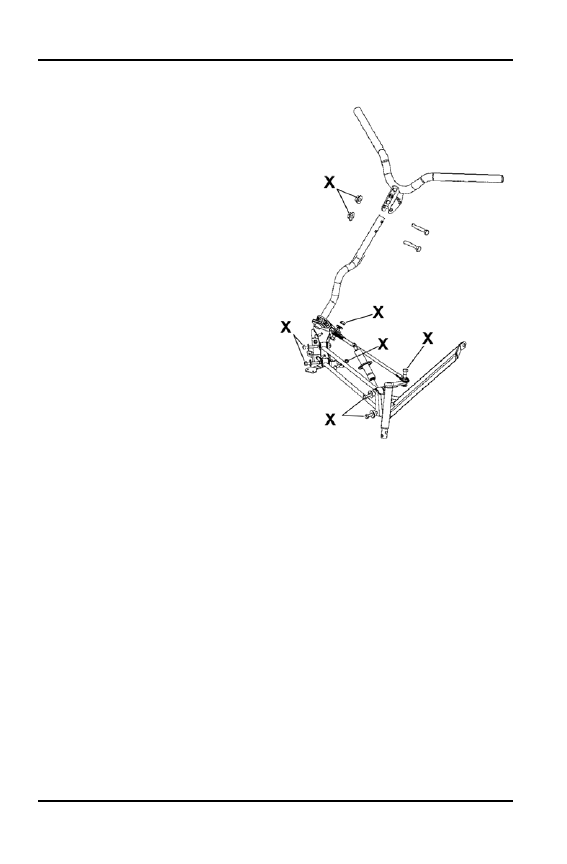

Each week, or before a long ride,
check all steering system fasteners.
Tighten any loose fasteners. See the
illustration for fastener locations.

70

MAINTENANCE

STEERING ADJUSTMENT

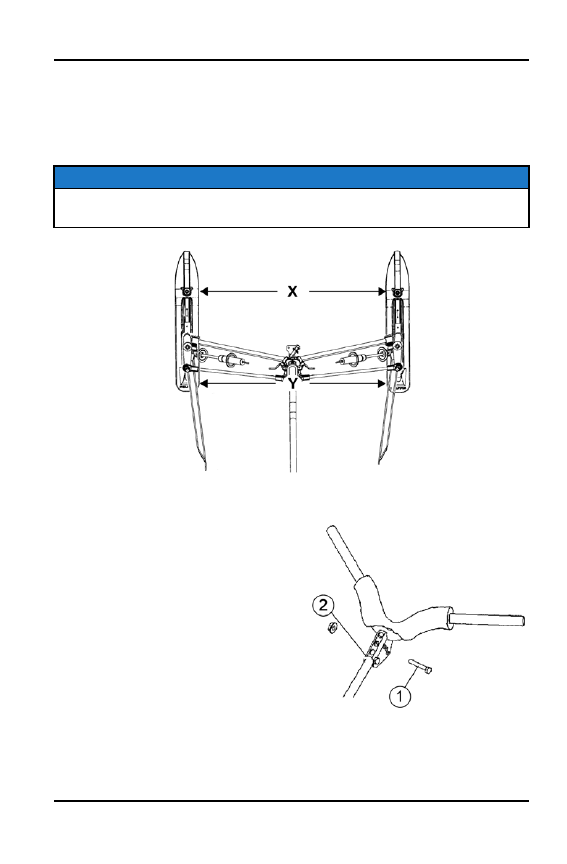

With the handlebars in a straight ahead position, and with vehicle weight
compressing the suspension, measure from the straight edge of the skis at the
center of the ski mounting bolt. The measurement between the skis at point X
should be 1/8” (3 mm) greater than the measurement at point Y.

TIP

If the skis are misaligned, we recommend that your dealer make the necessary

adjustments.

HANDLEBAR ADJUSTMENT

1. Slide the handlebar pad upward to

access the adjuster bolts. If
additional room is required, unzip
one of the handlebar pad zippers
and roll the pad to the side.

2. Remove the upper flange nut and

carriage bolt

q

.

3. Loosen the lower flange nut

w

only

enough so the bracket can move
freely.

71

MAINTENANCE

4. Position the handlebar to the desired height.

5. Reinstall the upper carriage bolt and tighten flange nut to specified torque.

TORQUE

Flange Nuts

15–17 ft-lbs (20–23 N·m)

6. Reinstall the handlebar pad.

SKI SKAGS

The skag

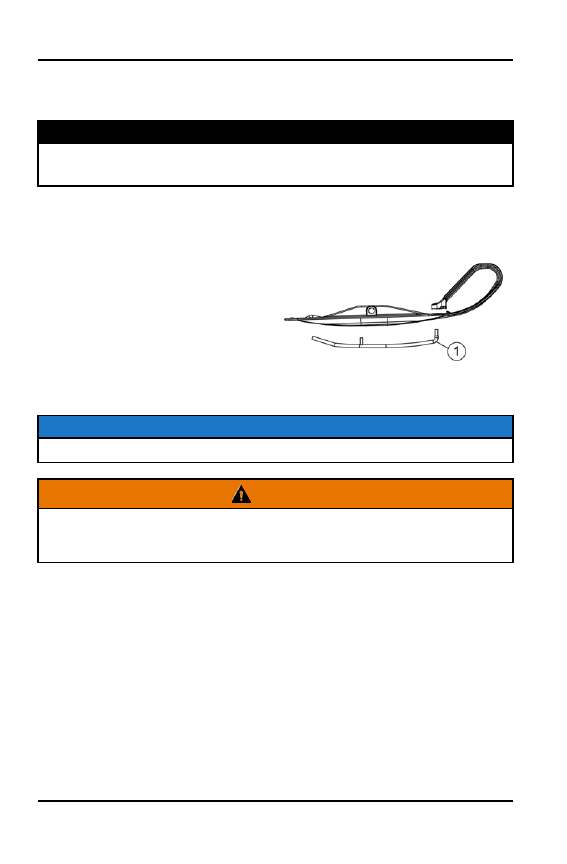

q

is a replaceable bar

attached to the underside of the ski.
The purpose of the skag is to assist in
turning the snowmobile and to prevent
the wearing away of the ski caused by
contact with roads and other bare
terrain.

Check skags weekly to maintain positive steering characteristics. Replace skags
when they are worn to half their original diameter.

TIP

See the dealer track studding and skag chart for recommended skags.

WARNING

Worn skis and/or skags will adversely affect handling and can cause loss of

vehicle control, which can lead to serious injury or death. Replace worn skis

and/or skags when inspection reveals wear.

SKAG REPLACEMENT

1. Raise and support the front of the machine so the skis are approximately 6"

(15 cm) off the ground.

2. Remove the attaching nuts and pry the skag downward.

3. Remove the forward portion of the skag.

4. Reverse this procedure for new skag installation.

72

MAINTENANCE

LUBRICATION RECOMMENDATIONS

Inspect and lubricate all greaseable components at the intervals outlined in the
Periodic Maintenance Chart beginning on page 51.

TRACK LUBRICATION

Track failure, loss of vehicle control and braking ability can result from extended
use of this vehicle on surfaces providing marginal lubrication between the slider
and track guide clips. Examples of marginal lubrication would include lakes
without snow cover, icy trails and no-snow conditions.

The slide rail is designed to operate in conditions with adequate snow cover in
order to provide sufficient lubrication. Excessive wear indicates insufficient
lubrication. A new slider can cause faster heat build up in limited lubrication than
a used slider, resulting in excessive wear.

TIP

Track damage or failure caused by operation on ice or poor lubrication

conditions may void the track warranty.

73

MAINTENANCE

SUSPENSION LUBRICATION

To maintain rider comfort and to retard wear of the pivot shafts, lubricate the
suspension pivot shafts with POLARIS Premium All Season Grease several
times during the season and again before summer storage each year. Lack of
lubrication will result in reduced performance and a less comfortable riding
experience.

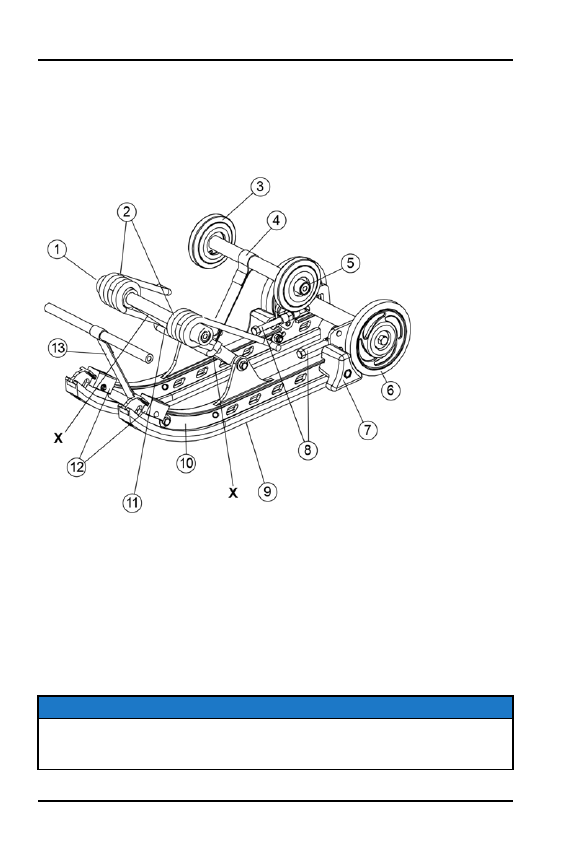

q

Torsion Spring Sleeve

w

Torsion Springs

e

Carrier Wheel

r

Rear Limiter Strap

t

Spacer

y

Idler Wheel

u

Toe Guard

i

Adjuster Bolts

o

Slider

a

Rail

s

Torque Arm

d

Rail Bumper

f

Front Limiter Strap

TIP

The X’s in the above illustration indicate lubrication points. A grease gun kit

complete with grease and adaptors is available to lubricate all fittings on

POLARIS snowmobiles.

74

MAINTENANCE

IMPORTANT

Make it a weekly practice to check for loose bolts and nuts on the suspension

system. If any loose bolts are found on the rail be sure to clean the threads and

apply LOCTITE® 262 before tightening.

CONTROLS AND LINKAGE

Lubricate all bushings and tie rod ends with a light coat of oil or grease. Remove
the spindle shafts and lubricate the bushings on the top and bottom of the
trailing arm.

Lubricate throttle and brake controls and cables with POLARIS Premium All
Season Grease. Force a small amount of lubricant down the cable. See page
57.

BEARINGS

Always grease drive shaft clutch side bearings with a high quality bearing
grease to prevent corrosion, which will destroy the bearings.

ELECTRICAL CONNECTIONS

Separate the electrical connector blocks and clean corrosive build-up from the
connectors. Lubricate the blocks with dielectric grease and re-connect. Replace
worn or frayed electrical wire and connectors. Be sure wiring harnesses are
properly secured away from sharp edges, steering linkage, moving parts, and
hot exhaust components.

WASHING THE VEHICLE

Keeping your POLARIS vehicle clean will not only improve its appearance but it
can also extend the life of various components.

NOTICE

High water pressure may damage components. POLARIS recommends

washing the vehicle by hand or with a garden hose, using mild soap.

The best and safest way to clean your POLARIS vehicle is with a garden hose
and a pail of mild soap and water.

1. Use a professional-type washing cloth, cleaning the upper body first and the

lower parts last.

2. Rinse with clean water frequently.

3. Dry surfaces with a chamois to prevent water spots.

75

MAINTENANCE

WASHING TIPS

• Avoid the use of harsh cleaners, which can scratch the finish.
• Do not use a power washer to clean the vehicle.

TIP

If a high pressure car wash is used (not recommended), grease all zerk fittings

immediately after washing. Remove the spindle shafts and lubricate the

bushings on the top and bottom of the trailing arm. Also run the vehicle to

evaporate any water that might have entered the engine or exhaust system.

• Do not use medium to heavy duty compounds on the finish.
• Always use clean cloths and pads for cleaning and polishing. Old or reused

cloths and pads may contain dirt particles that will scratch the finish.

• If any label becomes illegible or comes off, contact your POLARIS dealer to

purchase a replacement. Replacement

safety

labels are provided by

POLARIS at no charge

WAXING THE VEHICLE

Your snowmobile can be waxed with any high quality brand of automotive paste
wax. Avoid the use of harsh cleaners since they can scratch the body finish.

STORAGE

Off season or extended storage of your snowmobile requires preventive
measures to aid against deterioration and to prolong the useful life of many
components.

FOG THE ENGINE

1. Treat the fuel system with POLARIS Carbon Clean. See page 77.

2. Support the front end of the machine so the engine is level or tilted slightly

rearward.

3. Turn the fuel valve off.

4. Remove the spark plug.

5. Spray fogging oil into the cylinder.

6. Slowly pull the recoil starter to turn the engine over two or three times.

7. Reinstall the spark plug.

8. Rotate the piston to bottom dead center (BDC) and

9. Slowly pull the recoil starter handle until resistance is felt. Leave it in that

position.

10. Clean the engine thoroughly with an oiled cloth.

76

MAINTENANCE

Polaris Fogging Oil

(12 oz aerosol can)

Part Number: 2870791

NOTICE

If POLARIS fuel system additive is not used, the fuel tank, fuel lines, and

carburetor should be completely drained of gasoline. Observe all fire safety

rules when draining the carburetor. Review the fuel-related warnings on page

44. To eliminate any fuel remaining in the carburetor, run the engine until it

stops.

STABILIZE THE FUEL

Proper off-season preparation of the engine and fuel system is vital to the
prevention of rust and corrosion formation on precision engine parts during
storage.

1. Fill the fuel tank with fresh fuel.

2. Add POLARIS Carbon Clean Fuel Treatment or POLARIS Fuel Stabilizer.

Follow the instructions on the container for the recommended amount.

TIP

Carbon Clean removes water from fuel systems, stabilizes fuel and removes

carbon deposits from pistons, rings, valves and exhaust systems.

3. Start the engine. Allow it to idle for five minutes to disperse additives through

the entire fuel system.

4. Turn the fuel valve off.

77

MAINTENANCE

TRACK AND SUSPENSION

Support the rear of the snowmobile
slightly off the ground with an
appropriate snowmobile support. This
will allow the track to hang freely.
Elevate the front end of the machine
and place blocks securely under it to
remove tension from the shocks and
springs. This will minimize fatigue on
the front shocks and springs.

STORAGE AREA

Your snowmobile should be stored in a dry garage or shed, out of direct sunlight.
It should be covered with a fabric snowmobile cover. Plastic covers can cause
condensation to form and may damage some snowmobile components.

TRANSPORTING THE SNOWMOBILE

Whenever the snowmobile is transported the following measures should be
taken:

1. Turn the fuel valve

q

off. The

fuel valve is located under the
hood.

2. Be sure the fuel cap is installed

correctly.

3. Always tie the snowmobile to the

transporting unit securely using
suitable straps.

FALL TUNE-UP

For maximum performance, your POLARIS dealer can perform a fall service
tune-up. Their experienced and trained service technicians will keep your
snowmobile in peak operating condition.

78

MAINTENANCE

TOWING

Do not pull or tow any person or object behind this snowmobile. If a disabled
snowmobile must be towed by another snowmobile, attach the tow rope to the
spindles of the disabled snowmobile, not to the ski toe loops.

EMERGENCY PREPARATION

For your added protection, carry the following items in your snowmobile when
traveling farther than a five-minute walk from home.

• Extra Spark Plugs
• First Aid Kit
• Winter Survival Kit
• Extra Gloves
• Owner's Manual

79

MAINTENANCE

80

TROUBLESHOOTING

ENGINE TURNS OVER, FAILS TO START

If you're unable to identify solutions using the following chart, we recommend
contacting your dealer for assistance.

POSSIBLE CAUSE

SOLUTION

Tether switch not engaged

Install tether switch/strap

Engine stop switch not on

Pull stop switch up to RUN position

Throttle safety switch malfunction

Your dealer can perform this service.

Out of fuel

Refuel

Clogged fuel valve or filter

Inspect and clean or replace

Water is present in fuel

Drain the fuel system and refuel

Fuel valve is off

Turn the fuel valve on

Old or non-recommended fuel

Replace with new fuel

Fouled or defective spark plug(s)

Inspect plug(s), replace if necessary

No spark to spark plug

Inspect plug(s), verify stop switch is on

Overuse of choke

Inspect, clean and/or replace spark
plugs

Mechanical failure

Your dealer can perform this service.

81

TROUBLESHOOTING

82

SPECIFICATIONS

120 INDY

CAPACITIES AND DIMENSIONS

Body Style

Mini Indy

Engine Oil Capacity

20 fl oz (591.5 mL)

Drive Clutch Type

Centrifugal

Driven Clutch Type

Sprocket

Drive Chain

#40DLX74

Reverse Transmission

N/A

ENGINE AND COOLING

Engine Model Number

EH122PM001J

Alternator Output

50w @ 3600 RPM

Bore x Stroke

(60 x 43 mm)

Displacement

121 cc

Carburetor / Throttle Body

1-Mikuni® Tamperproofed

Carburetor Model

BV18

Idle RPM +/- 100

1650

Rated Operating RPM

3600

Main Jet

70

Pilot Jet

50

Jet Needle

N/A

Needle Jet

N/A

Cutaway

170 Throttle Valve

Throttle Gap Under CA

N/A

Fuel Screw (from fully seated

1.75 Turns

Pilot Air Jet

(1.3 mm)

Cooling

Air

Cylinders

1

83

SPECIFICATIONS

Ignition Timing °BTDC @ RPM

23° BTDC @ 3600 RPM

Ignition Type

Flywheel Magneto (solid state)

Spark Plug

NGK® BR6ES

Spark Plug Gap

.028 in (.70 mm)

Recommended Engine Oil

PS-4 or PS-4 Plus

Recommended Fuel Octane

Minimum 87 octane non-oxygenated or 89
octane oxygenated

FEATURES

Electric Fuel Gauge

N/A

Low Oil Light

N/A

Parking Brake

N/A

Speedometer

N/A

Tachometer

N/A

84

SPECIFICATIONS

CARBURETOR JETTING

120 INDY

*SHADED CELLS INDICATE FACTORY SETTINGS

ALTI-

TUDE

METERS

(FEET)

AMBIENT TEMPERATURE

°F

BE-

LOW

-25

-30

TO -

10

-15

TO +5

0 TO

+20

+35

+50

+45

TO

+65

ABO-

VE

+60

°C

BE-

LOW

- 31

-34

TO -

23

-26

TO -

15

-18

TO -

7

-9 TO

+2

-1 TO

+10

+7

TO

+18

ABO-

VE

+16

0-600

(0-2000)

Main Jet

72.5

72.5

70

70

70

67.5

67.5

67.5

Pilot Jet

55

55

50

50

50

50

45

45

Clip

Position

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

600-1200

(2000-40-

00)

Main Jet

70

70

70

67.5

67.5

67.5

65

65

Pilot Jet

50

50

50

50

50

50

45

45

Clip

Position

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

1200-18-

00

(4000-60-

00)

Main Jet

67.5

67.5

67.5

65

65

65

62.5

62.5

Pilot Jet

50

50

50

50

50

45

45

45

Clip

Position

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

1800-24-

00

(6000-80-

00)

Main Jet

65

65

65

65

65

62.5

62.5

60

Pilot Jet

50

50

50

50

45

45

45

45

Clip

Position

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

2400-30-

00 (8000-

10000)

Main Jet

65

65

62.5

62.5

60

60

60

60

Pilot Jet

50

50

50

45

45

45

45

45

Clip

Position

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

85

SPECIFICATIONS

120 INDY

*SHADED CELLS INDICATE FACTORY SETTINGS

ALTI-

TUDE

METERS

(FEET)

AMBIENT TEMPERATURE

°F

BE-

LOW

-25

-30

TO -

10

-15

TO +5

0 TO

+20

+35

+50

+45

TO

+65

ABO-

VE

+60

°C

BE-

LOW

- 31

-34

TO -

23

-26

TO -

15

-18

TO -

7

-9 TO

+2

-1 TO

+10

+7

TO

+18

ABO-

VE

+16

3000-37-

00

(10000-

12000)

Main Jet

62.5

62.5

60

60

60

57.5

57.5

57.5

Pilot Jet

50

50

45

45

45

45

45

45

Clip

Position

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

The carburetor jetting chart above is consistent with the provisions of U.S.A. federal regulation 40

CFR 1051.115(d)(3) and is an acceptable alternative to the use of tamper-resistant features.

86

SPECIFICATIONS

CLUTCHING

120 INDY

ALTITUDE

Meters

(Feet)

Drive Clutch
Shift Weight

Drive Clutch

Spring

Driven
Clutch
Spring

Driven Helix

Chaincase

Gearing/

Pitch

*Shaded cells indicate factory settings

0-600

(0-2000)

N/A

GREEN

(120 PRO X)

(7042118)

N/A

N/A

10:42

74P #40

600-1200

(2000-4000)

1200-1800

(4000-6000)

1800-2400

(6000-8000)

2400-3000

(8000-10000)

3000-3600

(10000-1200-

0)

87

SPECIFICATIONS

88

POLARIS PRODUCTS

POLARIS PRODUCTS

PART NO.

DESCRIPTION

Engine Lubricants

2870791

Fogging Oil (Aerosol)

2882201

Oil - Polaris Blue SYN qt. (12)

2882202

Oil - Polaris Blue SYN gal. (6)

2882204

Oil - Polaris Blue SYN 2.5 gal. (2)

2876244

Oil - Polaris Performance Synthetic 4 - Stroke (PS - 4 or PS - 4
Plus)

Gearcase/Transmission Lubricants

2873105

SCL - Synthetic Chaincase Lubricant qt. (.95 l)

2873106

SCL - Synthetic Chaincase Lubricant gal (3.8 l)

Grease/Specialized Lubricants

2871312

Grease Gun Kit, All Season (3 oz./89 ml)

2871322

All Season Grease (3 oz./89 ml cartridge)

2871423

All Season Grease (14 oz./414 ml cartridge)

2871329

Dielectric Grease (Nyogel®)

Additives/Miscellaneous

2871326

Carbon Clean

2870652

Fuel Stabilizer

2872893

Engine Degreaser

2870505

Isopropyl

2878018

Shock Thread Spray Lubricant

89

POLARIS PRODUCTS

90

WARRANTY

SERVICE AND WARRANTY INFORMATION

OBTAINING SERVICE AND WARRANTY
ASSISTANCE

Read and understand the service data and the POLARIS warranty information
contained in this manual. Contact your POLARIS dealer for replacement parts,
service or warranty. Your dealer receives frequent updates on changes,
modifications and tips on snowmobile maintenance, which may supersede
information contained in this manual. Your dealer is also familiar with POLARIS
policies and procedures and will be happy to assist you.

When contacting us about parts, service, or warranty, always provide the
following information:

1. Serial number

2. Model number

3. Dealer name

4. Date of purchase

5. Details of trouble experienced

6. Length of time and conditions of operation

7. Previous correspondence

Use the page provided near the front of your owner’s manual to record the
identification numbers of your snowmobile and its engine.

POLARIS CUSTOMER SERVICE

United States & Canada: 1-800-POLARIS (1-800-765-2747)

French: 1-800-268-6334

91

WARRANTY

LIMITED WARRANTY

POLARIS, Inc., 2100 Highway 55, Medina, MN 55340 (POLARIS) gives a 12
MONTH LIMITED WARRANTY on all components of your POLARIS vehicle
against defects in material or workmanship. This warranty covers parts and
labor charges for repair or replacement of defective parts and begins on the date
of purchase by the original retail purchaser. This warranty is transferable to
another owner during the warranty period through a POLARIS dealer, but any
such transfer will not extend the original term of the warranty. The duration of
this warranty may vary by international region based upon local laws and
regulations.

THIS WARRANTY MAY BE VOIDED BY ANY UNAPPROVED
MODIFICATIONS TO THIS VEHICLE THAT AFFECT POWERTRAIN,
EXHAUST, CHASSIS OR SUSPENSION.

Promotional warranties are sometimes offered by POLARIS, including but not
limited to:

• Two-year extended engine coverage
• Two-year powertrain coverage
• Extended service contract

See your dealer for details and separate terms and conditions for any
promotional warranties.

REGISTRATION

At the time of sale, the Warranty Registration Form must be completed by your
dealer and submitted to POLARIS within ten days of purchase. Upon receipt of
this registration, POLARIS will record the registration for warranty. No
verification of registration will be sent to the purchaser as the copy of the
Warranty Registration Form will be your proof of warranty coverage. If you have
not signed the original registration and received the customer copy, please
contact your dealer immediately. NO WARRANTY COVERAGE WILL BE
ALLOWED UNLESS YOUR VEHICLE IS REGISTERED WITH POLARIS. Initial
dealer preparation and set-up of your vehicle is very important in ensuring
trouble-free operation. Purchasing a machine in the crate or without proper
dealer set-up will void your warranty coverage.

92

WARRANTY

WARRANTY COVERAGE AND EXCLUSIONS

LIMITATIONS OF WARRANTIES AND REMEDIES

This POLARIS Limited Warranty excludes any failures that are not caused by a
defect in material or workmanship. THIS WARRANTY DOES NOT COVER
CLAIMS OF DEFECTIVE DESIGN. This warranty also does not cover acts of
God, accidental damage, normal wear and tear, abuse or improper handling.
This warranty also does not cover any vehicle, component or part that has been
altered structurally, modified, neglected, improperly maintained or used for
racing, competition or purposes other than for which it was designed.

This warranty also excludes failures resulting from improper lubrication;
improper engine timing; improper fuel; surface imperfections caused by external
stress, heat, cold or contamination; operator error or abuse; improper
component alignment, tension, adjustment or altitude compensation; failure due
to snow, water, dirt or other foreign substance ingestion/contamination; improper
maintenance; modified components; use of aftermarket components;
unauthorized repairs; repairs made after the warranty period expires or by an
unauthorized repair center; use of the product in competition or for commercial
purposes. Warranty will not apply to any product which has been damaged by
abuse, accident, fire or any other casualty not determined a defect of materials
or workmanship.

This warranty excludes damages or failures caused by abuse, accident, fire or
any other cause other than a defect in materials or workmanship and provides
no coverage for consumable components, general wear items or any parts
exposed to friction surfaces, stresses, environmental conditions and/or
contamination for which they were not designed or not intended, including but
not limited to the following items:

Skis
Tracks
Suspension components
Brake components
Seat components
Clutches and components
Steering components
Batteries
Light bulbs/Sealed beam lamps
Idler wheels
Sealants
Coolant
Fuel

Ski wear rods
Slide rails
Finished and unfinished surfaces
Carburetor/Throttle body components
Engine components
Drive belts
Hydraulic components
Circuit breakers/Fuses
Electronic components
Spark Plugs
Lubricants
Filters

93

WARRANTY

HOW TO OBTAIN WARRANTY SERVICE

If your vehicle requires warranty service, you must take it to a POLARIS
Servicing Dealer. When requesting warranty service you must present your copy
of the Warranty Registration Form to the dealer. (THE COST OF
TRANSPORTATION TO AND FROM THE DEALER IS YOUR
RESPONSIBILITY.) POLARIS suggests that you use your original selling dealer;
however, you may use any POLARIS Servicing Dealer to perform warranty
service.

IN THE COUNTRY WHERE YOUR PRODUCT WAS
PURCHASED:

Warranty or service bulletin repairs must be done by an authorized POLARIS
dealer. If you move or are traveling within the country where your product was
purchased, warranty and service bulletin repairs may be requested from any
authorized POLARIS dealer that sells the same line as your product.

OUTSIDE THE COUNTRY WHERE YOUR PRODUCT
WAS PURCHASED:

If you are traveling temporarily outside the country where your product was
purchased, you should take your product to an authorized POLARIS dealer. You
must show the dealer photo identification from the country of the selling dealer’s
authorized location as proof of residence. Upon residence verification, the
servicing dealer will be authorized to perform the warranty repair.

IF YOU MOVE:

If you move to another country, be sure to contact POLARIS Customer
Assistance and the customs department of the destination country before you
move. Product importation rules vary considerably from country to country. You
may be required to present documentation of your move to POLARIS in order to
continue your warranty coverage. You may also be required to obtain
documentation from POLARIS in order to register your product in your new
country. You should warranty register your product at a local POLARIS dealer in
your new country immediately after you move to continue your warranty
coverage and to ensure that you receive information and notices regarding your
vehicle.

IF YOU PURCHASE FROM A PRIVATE PARTY:

If you purchase a POLARIS product from a private party, to be kept and used
outside of the country in which the product was originally purchased, all warranty
coverage will be denied. You must nonetheless register your product under your
name and address with a local POLARIS dealer in your country to ensure that
you receive safety information and notices regarding your product.

94

WARRANTY

EXPORTED PRODUCTS

EXCEPT WHERE SPECIFICALLY REQUIRED BY LAW, THERE IS NO
WARRANTY OR SERVICE BULLETIN COVERAGE ON THIS PRODUCT IF IT
IS SOLD OUTSIDE THE COUNTRY OF THE SELLING DEALER’S
AUTHORIZED LOCATION. This policy does not apply to products that have
received authorization for export from POLARIS. Dealers may not give
authorization for export. You should consult an authorized dealer to determine
this product’s warranty or service coverage if you have any questions. This
policy does not apply to products registered to government officials or military
personnel on assignment outside the country of the selling dealer’s authorized
location. This policy does not apply to safety bulletins.

NOTICE

If your product is registered outside of the country where it was purchased and
you have not followed the procedure set above, your product will no longer be
eligible for warranty or service bulletin coverage of any kind, other than safety
bulletins. Products registered to Government officials or military personnel on
assignment outside of the country where the product was purchased will
continue to be covered by the Limited Warranty.

Please work with your dealer to resolve any warranty issues. Should your dealer
require any additional assistance, they will contact the appropriate person at
POLARIS.

This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state or in different countries. If any of the above terms
are void because of federal, state, local law, all other warranty terms will remain
in effect.

For questions call POLARIS Customer Assistance:

United States & Canada: 1-800-POLARIS (1-800-765-2747)

French: 1-800-268-6334

95

WARRANTY

U.S.A. EPA EMISSIONS LIMITED WARRANTY

This Emissions Limited Warranty is in addition to the POLARIS standard Limited
Warranty for your vehicle. POLARIS Inc. warrants that at the time it is first
purchased, this emissions-certified vehicle is designed, built and equipped so it
conforms with applicable U.S. Environmental Protection Agency emission
regulations. POLARIS warrants that the vehicle is free from defects in materials
and workmanship that would cause it to fail to meet these regulations.

The warranty period for this emissions-certified vehicle starts on the date the
vehicle is first purchased and continues for a period of 200 hours of engine
operation; 4,000 kilometers (2,485 miles) of vehicle travel; or 30 calendar
months from the date of purchase, whichever comes first.

This Emissions Limited Warranty covers components if their failure increases
the vehicle’s regulated emissions, and it covers components of systems if their
only purpose is to control emissions. Repairing or replacing other components
not covered by this warranty is the responsibility of the vehicle owner. This
Emissions Limited Warranty does not cover components if their failure does not
increase the vehicle’s regulated emissions.

For exhaust emissions, emission-related components include any engine parts
related to the following systems:

• Air-induction system
• Fuel system

• Ignition system
• Exhaust gas recirculation systems

The following parts are also considered emission-related components for
exhaust emissions:

• Aftertreatment devices
• Crankcase ventilation valves

• Sensors
• Electronic control units

96

WARRANTY

The following parts are considered emission-related components for evaporative
emissions:

• Fuel Tank
• Fuel Cap
• Fuel Line
• Fuel Line Fittings
• Clamps*
• Pressure Relief Valves*
• Control Valves*

Control Solenoids*

Electronic Controls*

• Vacuum Control Diaphragms*

Control Cables*

• Control Linkages*
• Purge Valves
• Vapor Hoses
• Liquid/Vapor Separator
• Carbon Canister
• Canister Mounting Brackets
• Carburetor Purge Port Connector

*As related to the evaporative emission control system.

The exclusive remedy for breach of this Limited Warranty shall be, at the
exclusive option of POLARIS, repair or replacement of any defective materials,
components or products. THE REMEDIES SET FORTH IN THIS LIMITED
WARRANTY ARE THE ONLY REMEDIES AVAILABLE TO ANY PERSON FOR
BREACH OF THIS WARRANTY. POLARIS SHALL HAVE NO LIABILITY TO
ANY PERSON FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL
DAMAGES OF ANY DESCRIPTION,WHETHER ARISING OUT OF EXPRESS
OR IMPLIED WARRANTY OR ANY OTHER CONTRACT, NEGLIGENCE OR
OTHER TORT OR OTHERWISE. THIS EXCLUSION OF CONSEQUENTIAL,
INCIDENTAL, AND SPECIAL DAMAGES IS INDEPENDENT FROM AND
SHALL SURVIVE ANY FINDING THAT THE EXCLUSIVE REMEDY FAILED OF
ITS ESSENTIAL PURPOSE.

ALL IMPLIED WARRANTIES (INCLUDING BUT NOT LIMITED TO ANY
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO THE WARRANTY
PERIOD DESCRIBED HEREIN. POLARIS DISCLAIMS ALL EXPRESS
WARRANTIES NOT STATED IN THIS WARRANTY. Some states do not allow
limitations on how long an implied warranty lasts, so the above limitation may
not apply if it is inconsistent with the controlling state law.

This Limited Warranty excludes failures not caused by a defect in material or
workmanship. This Limited Warranty does not cover damage due to accidents,
abuse or improper handling, maintenance or use. This Limited Warranty also
does not cover any engine that has been structurally altered, or when the vehicle
has been used in racing competition. This Limited Warranty also does not cover
physical damage, corrosion or defects caused by fire, explosions or other similar
causes beyond the control of POLARIS.

Owners are responsible for performing the scheduled maintenance identified in
the owner’s manual. POLARIS may deny warranty claims for failures that have
been caused by the owner’s or operator’s improper maintenance or use, by
accidents for which POLARIS has no responsibility, or by acts of God.

97

WARRANTY

Any qualified repair shop or person may maintain, replace, or repair the
emission control devices or systems on your vehicle. POLARIS recommends
that you contact an authorized POLARIS dealer to perform any service that may
be necessary for your vehicle. POLARIS also recommends that you use only
POLARIS parts. It is a potential violation of the Clean Air Act if a part supplied by
an aftermarket parts manufacturer reduces the effectiveness of the vehicle’s
emission controls. Tampering with emission controls is prohibited by federal law.

If you have any questions regarding your warranty rights and responsibilities,
please contact POLARIS Customer Assistance:

United States & Canada: 1-800-POLARIS (1-800-765-2747) or visit polaris.com.

French: 1-800-268-6334

98

WARRANTY

MAINTENANCE LOG

MAINTENANCE LOG

Present this section of your manual to your dealer each time your snowmobile is
serviced. This will provide you and future owners with an accurate log of
maintenance and services performed on the snowmobile.

DATE

HOURS

TECHNICIAN

SERVICE PERFORMED /

COMMENTS

50

100

150

99

MAINTENANCE LOG

DATE

HOURS

TECHNICIAN

SERVICE PERFORMED /

COMMENTS

100

MAINTENANCE LOG

DATE

HOURS

TECHNICIAN

SERVICE PERFORMED /

COMMENTS

101

MAINTENANCE LOG

DATE

HOURS

TECHNICIAN

SERVICE PERFORMED /

COMMENTS

102

MAINTENANCE LOG

A

Air Pollution.............................. 10

B

Brake Cable Adjustment ............. 56
Brake Lever......................... 21, 24
Brake Lever Travel..................... 55

C

Cable Lubrication ...................... 57
Carburetor ............................... 54
Chain Tensioner ........................ 58
Choke Knob ............................. 21
Choke Lubrication...................... 57
Component Identification............. 29

D

Daily Storage............................ 46
Disabled Operators .................... 34
Drive-Away from Parked ............. 38
Driveline Lubrication................... 60
Driving Downhill ........................ 40
Driving on Hills .......................... 40
Driving Responsibly ................... 38
Driving Uphill ............................ 40

E

Emergency Preparation .............. 79
Emergency Stopping

Procedures ............................. 46

Emission Control Label ............... 47
Emissions

Pollutants ............................. 47

Engine Break-In ........................ 43
Engine Stop Switch .................... 21
Environmental Protection ............ 10
Equipment Modifications ............. 13
Exhaust System ........................ 54
Exported Products ..................... 95

F

Fog the Engine ......................... 76
Fuel ........................................ 44
Fuel Lines ................................ 54
Fuel Valve ................................ 54

G

Gas Cap .................................. 22
Gas Level ................................ 25
General Warning Label ........... 16-17

H

Hand Signals ............................ 28
Handlebar ................................ 20
Handlebar Adjustment ................ 71
Headlight ................................. 20
Helmet ............................... 13, 34
Hidden Objects ......................... 15
Hood ...................................... 20
Hood Hold-Down Straps ........ 20, 24

I

Ice and Hard-Packed Surfaces ..... 39
Important Notes .......................... 9
Intake Silencer .......................... 33

K

Know Your Snowmobile ......... 19, 23

L

Limited Warranty ....................... 92
Lubrication

Bearings ............................... 75
Controls ............................... 75
Electrical Connections ............. 75
Linkage ................................ 75
Suspension ........................... 74
Track ................................... 73

103

INDEX

Lubrication Recommendations ..... 73

M

Maintenance Log....................... 99
Maintenance Program ................ 13

N

Noise ...................................... 10
Non-ionizing Radiation................ 47
Normal Plug ............................. 53
Notice ..................................... 95

O

Oil Change............................... 62
Oil Level ............................. 25, 61
Oil Recommendations ................ 61
Operation Warnings ............... 33-38

P

Performance Regulation ............. 45
Periodic Maintenance Chart ......... 51
Polaris Products ........................ 89
Pre-Ride Check.................... 24, 30

Brake ................................... 31
Owner’s Manual ..................... 31
Steering System..................... 32
Throttle ................................ 31
Throttle Safety Switch.............. 32
Track Inspection ..................... 32

Pre-Ride Warm-Up .................... 43

Q

Qualified Repair Services ............ 49

R

Recoil Starter Handle ................. 22

Recommended Maintenance ....... 49
Registration.............................. 92
Reporting Safety Defects

(Canada)................................ 18

Riding Apparel ................ 14, 27, 35
Riding Rules............................. 26

S

Safety Labels............................ 15
Safety Symbols ........................... 4
Seat and Storage ...................... 20
Seat Latches ............................ 24
Signal Words .............................. 4
Skag Replacement .................... 72
Ski Skags ................................ 72
Skis ........................................ 21
Slider Replacement.................... 69
Snow Conditions ....................... 39
Snow Flap................................ 21
Spark Plug Removal .................. 53
Spark Plug Replacement............. 53
Spark Plugs.............................. 53
Specifications ........................... 83
Speed Regulation ...................... 45
Stabilize the Fuel ....................... 77
Starting the Engine .................... 45
Steering Adjustment................... 71
Steering Inspection .................... 70
Steering System........................ 69
Stopping .................................. 25
Storage ................................... 76
Storage Area ............................ 78
Strap Switch ............................. 22

T

Taillight.................................... 20
Temperature Charts ................... 41
Tether Strap ............................. 22
Throttle Cable Lubrication ........... 57
Throttle Cable Pivot Slug............. 58
Throttle Lever ...................... 21, 24
Towing .................................... 79
Track ...................................... 21

Inspection ............................. 68

104

INDEX

Track Alignment ........................ 65
Track and Skis .......................... 25
Track and Suspension ................ 78
Track Lubrication ....................... 38
Track Tension ........................... 64
Track Tension Adjustment ........... 65
Track Warm Up ......................... 67
Transporting the Snowmobile ....... 78
Troubleshooting ........................ 81
Tune-Up .................................. 78

V

Vehicle Identification Numbers ..... 11

W

Warning Symbols ........................ 4
Washing the Vehicle................... 75
Waxing the Vehicle .................... 76
Welcome Page ........................... 3
Wet Fouled Plug........................ 54
Windchill Charts ........................ 41

105

INDEX

















Content      ..     1      2      3
