HAND/THUMB WARMERS

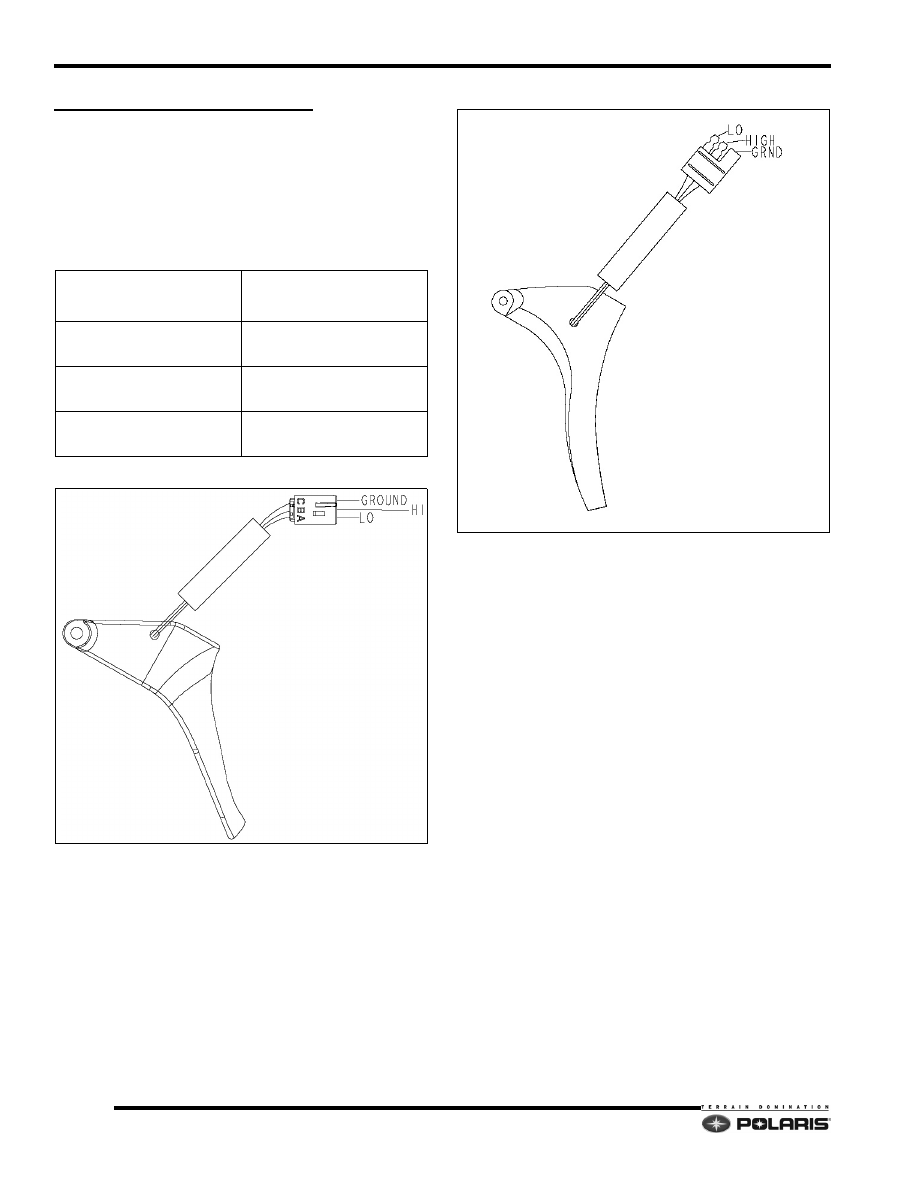

Thumb Warmer Diagnostics

The thumb warmer on all Polaris snowmobiles is a
thermistor-type warming element pad. This means its
resistance will change based on temperature.

Thumb Warmer Resistance Checks

CIRCUIT (Wire Color)

RESISTANCE @ ROOM

TEMP. (68 F / 20 C)

LOW (ORANGE/GRAY) to
GROUND (BROWN)

1  - 120

HIGH (WHITE/GRAY) to
GROUND (BROWN)

1  - 120

LOW or HIGH to CHASSIS
(SHORT)

O.L. (OPEN CIRCUIT)

PACKARD CONNECTOR

MOLEX CONNECTOR
