10.28

Battery and Electrical Systems

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

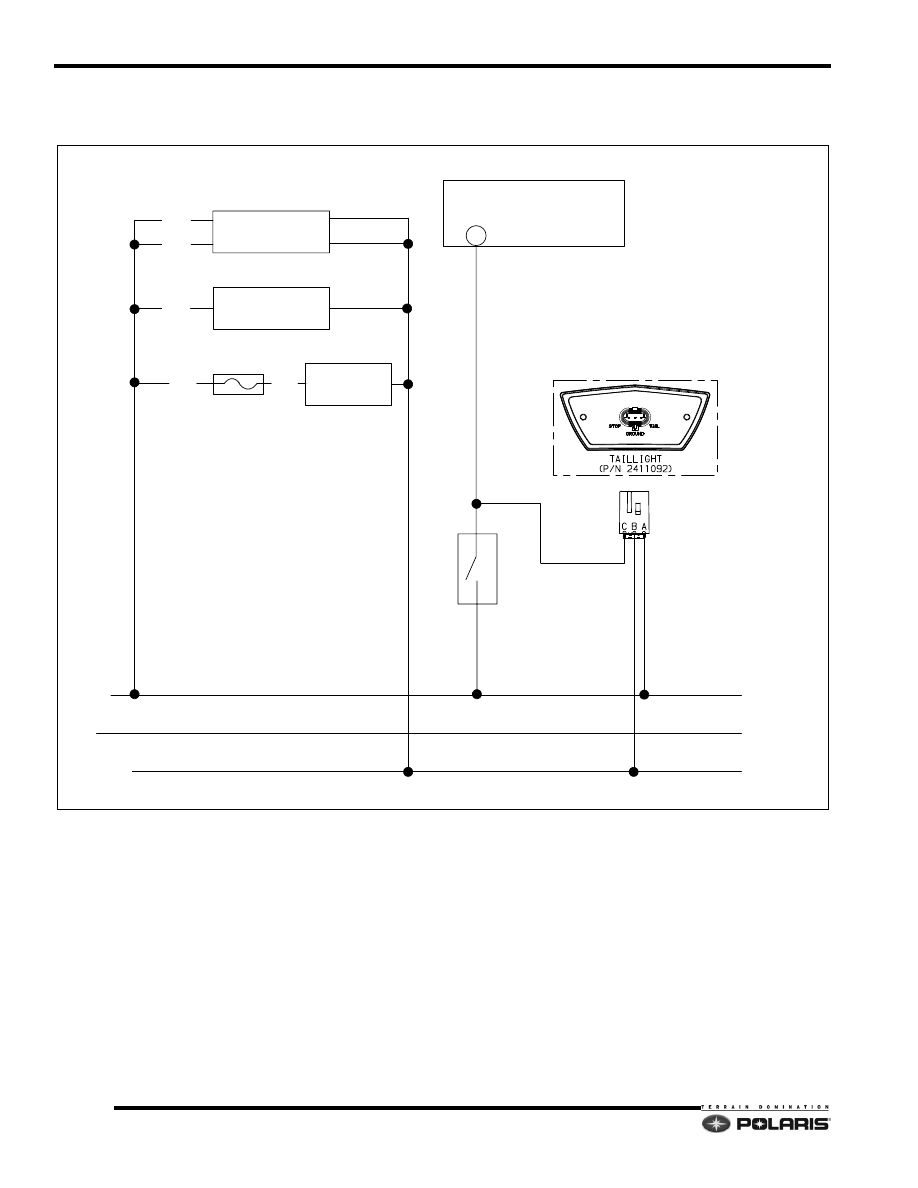

DC-CFI Chassis (Red/White) Power Circuits

REGULATED

DC VOLTAGE

CH / ENG GROUND

DC VOLTAGE

FROM CHASSIS RELAY

RED/WHT

RED

BRN -- DIRECT

DC--CFI ECU 3 4   P I N CNA CONNECTOR

INSTRUMENT CLUSTER

POWER

DC POWER
TEST PLUG

ACCESSORY POWER

PLUG

RD/WH

BN/WH

BROWN

BROWN

RD/YE

2 AMP FUSE

RD/WH

BN/WH

2

28

RD/WH

RD/WH

1

3

ORANGE

OR/BK

11

BRAKE SWITCH

10.29

Battery and Electrical Systems

10

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

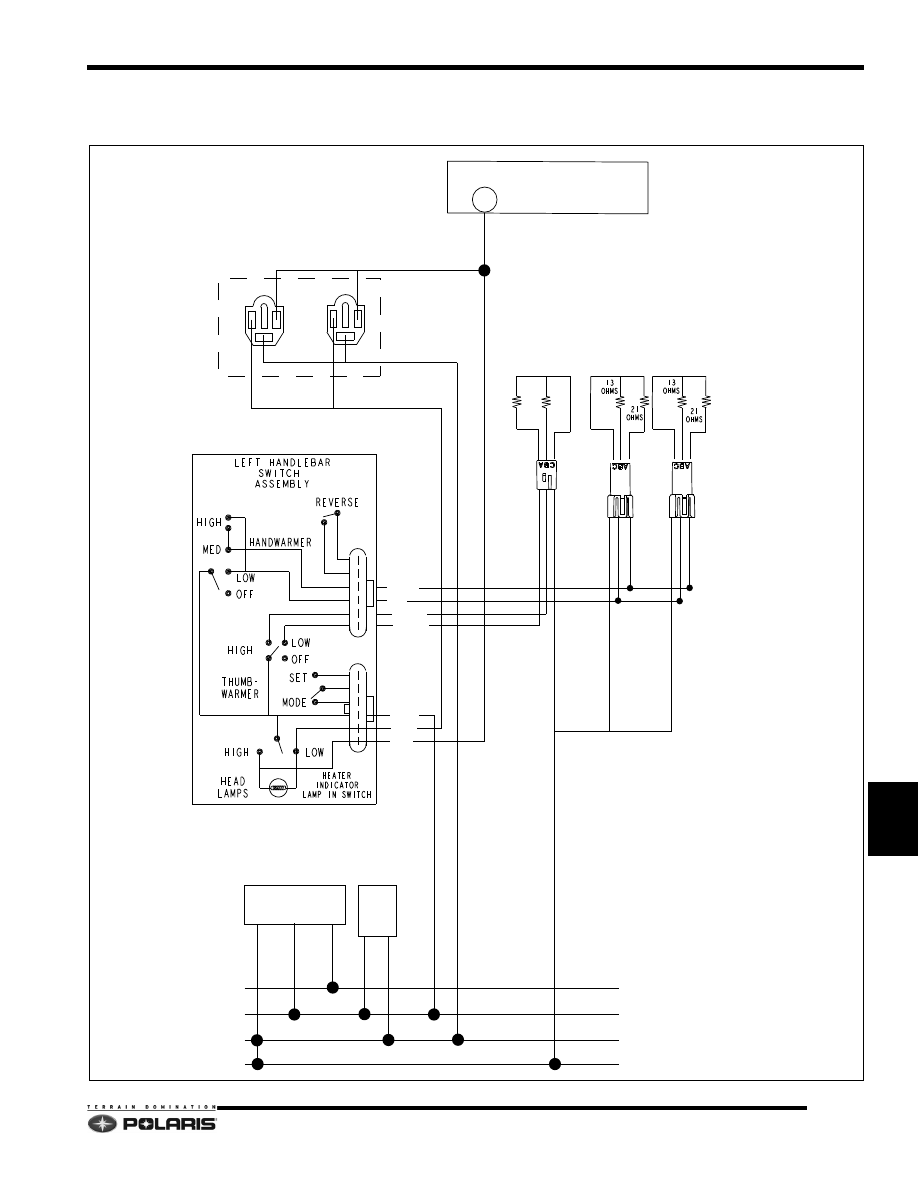

DC-CFI AC Power (Lighting) Circuits

RED/GRN

YELLOW

BROWN

BATTERY VOLTAGE

AC STATOR VOLTAGE

GROUND

AC REGULATOR
RECTIFIER

AC
POWER
TEST

INSTRUMENT CLUSTER

HEAD LIGHTS

THUMB WARMER

HAND WARMERS

BRN/WHT

BRN

BRN

20

BRN/WHT

SWITCHED GROUND

BRN/WHT

ORG/GRN

GRY/WHT

BLU/RED

BLUE

YE/RD

DG/YEL

YE/RD

YE/RD

YELLOW

YE/RD

DG/YEL

10.30

Battery and Electrical Systems

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

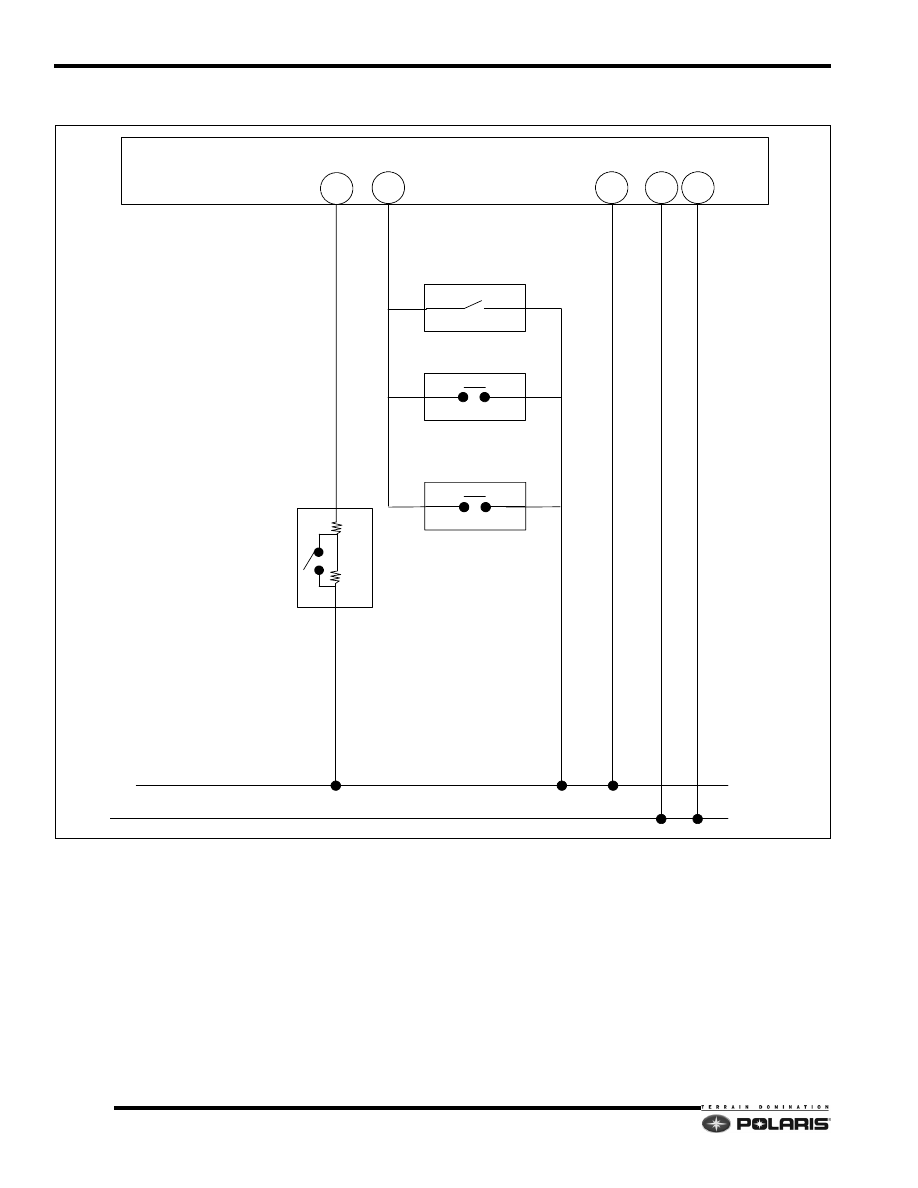

DC-CFI Throttle/Ignition Kill System

System Overview

A software stop is used to determine the position of the
throttle flipper switch. The software stop system is
activated when the throttle flipper switch is closed (closed
throttle), but the TPS (throttle plate position) is still above
idle. When this occurs, the ECU software will determine
the throttle cable is “stuck” and kill the ignition system.

To test the throttle lever, measure the resistance with the
lever pushed and closed and compare results to those in
illustration.

Always verify the throttle lever freeplay is set to
specification.

A hardware stop system is a direct ignition kill system.
That is, whenever the operator turns the key to off, pulls
the tether, or pushes the safety slap switch down, the
ignition system is immediately killed.

SENSOR GROUND

BLK/BLU

DC--CFI ECU CNA CONNECTOR

IGNITION SWITCH

(SWITCH CLOSED WHEN KEY

TURNED TO OFF)

7

TETHER SWITCH

(CLOSED WHEN TETHER

REMOVED)

OPTIONAL

25

SAFETY SLAP SWITCH

(PUSHED = CLOSED)

THROTTLE LEVER SWITCH

2148 OHMS = SWITCH CLOSED/LEVER REL.

6788 OHMS = SWITCH OPEN/LEVER PUSHED

CHASSIS / ENGINE

GROUND

BRN

16

BLK/RED

9

BLACK

15

2148

4640

10.31

Battery and Electrical Systems

10

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

DIAGNOSTIC PLUGS

Power Test Plugs

A set of power test and fuel pump prime plugs allows a
technician to test several electrical circuits on the
snowmobile.

The plugs can be accessed behind the left door panel.

NOTE: The AC power test plug is located on the
handlebar wiring harness on 2011-later models.

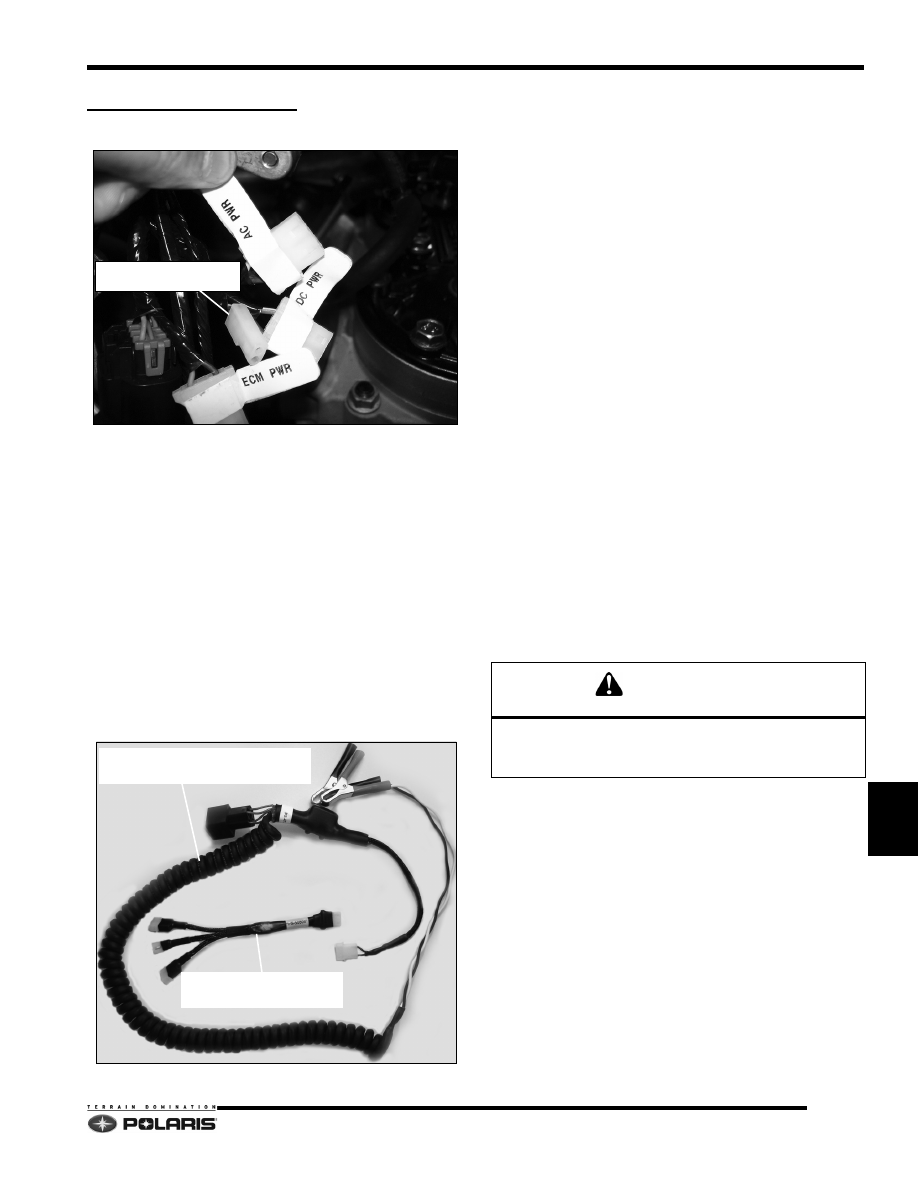

Shown below is the Chassis Power-Up Harness,

PS-47269-A, and Dual Power/Fuel Pump Prime Adapter,
PS-50805.

When both tools are used together, the technician can
supply power to the ECM PWR and DC PWR plugs. This
is required for enabling the security function on 2012
models. Also, the Dual PWR/Fuel Pump Prime Adapter
can connect to the fuel pump prime plug.

DC PWR Plug

Connect the Chassis Power-Up Harness to the DC PWR
plug to supply battery power to the following components:

• Instrument cluster

• DC accessory power points

• LED tail lamp/brake lamp

ECM PWR Plug

Connect the Chassis Power-Up Harness to the ECM
PWR plug to supply battery voltage to the following
components:

• Digital Wrench™ communication connector

• ECU

• Chassis relay driver coil

• VES solenoid

• DC Power capacitor

• Fuel pump power side

Fuel Pump Prime Plug

Use the Chassis Power-Up Harness and Dual PWR/Fuel
Pump Prime Adapter to supply battery voltage to the fuel
pump. This is useful for purging the fuel system of air or
testing fuel pump pressure with the engine off.

AC PWR Plug

The AC circuits can be tested with a multimeter at the AC
PWR plug. AC circuits include the head lights, hand
warmers, and thumb warmer.

NOTE: The AC power test plug is located on the
handlebar wiring harness on 2011-later models.

FUEL PUMP PRIME

CHASSIS POWER-UP HARNESS

PS-47296-A

DUAL PWR/FUEL PUMP PRIME

PS-50805

CAUTION

DO NOT CONNECT BATTERY VOLTAGE TO THE AC

PWR TEST PLUG. SEVERE ELECTRICAL SYSTEM

DAMAGE WILL OCCUR.
